ATTACH YOUR RECEIPT HERE
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
ITEM #2599779/1059430/1059429/5737474
MODEL #42223/42466/42467/43386
MONROEM CEILING FAN
Español p. 20
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
Purchase Date _________________________
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at [email protected].
ST25109
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Wiring .........................................................................11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions .............................................................15
Care and Maintenance ............................................................16
Troubleshooting ..................................................................16
Limited Lifetime Warranty ..........................................................18
Replacement Parts List ............................................................19
3

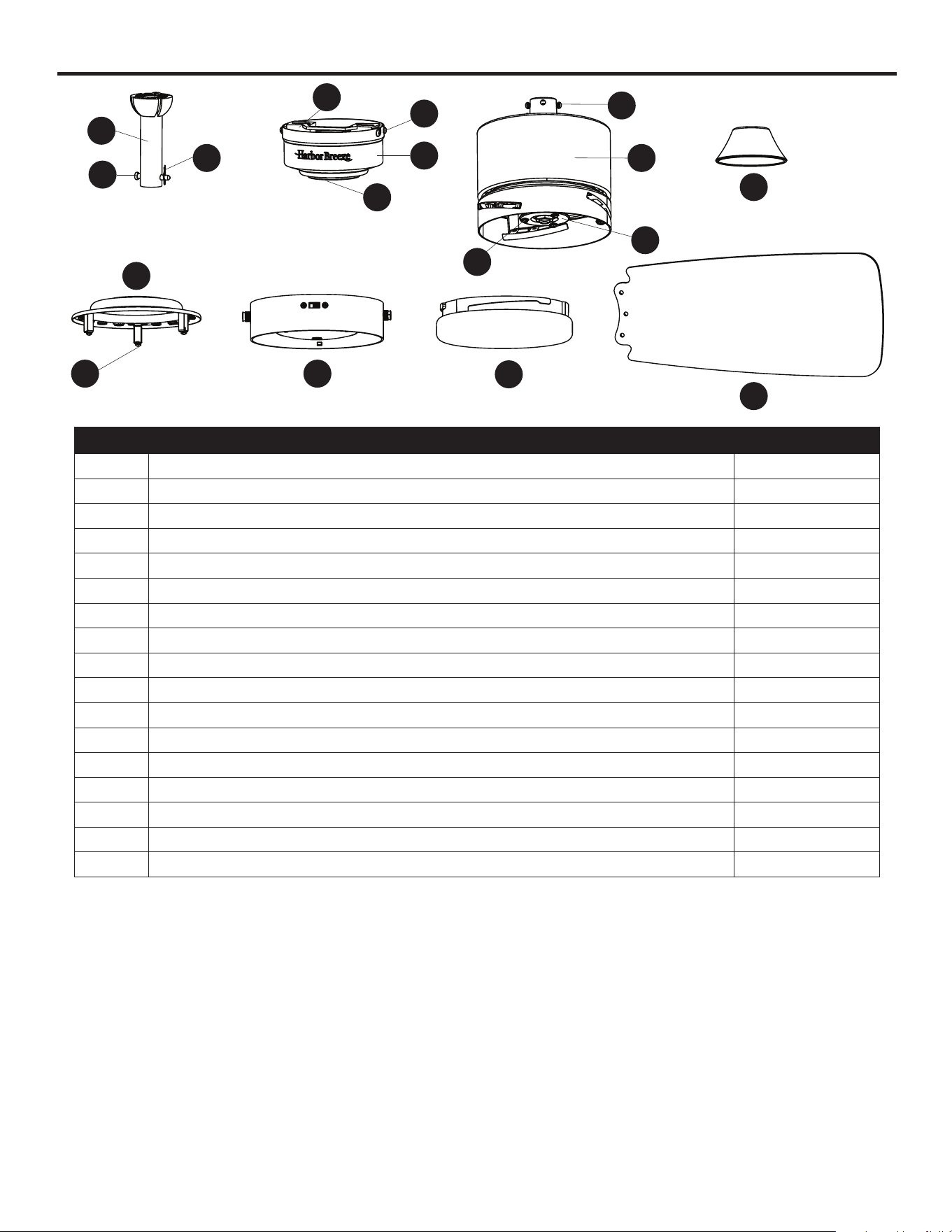

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
G Motor Assembly 1
H Yoke Cover 1
I Light Pan 1
J Light Pan Screw (preassembled to Light Pan [I]) 3
K Light Kit 1
L Glass Bowl 1
M Blade 3
N Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
O Fitter Plate 1
P Fitter Plate Screw (preassembled to Fitter Plate [O]) 3
R Set Screw (preassembled to Motor Assembly [G]) 2
A
B
C
M
P
O
D
E
F
G
R
H
I
N
KJ
L
4

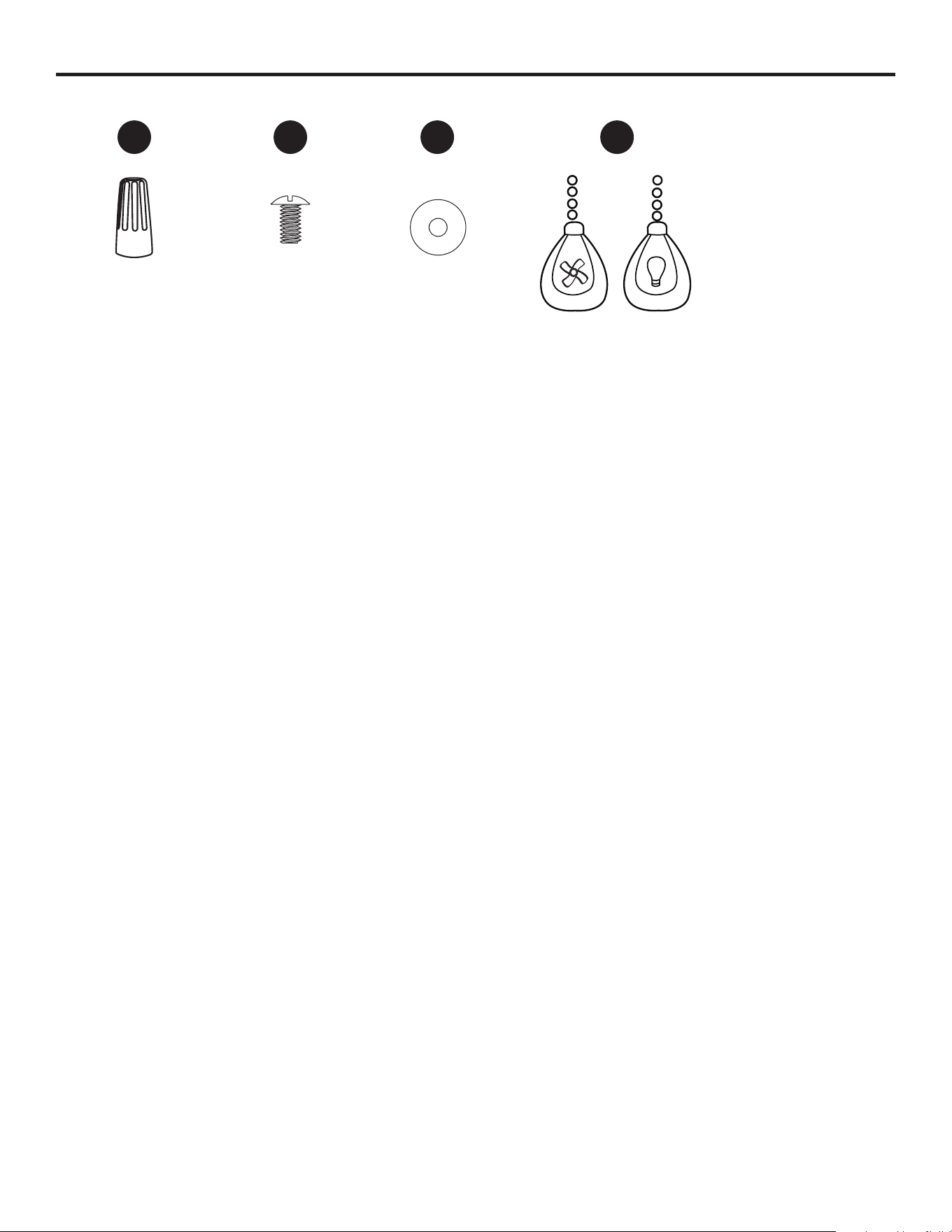

HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 9
+ 1 extra
Blade Washer
Qty. 9
+ 1 extra
Pull Chain Extension
Qty. 2
AA
BB CC DD
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 11.84 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use this fan with any solid-state
speed control device.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an outlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electric shock or personal injury, wire connectors provided
with this fan are designed to accept only one12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: 1) This device may cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1-888-251-1003
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
7

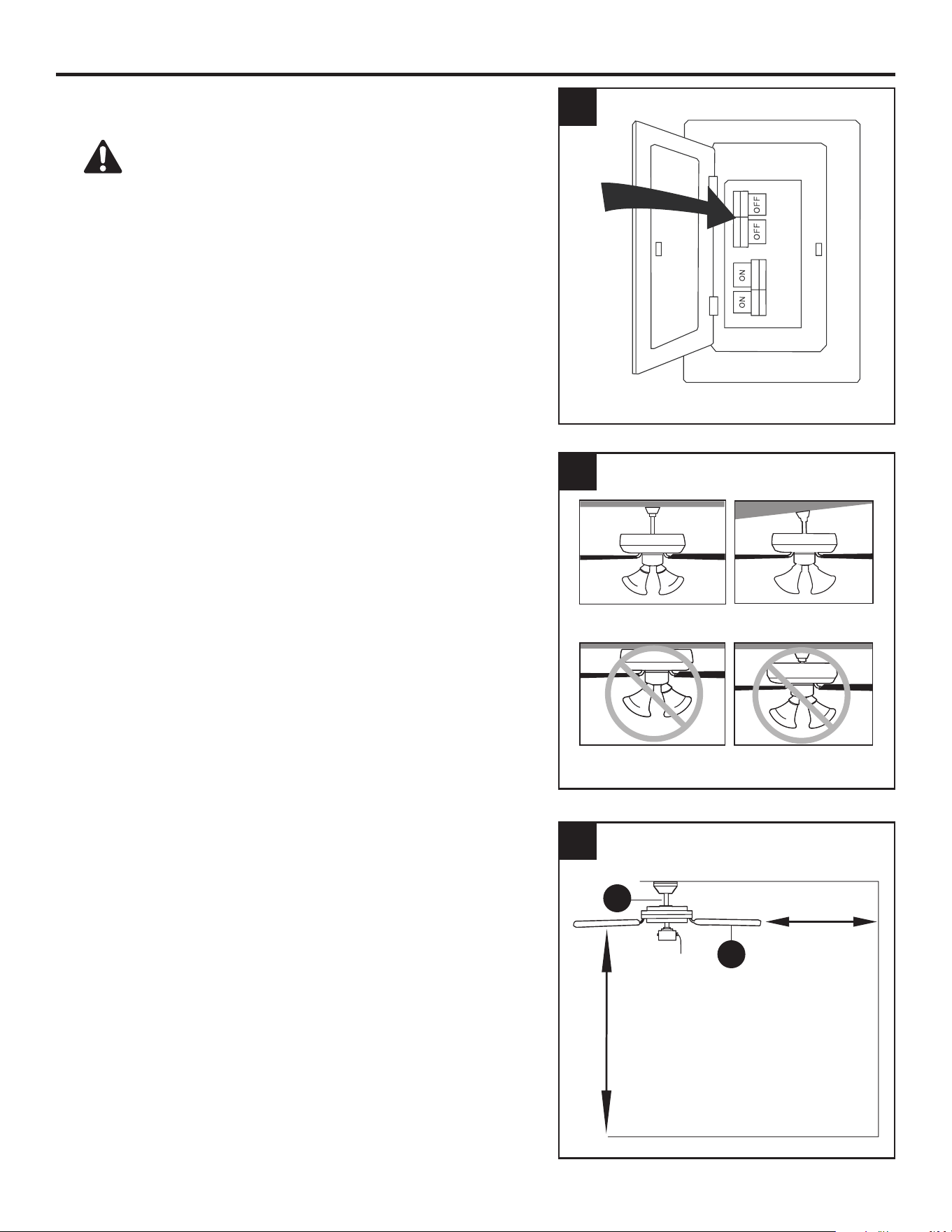

INITIAL INSTALLATION
1. Turn o the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft. or
higher. For taller ceilings you may want to use a longer
downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance. Note: If using the angle
mount, check to ensure the ceiling angle is not steeper
than 16°.
Flushmount installation is not available for this item.
Closemount installation is not available for this item.
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (M) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (M) will be at least 7 ft. above the
oor.
7 feet
minimum
30 in.
minimum
3
1
M
A
2
8
D
INITIAL INSTALLATION

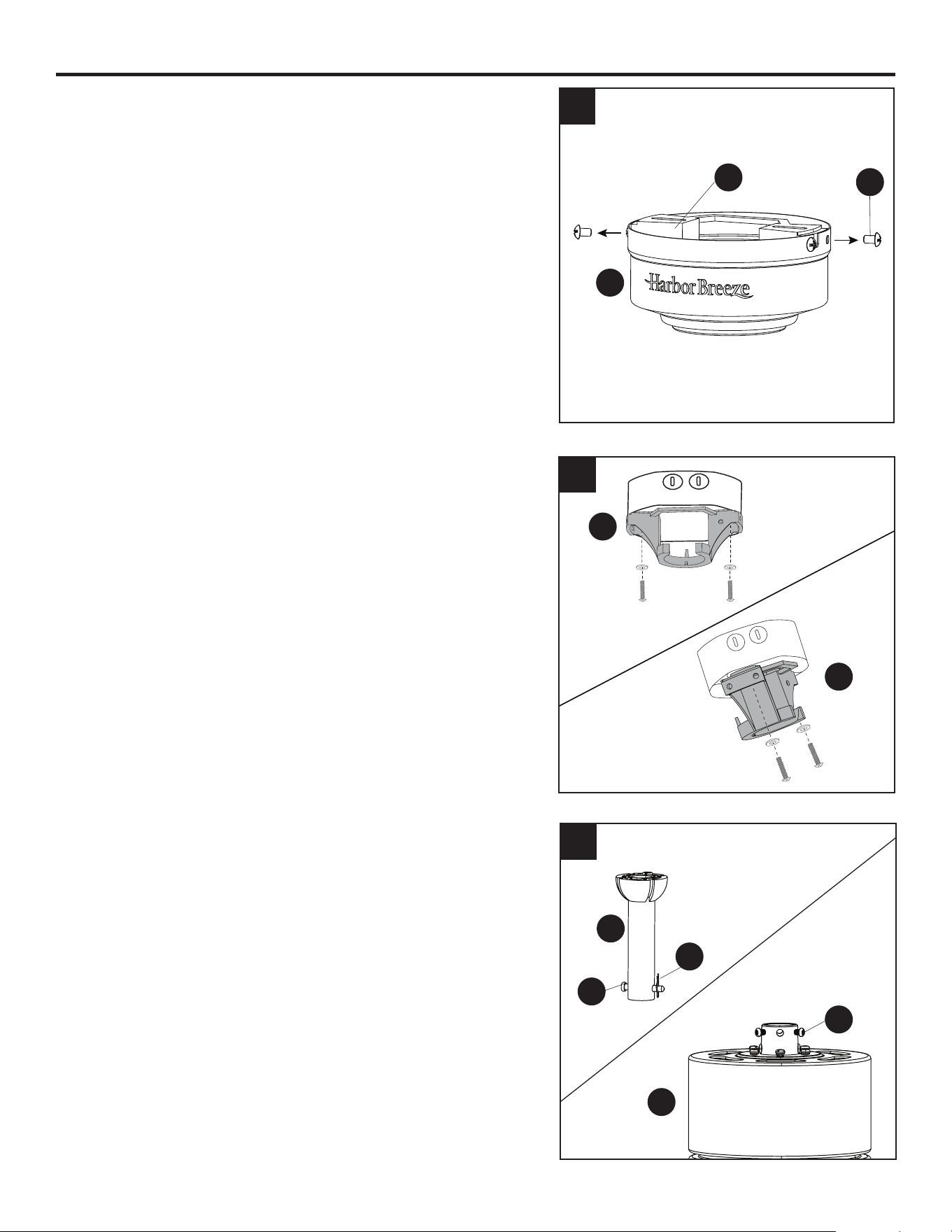

4. Loosen all four preassembled mounting bracket
screws (N), then completely remove the two
mounting bracket screws (N) from the round holes
of canopy (E). Set aside for later use. Turn the
canopy in a counterclockwise direction.
Detach mounting bracket (D) from canopy (E).
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
6. Remove the downrod clip (C) and downrod pin (B)
from the downrod (A). Then partially loosen the
set screws (R) in the yoke at the top of the motor
assembly (G).
5
6
E
D
D
D
N
C
B
G
A
R
4
Standard
Mount
Angle
Mount
9
INITIAL INSTALLATION

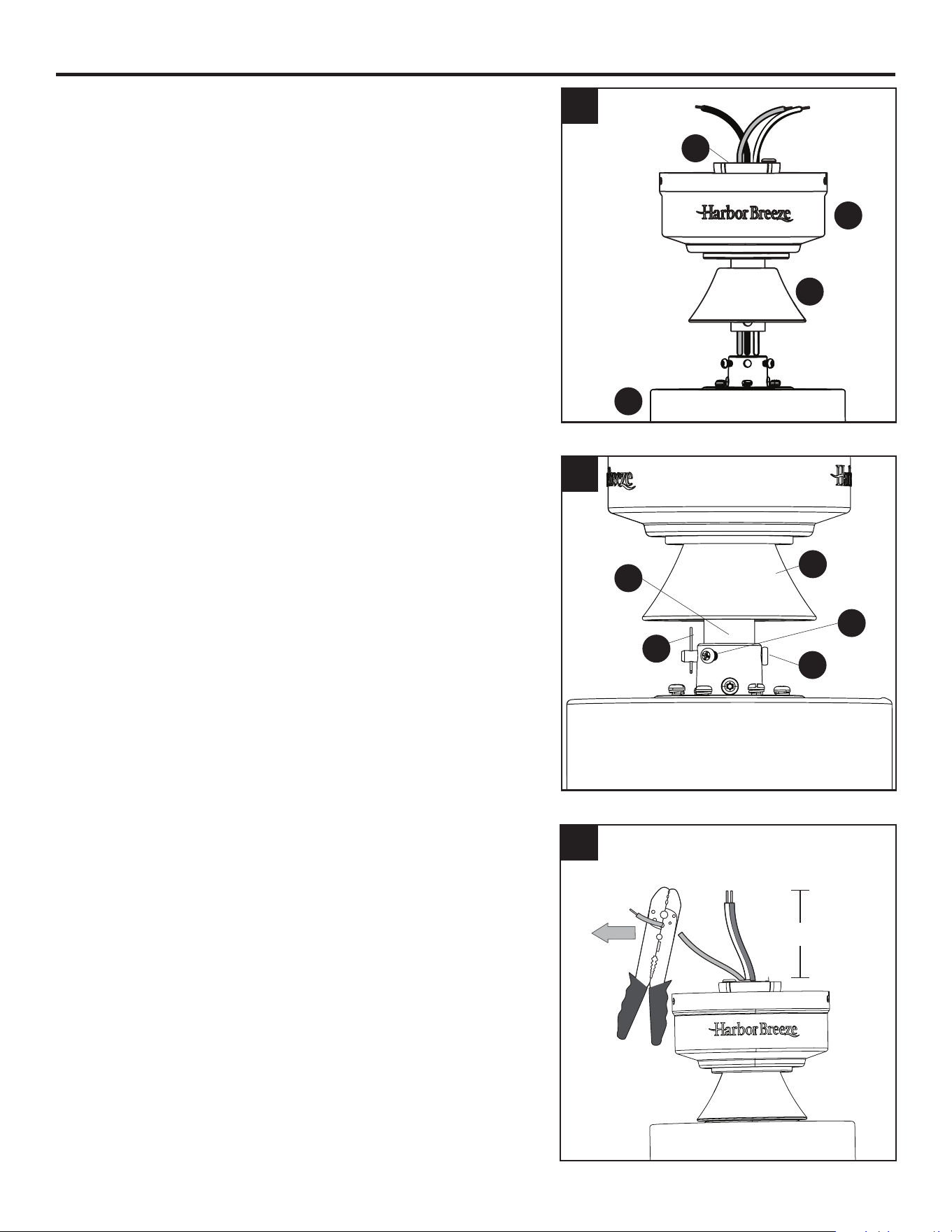

7. Insert the downrod (A) through the canopy (E) and
yoke cover (H). Feed the wires from the fan through
the downrod (A).
8. Slide the downrod (A) into the yoke, align the holes,
then re-install the downrod pin (B) and downrod clip
(C). Secure with set screws (R) and slide the yoke
cover (H) down until it rests on top of the motor
assembly (G).
9. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, take
the lead wires and make sure you have pulled them
all the way through the top of the downrod. Measure
at least 8 inches of lead wire, then cut the excess wire
o with wire cutters (not included).
7
8
9
8 in.
E
H
H
C
A
R
B
G
A
10
INITIAL INSTALLATION

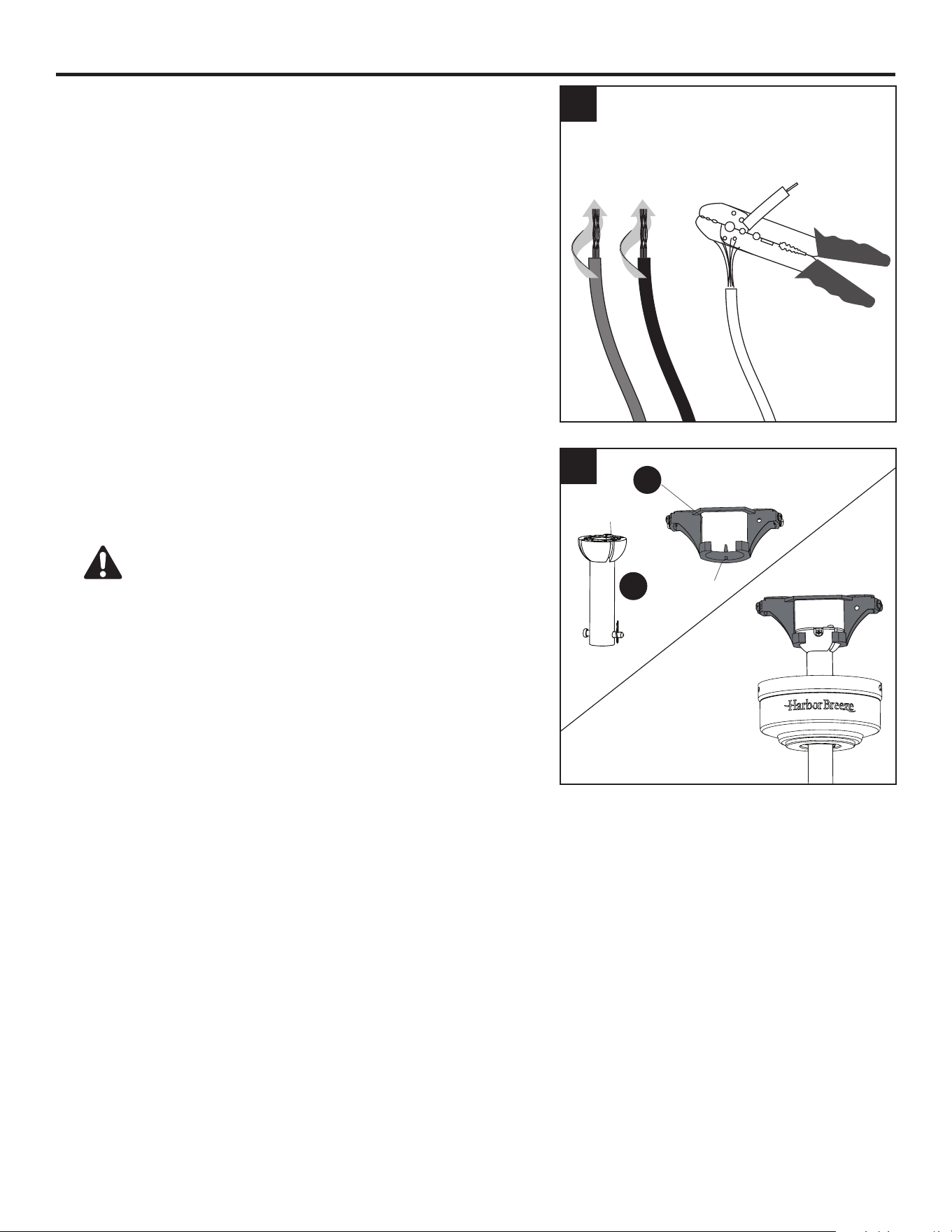

10. If you decided to cut back the lead wire in Step 9, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within the
insulation with pliers (not included). Repeat this step for
black and blue wires.
Note: If you did not cut back the lead wires in Step 9,
Step 10 is not necessary and you may proceed to Step
11.
11. Install the ball end of the downrod (A) into the opening
of mounting bracket (D). Align one of the four slots in the
ball with the tab in the mounting bracket (D). Note: The
downrod (A) should not rotate if installed correctly.
DANGER: Failure to align the slot in the downrod
(A) with the tab of the mounting bracket (D) may cause
the fan to wobble or fall, which could result in serious
injury or death.
10
11
A
D
Slot
Tab
11

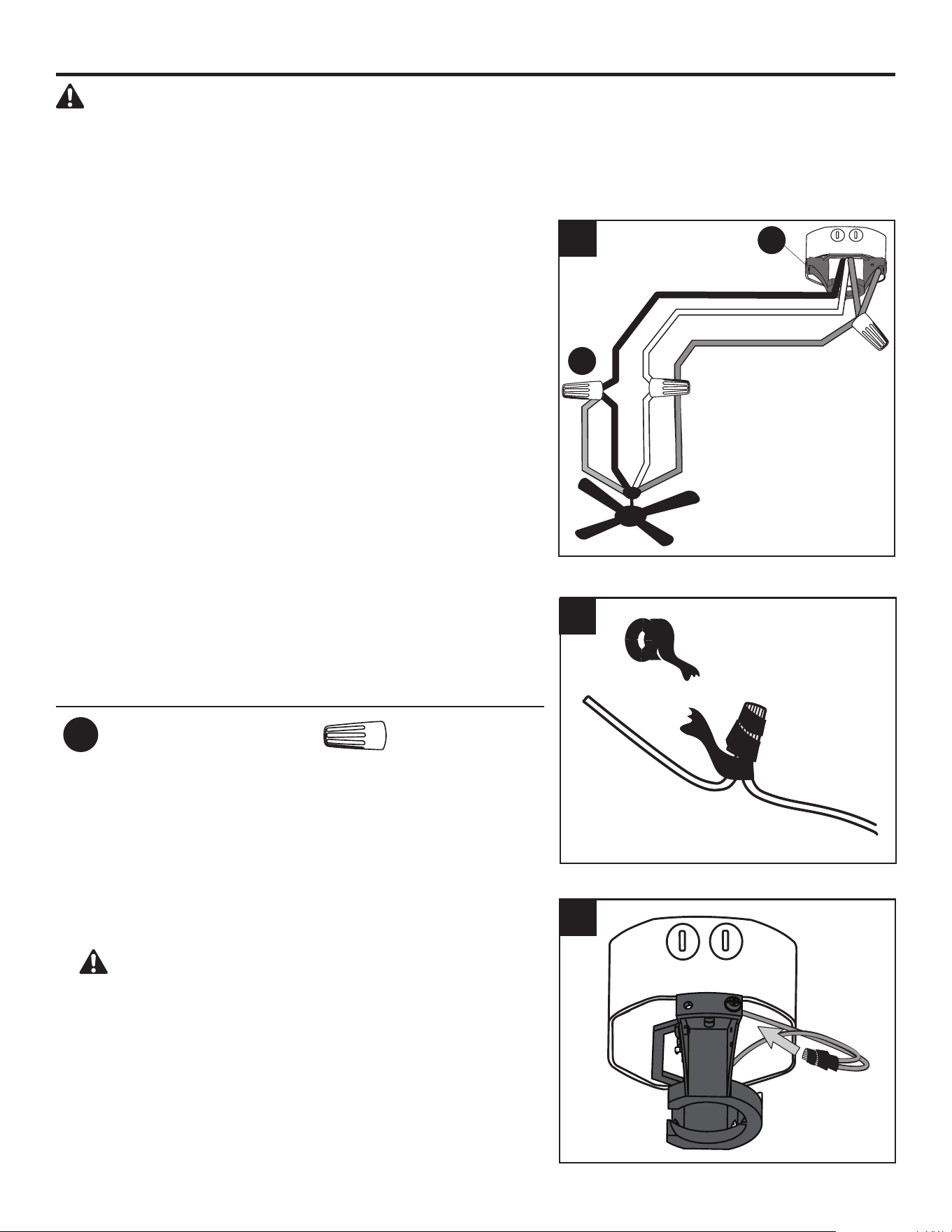

WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
• Connect the Green wire from downrod and mounting
bracket to the Bare/Green supply wire.
• Connect the White wire from the fan to the White
supply wire.
• Connect the Blue and Black wires from the fan to the
Black supply wire.
• Secure all wiring connections together with wire
connectors (AA).
Note: If there is a second hot/power wire coming from the
outlet box, connect it to the blue (light power) fan wire for
separate light and fan control.
Note: The Black wire is hot power for the fan. The White
wire is common for the fan and light kit. The Blue wire is
hot power for light. The Green wire is the ground wire. If
household supply wires are dierent colors than referred
to above, it is recommended a professional electrician
determines the proper wiring.
Hardware Used
AA
Wire Connector x 3
Black (hot)
White (neutral)
Bare/Green
(ground)
Black
Blue
White
Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push the
wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Green
and White wire connections on the opposite side of the
outlet box from the Black and Blue wire connections.
1
3
AA
D
2
Warning: Do NOT use
this fan with any solid-
state speed control
device.
12

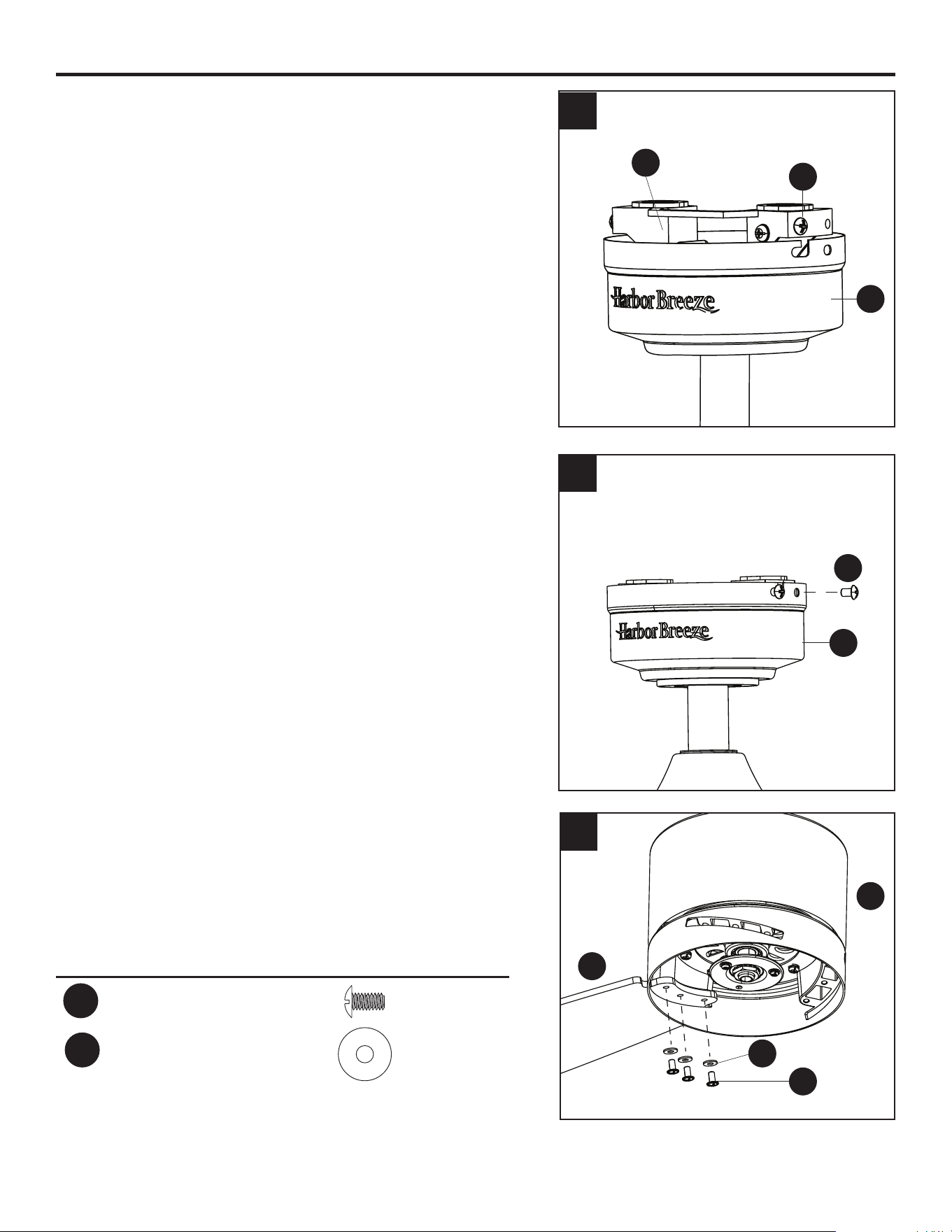

FINAL INSTALLATION
1. Align the canopy (E) over the loosened mounting
bracket screws (N) preassembled on mounting
bracket (D). Place the keyholes of the canopy (E)
onto the mounting bracket screws (N) and rotate the
canopy (E) clockwise.
2. Secure the canopy (E) with the mounting bracket
screws (N) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (N) securely.
3. Insert blade (M) through slot in the side of the motor
assembly (G). Align the holes of one blade (M) with
three blade screw holes in underside of the motor
assembly (G). Secure blade (M) with three blade
screws (BB) and blade washers (CC). Repeat for the
remaining blades (M).
Hardware Used
BB
Blade Screw x 9
Blade Washer x 9
1
2
E
E
N
D
N
3
BB
CC
M
G
CC
13

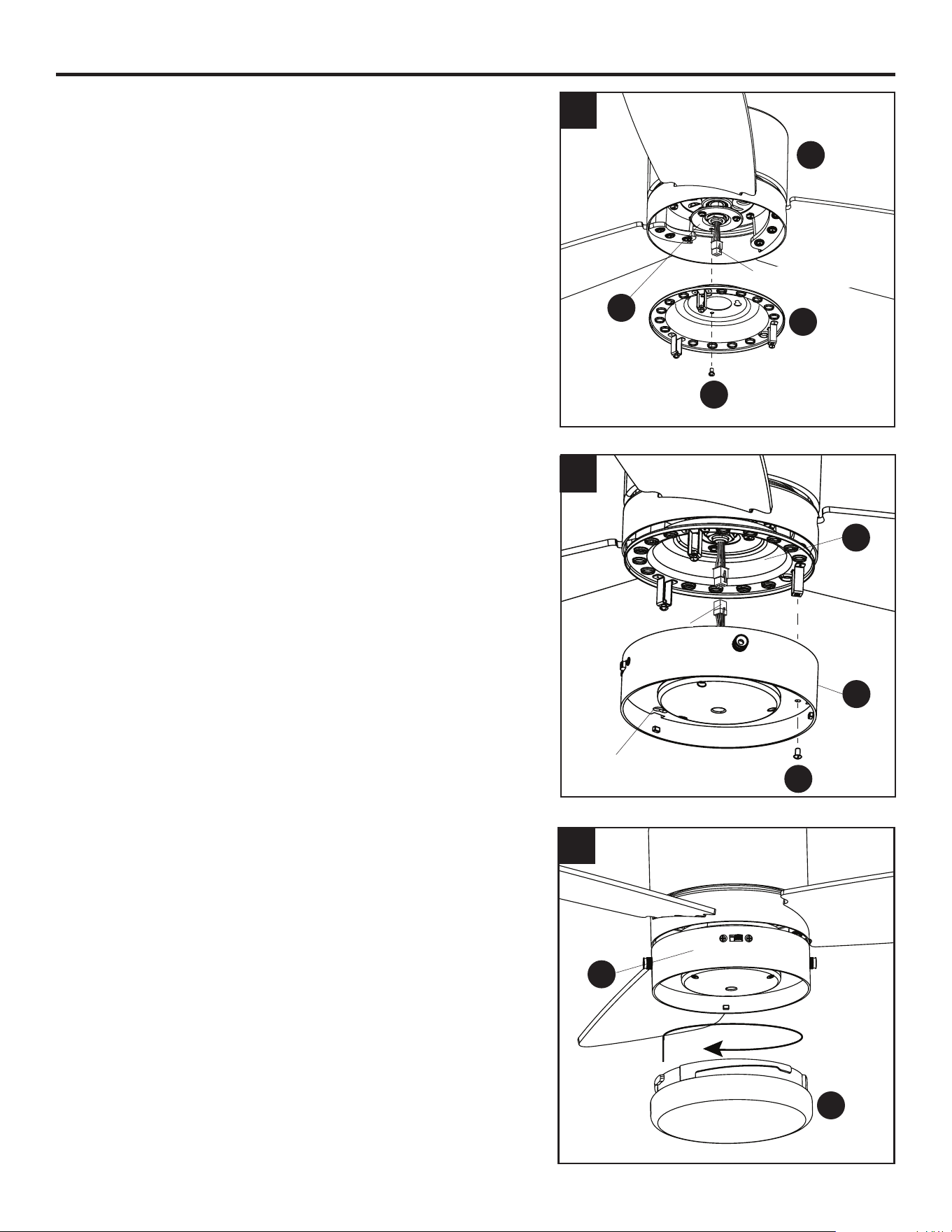

FINAL INSTALLATION
4. Remove one and loosen the other two tter plate
screws (P) but do not remove from tter plate (O).
Feed the 9-pin connector through center hole in light
pan (I). Align the two key slots in the light pan (I) with
the loosened tter plate screws (P). Place the light
pan (I) over the two screws and turn the light pan (I)
clockwise. Then tighten the two tter plate screws (P).
Re-install the tter plate screw (P) that was removed
in the previous step and tighten rmly.
5. Remove one and loosen the other two light pan
screws (J) but do not remove from the light pan (I).
Connect the 9-pin connector from the light kit (K) and
the tter plate (O). Lift the two keyhole slots in the
light kit (K) over the two loosened light pan screws
(J). Then, turn the light kit (K) clockwise and re-install
the previously removed light pan screw (J). Tighten all
three light pan screws (J).
6. Lift the glass bowl (L) into the light kit (K) and turn in a
clockwise direction until it is secure. CAUTION: Avoid
cross-threading the glass during installation. Improper
installation could cause the glass bowl (L) to be
dicult to remove or fall, which could cause serious
injury.
4
5
J
K
K
6
L
I
O
I
P
9-Pin Connector
9-Pin Connector
Key Hole
G
14

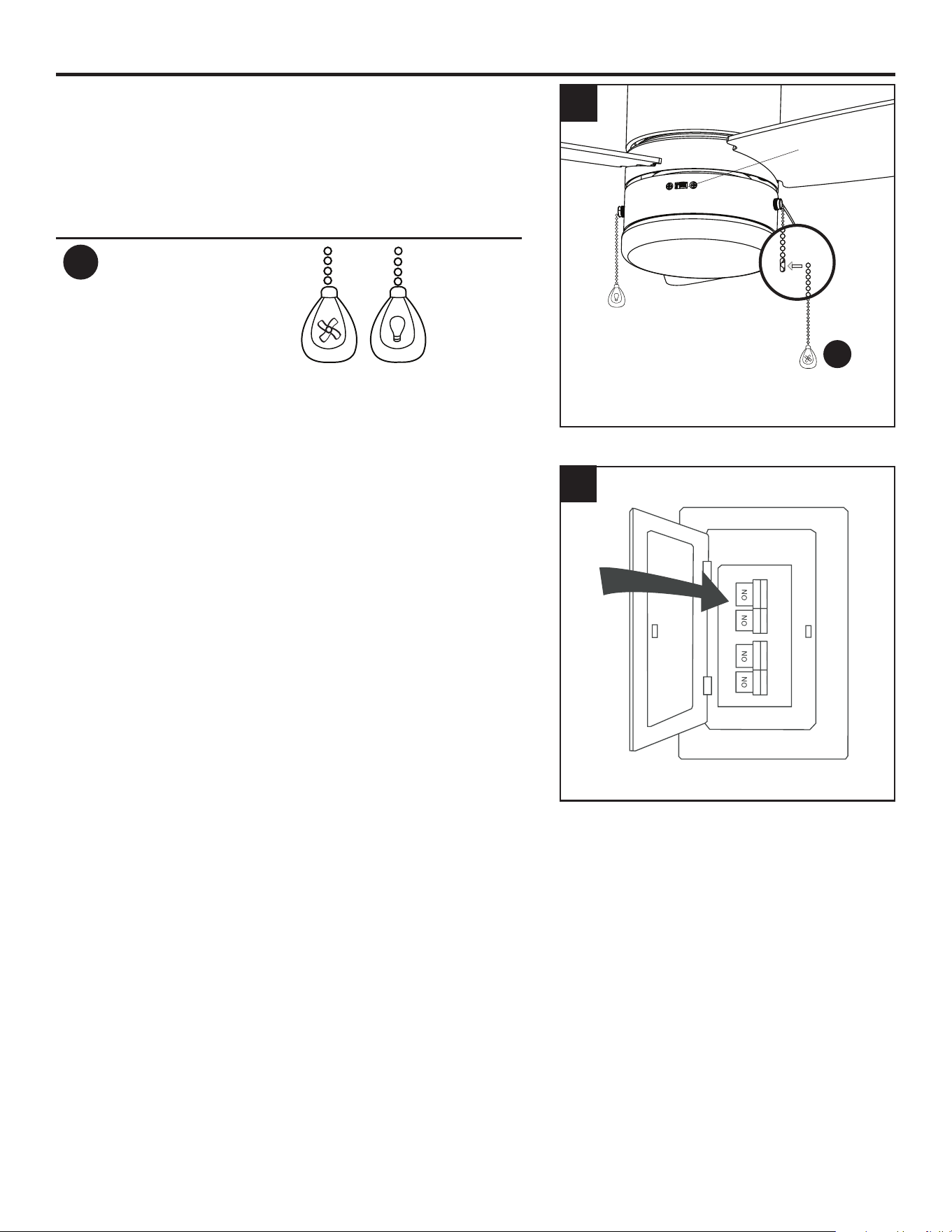

FINAL INSTALLATION
7. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light pull
chains.
Note: When facing the reverse switch, the light pull
chain is on the left and the fan pull chain is on the right.
Hardware Used
DD
Pull Chain
Extension
x 2
8. Turn on power supply to the fan.
Assembly is complete.
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
7
DD
Light Pull
Chain
Fan Pull
Chain
Reverse
Switch
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
8
15

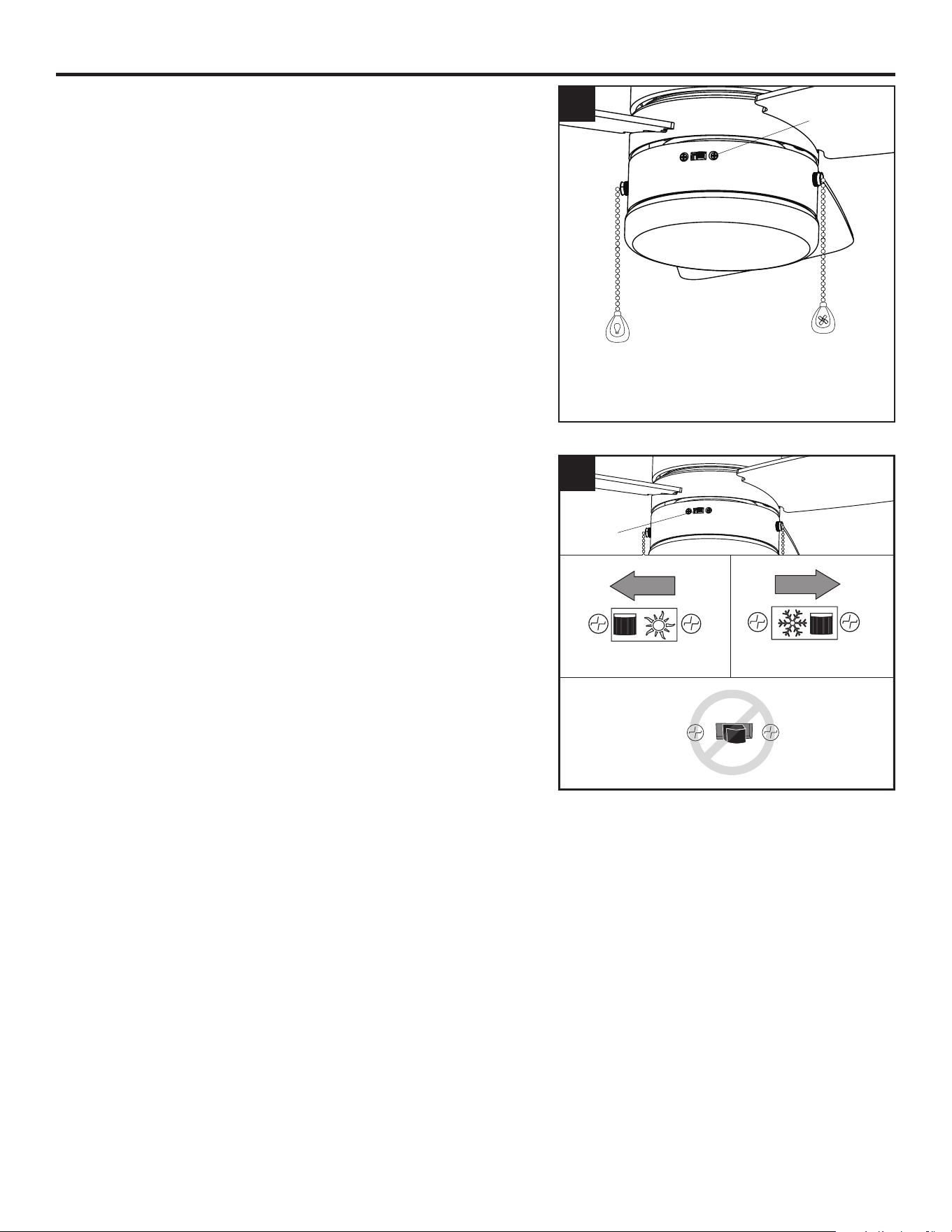

OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control the fan
speed. One pull is high, two is medium, three is low,
and four turns the fan o. The light pull chain turns the
light on and o.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch left to
display a sun icon, which will result in downward airow
creating a wind chill eect (Fig. 2a).
In cooler weather, push the reverse switch right to
display a snowake icon, which will result in upward
airow that can help move hot air o the ceiling area
(Fig. 2b).
Important: The reverse switch must be set either
completely left or right for the fan to function correctly. If
the reverse switch is set in the middle position, the fan
will not operate (Fig. 2c).
Light Pull Chain
Fan Pull Chain
Fig. 2a Fig. 2b
Fig. 2c
2
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
1
Reverse
Switch
Reverse
Switch
16
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor assembly with only a soft brush or lint-free cloth to avoid
scratching the nish. Clean the blades with a lint-free cloth.
Bulb Replacement: Total xture wattage is 18.5 watts; do not attempt to replace LED.
Important: Shut o the main power supply before you begin any maintenance task. Do not use water
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o or the fuse is
blown.
2. There is a faulty wire
connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. Turn the power o. Loosen the
canopy and check all connections.
3. Check that the connectors from
the light kit and fan are connected
properly.
4. Push the season slide switch
completely to the left or right.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.
17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade arms
are loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screws on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
a blade balancing kit (sold separately).
3. Turn o the power. Loosen the canopy
and verify that the mounting bracket
is secure to the electrical outlet box.
The bracket must be ush without
movement against the outlet box.
Verify the outlet box is secure.
4. Use a longer downrod (sold
separately) or move the fan to another
location.
5. Lift the yoke cover and tighten the set
screws on the yoke until secure.
The fan operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are not
connected properly.
2. There is a faulty wire
connection.
1. Ensure that the 9-pin connectors from
the light kit are connected properly.
2. Turn the power o and check all
connections at the ceiling outlet box.
18
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects
in workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within
the rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of
metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to
you.
19
Printed in China

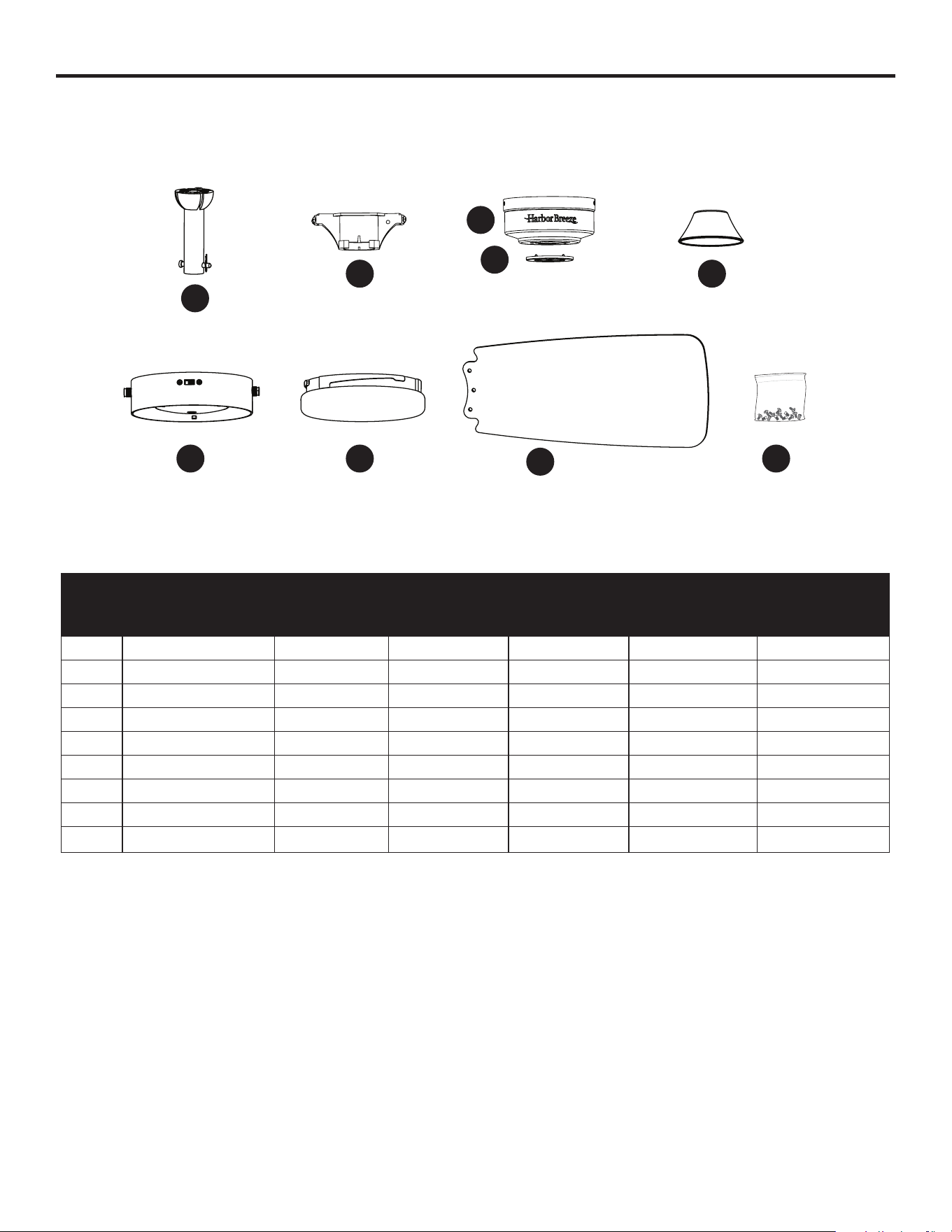

REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
PART DESCRIPTION #2599779 #1059430 #1059429 #5737474 COVERED
UNDER
WARRANTY
A Downrod 4L000011630 4L000007500 4L000015030 4L000013820 YES - 1 year
D Mounting Bracket 4L000006350 4L000006410 4L000011050 4L000006350 YES - 1 year
E Canopy 4L000013630 4L000007150 4L000015040 4L000013350 YES - 1 year
F Canopy Cover 4L000008290 4L000000830 4L000011080 4L000010400 YES - 1 year
H Yoke Cover 4A000003540 4A000005540 4A000008660 4A000009350 YES - 1 year
K Light Kit 4L000013640 4L000015070 4L000015050 4L000018860 YES - 1 year
L Glass Bowl 4L167410001 4L167410001 4L167410001 4L167410001 NO
M Blade (x3) 4L085860001 4L085860003 4L085860002 4L085860004 YES - 1 year
HW Hardware Kit 4L000013650 4L000015080 4L000015060 4L000018870 NO
9688 PB • 070125
H
M
K L
A
D
E
F
HW
