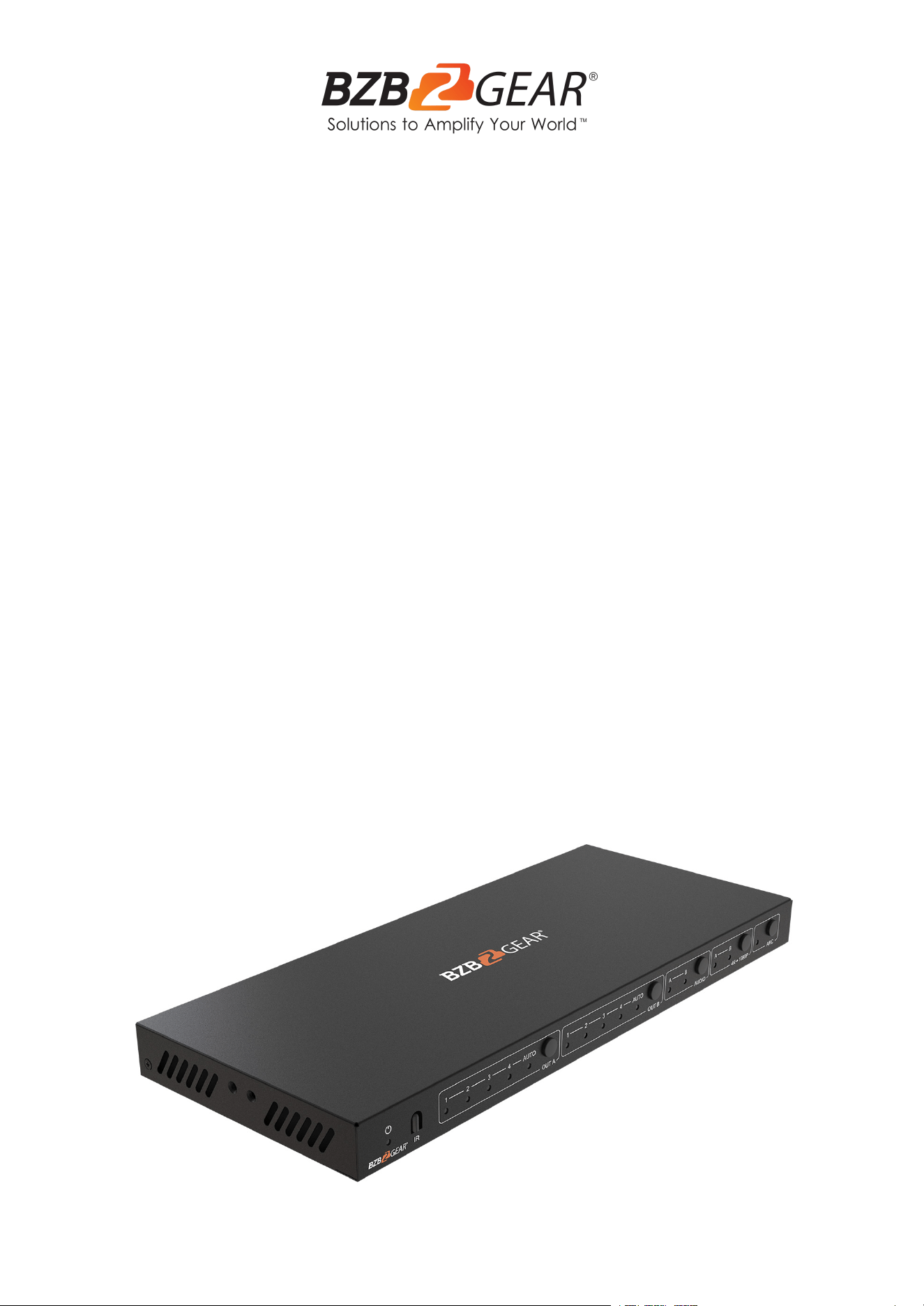

BG-UHD-42M
4x2 HDMI 2.0 Matrix Switcher with Audio
Extraction & ARC, HDMI Downscaling, and EDID Management
User Manual
BZBGEAR BG-UHD-42M PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-UHD-42M PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
Application Example 10
Tech Support 11
Limited Product Warranty Terms 11
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-UHD-42M PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacturer.
● Product specifications may be subject to technical upgrades without further notice
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-UHD-42M PRODUCT MANUAL
Introduction
The BZ-UHD-42M HDMI Matrix Switcher can switch any of its four connected HDMI
sources to two connected HDMI displays. It supports resolutions of up to 4K2K@60Hz
YCbCr 4:4:4 at 18Gbps and it is also HDCP 2.2 compliant. It can extract HDMI source
device audio to S/PDIF optical and analog 3.5mm stereo mini (L/R) outputs. It supports
4K→1080P downscaling if the source is 4K but TV only supports up to 1080P. It also
supports ARC and EDID (AUTO/COPY/ STD) functionality. Flexible control via front panel
buttons and IR remote allow users to easily manage the device.
Features
● HDMI 2.0, HDCP 2.2 / HDCP 1.4, and DVI 1.0 compliant
● 4 HDMI inputs and 2 HDMI outputs
● Video resolution up to 4K2K@60Hz YCbCr 4:4:4
● 18Gbps uncompressed bandwidth on all HDMI
● Dolby Vision, HDR 10+, HLG, and CEC function
● Extract HDMI input source device audio of OUT A or OUT B to S/PDIF optical and
3.5mm stereo analog L/R outputs
● OUT A and OUT B support 4K to 1080P downscaling
● ARC (Audio Return Channel) functionality
● Advanced EDID management including AUTO, COPY, and STD
● Control via front panel buttons or IR remote
Packing List
● 1x HDMI 2.0 Matrix Switcher
● 1x 12V/1A Locking Power Adapter
● 2x Mounting Ears
● 1x IR Remote
● 1x User Manual
● 1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-UHD-42M PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolution
Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz. All HDMI
3D TV formats, etc.
Color Space
RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
Color Depth
8-bit, 10-bit, 12-bit [1080P, 4K@30Hz, 4K@60Hz (YCbCr
4:2:0)] 8-bit [4K@60Hz (YCbCr4:4:4)]
HDMI Audio Formats
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Optical Audio Formats
PCM2.0, Dolby Digital / Plus, DTS
L/R Audio Formats
PCM 2.0CH (Note: If the ARC function is turned on, the audio
port will mute.)
ESD Protection
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact
discharge)
Connections
Input Ports
4× HDMI Type A [19-pin female]
Output Ports
2× HDMI Type A [19-pin female] 1× L/R audio out [3.5mm
Stereo Mini-jack] 1× dOPTICAL audio out [S/PDIF]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
9.9"(W) x 4.1”(D) x 0.79"(H) [251mm(W) x 105mm(D) x
20mm(H)]
Weight
1.97lbs [620g]
Power Supply
Input: AC100~240V 50/60Hz Output: DC12V/1A
Power Consumption
3.8W (max)
Operating Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity
20~90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-UHD-42M PRODUCT MANUAL
Operation Controls and Functions

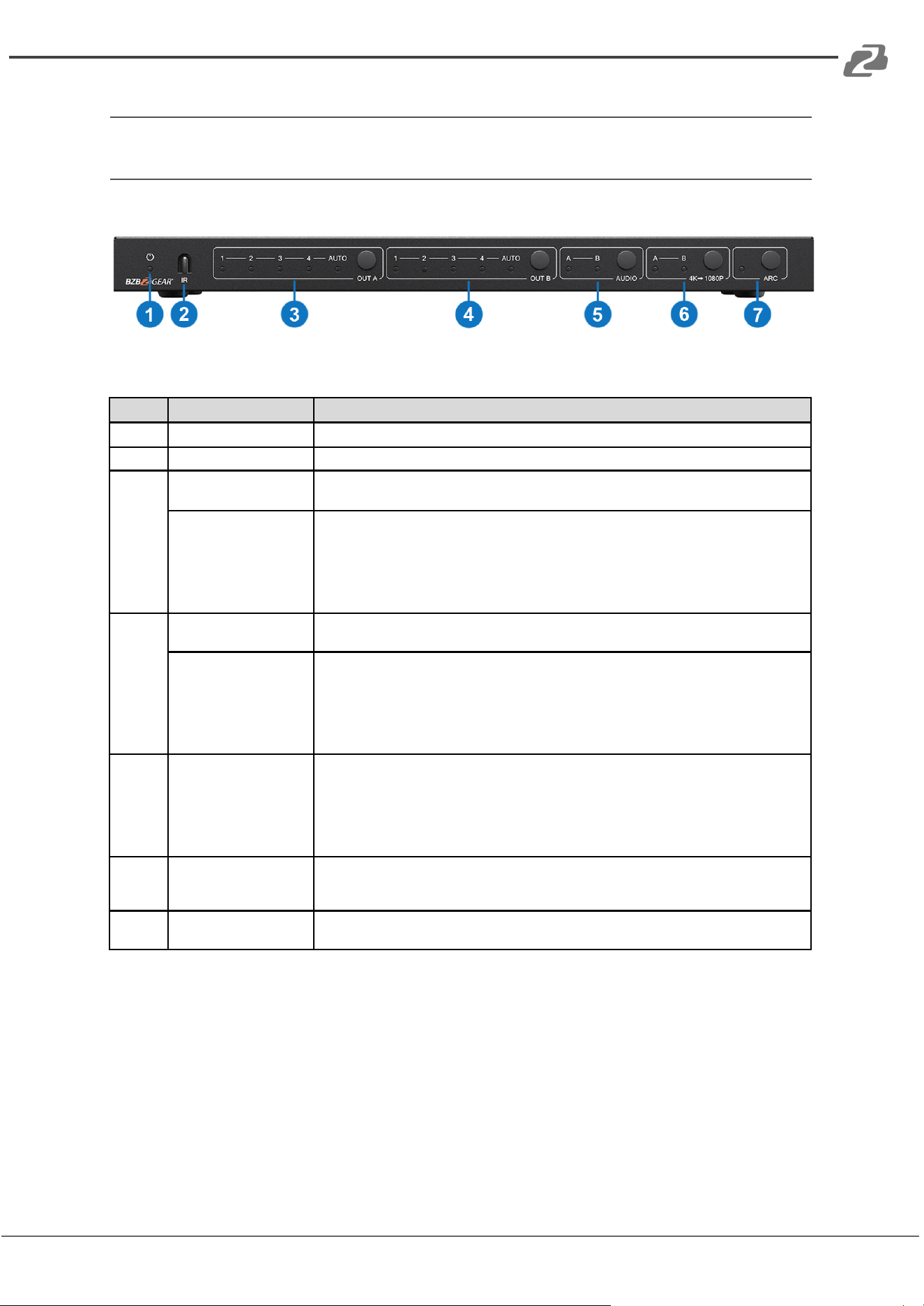

Front Panel
Number
Name
Function description
1
Power LED
The blue LED will illuminate when the product is connected to the power supply.
2
IR
IR receiver window. It only receives IR remote signals from this product's remote.
3
OUT A button and LED
Press the OUT A button to select an input source to OUT A output, the corresponding
blue LED will illuminate.
AUTO LED
The blue AUTO LED will illuminate and the AUTO function will be turned on when you
press the OUT A button for up to 3 seconds. Press the OUT A button up to 3 seconds
again and it will turn off the AUTO function.
AUTO function: Detects input signal source. If the AUTO function is turned on and
multiple HDMI sources are connected then the OUT A port will output the signal from the
last connected input source.
4
OUT B button and LED
Press the OUT B button to select an input source to OUT B output, the corresponding
blue LED will illuminate.
AUTO LED
The blue AUTO LED will illuminate and the AUTO function will be turned on when you
press the OUT B button for up to 3 seconds. Press the OUT B button up to 3 seconds
again and it will turn off the AUTO function.
AUTO function: Detects input signal source. If the AUTO function is turned on and
multiple HDMI sources are connected then the OUT B port will output the signal from
the last connected input source.
5
AUDIO button
● Press the AUDIO button to select and extract the input source audio from OUT A port
or OUT B port to the optical and analog L/R outputs. The corresponding blue LED will
illuminate for the selected source.
● If ARC functionality is turned on, press the Audio button to select the return the audio
signal from OUT A or OUT B display device to the optical output and the
corresponding blue LED will illuminate. The analog 3.5mm L/R port will be muted.
6
4K—1080P
button
Press the button to select OUT A or OUT B 4K—1080P downscaling function and the
corresponding blue LED will illuminate. For example, if the source is 4K but the TV only
supports 1080P, the input resolution of 4K will downscale to 1080P to the HDMI output.
7
ARC button
Turn on / off ARC function. The ARC LED will illuminate when you turn on the ARC
function.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-UHD-42M PRODUCT MANUAL

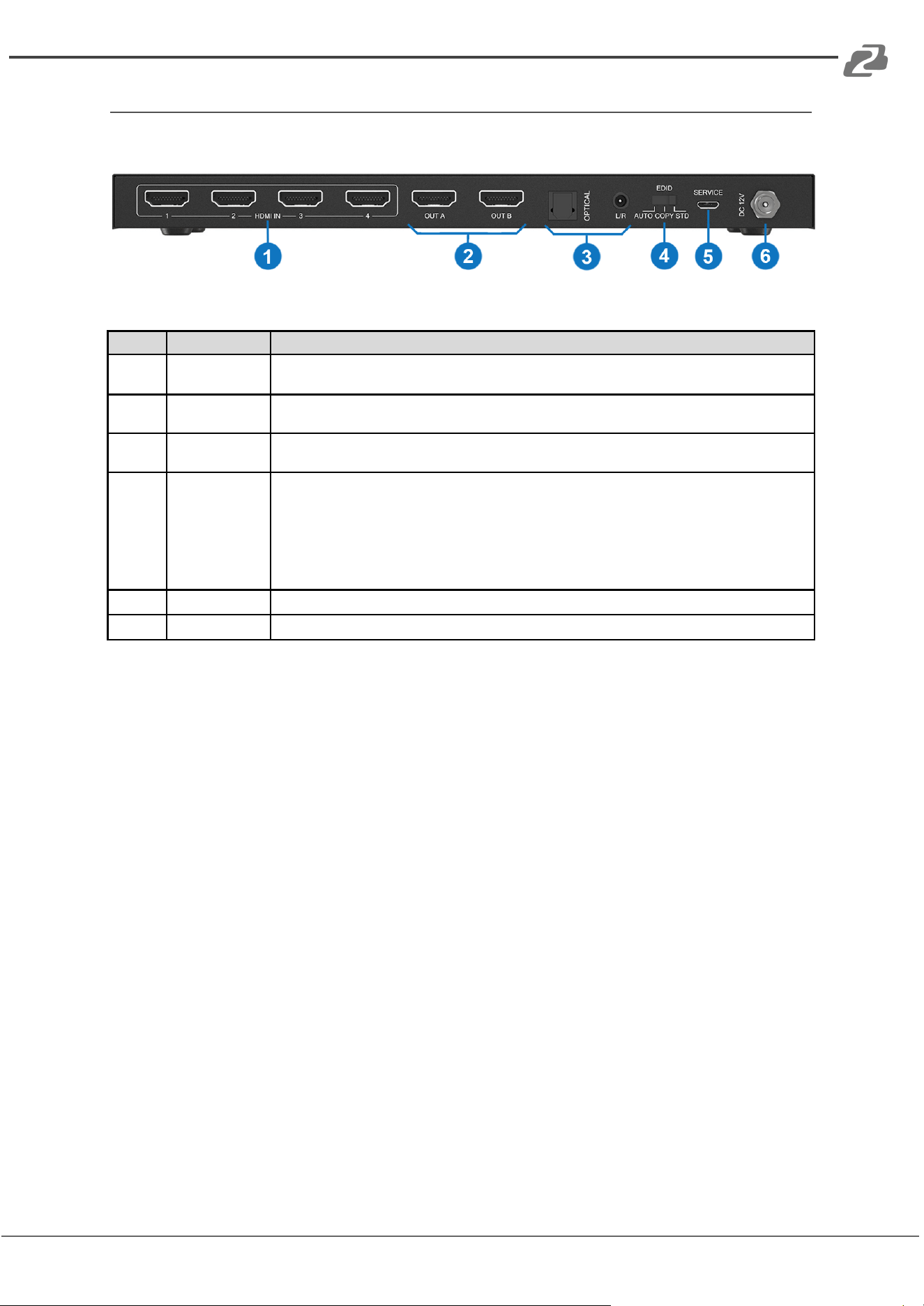

Rear Panel
Number
Name
Function description
1
HDMI IN ports
Connect to an HDMI source device such as a Bluray player, media player, or gaming console
with HDMI cables.
2
HDMI OUT A/
OUT B port
Connect to an HDMI display device such as a TV, Monitor, or projector with HDMI cables.
3
OPTICAL / L/R
port
Connect to an audio output device such as an amplifier or speaker with an optical or analog
audio cable.
4
EDID AUTO/
COPY / STD
AUTO: Compare HDMI Out A and Out B display device’s EDID information, and then sends the
best EDID information to the source device of Out A and Out B. The source device of Out A and
Out B will send the EDID information again to Out A and Out B display devices.
COPY: Copy Out A display device’s EDID information to source device of Out A and Out B. Then
the source device of Out A and Out B will send the EDID information again to Out A and Out B
display devices.
STD: Out A and Out B display device output default 1080P.
5
SERVICE port
Firmware update port.
6
DC 12V
Plug in the 12V/1A adapter to an AC wall outlet for power supply.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-UHD-42M PRODUCT MANUAL

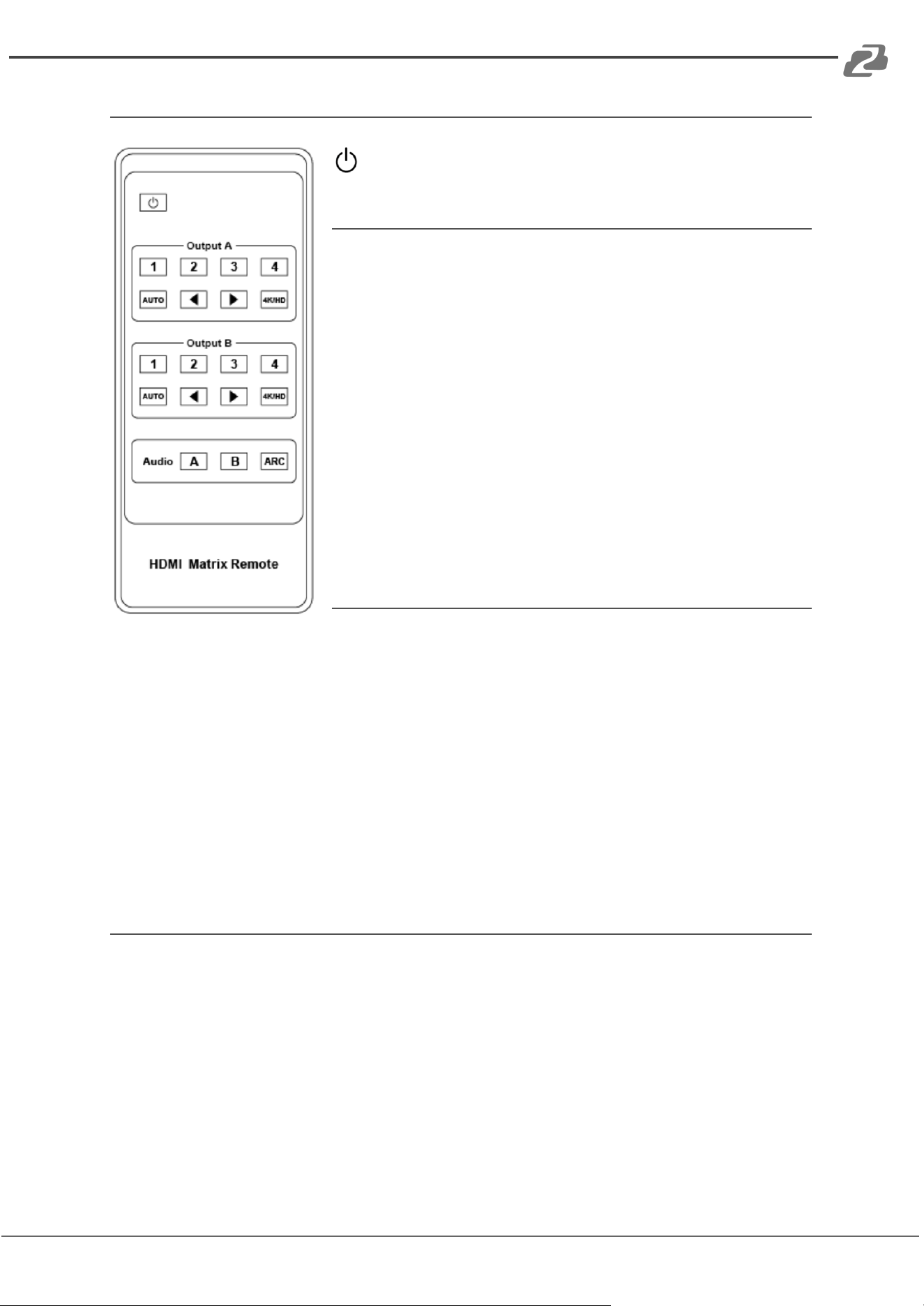

IR Remote
Power on the product or set it to standby mode.
Output A
1/2/3/4: Select the input source signal to the Out A output and
the corresponding blue LED on the front panel will illuminate.
◀ ▶ : Select the last or next input source signal to OUT A output
and the corresponding blue LED on the front panel will
illuminate.
AUTO: Detects input signal source. If the AUTO function is
turned on and multiple HDMI sources are connected then the
OUT A port will output the signal from the last connected input
source.
4K/HD: Select Out A 4K→1080P downscale function.
For example, if the source is 4K but the TV only supports
1080P, the input resolution of 4K will downscale to 1080P to
the HDMI output.
Output B
1/2/3/4: Select the input source signal to the Out B output
and the corresponding blue LED on the front panel will illuminate.
◀ ▶ : Select the last or next input source signal to OUT B output and the corresponding blue
LED on the front panel will illuminate.
AUTO: Detects input signal source. If the AUTO function is turned on and multiple HDMI
sources are connected then the OUT B port will output the signal from the last connected
input source.
4K/HD: Select Out B 4K→1080P downscale function.
For example, if the source is 4K but the TV only supports 1080P, the input resolution of 4K
will downscale to 1080P to the HDMI output.
Audio function
ARC: Turn on / off ARC function.
Audio A / B:
● If the ARC function is turned on, press the Audio A or B button to select a return
audio signal from the Out A or Out B display devices to the optical output (S/PDIF).
At this time, the analog L/R port (Audio out) is mute.
● If the ARC function is turned off, press the Audio A or B button to select and extract
the input source audio from the Out A or Out B ports to the optical (S/PDIF) and
analog L/R (3.5mm stereo mini) outputs.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-UHD-42M PRODUCT MANUAL

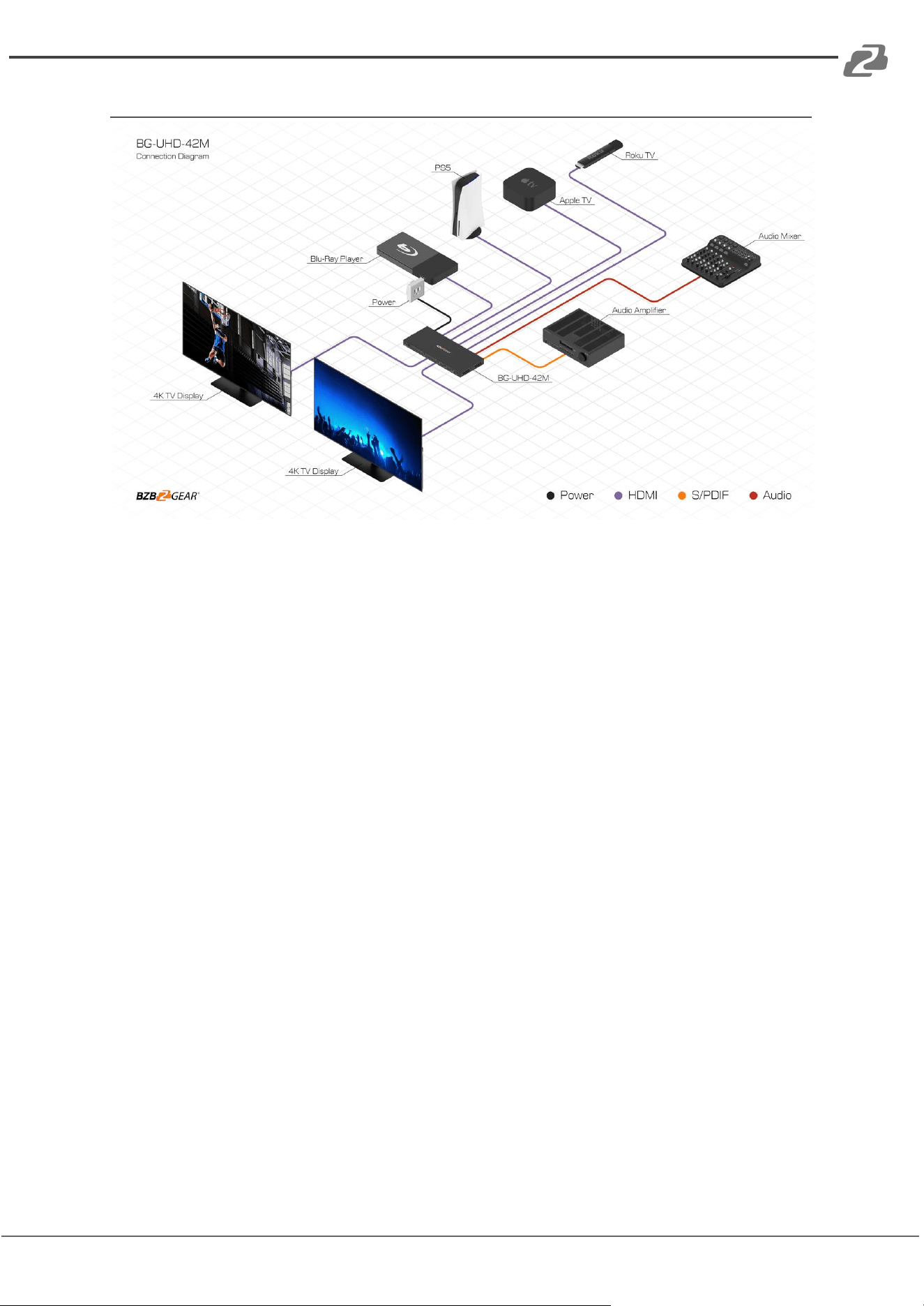

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-UHD-42M PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-UHD-42M PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming
solutions. We pride ourselves on unparalleled customer support and services. Our team
offers system design consultation, and highly reviewed technical support for all the products
in our catalog. BZBGEAR delivers quality products designed with users in mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
