VER 1.0
HDMI 1×2 Splitter
over CAT6 (70m)
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction...........................................................................................
2. Features.................................................................................................
3. Package Contents................................................................................
4. Specifications.......................................................................................
5. Operation Controls and Functions......................................................
5.1 Transmitter Panel.............................................................................
5.2 Receiver Panel................................................................................
5.3 IR Pin Definition................................................................................
6. EDID Mode.............................................................................................
7. Application Example............................................................................
1
1
1
2
3
3
4
5
6
7
1. Introduction
2. Features
3. Package Contents
① 1 × HDMI 1×2 Splitter
② 2 × CAT Receiver
③ 1 × IR Blaster Cable (1.5 meters)
④ 2 × IR Receiver Cable (1.5 meters)
⑤ 2 × Mounting Ear
⑥ 1 × 12V/1A DC Locking Power Adapter
⑦ 4 × Machine Screw (KM3*4)
⑧ 1 × User Manual
-1-
☆ HDMI 1.4 and HDCP 1.4 compliant
☆ Video resolution up to 4K2K@30Hz (4:4:4) 8-bit
☆ Support audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD
Master Audio
☆ Extend the signal transmission distance up to 40m/131ft at the resolution
of 4K30 or 70m/230ft at 1080P@60Hz via a single CAT6 cable
☆ Support 1 HDMI input, 1 HDMI loop output and 2 CAT outputs
☆ Advanced EDID management
☆ Support 12V one-way POC function (only from transmitter to receiver)
☆ Compact design for easy and flexible installation
This HDMI 1x2 Splitter can distribute 1 HDMI source signal to any 2 display
devices. Support video resolution up to 4K2K@30Hz 4:4:4. It is designed with
1 HDMI input, 1 HDMI loop output and 2 CAT outputs. The HDMI signal trans-
mission distance can be extended up to 131ft / 40 meters at the resolution of
4K30Hz, or 230ft / 70 meters at 1080P@60Hz via a single CAT6 cable. The
product supports one-way IR control signal pass-through and advanced EDID
management.
4. Specifications
Transmitter: 175mm (W) × 82mm (D) × 18mm (H)
Receiver: 79.5mm (W) × 69mm (D) × 16.5mm (H)
480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)
-2-
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Power Supply
Dimensions
Weight Transmitter: 366g; Receiver: 130g
Housing Metal Enclosure
Color
Black
Operation Temp. 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Power Consumption 5.4W
ESD Protection
Technical
Video Bandwidth 297MHz/10.2Gbps
Transmitter
Input: 1 × HDMI IN [Type A, 19-pin female]
Outputs: 1 × HDMI OUT [Type A, 19-pin female]
2 x CAT OUT [RJ45]
Mechanical
12V/1A DC Locking Power
(US/EU standards, CE/FCC/RoHs certificated)
Video Resolution
Audio Formats
LPCM 7.1CH, Dolby True HD and DTS-HD Master
Audio
Connection
HDMI Compliance HDMI 1.4
HDCP Compliance
HDCP 1.4
Color Space RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0
Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K30Hz)
Controls: 1 × IR OUT [3.5mm Stereo Mini-jack]
1 x EDID DIP switch [4-pin]
1 x UPDATE [Micro USB]
Inputs: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x CAT IN [RJ45, 8-pin female]
Output: 1 x HDMI OUT [Type A, 19-pin female]
Receiver
11
POWER
Switch
Press the switch to power on/off the device (“-” for on,
“o” for off).
5. Operation Controls and Functions
1
-3-
3
4
1/5
No. Name Function Description
1
2
5
6
POWER LED
When the Transmitter is powered on, the red power LED
will be on.
CAT OUT (1~2)
Connect to the CAT port of the Receiver with a CAT6 cable.
HDMI IN
HDMI signal input port, connect to HDMI source device
such as DVD or set-top box with an HDMI cable.
HDMI OUT
HDMI signal loop output port, connect to the HDMI display
device such as TV or Monitor with an HDMI cable.
5.1 Transmitter Panel
2
10
7
IR OUT
IR signal output port. Connect to IR blaster cable, the IR
signal is from “IR IN” port of the Receiver.
8
EDID DIP
Switch
Used to set EDID mode. Please refer to Section “6. EDID
Mode” for details.
9 UPDATE
Mini USB update port. Connect to PC for firmware
updating.
10 DC 12V DC 12V Power input port.
6
8
9
5
3
4
7
11
3
Power LED
(Green)
Transmitter supports one-way POC function. When it
supplies power to the Receiver through a CAT cable, the
Power LED will be on.
4
Data Signal
Indicator
(Yellow)
▪ Illunimating: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
POWERDC 12VUPDATEEDIDIR OUTHDMI INHDMI OUT
CAT OUT2
CAT OUT1
-4-
5.2 Receiver Panel
IR IN CAT
HDMI OUT
1 2 3
4
5
No. Name Function Description
1
2
HDMI OUT
HDMI signal output port. Connect to HDMI display
device such as HDTV.
IR IN
Connect to IR receiver cable, the IR signal will emit to the
IR OUT port of the transmitter.
3
CAT
CAT input port. Connect to the CAT output port of the
transmitter with a CAT6 cable.
4
Power LED
(Green)
When the Receiver is powered on, the LED will be on.
The device supports POC function, so the Receiver is
powered by the Transmitter through a CAT cable.
5
Data Signal
Indicator
(Yellow)
▪ Illunimating: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.

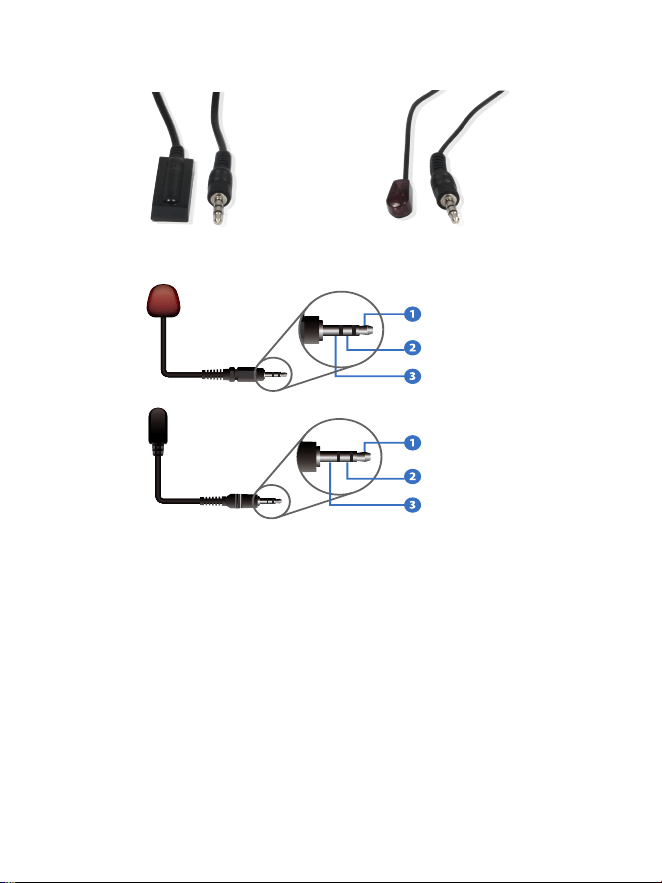

5.3 IR Pin Definition
-5-
IR Receiver
IR Blaster
IR Blaster
IR Receiver
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
Note:
When the angle between the IR receiver and the remote control is ± 45 °, the transmission
distance is 0-5 meters;
When the angle between the IR receiver and the remote control is ± 90 °, the transmission
distance is 0-8 meters.
6. EDID Mode
-6-
The defined EDID setting list of the product is shown as below:
EDID Mode EDID Description
0000 1080P, 2CH AUDIO
0001
0010
0011
0100
0101
0110
1080P, DOLBY/DTS5.1
1080P, HD AUDIO
1080i, 2CH AUDIO
1080i, HD AUDIO
1080i, DOLBY/DTS5.1
0111
1000
3D,1080P, 2CH AUDIO
3D,1080P, DOLBY/DTS5.1
3D,1080P, HD AUDIO
1001
1010
1011
1100
1101
1110
1111
4K30, 2CH AUDIO
4K30, DOLBY/DTS5.1
4K30, HD AUDIO
Copy Loop Out
720p, 2CH AUDIO
720p, DOLBY/DTS5.1
720p, HD AUDIO
7. Application Example
-7-
CAT6
Receiver
LAN
UHDTV
Power Supply
Transmitter
DVD or Blu-ray Player
IR Blaster
IR Receiver
LAN
UHDTV
PC
