COASTAL RIDGE II
LED CEILING FAN
4007498
DF26342
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, missing parts?
Before returning, contact us on:
888-251-1003, 8 a.m-8 p.m., EST, Monday-Sunday.
Purchase Date
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
2
Safety Information ..................................................................................................................................... 2
Package Contents ...........................................................................................................................
.
......... 5
Hardware Contents
..................................................................................................................................................
6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Wiring ...................................................................................................................................................... 10
Final Installation ...................................................................................................................................... 12
Operating Instructions ............................................................................................................................. 16
Care and Maintenance .......................................................................................................................
.
.... 18
Troubleshooting ...................................................................................................................................... 18
Limited Lifetime Warranty ....................................................................................................................... 19
Replacement Parts List ........................................................................................................................... 20
TABLE OF CONTENTS
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 17.2 lbs.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
If using this fan in a WET location, connect this product to a Ground Fault Circuit Interrupting (GFCI)
outlet to reduce the risk of personal injury, electrical shock or death. If one is not provided, contact a
qualified electrician for proper installation.
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
The DC Motor will not operate until blades are installed.
4
PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation and
safety.

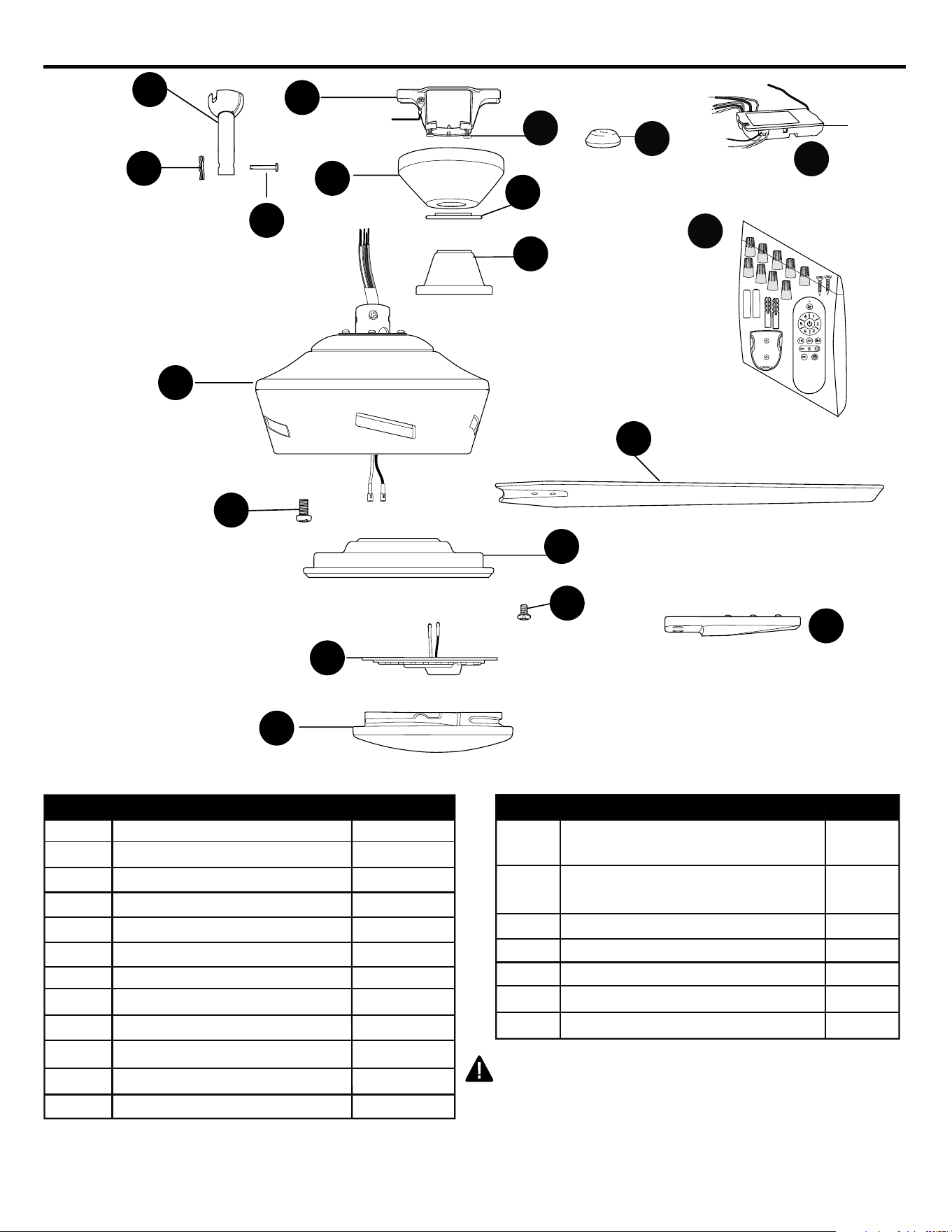

A Mounting Bracket 1
B Downrod 1
C Clip (preassembled) 1
D Pin (preassembled) 1
E Canopy 1
F Motor Housing 1
G Blade 5
H Yoke Cover 1
I LED Light Kit 1
J Fitter Plate 1
K Shade 1
L Canopy Cover 1
DESCRIPTIONPART
QUANTITY
DESCRIPTION
QUANTITY
PART
G
F
N
I
H
C
B
D
E
M
K
J
A
L
O
Q
P
M Motor Plate Screw 3
(preassembled)
N Fitter Plate Screw 3
(preassembled)
O Canopy Mounting Screw 2
P Remote Control Receiver 1
Q Remote Pack 1
R Blade Arm 5
S Hanging Ball Cover 1
R
S
5
Wire
Connector
Qty. 6
HARDWARE CONTENTS (shown actual size)
AA
BB
CC
Rubber Blade
Washer
Qty. 15
+ 1 extra
Blade
Screw
Qty. 15
+ 1 extra
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder, Wire Strippers and Precision Screwdriver (0 x 2 in.).
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters.
PREPARATION
INITIAL INSTALLATION
ON
OFF
ON
OFF
1

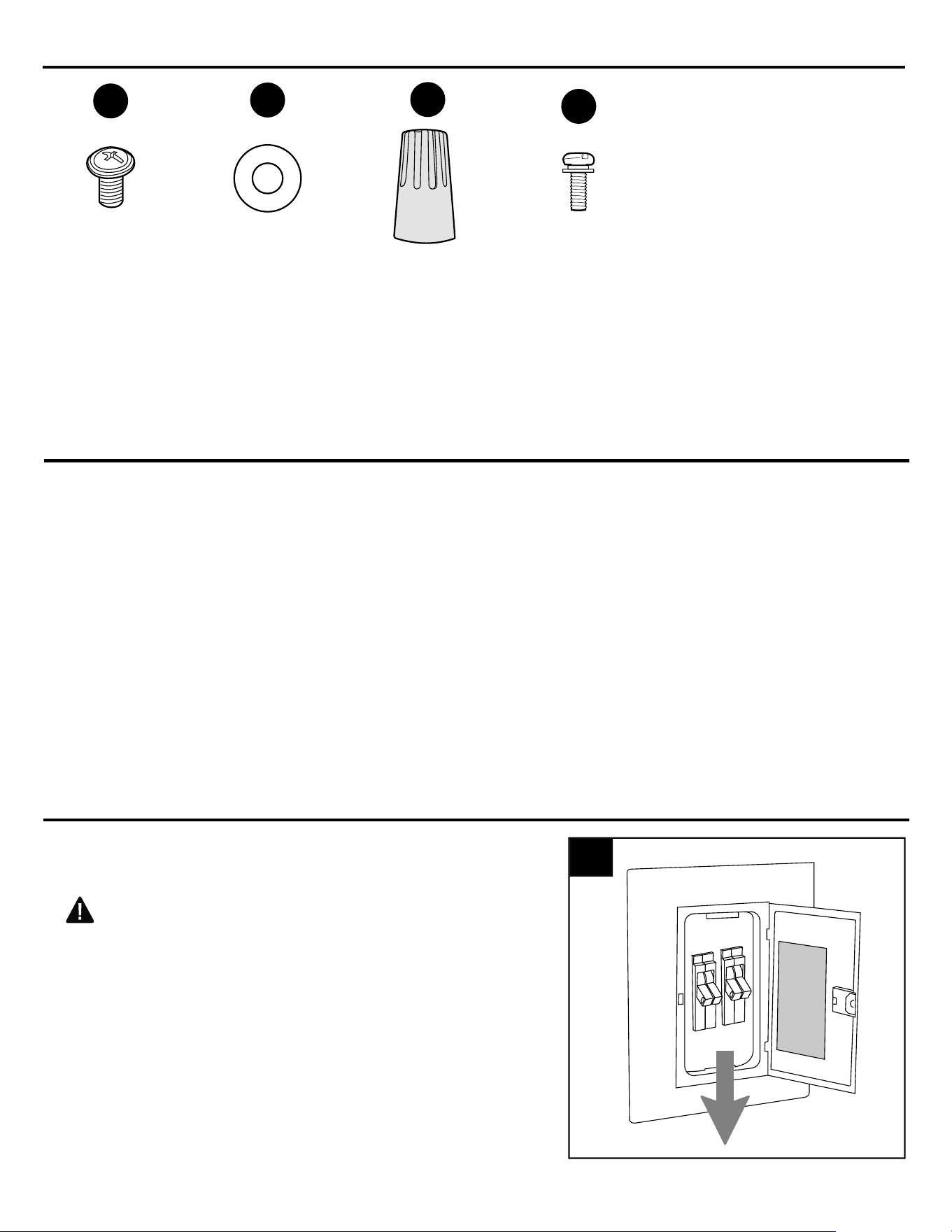

Turn off the circuit breakers and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
DD
Blade Arm
Screw/Lock
Washer
Qty. 10
+ 1 extra
6
7
INITIAL INSTALLATION
2.

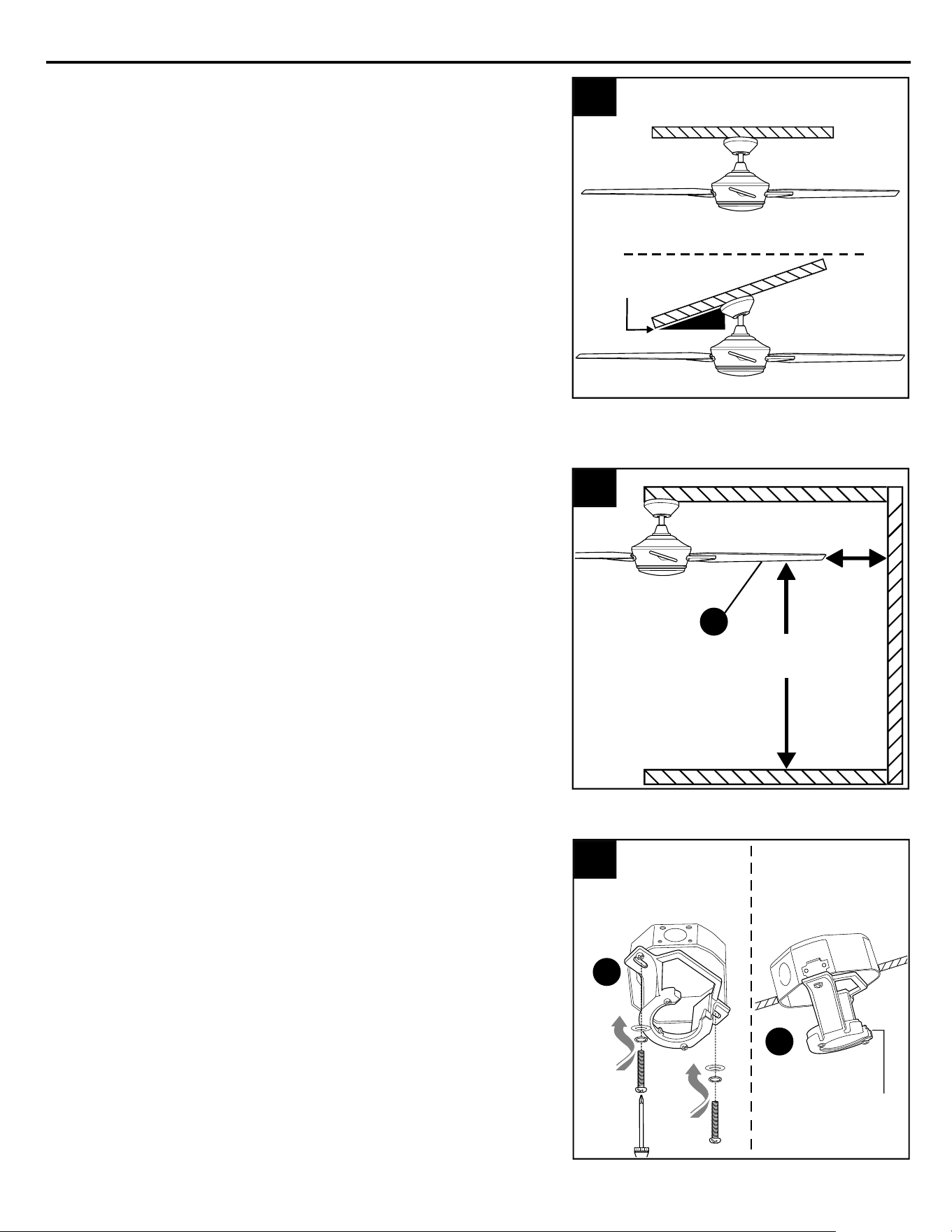

Check to make sure blades (G) will be at least
30 in. from any obstruction and at least 7 ft. above
the floor.
3.
A
15° max.
7 ft.
min.
30 in.
min.
G
2
3
Open End
A
A
Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (A)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (A) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 15°.
4.
ANGLE
MOUNT
STANDARD
MOUNT
4
Determine mounting method to use.
A. Standard mount
B. Angled mount
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper
than 15°.
NOTE: Closemount option is not available for this
fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
B
L
8
INITIAL INSTALLATION
6.

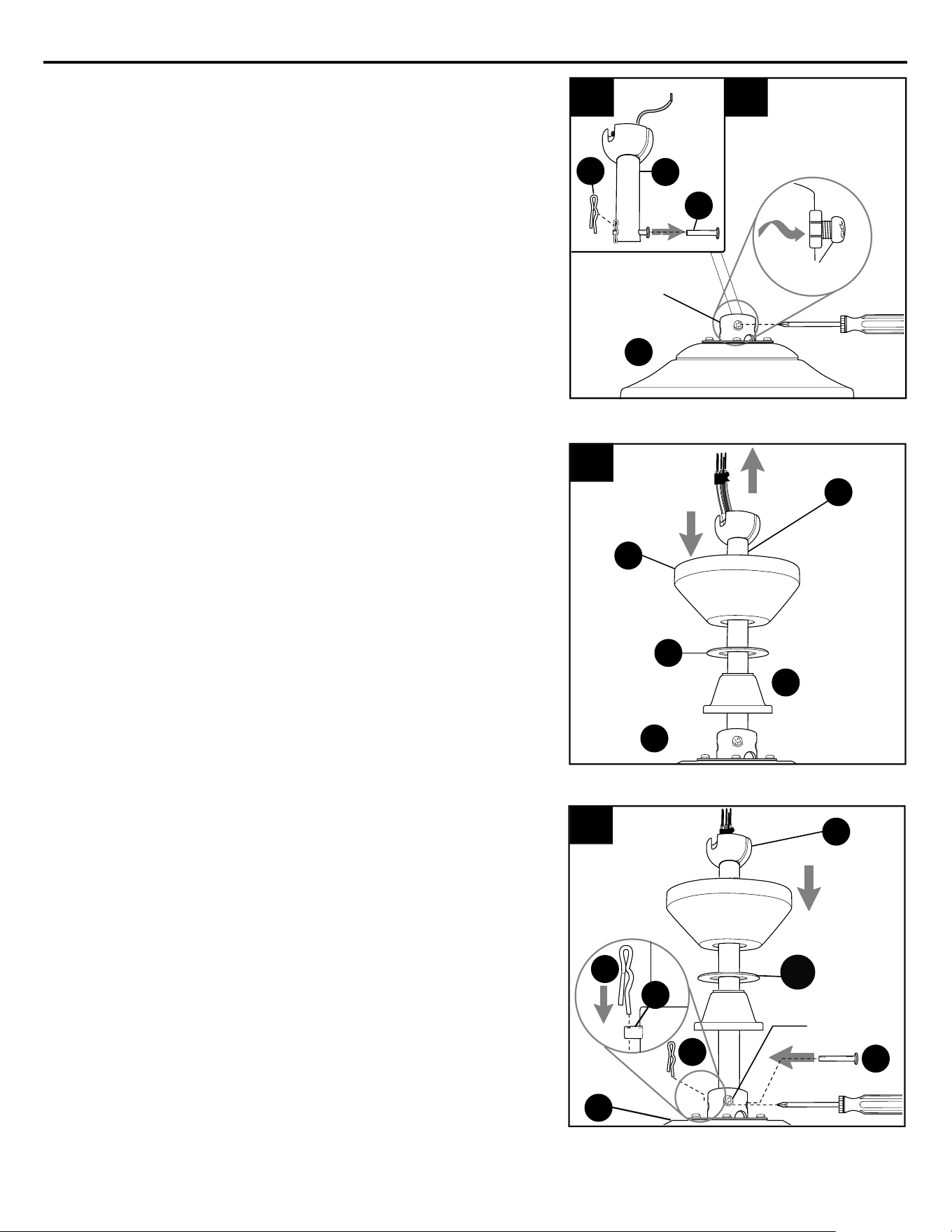

Remove pin (D) and clip (C) from downrod (B).
Partially loosen preassembled set screws and
nut in yoke at top of motor housing (F).
5a.
5b.
5a
C
F
D
5b
B
Set Screw
& Nut
B
F
t
6
E
Yoke
H
7.
Slip downrod (B) into yoke, align holes and
re-install pin (D) and clip (C). Tighten downrod set
screws and then tighten nut. Then slide yoke
cover (H) down until it rests on top of motor
housing (F).
7
J
J
Set Screw
and Nut
F
B
H
C
Insert downrod (B) through canopy (E), canopy
cover (L) and yoke cover (H). NOTE: Canopy
cover (L) must be turned with the shiny side
toward the motor housing (F).
Then, thread wires from motor housing (F)
through downrod (B).
L
Sideview
9
INITIAL INSTALLATION
8.
9.

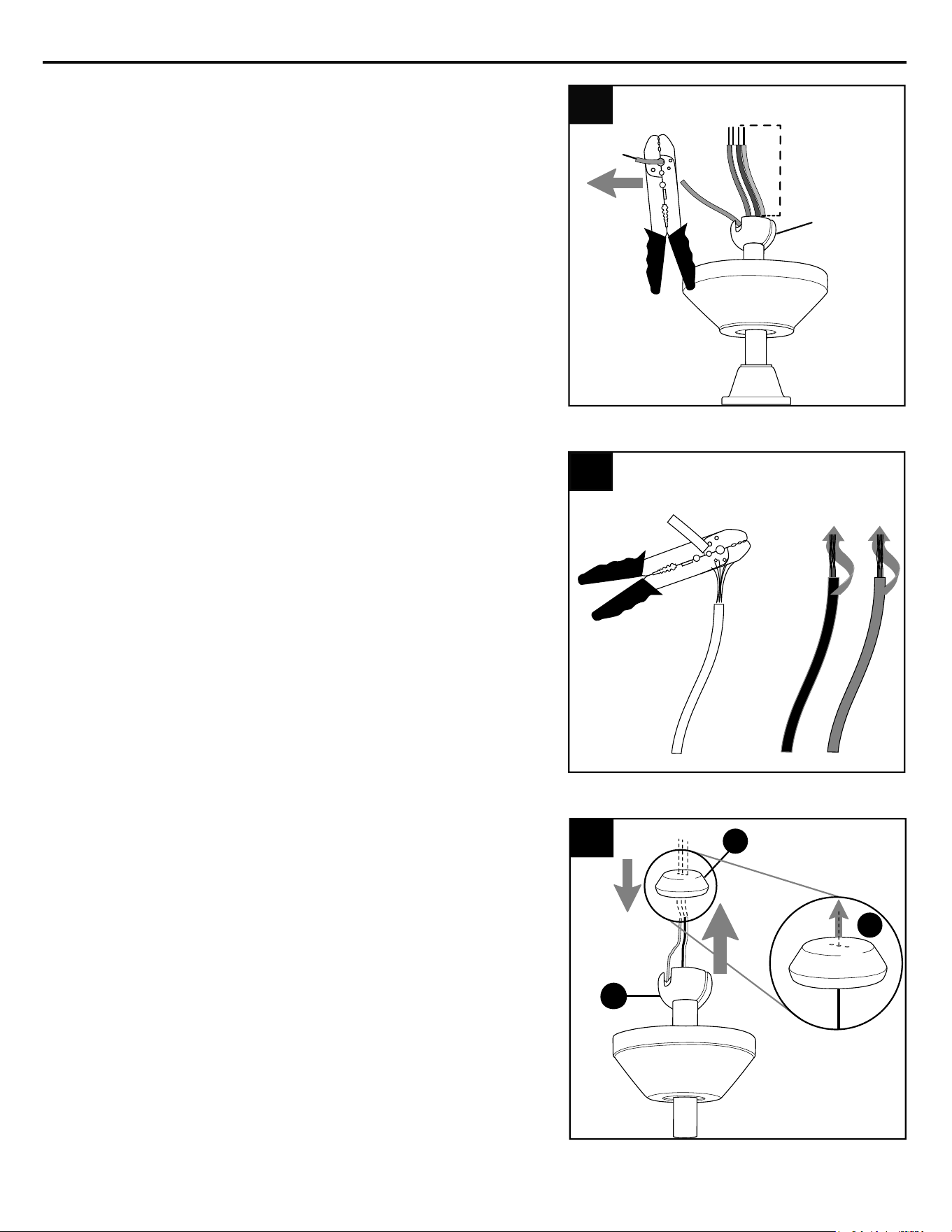

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
8 and 9 are not necessary and you may proceed
to Step 10 instead.
If you cut back the lead wires in Step 4, strip 3/4 in.
of insulation from end of each wire -- WHITE,
BLACK, GREEN and BLUE (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
8
Hanging
Ball
8 in.
9
10.
Thread each of the wires through a different hole
in the hanging ball cover (S). Pull hanging ball
cover (S) down securely over hanging ball on
downrod (B).
10
B
S
S
10
INITIAL INSTALLATION
11.

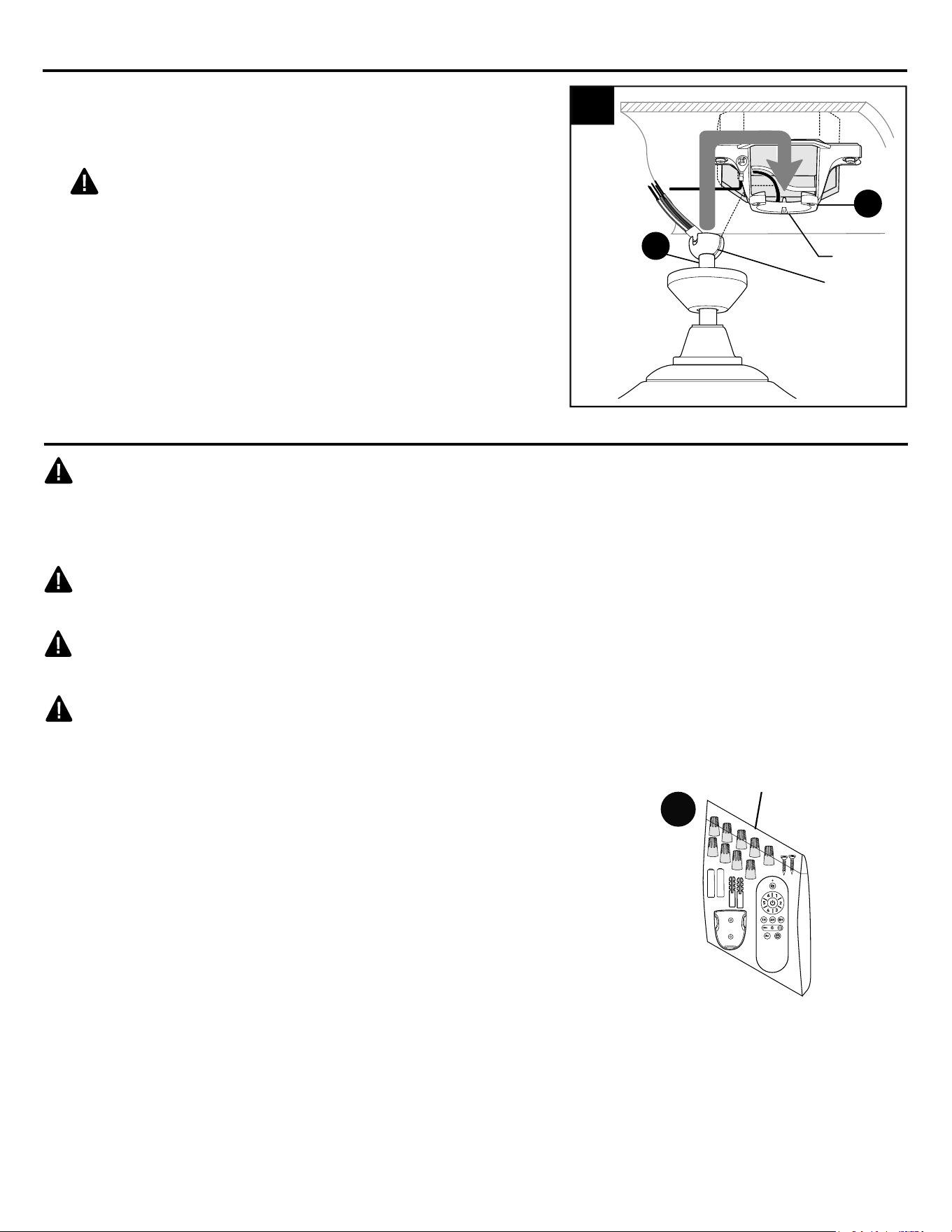

Install hanging ball of downrod (B) into opening of
mounting bracket (A). Align the slot in hanging ball
with the tab in mounting bracket (A).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (B) may result in
serious injury or death.
A
11
Tab
B
Slot
WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.

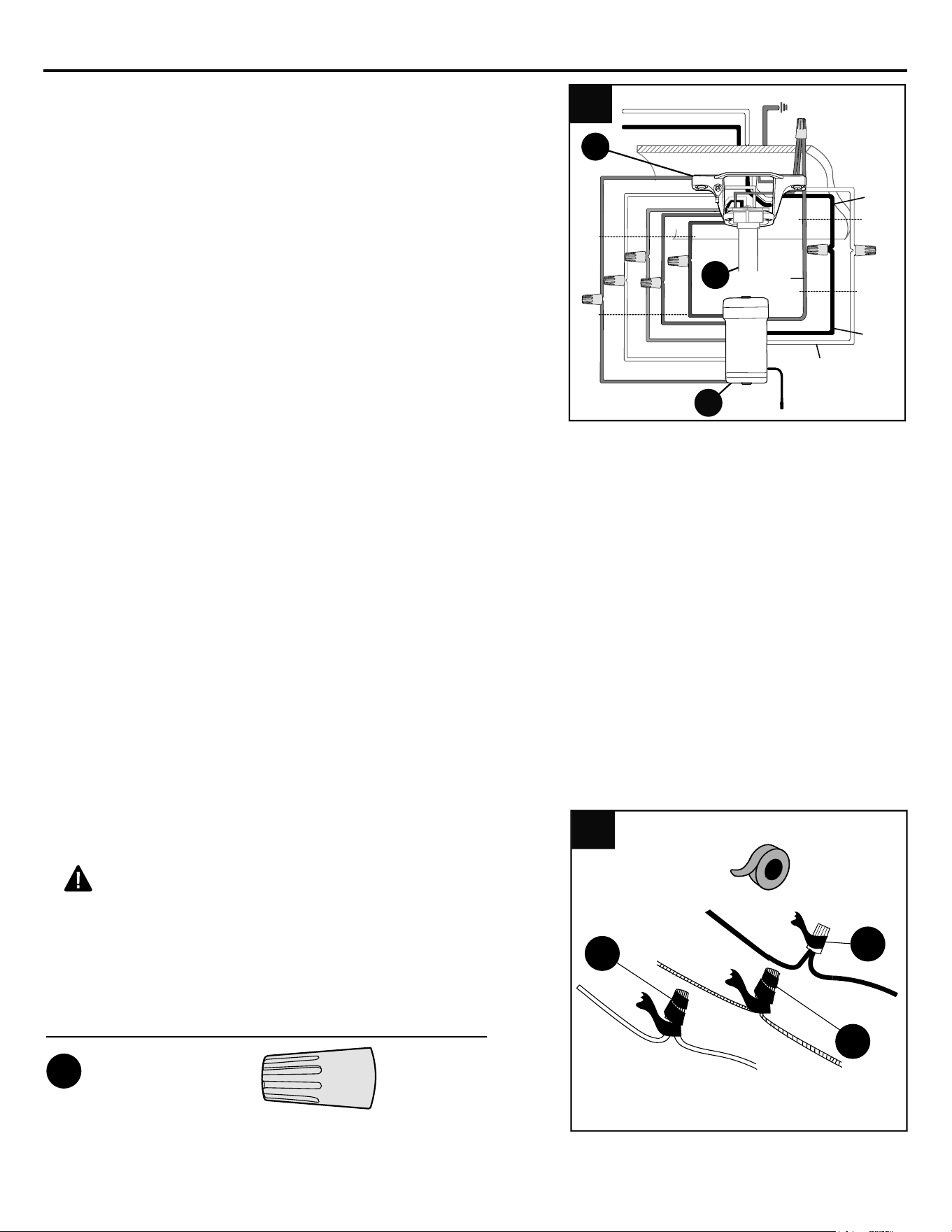

IMPORTANT: Make the necessary wiring connections for remote control
operation as detailed below and in the accompanying drawing. For each
wire connection, use wire connectors from the remote pack (Q), making
sure to screw each wire connector on in a clockwise direction.
Q
Wire
Connectors
11
WIRING
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
2
CC
CC
CC
Hardware Used
Wire Connector x 6
CC
Connect all GROUND (GREEN) wires from fan
(on downrod (B), if applicable, mounting bracket
(A) and remote control receiver (P) to
BARE/GREEN supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (P) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (P) to WHITE supply wire
from ceiling.
Connect RED wire (labeled TO MOTOR) from
remote control receiver (P) to RED wire from
motor housing (F)
Connect GRAY wire (labeled TO MOTOR) from
remote control receiver (P) to GRAY wire from
motor housing (F).
Connect PINK wire (labeled FOR MOTOR) from
remote control receiver (P) to PINK wire from
motor housing (F).
Connect BLUE wire (labeled FOR LIGHT L) from
remote control receiver (P) to BLUE wire from
motor housing (F).
Connect WHITE wire (labeled FOR LIGHT N)
from remote control receiver (P) to WHITE wire
from motor housing (F).
1.
P
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
PINK
RED
RED
GRAY
GRAY
PINK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
B
A
GREEN/
GROUND
1.
12
WIRING
3

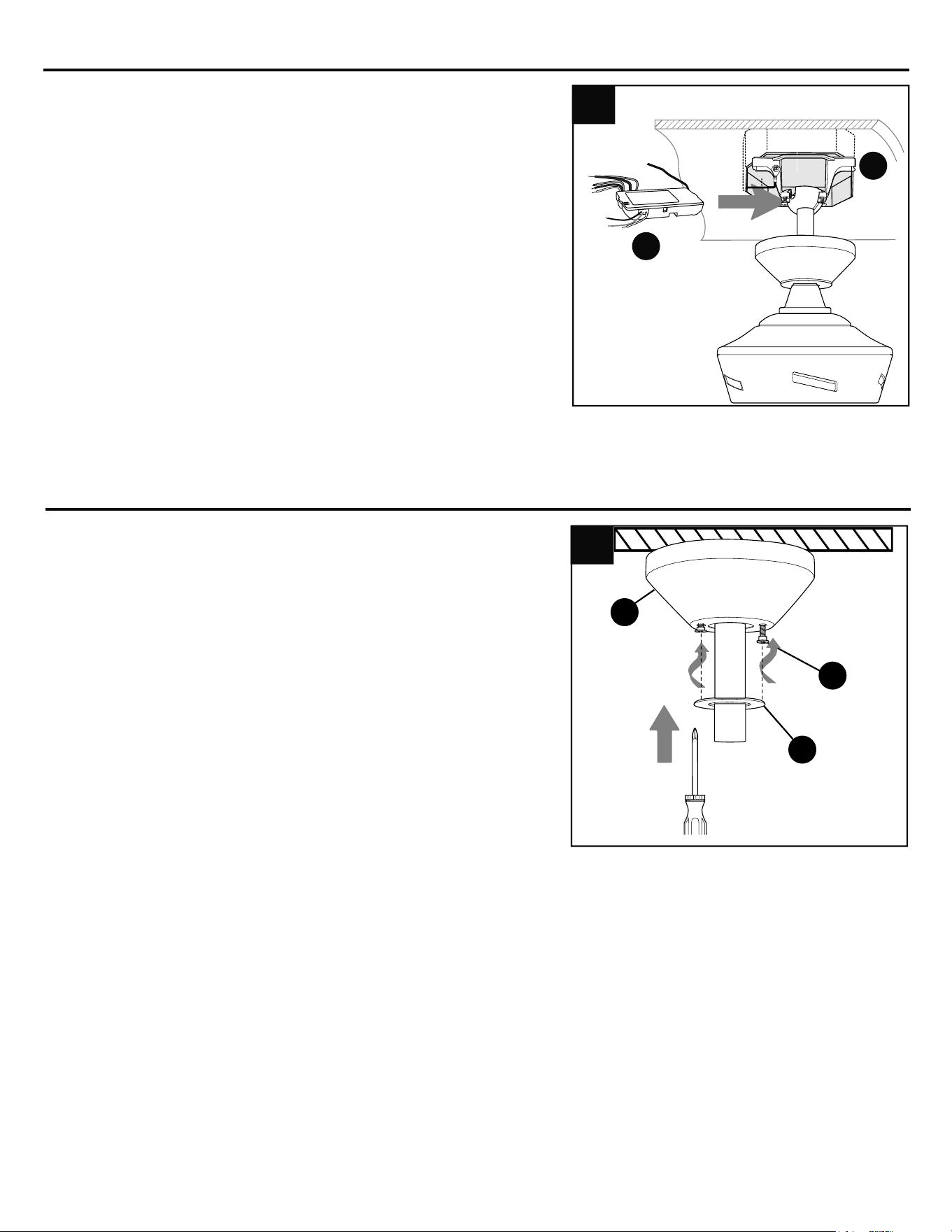

Gently slide remote control receiver (P) flat-side up
into mounting bracket (A). Turn spliced/taped
wires upward and gently push wires and wire
connectors (CC) into outlet box. Let antenna from
remote control receiver (P) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor wattage: 65W MAX.
3.
Antenna
P
A
Locate two canopy mounting screws (O) on
underside of mounting bracket (A) and remove
canopy mounting screw (O) closest to the open end
of the mounting bracket (B). Partially loosen the
other canopy mounting screw (O). Lift canopy (E)
to mounting bracket (B). Place rounded part of
slotted hole in canopy (E) over loosened canopy
mounting screw (O) and push up. Twist canopy (E)
to lock. Re-insert canopy mounting screw (O) that
was removed, then tighten both canopy mounting
screws (O).
Locate knobs on center ring of canopy cover (L).
Slide canopy cover (L) up to canopy (E), aligning
knobs on canopy cover (L) with notches in the
center opening in bottom of canopy (E). Press up
firmly on the canopy cover (L) until it fits into the
bottom of the canopy (E) and then turn canopy
cover (L) about 1/2 in.
1
O
E
FINAL INSTALLATION
L
13
FINAL INSTALLATION

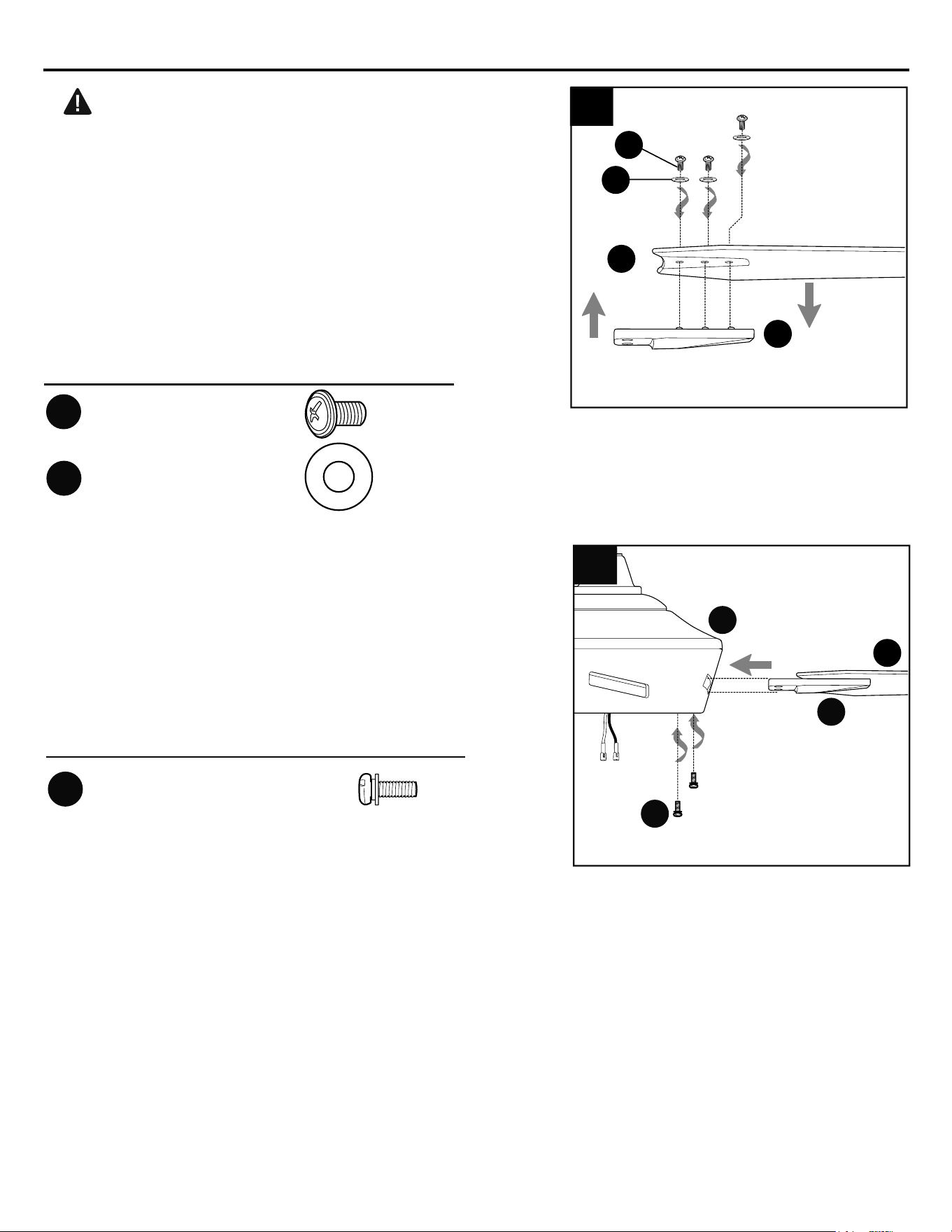

2.
Hardware Used
AA
Blade Screw x 15
Blade Arm Screw/Lock Washer x 15
Rubber Blade Washer x 15
BB
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If screws are overtightened, blades (G)
may crack and break.
Note label on blade (G) indicating THIS SIDE UP.
Partially insert three blade screws (AA) along with
three rubber washers (BB) into holes in blade (G) to
attach blade arm (R) to blade (G). Then, tighten each
blade screw (AA).
Repeat for remaining blades (G) and blade arms (R).
2
BB
AA
R
G
G
3.
Note label on blade (G) indicating THIS SIDE
UP. Insert the blade arm (R) through the slot
on the band of the motor housing (F). Align
holes in blade arm (R) with holes on underside
of motor. Attach the blade arm (R) with blade
arm screw/lock washer (DD). Then, tighten
each blade arm screw/lock washer (DD).
Repeat for remaining blades (G).
Hardware Used
DD
3
3
F
R
DD
14
FINAL INSTALLATION

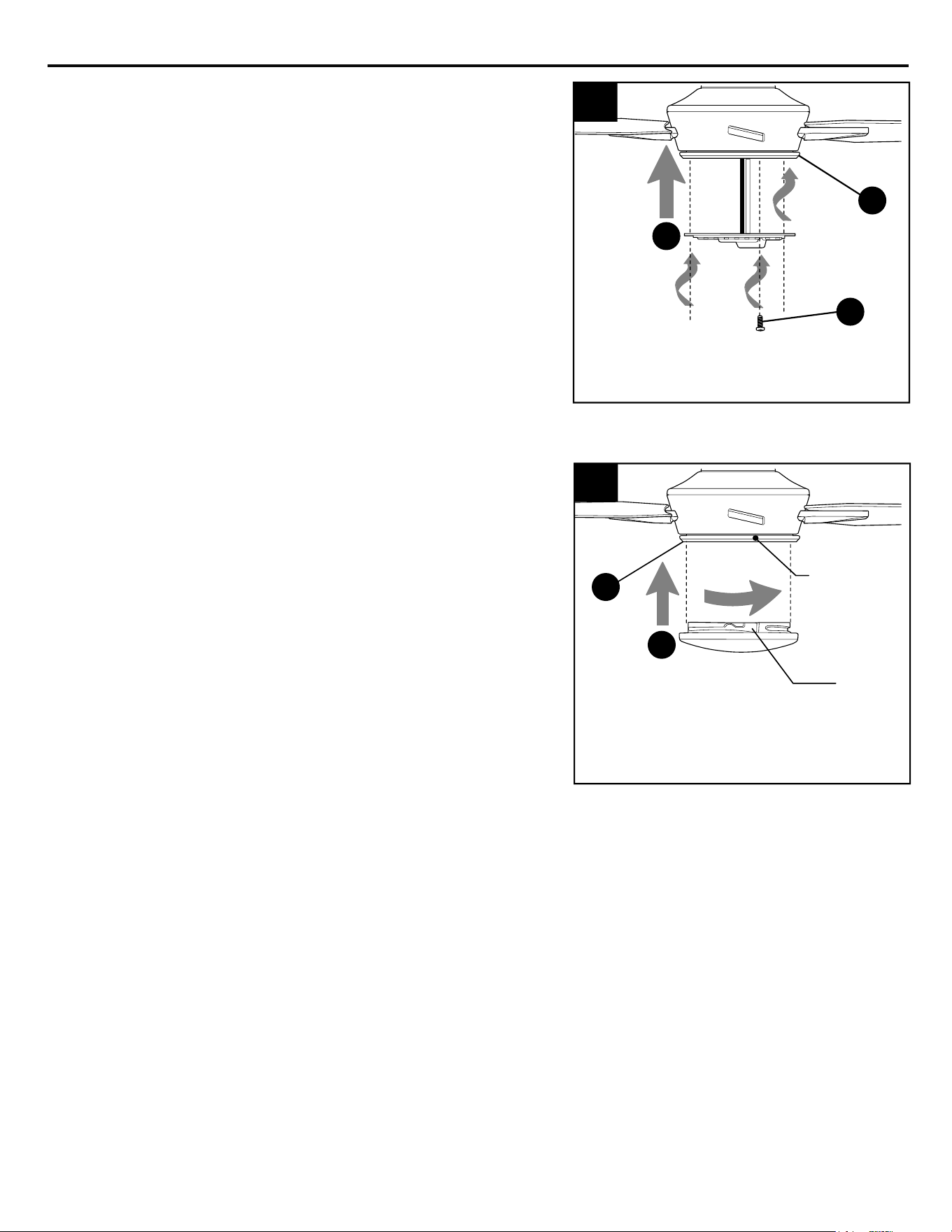

4.
Remove one motor plate screw (M) in motor plate
on underside of motor housing (F) and partially
loosen the other two motor plate screws (M). Align
slotted holes in fitter plate (J) with loosened motor
plate screws (M), allowing molex connections
from motor housing (F) to come through hole in
the middle of the fitter plate (J). Twist fitter plate
(J) to lock. Re-insert the motor plate screw (M)
previously removed and securely tighten all three
motor plate screws (M).
4
J
F
5.
Motor
Plate
I
M
I
M

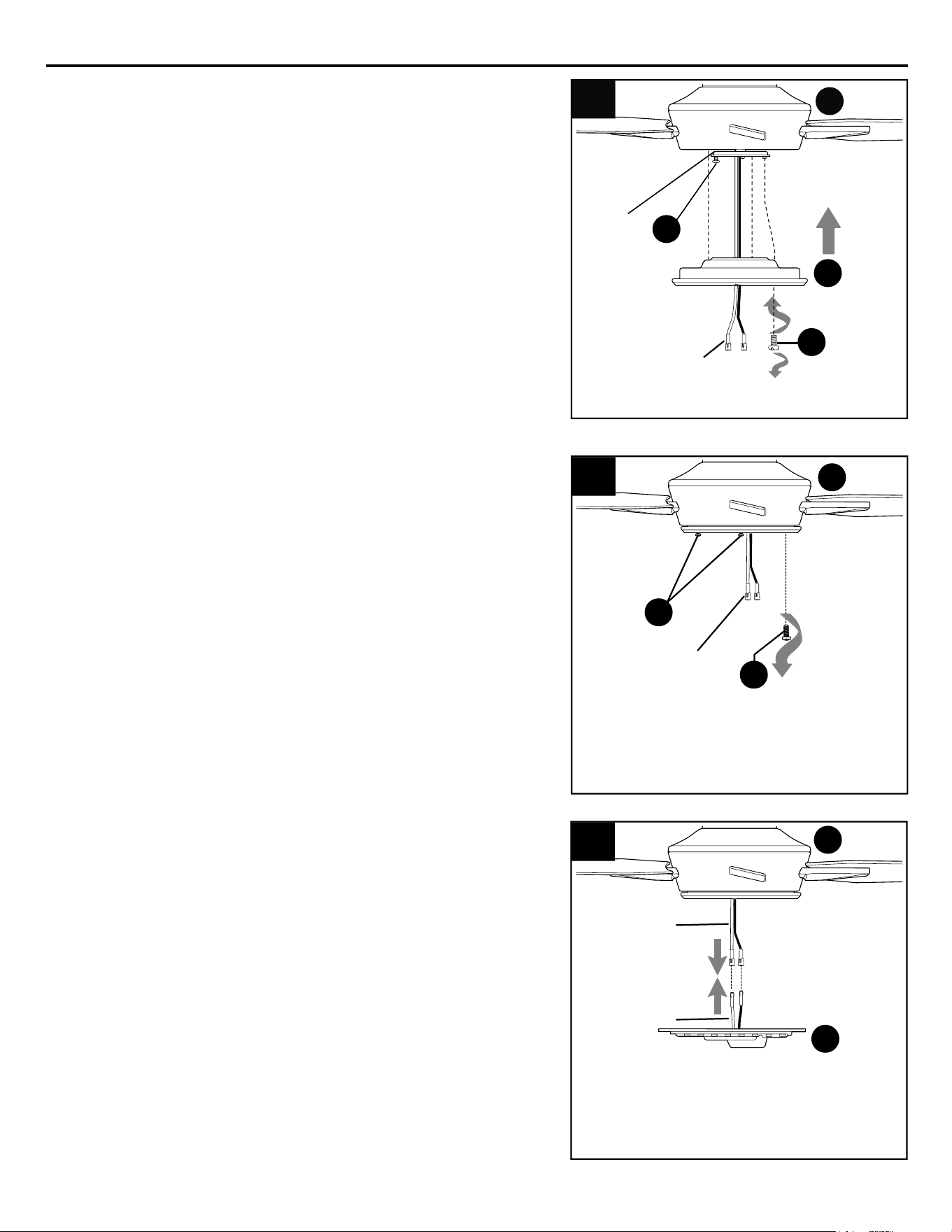

Remove one fitter plate screw (N) from underside
of the fitter plate (J) and partially loosen the other
two fitter plate screws (N).
5
Molex
Connections
N
F
N
6.
Connect WHITE wire from LED light kit (I) to
WHITE wire from motor housing (F). Connect
BLACK wire from LED light kit (I) to BLUE (or
BLACK) wire from motor housing (F). Make sure
molex connections snap together securely.
6
WHITE
BLUE (or BLACK)
WHITE
BLUE
I
F
Molex
Connections
15
FINAL INSTALLATION
7.
Carefully arrange wiring within the fitter plate (J)
to ensure wires do not get pinched when
attaching the LED light kit (I).
Align slotted holes in LED light kit (I) with
loosened fitter plate screws (N) on fitter plate (J).
Twist LED light kit (I) to lock in place. Re-insert
the previously removed fitter plate screw (N)
(Step 4, page 14) and securely tighten all fitter
plate screws (N).
J
N
7
I
8.
Align slots on shade (K) with protrusions on
underside of fitter plate (J). Turn shade (K)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (K) to make
sure it is completely secured.
8
Slot
Protrusion
K
J
16
OPERATING INSTRUCTIONS
Locate remote control transmitter in remote pack (Q).
Remove battery cover. Install two AAA batteries from
remote pack (Q). Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.”
- When disposing of household alkaline batteries, it is best to check with your local and state recycling or
household hazardous waste coordinators concerning the specifics of the program in your area. You may
also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
Q
17
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, check canopy mounting screws (O) and then tighten all screws on the fan.
Clean motor housing (F) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (G) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the light kit for this fan is 20 watts; do not attempt to replace the LEDs.
2.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the batteries if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the ON/OFF
button ( ) on the remote control transmitter for
5 seconds or until fan beeps. Use the remote control
transmitter to test the light and fan functions to confirm
the learning process is complete.
Remote Control Transmitter
2
3.

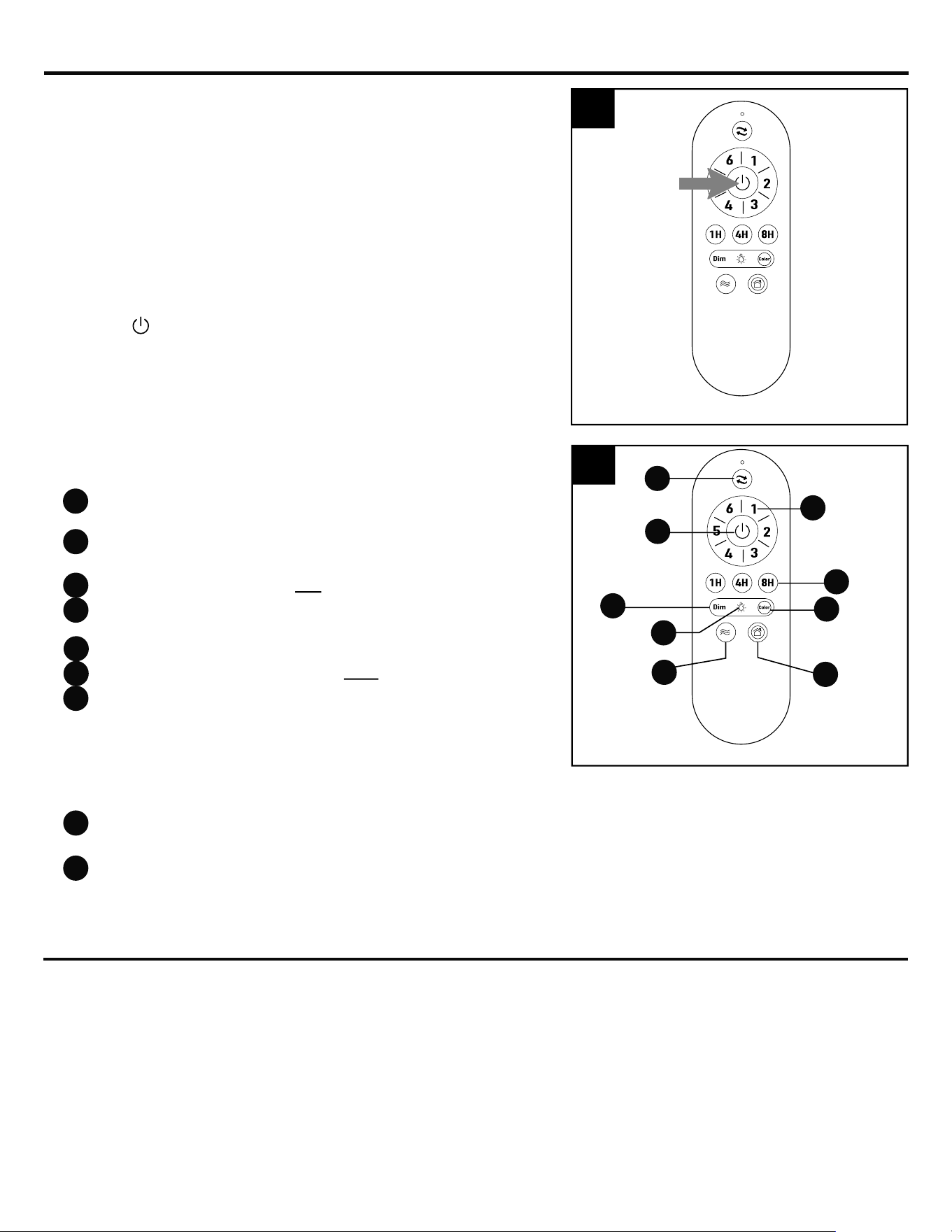

Operation buttons on the front panel of the remote
control transmitter:
- Reverse function ─ fan must be set on low
before reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Dimmer mode: press and hold to dim light
- ON / OFF, power button for light
- Color mode: change/select light color
– soft white
– warm white
– cool white
– daylight
– cool daylight
- Breeze mode: fan automatically cycles
between all 6 different speeds
- Vacation mode: light kit switches on for 5
minutes every 2 hours
3
1
2
4
5
6
8
9
7
Remote Control Transmitter
3
1
3
8
9
2
4
7
5
6
18
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires in LED light kit not wired
correctly.
1. Check wires in outlet box and, if
necessary, re-wire according to
instructions on page 11.
2. Make sure wall switch to light is on.
3. Check that molex connections in
LED light kit are connected
properly according to instructions
on page 14.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
1. Refer to instructions in Step 2 on
page17.
2. Check that batteries have been
installed with correct polarity.
3. Replace batteries according to
instructions on page 17.
Fan operates but
light fails
Remote control fails
to operate.
1. Remote control transmitter not synced
with fan.
2. Batteries are not installed correctly.
3. Batteries no longer working.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Turn off power and repeat
instructions in Step 2 on page 17.
4. Attach blades to fan.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
1. Tighten all blade screws.
2. Replace blade.
3. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between
fan and remote control transmitter
may not have been successful and
learning code was not activated.
4. Blades are not installed.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Fan is new.
Excessive wobbling.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Fan not securely mounted
4. Fan too close to vaulted ceiling.
5. Set screw(s) on the motor housing
yoke is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan
to another location.
5. Tighten yoke set screw(s) securely.
6. Carefully loosen and lower canopy
and verify that set screw on
hanging ball is tightened securely.
19
LIMITED LIFETIME WARRANTY
Printed in China
ARLI2604
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
B
A
E
REPLACEMENT PARTS LIST
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday.
G
9053187-A
9053187-B
9053187-E
9053187-G
A Mounting Bracket
B
Downrod
E Canopy
G Blade
PART DESCRIPTION
#9053187
PART #
5519819-A
5519819-B
5519819-E
5519819-G
#5519819
PART #
