Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
1 / 38
Newton Pro Freezer 4-Color
(BWRY)
Electronic Shelf Label Datasheet
2026-09-18
Summary
This datasheet presents the general performance and specifications of Newton Pro Freezer 4-Color
(BW) Label for SOLUM Electronic Shelf Label (ESL) System.
© SOLUM. All rights reserved
The names of actual companies and products mentioned
herein may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any
means without the express written consent of SOLUM.
This document is subject to change without notice.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
2 / 38
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT
TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS
MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY
PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN
THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS
REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT
YOUR SOLUM REPRESENTATIVE FOR A COPY.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE
SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS. SOLUM AND THE ABOVE-NAMED SUPPLIERS DISCLAIM
ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A
COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL SOLUM OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL,
OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO
DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF SOLUM OR ITS SUPPLIERS
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual
addresses and phone numbers. Any examples, command display output, network topology diagrams, and
other figures included in the document are shown for illustrative purposes only. Any use of actual IP
addresses or phone numbers in illustrative content is unintentional and coincidental.
SOLUM and the SOLUM logo are trademarks or registered trademarks of SOLUM and/or its affiliates in
KOREA and other countries. Third-party trademarks mentioned are the property of their respective owners.
The use of the word partner does not imply a partnership relationship between SOLUM and any other
company.
©
2016-2026 SOLUM Co. Ltd, Inc. All rights reserved.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
3 / 38
Table of Contents
1. Preface ............................................................................................................................................ 6
1.1. About This Guide .................................................................................................................. 6
1.2. Audience................................................................................................................................ 6
1.3. Abbreviations and Acronyms ............................................................................................... 6
2. Overview ......................................................................................................................................... 7
3. Specification ................................................................................................................................... 7
3.1. Product Specification ............................................................................................................ 7
3.2. Radio (RF) Specification ........................................................................................................ 9
3.3. NFC Specification .................................................................................................................. 9
3.4. Features ............................................................................................................................... 10
3.5. Mechanical Drawing ............................................................................................................ 11
3.5.1. 2.2” .......................................................................................................................... 11
3.5.2. 2.6” ......................................................................................................................... 12
3.5.3. 2.9” ......................................................................................................................... 13
3.6. Label Marking ..................................................................................................................... 14
3.7. Initial Display Image (E-Label) ............................................................................................ 17
3.8. Certifications ....................................................................................................................... 18
3.8.1. FCC ......................................................................................................................... 18
3.8.2. ISED ........................................................................................................................ 19
3.8.3. CE ........................................................................................................................... 20
3.8.4. KC ........................................................................................................................... 20
4. Packaging ...................................................................................................................................... 22
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
4 / 38
4.1. 2.2” ....................................................................................................................................... 22
4.2. 2.6” ....................................................................................................................................... 24
4.3. 2.9” ....................................................................................................................................... 26
5. Reliability Test .............................................................................................................................. 28
6. Product Handling Precautions ................................................................................................... 31
6.1. Usage Environment ............................................................................................................. 31
6.2. Storage and Use ................................................................................................................. 31

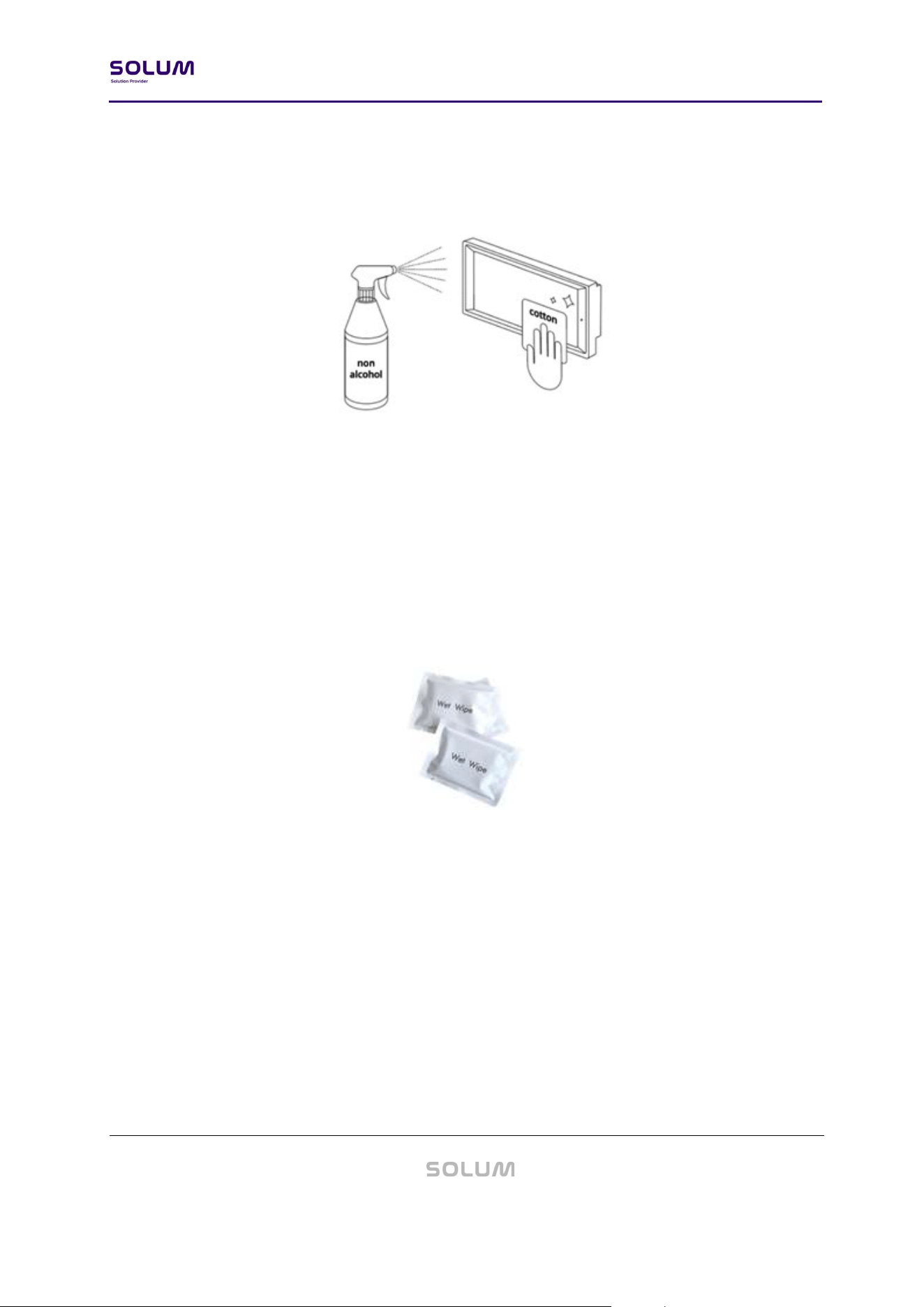

6.3. Product Cleaning ................................................................................................................ 32
6.3.1. For Spray Cleaning: ............................................................................................... 32
6.3.2. For Wet Tissue Cleaning: ...................................................................................... 33
6.4. Battery Replacement ........................................................................................................... 33
7. Battery Handling Guide .............................................................................................................. 35

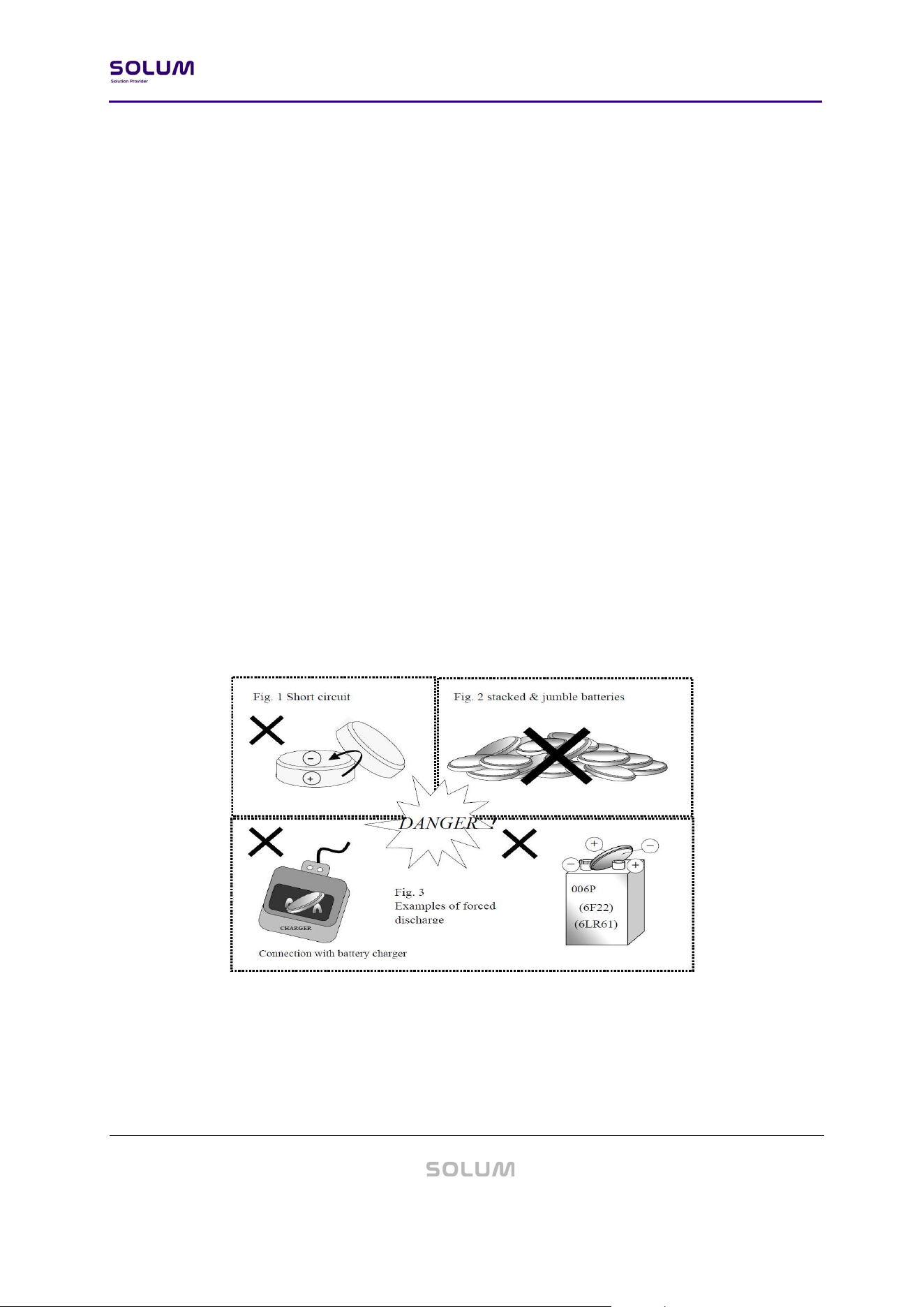

7.1. Avoiding hazards in lithium battery handling ................................................................... 35
7.2. Proper Storing and Disposing of Lithium Batteries ........................................................... 37
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
5 / 38
Document History
Rev. Date Revision History Page
v0.1.0 2026-09-18 Draft -
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
6 / 38
1. Preface
1.1. About This Guide
This datasheet presents the specifications and general performance of SOLUM’s Newton Pro
Freezer 4-Color (BWRY) Electronic Shelf Labels (ESLs) lineup.
1.2. Audience
This manual is intended for any user (IT, operations, store managers, installers, etc.) authorized to
operate and install SOLUM ESLs.
1.3. Abbreviations and Acronyms
Terminology/Abbreviation
Description
GW Gateway
ESL Electronic Shelf Label
RF Radio Frequency
IT Information Technology
PoE Power over Ethernet
TBD To Be Decided
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
7 / 38
2. Overview
SOLUM Newton Pro Freezer 4-Color (BWRY) Electronic Shelf Labels (ESLs) are components to a
total SOLUM’s ESL System. The SOLUM’s ESL System consists of the ESLs, Gateway(s), Server, and
optional accessories (such as the Newton Pro Remote Controller) and is used to electronically
displays key information such as price and Product information, that are traditionally printed or
written on paper in environments like supermarkets, warehouses, and factories.
SOLUM’s Newton Pro Freezer 4-Color (BWRY) ESLs are the industry leading solutions that Provide
the longest battery life, fastest update speed, built in LEDs, built in button IP68 rating for various
environments, multiple pages per ESL, and more to take the operation beyond just displaying
information on the ESLs.
Newton Pro Freezer 4-Color (BWRY) ESLs come in various sizes and colors to meet all customer
use cases. They are battery powered for ease of deployment and wirelessly receive updates from
SOLUM Gateway for.
3. Specification
This section details the specifications of each ESL by size. ESLs are identified by the diagonal
measurement of the display in inches. For example, a 2.9” ESL refers to an ESL with the diagonal
display dimension of 2.9”.
3.1. Product Specification
Item Description
Label Dimensions
(W x H x D)
2.2” 67.0 x 37.4 x 10.45 mm / 2.64 x 1.47 x 0.41 in
2.6” 79.2 x 42.5 x 10.45 mm / 3.12 x 1.67 x 0.41 in
2.9” 85.9 x 41.3 x 10.45 mm / 3.38 x 1.62 x 0.41 in
Display Dimensions
(W x H)
2.2” 48.1 x 26.0 mm / 1.89 x 1.02 in
2.6” 60.0 x 30.7 mm / 2.37 x 1.21 in
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
8 / 38
2.9” 67.6 x 29.6 mm / 2.66 x 1.16 in
Display Resolution
2.2” 296 x 160 pixels (156 dpi)
2.6” 360 x 184 pixels (152 dpi)
2.9” 384 x 168 pixels (144 dpi)
Label Weight
2.2” 32.65 g / 1.15 oz
2.6” 38.40 g / 1.35 oz
2.9” 40.25 g / 1.42 oz
Viewing Angle Nearly 180°
Display Colors ●○●● BWRY (Black, White, Red, Yellow)
Battery
2.2” Coin Battery (CR2450D) X 2
2.6” Coin Battery (CR2450D) X 2
2.9” Coin Battery (CR2450D) X 2
Wireless
Communication
2.4 GHz Unlicensed ISM band for BLE physical layer with SOLUM
Proprietary Protocol
Communication
Distance
98 feet (30m) radius Line of Sight
Security 128-bit AES Encryption
Compliance (TBD) FCC, ISED, CE, UKCA, MIC, KC, RoHS, WEEE
Operating
Temperature
-25℃ ~ 0℃ (-13℉ ~ 32℉)*
Storage Temperature 0℃ ~ 40℃ (32℉ ~ 104℉) @45~70% RH
**Freezer ESL must be used in freezer environments.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
9 / 38
3.2. Radio (RF) Specification
Item Parameter
Specification
Unit
Condition
Min
Typ
Max
Tx
Tx Power - 4 - dBm
[Carrier Frequency Offset and
Drift]
-75 0 75 kHz
Tx Current - - 10 mA
Total current at max Tx Power
Rx Receiver Sensitivity -85 - - dBm
PER < 5%
3.3. NFC Specification
Item Parameter
Specification
Unit
Condition
Min
Typ
Max
NFC Read Distance
- 0.7 - in
- 20 - mm

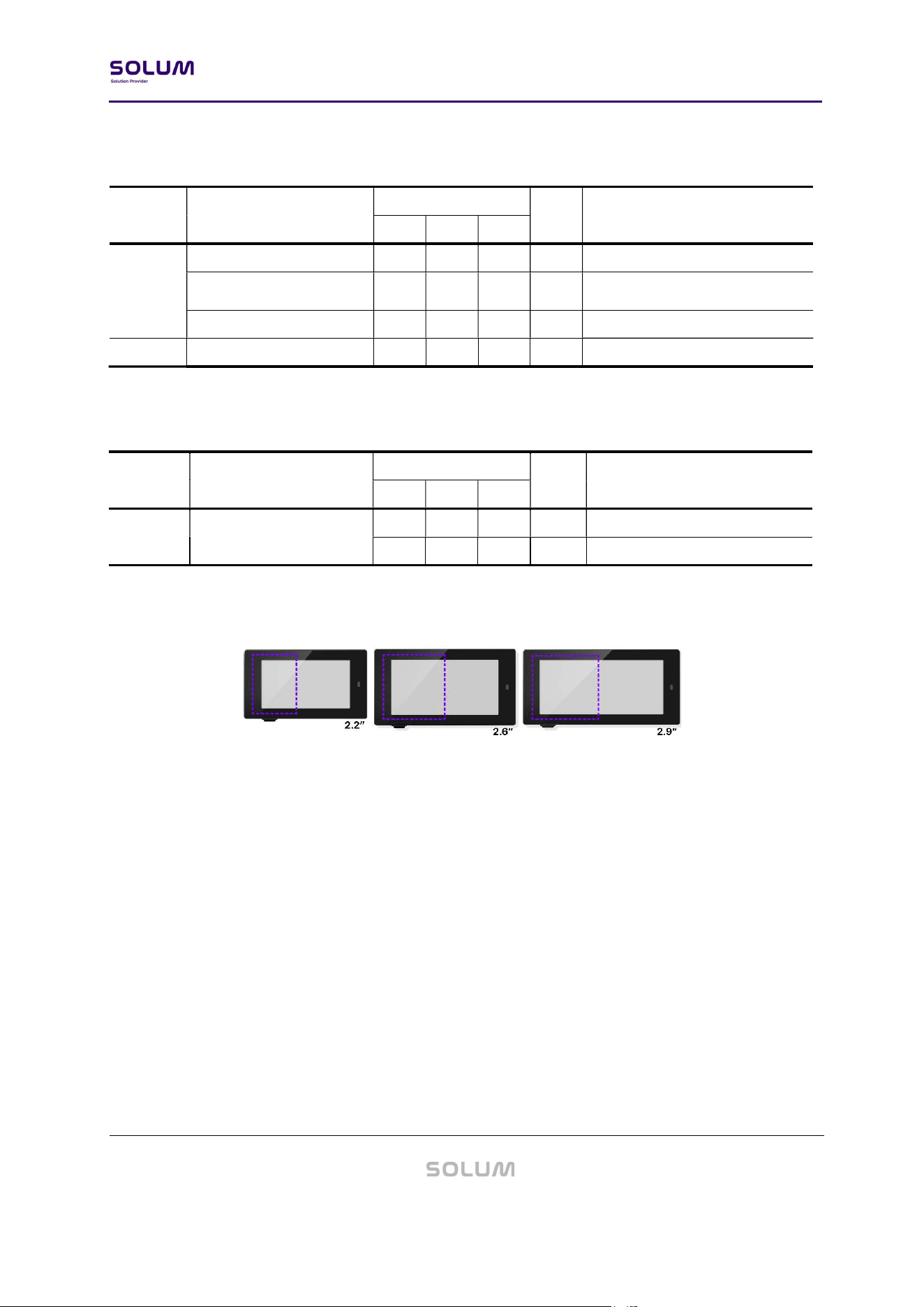

The NFC antenna location is shown for each ESL size.
Figure 1. NFC LOCATION
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
10 / 38
3.4. Features
Some of the features of SOLUM ESL.
- Low power consumption
- Real-time update speed
- SOLUM Proprietary Protocol communication with SOLUM Gateway for added security
Item Description
LED 7 colors (Red, Green, Blue, Yellow, Cyan, Magenta, White)
Usable Pages 10 pages each
NFC Built-in Felica NFC Forum Type 3
IP Rating IP68
Housing Bezel Color Black, White
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
11 / 38
3.5. Mechanical Drawing
3.5.1. 2.2”
(Unit: mm)
Figure 2. 2.2” MECHANICAL DIMENSION
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
12 / 38
3.5.2. 2.6”
(Unit: mm)
Figure 3. 2.6” MECHANICAL DIMENSION
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
13 / 38
3.5.3. 2.9”
(Unit: mm)
Figure 4. 2.9” MECHANICAL DIMENSION
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
14 / 38
3.6. Label Marking

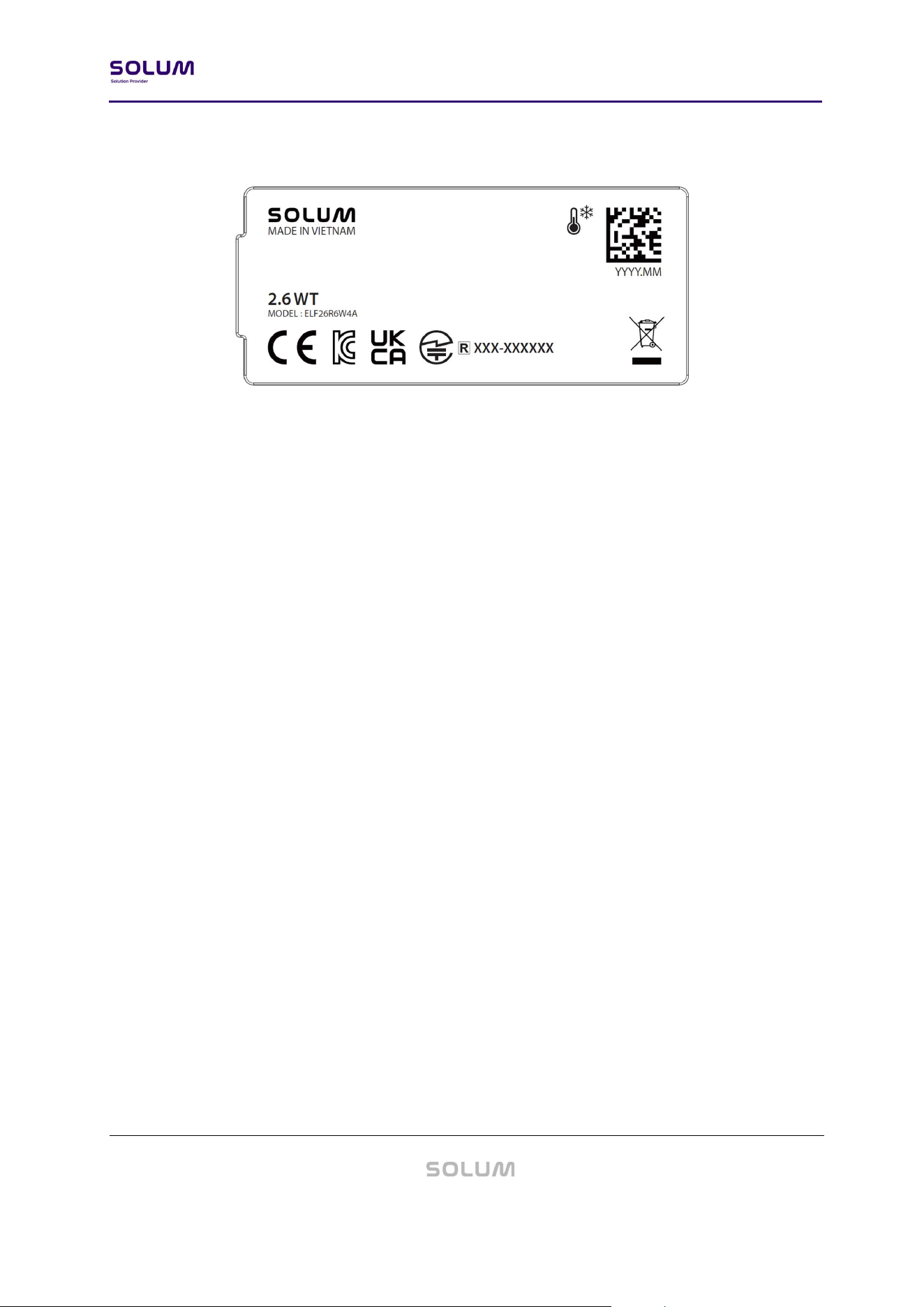

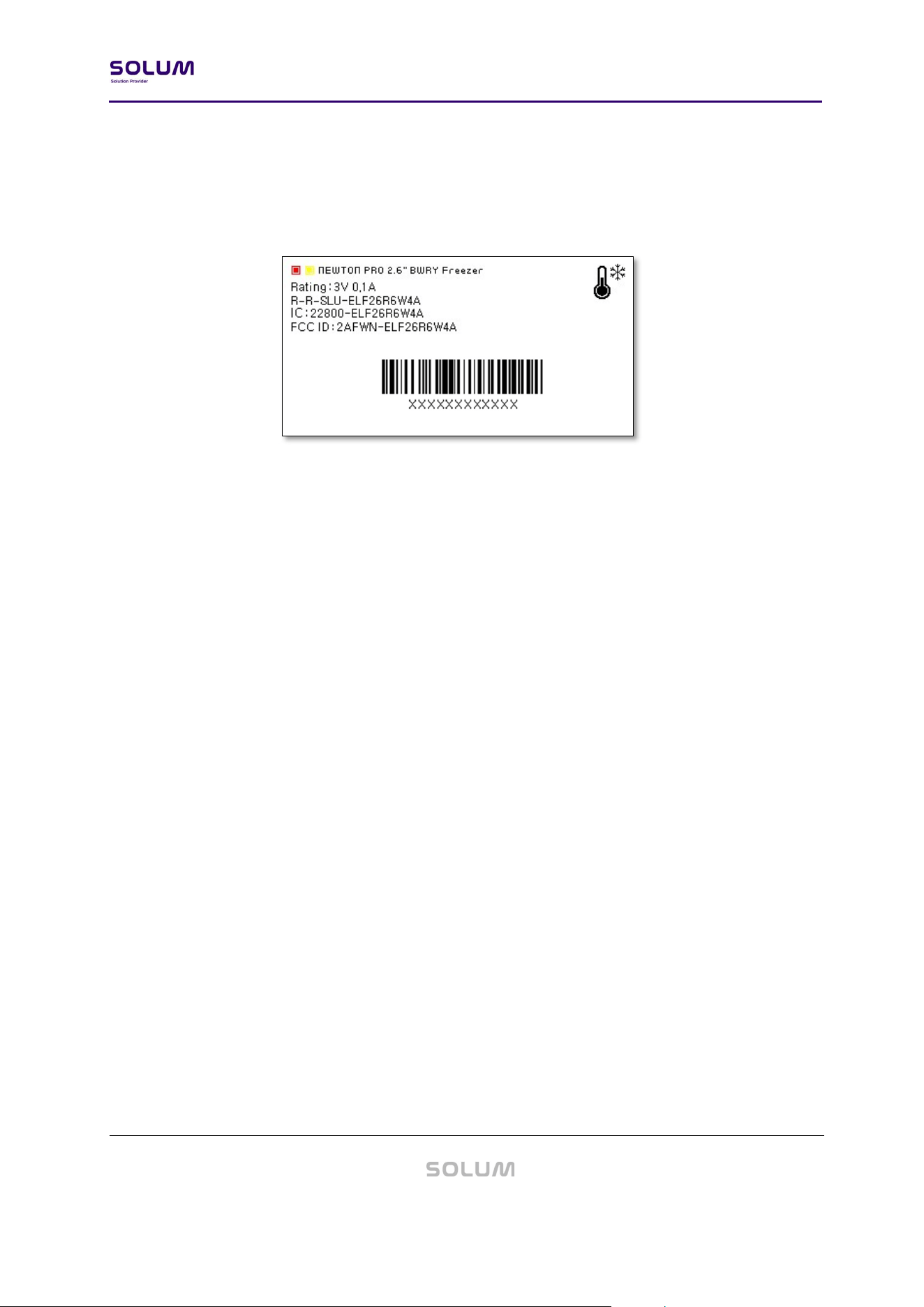

Figure 5. ESL LABELS (PRODUCT)
ESL-specific information can be found on the sticker label located on the back of the ESL.
Information displayed includes, but is not limited to: Model, Certifications, Manufacturing
Information
- Model: EL①②③④6⑤⑥⑦ (i.e. ELF26R6W4A)
①②③: ESL Display Size & Type
F22= 2.2” Freezer
F26= 2.6” Freezer
F29= 2.9” Freezer
④: Main IC Maker
R= Realtek
⑤: Housing Color
B= Black
W= White
⑤: ESL Display Color
4= Black, White, Red, Yellow (BWRY)
⑥: ESL Tag Type
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
15 / 38
A= Button, NFC, LED
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
16 / 38
Size
Model Name
Black White
2.2"F ELF22R6B4A ELF22R6W4A
2.6"F ELF26R6B4A ELF26R6W4A
2.9"F ELF29R6B4A ELF29R6W4A
MAC Label stickers can be found in multiple areas of the ESL. They are to be scanned for
operation. If the ESL is not assigned to a product, the MAC barcode and 12-digit code will be
shown on the display. Dimensions can be found in the image below.

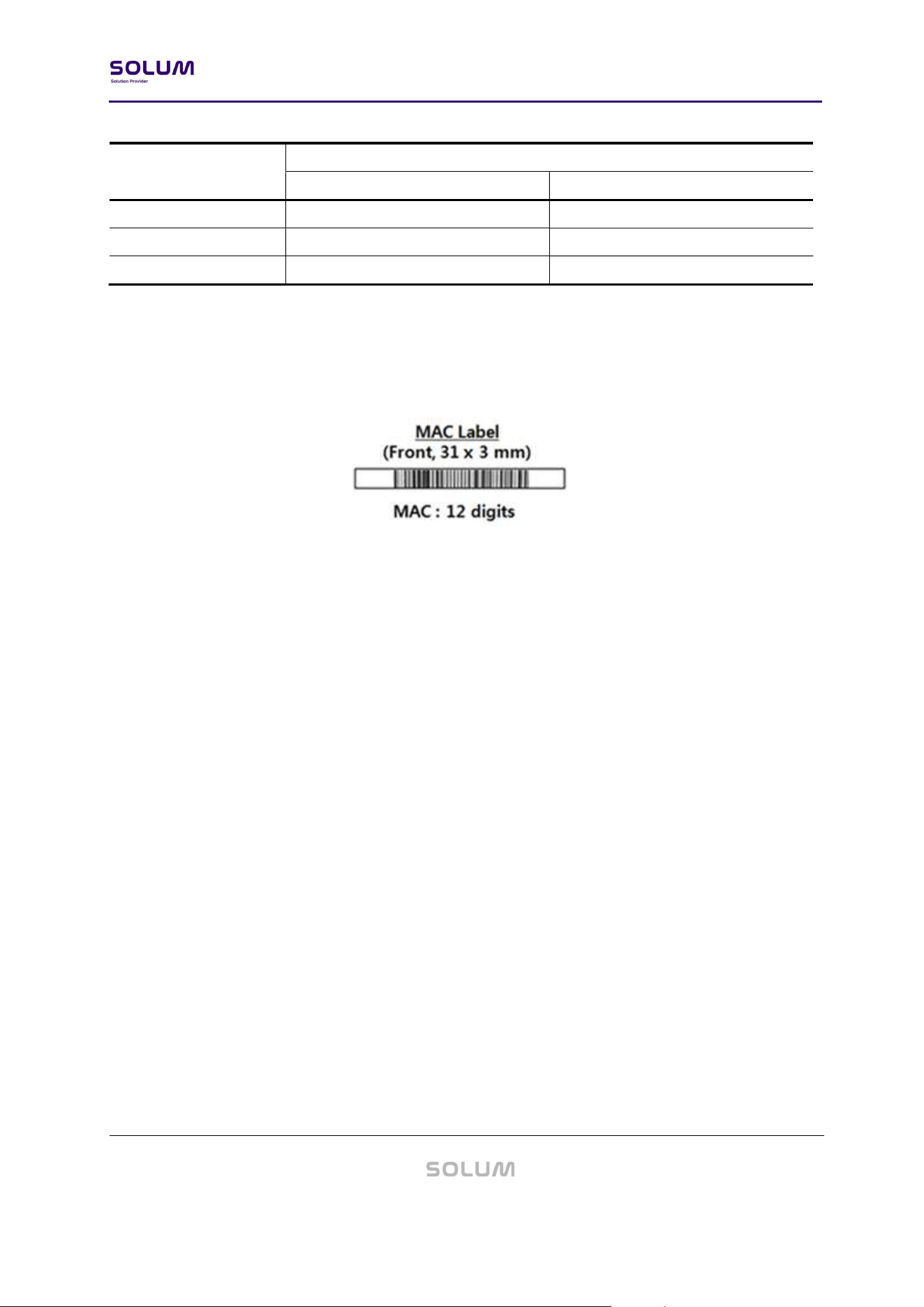

Figure 6. ESL LABELS (MAC)
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
17 / 38
3.7. Initial Display Image (E-Label)
ESL-specific information can be found in the initial display image of the ESL. The information
displayed is not limited to: Model, Certifications, ESL Media Access Control (MAC) Address.
Figure 7. ESL INITIAL DISPLAY IMAGE
How to Access E-Label
- Using the Button (For Models with a Button)
(1) Press and hold the button (Long key) to enter the White screen.
(2) Press the button briefly (Short key) to display the E-Label screen.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
18 / 38
3.8. Certifications
Each ESL has the following certifications and should be noted for your region.
Size
Model FCC
ISED
CE* KC
MIC UKCA
RoHS
WEEE
NCC
2.2"
ELF22F6WMA
O O O O O O O O
2.6"
ELF26F6WMA
O O O O O O O O
2.9"
ELF29F6WMA
O O O O O O O O
IEC 62471 standard (Photobiological Safety of Lamps and Lamp Systems) compliant
*CE: RF/EMC/LVD/RoHS2
3.8.1. FCC
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Caution
THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE.
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
IMPORTANT NOTE : FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters
between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
19 / 38
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device.
3.8.2. ISED
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :(1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement.
Attention: Tout changement ou modification non expressément approuvé par le fabricant peut
annuler le droit de l'utilisateur à utiliser l'équipement.
exposition aux rayonnements radiofréquences. Pour se conformer aux exigences de conformité de
l'exposition IC RF, une distance de séparation d'au moins 20 cm doit être maintenue entre
l'antenne de cet appareil et toutes les personnes.
This device complies with Industry Canada NRCs applicable to licence-exempt radio devices. The
operation is authorized under the following two conditions: (1) the device shall not cause
interference, and (2) the user of the device shall accept any radio interference suffered, even if the
interference is likely to compromise its operation.
Caution: Any change or modification not expressly approved by the manufacturer may void the
user's right to use the equipment.
exposure to radiofrequency radiation. To comply with the ICRF exposure compliance requirements,
a separation distance of at least 20 cm must be maintained between the antenna of this device
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
20 / 38
and all persons.
-PMN(Product Marking Name) : ESL Label
-FVIN(Firmware Version Identity Number) : V052
3.8.3. CE
Model Name: ESL Label
Manufacturer: SOLUM CO., LTD.
Address: 2354, Yonggu-daero, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea
Contact: www.solum-group.com / +82-1588-0502
Electrical Ratings: DC 2.4 V - DC 3.3 V
EU Representative: SOLUM Europe GmbH / Frankfurter Str. 10-14, 65760 Eschborn Germany
3.8.4. KC
상호: 주식회사 솔루엠
기자재명칭: 특정소출력 무선기기(무선데이터통신시스템용 무선기기)
제조자/제조국가: 주식회사 솔루엠 / 한국, 베트남
기본모델명 등록연월일
ELF22F6WMA TBD
ELF26F6WMA TBD
ELF29F6WMA TBD
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
21 / 38
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
22 / 38
4. Packaging
4.1. 2.2”

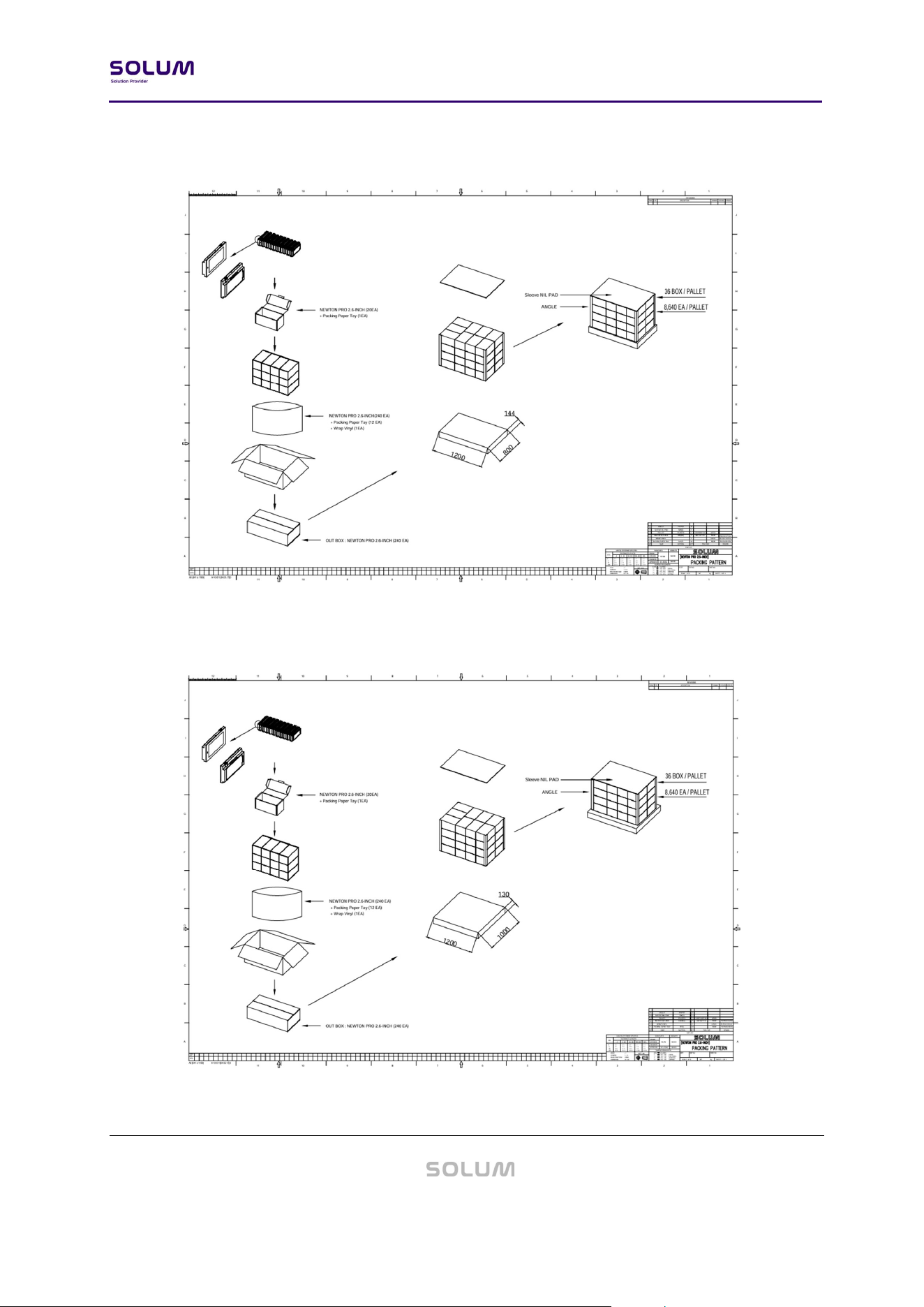

Figure 8. 2.2” PACKING-DIAGRAM (1,200 X 800)
Figure 9. 2.2” PACKING-DIAGRAM (1,200 X 1,000)
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
23 / 38
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
24 / 38
4.2. 2.6”

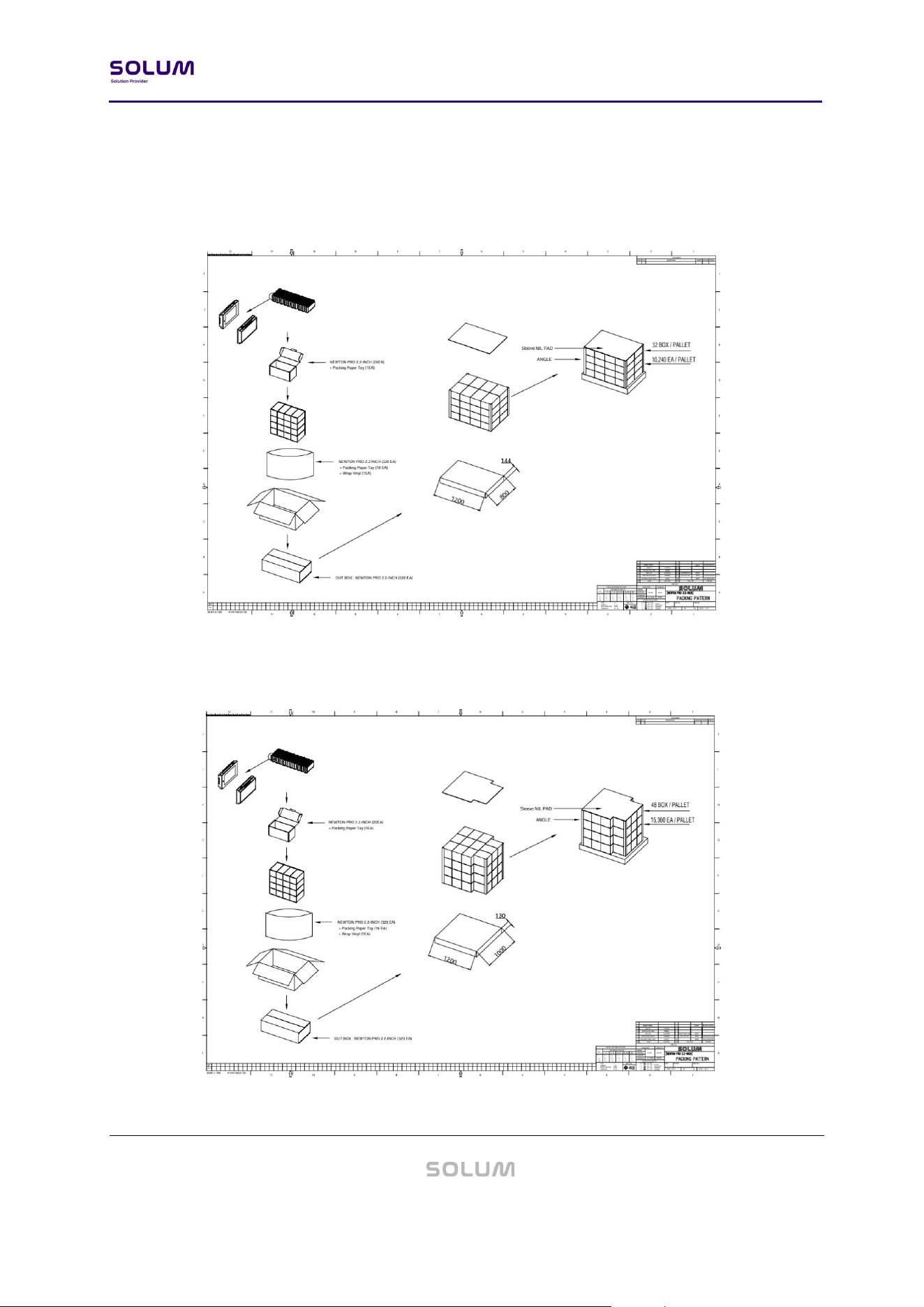

Figure 10. 2.6” PACKING-DIAGRAM (1,200 X 800)
Figure 11. 2.6" PACKING-DIAGRAM (1,200 X 1,000)
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
25 / 38
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
26 / 38
4.3. 2.9”

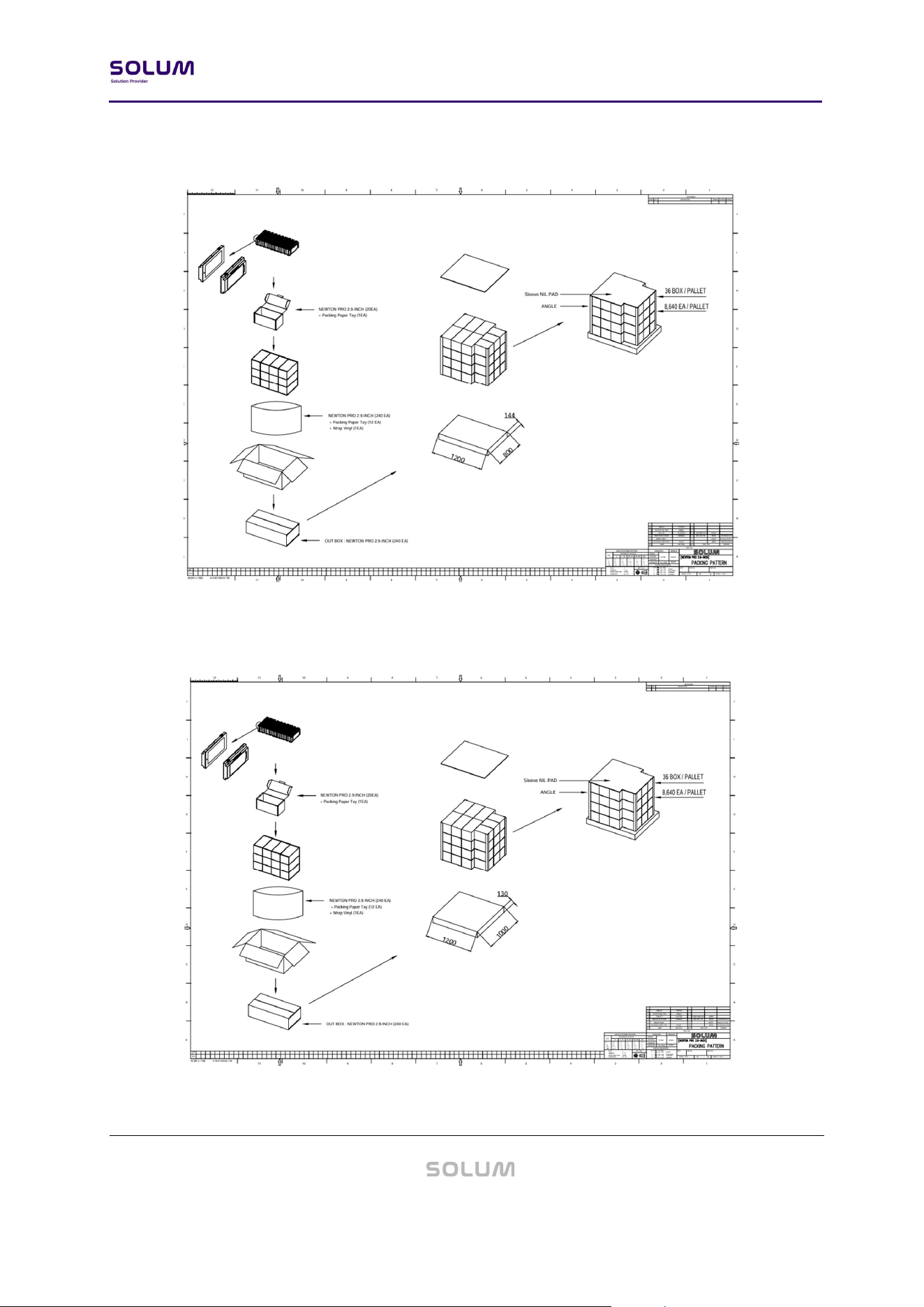

Figure 12. 2.9” PACKING-DIAGRAM (1,200 X 800)
Figure 13. 2.9" PACKING-DIAGRAM (1,200 X 1,000)
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
27 / 38
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
28 / 38
5. Reliability Test
SOLUM conducts the following reliability tests in accordance with internal standards to verify that
the product maintains its specified performance in retail operating environments and throughout
distribution. Each test is designed with reference to the operating and storage environment
specifications stated in this document.
Operating Environment Test (Temperature and Humidity)
Image update and communication operations are repeatedly performed within the range specified
in the "Operating Environment" section of this document to verify display quality and operational
stability.
Storage Environment Test (Temperature and Humidity)
Operation is verified after storage under the conditions specified in the "Storage and
Warehousing" section of this document, confirming that environmental exposure during storage
does not affect product quality.
Temperature Shock Test (Storage)
Temperature variation environments that may occur during storage and transportation are
simulated to verify the structural and operational integrity of the product.
Electrostatic Discharge (ESD)
Test Electrostatic discharge environments that may occur during product handling are simulated to
verify normal operation following discharge.
Product Drop Test
Drop situations that may occur during installation and replacement work are simulated to verify
the appearance and operating status of the product.
Package Drop Test
Impacts that may occur during distribution and handling are simulated to verify the protective
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
29 / 38
performance of the product in its packaged state.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
30 / 38
Package Vibration Test
Vibration environments occurring during transportation are simulated to verify the protective
performance of the product in its packaged state.
Wireless Communication Performance Test
The operating environment between the gateway and the tag is simulated to verify the stability of
wireless reception and image update operations.
Waterproof Test
Water immersion environments are simulated based on the protection rating stated in the "Ingress
Protection" section of this document to verify normal operation after immersion.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
31 / 38
6. Product Handling Precautions
Provisions should be made to protect against any damage to the product caused by improper
handling. The purchaser assumes any responsibility for damage to the product caused by
improper handling.
Product should be stored in 0℃ ~ 40℃ (32℉ ~ 104℉) @45~70% RH environment and should be
installed within 90 days of receipt.
6.1. Usage Environment
Take extra caution when using this RF device in the vicinity of other electronic devices and
appliances. Most electronic devices and appliances use electromagnetic waves. Electromagnetic
waves emitted by this RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and
signals.
6.2. Storage and Use
- The product is shipped in sleep mode (displaying a white screen) and can be activated by
pressing the button, using an NFC remote control, or via the mobile app.
- Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the
device itself.
- Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and become damaged.
- Use the product in temperatures ranges of -13℉ ~ 32℉ (Freezer). Parts and circuits may be
damaged if operated or stored in extreme temperature.
- The display panel needs extra care during handling.
Do not apply any impacts on the e-Paper display as it is fragile.
Continuous exposure to excessive moisture (over 70% RH) or UV shortens display lifetime.
Ghosting image may appear in temperature conditions of less than -25℃ / -13℉ for
freezer tags. (If ΔL* >2, we call it ghosting phenomenon)
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
32 / 38
- Avoid areas with strong magnetism or subject to magnetism. Contact between the device and
a magnetic object can lead to malfunctions.
- Do not place the product near heat-producing kitchen appliances like a stove or a microwave
or in the vicinity of highly pressurized containers.
- External impact to the product, such as from being dropped, can damage the product.
- Twisting and bending the product can damage the exterior casing and the internal
components.
- If this product operates abnormally while removing battery or replacing battery, it needs to be
discharged by contacting the battery terminals (+) and (-) in the product.
- This product uses the 2.4GHz frequency band for the wireless communication network. Radio
communications can be limited or affected by other applications that share the same
frequency band, such as Wi-Fi, Bluetooth, Zigbee, etc.
- A prior investigation into the radio environment is strongly required for efficient and smooth
installation.
- Frequent communications, updates and screen renewals may reduce battery life time.
- Low temperature environments may reduce battery life.
- FIFO (First In First Out)
6.3. Product Cleaning
6.3.1. For Spray Cleaning:
Steps
(1) Lightly spray all surfaces and wait a few seconds.
(2) Gently wipe clean using a cloth or tissue.
(3) Let the labels dry.
Notes
- Use mild, non-alcoholic detergents or glass cleaner.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
33 / 38
- Recommend non-abrasive cloths: Microfiber, Cotton T-shirt, Cotton handkerchief, Cotton tea
towel
6.3.2. For Wet Tissue Cleaning:
Steps
(1) Stand or lay down the labels.
(2) Wipe using wet tissues.
(3) Let the labels dry.
6.4. Battery Replacement
Audience
- Authorized personnel with the following knowledge are allowed to replace the battery: Battery
/ Electronic assemblies (e.g. circuit board) / Compliance with the instruction
※ Note: Warranty is voided if battery is replaced by unauthorized personnel. (When batteries
require replacement, please contact the authorized personnel)
Instructions
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
34 / 38
- Risk of short circuit if battery is incorrectly installed/stored.
- Check that hands are dry before and at all times during the replacement Process.
- Keep batteries away from children and infants.
- Do not heat, charge, bend, drop, short-circuit and/or disassemble battery.
- Do not mix together used and new batteries or different battery types.
※ Note: Battery rarely has minor stain or leak.
Steps
(1) Open the battery cover.
(2) Take out the batteries.
(3) Put in the new batteries.
(4) Check the batteries direction.
(5) Put back in the battery cover.
Battery Direction
- Coin Battery
Top: (+) Positive
Bottom: (-) Negative

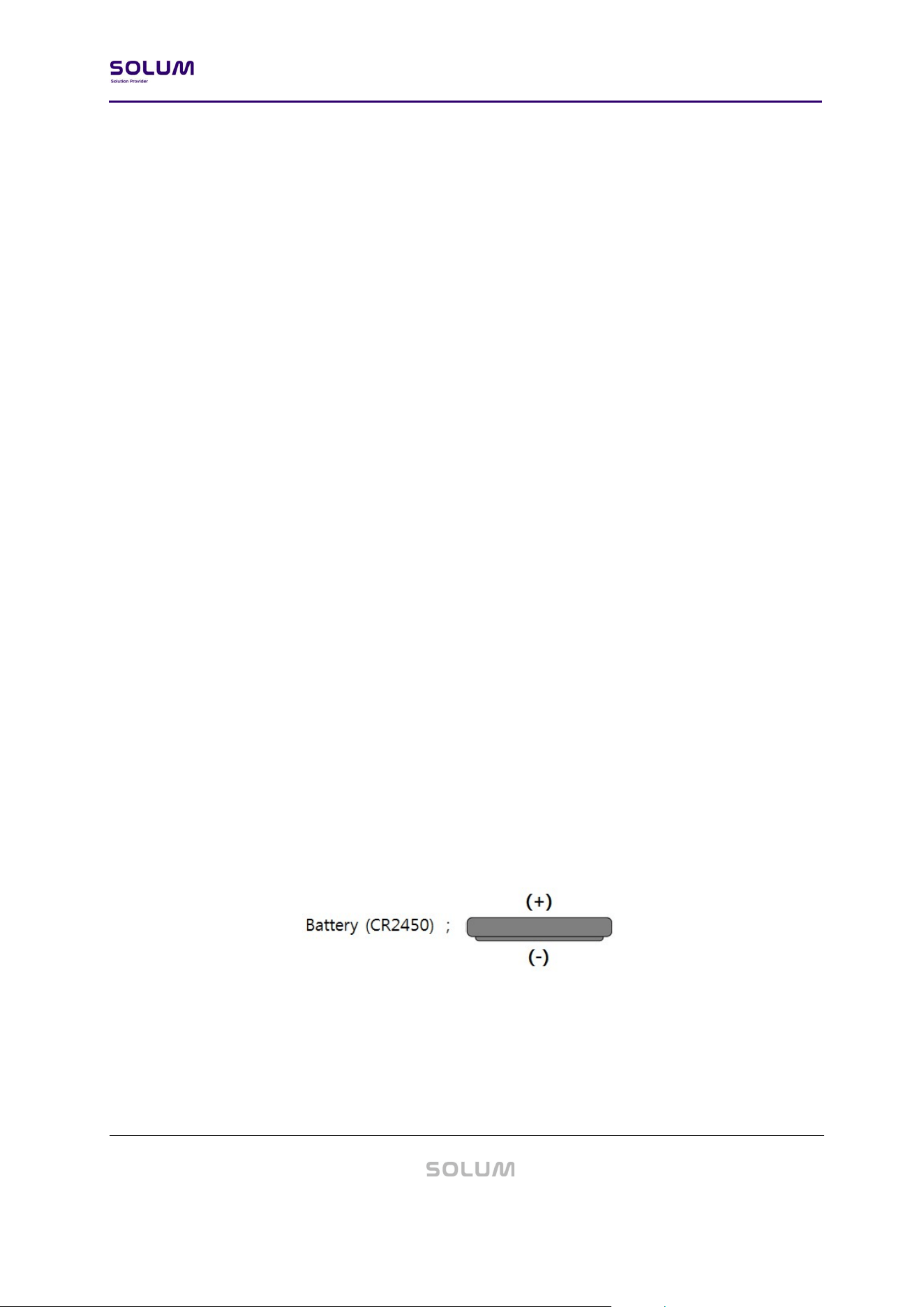

Figure 14. COIN BATTERY DIRECTION
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
35 / 38
7. Battery Handling Guide
7.1. Avoiding hazards in lithium battery handling

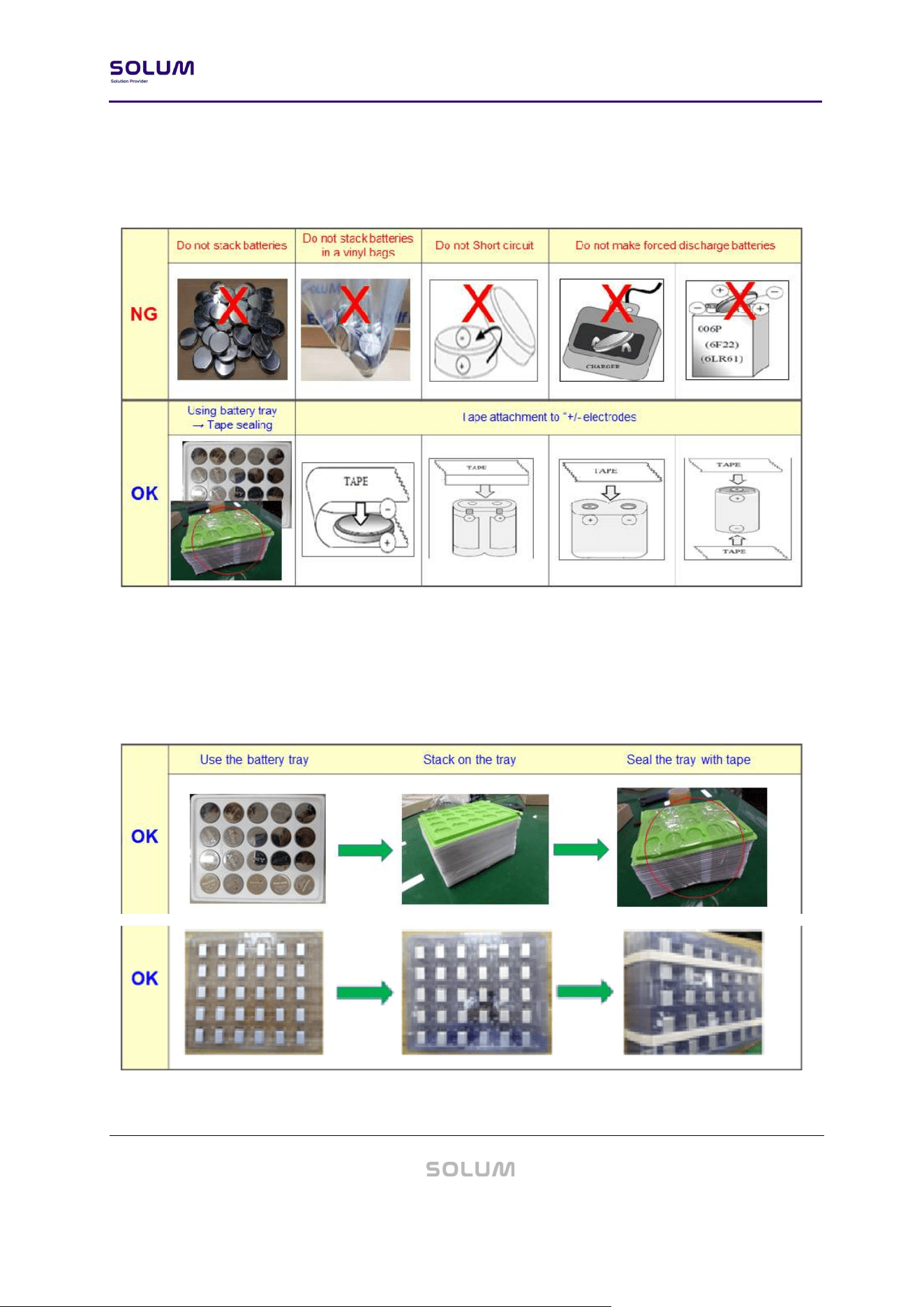

1. Do not short circuit (Fig. 1)
Direct connection of plus (+) and minus (-) poles may result in leakage, heat generation,
explosion and/or fire.
Do not store and/or carry batteries with metallic items, such as a necklace.
2. Do not stack and/or jumble batteries (Fig. 2)
Stacked and/or jumbled batteries may cause a short circuit and/or forced discharge from
contact with other batteries.
This may result in leakage, heat generation, explosion and/or fire.
3. Do not make forced discharge batteries (Fig. 3)
On a forced discharge by an external power source, the battery voltage goes to negative
and this causes gas generation in inside of the battery.
This may result in leakage, heat generation, explosion and/or fire.
4. Do not dispose of batteries in fire
Disposal of batteries in fire is extremely dangerous with a risk of explosion and violent
flaring.
5. Do not heat batteries
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
36 / 38
Heating batteries above 100℃/212°F may damage the resin in crimping, separator and
other parts, potentially causing an electrolyte leak, internal short circuit, fire and/or
explosion.
6. Do not solder directly onto batteries
Direct soldering onto batteries may damage the resin in crimping, separator and other
parts, potentially causing an electrolyte leak, internal short circuit, fire and/or explosion.
7. Do not recharge batteries
Recharging of batteries may result in internal gas generation, causing electrolyte leak,
battery swelling, fire and explosion.
8. Do not disassemble batteries
Disassembly of batteries may generate gas that may irritate your throat.
Lithium may also react with moisture to generate heat and fire.
9. Do not deform batteries
Applying extreme pressure to batteries may cause deformation of the crimping and
internal short circuit, causing electrolyte leak, battery swelling, fire and explosion.
10. Do not mix different type batteries
For some applications, mixing different types of batteries or new and old batteries, can
cause an over discharge due to differences in voltage and discharge capacities.
This may lead to the risk of swelling and/or explosion.
11. Do not insert batteries with opposite polarity
For some applications, battery insertion with opposite polarity (reverse insertion of plus
and minus) may result in leakage, heat generation, explosion and/or fire.
※ Please ensure the above precautions are strictly observed by related divisions including
Production, warehouse, Product technology, sales, quality, customer stores, S/I companies,
part-time workers, and external service companies.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
37 / 38
7.2. Proper Storing and Disposing of Lithium Batteries
- To minimize risk of fire and explosion of batteries, be sure to follow the instructions below.
- Proper use of battery tray is outlined below.
With batteries properly placed into each tray slot → stack the trays in the same orientation → use
an empty tray on the top stack → tape the stack together to avoid falling apart.
Newton Pro Freezer 4-Color (BWRY) ESL Datasheet
v0.1.0-PRE
38 / 38
- Follow local regulations for proper battery disposal guideline.
