RSC904 / RSC904T / RSC906 / RSC906T / RSC908 / RSC908T
4 A / 6 A / 8 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
INNOVATION
ON THE MOVE
2
RSC904 / RSC904T / RSC906 / RSC906T / RSC908 / RSC908T
4 A / 6 A / 8 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
Warnings
DANGER! BE AWARE, LEAD-ACID BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OP-
ERATION. FOR THIS REASON, IT IS VERY IMPORTANT TO READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY,
EACH TIME YOU USE THE CHARGING EQUIPMENT.
WARNING! Modern vehicles contain extensive electronic systems. You are required to check with the vehicle manufacturer,
for any specific instructions regarding the use of this type of equipment on each vehicle.
Charge in a well-ventilated area.
DO NOT operate near flammable liquids or gases.
DO NOT touch the clamps together or allow to touch the chassis.
DO NOT connect the clamps via another metallic object.
DO NOT cross connect power leads from charger to battery.
Ensure positive (+/RED) is connected to positive and negative (-/BLACK) is connected to negative.
DO NOT pull the cables or clamps from the battery terminals.
DO NOT pull or carry the charger by the power cable.
DO NOT pull the plug from the socket by the cable.
DO NOT use worn or damaged cables, plugs or clamps.
Any faulty item should be immediately repaired or replaced by a qualified technician.
DO NOT use the charger for a task for which it is not designed.
DO NOT cover or obstruct the charger ventilation louvres or fan.
DO NOT at the same time charge batteries of different capacities or discharge levels.
3
21
mm w h
RSC904(T) 85 146
RSC906(T) 106 185
RSC908(T) 106 185
4
RSC904 / RSC904T / RSC906 / RSC906T / RSC908 / RSC908T
4 A / 6 A / 8 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
45
2
3
1
5
6a: 4 A
6b: 6 A
6c: 8 A
RSC904(T)
RSC906(T)
RSC908(T)
12 V
) 14.6 V ) 4 A
12 V
) 14.8 V ) 4 A
12 V
) 14.4 V ) 4 A
6 V
) 7.2 V ) 2 A
6 V
) 7.4 V ) 2 A
6 V
) 7.2 V ) 2 A
12 V
) 14.6 V ) 2 A
12 V
) 14.8 V ) 2 A
12 V
) 14.6 V ) 6 A
12 V
) 14.8 V ) 6 A
12 V
) 14.4 V ) 6 A
6 V
) 7.2 V ) 3 A
6 V
) 7.4 V ) 3 A
6 V
) 7.2 V ) 3 A
12 V
) 14.6 V ) 3 A
12 V
) 14.8 V ) 3 A
12 V
) 14.6 V ) 4 A
12 V
) 14.8 V ) 4 A
12 V
) 14.6 V ) 8 A
12 V
) 14.8 V ) 8 A
12 V
) 14.4 V ) 8 A
24 V
) 28.8 V ) 4 A
24 V
) 29.0 V ) 4 A
24 V
) 28.8 V ) 4 A
≤ 48 Ah
LFP: Lithium Battery LiFePO4
LFP: Lithium Battery LiFePO4
LFP: Lithium Battery LiFePO4
6
RSC904 / RSC904T / RSC906 / RSC906T / RSC908 / RSC908T
4 A / 6 A / 8 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
9
RSC904(T) (4 A) RSC906(T) (6 A) RSC908(T) (8 A)
230 V AC 50 Hz /
) 0.7 A
230 V AC 50 Hz /
) 1.1 A
230 V AC 50 Hz /
) 1.5 A
6 V: ) 7.4 V 12 V: ) 14.8 V 6 V: ) 7.4 V 12 V: ) 14.8 V 12 V: 14.8 V 24 V: 29.0 V
6 V: ) 2 A 12 V: ) 4 A 6 V: ) 3 A 12 V: ) 6 A 12 V: ) 8 A 24 V: ) 4 A
6 V: ) 40 Ah 12 V: ) 90 Ah 6 V: ) 50 Ah 12 V: ) 110 Ah 12 V: ) 150 Ah 24 V: ) 70 Ah
87
7
ba

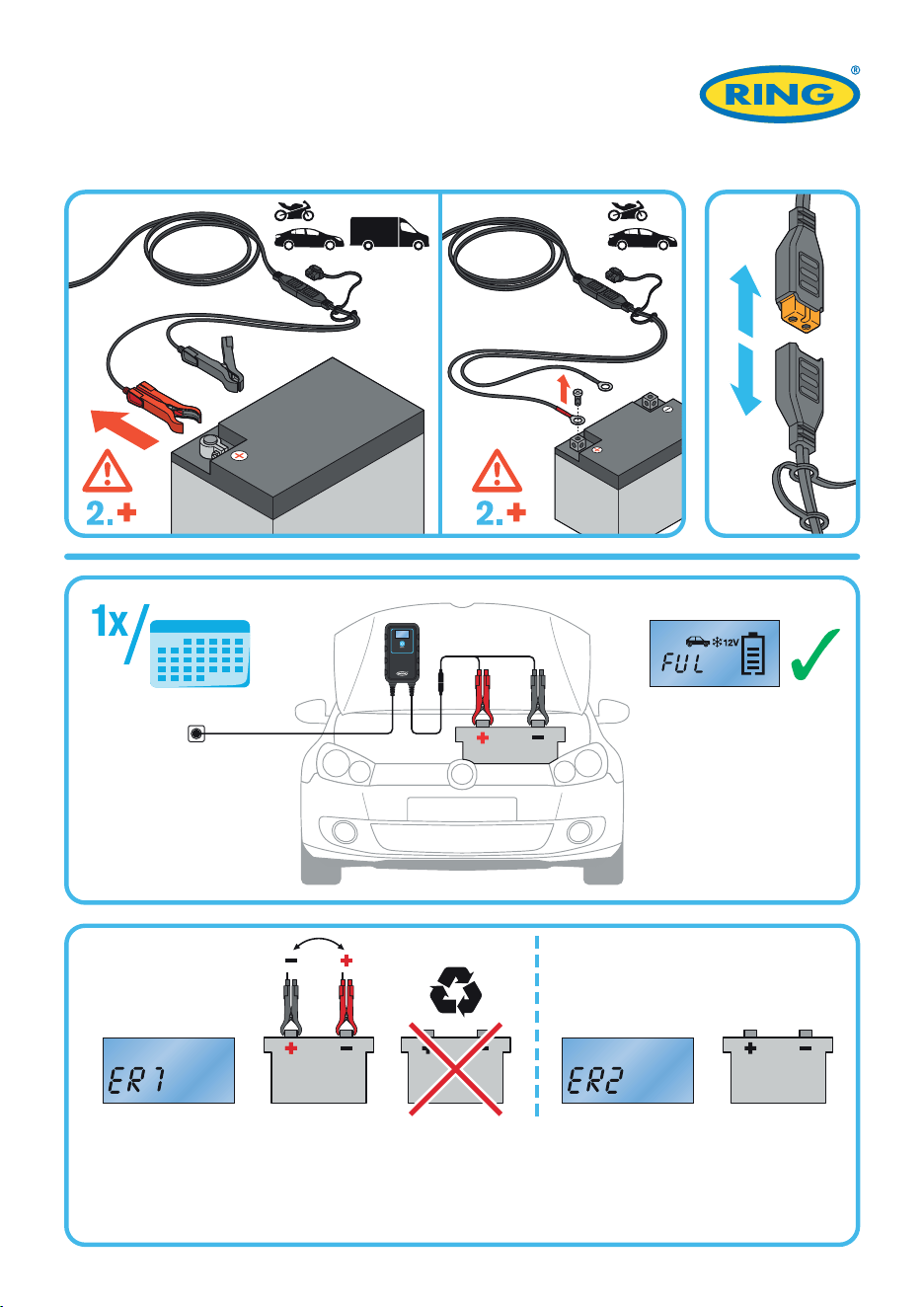

Error Codes
V?
10 11
6 V / 12 V / 24 V ?
ER1 (Error Code 1) appears when:
1. Battery clamps are connected incorrectly. The correct connection
is Red Clamp to Positive, Black Clamp to Negative.
2. The charger is powered on before being connected to the battery
(connect first, then power on).
3. The battery is completely flat. The charger requires at least 2 V to
add charge; below 2 V, it will not charge.
ER2 (Error Code 2) appears when:
1. A defective battery is connected.
Cannot be charged.
2. The battery voltage does not match the
selected charge mode (e.g., a 6 V battery
with a 12 V setting).
RSC904 / RSC904T / RSC906 / RSC906T / RSC908 / RSC908T
4 A / 6 A / 8 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
G15140283
C10449058
14.04.25
Imported in the EU by
OSRAM GmbH
Nonnendammallee 44
13629 Berlin
Germany
www.osram.com
Manufactured & Imported in the UK by
Ring Automotive Limited
Volvox House, Gelderd Road,
LEEDS, LS12 6NA,
UNITED KINGDOM
Telephone +44 (0)113 213 2000
Fax +44 (0)113 231 0266
Email [email protected]
www.ringautomotive.com
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance. For indoor use only. Charging only rechargeable Batteries.
Disconnect the supply before making or breaking the connections to the battery. WARNING: Explosive gases. Prevent flames and sparks. Provide
adequate ventilation during charging, the battery must be placed in a well ventilated area. WARNING: Use of unauthorized parts or failure to
follow maintenance Instructions may create a risk of electric shock or injury. File instructions for future reference. Store the manual in a safe place.
Do not use
in extreme heat
Do not use
in extreme cold
No drinks/liquids No smoking/vaping Keep away from children
Do not drop
Do not expose
to moisture
Do not charge
a frozen battery
Do not touch
clamps together
Keep away from
tools and jewellery
Do not damage cables
Do not use
with damaged cable
Keep cables away
from moving parts
Do not carry by cables Risk of fire
Risk of
electric shock
Risk of
hazardous materials
Use in a well
ventilated area
Battery may
emit fumes
Surrounding items
may emit fumes
For list of General Power Tool Safety Warnings
please scan the QR code or visit:
www.ringautomotive.com/en/product-safety-documents
