Product Overview

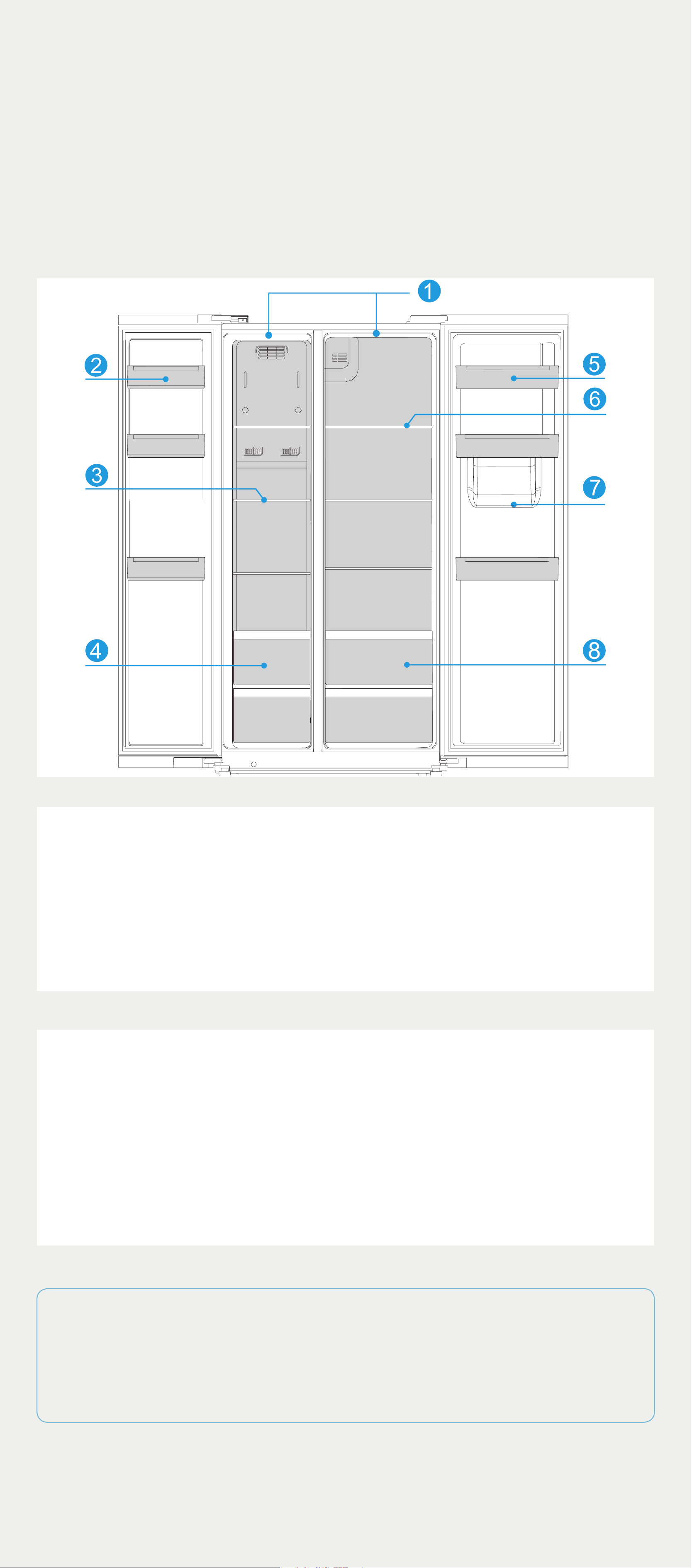

Product Introduction
1 Led light 5 Refrigerator Door Tray
2 Freezer Door Tray 6 Refrigerator Glass Shelf
3 Freezer Glass Shelf 7 Water tank
4 Freezer Drawer 8 Fruits And Vegetables Box
• For the most ecient use of energy, please keep the all internal
items such as trays, drawers, shelves and ice cube box on the
position supplied by manufacturer.
• This refrigerating appliance needs to be installed independently
and cannot be used as a built-in. Otherwise, it will cause problems
such the performance and life of the appliance are reduced. And
the manufacturer does not provide basic appliance warrant.
• | Attention
Dierences: Due to technical changes and dierent models, some
of the illustrations in this manual may dier from your model.
Product Installation
Space requirement diagram
Too small of a distance from adjacent items may result in the
degradation of freezing capability and increased electricity costs.
Allow over 100 mm of clearance at both sides and the top, and 50-75
mm at the back when installing the appliance.
B
A
C
C1
D
B
130
E
A B C C1 D E
897 1765 706 600 1455 1020
Notice: All dimensions in mm
Connecting the appliance
After installing the product, please let it stay
for more than 2 hours before turning on the
power, otherwise it will lead to a decrease
in cooling capacity or a damage to the
product.
Allow the appliance to run empty for 24
hours so the compartment can cool to the
appropriate temperature.
2 h
• | CAUTION
The refrigerator should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the rating
plate.
When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Ambient Temperature
Depending on the climate class, this refrigerator is intended to
be used at an ambient temperature range as specified in the
following table.
The product may not operate properly at temperatures outside
of the specific range.
You can find the climate class on the product label.
Climate Class Ambient Temperature
SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C
If you have any doubts regarding installation, please turn
to the vendor, to our customer service or to the nearest
Authorised Service Centre.
• | Tips
The cooling performance and power consumption of the
refrigerator may be aected by the ambient temperature, the
door-opening frequency, and the location of the refrigerator. We
recommend adjusting the temperature settings as appropriate.
Leveling feet
•
To avoid vibration, the appliance must be leveled.
•
If required, adjust the leveling feet to compensate for the uneven
floor.
•
The front should be slightly higher than the rear to aid in door
closing.
•
Leveling feet can be turned easily by tipping the cabinet slightly.
•
Turn the leveling feet counter clockwise to raise the unit,
clockwise to lower it.
Leveling door
Precautions before operation:
•
Before operation of accessories, it shall be ensured that the
refrigerator is disconnected from power.
•
Before adjusting the door , precautions shall be taken to prevent
any personal injury.schematic diagram of leveling the door body.
Schematic diagram of the levelling feet:
Locking nut
Adjusting nut
Wrench
Leveling feet
Not level
Left
Right
Fixed shaft
When the fridge door is low:
Open the door, use a wrench to loosen the locking nut and to rotate
the adjusting nut anti-clockwise to raise the height of the door. Once
the doors are aligned,then tighten the locking nut by rotating it anti-
clockwise.
When the fridge door is high:
Open the door, use a wrench to rotate the adjusting nut clockwise to
lower the height of the door. Once the doors are aligned, then tighten
the locking nut by rotating it anti-clockwise.
Product Operation
Control panel
A
B
C
D
E
Display Button
1 Refrigerating icon A Temperature up button
2 Freezer icon B Temperature zone selection button
3 Super cool icon C Temperature down button
4 Super freeze icon D Mode set button
5 Lock/Unlock icon E Lock/Unlock button
6 Vacation icon
Operation Instruction
a |
Display
When electrify the refrigerator, the display screen will totally display
for 3 seconds, meanwhile the starting up bell rings, then the display
screen enters the normal display of operation. It will display the set
temperature of both refrigerator and freezer rooms when there is no
fault.
b |
Lock / unlock
In the unlocked state, long press the button for 3
seconds, enter the lock state; In the locked state, long press the
button for 3 seconds, enter the unlock state. All
the following functions must be operated in the unlocking status.
c |
Vacation mode
Click the button to enter the vacation mode. Icon “ ” lights
up, the vacation mode will start after locking the control panel.
Under vacation mode, the refrigerating compartment is tured off and
temperature area display “--”, the freezer compartment temperature
is set at -18°C .
d |
Super cool mode
Click the button to enter the Super cool mode. Icon lights
up, the temperature area display 2°C. the Super cool mode will start
after locking the control panel. Super cool mode will automatically
exit when running for a maximum of 6 hours.
e |
Super freeze mode
Click the button to enter the Super freeze mode. Icon
lights up, the temperature area display -24°C . the Super freeze
mode will start after locking the control panel. Super freeze will exit
automatically after 24 hours.
• | Note
The Super freeze function is designed to maintain the nutritional value of
the food in the freezer. It can freeze the food in the shortest time. If a large
amount of food is frozen at one time, it is recommended that the user turn
on the Super freeze function and put the food in. At this time, the freezing
speed of the freezer compartment is increased, which can quickly freeze
the food, effectively lock the nutrition of the food, and facilitate storage.
f |
Temperature setting of refrigerating chamber
Click the button to change the set temperature of
refrigerator chamber, the icon
will be displayed.
Each time click the
or , the set temperature will rise 1°C or will
drop 1°C. The temperature setting will take effect after the display
panel is locked.
The setting range of refrigerator chamber is 2°C ~8 °C .
g |
Temperature setting of freezing chamber
Click the button to change the set temperature of
freezer chamber, the icon
will be displayed.
Each time click the
or , the set temperature will rise 1°C or will
drop 1°C. The temperature setting will take effect after the display
panel is locked.
The setting range of freezer chamber is -24 °C ~ -16 °C.
Recommended setting: refrigerating chamber 4 °C, freezing chamber - 18 °C.
h |
Storage upon power failure
In case of power failure, the instant working state will be locked and
maintained till re-electrification.
i |
Door opening tone and alarm
When the door is opened, the display screen and lights come on,
a beep will sound. Long press buttons and for 3 seconds to
cancel or turn on the door opening beep.
If the door is opened for more than 120 seconds, two buzzer alarms
will sound first and then add one alarm every one minute. Press any
button to briefly turn off the alarm. This alarm cannot be canceled, so
please close the door as soon as possible.
j |
How to use the water dispenser
The water dispenser allows access to chilled water without having to
open the refrigerator door.
The number of door openings is thus reduced, less cold air is lost
from the refrigerator and you save on electricity costs.
Fi
g
ure 1
Figure 2
Filling the water tank (Figure1)
Fill with pure and clean drinking water.
Do not overfill the tank.
Close the cap.
Using the dispenser (Figure2)
Push in the lever of the water dispenser with your glass.
Releasing the lever, stops further dispensing of water.
Flow rate is dependent on how far the lever is pushed back:
Fully back = full flow
Gently back = trickle
As the level of water in your cup/glass rises, gently reduce the
amount of pressure on the lever to avoid overflow.
• | Attention
Do not fill water tank with any liquid other than drinking water. Beverages
such as fruit juice, carbonated fizzy soda drinks and alcohol are not
suitable for use with the water dispenser. If such liquids are used, the
water dispenser may malfunction and be damaged beyond repair. Some
chemical ingredients and drink additives may also attack and damage the
water tank material. The guarantee does not cover such eventualities.
k |
Fault code
The following warnings appearing on the display indicate
corresponding faults of the refrigerator. Though the refrigerator may
still have cold storage function with the following faults, the user shall
contact a maintenance specialist for maintenance, so as to ensure
optimized operation of the appliance.
Fault Code Fault Description
E1 Refrigerating temperature sensor fault
E2 Freezing temperature sensor fault
E5 Freezer defrost sensor fault
E6 Main control PCB and Display PCB communication fault
E7 Ambient temperature sensor fault
l |
Changing the light
Any replacement or maintenance of the LED lamps is intended to
be made by the manufacturer, its service agent or similar qualified
person.
• | Attention
This product contains a light source of energy efficiency class (G).
Maintenance Tips
Overall cleaning
•
Disconnect the appliance from the electrical supply before
undertaking any routine maintenance. Allow at least 5 minutes
before restarting the appliance, as frequent starting may
damage the compressor.
•
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
•
Do not try to repair, disassemble or modify the appliance by
yourself. In case of repair please contact our customer service.
•
Eliminate the dust on the back of the unit at least once in
the year to avoid hazard by fire, as well as increased energy
consumption.
•
Check the door gasket regularly to make sure there are no
debris. Clean the door gasket with a soft cloth dampened with
soapy water or diluted detergent.
•
The interior of the product should be cleaned regularly to
avoid odor.
•
Use a soft cloth or sponge to clean the inside of the product,
with two tablespoons of baking soda and a quart of warm
water. Then rinse with water and wipe clean. After cleaning,
open the door and let it dry naturally before turning on the
power.
•
For areas that are dicult to clean in the product (such as
narrow sandwiches, gaps or corners), it is recommended to
wipe them regularly with a soft rag, soft brush, etc. and when
necessary, combined with some auxiliary tools (such as thin
sticks) to ensure no contaminants or bacterials accumulation
in these areas.
•
Wipe the outer surface of the product with a soft cloth
dampened with soapy water, detergent, etc., and then wipe
dry.
•
Do not use hard brushes, clean steel balls, wire brushes,
abrasives (such as toothpastes), organic solvents (such as
alcohol, acetone, Isoamyl acetate, etc.), boiling water, acid
or alkaline items, which may damage the fridge surface and
interior. Boiling water and organic solvents such as benzene
may deform or damage plastic parts.
•
Do not rinse directly with water or
other liquids during cleaning to avoid
short circuits or aect electrical
insulation after immersion.
• | Notes:
The appliance shall run continuously once it is started. Generally, the
operation of the appliance shall not be interrupted;otherwise the service
life may be impaired
Defrosting
Although this appliance automatically defrosts, a layer of frost may
occur on the freezer compartment’s interior walls if the freezer door
is opened frequently or kept open too long. If the frost is too thick,
choose a time when the supply of food stocks are low and proceed
as follows:
1.
Remove existing food and accessories baskets, unplug the
appliance from the mains power and leave the doors open.
Ventilate the room thoroughly to accelerate the thawing
process.
2.
When defrosting is completed, clean your freezer as described
above.
• | CAUTION!
Don’t use sharp objects to remove frost from the freezer. Only after the
interior completely dry should the appliance be switched back on and
plugged back into the mains socket
Cleaning of door tray
According to the direction arrow in
the figure below, use both hands to
squeeze the tray, and push it upward,
then you can take it out.
After washing the tray having been
taken out, you can adjust its installing
height in accordance with your
requirement.
Cleaning of glass shelf
As the innermost part of the
refrigerator liner where contacting the
shelves has a backstop, you shall raise
the shelves upward, then you can be
able to take it out.
Adjust or clean the shelves according
to your requirement.
Cleaning the vegetable drawer
Remove the contents of the drawer.
Hold the handle of the vegetable
drawer and pull it out completely until
it stops.
Lift the vegetable drawer up and
remove it by pulling it out.
• | Notes:
Differences: Due to technical changes and different models, some of the
illustrations in this manual may differ from your model.
Maintenance Tips
Water dispenser cleaning
This feature varies depending on the model purchased.
Step 1: Remove
•
Take out the elements of the water box, stick to both sides of
the water box elements with both of your hands, and draw out
the elements of the water box outwards through 45° above.
You can translate the water box (to the side of the user) and
get the elements when the elements are out of water valve
elements (when you move the box, be sure that there is no
water in it.) Take down the seal ring of the water box elements.
•
Step to remove the elements of water valve:
Use the screwdriver and make the edge directs to the
water valve elements and then insert it in the free place
that highlights outskirt, rotates the screwdriver clockwise or
anticlockwise, with the screwdriver moving, when it tops the
penstock, extracts the water valve elements by hands at the
direction of above 45°(You can not remove the elements of
water valve)
Step 2: Clean up
•
Remove the water box itself, and the water box cover, the seal
ring and the water valve elements.
•
Clean up the elements of the water box with cold or warm
water.
•
Wipe out the water with dry cloth.
Step 3: Installation
•
Installation of water valve elements: Put the guide projecting
platform directed to the guide groove, after that,push it downside
with 45° slantly at full tilt, until you hear a crack.
•
Installation of seal ring of the water box: Put the seal ring to the
bottom of the water box, and be sure that the seal ring is in place.
Avoid wrinkle of seal ring and it’s placement in wrong place.
•
The Installation of water box elements: Keep the hanging slot of
the water box elements direct to the hangers on the door liner. The
seal ring at the bottom of the box shall directed to the entrance of
the water valve elements, insert it to the corresponding position
along with the 45° slantly.
• | ATTENTION
When you are cleaning the tank and if cleaning solution is used, you
should better put the water box to its original position, and fill the
water box, then you shall drain 5 to 6 cups of water, in case there is any
rudimentaldirt of water dispenser after you used cleaning solution.
Troubleshooting
You may try to solve the following simple problems by yourself.
If them cannot be solved, please contact the after-sales
department.
Failed
operation
• Check whether the appliance is connected to power
or whether the plug is in well contact
• Check whether the voltage is too low
• Check whether there is a power failure or partial
circuits have tripped
Odor
• Odorous foods shall be tightly wrapped
• Check whether there is any rotten food
• Clean the inside of the refrigerator
Long-time
operation of
the compressor
• Long operation of the refrigerator is normal in
summer
• when the ambient temperature is high It is not
suggestible having too much food in the appliance at
the same time
• Food shall get cool before being put into the
appliance
• The doors are opened too frequently
Light fails to
get lit
• Check whether the refrigerator is connected to power
supply and whether the illuminating light is damaged
• Have the light replaced by a specialist
Door can not
be properly
closed
• The door is stuck by food packages Too much food is
placed
• The refrigerator is tiltedr.
Loud noises
• Check whether the floor is level and whether the
refrigerator is placed stably
• Check whether accessories are placed at proper
locations
Door seal fails
to be tight
• Remove foreign matters on the door seal
• Heat the door seal and then cool it for restoration
• (or blow it with an electrical drier or use a hot towel
for heating)
Water pan
overflows
• There is too much food in the chamber or food stored
contains too much water,resulting in heavy defrosting
• The doors are not closed properly, resulting in
frosting due to entry of air and increased water due
to defrosting
Hot housing
• Heat dissipation of the built-in condenser via the
housing, which is normal When housing becomes
hot due to high ambient temperature, storage of too
much food or shutdown of the compressor is shut
down, provide sound ventilation to facilitate heat
dissipation
Surface
condensation
• Condensation on the exterior surface and door
seals of the refrigerator is normal when the ambient
humidity is too high. Just wipe the condensate with a
clean towel.
Abnormal noise
• Buzz: The compressor may produce buzzes during
operation, and the buzzes are loud particularly upon
start or stop. This is normal.
• Creak: Refrigerant flowing inside of the appliance
may produce creak, which is normal.
Do you hear these abnormal sounds as below? Usually these sounds
are normal.
S
S
SRR
R
!
HISSS!
BLUBB!
C
L
IC
K
!
BRRR!
CRA
CK!
CLICK: Some electrical parts in
the refrigerator, such as electric
valve will make this noise when
working. This is normal.
HISSS: When the refrigerant
flows into the evaporator, it will
make this noise. This is normal.
CLICK！
CLICK！
HISSS!
HISSS!
BRRR: The compressor will make
this noise when working, and the
buzzes are loud particularly upon
start or stop. This is normal.
SSSRRR: The fan motor in the No
frost refrigerator will make this
noise when working. This is normal.
BRRR!
BRRR!
SSSRRR!
SSSRRR!
SSSRRR!
SSSRRR!
BLUBB: Refrigerant flowing
through the pipes in the
refrigerator will make this noise.
This is normal.
CRACK: Cracking sound or broken
ice sound: the overall structure of
the refrigerator, air duct frost will
be with the thermal expansion
and contraction of the expansion
sound, these are also normal
physical phenomenon.
BLUBB!
BLUBB!
CRACK!
CRACK!
Tips & Tricks
Storing food
Freezer compartment
The freezer compartment is designated for the low-temperature
freezing of food, long-term storage of frozen food, and for the
production of ice cubes.
Do not put fresh and frozen food next to each other. The frozen food
may thaw.
When freezing large amounts of fresh food (such as meat, fish or
chopped meat), please divide them into several small pieces before
putting in, so that they can be quickly frozen and pick up easily.
Abide by the storage times recommended by food manufacturers on
the packages, there is no information on the packaging, food should
not be stored frozen for longer than three months from the date of
purchase.
When purchasing frozen food, make sure that it was frozen at a
suitable temperature and that the packaging is not damaged.
Frozen food should be kept in suitable individual packages to ensure
that adjacent food cannot be contaminated. Consume thawed and
defrosted foods immediately, do not refreeze them.
In case of prolonged power failure or malfunction of the appliance,
remove the stored frozen food and check whether they are still edible,
then store them in a suciently cool place or in another appliance.
To defrost food, remove it from the freezer and let it defrost at room
temperature or in the refrigerator. To defrost food quickly, you can use
the defrost function on your microwave, for example.
If you only want to defrost part of a pack, remove the portion you
need and immediately close the rest of the pack. In this way, you will
avoid “freezer burn” and will reduce ice formation on the remaining
foods.
Refrigerator compartment
The Refrigerator compartment is the ideal storage location for ready
meals, cakes and pastries, preserved food, condensed milk, milk,
cheese, spreads, sauces, dips and eggs.
The freshness at point of purchase is important for the shelf-life of your
food. In principle, the fresher the produce when placed in the crisper
drawers, the longer it stays fresh. Therefore, when buying food, always
pay attention to the degree of freshness.
Never put warm foods in the fridge compartment. These should first
cool down at room temperature and then be placed so as to ensure
adequate air circulation in the fridge compartment.
Meat and clean fish (packed in a package or plastic foil) can be placed
in the fridge compartment, which can be used in 1–2 days.
Fruit and vegetables without packaging can be placed in the part
designated for fresh fruit and vegetables
.
• | Notes:
Storage of too much food during operation after the initial connection to
power may adversely affect the freezing effect of the refrigerator.
Storage times and temperature
Note: Overlong storage or storage at inappropriate freezing
temperature may cause a quality loss or spoiled foods, which causes
food waste, is inedible and may cause food poisoning. The minimum
temperature in most cases should be -18°C or colder. Follow the
maximum recommended storage times below:
•
Stew, ice cream, sausages, bread: 2-6 months.
•
Fish, shrimp, lamb, meat: 4-8 months.
•
Vegetables, fruits, poultry, beef: 6-12 months.
Tips for energy saving
Do not place the appliance near cookers, radiators or other heat sources.
If the ambient temperature is high, the compressor will run more frequently
and for longer, resulting in increased energy consumption.
Ensure that there is sucient ventilation at the base of the appliance, on
the sides of the appliance and at the back of the appliance.
Please also observe the spacing dimensions in the chapter “Installation”.
An evenly filled refrigerator/freezer compartment contributes to optimal
energy use.
Allow warm food to cool before placing it in the refrigerator/freezer
compartment. Food that has already cooled down increases energy
eciency.
Allow frozen food to defrost in the refrigeration compartment The coldness
of the frozen food reduces the energy consumption in the refrigerator
compartment and thus increases the energy eciency.
Setting the temperature no colder than necessary contributes to optimal
energy use.
The door gaskets of your appliance must be perfectly intact so that
the doors close properly and energy consumption is not increased
unnecessarily.
Coldest zone in the
refrigerator
OPTIONAL: OK-temperature indicator
The OK-temperature indicator can be used to determine temperatures
below +4°C. Gradually reduce the temperature if the sign does not
indicate “OK”.
To ensure the temperature in this area, do not change the positioning
of the shelf. Inforced air refrigerators (equipped with a fan or No Frost
models),the symbol of the coldest zone is not represented because
the temperature inside is homogeneous.
Temperature indicator setting
To help you set your refrigerator well, it is equipped with a temperature
indicator that will monitor the average temperature in the coldest
zone.
WARNING: This indicator is intended to work only with your
refrigerator, do not use it in another refrigerator (in fact, the coldest
zone is not the same), or for any other use.
Checking the temperature in the coldest zone
With the temperature indicator, you can check regularly that the
temperature of the coldest zone is correct. Indeed, the internal
temperature of the refrigerator depends on several factors such as the
ambient temperature of the room, the amount of food stored and the
frequency of door opening. Take these factors into consideration when
setting the device.
When the indicator shows « OK », this means that your thermostat is
well adjusted and the internal temperature correct.
If the indicator of temperature turns WHITE, this means that the
temperature is too high; in this case, increase the refrigerator
temperature control setting and wait for 12 hours before performing
a new visual inspection of the indicator. When fresh food has been
introduced or the door has been left open, it is possible for the
indicator of temperature to turn WHITE after a while.
