INSTRUCTION MANUAL
LED BORDERLINE PANEL
TECHNICAL DATA
MODEL VT-6448CCT
SKU 10336
USEFUL LUMEN 4800 Lm
COLOR TEMPERATURE 6500K/4000K/3000K
INPUT VOLTAGE AC: 220-240V, 50hz
POWER 48W
DC OUTPUT 30-40V
BEAM ANGLE 110°
LIFE SPAN 30,000 Hours
ON/OFF CYCLE >15,000 Times
PROTECTION RATING IP20
CRI ≥80
DF ≥0.9
UNIT COLOUR White
DIMENSION 595x595 mm
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference.
If you have any another query, please contact our dealer or local vendor from whom you have pur-
chased the product. They are trained and ready to serve you at the best. The warranty is valid for 5
years from the date of purchase. The warranty does not apply to damage caused by incorrect instal-
lation or abnormal wear and tear. The company gives no warranty against damage to any surface due
to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily
operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted
for manufacturing defects only.
3 IN 1
CCT SELECT
INSTALLATION INSTRUCTIONS
WARNING
1. Please make sure to turn o the power before starting
the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable,
when the light source reaches its end of life the whole
luminaire should be replaced.
4. If the external flexible cable or cord of this luminaire is
damaged, it shall be exclusively replaced by the manu-
facturer or his service agent or a similar qualified person
in order to avoid a hazard.
5. For Indoor use only
Luminaires not suitable for
covering with thermally
insulating material.

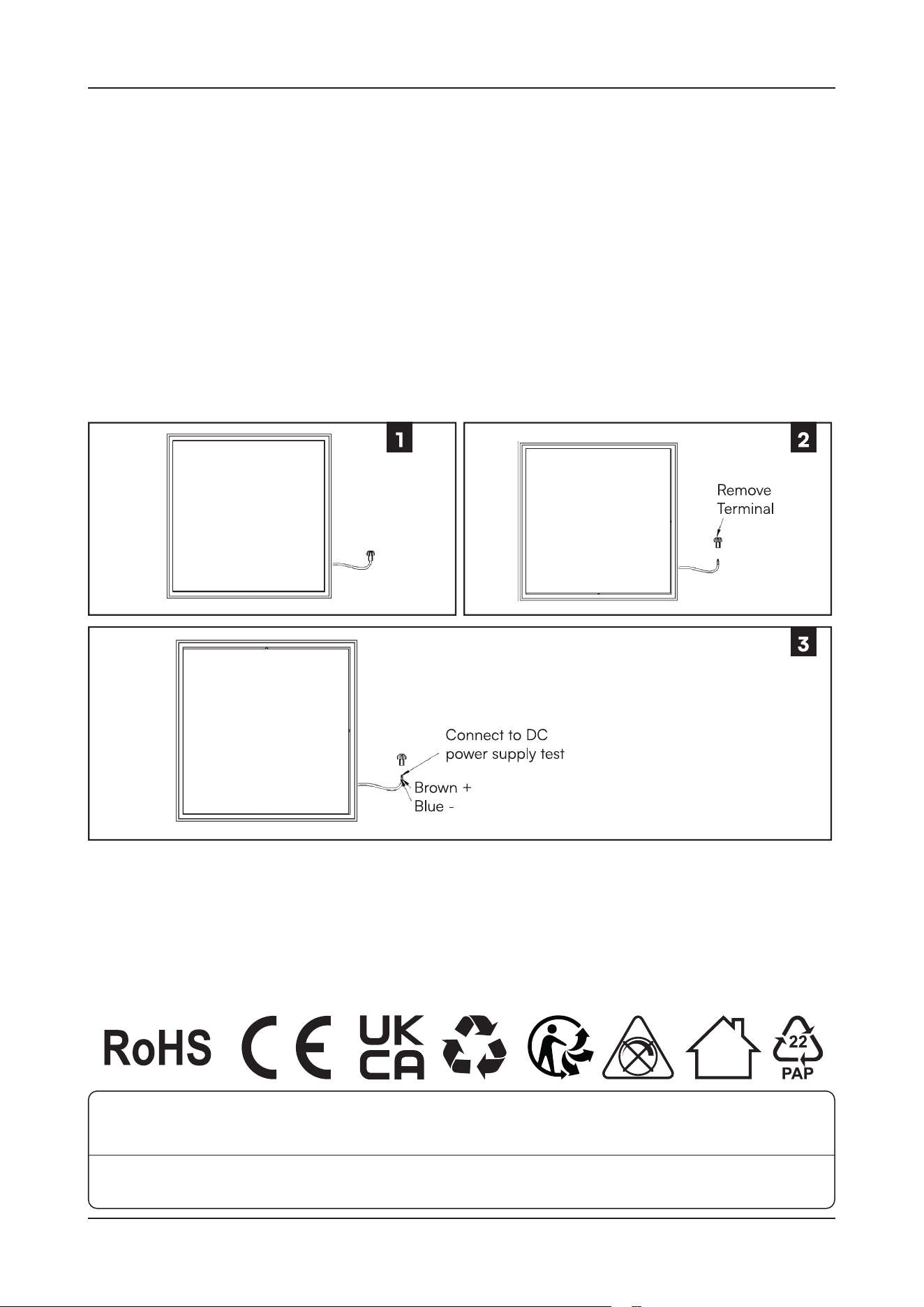

Note: The panel works on DC 28-42V, please connect correctly with the
conductor before connecting the conductor to the power supply main.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
DISMANTLING INSTRUCTIONS
1. Switch o the power supply before beginning the installation.

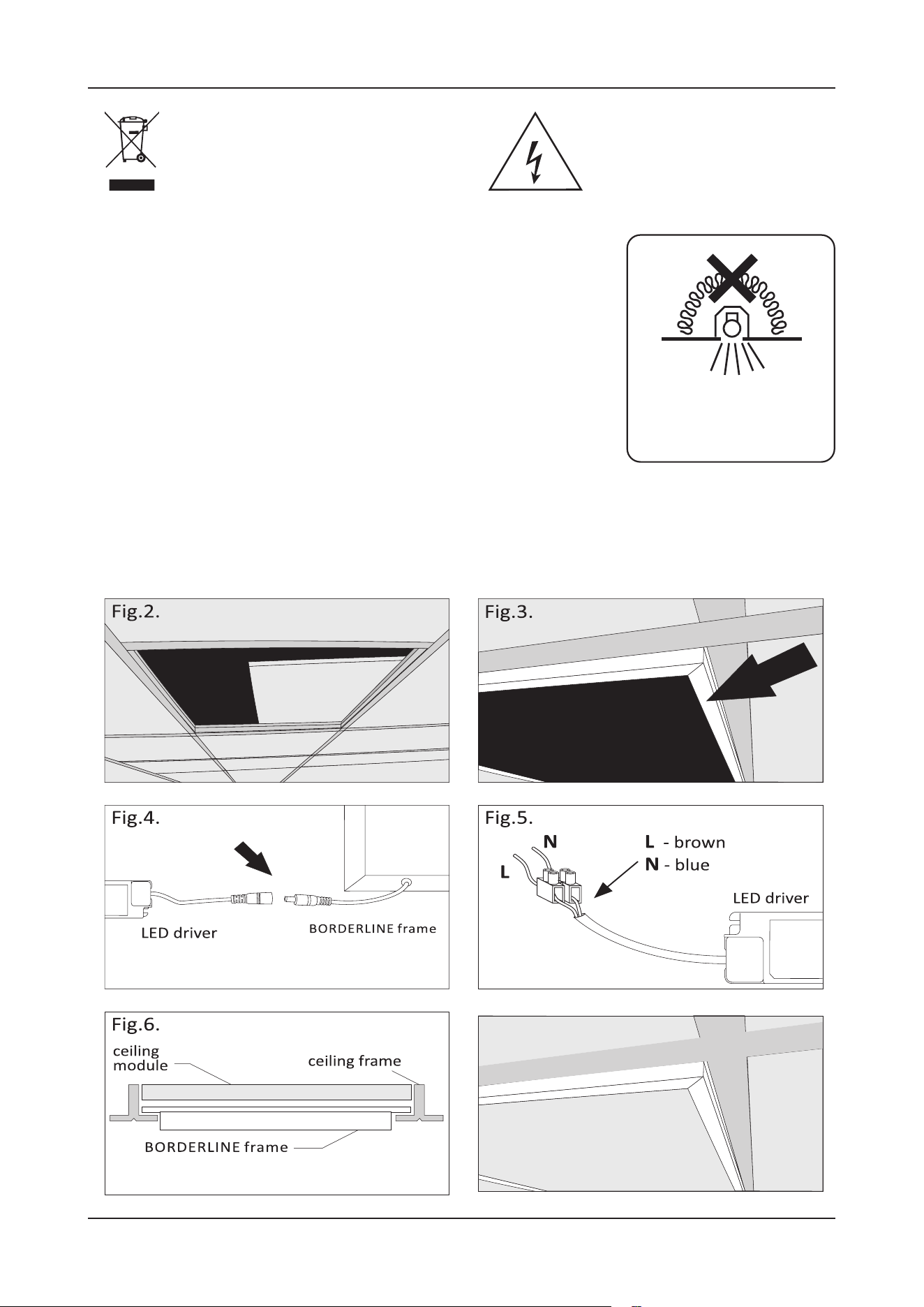

2. Remove the coer ceiling module from the suspended ceiling. [Fig. 2]
3. Position the LED frame securely within the ceiling frame. [Fig. 3]
4. Connect the LED frame to the LED driver using the luminaire output cable with the
attached plug. [Fig. 4]
5. Connect the LED driver to the mains power supply (230V AC, 50/60Hz). [Fig. 5]
6. Connect the power cable to the terminal block as follows:
Connect the phase wire (brown) to the terminal “L”.
Connect the neutral wire (blue) to the terminal “N”.
7. Reinstall the coer ceiling module onto the luminaire. [Fig. 6]
8. Turn on the power and test the light.
• Light source removal will void the warranty.
• The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
SUPPORT@VTACEXPORTS.COM V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
