LED WATERPROOF FITTING
WITH EMERGENCY BACKUP
INTRODUCTION & WARRANTY
TECHNICAL DATA
EMERGENCY TECHNICAL DATA
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does
not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warran-
ty against damage to any surface due to incorrect removal and installation of the product. The products are
suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
INSTRUCTION MANUAL
MODEL
SKU
POWER
LUMENS
BEAM ANGLE
CRI
PF
INPUT VOLTAGE
DRIVER MA (INPUT CURRENT)
CLIP NUMBER
OPERATIONAL TEMPERATURE
LIFE SPAN
ON/OFF CYCLE
MATERIAL
DIMENSION
MAX. CONNECTABLE UNITS
VT-120137E
24012
36W
4320 lm
120°
≥80
≥0.9
AC: 200-240V, 50/60Hz
200mA
12
0°C to +40°C
20,000 Hours
10,000 Times
PC+PC
1200x78x72 mm
8PCS
VT-150149E
24014
48W
5760 lm
120°
≥80
≥0.9
AC: 200-240V, 50Hz
265mA
14
0°C to +40°C
20,000 Hours
10,000 Times
PC+PC
1500x78x72mm
6PCS
BATTERY
RECHARGE TIME
DURATION TIME
High temp.Ni-Cd 9.6V , 2200mAh
24H
3H
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
LED OUTPUT POWER
LED LOAD VOLTAGE
6-7W
DC350-430V
CAUTION

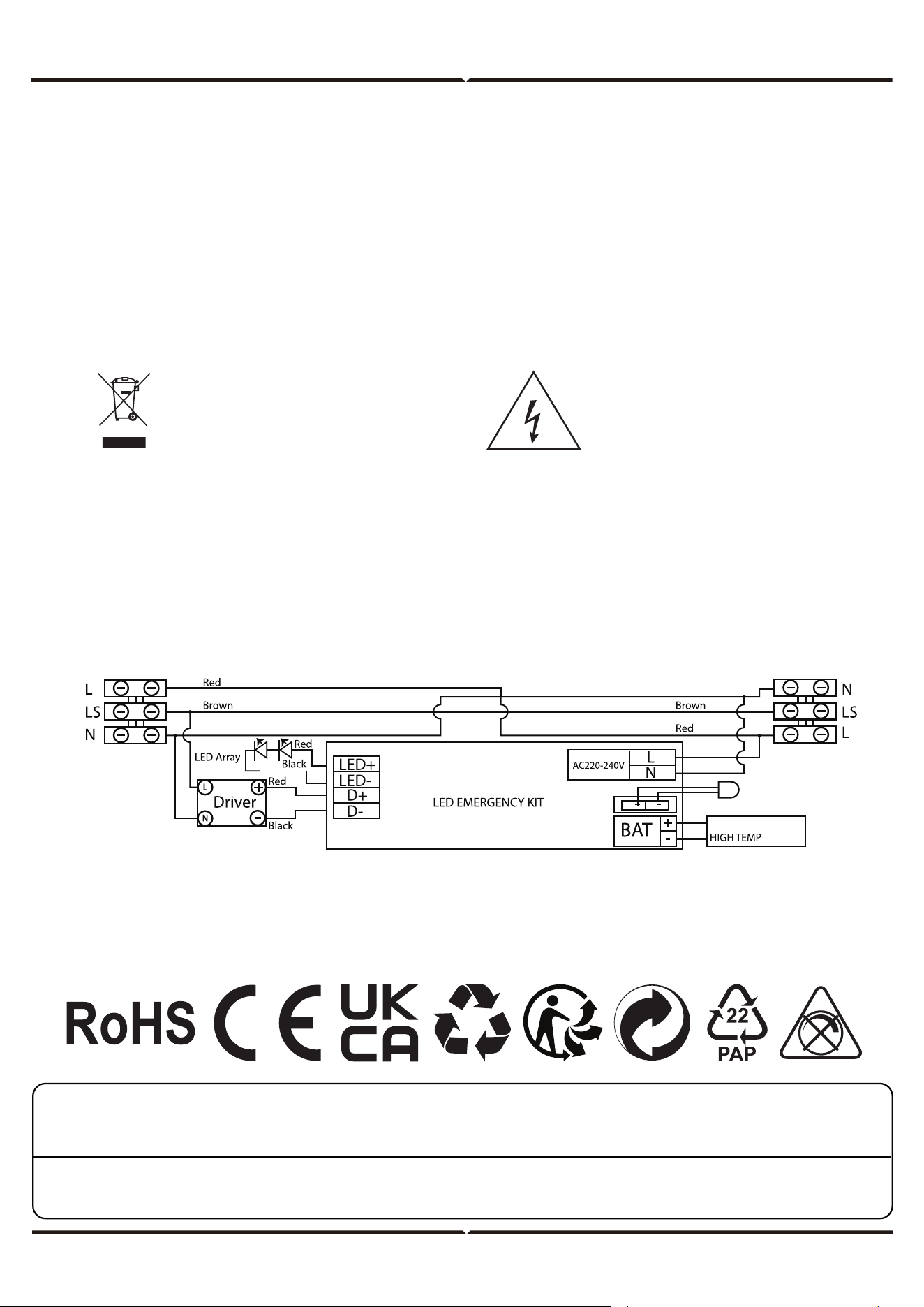

EMERGENCY WIRING DIAGRAM
1. Battery is in an empty state, please ensure to charge more than 36hours before using.
2. Power connected but light does not work, please check whether the light is properly connected
to the mains.
3. Please strictly use the emergency kit according to the wiring diagram before connection and
pay attention to reverse connection.
Ni-Cd 9.6V2200mAh
Blue
Blue
WARNING
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable; when the light source reaches its end of life the
whole luminaire shall be replaced.
4. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
5. The luminaire is designed with an emergency kit with a replaceable battery. If the battery no longer
meets their rated duration of operation aer corresponding recharge period the battery/emergency kit
should be replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
6. For indoor use and outdoor use.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
SUPPORT@VTACEXPORTS.COM V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US
AT: SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
N
L

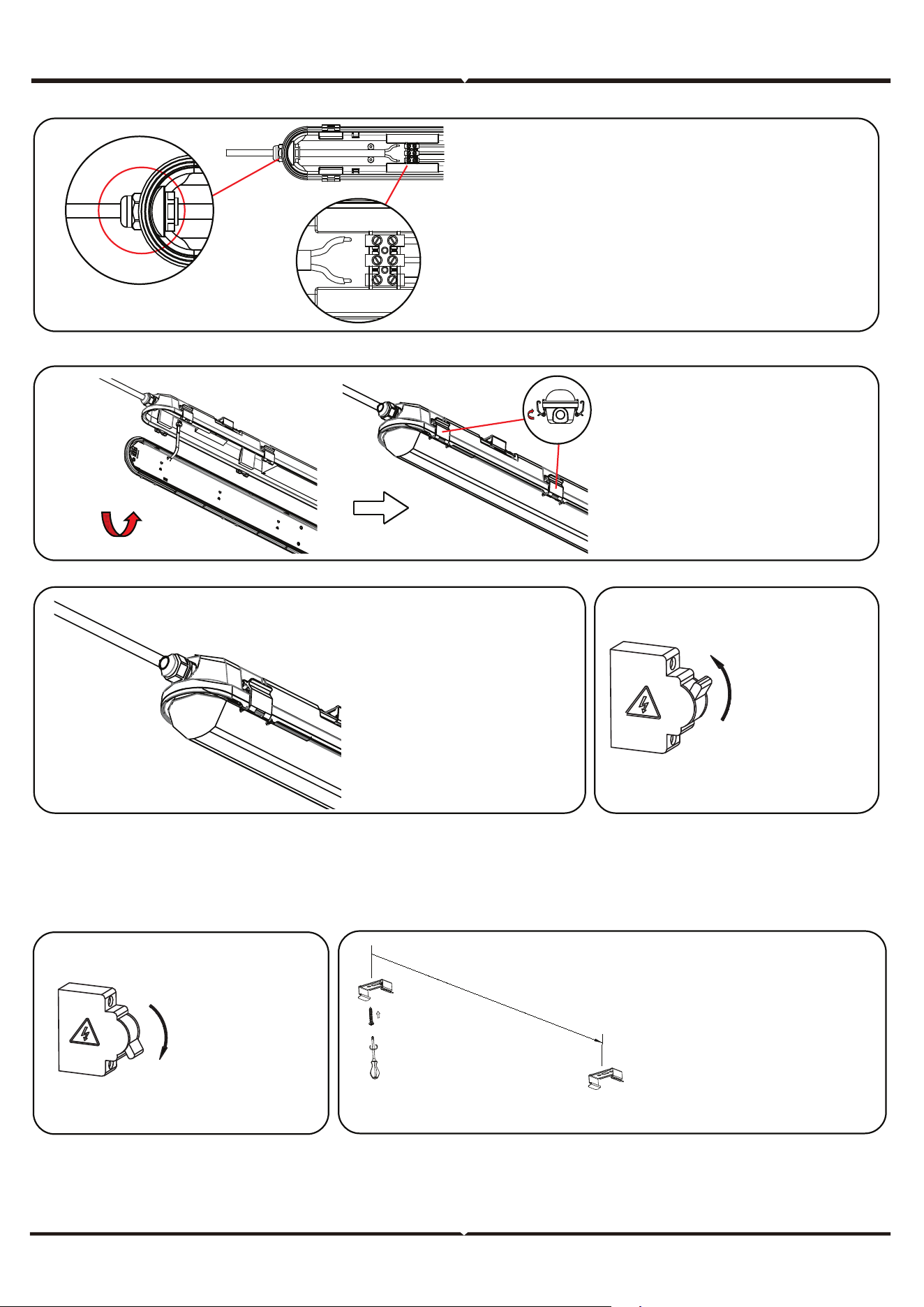

SINGLE UNIT INSTALLATION INSTRUCTIONS
STEP 4: Open the
side clips of water-
proof fitting and
open the diuser as
shown in the
diagram.
STEP 2: Fix the mounting
brackets onto the ceiling using
screws and expansion plug(in-
cluded). Please refer to table 1
for installing the mounting
bracket distance points.
STEP 3: Mount water-
proof lamp onto the
mounting brackets.
L1
STEP 1: Switch
OFF the power
before starting
the installation.
OFF
N
LS
L
N
LS
L
N
L
STEP 7: Wire the water-
proof fitting to the main
power supply. Ensure to use
waterproof terminal block
[not included].
STEP 6: Install the diuser to
the waterproof fitting and close
the clips.

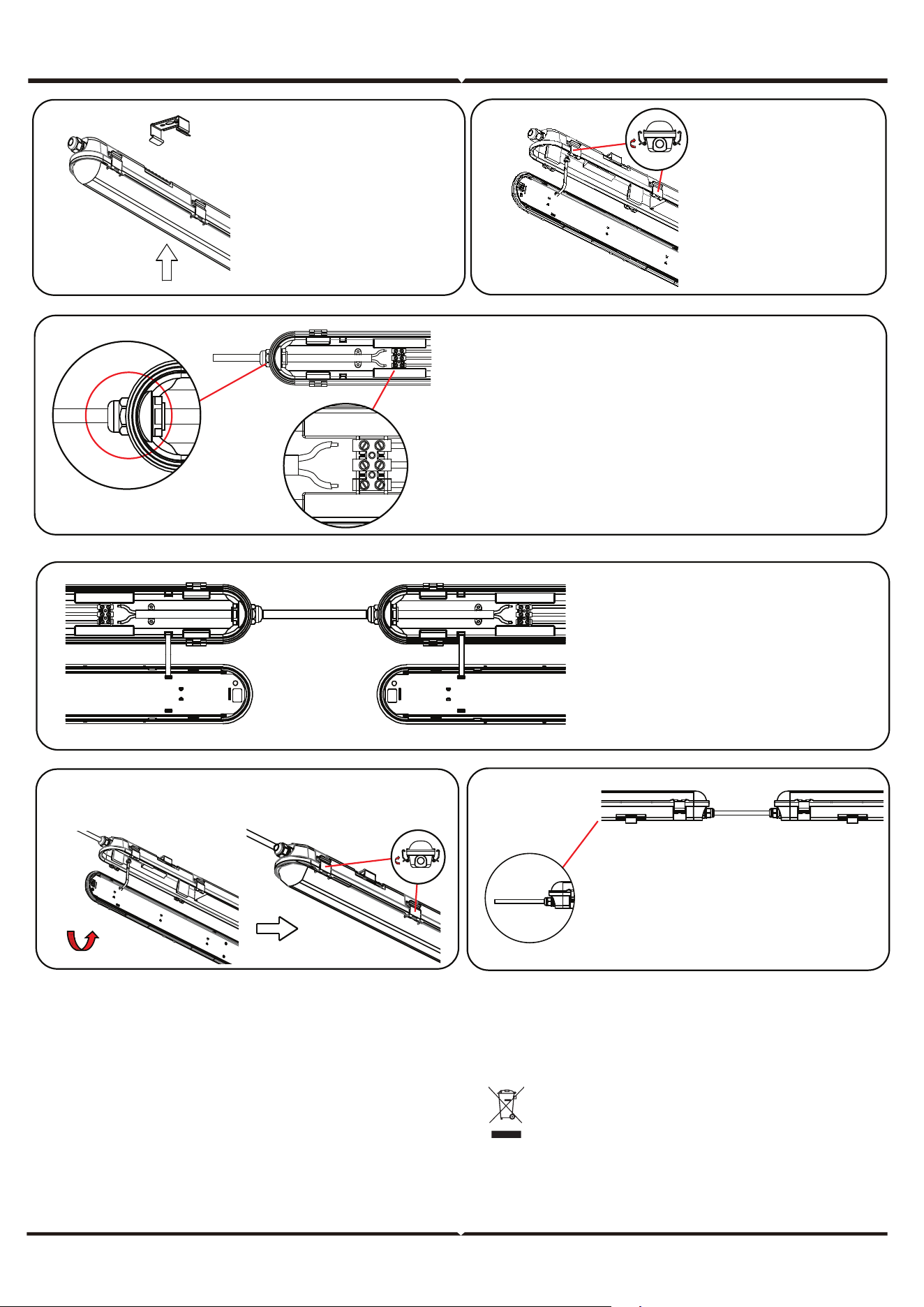

MULTIPLE (LINKABLE) UNITS INSTALLATION INSTRUCTIONS
STEP 8:
Switch ON
the power to
test the light.
ON
STEP 2: Fix the mounting
brackets onto the ceiling using
screws and expansion plug(in-
cluded). Please refer to table 1
for installing the mounting
bracket distance points.
Note: Please refer to the model number and max linkable units which can be linked together. Based on the
max linkable units select the max waterproof fittings which you would like to connect.
L1
STEP 1: Switch
OFF the power
before starting
the installation.
OFF
STEP 5: Fasten the waterproof connector clockwise.
Insert the cable through the
waterproof connector and wire it into the
terminal block.

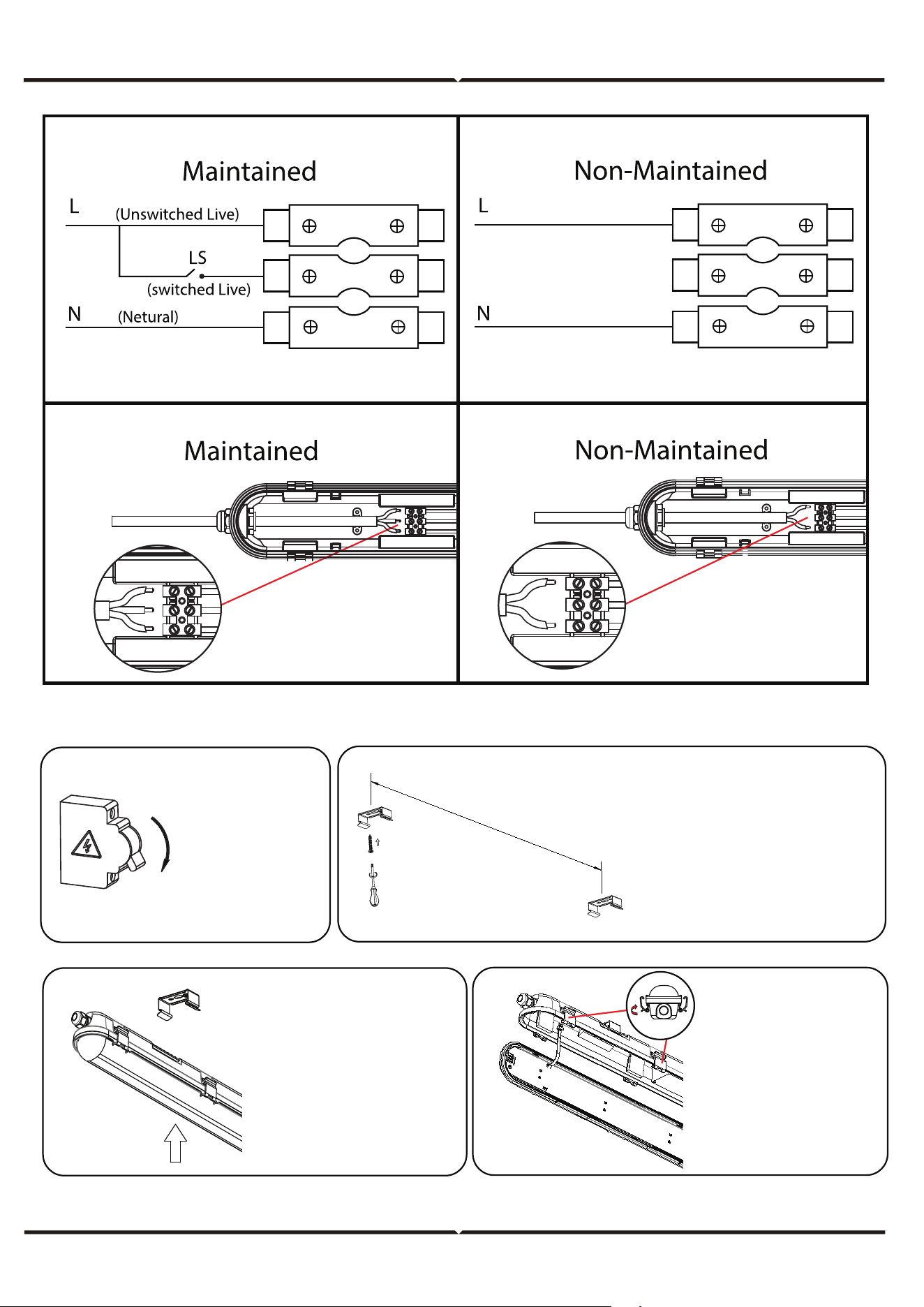

Note: For Maintained and Non-Maintained wiring
please refer to the wiring diagram.
WATERPROOF CONNECTOR
L
LS
N
L
LS
N
STEP 8: Wire the waterproof
fitting to the main power supply.
Ensure to use waterproof terminal
block [not included].
STEP 9: Switch ON the power to test
the light.
STEP 7: Install the diuser to the waterproof fitting and
close the clips.
STEP 5: Wiring 1st waterproof fitting from both the ends
- Fasten the waterproof connector clockwise from the
first end and insert the cable through the waterproof
connector and wire into the terminal block from one
end.
Note: For Maintained and Non-Maintained wiring please
refer to the wiring diagram.
WATERPROOF
END WIRE
STEP 6: Fasten the waterproof
connector from other end of the
waterproof fitting and insert the wire
into the terminal block. Using the
same cable fasten the waterproof
connector of the 2nd waterproof
fitting and wire into the terminal
block.
L
N
L
LS
N
STEP 4: Open the
side clips of water-
proof fitting and
open the diuser as
shown in the
diagram.
STEP 3: Mount water-
proof lamp onto the
mounting brackets.
LS
WATERPROOF CONNECTOR
L
LS
N
L
LS
N
• This product contains battery type "Secondary" (rechargeable).
• Electrical and electronic equipment that has become waste is known as old
equipment/device. Old devices must not be disposed of with other household
waste.
• Owners of old devices at the end of its service life must return the device by taking
them to the collection points set up by public waste disposal authorities or
distributors. This return does not entail any costs for you.
• Owners of old devices have an obligation to remove accessible batteries /
rechargeable batteries as well as non-destructively removable lamps from the old
device prior to return. This does not apply if old devices are being prepared for
reuse with the participation of a public law firm.
• Battery removal warning: The battery contained in this product must be removed
only by professional personnel only. The battery must never be removed by the
end user, if not removed correctly it could damage the battery which could cause
fire.
• Batteries removed from an old electronic device should be disposed of separately.
This return of battery does not entail any costs for you and the user is obliged to
return the battery.
• Please make sure that this product is not powered on when removing the battery.
Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not
incinerate the battery. Please handle the battery with Caution!
• If electrical appliances or batteries are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain, damaging
your health and well-being.
• The symbol of "Crossed rubbish bins "indicates that this product should not be
disposed of with other household wastes and must be collected separately from
unsorted municipal waste at the end of its service life.
• Please use the link below to view the online directory of the collection and return
points:https://www.ear-system.de/ear-verzeichnis/sammel-und-ruecknahmestellen
