Product Instructions
Product No. 2000375
1.5L MATTE
BLACK COFFEE
MACHINE
2 3
Need further help?
suppor[email protected]
See our full range at
www.vonhaus.com
Let’s get started!
Visit our product hub for
useful tips and tricks on
getting the most out of
your new product.
SCAN ME
Components
1. Lid
2. Water Outlet
3. Reservoir
4. Funnel Housing
5. Control Panel
6. Carafe Warming Plate
7. Filter Basket
8. Funnel
9. Carafe
1
2
3
4
5
6
9
8
7
4 5

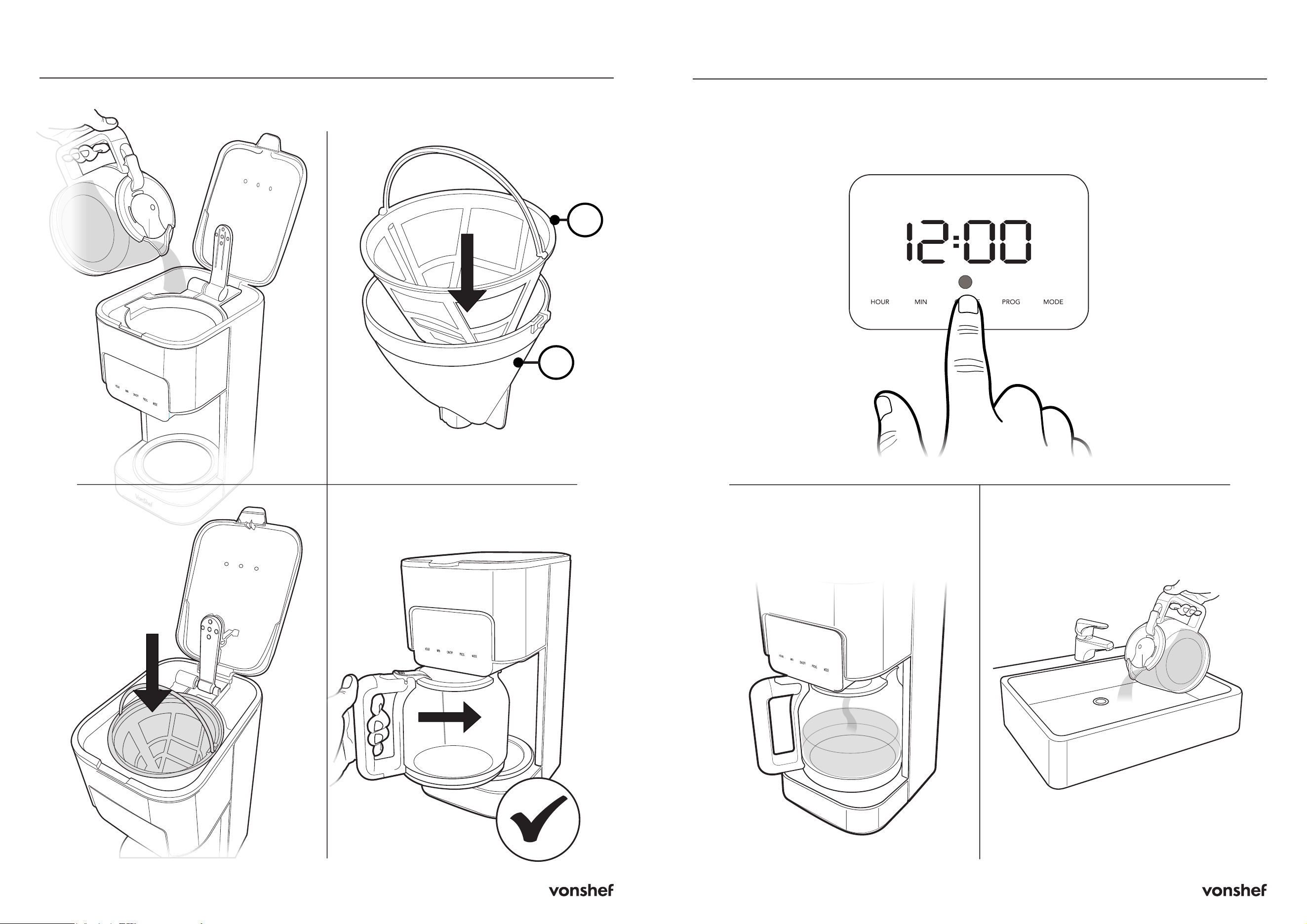

Assembly Operation
A5P | 01
OPERATION / OPÉRATION / BETRIEB / OPERACIÓN / FUNZIONAMENTO
IMPORTANT: Before using the appliance for the rst time, it is important you ush out the system 2-3 times to clear away
any manufacturing residue. To do this, simply follow the instructions below. NOTE: DO NOT add any coffee for this step.
8
7
IMPORTANT: Before using the appliance
for the first time, it is important you flush
out the system 2-3 times to clear away any
manufacturing residue. To do this, simply follow
the instructions below.
NOTE: DO NOT add any coffee for this step.
6 7
A5P | 01
CONTROL PANEL / PANNEAU DE CONTRÔLE / SCHALTTAFEL / PANEL DE CONTROL /
PANNELLO DI CONTROLLO
EN
HOUR: Press to adjust the hour digit to set the current time or desired working time.
MIN: Press to adjust the minute digit when setting the current time or required working time.
ON/OFF: Once connected to a suitable mains outlet, press once to switch on the appliance. 12:00 will be displayed.
PROG: Toggle between the ‘TIMER’ and ‘CLOCK’ functions before setting the current time or required working time.
MODE: Selects the desired strength/aroma of the coffee produced. This is indicated by the coffee beans displayed at the top of
the LCD screen. Press once for a weak coffee, twice for a mild coffee and three times for a strong coffee.
FR
HEURE: appuyez pour régler le chiffre des heures pour mettre à l’heure actuelle ou pour régler l’heure de fonctionnement sou-
haitée.
MIN: appuyez pour régler le chiffre des minutes pour mettre à l’heure actuelle ou pour régler l’heure de fonctionnement souhaitée.
MARCHE/ARRÊT: une fois connecté à une prise électrique appropriée, appuyez une fois pour allumer l’appareil. 12:00 sera
afché.
PROG: passez de la fonction ‘MINUTEUR’ à ‘HORLOGE’ avant de régler l’heure actuelle ou l’heure de fonctionnement souhaitée.
MODE: choisissez la force/arôme souhaité du café produit. Ceci est indiqué par les grains de café afchés en haut de l’écran
LCD. Appuyez une fois pour un café doux, deux fois pour un café moyen et trois fois pour un café robuste.
DE
STUNDE: Drücken Sie, um die Stunde anzupassen, um die aktuelle Uhrzeit oder die gewünschte Arbeitszeit einzustellen.
MIN: Drücken Sie, um die Minuten anzupassen, um die aktuelle Uhrzeit oder die gewünschte Arbeitszeit einzustellen.
ON/OFF: Nach dem Anschluss an eine geeignete Steckdose drücken Sie einmal, um das Gerät einzuschalten. 12:00 wird
angezeigt.
PROG: Wechseln Sie zwischen den Funktionen “TIMER” und “CLOCK”, bevor Sie die aktuelle Uhrzeit oder die benötigte Arbe-
itszeit einstellen.
MOD: Auswahl der gewünschten Stärke / Aroma des erzeugten Kaffees.
Dies wird durch Kaffeebohnen dargestellt, die oben auf dem LCD-Bildschirm angezeigt werden. Drücken Sie einmal für einen
schwachen Kaffee, zweimal für einen milden Kaffee und dreimal für einen starken Kaffee.
Control Panel
• HOUR: Press to adjust the hour digit to set the current time or desired working time.
• MIN: Press to adjust the minute digit when setting the current time or required working time.
• ON/OFF: Once connected to a suitable mains outlet, press once to switch on the appliance.
12:00 will be displayed.
• PROG: Toggle between the 'TIMER' and 'CLOCK' functions before setting the current time or
required working time.
• MODE: Selects the desired strength/aroma of the coffee produced. This is indicated by the
coffee beans displayed at the top of the LCD screen. Press once for a weak coffee, twice for a
mild coffee and three times for a strong coffee.
A5P | 01
OPERATION / OPÉRATION / BETRIEB / OPERACIÓN / FUNZIONAMENTO
3 0 SEC
Operation
30 Sec
Return carafe in 30 seconds.
Control Panel
Delay Function
NOTE: To use the ‘DELAYED FUNCTION’
program, you must first set the current time
by pressing the PROG BUTTON. The word
CLOCK will display indicating you can input
the time using the HOUR and MIN BUTTONS.
Press the PROG BUTTON again until TIMER
is shown, then enter the desired working time.
Pressing the ON/OFF BUTTON ONCE will
start an ‘instant’ brewing cycle. This will be
indicated by a small red indicator light.
Pressing the ON/OFF BUTTON TWICE
will enter the delayed function state. This will
be indicated by a blue indicator light and
will automatically begin a brewing cycle
once the desired set time has been reached.
After the cycle is complete, the appliance will
automatically switch off after 35 minutes.
Press the ON/OFF BUTTON for a THIRD
time to switch the appliance off.
8 9
A5P | 01
CLEANING / NETTOYAGE / REINIGUNG / LIMPIEZA/ PULIZIA
Cleaning
Important Safety Notice
This product is not suitable for use by children
or by individuals with physical, sensory, or
mental impairments that may limit their ability
to operate the equipment safely, unless they
have been given supervision or instruction
concerning the safe use of the product by a
person responsible for their safety.
Improper use may result in serious injury.
Always ensure the operator is capable
of understanding and following all safety
instructions provided in this manual.
General Safety
Do not allow to be used as a toy. Children
should be supervised to ensure they do not
play with the appliance. If the appliance is
not functioning properly, has been dropped,
damaged, left outdoors, or immersed in liquid,
do not use, contact DOMU Brands Customer
Services. Do not use the appliance if any parts
appear to be faulty, missing or damaged.
Ensure all parts are securely attached as
instructed by this instruction manual before
use.
Cables & Plugs
Check to ensure your electricity supply matches
that shown on the rating plate. This product
should only be used as rated. Preferably,
the socket outlet should be protected by
a Residual Current Device RCD (UK/EU)
Ground Fault Indicator (US). Do not use with a
damaged cable or plug. If the supply cable is
damaged, it must be replaced by a qualified
engineer or authorised service agent in order
to avoid a hazard. The use of an extension
cable is not recommended. Do not handle
the plug or appliance with wet hands. Keep
the cable away from heated surfaces. Do not
let the cable hang over the edge of the table
or countertop where it could be pulled on
inadvertently by children or pets. Do not pull
the cable around sharp edges or corners. Do
not leave unattended when plugged in. Unplug
from outlet when not in use. Turn off all controls
before unplugging. Do not unplug by pulling
on the cable. To unplug, grasp the plug, not the
cable. Always unplug before performing user
maintenance, connecting or disconnecting
attachments, or changing accessories. Ensure
the cable is stored safely to prevent hazards.
Risk of Personal Injury
Always locate your appliance away from
the edge of the worktop, on a firm, flat, heat-
resistant surface with sufficient space around all
sides. Do not insert any objects into openings
or cover the appliance. Do not place any
cardboard, plastics or paper inside or on the
appliance unless stated in the instructions. Do
not use the appliance near any combustible
surfaces. Only use suitable cookware where
applicable. Do not use outdoors or near heat
sources. Take care not to touch any surfaces
that may get hot when in use. Take care not
to touch any surfaces that may remain hot for
a period of time after use. Never operate the
appliance when empty. Do not overload/
overfill the appliance. When using for the first
time your appliance may give off a ‘new’
smell or vapour. This will dissipate after a
few uses. Do not lift or move the appliance
whilst in use. Do not operate continuously
for periods longer than those marked on the
product or indicated in the instructions. Ensure
the appliance is switched off and unplugged
before changing accessories or cleaning.
Use only as described in this manual and with
recommended attachments only.
Information
10 11
Cleaning & Maintenance
Never soak or immerse electrical or heating
components and or a component that has a
plug attached. Hand washing recommended;
soak in warm soapy water and wipe down
using a soft sponge. To remove stubborn stains,
use a non abrasive cleaning brush. Do not use
abrasive, harsh cleaning solutions or metal
scouring pads. Never wash any electrical or
heating components and or a component that
has a plug attached in a dishwasher.
Technical Specification
Rated Voltage: 220-240V
Rated Power: 900W
Rated Frequency: 50/60Hz
Information Usage & Safety
Do not immerse in water.Please read all instructions
carefully before use and
retain for future reference.
A5P | 01
2500253
Please read all instructions carefully before use and
retain for future reference.
Veuillez lire attentivement ces instructions avant
utilisation et conservez-les pour pouvoir les consulter
à l’avenir.
Bitte lesen Sie die Anleitung sorgfältig und bewahren Sie
sie als Referenz auf.
Leed todas las instrucciones detenidamente antes de
usar y retened para futuras consultas.
Si prega di leggere attentamente tutte le istruzioni prima
dell’uso e conservarle per una futura consultazione.
Lea todas las instrucciones detenidamente antes de
usar y consérvelas para futuras consultas.
CAUTION Do not immerse in water.
ATTENTION Ne pas immerger dans l’eau.
VORSICHT Nicht in Wasser tauchen.
PRECAUCIÓN No sumergid en agua.
AVVERTENZA Non immergere nell’acqua.
PRECAUCIÓN No sumergir en agua.
Do not cover.
Ne pas couvrir.
Nicht abdecken.
No cubrir.
Non coprire.
No cubrir.
CAUTION hot surfaces
ATTENTION Surfaces chaudes
VORSICHT heiße Oberächen
PRECAUCIÓN supercies calientes
AVVERTENZA Superci calde
PRECAUCIÓN supercies calientes
Do not place any combustible items underneath the
furniture. Items like barbeques and repits are
forbidden.
Ne placez pas d’éléments combustibles sous le
meubles. Les articles comme les barbecues et les
foyers sont interdits.
Stellen Sie keine brennbaren Gegenstände unter die
Möbel. Gegenstände wie Grillen und Feuerstellen
sind verboten.
No coloque ningún elemento combustible debajo
del
mueble. Los artículos como barbacoas y fogatas
están prohibidos.
Non posizionare oggetti combustibili sotto il
mobilia. Sono vietati articoli come barbecue e pozzi
del fuoco.
CAUTION: Hot surfaces.
Hot water risk of scalding. ATTENTION This appliance
has a thermal cut out switch
The thermal cut out will
activate and shut down
the appliance should the
appliance overheat.
Unplug from the mains and
or battery and allow to cool
for 30-40 minutes before
re-use.
A5P | 01
2000096
Please read all instructions carefully before use and
retain for future reference.
Veuillez lire attentivement ces instructions avant
utilisation et conservez-les pour pouvoir les consulter
à l’avenir.
Bitte lesen Sie die Anleitung sorgfältig und bewahren Sie
sie als Referenz auf.
Leed todas las instrucciones detenidamente antes de
usar y retened para futuras consultas.
Si prega di leggere attentamente tutte le istruzioni prima
dell’uso e conservarle per una futura consultazione.
Lea todas las instrucciones detenidamente antes de
usar y consérvelas para futuras consultas.
CAUTION Do not immerse in water.
ATTENTION Ne pas immerger dans l’eau.
VORSICHT Nicht in Wasser tauchen.
PRECAUCIÓN No sumergid en agua.
AVVERTENZA Non immergere nell’acqua.
Please read all instructions carefully before use and
retain for future reference.
Veuillez lire attentivement ces instructions avant
utilisation et conservez-les pour pouvoir les consulter
à l’avenir.
Bitte lesen Sie die Anleitung sorgfältig und bewahren Sie
sie als Referenz auf.
Leed todas las instrucciones detenidamente antes de
usar y retened para futuras consultas.
Si prega di leggere attentamente tutte le istruzioni prima
dell’uso e conservarle per una futura consultazione.
ATTENTION This appliance has a thermal cut out
switch. The thermal cut out will activate and shut down
the appliance should the appliance overheat.
Unplug from the mains and or battery and allow to cool
for 30 minutes before re-use.
ATTENTION Cet appareil dispose d’un interrupteur
d’arrêt thermique. L’arrêt thermique s’activera
et éteindra l’appareil si l’appareil commençait à
surchauer.
Débranchez la prise, ou la batterie, et laissez refroidir
pendant 30 minutes avant de réutiliser.
VORSICHT Dieses Gerät hat einen thermischen
Ausschalter. Der thermische Ausschalter wird aktiviert
und schaltet das Gerät aus, wenn das Gerät überhitzt.
Ziehen Sie den Stecker aus der Steckdose und/oder
entfernen Sie den Akku und lassen Sie das Gerät 30
Minuten abkühlen, bevor Sie es erneut benutzen.
ATENCIÓN Este aparato tiene un interruptor de corte
térmico. El corte térmico se activará y apagará el
dispositivo si el aparato se sobrecalienta.
Desenchufe de la red y / o la batería y déjelo enfriar
durante 30 minutos antes de volver a usarlo.
ATTENZIONE Questo apparecchio è dotato di un
interruttore di protezione termica che accende e spegne
l’apparecchio in caso di surriscaldamento.
Scollegare dalla rete elettrica e o la batteria e lasciar
rareddare per 30 minuti prima di un nuovo utilizzo.
CAUTION Hot water risk of scalding.
ATTENZIONE Rischio di scottature dell’acqua calda.
VORSICHT Verbrühungsgefahr durch heißes Wasser.
PRECAUCIÓN Riesgo de agua caliente por escaldadura.
AVVERTENZA Rischio di scottature dell’acqua calda.
CAUTION hot surfaces
ATTENTION Surfaces chaudes
VORSICHT heiße Oberächen
PRECAUCIÓN supercies calientes
AVVERTENZA Superci calde
12 13
Customer Service
If you are having difficulty using this product
and require support, please contact
suppor[email protected]
Warranty
To register your product and find out if you
qualify for a free extended warranty please
go to www.vonhaus.com/warranty
Please retain a proof of purchase receipt or
statement as proof of the purchase date.
The warranty only applies if the product is used
solely in the manner indicated in the warnings
page of this manual, and all other instructions
have been followed accurately.
Any abuse of the product or the manner in
which it is used will invalidate the warranty.
Returns
Returned goods will not be accepted unless
re-packaged in its original packaging and
accompanied by a relevant and completed
returns form. This does not affect your statutory
rights.
No rights are given under this warranty to a
person acquiring the appliance second-hand
or for commercial or communal use.
Copyright
All material in this instruction manual are
copyrighted by DOMU Brands.
Any unauthorised use may violate worldwide
copyright, trademark, and other laws.
Thank You
Thank you for purchasing your product/
appliance.
Should you require assistance with your
purchase, please contact us at
suppor[email protected]
Vonhaus is a registered trademark of DOMU
Brands Ltd.
Made in China for DOMU Brands Ltd.
Unit 30, Stakehill Industrial Estate
Middleton, Manchester, M24 2RW
EU Authorised Representative
Authorised Representative Service
77 Camden Street Lower
Dublin, D02 XE80
Ireland
Information
Product No. 2000375
Let’s get started!
Visit our product hub for
useful tips and tricks on
getting the most out of
your new product.
SCAN ME
