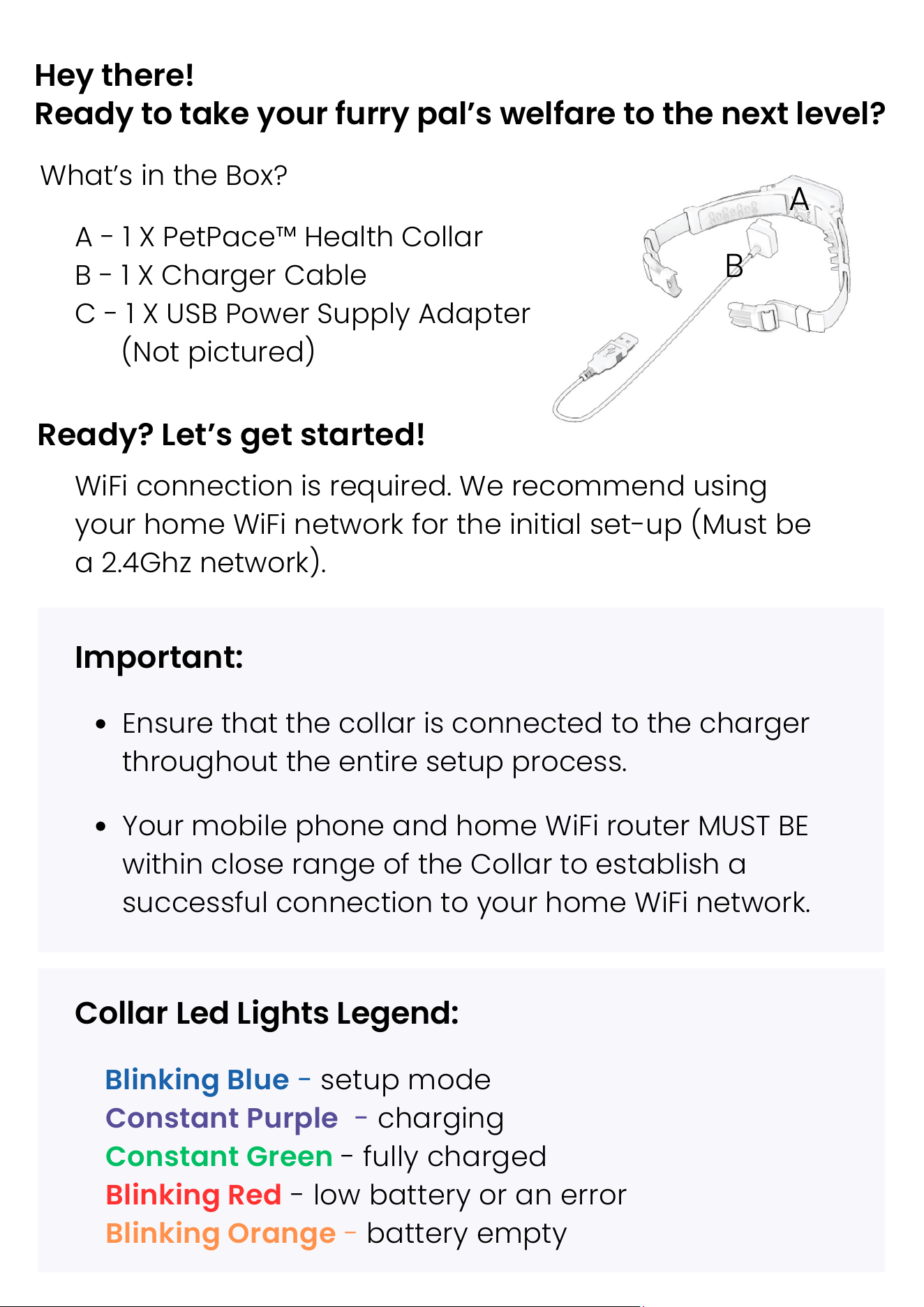

Hey there!
Ready to take your furry pal’s welfare to the next level?
A - 1 X PetPace™ Health Collar
B - 1 X Charger Cable
C - 1 X USB Power Supply Adapter
(Not pictured)
What’s in the Box?
Ready? Let’s get started!
WiFi connection is required. We recommend using
your home WiFi network for the initial set-up (Must be
a 2.4Ghz network).
Important:
Ensure that the collar is connected to the charger
throughout the entire setup process.
Your mobile phone and home WiFi router MUST BE
within close range of the Collar to establish a
successful connection to your home WiFi network.
Collar Led Lights Legend:
Blinking Blue - setup mode
Constant Purple - charging
Constant Green - fully charged
Blinking Red - low battery or an error
Blinking Orange - battery empty
A
B

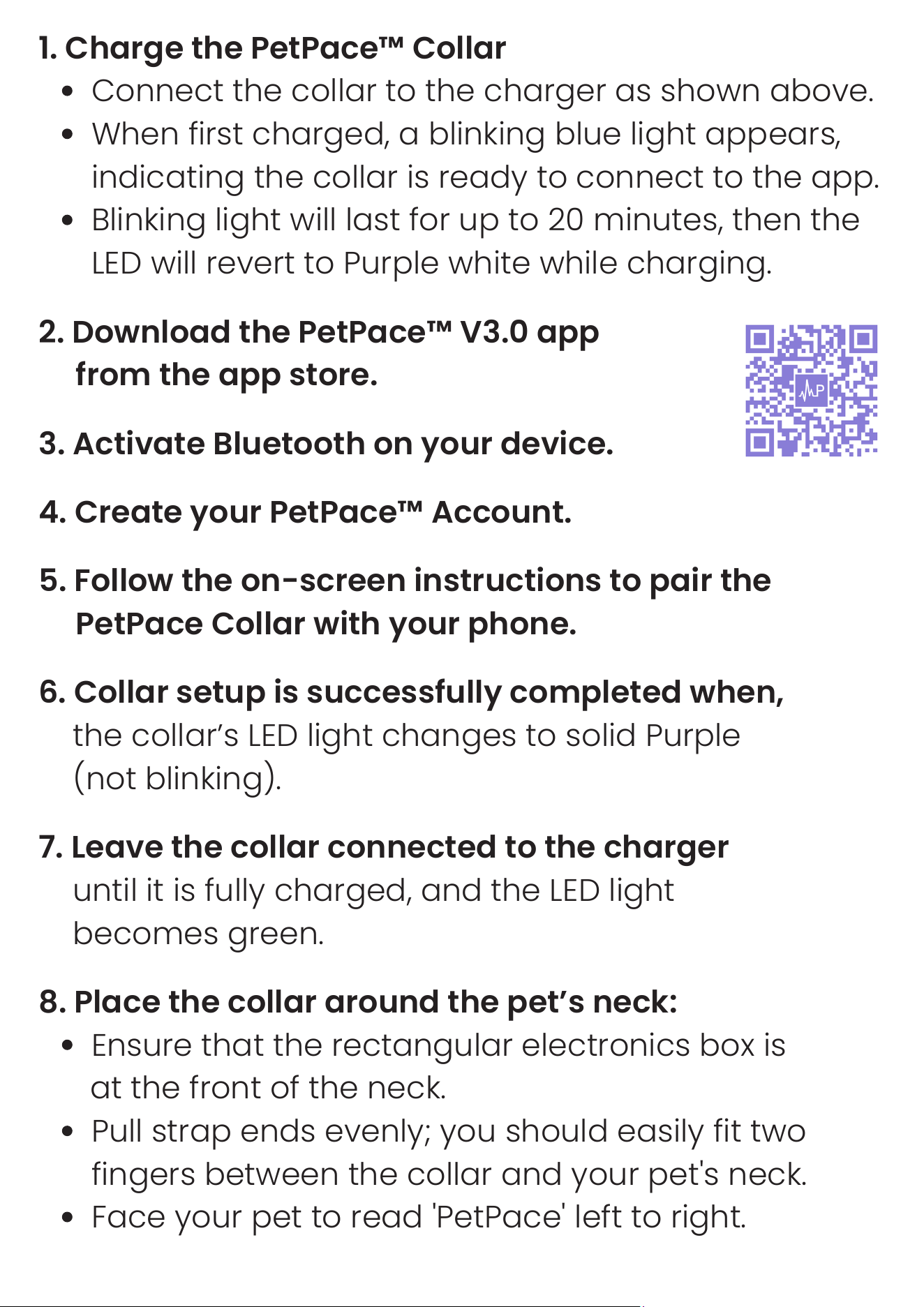

1. Charge the PetPace™ Collar
Connect the collar to the charger as shown above.
When first charged, a blinking blue light appears,
indicating the collar is ready to connect to the app.
Blinking light will last for up to 20 minutes, then the
LED will revert to Purple white while charging.
2. Download the PetPace™ V3.0 app
from the app store.
3. Activate Bluetooth on your device.
4. Create your PetPace™ Account.
5. Follow the on-screen instructions to pair the
PetPace Collar with your phone.
6. Collar setup is successfully completed when,
the collar’s LED light changes to solid Purple
(not blinking).
7. Leave the collar connected to the charger
until it is fully charged, and the LED light
becomes green.
8. Place the collar around the pet’s neck:
Ensure that the rectangular electronics box is
at the front of the neck.
Pull strap ends evenly; you should easily fit two
fingers between the collar and your pet's neck.
Face your pet to read 'PetPace' left to right.

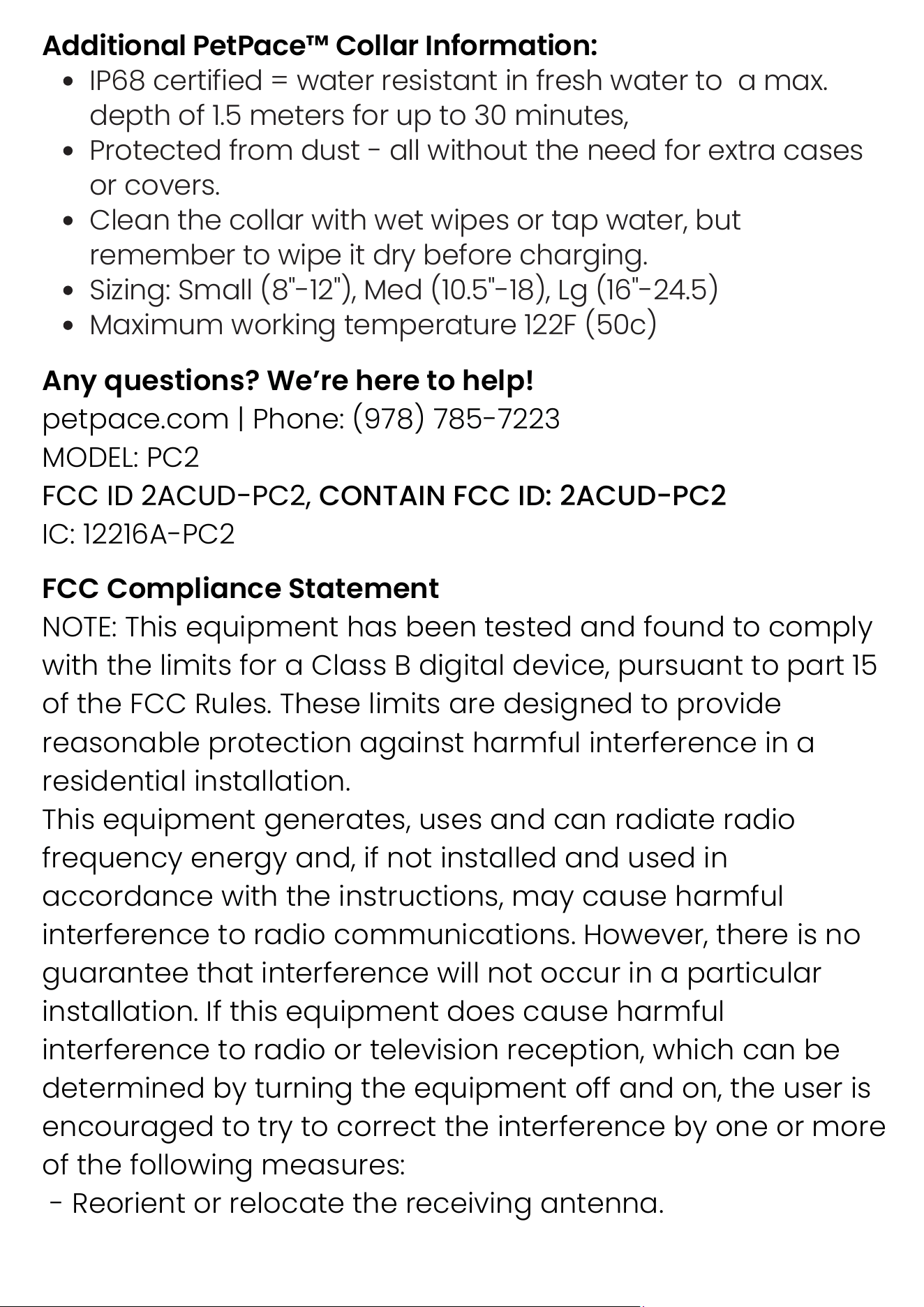

Additional PetPace™ Collar Information:
IP68certified = water resistant in fresh water to a max.
depth of 1.5 meters for up to 30 minutes,
Protected from dust - all without the need for extra cases
or covers.
Clean the collar with wet wipes or tap water, but
remember to wipe it dry before charging.
Sizing: Small (8"-12"), Med (10.5"-18), Lg (16"-24.5)
Maximum working temperature 122F (50c)
Any questions? We’re here to help!
petpace.com | Phone: (978) 785-7223
MODEL: PC2
FCC ID 2ACUD-PC2, CONTAIN FCC ID: 2ACUD-PC2
IC: 12216A-PC2
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.

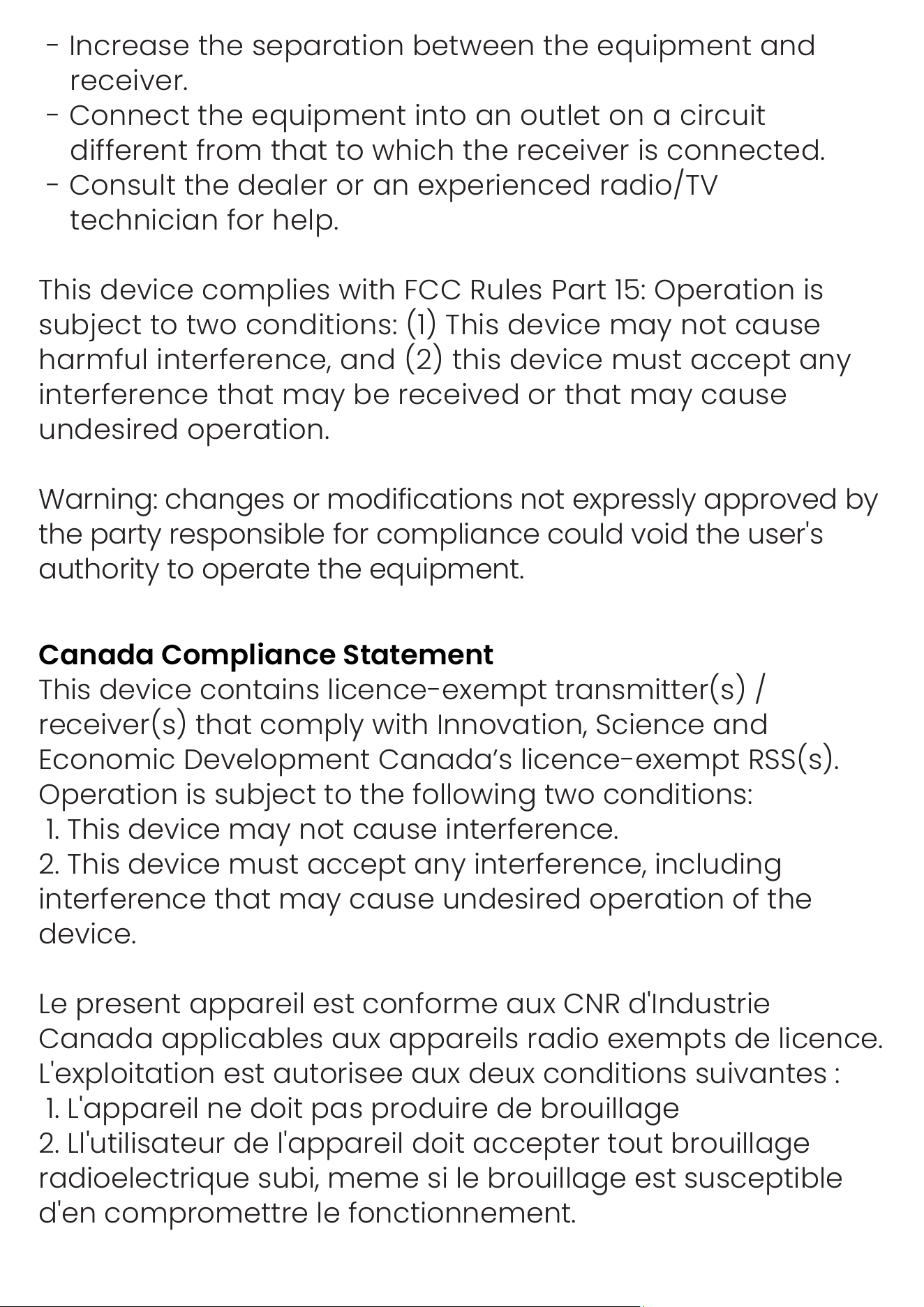

- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with FCC Rules Part 15: Operation is
subject to two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference that may be received or that may cause
undesired operation.
Warning:changesormodificationsnotexpressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
Canada Compliance Statement
This device contains licence-exempt transmitter(s) /
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including
interference that may cause undesired operation of the
device.
Le present appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisee aux deux conditions suivantes :
1. L'appareil ne doit pas produire de brouillage
2. Ll'utilisateur de l'appareil doit accepter tout brouillage
radioelectrique subi, meme si le brouillage est susceptible
d'en compromettre le fonctionnement.

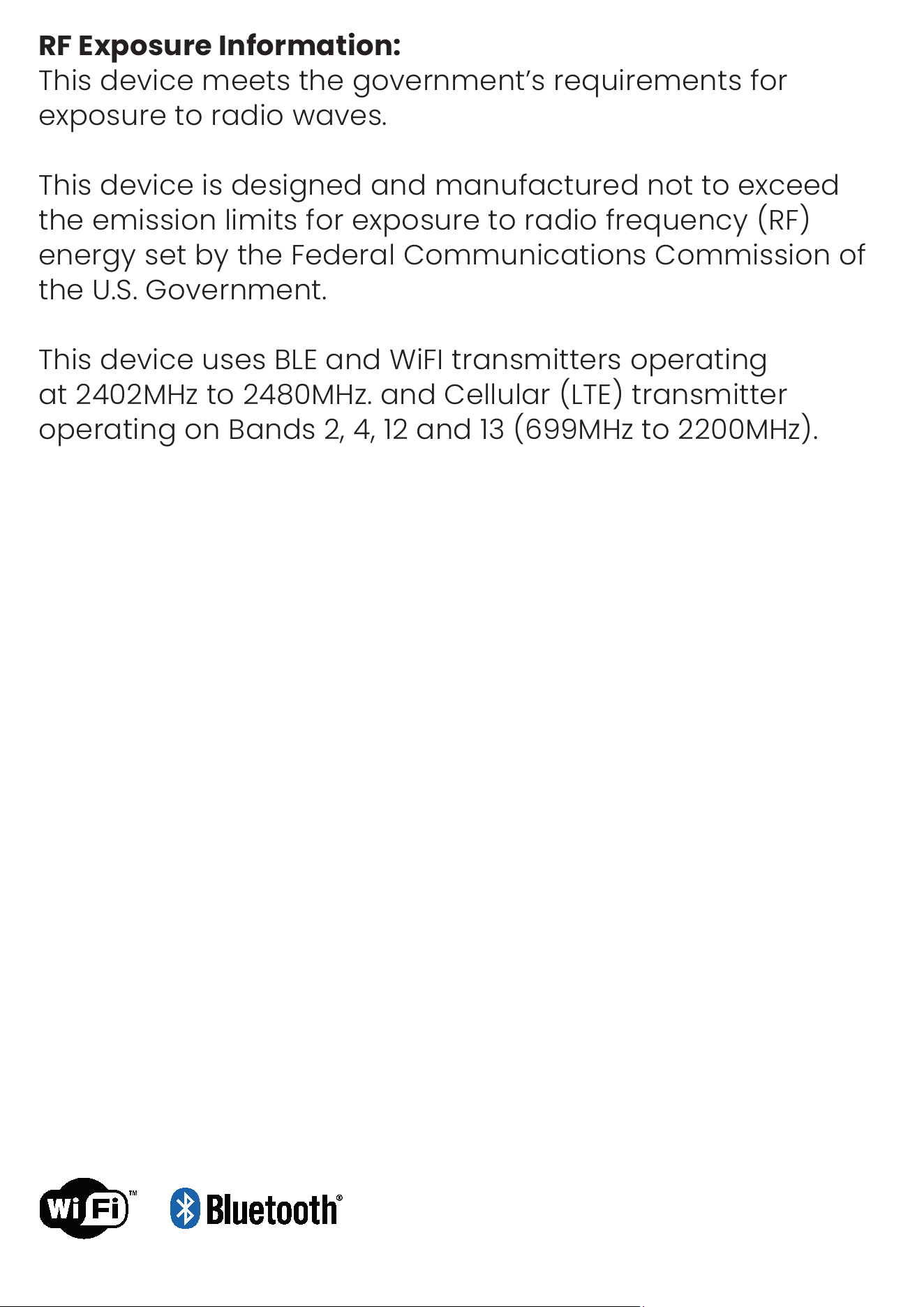

RF Exposure Information:
This device meets the government’s requirements for
exposure to radio waves.
This device is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of
the U.S. Government.
This device uses BLE and WiFI transmitters operating
at 2402MHz to 2480MHz. and Cellular (LTE) transmitter
operating on Bands 2, 4, 12 and 13 (699MHz to 2200MHz).
