Introduction
Thank you for purchasing NX04/10, the newest antenna in our industry-leading Powered by Nexus portfolio. Along
with pertinent regulatory information and guidelines, this manual provides antenna specifications, a list of included
and optional accessories, and an overview of antenna hardware features and antenna setup.
Our promise to you is to provide comprehensive training, unrivaled customer support and world-class expertise. That’s
why the NX04/10 antenna includes our industry-leading two-year warranty, complimentary training when purchased
as a complete Compass NX system, and technical support access. For more information, visit us at
www.geophysical.com.
Our team of dedicated technical trainers is ready to work with users of all experience levels,
and GSSI Academy classes are offered on an annual schedule. Check out the GSSI Academy
offerings at www.geophysical.com/gssi-academy or scan the accompanying QR code with your
smartphone.

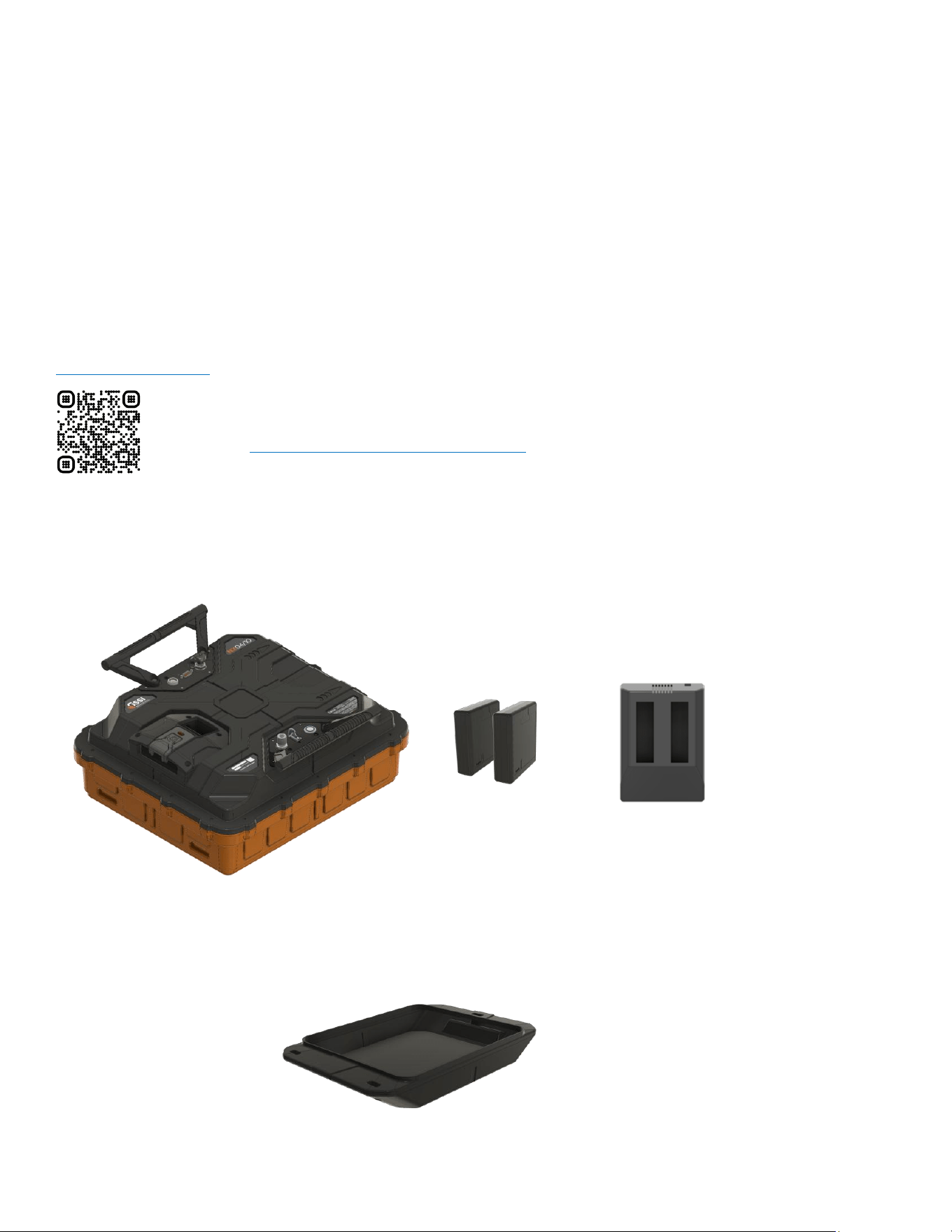

What’s in the Box
The standard NX04/10 antenna ships with the following:
Optional Accessories
The following accessories are available for NX04/10 and are sold separately:
NX04/10 Antenna
NX04/10 4-Cell Li-
Ion Batteries (2x)
NX04/10 Battery
Charger and AC
Adapter
NX04/10 Sled
Antenna Specications and Features
Feature
Description
Unit Type
Ultra-Wideband Antenna
Measuring Type
Ground Penetrating Radar (GPR)
Antenna Technology
Stepped Frequency Continuous Wave [SFCW]
Communication
Wi-Fi to mobile device
External Features
Power button; 2x RS232 serial port; USB C port, Encoder port;
Operational Modes
Single or dual channel display
Trigger Modes
Encoder-based Distance; Time-based (continuous)
Samples per Scan
1024
Scans per Second
140
Time Range
Channel 1 (1000MHz): 100ns; Channel 2 (350MHz): 200ns
Max Depth
1000MHz antenna: 0-500cm; 350MHz antenna: 0-1000cm
Time Zero
Fixed; not field adjustable
Internal GPS
No
GPS Connections
To antenna: RS232 serial; To mobile device controller: Bluetooth
Display
No integrated display; External mobile device required
Storage
No user-accessible onboard storage
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
IP Rating
IP65 (fully sealed against dust and low-pressure omnidirectional water)
Battery Access
User-removable
Battery Performance
Up to 4 hours per battery (two rechargeable 4-cell batteries included)
Dimensions
47cm x 40cm x 23cm (18.5in x 15.75in x 9in)
Weight
6.8kg (15lbs)
Hardware Warranty
2 years from date of purchase

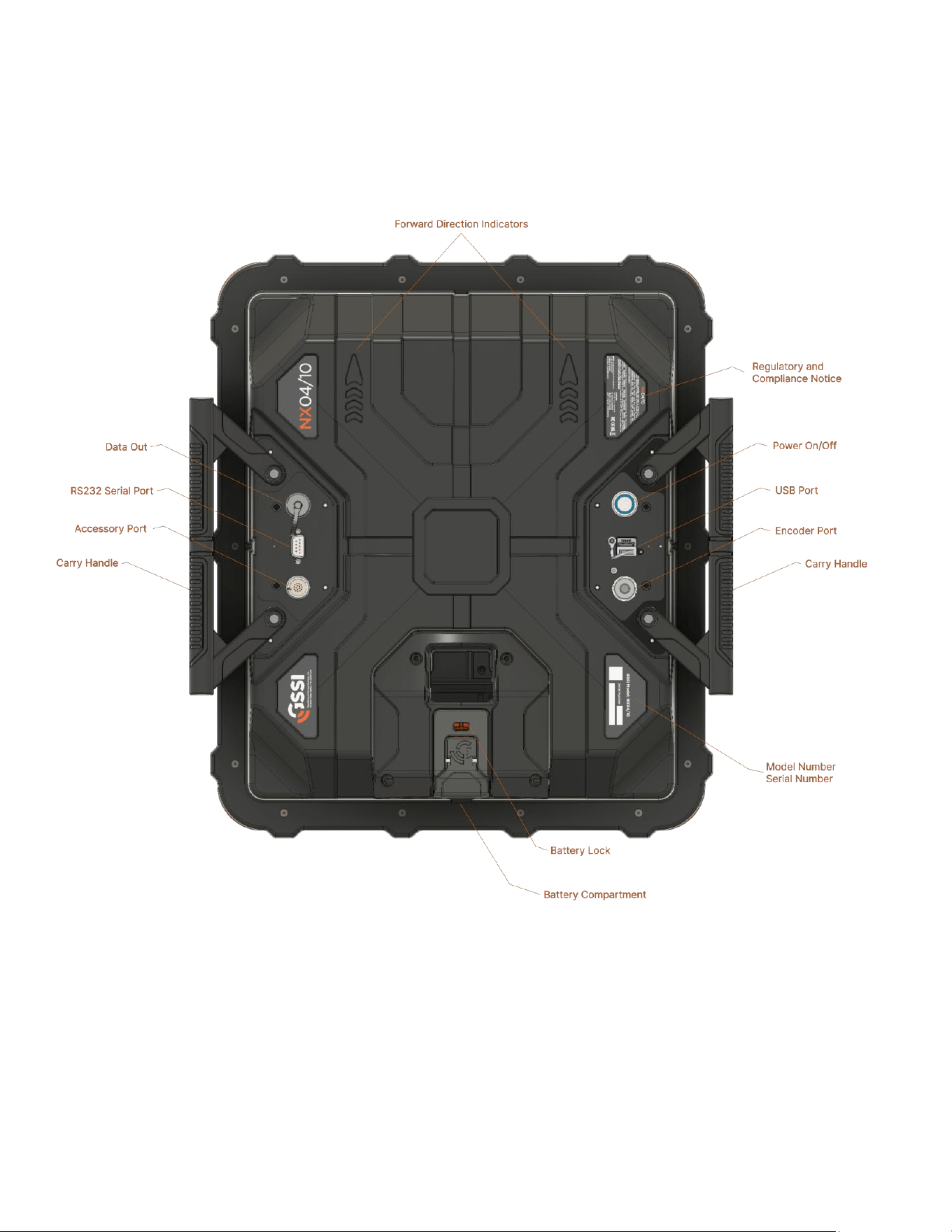

NX04/10 External Features
Antenna Setup and Use
In adherence with domestic and international shipping restrictions the two included 4-cell batteries were
shipped to you at <30% charge level. Begin by charging the batteries using the supplied battery charger. The
charger’s LED lights will flash while charging; the lights will be solid when charging is complete. Battery
charging could require 2 to 4 hours depending on the charge status.
Insert a fully charged battery into the battery compartment and press the Power On/Off button. The LED
state will transition to a solid color when the antenna is ready for operation. NX04/10 will then broadcast a
Wi-Fi SSID using the antenna model and serial number, such as NX0410_000141. To determine your antenna
model and serial number please refer to the decal located on the top of the antenna.
To interact with the NX04/10 antenna you must install the GSSI NX Control app on an Android or iOS mobile
device. Before launching the NX Control App, connect to the NX04/10 Wi-Fi network and enter geophysical
when prompted for a password. For more information please refer to the NX Control app documentation.
