Installation Guide
For technical support and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply scan the
QR code.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com/business to join
TP-Link Community.
RJ45 SFP/SFP+ Module
Installing the RJ45 SFP / RJ45 SFP+ Module

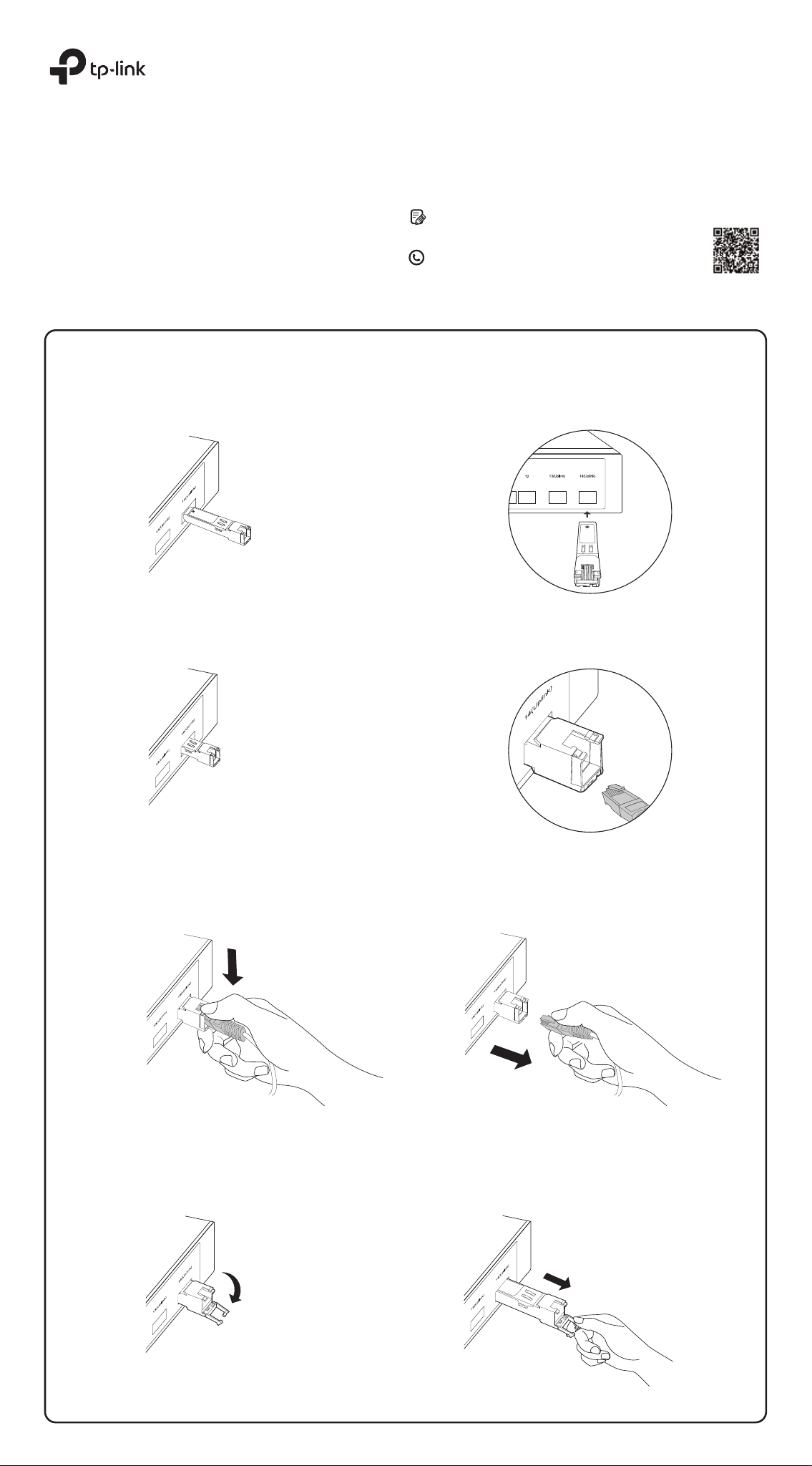

1. Lock the yellow latch into place and insert the module into an SFP / SFP+ slot with label side up.
2. Gently push the module into the slot until you hear a click. Then, insert the RJ45 network cable.
Removing the RJ45 SFP / RJ45 SFP+ Module
1. Press the RJ45 crystal head and pull out the cable.
2. Pull down the latch and remove the module.
Note: Images may dier from the actual products.
©2024 TP-Link 7106511405 REV1.0.1
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need
service, please contact us.
Avoid using this product during an electrical storm. There may be a remote risk
of electric shock from lightning.
Specications
The 10G RJ45 SFP+ modules consume more power than optical modules. This may result in higher heat. To avoid overheating, it is recommended to place the
modules separated by multiple optical transceivers or empty slots.
When used in high temperature environments, additional cooling must be applied.
Positioning the 10G RJ45 SFP+ Modules
Scenario 1:
Not RecommendedRecommended
Scenario 2:
Recommended Not Recommended
power margin.
Product Operating Temperature 0˚C to 70˚C (32˚F to 158˚F)
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Storage Humidity 5% to 90% RH, Non-condensing
Operating Humidity 10% to 90% RH, Non-condensing
Environmental and Physical Specications
CAN ICES-3 (A)/NMB-3(A)
Industry Canada Statement
FCC compliance information statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Product Name: 1000BASE-T RJ45 SFP Module/10GBASE-T RJ45 SFP+ Module
Model Number: TL-FM331/TL-FM531
Responsible party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with
the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and
the equipment is properly maintained and operated.
Issue Date: 2024/07/19
E
xplana�on of the symbols on the product label
S
ymbols may vary from products. The label is at the bottom of the product.
Symbol
Explanation
Class I I equipment
Class I I equipment with functional earthing
Alternating current
Direct current
Pol a rity of d.c. power connector
For indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy eciency Marking
Protective earth
Earth
Fra me or chassis
Functional earthing
Caution, hot surface
Caution
Opera tor's manual
Stand-by
"ON"/"OFF" (push-push)
Fus e
Fuse is used in neutral N
Caution, avoid listening at high volume levels for long periods
Dis connection, all power plugs
m
Switch of mini-gap construction
µ
Switch of micro- gap construction (for US version)
Switch of micro-gap / micro
-
disconnection construction
(for other versions except US)
ε
Switch without contact gap (Semiconductor switching device)
RECYCLING
This product bears the selective sorting symbol for Waste
electrical and electronic equipment (WEEE). This means that
this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or
electronic equipment.
IEEE 802.3
IEEE 802.3u
IEEEE 802.3ab
General Specications
RX_LOS
MAC Interface
Power Consumption (max.)
Standards and Protocols
Model
Data Rate* (max.)
TX_Fault
TX_Disable
Hot Swappable
LLF
LFP
Cable Distance
DDM
2.5 W
/
/
Ye s
Ye s
/
/
10Gbps/5Gbps/2.5Gbps: XFI
1000Mbps: 1000BASE-X
100Mbps: SGMII
10.3125 Gbps
TL-FM531
0.8 W
/
/
Ye s
Ye s
/
/
1000BASE-X
1.25 Gbps
TL-FM331
1000BASE-T: UTP
cat.5e or above
(max. 100m)
/
IEEE 802.3
IEEEE 802.3ab
SFF-8472
100BASE-TX: UTP cat.5
or above (max. 100m)
1000BASE-T/2.5GBASE-T/
5GBASE-T: UTP cat.5e or
above (max. 100m)
10GBASE-T: UTP cat.6a or
above (max. 30m)
Yes
(temperature and voltage)
IEEEE 802.3an
IEEE 802.3bz
SFF-8431
SFF-8472
Compatiblity
Model
Supported***
TL-FM531*
Supported***
SupportedGigabit SFP Slot (SFP Slot)
TL-FM331
Supported**10G SFP+ Slot (SFP+ Slot)
We recommend that you use only TP-Link modules on your TP-Link devices.
To check the compatible TP-Link devices of your module, please visit our
website.
***
When a 10G RJ45 SFP+ module is used at 100 Mbps/1 Gbps, extra
conguration for port data rate may be required. And
when it is inserted into a
10 Gbps SFP+ slot and the maximum rate of the peer connection port is 5
Gbps, 2.5 Gbps, 1 Gbps, or 100 Mbps, the ow control for the 10 Gbps SFP+
slot needs to be manually enabled.
When a gigabit RJ45 SFP module is inserted into a 10G SFP+ slot, extra
conguration for port data rate may be required.
**
Note:
TL-FM531 does not support the data rate of 10 Mbps or 100 Mbps.
*
