User Manual
No: OS-Sa01E
Statement: The sensor contains lithium
battery and send signal by radio signal.
Same mechanical size sensor may be
used for totally different cars, users must
make sure the sensor is suitable for your
car.
1. Before user installs the sensor, we
recommend user to read the sensor ID
by TPMS diagnostic unit, making sure
the sensor is qualified before putting it
in the tire. This is not mandatory, but
sometimes single cause happened that
the installation process may cause the
sensor broken.

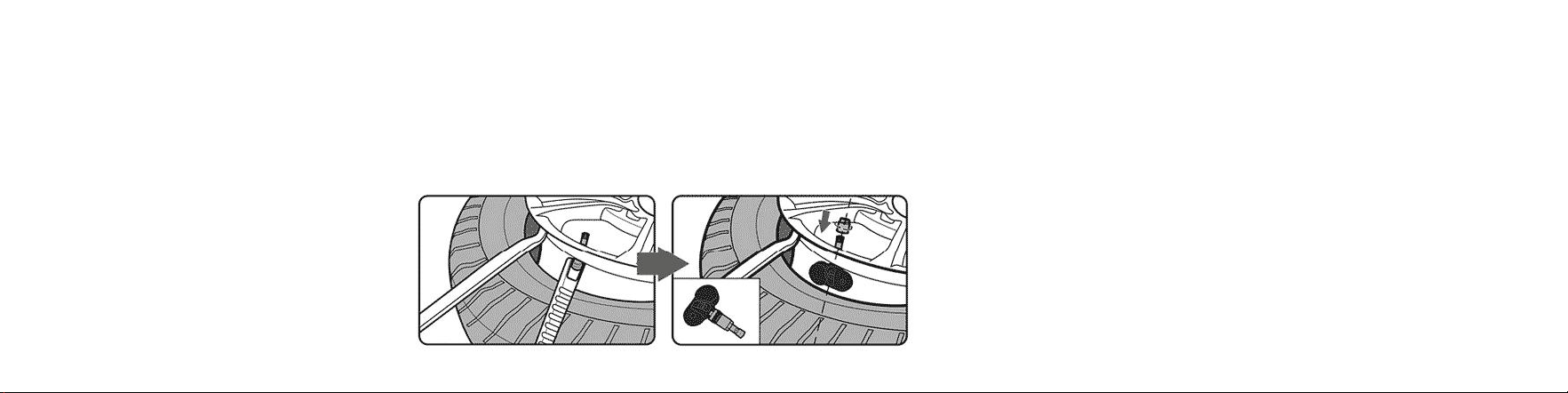

2. For tire pressure sensor installation,
we recommend user to go to
experienced shop to change the sensor.
After implement installation, we
recommend user read the sensor ID by
TPMS diagnostic. Not mandatory.
3. After replacement, mandatory
requirement that the tire pressure
should be set at the
required value like 250MPa .
Then go the next: how to
let the car recognize new
sensor. There are two ways
to relearn the sensor.
a) Stationary relearn:
Turn the car to relearn mode, different
cars have different operation methods
and we recommend user to check with
Car 4S shop.
For example: Ford B-Max 2015 EU
Step 1: Engage Parking Brake
Step 2: Turn the ignition to OFF position
the press and release the brake pedal.
Step 3: Quickly turn the ignition from
OFF to RUN (engine OFF) 3 times (stop in
RUN position)
Step 4: Press and release the brake pedal
Step 5: Set the ignition to OFF
Page 6
Page 7
Page 8
Page 5
Step 6: Quickly turn the ignition from
OFF to RUN (engine OFF) 3 times (stop in
RUN position)
Attention: All the above need to be
performed within 10 sec.
Step 7: The horn will sound once
Step 8: If equipped with message centre,
TRAIN LF tire appears
Step 9: Read/ trigger Left Front sensor
until a single horn sounds representing
the sensor learning successful.
Step 10: Repeat steps for Front Right,
Rear Right and Left Rear tires.
Step 11: TRAING Mode COMPLETE is
displayed.
If the vehicle is not equipped with the
message centre display, successful
completion can be verified by turning
the ignition OFF and not hearing the
horn sound.
b) OBDII method
Step 1: Must use diagnostic with TPMS
OBDII function.
Step 2: Turn ignition ON.

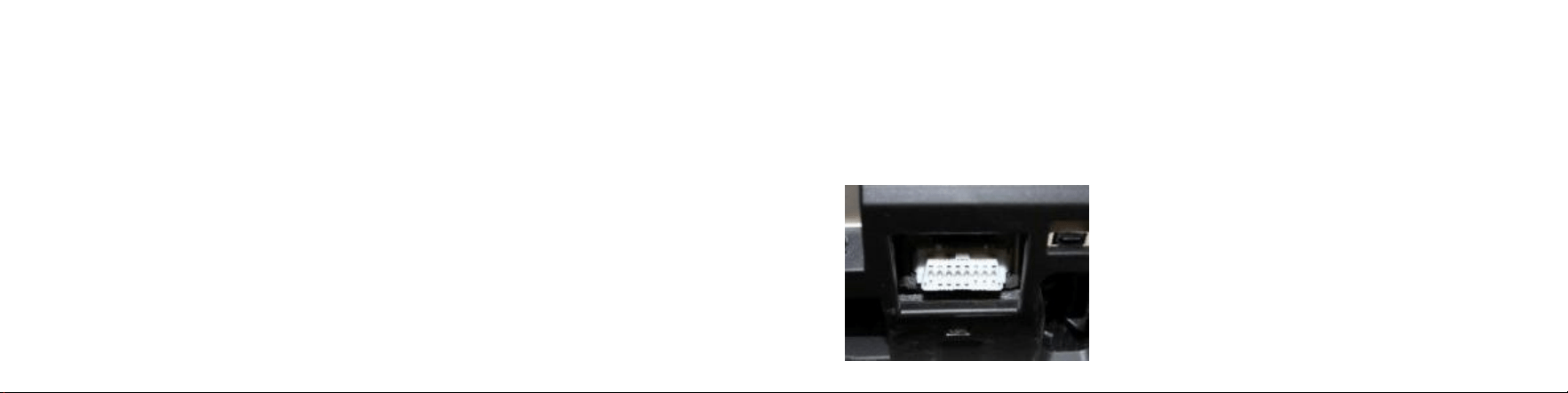

Step 3: Connect the OBDII Cable/
Module to OBD connector.
Step 4: Follow the diagnostic screen’s
learning instruction until OBDII learning
successful.
Step 5: Drive for 20min if the TPMS
warning lamp remains ON.
OBDII method is the most stable way to
relearn the TPMS.
After-sales failure:
1. If your car can’t recognize the
sensor, please provide the sensor OE
number user bought, the car’s VIN and
the original sensor’s picture to seller. We
will feedback the solution ASAP.
2. Car accident and abnormal intense
vibrations may cause the sensor broken.
