HiFi Vacuum Tube Power Amplifier Home Stereo
Pure Class A Single-ended Audio Amp
Warm Tips: Pluggable tube socket design, you can also change the tubes
(6L6--6P3P/EL34/6550/KT66, 6N1--6H1/ECC85) to get enjoy different
sound styles.

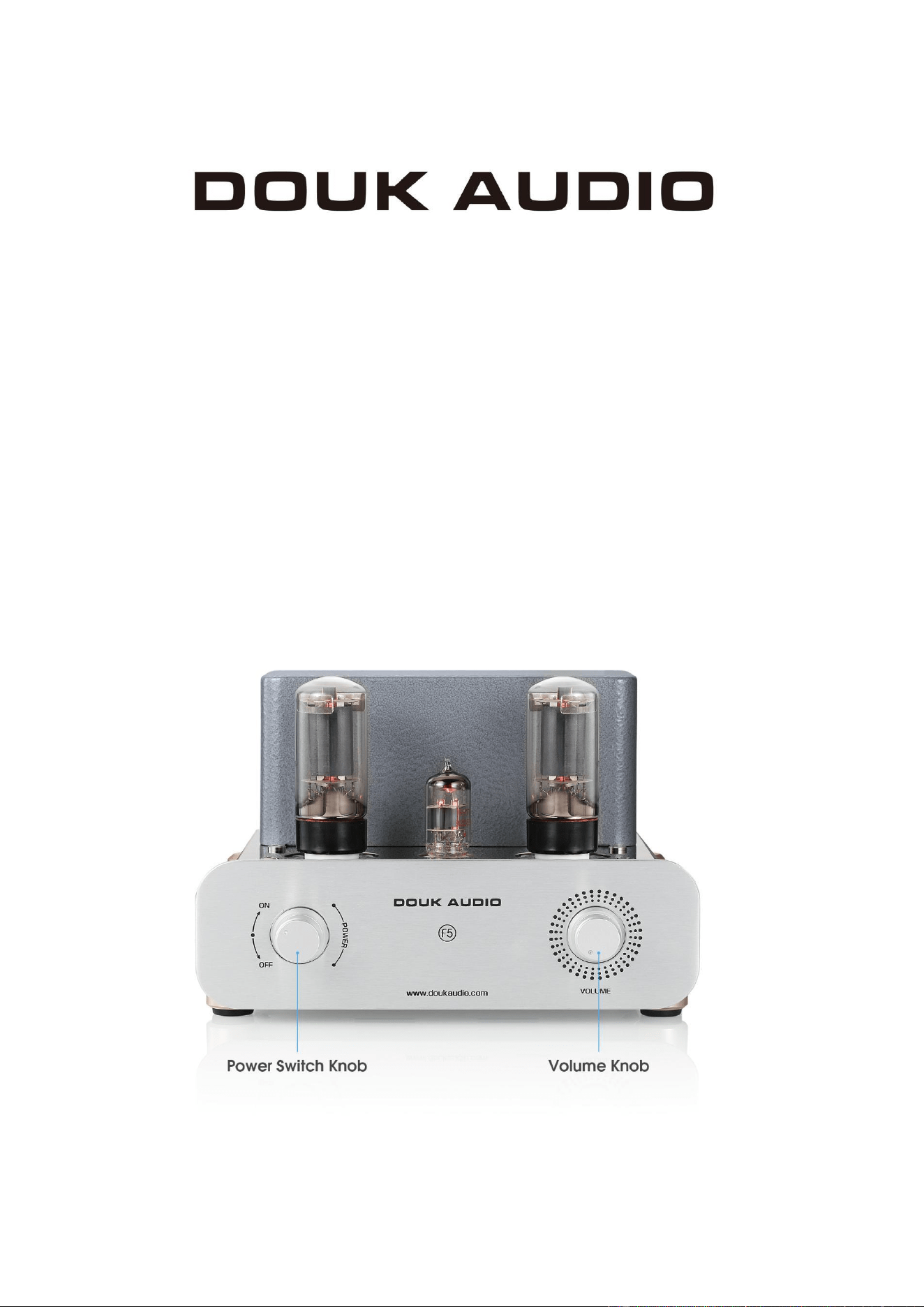

Introduction of the panel
Features
⚫ With 2 groups of stereo RCA inputs, it can be perfectly compatible
with most audio sources such as Phone, MP3, tablet, TV, computer,
CD players etc., adds input selector to avoid plugging cables
repeatedly, providing HiFi listening experience via convenient use.
⚫ Adopting high-current double triode 6N1 for voltage amplification,
and 6L6 for single-ended power amplification, provides large driving
current, warm and rich sound, full and thick in mid-bass, and
transparent and smooth in treble. Effectively filter the digital sound,
reduce noise and improve the dynamics.
⚫ Adopting imported 150W large power transformer, ensure 15W "No
Large Loop Feedback" ultra-linear audio output transformer, using
unique cross-composite winding method to greatly reduce the leakage
inductance. Ensure sufficient power, easily to drive most home
passive speakers.
⚫ Proper size with exquisite appearance, silver aluminum alloy chassis
with fine surface treatment, 0.35mm imported iron core, ALPS
potentiometer, famous imported capacitor etc., attractive and durable.
Simple design and pure clear sound, very suitable for stereo home
and desktop audio system.

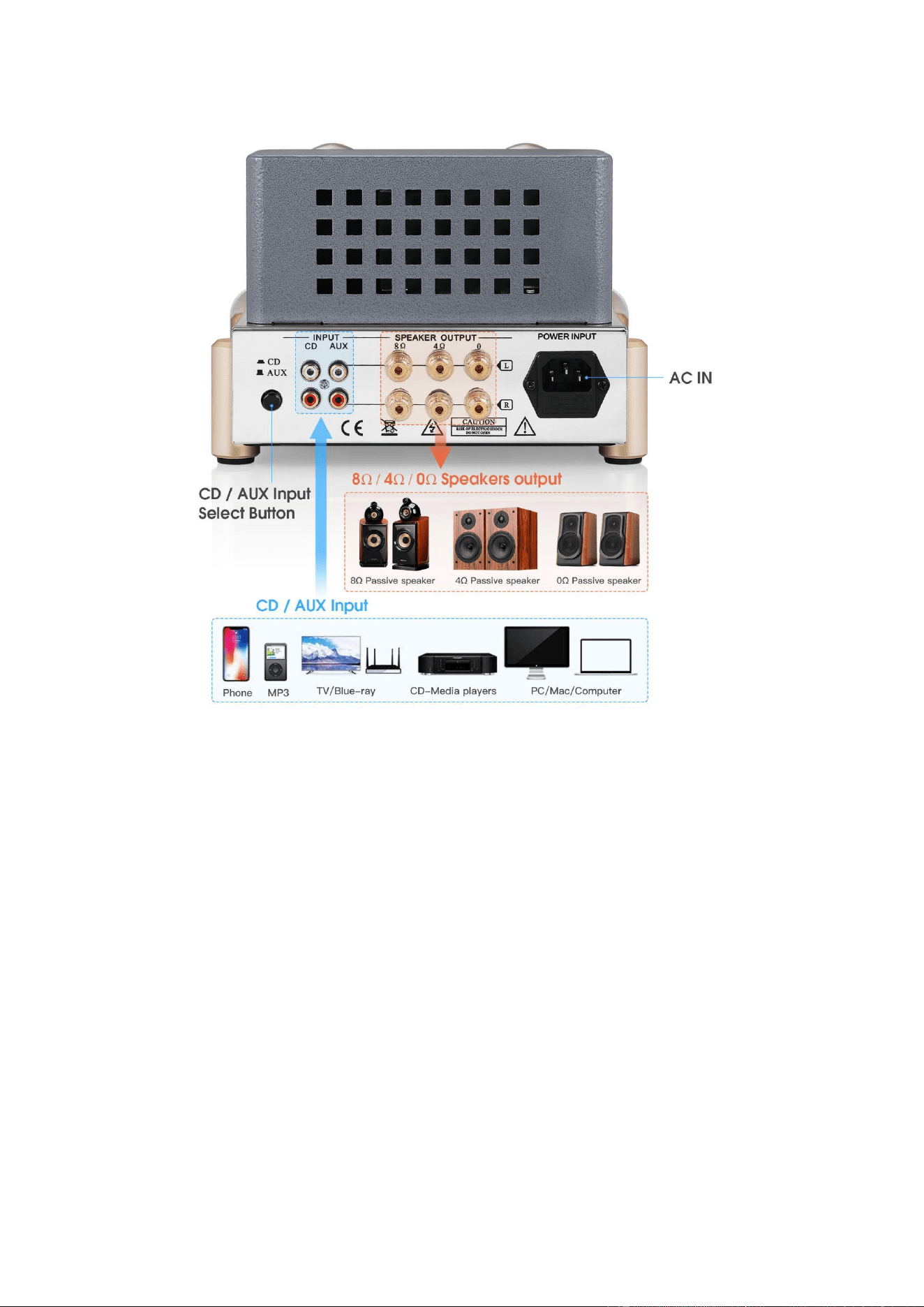

How to use
1. Connect the passive speakers to the banana speakers output of
amplifier.
2. Connect the audio source to the CD/AUX input.
3. Connect the power cable and plug it into the power socket, turn the
knob clockwise to power on and play music on the audio source.
4. Adjust volume according to your preferences and enjoy music.
5. After use, please turn the knob counterclockwise to power off first, and
then disconnect the power cord.
Parameters
• Audio input: 2 groups of stereo RCA
• Audio output: banana speaker jacks
• Tube Model: 6L6×2+6N1×1
• Output power: 6W+6W
• Output impedance: 4Ω/8Ω
• Frequency response: 35Hz-25KHz
• S/N ratio: 88db
• Input sensitivity: 750mW
• Input impedance: 100K
• Power transformer: 150W
• Working voltage: AC 110V (not available currently) / 220V
• Dimensions(W*D*H): 230*205*160mm / 9.06*8.07*6.30in
• Net weight: 6.57kg / 14.48lb
• Package weight: 8.0kg / 17.64lb
Packing List
• 1*Tube Amplifier
• 1*Power Cord
