Wireless Remote Control Kit User Manual（DW-05 series）
一、Packing List
Receiver *1, Handset *1, Antenna *1, User Manual 1
二、Receiver, Handset, quick plug-in illustration and overview
1. Operating Voltage: DC 12V/24V/48V (Please specify when ordering)
2. Working distance: > 10m
3. Operating Frequency: 315MHz or 433MHz
4. Certification: CE and ROHS
5. Protection Rating: IP65
6. Battery Specification: 2 x 7# AAA

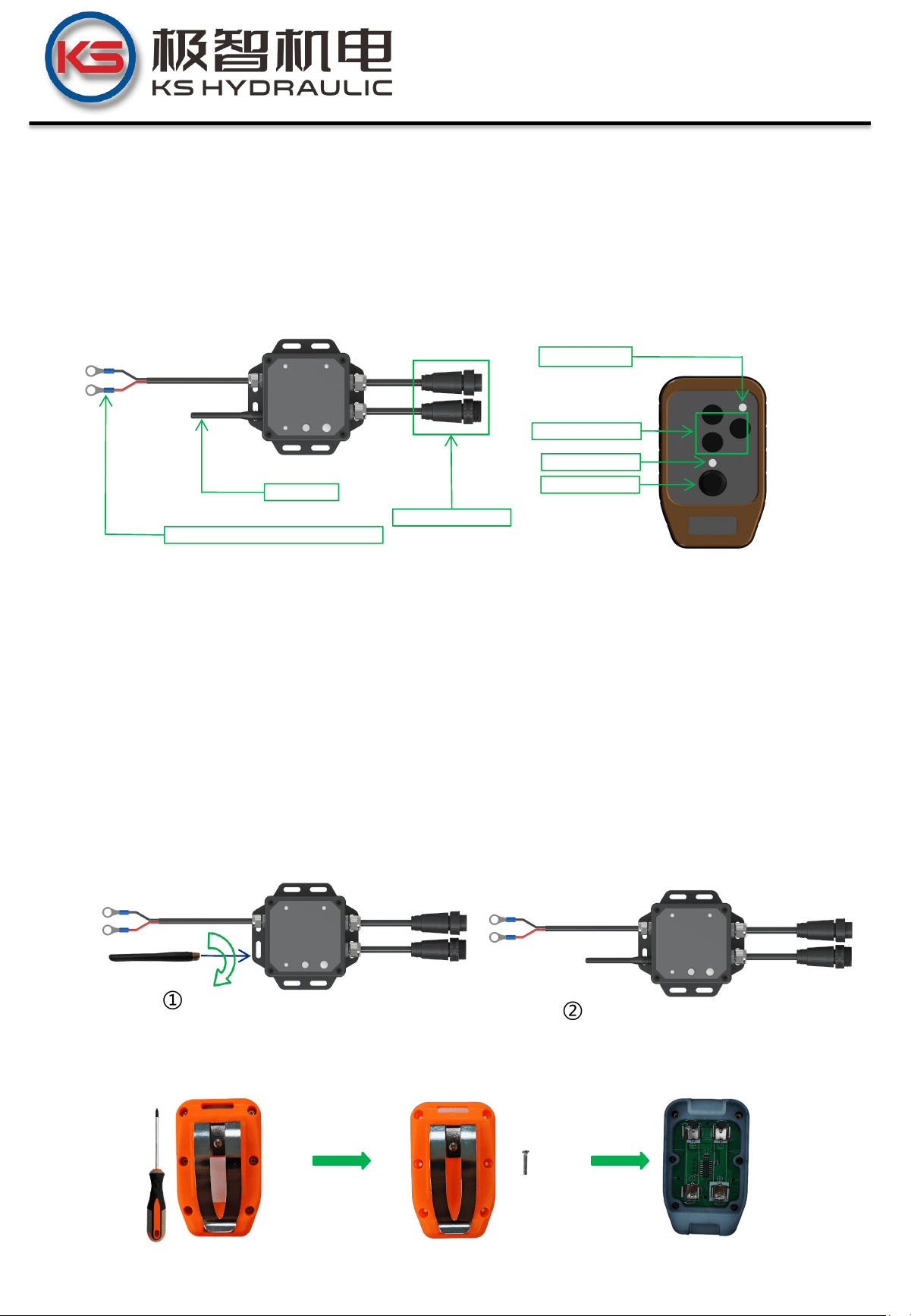

1. Receiver antenna installation: Follow steps ①② to install the antenna onto the
receiver and tighten it.（Clockwise direction）
三、Installation and usage instructions
2. Handset battery installation:
X 6
① Prepare tools
② Loosen the screws on the back cover
③ Remove the back cover
Figure 2 Handset
Figure 1 Receiver
Add: Bldg3A,No. 1 Dingyang road Jiashan
County Jiaxing City, Zhejiang Province 314112
P.R China
Tel、Fax : 0573-84120128 / 0573-84122378
Website：www.kspowerpack.com
Signal Light
Power Light
Control button
Power on/off
Antenna
Positive and negative power lines
Quick connector
①
②
②
①

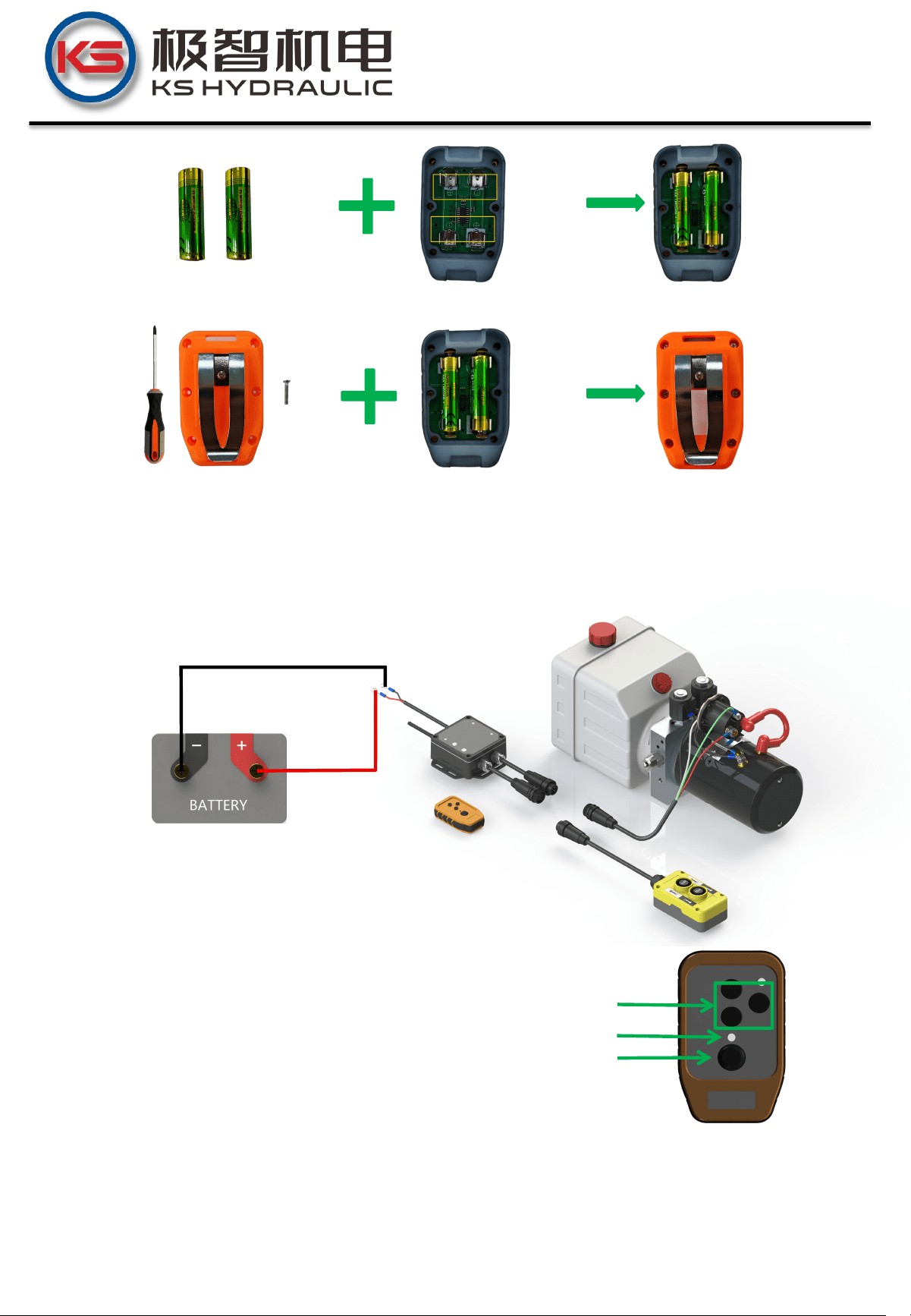

1. Connect the receiver's positive and negative terminals to the battery.（See mark
① ) , connect receiver connector to hydraulic power unit connector（See mark
② ), Then turn on the system power
2. ①Press “on” button
②Handset power indicator keep bright
③Operate the control keys according to the
markings on the remote control panel.
3. Please note if there is no operation over 5 seconds after
the handset is powered on, The handset will automatically turn off.
3. Remote control connection and installation:
Caution⚠️ ：
When handset is in active，Please do not press two or more control buttons at the
same time. Please make sure that after pressing any button, then press the other
one！
⑦Install the back cover and tighten the mounting screws on the back cover
X 6
⑥ Install the battery correctly
④ Battery Specification:2 x 7# AAA
⑤ Check "+" and "-
Add: Bldg3A,No. 1 Dingyang road Jiashan
County Jiaxing City, Zhejiang Province 314112
P.R China
Tel、Fax : 0573-84120128 / 0573-84122378
Website：www.kspowerpack.com
①
②
③
