USER MANUAL
Model: S5120Q
5.1.2CH Soundbar with Wireless Subwoofer
2
Contents
1. Important Safety Instructions
................................................................................................................................
....................................................................................................................
..................................................................................................................................................
3
1.1 Safety .................................................................................................................................................................... 3
1.2 Caution .................................................................................................................................................................. 4
1.3 Warning .................................................................................................................................................................
.........................................................................................................................................................
4
2. What’s in the Box 5
3. Identifying the Parts 6
3.1 Soundbar ...............................................................................................................................................................
.................................................................................................................................................................
6
3.2 Wireless Subwoofer ..............................................................................................................................................
........................................................................................................................................
7
3.3 Remote Control ..................................................................................................................................................... 7
3.4 Prepare the Remote Control 7
3.5 Replace the Remote Control Battery
.................................................................................................................................
7
4. Placement and Mounting 8
4.1 Placement .............................................................................................................................................................. 8
4.2 Wall Mounting the Soundbar ................................................................................................................................ 8
5. Connections 9
5.1 Use the HDMI Socket
.............................................................................................................................................
....................................................................................................................................
9
5.2
5.3
Use the AUX Socket
...............................................................................................................................................
...........................................................................................................................................
11
Connect Power ...................................................................................................................................................... 11
6. Pair up with the Subwoofer 12
7. Control Via ConnectLife 12
12
.................................................................................................................................................
Select Equalizer (EQ) Effect
.......................................................................................................................................................
...............................................................................................................................................
9. Basic Operation 12
9.1 Standby/ON ............................................................................................................................................................ 12
9.2 Auto-Standby / Auto-Wake Feature ...................................................................................................................... 13
9.3 Select Modes .......................................................................................................................................................... 13
9.4 Adjust the Volume ................................................................................................................................................. 13
9.5 Select Surround Sound Mode .............................................................................................................................. 13
9.6 Adjust the Bass/Treble .......................................................................................................................................... 13
9.7 .................................................................................................................................... 13
9.8 Select a sound mode ............................................................................................................................................. 13
9.9 Level (LVL) control ................................................................................................................................................. 13
9.10 Set the Audio Delay 13
9.11 Setup Menu ...........................................................................................................................................................
..............................................................................................................................................
14
10. AUX / HDMI Operation 14
11. USB Operation 14
12. Bluetooth® Operation 15
13. Troubleshooting
Specifications
Trademarks
16
15. 18
14. 17
8. Connect to Wi-Fi 12
......................................................................................................................................
..................................................................................................................................................................
...................................................................................................................................................................
.........................................................................................................................................................
...........................................................................................................................................................
.............................................................................................................................................................
..............................................................................................................................................
12
12
8.1 Works with Apple AirPlay
8.2 Multi-room audio
3
1. Read these instructions – All the safety and
operating instructions should be read before
this product is operated.
2. Keep these instructions – The safety and
operating instructions should be retained for
future reference.
3. Heed all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operating and
usage instructions should be followed.
5. Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or
near a swimming pool and the like.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as
radiators, heaters, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding plug. A polarized
plug has two blades with one wider than the
other. A grounding plug has two blades and
a third grounding prong. The wide blade or
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
the third prong is provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified
by the manufacturer.
Use only with the cart, stand,
tripod, bracket or table specified
by the manufacturer, or sold with
the apparatus. When a cart or rack
10
11
12
13
14
15
16
17
18
19
20
21
CAUTION
EN
AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC
ÉLECTRIQUE NE PAS OUVRIR
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude as to constitute a risk of electric
shock to persons.
is used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
Unplug the apparatus during lightning
storms or when unused for long periods of
time.
Refer all servicing to qualified personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the unit has been exposed to rain
or moisture, does not operate normally, or
has been dropped.
This equipment is a Class II or double
insulated electrical appliance. It has been
designed in such a way that it does not
require a safety connection to electrical
earth.
The apparatus shall not be exposed to
dripping or splashing. No objects filled with
liquids, such as vases, shall be placed on the
apparatus.
Minimum distance around the apparatus for
sufficient ventilation is 5cm.
The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers,table-cloths, curtains,
etc.
No naked flame sources, such as lighted
candles, should be placed on the apparatus.
Batteries should be recycled or disposed of
as per state and local guidelines.
The use of apparatus in moderate or tropical
climates.
4
Use of controls or adjustments or performance
of procedures other than those described
herein, may result in hazardous radiation
exposure or other unsafe operation.
To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
The apparatus must not be exposed to dripping
or splashing and objects filled with liquids, such
as vases, must not be placed on apparatus.
The mains plug/appliance coupler is used as
the disconnect device, the disconnect device
must remain readily operable.
Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
Replacement of a battery with an incorrect
type may defeat a safeguard;
Disposal of a battery into fire or a hot oven,
or mechanically crushing or cutting of a
battery, may result in an explosion;
Leaving a battery in an extremely high
temperature surrounding environment, such
as sunshine, fire, or hot surface may result
in an explosion or the leakage of flammable
liquid or gas;
A battery subjected to extremely low air
pressure may result in an explosion or the
leakage of flammable liquid or gas.
Risk of fire or explosion if the battery is
replaced by an incorrect type!
Correct Disposal of this product. This
marking indicates that this product
should not be disposed with other
household wastes throughout the
EU. To prevent possible harm to the
environment or human health from
uncontrolled waste disposal, recycle it
responsibly to promote the sustainable
reuse of material resources. To return
your used device, please use the return and
collection systems or contact the retailer where
the product was purchased. They can take this
product for environmental safe recycling.
Hereby, XinYang (Hong Kong) Co., Ltd.
Declares that the radio equipment
type is in compliance with Directive
2014/53/EU and Radio Equipment
Regulations 2017 of UK. Please enter
the model name at the following
internet address to read the full text
of the declaration of conformity:
https://global.hisense.com/support/
certificatedownload/.
Authorized EU Representative:
Name: Gorenje gospodinjski aparati, d.0.0.
Address: Par tizanska cesta 12, 3320Velenje,
Slovenija
Email: [email protected]
Please refer to the rating label for Soundbar or
Party Speakers model name and find Bluetooth
remote control model name on the remote control
label or inside the remote control cover.
-
-
-
-
The battery (batteries or battery pack) shall
not be exposed to excessive heat such as
sunshine, fire or the like.
Before operating this system, check the
voltage of this system to see if it is identical
to the voltage of your local power supply.
Do not place this unit close to strong
magnetic fields.
Do not place this unit on the amplifier or
receiver.
If any solid object or liquid falls into the
system, unplug the system and have it
checked by qualified personnel before
operating it any further.
Do not attempt to clean the unit with
chemical solvents as this may damage the
finish. Use a clean, dry or slightly damp cloth.
When removing the power plug from the
wall outlet, always pull directly on the plug,
never yank on the cord.
Changes or modifi cations to this unit not
expressly approved by the party responsible
for compliance will void the user’s authority
to operate the equipment.
The rating label is pasted on the bottom or
back of the equipment.
To prevent battery leakage which may result in
bodily injury, property damage, or damage to the
apparatus:
Install all batteries correctly, + and - as
marked on the apparatus.
Do not mix old and new batteries.
Do not mix alkaline, standard (Carbon-Zinc)
or rechargeable (Ni-Cd, Ni- MH, etc.) batteries.
-
-
-
•
•
•
•
•
•
•
•
•
-
-
-
-
Remove batteries when the unit is not used
for a long time.
5

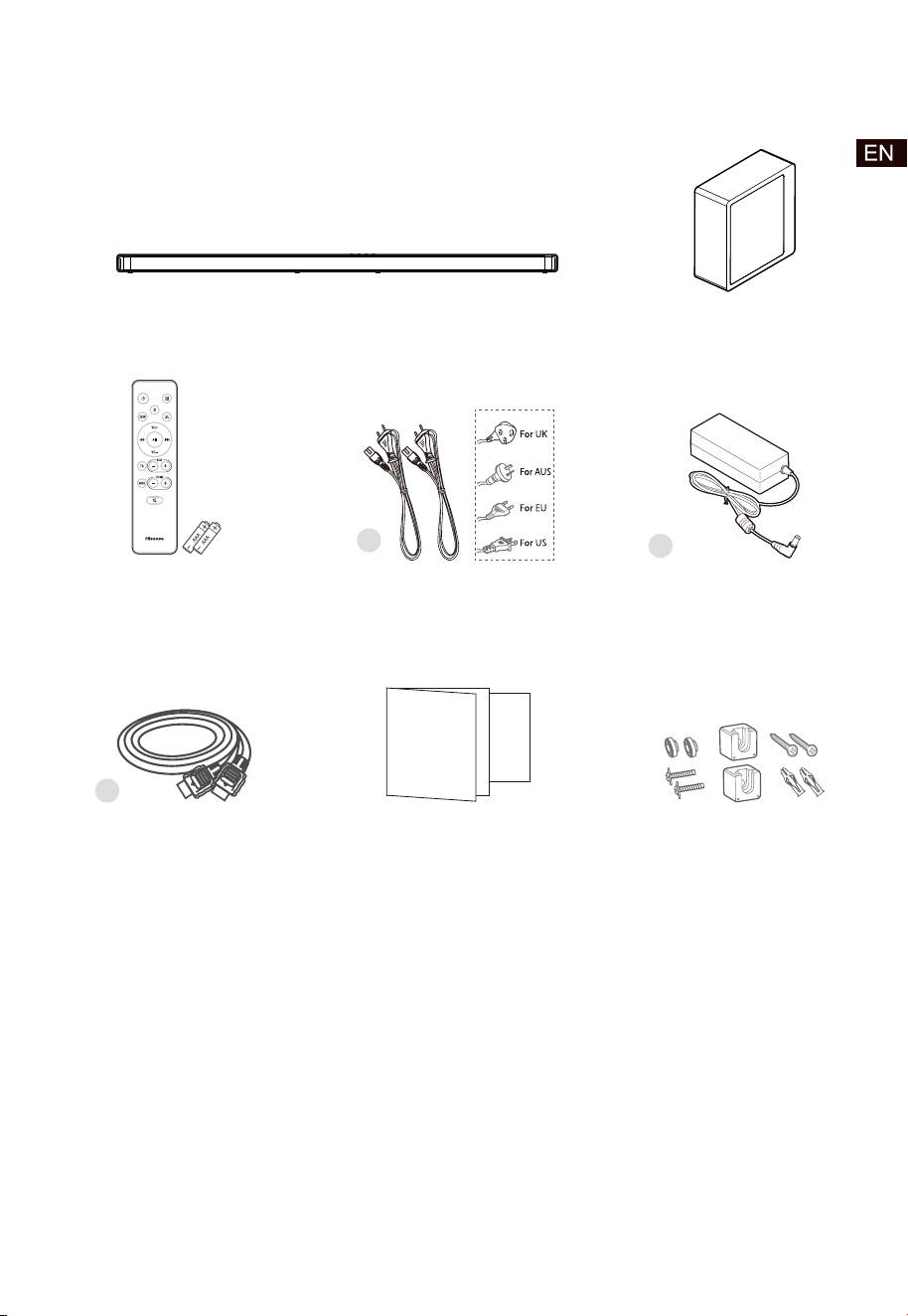

2. What’s in the Box
Soundbar Wireless Subwoofer
HDMI Cable Wall mount kit
Remote Control /
AAA Batteries x 2
AC Power Cord x 2
Warranty card / Quick start guide
*
Power Adapter x 1
** *
a
c
b
• Power cord quantity and plug type vary by regions. **The accessories may be different from the list
above due to different models, countries/ regions, please refer to the actual accessory bag.
• Images, illustrations and drawings shown on this User Manual are for reference only, actual product
may vary in appearance.
6
3 4 5
3. Identifying the Parts

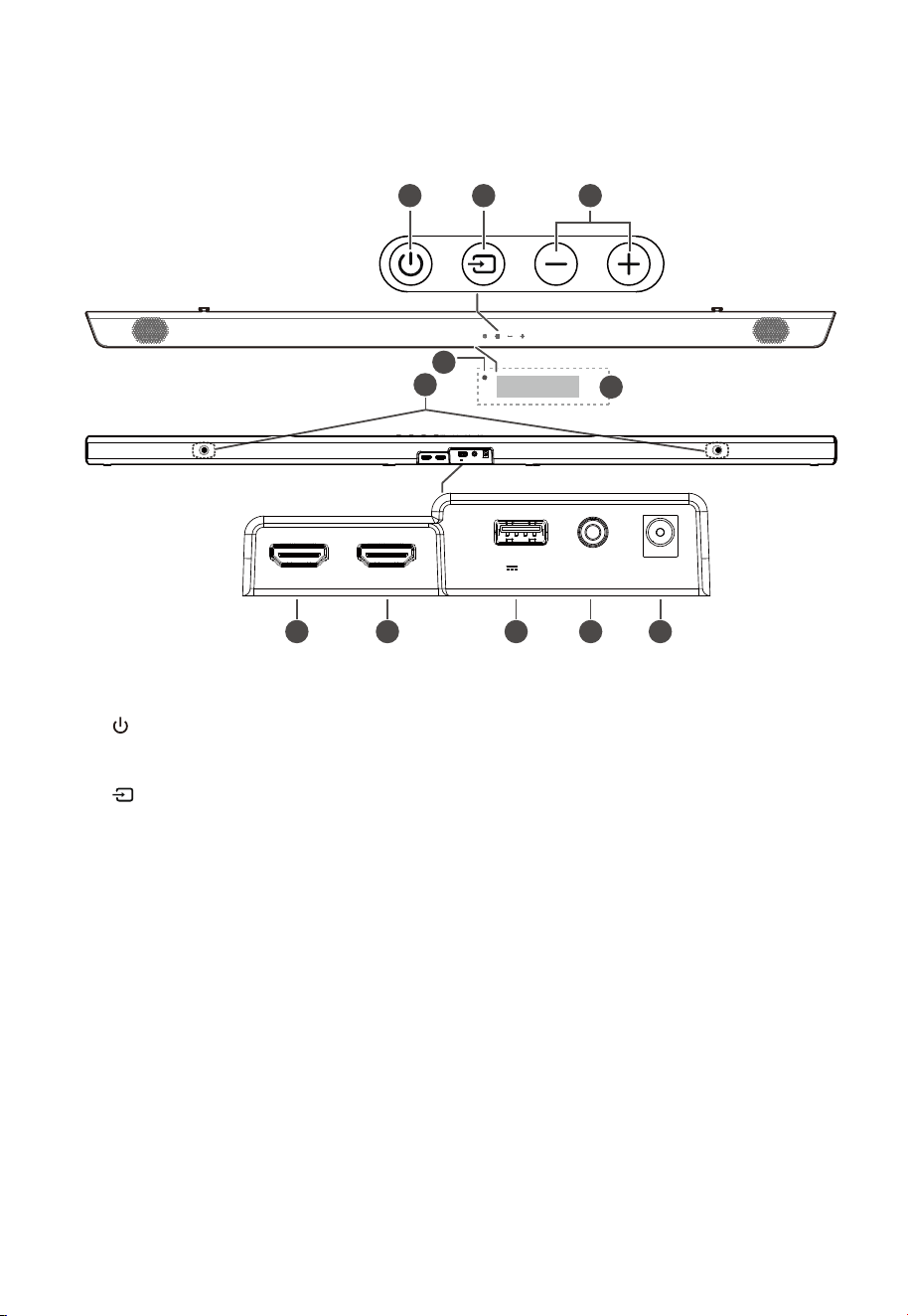

3.1 Soundbar
4
5
1
2
3
6
8
9
7
10
11
1 2 3
4
5
6
9 10 1187
(SOURCE) button
Select the input source.
+/ - (VOL) buttons
Increase/decrease the volume level.
Display Window
Show the current status.
Wall bracket screws
Remote Control Sensor
Receive signal from the remote control.
Switch the soundbar between ON and
Standby mode.
(ON/OFF) button
HDMI (TV eARC/ARC) Socket
The port for connecting a TV. The port
supports the eARC/ARC HDMI feature,
which allows the soundbar to play audio
that originates on the connected TV.
AUX Socket
Audio input from, for example, an MP3
player (3.5mm jack).
DC IN Socket
Connect to power supply.
USB Socket
Insert the USB device to play music.
HDMI IN Socket
Connect to the HDMI source devices,
such as a DVD player, Blu-ray Disc™ player,
or gaming console.
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA

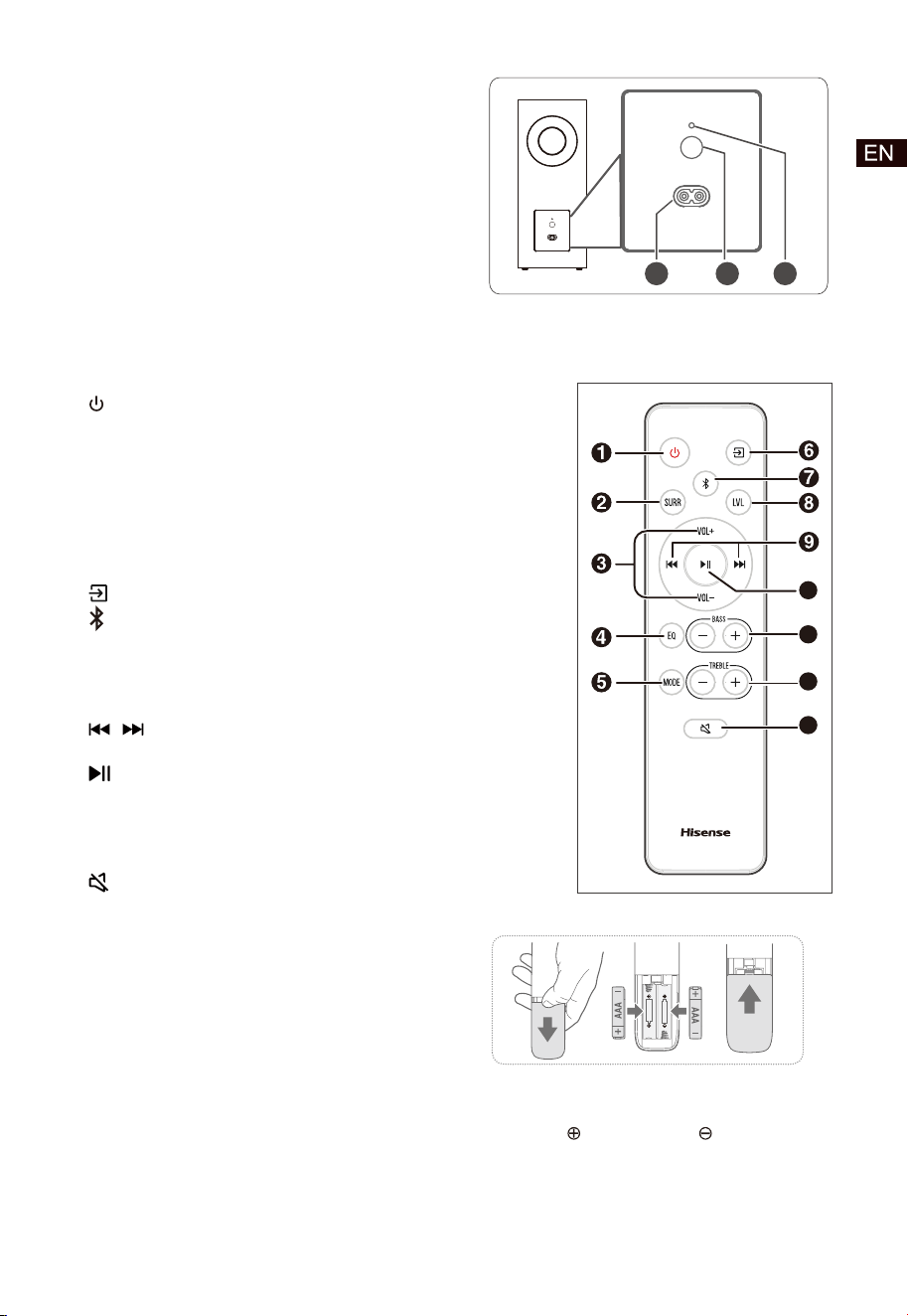

3.2 Wireless Subwoofer
1 Pairing Indicator
Light stops blinking once the subwoofer
is paired with the soundbar.
2 PAIR button
Press activate the pairing function between
the oundbar and the subwoofer.
3 AC IN~ Socket
Connect an AC power cord.
7
11
12
10
13
3.3 Remote Control
1
2 SURR
3 VOL
+
/VOL
－
4
5
6
(SOURCE)
7
8 LVL
9
/
10
11
EQ
12
MODE
13
(MUTE)
3.4 Prepare the Remote Control
3.5 Replace the Remote Control Battery
Precautions Concerning Batteries
PAIR
AC IN~
123
PAIR
AC IN~
BASS
+
/
－
TREBLE
+
/
－
• Be sure to insert the batteries with correct
positive “ ” and negative “ ” polarities.
• Use batteries of the same type. Never use
different types of batteries together.
• Either rechargeable or non-rechargeable
batteries can be used. Refer to the
precautions on their labels.
Switch the soundbar between ON and
STANDBY mode.
Switch the surround PURE/PRO/OFF.
Increase/decrease the volume level.
Select Equalizer (EQ) Effect. (MOVIE, NEWS,
MUSIC, GAME, SPORT)
Select a sound mode. (SOUND MODE OFF,
VOICE, NIGHT, AI)
Select the input source.
Select the Bluetooth mode. Press and hold to
activate the pairing function in
Bluetoothmode or disconnect the existing
pairedBluetooth device.
Level (LVL) control.
Skip to previous/next track in Bluetooth/USB
mode.
Play/pause/resume playback in Bluetooth
/USB mode. Press and hold the button for 3s
to enter setup menu.
Adjust bass level.
Adjust treble level.
Mute or resume the sound.
IMPORTANT: The remote control will work within
a 19.7 feet (6m) range, however this may be
impossible if there are obstacles between the unit
and the control.
Press and slide the back cover to open the battery
compartment of the remote control.
Insert two AAA size batteries. Make sure the (+)
and (–) ends of the batteries match the (+) and (–)
ends indicated in the battery compartment.
Close the battery compartment cover.
8
4. Placement and Mounting
4.1 Placement
A If your TV is placed on a table, you can place
the soundbar on the table directly in front of
the TV stand, centered with the TV screen.
B
4.2 Wall Mounting the Soundbar
•
•
BA
820 mm / 32.3 ”
1
4
3
2
• Be aware of your fingernails when removing
the battery cover and the battery.
• Do not drop the remote control.
• Do not allow anything to impact the remote
control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet
object.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control
when not in use for a long period of time, as
corrosion or battery leakage may occur and
result in physical injury, and/or property
damage, and/or fire.
• Do not use any batteries other than those
specified.
• Do not mix new batteries with old ones.
• Never recharge a battery unless it is confirmed
to be a rechargeable type.
If your TV is attached to a wall, you can
mount the soundbar on the wall directly
below the TV screen.
Caution: If you are unfamilar with power tools or
layout of electrical wiring in the walls of your home,
consult a professional installer.
It is the installer’s responsibility to verify that the
wall will safely support the total load of the
soundbar and wall brackets.
Additional tools (not included) are required for the
installation.
Do not overtighten screws.
Keep this instruction manual for future reference.
Use an electronic stud finder to check the wall type
before drilling and mounting.
WARNING
To prevent injury, this apparatus must be
securely attached to the floor/wall in
accordance with the installation instructions.
Suggested wall mounting height:≤ 1.5 meters.
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA
9
5. Connections
5.1 Use the HDMI Socket
Blu-ray Player / DVD Player /
Recorder / Set-top Box...

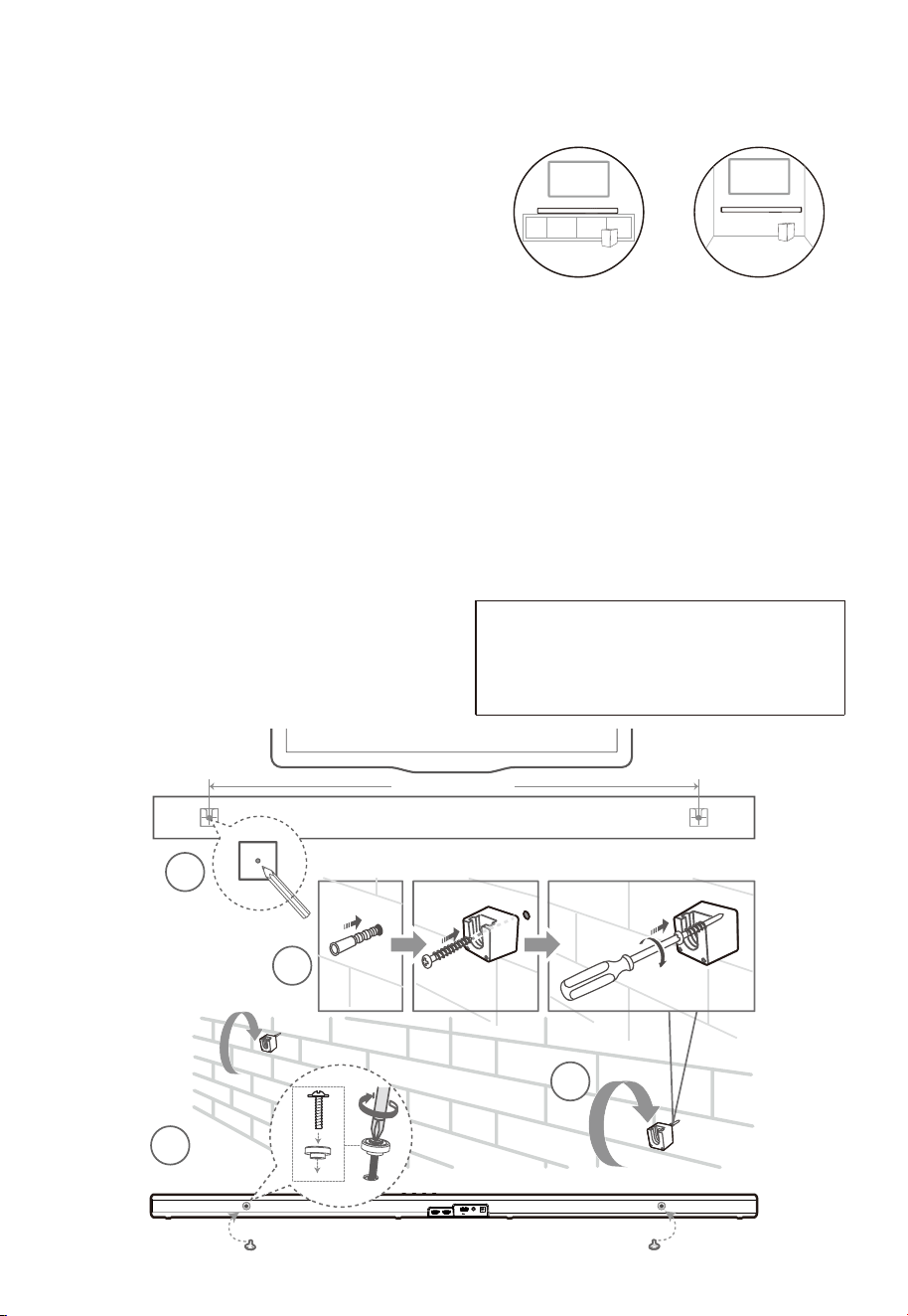

1. Drill 2 parallel holes (Ø0 5.5-6 mm each
according to wall type) in the wall. The
distance between the holes should be
860mm/33.8".
2. Firmly fix 1 dowel into each hole in the wall if
necessary. Tighten the wall mount brackets
on the wall with screws and screwdriver.
Make sure that they are securely installed.
3. Remove the screws at the back of the unit.
Install the wall mounting screws into the
back of the unit.
4. Lift the unit onto the wall mount brackets
and slot into place.
Dolby Atmos®
Dolby Atmos® gives you immersive listening
experience by delivering sound in three
dimensional space, and all the richness, clarity,
and power of Dolby sound. For more information,
please visit dolby.com/technologies/dolby-atmos
DTS: X
DTS: X, the border sound is no longer constrained
by fixed-position speaker placement or specific
channel signals.
Method 1: Use the HDMI eARC/ARC Socket
The eARC/ARC (Enhanced Audio Return Channel)
function allows you to send audio from your ARC
compliantTV to your soundbar through a single
HDMI connection. To enjoy the ARC function,
please ensure your TV is both HDMI-CEC and ARC
compliant and set up accordingly. When correctly
set up, you can use your TV remote control to
adjust the volume output (VOL +/－ and MUTE)
• Connect the HDMI cable from soundbar
HDMI (TV eARC/ARC) socket to the HDMI
eARC/ARC socket on your ARC compliant TV.
Then press the remote control to select
HDMI eARC/ARC.
Tips:
• Your TV must support the HDMI-CEC and
ARC function. HDMI-CEC and ARC must be
set to On.
• The setting method of HDMI-CEC and ARC
may differ depending on the TV. For details
about eARC/ARC function, please refer to
the owner's manual.
• Only HDMI 1.4 or higher version cable can
support the ARC function.

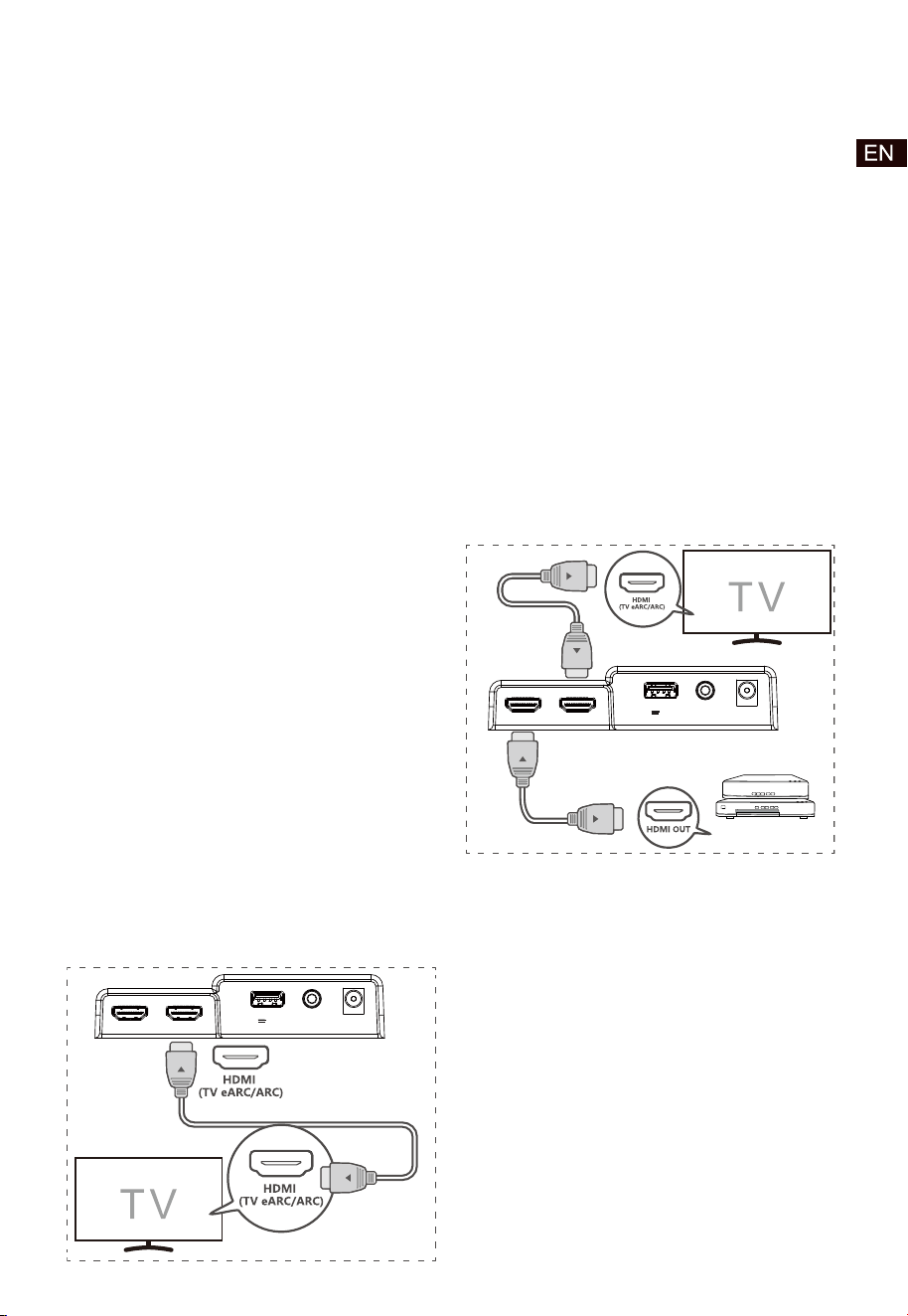

Method 2: Standard HDMI
• If your TV is not HDMI ARC-compliant,
connect your soundbar to the TV through a
standard HDMI connection.
1. Use an HDMI cable to connect the soundbar's
HDMI OUT (eARC/ARC) socket to the TV’s
HDMI IN socket.
2. Use an HDMI cable to connect the soundbar's
HDMI IN socket to your external devices (e.g.
game consoles, DVD players and blu-ray).
Hi-Concerto function
When connected to a Hisense TV that supports
Hi-Concerto function, the soundbar plays audio
in sync with the TV, enhancing your sound
experience by providing a richer and more
immersive auditory soundscape.
To use this function, when the soundbar is
connected to the TV for the frst time, simply select
the "TV Speaker with Soundbar (Hi-Concerto)"
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA
10
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
eARC/ARC
eARC/ARC
Tips:
• This funtion is only support in eARC mode, so
please make sure TV's eARC function is
enabled.
• The message displayed may differ with TV
model.
• Ensure that TV and soundbar is connected with
HDMl cable.
• This function is available in some Hisense TV
and some soundbar models.
• In Hi-Concerto mode, the volume can only be
adjusted via the TV remote control, and the
volume adjustment buttons on the audio
system are disabled. When the TV's Audio
Output option is switched to eARC, the remote
control's volume adjustment will work
normally.

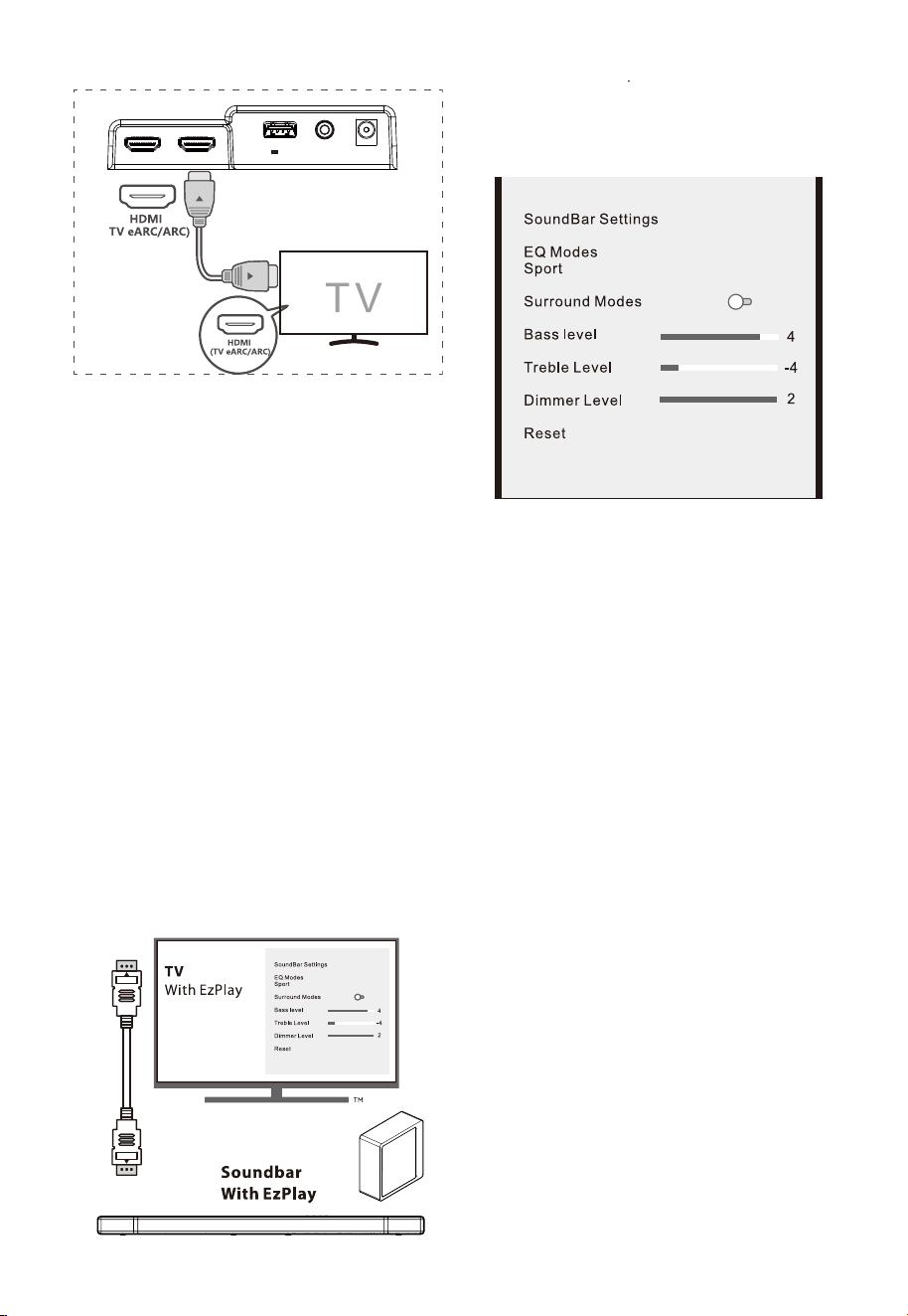

Use the Hisense EzPlay Function
For Hisense EzPlay, when the Soundbar connects
with a Hisense TV via HDMI eARC/ARC, there will be
a Soundbar Setting menu on the TV, and you can
control this menu via your TV remote to control
most of the Soundbar features.
Tips:
• This function is available only when both
Soundbar and TV support Hisense Ezplay.
• This function requires Soundbar and TV
connected via HDMI eARC/ARC, and the CEC
of the TV must be turned ON.
• If everytime setting right, for the first time
connect, there would be a tip on the TV
screen to guide you find the Soundbar
setting menu.
Room Fitting Tuning
This function analyzes the listening room
environment and the listening position through
the TV, and provides an optimized sound.
• To enable this function, turn on the
(Soundbar Settings >Soundbar Acoustic
Tuning) option on your Hisense TV menu.
Please follow the operation guidance
provided by the TV to complete the
calibration process.
Tips:
• Please complete a full calibration process-
when using this function for the first time.
• This function works when the soundbar
connects to some of the Hisense TVs.
TV menu example (different models may have
different menus):
Setting--Sound--Soundbar Setting.
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA
11
5.2 Use the AUX Socket
B.
5.3 Connect Power
* Power cord quantity and plug very by regions.
6. Pair up with the Subwoofer
*
Automatic pairing
The subwoofer and soundbar will automatically
pair when both units are plugged into the mains
sockets and turned on. No cable is needed for
connecting the two units.
• Determine the status based on the wireless
Subwoofer indicator.
LED State Status
Fast blink
Subwoofer in pairing mode
Constant on
Connected / Pairing successful
Slow blink
Connection / Pairing Failed
Risk of product damage!
• Risk of product damage! Ensure that the
power supply voltage corresponds to the
voltage printed on the back or the underside
of the soundbar.
• Before connecting the AC power cord, ensure
you have completed all other connections.

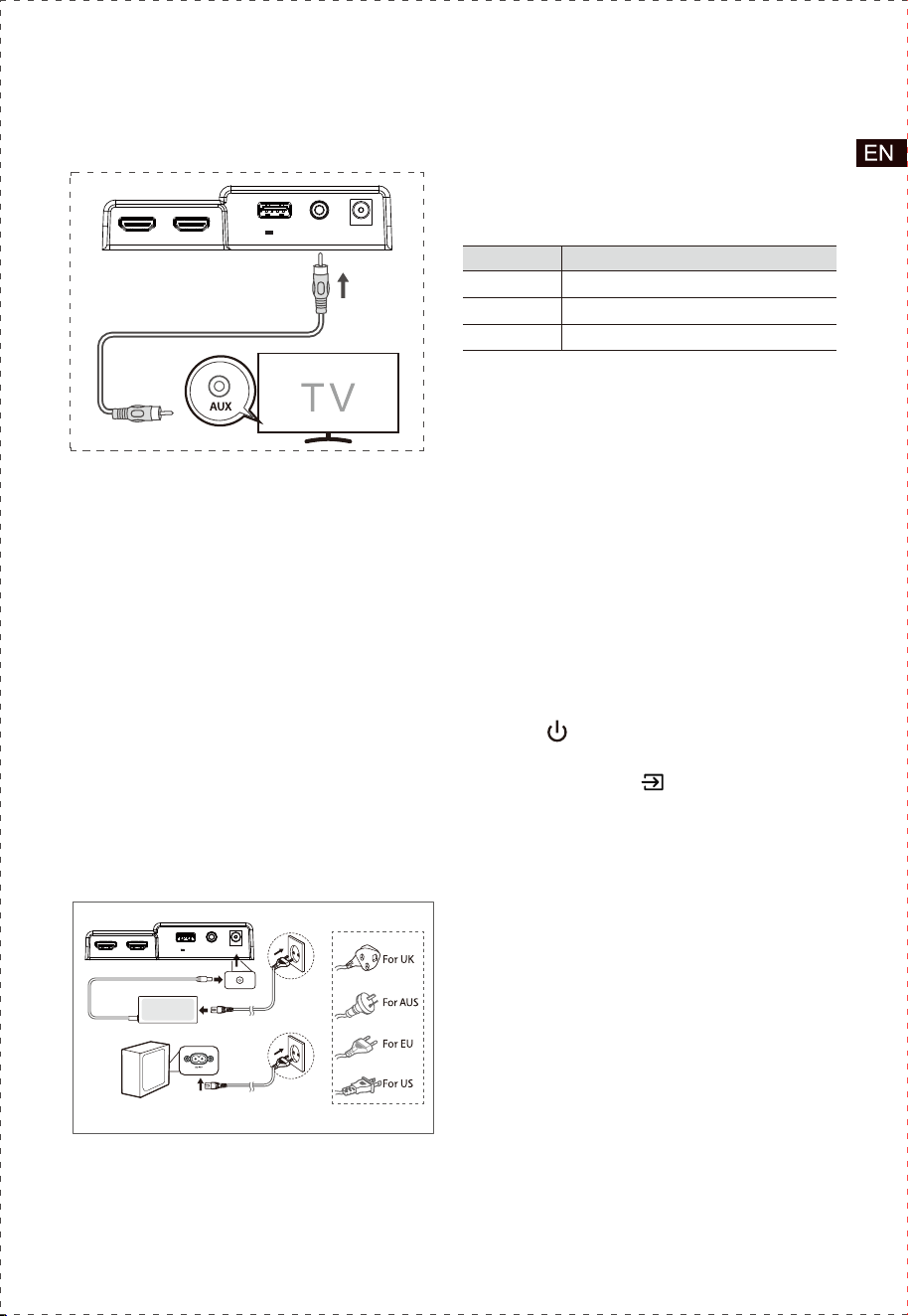

• Soundbar: Use the AC adapter, connect to
the DC IN socket on the soundbar and to a
power outlet.
• Subwoofer: Connect the mains cable to the
AC~ socket of the subwoofer and then into a
mains socket.
- Fast blinking: 3 times per second
- Slow blinking: 1 times per seconds
Tips:
- Do not press the PAIR button on the rear of the
subwoofer , except for manual pairing.
- If the automatic pairing fails, pair the subwoofer
with the main bar manually.
Manual Pairing
1. Ensure that all cables are well connected and the
main bar is in Standby mode.
2. Press and hold the PAIR button on the rear of the
subwoofer for a few seconds. The subwoofer will
enter the pairing mode and the Pair Indicator will
blink quickly.
3. Press the button on the main bar or on the
remote control to switch the main bar on.
4. Press and hold the (Source) the button to
enter SW Pairing.
5. After the wireless connection succeeded, the Pair
Indicator will light up.
6. If the Pair indicator blinks, the wireless
connection has failed. Unplug the cable of the
subwoofer and then reconnect the main cable
after 3 minutes. Repeat step 1 ~ 4.
Tips
• If the wireless connection fails again, check if
there is a conflict or strong interference (e. g.
interference from an electronic device) around
the location. Remove these conflicts or strong
interferences and repeat the above procedures.
• The Subwoofer should be within 6m(18feet) of
the Soundbar in an open area.
• If the main bar is not connected with the
subwoofer and it is in On mode, the POWER
Indicator will �ash. Follow step 1 ~ 4 above.
A. Use a 3.5mm to 3.5mm audio cable to connect
the TV's or external audio device headphone
socket to the AUX socket on the soundbar.
Use a RCA to 3.5mm audio cable to connect
the TV’s audio output sockets to the AUX
socket on the soundbar.
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA
__-
S5120Q
Wi-Fi network
Wi-Fi network
S5120Q
S5120Q
UK Limited
12

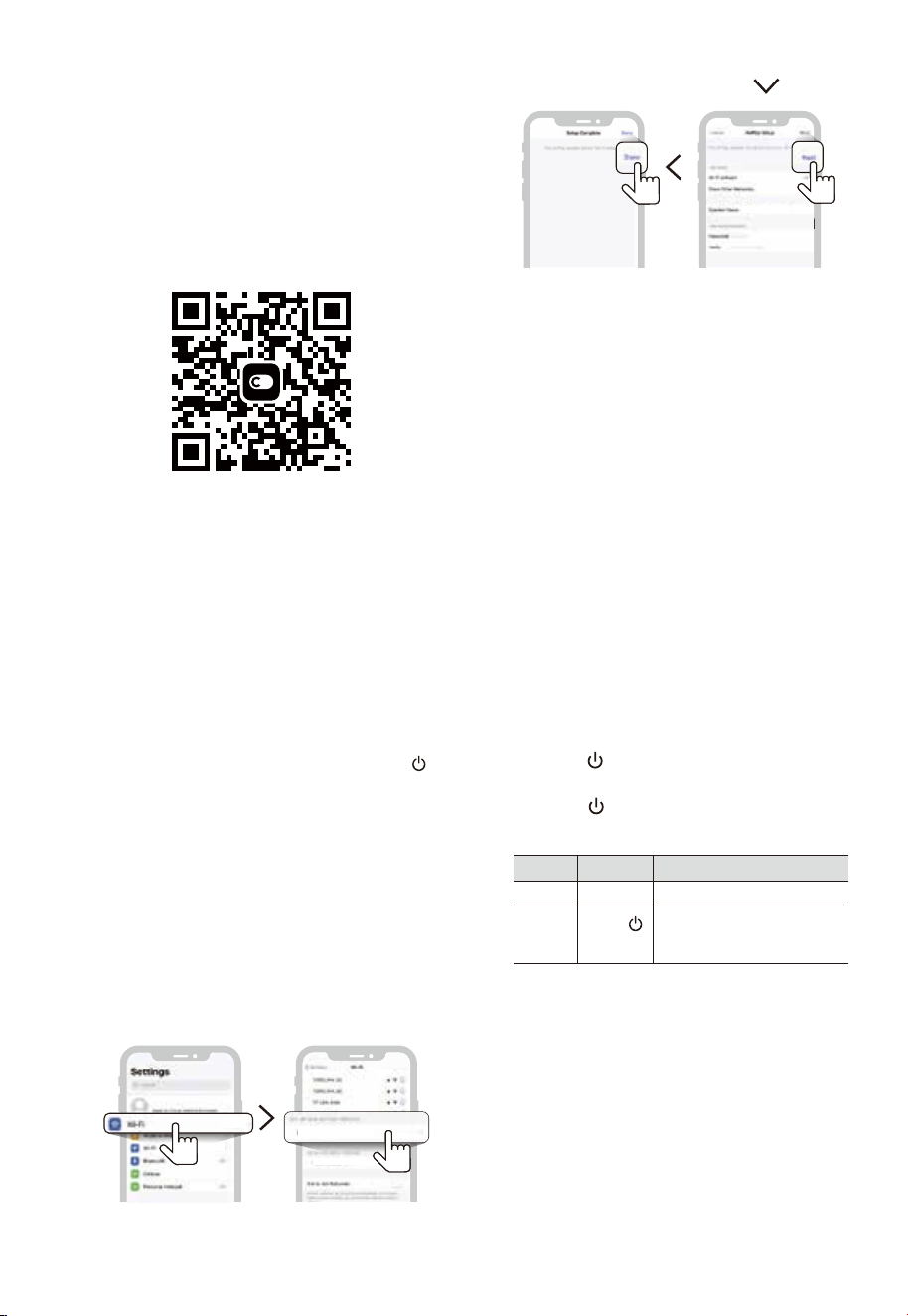

7. Control Via ConnectLife
9.2 Auto-Standby / Auto-Wake Feature
Works with Apple AirPlay8.1
8. Connect to Wi-Fi
8.2 Multi-room audio
9. Basic Operation
9.1 Standby/ON
State Action
Function
This soundbar can be fully controlled via the
ConnectLife** App. You can easily set functions such
as playback control, volume adjustment, input source
switching, and sound effect settings. Please
download the latest version from the app store to
ensure the best user experience.
**ConnectLife is a smart home platform from
Hisense Group.Use ConnectLife to connect more
devices and start a smart life experience
Use AirPlay to set up the Wi-Fi connection of iOS device
(iOS7 or later) and Soundbar.
Wi-Fi network setting with iOS device
1. Turn on the product by pressing the Power
button.
2. On your iOS device, select the Settings and then
Wi-Fi.
3. Select "Hisense S5120Q" on the SET UP
NEWAIRPLAY SPEAKER.
4. Make sure your home router is selected. In this
step, you can change the product's name of your
choice and also you can set up a password.
Aftercompleting the settings, select the Next.
5. Select Done.
• [Auto-Standby] Your soundbar has been
programmed to enter Standby mode
automatically when no audio is detected for 15
minutes. For example, this would happen when
pausing playback, or should the soundbar be left
on accidentally.
• [Auto-Wake] If a TV or an external device is
connected (HDMI), the unit will switch on
automatically when the TV or the external device
is switched on.
• This soundbar can be used as part of
multiroom speaker setup. This means that the
same music can be played from your soundbar
and other compatible speakers simultaneously
throughout your home.
• To use this feature, make sure the soundbar
and your smartphone / tablet are on the same
network. You can use Airplay 2 app to control
compatible multiroom speakers. You can then
play the music on multiple speakers at the
same time, assign speakers to different groups,
control the volume individually, or use master
volume to change the volume on all speakers
at the same time.
When you �rst connect the soundbar to the mains
socket, the main bar will be in Power ON.
• Press the button on the unit or on the
remote control to switch the unit ON.
• Press the button again to switch the unit
back to STANDBY mode.
ON
Standby
Press
once
• Follow source state
• Wi-Fi is still on.
• It still supports Airplay2.
13
To disable this feature, please follow the
steps below:
1. During ON mode, pointing the remote at the
soundbar, press and hold the button for 3
seconds to open the menu.
The unit's display will scroll "MENU".
2. Press the button 6 times in succession, the
display shows: Auto Wake [ON /OFF].or
3. Press the button 7 times in succession, the
display shows: Auto Standby [ON
/OFF].Select the content with VOL +/-button
on the remote control, and then press to
confirm your selection and exit the settings.
Repeating these steps will toggle the feature
"ON" and "OFF".
9.3 Select Modes nd USB mode.
• Press the (SOURCE) button repeatedly on
the unit or on the remote control to select the
HDMI ARC, HDMI 1, BT(Bluetooth) and USB
mode.
• Press the button on the remote control to
select the BT (Bluetooth) mode.
• The selected mode will show on the display.
9.4 Adjust the Bass/Treble Level
• Press the BASS +/- buttons on the remote
control to adjust bass level (bass +5 ~ bass -5).
• Press the TREBLE +/- buttons on the remote
control to adjust treble level (treble +5 ~
treble -5).
9.5 Select Surround Sound Mode
• Press the SURR button on the remote control
to select desired preset surround sound
mode: OFF, Pure, Pro.
- OFF: Direct mode originally to source
(CHANNEL TO CHANNEL).
- Pure: Upmix different audio source to the
highest format device can support, without
rendering to keep pure sound quality.
- Pro: Use advanced audio renderer to provide
better immersive experience. For stereo and
surround audio source.
9.6 Adjust the Volume
• Press the VOL+ /VOL- buttons on the unit or
on the remote control to adjust the volume.
• If you wish to turn the sound off, press the
(MUTE) button on the remote control. Press
the (MUTE) button again or press the
VOL+ /VOL- buttons to resume normal
listening.
9.7 Select Equalizer (EQ) Effect
• While playing, press the EQ button on the
remote control to select desired preset
equalizers: MUSIC, MOVIE, NEWS,
SPORT,GAME.
9.8 Select Sound Mode
• While playing, press the Mode button on the
remote control to select desired preset sound
mode: OFF, Voice, Night, AI
9.9 Level Control
• While playing, press the LVL button on the
remote control to select channel to adjust
level, Sub, Center, L/R balance, Front
Height, Surround Level
• L/R balance (LVL +5 ~ LVL-5).
• Sub, Center, Front Height, Surround Level
(LVL+3~LVL-3).
•
9.10 Set the Audio Delay (AV SYNC)
This function is used to correct lip-sync issues when
the audio plays ahead of the video by adding audio
delay.
- By default, the audio delay is set to 00.
1. During ON mode, press and hold the
button for 3 seconds to open the menu, then
press the button 9 times in succession.
The unit’s display will scroll “ LT 00”.
2. Press the VOL+/- buttons will be a 10 ms
frequency hopping to adjust the delay time.
Set 200ms maximum delay.
Display Mode
EARC
ARC
HDMI IN
USB USB
BT-IN
NO BT
BT PAIRING
Bluetooth
Connected
Disconnected
Pairing
EARC
ARC
HDMI IN
14
MUSIC
SUR
BAS +5
TRE +5
DIM 3
AUTO WAKE ON
AUTO STRND BY ON
LT 00
Display
(press
/
)
Description
(press VOL + / - )
1
2
Switch Surround Sound
[OFF, Pure, Pro]
3
Adjust the Bass Level
4
Adjust the Treble Level
5
6
Switch Auto Wake
[ON / OFF]
7
Switch Auto Standby
[ON / OFF]
8
9
Set the Audio Delay
(AV SYNC)
10
DTS VIRTUAL:X
OFF
Switch: DTS Virtual:X
switch Voice, Night , AI,
Off mode
10.AUX / HDMI Operation
Audio (abbreviation) Display
LPCM 2ch
LPCM 5.1ch
LPCM 7.1ch
PCM AUDIO
Dolby Digital
Dolby TrueHD
Dolby Digital Plus
DOLBY AUDIO
Dolby Atmos - Dolby TrueHD
Dolby Atmos - Dolby Digital Plus
DOLBY ATMOS
DTS
DTS Discrete Surround
DTS-ES 6.1 Matrix
DTS-ES 6.1 Discrete
DTS 96/24
DTS 96/24 ES Matrix
DTS Express
DTS-ES 8-Channel Discrete
DTS
DTS-HD High Resolution
DTS-HD Master Audio
DTS-HD
DTS:X
DTS:X Master Audio
DTS-X
11 AP MODE
CLEAR WIFI
12
Display Wifi connection status
Clear Wifi setting
[ON / OFF]
11. USB Operation
1. Insert the USB device.
3. Press the button or exit settings 10S.
Tip:
• Adjustment range: [00~200ms].
• The audio delay setting is only valid for
digital audio (eg HDMI IN, HDMI ARC).
9.11 Setup Menu
1. During ON mode, press and hold the
button for 3 seconds to open the menu.
2. Select the content with the / buttons.
3. Change the initial values for each of the
settings with VOL+/－ buttons.
4. Press the button to confirm your
selection and exit the settings.
• If no button is pressed within 10 seconds,
the system will automatically exit the menu.
Select Equalizer (EQ) Effect.
(MUSIC, MOVIE, NEWS, SPORT,
GAME)
Adjust the Brightness
(Exit menu to take effect)
3. Operate your audio device directly for
playback features.
4. Press the VOL+/－ buttons to adjust the
volume to your desired level.
Tip:
• The Soundbar may not be able to decode all
digital audio formats from the input source.
In this case, the Soundbar will mute. This is
NOT a defect. Ensure that the audio setting
of the input source (e.g. TV, game console,
DVD player, etc.) is set toPCM or Dolby
Digital (Refer to the user manual of the
input source device for its audio setting
details) with eARC/HDMI IN input.
• When selecting a different audio format,
theunit will display the following as follows.
1. Ensure that the soundbar is connected to the
TV or audio device.
2. Press the (SOURCE) button repeatedly on
the soundbar or on the remote control to
select the AUX, HDMI eARC/ARC, HDMI
IN mode. The selected mode will show on the
display.
HDMI IN
HDMI
(TV eARC/ARC)
AUX DC IN
USB
5V 500mA
15
2.
-
3.
Start, pause or resume play
,
Skip to the previous or next track
Press the (SOURCE) button repeatedly on
the soundbar or on the remote control to
select the USB mode.
During playback:
Tip:
• The unit can support USB devices with up t
32 GB of memory.
• The USB devices format requirement is
Hi-Speed USB (2.0) / FAT32.
• This unit can play : WAV / WMA / MP3 /
FLAC/ALAC.
• This product may not be compatible with
certain types of USB storage devices.
• If you use a USB extension cable, USB hub,
or USB Multifunctional card reader, the USB
storage device may not be recognized.
• Do not remove the USB storage device while
reading files.
12. Bluetooth Operation
12.1 Pair Bluetooth-enabledDevices
The first time you connect your bluetooth device to
this player, you need to pair your device to this
player.
Note:
- The operational range between this player
and a Bluetooth device is approximately 26
feet (8m) (without any object between the
Bluetooth device and the unit).
- Before you connect a Bluetooth device to this
unit, ensure you knowthe device’s capabili-
ties.
- Compatibility with all Bluetooth devices is not
gua ranteed.
- Any obstacle between this unit and a
Bluetooth device can reduce the operational
range.
- If the signal strength is weak, your Bluetooth
receiver may disconnect, but it will re-enter
pairing mode automatically.
1. During ON mode, press the button
repeatedly on the unit or the button on the
remote control to select Bluetooth mode. “NO
BT” will show on the display if the unit is not
paired to any Bluetooth device.
2. Activate your Bluetooth device and select the
search mode. " Hisense S5120Q " will
appear on your Bluetooth device list.
lf you cannot find the unit, press and hold
the button to be searchable.The display will
show "BT Pairing" .
3. Select " Hisense S5120Q " in the pairing list.
After successful pairing, and the display panel
shows “BT_IN".
4. Play music from the connected Bluetooth
device.
To disconnect the Bluetooth function, you can :
- Switch to another function on the unit.
- Disable the function from your Bluetooth
device. The Bluetooth device will be
disconnected from the unit.
- Press and hold the button.
When the unit is connected to 2 Bluetooth
devices, press the Bluetooth button briefly to
disconnect the first connected Bluetooth
device.
When the device is only connected to 1
Bluetooth device, press and hold the Bluetooth
button to directly enter the pairing mode for
the second device.
Tips:
• Enter "0000" for the password if necessary.
• If no other Bluetooth device pairs with this
player within two minutes, the player will
recover its previous connection.
• The player will also be disconnected when your
device is moved beyond the operational range.
• If you want to reconnect your device to this
player, place it within the operational range.
• If the device is moved beyond the operational
range, when it is brought back, please check if
the device is still connected to the player.
• If the connection is lost, follow the instructions
above to pair your device to the player again.
12.2 Listen toMusic fromBluetoothDevice
- If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the device
®
16
Start, pause or resume play.
/ Skip to the previous or next track.
13. Troubleshooting
through the player.
- If the device also supports Audio Video
- Remote Control Profile (AVRCP), you can use
the player's remote control to play music
stored on the device.Pair your device with the
player.
- Play music via your device (if it supports A2DP).
- Use supplied remote control to control play (if
it supports AVRCP).
To keep the warranty valid, never try to repair the
system yourself. If you encounter problems when
using this unit, check the following points before
requesting service.
No power
• Ensure that the AC cord of the apparatus is
properly connected .
• Ensure that there is power at the AC outlet.
• Press standby button to turn the unit on.
Remote control does not work
• Before you press any playback control button,
first select the correct source.
• Reduce the distance between the remote
control and the unit.
• Insert the battery with its polarities (+/-)
aligned as indicated.
• Replace the battery.
• Aim the remote control directly at the sensor
on the front of the unit.
No sound
• Make sure that the unit is not muted. Press
or VOL+/– button to resume normal listening.
• Press button on the unit or on the remote
control to switch the soundbar to standby
mode. Then press the button again to
switch the soundbar on.
• Unplug both the soundbar and the subwoofer
from the mains socket, then plug them again.
Switch on the soundbar.
• Ensure the audio setting of the input source
(e.g. TV, game console, DVD player, etc.) is set
to PCM or Dolby Digital mode while using
digital ( e.g. HDMI ) connection.
• The subwoofer is out of range, please move
the subwoofer closer to the soundbar. Make
sure the subwoofer is within 5 m of the
soundbar (the closer the better).
• The soundbar may have lost connection with
the subwoofer. Re-pair the units by following
the steps on the section “Pairing the Wireless
Subwoofer with the Soundbar”.
• The unit may not be able to decode all digital
audio formats from the input source. In this
case, the unit will mute. This is NOT a defect.
The device is not muted.
I can’t find the Bluetooth name of this unit on
my Bluetooth device for Bluetooth pairing
• Ensure the Bluetooth function is activated on
your Bluetooth device.
• Ensure you have paired the unit with your
Bluetooth device.
The Soundbar turns off
• When the unit's external input signal level is
too low, the Sound Bar will be automatically
turn off after 15 minutes. Please increase the
volume level of your external device.
The subwoofer is idle or the indicator of
subwoofer do not light up.
• Please unplug power cord from the mains
sockect, and plug it in again after 4 minutes to
reset the subwoofer.
Wi-Fi connection cannot be established.
• Check the availability of WLAN network on the
router.
• Place the Wi-Fi router closer to the unit.
1717
14.
Fr
Model Name
Wireless specification
Subwoofer
Amplifier (audio output power)
Soundbar
S5120Q
Adapter Mode
• Input
• Output
USB port for playback
USB Compatibility
USB Playback support / file formats
Dimension (WxHxD)
ADS-65HI-19A-2 24048E
100-240V~ 50/60Hz max. 1.5A
24.0V 2.0A 48.0W
5V 500mA
Hi-Speed USB (2.0) / FAT32
32G (max) ,
Bluetooth version / profiles
Bluetooth frequency range
Bluetooth Max. transmitting power (EIRP)
V 5.4 (A2DP, AVRCP)
2400 MHz ~ 2483.5 MHz
≤ 20 dBm
5.8G Wireless frequency range
5.8G Max. transmitting power (EIRP)
5.8G: 5725 MHz ~ 5875 MHz
≤ 10 dBm
WiFi IEEE 802.11a/b/g/n/ac/axWireless Frequency Band
(Wi-Fi) / Radio Frequency Power Transmitted (EIRP)
2.4G Wi-Fi: 2400 MHz~2483.5 MHz / ≤20dBm
5.1G Wi-Fi: 5150 MHz~5350 MHz / ≤20dBm
5.7G Wi-Fi: 5470 MHz~5725 MHz / ≤20dBm
5.8G Wi-Fi: 5725 MHz~5850 MHz / ≤14dBm
1200 x 45 x 58 mm / 47.2" x 1.8" x 2.3"
Net weight
1.65 kg / 3.64 lbs
Dimension (WxHxD)
370 x 370 x 150mm / 14" x 13.3 "x5.9"
Net weight
7.05 kg / 15.54 lbs
Power Supply
AC 100-240V~ 50/60Hz
Power Consumption
84 W / < 0.5 W (StandBy)
Frequency Response
160Hz~20KHz
Frequency Response
35Hz~160Hz
Soundbar
360W
Subwoofer
280 W
Remote Control
Distance/Angle
• Design and specifications are subject to change without notice.
19.7 feet (6m) / 30°
Battery type
AAA (1.5V X 2)
Total
640W
Operating Humidity Range
Network supported
10 % ~ 70 %
Operating Temperature
0°C - 45°C
Modulation Type
FSK
18
• 15 . Trademarks
• For DTS patents, see http://xperi.com/dts-pat-
ents/. MANUFACTURED UNDER LICENSE FROM
DTS, INC. AND ITS AFFILIATES. DTS, DTS:X, THE
DTS:X LOGO, VIRTUAL:X, AND THE DTS
VIRTUAL:X LOGO ARE REGISTERED TRADE-
MARKS OR TRADEMARKS OF DTS, INC. AND ITS
AFFILIATES IN THE UNITED STATES AND/OR
OTHER COUNTRIES. © DTS, INC. AND ITS
AFFILIATES. ALL RIGHTS RESERVED.
• The Wi-Fi CERTIFIED™ Logo is a registered
trademark of Wi-Fi Alliance®.
• To control this AirPlay 2–enabled speaker, iOS
11.4 or later is required. Use of the Works with
Apple badge means that an accessory has
been designed to work specifically with the
technology identified in the badge ang has
been certified by the developer to meet Apple
performance standards.
Apple, Airplay are trademarks of Apple Inc.,
registered in the U.S. and other countries and
regions.
• Dolby, Dolby Vision, Dolby Atmos, and the
double-D symbol are registered trademarks of
Dolby Laboratories Licensing Corporation.
Manufactured under license from Dolby
Laboratories. Confidential unpublished works.
Copyright © 2012–2024 Dolby Laboratories.
All rights reserved.
• The terms HDMI, HDMI High-Definition
Multimedia Interface, HDMI trade dress and
the HDMI Logos are trademarks or registered
trademarks of HDMI Licensing Administrator,
Inc.
• The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth®
SIG, Inc. and any use of such marks by The
HISENSE International Industries, Incorporated
is under license. Other trademarks and trade
names are those of their respective owners.
For 5G Wi-Fi Device
The device for operation in the band 5150–5350 MHz is
only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems.
FCC INFORMATION (for US customers)
Warning:
- This equipment should be installed and operated with
minimum distance 20cm between the radiator & your
body.
-
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.”
NOTE:
•
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
• However, there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
- Consult the dealer or an experienced radio / TV
technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
• Shielded cables must be used with this unit to ensure
compliance with the Class B FCC limits.
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Réglement de la FCC (pour les clients américains)
Avertissement :
- Pour rester en conformité avec les consignes d’exposition aux
RF, placez le produit à au moins 20 cm des personnes proches.
- L
expressément approuvées par la partie responsable de la
conformité pourraient annuler l’autorisation de l’utilisateur à
utiliser l’équipement.
REMARQUE :
• Ce dispositif a été testé et déclaré conforme aux limites
d’un dispositif numérique de classe B, conformément à
la partie 15 des règles de la FCC.
• Cependant, il n’est pas garanti que des interférences
ne se produiront pas dans une installation particulière.
Si cet appareil provoque des interférences nuisibles
à la réception radio ou de télévision, ce qui peut être
déterminé en mettant l’appareil hors tension, l’utilisateur
est encouragé à essayer de corriger l’interférence par
une ou plusieurs des mesures suivantes :
- Réorienter ou déplacer l’antenne de réception.
- Augmenter la distance entre l’appareil et le récepteur.
celui sur lequel le récepteur est branché.
- Consulter le revendeur ou un technicien radio/TV
expérimenté.
Cet appareil est conforme à la partie 15 des règles de la
FCC. Son fonctionnement est soumis aux deux conditions
suivantes :
(1) ce dispositif ne peut pas causer d’interférences nuisibles et
(2) cet appareil doit accepte r toute inter férence reçue, y
compris les interférences qui peuvent causer un mauvais
fonctionnement.
• Des câbles blindés doivent être utilisés avec cet apparei
l pour assurer la conformité avec les limites de la classe B
de la FCC.fonctionnement de I'appareil.
L’émetteur/récepteur exempt de licence contenu dans le
présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est sus
ceptible d’en
compromettre le fonctionnement.
EN
FR
Ces limites ont pour but d'assurer une protection
raisonnable contre le brouillage nuisible dans une
installation résidentielle. Cet équipement produit,
utilise et peut émettre de l'énergie en radio fréquence
et, s'il n'est pas installé et utilisé conformément aux
directives, il peut causer un brouillage nuisible dans les
communications radio.
WARNING: This product can expose you
to chemicals including Lead, which is
known to the State of California to cause
cancer. For more information go to:
www.P65Warnings.ca.gov.
IC Notice: CAN ICES(B)/NMB(B)
Avis d’Industrie Canada: CAN ICES(B)/NMB(B)
WARNING: This product can expose you to
chemicals including lead, which is known to
the State of California to cause cancer and birth
defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
19
S5120Q-UM-EN-V0.1-20260626
YOMSB5120-0001
