TS4300 series TS4100i series TS4000 series
Online Manual
English
Contents
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Symbols Used in This Document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Licenses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Main Components and Their Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Main Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Inside View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Turning the Printer On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Loading Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Loading Plain Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Loading Photo Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

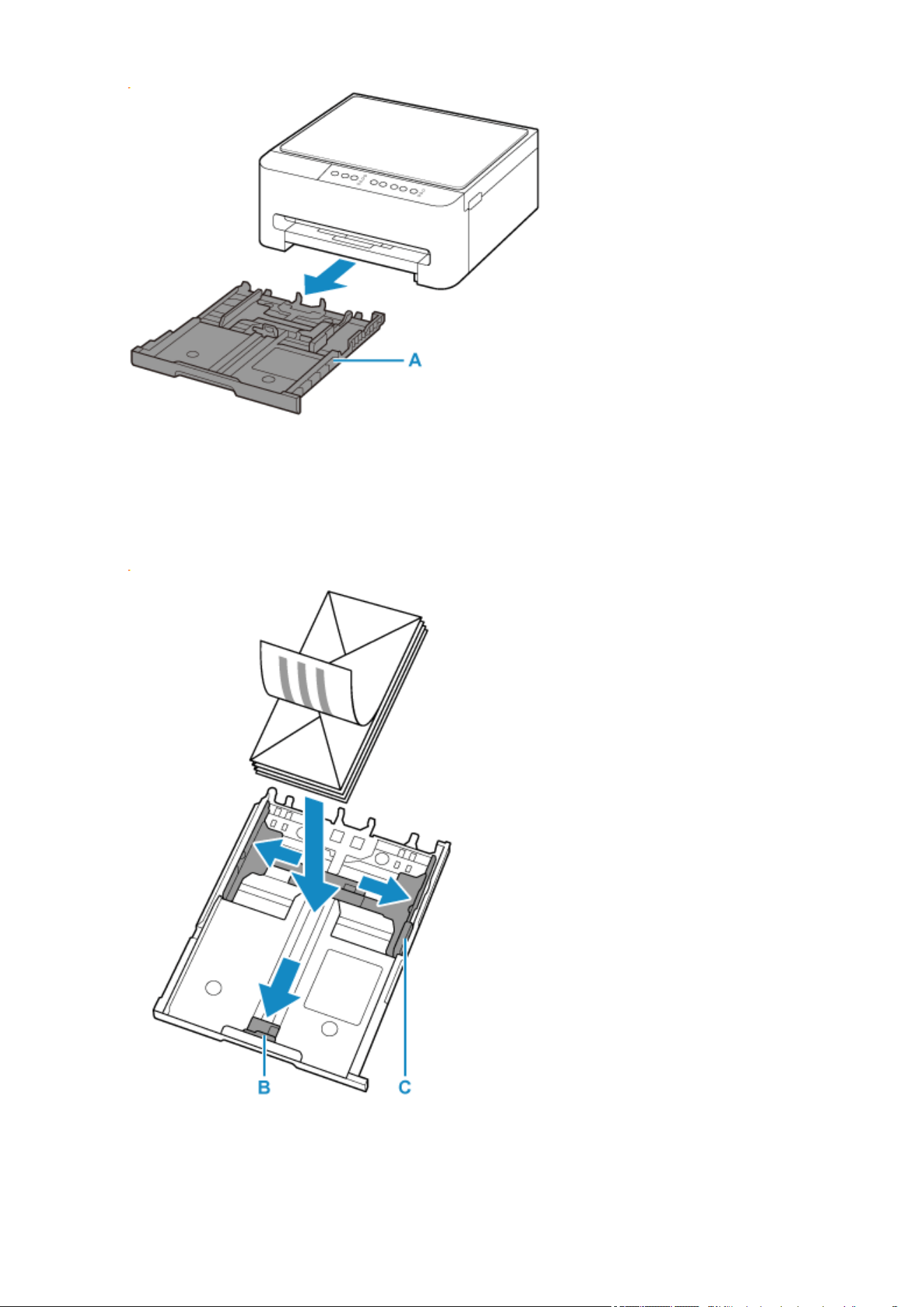

Loading Envelopes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Loading Originals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Loading Originals on Platen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Loading Based on Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Supported Originals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

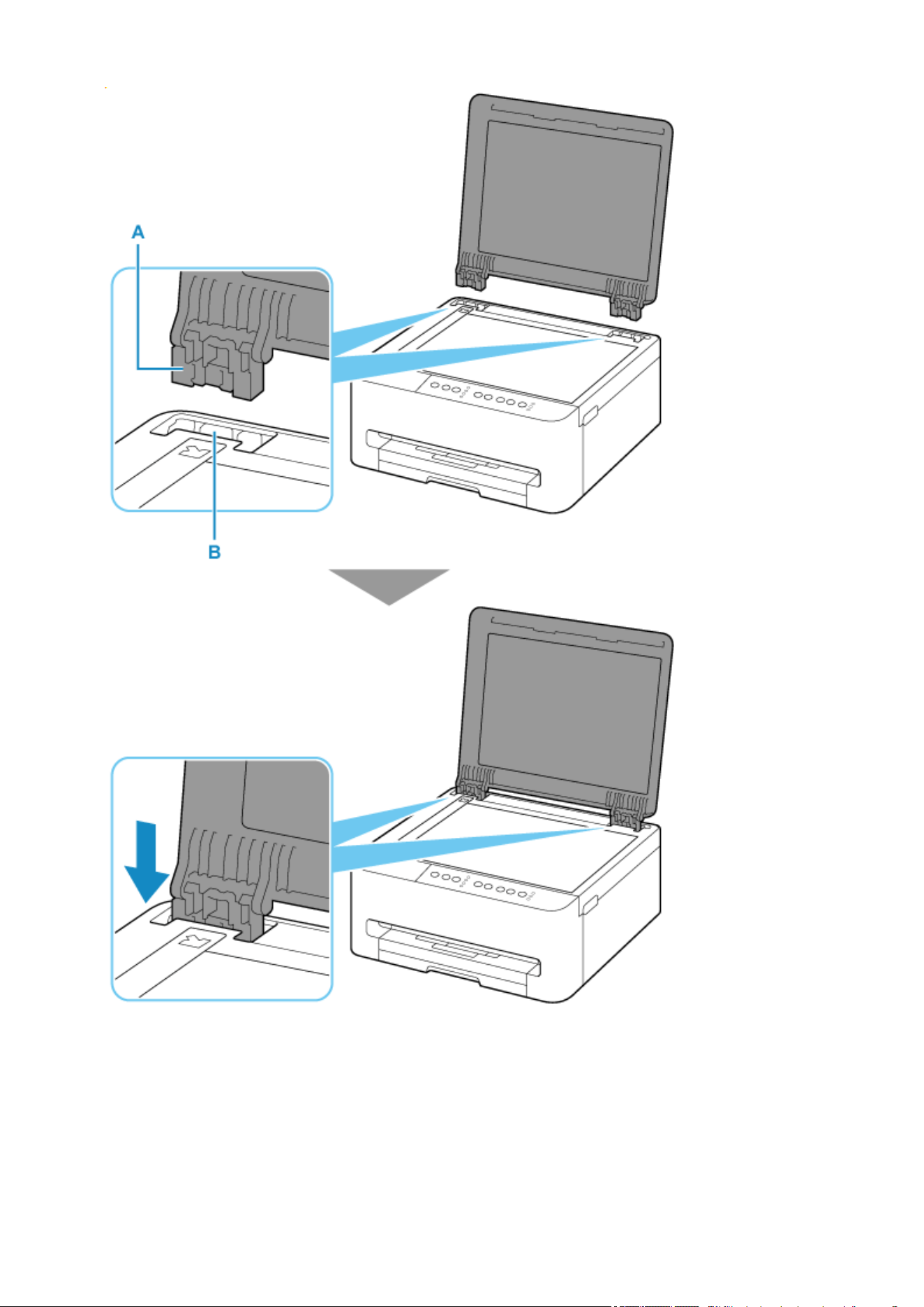

How to Detach / Attach the Document Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Replacing a FINE Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Replacing a FINE Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Checking the Ink Status with the Ink Lamps on the Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Performing Maintenance Functions from the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Maintenance Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Printing the Nozzle Check Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Examining the Nozzle Check Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cleaning the Print Head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Deep Print Head Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Aligning the Print Head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Performing Maintenance Functions from Your Computer (Windows). . . . . . . . . . . . . . . . 91
Opening the Maintenance Tool (Canon IJ Printer Assistant Tool). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Cleaning the Print Heads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Aligning the Print Head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Adjusting Print Head Position Manually. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Adjusting Print Head Position Automatically. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Performing Maintenance Functions from Your Computer (macOS). . . . . . . . . . . . . . . . . 102
Opening Remote UI for Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Cleaning the Print Heads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Adjusting Print Head Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Checking Ink Status from Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Cleaning Paper Feed Rollers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Cleaning Inside the Printer (Bottom Plate Cleaning). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Changing Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Changing Printer Settings from Your Computer (Windows). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Changing the Print Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Setting the Ink to be Used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Managing the Printer Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Changing the Printer Operation Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Changing Printer Settings from Your Computer (macOS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Managing the Printer Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Changing the Printer Operation Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Changing Settings from Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Paper Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Setting Items on Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Checking the Total Number of Uses of Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Initializing Printer Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Basic Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
WEEE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Handling Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Legal Restrictions on Scanning/Copying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Transporting Your Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
When Repairing, Lending, or Disposing of the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Keeping Print Quality High. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Ink Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Supported Paper Sizes and Weights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Paper Load Limit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Supported Media Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Unsupported Media Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Handling Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Printing Photos and Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Printing from Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Printing from Application Software (Windows Printer Driver). . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Basic Printing Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Main Controls (Basic Settings Tab). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Basic Settings Tab Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Paper Settings on the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Printing on Postcards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Setting Up Envelope Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Registering a Frequently Used Printing Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Set Media Type, Quality, etc. (Media/Quality Tab). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Media/Quality Tab Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Set the Layout of Printed Documents (Page Setup Tab). . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Page Setup Tab Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Setting the Number of Copies and Printing Order. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Perform Borderless Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Page Layout Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Duplex Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Maintenance Tab Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Overview of the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Canon IJ Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Opening Printer Driver's Setup Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Canon IJ Status Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Checking Ink Status from Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Instructions for Use (Printer Driver). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Canon IJ Status Monitor Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Updating the Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Printing from Application Software (macOS AirPrint). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Printing on Postcards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Adding Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
How to Open Printer Settings Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Displaying the Printing Status Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Deleting the Undesired Print Job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Removing Printer That Is No Longer Required from List of Printers. . . . . . . . . . . . . . . . . . . 235
Copying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Making Copies on Plain Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Copying on Photo Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Scanning and Saving to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Frequently Asked Questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Network FAQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Network Communication Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Cannot Find Printer on Network (Windows/macOS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Cannot Find Printer on Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Wireless Router Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Network Key (Password) Unknown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Printer Cannot Be Used After Replacing Wireless Router or Changed Router Settings. . . . . . . . 255
Printer Settings/Smartphone/Tablet Troubles for Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Solve Network Troubles with The Printer's Diagnostic Functions. . . . . . . . . . . . . . . . . . . . . . . . . 258
Checking Network Information of Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Printing Network Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Restoring Printer's LAN Settings to Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Default Network Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Connecting with Wireless Direct. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Cannot Print (Scan) from Smartphone/Tablet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Message Is Displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Printing Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Printer Does Not Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Printer Does Not Pick Up or Feed the Paper/"No Paper" Error. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Resolving Print Quality Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Ink Does Not Come Out/Blurry or Fuzzy/Inaccurate or Bleeding Colors/Streaks. . . . . . . . . . . . . 293
Lines Are Misaligned/Distorted. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Printed Surface Is Smudged/Scratched/Ink Blots/Paper Curl/Paper Is Smudged During Automatic 2-
sided Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Lines Incomplete or Missing (Windows). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Back of Paper Is Smudged. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Uneven or Streaked Colors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Change to Offline (Windows)/Cannot Communicate (Windows)/Cannot Print (Windows). . . . . . . . . . 305
Mechanical Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Printer Does Not Turn On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Printer Turns Off Unexpectedly or Repeatedly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
USB Connection Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
Installation and Download Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Failed to MP Drivers (Printer Driver) Installation (Windows). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Cannot Proceed Beyond Printer Connection Screen (Cannot Find Printer Connected via USB). . . . . 316
Updating MP Drivers (Printer Driver) in Network Environment (Windows). . . . . . . . . . . . . . . . . . . . . . 318
When Error Occurred. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
List of Support Codes for Printer Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
What to Do When Paper Is Jammed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Removing Jammed Paper inside Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Removing Jammed Paper from Rear Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
1003. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
1200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
1401. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
1430. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
1485. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
1650. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
1682. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
1686. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
1687. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
1688. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
1700. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
2110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
2900. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
2901. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
4103. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
5100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
5200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
5B00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
6000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Symbols Used in This Document
Warning
Instructions that, if ignored, could result in death, serious personal injury, or property damage caused by
incorrect operation of the equipment. These must be observed for safe operation.
Caution
Instructions that, if ignored, could result in personal injury or property damage caused by incorrect
operation of the equipment. These must be observed for safe operation.
Important
Instructions including important information that must be observed to avoid damage and injury or
improper use of the product. Be sure to read these instructions.
Note
Instructions including notes for operation and additional explanations.
Basics
Instructions explaining basic operations of your product.
Note
• Icons may vary depending on your product.
9
Trademarks
• Microsoft, Excel, Internet Explorer, Microsoft Edge, Microsoft Store, OneDrive, PowerPoint, Windows
and Windows Vista are trademarks of the Microsoft group of companies.
• Mac, Mac OS, macOS, OS X, AirPort, App Store, AirPrint, the AirPrint logo, Safari, Bonjour, iPad, iPad
Air, iPad mini, iPadOS, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and
other countries and regions.
• The Mopria® word mark and the Mopria® Logo are registered and/or unregistered trademarks of Mopria
Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under
license.
• Google, Chromebook, Android, Chrome OS, Google Chrome, Google Analytics, Google Apps, Google
Docs, Google Drive, Google Home, Google Play, Google Play Logo and YouTube are either registered
trademarks or trademarks of Google LLC.
• Adobe, Acrobat, Adobe RGB, Adobe RGB (1998) , Flash, Illustrator, Lightroom, Photoshop and
Photoshop Elements are either registered trademarks or trademarks of Adobe in the United States
and/or other countries.
• USB Type-C™ is a trademark of USB Implementers Forum.
• Amazon, Echo and Alexa are trademarks of Amazon.com, Inc. or its affiliates.
• LINE is a registered trademark or trademark of LY Corporation.
• AOSS™ is a trademark of BUFFALO INC.
• Autodesk and AutoCAD are registered trademarks or trademarks of Autodesk, Inc., and/or its
subsidiaries and/or affiliates in the USA and/or other countries.
• QR Code is a registered trademark of DENSO WAVE INCORPORATED in Japan and in other
countries.
• HP-GL and HP-GL/2 are either registered trademarks or trademarks of HP Inc. in the United States
and/or other countries.
• Mozilla Firefox is a trademark or registered trademark of Mozilla Foundation in the U.S. and/or other
countries.
• Wi-Fi, WPA, WPA2 and WPA3 are either registered trademarks or trademarks of Wi-Fi Alliance.
• All other company names and products mentioned in this guide may be registered trademarks or
trademarks of their respective companies.
10
Licenses
Copyright (c) 2003-2015 Apple Inc. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and
the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of Apple Inc. ("Apple") nor the names of its contributors may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY APPLE AND ITS CONTRIBUTORS "AS IS" AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL APPLE OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
Apache License
Version 2.0, January 2004
http://www.apache.org/licenses/
TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION
1. Definitions.1.
"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by
Sections 1 through 9 of this document.
"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting
the License.
"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled
by, or are under common control with that entity. For the purposes of this definition, "control" means
(i) the power, direct or indirect, to cause the direction or management of such entity, whether by
contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii)
beneficial ownership of such entity.
"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this
License.
"Source" form shall mean the preferred form for making modifications, including but not limited to
software source code, documentation source, and configuration files.
11
"Object" form shall mean any form resulting from mechanical transformation or translation of a Source
form, including but not limited to compiled object code, generated documentation, and conversions to
other media types.
"Work" shall mean the work of authorship, whether in Source or Object form, made available under
the License, as indicated by a copyright notice that is included in or attached to the work (an example
is provided in the Appendix below).
"Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or
derived from) the Work and for which the editorial revisions, annotations, elaborations, or other
modifications represent, as a whole, an original work of authorship. For the purposes of this License,
Derivative Works shall not include works that remain separable from, or merely link (or bind by name)
to the interfaces of, the Work and Derivative Works thereof.
"Contribution" shall mean any work of authorship, including the original version of the Work
and any modifications or additions to that Work or Derivative Works thereof, that is intentionally
submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or
Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this
definition, "submitted" means any form of electronic, verbal, or written communication sent to the
Licensor or its representatives, including but not limited to communication on electronic mailing lists,
source code control systems, and issue tracking systems that are managed by, or on behalf of,
the Licensor for the purpose of discussing and improving the Work, but excluding communication
that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a
Contribution."
"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution
has been received by Licensor and subsequently incorporated within the Work.
2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor
hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable
copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform,
sublicense, and distribute the Work and such Derivative Works in Source or Object form.
3. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby
grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except
as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and
otherwise transfer the Work, where such license applies only to those patent claims licensable by
such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of
their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute
patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that
the Work or a Contribution incorporated within the Work constitutes direct or contributory patent
infringement, then any patent licenses granted to You under this License for that Work shall terminate
as of the date such litigation is filed.
4. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in4.
any medium, with or without modifications, and in Source or Object form, provided that You meet the
following conditions:
1. You must give any other recipients of the Work or Derivative Works a copy of this License; and
2. You must cause any modified files to carry prominent notices stating that You changed the files;
and
12
3. You must retain, in the Source form of any Derivative Works that You distribute, all copyright,
patent, trademark, and attribution notices from the Source form of the Work, excluding those
notices that do not pertain to any part of the Derivative Works; and
4. If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works4.
that You distribute must include a readable copy of the attribution notices contained within such
NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in
at least one of the following places: within a NOTICE text file distributed as part of the Derivative
Works; within the Source form or documentation, if provided along with the Derivative Works;
or, within a display generated by the Derivative Works, if and wherever such third-party notices
normally appear. The contents of the NOTICE file are for informational purposes only and do not
modify the License. You may add Your own attribution notices within Derivative Works that You
distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such
additional attribution notices cannot be construed as modifying the License.
You may add Your own copyright statement to Your modifications and may provide additional or
different license terms and conditions for use, reproduction, or distribution of Your modifications,
or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of
the Work otherwise complies with the conditions stated in this License.
5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally
submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions
of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein
shall supersede or modify the terms of any separate license agreement you may have executed with
Licensor regarding such Contributions.
6. Trademarks. This License does not grant permission to use the trade names, trademarks, service
marks, or product names of the Licensor, except as required for reasonable and customary use in
describing the origin of the Work and reproducing the content of the NOTICE file.
7. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides
the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT
WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without
limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY,
or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the
appropriateness of using or redistributing the Work and assume any risks associated with Your
exercise of permissions under this License.
8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence),
contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent
acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct,
indirect, special, incidental, or consequential damages of any character arising as a result of this
License or out of the use or inability to use the Work (including but not limited to damages for loss of
goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages
or losses), even if such Contributor has been advised of the possibility of such damages.
9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof,
You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other
liability obligations and/or rights consistent with this License. However, in accepting such obligations,
You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other
Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any
liability incurred by, or claims asserted against, such Contributor by reason of your accepting any
13
such warranty or additional liability.
END OF TERMS AND CONDITIONS
---- Part 1: CMU/UCD copyright notice: (BSD like) -----
Copyright 1989, 1991, 1992 by Carnegie Mellon University
Derivative Work - 1996, 1998-2000
Copyright 1996, 1998-2000 The Regents of the University of California
All Rights Reserved
Permission to use, copy, modify and distribute this software and its documentation for any purpose and
without fee is hereby granted, provided that the above copyright notice appears in all copies and that both
that copyright notice and this permission notice appear in supporting documentation, and that the name of
CMU and The Regents of the University of California not be used in advertising or publicity pertaining to
distribution of the software without specific written permission.
CMU AND THE REGENTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL WARRANTIES
WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU OR THE REGENTS OF THE
UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM THE LOSS OF USE, DATA OR
PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION,
ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
---- Part 2: Networks Associates Technology, Inc copyright notice (BSD) -----
Copyright (c) 2001-2003, Networks Associates Technology, Inc
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of the Networks Associates Technology, Inc nor the names of its contributors may be
used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS
IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
14
---- Part 3: Cambridge Broadband Ltd. copyright notice (BSD) -----
Portions of this code are copyright (c) 2001-2003, Cambridge Broadband Ltd.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* The name of Cambridge Broadband Ltd. may not be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER ``AS IS'' AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE.
---- Part 4: Sun Microsystems, Inc. copyright notice (BSD) -----
Copyright c 2003 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, U.S.A. All
rights reserved.
Use is subject to license terms below.
This distribution may include materials developed by third parties.
Sun, Sun Microsystems, the Sun logo and Solaris are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of the Sun Microsystems, Inc. nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS
IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
15
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
---- Part 5: Sparta, Inc copyright notice (BSD) -----
Copyright (c) 2003-2012, Sparta, Inc
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of Sparta, Inc nor the names of its contributors may be used to endorse or promote
products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS
IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
---- Part 6: Cisco/BUPTNIC copyright notice (BSD) -----
Copyright (c) 2004, Cisco, Inc and Information Network Center of Beijing University of Posts and
Telecommunications.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of Cisco, Inc, Beijing University of Posts and Telecommunications, nor the names of
their contributors may be used to endorse or promote products derived from this software without specific
prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS
IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
16
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
---- Part 7: Fabasoft R&D Software GmbH & Co KG copyright notice (BSD) -----
Copyright (c) Fabasoft R&D Software GmbH & Co KG, 2003 [email protected]
Author: Bernhard Penz <[email protected]>
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* The name of Fabasoft R&D Software GmbH & Co KG or any of its subsidiaries, brand or product names
may not be used to endorse or promote products derived from this software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER ``AS IS'' AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE.
---- Part 8: Apple Inc. copyright notice (BSD) -----
Copyright (c) 2007 Apple Inc. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and
the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of Apple Inc. ("Apple") nor the names of its contributors may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY APPLE AND ITS CONTRIBUTORS "AS IS" AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
17
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL APPLE OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
---- Part 9: ScienceLogic, LLC copyright notice (BSD) -----
Copyright (c) 2009, ScienceLogic, LLC
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of ScienceLogic, LLC nor the names of its contributors may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
---- Part 10: Lennart Poettering copyright notice (BSD-like) -----
Copyright 2010 Lennart Poettering
Permission is hereby granted, free of charge, to any person
obtaining a copy of this software and associated documentation files
(the "Software"), to deal in the Software without restriction,
including without limitation the rights to use, copy, modify, merge,
publish, distribute, sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is furnished to do so,
subject to the following conditions:
18
The above copyright notice and this permission notice shall be
included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN
ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
---- Part 11: IETF copyright notice (BSD) -----
Copyright (c) 2013 IETF Trust and the persons identified as authors of
the code. All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
* Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
* Neither the name of Internet Society, IETF or IETF Trust, nor the
names of specific contributors, may be used to endorse or promote
products derived from this software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER
OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
19
---- Part 12: Arista Networks copyright notice (BSD) ----
Copyright (c) 2013, Arista Networks, Inc.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
* Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
* Neither the name of Arista Networks, Inc. nor the names of its
contributors may be used to endorse or promote products derived
from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
---- Part 13: VMware, Inc. copyright notice (BSD) -----
Copyright (c) 2016, VMware, Inc.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
20
* Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
* Neither the name of VMware, Inc. nor the names of its contributors
may be used to endorse or promote products derived from this software
without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
---- Part 14: USC/Information Sciences Institute copyright notice (BSD) -----
Copyright (c) 2017-2018, Information Sciences Institute
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
* Neither the name of Information Sciences Institue nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
21
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
MIT License
Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
associated documentation files (the "Software"), to deal in the Software without restriction, including
without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies
of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following
conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS
OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR
IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Copyright 2000 Computing Research Labs, New Mexico State University
Copyright 2001-2015 Francesco Zappa Nardelli
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
associated documentation files (the "Software"), to deal in the Software without restriction, including
without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies
of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following
conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE COMPUTING
RESEARCH LAB OR NEW MEXICO STATE UNIVERSITY BE LIABLE FOR ANY CLAIM, DAMAGES
OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
Written by Joel Sherrill <[email protected]>.
COPYRIGHT (c) 1989-2000.
On-Line Applications Research Corporation (OAR).
22
Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby
granted, provided that this entire notice is included in all copies of any software which is or includes a
copy or modification of this software.
THIS SOFTWARE IS BEING PROVIDED "AS IS", WITHOUT ANY EXPRESS OR IMPLIED WARRANTY.
IN PARTICULAR, THE AUTHOR MAKES NO REPRESENTATION OR WARRANTY OF ANY KIND
CONCERNING THE MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY
PARTICULAR PURPOSE.
(1) Red Hat Incorporated
Copyright (c) 1994-2009 Red Hat, Inc. All rights reserved.
This copyrighted material is made available to anyone wishing to use, modify, copy, or redistribute it
subject to the terms and conditions of the BSD License. This program is distributed in the hope that it
will be useful, but WITHOUT ANY WARRANTY expressed or implied, including the implied warranties of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. A copy of this license is available at
http://www.opensource.org/licenses. Any Red Hat trademarks that are incorporated in the source code or
documentation are not subject to the BSD License and may only be used or replicated with the express
permission of Red Hat, Inc.
(2) University of California, Berkeley
Copyright (c) 1981-2000 The Regents of the University of California.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of the University nor the names of its contributors may be used to endorse or promote
products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The FreeType Project LICENSE
----------------------------
2006-Jan-27
Copyright 1996-2002, 2006 by
23
David Turner, Robert Wilhelm, and Werner Lemberg
Introduction
============
The FreeType Project is distributed in several archive packages; some of them may contain, in addition to
the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project.
This license applies to all files found in such packages, and which do not fall under their own explicit
license. The license affects thus the FreeType font engine, the test programs, documentation and
makefiles, at the very least.
This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which
all encourage inclusion and use of free software in commercial and freeware products alike. As a
consequence, its main points are that:
o We don't promise that this software works. However, we will be interested in any kind of bug reports.
(`as is' distribution)
o You can use this software for whatever you want, in parts or full form, without having to pay us.
(`royalty-free' usage)
o You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you
must acknowledge somewhere in your documentation that you have used the FreeType code. (`credits')
We specifically permit and encourage the inclusion of this software, with or without modifications, in
commercial products.
We disclaim all warranties covering The FreeType Project and assume no liability related to The FreeType
Project.
Finally, many people asked us for a preferred form for a credit/disclaimer to use in compliance with this
license. We thus encourage you to use the following text:
"""
Portions of this software are copyright © <year> The FreeType
Project (www.freetype.org). All rights reserved.
"""
Please replace <year> with the value from the FreeType version you actually use.
Legal Terms
===========
0. Definitions
--------------
Throughout this license, the terms `package', `FreeType Project', and `FreeType archive' refer to the set
of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the
`FreeType Project', be they named as alpha, beta or final release.
`You' refers to the licensee, or person using the project, where `using' is a generic term including
compiling the project's source code as well as linking it to form a `program' or `executable'.
This program is referred to as `a program using the FreeType engine'.
24
This license applies to all files distributed in the original FreeType Project, including all source code,
binaries and documentation, unless otherwise stated in the file in its original, unmodified form as
distributed in the original archive.
If you are unsure whether or not a particular file is covered by this license, you must contact us to verify
this.
The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg.
All rights reserved except as specified below.
1. No Warranty
--------------
THE FREETYPE PROJECT IS PROVIDED `AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY
TO USE, OF THE FREETYPE PROJECT.
2. Redistribution
-----------------
This license grants a worldwide, royalty-free, perpetual and irrevocable right and license to use, execute,
perform, compile, display, copy, create derivative works of, distribute and sublicense the FreeType Project
(in both source and object code forms) and derivative works thereof for any purpose; and to authorize
others to exercise some or all of the rights granted herein, subject to the following conditions:
o Redistribution of source code must retain this license file (`FTL.TXT') unaltered; any additions, deletions
or changes to the original files must be clearly indicated in accompanying documentation. The copyright
notices of the unaltered, original files must be preserved in all copies of source files.
o Redistribution in binary form must provide a disclaimer that states that the software is based in part of
the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL
to the FreeType web page in your documentation, though this isn't mandatory.
These conditions apply to any software derived from or based on the FreeType Project, not just the
unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us.
3. Advertising
--------------
Neither the FreeType authors and contributors nor you shall use the name of the other for commercial,
advertising, or promotional purposes without specific prior written permission.
We suggest, but do not require, that you use one or more of the following phrases to refer to this software
in your documentation or advertising materials: `FreeType Project', `FreeType Engine', `FreeType library',
or `FreeType Distribution'.
As you have not signed this license, you are not required to accept it. However, as the FreeType Project
is copyrighted material, only this license, or another one contracted with the authors, grants you the right
to use, distribute, and modify it.
Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and
accept all the terms of this license.
4. Contacts
25
-----------
There are two mailing lists related to FreeType:
Discusses general use and applications of FreeType, as well as future and wanted additions to the library
and distribution.
If you are looking for support, start in this list if you haven't found anything to help you in the
documentation.
Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc.
Our home page can be found at
http://www.freetype.org
--- end of FTL.TXT ---
The TWAIN Toolkit is distributed as is. The developer and distributors of the TWAIN Toolkit expressly
disclaim all implied, express or statutory warranties including, without limitation, the implied warranties
of merchantability, noninfringement of third party rights and fitness for a particular purpose. Neither the
developers nor the distributors will be liable for damages, whether direct, indirect, special, incidental, or
consequential, as a result of the reproduction, modification, distribution or other use of the TWAIN Toolkit.
JSON for Modern C++
Copyright (c) 2013-2017 Niels Lohmann
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
associated documentation files (the "Software"), to deal in the Software without restriction, including
without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies
of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following
conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS
OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR
IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Copyright (c) 2011 - 2015 ARM LIMITED
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
26
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of ARM nor the names of its contributors may be used to endorse or promote products
derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL COPYRIGHT HOLDERS AND CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (c) 2013, Kenneth MacKay
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (c) 2014, Kenneth MacKay
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
27
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (c) 2006, CRYPTOGAMS by <[email protected]> All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain copyright notices, this list of conditions and the following
disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of the CRYPTOGAMS nor the names of its copyright holder and contributors may be
used to endorse or promote products derived from this software without specific prior written permission.
ALTERNATIVELY, provided that this notice is retained in full, this product may be distributed under the
terms of the GNU General Public License (GPL), in which case the provisions of the GPL apply INSTEAD
OF those given above.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
ISC License
Copyright (c) 2013-2017
Frank Denis <j at pureftpd dot org>
Permission to use, copy, modify, and/or distribute this software for any purpose with or without fee is
hereby granted, provided that the above copyright notice and this permission notice appear in all copies.
THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES WITH
REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY SPECIAL, DIRECT,
INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM
LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE
28
OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE.
Copyright (c) 2008 The NetBSD Foundation, Inc.
All rights reserved.
This code is derived from software contributed to The NetBSD Foundation
by Lennart Augustsson ([email protected]) at
Carlstedt Research & Technology.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions
are met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE NETBSD FOUNDATION, INC. AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
Copyright (c) 2000 Intel Corporation
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
* Neither name of Intel Corporation nor the names of its contributors
may be used to endorse or promote products derived from this software
without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
29
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL INTEL OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Lua
Copyright © 1994–2014 Lua.org, PUC-Rio.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
associated
documentation files (the "Software"), to deal in the Software without restriction, including without limitation
the
rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and
to
permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial
portions of
the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER
IN AN
ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION
WITH
THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
LuaSocket
LuaSocket 2.0.2 license
Copyright © 2004-2007 Diego Nehab
Permission is hereby granted, free of charge, to any person obtaining a
copy of this software and associated documentation files (the "Software"),
to deal in the Software without restriction, including without limitation
the rights to use, copy, modify, merge, publish, distribute, sublicense,
and/or sell copies of the Software, and to permit persons to whom the
Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in
all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
30
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER
DEALINGS IN THE SOFTWARE.
LuneScript
Copyright (c) 2018 ifritJP
Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
Copyright (c) 2002-2019, Jouni Malinen <[email protected]> and contributors
All Rights Reserved.
This software may be distributed, used, and modified under the terms of
BSD license:
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. Neither the name(s) of the above-listed copyright holder(s) nor the
names of its contributors may be used to endorse or promote products
derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
31
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (C) 2019, Broadcom Corporation. All Rights Reserved.
Permission to use, copy, modify, and/or distribute this software for any
purpose with or without fee is hereby granted, provided that the above
copyright notice and this permission notice appear in all copies.
THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES
WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY
SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES
WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION
OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN
CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
The certificate files "Amazon Root CA 1", "Amazon Root CA 2", "Amazon Root CA 4" are licensed under a
Creative Commons Attribution-NoDerivatives 4.0 International License.
This software is licensed under the MIT License.
Copyright Fedor Indutny, 2018.
Permission is hereby granted, free of charge, to any person obtaining a
copy of this software and associated documentation files (the
"Software"), to deal in the Software without restriction, including
without limitation the rights to use, copy, modify, merge, publish,
distribute, sublicense, and/or sell copies of the Software, and to permit
persons to whom the Software is furnished to do so, subject to the
following conditions:
The above copyright notice and this permission notice shall be included
in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN
NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR
32
OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE
USE OR OTHER DEALINGS IN THE SOFTWARE.
The following applies only to products supporting Wi-Fi.
(c) 2009-2013 by Jeff Mott. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided
that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions, and the
following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the
following disclaimer in the documentation or other materials provided with the distribution.
* Neither the name CryptoJS nor the names of its contributors may be used to endorse or promote
products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS," AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright 2008, Google Inc.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
* Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following disclaimer
in the documentation and/or other materials provided with the
distribution.
* Neither the name of Google Inc. nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
AS IS AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
33
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (c) 1998-2010, Brian Gladman, Worcester, UK. All rights reserved.
The redistribution and use of this software (with or without changes)
is allowed without the payment of fees or royalties provided that:
source code distributions include the above copyright notice, this
list of conditions and the following disclaimer;
binary distributions include the above copyright notice, this list
of conditions and the following disclaimer in their documentation.
This software is provided 'as is' with no explicit or implied warranties
in respect of its operation, including, but not limited to, correctness
and fitness for purpose.
Disclaimer: IMPORTANT: This Apple software is supplied to you, by Apple Inc. ("Apple"), in your
capacity as a current, and in good standing, Licensee in the MFi Licensing Program. Use of this
Apple software is governed by and subject to the terms and conditions of your MFi License,
including, but not limited to, the restrictions specified in the provision entitled "Public
Software", and is further subject to your agreement to the following additional terms, and your
agreement that the use, installation, modification or redistribution of this Apple software
constitutes acceptance of these additional terms. If you do not agree with these additional terms,
please do not use, install, modify or redistribute this Apple software.
Subject to all of these terms and in consideration of your agreement to abide by them, Apple grants
you, for as long as you are a current and in good-standing MFi Licensee, a personal, non-exclusive
license, under Apple's copyrights in this original Apple software (the "Apple Software"), to use,
reproduce, and modify the Apple Software in source form, and to use, reproduce, modify, and
redistribute the Apple Software, with or without modifications, in binary form. While you may not
redistribute the Apple Software in source form, should you redistribute the Apple Software in binary
form, you must retain this notice and the following text and disclaimers in all such redistributions
of the Apple Software. Neither the name, trademarks, service marks, or logos of Apple Inc. may be
used to endorse or promote products derived from the Apple Software without specific prior written
permission from Apple. Except as expressly stated in this notice, no other rights or licenses,
express or implied, are granted by Apple herein, including but not limited to any patent rights that
may be infringed by your derivative works or by other works in which the Apple Software may be
incorporated.
Unless you explicitly state otherwise, if you provide any ideas, suggestions, recommendations, bug
fixes or enhancements to Apple in connection with this software ("Feedback"), you hereby grant to
Apple a non-exclusive, fully paid-up, perpetual, irrevocable, worldwide license to make, use,
reproduce, incorporate, modify, display, perform, sell, make or have made derivative works of,
distribute (directly or indirectly) and sublicense, such Feedback in connection with Apple products
and services. Providing this Feedback is voluntary, but if you do provide Feedback to Apple, you
34
acknowledge and agree that Apple may exercise the license granted above without the payment of
royalties or further consideration to Participant.
The Apple Software is provided by Apple on an "AS IS" basis. APPLE MAKES NO WARRANTIES,
EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE APPLE SOFTWARE OR ITS USE
AND OPERATION ALONE OR
IN COMBINATION WITH YOUR PRODUCTS.
IN NO EVENT SHALL APPLE BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) ARISING IN ANY WAY OUT OF THE USE,
REPRODUCTION, MODIFICATION
AND/OR DISTRIBUTION OF THE APPLE SOFTWARE, HOWEVER CAUSED AND WHETHER UNDER
THEORY OF CONTRACT, TORT
(INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, EVEN IF APPLE HAS BEEN
ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
Copyright (C) 2009 Apple Inc. All Rights Reserved.
Copyright (c) 2012-2013 Apple Inc. All rights reserved.
Copyright (C) 2013 Apple Inc. All Rights Reserved.
The following applies only to products supporting the cloud integration service (formerly known as PIXUS
Cloud Link, PIXMA Cloud Link, or MAXIFY Cloud Link).
THE BASIC LIBRARY FUNCTIONS
---------------------------
Written by: Philip Hazel
Email local part: ph10
Email domain: cam.ac.uk
University of Cambridge Computing Service, Cambridge, England.
Copyright (c) 1997-2012 University of Cambridge
All rights reserved.
PCRE JUST-IN-TIME COMPILATION SUPPORT
-------------------------------------
Written by: Zoltan Herczeg
Email local part: hzmester
Emain domain: freemail.hu
Copyright(c) 2010-2012 Zoltan Herczeg
All rights reserved.
35
STACK-LESS JUST-IN-TIME COMPILER
--------------------------------
Written by: Zoltan Herczeg
Email local part: hzmester
Emain domain: freemail.hu
Copyright(c) 2009-2012 Zoltan Herczeg
All rights reserved.
THE C++ WRAPPER FUNCTIONS
-------------------------
Contributed by: Google Inc.
Copyright (c) 2007-2012, Google Inc.
All rights reserved.
THE "BSD" LICENCE
-----------------Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
* Neither the name of the University of Cambridge nor the name of Google
Inc. nor the names of their contributors may be used to endorse or
promote products derived from this software without specific prior
written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
36
This software is based in part on the work of the Independent JPEG Group.
37
Front View
A: Document Cover
Open to load an original on the platen.
B: Platen
Load an original here.
C: Operation Panel
Use to change the settings of the printer or to operate it.
Operation Panel
D: Paper Output Tray
Printed paper is ejected. Pull out it before printing.
E: Output Tray Extension
Open to support ejected paper.
40
Rear View
A: USB Port
Plug in the USB cable to connect the printer with a computer.
B: Power Cord Connector
Plug in the supplied power cord.
C: Transport Unit
Open when removing jammed paper. When removing the unit, do so after placing a finger on the
depression in the center right.
D: Rear Cover
Detach when removing jammed paper.
Important
• Do not touch the metal casing.•
• Do not plug in or unplug the USB cable while the printer is printing or scanning with the computer. This•
can cause trouble.
42
Inside View
A: Scanning Unit / Cover
Scans originals. Open when replacing the FINE cartridge and to remove jammed paper.
B: FINE Cartridge Holder
Install the FINE cartridge.
The color FINE cartridge should be installed into the left slot and the black FINE cartridge should be
installed into the right slot.
C: Ink Cartridge Locking Cover
Secures the installed FINE cartridge.
D: FINE Cartridge (ink cartridges)
A replaceable cartridge that integrates print head and ink tank.
Replacing a FINE Cartridge
43
Operation Panel
A: ON button
Turns the power on or off. Before turning on the power, make sure that the document cover is closed.
Turning the Printer On and Off
B: ON lamp
Lights after flashing when the power is turned on.
C: Wireless connect lamp
Lights while setting up Wi-Fi.
D: Wi-Fi lamp
Lights when Wi-Fi is enabled.
E: Paper lamp
Lights depending on the current paper size.
F: Paper Select button
Select the paper size of the printer.
G: OK button
Finalizes the paper size. Also used to resolve errors.
H: Black button
Starts black & white copying, etc.
I: Color button
Starts color copying, etc.
J: Stop button
Cancels operation when print, copy, or scan job is in progress. You can also press and hold the Stop
button to perform maintenance or configure the device settings.
K: Alarm lamp
Lights or flashes when an error occurs.
L: Ink lamps
Light or flash when ink runs out, etc.
The upper lamp indicates the black FINE cartridge status, the lower lamp the color FINE cartridge
status.
M: QR code
Enables you to view the online manual to learn how to check the state of the printer.
44
N: Wi-Fi button
Switch between Wi-Fi and Wireless Direct, or enable/disable them.
Each time you press the Wi-Fi button, the setting switches.
O: Wireless connect button
Start the Wi-Fi setup.
45
Turning the Printer On and Off
Checking that Power Is On
Turning on the printer
Turning off the printer
Checking that Power Is On
The ON lamp is lit when the printer is turned on.
Turning on the printer
Press the ON button to turn on the printer.
The ON lamp flashes and then remains lit.
Note
• It may take a while for the printer to start printing immediately after you turn on the printer.•
• If the Alarm lamp lights or flashes, see When Error Occurred.•
• You can set the printer to automatically turn on when a print or scan operation is performed from a•
computer connected by USB cable or wireless network. This feature is set to off by default.
For Windows:
Managing the Printer Power
For macOS:
Managing the Printer Power
47
Turning off the printer
1. Press the ON button to turn the printer off.1.
2.
Confirm that the ON lamp is off.
2.
When the ON lamp stops flashing, the printer is turned off.
Important
•
When you unplug the power cord, press the ON button, then confirm that the ON lamp is off.
•
Unplugging the power cord while the ON lamp is lit or flashing may cause drying or clogging of
the print head and print quality may be reduced.
48
Loading Plain Paper
You can load plain paper.
1. Prepare paper.1.
Align the edges of paper. If paper is curled, flatten it.
Note
•
Align the edges of paper neatly before loading. Loading paper without aligning the edges may
•
cause paper jams.
• If paper is curled, hold the curled corners and gently bend them in the opposite direction until the•
paper becomes completely flat.
For more details on handling curled paper, see
Check 3
in Printed Surface Is Smudged/
Scratched/Ink Blots/Paper Curl/Paper Is Smudged During Automatic 2-sided Printing.
2.
Pull out the cassette (A) from the printer.
2.
3.
Slide paper guides (B) in front and (C) on right to open guides.
3.
Load paper stack in portrait orientation WITH THE PRINT SIDE FACING DOWN, and place it in center
of cassette.
50
Important
• Always load paper in portrait orientation (D). Loading paper in landscape orientation (E) can•
cause paper jams.
Note
•
Align paper with the line on the cassette to load.
•
Paper may not be fed into the printer correctly if it presses against the protrusion (F).
51
4.
Move the paper guide and adjust the guides to edge of the paper stack.
4.
Do not slide the paper guides too tightly against the paper. The paper may not be fed properly.
Note
•
Do not load sheets of paper higher than the load limit mark (G).
•
52
5.
Insert cassette into printer.
5.
Push the cassette into the printer until it stops.
After inserting the cassette into the printer, the Paper lamp flashes.
6.
Press the Paper Select button (H), select the paper size according to the paper loaded in
6.
the cassette, then press the OK button (I).
Paper Settings
53
7.
Pull out the paper output tray (J).
7.
Note
• To prevent incorrect printing, this printer has a function that detects whether the paper size set for the•
paper loaded in the cassette matches the paper size set when printing. Configure the print settings
according to the paper size set for the paper loaded in the cassette. When this function is enabled, the
Alarm lamp flashes to prevent incorrect printing if an incorrect paper size is set. If that happens, correct
the paper size that is set.
Related Information
Handling Paper
Unsupported Media Types
54
Loading Photo Paper
You can load photo paper.
1. Prepare paper.1.
Align the edges of paper. If paper is curled, flatten it.
Note
•
Align the edges of paper neatly before loading. Loading paper without aligning the edges may
•
cause paper jams.
• If paper is curled, hold the curled corners and gently bend them in the opposite direction until the•
paper becomes completely flat.
For more details on handling curled paper, see
Check 3
in Printed Surface Is Smudged/
Scratched/Ink Blots/Paper Curl/Paper Is Smudged During Automatic 2-sided Printing.
•
When using Photo Paper Plus Semi-gloss SG-201, even if the sheet is curled, load one sheet at a
•
time as it is. If you roll up this paper to flatten, this may cause cracks on the surface of the paper
and reduce the print quality.
2.
Pull out the cassette (A) from the printer.
2.
3.
Slide paper guides (B) in front and (C) on right to open guides.
3.
Load paper stack in portrait orientation WITH THE PRINT SIDE FACING DOWN, and place it in center
of cassette.
55
Important
• Always load paper in portrait orientation (D). Loading paper in landscape orientation (E) can•
cause paper jams.
Note
• For paper with a front and a back side, such as photo papers, load the whiter side (the glossy•
side) face down.
•
Align paper with the line on the cassette to load.
•
Paper may not be fed into the printer correctly if it presses against the protrusion (F).
56
4.
Move the paper guide and adjust the guides to edge of the paper stack.
4.
Do not slide the paper guides too tightly against the paper. The paper may not be fed properly.
5.
Insert cassette into printer.
5.
Push the cassette into the printer until it stops.
57
When the cassette is inserted, the Paper lamp flashes.
6. Press the Paper Select button (G), select the paper size according to the paper loaded in6.
the cassette, then press the OK button (H).
Paper Settings
7.
Pull out the paper output tray (I).
7.
Note
•
There are various types of paper, such as paper with a special surface coating for printing photos at
•
optimal quality and paper suitable for documents. Each media type has specific preset settings (how ink
is used and sprayed, distance from nozzles, etc.), that allow you to print to that type with optimal image
quality. The wrong paper settings may cause poor printout color quality or scratches on the printed
surface. If you notice blurring or uneven colors, increase the print quality setting and try printing again.
•
To prevent incorrect printing, this printer has a function that detects whether the paper size set for the
•
paper loaded in the cassette matches the paper size set when printing. Configure the print settings
according to the paper size set for the paper loaded in the cassette. When this function is enabled, the
Alarm lamp flashes to prevent incorrect printing if an incorrect paper size is set. If that happens, correct
the paper size that is set.
Related Information
Handling Paper
58
Loading Envelopes
The address is automatically rotated and printed according to the envelope's direction by specifying with the
printer driver properly.
Important
• Do not use the following envelopes. They could jam in the printer or cause the printer to malfunction.•
Envelopes with an embossed or treated surface
Envelopes with a double flap
Envelopes whose gummed flaps are already moistened and adhesive
1.
Prepare envelopes.
1.
•
Press down on all four corners and edges of the envelopes to flatten them.
•
• If the envelopes are curled, hold the opposite corners and gently twist them in the opposite•
direction.
• If the corner of the envelope flap is folded, flatten it.•
• Use a pen to press the leading edge in the inserting direction flat and sharpen the crease.•
The figures above show a side view of the leading edge of the envelope.
Important
•
The envelopes may jam in the printer if they are not flat or the edges are not aligned. Make sure
•
that no curl or puff exceeds 0.12 in. (3 mm).
2.
Pull out the cassette (A) from the printer.
2.
60
3.
Slide paper guides (B) in front and (C) on right to open guides.
3.
Load envelopes in portrait orientation WITH THE PRINT SIDE FACING DOWN, and place it in center of
cassette.
Up to 10 envelopes can be loaded at once.
Set the envelopes in portrait orientation with the address side down and the folded flap on the right.
61
Note
•
Align paper with the line on the cassette to load.
•
Paper may not be fed into the printer correctly if it presses against the protrusion (D).
4. Move the paper guide and adjust the guides to edge of the paper stack.4.
Do not slide the paper guides too tightly against the paper. The paper may not be fed properly.
5.
Insert cassette into printer.
5.
Push the cassette into the printer until it stops.
62
When the cassette is inserted, the Paper lamp flashes.
6.
Press Paper Select button (E) to select and press OK button (F).
6.
Use a Web browser to configure the paper information according to the envelopes loaded in the
cassette.
Handling Printer Configuration Using the Web Browser
7. Pull out the paper output tray (G).7.
63
Note
• To prevent incorrect printing, this printer has a function that detects whether the paper size set for the•
paper loaded in the cassette matches the paper size set when printing. Configure the print settings
according to the paper size set for the paper loaded in the cassette. When this function is enabled, the
Alarm lamp flashes to prevent incorrect printing if an incorrect paper size is set. If that happens, correct
the paper size that is set.
Related Information
Handling Paper
Unsupported Media Types
64
Important
• Be sure to observe the following when loading the original on the platen. Failure to observe the•
following may cause the scanner to malfunction or the platen glass to break.
Do not place any objects weighing 4.4 lb (2.0 kg) or more on the platen glass.
Do not put any pressure of 4.4 lb (2.0 kg) or more on the platen glass, such as pressing down
the original.
3.
Close the document cover gently.
3.
Important
• After loading the original on the platen, be sure to close the document cover before starting to copy or•
scan.
67
Loading Based on Use
Load the original in the correct position according to the function to use. If you do not load the original
correctly, it may not be scanned properly.
Originals Function How to Load
Magazines, Newspapers, and Documents Copying Loading the Original to Be Aligned with the
alignment mark
Scanning by detect-
ing the type and
size of the original
automatically
Scanning by spec-
ifying a standard
size (A4, Letter, etc.)
Photos, Postcards, Business Cards, and
Disc (BD/DVD/CD)
Scanning only one
original
Loading Only One Original in Center of Platen
Scanning two or
more originals
Loading Two or More Originals on Platen
Loading the Original to Be Aligned with the alignment mark
Place the original WITH THE SIDE TO SCAN FACING DOWN on the platen and align it with the
alignment mark . Portions placed on the diagonally striped area cannot be scanned.
Important
•
The printer cannot scan the striped area (A) (0.04 in. (1 mm) from the edges of the platen glass).
•
68
Loading Only One Original in Center of Platen
Place the original WITH THE SIDE TO SCAN FACING DOWN, with 0.40 in. (1 cm) or more space
between the edges (diagonally striped area) of the platen. Portions placed on the diagonally striped area
cannot be scanned.
Loading Two or More Originals on Platen
Place the originals WITH THE SIDE TO SCAN FACING DOWN. Allow 0.40 in. (1 cm) or more space
between the edges (diagonally striped area) of the platen and the originals, and between the originals.
Portions placed on the diagonally striped area cannot be scanned.
You can place up to 12 items.
69
B: More than 0.40 in. (1 cm)
Note
• The Skew Correction function automatically compensates for the originals placed at an angle of up to•
approximately 10 degrees. Slanted photos with a long edge of 7.1 in. (180 mm) or more cannot be
corrected.
• Non-rectangular or irregular shaped photos (such as cut out photos) may not be scanned properly.•
70
Supported Originals
Item Details
Types of originals Text document, magazine, or newspaper
Printed photo, postcard, business card, or disc (BD/DVD/CD, etc.)
Size (width x height) Max. 8.5 x 11.7 in. (216 x 297 mm)
Note
• When loading a thick original such as a book on the platen, you can load it by removing the document•
cover from the printer.
How to Detach / Attach the Document Cover
71
How to Detach / Attach the Document Cover
Detaching the document cover:
Hold up the document cover in portrait orientation and then tip it back.
Attaching the document cover:
Fit both hinges (A) of the document cover into the holder (B) and insert both hinges of the document cover
vertically.
72
73
Replacing a FINE Cartridge
If a remaining ink caution or error occurs, the Ink lamps and Alarm lamp flash to inform you that there is an
issue. The printer cannot be used to print or scan when a remaining ink caution or error has occurred.
When Error Occurred
Replacing Procedure
When you need to replace a FINE cartridge, follow the procedure below.
Important
• Do not touch the electrical contacts (A) or print head nozzle (B) on a FINE cartridge. The printer may•
not print properly if you touch them.
• If you remove a FINE cartridge, replace it immediately. Do not leave the printer with the FINE•
cartridge removed.
• Use a new FINE cartridge for replacement. Installing a used FINE cartridge may cause the nozzles to•
clog.
Furthermore, with such a FINE cartridge, the printer will not be able to inform you when to replace the
FINE cartridge properly.
Note
• For Windows, if a FINE cartridge runs out of ink, you can print with either color or black FINE•
cartridge, in whichever ink remains, only for a while.
For information on how to configure this setting, see below.
Setting the Ink to be Used
• Color ink may be consumed even when printing a black-and-white document or when black-and-•
white printing is specified.
Both color ink and black ink are also consumed in the standard cleaning and deep cleaning of the
print head, which may be necessary to maintain the performance of the printer. When ink runs out,
replace the FINE cartridge immediately with a new one.
Ink Tips
1.
Check that printer is turned on.
1.
75
2. Open the scanning unit / cover.2.
The FINE cartridge holder moves to the replacement position.
Important
•
Do not touch the metallic parts or other parts inside the printer.
•
3.
Remove the empty FINE cartridge.
3.
1. Pick up the ink cartridge locking cover to open it.1.
2.
Remove the FINE cartridge.
2.
4.
Prepare a new FINE cartridge.
4.
76
1. Take new FINE cartridge out of its package and remove protective tape (C) gently.1.
Important
•
Do not touch the electrical contacts or print head nozzle on a FINE cartridge. The printer may
•
not print properly if you touch them.
5.
Install the FINE cartridge.
5.
1. Insert the new FINE cartridge into the FINE cartridge holder.1.
The color FINE cartridge should be installed into the left slot and the black FINE cartridge should be
installed into the right slot.
2. Close the ink cartridge locking cover to secure the FINE cartridge.2.
Push the ink cartridge locking cover fully until a "click" sound is heard.
77
6.
Close the scanning unit / cover.
6.
To close the scanning unit / cover, hold it up once, then take it down gently.
Note
• If the Alarm lamp lights or flashes after closing the scanning unit / cover, resolve the error.•
When Error Occurred
• If the print head is out of alignment, as indicated by misaligned printed ruled lines or similar•
symptoms, align the print head.
78
Checking the Ink Status with the Ink Lamps on the Operation
Panel
Note
• The ink level detector is mounted on the printer to detect the remaining ink level. The printer considers•
as ink is full when a new FINE cartridge is installed, and then starts to detect a remaining ink level. If
you install a used FINE cartridge, the indicated ink level of it may not be correct. In such case, refer to
the ink level information only as a guide.
• When remaining ink cautions or errors occur, the ink lamps and the Alarm lamp will flash to inform you•
of the error.
When Error Occurred
In the copy standby mode, you can check the ink status with the Color Ink lamp and Black Ink lamp.
A: Alarm lamp
B: Black Ink lamp
C: Color Ink lamp
Color Ink lamp or Black Ink lamp lights
The ink is running low. Prepare a new ink cartridge. The resulting print quality may not be satisfactory, if
printing is continued under this condition.
Color Ink lamp or Black Ink lamp flashes, while Alarm lamp flashes
An error has occurred.
When Error Occurred
* For some types of errors, the Alarm lamp may not flash.
Note
• You can also check the ink status on the computer screen.•
For Windows:
Checking Ink Status from Your Computer
For macOS:
Checking Ink Status from Your Computer
79
Maintenance Procedure
If print results are blurred, colors are not printed correctly, or print results are unsatisfactory (e.g. misaligned
printed ruled lines), perform the maintenance procedure below.
Important
• Do not rinse or wipe the FINE cartridge. This can cause trouble with the FINE cartridge.•
Note
• Make sure that the orange protective tape does not remain on the FINE cartridge.•
• Check if ink remains in the FINE cartridge.•
Checking the Ink Status with the Ink Lamps on the Operation Panel
• For Windows, increasing the print quality in the printer driver settings may improve the print result.•
Set Media Type, Quality, etc. (Media/Quality Tab)
When the Print Results Are Blurred or Uneven:
Step 1
Print the nozzle check pattern.
From the printer
Printing the Nozzle Check Pattern
From the computer
•
For Windows:
•
Printing a Nozzle Check Pattern
• For macOS:•
Printing a Nozzle Check Pattern
Step 2
Examine the nozzle check pattern.
If there are missing lines or horizontal streaks in the pattern:
Step 3
Clean the print head.
From the printer
81
Cleaning the Print Head
From the computer
• For Windows:•
Cleaning the Print Heads
• For macOS:
•
Cleaning the Print Heads
After cleaning the print head, print and examine the nozzle check pattern: Step 1
If the problem is not resolved after performing from step 1 to step 3 twice:
Step 4
Clean the print head deeply.
From the printer
Deep Print Head Cleaning
From the computer
•
For Windows:
•
Cleaning the Print Heads
•
For macOS:
•
Cleaning the Print Heads
If the problem is not resolved, turn off the power and clean the print head deeply again after 24 hours.
If the problem is still not resolved:
Step5
Replace the FINE cartridge.
Replacing a FINE Cartridge
Note
• If the problem is still not resolved after replacing the FINE cartridge, contact Canon to request a•
repair.
When the Print Results Are Not Even such as the Ruled Lines Are
Misaligned:
Step
Align the print head.
From the printer
Aligning the Print Head
From the computer
•
For Windows:
•
82
Printing the Nozzle Check Pattern
Print the nozzle check pattern to determine whether the ink ejects properly from the print head nozzle.
Note
• If the remaining ink level is low, the nozzle check pattern will not be printed correctly. Replace the FINE•
cartridge whose ink is low.
You need to prepare: a sheet of A4 or Letter-sized plain paper
1.
Check that printer is turned on.
1.
2.
Load a sheet of A4 or Letter-sized plain paper in the cassette.
2.
Loading Plain Paper
3.
Press and hold the Stop button and release it when the Alarm lamp flashes once.
3.
The nozzle check pattern will be printed.
Do not perform any other operations until the printer completes the printing of the nozzle check pattern.
4. Examine the nozzle check pattern.4.
84
Examining the Nozzle Check Pattern
Examine the nozzle check pattern, and clean the print head if necessary.
Check if there are missing lines in the pattern A or horizontal streaks in the pattern B.
If there are missing lines in the pattern A:
C: Good
D: Bad (lines are missing)
If there are horizontal streaks in the pattern B:
E: Good
F: Bad (horizontal streaks are present)
If any color in the pattern A or the pattern B is not printed:
(Example: Magenta pattern is not printed)
If one of the above is applied, cleaning the print head is required.
85
Cleaning the Print Head
Clean the print head if lines are missing or if horizontal streaks are present in the printed nozzle check
pattern. Cleaning unclogs the nozzles and restores the print head condition. Cleaning the print head
consumes ink, so clean the print head only when necessary.
1. Check that printer is turned on.1.
2.
Press and hold the Stop button and release it when the Alarm lamp flashes 2 times.
2.
The printer starts cleaning the print head.
The cleaning will be complete when the ON lamp lights after flashing.
Do not perform any other operations until the printer completes the cleaning of the print head.
3.
Check the print head condition.
3.
To check the print head condition, print the nozzle check pattern.
Note
• If the problem is not resolved after cleaning the print head twice, clean the print head deeply.•
86
Deep Print Head Cleaning
If print quality does not improve by the standard cleaning of the print head, clean the print head deeply.
Cleaning the print head deeply consumes more ink than the standard cleaning of the print head, so clean
the print head deeply only when necessary.
1. Check that printer is turned on.1.
2.
Press and hold the Stop button and release it when the Alarm lamp flashes 3 times.
2.
3.
Press the Black button or the Color button.
3.
The printer starts cleaning the print head deeply.
The cleaning will be complete when the ON lamp lights after flashing.
Do not perform any other operations until the printer completes the deep cleaning of the print head.
4.
Check the print head condition.
4.
To check the print head condition, print the nozzle check pattern.
If the problem is not resolved, turn off the power and clean the print head deeply again after 24 hours.
If the problem is still not resolved, replace the FINE cartridge with a new one. If the problem is still not
resolved after replacing the FINE cartridge, contact Canon to request a repair.
87
Aligning the Print Head
If printed ruled lines are misaligned or print results are otherwise unsatisfactory, adjust the print head
position.
Note
• If the remaining ink level is low, the print head alignment sheet will not be printed correctly.•
If the remaining ink level is low, replace the FINE cartridge.
You need to prepare: a sheet of A4 or Letter-sized plain paper
1.
Check that printer is turned on.
1.
2.
Load a sheet of A4 or Letter-sized plain paper in the cassette.
2.
Loading Plain Paper
3.
Press and hold the Stop button and release it when the Alarm lamp flashes 4 times.
3.
4. Press the Black button or the Color button.4.
The print head alignment sheet will be printed.
Important
•
Do not touch any printed part on the print head alignment sheet. If the sheet is stained or wrinkled,
•
it may not be scanned properly.
88
• If the print head alignment sheet was not printed correctly, press the Stop button, and redo this•
procedure from the beginning.
5. Place print head alignment sheet on platen.5.
Place the print head alignment sheet WITH THE PRINTED SIDE FACING DOWN and align the mark
on the upper left corner of the sheet with the alignment mark .
6.
Close the document cover gently, then press the
Black button or the Color button.6.
The printer starts scanning the print head alignment sheet, and the print head position will be adjusted
automatically.
The print head position adjustment will be complete when the ON lamp lights after flashing.
Remove the print head alignment sheet on the platen.
Important
•
Do not open the document cover or move the print head alignment sheet on the platen until
•
adjusting the print head position is complete.
•
If adjusting the print head position has failed, the Alarm lamp lights up. Press the OK button to
•
release the error, then take appropriate action.
When Error Occurred
Note
• For Windows, when the print results are still not satisfactory after adjusting the print head position as•
described above, adjust the print head position manually from the computer.
Adjusting Print Head Position Manually
89
• To print and check the current head position adjustment values, press and hold the Stop button and•
release it when the Alarm lamp flashes 6 times, then press the Black button or the Color button.
90
Opening the Maintenance Tool (Canon IJ Printer Assistant
Tool)
Canon IJ Printer Assistant Tool is an application software to perform printer maintenance or change the
settings of the printer.
When MP Drivers are installed, Canon IJ Printer Assistant Tool is also installed.
To install only Canon IJ Printer Assistant Tool, access the Canon web site and download the software.
Note
• For details on installing the Driver, see "Installing the Driver."
How to start the Canon IJ Printer Assistant Tool
Canon IJ Printer Assistant Tool can be started in the following ways.
• Click Maintenance and Preferences icon in the Maintenance tab of the printer driver.
• From Windows Start menu, click (All apps, Apps, or All Programs ->) Canon Utilities -> IJ Printer
Assistant Tool.
Related Topics
Cleaning the Print Heads
92
Cleaning the Print Heads
The print head Cleaning and Deep Cleaning functions allow you to clear up clogged print head nozzles.
Perform print head Cleaning if printing results are not satisfactory or if a specific color fails to print, even
though there is enough ink.
Cleaning
1.
Open Canon IJ Printer Assistant Tool
1.
2.
Click Cleaning
2.
When the Print Head Cleaning dialog box opens, select the ink group for which Cleaning is to be
performed.
Click Initial Check Items to display the items you need to check before performing Cleaning.
3. Perform Cleaning3.
Check that the printer is on and then click Start.
Print Head Cleaning starts.
4.
Complete Cleaning
4.
Click OK when the confirmation message is displayed.
The Nozzle Check dialog box will open.
5.
Check the results
5.
To check whether the print quality has improved, click Print Check Pattern. To cancel the check
process, click Cancel.
If cleaning the head once does not resolve the print head problem, clean it once more.
Important
• Cleaning consumes a small amount of ink.
Cleaning the print head frequently will rapidly deplete your printer's ink supply. Perform Cleaning only
when necessary.
Deep Cleaning
Deep Cleaning is more thorough than Cleaning. Perform Deep Cleaning when two Cleaning attempts do
not resolve the print head problem.
1.
Open Canon IJ Printer Assistant Tool
1.
94
2. Click Deep Cleaning2.
When the Deep Cleaning dialog box opens, select the ink group for which Deep Cleaning is to be
performed.
Click Initial Check Items to display the items you need to check before performing Deep Cleaning.
3. Perform Deep Cleaning3.
Check that the printer is on and then click Start.
Click OK when the confirmation message appears.
Print head Deep Cleaning starts.
4.
Complete Deep Cleaning
4.
Click OK when the confirmation message is displayed.
The Nozzle Check dialog box will open.
5.
Check the results
5.
To check whether the print quality has improved, click Print Check Pattern. To cancel the check
process, click Cancel.
Important
• Deep Cleaning consumes a larger amount of ink than Cleaning.
Cleaning the print head frequently will rapidly deplete your printer's ink supply. Perform Deep
Cleaning only when necessary.
Related Topic
Printing a Nozzle Check Pattern
95
Aligning the Print Head
When you perform head position adjustment, errors in the print head adjustment position are corrected and
conditions such as color and line streaking are improved.
If the print results appear uneven because of line shifts or other conditions, adjust the position of the print
head.
On this printer, you can adjust the print head either automatically or manually.
96
Adjusting Print Head Position Manually
Print Head Alignment corrects the installation positions of the print head and improves misalignment of
colors and lines. This printer supports two head alignment methods: automatic head alignment and manual
head alignment.
Print head position can be adjusted either automatically or manually.
These instructions are for performing Print Head Alignment manually.
Important
• A pattern will be printed for head alignment. Do not open the scanning unit / cover while printing is in
progress.
Print Head Alignment
1. Open Canon IJ Printer Assistant Tool1.
2. Check that the printer power is on, and then click Other Settings2.
The Other Settings dialog box appears.
3.
Set to manual adjustment
3.
Select Align heads manually.
4. Apply settings4.
Click OK. When the confirmation message appears, click OK.
5. Click Print Head Alignment5.
The Print Head Alignment dialog box appears.
6.
Load paper in printer
6.
Load two sheets of A4 size or Letter size plain paper into the cassette.
7.
Run head position adjustment
7.
Click Start.
Perform the necessary operations by following the message instructions.
8.
Check printed patterns
8.
In each entry field, enter the number of the pattern with the least prominent streaks or stripes from
among the printed patterns.
97
After completing the entries, click OK.
Note
• If the patterns are not uniform, select the pattern with the least prominent vertical streaks.
(A) Less prominent vertical streaks
(B) More prominent vertical streaks
• If the patterns are not uniform, select the pattern with the least prominent horizontal stripes.
(A) Less prominent horizontal stripes
(B) More prominent horizontal stripes
9.
Check message content, and click OK
9.
The print head adjustment patterns on the second sheet are printed.
10.
Check printed patterns
10.
In each entry field, enter the number of the pattern with the least prominent stripes or streaks from
among the printed patterns.
98
After completing the entries, click OK.
Note
• If the patterns are not uniform, select the pattern with the least prominent horizontal stripes.
(A) Less prominent horizontal stripes
(B) More prominent horizontal stripes
• If the patterns are not uniform, select the pattern with the least prominent vertical streaks.
(A) Less prominent vertical streaks
(B) More prominent vertical streaks
11.
Complete head position adjustment
11.
Click OK.
The adjustment of the head position is complete.
Note
• In the Print Head Alignment dialog box, click Print Alignment Value to print the current settings so
that you can check the settings.
99
Adjusting Print Head Position Automatically
Print Head Alignment corrects the installation positions of the print head and improves misalignment of
colors and lines.
Print head position can be adjusted either automatically or manually. Normally, the printer is set up to
perform automatic head position adjustment. However, if notice that lines are shifted or are otherwise not
satisfied with the print results even after performing automatic head position adjustment, adjust the print
head position manually.
This section describes the procedure for adjusting the head position automatically.
Print Head Alignment
1.
Open Canon IJ Printer Assistant Tool
1.
2. Click Print Head Alignment2.
The Print Head Alignment dialog box appears.
3.
Load paper in printer
3.
In the cassette, load one sheet of plain A4-sized or Letter-sized paper.
Note
• If you select manual head position adjustment, the number of sheets to use will differ.
4. Print head position adjustment patterns4.
Check that the printer power is on, and then click Start.
The adjustment patterns are printed.
Important
• Do not open the scanning unit / cover while printing is in progress; otherwise, printing will stop.
5.
Scan adjustment patterns
5.
When adjustment pattern printing is completed, a message appears.
Following these instructions place the adjustment patterns on the platen, and press the printer's Start
button.
Head position adjustment starts.
Note
• In the Print Head Alignment dialog box, click Print Alignment Value to print the current settings so
that you can check the settings.
• When you are using the printer through a network, the message may not be displayed after the
adjustment pattern is printed.
100
In this case, load the printed adjustment pattern onto the platen, and press the Start button on the
printer.
101
Opening Remote UI for Maintenance
You can perform maintenance of printer and change the settings from a Remote UI.
The following is the procedure to open a Remote UI.
1. Open System Settings, and select Printers & Scanners1.
2.
Select your model from the printer list, and click Options & Supplies...
2.
3.
Click Show Printer Webpage... in General tab
3.
Remote UI starts.
Note
•
The password may have to be entered after Remote UI starts. In such a case, enter the password
and click OK. In case you do not know the password, see "Password and Cookie."
Related Topics
Performing Maintenance Functions from Your Computer (macOS)
Changing Printer Settings from Your Computer (macOS)
103
Cleaning the Print Heads
The print head Cleaning and Deep Cleaning functions allow you to clear up clogged print head nozzles.
Perform print head Cleaning if printing results are not satisfactory or if a specific color fails to print, even
though there is enough ink.
Cleaning
1.
Select Utilities from Remote UI
1.
2.
Click Cleaning
2.
Before performing Cleaning, check the following items:
Check whether the printer is on and open the printer's cover.
Check the following items for each ink. Then, if necessary, perform Cleaning.
• Is there ink remaining?
•
Did you push in the ink completely until you heard a clicking sound?
• If the orange tape is there, has it been peeled off completely?
Any remaining tape will hinder ink output.
• Did you install the inks in their correct positions?
3. Perform Cleaning3.
Click Yes.
Print head Cleaning starts.
4.
Complete Cleaning
4.
Next, the message for Nozzle Check pattern printing is displayed.
5. Check the results5.
To check whether the print quality has improved, click Yes. To cancel the check process, click No.
If cleaning the head once does not resolve the print head problem, clean it once more.
Important
• Cleaning consumes a small amount of ink.
Cleaning the print head frequently will rapidly deplete your printer's ink supply. Perform Cleaning only
when necessary.
Deep Cleaning
Deep Cleaning is more thorough than Cleaning. Perform Deep Cleaning when two Cleaning attempts do
not resolve the print head problem.
1.
Select Utilities from Remote UI
1.
104
2. Click Deep Cleaning2.
Before performing Deep Cleaning, check the following items:
Check whether the printer is on and open the printer's cover.
Check the following items for each ink. Then, if necessary, perform Deep Cleaning.
• Is there ink remaining?
• Did you push in the ink completely until you heard a clicking sound?
• If the orange tape is there, has it been peeled off completely?
Any remaining tape will hinder ink output.
•
Did you install the inks in their correct positions?
3.
Perform Deep Cleaning
3.
Click Yes.
Print head Deep Cleaning starts.
4.
Complete Deep Cleaning
4.
Next, the message for Nozzle Check pattern printing is displayed.
5. Check the results5.
To check whether the print quality has improved, click Yes. To cancel the check process, click No.
Important
• Deep Cleaning consumes a larger amount of ink than Cleaning.
Cleaning the print head frequently will rapidly deplete your printer's ink supply. Perform Deep
Cleaning only when necessary.
Related Topic
Printing a Nozzle Check Pattern
105
Adjusting Print Head Position
Any error in the print head installation position can cause color and line shifts. Adjusting the print head
position improves print results.
Print Head Alignment - Auto
1.
Select Utilities from Remote UI
1.
2.
Click Print Head Alignment - Auto
2.
A message appears.
3.
Load paper in printer
3.
Load one sheet of A4 size or Letter size plain paper into the cassette.
4.
Run head position adjustment
4.
Check that the printer power is on, and then click Yes.
Head alignment starts. Proceed with the operations in accordance with the messages on the screen.
Important
• Do not open the scanning unit / cover while printing is in progress; otherwise, printing will stop.
Note
• You can print and check the current settings by clicking on Print the head alignment value.
106
Checking Ink Status from Your Computer
You can check the detailed information such as the remaining ink level and the ink model numbers of your
model.
If you select Printer status from Remote UI, the ink status appears as an illustration.
Estimated ink levels
You can check the types and levels of ink.
When ink levels are running low or an error occurs because there is no ink, a notification icon will
appear.
Ink model number
You can look up the correct ink model numbers for your printer.
Note
• To check the ink status, you can also display Printer Info in the print dialog and select Supply Levels.
107
Cleaning Paper Feed Rollers
If a paper feed roller is dirty or paper powder is attached to it, paper may not be fed properly. In this case,
perform Roller Cleaning. Cleaning will cause wear on rollers, so perform this only when necessary.
You need to prepare: three sheets of A4 or Letter-sized plain paper
1. Check that printer is turned on.1.
2.
Remove any paper from the cassette, then push it back.
2.
3.
Press and hold the Stop button and release it when the Alarm lamp flashes 7 times.
3.
4.
Press the Black button or the Color button.
4.
The paper feed rollers will rotate as they are cleaned without paper.
5.
Make sure that the paper feed roller has stopped rotating, load the three sheets of A4 or
5.
Letter-sized plain paper in the cassette.
Loading Plain Paper
6.
Press the Black button or the Color button.
6.
The printer starts cleaning. The cleaning will be complete when the paper is ejected.
7. Press the Stop button.7.
If the problem is not resolved after cleaning, contact Canon to request a repair.
109
Cleaning Inside the Printer (Bottom Plate Cleaning)
Remove stains from the inside of the printer. If the inside of the printer becomes dirty, printed paper may get
dirty, so we recommend performing cleaning regularly.
You need to prepare: a sheet of A4 plain paper*
* Be sure to use a new piece of paper.
1.
Check that printer is turned on.
1.
2.
Remove any paper from the cassette.
2.
3.
Fold a single sheet of A4 plain paper in half widthwise, then unfold the paper.
3.
4.
Fold one side of the opened paper in another half, aligning the edge with the center crease,
4.
unfold the paper.
5.
Load only this sheet of paper in the cassette with the ridges of the creases facing up and
5.
the edge of the half with no crease facing to the far side.
6.
Insert cassette into printer.
6.
110
7.
Press and hold the Stop button and release it when the Alarm lamp flashes 8 times.
7.
8.
Press the Black button or the Color button.
8.
The paper cleans the inside of the printer as it feeds through the printer.
Check the folded parts of the ejected paper. If they are smudged with ink, perform Bottom Plate Cleaning
again.
Note
• When performing Bottom Plate Cleaning again, be sure to use a new piece of paper.•
If the problem is not resolved after performing cleaning again, the protrusions inside the printer may be
stained. Wipe off any ink from the protrusions using a cotton swab or the like.
Important
• Be sure to turn off the power and unplug the power cord before cleaning the printer.•
111
Changing the Print Options
You can change the detailed printer driver settings for print data that is sent from an application software.
Specify this option if you encounter print failures such as part of an image data being cut off.
1. Open the printer driver setup window1.
2.
Click Print Options... on the Page Setup tab
2.
The Print Options dialog box opens.
3.
Change the individual settings
3.
If necessary, change the setting of each item, and then click OK.
The Page Setup tab is displayed again.
114
Setting the Ink to be Used
This feature enables you to specify the most appropriate FINE cartridge among installed FINE cartridges
according to an intended use.
1. Open the printer driver setup window1.
2.
Click Print Options... on the Page Setup tab
2.
The Print Options dialog box appears.
3.
Select the FINE cartridge to be used from Print With
3.
Select the FINE cartridge to be used for printing and click OK.
4.
Click OK on the Page Setup tab
4.
When you perform printing, the specified FINE cartridge will be used.
Important
• When the following settings are specified, Black Only does not function because the printer uses the
color FINE cartridge to print documents.
Other than Plain Paper, Envelope, Ink Jet Hagaki (A), Hagaki K (A), Hagaki (A), or Hagaki is
selected for Media Type on the Media/Quality tab
A checkmark is added to Borderless Printing on the Page Setup tab
• Do not detach the FINE cartridge that is not in use. Printing cannot be performed while either FINE
cartridge is detached.
115
Managing the Printer Power
This function allows you to manage the printer power from the Canon IJ Printer Assistant Tool.
Power Off
The Power Off function turns off the printer. When you use this function, you will not be able to turn the
printer on from the Canon IJ Printer Assistant Tool.
1.
Open Canon IJ Printer Assistant Tool
1.
2.
Perform power off
2.
Click Power Off. When the confirmation message appears, click OK.
The printer power switches off.
Auto Power
Auto Power allows you to set Auto Power On and Auto Power Off.
The Auto Power On function automatically turns on the printer when data is received.
The Auto Power Off function automatically turns off the printer when there are no operations from the
printer driver or the printer for a specified period of time.
1. Open the Canon IJ Printer Assistant Tool1.
2. Check that the printer is on and then click Auto Power2.
The Auto Power Settings dialog box will open.
Note
•
If the printer is off or if communication between the printer and the computer is disabled, an
error message may appear because the computer cannot collect the printer status.
If this happens, click OK to display the most recent settings specified on your computer.
3.
If necessary, complete the following settings:
3.
Auto Power On
Select the auto-power on setting.
Select Off to prevent the auto-power on feature from functioning.
Check that the printer is on before configuration.
Select On to turn the printer on automatically when print data is sent to it.
116
Auto Power Off
Specify the time from the list. When this time lapses without any operations from the printer driver
or the printer, the printer is turned off automatically.
Follow the No LAN/USB Connection settings if all the following conditions are met.
• All LAN settings in the printer settings are disabled
• There is no USB connection to a PC
Otherwise, follow the LAN/USB Connection settings.
Note
•
Enabling auto power on, disabling auto power off, or extending the time for auto power off will
increase power consumption.
4.
Apply the settings
4.
Click OK. When the confirmation message appears, click OK.
The setting is enabled after this. When you want to disable this function, select Off from the list
according to the same procedure.
Note
• When the printer is turned off, the Canon IJ Status Monitor message varies depending on the Auto
Power On setting.
When the setting is On, "Printer is standing by" is displayed. When the setting is Off, "Cannot
communicate with printer" is displayed.
117
Changing the Printer Operation Mode
If necessary, switch between various modes of printer operation.
If you want to change printer settings, open one of the following two screens, and configure settings.
• Custom Settings in the Maintenance Tab
• Other Settings in Canon IJ Printer Assistant Tool
For functions related to print settings, go to Custom Settings in the Maintenance Tab. For other settings,
go to Other Settings in Canon IJ Printer Assistant Tool.
Custom Settings in the Maintenance Tab
1.
Open the Maintenance Tab
1.
2.
Check that the printer power is on, and click Custom Settings
2.
The Custom Settings dialog box opens.
Note
• If the printer is off or if communication between the printer and the computer is disabled, an
error message may appear because the computer cannot collect the printer status.
If this happens, click OK to display the most recent settings specified on your computer.
3.
Configure settings
3.
If necessary, switch between various modes of printer operation.
4. Apply the settings4.
Click OK and when the confirmation message appears, click OK.
The printer operates with the modified settings hereafter.
Other Settings in Canon IJ Printer Assistant Tool
1.
Open the Canon IJ Printer Assistant Tool
1.
2.
Check that the printer is on and then click Other Settings
2.
The Other Settings dialog box opens.
Note
•
If the printer is off or if communication between the printer and the computer is disabled, an
error message may appear because the computer cannot collect the printer status.
If this happens, click OK to display the most recent settings specified on your computer.
3.
Configure settings
3.
If necessary, switch between various modes of printer operation.
118
4. Apply the settings4.
Click OK and when the confirmation message appears, click OK.
The printer operates with the modified settings hereafter.
119
Managing the Printer Power
Printer power supply is operated from Remote UI.
Energy saving settings
Energy saving settings allow you to set Auto power off and Auto power on.
Auto power off is the function wherein the printer automatically turns itself off, when data is not sent or the
printer remains inactive for a certain period.
The Auto power on function automatically turns on the printer when data is received.
1.
Selecting Printer settings from Remote UI
1.
2.
Click Energy saving settings
2.
3.
Complete the following settings:
3.
Auto power off (LAN/USB connection) / Auto power off (no LAN/USB connection)
Specify the time from the list. Printer automatically turns itself off, when data is not sent within the
specified time or the printer has remained inactive.
If all of the following conditions are met, the settings in Auto power off (no LAN/USB
connection) will be followed.
• All LAN settings in the printer settings are disabled
• There is no USB connection to a PC
Otherwise, the settings in Auto power off (LAN/USB connection) will be followed.
Auto power on
When you check this check box, the printer automatically turns itself on when data is sent.
Note
•
Disabling or extending the time for auto power off or enabling auto power on will increase power
consumption.
4. Apply the settings4.
Click OK.
The printer will operate with the changed settings hereafter.
121
Changing the Printer Operation Mode
If necessary, switch between various modes of printer operation.
1. Check whether the printer is on and select Printer settings from Remote UI1.
2.
Change settings
2.
The displayed settings may vary depending on your printer model. Change the displayed settings as
needed.
Print settings - Prevent paper abrasion
The printer can increase the gap between the print head and the paper during high-density printing
to prevent paper abrasion.
Check this check box to prevent paper abrasion.
Custom settings - Detect paper setting mismatch
Custom settings - Detect paper setting mismatch (AirPrint) / Detect paper setting mismatch
(Other)
If the check box is deselected, at the time of printing from PC, you can continue to print without the
message display even if the paper settings set in the print dialog differs from the paper information
configured on the printer.
Ink drying wait time
You can set the length of the printer rest time until printing of the next page begins. The wait time
becomes longer as the value set in the list increases, and shorter as the value decreases.
If the paper gets stained because the next page is ejected before the ink on the printed page dries,
increase the ink drying wait time.
3. Apply the settings3.
Click OK.
The printer operates with the modified settings hereafter.
122
Paper Settings
By registering the paper size, you can prevent the printer from misprinting by flashing the Alarm lamp before
printing starts when the paper size of the loaded paper differs from the print settings.
After loading paper
The Paper lamp flashes.
Register the paper size according to the loaded paper.
Media type is set depending on the paper size.
Paper size Media type
A4, LTR Plain paper
4"x6" Photo paper
(optional) optional
Note
• The is set to the same as the paper size and type set in paper information of the Remote UI.•
By default, the legal-sized plain paper is set as the paper size and type in this printer.
Handling Printer Configuration Using the Web Browser
124
When the paper size setting for printing is different from the paper size
setting set to the printer
Ex:
• Paper size setting for printing: A5•
• Paper size setting set to the printer: A4•
When you start printing, the Alarm lamp and the Paper lamp for the paper size set when printing will
flash.
Select one of the operations below.
Print on set paper
You print on the paper loaded without changing the paper size setting. Press the Color button or the
Black button.
For example, when the paper size setting for printing is A5 and the paper size setting set to A4 on the
printer, the printer starts printing with A5 on the paper loaded.
Printing after replacing paper
You print after replacing the paper of the cassette.
For example, when the paper size setting for printing is A5 and the paper size setting set to A4 on the
printer, you load A5 sized paper before you start printing.
Cancel printing
Press the Stop button to cancel printing and change the paper size setting specified for printing. Try
printing again.
125
Setting Items on Operation Panel
Number of Flashes of Alarm Lamp Details
1 Nozzle Check
2 Cleaning
3 Deep Cleaning
4 Printing/scanning print head alignment sheet
5 Scanning print head alignment sheet
6 Printing head alignment value
7 Roller cleaning
8 Bottom plate cleaning
9 Improving paper rubbing *
10 Detecting paper setting mismatch (AirPrint) *
11 Detecting paper setting mismatch (other) *
12 Wi-Fi Direct *
13 Executing WPS PIN code
14 Printing of usage statistics
15 Resetting LAN settings
16 Resetting all settings
17 IPv6 settings
* Press the Color button to enable the function or press the Black button to disable the function.
126
Checking the Total Number of Uses of Printer
The total number of uses of printer can be printed and checked.
1. Check that printer is turned on.1.
2.
Load A4 or Letter-sized plain paper.
2.
3.
Press and hold the Stop button and release it when the Alarm lamp flashes 14 times.
3.
The total number of uses of printer is printed.
127
Initializing Printer Settings
You can initialize the printer settings.
Note
• If you initialize the printer settings, some services may no longer be available, depending on your•
contract.
1.
Check that printer is turned on.
1.
2.
Press and hold the Stop button and release it when the Alarm lamp flashes 16 times.
2.
All the printer settings are initialized.
Note
• You cannot set the following setting items back to the default:•
The current position of the print head
128
Basic Information
Safety
Safety Precautions
Regulatory Information
WEEE
Handling Precautions
Canceling Print Jobs
Legal Restrictions on Scanning/Copying
Transporting Your Printer
When Repairing, Lending, or Disposing of the Printer
Keeping Print Quality High
Ink Tips
Specifications
Product Specifications
Supported Paper Sizes and Weights
Print Area
Paper Load Limit
Supported Media Types
129
Safety Precautions
Safety Precautions
• This manual contains important notices and safety precautions about your printer.•
Do not use the printer in ways other than described in the accompanying manuals, as this may result
in fire, electric shock or other unexpected accidents.
Safety standard marks and declarations are only valid for the supported voltages and frequencies in
the applicable countries or regions.
Warning
• Users with cardiac pacemakers:•
This product emits a low-level magnetic flux. If you feel abnormalities, please move away from the
product and consult your doctor.
• Do not use the printer in the following cases:•
Stop use immediately, unplug the printer and call your local service representative to request repair.
Metal objects or liquids are spilt inside the printer.
The printer emits smoke, strange odors, or makes unusual noises.
The power cord or plug overheat or are broken, bent or damaged in any way.
• Failure to adhere to the following may result in fire, electric shock, or injury:
Do not place product close to the flammable solvents such as alcohol or thinner.
Do not open or modify the printer.
Use only the power cord/cables that came with your printer. Do not use these cables with other
devices.
Do not plug in to voltages or frequencies other than those specified.
Plug the power cord into the socket completely.
Do not plug in or unplug the power cord with wet hands.
Do not damage the power cord or other cables by twisting, bundling, tying, pulling or excessively
bending them.
Do not place heavy objects on the power cord.
Do not connect multiple power cords to a single electrical outlet. Do not use multiple extension
cords.
Do not leave the printer plugged in during lightning storms.
Always unplug the power cord and cables when cleaning. Do not use flammable sprays or liquids
such as alcohol or thinners for cleaning.
Unplug the power cord once a month to check that it is not overheating, rusted, bent, scratched,
split, or otherwise damaged.
Caution
•
Do not put your hands inside the printer while printing.
•
Do not touch the print head or other metal parts immediately after printing.
•
Ink
Keep ink out of reach of children.
131
If ink is accidentally licked or swallowed, rinse out your mouth and drink one or two glasses of
water. If irritation or discomfort occurs, obtain medical advice immediately.
In case ink gets in contact with eyes, rinse with water immediately. In case ink gets in contact
with skin, wash with soap and water immediately. If irritation to eyes or skin persists, obtain
medical advice immediately.
• Moving the printer
Hold the printer by its sides and carry it with both hands.
General Notices
Choosing a Location
Refer to "Specifications" in the Online manual for details on operating environment.
• Do not install the printer in a location that is unstable or subject to excessive vibration.
• Do not install the printer in locations that get very hot (direct sunlight, or close to a heating source),
very humid or dusty locations, or outdoors.
132
• Do not place the printer on a thick rug or carpet.
• Do not place the printer flush against a wall.
Power Supply
• Keep the area around the power outlet clear at all times so you can easily unplug the power cord if
necessary.
• Never remove the plug by pulling on the cord.
General Notices
• Do not tilt the printer, stand it on end, or turn it upside down. This may cause ink to leak.
• Do not place anything on top of the printer. Be especially careful to avoid metal objects such as
paper clips and staples, and containers holding flammable liquids such as alcohol or thinner.
• Be sure to observe the following when loading the original on the platen. Failure to observe the
following may cause the scanner to malfunction or the platen glass to break.
◦ Do not place any objects weighing 4.4 lb (2.0 kg) or more on the platen glass.
◦ Do not put any pressure of 4.4 lb (2.0 kg) or more on the platen glass, such as pressing down
the original.
• Do not attempt to open, disassemble or modify the FINE cartridges. Ink may leak and damage your
printer.
• Do not throw FINE cartridges in the fire.
133
Regulatory Information
Users in the U.S.A.
FCC Notice (U.S.A. Only)
For 120V, 60Hz model
Model Number: K10633 (Contains FCC Approved WLAN Module K30400)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of a shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If
such changes or modifications should be made, you could be required to stop operation of the equipment.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and
meets the FCC radio frequency (RF) Exposure Guidelines as this equipment has very low levels of RF
energy. But it is desirable that it should be installed and operated keeping the radiator at least 20cm or
more away from person's body.
Canon U.S.A., Inc.
One Canon Park
Melville, New York 11747
1-800-652-2666
Users in Europe
Product Information for the requirement of COMMISSION REGULATION（EU）
134
The power consumption in Off Mode or network standby and the transition time to Off or network standby
are as follows:
https://www.canon-europe.com/consumer/lot26/
Interference
Do not use the printer around medical equipment or other electronic devices. Signals from the printer may
interfere with the correct operation of these devices.
135
WEEE
Only for the United Kingdom
This symbol indicates that this product is not to be disposed of with your household waste, according
to the UK Waste Electrical and Electronic Equipment Regulations. This product should be handed over
to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar
product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE).
Improper handling of this type of waste could have a possible negative impact on the environment and
human health due to potentially hazardous substances that are generally associated with EEE. At the
same time, your cooperation in the correct disposal of this product will contribute to the effective usage of
natural resources. For more information about where you can drop off your waste equipment for recycling,
please contact your local city office, waste authority, approved WEEE scheme or your household waste
disposal service. For more information regarding return and recycling of WEEE products, please visit
www.canon-europe.com/sustainability/approach/.
Only for European Union and EEA (Norway, Iceland and Liechtenstein)
This symbol indicates that this product is not to be disposed of with your household waste, according
to the WEEE Directive (2012/19/EU) and national legislation. This product should be handed over to a
designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product
or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper
handling of this type of waste could have a possible negative impact on the environment and human
health due to potentially hazardous substances that are generally associated with EEE. At the same
time, your cooperation in the correct disposal of this product will contribute to the effective usage of
natural resources. For more information about where you can drop off your waste equipment for recycling,
please contact your local city office, waste authority, approved WEEE scheme or your household waste
disposal service. For more information regarding return and recycling of WEEE products, please visit
www.canon-europe.com/weee.
Nur für Europäische Union und EWR (Norwegen, Island und
Liechtenstein)
Dieses Symbol weist darauf hin, dass dieses Produkt gemäß der EU-Richtlinie über Elektro- und
Elektronik-Altgeräte (2012/19/EU) und nationalen Gesetzen nicht über den Hausmüll entsorgt werden
136
darf. Dieses Produkt muss bei einer dafür vorgesehenen Sammelstelle abgegeben werden. Dies
kann z. B. durch Rückgabe beim Kauf eines ähnlichen Produkts oder durch Abgabe bei einer
autorisierten Sammelstelle für die Wiederaufbereitung von Elektro- und Elektronik-Altgeräten geschehen.
Der unsachgemäße Umgang mit Altgeräten kann aufgrund potentiell gefährlicher Stoffe, die generell
mit Elektro- und Elektronik-Altgeräten in Verbindung stehen, negative Auswirkungen auf die Umwelt
und die menschliche Gesundheit haben. Durch die umweltgerechte Entsorgung dieses Produkts tragen
Sie außerdem zu einer effektiven Nutzung natürlicher Ressourcen bei. Informationen zu Sammelstellen
für Altgeräte erhalten Sie bei Ihrer Stadtverwaltung, dem öffentlich-rechtlichen Entsorgungsträger, einer
autorisierten Stelle für die Entsorgung von Elektro- und Elektronik-Altgeräten oder Ihrem örtlichen
Entsorgungsunternehmen. Weitere Informationen zur Rückgabe und Entsorgung von Elektro- und
Elektronik-Altgeräten finden Sie unter www.canon-europe.com/weee.
Zusatzinformationen für Deutschland:
Dieses Produkt kann durch Rückgabe an den Händler, unter den in der Verordnung des Elektro- und
Elektronikgerätegesetzes beschriebenen Bedingungen abgegeben werden.
Als Endbenutzer und Besitzer von Elektro- oder Elektronikgeräten sind Sie verpflichtet:
• diese einer vom unsortierten Siedlungsabfall getrennten Erfassung zuzuführen,
• Altbatterien und Altakkumulatoren, die nicht von Altgerät umschlossen sind, sowie Lampen,
die zerstörungsfrei aus dem Altgerät entnommen werden können, vor der Abgabe an einer
Erfassungsstelle vom Altgerät zerstörungsfrei zu trennen,
• personenbezogene Daten auf den Altgeräten vor der Entsorgung zu löschen.
Die Bedeutung des Symbols der durchgestrichenen Abfalltonne auf Rädern finden Sie oben in dieser
Beschreibung.
Die Vertreiber von Elektro- oder Elektronikgeräten haben die Pflicht zur unentgeltlichen Rücknahme
von Altgeräten. Die Vertreiber haben die Endnutzer über die von ihnen geschaffenen Möglichkeiten der
Rückgabe von Altgeräten zu informieren.
Union Européenne, Norvège, Islande et Liechtenstein uniquement.
Ce symbole indique que ce produit ne doit pas être jeté avec les ordures ménagères, conformément
à la directive DEEE (2012/19/UE) et à la réglementation de votre pays. Ce produit doit être confié au
distributeur à chaque fois que vous achetez un produit neuf similaire, ou à un point de collecte mis
en place par les collectivités locales pour le recyclage des Déchets des Équipements Électriques et
Électroniques (DEEE). Le traitement inapproprié de ce type de déchet risque d'avoir des répercussions
sur l'environnement et la santé humaine, du fait de la présence de substances potentiellement
dangereuses généralement associées aux équipements électriques et électroniques. Parallèlement, votre
entière coopération dans le cadre de la mise au rebut correcte de ce produit favorisera une meilleure
utilisation des ressources naturelles. Pour plus d'informations sur les points de collecte des équipements
à recycler, contactez vos services municipaux, les autorités locales compétentes, le plan DEEE approuvé
ou le service d'enlèvement des ordures ménagères. Pour plus d'informations sur le retour et le recyclage
des produits DEEE, consultez le site: www.canon-europe.com/weee.
137
Uitsluitend bestemd voor de Europese Unie en EER (Noorwegen,
IJsland en Liechtenstein)
Dit symbool geeft aan dat dit product in overeenstemming met de AEEA-richtlijn (2012/19/EU) en
de nationale wetgeving niet mag worden afgevoerd met het huishoudelijk afval. Dit product moet
worden ingeleverd bij een aangewezen, geautoriseerd inzamelpunt, bijvoorbeeld wanneer u een nieuw
gelijksoortig product aanschaft, of bij een geautoriseerd inzamelpunt voor hergebruik van elektrische en
elektronische apparatuur (EEA). Een onjuiste afvoer van dit type afval kan leiden tot negatieve effecten
op het milieu en de volksgezondheid als gevolg van potentieel gevaarlijke stoffen die veel voorkomen
in elektrische en elektronische apparatuur (EEA). Bovendien werkt u door een juiste afvoer van dit
product mee aan het effectieve gebruik van natuurlijke hulpbronnen. Voor meer informatie over waar u
uw afgedankte apparatuur kunt inleveren voor recycling kunt u contact opnemen met het gemeentehuis in
uw woonplaats, de reinigingsdienst, of het afvalverwerkingsbedrijf. U kunt ook het schema voor de afvoer
van afgedankte elektrische en elektronische apparatuur (AEEA) raadplegen. Ga voor meer informatie
over het inzamelen en recyclen van afgedankte elektrische en elektronische apparatuur naar www.canon-
europe.com/weee.
Sólo para la Unión Europea y el Área Económica Europea (Noruega,
Islandia y Liechtenstein)
Este símbolo indica que este producto no debe desecharse con los desperdicios domésticos, de acuerdo
con la directiva RAEE (2012/19/UE) y con la legislación nacional. Este producto debe entregarse en uno
de los puntos de recogida designados, como por ejemplo, entregándolo en el lugar de venta al comprar
un producto similar o depositándolo en un lugar de recogida autorizado para el reciclado de residuos de
aparatos eléctricos y electrónicos (RAEE). La manipulación inapropiada de este tipo de desechos podría
tener un impacto negativo en el entorno y la salud humana, debido a las sustancias potencialmente
peligrosas que normalmente están asociadas con los RAEE. Al mismo tiempo, su cooperación a la hora
de desechar correctamente este producto contribuirá a la utilización eficazde los recursos naturales. Para
más información sobre cómo puede eliminar el equipo para su reciclado, póngase en contacto con las
autoridades locales, con las autoridades encargadas de los desechos, con un sistema de gestión RAEE
autorizado o con el servicio de recogida de basuras doméstico. Si desea más información acerca de la
devolución y reciclado de RAEE, visite la web www.canon-europe.com/weee.
Només per a la Unió Europea i a l’Espai Econòmic Europeu (Noruega,
Islàndia i Liechtenstein)
138
Aquest símbol indica que aquest producte no s’ha de llençar a les escombraries de la llar, d’acord
amb la Directiva RAEE (2012/19/UE) i la legislació nacional. Aquest producte s’hauria de lliurar en un
dels punts de recollida designats, com per exemple, intercanviant-lo un per un en comprar un producte
similar o lliurant-lo en un lloc de recollida autoritzat per al reciclatge de residus d’aparells elèctrics i
electrònics (AEE). La manipulació inadequada d’aquest tipus de residus podria tenir un impacte negatiu
en l’entorn i en la salut humana, a causa de les substàncies potencialment perilloses que normalment
estan associades als AEE. Així mateix, la vostra cooperació a l’hora de llençar correctament aquest
producte contribuirà a la utilització efectiva dels recursos naturals. Per a més informació sobre els punts
on podeu lliurar aquest producte per procedir al seu reciclatge, adreceu-vos a la vostra oficina municipal,
a les autoritats encarregades dels residus, al pla de residus homologat per la RAEE o al servei de
recollida de deixalles domèstiques de la vostra localitat. Per a més informació sobre la devolució i el
reciclatge de productes RAEE, visiteu www.canon-europe.com/weee.
Solo per Unione Europea e SEE (Norvegia, Islanda e Liechtenstein)
Questo simbolo indica che il prodotto deve essere oggetto di raccolta separata in conformità alla
Direttiva RAEE (2012/19/UE) e alla normativa locale vigente. Il prodotto deve essere smaltito presso
un centro di raccolta differenziata, un distributore autorizzato che applichi il principio dell'"uno contro
uno", ovvero del ritiro della vecchia apparecchiatura elettrica al momento dell'acquisto di una nuova, o
un impianto autorizzato al riciclaggio dei rifiuti di apparecchiature elettriche ed elettroniche. La gestione
impropria di questo tipo di rifiuti può avere un impatto negativo sull'ambiente e sulla salute umana
causato dalle sostanze potenzialmente pericolose che potrebbero essere contenute nelle apparecchiature
elettriche ed elettroniche. Un corretto smaltimento di tali prodotti contribuirà inoltre a un uso efficace
delle risorse naturali ed eviterà di incorrere nelle sanzioni amministrative di cui all'art. 255 e successivi
del Decreto Legislativo n. 152/06. Per ulteriori informazioni sullo smaltimento e il recupero dei Rifiuti
di Apparecchiature Elettriche ed Elettroniche, consultare la Direttiva RAEE, rivolgersi alle autorità
competenti, oppure visitare il sito www.canon-europe.com/weee.
Apenas para a União Europeia e AEE (Noruega, Islândia e
Liechtenstein)
Este símbolo indica que o produto não deve ser colocado no lixo doméstico, de acordo com a Directiva
REEE (2012/19/UE) e a legislação nacional. Este produto deverá ser colocado num ponto de recolha
designado, por exemplo, num local próprio autorizado quando adquirir um produto semelhante novo
ou num local de recolha autorizado para reciclar resíduos de equipamentos eléctricos e electrónicos
(EEE). O tratamento inadequado deste tipo de resíduo poderá causar um impacto negativo no ambiente
e na saúde humana devido às substâncias potencialmente perigosas normalmente associadas aos
equipamentos eléctricos e electrónicos. Simultaneamente, a sua cooperação no tratamento correcto
deste produto contribuirá para a utilização eficaz dos recursos naturais. Para mais informações sobre os
139
locais onde o equipamento poderá ser reciclado, contacte os serviços locais, a autoridade responsável
pelos resíduos, o esquema REEE aprovado ou o serviço de tratamento de lixo doméstico. Para mais
informações sobre a devolução e reciclagem de produtos REEE, vá a www.canon-europe.com/weee.
Gælder kun i Europæiske Union og EØS (Norge, Island og
Liechtenstein)
Dette symbol angiver, at det pågældende produkt ikke må bortskaffes sammen med dagrenovation
jf. direktivet om affald af elektrisk og elektronisk udstyr (WEEE) (2012/19/EU) og gældende national
lovgivning. Det pågældende produkt skal afleveres på et nærmere specificeret indsamlingssted, f.eks.
i overensstemmelse med en godkendt én-til-én-procedure, når du indkøber et nyt tilsvarende produkt,
eller produktet skal afleveres på et godkendt indsamlingssted for elektronikaffald. Forkert håndtering
af denne type affald kan medføre negative konsekvenser for miljøet og menneskers helbred på grund
af de potentielt sundhedsskadelige stoffer, der generelt kan forefindes i elektrisk og elektronisk udstyr.
Når du foretager korrekt bortskaffelse af det pågældende produkt, bidrager du til effektiv brug af
naturressourcerne. Yderligere oplysninger om, hvor du kan bortskaffe dit elektronikaffald med henblik
på genanvendelse, får du hos de kommunale renovationsmyndigheder. Yderligere oplysninger om
returnering og genanvendelse af affald af elektrisk og elektronisk udstyr får du ved at besøge www.canon-
europe.com/weee.
Μόνο για την Ευρωπαϊκή Ένωση και τον ΕΟΧ (Νορβηγία, Ισλανδία και
Λιχτενστάιν)
Αυτό το σύμβολο υποδηλώνει ότι αυτό το προϊόν δεν πρέπει να απορρίπτεται μαζί με τα οικιακά
απορρίμματα, σύμφωνα με την Οδηγία σχετικά με τα Απόβλητα Ηλεκτρικού και Ηλεκτρονικού Εξοπλισμού
(ΑΗΗΕ) (2012/19/ΕΕ) και την εθνική σας νομοθεσία. Αυτό το προϊόν πρέπει να παραδίδεται σε
καθορισμένο σημείο συλλογής, π.χ. σε μια εξουσιοδοτημένη βάση ανταλλαγής όταν αγοράζετε ένα
νέο παρόμοιο προϊόν ή σε μια εξουσιοδοτημένη θέση συλλογής για την ανακύκλωση των αποβλήτων
Ηλεκτρικού και Ηλεκτρονικού Εξοπλισμού (ΗΗΕ). Ο ακατάλληλος χειρισμός αυτού του τύπου αποβλήτων
μπορεί να έχει αρνητικό αντίκτυπο στο περιβάλλον και την υγεία του ανθρώπου, λόγω δυνητικώς
επικίνδυνων ουσιών που γενικά συνδέονται με τον ΗΗΕ. Ταυτόχρονα, η συνεργασία σας όσον αφορά
τη σωστή απόρριψη αυτού του προϊόντος θα συμβάλει στην αποτελεσματική χρήση των φυσικών πόρων.
Για περισσότερες πληροφορίες σχετικά με τα σημεία όπου μπορείτε να απορρίψετε τον εξοπλισμό σας
για ανακύκλωση, επικοινωνήστε με το τοπικό γραφείο της πόλης σας, την υπηρεσία απορριμμάτων,
το εγκεκριμένο σχήμα ΑΗΗΕ ή την υπηρεσία απόρριψης οικιακών αποβλήτων. Για περισσότερες
πληροφορίες σχετικά με την επιστροφή και την ανακύκλωση των προϊόντων ΑΗΗΕ, επισκεφθείτε την
τοποθεσία www.canon-europe.com/weee.
140
Gjelder kun den europeiske union og EØS (Norge, Island og
Liechtenstein)
Dette symbolet indikerer at dette produktet ikke skal kastes sammen med husholdningsavfall, i henhold
til WEEE-direktiv (2012/19/EU) og nasjonal lov. Produktet må leveres til et dertil egnet innsamlingspunkt,
det vil si på en autorisert en-til-en-basis når du kjøper et nytt lignende produkt, eller til et autorisert
innsamlingssted for resirkulering av avfall fra elektrisk og elektronisk utstyr (EE-utstyr). Feil håndtering
av denne typen avfall kan være miljø- og helseskadelig på grunn av potensielt skadelige stoffer som
ofte brukes i EE-utstyr. Samtidig bidrar din innsats for korrekt avhending av produktet til effektiv bruk av
naturressurser. Du kan få mer informasjon om hvor du kan avhende utrangert utstyr til resirkulering ved
å kontakte lokale myndigheter, et godkjent WEEE-program eller husholdningens renovasjonsselskap. Du
finner mer informasjon om retur og resirkulering av WEEE-produkter på www.canon-europe.com/weee.
Vain Euroopan unionin sekä ETA:n (Norja, Islanti ja Liechtenstein)
alueelle.
Tämä tunnus osoittaa, että sähkö- ja elektroniikkalaiteromua koskeva direktiivi (SER-direktiivi,
2012/19/EU) sekä kansallinen lainsäädäntö kieltävät tuotteen hävittämisen talousjätteen mukana.
Tuote on vietävä asianmukaiseen keräyspisteeseen, esimerkiksi kodinkoneliikkeeseen uutta vastaavaa
tuotetta ostettaessa tai viralliseen sähkö- ja elektroniikkalaiteromun keräyspisteeseen. Sähkö- ja
elektroniikkalaiteromun virheellinen käsittely voi vahingoittaa ympäristöä ja ihmisten terveyttä, koska
laitteet saattavat sisältää ympäristölle ja terveydelle haitallisia aineita. Lisäksi tuotteen asianmukainen
hävittäminen säästää luonnonvaroja. Lisätietoja sähkö- ja elektroniikkalaiteromun keräyspisteistä
saat kaupunkien ja kuntien tiedotuksesta, jätehuoltoviranomaisilta, sähkö- ja elektroniikkalaiteromun
kierrätysjärjestelmän ylläpitäjältä ja jätehuoltoyhtiöltä. Lisätietoja sähkö- ja elektroniikkalaiteromun
keräyksestä ja kierrätyksestä on osoitteessa www.canon-europe.com/weee.
Endast för Europeiska unionen och EES (Norge, Island och
Liechtenstein)
Den här symbolen visar att produkten enligt WEEE-direktivet (2012/19/EU) och nationell lagstiftning
inte får sorteras och slängas som hushållsavfall. Den här produkten ska lämnas in på en därför
avsedd insamlingsplats, t.ex. på en återvinningsstation auktoriserad att hantera elektrisk och elektronisk
utrustning (EE-utrustning) eller hos handlare som är auktoriserade att byta in varor då nya, motsvarande
köps (en mot en). Olämplig hantering av avfall av den här typen kan ha en negativ inverkan på miljön och
141
människors hälsa på grund av de potentiellt farliga ämnen som kan återfinnas i elektrisk och elektronisk
utrustning. Din medverkan till en korrekt avfallshantering av den här produkten bidrar dessutom till en
effektiv användning av naturresurserna. Kontakta ditt lokala kommunkontor, berörd myndighet, företag för
avfallshantering eller ta del av en godkänd WEEE-organisation om du vill ha mer information om var du
kan lämna den kasserade produkten för återvinning. För mer information om inlämning och återvinning av
WEEE-produkter, se www.canon-europe.com/weee.
Pouze Evropská unie a EHP (Norsko, Island a Lichtenštejnsko)
Tento symbol znamená, že podle směrnice o OEEZ (2012/19/EU) a podle vnitrostátních právních
předpisů nemá být tento výrobek likvidován s odpadem z domácností. Tento výrobek má být vrácen
do sběrného místa, např. v rámci autorizovaného systému odběru jednoho výrobku za jeden nově
prodaný podobný výrobek nebo v autorizovaném sběrném místě pro recyklaci odpadních elektrických
a elektronických zařízení (OEEZ). Nevhodné nakládání s tímto druhem odpadu by mohlo mít negativní
dopad na životní prostředí a lidské zdraví, protože elektrická a elektronická zařízení zpravidla obsahují
potenciálně nebezpečné látky. Vaše spolupráce na správné likvidaci tohoto výrobku současně napomůže
efektivnímu využívání přírodních zdrojů. Další informace o místech sběru vašeho odpadního zařízení
k recyklaci vám sdělí místní úřad vaší obce, správní orgán vykonávající dozor nad likvidací odpadu,
sběrny OEEZ nebo služba pro odvoz komunálního odpadu. Další informace týkající se vracení a
recyklace OEEZ naleznete na adrese www.canon-europe.com/weee.
Csak az Európai Unió és az EGT (Norvégia, Izland és Liechtenstein)
országaiban
Ez a szimbólum azt jelzi, hogy a helyi törvények és a WEEE-irányelv (2012/19/EU) szerint a
termék nem kezelhető háztartási hulladékként. A terméket a kijelölt nyilvános gyűjtőpontokon kell
leadni, például hasonló cserekészülék vásárlásakor, illetve bármelyik, elektromos és elektronikai
berendezésekből származó hulladék (WEEE) átvételére feljogosított gyűjtőponton. Az ilyen jellegű
hulladékok a nem megfelelő kezelés esetén a bennük található veszélyes anyagok révén ártalmasak
lehetnek a környezetre és az emberek egészségére. Továbbá, a termékből származó hulladék
megfelelő kezelésével hozzájárulhat a természetes nyersanyagok hatékonyabb hasznosításához. A
berendezésekből származó, újrahasznosítható hulladékok elhelyezésére vonatkozó további tudnivalókért
forduljon a helyi önkormányzathoz, a közterület-fenntartó vállalathoz, a háztartási hulladék begyűjtését
végző vállalathoz, illetve a hivatalos WEEE-képviselethez. További tudnivalókat a WEEE-termékek
visszajuttatásáról és újrahasznosításáról a www.canon-europe.com/weee.
142
Tylko dla krajów Unii Europejskiej oraz EOG (Norwegia, Islandia i
Liechtenstein)
Ten symbol oznacza, że zgodnie z dyrektywą WEEE dotyczącą zużytego sprzętu elektrycznego i
elektronicznego (2012/19/UE) oraz przepisami lokalnymi nie należy wyrzucać tego produktu razem z
odpadami gospodarstwa domowego. Produkt należy przekazać do wyznaczonego punktu gromadzenia
odpadów, np. firmie, od której kupowany jest nowy, podobny produkt lub do autoryzowanego punktu
gromadzenia zużytego sprzętu elektrycznego i elektronicznego w celu poddania go recyklingowi.
Usuwanie tego typu odpadów w nieodpowiedni sposób może mieć negatywny wpływ na otoczenie i
zdrowie innych osób ze względu na niebezpieczne substancje stosowane w takim sprzęcie. Jednocześnie
pozbycie się zużytego sprzętu w zalecany sposób przyczynia się do właściwego wykorzystania zasobów
naturalnych. Aby uzyskać więcej informacji na temat punktów, do których można dostarczyć sprzęt
do recyklingu, prosimy skontaktować się z lokalnym urzędem miasta, zakładem utylizacji odpadów,
skorzystać z instrukcji zatwierdzonej dyrektywą WEEE lub skontaktować się z przedsiębiorstwem
zajmującym się wywozem odpadów domowych. Więcej informacji o zwracaniu i recyklingu zużytego
sprzętu elektrycznego i elektronicznego znajduje się w witrynie www.canon-europe.com/weee.
Platí len pre štáty Európskej únie a EHP (Nórsko, Island a
Lichtenštajnsko)
Tento symbol znamená, že podľa Smernice 2012/19/EÚ o odpade z elektrických a elektronických
zariadení (OEEZ) a podľa platnej legislatívy Slovenskej republiky sa tento produkt nesmie likvidovať
spolu s komunálnym odpadom. Produkt je potrebné odovzdať do určenej zberne, napr. prostredníctvom
výmeny za kúpu nového podobného produktu, alebo na autorizované zberné miesto, ktoré spracúva
odpad z elektrických a elektronických zariadení (EEZ). Nesprávna manipulácia s takýmto typom odpadu
môže mať negatívny vplyv na životné prostredie a ľudské zdravie, pretože elektrické a elektronické
zariadenia obsahujú potenciálne nebezpečné látky. Spoluprácou na správnej likvidácii produktu prispejete
k účinnému využívaniu prírodných zdrojov. Ďalšie informácie o mieste recyklácie opotrebovaných
zariadení získate od miestneho úradu, úradu životného prostredia, zo schváleného plánu OEEZ alebo od
spoločnosti, ktorá zaisťuje likvidáciu komunálneho odpadu. Viac informácií nájdete aj na webovej stránke:
www.canon-europe.com/weee.
Üksnes Euroopa Liit ja EMP (Norra, Island ja Liechtenstein)
See sümbol näitab, et antud toodet ei tohi vastavalt elektri- ja elektroonikaseadmete jäätmeid käsitlevale
direktiivile (2012/19/EL) ning teie riigis kehtivatele õigusaktidele utiliseerida koos olmejäätmetega. Antud
143
toode tuleb anda selleks määratud kogumispunkti, nt müügipunkt, mis on volitatud üks ühe vastu
vahetama, kui ostate uue sarnase toote, või elektri- ja elektroonikaseadmete jäätmete ümbertöötlemiseks
mõeldud kogumispunkti. Täiendava teabe saamiseks elektri- ja elektroonikaseadmetest tekkinud
jäätmete tagastamise ja ümbertöötlemise kohta võtke ühendust kohaliku omavalitsusega, asjakohase
valitsusasutusega, asjakohase tootjavastutusorganisatsiooniga või olmejäätmete käitlejaga. Lisateavet
leitate ka Interneti-leheküljelt www.canon-europe.com/weee.
Tikai Eiropas Savienībai un EEZ (Norvēģijai, Islandei un Lihtenšteinai)
Šis simbols norāda, ka atbilstoši ES Direktīvai (2012/19/ES) par elektrisko un elektronisko iekārtu
atkritumiem (EEIA) un vietējiem tiesību aktiem no šī izstrādājuma nedrīkst atbrīvoties, izmetot to kopā
ar sadzīves atkritumiem. Šis izstrādājums ir jānodod piemērotā savākšanas vietā, piemēram, apstiprinātā
veikalā, kur iegādājaties līdzīgu jaunu produktu un atstājat veco, vai apstiprinātā vietā izlietotu elektrisko
un elektronisko iekārtu pārstrādei. Nepareiza šāda veida atkritumu apsaimniekošana var apdraudēt vidi
un cilvēka veselību tādu iespējami bīstamu vielu dēļ, kas parasti ir elektriskajās un elektroniskajās
iekārtās. Turklāt jūsu atbalsts pareizā šāda veida atkritumu apsaimniekošanā sekmēs efektīvu dabas
resursu izmantošanu. Lai saņemtu pilnīgāku informāciju par vietām, kur izlietoto iekārtu var nodot
pārstrādei, sazinieties ar vietējo pašvaldību, atkritumu savākšanas atbildīgo dienestu, pilnvarotu EEIA
struktūru vai sadzīves atkritumu apsaimniekošanas iestādi. Lai saņemtu plašāku informāciju par elektrisko
un elektronisko iekārtu nodošanu pārstrādei, apmeklējiet tīmekļa vietni www.canon-europe.com/weee.
Tik Europos Sąjungai ir EEE (Norvegijai, Islandijai ir Lichtenšteinui)
Šis ženklas reiškia, kad gaminio negalima išmesti su buitinėmis atliekomis, kaip yra nustatyta Direktyvoje
(2012/19/ES) ir nacionaliniuose teisė aktuose dėl EEĮ atliekų tvarkymo. Šį gaminį reikia atiduoti į tam
skirtą surinkimo punktą, pvz., pagal patvirtintą keitimo sistemą, kai perkamas panašus gaminys, arba
į elektros ir elektroninės įrangos (EEĮ) atliekų perdirbimo punktą. Netinkamas tokios rūšies atliekų
tvarkymas dėl elektros ir elektroninėje įrangoje esančių pavojingų medžiagų gali pakenkti aplinkai
ir žmonių sveikatai. Padėdami užtikrinti tinkamą šio gaminio šalinimo tvarką, kartu prisidėsite prie
veiksmingo gamtos išteklių naudojimo. Jei reikia daugiau informacijos, kaip šalinti tokias atliekas, kad
jos būtų toliau perdirbamos, kreipkitės į savo miesto valdžios institucijas, atliekų tvarkymo organizacijas,
patvirtintų EEĮ atliekų sistemų arba jūsų buitinių atliekų tvarkymo įstaigų atstovus. Išsamesnės
informacijos apie EEĮ atliekų grąžinimo ir perdirbimo tvarką galite rasti apsilankę tinklalapyje www.canon-
europe.com/weee.
144
Samo za Evropsko unijo in EGP (Norveška, Islandija in Lihtenštajn)
Ta simbol pomeni, da tega izdelka v skladu z direktivo OEEO (2012/19/EU) in državno zakonodajo
ne smete odvreči v gospodinjske odpadke. Ta izdelek morate odložiti na ustrezno zbiralno mesto, na
primer pri pooblaščenem prodajalcu, ko kupite podoben nov izdelek ali na zbiralno mesto za recikliranje
električne in elektronske opreme. Neprimerno ravnanje s takšnimi odpadki lahko negativno vpliva na
okolje in človekovo zdravje zaradi nevarnih snovi, ki so povezane z električno in elektronsko opremo.
S pravilno odstranitvijo izdelka hkrati prispevate tudi k učinkoviti porabi naravnih virov. Če želite več
informacij o tem, kje lahko odložite odpadno opremo za recikliranje, pokličite občinski urad, komunalno
podjetje ali službo, ki skrbi za odstranjevanje odpadkov, ali si oglejte načrt OEEO. Če želite več informacij
o vračanju in recikliranju izdelkov v skladu z direktivo OEEO, obiščite www.canon-europe.com/weee.
Само за Европейския съюз и ЕИП (Норвегия, Исландия и
Лихтенщайн)
Този символ показва, че този продукт не трябва да се изхвърля заедно с битовите отпадъци,
съгласно Директивата за ИУЕЕО (2012/19/ЕC) и Вашето национално законодателство. Този
продукт трябва да бъде предаден в предназначен за целта пункт за събиране, например на база
размяна, когато купувате нов подобен продукт, или в одобрен събирателен пункт за рециклиране
на излязло от употреба електрическо и електронно оборудване (ИУЕЕО). Неправилното третиране
на този тип отпадъци може да доведе до евентуални отрицателни последствия за околната среда
и човешкото здраве поради потенциално опасните вещества, които обикновено са свързани с ЕЕО.
В същото време Вашето съдействие за правилното изхвърляне на този продукт ще допринесе за
ефективното използване на природните ресурси. Повече информация относно местата, където
може да предавате излязло от употреба оборудване за рециклиране, може да получите от
местните власти, от органа, отговорен за отпадъците и от одобрена система за излязло от
употреба ЕЕО или от Вашата местна служба за битови отпадъци. За повече информация относно
връщането и рециклирането на продукти от излязло от употреба ЕЕО посетете www.canon-
europe.com/weee.
Doar pentru Uniunea Europeană şi EEA (Norvegia, Islanda şi
Liechtenstein)
Acest simbol indică faptul că acest produs nu trebuie aruncat o dată cu reziduurile menajere, în
conformitate cu Directiva DEEE (Directiva privind deşeurile de echipamente electrice şi electronice)
(2012/19/UE) şi legile naţionale. Acest produs trebuie transportat la un punct de colectare special, de
145
exemplu un centru care preia produsele vechi atunci când achiziţionaţi un produs nou similar, sau la
un punct de colectare autorizat pentru reciclarea deşeurilor provenite de la echipamentele electrice şi
electronice (EEE). Mânuirea necorespunzătoare a acestor tipuri de deşeuri poate avea un impact negativ
asupra mediului înconjurător şi sănătăţii indivizilor, din cauza substanţelor potenţial nocive care sunt în
general asociate cu EEE. În acelaşi timp, cooperarea dvs. la reciclarea corectă a acestui produs va
contribui la utilizarea efectivă a resurselor naturale. Pentru mai multe informaţii privind locurile de reciclare
a deşeurilor provenite de la echipamente, contactaţi biroul primăriei locale, autoritatea responsabilă cu
colectarea deşeurilor, schema DEEE aprobată sau serviciul de colectare a deşeurilor menajere. Pentru
mai multe informaţii privind returnarea şi reciclarea produselor DEEE, vizitaţi www.canon-europe.com/
weee.
Samo za Europsku uniju i EEZ (Norveška, Island i Lihtenštajn)
Ovaj simbol pokazuje da se ovaj proizvod ne smije odlagati s kućnim otpadom sukladno WEEE Direktivi
(2012/19/EC) i vašem nacionalnom zakonu. Ovaj proizvod je potrebno predati na posebno mjesto za
sakupljanje otpada, npr. na ovlašteno mjesto gdje možete zamijeniti staro za novo ukoliko kupujete novi
sličan proizvod ili na ovlašteno mjesto za sakupljanje rabljene električne i elektroničke opreme (EEE) za
recikliranje. Nepropisno rukovanje ovom vrstom otpada može imati negativan učinak na okolinu i zdravlje
ljudi zbog supstanci koje su potencijalno opasne za zdravlje, a općenito se povezuju s EEE. Istovremeno,
vaša će suradnja kroz propisno odlaganje ovog proizvoda doprinijeti efektivnoj uporabi prirodnih resursa.
Za više informacija o tome gdje možete odložiti svoj otpad za recikliranje obratite se vašem lokalnom
gradskom uredu, komunalnoj službi, odobrenom WEEE programu ili službi za odlaganje kućnog otpada.
Ostale informacije o vraćanju i recikliranju WEEE proizvoda potražite na www.canon-europe.com/weee.
Korisnici u Srbiji
Ovaj simbol označava da ovaj proizvod ne sme da se odlaže sa ostalim kućnim otpadom, u skladu
sa WEEE Direktivom (2012/19/EU) i nacionalnim zakonima. Ovaj proizvod treba predati određenom
centru za prikupljanje, npr. na osnovi "jedan-za-jedan" kada kupujete sličan novi proizvod, ili ovlašćenom
centru za prikupljanje za reciklažu istrošene električne i elektronske opreme (EEE). Nepravilno rukovanje
ovom vrstom otpada može da ima moguće negativne posledice po životnu sredinu i ljudsko zdravlje
usled potencijalno opasnih materijala koji se uglavnom vezuju za EEE. U isto vreme, vaša saradnja
na ispravnom odlaganju ovog proizvoda će doprineti efikasnom korišćenju prirodnih resursa. Za više
informacija o tome gde možete da predate vašu staru opremu radi recikliranje, vas molimo, da
kontaktirate lokalne gradske vlasti, komunalne službe, odobreni plan reciklaže ili Gradsku čistoću. Za više
informacija o vraćanju i recikliranju WEEE proizvoda, posetite stranicu www.canon-europe.com/weee.
146
Legal Restrictions on Scanning/Copying
Scanning, printing, copying, or modifying copies of the following may be punishable under law.
This list is non-exhaustive. When in doubt, check with a local legal representative.
• Paper money•
• Money orders•
• Certificates of deposit•
• Postage stamps (canceled or uncanceled)•
• Identification badges or insignia•
• Selective service or draft papers•
• Checks or drafts issued by governmental agencies•
• Motor vehicle licenses and certificates of title•
• Traveler's checks•
• Food stamps•
• Passports•
• Immigration papers•
• Internal revenue stamps (canceled or uncanceled)•
• Bonds or other certificates of indebtedness•
• Stock certificates•
• Copyrighted works or works of art, without the owner's consent•
148
Transporting Your Printer
When relocating the printer for changing your living place, make sure of the following.
Important
• With the FINE cartridge left installed in the printer, press the ON button to turn off the power. This•
allows the printer to automatically cap the print head, thus preventing it from drying.
• When transporting the printer, pack the printer in a plastic bag so that ink does not leak.•
• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient•
protective material to ensure safe transport.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to•
keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".
• Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as•
the printer may be damaged and ink in the printer may leak.
Note
• When repairing, lending, transferring, or disposing of the printer, see the following page.•
When Repairing, Lending, or Disposing of the Printer
1.
Turn the printer off.
1.
2.
Check that ON lamp is off and unplug power cord.
2.
Important
•
Do not unplug the printer while the ON lamp is lit or flashing, as it may cause malfunction or
•
damage to the printer, making the printer unable to print.
3.
Retract output tray extension and paper output tray.
3.
4.
Open the scanning unit / cover.
4.
149
5.
Secure the carriage with tape in two positions to ensure that it does not move.
5.
6. Close the scanning unit / cover.6.
To close the scanning unit / cover, hold it up once, then take it down gently.
7.
Unplug the printer cable from the computer and from the printer, then unplug the power
7.
cord from the printer.
150
8. Use adhesive tape to secure all the covers on the printer to keep them from opening during8.
transportation. Then pack the printer in the plastic bag.
Close and seal the opening of the bag with an object such as tape so as not to leak ink.
9.
Attach the protective material to the printer when packing the printer in the box.
9.
Important
• Carry the printer without putting your hands on the cassette. If you hold the cassette when•
carrying, the cassette may come off from the printer.
151
When Repairing, Lending, or Disposing of the Printer
If you have entered personal data, passwords and/or other security settings on the printer, such information
may be stored in the printer.
To keep your personal information safe, please be sure to reset all printer settings when sending the printer
for repair, lending or transferring the printer to another person, or disposing of the printer.
Initializing Printer Settings
152
Keeping Print Quality High
The key to printing with the optimal printing quality is to prevent the print head from drying or clogging.
Always observe the following rules for optimal printing quality.
Note
• Depending on the type of paper, ink may blur if you trace the printed area with a highlight pen or•
paint-stick, or bleed if water or sweat comes in contact with the printed area.
Never unplug the power cord until the power is turned off!
If you press the ON button to turn off the power, the printer caps the print head (nozzles) automatically
to prevent from drying. If you unplug the power cord from the wall outlet before the power is turned off
completely, the print head will not be capped properly and this will cause drying or clogging.
Turning off the printer
Print periodically!
Just as the tip of a felt pen becomes dry and unusable if it has not been used for a long time, even if it is
capped, the print head too, may become dried or clogged if the printer has not been used for a long time.
We recommend you to use the printer at least once a month.
153
Ink Tips
How is ink used for various purposes other than printing?
Ink may be used for purposes other than printing. Ink is not only used for printing, but also for cleaning the
print head to maintain the optimal printing quality.
The printer has the function to automatically clean the ink jet nozzles to prevent clogging. In the cleaning
procedure, certain amount of ink is consumed for cleaning nozzle.
Also, when the ink cartridge is installed or re-installed, the printer consumes certain amount of ink. Canon
recommends you to avoid unnecessary removal and reinstallation of the ink cartridge until and unless ink
empty is notified.
Important
• The used ink is ejected into the maintenance cartridge. When the maintenance cartridge becomes•
full, replacement is necessary. If a message is displayed indicating that the maintenance cartridge is
nearly full, replace the maintenance cartridge as soon as possible.
When Error Occurred
Does black-and-white printing use color ink?
Black-and-white printing may use ink other than black ink depending on the type of printing paper or the
settings of the printer driver. So, color ink is consumed even when printing in black-and-white.
154
Product Specifications
General Specifications
Interface USB port:
Hi-Speed USB *
Network port:
Wi-Fi: IEEE802.11n / IEEE802.11g / IEEE802.11b / IEEE802.11a
* A computer that complies with Hi-Speed USB standard is required. Since the
Hi-Speed USB interface is fully upwardly compatible with USB 1.1, it can be
used at USB 1.1.
USB and the network can be used at the same time.
Operating environment Temperature: 41 to 95 °F (5 to 35 °C)
Humidity: 10 to 90 % RH (no condensation)
* The performance of the printer may be reduced under certain temperature
and humidity conditions.
Recommended conditions:
Temperature: 59 to 86 °F (15 to 30 °C)
Humidity: 10 to 80 % RH (no condensation)
* For the temperature and humidity conditions of papers such as photo paper,
refer to the paper's packaging or the supplied instructions.
Storage environment Temperature: 32 to 104 °F (0 to 40 °C)
Humidity: 5 to 95 % RH (no condensation)
Power supply AC 100-240 V, 50/60 Hz
(The supplied power cord is only for the country or region you purchased.)
Power consumption Printing (Copy): Approx. 15 W *1
Standby (minimum): Approx. 0.9 W *1*2
Standby (all ports connected): Approx. 1.5 W
OFF: Approx. 0.1 W
*1 USB connection to a PC
*2 The wait time for standby cannot be changed.
External dimensions (W x D x H) Approx. 14.8 x 14 x 6.7 in. (Approx. 374 x 355 x 168 mm)
* With the Cassette and trays retracted.
Weight Approx. 11.4 lb (Approx. 5.2 kg)
* With the FINE Cartridges installed.
156
Scan Specifications
Scanner driver Windows: TWAIN 1.9 Specification, WIA
Maximum scanning size A4/Letter, 8.5" x 11.7"/216 x 297 mm
Optical resolution (horizontal x
vertical)
1200 x 2400 dpi *
* Optical Resolution represents the maximum sampling rate based on ISO
14473.
Gradation (Output) Gray: 8 bit
Color: RGB each 8 bit
Network Specifications
Communication protocol SNMP, HTTP, TCP/IP (IPv4/IPv6)
Wi-Fi Supported Standards: IEEE802.11n / IEEE802.11g / IEEE802.11b /
IEEE802.11a
Frequency bandwidth: 2.4 GHz / 5 GHz
Channels:
2.4 GHz: 1-11 or 1-13
5 GHz: W52, W53, W56, W58
* Wireless Direct cannot be used in the 5GHz band.
* Frequency bandwidth and available channels differ depending on country or
region.
Communication distance: Indoors 164 feet/50 m
* Effective range varies depending on the installation environment and location.
Security:
WPA-PSK (AES)
WPA2-PSK (AES)
WPA3-SAE (AES)
Setup:
WPS (Push button configuration/PIN code method)
Easy wireless connect
Minimum System Requirements
Conform to the operating system's requirements when higher than those given here.
Windows
Operating System Windows 11, Windows 10, Windows 8.1, Windows 7 SP1
157
Note: Operation can only be guaranteed on a PC with pre-installed operating
system.
.NET Framework is required.
Amount of hard disk space re-
quired for installing the driver
1.5 GB or more
The necessary amount of hard disk space may be changed without notice.
macOS
Operating System macOS Monterey 12 - macOS Sequoia 15
Other Supported OS
iOS/iPadOS, Android, Chrome OS
Some functions may not be available with the supported OS.
Refer to the Canon web site for details.
Information in this manual is subject to change without notice.
158
Supported Paper Sizes and Weights
Page Sizes
You can use the following page sizes.
Note
• Page sizes and media types the printer supports differ depending on the OS you are using.•
Standard sizes:
• Letter•
• A5•
• A4•
• B5•
• KG/4"x6"(10x15)•
• 5"x7"(13x18cm)•
• 7"x10"(18x25cm)•
• 8"x10"(20x25cm)•
• L(89x127mm)•
• 2L(127x178mm)•
• Square 5"•
• Hagaki•
• Hagaki 2•
• Envelope Com 10•
• Envelope DL•
• Nagagata 3•
• Nagagata 4•
•
Yougata 4
•
•
Yougata 6
•
Special sizes
•
Minimum size: 3.50 x 5.00 in. (89.0 x 127.0 mm)
•
•
Maximum size: 8.50 x 11.69 in. (215.9 x 297.0 mm)
•
Paper Weight
You can use paper in the following weight range.
• Plain paper (including recycled paper): From 17 to 28 lb (64 to 105 g /m
2
)•
159
Paper Load Limit
This section shows the paper load limits of the cassette and the paper output tray.
Paper Load Limits of Cassette
Paper Load Limit of Paper Output Tray
Note
• Page sizes and media types differ depending on the country or region where the paper is sold. For•
details on page sizes and media types, access the Canon website.
Paper Load Limits of Cassette
Genuine Canon Paper
Paper for printing documents:
Media Name <Model No.> Cassette
Canon Red Label Superior <WOP111> Approx. 100 sheets
Canon Océ Office Colour Paper <SAT213> Approx. 100 sheets
High Resolution Paper <HR-101N>*1 Approx. 80 sheets
Paper for printing photos:
Media Name <Model No.> Cassette
Glossy Photo Paper "Everyday Use" <GP-501/
GP-508>*2
Photo Paper Glossy <GP-701>*2
Photo Paper Plus Glossy II <PP-201/PP-208/PP-301>*2
Photo Paper Pro Luster <LU-101>*2
Photo Paper Plus Semi-gloss <SG-201>*2
Matte Photo Paper <MP-101>
A4, Letter, 5"x7"(13x18cm), 8"x10"(20x25cm),
2L(127x178mm): 10 sheets
KG/4"x6"(10x15), L(89x127mm), Hagaki: 20 sheets
Paper for making original goods:
Media Name <Model No.> Cassette
Photo Stickers (16 stickers per sheet) <PS-108>
Photo Stickers (Free Cutting) <PS-208>
Photo Stickers (Variety Pack) <PS-808>
Restickable Photo Paper <RP-101>
Removable Photo Stickers <PS-308R>
1 sheet
160
Paper other than Genuine Canon Paper
Common Name Cassette
Plain Paper (including recycled paper)*1 Approx. 100 sheets
Envelopes 10 envelopes
Japanese Paper
Greeting Card
1 sheet
*1 Normal feeding at maximum capacity may not be possible with some types of paper, or under very high
or low temperature or humidity. In this case, load half the amount of paper or less.
*2 Feeding from a loaded stack of paper may leave marks on the printed side or prevent efficient feeding.
In this case, load one sheet at a time.
Paper Load Limit of Paper Output Tray
Genuine Canon Paper
Paper for printing documents:
Media Name <Model No.> Paper Output Tray
Canon Red Label Superior <WOP111>
Canon Océ Office Colour Paper <SAT213>
Approx. 50 sheets
High Resolution Paper <HR-101N> Approx. 50 sheets
Paper other than Genuine Canon Paper
Common Name Paper Output Tray
Plain Paper (including recycled paper) Approx. 50 sheets (Legal: 10 sheets)
When continuing printing with paper other than the above, we recommend removing already printed paper
from the paper output tray to avoid smearing or discoloration.
161
Supported Media Types
For best results, choose paper designed for how you are printing. A variety of paper for documents as well
as photos or illustrations is available from Canon. Use genuine Canon paper to print important photos, when
possible.
Supported Paper Sizes and Weights
Unsupported Media Types
Note
• Refer to Handling Paper before use.•
• Page sizes and media types differ depending on the country or region where the paper is sold. For•
details on page sizes and media types, access the Canon website.
• Genuine Canon paper is not available in some countries or regions. Note that in the United States,•
Canon paper is not sold by model number. Instead, purchase paper by name.
Recommended Genuine Canon Paper According to Purpose
Paper for printing documents:
• Canon Red Label Superior <WOP111>•
• Canon Océ Office Colour Paper <SAT213>•
• High Resolution Paper <HR-101N>•
Paper for printing photos:
• Glossy Photo Paper "Everyday Use" <GP-501/GP-508>•
• Photo Paper Glossy <GP-701>•
• Photo Paper Plus Glossy II <PP-201/PP-208/PP-301>•
• Photo Paper Pro Luster <LU-101>•
• Photo Paper Plus Semi-gloss <SG-201>•
• Matte Photo Paper <MP-101>•
Paper for making original goods:
•
Photo Stickers (16 stickers per sheet) <PS-108>
•
•
Photo Stickers (Free Cutting) <PS-208>
•
•
Photo Stickers (Variety Pack) <PS-808>
•
•
Restickable Photo Paper <RP-101>
•
•
Removable Photo Stickers <PS-308R>
•
Usable Media Types Other Than Genuine Canon paper
• Plain Paper (including recycled paper)•
• Envelopes•
162
Unsupported Media Types
Do not use the following types of paper. Using such paper will cause not only unsatisfactory results, but also
the printer to jam or malfunction.
• Folded, curled, or wrinkled paper•
• Damp paper•
• Paper with unstraightened edges like manualy cut paper•
• Picture postcards•
• Postcards affixed with photos or stickers•
• Envelopes with a double flap•
• Envelopes with an embossed or treated surface•
• Envelopes whose gummed flaps are already moistened and adhesive•
• Any type of paper with holes•
• Paper that is not rectangular•
• Paper bound with staples or glue•
• Paper with an adhesive surface on the back such as label seal•
• Paper decorated with glitter, etc.•
164
Handling Paper
• For warnings on use of the non-printable side, see each product's usage information.•
• Be careful not to rub or scratch the surfaces of any types of paper when handling.•
• Hold the paper as closely as possible to its edges and try not to touch the printing surface. The print•
quality may be degraded if the printing surface is smudged with sweat or oil that comes from your
hands.
• Do not touch the printed surface until the ink is dried. Even when the ink is dried, be careful not to•
touch the printed surface as much as possible when handling. Due to the nature of the pigment ink,
the ink on the printed surface may be removed when being rubbed or scratched.
• Take out only the necessary number of paper from the package, just before printing.•
• To avoid curling, when you do not print, put unused paper back into the package and keep it on a•
level surface. And also, store it avoiding heat, humidity, and direct sunlight.
165
Printing from Application Software (Windows Printer Driver)
Basic Printing Setup Basic
Main Controls (Basic Settings Tab)
Set Media Type, Quality, etc. (Media/Quality Tab)
Set the Layout of Printed Documents (Page Setup Tab)
Perform maintenance or settings (Maintenance tab)
Overview of the Printer Driver
Updating the Driver
169
Basic Printing Setup
In the Basic Settings tab, you can print in various ways according to your purpose.
1. Check that printer is turned on1.
2.
Open printer driver's setup screen
2.
3.
Select Profile (A)
3.
Select the print settings according to your purpose in Profiles on the Basic Settings tab.
If you select a print setting, Paper Size and Media Type will change automatically.
Note
•
When the paper size to be printed is selected from Printer Paper Size, the zoom level is
automatically set according to the selected paper size.
To select a zoom level of your choice, add a checkmark to Zoom and enter a number.
4.
Select Media Type (B) according to requirements
4.
5.
Set Paper
5.
6.
Click OK
6.
170
Basic Settings Tab Description
The Basic Settings tab is for registering commonly used print settings. When you select a registered
setting, the printer automatically switches to the preset items.
• Profiles
• Settings Preview
• Preview before printing
• Always print with current settings
• Page Size
• Printer Paper Size
• Media Type
• Quality
• Copies
• Collate
• Orientation
• Grayscale Printing
• Borderless Printing
• Page Layout
• Zoom
• 1-sided/2-sided/Booklet Printing
• Binding Location
Profiles
The names and icons of frequently used printing profiles are registered. When you select a printing
profile according to the purpose of the document, settings that match the purpose are applied.
173
You can also change a printing profile and register it under a new name. You can delete the registered
printing profile.
Standard
These are the factory settings.
If Page Size, Orientation, and Copies were set from the application software, those settings have
priority.
Photo Printing
If you select this setting when printing a photo, the photo paper and photo size generally used are
set. The Borderless Printing check box is checked automatically.
If Orientation and Copies were set from the application software, those settings have priority.
Paper Saving
Select this setting to save paper when printing a general document. Page Layout is set to 2 on 1,
and 1-sided/2-sided/Booklet Printing is set to 2-sided Printing.
If Page Size, Orientation, and Copies were set from the application software, those settings have
priority.
Envelope
If you select this setting for printing an envelope, Media Type is set automatically to Envelope. In
the Envelope Size Setting dialog box, select the size of the envelope to be used.
Greeting Card
When selected for printing a greeting card, the Media Type is automatically set to Inkjet Greeting
Card. The Quality is also set to High, and a check-mark is added to Borderless Printing.
Note
• You cannot change the order of print settings.
Add...
Displays the Add to Profiles dialog box.
Click this button when you want to save the information that you set on the Basic Settings, Media/
Quality, and Page Setup tabs to Profiles.
Delete
Deletes a registered printing profile.
Select the name of the setting to be deleted from Profiles, and click Delete. When a confirmation
message is displayed, click OK to delete the specified printing profile.
Note
• Printing profiles that are registered in the initial settings cannot be deleted.
Settings Preview
The paper illustration shows how the original will be laid out on a sheet of paper.
You can check an overall image of the layout.
Preview before printing
Shows what the print result will look like before you actually print the data.
Check this check box to display a preview before printing.
Uncheck this check box if you do not want to display a preview.
174
Always print with current settings
Prints documents with the current settings starting from the next print execution.
When you select this function and then close the printer driver setup window, the information that you
set on the Basic Settings, Media/Quality, and Page Setup tabs are saved and printing with the same
settings is possible starting from the next print execution.
Important
• If you log on with a different user name, the settings that were set when this function was enabled
are not reflected in the print settings.
• If a setting was specified on the application software, it has priority.
Page Size
Selects a page size.
Ensure that you select the same page size as you selected within the application.
If you select Custom..., the Custom Paper Size dialog box opens and allows you to specify any
vertical and horizontal dimensions for the paper size.
Printer Paper Size
Selects the size of paper actually loaded into the printer.
Normally, it will appear as Same as Page Size, and the document is printed with no scaling.
If you select a paper size that is smaller than the Page Size, the document size will be reduced. If you
select a paper size that is larger, the document size will be enlarged.
Also if you select Custom..., the Custom Paper Size dialog box opens and allows you to specify any
vertical and horizontal dimensions for the paper size.
Media Type
Selects a type of printing paper.
Select a media type that matches the paper that is loaded in the printer. This ensures that printing is
carried out properly for the specified paper.
Quality
Selects your desired printing quality.
Select one of the following to set the print quality level that is appropriate for the purpose.
High
Gives priority to print quality over printing speed.
Standard
Prints with average speed and quality.
Draft
This setting is appropriate for test printing.
Copies
Specifies the number of copies you want to print. You can specify a value from 1 to 999.
Important
• When the application software that you used to create the document has the same function, specify
the settings on the printer driver. However, if the print results are not acceptable, specify the
function settings on the application software.
175
Collate
Check this check box to group together the pages of each copy when you want to print multiple copies.
Uncheck this check box when you want to print with all pages of the same page number grouped
together.
Important
• When the application software that you used to create the document has the same function,
give priority to the printer driver settings. However, if the print results are not acceptable, specify
the function settings on the application software. When you specify the number of copies and
the printing order with both the application and this printer driver, the number of copies may be
multiplied numbers of the two settings or the specified printing order may not be enabled.
Orientation
Selects the printing orientation.
If the application used to create your document has a similar function, select the same orientation that
you selected in that application.
Portrait
Prints the document so that its top and bottom positions are unchanged relative to the paper feed
direction. This is the default setting.
Landscape
Prints the document by rotating it 90 degrees relative to the paper feed direction.
You can change the rotation direction by going to the Maintenance tab, opening the Custom
Settings dialog box, and then using Rotate 90 degrees left when orientation is [Landscape]
check box.
To rotate the document 90 degrees to the left when printing, select the Rotate 90 degrees left
when orientation is [Landscape] check box.
Grayscale Printing
This function converts the data to monochrome data when printing your document.
Borderless Printing
Performs borderless printing without any margins on the paper.
With the borderless printing function, the document to be printed is enlarged, so that it extends slightly
off the paper. In other words, the document is printed without any margin.
To adjust the amount that the document extends beyond the paper, click the Page Setup tab, add a
checkmark to Borderless Printing, and enter the value in Amount of Extension.
Page Layout
Selects the size of the document you want to print and the type of printing.
1 on 1 to 16 on 1
Multiple pages of document can be printed on one sheet of paper.
To change the page order, click Preferences.... In the Page Layout Printing dialog box that
appears, specify Page Order.
Poster (1 x 2) to Poster (4 x 4)
This function enables you to enlarge the image data and divide the enlarged data into several
pages to be printed. You can also glue together these sheets of paper to create large printed
matter, such as a poster.
176
Preferences...
Opens the Poster Printing dialog box.
Click this button to set details on poster printing.
Zoom
Specifies an enlargement or reduction ratio for the document you want to print.
1-sided/2-sided/Booklet Printing
1-sided Printing
Select when performing single-sided printing.
2-sided Printing
Select when performing duplex printing.
Manual 2-sided Printing
Selects whether duplex printing is to be performed automatically or manually.
To perform duplex printing manually, check this check box.
Booklet Printing
The booklet printing function allows you to print data for a booklet. Data is printed on both sides of
the paper. This type of printing ensures that pages can be collated properly, in page number order,
when the printed sheets are folded and stapled at the center.
Manual 2-sided Printing
Selects whether duplex printing is to be performed automatically or manually.
To perform duplex printing manually, check this check box.
Preferences...
Opens the Booklet Printing dialog box.
Click this button to set details on booklet printing.
Binding Location
Selects the stapling margin position. The printer analyzes the Orientation and Page Layout settings,
and automatically selects the best stapling margin position. Check Binding Location, and select from
the list to change it.
To specify the width of the binding margin, set it from the Page Setup tab.
Printer Media Information...
Displays Printer Media Information dialog box.
You can check the printer settings and apply the checked settings to the printer driver.
Defaults
Restores all the settings you have changed to their default values.
Click this button to return all settings on the Basic Settings, Media/Quality, and Page Setup tabs to
their default values (factory settings).
Add to Profiles dialog box
This dialog box allows you to save the information that you set on the Basic Settings, Media/Quality,
and Page Setup tabs and add the information to the Profiles list on the Basic Settings tab.
Name
Enter the name for the printing profile you wish to save.
Up to 255 characters can be entered.
The name appears, with its associated icon, in the Profiles list on the Basic Settings tab.
177
Options...
Opens the Add to Profiles dialog box.
Changes the details of printing profile to be saved.
Add to Profiles dialog box
Select the icons of the printing profiles to be registered to Profiles, and change the items to be saved in
the printing profiles.
Icon
Select the icon for the printing profile you wish to save.
The selected icon appears, with its name, in the Profiles list on the Basic Settings tab.
Save the paper size setting
Saves the paper size to the printing profile in Profiles.
To apply the saved paper size when the printing profile is selected, check this check box.
If this check box is unchecked, the paper size is not saved, and consequently the paper size setting
is not applied when the printing profile is selected. Instead the printer prints with the paper size
specified with the application software.
Save the orientation setting
Saves the Orientation to the printing profile in Profiles.
To apply the saved print orientation when the printing profile is selected, check this check box.
If this check box is unchecked, the print orientation is not saved, and consequently the Orientation
setting is not applied when the printing profile is selected. Instead the printer prints with the print
orientation specified with the application software.
Save the copies setting
Saves the Copies setting to the printing profile in Profiles.
To apply the saved copies setting when the printing profile is selected, check this check box.
If this check box is unchecked, the copies setting is not saved, and consequently the Copies
setting is not applied when the printing profile is selected. Instead the printer prints with the copies
setting specified with the application software.
Custom Paper Size dialog box
This dialog box allows you to specify the size (width and height) of the custom paper.
Units
Select the unit for entering a user-defined paper size.
Paper Size
Specifies the Width and the Height of the custom paper. Measurement is shown according to the
units specified in Units.
Page Layout Printing dialog box
This dialog box allows you to select the number of document pages to be placed on one sheet of paper,
the page order, and whether a page border line is to be printed around each document page. The settings
specified in this dialog box can be confirmed in the settings preview on the printer driver.
178
Page Order
Specifies the document orientation to be printed on a sheet of paper.
Page Border
Prints a page border line around each document page. Check this check box to print the page border
line.
Exclude single page documents from Page Layout Printing
If you add a checkmark, single-page documents are printed on a single sheet without performing
Page Layout Printing.
Poster Printing dialog box
This dialog box allows you to select the size of the image to be printed. You can also make settings for cut
lines and paste markers which are convenient for pasting together the pages into a poster.
The settings specified in this dialog box can be confirmed in the settings preview on the printer driver.
Print "Cut/Paste" in margins
Specifies whether to print the words "Cut" and "Paste" in the margins. These words serve as
guidelines for pasting together the pages into a poster. Check this check box to print the words.
Note
• Depending on the environment of the printer driver you are using, this function may not be
available.
Print "Cut/Paste" lines in margins
Specifies whether to print cut lines that serve as guidelines for pasting together the pages into a
poster. Check this check box to print the cut lines.
Print page range
Specifies the printing range. Select All under normal circumstances.
Select Pages to specify a specific page or range.
Note
• If some of the pages have not been printed well, specify the pages that do not need to be printed
by clicking them in the settings preview of the Page Setup tab. Only the pages shown on the
screen will be printed this time.
Booklet Printing dialog box
This dialog box allows you to set how to bind the document as a booklet. Printing only on one side and
printing a page border, can also be set in this dialog box.
The settings specified in this dialog box can be confirmed in the settings preview on the printer driver.
Preview Icon
Shows the settings made on the Booklet Printing dialog box.
You can check what the document will look like when printed as a booklet.
Margin for stapling
Specifies which side of the booklet is to be stapled.
179
Insert blank page
Selects whether to print the document on one side or both sides of the booklet.
Check this check box to print the document on one side of the booklet and select the side to be left
blank from the list.
Margin
Specifies the width of the stapling margin.
The specified width becomes the stapling margin from the center of the sheet.
Page Border
Prints a page border line around each document page.
Check this check box to print the page border line.
Printer Media Information dialog box
This dialog box allows you to check the printer settings and apply the checked settings to the printer
driver.
Paper Source
The paper source of the media is being displayed.
Media Type
Displays the Media Type that is currently set on the printer.
To apply the displayed setting to the printer driver, click Set.
Printer Paper Size
Displays the Printer Paper Size that is currently set on the printer.
To apply the displayed setting to the printer driver, click Set.
180
Paper Settings on the Printer Driver
When you use this printer, selecting a media type that matches the print purpose will help you achieve the
best print results.
Depending on the media type you are using, specify the media type settings on the printer driver as
described below.
Canon genuine papers (Document Printing)
Media name <Model No.> Media Type in the printer driver
Canon Red Label Superior <WOP111> Plain Paper
Canon Océ Office Colour Paper <SAT213> Plain Paper
High Resolution Paper <HR-101N> High Resolution Paper
Canon genuine papers (Photo Printing)
Media name <Model No.> Media Type in the printer driver
Photo Paper Plus Glossy II <PP-201/PP-208/PP-301> Photo Paper Plus Glossy II
Photo Paper Pro Luster <LU-101> Photo Paper Pro Luster
Photo Paper Plus Semi-gloss <SG-201> Photo Paper Plus Semi-gloss
Glossy Photo Paper "Everyday Use" <GP-501/GP-508> Glossy Photo Paper
Photo Paper Glossy <GP-701> Glossy Photo Paper
Matte Photo Paper <MP-101> Matte Photo Paper
Restickable Photo Paper <RP-101> Glossy Photo Paper
Removable Photo Stickers <PS-308R> Glossy Photo Paper
Commercially available papers
Media name Media Type in the printer driver
Plain Paper (including recycled paper) Plain Paper
Envelopes Envelope
Washi Washi
Other High Quality Photo Paper Other High Quality Photo Paper
Greeting Cards Inkjet Greeting Card
181
Note
• For information on Washi that can be used with the printer, see "Print Using Washi."
182
Printing on Postcards
1. Load postcard on the printer1.
2.
Open the printer driver setup window
2.
3. Select commonly used settings3.
Display the Basic Settings tab, and for Profiles, select Standard.
4.
Select the paper size
4.
For Printer Paper Size, select Hagaki 100x148mm or Hagaki 2 200x148mm.
Important
•
Return postcards can be used only when you print them from the computer.
•
When printing a return postcard, always set the paper size to Hagaki 2 200x148mm from your
application software or the printer driver.
• Do not fold the return postcard. If a crease is formed, the printer will not be able to feed the
postcard properly, and this condition will cause line shifts or a paper jam.
• With return postcards, borderless printing cannot be used.
5. Select the media type5.
Select the Hagaki you want to use from Hagaki in Media Type.
Important
• This printer cannot print on postcards that have photos or stickers attached.
• You will get cleaner printing if you print the address side first and then print the message side.
• The paper settings on the printer driver are different, depending on whether you are printing on
the address side or the message side.
6.
Set the print orientation
6.
To print the address horizontally, set Orientation to Landscape.
7.
Select the print quality
7.
For Quality, select the quality according to your purpose.
8.
Click OK
8.
When you perform printing, the data will be printed onto the postcard.
183
Setting Up Envelope Printing
1. Load envelope on the printer1.
2.
Open the printer driver setup window
2.
3. Select the media type3.
Select Envelope from Profiles on the Basic Settings tab.
4.
Select the paper size
4.
When the Envelope Size Setting dialog box is displayed, select the envelope size you want to use, and
then click OK.
5.
Set the orientation
5.
To print the addressee horizontally, select Landscape for Orientation.
Note
• If Envelope Com 10, Envelope DL, Yougata 4 4.13"x9.25", or Yougata 6 3.86"x7.48" is
selected for Printer Paper Size, the printer rotates the paper 90 degrees to the left to print,
regardless of the Rotate 90 degrees left when orientation is [Landscape] setting for Custom
Settings in the
Maintenance tab.
6. Select the print quality6.
For Quality, select the quality according to your purpose.
7. Click OK7.
When you perform print, the information is printed on the envelope.
Important
• When you perform envelope printing, guide messages are displayed.
To hide the guide messages, check the Do not show this message again check box.
To show the guide again, click the View Printer Status button on the Maintenance tab, and start the
Canon IJ Status Monitor.
Then click Envelope Printing from Display Guide Message of the Option menu to enable the setting.
184
Registering a Frequently Used Printing Profile
You can register the frequently used printing profile to Profiles on the Basic Settings tab. Unnecessary
printing profiles can be deleted at any time.
Registering a Printing Profile
1.
Open the printer driver setup window
1.
2.
Set the necessary items
2.
From Profiles on the Basic Settings tab, select the printing profile to be used and if necessary,
change each of the settings.
You can also register necessary items on the Media/Quality and Page Setup tabs.
3.
Click Add...
3.
The Add to Profiles dialog box opens.
185
4. Save the settings4.
Enter a name for the print settings to register in the Name field. If necessary, click Options..., set the
items, and then click OK.
In the Add to Profiles dialog box, click OK to save the print settings and return to the Basic Settings
tab.
The name and icon are displayed in Profiles.
Important
• To save the page size, orientation, and number of copies that was set in each sheet, click Options...,
and check each item.
Note
• When you re-install the printer driver or upgrade the printer driver version, the print settings that are
already registered will be deleted from Profiles.
Registered print settings cannot be saved and preserved. If a profile is deleted, register the print
settings again.
Deleting Unnecessary Printing Profile
1. Select the printing profile to be deleted1.
Select the printing profile you want to delete from the Profiles list on the Basic Settings tab.
2.
Delete the printing profile
2.
Click Delete. When the confirmation message appears, click OK.
The selected printing profile is deleted from the Profiles list.
Note
• Printing profiles that are registered in the initial settings cannot be deleted.
186
Media/Quality Tab Description
The Media/Quality tab allows you to create a basic print setup in accordance with the media type. You can
also adjust the print quality and color tones.
• Settings Preview
• Media Type
• Paper Source
• Quality
• Color/Intensity
• Grayscale Printing
• Preview before printing
Settings Preview
The paper illustration shows how the original will be laid out on a sheet of paper.
You can check an overall image of the layout.
Media Type
Selects a type of printing paper.
Select a media type that matches the paper that is loaded in the printer. This ensures that printing is
carried out properly for the specified paper.
Paper Source
Shows the source from which paper is supplied.
Cassette
Paper is always supplied from the cassette.
188
Quality
Selects your desired printing quality.
Select one of the following to set the print quality level that is appropriate for the purpose.
Important
• Depending on the Media Type settings, the same print results may be produced even if the
Quality is changed.
High
Gives priority to print quality over printing speed.
Standard
Prints with average speed and quality.
Draft
This setting is appropriate for test printing.
Color/Intensity
Selects color adjustment method.
Auto
Cyan, Magenta, Yellow, Brightness, Contrast, and so on are adjusted automatically.
Manual
Select when you set the individual settings such as Cyan, Magenta, Yellow, Brightness,
Contrast, etc. and Color Correction method.
Set...
Select Manual for Color/Intensity to enable this button.
In the Manual Color Adjustment dialog box, you can adjust individual color settings such as
Cyan, Magenta, Yellow, Brightness, and Contrast on the Color Adjustment tab, and select the
Color Correction method on the Matching tab.
Note
• If you want to use an ICC profile to adjust colors, use the Manual Color Adjustment dialog
box to set the profile.
Grayscale Printing
This function converts the data to monochrome data when printing your document.
Check this check box to print a color document in monochrome.
Preview before printing
Shows what the print result will look like before you actually print the data.
Check this check box to display a preview before printing.
Defaults
Restores all the settings you have changed to their default values.
Clicking this button restores all the settings on the current screen to their default values (factory
settings).
Color Adjustment Tab
This tab allows you to adjust the color balance by changing the settings of the Cyan, Magenta, Yellow,
Brightness, and Contrast options.
189
Preview
Shows the effect of color adjustment.
The color and brightness change when each item is adjusted.
Note
• The graphic is in monochrome when the Grayscale Printing check box is checked.
View Color Pattern
Displays a pattern for checking color changes produced by color adjustment.
If you want to display the preview image with a color pattern, check this check box.
Cyan / Magenta / Yellow
Adjusts the strengths of Cyan, Magenta, and Yellow.
Moving the slider to the right makes a color stronger, and moving the slider to the left makes a color
weaker.
You can also directly enter a value linked to the slider. Enter a value in the range from -50 to 50.
This adjustment changes the relative amount of ink of each color used, which alters the total
color balance of the document. Use your application if you want to change the total color balance
significantly. Use the printer driver only if you want to adjust the color balance slightly.
Brightness
Adjusts the brightness of your print. You cannot change the levels of pure white and black. However,
the brightness of the colors between white and black can be changed. Moving the slider to the right
brightens (dilutes) the colors, and moving the slider to the left darkens (intensifies) the colors. You
can also directly enter brightness values that are linked to the slider bar. Enter a value in the range
from -50 to 50.
Contrast
Adjusts the contrast between light and dark in the image to be printed.
Moving the slider to the right increases the contrast, moving the slider to the left decreases the
contrast.
You can also directly enter a value linked to the slider. Enter a value in the range from -50 to 50.
Matching Tab
Allows you to select the method for adjusting colors to match the type of document to be printed.
Color Correction
Allows you to select Driver Matching, ICM, or None to match the purpose of the print operation.
Driver Matching
With Canon Digital Photo Color, you can print sRGB data with color tints that most people prefer.
ICM
Adjusts the colors by using an ICC profile when printing.
Important
•
If the application software is set so that ICM is disabled, ICM is unavailable for Color
Correction and the printer may not be able to print the image data properly.
190
None
Disables color adjustment with the printer driver. Select this value when you are specifying an
individually created printing ICC profile in an application software to print data.
191
Page Setup Tab Description
The Page Setup tab allows you to determine how a document is to be arranged on the paper. Also, this
tab allows you to set the number of copies and the order of printing. If the application which created the
document has a similar function, set them with the application.
• Settings Preview
• Page Size
• Printer Paper Size
• Copies
• Print from Last Page
• Collate
• Orientation
• Rotate 180 degrees
• Borderless Printing
• Page Layout
• Zoom
• 1-sided/2-sided/Booklet Printing
• Binding Location
• Specify Margin
• Print Options
• Stamp
Settings Preview
The paper illustration shows how the original will be laid out on a sheet of paper.
You can check an overall image of the layout.
193
Page Size
Selects a page size.
Ensure that you select the same page size as you selected within the application.
If you select Custom..., the Custom Paper Size dialog box opens and allows you to specify any
vertical and horizontal dimensions for the paper size.
Printer Paper Size
Selects the size of paper actually loaded into the printer.
The default setting is Same as Page Size to perform normal-sized printing.
If you select a paper size that is smaller than the Page Size, the document size will be reduced. If you
select a paper size that is larger, the document size will be enlarged.
Also if you select Custom..., the Custom Paper Size dialog box opens and allows you to specify any
vertical and horizontal dimensions for the paper size.
Copies
Specifies the number of copies you want to print. You can specify a value from 1 to 999.
Important
• If the application used to create your document has a similar function, specify the number of copies
with the application without specifying it here.
Print from Last Page
Check this check box when you want to print from the last page in order. If you do this, you do not need
to sort the pages into their correct order after printing.
Uncheck this check box to print your document in normal order, starting from the first page.
Collate
Check this check box to group together the pages of each copy when you want to print multiple copies.
Uncheck this check box when you want to print with all pages of the same page number grouped
together.
Important
• When the application software that you used to create the document has the same function,
give priority to the printer driver settings. However, if the print results are not acceptable, specify
the function settings on the application software. When you specify the number of copies and
the printing order with both the application and this printer driver, the number of copies may be
multiplied numbers of the two settings or the specified printing order may not be enabled.
Orientation
Selects the printing orientation.
If the application used to create your document has a similar function, select the same orientation that
you selected in that application.
Portrait
Prints the document so that its top and bottom positions are unchanged relative to the paper feed
direction. This is the default setting.
Landscape
Prints the document by rotating it 90 degrees relative to the paper feed direction.
You can change the rotation direction by going to the Maintenance tab, opening the Custom
Settings dialog box, and then using Rotate 90 degrees left when orientation is [Landscape]
check box.
194
To rotate the document 90 degrees to the left when printing, select the Rotate 90 degrees left
when orientation is [Landscape] check box.
Rotate 180 degrees
Prints the document by rotating it 180 degrees against the paper feed direction.
The width of print area and the amount of extension that are configured in other application software will
be reversed vertically and horizontally.
Borderless Printing
Chooses whether you are printing on a full page without any page margins or printing with page
margins.
In borderless printing, originals are enlarged to extend slightly off the paper. Thus, printing can be
performed without any margins (border).
Use Amount of Extension to adjust how much of the document extends off the paper during
borderless printing.
Amount of Extension
Adjusts how much of the document extends off the paper during borderless printing.
Moving the slider to the right increases the amount of extension and allows you to perform
borderless printing with no problems.
Moving the slider to the left reduces the amount of extension and expands the range of the
document to print.
Page Layout
Selects the size of the document you want to print and the type of printing.
1 on 1 to 16 on 1
Multiple pages of document can be printed on one sheet of paper. To change the page order, click
Preferences.... In the Page Layout Printing dialog box that appears, specify Page Order.
Poster (1 x 2) to Poster (4 x 4)
This function enables you to enlarge the image data and divide the enlarged data into several
pages to be printed.
You can also glue together these sheets of paper to create large printed matter, such as a poster.
Preferences...
Opens the Poster Printing dialog box.
Click this button to set details on poster printing.
Zoom
Specifies an enlargement or reduction ratio for the document you want to print.
1-sided/2-sided/Booklet Printing
1-sided Printing
Select when performing single-sided printing.
2-sided Printing
Select when performing duplex printing.
Manual 2-sided Printing
Selects whether duplex printing is to be performed automatically or manually.
To perform duplex printing manually, check this check box.
195
Booklet Printing
The booklet printing function allows you to print data for a booklet. Data is printed on both sides of
the paper. This type of printing ensures that pages can be collated properly, in page number order,
when the printed sheets are folded and stapled at the center.
Manual 2-sided Printing
Selects whether duplex printing is to be performed automatically or manually.
To perform duplex printing manually, check this check box.
Preferences...
Opens the Booklet Printing dialog box. Click this button to set details on booklet printing.
Binding Location
Selects the stapling margin position.
The printer analyzes the Orientation and Page Layout settings, and automatically selects the best
stapling margin position. Check Binding Location, and select from the list to change it.
Specify Margin...
Opens the Specify Margin dialog box. You can specify the width of the margin.
Print Options...
Opens the Print Options dialog box.
Changes detailed printer driver settings for print data that is sent from applications.
Stamp...
Opens the Stamp dialog box.
The Stamp function allows you to print a stamp text or a bitmap over or behind document data. It also
allows you to print date, time and user name.
Note
• Depending on the environment, Stamp may not be available.
Defaults
Restores all the settings you have changed to their default values.
Clicking this button restores all the settings on the current screen to their default values (factory
settings).
Custom Paper Size dialog box
This dialog box allows you to specify the size (width and height) of the custom paper.
Units
Select the unit for entering a user-defined paper size.
Paper Size
Specifies the Width and the Height of the custom paper. Measurement is shown according to the
units specified in Units.
Page Layout Printing dialog box
This dialog box allows you to select the number of document pages to be placed on one sheet of paper,
the page order, and whether a page border line is to be printed around each document page.
The settings specified in this dialog box can be confirmed in the settings preview on the printer driver.
196
Page Order
Specifies the document orientation to be printed on a sheet of paper.
Page Border
Prints a page border line around each document page.
Check this check box to print the page border line.
Exclude single page documents from Page Layout Printing
If you add a checkmark, single-page documents are printed on a single sheet without performing
Page Layout Printing.
Poster Printing dialog box
This dialog box allows you to select the size of the image to be printed. You can also make settings for cut
lines and paste markers which are convenient for pasting together the pages into a poster.
The settings specified in this dialog box can be confirmed in the settings preview on the printer driver.
Print "Cut/Paste" in margins
Specifies whether to print the words "Cut" and "Paste" in the margins. These words serve as
guidelines for pasting together the pages into a poster.
Check this check box to print the words.
Note
• Depending on the environment of the printer driver you are using, this function may not be
available.
Print "Cut/Paste" lines in margins
Specifies whether to print cut lines that serve as guidelines for pasting together the pages into a
poster.
Check this check box to print the cut lines.
Print page range
Specifies the printing range. Select All under normal circumstances.
Select Pages to specify a specific page or range.
Note
• If some of the pages have not been printed well, specify the pages that do not need to be printed
by clicking them in the settings preview of the Page Setup tab. Only the pages shown on the
screen will be printed this time.
Booklet Printing dialog box
This dialog box allows you to set how to bind the document as a booklet. Printing only on one side and
printing a page border, can also be set in this dialog box.
The settings specified in this dialog box can be confirmed in the settings preview on the printer driver.
Preview Icon
Shows the settings made on the Booklet Printing dialog box.
You can check what the document will look like when printed as a booklet.
197
Margin for stapling
Specifies which side of the booklet is to be stapled.
Insert blank page
Selects whether to print the document on one side or both sides of the booklet.
Check this check box to print the document on one side of the booklet and select the side to be left
blank from the list.
Margin
Specifies the width of the stapling margin.
The specified width becomes the stapling margin from the center of the sheet.
Page Border
Prints a page border line around each document page.
Check this check box to print the page border line.
Specify Margin dialog box
This dialog box allows you to specify the margin width for the side to be stapled. If a document does not fit
on one page, the document is reduced when printed.
Margin
Specifies the width of the stapling margin.
The width of the side specified by Binding Location becomes the stapling margin.
Print Options dialog box
Makes changes to print data that is sent to the printer.
Disable ICM required from the application software
Disables the ICM function required from the application software.
When an application software uses Windows ICM to print data, unexpected colors may be produced
or the printing speed may decrease. If these problems occur, checking this check box may resolve
the problems.
Important
• Uncheck this check box under normal circumstances.
• This function does not work when ICM is selected for Color Correction on the Matching tab of
the Manual Color Adjustment dialog box.
Disable the color profile setting of the application software
Checking this check box disables information in the color profile that was set on the application
software.
When the information in the color profile set on the application software is output to the printer driver,
the print result may contain unexpected colors. If this happens, checking this check box may resolve
the problem.
Important
• Uncheck this check box under normal circumstances.
• Even when this check box is checked, only some of the information in the color profile is
disabled, and the color profile can still be used for printing.
198
Ungroup Papers
Sets the display method of Media Type, Page Size, and Printer Paper Size.
To display the items separately, select the check box.
To display the items as a group, clear the check box.
Do not allow application software to compress print data
Compression of the application software print data is prohibited.
If the print result has missing image data or unintended colors, selecting this check box may improve
the condition.
Important
• Uncheck this check box under normal circumstances.
Print after creating print data by page
The print data is created in page units, and printing starts after the processing of one page of print
data is complete.
If a printed document contains unintended results such as streaks, selecting this check box may
improve the results.
Important
• Uncheck this check box under normal circumstances.
Print barcodes and 2D barcodes clearly
If you add a checkmark, it might solve readability issues with barcodes or 2D barcodes (QR codes).
Important
• Print speed might become slower.
• The desired effectiveness might not be achieved.
Prevention of Print Data Loss
You can reduce the size of the print data that was created with the application software and then print
the data.
Depending on the application software being used, the image data may be cut off or may not be
printed properly. In such cases, select On. If you will not be using this function, select Off.
Important
• When using this function, the print quality may drop depending on the print data.
Unit of Print Data Processing
Selects the processing unit of the print data to be sent to the printer.
Select Recommended under normal circumstances.
Important
• A large amount of memory may be used for certain settings.
Do not change the setting if your computer has a small amount of memory.
Print With
Specify the FINE cartridge to be used from the installed FINE cartridges.
Select from All Colors (Default), Color Only, Black Only.
Important
• When the following settings are specified, Black Only does not function because the printer
uses the color FINE cartridge to print documents.
199
Other than Plain Paper, Envelope, Ink Jet Hagaki (A), Hagaki K (A), Hagaki (A), or
Hagaki is selected for Media Type on the Media/Quality tab
A checkmark is added to Borderless Printing on the Page Setup tab
• Do not detach the FINE cartridge that is not in use. Printing cannot be performed while either
FINE cartridge is detached.
Print charts and diagrams in documents more vividly (plain paper)
If you select Use Printer Settings, printing is performed according to the printer's settings.
You can configure your printer settings using "Remote UI."
Note
• Depending on the environment, this function may not be available.
Stamp dialog box
The Stamp dialog box allows you to print a stamp over or behind the document pages. In addition to the
pre-registered ones, you can register and use your original stamp.
Stamp
Stamp printing is a function that prints a stamp over a document.
Check this check box and select a title from the list to print a stamp.
Define Stamp...
Opens the Stamp Settings dialog box.
You can check the details of a selected stamp or save a new stamp.
Place stamp over text
Sets how the stamp is to be printed over the document.
Check the Stamp check box to enable this.
Check this check box to print a stamp over the printed document page. The printed data may be
hidden behind the stamp.
Uncheck this check box to print the document data over the stamp. The printed data will not be
hidden behind the stamp. However, the sections of the stamp that are overlapped by the document
may be hidden.
Stamp first page only
Selects whether the stamp is to be printed on the first page only or on all pages when the document
has two or more pages.
Check the Stamp check box to enable this.
Check this check box to print a stamp on the first page only.
Stamp Tab
The Stamp tab allows you to set the text and bitmap file (.bmp) to be used for a stamp.
Preview Window
Shows the status of the stamp configured in each tab.
Stamp Type
Specifies the stamp type.
Select Text to create a stamp with characters. Select Bitmap to create with a bitmap file. Select
200
Date/Time/User Name to display the creation date/time and user name of the printed document.
The setting items in the Stamp tab change depending on the selected type.
• For Text registration, the characters must already be entered in Stamp Text. If necessary,
change the TrueType Font, Style, Size, and Outline settings. You can select the color of the
stamp by clicking Select Color....
• For Bitmap, click Select File... and select the bitmap file (.bmp) to be used. If necessary,
change the settings of the Size and Transparent white area.
• For Date/Time/User Name, the creation date/time and user name of the printed object are
displayed in Stamp Text. If necessary, change the settings of TrueType Font, Style, Size,
and Outline. You can select the color of the stamp by clicking Select Color....
When selecting Text or Date/Time/User Name under Stamp Type, the following options will be
displayed.
Stamp Text
Specifies the stamp text string.
Up to 64 characters can be entered.
For Date/Time/User Name, the creation date/time and user name of the printed object are
displayed in Stamp Text.
TrueType Font
Selects the font for the stamp text string.
Style
Selects the font style for the stamp text string.
Size
Selects the font size for the stamp text string.
Outline
Selects a frame that encloses the stamp text string.
If a large font size is selected for Size, characters may extend outside of the stamp
border.
Color/Select Color...
Shows the current color for the stamp.
To select a different color, click Select Color... to open the Color dialog box, and select or
create a color you wish to use as a stamp.
When selecting Bitmap under Stamp Type, the following options will be displayed.
File
Specifies the name of the bitmap file to be used as the stamp.
Select File...
Opens the dialog box to open a file.
Click this button to select a bitmap file to be used as a stamp.
Size
Adjusts the size of the bitmap file to be used as a stamp.
Moving the slider to the right increases the size, moving the slider to the left decreases the
size.
Transparent white area
Specifies whether to make white-filled areas of the bitmap transparent.
Check this check box to make white-filled areas of the bitmap transparent.
201
Note
• Click Defaults to set Stamp Type to text, Stamp Text to blank, TrueType Font to Arial, Style to
Regular, Size to 36 points, Outline unchecked, and Color to gray with the RGB values (192, 192,
192).
Placement Tab
The Placement tab allows you to set the position where the stamp is to be printed.
Preview Window
Shows the status of the stamp configured in each tab.
Position
Specifies the stamp position on the page.
Selecting Custom from the list allows you to enter values for the X-Position and Y-Position
coordinates directly.
You can also change the stamp position by dragging the stamp in the preview window.
Rotation
Specifies the angle of rotation for the stamp. The angle can be set by entering the number of
degrees.
Negative values rotate the stamp clockwise.
Note
• Rotation is enabled only when Text or Date/Time/User Name is selected for Stamp Type on
the Stamp tab.
Note
• Click Defaults to set the stamp position to Center and the rotation to "0."
Save settings Tab
The Save settings tab allows you to register a new stamp or delete an unnecessary stamp.
Title
Enter the title to save the stamp you created.
Up to 64 characters can be entered.
Note
• Spaces, tabs, and returns cannot be entered at the beginning or end of a title.
Stamps
Shows a list of saved stamp titles.
Specify a title to display the corresponding stamp in Title.
Save/Save overwrite
Saves the stamp.
Enter a title in Title, and then click this button.
Delete
Deletes an unnecessary stamp.
Specify the title of an unnecessary stamp from the Stamps list, and click this button.
202
Note
• Depending on the environment, Stamp may not be available.
203
Setting the Number of Copies and Printing Order
You can also set the number of copies on the Basic Settings tab.
1. Open the printer driver setup window1.
2.
Specify the number of copies to be printed
2.
For Copies on the Page Setup tab, specify the number of copies to be printed.
3.
Specify the print order
3.
Check the Print from Last Page check box when you want to print from the last page in order, and
uncheck the check box when you want to print from the first page.
Check the Collate check box when you are printing multiple copies of a document and want to print out
all pages in each copy together. Uncheck this check box when you want to print all pages with the same
page number together.
•
Print from Last Page: /Collate:
• Print from Last Page: /Collate:
• Print from Last Page: /Collate:
•
Print from Last Page: /Collate:
4.
Click OK
4.
When you perform print, the specified number of copies will be printed with the specified printing order.
204
Important
• When the application software that you used to create the document has the same function, specify
the settings on the printer driver. However, if the print results are not acceptable, specify the function
settings on the application software. When you specify the number of copies and the printing order with
both the application software and this printer driver, the number of copies may be multiplied numbers of
the two settings or the specified printing order may not be enabled.
Note
• By setting both Print from Last Page and Collate, you can perform printing so that papers are collated
one by one starting from the last page.
205
Perform Borderless Printing
The borderless printing function allows you to print data without any margin by enlarging the data so
that it extends slightly off the paper. In standard printing, margins are created around the document area.
However, in borderless printing function, these margins are not created. When you want to print data such
as a photo without providing any margin around it, set borderless printing.
You can also set borderless printing on the Basic Settings Tab.
Setting Borderless Printing
1.
Open the printer driver setup window
1.
2. Set borderless printing2.
Add a checkmark to Borderless Printing on the Page Setup tab.
Click OK when the confirmation message appears.
When a message prompting you to change the media type appears, select a media type from the list
and click OK.
3. Check the paper size3.
Check the Page Size list. When you want to change it, select another page size from the list. The list
displays only sizes that can be used for borderless printing.
4.
Adjust the amount of extension from the paper
4.
If necessary, adjust the amount of extension using the Amount of Extension slider.
Moving the slider to the right increases the amount extending off the paper, and moving the slider to
the left decreases the amount.
It is recommended to set the slider at the second position from the right for most cases.
Important
•
When the Amount of Extension slider is set to the rightmost position, the back side of the
paper may become smudged.
206
5. Click OK5.
When you perform print, the data is printed without any margins on the paper.
Important
• When a page size that cannot be used for borderless printing is selected, the size is automatically
changed to the valid page sizes for borderless printing.
• Depending on the type of the media used during borderless printing, the print quality may deteriorate
at the top and bottom of the sheet or stains may form.
• When the ratio of the height to the width differs from the image data, a portion of the image may not
be printed depending on the size of the media used.
In this case, crop the image data with an application software according to the paper size.
Note
• When Plain Paper is selected for Media Type on the Media/Quality tab, borderless printing is not
recommended. Therefore, the message for media selection appears.
When you are using plain paper for test printing, select Plain Paper, and click OK.
Expanding the Range of the Document to Print
Setting a large amount of extension allows you to perform borderless printing with no problems. However,
the portion of the document extending off the paper range will not be printed and for this reason, the
subjects around the perimeter of a photo may not be printed.
When you are not satisfied with the result of borderless printing, reduce the amount of extension. The
extension amount decreases as the Amount of Extension slider is moved to the left.
Important
• When the amount of extension is decreased, an unexpected margin may be produced on the print,
depending on the size of the paper.
Note
• When the Amount of Extension slider is set to the leftmost position, image data will be printed in the
full size. If you set this when printing the address side of a postcard, the postal code of the sender is
printed in the correct position.
• When Preview before printing is checked on the Media/Quality tab, you can confirm whether there
will be no margin before printing.
207
Page Layout Printing
The page layout printing function allows you to print more than one page image on a single sheet of paper.
1.
Open the printer driver setup window
1.
2.
Set page layout printing
2.
Select a page layout number from 1 on 1 to 16 on 1 from the Page Layout list on the Page Setup tab.
The current settings are displayed in the settings preview on the left side of the printer driver.
3. Select the print paper size3.
Select the size of the paper loaded in the printer from the Printer Paper Size list.
4.
Set the number of pages to be printed on one sheet and the page order
4.
If necessary, click Preferences..., specify the following settings in the Page Layout Printing dialog box,
and click OK.
Page Order
To change the page arrangement order, select a placement method from the list.
Page Border
To print a page border around each document page, check this check box.
Exclude single page documents from Page Layout Printing
If you add a checkmark, single-page documents are printed on a single sheet without performing
Page Layout Printing.
5.
Complete the setup
5.
Click OK on the Page Setup tab.
When you perform print, the specified number of pages will be arranged on each sheet of paper in the
specified order.
208
Duplex Printing
You can also set duplex printing in the Basic Settings tab.
Performing Automatic Duplex Printing
You can perform the duplex printing without having to turn over the paper.
1.
Open the printer driver setup window
1.
2. Set automatic duplex printing2.
Select 2-sided Printing for 1-sided/2-sided/Booklet Printing on the Page Setup tab.
3. Select the layout3.
Select the layout you want to use from the Page Layout list.
4. Specify the side to be stapled4.
The best Binding Location is selected automatically from the Orientation and Page Layout settings.
To change the setting, select another stapling side from the Binding Location list.
5.
Set the margin width
5.
If necessary, click Specify Margin... and set the margin width, and then click OK.
6. Complete the setup6.
Click OK on the Page Setup tab.
When you perform print, duplex printing will be started.
Performing Duplex Printing Manually
You can perform the duplex printing manually.
1.
Open the printer driver setup window
1.
2.
Set duplex printing
2.
Select 2-sided Printing from 1-sided/2-sided/Booklet Printing on the Page Setup tab. Check the
Manual 2-sided Printing check box.
209
3. Select the layout3.
Select the layout you want to use from the Page Layout list.
4. Specify the side to be stapled4.
The best Binding Location is selected automatically from the Orientation and Page Layout settings.
To change the setting, select another stapling side from the Binding Location list.
5.
Set the margin width
5.
If necessary, click Specify Margin... and set the margin width, and then click OK.
6.
Complete the setup
6.
Click OK on the Page Setup tab.
When you perform print, the document is first printed on one side of a sheet of paper. After one side is
printed, reload the paper correctly according to the message.
Press the OK button on the printer to print the opposite side.
Important
• Automatic duplex printing can be performed only when one of the following paper sizes is selected from
Page Size on the Page Setup tab.
Letter 8.5"x11" 22x28cm, A4
• After printing the front page, there is an ink drying wait time before starting to print the back page
(Operation stops temporarily). Do not touch the paper during this time. You can change the ink drying
wait time at Other Settings in the Canon IJ Printer Assistant Tool.
Note
• If the back side of the paper becomes smudged during duplex printing, perform Bottom Plate Cleaning
in the Canon IJ Printer Assistant Tool.
• Unless head position adjustment is performed after an ink cartridge is loaded or replaced, the
intended print results may not be obtained during automatic duplex printing. If the print results are
not satisfactory, refer to "Adjusting Print Head Position" and adjust the head position.
Related Topic
Cleaning Inside the Printer
210
Maintenance Tab Description
The Maintenance tab allows you to start the Canon IJ Printer Assistant Tool or check the status of the
printer.
Maintenance and Preferences
Canon IJ Printer Assistant Tool is started.
You can perform printer maintenance or change the settings of the printer.
Custom Settings
Opens the Custom Settings dialog box.
Perform this function to change the settings of this printer.
Note
• If the printer is off or if communication between the printer and the computer is disabled, an error
message may appear because the computer cannot collect the printer status.
If this happens, click OK to display the most recent settings specified on your computer.
Open Remote UI
Menu for performing printer maintenance and changing settings.
View Printer Status
Starts the Canon IJ Status Monitor.
Perform this function when you want to check the printer status and how a print job is proceeding.
211
About
Opens the About dialog box.
The version of the printer driver, plus a copyright notice, can be checked.
In addition, the language to be used can be switched.
Custom Settings dialog box
When you click Custom Settings, the Custom Settings dialog box is displayed.
If necessary, switch between various modes of printer operation.
Rotate 90 degrees left when orientation is [Landscape]
On the Page Setup tab, you can change the rotation direction of the Landscape in the Orientation.
To rotate the print data 90 degrees to the left during printing, check this check box.
Important
• Do not change this setting while the print job is displayed in the print wait list. Otherwise,
characters may be omitted or the layout may become corrupt.
Note
• If Envelope Com 10, Envelope DL, Yougata 4 4.13"x9.25", or Yougata 6 3.86"x7.48" is
selected for Page Size on the Page Setup tab, the printer rotates the paper 90 degrees to the
left to print, regardless of the Rotate 90 degrees left when orientation is [Landscape] setting.
Do not detect mismatched paper settings when printing from a computer
When you print documents from your computer, the paper settings in the printer driver and the paper
information registered on the printer do not match, this setting disables the message display and
allows you to continue printing.
To enable detection of paper setting mismatches, uncheck this check box.
About dialog box
When you click About, the About dialog box is displayed.
This dialog box displays the version, copyright, and module list of the printer driver. You can select the
language to be used and switch the language displayed in the setup window.
Modules
Lists the printer driver modules.
Language
Specifies the language you wish to use in the
printer driver setup window.
Important
• If the font for displaying the language of your choice is not installed in your system, the
characters will be garbled.
Settings for Data Sending
If you click Settings for Data Sending, the Settings for Data Sending dialog box will be displayed.
If it includes data you do not agree to sending, uncheck this check box.
212
Note
• Some printer functions can be set only from the Maintenance tab of Printer properties.
213
Canon IJ Printer Driver
The Canon IJ printer driver (simply called printer driver below) is software that you install onto your computer
so that it can communicate with the printer.
The printer driver converts the print data created by your application software into data that your printer can
understand, and sends the converted data to the printer.
Because different models support different print data formats, you need a printer driver for the specific
model you are using.
Installing the Printer Driver
To install the printer driver, install the driver from the Setup CD-ROM or our website.
Specifying the Printer Driver
To specify the printer driver, open the Print dialog box of the application software you are using, and
select "Canon XXX" (where "XXX" is your model name).
Displaying the Manual from the Printer Driver
To display the description of a setup tab from the printer driver's setup screen, click Help on that tab.
Related Topic
Opening Printer Driver's Setup Screen
215
Opening Printer Driver's Setup Screen
You can display the printer driver's setup screen from your application software or by clicking the printer
icon.
Displaying the Printer Driver's Setup Screen from Your Application
Software
Perform this procedure to set up the print settings during printing.
1.
Select print command from application software
1.
In general, select Print on the File menu to open the Print dialog box.
2.
Select your printer model, and click Preferences (or Properties)
2.
The printer driver's setup screen appears.
Note
• Depending on the application software you are using, the command and menu names, and the
number of steps may vary. For details, refer to the operating instructions of your application software.
Displaying the Printer Driver's Setup Screen by Clicking the Printer Icon
From the setup screen you can perform printer maintenance operations such as print head cleaning, or
set print settings to be shared by all application software.
The following instructions are shown using screens displayed in Windows 11 as an example.
1. Select the Settings -> Bluetooth & devices -> Printers & scanners1.
2. Click your model name icon, and then select Printing preferences from the displayed2.
menu
The printer driver setup window appears.
Note
•
If you're using Windows 10 or earlier, follow the steps below to display the printer driver settings
screen.
1.
Select the Control Panel -> Hardware and Sound -> Devices and Printers
1.
2.
Right-click your model name icon, and then select Printing preferences from the
2.
displayed menu
Opening the printer driver setup window through Printer properties displays such tabs
regarding the Windows functions as the Ports (or Advanced) tab. Those tabs do not appear
when opening through Printing preferences or application software. For tabs regarding
Windows functions, refer to the user's manual for the Windows.
216
Canon IJ Status Monitor
The Canon IJ Status Monitor displays the printer status and the printing progress. The printer status is
shown by the images, icons, and messages in the status monitor.
Launching the Canon IJ Status Monitor
The Canon IJ Status Monitor launches automatically when print data is sent to the printer. When
launched, the Canon IJ Status Monitor appears as a button on the task bar.
Click the button of the status monitor displayed on the task bar. The Canon IJ Status Monitor appears.
Note
• To open the Canon IJ Status Monitor when the printer is not printing, open the printer driver setup
window and click View Printer Status on the Maintenance tab.
• The information displayed on the Canon IJ Status Monitor may differ depending on the country or
region where you are using your printer.
When Errors Occur
The Canon IJ Status Monitor is automatically displayed if an error occurs (e.g., if the printer runs out of
paper or if the ink is low).
In such cases, take the appropriate action as described.
Related Topic
Canon IJ Status Monitor Description
217
Checking Ink Status from Your Computer
You can check the remaining ink level and the FINE cartridge types for your model.
1. Open the printer driver setup window1.
2.
Launching the Canon IJ Status Monitor
2.
On the Maintenance tab, click View Printer Status.
3.
Display Estimated ink levels
3.
Ink status is displayed as an illustration.
218
Instructions for Use (Printer Driver)
This printer driver is subject to the following restrictions. Keep the following points in mind when using the
printer driver.
Restrictions on the Printer Driver
• With some applications, the Copies setting in the Page Setup tab of the printer driver may not be
enabled.
In this case, use the copies setting in the Print dialog box of the application software.
• If the selected Language in the About dialog box displayed in the Maintenance tab of Printer
properties does not match the operating system interface language, the printer driver setup window
may not be displayed properly.
• Do not change the Advanced tab items of the printer properties. If you change any of the items, you
will not be able to use the following functions correctly.
Also, if Print to file is selected in the Print dialog box of the application software and with applications
that prohibit EMF spooling, the following functions will not operate.
◦ Preview before printing on the Media/Quality tab
◦ Prevention of Print Data Loss in the Print Options dialog box on the Page Setup tab
◦ Manual 2-sided Printing when 2-sided Printing is selected from 1-sided/2-sided/Booklet
Printing on the Page Setup tab
◦ Booklet Printing in 1-sided/2-sided/Booklet Printing on the Page Setup tab
◦ Print from Last Page, Collate, Specify Margin..., and Stamp... on the Page Setup tab
• Since the resolution in the preview display differs from the printing resolution, text and lines in the
preview display may appear different from the actual print result.
• With some applications, the printing is divided into multiple print jobs.
To cancel printing, delete all divided print jobs.
• If image data is not printed correctly, display the Print Options dialog box from the Page Setup tab
and change the setting of Disable ICM required from the application software. This may solve the
problem.
• If you are using a model that has a card slot, the card slot of the printer may become inaccessible. In
such cases, restart the printer or turn it off and reconnect the USB cable.
Points to Note About Applications with Restrictions
• There are following restrictions in Microsoft Word (Microsoft Corporation).
◦ When Microsoft Word has the same printing functions as the printer driver, use Word to specify
them.
◦ When a setting from 2 on 1 to 16 on 1 or Zoom is used for Page Layout on the Page Setup tab
of the printer driver, the document may not print normally in certain versions of Word.
◦ When Page Size in Word is set to "XXX Enlarge/Reduce," the document may not print normally in
certain versions of Word.
If this happens, follow the procedure below.
1. Open Word's Print dialog box.
2. Open the printer driver setup window, and on the Page Setup tab, set Page Size to the same
paper size that you specified in Word.
219
3. Set Booklet Printing in Page Layout or 1-sided/2-sided/Booklet Printing according to
your requirements.
4. Click OK to close the window.
5. Without starting printing, close the Print dialog box.
6. Open Word's Print dialog box again.
7. Open the printer driver setup window and click OK.
8. Start printing.
• If bitmap printing is enabled in Adobe Illustrator (Adobe Incorporated), printing may take time or some
data may not be printed. Print after unchecking the Bitmap Printing check box in the Print dialog
box.
220
Canon IJ Status Monitor Description
The Canon IJ Status Monitor displays the printer status and the printing progress. The printer status is
shown by the images, icons, and messages in the status monitor.
Features of the Canon IJ Status Monitor
The Canon IJ Status Monitor has the following functions:
Onscreen display of printer status
The status monitor displays the printer status in real-time.
You can check the progress of each document to be printed (print job).
Display of error content and correction procedure
The status monitor displays information on any errors that occur on the printer.
You can then immediately check what sort of action to perform.
Ink status display
Displays the ink status.
FINE cartridge types and ink levels can be confirmed.
Overview of the Canon IJ Status Monitor
The Canon IJ Status Monitor uses images, icons, and messages to display the printer status and the ink
status.
During printing, you can check information about the document being printed and the print progress.
If an error occurs, the status monitor displays the error content and instructions on how to correct the
error. Follow the message instructions.
Printer
Canon IJ Status Monitor shows an icon when a warning or error occurs to the printer.
: There is a warning.
: There has been an operator error.
: There is a notice about something other than a warning or an error.
: There has been an error which requires a service.
221
If Error Persists
If a warning or an error occurs, you can click the button.
A description of the warning or error will be displayed.
Document Name
Name of the document being printed.
Owner
Owner's name of the document being printed.
Printing Page
Page number of current page and the total page count.
Display Print Queue
The print queue, which controls the current document and documents waiting to be printed.
Cancel Printing
Cancels printing.
Estimated ink levels
Displays FINE cartridge types and estimated ink levels as images.
Also, if the remaining ink is low or empty, an icon or a message will appear (Ink level warning /
Ink empty error).
The colors are calibrated to match the color with the least amount of ink remaining, and then all
colors are displayed at the same level.
Ink Model Number
You can look up the correct FINE cartridge for your printer.
Option Menu
If a printer message appears, select Enable Status Monitor to start the Canon IJ Status
Monitor.
Select Enable Status Monitor to use the following commands:
Always Display Current Job
Displays the Canon IJ Status Monitor whenever a document is being printed.
Always Display on Top
Displays the Canon IJ Status Monitor in front of other windows.
Display Guide Message
Displays guide messages for complicated paper setting operations.
Envelope Printing
Displays a guide message when envelope printing starts.
To hide this guide message, select the Do not show this message again check box.
To display the guide message again, open the Option menu, select Display Guide
Message, click Envelope Printing, and enable this setting.
How to load paper
Displays a guide message if the other guide is not displayed when the printer begins
printing for media types other than plain paper.
To hide this guide message, select the Do not show this message again check box.
To display the guide message again, click How to load paper on the Display Guide
Message in the Option menu and enable this setting.
222
Display Firmware Update Notifications
Displays firmware update notifications.
If there's a firmware update available, a dialog box is displayed when you start printing.
If you add a check mark to Do not show this message again in this dialog box, you can
prevent it from displaying again.
Start when Windows is Started
Automatically starts the Canon IJ Status Monitor when Windows is started.
Remote UI menu
You are able to open the printer's Remote User Interface.
You are able to check the printer status and run maintenance functions on the printer when
connected to and using it through a network.
Note
• When the printer is being used via USB connection Remote UI will not display.
Printer Information
Allows you to check detailed information, such as the printer status, the print progress, and
remaining ink levels.
Maintenance
Allows you to run printer maintenance and change printer settings.
Download Security Certificate
Displays the For secure communication window.
This window allows you to download the route certificate, register it to the browser, and
disable warning displays.
Help Menu
Select this menu to display Help information for the Canon IJ Status Monitor including version
and copyright information.
Related Topic
Canon IJ Status Monitor
223
Updating the Driver
Drivers include a printer driver and MP Drivers. The MP Drivers include a printer driver, ScanGear (scanner
driver), and fax driver.
By updating the Driver to the latest version of the Driver, unresolved problems may be solved.
Important
• Check the following if you want to install or delete drivers.
Log on as a user who has the administrator account.
Terminate all running applications.
• Installing the Driver
• Deleting the Unnecessary Driver
Installing the Driver
1.
Turn on the printer
1.
2. Start the installer2.
Double-click the icon of the downloaded file.
The installation program starts.
3. Install the driver3.
Take the appropriate action as described on the screen.
If a confirmation screen appears during installation, check Always trust software from "Canon Inc.".
and click Install.
4. Complete the installation4.
Click Exit.
Depending on the environment you are using, a message prompting you to restart the computer may
be displayed. To complete the installation properly, restart the computer.
Important
• You can download the driver for free, but any Internet access charges incurred are your
responsibility.
Deleting the Unnecessary Driver
The printer driver which you no longer use can be deleted.
1.
Start the uninstaller
1.
224
Select Control Panel -> Programs -> Programs and Features.
From the program list, select "Canon XXX Driver" (where "XXX" is your model name) and then click
Uninstall.
The confirmation window for uninstalling the model appears.
2. Perform the uninstaller2.
Click Start. When the confirmation message appears, click Yes.
When all the files have been deleted, click Complete.
The deletion of the Driver is complete.
225
Printing
This printer is compatible with the macOS standard printing system (AirPrint).
You can start printing right away after connecting this printer to your Mac without installing any special
software.
Checking Your Environment
First, check your environment.
• AirPrint Operation Environment•
Mac running the latest version of OS
• Requirement•
The Mac and the printer must be connected by one of the following methods:
◦ Connected to the same network over a LAN
◦ Connected directly without wireless router (Direct Connection)
◦ Connected by USB
Print from a Mac
1. Check that printer is turned on1.
Note
• If Auto power on is enabled, printer automatically turns itself on when receiving a print job.
2. Load paper in printer2.
Configure the set paper size in Paper Select button on the printer.
The paper type will be set automatically according to the set paper size.
3. Start printing from your application software3.
The print dialog opens.
4.
Select printer
4.
Select your model from the Printer list in the print dialog.
227
5.
Check print settings
5.
Set items such as Paper Size to the appropriate size, as well as Media Type from Media & Quality.
Set Double-sided to Off if you are not printing on both sides of the paper.
228
Important
• An error may occur if the paper size set in the print dialog is different from the paper size
configured on the printer. Select the correct items on the print dialog and the printer that
correspond to the paper being printed.
• If printing paper such as photo paper and postcards that cannot be printed on both sides, set
Double-sided to Off.
Note
•
Use the print dialog to set general print settings such as the layout and the print sequence.
For information about print settings, refer to macOS help.
6.
Click Print
6.
The printer prints according to the specified settings.
Note
• It can take the Wi-Fi a few minutes to get connected after the printer turns on. Print after checking
that the printer is connected to the network.
• You cannot print if Bonjour settings of printer are disabled. Check LAN settings of printer and enable
Bonjour settings.
• Refer to "Cannot Print Using AirPrint" for printing problems.
• The display of the settings screen may differ depending on the application software you are using.
Printing of Envelopes
For printing on the envelope from a Mac, load the envelope in the correct orientation, and refer to the
following.
Print result image Orientation of print data
The print data is rotated by 180 degrees against the print result image.
229
Printing on Postcards
This section describes the procedure for printing on postcards.
1. Load postcards in printer1.
2.
Select paper size from printer
2.
Set * with the Paper Select button on the printer.
3.
Select Paper Size and Media Type from the print dialog
3.
Select Postcard or Postcard Borderless for Paper Size from the print dialog. When you print on the
address side, select Postcard.
Select the Hagaki you want to use for Media Type in Media & Quality from the print dialog.
Important
•
This printer cannot print on postcards that have photos or stickers attached.
4.
Set Double-sided to Off
4.
Important
•
Two-sided printing is not possible for postcards, so set Double-sided to Off. If you print with
Double-sided set to On, the printing result may not be as you intended.
• You will get cleaner printing if you print the address side first and then print the message side.
5. Click Print5.
The printer prints according to the specified settings.
230
Adding Printer
This section describes the procedure for adding a printer to your Mac.
To re-add a printer that was deleted, open System Settings -> Printers & Scanners, click Add Printer,
Scanner, or Fax..., and then perform the procedure described below.
If your printer is connected via USB, and you connect the USB cable to a Mac, the printer is automatically
added. The below procedure is not necessary in this case.
1.
Check whether Default is selected in the displayed dialog
1.
Note
•
It may take a little time for your printer to appear.
2.
Select the printer
2.
Select the printer labeled Bonjour Multifunction or Bonjour.
Note
•
Check the following if printer does not appear.
Printer is on
Firewall function of the security software is off
In case of Wi-Fi connection: Printer is either connected to the wireless router or directly
connected to the PC (Direct Connection)
In case of wired LAN connection: Printer is connected to the network device via LAN cable
3. Select your printer or Secure AirPrint from Use3.
4. Click Add4.
The printer is added to your Mac.
231
How to Open Printer Settings Screen
The settings screen of the printer can be displayed from your application software.
Opening the Page Setup Dialog
Use this procedure to set the page (paper) settings before printing.
1.
Select Page Setup... from the File menu of the application software
1.
The Page Setup dialog opens.
Opening the Print Dialog
Use this procedure to set the print settings before printing.
1.
Select Print... from the File menu of the application software
1.
The print dialog opens.
232
Displaying the Printing Status Screen
Check the print progress according to the following procedure:
1. Launch the printing status screen1.
•
If the print data has been sent to the printer
•
The printing status screen opens automatically. To display the printing status screen, click the
printer icon displayed on the Dock.
•
If the print data has not been sent to the printer
•
Open System Settings, and select Printers & Scanners.
To display the printing status screen, select your printer model from the printer list, and then click
Printer Queue....
2.
Check the printing status
2.
You can check the name of the file being printed or ready for being printed.
Deletes the specified print job.
Stops printing the specified document.
Resumes printing the specified document.
Stops printing all documents.
Displayed only when printing of all documents is being stopped, and resumes printing all documents.
Important
• If an error occurs, an error message will appear on the printing progress confirmation screen.
• The content of the error message may differ depending on the OS version.
• The printer part names in the error message may differ from what is listed in this manual.
• When opening the Remote UI, you can check support numbers (error identification numbers) and
detailed error information.
233
Deleting the Undesired Print Job
If the printer does not start printing, canceled or failed print job data may be remaining.
Delete unnecessary print jobs from the print status check screen.
1. Open System Settings, and select Printers & Scanners1.
2.
Select your model, and then click Printer Queue...
2.
The print status check screen appears.
3.
Select the unnecessary print job and click (Delete)
3.
The selected print jobs will be deleted.
234
Removing Printer That Is No Longer Required from List of
Printers
The printer that is no longer in use can be removed from the list of printers.
Before removing the printer, remove the cable connecting the printer and PC.
You cannot remove the printer if you are not logged on as the administrator. For information about an
administrative user, see Users & Groups from System Settings.
1.
Open System Settings, and select Printers & Scanners
1.
2.
Delete printer from list of printers
2.
Select the printer you wish to remove from the list of printers and click Remove Printer....
Click Remove Printer when the confirmation message appears.
235
Making Copies on Plain Paper
Load the original on the platen to copy on the plain paper.
1. Check that printer is turned on.1.
2.
Load paper.
2.
Select the paper size according to the loaded paper.
Paper settings
3.
Load the original on the platen.
3.
4.
Press the Black button or the Color button.
4.
The printer starts copying.
Remove the original on the platen after copying is complete.
• To make multiple copies•
Press the Color button or the Black button repeatedly according to the number of copies you
want.
Press the same button (Color button or Black button) as the one which you previously pressed.
• To cancel copying•
Press the Stop button.
Important
• Do not open the document cover or remove the original from the platen until scanning is completed.•
While the printer is scanning the original, the ON lamp keeps flashing.
Note
• The original is copied at the same magnification on plain paper. The original is copied on plain paper•
with borders.
Print Quality
For the print quality of copying, you can select either "Standard" mode or "Draft" mode (speed priority).
"Standard" mode
The quality is given priority over print speed.
Press the Color or Black button for less than 2 seconds in step 4.
"Draft" mode
The print speed is given priority over quality.
Press and hold down the Color or Black button for 2 or more seconds in step 4.
237
Copying on Photo Paper
Load the original on the platen to copy on the photo paper.
1. Check that printer is turned on.1.
2.
Load paper.
2.
Select the paper size according to the loaded paper.
Paper settings
3.
Load the original on the platen.
3.
4.
Press the Black button or the Color button.
4.
The printer starts copying.
Remove the original on the platen after copying is complete.
• To make multiple copies•
Press the Color button or the Black button repeatedly according to the number of copies you
want.
Press the same button (Color button or Black button) as the one which you previously pressed.
• To cancel copying•
Press the Stop button.
Important
• Do not open the document cover or remove the original from the platen until scanning is completed.•
While the printer is scanning the original, the ON lamp keeps flashing.
Note
• The original is copied automatically by reducing/enlarging to fit the paper size of photo paper. The•
original is copied on photo paper without borders.
• If you copy the rectangular original on the square size paper, it will be copied with missing the top and•
bottom edges or the left and right edges.
238
Scanning and Saving to a Computer
For Windows
Scanning Easily
Scanning According to Item Type or Purpose
For macOS
Scanning Easily
Scanning According to Item Type or Purpose
Other
Scanning with Chromebook
240
Frequently Asked Questions
Top 6
Network Connection Setup Guide
Error Has Occurred
Scanning Problems (Windows)
Search by Category
Error
List of Support Codes for Printer Errors
Message Is Displayed
"1003" is displayed
"1300" is displayed
Network
Connecting to a Printer
Solve Network Troubles with The Printer's Diagnostic Functions
Cannot Find Printer on Network (Windows/macOS)
Cannot Proceed Beyond Printer Connection Screen
Connecting with Wireless Direct
Change to Offline (Windows)/Cannot Communicate (Windows)/Cannot Print (Windows)
Check the SSID and Encryption Key of the Wireless Router Connected to Your Computer or
Smartphone
241
>
>
>
Loading Paper
Network Communication Problems
Ink Does Not Come Out
Printing
What to Do When Paper Is Jammed
Printer Does Not Print
Resolving Print Quality Problems
Blurry or Fuzzy
Inaccurate or Bleeding Colors
Lines Are Misaligned/Distorted
Scan
Scanning Problems (Windows)
Scanner Does Not Work (Windows)
ScanGear (Scanner Driver) Does Not Start (Windows)
Scan Utility Error Messages (Windows)
ScanGear (Scanner Driver) Error Messages (Windows)
Cannot Print (Scan) from Smartphone/Tablet
Security / Other
Set Up/Manage Security
Searching Printer by IP Address or Host Name During Setup
Failed to MP Drivers (Printer Driver) Installation (Windows)
Updating MP Drivers (Printer Driver) in Network Environment (Windows)
Replacing a FINE Cartridge
Printer Does Not Turn On
Questions not Listed Above
Error
242
Cannot Use Previous Applications
Software does not work on macOS 15 or later
Network
Printing Network Setting Information
Switching Printer's Connection to Network or Devices
Network Key (Password) Unknown
Cannot Remember Printer's Administrator Password
Printer Cannot Be Used After Replacing Wireless Router or Changed Router Settings
Message Appears on Computer During Setup
Checking Network Information of Printer
Restoring Printer's LAN Settings to Defaults
USB Connection Problems
Updating Printer Firmware
Manual connect
Network Solution 1-2-3
Printing
Cannot Print Using AirPrint
Printing (Copying) Stops
Printer Does Not Pick Up or Feed the Paper/"No Paper" Error
Automatic 2-sided Printing Problems
Black Streaks
Scan
Scanning Problems (macOS)
Scan Results Are Unsatisfactory (Windows)
Scan Results Are Unsatisfactory (macOS)
Security / Other
Printer Does Not Turn On
Settings/Maintenance
Printer Turns Off Unexpectedly or Repeatedly
Unable to use setup app in Microsoft Store
Operation Problems
243
Ask a question via chat Depending on your country or region, some services may not be available.
Network FAQ
Here are frequently asked questions on network. Select a connection method you are using, or you want to
use.
Wi-Fi
Wireless Direct
Wi-Fi
Cannot Find Printer
Cannot Find Printer on Network (Windows/macOS)
Cannot Proceed Beyond Printer Connection Screen (Cannot Find Printer Connected via USB)
Searching Printer by IP Address or Host Name During Setup
Detect Same Printer Name
Switching Printer's Connection to Network or Devices
Cannot Print or Connect
Solve Network Troubles with The Printer's Diagnostic Functions
Printer Cannot Be Used After Replacing Wireless Router or Changed Router Settings
Cannot Connect Smartphone/Tablet to Wireless Router
WPS (Router Button) Connection
Switching Printer's Connection to Network or Devices
Cannot Find Printer on Network (Windows/macOS)
LAN Setting Tips/Changing LAN Settings
Network Key (Password) Unknown
Cannot Remember Printer's Password
Checking Network Information of Printer
Restoring Printer's LAN Settings to Defaults
Checking Wireless Router SSID/Key
Checking Wireless Router Network Name (SSID) for Smartphone/Tablet
Privacy Separator/SSID Separator/Network Separation Function
Default Network Settings
Switching Printer's Connection to Network or Devices
Printing Network Settings
Checking Status Code
Printing (Scanning) from Smartphone/Tablet
Cannot Connect Smartphone/Tablet to Wireless Router
Checking Wireless Router Network Name (SSID) for Smartphone/Tablet
Cannot Print (Scan) from Smartphone/Tablet
244
Problems while Using Printer
Message Appears on Computer During Setup
Cannot Find Printer on Network (Windows/macOS)
Wireless Direct
Cannot Print or Connect
Solve Network Troubles with The Printer's Diagnostic Functions
Cannot Find Printer on Network (Windows/macOS)
LAN Setting Tips/Changing LAN Settings
Network Key (Password) Unknown
Cannot Remember Printer's Password
Checking Network Information of Printer
Restoring Printer's LAN Settings to Defaults
Default Network Settings
Printing Network Settings
Switching Printer's Connection to Network or Devices
Checking Status Code
Printing (Scanning) from Smartphone/Tablet
Cannot Print (Scan) from Smartphone/Tablet
Problems while Using Printer
Message Appears on Computer During Setup
Cannot Find Printer on Network (Windows/macOS)
245
Cannot Find Printer on Network (Windows/macOS)
Note
• If you are using macOS 15 or later, you must configure each application to allow device discovery on
the local network. Failing to enable device discovery may restrict software functionality or prevent it
from starting properly.
For detailed instructions, refer to "Setting Up Local Network Device Discovery."
Cannot Find Printer on Network
Cannot Proceed Beyond Printer Connection Screen (Cannot Find Printer
Connected via USB)
Searching Printer by IP Address or Host Name During Setup
247
Cannot Find Printer on Network
Important
• Make sure the following four items first.
If the security settings on the wireless router are enabled, to disable the settings may solve the
problem.
Privacy Separator/SSID Separator/Network Separation Function
If the printer does not support 5 GHz, enable 2.4 GHz on the wireless router.
To disable Band Steering function* of wireless router may solve the problem.
If the same SSID is assigned for 2.4 GHz and 5 GHz, to assign different SSID may solve the
problem.
* Band Steering function: Band Steering monitors a Wi-Fi network and automatically assigns
devices to their optimal frequency band within 2.4 GHz or 5 GHz frequency bands depending
on the situation.
In the following cases, set up the printer again.
• When you buy a new computer or wireless router•
• When you change the settings on your wireless router•
• When the connection method (Wi-Fi / USB) of the printer is changed•
For more on the setup procedure;
Set Up
In Other Cases Than Above:
If the printer suddenly stops working, even though you have not changed the settings of the device or
network to which it is connected, or if you cannot find the printer during the setup process, check and
solve the problem, using Wi-Fi Connection Assistant. After the condition improves, redo the setup of the
printer.
Wi-Fi Connection Assistant is a powerful solution tool for network problems.
Step 1
Check Basic Items for Network.
Step 2
Solve Problems, Using Wi-Fi Connection Assistant.
Step 3
If the Solution Tool Does Not Solve the Problem.
248
Step 1 : Check Basic Items for Network.
Check 1
Check power status.
Check your printer and the network device (wireless router, etc.) are turned on.
If you are in the process of setting up, interrupt it and check if the wireless router (modem) is turned on and then
check if the printer is turned on.
1. Check if network device such as router is turned on.1.
If network devices are not turned on, turn on the power. If the network devices are on, turn them off
and on again.
It may take a while for the network device to become ready for use once they are turned on.
Proceed once the network device such as router is ready for use.
2. Check if printer is turned on.2.
If printer is not turned on, turn on the power. If the printer is on, turn it off and on again.
Proceed once you complete checking the power status above.
Check 2
Check PC network connection.
If your computer and network devices (wireless router, etc.) are fully configured, your computer is ready to
connect to the network.
1.
Check the settings of the network device (wireless router, etc.).
1.
Connect to the Internet and see if you can browse any web page. If you cannot view web pages on
your computer, check wireless router network connection settings, such as IP address filtering, MAC
address filtering, and DHCP function.
To check the network name (SSID) of the wireless router the printer is connected to, print the network
settings.
Printing Network Settings
Note
•
Depending on the wireless router, note that different network name (SSID) is assigned for a•
bandwidth (2.4 GHz or 5 GHz) or its usage (for PC or game machine), using alphanumeric
characters at the end of network name (SSID).
• For more on checking the settings of the wireless router, refer to the instruction manual•
supplied with the wireless router or contact the manufacturer.
If you use an encryption key, specify it for the network name (SSID) you are using. For details, see
Setting an Encryption Key.
2. Check PC network connection.2.
249
For the procedures, refer to the instruction manual supplied with the computer, or contact the
manufacturer.
Once you complete setting up the wireless router and your computer, configure the settings on your computer in
order to view web pages, using the information of the wireless router.
Proceed once you complete checking the network connection above.
Check 3
Check printer's network settings.
For Wi-Fi
Make sure that the Wireless select lamp on the
button on the operation panel is lit.
If the Wireless select lamp on the button is off
If the Wireless select lamp on the
button is off, it indicates that the Wi-Fi router and printer are not
connected. Check the setting of printer. Reconsider the location of the wireless router and the printer in the next
check.
If the Wireless connect lamp on the
button is on.
"Easy wireless connect" is waiting for setup. Connect a device to the printer with the application on computer,
smartphone or tablet.
Check 4
Check location of wireless router.
Make sure the printer is not placed too far away from the wireless router.
The printer can be up 50 m (164 ft.) from the wireless router indoors if unobstructed. Make sure the printer is
close enough to the wireless router to be used.
Place the printer and wireless router where there are no obstacles between them. Wireless communication
between different rooms or floors is generally poor. Wireless communication can be impeded by building
materials containing metal or concrete. If the printer cannot communicate with the computer over a Wi-Fi due
to a wall, place the printer and the computer in the same room.
In addition, if a device like a microwave oven that emits radio waves of the same frequency bandwidth as a
wireless router is nearby, it may cause interference. Place the wireless router as far away from interference
sources as possible.
Step 2 : Solve Problems, Using Wi-Fi Connection Assistant.
Diagnose and repair the network connections using Wi-Fi Connection Assistant.
Download Wi-Fi Connection Assistant from the below page, and install it on your computer.
Checking Printer Connection Status Using Wi-Fi Connection Assistant
Refer to below in regard to starting up Wi-Fi Connection Assistant.
• For Windows:•
Starting Up Wi-Fi Connection Assistant
250
• For macOS:•
Starting Up Wi-Fi Connection Assistant
Step 3 : If the Solution Tool Does Not Solve the Problem.
Check 1
Make sure security software's firewall is off.
If your security software's firewall is on, a message may appear warning you that Canon software is attempting to
access the network. If this warning message appears, set security software to always allow access.
If you are using any programs that switch between network environments, check their settings.
Check 2
If printer is connected to AirPort Base Station via LAN, make sure you use
alphanumeric characters only for network name (SSID). (macOS)
If your network name (SSID) contains characters other than single-byte alphanumeric characters, the connection
is not established properly. Change the network name (SSID) to use only single-byte alphanumeric characters.
Check 3
Solve network troubles with the printer's diagnostic functions.
See below.
Solve Network Troubles with The Printer's Diagnostic Functions
Check 4
Check that Enable bidirectional support is selected in Ports sheet of Printer
properties dialog box (Windows).
If not, select it to enable bidirectional support.
Related Topics
Network Communication Problems
251
Wireless Router Problems
Network Key (Password) Unknown
Checking Wireless Router SSID/Key
Printer Cannot Be Used After Replacing Wireless Router or Changed Router
Settings
WPS (Router Button) Connection
Privacy Separator/SSID Separator/Network Separation Function
Note
• This web page contains information about several models. Depending on the specifications of the•
printer you are using, some of the features described (device functions, connection method, operating
procedure and etc.) may not apply. For details about the functions of your printer, see Product
Specifications.
252
Network Key (Password) Unknown
Diagnose and repair the network connections using Wi-Fi Connection Assistant.
Download Wi-Fi Connection Assistant from the below page, and install it on your computer.
Checking Printer Connection Status Using Wi-Fi Connection Assistant
Refer to below in regard to starting up Wi-Fi Connection Assistant.
• For Windows:•
Starting Up Wi-Fi Connection Assistant
• For macOS:•
Starting Up Wi-Fi Connection Assistant
If the problem persists after diagnosis and repair with Wi-Fi Connection Assistant, check the following items.
WPA/WPA2/WPA3 Key Set for Wireless Router Unknown, Cannot Connect
Setting an Encryption Key
WPA/WPA2/WPA3 Key Set for wireless router Unknown, Cannot
Connect
Check the wireless router settings. For more on setting up a wireless router, see the instruction manual
provided with the wireless router or contact its manufacturer. Make sure your computer can communicate
with the wireless router.
Setting an Encryption Key
Select the encryption containing WPA2.
Note
• The factory default of wireless router supporting WPA3 may be set to WPA3.
Make sure your computer can communicate with the wireless router using the settings you have selected.
For more on setting up a wireless router, see the instruction manual provided with the wireless router or
contact its manufacturer.
• Using WPA2/WPA3•
The authentication method, Wi-Fi password, and dynamic encryption type must be identical among
the wireless router, the printer, and your computer.
253
Enter the Wi-Fi password configured on the wireless router.
AES (more secure encryption than TKIP) is selected as the dynamic encryption method. The printer
does not support TKIP If the wireless router settings are set to "TKIP only", you will not be able to
connect to the printer.
For details, see Check the SSID and Encryption Key of the Wireless Router Connected to Your
Computer or Smartphone.
Note
• This printer supports the following.
WPA-PSK (WPA-Personal)
WPA2-PSK (WPA2-Personal)
WPA3-SAE (WPA3-Personal)
• Some printers support IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise). To configure•
IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise), you also need to configure the authentication
(Radius) server.
Contact the network administrator for more information.
• This web page contains information about several models. Depending on the specifications of•
the printer you are using, some of the features described (device functions, connection method,
operating procedure and etc.) may not apply. For details about the functions of your printer, see
Product Specifications.
254
Printer Cannot Be Used After Replacing Wireless Router or
Changed Router Settings
When wireless router is replaced or router settings are changed, the network settings of your computer,
smartphone/tablet or printer must be reconfigured according to the new wireless router.
Check 1
Check if your computer or smartphone/tablet can be connected to Internet
through the new wireless router.
If your computer or smartphone/tablet cannot be connected to Internet, check if the wireless router setup is
completed and configure the settings on the computer or smartphone/tablet to connect to the wireless router.
Check 2
Restart printer network.
Refer to Setup Guide to setup.
Note
• Wi-Fi Connection Assistant allows you to diagnose and repair the network status.•
Select the link below to download Wi-Fi Connection Assistant and install it.
Checking Printer Connection Status Using Wi-Fi Connection Assistant
Refer to below in regard to starting up Wi-Fi Connection Assistant.
For Windows:
Starting Up Wi-Fi Connection Assistant
For macOS:
Starting Up Wi-Fi Connection Assistant
If this does not solve the problem, see below.
Cannot Communicate with Printer After Enabling MAC/IP Address Filtering or Encryption Key on
wireless router
With Encryption On, Cannot Communicate with Printer After Changing Encryption Type at Wireless
Router
Privacy Separator/SSID Separator/Network Separation Function
Cannot Communicate with Printer After Enabling MAC/IP Address
Filtering or Encryption Key on wireless router
Check 1
Check wireless router setting.
255
For more on setting up a wireless router, see the instruction manual provided with the wireless router or
contact its manufacturer. Make sure your computer can communicate with the wireless router.
Check 2
If filtering MAC addresses or IP addresses at wireless router, check
that MAC addresses or IP addresses for computer, network device, and printer are
registered.
Check 3
If using WPA/WPA2/WPA3 key or a password, make sure encryption key for
computer, network device, and printer matches key set for wireless router.
The length or format of the Wi-Fi password and authentication method must be identical among the wireless
router, the printer, and your computer.
For details, see
Setting an Encryption Key.
Note
• Some printers support IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise). To configure•
IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise), you also need to configure the authentication
(Radius) server.
Contact the network administrator for more information.
With Encryption On, Cannot Communicate with Printer After
Changing Encryption Type at wireless router
If the printer cannot communicate with the computer after you change the encryption type for the wireless
router, make sure the encryption type and passkey or password for the computer matches that of the
wireless router.
Cannot Communicate with Printer After Enabling MAC/IP Address Filtering or Encryption Key on
wireless router
Note
• This web page contains information about several models. Depending on the specifications of the•
printer you are using, some of the features described (device functions, connection method, operating
procedure and etc.) may not apply. For details about the functions of your printer, see Product
Specifications.
256
Printer Settings/Smartphone/Tablet Troubles for Network
Solve Network Troubles with The Printer's Diagnostic Functions
Checking Network Information of Printer
Checking Status Code
Printing Network Settings
Restoring Printer's LAN Settings to Defaults
Default Network Settings
Connecting with Wireless Direct
257
Solve Network Troubles with The Printer's Diagnostic
Functions
• If the printer and wireless router are connected or the printer and computer are connected by USB cable•
but you cannot print:
Change to Offline (Windows)/Cannot Communicate (Windows)
• In other cases than above:•
Cannot Find Printer on Network/Cannot Print
Cannot Connect to Printer through Wireless Direct
Cannot Find Printer on Network/Cannot Print
Printing Out Network Settings Information
Follow the procedure below to print out the network settings information.
Step 1
Check that printer and wireless router are turned on.
Turn the wireless router back on.
Wait about five minutes and then turn the printer back on.
Step 2
Check your devices (e.g. computer/smartphone/tablet) are connected to
Internet.
Make sure that devices and the wireless router are connected to via Wi-Fi, and that the Internet can be used
without problems.
Step 3
Make sure that the Wireless select lamp on the printer's button is lit.
Step 4
Move the printer and device (computer/smartphone/tablet) closer to the wireless
router.
Wireless communication quality deteriorates if the printer or devices are too far from the wireless router. Move
the printer and device closer to the wireless router.
Step 5
Print the network settings.
Print out the network settings information on your printer.
Printing Network Settings
Checking Printed Network Settings Information:
From the printed network settings information, check the entries in item "2-2".
258
C-0
It is connected correctly. If, nevertheless, the printer is not found on the network or printing is not possible,
check the following items.
Note
• If codes other than "C-0" are displayed at the same time in the item "2-2" see also the correspondence•
of the other codes.
Check 1
Check that security software's firewall is off.
A message may appear warning you that Canon software is attempting to access the network. If this warning
message appears, set the security software to always allow access.
Quit the security software and make sure that the printer is recognized and ready to use. If so, the cause is
the firewall setting. Change the firewall settings so that the printer is recognized and ready to use. For details,
contact the manufacturer of the security software.
If you are using any programs that switch between network environments, check their settings.
Check 2
Does network name (SSID) of printer match network name (SSID) setting of
wireless router that communicates?
Check the "3-2-6" item in the printed network settings information and the network name (SSID) of the wireless
router you want to connect to. If they are not matched, check the SSID and password of the wireless router you
want to connect to, and then setup manually.
Check 3
Is privacy separator, SSID separator, or Network separation function enabled
on wireless router?
If it is enabled, disable these functions before performing the setup. To check the functions of the wireless
router, refer to the instruction manual provided with it or contact its manufacturer.
Check 4
Are MP Drivers (Printer Driver) installed? (Windows)
If you are using Windows and MP Drivers (Printer Driver) are not installed, install it.
Set Up
C-1
The printer's Wi-Fi setting is disabled. (You can also check if the Wireless select lamp is off.)
Press the button on the printer so that the button's Wireless select lamp lights up.
C-3
No IP address is assigned. (You can also check that the item "3-2-12" in the printed network settings
information is blank.)
Check the following items.
Check 1
Is printer set to obtain an IP address automatically, or is wireless router
requesting manual addressing?
259
Refer to the wireless router's manual to enable DHCP (auto-acquisition) settings on the wireless router or to set
a valid IP address on the printer.
Check 2
When you set printer's IP address manually, correct IP address may not be
set.
Check the network name (SSID) and the password of the wireless router you want to connect to, the IP address
applicable range, and then enter the appropriate IP address on the printer side. If you are unsure, set the
printer's IP address to automatic (DHCP).
C-5
Unable to connect to the specified network. Check the following items.
Check 1
Check power status of printer, network devices (e.g. wireless router), and your
PC/smartphone/tablet.
This printer can be connected to a wireless router that supports 2.4 GHz, 5 GHz, or both bands. If the wireless
router is set up to use the same SSID for 2.4 GHz and 5 GHz, set up that SSID on the printer so that the printer
and wireless router can be connected at either 2.4 GHz or 5 GHz.
Note
•
Depending on the wireless router, note that different network name (SSID) is assigned for a bandwidth
(2.4 GHz or 5 GHz) or its usage (for PC or game machine), using alphanumeric characters at the end of
network name.
Check 2
Password on your wireless router may not match password you entered.
Passwords are case sensitive.
Enter the password correctly.
Check 3
Monitor signal status and move printer and wireless router as necessary.
•
Place the printer and wireless router where there are no obstacles between them. Wireless communication
between different rooms or floors is generally poor.
•
Wireless communication can be impeded by building materials containing metal or concrete. If the printer
cannot communicate with the computer over a Wi-Fi due to a wall, place the printer and the computer in
the same room.
•
After changing the installation location, print out the network settings information again and check the
status of the signal. Compare with the value in section "3-2-1" in the printed network settings information to
determine the installation location.
Check 4
Check wireless channel number of Wi-Fi you are using on computer.
Make sure that the wireless channel number on the wireless router is included in the wireless channel number
you checked. If the wireless channel number set for the wireless router is not included, change the wireless
channel number of the wireless router.
Check 5
In case of Wi-Fi connection, check if computer that can be accessed by
wireless router is restricted.
260
The wireless router settings may be limiting the number of devices that can be connected at the same time.
Remove or relax the restrictions.
To check the settings of the wireless router, refer to the instruction manual provided with it or contact its
manufacturer.
Note
•
To check the MAC address or IP address of your computer, see Checking Computer IP Address or MAC
Address.
Check 6
If problem occurs only when wireless router is in energy-saving mode, turn off
energy-saving mode of wireless router.
If the problem seems to occur suddenly, it may be resolved by updating the wireless router firmware (e.g.
update interval of a key, problems of DHCP update interval, etc.). For details, refer to the wireless router's
manufacturer.
Check 7
If printer is connected to AirPort Base Station via LAN, make sure you use
alphanumeric characters only for network name (SSID). (macOS)
If your network name (SSID) contains characters other than single-byte alphanumeric characters, the
connection is not established properly. Change the network name (SSID) to use only single-byte alphanumeric
characters.
C-4
No default gateway is set.
When you set the IP address of the printer manually, enter a valid default gateway IP address. If you don't
know the default gateway, set the IP address to automatic.
C-7
There may be a problem with the signal.
Check the following items.
Monitor signal status and move printer and wireless router as necessary.
• Place the printer and wireless router where there are no obstacles between them. Wireless
communication between different rooms or floors is generally poor.
• Wireless communication can be impeded by building materials containing metal or concrete. If the
printer cannot communicate with the computer over a Wi-Fi due to a wall, place the printer and the
computer in the same room.
• After changing the installation location, print out the network settings information again and check
the status of the signal. Compare with the value in section "3-2-1" in the printed network settings
information and place the printer in the location with a higher value.
Note
• In some cases, "C-7" and "C-9" are displayed at the same time. In that case, refer to both items.
C-8
Too many clients are connected.
261
Wireless Direct does not allow more than 5 devices to be connected.
If you want to connect additional devices to the printer, unplug any devices that are not in use before
adding them.
C-9
The noise level is high and does not differ from the signal level due to various devices other than the
printer.
• If devices (microwave oven, external hard disk drive, and other USB 3.0 devices) that emit radio waves
of the same frequency bandwidth as a wireless router is nearby, it may cause interference. Place the
printer and the wireless router as far away from interference sources as possible.
• After you change the location of the printer, check the signal quality. Compare the value of "3-2-2" in
the network settings information and place the printer in the location with a higher value.
Note
• In some cases, "C-7" and "C-9" are displayed at the same time. In that case, refer to both items.
C-10
No IP address is assigned by the wireless router.
Check the following items.
Check 1
Password on your wireless router may not match password you entered.
Passwords are case sensitive.
Enter the password correctly.
Check 2
Set up printer again and reconnect to Wi-Fi.
Check 3
Check DHCP of wireless router. If DHCP is off, set it on.
For details, refer to the wireless router's manufacturer.
C-11
The network name (SSID) remains the default value (The network name (SSID) has not been set). Check
the network name (SSID) of the wireless router.
Verify the network name (SSID) and password of the wireless router you want to connect to, and then set it
up manually.
Note
• Wi-Fi Connection Assistant allows you to diagnose and repair the network status.•
Select the link below to download Wi-Fi Connection Assistant and install it.
Checking Printer Connection Status Using Wi-Fi Connection Assistant
Refer to below in regard to starting up Wi-Fi Connection Assistant.
For Windows:
Starting Up Wi-Fi Connection Assistant
262
For macOS:
Starting Up Wi-Fi Connection Assistant
Cannot Communicate with Printer while It Is in Wireless Direct
Check the following items
Check 1
Check power status of printer and other devices (e.g. computer/smartphone/
tablet).
Turn on the printer or devices.
If the power is already turned on, cycle the power.
Check 2
Check settings of your device (e.g. computer/smartphone/tablet).
Make sure Wi-Fi is enabled on your device.
For details, refer to the device's instruction manual.
Check 3
Print out network settings information.
See "Step 1" to "Step 5" in Cannot Find Printer on Network/Cannot Print.
In the printed network settings information, check if the item "2-2" is not "C-8". If this is the case, the number of
connected printers is too many.
Wireless Direct does not allow more than 5 devices to be connected.
When you want to connect additional devices, disconnect any devices that are not in use before adding them.
Check 4
Check that printer is selected as connection for various devices (e.g.
computer/smartphone/tablet).
Select the network name (SSID) for Wireless Direct specified for the printer as the connection destination for
devices.
Check the destination on your device.
For details, refer to your device's instruction manual or visit the manufacturer's website.
To check the network name (SSID) for Wireless Direct specified for the printer, print out the network settings
information of the printer.
• Print the network settings.•
Printing Network Settings
Check 5
Check that Wireless Direct password set for printer is entered correctly.
To check the password specified for the printer, print out the network settings information.
• Print the network settings.•
263
Printing Network Settings
Check 6
Check that printer is not placed too far away from device.
If the distance between the printer and the device is too far, wireless communication becomes poor. Place the
printer and the device close to each other.
Note
• Wireless Direct is set to disabled when you connect to and use an EAP router. Also, if you set•
Wireless Direct to enable in this case, the wireless LAN (Wi-Fi) will be disabled.
• When using IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise), enable Administrator mode so that•
the Wireless Direct settings cannot be changed.
264
Checking Network Information of Printer
Checking Printer IP Address or MAC Address
Checking Computer IP Address or MAC Address
Checking Communication Between the Computer and the Printer or the Computer and the Wireless
Router
Checking Network Setting Information
Checking Printer IP Address or MAC Address
To check the printer's IP Address or MAC address, print out the network settings information.
• Print the network settings.•
Printing Network Settings
For Windows, you can check the network setting information on the computer screen.
Canon Wi-Fi Connection Assistant Screen
Note
• Depending on the model, it can be displayed on the operation panel of the printer.•
Checking Computer IP Address or MAC Address
To check the IP Address or MAC address of your computer, follow the instructions below.
• For Windows:•
1. Select Command Prompt from Start.1.
2.
Enter "ipconfig/all" and press Enter.
2.
The IP address and MAC address of your computer appear. If your computer is not connected to a
network, the IP address does not appear.
• For macOS:•
1.
Select System Settings from Apple menu, and then click Network.
1.
2.
Make sure network interface used by computer is selected.
2.
Make sure Wi-Fi is Connected when connecting via Wi-Fi or Ethernet is Connected for Wired
LAN connection and click.
265
3. Click Details to check the IP address.3.
The IP address of your computer appears. To check the MAC Address, click Hardware.
Checking Communication Between the Computer and the printer or
the Computer and the Wireless Router.
Perform a ping test to check if communication is taking place.
• For Windows:•
1.
Select Command Prompt from Start.
1.
2.
Type "ping XXX.XXX.XXX.XXX" and press Enter.
2.
"XXX.XXX.XXX.XXX" is the IP address of the target device.
If communication is taking place, a message like the one shown below appears.
Reply from XXX.XXX.XXX.XXX: bytes=32 time=10ms TTL=255
If Request timed out appears, communication is not taking place.
• For macOS:•
1. Start Terminal as shown below.1.
Select Computer from Go menu of Finder, double-click Macintosh HD > Applications >
Utilities > Terminal.
2.
Type "ping -c3 XXX.XXX.XXX.XXX" and press Enter.
2.
"XXX.XXX.XXX.XXX" is the IP address of the target device.
If communication is taking place, a message like the one shown below appears.
64 bytes from XXX.XXX.XXX.XXX: icmp_seq=0 ttl=64 time=3.394 ms
64 bytes from XXX.XXX.XXX.XXX: icmp_seq=1 ttl=64 time=1.786 ms
64 bytes from XXX.XXX.XXX.XXX: icmp_seq=2 ttl=64 time=1.739 ms
--- XXX.XXX.XXX.XXX ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
If the following message is displayed, communication is not working properly.
PING XXX.XXX.XXX.XXX (XXX.XXX.XXX.XXX) : 56 data bytes
---XXX.XXX.XXX.XXX ping statistics ---
3 packets transmitted, 0 packets received, 100% packet loss
266
Checking Network Setting Information
To check the printer's network settings, print out the network settings information.
• Print the network settings.•
Printing Network Settings
Note
• Depending on the model, it can be displayed on the operation panel of the printer.•
Note
• This web page contains information about several models. Depending on the specifications of the•
printer you are using, some of the features described (device functions, connection method, operating
procedure and etc.) may not apply. For details about the functions of your printer, see Product
Specifications.
267
Printing Network Settings
Use the operation panel to print the printer's current network settings.
Important
• The network settings printout contains important information about your network. Handle it with care.•
1.
Check that printer is turned on.
1.
2.
Load three or more sheets of A4 or Letter sized Plain Paper.
2.
Loading Paper
3.
Press Paper Select button for more than 2 seconds.
3.
The following information on the printer's network setting is printed out. (Some setting values are not
displayed depending on the printer settings.)
Item Num-
ber
Item Description Setting
1 Product Information Product information -
1-1 Product Name Product name XXXXXXXX
1-2 ROM Version ROM version XXXXXXXX
1-3 Serial Number Serial number XXXXXXXX
1-4 Default Password Initial administrator password XXXXXXXX
2 Network Diagnostics Network diagnostics -
2-1 Diagnostic Result Diagnostic result XXXXXXXX
2-2 Result Codes Result codes XXXXXXXX
2-3 Result Code Details Result code details See Solve Network Troubles with
The Printer's Diagnostic Functions to
check details on the diagnostic result
and result codes.
3 Wireless LAN Wireless LAN Enable/Disable
3-2 Infrastructure Infrastructure Enable/Disable
3-2-1 Signal Strength Signal strength 0 to 100 [%]
268
3-2-2 Link Quality Link quality 0 to 100 [%]
3-2-3 Frequency Frequency 2.4/5 [GHz]
3-2-4 MAC Address MAC address XX:XX:XX:XX:XX:XX
3-2-5 Connection Connection status Active/Inactive
3-2-6 SSID SSID Wireless LAN network name (SSID)
3-2-7 Channel Channel XXX (1 to 13, 36, 40, 44, 48, 52, 56,
60, 64, 100, 104, 108, 112, 116, 120,
124, 128, 132, 136, 140, 149, 153,
157, 161, 165)
3-2-8 Encryption Encryption method none/AES
3-2-10 Authentication Authentication method none/auto/WPA-PSK/WPA2-PSK/
WPA3-SAE/WPA-EAP/WPA2-EAP/
WPA3-EAP
3-2-11 TCP/IPv4 TCP/IPv4 Enable
3-2-12 IP Address IP address XXX.XXX.XXX.XXX
3-2-13 Subnet Mask Subnet mask XXX.XXX.XXX.XXX
3-2-14 Default Gateway Default gateway XXX.XXX.XXX.XXX
3-2-15 TCP/IPv6 TCP/IPv6 Enable/Disable
3-2-16 Link Local Address Link local address XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-17 Link Local Prefix Length Link local prefix length XXX
3-2-18 Stateless Address1 Stateless address 1 XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-19 Stateless Prefix Length1 Stateless prefix length 1 XXX
3-2-20 Stateless Address2 Stateless address 2 XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-21 Stateless Prefix Length2 Stateless prefix length 2 XXX
3-2-22 Stateless Address3 Stateless address 3 XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-23 Stateless Prefix Length3 Stateless prefix length 3 XXX
3-2-24 Stateless Address4 Stateless address 4 XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-25 Stateless Prefix Length4 Stateless prefix length 4 XXX
269
3-2-26 Default Gateway1 Default gateway 1 XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-27 Default Gateway2 Default gateway 2 XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-28 Default Gateway3 Default gateway 3 XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-29 Default Gateway4 Default gateway 4 XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-2-33 IPsec IPsec setting Active/Inactive
3-2-34 Security Protocol Security method ESP/ESP & AH/AH/Blank (Not selec-
ted)
3-2-35 Wireless LAN DRX Discontinuous reception (wire-
less LAN)
Enable/Disable
3-3 Wireless Direct/Access Point
Mode
Operation mode for Wireless Di-
rect
Enable/Disable
3-3-1 MAC Address MAC address XX:XX:XX:XX:XX:XX
3-3-2 Connection Connection status Active/Inactive
3-3-3 SSID SSID Wireless Direct network name (SSID)
3-3-4 Password Password Wireless Direct password
3-3-5 Channel Channel 3,6,36,40
3-3-6 Encryption Encryption method AES
3-3-7 Authentication Authentication method WPA2-PSK
3-3-8 TCP/IPv4 TCP/IPv4 Enable
3-3-9 IP Address IP address XXX.XXX.XXX.XXX
3-3-10 Subnet Mask Subnet mask XXX.XXX.XXX.XXX
3-3-11 Default Gateway Default gateway XXX.XXX.XXX.XXX
3-3-12 TCP/IPv6 TCP/IPv6 Enable/Disable
3-3-13 Link Local Address Link local address XXXX:XXXX:XXXX:XXXX
XXXX:XXXX:XXXX:XXXX
3-3-14 Link Local Prefix Length Link local prefix length XXX
3-3-15 IPsec IPsec setting Active/Inactive
270
3-3-16 Security Protocol Security method ESP/ESP & AH/AH/Blank (Not selec-
ted)
3-3-17 Wireless LAN DRX Discontinuous reception (wire-
less direct)
Disable
3-3-18 Frequency Wireless Direct frequency 2.4 [GHz]
5 Other Settings Other settings -
5-1 Printer Name Printer name Printer name
5-4 WSD Printing WSD printing setting Enable/Disable
5-5 WSD Timeout Timeout 1/5/10/15/20 [min]
5-6 LPD Printing LPD printing setting Enable/Disable
5-7 RAW Printing RAW printing setting Enable/Disable
5-9 Bonjour Bonjour setting Enable/Disable
5-10 Bonjour Service Name Bonjour service name Bonjour service name
5-11 LLMNR LLMNR setting Enable/Disable
5-12 SNMP SNMP setting Enable/Disable
5-14 DNS Server Obtain DNS server address au-
tomatically
Auto/Manual
5-15 Primary Server Primary server address XXX.XXX.XXX.XXX
5-16 Secondary Server Secondary server address XXX.XXX.XXX.XXX
5-17 Proxy Server Proxy server setting Enable/Disable
5-18 Proxy Address Proxy address XXXXXXXXXXXXXXXXXXXX
5-19 Proxy Port Proxy port specification 1 to 65535
5-20 Cert. Fingerprt(SHA-1) Certificate fingerprint(SHA-1) xxxxxxxx xxxxxxxx xxxxxxxx
xxxxxxxx xxxxxxxx
5-21 Cert. Fingerprt(SHA-256) Certificate fingerprint(SHA-256) xxxxxxxx xxxxxxxx xxxxxxxx
xxxxxxxx
xxxxxxxx xxxxxxxx xxxxxxxx
xxxxxxxx
7 Web Services Web Services -
7-1 Unsent Usage Logs Number of unsent usage logs 0 to 200
7-2 Usage Log Last Sent Last date when usage log was
sent
XXXXXXXX
271
7-3 Web Service Status Registration status Not set/Disabled/Registration pend-
ing/Registered
7-4 Log Transmission Status Transmission result Not activated/Processing/Server
error/Connection error/Timeout
error/Error/Awaiting server re-
sponse/Active
7-5 Subscription Information Subscription information
7-5-1 Subscription Status Subscription status Not Available/Active/Inactive
7-5-2 Remaining Offline Prints Number of remaining pages that
can be printed offline
xxx
7-5-3 Installed Cartridge Type Cartridge type for subscription Subscription/Setup/Normal
7-5-4 Online Support Online support for subscription
URL
xxxxxxxxxxxxxxxx (54 characters)
("XX" represents alphanumeric characters.)
272
Restoring Printer's LAN Settings to Defaults
Important
• Initialization erases all network settings on the printer, making printing/scanning/faxing operation from•
a computer over a network impossible. To use the printer over a network again after restoring it to the
factory defaults, refer to Setup Guide and redo setup.
• If User management settings is enabled or LCD, Remote UI, and other tools is set as the scope for•
Administrator password settings, the administrator password must be entered.
Initialize the network setting using the printer's operation panel.
Reset settings
Note
• This web page contains information about several models. Depending on the specifications of the•
printer you are using, some of the features described (device functions, connection method, operating
procedure and etc.) may not apply. For details about the functions of your printer, see Product
Specifications.
273
Default Network Settings
LAN Connection Defaults
Item Default
Network name (SSID) BJNPSETUP
Wi-Fi security Disable
IP address (IPv4) Auto setup
IP address (IPv6) Auto setup
Set printer name* XXXXXXXXXXXXXXX
Enable/disable IPv6 Enable
Enable/disable WSD Enable
Timeout setting (WSD) 15 min.
Enable/disable Bonjour Enable
Bonjour service name* Canon ModelName
LPD settings Enable
RAW settings Enable
LLMNR setting Enable
Wi-Fi DRX setting Enable
("XX" represents alphanumeric characters.)
* Default value depends on printer. Depending on the model, use operation panel to check value of the
printer.
Wireless Direct Defaults
Item Default
Network name (SSID) XXXXXX-ModelName*1 *2
Password YYYYYYYYYY *3
274
Wi-Fi security WPA2-PSK (AES)
*1 Default value depends on printer. Depending on the model, use operation panel to check value of the
printer.
*2 "ab" is specified at random and "XXXXXX" represents last six digits of printer's MAC address. (The
value is specified when the printer is turned on for the first time.)
*3 The password is specified automatically when the printer is turned on for the first time.
275
Connecting with Wireless Direct
You can connect devices (e.g. computer, smartphone, or tablet) to the printer by two methods below.
• Wireless connection (connecting devices via a wireless router)•
• Direct wireless connection (connecting devices directly without a wireless router)•
This section describes Wireless Direct, which allows you to print by connecting the devices to the printer
directly.
Important
• You can connect up to 5 devices to the printer at the same time with Wireless Direct.•
• Check the usage restrictions and connect the printer to the Wireless Direct.•
Restrictions
• Some printers support IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise). If you enable Wireless Direct•
while IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise) is enabled, IEEE802.1X/EAP (WPA/WPA2/
WPA3 Enterprise) is disabled.
When IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise) is enabled, enable Administrator mode so
that the Wireless Direct settings cannot be changed.
Connecting a smartphone/tablet/computer
to the printer
1.
Enable Wi-Fi function on smartphone/tablet/computer.
1.
Enable Wi-Fi in the Settings menu on your smartphone/tablet/computer.
For instructions on enabling the Wi-Fi function, refer to the instruction manual for your smartphone/
tablet/computer.
2.
Select "XXXXXX-ModelName" ("X" represents alphanumeric characters) from list
2.
displayed on your device.
Note
•
If "XXXXXX-ModelName" does not appear on the list, Wireless Direct is not enabled.
•
276
See Enable Wireless Direct for printer to enable Wireless Direct.
3. Enter password.3.
The smartphone/tablet/computer is connected to the printer.
You can print from your smartphone or tablet by installing the App. Download it from App Store and
Google Play.
For iOS device
For Android device
Changing Wireless Direct Setting
1. Check that printer is turned on.1.
2.
Press and hold the Stop button until the Alarm lamp flashes 12 times, release the
2.
Stopbutton.
3. Press Color button.3.
Enable Wireless Direct for printer
Note
• Press Black button, then disable Wireless Direct for printer.•
•
To check the printer's MAC address and the current Wireless Direct settings, print out the
•
network setting information.
Printing Network Settings
277
Cannot Print (Scan) from Smartphone/Tablet
If you cannot Print (Scan) from your smartphone/tablet, it is possible that your smartphone/tablet cannot
communicate with the printer.
Check the cause of your problem according to the connection method.
Cannot Communicate with Printer via Wi-Fi
Cannot Connect to Printer through Wireless Direct
Note
• For problems on printing with other connection methods or more on performing settings of each•
connection method:
Using Cloud Service
Printing from iOS Device (AirPrint)
Cannot Communicate with Printer via Wi-Fi
If your smartphone/tablet cannot communicate with the printer, check the following.
Check 1
Check power status of printer, network devices (e.g. wireless router), and
your smartphone/tablet.
•
Turn on the printer or devices.
•
If the power is already turned on, cycle the power.
•
It may be necessary to resolve wireless router problems (e.g. update interval of a key, problems of DHCP
update interval, energy saving mode) or to update the wireless router firmware.
For details, contact the manufacturer of your wireless router.
Check 2
Check settings of your smartphone/tablet.
Make sure Wi-Fi is enabled on your device.
For details, refer to your device's instruction manual.
Check 3
Is printer connected to wireless router?
• Make sure that the Wireless select lamp of the button on the operation panel is lit.•
If the lamp of Wireless select button is off, Wi-Fi is disabled.
Enable to printer's wireless LAN.
• Make sure the network settings of the printer (e.g. network name (SSID) or network key (password), etc.)•
are identical with those of the wireless router.
To check the settings of the wireless router, refer to the instruction manual provided with it or contact its
manufacturer.
278
To check the current network settings of the printer, print out the network settings information.
◦ Print the network settings.◦
Printing Network Settings
Note
• If you have a computer, Wi-Fi Connection Assistant allows you to diagnose and repair the network
•
status.
Select the link below to download Wi-Fi Connection Assistant and install it.
Checking Printer Connection Status Using Wi-Fi Connection Assistant
Refer to below in regard to starting up Wi-Fi Connection Assistant.
For Windows:
Starting Up Wi-Fi Connection Assistant
For macOS:
Starting Up Wi-Fi Connection Assistant
Check 4
Are network settings of your smartphone/tablet identical with those of
wireless router?
Make sure the network settings of the printer (e.g. network name (SSID) or network key (password), etc.) are
identical with those of the wireless router.
To check the settings of your smartphone/tablet, refer to the instruction manual provided with it.
If the network settings of your smartphone/tablet are not identical with those of the wireless router, change the
network settings of it to match with those of the wireless router.
Check 5
Make sure the printer is not placed too far away from the wireless router.
If the distance between the printer and wireless router is too far, wireless communication becomes poor. Place
the printer and wireless router close to each other.
Check 6
There may be a problem with the signal. Monitor signal status and move
printer and wireless router as necessary.
Place the printer and wireless router where there are no obstacles between them. Wireless communication
between different rooms or floors is generally poor. Wireless communication can be impeded by building
materials containing metal or concrete. If the printer cannot communicate with the computer over a Wi-Fi due
to a wall, place the printer and the computer in the same room.
In addition, if a device like a microwave oven that emits radio waves of the same frequency bandwidth as a
wireless router is nearby, it may cause interference. Place the wireless router as far away from interference
sources as possible.
Note
• If the web page cannot be printed using an Android device, it may be possible to print it by changing•
Wireless Direct connection.
Connecting with Wireless Direct
279
Cannot Communicate with Printer while It Is in Wireless Direct
If your smartphone/tablet cannot communicate with the printer in the Wireless Direct, check the following.
Check 1
Check power status of printer and device (e.g. smartphone/tablet).
Turn on the printer or devices.
If the power is already turned on, cycle the power.
Check 2
Print out network settings information.
• Print the network settings.•
Printing Network Settings
•
To enable Wireless Direct, press and hold the Stop button on the operation panel until the Alarm lamp
•
flashes 12 times, then release the Stop button and press the Color button. Wireless Direct will be
enabled.
Setting Items on Operation Panel
Note
•
To disable Wireless Direct, press and hold the Stop button on the operation panel until the Alarm lamp
•
flashes 12 times, then release the Stop button and press the Black button. Wireless Direct will be
disabled.
Check 3
Check settings of your smartphone/tablet.
Make sure Wi-Fi is enabled on your device.
For details, refer to your device's instruction manual.
Check 4
Check that printer is selected as connection for devices (e.g. smartphone/
tablet).
Select the network name (SSID) for Wireless Direct specified for the printer as the connection destination for
devices.
Check the destination on your device.
For details, refer to your device's instruction manual or visit the manufacturer's website.
To check the network name (SSID) for Wireless Direct specified for the printer, print out the network settings
information.
• Print the network settings.•
Printing Network Settings
Check 5
Check that Wireless Direct password set for printer is entered correctly.
To check the password specified for the printer, print out the network settings information.
•
Print the network settings.
•
280
Printing Network Settings
Check 6
Check that printer is not placed too far away from device.
If the distance between the printer and the device is too far, wireless communication becomes poor. Place the
printer and the device close to each other.
Check 7
Check that 5 devices are already connected.
Wireless Direct does not allow more than 5 devices to be connected.
Note
• Some printers support IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise). Note that when•
IEEE802.1X/EAP (WPA/WPA2/WPA3 Enterprise) is set to Enable, Wireless Direct is set to Disable.
281
Message Is Displayed
This section describes some of the messages that will be displayed on the computer screen.
Error Regarding Automatic 2-sided Printing Is Displayed
Error Regarding Power Cord Being Unplugged Is Displayed (Windows)
Writing Error/Output Error/Communication Error (Windows)
Other Error Messages (Windows)
Error Regarding Automatic 2-sided Printing Is Displayed
See Automatic 2-sided Printing Problems and take the appropriate action.
Error Regarding Power Cord Being Unplugged Is Displayed (Windows)
The printer may have been unplugged while it was on.
Check the error message displayed on the computer and click OK.
The printer starts printing.
See
Turning the Printer On and Off to unplug the printer correctly.
Writing Error/Output Error/Communication Error (Windows)
Check 1
If the ON lamp is off, make sure printer is plugged in and turn on.
The ON lamp flashes while the printer is initializing. Wait until the ON lamp stops flashing and remains lit.
Check 2
Make sure printer is properly connected to computer.
If you are using a USB cable, make sure it is securely connected to both the printer and the computer. When
the USB cable is securely plugged in, check the following:
•
If you are using a relay device such as a USB hub, disconnect it, connect the printer directly to the
computer, and retry the printing. If printing starts normally, there is a problem with the relay device.
Contact the vendor of the relay device.
•
There could also be a problem with the USB cable. Replace the USB cable and retry the printing.
If you use the printer with a network connection, make sure the printer is correctly set up for network use.
Check 3
Make sure MP Drivers are installed correctly.
Refer to Updating the Driver to uninstall unnecessary drivers and install the latest drivers.
Check 4
When printer is connected to your computer with a USB cable, check device
status from your computer.
Follow the procedure below to check the device status.
1. Open Device Manager1.
For Windows 10 or Windows 11:
282
Right-click the Start menu and select Device Manager.
For other than the above the Windows:
Select Control Panel > Hardware and Sound > Device Manager.
Note
• If the User Account Control screen is displayed, select Yes.
2. Open USB Printing Support Properties.2.
Double-click Universal Serial Bus controllers and USB Printing Support.
Note
•
If the USB Printing Support Properties screen is not displayed, make sure the printer is
•
USB correctly connected to the computer.
Check 2
Make sure printer is properly connected to computer.
3.
Click General tab and check for a device problem.
3.
If a device error is shown, see Windows Help to resolve it.
Other Error Messages (Windows)
If an error message is displayed somewhere other than printer status monitor, check the following:
•
"Could not spool successfully due to insufficient disk space"
•
Delete any unnecessary files to increase the amount of free space on the disk.
•
"Could not spool successfully due to insufficient memory"
•
Close other applications to increase the available memory.
If you still cannot print, restart your computer and retry the printing.
•
"Printer driver could not be found"
•
Refer to Updating the Driver to uninstall unnecessary drivers and install the latest drivers.
•
"Could not print Application name - File name"
•
Try printing again once the current job is complete.
283
Printer Does Not Print
Check 1
Make sure printer is turned on.
If not, make sure the printer is securely plugged in and press ON button to turn on.
The ON lamp flashes while the printer is initializing. Wait until the ON lamp stops flashing and remains lit.
Note
•
If you are printing large data such as photos or other graphics, printing may take longer to start. The ON
•
lamp flashes while the computer is processing data and sending it to the printer. Wait until printing starts.
Check 2
Make sure that the cassette is correctly inserted.
If there is an object under the printer, the cassette cannot be correctly inserted and paper may not be correctly
fed.
Make sure there are no objects under the printer and push the cassette flatly into the printer until it stops.
Loading Plain Paper
Check 3
Make sure printer is properly connected to computer.
If you are using a USB cable, make sure it is securely connected to both the printer and the computer. When the
USB cable is securely plugged in, check the following:
•
If you are using a relay device such as a USB hub, disconnect it, connect the printer directly to the
•
computer, and retry the printing. If printing starts normally, there is a problem with the relay device. Contact
the vendor of the relay device.
•
There could also be a problem with the USB cable. Replace the USB cable and retry the printing.
•
If you use the printer with a network connection, make sure the printer is correctly set up for network use.
Cannot Find Printer on Network (Windows/macOS)
Note
• Wi-Fi Connection Assistant allows you to diagnose and repair the network status.•
Select the link below to download Wi-Fi Connection Assistant and install it.
Checking Printer Connection Status Using Wi-Fi Connection Assistant
Refer to below in regard to starting up Wi-Fi Connection Assistant.
For Windows:
Starting Up Wi-Fi Connection Assistant
285
For macOS:
Starting Up Wi-Fi Connection Assistant
Check 4
Make sure paper settings match information set for cassette.
Check the printing settings from the printer driver.
Check 5
If printing from a computer, delete unnecessary print jobs.
• For Windows:•
Deleting the Undesired Print Job
• For macOS:•
Deleting the Undesired Print Job
Check 6
Is your printer's Printer Driver selected when printing?
The printer will not print properly if you are using a printer driver for a different printer.
•
For Windows:
•
Make sure "Canon ModelName" is selected in the Print dialog box.
Note
•
If multiple printers are registered to your computer, set your printer as Let Windows manage my
•
default printer so that it is selected by default.
Default Printer Keeps Changing (Windows)
•
For macOS:
•
Make sure your printer's name is selected in Printer in the Print dialog.
Note
•
If multiple printers are registered to your computer, select Set as Default Printer from System
•
Settings > Printers & Scanners for a printer to make the one selected by default.
Check 7
Are you trying to print a large data file? (Windows)
If you are trying to print a large data file, it takes a long time to start printing.
If the printer does not start printing after a certain period of time, select On for Prevention of Print Data Loss on
the Print Options dialog box.
For details, refer to
Page Setup Tab Description.
Important
• Selecting On for Prevention of Print Data Loss may reduce print quality.
•
After printing is completed, select Off for Prevention of Print Data Loss.
Check 8
If printing from your computer, restart the computer.
286
Restart the computer and try printing again.
Important
• For Windows:•
To restart your computer, choose Restart instead of Shut down.
287
Printer Does Not Pick Up or Feed the Paper/"No Paper" Error
Check 1
Check the printer is placed on the right spot.
Place the printer on a flat table or similar platform.
Check 2
Make sure paper is loaded in the specified cassette.
Loading Paper
Check 3
When loading paper, consider the following.
•
When loading two or more sheets of paper, align the edges of the sheets before loading the paper.
•
•
When loading two or more sheets of paper, make sure the paper stack does not exceed the paper load
•
limit.
However, paper may not feed correctly at the maximum capacity, depending on the type of paper or
environmental conditions (very high or low temperature and humidity). In such cases, reduce the amount of
paper you load at a time to less than half of the paper load limit.
•
Always load the paper in portrait orientation, regardless of the printing orientation.
•
•
When you load the paper on the cassette, place the print side facing DOWN and align the right/left/front
•
paper guides with the paper stack.
Loading Paper
Check 4
Is paper too thick or curled?
Unsupported Media Types
Check 5
When loading envelopes or Hagaki, consider the following.
•
When printing on envelopes, see Loading Envelopes, and prepare the envelopes before printing.
•
Once you have prepared the envelopes, load them in portrait orientation. If the envelopes are placed in
landscape orientation, they will not feed properly.
Check 6
Make sure media type and paper size settings match with loaded paper.
Check 7
Clean Paper Feed Roller.
Cleaning Paper Feed Rollers
Note
• Cleaning the paper feed roller abrades it, so do this only when necessary.•
288
Check 8
If two or more sheets of paper feed from cassette at once, clean inside of
cassette.
Cleaning Cassette Pads
Check 9
Are transport unit attached properly?
See Rear View for the positions of the transport unit.
If the measures above do not solve the problem, contact your nearest Canon service center to request a
repair.
289
Resolving Print Quality Problems
If the print results are unsatisfactory due to white or black streaks, misaligned/distorted lines, or uneven
colors, check the paper and print quality settings first.
Check 1
Do page size and media type settings match size and type of loaded paper?
If these settings do not match, it is not possible to obtain the proper result.
If you are printing a photograph or an illustration, an incorrect paper type setting may reduce the quality of the
printout color.
Also, if you print with an incorrect paper type setting, the printed surface may be scratched.
The method for checking the paper and print quality settings differs depending on your device.
•
Copying from printer:
•
Check the settings using the operation panel of the printer.
Copying
•
Printing from your computer
•
Check the settings using the Printer Driver.
Basic Printing Setup
•
Printing from your smartphone/tablet using
•
Check the settings on the App.
Print Photos from Your Smartphone
Check 2
Make sure appropriate print quality is selected.
Select a print quality suited to the paper and to what you are printing. If you notice blurs or uneven colors,
increase the print quality setting and retry the printing.
Note
• When printed text or lines are thin, remove the check mark from Print barcodes and 2D barcodes•
clearly.
Page Setup Tab Description
Check 3
If problem is not resolved, click on illustration that corresponds to problem.
290
Ink Does Not Come Out/Blurry or Fuzzy/Inaccurate or Bleeding
Colors/Streaks
Ink Does Not Come Out
Blurry or Fuzzy
Inaccurate or Bleeding
Colors
White Streaks
Black Streaks
Note
• If printouts are blank, black does not print, is faint, or has a blue or red tint, refer to this web page.•
ー
Check
1 Check paper and print quality settings.
Resolving Print Quality Problems
ー
293
Check
2 Check the estimated ink levels in the FINE cartridges. When a FINE
cartridge runs out of ink, replace it with new ones.
Checking the Ink Status with the Ink Lamps on the Operation Panel
Replacing a FINE Cartridge
ー
Check
3 Is the FINE cartridge installed properly?
Check that there is no orange tape left on the FINE cartridge.
If the orange tape remains on the FINE cartridge, peel it off.
◦ If the FINE cartridge is not installed securely, ink may not be ejected correctly.◦
Close and reopen the scanning unit / cover to return the FINE cartridge holder to the position for replacing.
◦ Press firmly the print head locking cover until it clicks into place.
◦
After confirming that the FINE cartridge is installed properly, close the scanning unit / cover
ー
Check
4 Print a nozzle check pattern and clean the print head if necessary
Print the nozzle check pattern by following the steps below to determine whether the ink ejects properly from the
print head nozzles.
Step
1 Print a nozzle check pattern.
After printing the nozzle check pattern, examine the pattern.
◦
For Windows:
◦
Printing a Nozzle Check Pattern
◦
For macOS:
◦
Printing a Nozzle Check Pattern
If the pattern is not printed correctly, go to the next step.
Step
2 Clean the print head.
After cleaning the print head, print the nozzle check pattern and check the result.
◦ For Windows:◦
Cleaning the Print Head
◦ For macOS:◦
Cleaning the Print Head
294
If it still does not improve, go to the next step.
Step
3 Clean the print head again.
After cleaning the print head again, print the nozzle check pattern and check the result.
If it still does not improve, go to the next step.
Step
4 Clean the print head deeply.
After cleaning the print head, print the nozzle check pattern and check the result.
◦ For Windows:◦
Deep Print Head Cleaning
◦
For macOS:
◦
Deep Print Head Cleaning
If it does not improve, turn off the printer, wait for more than 24 hours without unplugging the power supply, and go to the next step.
Step
5 Clean the print head deeply again.
After cleaning the print head, print the nozzle check pattern and check the result.
If it still does not improve, go to the next step.
Step
6 Replace the FINE cartridge.
If problem is not resolved after performing print head deep cleaning twice, the print head may be damaged, or ink may have run out. Replace
the FINE cartridge.
Replacing a FINE Cartridge
For details on printing the nozzle check pattern, print head cleaning, and print head deep cleaning, see
If Printing
Is Faint or Uneven.
ー
Check
5 When using paper with one printable surface, check the correct printable
side of the paper.
Printing on the wrong side of such paper may cause unclear prints or prints with reduced quality.
When you load paper, load paper with the printable side facing down.
Refer to the instruction manual supplied with the paper for detailed information on the printable side.
When copying, see also the sections below:
ー
Check
6 Is platen glass dirty?
Clean the platen glass.
Cleaning Platen and Document Cover
ー
Check
7 Is platen glass and/or inner side of document cover dirty?
Clean the platen glass and/or the inner side of the document cover, and then reload the document.
Cleaning Platen and Document Cover
295
ー
Check
8 Make sure original is properly loaded on platen.
When you load the original on the platen, load it with the side to be copied facing down.
Loading Originals
ー
Check
9 Make sure you are not copying what the printer has printed.
When you copy a printout from the printer as a source document, it may not print cleanly, depending on the
original photo or document.
Instead of copying the printout, print the original data directly.
296
Lines Are Misaligned/Distorted
Note
• For the case of misaligned or distortion, refer to this web page.•
Check 1
Check paper and print quality settings.
Resolving Print Quality Problems
Check 2
Perform print head alignment.
If printed lines are misaligned/distorted or print results are otherwise unsatisfactory, adjust the print head
position.
Aligning the Print Head
Note
•
If the problem is not resolved after performing the print head alignment, perform print head alignment
•
manually from your computer.
For Windows:
Adjusting Print Head Position Manually
Check 3
Increase print quality and try printing again.
Increasing the print quality from computer may improve the print result.
297
Printed Surface Is Smudged/Scratched/Ink Blots/Paper Curl/Paper
Is Smudged During Automatic 2-sided Printing
Check
1 Check paper and print quality settings.
Resolving Print Quality Problems
Check
2 Check paper type.
Make sure you are using the right paper for what you are printing. To print data with high color saturation such
as photographs or images with dark colors, we recommend that you use Photo Paper Plus Glossy II or other
Canon specialty paper.
Supported Media Types
Check
3 Correct curl before loading paper.
When using Photo Paper Plus Semi-gloss, even if the sheet is curled, load one sheet at a time as it is. Rolling
this paper in the opposite direction to flatten it may crack the paper surface and reduce the print quality.
We recommend putting unused paper back into the package and storing it flat.
• Plain Paper:•
Turn the paper over and reload it to print on the other side.
• Other Paper such as envelope or Hagaki:•
If the paper corners curl more than 0.1 in. / 3 mm (A) in height, the paper may smudge or may not feed
properly. Follow the instructions below to correct the paper curl.
298
1. Roll up paper in opposite direction to paper curl as shown below.
1.
2.
Check that paper is now flat.
2.
We recommend printing curl-corrected paper one sheet at a time.
Note
•
Depending on paper type, the paper may smudge or may not feed properly even if it is not curled inward.
•
Follow the instructions below to curl the paper outward up to 0.1 in. / 3 mm (C) in height before printing.
This may improve the print result.
(B) Print side
We recommend feeding paper that has been curled outward one sheet at a time.
Check
4 Set printer to prevent paper abrasion.
Adjusting the setting to prevent paper abrasion will widen the clearance between the print head and the paper.
If you notice abrasion even with the media type set correctly to match the paper, set the printer to prevent paper
abrasion using the operation panel or the computer.
This may reduce the print speed.
* Once you have finished printing, undo this setting. Otherwise, it will apply to subsequent print jobs.
Press and hold the Stop button on the operation panel until the Alarm lamp flashes 9 times, then release the
Stop button and press the Color button. To set the printer to prevent paper abrasion.
Setting Items on Operation Panel
Note
• To cancel the setting to improve paper abrasion, press and hold the Stop button on the operation panel,
and when the Alarm lamp flashes 9 times, press the Black button. Paper abrasion improvement is
canceled.
Check
5 For plain paper, set the ink smudge reduction.
299
Some plain paper has paper qualities that make it difficult for ink to fix. When printing on such paper, if you touch
the print surface immediately after printing, ink may stick there, or the back side may become dirty when printing
on 2-sided printing. Set the waiting time using Remote UI.
•
For Windows:
•
1.
Open Remote UI on the web browser of your device.
1.
Configuration Changes / Display Printer Status Using Web Browser
2.
Select Log in on Remote UI.2.
Note
• If you specify the administrator password, enter the password.
3. Select Printer settings.3.
4. Select Print settings.4.
5.
Select Reduce plain paper ink smudges.
5.
select the appropriate setting for Reduce plain paper ink smudges.
•
For macOS:
•
Opening Remote UI for Maintenance
Note
•
Printing speed may become slower and image quality may deteriorate.
Check
6 If brightness is set low, increase brightness setting and try printing again.
If you are printing with a low brightness setting on Plain Paper, the paper may absorb too much ink and become
wavy, causing paper abrasion.
•
Printing from your computer (Windows)
•
Check the brightness setting in the Printer Driver.
Adjusting Brightness
Check
7 Is platen glass dirty?
Clean the platen glass.
Cleaning Platen and Document Cover
Check
8 Is paper feed roller dirty?
Clean paper feed roller.
Cleaning Paper Feed Rollers
Note
• Cleaning the paper feed roller abrades it, so do this only when necessary.•
300
Check
9 Is inside of printer dirty?
During 2-sided printing, ink may stain the inside of the printer, smudging the printout.
Perform bottom plate cleaning to clean inside of printer.
Cleaning Inside the Printer (Bottom Plate Cleaning)
Note
• To prevent staining inside the printer, be sure to set the correct paper size.
Check
10 Set longer ink drying time.
This allows the printed surface to dry, preventing smudges and scratches.
• For Windows:•
Set the waiting time using Remote UI.
1. Open Remote UI on the web browser of your device.1.
Configuration Changes / Display Printer Status Using Web Browser
2.
Select Log in on Remote UI.
2.
Note
•
If you specify the administrator password, enter the password.
3.
Select Printer settings.
3.
4.
Select Ink drying wait time.
4.
•
For macOS:
•
Set the waiting time using Remote UI.
Opening Remote UI for Maintenance
301
Lines Incomplete or Missing (Windows)
Check 1
Are you using Page Layout Printing or Binding Margin function?
When the Page Layout Printing or Binding margin function is in use, thin lines may not be printed. Try thickening
the lines in the document.
Check 2
Are you trying to print a large data file? (Windows)
If you are trying to print a large data file, printing may not be performed properly due to missing print data.
Select On for Prevention of Print Data Loss on the Print Options dialog box of the Printer Driver.
For details, refer to Page Setup Tab Description.
Important
•
Selecting On for Prevention of Print Data Loss may reduce print quality.
•
After printing is completed, select Off for Prevention of Print Data Loss.
302
Back of Paper Is Smudged
Check 1
Check paper and print quality settings.
Resolving Print Quality Problems
Check 2
Perform bottom plate cleaning to clean inside of printer.
Cleaning Inside the Printer (Bottom Plate Cleaning)
Note
•
During 2-sided printing, or too much printing, ink may stain the inside of the printer.
303
Uneven or Streaked Colors
Check 1
Increase print quality and try printing again.
Increasing the print quality using operation panel of the printer or from computer may improve the print result.
Check 2
Perform print head alignment.
Aligning the Print Head
Note
•
If the problem is not resolved after performing the print head alignment, perform print head alignment
•
manually from your computer.
For Windows:
Adjusting Print Head Position Manually
Check 3
Make sure you are not copying what the printer has printed.
When you copy a printout from the printer as a source document, it may not print cleanly, depending on the
original photo or document.
Instead of copying the printout, print the original data directly.
304
Change to Offline (Windows)/Cannot Communicate (Windows)/
Cannot Print (Windows)
If the printer cannot communicate with the computer, an error message "Offline" may be displayed when
printing. To bring the printer back online, try the following.
1.
Check the name of the MP Drivers (Printer Driver).
1.
Check the names of the printer and MP Drivers (Printer Driver) match. If the offline status is not resolved
after selecting the correct MP Drivers (printer driver) name, proceed to the next step.
Note
• From Windows 10, the management method of the printer that is normally used has changed. Set•
the MP Drivers (Printer Driver) of the printer you are using as default.
Default Printer Keeps Changing (Windows)
Confirm that the offline mode has been disabled. If the printer is still offline, proceed to the next step.
2. Check the connection (USB/Wi-Fi).2.
For USB connection:
Make sure that the USB Port on the printer and the computer are firmly connected with the USB cable.
USB Connection Problems
For Wi-Fi connections:
Make sure that Wireless select lamp is lit, on the printer's operation panel.
3.
Turn off printer and then turn it on again.
3.
Confirm that the offline mode has been disabled. If the printer is still offline, proceed to the next step.
4.
Check see if Windows protected print mode is enabled
4.
If Windows protected print mode is switched to enabled, the MP Drivers (Printer Driver) is not be
available. Try one of the following methods.
•
Using the printer with Windows protected print mode is enabled
•
When using Windows 11, Windows protected print mode may be enabled due to security policy in
your environment. Contact your system administrator or follow the steps below to connect to the
printer.
305
When the printer is connected via USB, the connection is made automatically when the computer
and the Printer are connected with the USB cable. The computer downloads the appropriate
drivers and is ready to use. To connect a wireless printer, follow the steps below.
1.
Open Set Printers & scanners.
2.
Select Add Device.
3. Wait for a nearby printer to appear, then select the printer you want to use and select Add
Device.
To remove the printer later, select the printer, then choose Remove.
4.
If the printer does not appear, see "Fix printer connection and printing problems in Windows"
to resolve the problem in the Microsoft's home page.
Note
•
When using the printer with Windows protected print mode enabled, the printer functions
•
are limited because the standard printer driver of the OS is used. To use full advantage of
the printer functions, disable Windows protected print mode and use the MP Drivers (Printer
Driver).
• Disable Windows protected print mode and install MP Drivers (Printer Driver)•
If you are using Windows 11 and want to disable Windows Protected Printing Mode, follow the
instructions on the below link page. And delete the printer icon, then install the MP Drivers (Printer
Driver).
Disabling Windows protected print mode
5. Make sure that printer is not set to Use Printer Offline mode.5.
For Windows 11:
1. Open Set Printers & scanners.1.
2. Click the name of printer you want to configure.2.
3. Click Print settings.3.
Print settings window opens.
4. Click Maintenance sheet.4.
5. Click View Printer Status.5.
The Canon IJ Status Monitor window is displayed.
6. Click Display Print Queue of the Canon IJ Status Monitor window.6.
The Print Queue window is displayed.
7. Click Printer menu in the window displayed.7.
Make sure Use Printer Offline is not selected.
If it is selected, click Use Printer Offline to deselect it.
Confirm that the offline mode has been disabled. If the printer is still offline, proceed to the next step.
306
For Windows 10:
1. Open Set Printers & scanners.1.
2. Click the name of printer you want to configure, and select Open queue.2.
The Print Queue window is displayed.
3.
Click Printer menu in the window displayed.
3.
Make sure Use Printer Offline is not selected.
If it is selected, click Use Printer Offline to deselect it.
Confirm that the offline mode has been disabled. If the printer is still offline, proceed to the next step.
6.
For Wi-Fi connections, use Wi-Fi Connection Assistant to change settings.
6.
Diagnose and repair the network connections using Wi-Fi Connection Assistant.
Download Wi-Fi Connection Assistant from the below page, and install it on your computer.
Checking Printer Connection Status Using Wi-Fi Connection Assistant
Refer to below in regard to starting up Wi-Fi Connection Assistant.
Starting Up Wi-Fi Connection Assistant
Confirm that the offline mode has been disabled. If the printer is still offline, proceed to the next step.
7.
Uninstall MP Drivers (Printer Driver) and reinstall MP Drivers (Printer Driver).
7.
If your MP Drivers (Printer Driver) version is old or not installed correctly, you may not be able to print.
Confirm that the offline mode has been disabled. If the printer is still offline, proceed to the next step.
8. Restart computer.8.
The computer may be unstable for some reason. Restart the computer and try to print.
Important
•
To restart your computer, choose Restart instead of Shut down.
307
Printer Does Not Turn On
Check 1
Press ON button.
Turning the Printer On and Off
Check 2
Make sure power cord is securely connected to printer, and then turn on again.
Check 3
Unplug printer, leave it for at least 2 minutes, and then plug it back in and turn
on again.
If this does not solve the problem, contact your nearest Canon service center to request a repair.
Note
• This web page contains information about several models. Depending on the specifications of the•
printer you are using, some of the features described (device functions, connection method, operating
procedure and etc.) may not apply. For details about the functions of your printer, see Product
Specifications.
309
Printer Turns Off Unexpectedly or Repeatedly
If printer is set to turn off automatically after a certain time, disable this setting.
If you have set the printer to turn off automatically after a specified time, the power will shut off by itself once that
time has elapsed.
1. Check that printer is turned on.1.
2. Display printer status on web browser.2.
Configuration Changes / Display Printer Status Using Web Browser
3.
Select Printer settings.
3.
4.
Select Energy saving settings.
4.
5.
Check displayed message and press OK button.
5.
6.
Select Auto power off (LAN/USB connection) or Auto power off (no LAN/USB
6.
connection).
7.
Select OFF.
7.
Note
• If Auto power off is set to OFF, power consumption will increase.•
8.
Select OK.
8.
The setting to shut off the power automatically is disabled.
310
USB Connection Problems
If the printer connected to the computer via USB is not recognized, check the following items.
USB Connection Not Recognized
The following problems may occur even though the USB connection is recognized.
• Printing (scanning) is slow.
• Hi-Speed USB connection does not work.
• A message such as "This device can perform faster" appears (Windows).
If the above is the case, check the following.
USB Connection Does Not Work Properly
Note
• If your system environment does not support Hi-Speed USB, the printer operates at the slower speed
of Full-Speed or Low-Speed. In this case, the printer works properly but printing (scanning) speed may
slow down due to the communication speed.
USB Connection Not Recognized
Check 1
Make sure printer is turned on.
Turning the Printer On and Off
Check 2
Unplug the USB cable from the printer and the computer, and then connect it
again.
As the illustration below, the USB port is at the back of the printer.
Important
• Check the orientation of the "Type-B" connector and connect to the printer. For details, refer to the
instruction manual supplied with the USB cable.
Check 3
Check that Enable bidirectional support is selected in Ports sheet of
Printer properties dialog box (Windows).
311
If not, select it to enable bidirectional support.
Opening Printer Driver's Setup Screen
Check 4
Initialize the printer settings.
Press and hold the Stop button on the operation panel, and when the Alarm lamp flashes 16 times, release
the Stop button.
Initializing Printer Settings
After initializing the printer settings, redo setup.
Refer to Setup Guide and redo setup.
USB Connection Does Not Work Properly
Follow the items below to make sure your system environment supports Hi-Speed USB connection.
• The types of USB cables that can be used differ depending on your printer. Check the shape of the•
USB port of the printer.
What Is USB Cable?
• Does the USB port on your computer support Hi-Speed USB connection?•
• Does the USB cable or the USB hub support Hi-Speed USB connection?•
Be sure to use a certified Hi-Speed USB cable. We recommend that the USB cable be no longer than
10 feet / 3 meters or so.
• Is the Hi-Speed USB driver working properly on your computer?•
Make sure the latest Hi-Speed USB driver is working properly and install the latest version of the
Hi-Speed USB driver for your computer, if necessary.
Important
• For more information, contact the manufacturer of your computer, USB cable, or USB hub.
312
Installation and Download Problems
Failed to MP Drivers (Printer Driver) Installation (Windows)
Cannot Proceed Beyond Printer Connection Screen (Cannot Find Printer
Connected via USB)
Updating MP Drivers (Printer Driver) in Network Environment (Windows)
Disable Function to Send Usage Information of Printer
313
Failed to MP Drivers (Printer Driver) Installation (Windows)
If the MP Drivers (Printer Driver) were not installed correctly, make sure that all Windows Update have
been applied. If all Windows Update have not been applied, apply all Windows Update.
After confirming Windows Update, perform the following operations to install the MP Drivers (Printer
Driver).
1.
Check see if Windows protected print mode is enabled.
1.
When using Windows 11, Windows protected print mode may be enabled due to security policy in your
environment. Contact your system administrator or refer to "Using the printer with Windows protected
print mode is enabled" below.
• Using the printer with Windows protected print mode is enabled•
When the printer is connected via USB, the connection is made automatically when the
computer and the printer are connected with the USB cable. The computer downloads the
appropriate drivers and is ready to use. To connect a wireless printer, follow the steps below.
1.
Open Set Printers & scanners.
2. Select Add Device.
3. Wait for a nearby printer to appear, then select the printer you want to use and select Add
Device.
To remove the printer later, select the printer, then choose Remove.
4. If the printer does not appear, see "Fix printer connection and printing problems in
Windows" to resolve the problem in the Microsoft's home page.
Note
•
When using the printer with Windows protected print mode enabled, the printer functions
•
are limited because the standard printer driver of the OS is used. To use full advantage of
the printer functions, disable Windows protected print mode and use the MP Drivers (Printer
Driver).
•
Disable Windows protected print mode
•
Follow the procedure on the following page to disable Windows protected print mode before
installing the MP Drivers (Printer Driver).
Disabling Windows protected print mode
2.
Open screen to uninstall MP Drivers (Printer Driver).
2.
For Windows 11:
Open Installed apps.
314
For Windows 10:
Open Apps & features.
For Windows 8.1 / Windows 7:
Select Control Panel > Programs and Features.
3. Check if there is "Canon XXX series Driver" you want to install in list.3.
"XXX" is the printer's model name.
4.
If you find MP Drivers (Printer Driver) for printer you want to install, uninstall it.
4.
If not found, proceed to the next step.
5.
Restart computer.
5.
After restarting, install the latest MP Drivers (Printer Driver).
Important
• For Windows:•
To restart your computer, choose Restart instead of Shut down.
315
Cannot Proceed Beyond Printer Connection Screen (Cannot Find
Printer Connected via USB)
Note
• For the case of connecting with a USB cable, refer to this web page.•
If you cannot proceed beyond the Printer Connection screen, check the following.
Check 1
Make sure USB cable is securely plugged in to printer and computer.
Connect the printer and the computer using a USB cable as the illustration below. The USB port is located at the
back of the printer.
Important
•
Check the orientation and angle of the "Type-B" connector when connecting to the printer. For details, refer
to the instruction manual supplied with the USB cable.
Check 2
Follow procedure below to connect printer and computer again.
1.
Unplug USB cable from printer and computer and connect it again.
1.
2. Make sure no printer operation is in progress and turn off.2.
3.
Turn on printer.
3.
Check 3
Follow the steps below to install MP Drivers (Printer Driver) again.
1. Download the latest MP Drivers (Printer Driver).1.
2.
Turn off printer.
2.
3. Restart computer.3.
316
After restarting, install the latest MP Drivers (Printer Driver) downloaded in step 1.
Important
•
When installing the MP Drivers (Printer Driver), make sure you select the correct printer name.
• For Windows:•
To restart your computer, choose Restart instead of Shut down.
317
Updating MP Drivers (Printer Driver) in Network Environment
(Windows)
Download the latest MP Drivers (Printer Driver) in advance.
Download the latest MP Drivers (Printer Driver) for your model on the download page of the Canon website.
After the download is completed, overwrite and install the new version of the MP Drivers (Printer Driver)
according to the specified installation procedure.
Note
• The network settings on the printer are not affected, so the printer can be used on the network without
redoing settings.
• This web page contains information about several models. Depending on the specifications of the•
printer you are using, some of the features described (device functions, connection method, operating
procedure and etc.) may not apply. For details about the functions of your printer, see Product
Specifications.
318
When Error Occurred
If an error occurs while printing, for example, if the paper runs out or jams, the troubleshooting message will
be displayed on the computer screen and the printer's Alarm lamp and/or ON lamp will flash.
If you are using Windows, the support code (error number) may be displayed with the message.
If you are using macOS, you can check the support code (error number) on the Remote UI.
Take the appropriate action described in the message.
When a Support Code and a Message are displayed on the Computer
Screen (Windows):
For details on resolving the error, see List of Support Code for Error.
For messages, refer to Message Is Displayed.
When the Alarm lamp and/or ON lamp flashes:
The flash pattern and number of flashes vary depending on the cause of the error.
319
The Alarm lamp will flash/light when an error occurs that has a clear cause and remedy, such as when no
paper is loaded or the paper is jammed.
When an error occurs that may require repair, the Alarm lamp and ON lamp will flash alternately.
See Alarm Lamp and ON Lamp in the Event of an Error for the flashing/lighting of the lamps when an
error occurs.
Note
• You can download the App using the QR code below and check for errors from your smartphone/•
tablet.
For iOS:
For Android:
320
List of Support Codes for Printer Errors
If an error occurs the support code will be displayed on the computer screen, and the printer's Alarm lamp
and/or ON lamp will flash or light up.
A "support code" is an error number, and is displayed along with an error message.
When an error occurs, check the support code and take the appropriate action in response.
Support Codes Displayed on Printer's Touch Screen and Computer
Screen
• 1000 to 1ZZZ•
1003 1200 1300 1303 1304 1309 1310 1313 1401 1403 1430 1485
15A2 15B1 1650 1654 1655 1656 1682 1684 1686 1687 1688 169A
169B 1700 1701 1712 1713 1714 1715 1871
• 2000 to 2ZZZ•
2110 2118 2900 2901
• 3000 to 3ZZZ•
3002 3007 3008 3009 300A 300B 300C 300D 300E 300F 3412 3434
3435 3436 3437 3440 3441 3446 3456
• 4000 to 4ZZZ•
4103 4104 495A
• 5000 to 5ZZZ•
5011 5012 5050 5100 5200 5205 5206 5207 5400 5B00 5B01 5B12
5B13 5B14 5B15
• 6000 to 6ZZZ•
6000 6500 6800 6801 6830 6831 6832 6833 6900 6901 6902 6910
6930 6931 6932 6933 6936 6937 6938 6940 6941 6942 6943 6944
6945 6946 6D01
321
• 7000 to 7ZZZ•
7500 7600 7700 7800
• 8000 to 8ZZZ•
8300
• A000 to ZZZZ•
B20B
When the Alarm lamp and/or ON lamp flashes:
The flash pattern and number of flashes vary depending on the cause of the error.
The Alarm lamp will flash/light when an error occurs that has a clear cause and remedy, such as when no
paper is loaded or the paper is jammed.
When an error occurs that may require repair, the Alarm lamp and ON lamp will flash alternately.
See Alarm Lamp and ON Lamp in the Event of an Error for the flashing/lighting of the lamps when an error
occurs.
• Number of flashes•
2 3 4 5 8 10 11 13 14 15 16 19
21 23 24 29
• Number of flashes•
2 7 10 Other
322
Note
• If no support code is displayed but the paper is not fed or output normally, seeWhat to Do If Paper Is
Not Fed/Output Normally.
323
What to Do When Paper Is Jammed
Cause
Paper is jammed.
What to Do
If a paper jam occurs during printing (support code 1300/1303/1304/1313 is displayed), follow the
procedure below.
Note
• If the paper is not jammed (no support code displayed) but the paper is not fed or output normally,
see What to Do If Paper Is Not Fed/Output Normally.
1. Did you try to print on a small paper size such as 4"x6" 10x15cm size?1.
What to Do When Small Paper Sizes Are Jammed
2. Check if the jammed paper is visible in the paper output slot (A).2.
If the jammed paper is visible, remove the jammed paper by referring to the following pages.
Removing the Jammed Paper through Paper Output Slot
3.
Retract the paper output tray,
3.
4.
Remove the cassette, and then check if the jammed paper is visible in the feed slot (B) of
4.
the cassette.
If the jammed paper is visible, remove the jammed paper by referring to the following pages.
Removing Jammed Paper through Feed Slot of Cassette
5.
If the jammed paper is not visible in the paper output slot or the feed slot, remove the
5.
jammed paper inside printer.
324
Removing Jammed Paper inside Printer
Cause
Paper is jammed.
What to Do
1.
Press printer's Stop button.
1.
2.
Turn off printer and unplug it.
2.
3.
Open scanning unit / cover.
3.
Important
•
Do not touch the clear film (A) and white belt (B).
•
If you soil or scratch this part by touching it with paper or your hand, it could damage the printer.
4.
Check if jammed paper is under FINE cartridge holder.
4.
If the jammed paper is under the FINE cartridge holder, move the FINE cartridge holder to the far right
or left, whichever makes it easier to remove the paper.
326
When moving the FINE cartridge holder, hold the FINE cartridge holder and slide it slowly to the far
right or left.
5.
Hold jammed paper firmly with both hands.
5.
Note
• If the paper is rolled up, pull it out and grasp the edges of the paper.•
327
6. Slowly pull out jammed paper so as not to tear it.6.
7.
Make sure all jammed paper is removed.
7.
If the paper tears when you pull out it, a bit of paper may remain in the printer. Check the following and
remove any remaining paper.
• Any paper left under the FINE cartridge holder?
• Any small bits of paper left in the printer?
• Any paper left in the left and right empty spaces (C) in the printer?
Note
•
If you are unable to remove the jammed paper, detach the rear cover and remove the jammed
•
paper from the rear side.
Removing Jammed Paper from Rear Side
8.
Close scanning unit / cover.
8.
To close the scanning unit / cover, lift it up slightly and then lower it gently.
328
9.
Plug printer back in and turn printer back on.
9.
10.
Load paper.
10.
Loading Plain Paper
Loading Photo Paper
Loading Envelopes
Note
• Make sure you are using suitable paper and loading it correctly.
• We recommend using paper sizes other than A5 to print documents with photos or graphics. A5
paper may curl and jam as it leaves the printer.
11. Redo printing.11.
All jobs in the print queue are canceled. Redo the printing.
329
Removing Jammed Paper from Rear Side
Cause
Paper is jammed.
What to Do
1.
Press printer's Stop button.
1.
2.
Turn off printer and unplug it.
2.
3.
Retract paper output tray.
3.
4.
Turn printer so that rear side of printer faces toward you.
4.
5.
Detach rear cover.
5.
330
6.
Hold jammed paper firmly with both hands and pull it out slowly.
6.
If the paper is rolled up, pull it out and grasp the edges of the paper.
If you can remove the paper, proceed to step 8.
Note
•
Do not touch the inner parts of the printer.
7.
If jammed paper is not removed, detach transport unit and remove the paper.
7.
•
Lift up the transport unit and pull it out.
•
331
•
Slowly pull out jammed paper.•
Note
•
Do not touch the inner parts of the printer.
•
Make sure all jammed paper is removed.
•
•
Insert the transport unit until it reaches the back of the printer.
•
332
8. Attach rear cover.8.
Insert the projections of the right side of the rear cover into the printer, and then push the left side of
the rear cover until it is closed completely.
333
9. Plug printer back in and turn printer back on.9.
10. Load paper and redo printing.10.
All jobs in the print queue are canceled. Redo the printing.
Loading Plain Paper
Loading Photo Paper
Loading Envelopes
Note
•
Make sure you are using suitable paper and loading it correctly.
•
We recommend using paper sizes other than A5 to print documents with photos or graphics. A5
paper may curl and jam as it leaves the printer.
If the measures above do not solve the problem, contact your nearest Canon service center to request a
repair.
334
1003
Cause
Possible causes include the following.
• There is no paper in the cassette.
• Paper is not loaded in the cassette properly.
What to Do
After loading the paper in the cassette correctly, press the printer's Black button or Color button.
Loading Plain Paper
Loading Photo Paper
Loading Envelopes
Note
• To cancel printing, press the printer's Stop button.
• This error may occur if the transport unit is not installed correctly. Refer to the following page to check•
the transport unit.
Removing Jammed Paper from Rear Side
335
1200
Cause
Scanning unit / cover is open.
What to Do
Close the scanning unit / cover and wait for a while.
Always close the scanning unit / cover after opening it to replace FINE cartridges or for any other reason.
336
1401
Cause
The 1401 support code signifies that the ink cartridge is not installed.
What to Do
If you intend to PRINT or COPY, install the ink cartridge in accordance with the procedures set forth in the
manual.
Replacing a FINE Cartridge
If the error is not resolved, the ink cartridge may be damaged. Contact Canon for repair.
337
1430
Cause
FINE cartridge cannot be recognized.
What to Do
Remove the FINE cartridge and reinstall it.
If the error is not resolved, the FINE cartridge may be damaged. Replace the FINE cartridge with a new
one.
Replacing a FINE Cartridge
If this still does not solve the problem, contact your nearest Canon service center to request a repair.
338
1485
Cause
Appropriate ink cartridge is not installed.
What to Do
Printing cannot be executed because the ink cartridge is not compatible with this printer.
Install the appropriate ink cartridge.
If you want to cancel printing, press the printer's Stop button.
339
1650
Cause
The ink cartridge cannot be recognized.
What to Do
Cannot print because the ink cartridge is not installed properly, or a subscription ink cartridge is installed.
Remove the ink cartridge and install the cartridge that came with your printer.
If you want to cancel printing, press the printer's Stop button.
340
1686
Cause
The 1686 support code signifies that the printer has detected an issue with one or more of your ink
cartridges.
What to Do
If you intend to PRINT or COPY, you should take one of the following steps:
- For each ink cartridge identified by the printer as having an issue, disable the function that detects the
level of ink remaining by pressing the Stop button on the printer for at least five (5) seconds and then
releasing it.
If, due to individual usage factors, there is some residual amount of ink in the cartridge(s), you will be able
to PRINT or COPY until the remaining ink is depleted.
Please note that image quality may be diminished if you PRINT or COPY when there is little ink remaining
in the cartridge(s).
OR
- Open the cover, replace each ink cartridge identified by the printer as having an issue, and then close
the printer's cover.
Canon recommends the use of new, genuine Canon ink cartridges for optimal image quality.
342
1687
Cause
The appropriate FINE cartridge is not installed, or other FINE cartridge is installed,
What to Do
Check that the FINE cartridge is compatible with your printer.
Open the scanning unit / cover to open the ink cartridge locking cover, and then remove the FINE
cartridges.
Make sure that the FINE cartridges are compatible with this printer and reinstall them.
Press down the ink cartridge locking cover until it clicks into place.
And then, close the scanning unit / cover.
343
1688
Cause
The 1688 support code signifies that the printer has detected an issue with one or more of your ink
cartridges.
What to Do
If you intend to PRINT or COPY, you should take one of the following steps:
- Disable the function that detects the level of ink remaining by pressing the printer's Stop button for at
least five (5) seconds and then releasing it.
If, due to individual usage factors, there is some residual amount of ink in the cartridge(s), you will be able
to PRINT or COPY until the remaining ink is depleted.
Please note that image quality may be diminished if you PRINT or COPY when there is little ink remaining
in the cartridge(s).
OR
- Open the cover, replace each ink cartridge identified by the printer as being empty, and close the cover.
Canon recommends the use of new, genuine Canon ink cartridges for optimal image quality.
344
1700
Cause
Ink absorber is almost full.
What to Do
Press the printer's Black button or Color button to continue printing. Contact your nearest Canon service
center to request a repair.
345
2110
Cause
Paper size settings at printer driver do not match the paper size registered in the printer.
Note
• To disable notifications for this error, disable the function to detect paper setting mismatch.
What to Do
Press the printer's Stop button to cancel printing.
Match the paper loaded in the cassette with the paper size registered on the printer using the printer's
Paper Select button.
Specify the paper size registered on the printer to the printer driver, and retry printing.
Note
• If the paper size loaded in the cassette is larger than the paper size set at the printer driver, you
can continue the printing without changing the paper size settings. Press the printer's Black button of
Color button.
• See below for paper sizes that can be registered in the printer using the printer's Paper Select•
button.
Paper Settings
• You can disable the function to prevent printing error. When this function is disabled, the printer uses•
the paper settings for printing onto the paper in the cassette regardless of whether or not the paper
matches these settings.
See below for the printing error prevention setting.
Changing the Printer Operation Mode (Windows)
Changing the Printer Operation Mode (macOS)
346
2900
Cause
Scanning print head alignment sheet failed.
What to Do
Press the printer's OK button to cancel the error and take the corresponding actions below.
• Make sure the print head alignment sheet is set in the correct position and orientation on the platen.
• Make sure the platen and the print head alignment sheet are not dirty.
• Load A4 or Letter size plain paper in the cassette.
• Check the print head condition by printing the nozzle check pattern.
After carrying out the above actions, perform automatic print head alignment again.
If the error recurs after taking the above actions, press the printer's OK button to cancel the error and
perform manual print head alignment.
Adjusting Print Head Position Manually (Windows)
347
2901
Cause
Print head alignment pattern has been printed and printer is waiting to scan sheet.
What to Do
Scan the printed alignment pattern.
1.
Load print head alignment sheet on platen.
1.
Place the printed side down and align the mark in the upper left corner of the sheet with the
alignment mark .
2.
Slowly close the document cover and press printer's Color button or Black button.
2.
The printer starts scanning the print head alignment sheet and automatically adjusts the print head
position.
348
4103
Cause
Cannot perform printing with current print settings.
What to Do
Press the printer's Stop button to cancel printing.
Change the print settings specified when printing and retry printing.
349
5100
Cause
Printer error has occurred.
What to Do
Cancel printing and turn off the printer.
Check the following:
• Make sure the FINE cartridges are properly installed.•
Press down the ink cartridge locking cover until it clicks into place.
• Make sure FINE cartridge holder motion is not impeded by protective material, jammed paper, etc.•
Remove any impediment.
Important
• Do not touch the clear film (A) and white belt (B).•
If you soil or scratch this part by touching it with paper or your hand, it could damage the printer.
Turn the printer back on.
If this does not solve the problem, contact your nearest Canon service center to request a repair.
350
5200
Cause
Printer error has occurred.
What to Do
Turn off the printer and unplug it.
Plug in the printer again and turn it back on.
If this does not solve the problem, contact your nearest Canon service center to request a repair.
351
5B00
Cause
The ink absorber is full.
Ink used during cleaning and other processes is captured in the ink absorber. The printer will not be able
to print when the ink absorber is full.
What to Do
The action you should take to resume operating the printer depends upon which function you intend to
use.
1. To PRINT or COPY
The ink absorber needs to be replaced. Contact Canon for repair as soon as possible.
2. To SCAN
You should take one of the following steps:
- Press the printer's Stop button if you intend to scan by using the operation panel on the printer. You will
be able to scan.
OR
- Scan from an external device such as a computer, smartphone, or tablet using the corresponding
application software.
352
6000
Cause
Printer error has occurred.
What to Do
Turn off the printer and unplug it.
Plug in the printer again and turn it back on.
If this does not solve the problem, contact your nearest Canon service center to request a repair.
353
