Remove the moduleInstall the module
©2025 TP-Link 7100000749 REV1.2.0

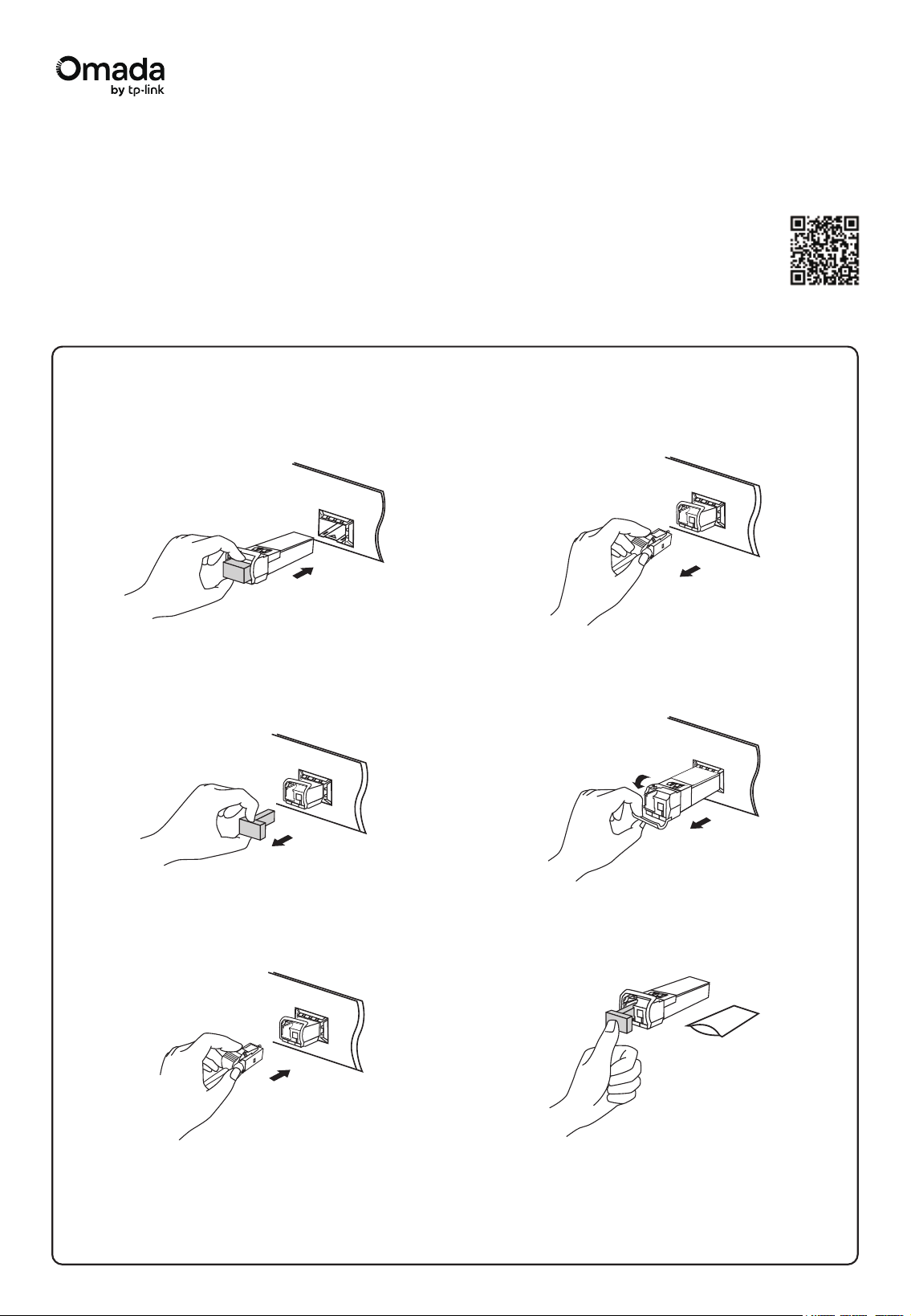

1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the module into the SFP+ slot and rmly press it into place.
3. Remove the protective dust plug from the module.
4. Plug a ber-optic cable into the module. Note that the module works
without any additional conguration.
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network ber-optic cable from the module.
4. Reinstall the protective dust plug in the module’s optical bores and
place it on antistatic mat or a static shielding bag.
3. Pull the safety latch downwards to release the module, and then pull it
out from the slot.
Installation Guide
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the module’s optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
10GBase-BX WDM Bi-Directional SFP+ LC Module
For technical support, replacement services, user guides, and
more, please visit https://support.omadanetworks.com/, or
simply scan the QR code.
Connection
Specications
Switch Switch
SM5110LSA-10
Fiber
SM5110LSB-10
Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity between switches like below.
Operating Temperature 0˚C to 70˚C (32˚F to 158˚F)
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Storage Humidity 5% to 90% RH, Non-condensing
Operating Humidity 10% to 90% RH, Non-condensing
Environmental and Physical Specications
Compatible Products
Note:
The SFP modules may be incompatible with other vendors’ devices. We
recommend that you use only Omada SFP modules on your Omada devices.
Omada Switches with 10-gigabit SFP+ Slots
MC420L
Port Type
Fiber Type
Data Rate
Wave Length
Model
Max. Cable Length
Power Support
Safety & Emission
Tx: 1330 nm
Rx: 1270 nm Rx: 1330 nm
IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472
9/125 um Single-mode
10 km
10.3125 Gbps
LC Simplex
3.3 V
FCC, CE
Tx: 1270 nm
Standards and Protocols
SM5110LSB-10SM5110LSA-10
General Specications
Ye s
Ye s
DDM
Hot Swappable
E
xplana�on of the symbols on the product label
S
ymbols may vary from products. The label is at the bottom of the product.
Symbol
Explanation
Class II e quipment
Class II e quipment with functional earthing
Alternating current
Direct current
Pol a rity of d.c. power connector
For indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy eciency Marking
Protective earth
Earth
Fra me or chassis
Functional earthing
Caution, hot surface
Caution
Opera tor's manual
Stand-by
"ON"/"OFF" (push-push)
Fus e
Fuse is used in neutral N
Caution, avoid listening a t high volume l evels for long periods
Disconnection, all power plugs
m
Switch of mini-gap construction
µ
Switch of micro- gap construction (for US version)
Switch of micro-gap / micro
-
disconnection construction
(for other versions except US)
ε
Switch without contact gap (Semiconductor switching device)
RECYCLING
This product bears the selective sorting symbol for Waste
electrical and electronic equipment (WEEE). This means that
this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or
electronic equipment.
CE Mark Warning
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних
документів та вимогам, що передбачені чинними законодавчими актами України.
CAN ICES-003 (B)/NMB-003(B)
Industry Canada Statement
FCC compliance information statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Product Name: 10GBase-BX WDM Bi-Directional SFP+ LC Module
Model Number: SM5110LSA-10, SM5110LSB-10
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with
the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and
the equipment is properly maintained and operated.
Issue Date: 2025/04/22
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need
service, please contact us.
Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the
transceiver when it is operating, as this can injure your eyesight.
Use of controls or adjustments or performance of procedures other than
those specied herein may result in hazardous radiation.
TP-Link hereby declares that the
SFP+ LC Module is in compliance with the
essential requirements and other relevant provisions of directives 2014/30/EU,
2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at
https://www.tp-link.com/en/ce
EU Declaration of Conformity
TP-Link hereby declares that the SFP+ LC Module is in compliance with the
essential requirements and other relevant provisions of the Electromagnetic
Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations
2016.
The original UK Declaration of Conformity may be found at
https://www.tp-link.com/support/ukca
UK Declaration of Conformity
Class 1
Max. Laser Output Power
Laser Class
1.122 mW (0.5 dBm)
