MOBILE FILTER
MF-1 ML-136873
CATALOG OF
REPLACEMENT
PARTS
VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC 3600 NORTH POINT BLVD., BALTIMORE, MD 21222
FORM 37148 Rev. A (October 2021)
MOBILE FILTER REPLACEMENT PARTS
F-37148 Rev. A (October 2021) - 2 - © VULCAN-HART COMPANY 2021
FILTER COMPONENTS
MOBILE FILTER REPLACEMENT PARTS
F-37148 Rev. A (October 2021) - 4 -

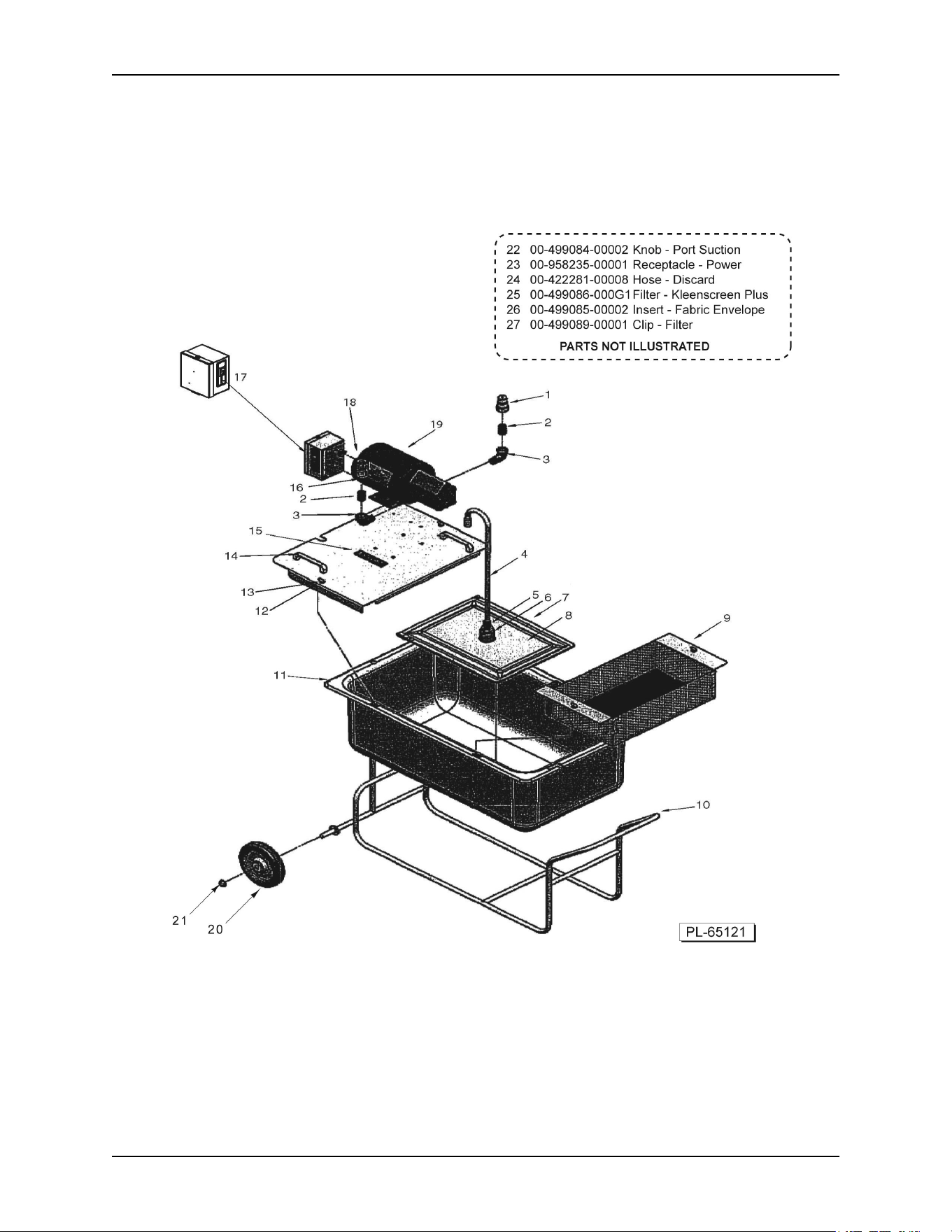

FILTER COMPONENTS
ILLUS.
PL-65121
PART NO. NAME OF PART AMT.
1 00-418781-00001 Quick Disconnect Male...............................................................................................................1
2 FP-035-91 Pipe 1/2 x 1-1/8 TBE Nipple.......................................................................................................2
3 FP-013-17 Elbow - Street 1/2 x 90 Deg.......................................................................................................2
4 00-956901-000G9 Tube, "S" Suction Includes Item 5, 6 and Knob listed below......................................................1
5 NS-017-49 Jam Nut 3/4-16 Hex...................................................................................................................1
6 00-499083-00002 Coupling - Suction......................................................................................................................1
*8 00-499085-00001 Insert - Filter Screen...................................................................................................................1
*7 00-499087-00001 Screen - Fine Mesh Filter (Metal)...............................................................................................1
9 00-426606-000G8 Basket, Scrap.............................................................................................................................1
10 00-956918-000G2 Frame, Mobile Filter...................................................................................................................1
11 00-497374-000G4 Pan, Filter...................................................................................................................................1
12 00-958551-00001 Wing Screw................................................................................................................................4
13 00-958551-00002 Retainer......................................................................................................................................4
14 00-416936-00002 Handle (Vat Cover Assy.) (Accessory).......................................................................................2
15 00-417700-00002 Nameplate (6 In.)........................................................................................................................1
16 00-426567-00002 O-Ring (Viton)............................................................................................................................2
17 00-411496-00B10 Switch - Rocker S.P.S.T.............................................................................................................1
18 00-426567-00004 Suction Receptacle....................................................................................................................1
19 00-417792-00008 Pump Motor Assy. (115/230 V., 60 Hz.) (8 G.P.M.)...................................................................1
20 00-956922-00001 Wheel.........................................................................................................................................2
21 00-956922-00002 Nut - Axel....................................................................................................................................2
22 00-499084-00002 Knob - Port Suction....................................................................................................................1
23 00-958235-00001 Receptacle, Power.....................................................................................................................1
24 00-422281-00008 Hose - Discard (4 Ft.).................................................................................................................1
25 00-499086-000G1 Filter - Kleenscreen Plus (3 Pack)..............................................................................................1
26 00-499085-00002 Insert - Fabric Envelope (11 x 15 In.).........................................................................................1
27 00-499089-00001 Clip - Filter..................................................................................................................................1
* Units with Retrofit Kit (Items 7 & 8 not used)
MOBILE FILTER REPLACEMENT PARTS
- 5 - F-37148 Rev. A (October 2021)
