Purchase Date
Questions, problems, missing parts? Before returning, contact us on: 800-527-1292,
8:30 a.m. - 5 p.m., CST, Monday - Friday.
ITEM #5709388/5709392
MODEL # POR52MW5L/POR52MBK5L
PORTLIN LED CEILING FAN
Español p. 18
ATTACH YOUR RECEIPT HERE
1
2
TABLE OF CONTENTS
Safety Information .................................................................................................................................... 2
Package Contents .................................................................................................................................... 5
Hardware Contents .................................................................................................................................. 6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Wiring ..................................................................................................................................................... 11
Final Installation ..................................................................................................................................... 13
Operating Instructions ............................................................................................................................ 14
Care and Maintenance ........................................................................................................................... 16
Troubleshooting ...................................................................................................................................... 16
Limited Lifetime Warranty ....................................................................................................................... 17
Replacement Parts List .......................................................................................................................... 17
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
3
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or inserts. Should this fan need to be returned to the factory for repairs, it
must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 13.89 lbs.
SAFETY INFORMATION
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and
use mounting screws provided with the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and one lead wire from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING
4
SAFETY INFORMATION
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
WARNING
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is required,
call our customer service department.
5

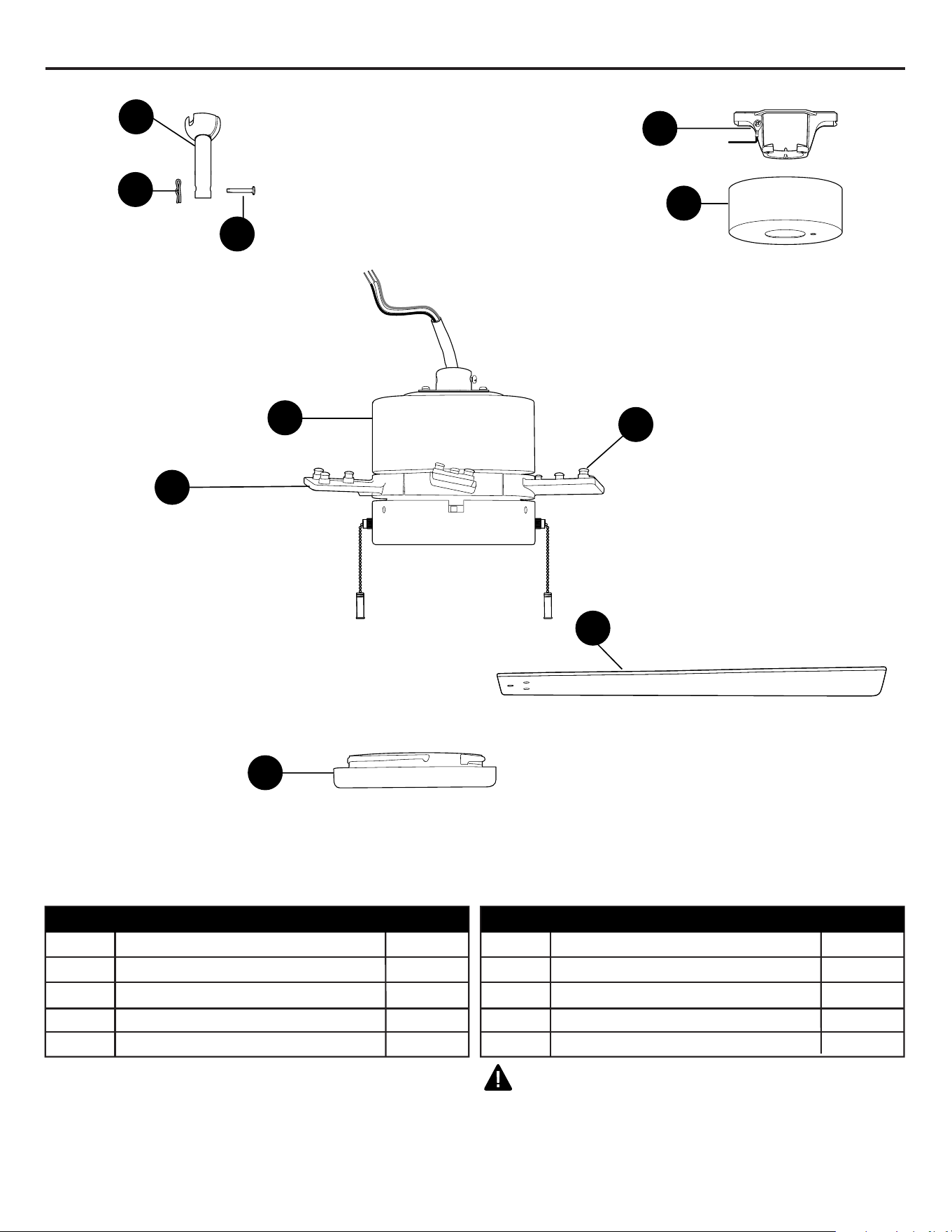

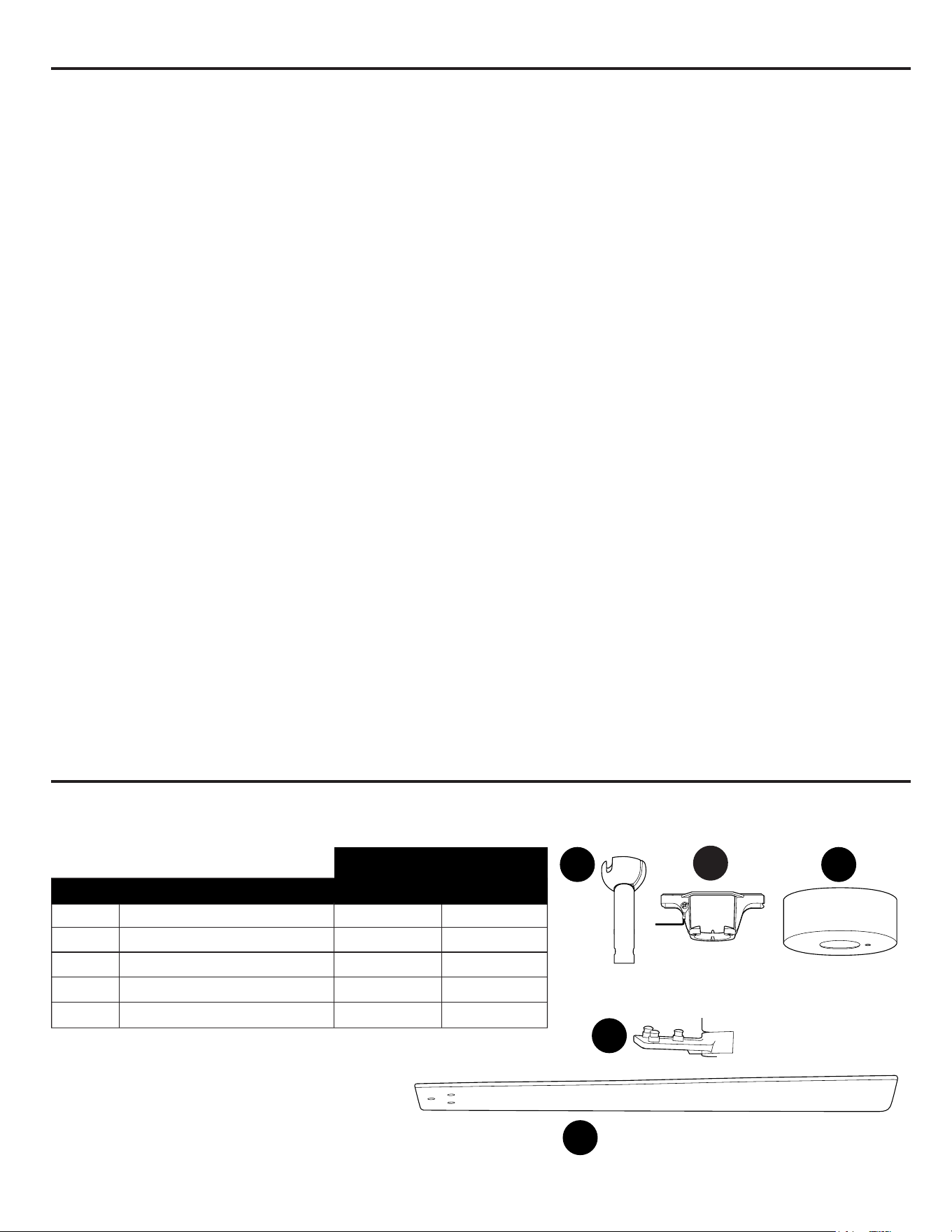

PACKAGE CONTENTS
G
E
F
H
C
B
D
J
I
A
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
PART DESCRIPTION QUANTITY
F Blade Arm (preassembled) 5
G Blade 5
H Blade Screw (preassembled) 15
I Pin (preassembled) 1
J Clip (preassembled) 1
PART DESCRIPTION QUANTITY
A Downrod 1
B Mounting Bracket 1
C Canopy 1
D Motor Housing 1
E Shade 1
6

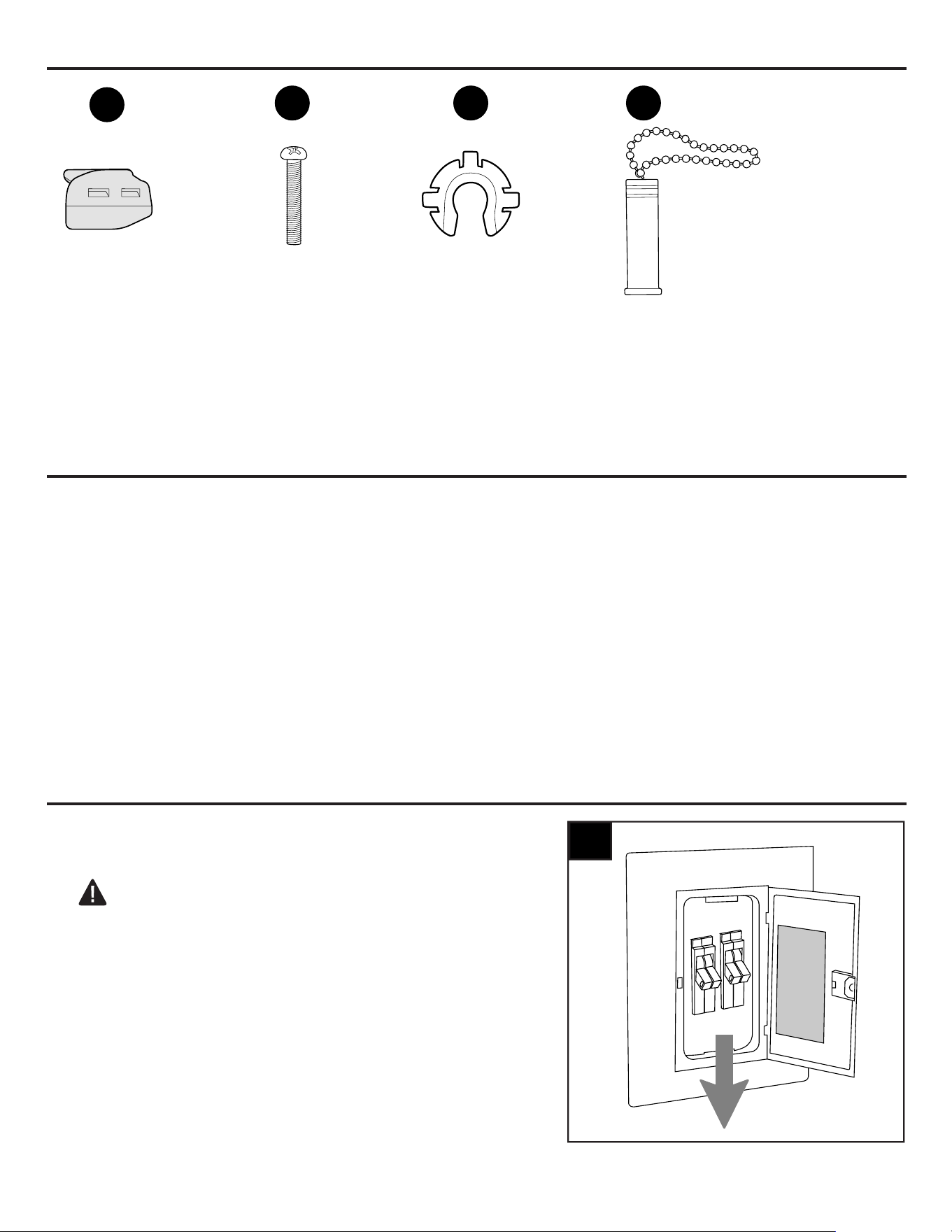

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Wire Strippers and Stepladder
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
PREPARATION
AA
CC
Three-C
Clip
Qty. 15
+ 1 extra
DD
Pull Chain
Extension
Qty. 2
BB
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
INITIAL INSTALLATION
Lever Wire
Connector
Qty. 5
Canopy Mounting
Screw
Qty. 1
INITIAL INSTALLATION
7
If applicable, remove existing fan and fan parts,
including the mounting bracket, from outlet box
and disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers (provided with the outlet box) for fan
installation.
3.
Determine mounting method to use for new fan.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure
the ceiling angle is not steeper than 19°.
NOTE: Closemount option is not available for
this fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best
suited for angled or vaulted ceilings. A longer
downrod is sometimes necessary to ensure
proper blade clearance.
Check to make sure blades (G) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (G) will be at least
7 ft. above the floor.
4.
7 ft.
min.
30 in.
min.
4
3
B
A
19° max.
2.
2
A
G
INITIAL INSTALLATION
8
5
Open End
B
B

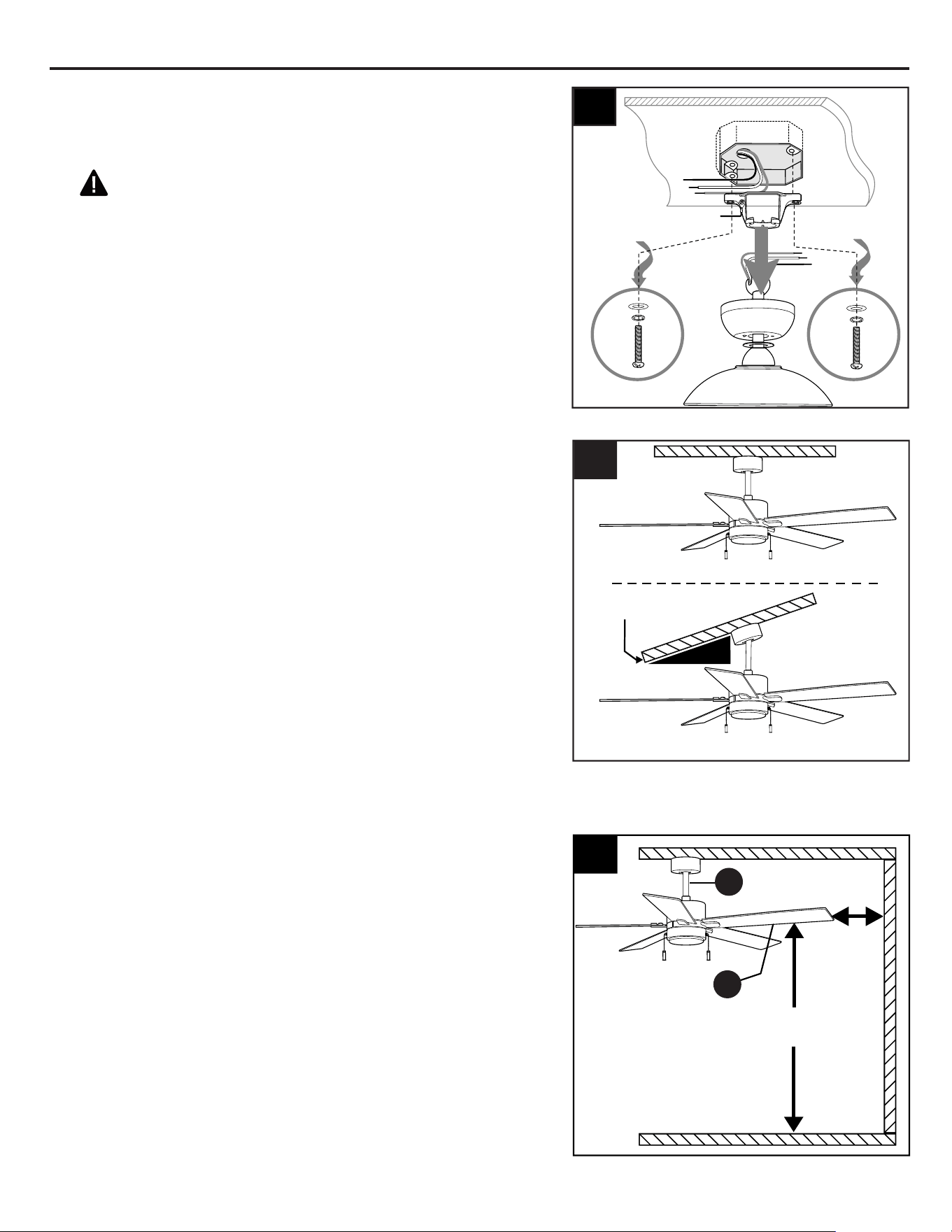

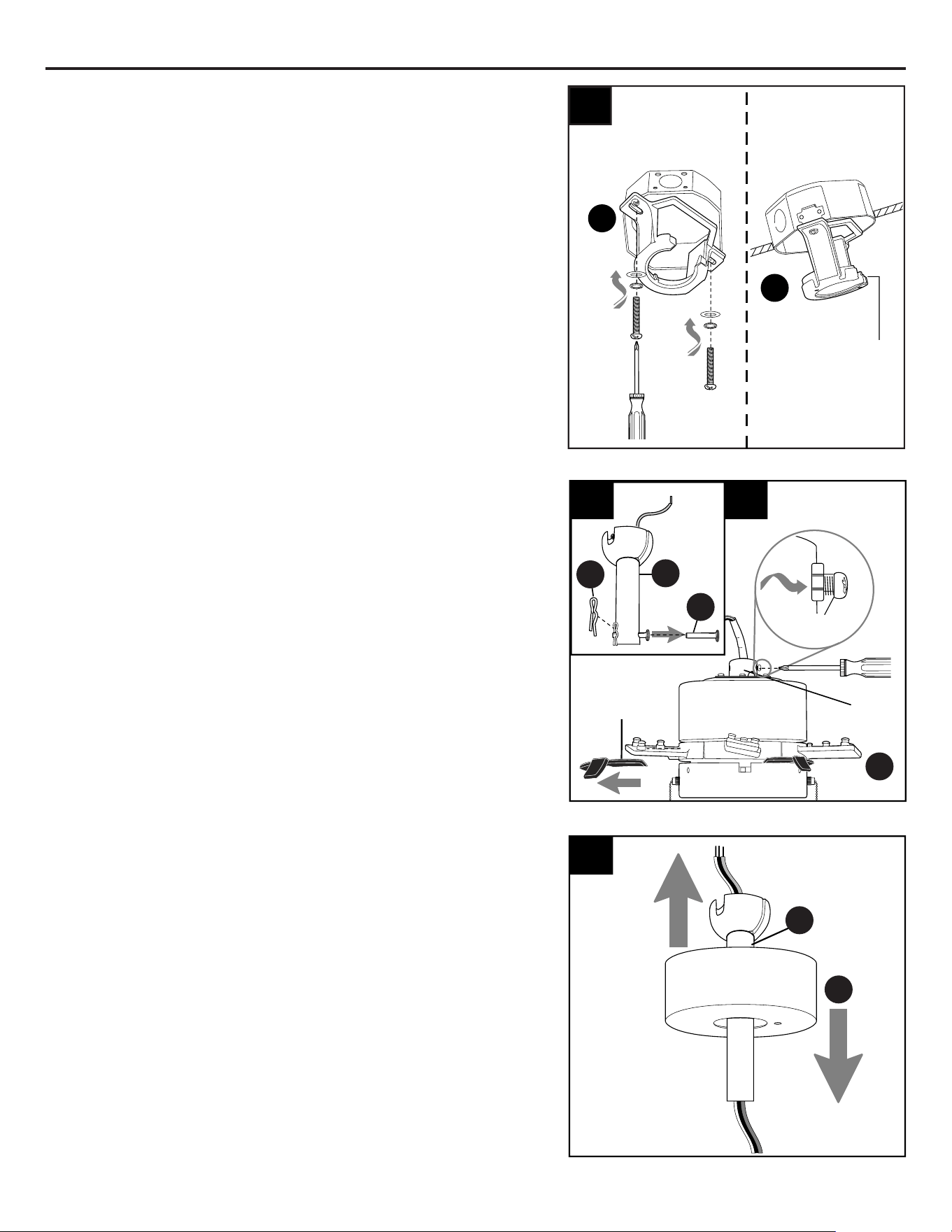

Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(B) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (B) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
5.
ANGLE
MOUNT
STANDARD
MOUNT
7.
Remove pin (I) and clip (J) from downrod (A).
Partially loosen preassembled set screws and
nuts in motor housing yoke at top of motor
housing (D).
Remove all preassembled motor stabilization
pieces from motor housing (D). The motor
stabilization pieces may be discarded at this
time.
6a.
6a 6b
Set
Screw
Sideview
Yoke
6b.
J
A
D
I
Motor
Stabilization
Piece
Insert downrod (A) through canopy (C).
Then, thread wires from motor housing (D)
through downrod (A).
7
A
C
INITIAL INSTALLATION
9
CAUTION: Do NOT attempt to loosen or
remove preassembled blade screws (H) from
preassembled blade arms (F).

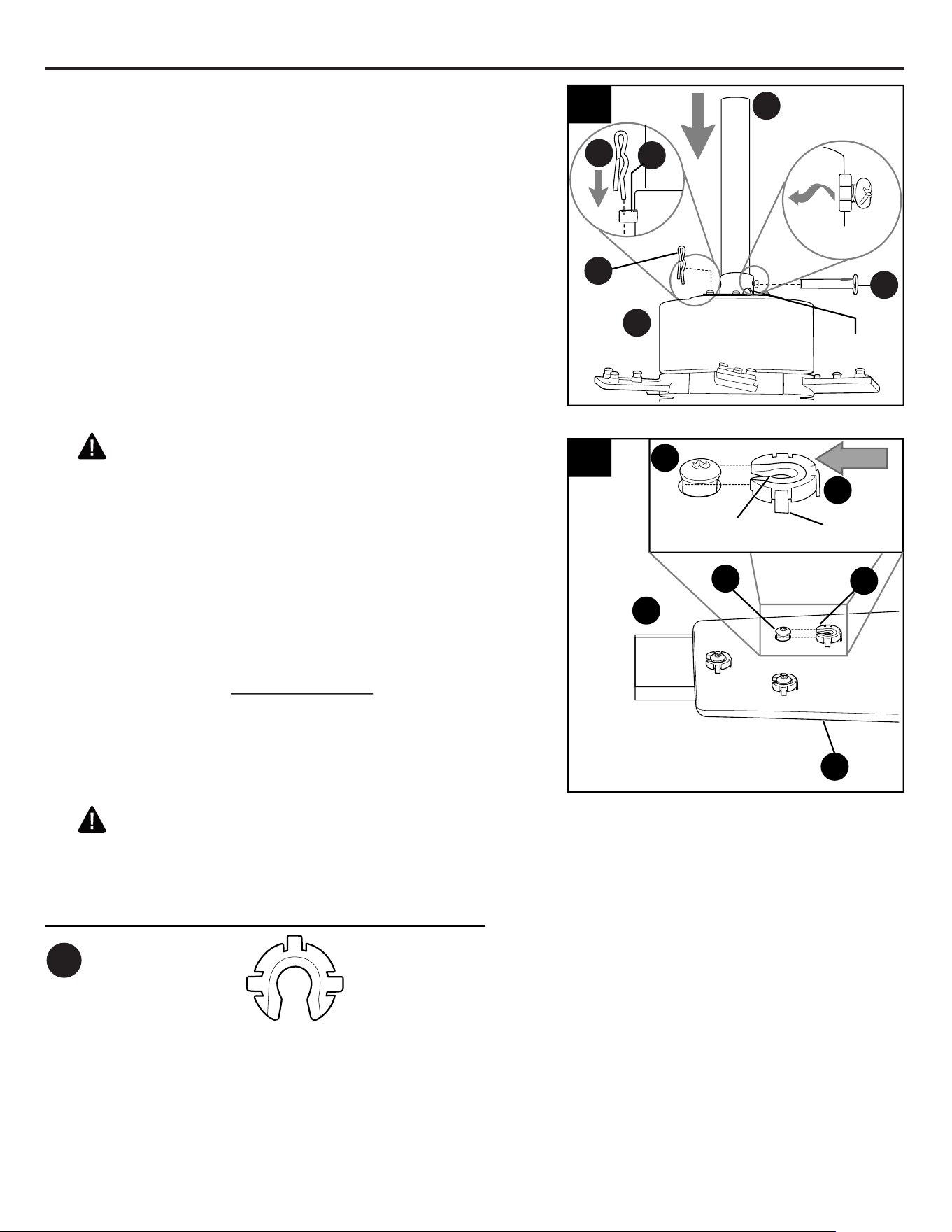

Align the preassembled blade screws (H) on blade
arms (F) with the holes on a blade (G).
Press down on the blade (G) firmly so the blade
screws (H) come through the holes in the blade
(G), then slide a three-C clip (CC) onto each blade
screw (H), starting with the one in the middle. Slide
three-C clips (CC) completely under blade screw
(H) heads so edges of blade screw (H) heads are
captured by the recessed groove on the three-C
clips (CC).
Repeat for each blade (G).
WARNING: To reduce the risk of personal
injury, make sure the friction detents on three-C
clip (CC) face down and recessed groove faces up.
9
9.
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (I) and clip (J). Tighten set
screws in motor housing yoke and then tighten
preassembled nuts on the set screws.
8
Yoke
A
J
J
D
I
I
8.
CC
G
Friction
Detents
Recessed
Groove
X
H
H
CC
Three-C clip x 15
F
Hardware Used
CC
Sideview
Set Screw
and Nut
INITIAL INSTALLATION
10
12.
Install hanging ball of downrod (A) into opening
of mounting bracket (B). Align the slot in
hanging ball with the tab in mounting bracket
(B).
DANGER: Failure to align the slot in
hanging ball with the tab in mounting bracket
(B) may result in serious injury or death.
Tab
B
12
A
Slot

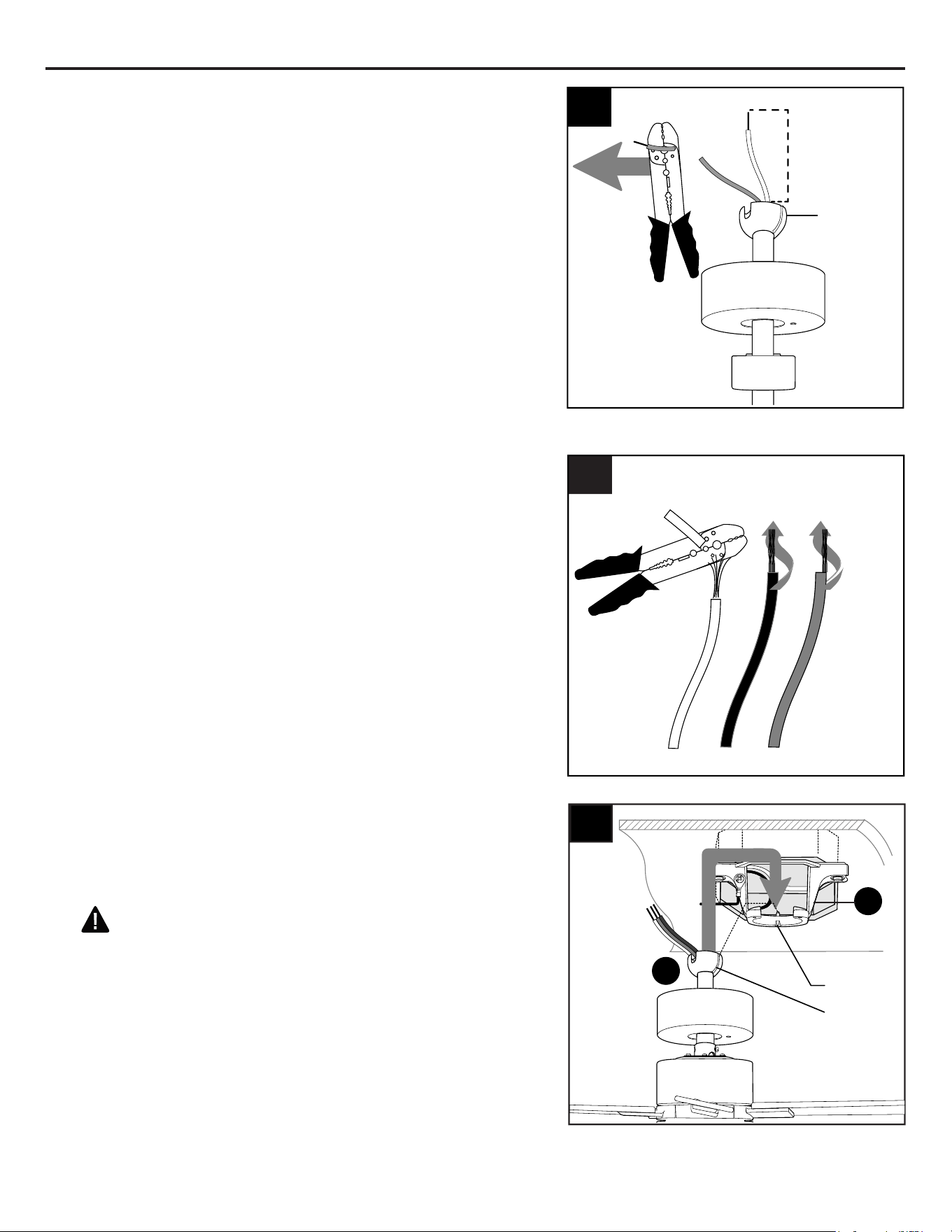

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 10 and 11 are not necessary and you
may proceed to Step 12 instead.
10.
If you decided to cut back the lead wires in Step
10, strip 3/8 in. of insulation from end of each wire
-- WHITE, BLACK, and BLUE (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
11.
11
Hanging
Ball
10
8 in.
11
WIRING
AA
1.

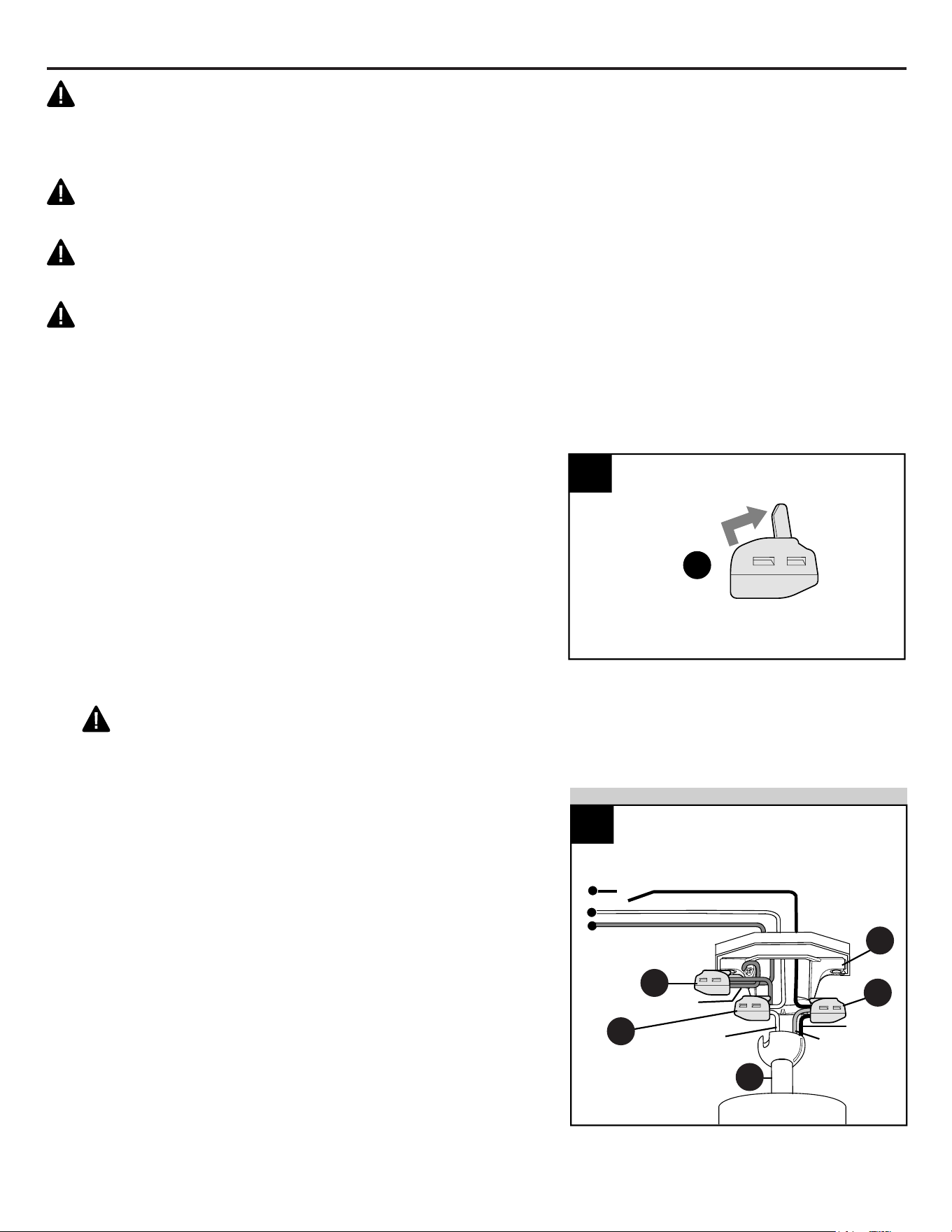

IMPORTANT: Each wire connection is made by
firmly raising the levers on each lever wire
connector (AA), as shown. Then, ONE wire is
inserted into each opening.
1
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wire from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
Choose wiring diagram (Fig. 2a, Fig. 2b or Fig. 2c)
that fits your situation and make appropriate wiring
connections per your selection in Step 2.
WARNING: In order for wire connections to be
secure, all levers on the lever wire connectors (AA)
must be completely returned to their original position
as shown in the wiring diagram, option 2a, 2b or 2c,
which corresponds to your wiring needs.
2.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
GREEN
WHITE
BLACK
BLUE
AA
AA
AA

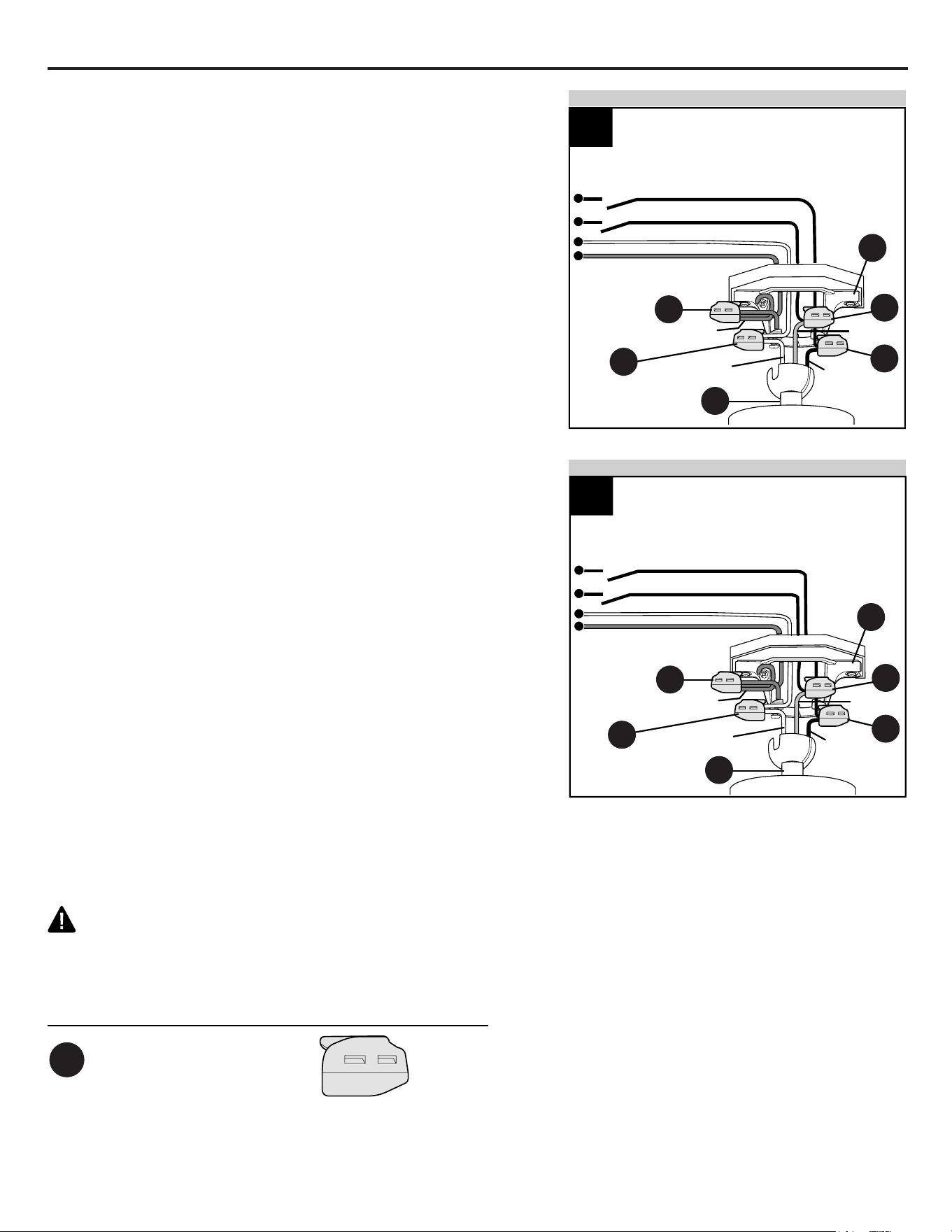

2a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Insert each GROUND (GREEN) wire
from fan (on downrod (A) and mounting bracket
(B)) and the BARE/GREEN wire from ceiling into
openings in lever wire connector (AA) with three
levers.
Insert BLACK wire and BLUE wire from fan and
BLACK wire from ceiling into openings in lever
wire connector (AA) with three levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (AA)
with two levers.
A
B
WIRING
12
Lever Wire Connector x 5
Hardware Used
AA
NOTE: BLACK wire is hot power for fan. BLUE wire is
hot power for light kit. WHITE wire is common for fan
and light kit. GREEN or BARE wire is GROUND.
WARNING: GENTLY pull on wire in each lever wire
connector (AA) to confirm the lock is engaged and that
all wires are secure.
2b. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: Insert each GROUND (GREEN)
wire from fan (on downrod (A) and mounting bracket
(B)) and the BARE/GREEN wire from ceiling into
openings in lever wire connector (AA) with three
levers.
Insert BLACK wire from fan and BLACK wire from
ceiling into openings in lever wire connector (AA) with
two levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (AA) with
two levers.
Insert BLUE wire from fan and BLACK (or RED) wire
from the independent wall switch for the light into
openings in lever wire connector (AA) with two
levers.
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
2b
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
WHITE
BLACK
BLUE
GREEN
AA
AA
AA
AA
A
B
2c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: Insert each GROUND (GREEN)
wire from fan (on downrod (A) and mounting bracket
(B)) and the BARE/GREEN wire from ceiling into
openings in lever wire connector (AA) with three
levers.
Insert BLACK wire from fan and BLACK (or RED)
wire from the independent wall switch for the fan into
openings in lever wire connector (AA) with two levers.
Insert BLUE wire from fan and BLACK (or RED) wire
from the other independent wall switch for the light
into openings in lever wire connector (AA) with two
levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (AA) with
two levers.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2c
120V POWER
FROM CEILING
BLACK (WALL SWITCH)
BLACK (WALL SWITCH FOR LIGHT)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
WHITE
BLACK
BLUE
GREEN
AA
AA
AA
AA
A
B
WIRING
13
2.
Align slots on shade (E) with protrusions on inside
of light kit located on the underside of motor
housing (D). Turn shade (E) clockwise until it no
longer turns.
NOTE: Pull down gently on the shade (E) to make
sure it is secured completely.
2
D
Slot
E
Protrusion
FINAL INSTALLATION

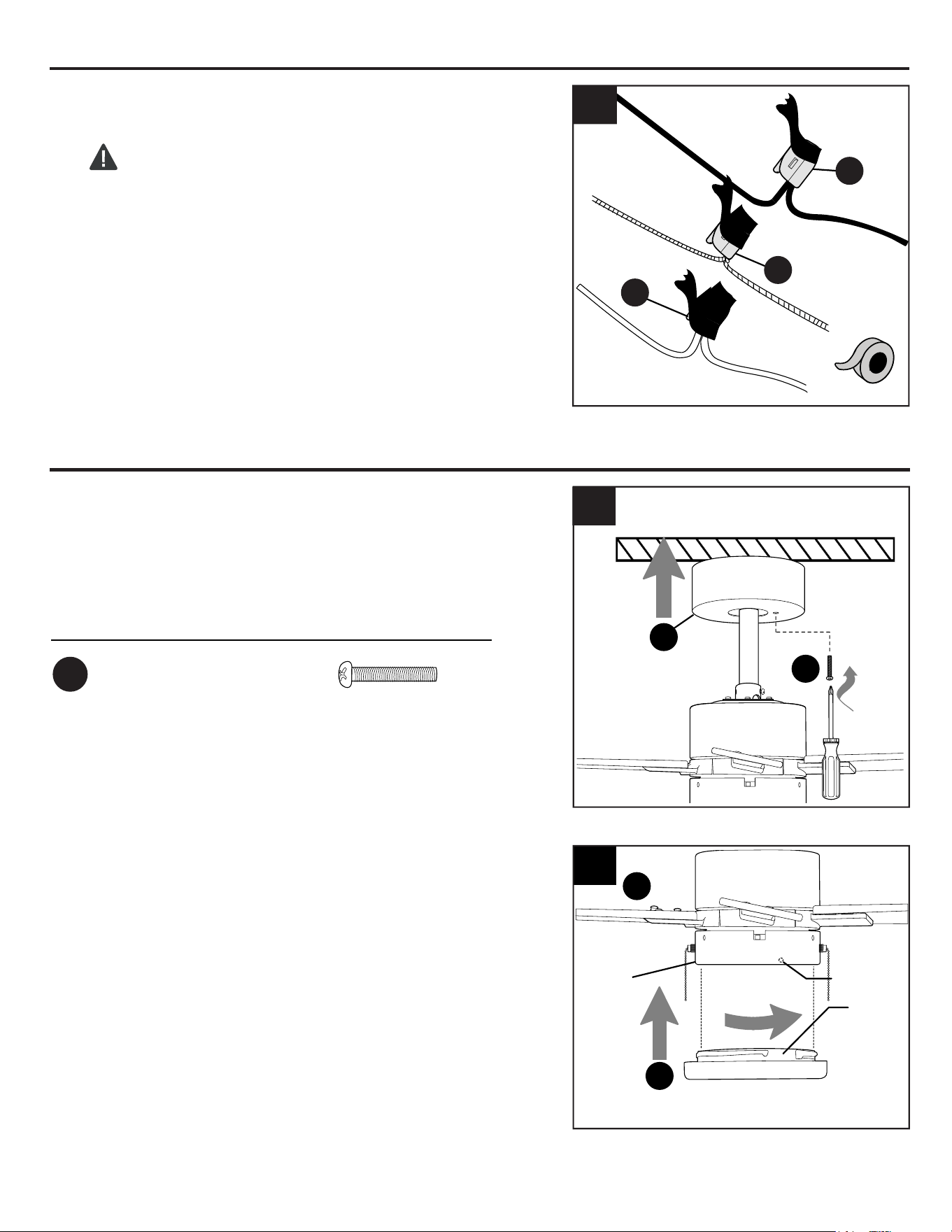

1.
Lift canopy (C) to mounting bracket (B)
aligning hole in canopy (C) with hole in
mounting bracket (B). Insert canopy
mounting screw (BB) and tighten securely.
Canopy Mounting Screw x 1
Hardware Used
BB
1
Light
kit
C
BB
Wrap electrical tape around each individual lever
wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of box from the BLACK and BLUE (if
applicable) connections.
Turn spliced/taped wires upward and gently push
wires and lever wire connectors (AA) into outlet
box.
3.
3
AA
AA
AA
FINAL INSTALLATION
OPERATING INSTRUCTIONS
14
3.

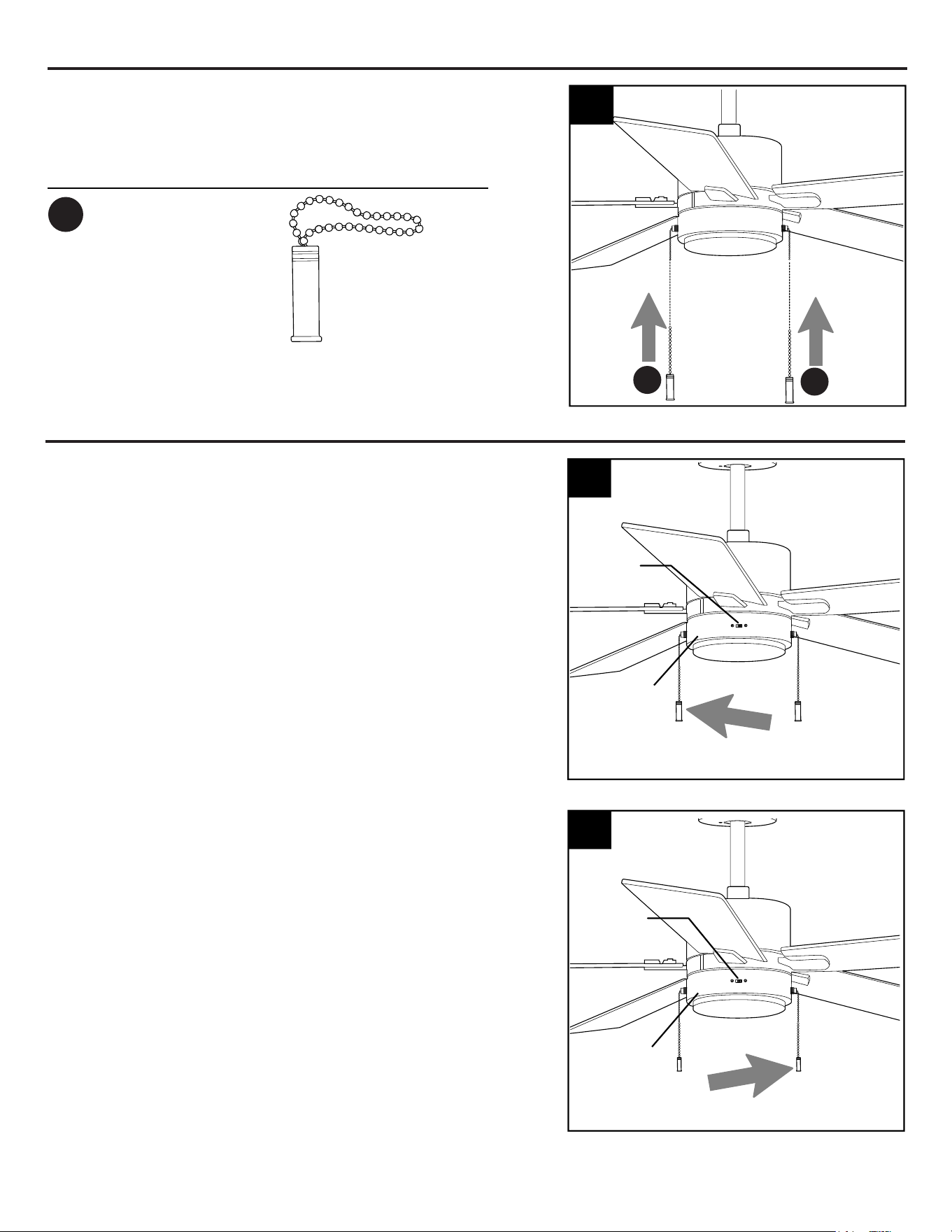

Attach pull chain extensions (DD) or custom pull
chain extensions (not included) to corresponding
fan and light pull chains.
3
Pull Chain
Extension
x 2
Hardware Used
DD
DD
DD
2.
The pull chain located to the right of the reverse
switch on the light kit is labeled LIGHT and is
used to control the light.
To turn the light ON or OFF, simply pull down on
and then let go of the light pull chain.
The pull chain located to the left of the reverse
switch on the light kit is labeled FAN and has
four positions to control fan speed. One pull is
HIGH, two is MEDIUM, three is LOW and four
turns the fan OFF.
1.
1
2
Reverse
Switch
Reverse
Switch
Light kit
Light kit
OPERATING INSTRUCTIONS
15
3a
3b
3c
In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
In cooler weather, setting the reverse switch
in the RIGHT position will result in upward
airflow that can help move stagnant, hot air
off the ceiling area.
IMPORTANT: Reverse switch must be set
either completely LEFT or completely
RIGHT for fan to function. If the reverse
switch is set in the middle position, fan will
not operate.
3a.
3c.
3b.
3.

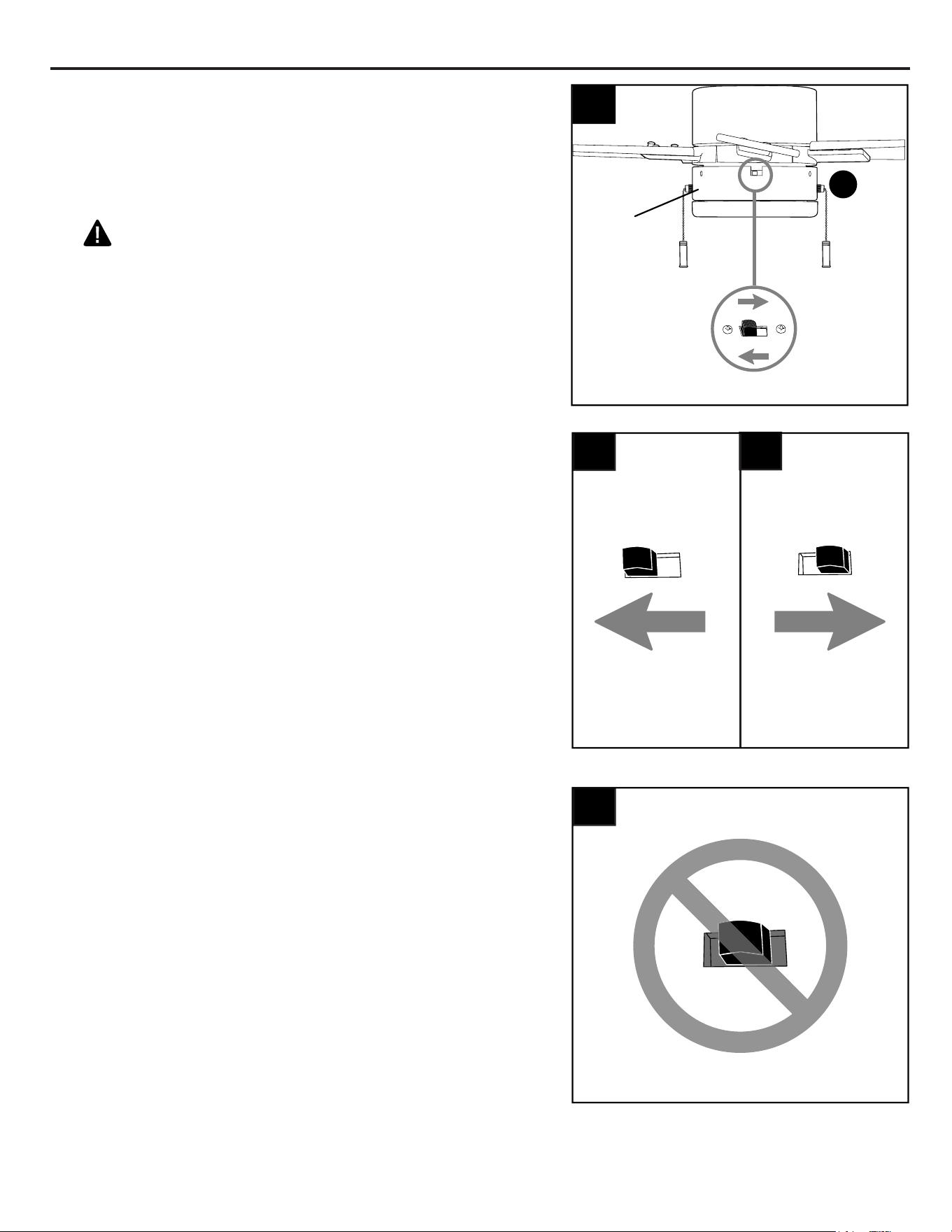

Use the fan reverse switch, located on the side of the
light kit, located on the underside of motor housing (D),
to optimize the fan for seasonal performance. A ceiling
fan will allow you to raise your thermostat setting in
summer and lower your thermostat setting in winter
without feeling a difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (G) come to a complete stop before manually
activating the reverse switch.
3
Reverse Switch
D
Light
kit
16
CARE AND MAINTENANCE
At least twice each year, lower canopy (C) to check downrod (A) assembly, and then tighten all screws
on fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (G) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for the LED light kit on this fan is 18 watts; do not attempt to replace the LEDs.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
Excessive wobbling.
1. Blades are loose.
2. Blades incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing
yoke is (are) not tightened
properly.
7. Set screw on hanging ball is not
tightened properly.
1. Make sure three-C clips are installed
correctly.
2. Re-install blades according to instructions
on page 9.
3. Switch one blade with a blade from the
opposite side.
4. Turn power off. Carefully loosen canopy
and verify that mounting bracket is secure.
5. Use a longer downrod or move fan to
another location.
6. Tighten yoke set screw(s) securely.
7. Carefully loosen and lower canopy and
verify that set screw on hanging ball is
tightened securely.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy and
check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Make sure three-C clips are installed
correctly according to instructions on page 9.
2. Replace blade.
3. Replace with an approved speed control
device.
4. Allow fan a “break in” period of a few days,
especially when running the fan at Medium
and High speeds.
Fan operates but
light fails.
1. Wires in canopy not wired
properly.
2. Wall switch to light is off.
1.Check wires in canopy and, if necessary,
re-wire according to instructions on pages
11 - 13.
2. Make sure that wall switch to light is on.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
A
F
C
B
G
17
GGLI2407
Printed in China
REPLACEMENT PARTS LIST
LIMITED LIFETIME WARRANTY
Set forth below, the manufacture warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
PART DESCRIPTION
A Downrod
B Mounting Bracket
C Canopy
F Blade Arm
G Blade
5709388-A
5709388-B
5709388-C
5709388-F
5709388-G
#
5709388
PART #
#
5709392
PART #
5709392-A
5709392-B
5709392-C
5709392-F
5709392-G
