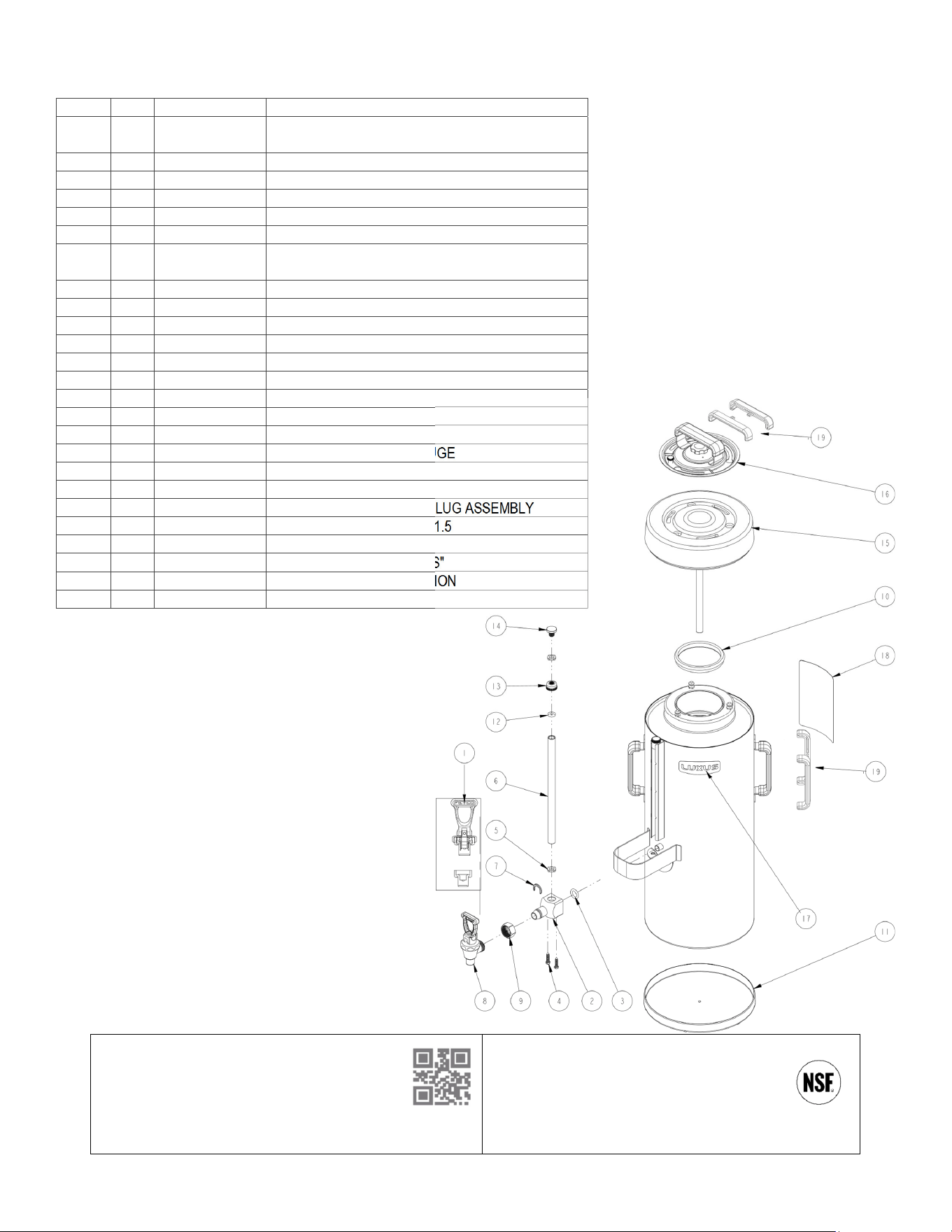

FETCO TPD-15 D009 1 ½ gallon thermal dispenser
REF QTY PART NUMBER DESCRIPTION
1 1 1071.00020.00
COMPLETE FAUCET UPPER ASSEMBLY
(HANDLE, SPRING, SHANK NUT AND SEAT CUP)
(1) 1 1071.00013.00 SEAT CUP ONLY
(1) 1 1071.00022.00 FAUCET HANDLE-BLACK
(1) 71027 FAUCET HANDLE-ORANGE DECAF STYLE
2 1 1102.00073.00 SHANK, ASSEMBLY
3 1 1024.00027.00 O'RING, 11MM ID, 4MM CS 70D
4 2 1082.00049.00
SCREW, 2 REQUIRED
#12X1", WASHER HEAD, SLOTTED
5 2 1071.00016.00 WASHER, 80LH, SIGHT GAUGE
6 1 1000.00069.00 PLASTIC SIGHT GAUGE KIT-TUBE & WASHERS
6 1 1021.00006.00 SIGHT GAUGE, 10 5/16" PLASTIC
6 1 71038 SIGHT GAUGE, 10 5/16" GLASS
7 1 1071.00012.00 C-RING
8 1 1071.00018.00 FAUCET, COMPLETE
9 1 1012.00002.00 FAUCET UNION NUT
10 1 1023.00093.00 BUSHING, BARRIER RING
11 1 1023.00046.00 BOTTOM, TPD-1.5
12 1 1071.00014.00 WASHER, 79E, SIGHT GAUGE
13 1 1071.00023.00 CAP, SHIELD #77-3
14 1 1013.00035.00 CAP, GAUGE VENT
13-14 1000.00100.00 COMPLETE VENT CAP & PLUG ASSEMBLY
15 1 1102.00049.00 FUNNEL ASSEMBLY, TPD-1.5
16 1 1112.00052.00 COVER, TWIST LOCK
17 1 1041.00005.00 LABEL, ARTWORK, "LUXUS"
18 1 1046.00013.00 DECAL, LUXUS INSTRUCTION
19 2 1023.00045.00 HANDLE (2 REQUIRED)
DRAWING 1101.00034.00 8/2019
Contact Information
FETCO®
Food Equipment Technologies Company
600 Rose Road
Lake Zurich • IL • 60047-1560 • USA
©1999-2019 Food Equipment Technologies Company
Internet: www.fetco.com
Phone: (800) 338-2699 (US & Canada)
(847) 719-3000
Fax: (847) 719-3001
Email: [email protected]
P189 AUGUST 2019
fetco.com.

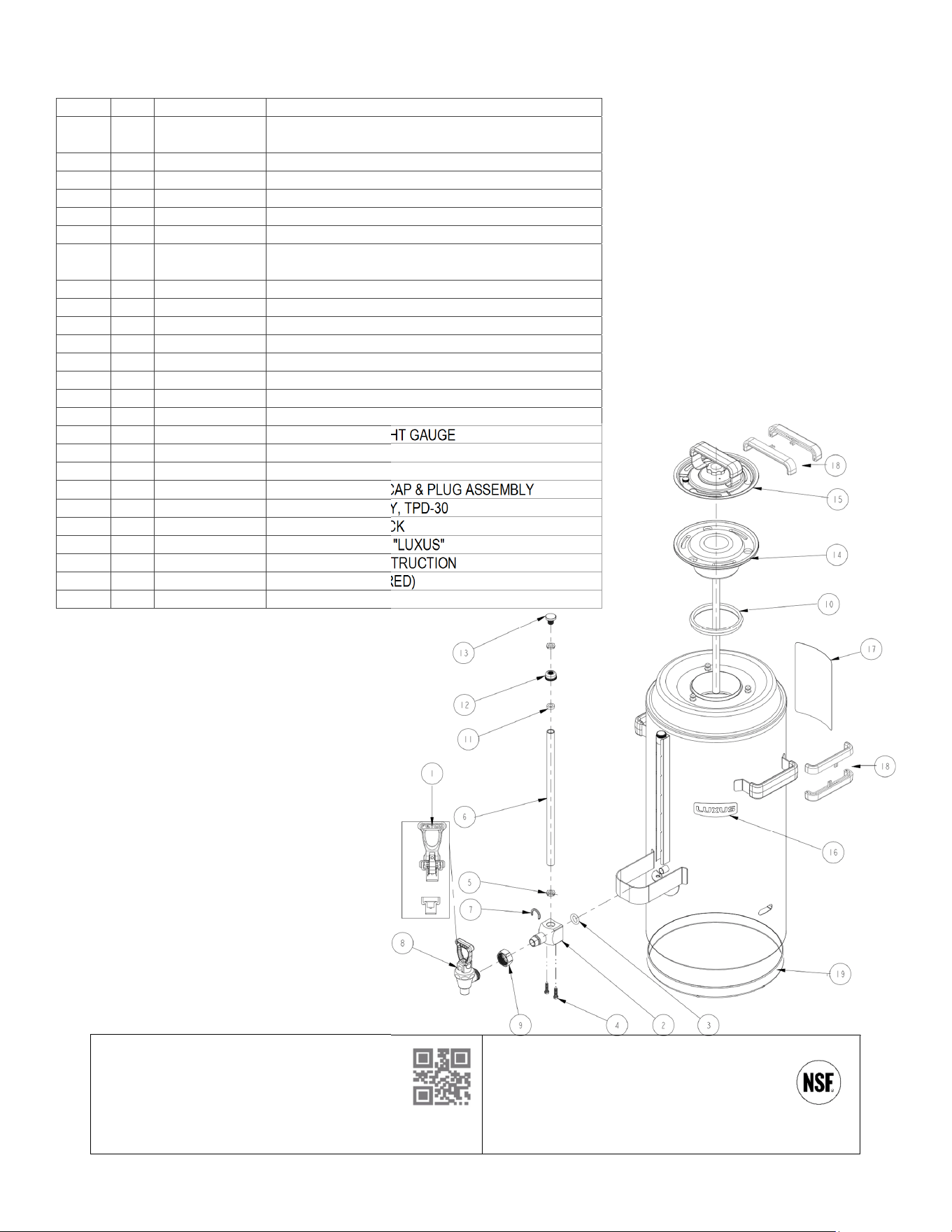

FETCO TPD-30 D012 3 gallon thermal dispenser
