User Manual
Please read this instruction manual carefully
before use and keep it for future reference.
Foldable Pressure Washer
NB10 Fold
- 01 -
Contents
1. Safety Warnings
2. Product Overview
3. Operation and Functions
4. Specifications
5. Troubleshooting
6. Warranty Info
02
05
06
09
10
11
- 02 -
Water flowing through an anti-backflow valve is considered undrinkable.
To ensure applicable safety, only use original spare parts from the manufacturer or
manufacturer approved.
High-pressure hoses, fittings and couplings are important to machine safety. Use only
hoses, fittings and couplings recommended by the manufacturer.
Improper use of the cleaning machine may result in serious injury or oxidation.
Store the washer away from children.
Bleed any residual pressure before disconnecting the hose from the product.
Before each use, regularly check whether all metal fasteners are tight and whether
the gasket components are intact; check whether parts are broken or worn.
Store indoors – Never store the washer outdoors or where it may freeze.
WARNING: Read all safety warnings and instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Please read and comply with all original instructions before the initial operation of
your appliance and storage the guidance for future reference or subsequent owners.
Apart from the notes included, the general safety provisions and rules for the preven-
tion of accidents of the legislator must be observed.
Warnings and notes that are attached on the appliance provide important notes for
the safe operation.
DANGER
All circuits in the working area must be protected from jet water.
The user must be the operator as intended. The person must consider the local
conditions and must pay attention to other persons in the surroundings when operat-
ing the washer.
Before each operation, check important components such as high-pressure hoses,
hand spray guns and safety devices for damage. Do not operate washer with
damaged components.
High pressure nozzles can be dangerous if misused. The spray must not be directed
at persons, live electrical equipment, or the machine itself.
ATTENTION
Do not operate the washer at temperatures below 0
DANGER
Pressure washer must not be operated in explosive atmospheres.
Explosion risk - Do not spray flammable liquids.
Never use acidic solvents containing solvents or undiluted! This includes gasoline,
paint thinner, and heating oil. Spray can be highly flammable, explosive, and toxic. Do
not use acetone, undiluted acidic solvents as they will corrode the materials used on
the equipment. Never use the washer with flammable or toxic liquids, or liquids
incompatible with normal operation.
Keep packaging films away from children, otherwise there is a risk of suffocation!
WARNING
In accordance with applicable regulations, cleaning machines must never be used
on drinking water networks without a system separator. Ensure that the connection
to the building water installation in which the cleaning machine is operated is
equipped with a compliant system separator!
1. Safety Warnings
- 03 -
Water flowing through an anti-backflow valve is considered undrinkable.
To ensure applicable safety, only use original spare parts from the manufacturer or
manufacturer approved.
High-pressure hoses, fittings and couplings are important to machine safety. Use only
hoses, fittings and couplings recommended by the manufacturer.
Improper use of the cleaning machine may result in serious injury or oxidation.
Store the washer away from children.
Bleed any residual pressure before disconnecting the hose from the product.
Before each use, regularly check whether all metal fasteners are tight and whether
the gasket components are intact; check whether parts are broken or worn.
Store indoors – Never store the washer outdoors or where it may freeze.
WARNING: Read all safety warnings and instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Please read and comply with all original instructions before the initial operation of
your appliance and storage the guidance for future reference or subsequent owners.
Apart from the notes included, the general safety provisions and rules for the preven-
tion of accidents of the legislator must be observed.
Warnings and notes that are attached on the appliance provide important notes for
the safe operation.
DANGER
All circuits in the working area must be protected from jet water.
The user must be the operator as intended. The person must consider the local
conditions and must pay attention to other persons in the surroundings when operat-
ing the washer.
Before each operation, check important components such as high-pressure hoses,
hand spray guns and safety devices for damage. Do not operate washer with
damaged components.
High pressure nozzles can be dangerous if misused. The spray must not be directed
at persons, live electrical equipment, or the machine itself.
ATTENTION
Do not operate the washer at temperatures below 0
DANGER
Pressure washer must not be operated in explosive atmospheres.
Explosion risk - Do not spray flammable liquids.
Never use acidic solvents containing solvents or undiluted! This includes gasoline,
paint thinner, and heating oil. Spray can be highly flammable, explosive, and toxic. Do
not use acetone, undiluted acidic solvents as they will corrode the materials used on
the equipment. Never use the washer with flammable or toxic liquids, or liquids
incompatible with normal operation.
Keep packaging films away from children, otherwise there is a risk of suffocation!
WARNING
In accordance with applicable regulations, cleaning machines must never be used
on drinking water networks without a system separator. Ensure that the connection
to the building water installation in which the cleaning machine is operated is
equipped with a compliant system separator!
- 04 -
Water flowing through an anti-backflow valve is considered undrinkable.
To ensure applicable safety, only use original spare parts from the manufacturer or
manufacturer approved.
High-pressure hoses, fittings and couplings are important to machine safety. Use only
hoses, fittings and couplings recommended by the manufacturer.
Improper use of the cleaning machine may result in serious injury or oxidation.
Store the washer away from children.
Bleed any residual pressure before disconnecting the hose from the product.
Before each use, regularly check whether all metal fasteners are tight and whether
the gasket components are intact; check whether parts are broken or worn.
Store indoors – Never store the washer outdoors or where it may freeze.
WARNING: Read all safety warnings and instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Please read and comply with all original instructions before the initial operation of
your appliance and storage the guidance for future reference or subsequent owners.
Apart from the notes included, the general safety provisions and rules for the preven-
tion of accidents of the legislator must be observed.
Warnings and notes that are attached on the appliance provide important notes for
the safe operation.
DANGER
All circuits in the working area must be protected from jet water.
The user must be the operator as intended. The person must consider the local
conditions and must pay attention to other persons in the surroundings when operat-
ing the washer.
Before each operation, check important components such as high-pressure hoses,
hand spray guns and safety devices for damage. Do not operate washer with
damaged components.
High pressure nozzles can be dangerous if misused. The spray must not be directed
at persons, live electrical equipment, or the machine itself.
ATTENTION
Do not operate the washer at temperatures below 0
DANGER
Pressure washer must not be operated in explosive atmospheres.
Explosion risk - Do not spray flammable liquids.
Never use acidic solvents containing solvents or undiluted! This includes gasoline,
paint thinner, and heating oil. Spray can be highly flammable, explosive, and toxic. Do
not use acetone, undiluted acidic solvents as they will corrode the materials used on
the equipment. Never use the washer with flammable or toxic liquids, or liquids
incompatible with normal operation.
Keep packaging films away from children, otherwise there is a risk of suffocation!
WARNING
In accordance with applicable regulations, cleaning machines must never be used
on drinking water networks without a system separator. Ensure that the connection
to the building water installation in which the cleaning machine is operated is
equipped with a compliant system separator!
- 05 -
2. Product Overview
1. Handle
2. Lid
3. Lid latch
4. Water gun holder
5. Washing machine main unit
6. Camping light
7. Display panel
8. Type-C charging port
9. Shift button
10. On/off switch
11. Water outlet
12. Soap dispenser
13. 5-in-1 spray nozzle
14. Water gun
11
13
12
10 9
7
6
5
4
3
2
1
8
14
- 06 -
3. Operation and Functions

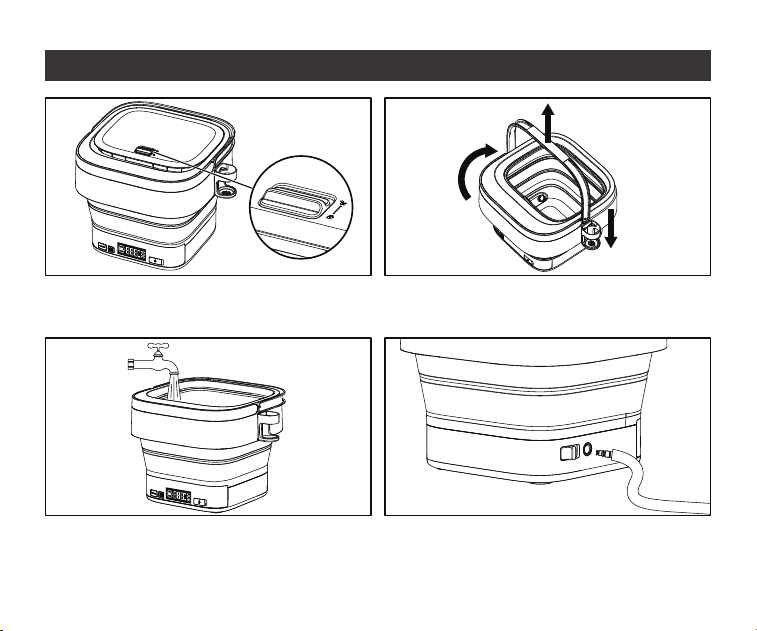

1. Remove the lid from the water tank 2. Lift the bucket
3. Fill the bucket with clean water 4. Connect the water outlet to the outlet
pipe
- 07 -

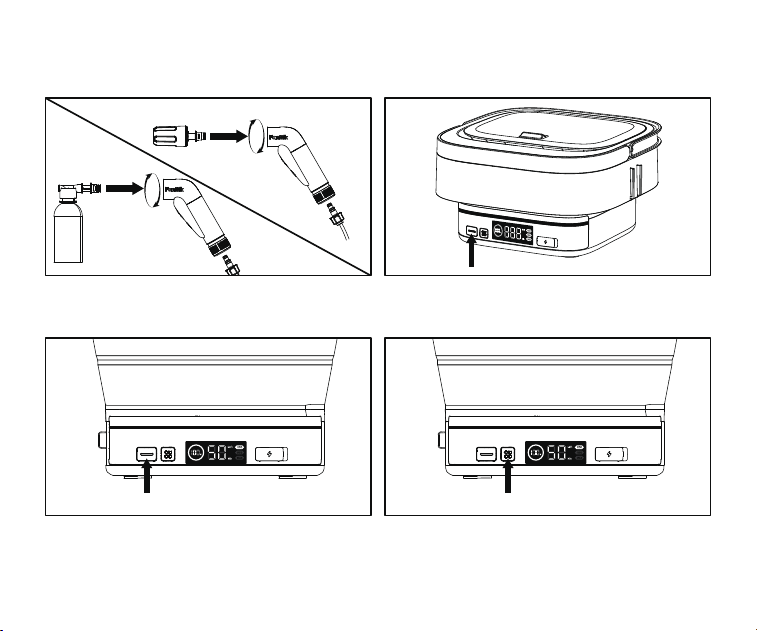

5. Connect the water gun to the nozzle,
and connect the water gun to the soap pot
6. Short press the power button to turn
the camping light on or off
7. Press and hold the power button to
turn on the device, and the motor and
screen will light up
8. Short press the shift button to switch
gears, ECO REG MAX
- 08 -
Attention
1.
2.
3.
4.
5.
6.
Only inject clean water into the water tank and ensure that only clean water is
inhaled.
Impurities in the water will damage the pressure pump and its accessories.
Do not fill the water tank with any detergents, pesticides or other additives.
Do not immerse the device in water.
The pump is damaged due to poor operation of the equipment. If the device does
not build pressure within 1 minute, switch off the device and follow the
instructions in the "Troubleshooting" chapter.
This low-pressure cleaning machine is designed for cleaning products, including
vehicles, tools, exterior walls, garden equipment, and pets.
- 09 -
4. Specifications
Rated voltage
Rated pressure
Rated flow rate
Rated power
Water tank capacity
Length
Width
Height (folded)
Net weight
10.8V
220Psi
0.6-0.8GPM
190W
12L
325mm
325mm
155mm
3.3kg
- 10 -
Fault Cause
Solution
5. Troubleshooting
Device does not
reach required
pressure
The device does
not run
The charging state of the
battery is too low.
Not enough water in the
water reservoir.
Make sure that there is enough
clean, clear water in the water
reservoir.
Clean the fine filter, see chapter
Cleaning the fine filter
Charge the battery, see Chapter
Battery charging.
Clean the nozzle: Remove
contamination and debris from
the nozzle hole, using a needle
and rinse with clean, clear water
from the front.
Make sure that there is enough
clean clear water in the water
reservoir.
The charging state of the
battery is too low.
Insufficient water supply
The nozzle is clogged.
The fine filter is dirty.
Charge the battery, see
Chapter Battery charging.
Trigger of the gun is
released
Press the trigger of the gun
Strong pressure
fluctuations or
constant switching
off/on of the device
- 11 -
6. Warranty Info
This product is covered by a 12-month warranty for manufacturing defects.
Fault Cause
Solution
Shut down and allow the
machine to cool before use
Over-Temperature
Protection
Machine has
stopped operating
and the screen
displays E04
Shut down and restart the
machine
Overload protection
Machine has
stopped operating
and the screen
displays E06
Shut down the machine,
resolve the short-circuit fault,
then restart for use
Machine malfunction
Machine has
stopped operating
and the screen
displays E08
CET Product Service Ltd.
Beacon House Stokenchurch Business
Park, Ibstone Rd, Stokenchurch High
Wycombe HP14 3FE UK
Email: [email protected]
Phone/Fax: +44 7419325266
Lienco SAS
8 RUE MARCEL CERDAN,BUSSY
SAINT GEORGES,77600.France
Email: [email protected]
Phone/Fax: +33766929910
[Service hotline available in the U.S. and Canada only]
929-693-6066 MON-FRI 9AM-5PM[ET]
www.fanttik.com
Manufacturer/Hersteller: METASEE LLC
Address/Adresse: 12 GREENWAY PLZ STE 1161A
HOUSTON, TX 77046-1203
