User Manual
Mini Commercial AHD Camera
with Super Wide Lens
Introduction
Thank you for purchasing your EchoMaster Pro
automotive camera.
EchoMaster cameras are designed to improve safety
during driving by providing high quality images of
surrounding areas and obstacles in the vicinity of the
vehicle. They will also improve vehicle maneuvering
capability by displaying blind spots not normally
visible to the driver.
Please ensure you read and understand all aspects
of this manual before tting or using your EchoMaster
Camera. Choose a suitable mounting place
dependent on the application. Ensure that there are
no wiring harnesses or hoses/pipes located behind
this panel before drilling.
Key Features
u 1/3” CMOS Analog High Denition (AHD) Sensor
u Operates at 0.1 LUX
u 12 IR LEDs
u IP67 Rated
u 165 Degree Horizontal Viewing Angle
u FMVSS 111 Compliant
u Parking lines and mirror image selectable
Box Contents
u Camera
u Allen Wrench
u User Manual
u Warranty Card

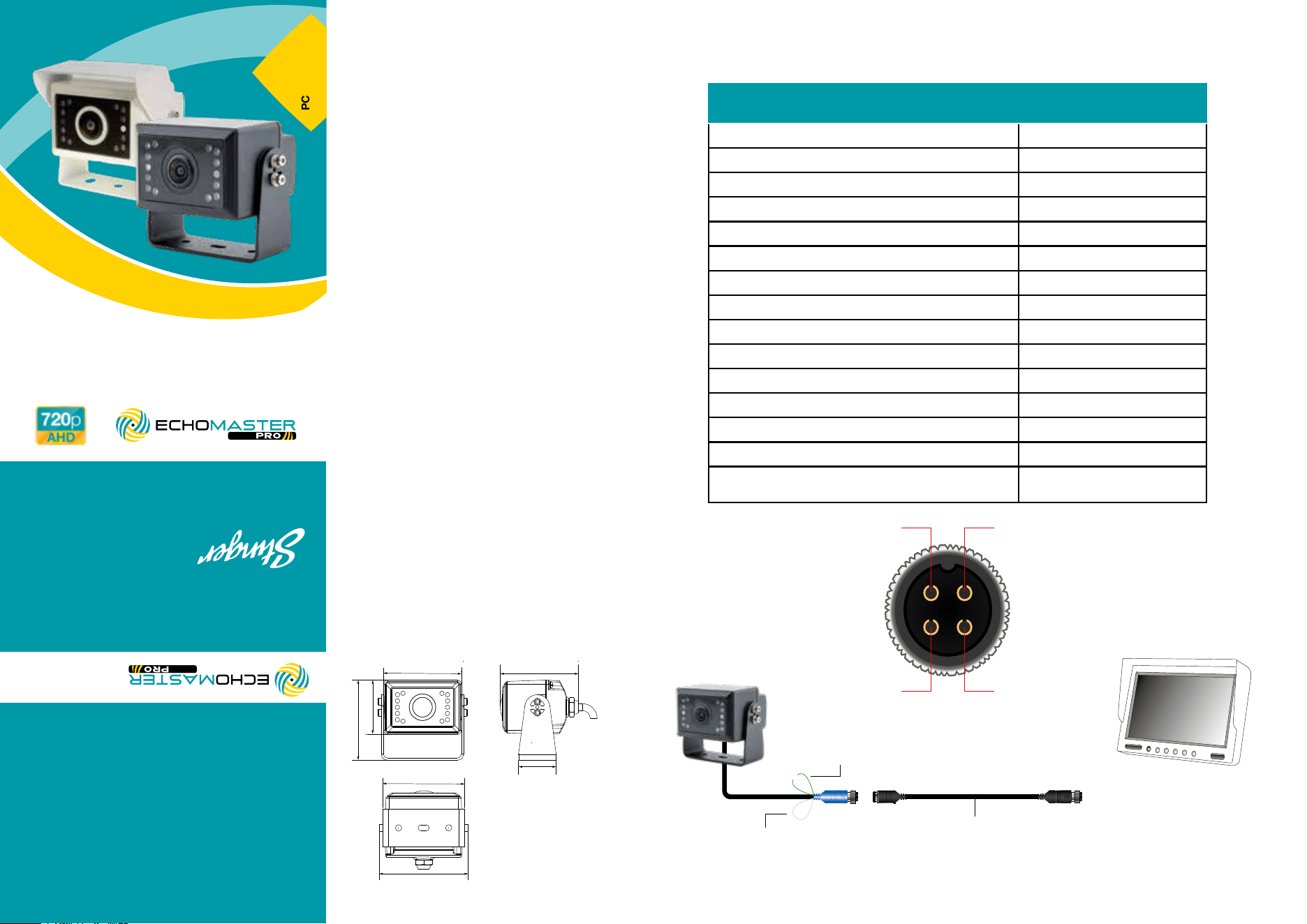

Wiring Diagram & Pin Out
Dimensions
Specications
PCAM-830-AHD/
PCAM-830W-AHD
Sensor Type
1/3” CMOS AHD
LEDs
12
Illumination
0.1 LUX
Viewing Angle (Horizontal)
165 degrees
Mirror Image (Selectable)
YES
Parking Lines (Selectable)
YES
Water/Debris-Proof
IP67
Audio
YES
Power Supply
9V-12V DC
Current
<130mA
Working Temperature
-20ºC - +70ºC
Resolution
1280 x 720
System
NTSC AHD
TV Lines
720P
Dimensions W x D x H
59 x 56 x 57 mm
2.32 x 2.2 x 2.26 in
56mm / 2.20in
59mm / 2.32in
56mm / 2.20in
39mm / 1.54in
27mm / 1.06in
57.5mm / 2.26in
64mm / 2.52in
1
23
4
POWER +12V
VIDEO
AUDIO
GROUND
1
2 3
4
Mirror Image (White)
Mirrored - Cut (Default)
Normal - Joined
Extension Harness (Sold Separately)
GXE-6 - 6M/19.7ft Extension
GXE-10 - 10M/32.8ft Extension
GXE-15 - 15M/49.2ft Extension
GXE-20 - 20M/65.6ft Extension
REV. -011124
Parking Lines (Green)
OFF - Cut (Default)
ON - Joined
PCAM-830W-AHD
PCAM-830-AHD
email - [email protected] (US)
tel - 727-592-5991
