1
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Trademarks
VAPON is a trademark of VAPON Technology Co., Ltd.
All other marks are trademarks or registered trademarks of their respective
holders.
Copyright Information
©
2026 VAPON Technology Co., Ltd.
All rights reserved.
Disclaimer
The information, specifications and illustrations in this manual are based on the
latest information available at the time of printing.
VAPON reserves the right to make changes at anytime without notice.
Visit our website:
www.vapontech.com
For Technical Assistance, send us an email at:
support@vapontech.com
2
TPMS Service Tool TyreIQ S5 User's Manual V1.0
One-Year Limited Warranty
Subject to the conditions of this limited warranty, VAPON Technology Co.,
Ltd (
“
VAPON
”
) warrants to its customers that this product is free of defects in
materials and workmanship at the time of its original purchase for a
subsequent period of one (1) year.
If the product fails to operate under normal use during the warranty period
due to defects in materials or workmanship, VAPON will, at its sole option,
either repair or replace the product in accordance with the terms and
conditions herein.
Terms and Conditions
1 If VAPON repairs or replaces the product, the repaired or replaced product
shall be warranted for the remaining time of the original warranty period. No
charge will be made to the customer for replacement parts or labor charges
incurred by VAPON in repairing or replacing the defective parts.
2 The customer shall have no coverage or benefits under this limited
warranty if any of the following conditions are applicable:
a) The product has been subjected to abnormal use, abnormal conditions,
improper storage, exposure to moisture or dampness, unauthorized
modifications, unauthorized repair, misuse, neglect, abuse, accident,
alteration, improper installation, or other acts which are not the fault of
VAPON, including damage caused by shipping.
b) The product has been damaged by external causes such as collision with
an object, or from fire, flooding, sand, dirt, windstorm, lightning, earthquake or
damage from exposure to weather conditions, Act of God, or battery leakage,
theft, blown fuse, improper use of any electrical source, or the product was
used in combination or connection with other products, attachments, supplies
or consumables not manufactured or distributed by VAPON.
3 The customer shall bear the cost of shipping the product to VAPON.
VAPON shall bear the cost of shipping the product back to the customer after
the completion of service under this limited warranty.
4 VAPON does not warrant uninterrupted or error-free operation of the
product. If a problem develops during the limited warranty period, the
consumer shall take the following step-by-step procedure:
a) The customer shall return the product to the place of purchase for repair or
replacement, or contact your local VAPON distributor or visit our website
www.vapontech.com for further information.
3
TPMS Service Tool TyreIQ S5 User's Manual V1.0
b) The customer shall include a return address, daytime phone number
and/or fax number, a complete description of the problem and original invoice
specifying date of purchase and serial number.
c) The customer will be billed for any parts or labor charges not covered by
this limited warranty.
d) VAPON will repair the product under the limited warranty within 30 days
after receipt of the product. If VAPON cannot perform repairs covered under
this limited warranty within 30 days, or after a reasonable number of attempts
to repair the same defect, VAPON, at its option, will provide a replacement
product or refund the purchase price of the product less a reasonable amount
for usage.
e) If the product is returned during the limited warranty period, but the
problem with the product is not covered under the terms and conditions of
this limited warranty, the customer will be notified and given an estimate of
the charges the customer must pay to have the product repaired, with all
shipping charges billed to the customer. If the estimate is refused, the
product will be returned freight collect. If the product is returned after the
expiration of the limited warranty period, VAPON’s normal service policies
shall apply and the customer will be responsible for all shipping charges.
5 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR
A PARTICULAR PURPOSE OR USE, SHALL BE LIMITED TO THE
DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY.
OTHERWISE, THE FOREGOING LIMITED WARRANTY IS THE
CONSUMER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED. VAPON SHALL NOT BE
LIABLE FOR SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL
DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF ANTICIPATED
BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OF
DATA, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY
ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY
SUBSTITUTE EQUIPMENT OR FACILITIES, DOWNTIME, THE CLAIMS OF
ANY THIRD PARTIES, INCLUDING CUSTOMERS, AND INJURY TO
PROPERTY, RESULTING FROM THE PURCHASE OR USE OF THE
PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH
OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL
OR EQUITABLE THEORY, EVEN IF VAPON KNEW OF THE LIKELIHOOD
OF SUCH DAMAGES. VAPON SHALL NOT BE LIABLE FOR DELAY IN
RENDERING SERVICE UNDER THE LIMITED WARRANTY, OR LOSS OF
USE DURING THE PERIOD THAT THE PRODUCT IS BEING REPAIRED.
6 Some states do not allow limitation of how long an implied warranty lasts,
so the one-year warranty limitation may not apply to you (the Consumer).
Some states do not allow the exclusion or limitation of incidental or
4
TPMS Service Tool TyreIQ S5 User's Manual V1.0
consequential damages, so certain of the above limitations or exclusions may
not apply to you (the Consumer). This limited warranty gives the Consumer
specific legal rights and the Consumer may also have other rights which vary
from state to state.
5
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Safety Information
For your own safety and the safety of others, and to prevent damage to the
equipment and vehicles, read this manual thoroughly before operating your
tool. The safety messages presented below and throughout this user
’
s
manual are reminders to the operator to exercise extreme care when using
this device. Always refer to and follow safety messages and test procedures
provided by the vehicle manufacturer. Read, understand and follow all safety
messages and instructions in this manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment
damage. Below are the signal words we used to indicate the hazard level in a
condition.
Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in
moderate or minor injury to the operator or to bystanders.
Important Safety Instructions
Always use your tool as described in the user’s manual, and follow all safety
messages.
●
Do not route the test cable in a manner that would interfere with driving
controls.
● Do not exceed voltage limits between inputs specified in this user’s manual.
● Always wear ANSI approved goggles to protect your eyes from propelled
objects as well as hot or caustic liquids.
● Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant and
other debris produced by a malfunctioning engine can cause serious
6
TPMS Service Tool TyreIQ S5 User's Manual V1.0
injury or death. Do not use the tool in areas where explosive vapor may
collect, such as in below-ground pits, confined areas, or areas that are
less than 18 inches (45 cm) above the floor.
● Do not smoke, strike a match, or cause a spark near the vehicle while
testing and keep all sparks, heated items and open flames away from the
battery and fuel / fuel vapors as they are highly flammable.
● Keep a dry chemical fire extinguisher suitable for gasoline, chemical and
electrical fires in the work area.
● Always be aware of rotating parts that move at high speed when an engine
is running and keep a safe distance from these parts as well as other
potentially moving objects to avoid serious injury.
●
Do not touch engine components that get very hot when an engine is
running to avoid severe burns.
●
Block drive wheels before testing with engine running. Put the transmission
in park (for automatic transmission) or neutral (for manual transmission).
And never leave a running engine unattended.
● Do not wear jewelry or loose-fitting clothing when working on an engine.
● Do not connect or disconnect the equipment while the ignition is on or the
engine is running.
7
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Table of Contents
ONE-YEAR LIMITED WARRANTY ..................................................................................................... 2
SAFETY INFORMATION ..................................................................................................................... 5
S
AFETY
M
ESSAGE
C
ONVENTIONS
U
SED
..............................................................................................5
I
MPORTANT
S
AFETY
I
NSTRUCTIONS
.....................................................................................................5
1 USING THIS MANUAL..................................................................................................................... 9
1.1 B
OLD
T
EXT
.................................................................................................................................. 9
1.2 S
YMBOLS AND
I
CONS
................................................................................................................... 9
1.2.1 Solid Spot ........................................................................................................................... 9
1.2.2 Arrow Icon .......................................................................................................................... 9
1.2.3 Note and Important Message ............................................................................................. 9
2 INTRODUCTION ............................................................................................................................. 10
2.1 T
ECHNICAL
S
PECIFICATIONS
....................................................................................................... 10
2.2 S
CANNER
D
ESCRIPTIONS
............................................................................................................11

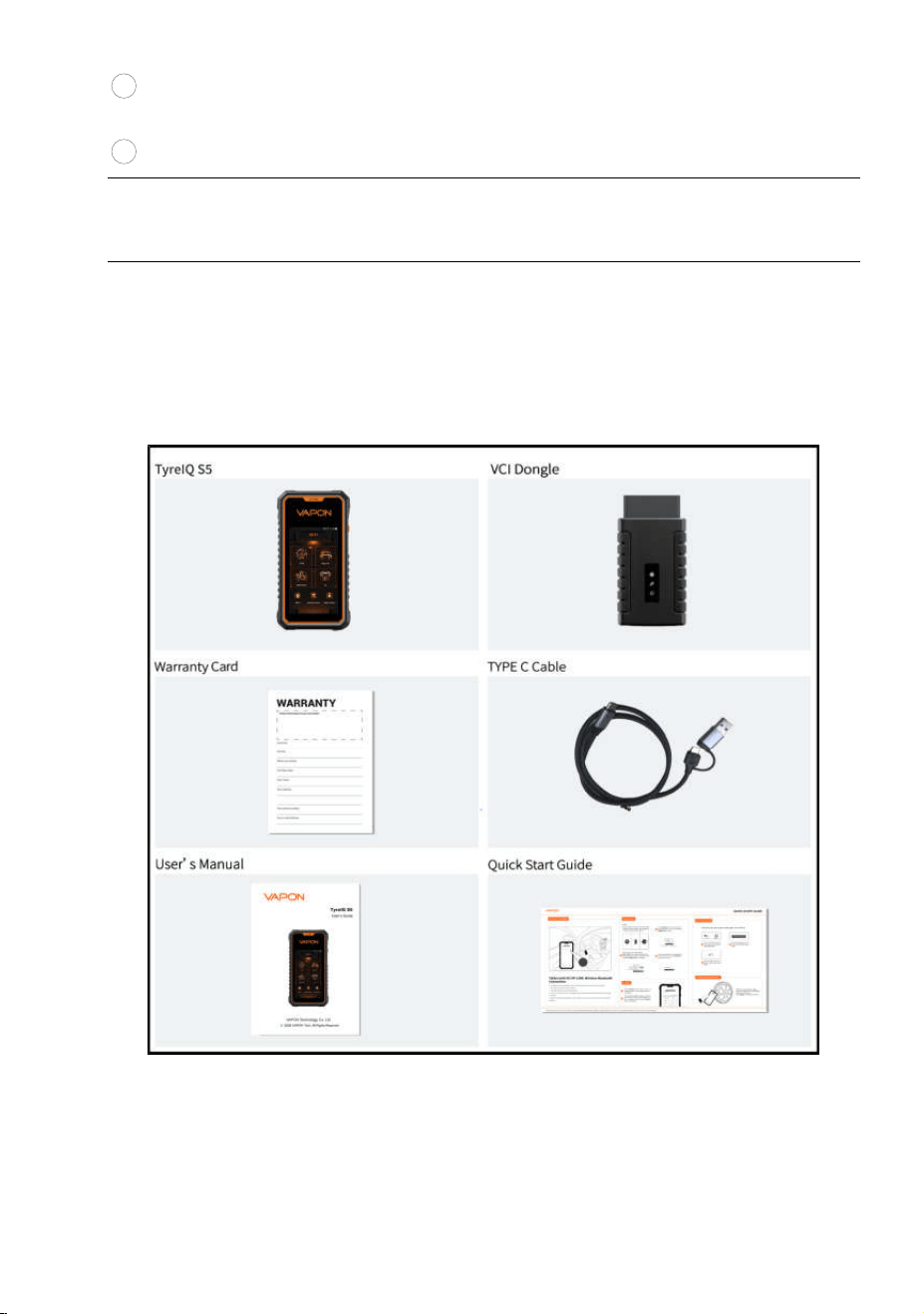

2.3 A
CCESSORIES
............................................................................................................................13
3 GETTING STARTED .......................................................................................................................14
3.1 P
OWERING UP THE
TPMS S
ERVICE
T
OOL
................................................................................... 14
3.2 S
HUTTING
D
OWN THE
TPMS S
ERVICE
T
OOL
...............................................................................14
3.3 S
CREEN
L
AYOUT OF
H
OME
S
CREEN
........................................................................................... 14
4 TPMS SERVICE OPERATIONS ..................................................................................................... 16
4.1 TPMS S
ERVICE
S
CREEN
L
AYOUT
............................................................................................... 16
4.2 T
RIGGER
O
PERATIONS
............................................................................................................... 17
4.3 P
ROGRAMMING
O
PERATIONS
...................................................................................................... 19
4.4 L
EARN
H
ELP
.............................................................................................................................. 26
5 DIAGNOSTIC OPERATIONS......................................................................................................... 30
5.1 V
EHICLE
I
DENTIFICATION
............................................................................................................ 30
5.2 D
IAGNOSTIC
O
PERATION
............................................................................................................ 34
6 MY ACCOUNT ................................................................................................................................ 45

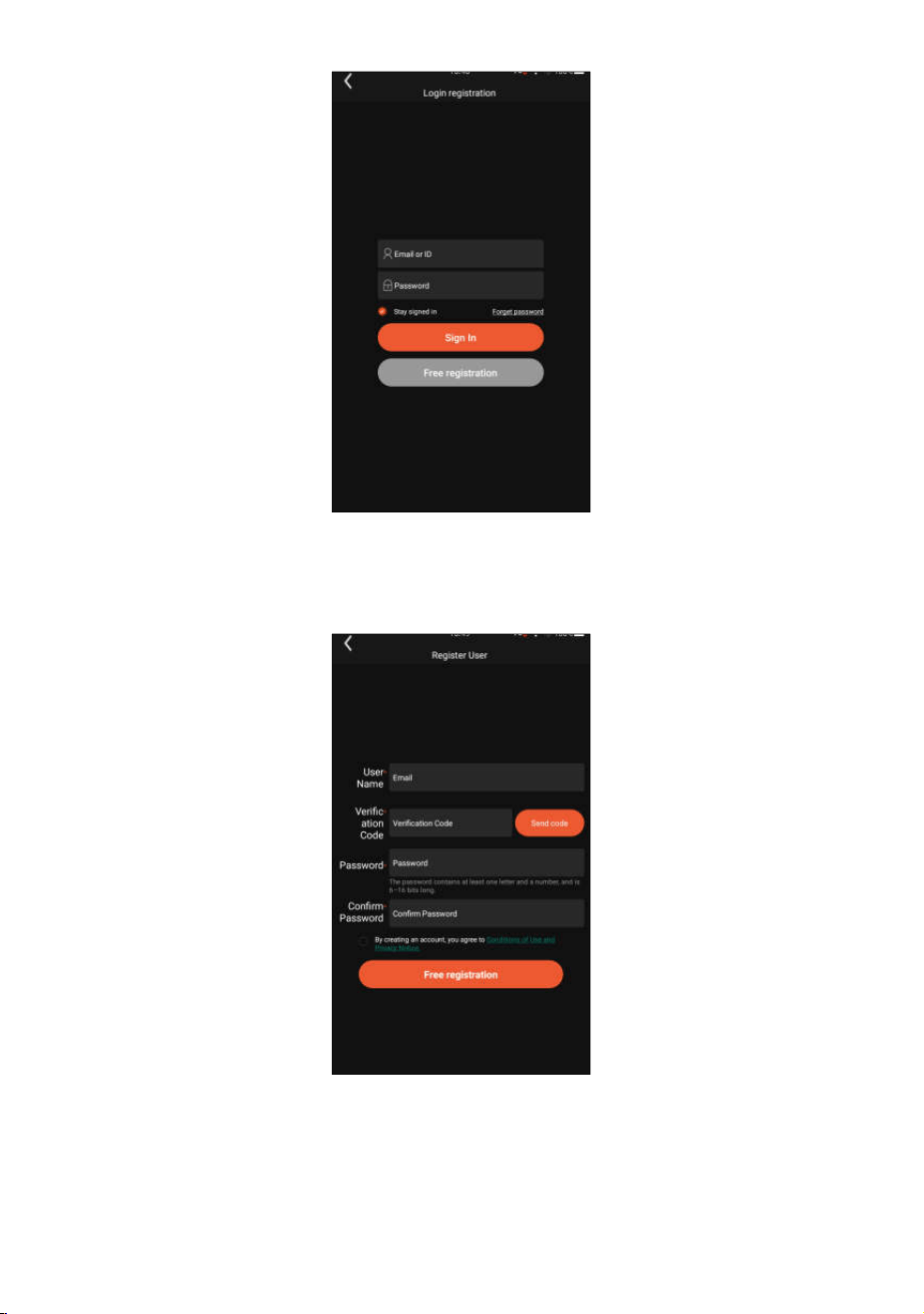

6.1 R
EGISTRATION
........................................................................................................................... 45

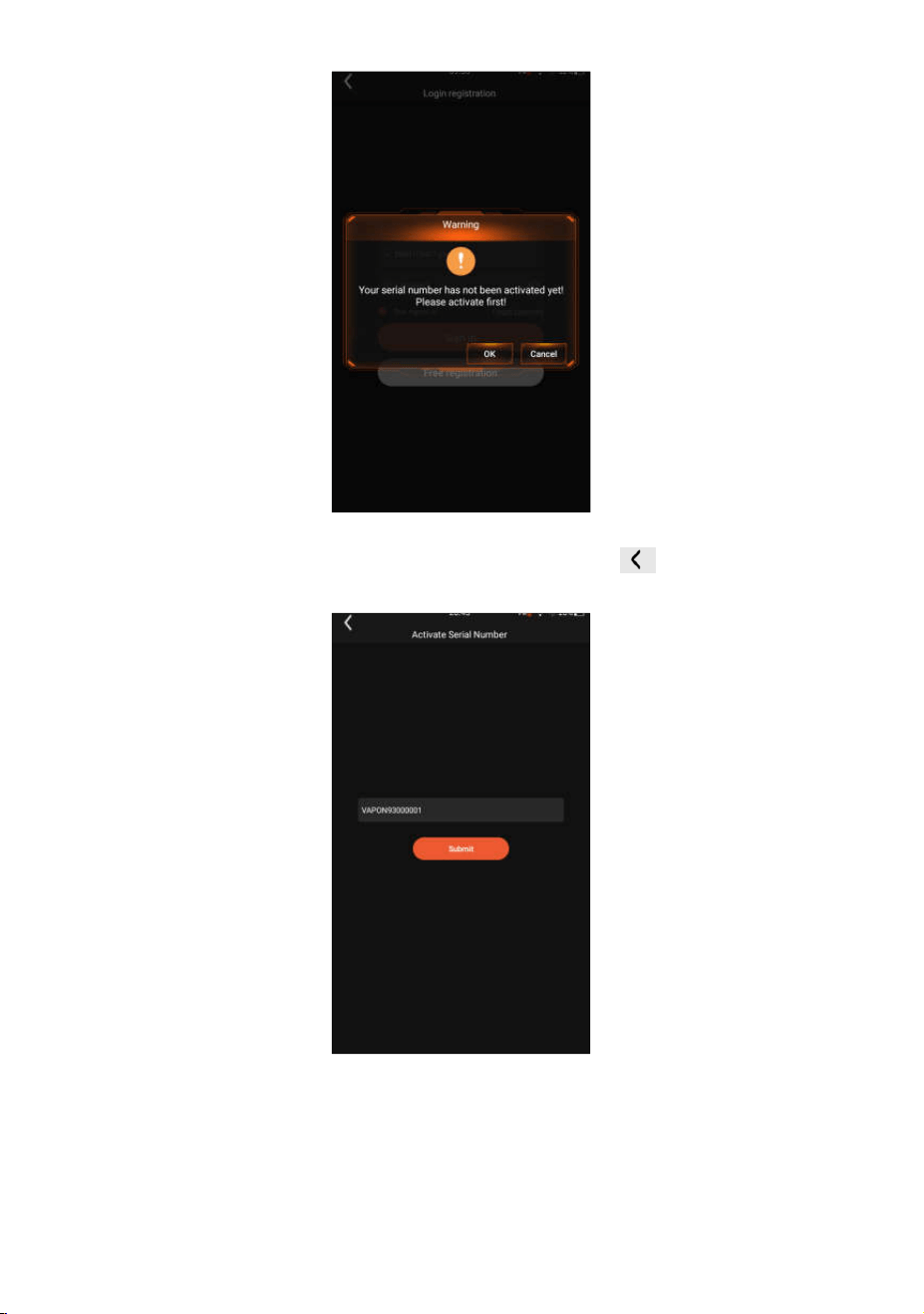

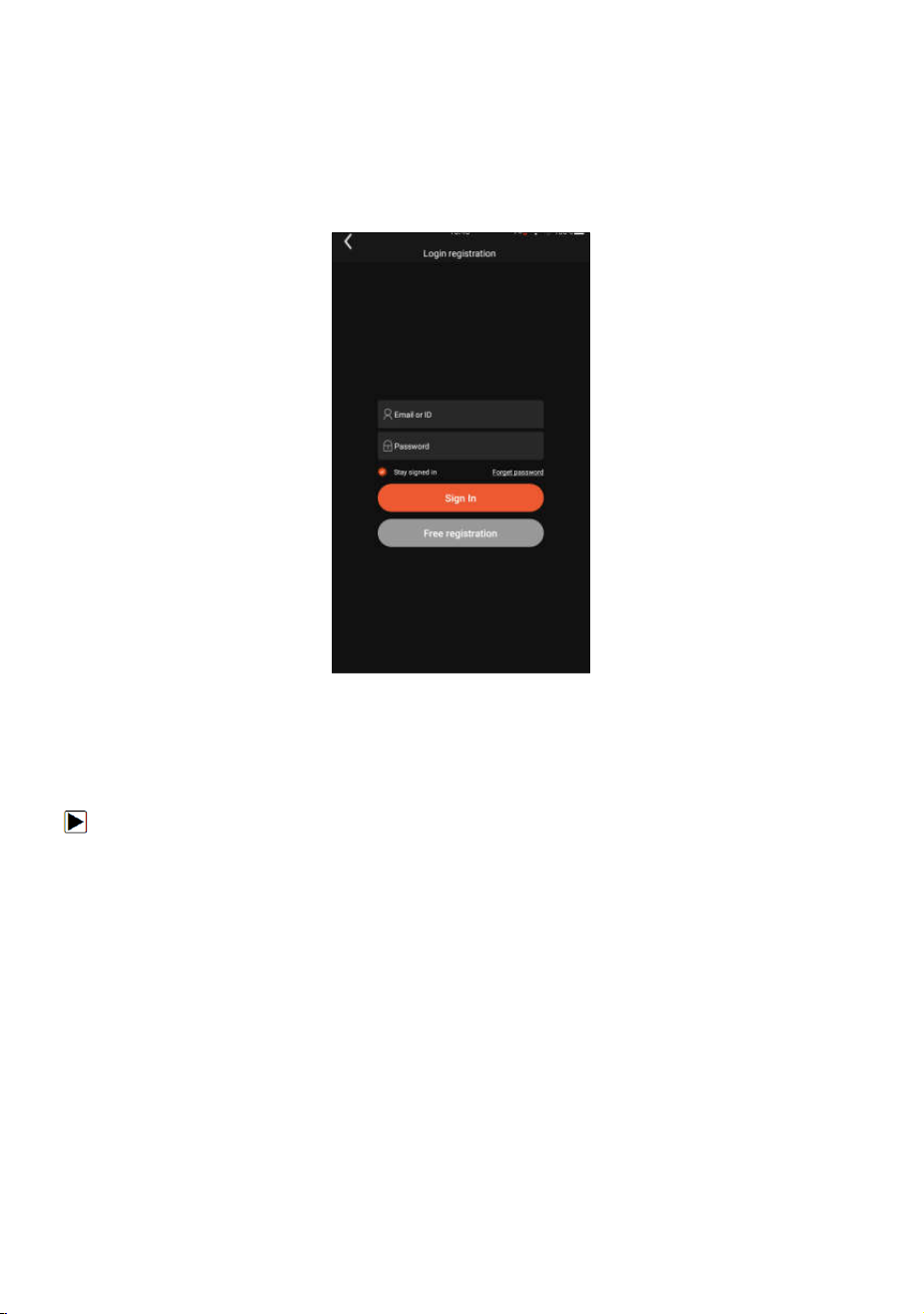

6.2 S
IGN IN
......................................................................................................................................48

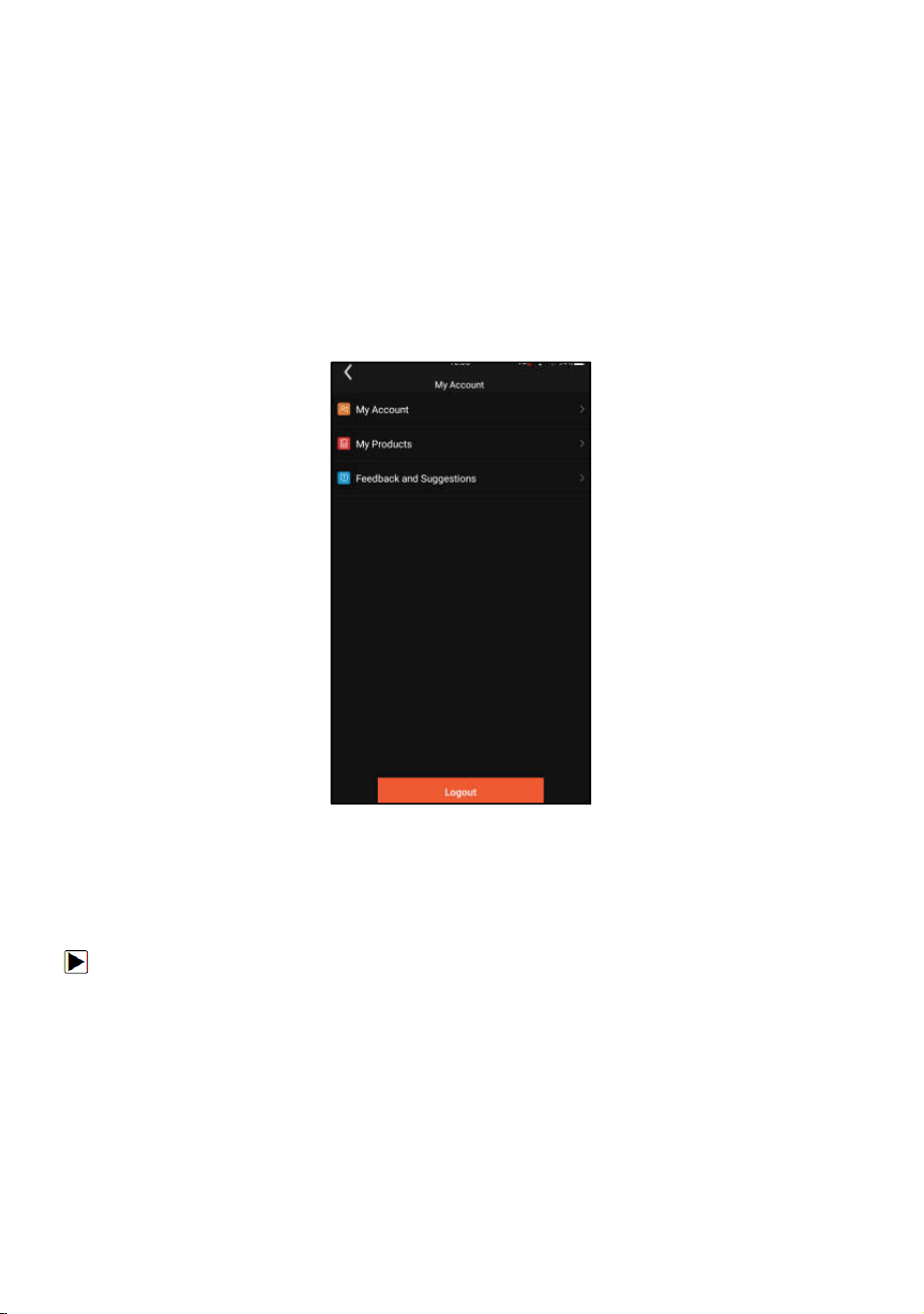

6.3 M
Y
A
CCOUNT
............................................................................................................................ 50

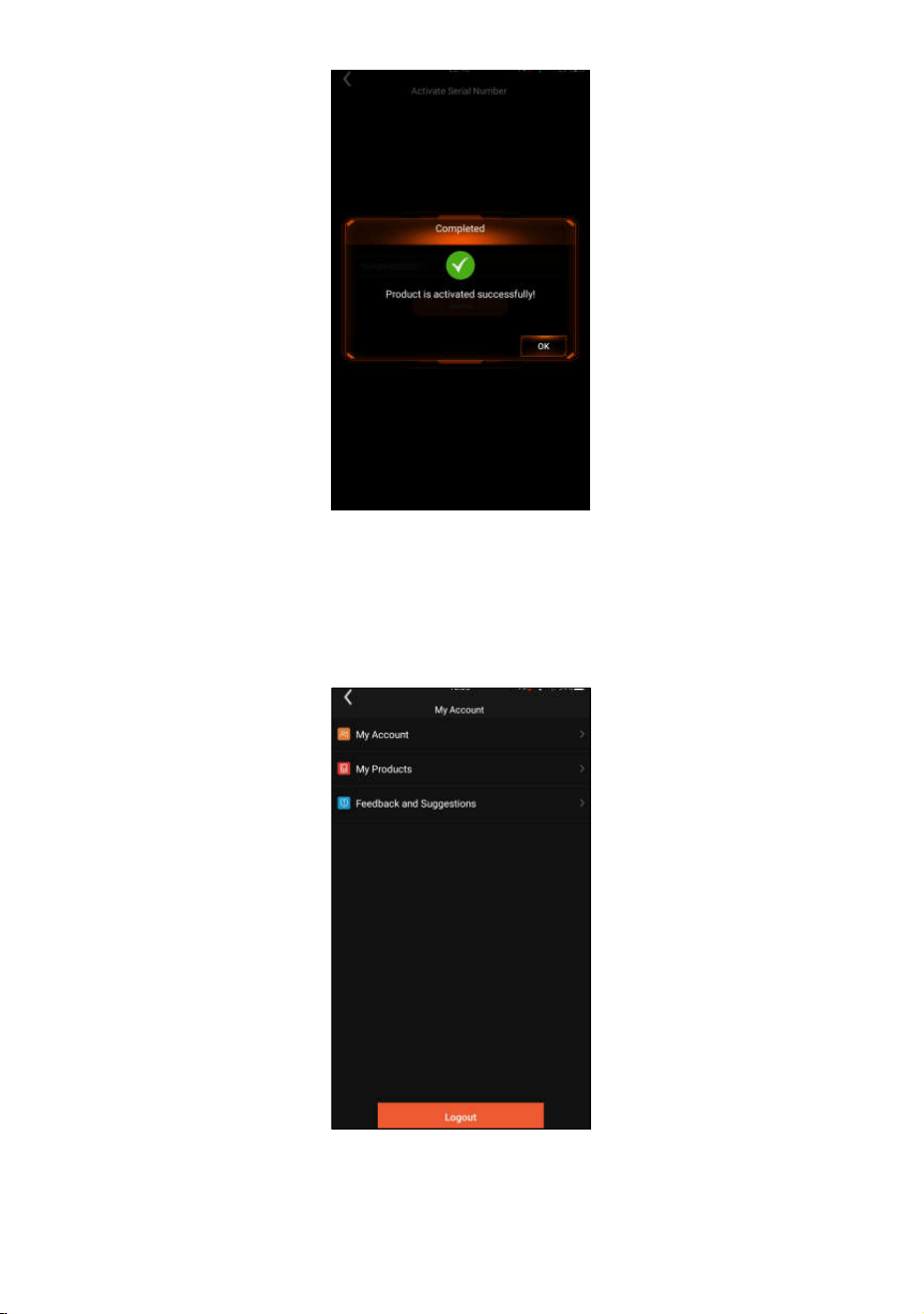

6.4 M
Y
P
RODUCTS
.......................................................................................................................... 51

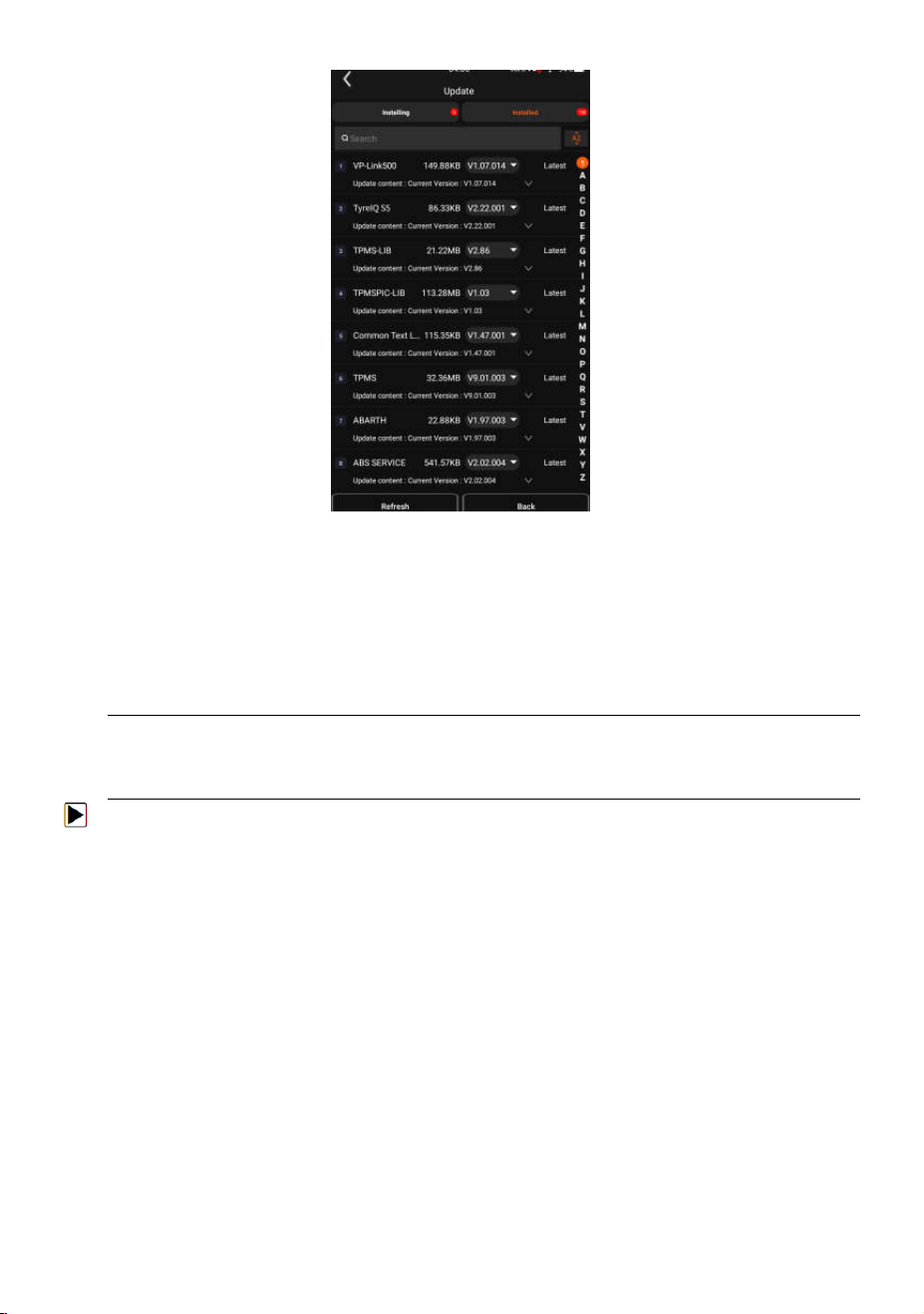

7 UPDATE ..........................................................................................................................................51

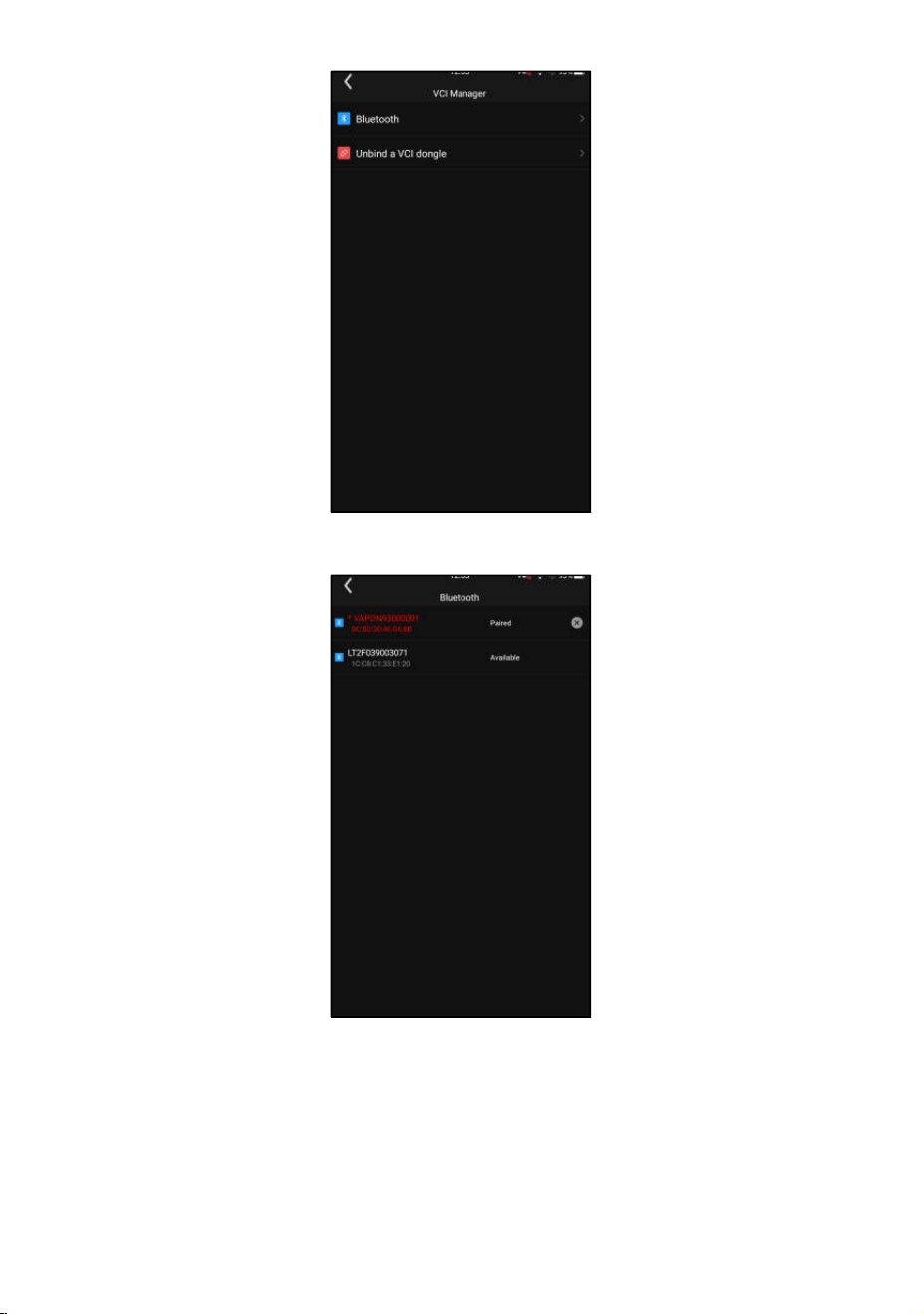

8 VCI MANAGER ............................................................................................................................... 52
8
TPMS Service Tool TyreIQ S5 User's Manual V1.0
9 FIRMWARE UPDATE
.....................................................................................................................
55
10 DATA MANAGER
.........................................................................................................................
57
10.1 I
MAGE
..................................................................................................................................... 57

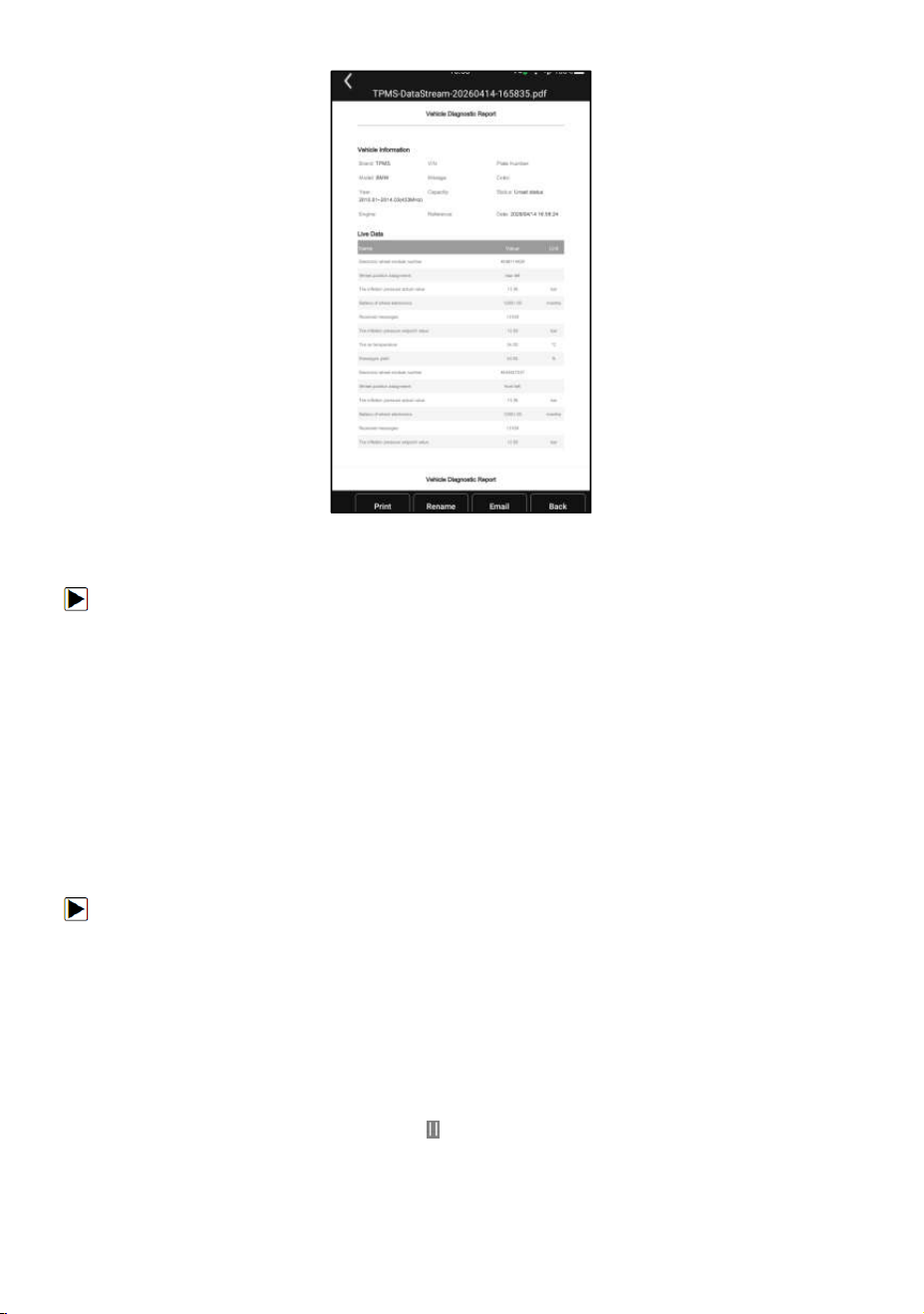

10.2 PDF R
EPORT
.......................................................................................................................... 58
10.3 D
ATA
P
LAYBACK
...................................................................................................................... 60

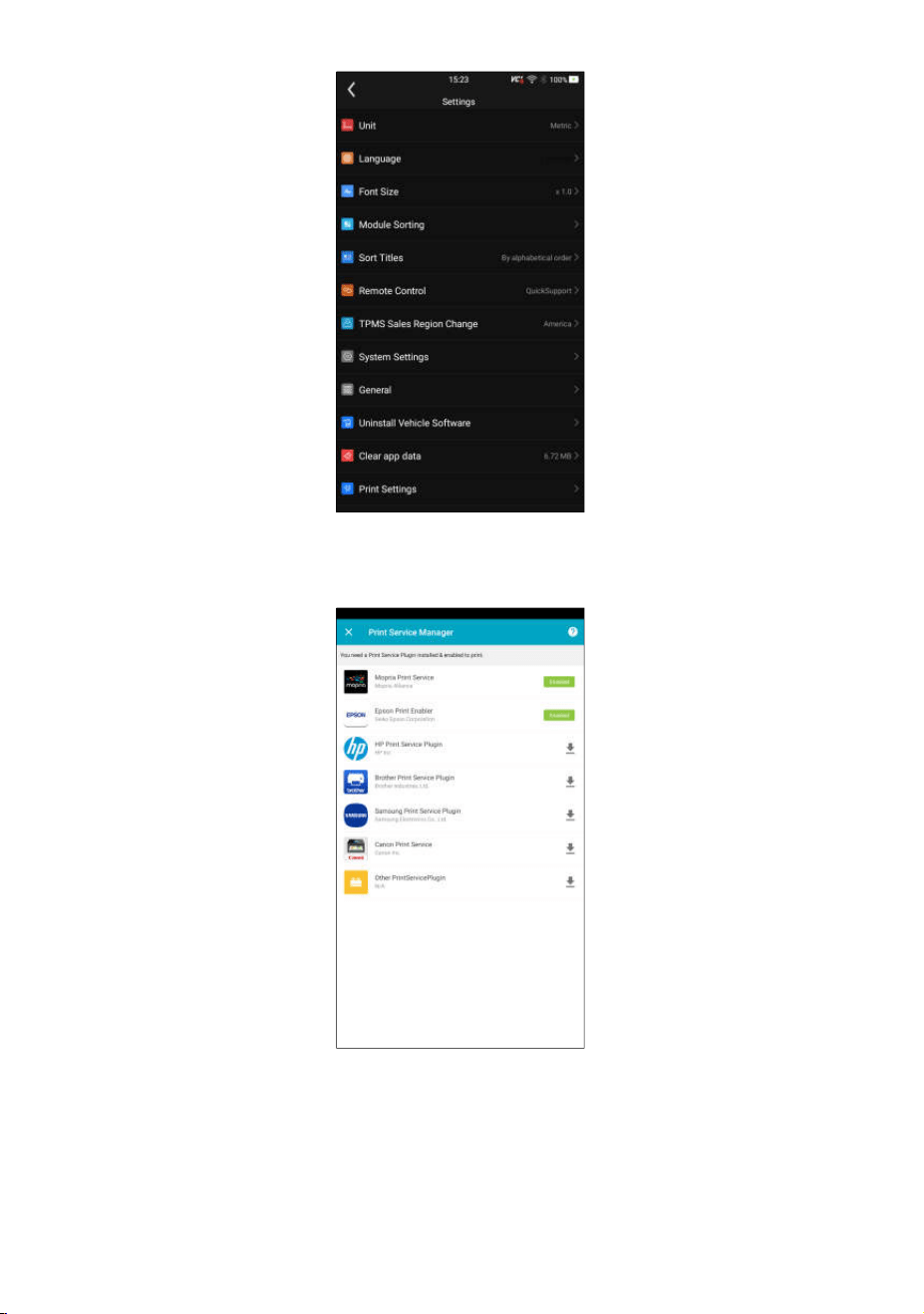

11 SETTINGS
....................................................................................................................................
61
11.1 U
NITS
...................................................................................................................................... 61
11.2 L
ANGUAGE
...............................................................................................................................61
11.3 F
ONT
S
IZE
............................................................................................................................... 61

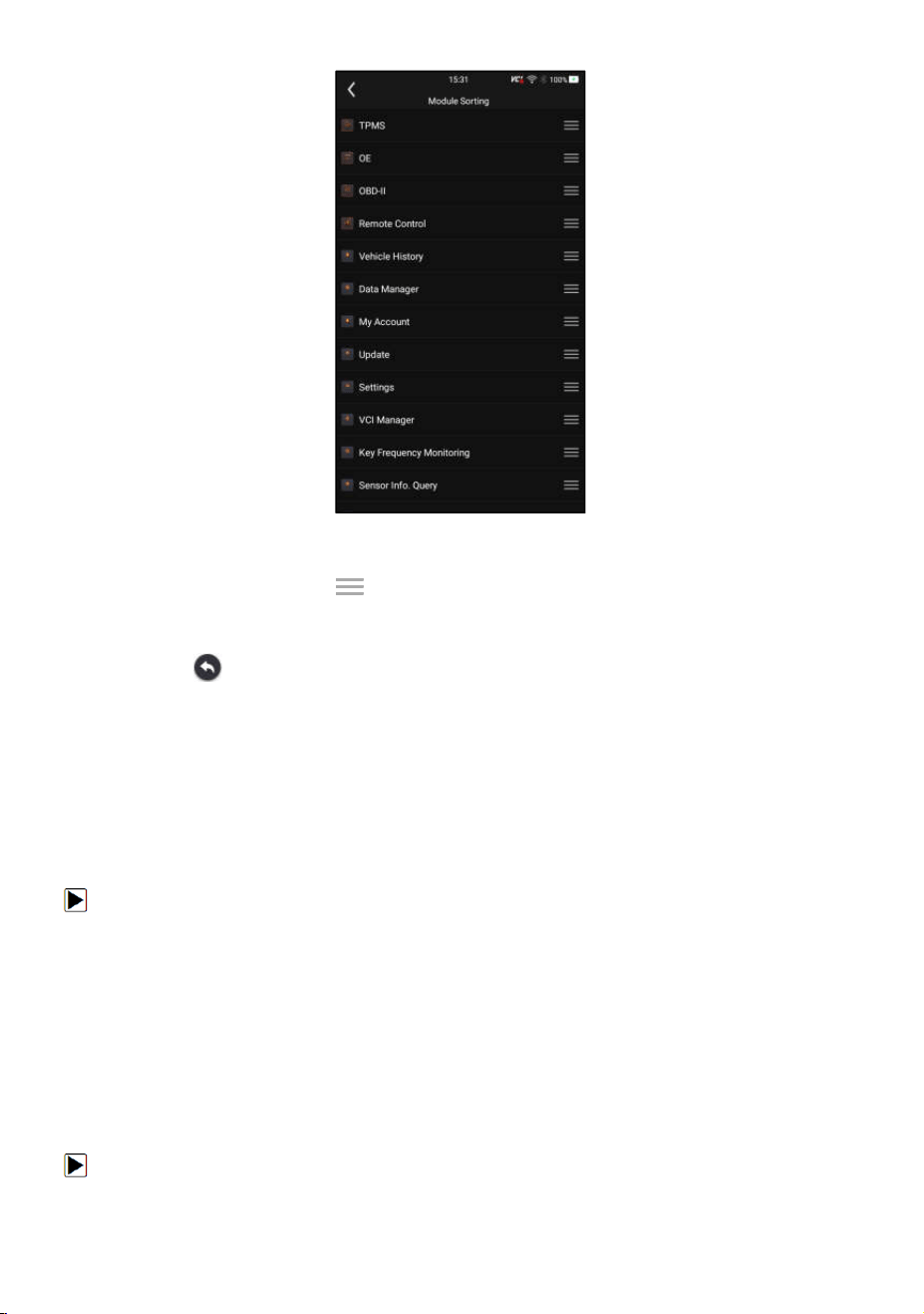

11.4 M
ODULE
S
ORTING
....................................................................................................................62
11.5 S
ORT
T
ILES
............................................................................................................................. 63
11.6 R
EMOTE CONTROL
................................................................................................................... 63
11.7 A
UTOMATIC
U
PDATE
.................................................................................................................64
11.8 S
YSTEM
S
ETTINGS
................................................................................................................... 64
11.9 G
ENERAL
.................................................................................................................................64
11.10 U
NINSTALL
V
EHICLE
S
OFTWARE
............................................................................................. 64
11.11 C
LEAR APP DATA
....................................................................................................................65
11.12 P
RINT
S
ETTINGS
.................................................................................................................... 65

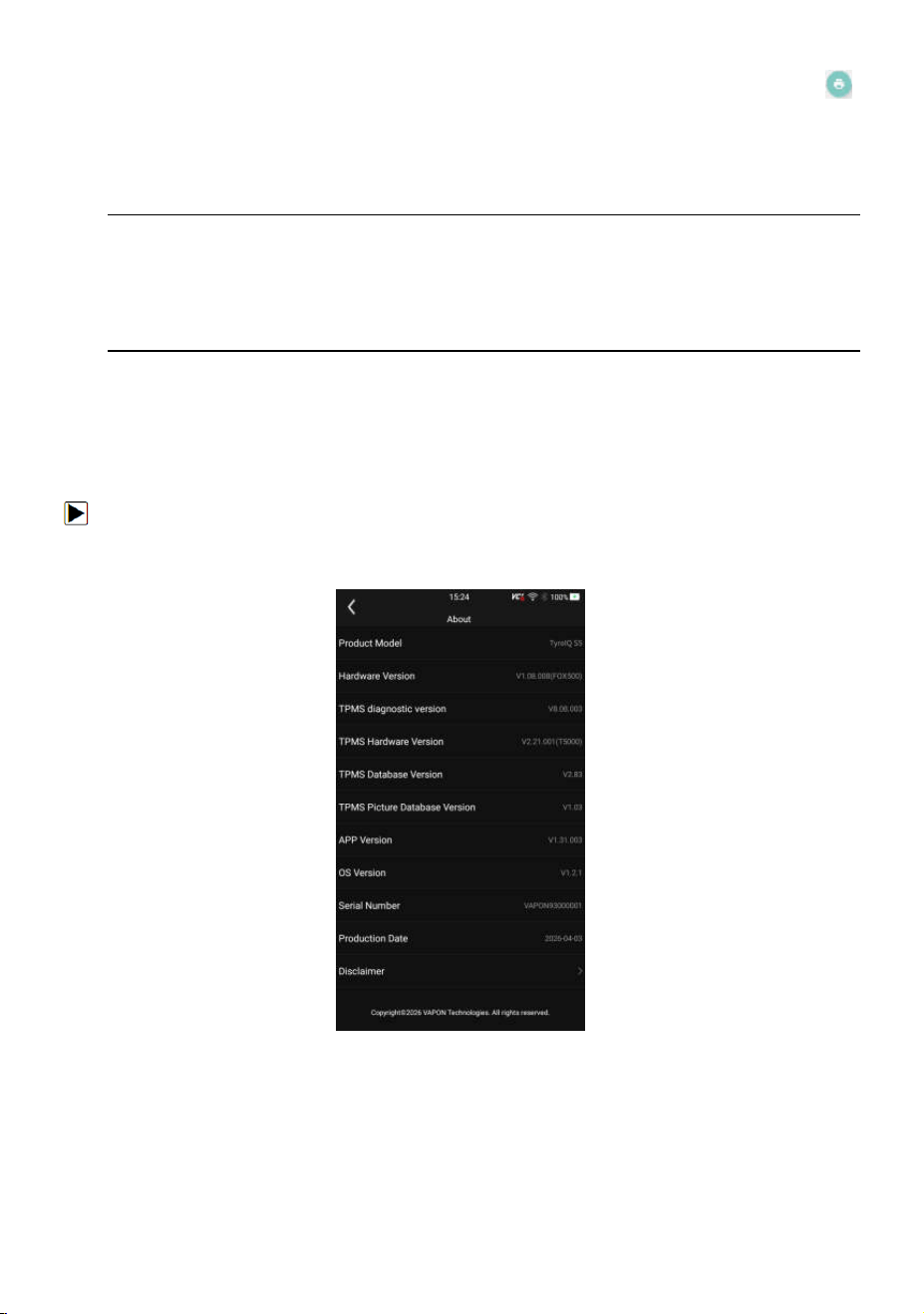

11.13 A
BOUT
...................................................................................................................................67

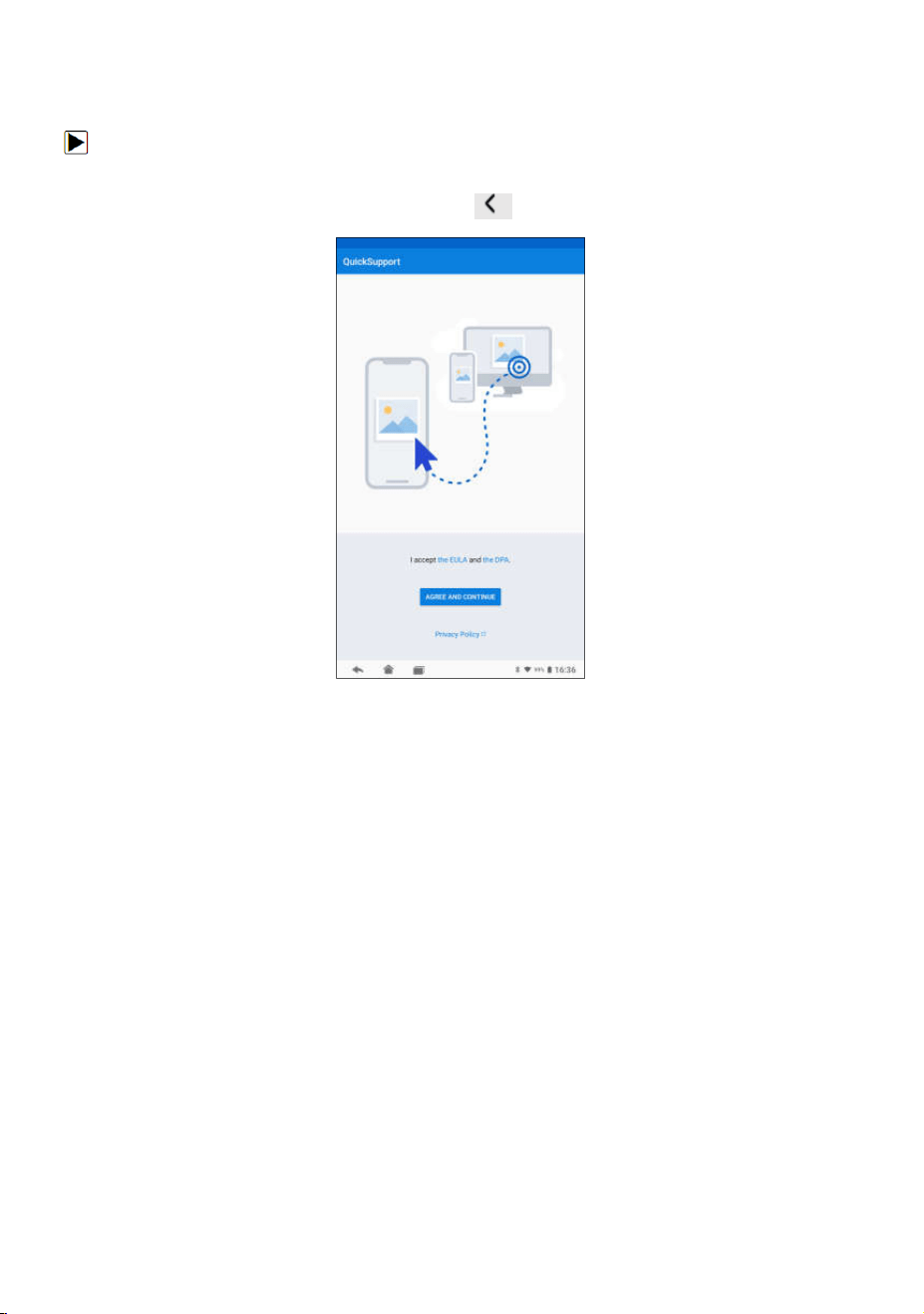

12 REMOTE SUPPORT
.....................................................................................................................
67
13 COVERAGE LIST
.........................................................................................................................
68
14 REMOTE KEY FREQUENCY MONITORING
...............................................................................
69
15 SENSOR INFORMATION
.............................................................................................................
69
16 AUXILIARY TOOLS
......................................................................................................................
70
9
TPMS Service Tool TyreIQ S5 User's Manual V1.0
1 Using This Manual
We provide tool usage instructions in this manual. Below are the conventions
we used in the manual.
1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu
options.
Example:
Select TPMS from the Home screen of the TyreIQ S5 application.
1.2 Symbols and Icons
1.2.1 Solid Spot
Operation tips and lists that apply to specific tool are introduced by a solid
spot.
Example:

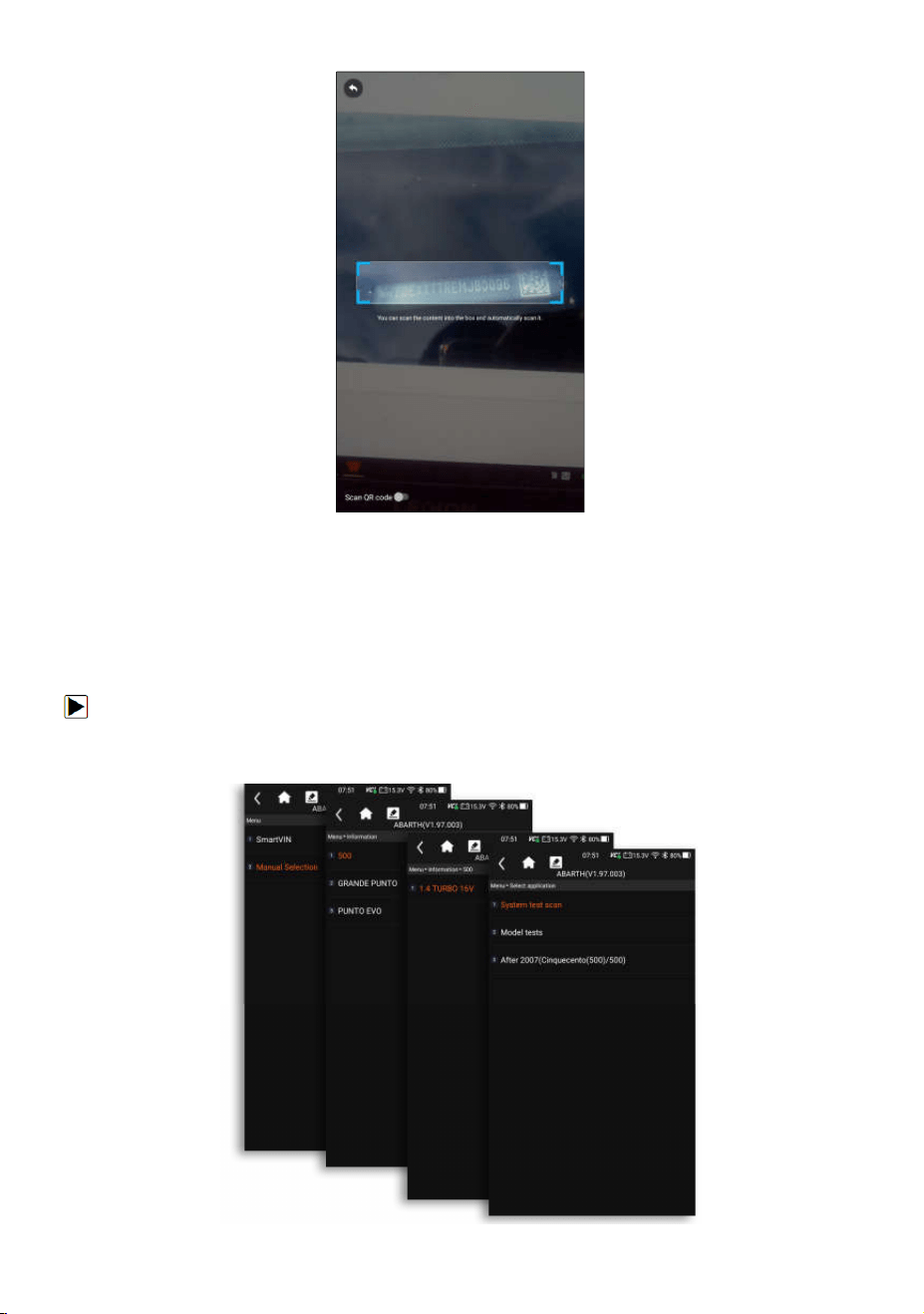

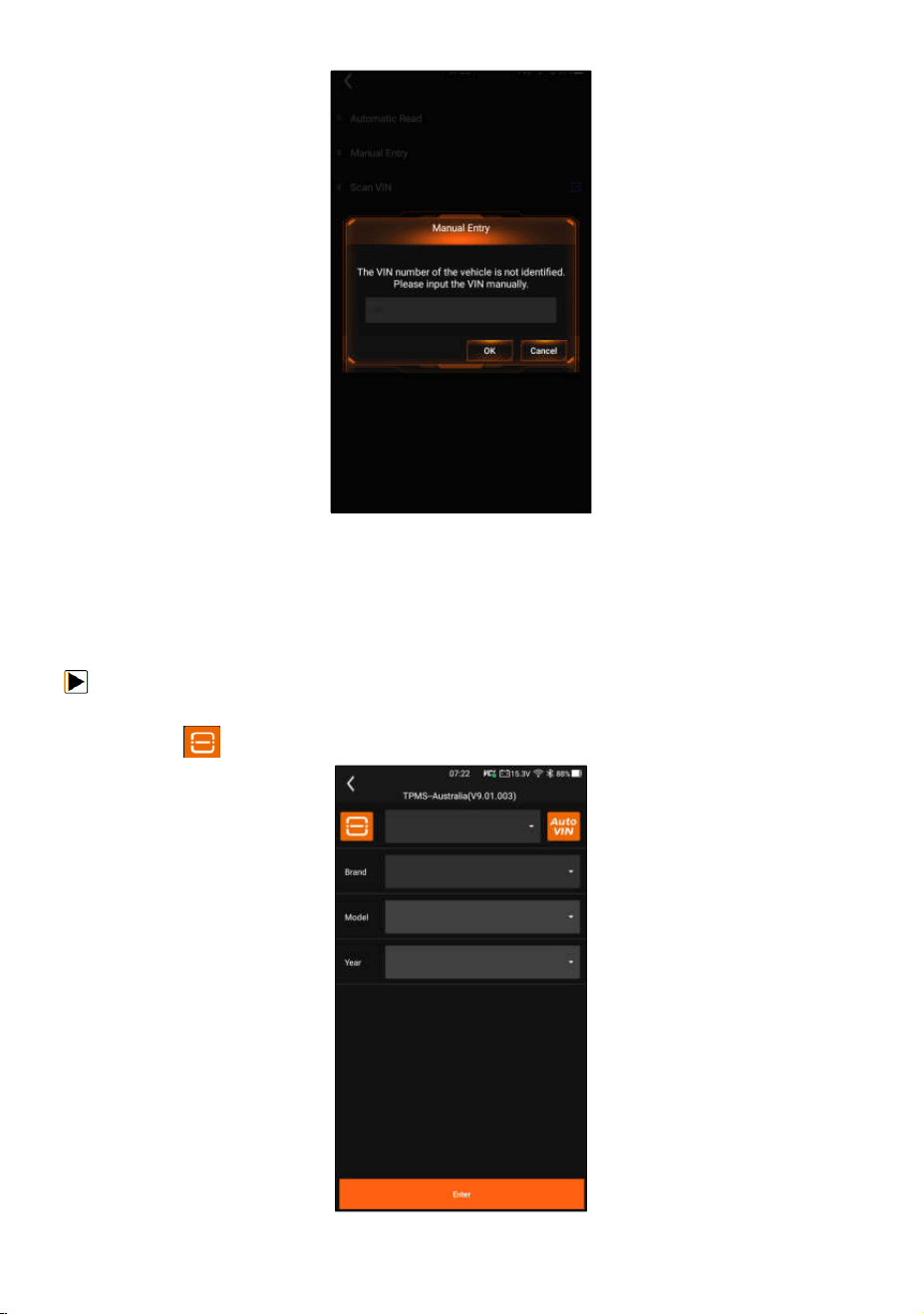

When VIN hotkey is selected, a menu that lists all available options displays.
Menu options include:
●

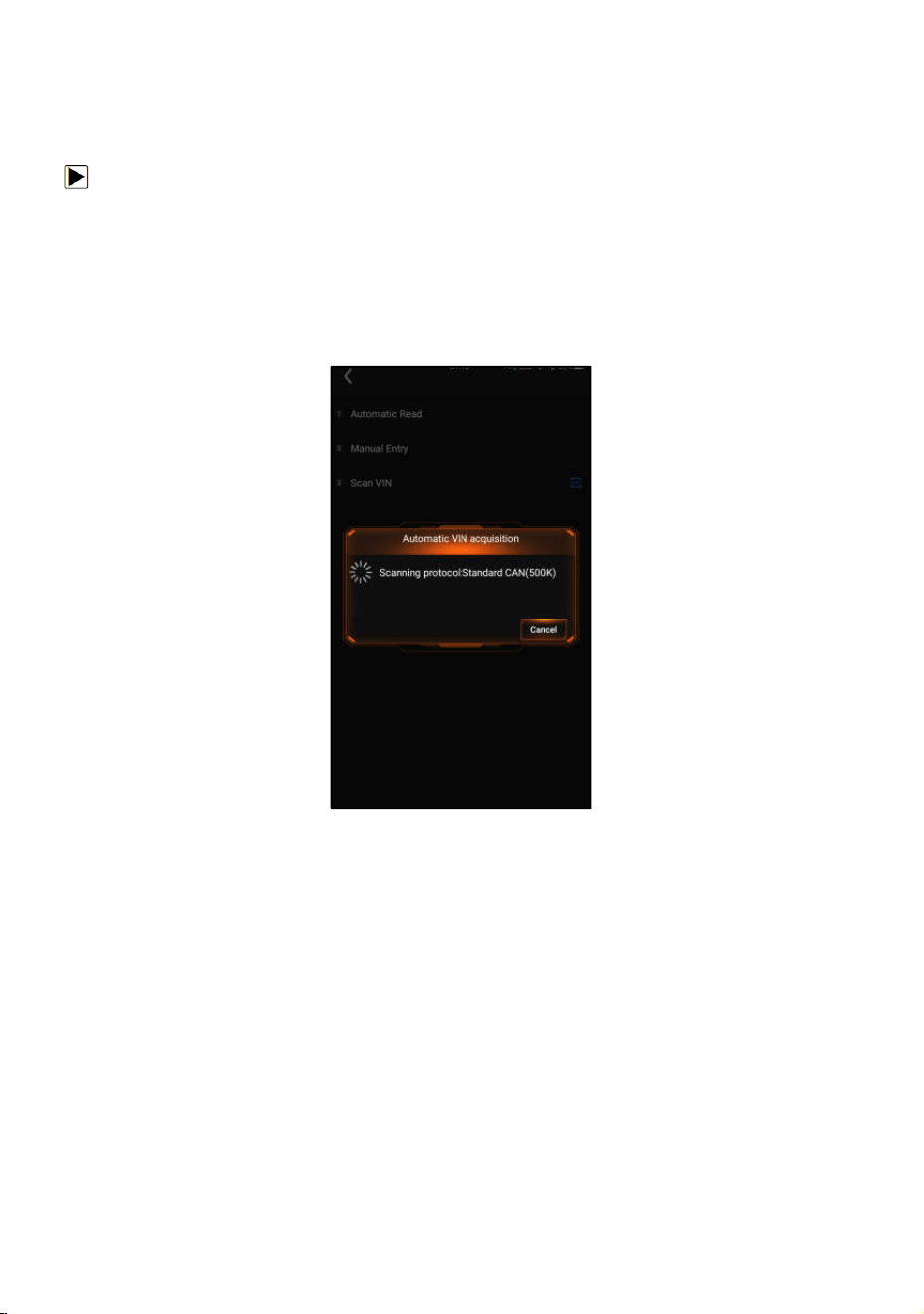

Automatic Read
●
Scan VIN
●
Manual Entry
1.2.2 Arrow Icon
An arrow icon indicates a procedure.
Example:
To connect to wall plug:
1. Connect the USB Type-C charge cable to scanner and plug it to the wall
socket.
2. Press the power switch of the scan tool to power it on; meanwhile the
scanner tool starts charging automatically also.
1.2.3 Note and Important Message
Note
A NOTE provides helpful information such as additional explanations, tips,
and comments.
Example:
NOTE
10
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Test results do not necessarily indicate a faulty component or system.
Important
IMPORTANT: Indicates a situation, if not avoided, may cause damage to the
test equipment or the vehicle.
Example:
IMPORTANT
Do not soak scanner as water might find its way into the scanner.
2 Introduction
A professional-grade Android-based TPMS tool engineered for high-volume
workshops. Full sensor activation, programming, and relearn capability
across 98%+ global vehicle coverage with a 5.5-inch touchscreen and real
OBD-II diagnostics.
2.1 Technical Specifications
Item Description
Screen 5.5’’ TFT Capacitive LCD screen; 720*1280 pixel
Operation System Android 9.0
Processor Quad-core, 1.3GHz
Memory
2GB
SSD Hard Drive
32GB
Communication
Interface
Built-in WIFI 802.11 b/g/n Wireless LAN
USB2.0 OTG/standard USB 2.0 HOST
Bluetooth specification v2.1+EDR; Bluetooth 4.0 Low Energy
(LE) (10-20 m)
Built-in Battery
5000mAh, Lithium-polymer battery, chargeable via 5V USB
power supply
Protocols
ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line
SAE-J1850 VPW,SAE-J1850PWM,CAN ISO 11898,
High-speed, Middle-speed, Low-speed and Single wire CAN,
KW81, KW82, GM UART, UART Echo Byte Protocol, Honda
Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1939, SAE
J1708,Fault-Tolerant CAN,CAN FD, DOIP
Working Temperature
-10 ~ 70°C
Storage Temperature -20 ~ 80°C
Operating Humidity 5%-95% Non-Condensing
11
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Table 2-1 Technical Specifications
2.2 Scanner Descriptions
This section describes the scanner’s external components, ports and
connectors.

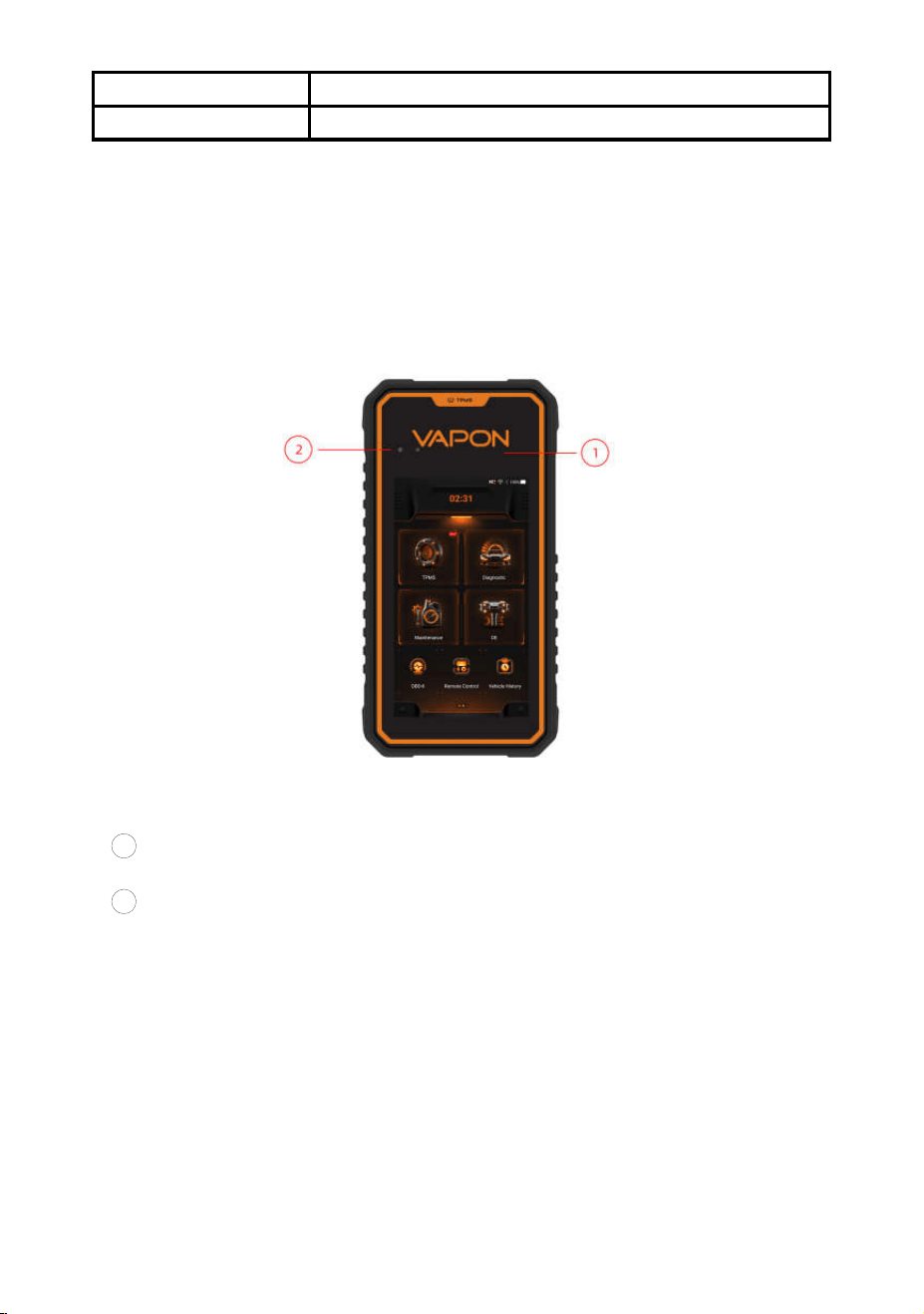

Figure 2-1 Front View
1
5.5” TFT LCD Touch Screen- shows menus, test results and operation
tips.
2
Power Status Indicator - indicates the power status of the scanner.
Dimensions 195*100*25mm (L*W*H)
Weight 0.87kg (Main unit)
12
TPMS Service Tool TyreIQ S5 User's Manual V1.0

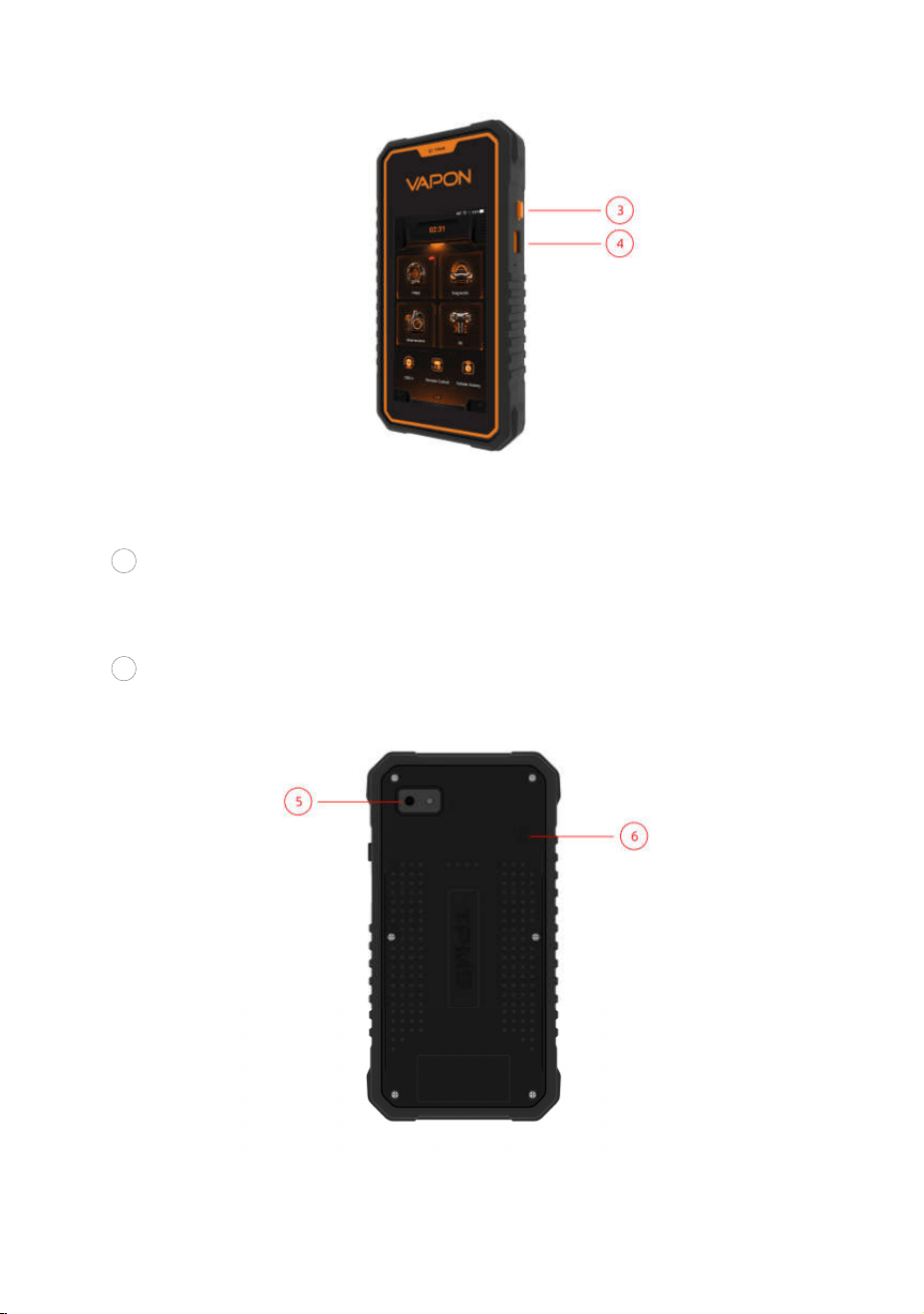

Figure 2-2 Side View
3
Power Switch - turns on the scanner, puts the device into sleep mode,
or wakes it from sleep mode. Press and hold for 3 seconds to power on
the device or perform an emergency shutdown. Double-click to capture a
screenshot.
4
USB Type-C Port
- connects to wall plug to charge the scanner and can
also be used for data transfer.
Figure 2-3 Back View
13
TPMS Service Tool TyreIQ S5 User's Manual V1.0
5
Rear-Facing Camera
- takes pictures of VIN number, faulty parts and
plates, and shoots test videos.
6
Speaker
– outputs audio.
IMPORTANT
Do not use solvents such as alcohol to clean the display. Use a mild,
nonabrasive detergent and a soft cotton cloth.
2.3 Accessories
This section lists all standard accessories included with the scanner. If any
items are missing from your package, please contact your local authorized
dealer for support
.
Table 2-2 Accessories
14
TPMS Service Tool TyreIQ S5 User's Manual V1.0
3 Getting Started
This section explains how to power the TPMS service tool on and off,
introduces the preinstalled applications, and describes the home screen
layout.
3.1 Powering up the TPMS Service Tool
Before using the TyreIQ S5 applications (including updating the TPMS
service tool), please make sure to provide power to the scanner.
The unit operates on any of the following sources:
●
Internal Battery Pack
●
External Power Supply
3.1.1 Internal Battery Pack
The tablet scanner can be powered with the internal rechargeable battery.
The fully charged battery is capable of providing power for 5 hours of
continuous operation.
NOTE
Please turn off the tablet to save power when not in use.
3.1.2 External Power Supply
The tablet can also be powered from a wall socket using the USB charging
adapter. The tablet also charges its internal battery pack through a USB
Type-C cable.
3.2 Shutting Down the TPMS Service Tool
To shut down the tool:
1. Press and hold the Power button of the scanner for 3 seconds.
2. Click the Power off to shut down the device, or Reboot to restart it.
3.3 Screen Layout of Home Screen
After the scanner turning on, the screen shows main menu of the application.
15
TPMS Service Tool TyreIQ S5 User's Manual V1.0

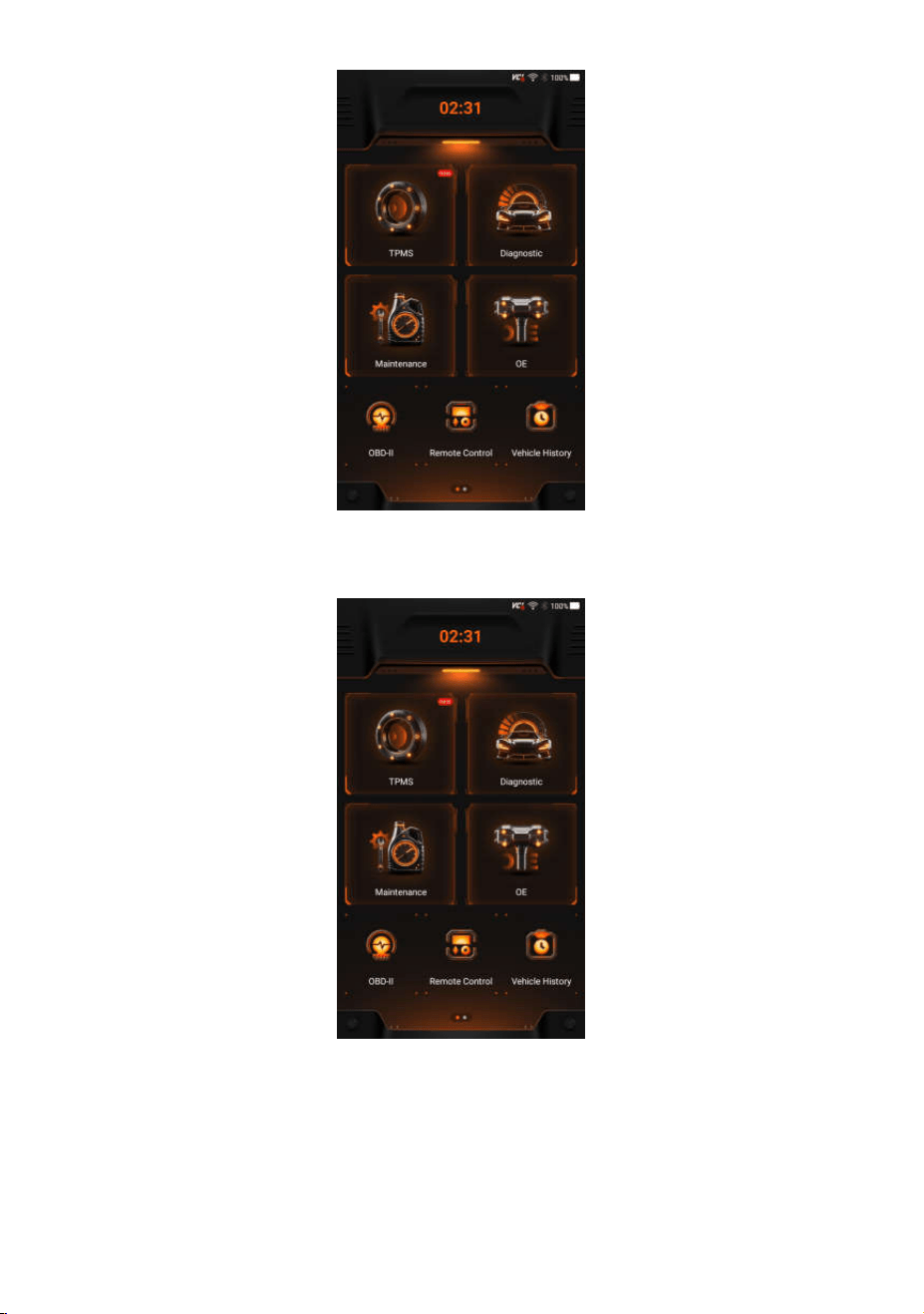

Figure 3-1 Sample Home Screen
3.3.1 Application Menu
Figure 3-2 Sample Main Menu of Application
This section briefly introduces the applications that are preloaded into the
scanner:
●
TPMS - leads to screens for TPMS function.
●

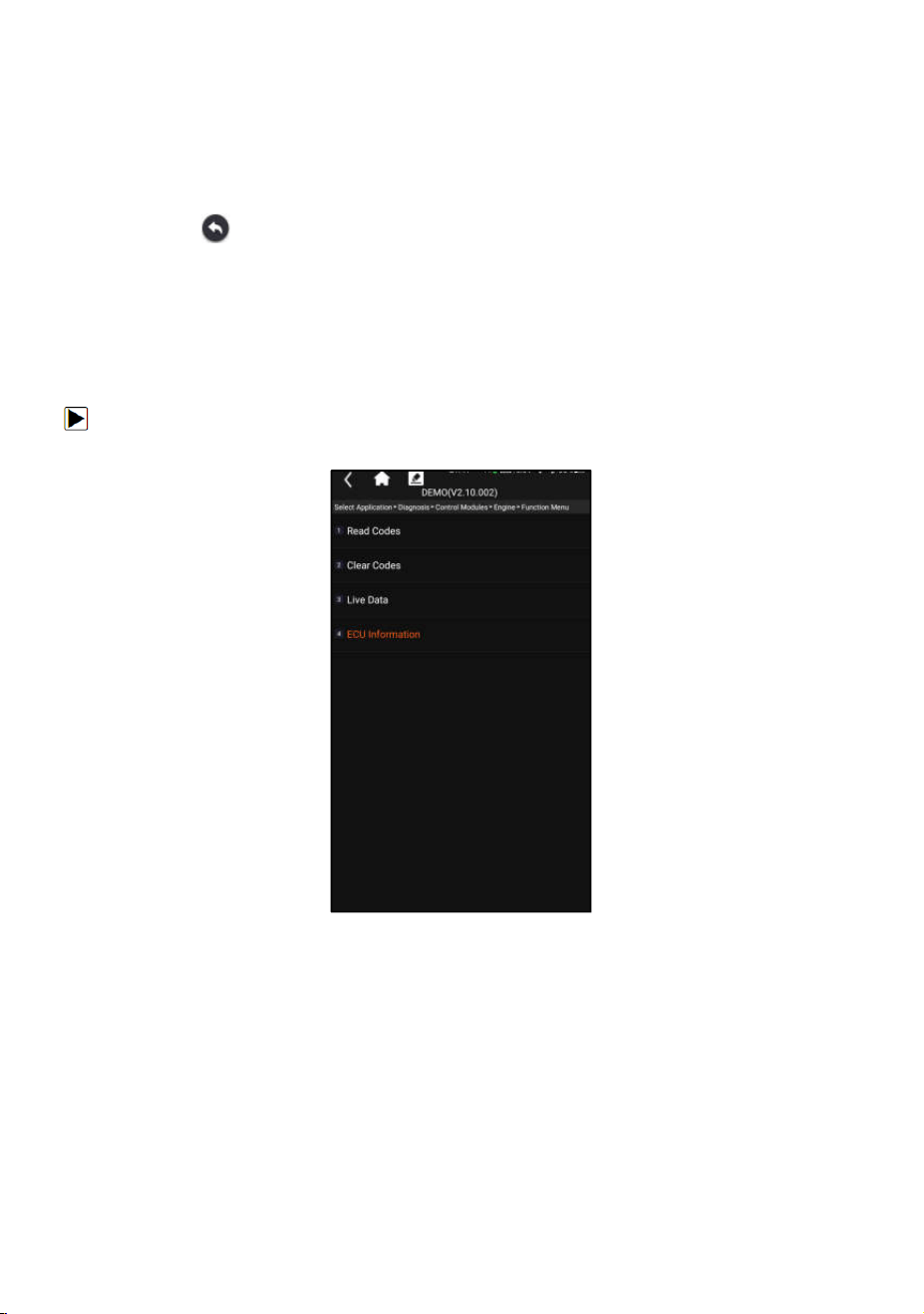

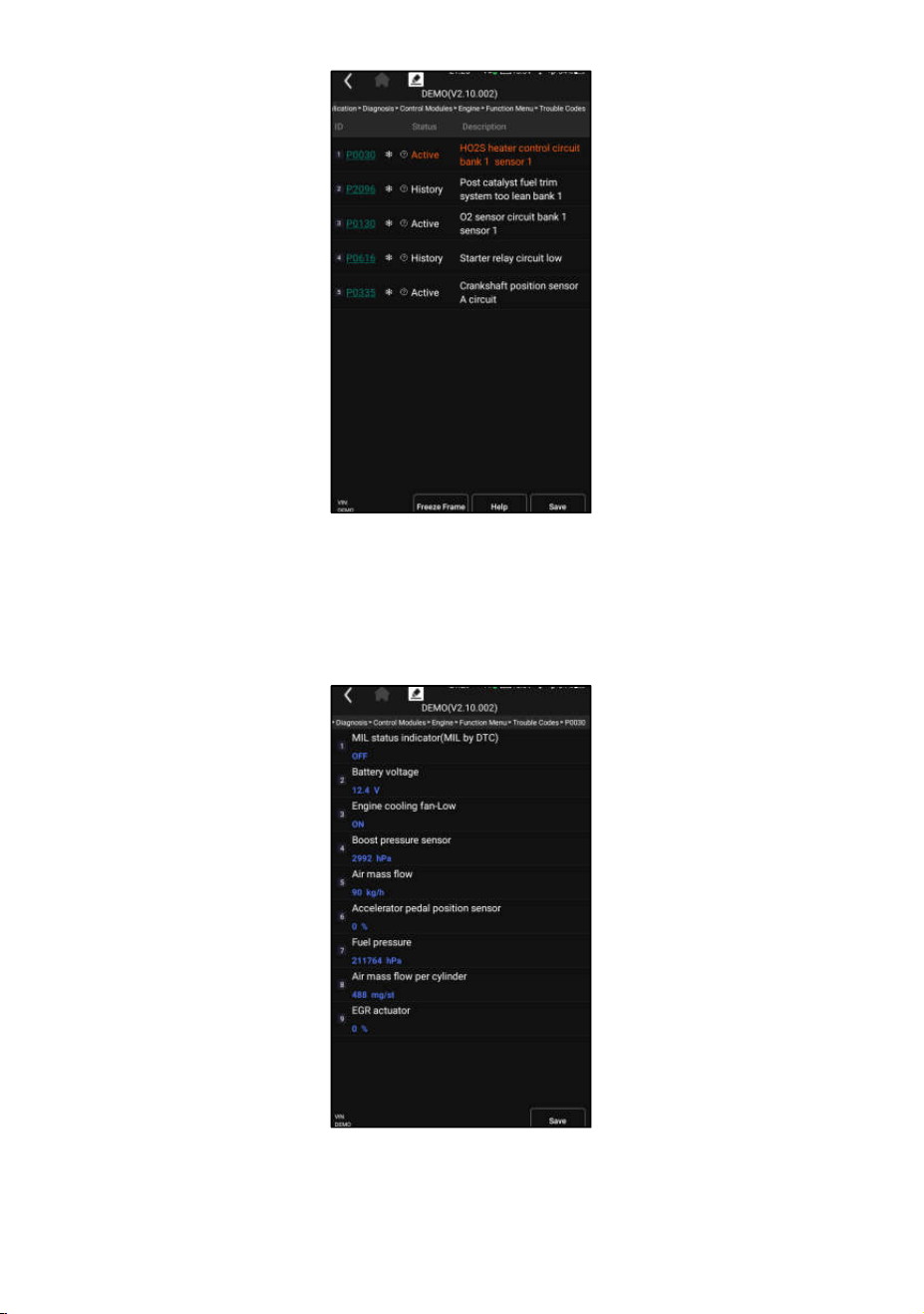

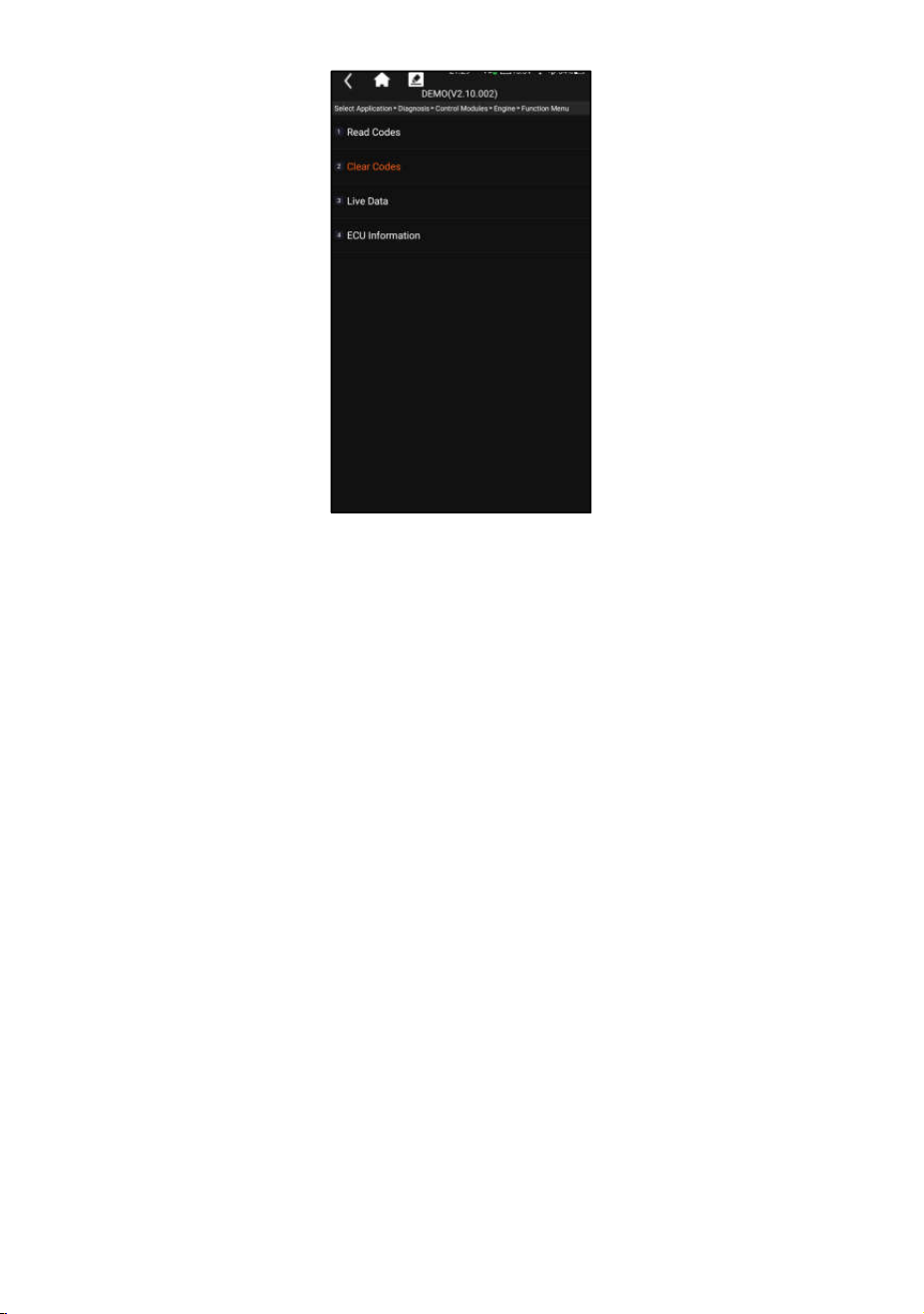

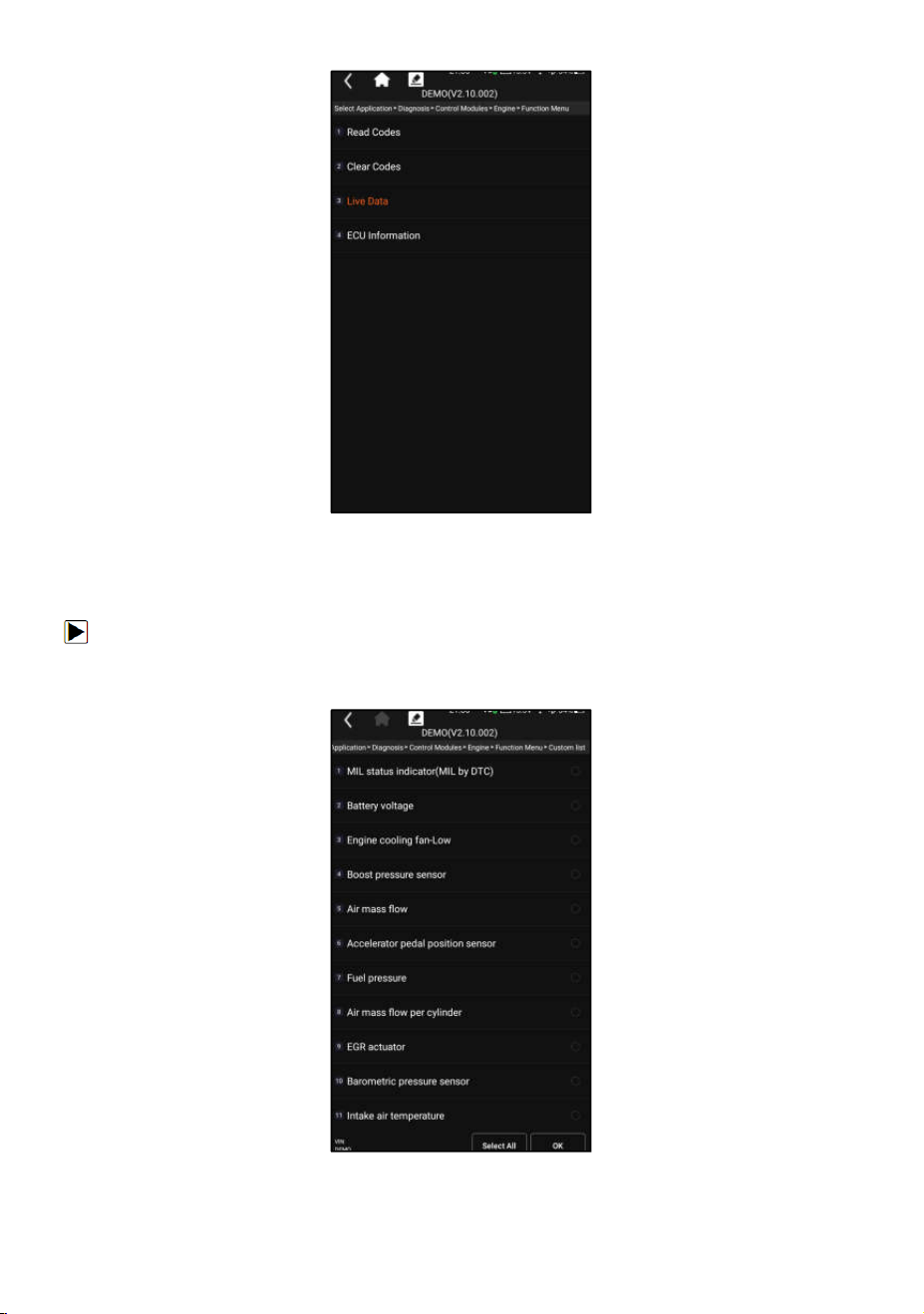

Diagnostic - leads to test screens for diagnostic trouble code information,
freeze frame, live data and ECU information.
16
TPMS Service Tool TyreIQ S5 User's Manual V1.0
●
Maintenance - leads to screens for commonly used special functions like
Oil light reset, EPB, BRT, DPF etc.
●
OE - enters vehicle selection by selecting "sensor brand" and part number
(OE number) at once.
●
OBDII - leads to OBDII screens for all 9 generic OBD system tests.
●
Remote Control
- leads to TeamViewer to get remote support from
VAPON team or remote vehicle diagnostics.
●
Update - leads to screens for VAPON ID registration and updating the
scanner.
●
Vehicle History - leads to screens for test records.
●
Data Manager
- leads to screens for saved screenshots, pictures and test
reports, and playing back live data, as well as debug logging data.
●
My Account
- displays your VAPON ID information like registered
products and personal information.
●
Settings - leads to screens for adjusting default settings to meet your own
preference and view information about the scanner.
●

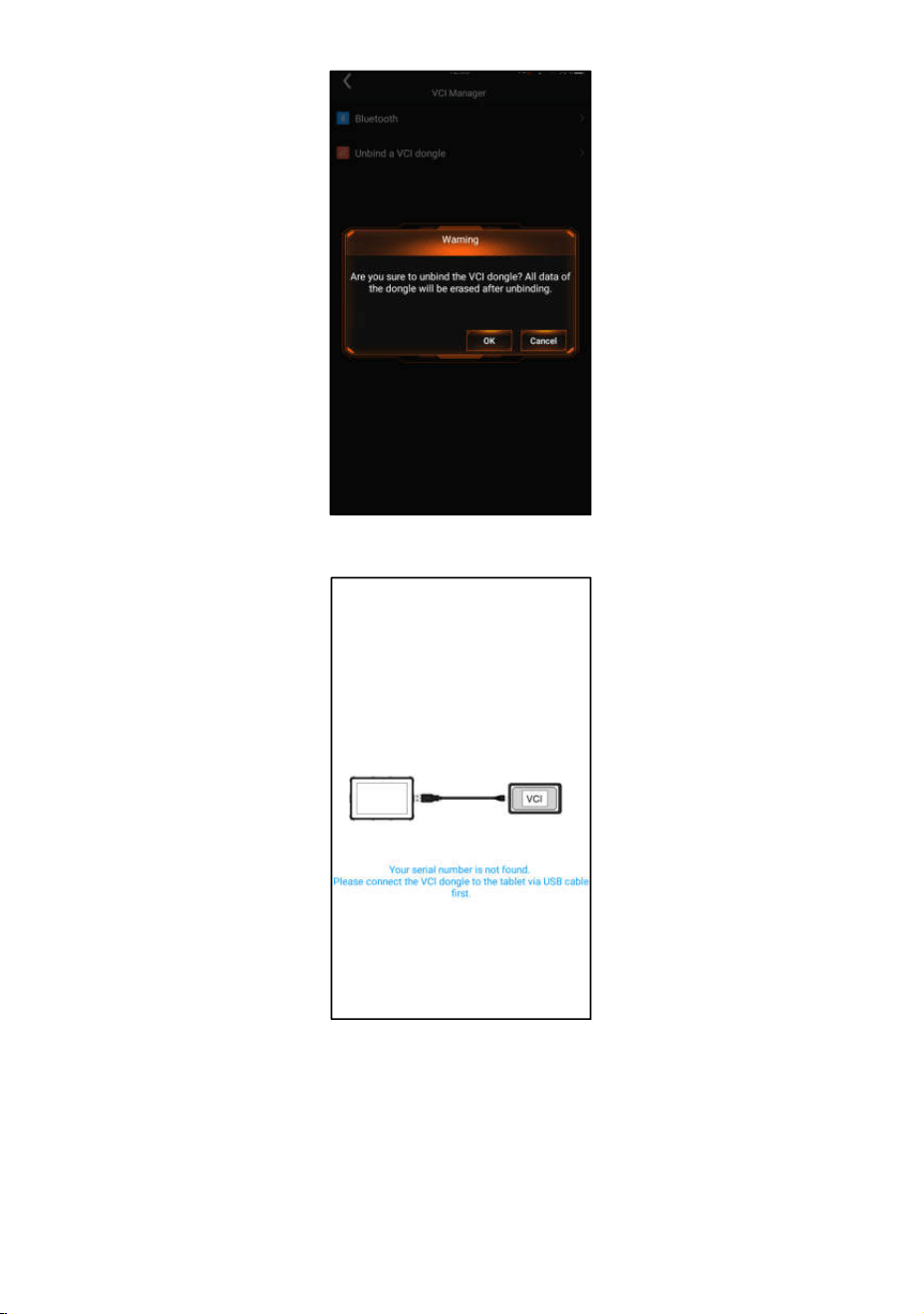

VCI Manager - VCI management (VCI binding, unbinding, rescan vehicle
software).
●
Firmware Update -
VCI firmware update.
●
TPMS Coverage List - query the functions of model supported by the
scanner.
●
Remote key Frequency Monitoring -check the key frequency.
●
Sensor Information
- check sensor information.
●
Auxiliary tools
- camera and file browser
4 TPMS Service Operations
The TPMS application is used to check the TPMS sensor conditions,
program the Vapon sensors, perform the TPMS Relearn procedure and basic
TPMS diagnostic functions.
4.1 TPMS Service Screen Layout

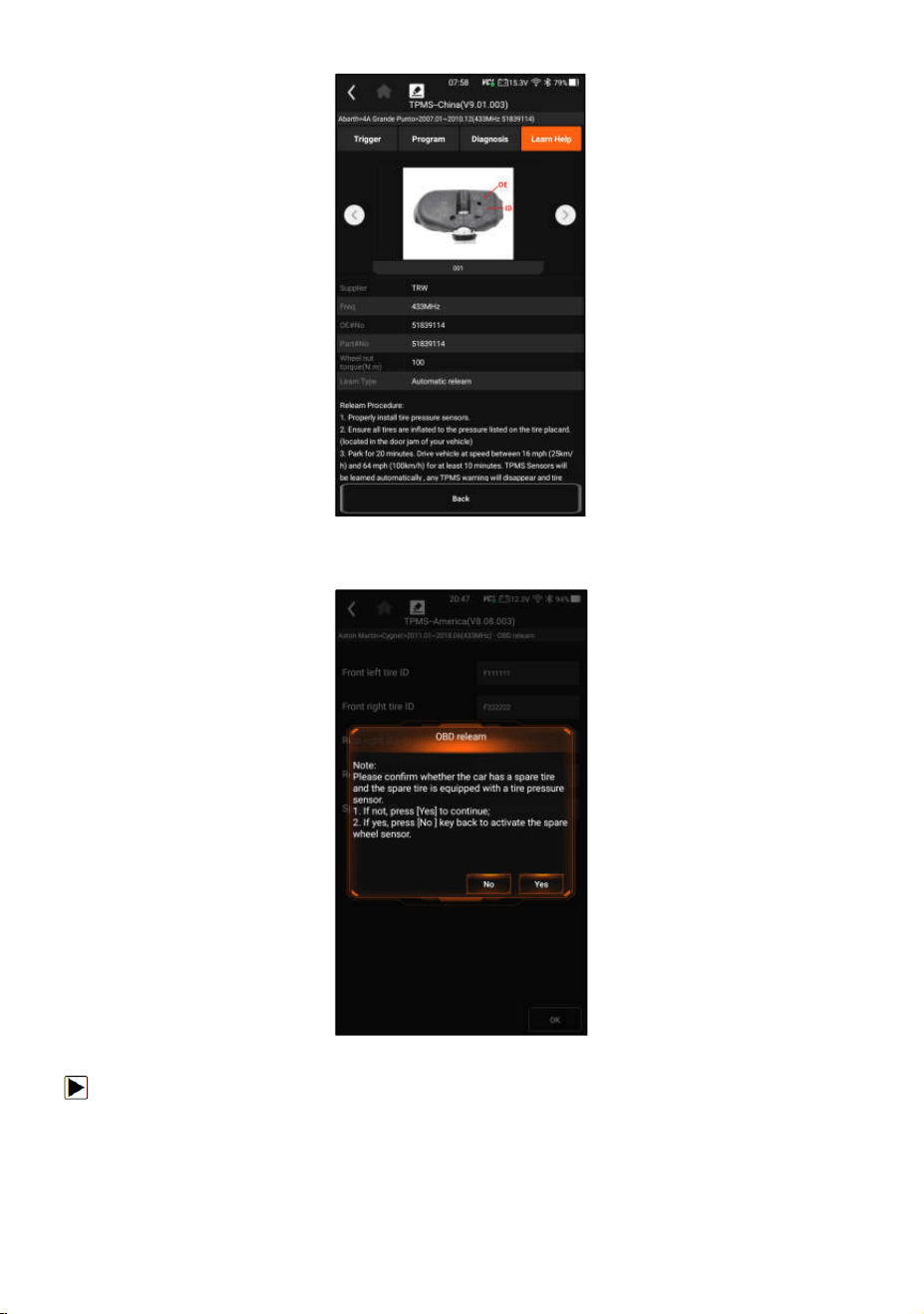

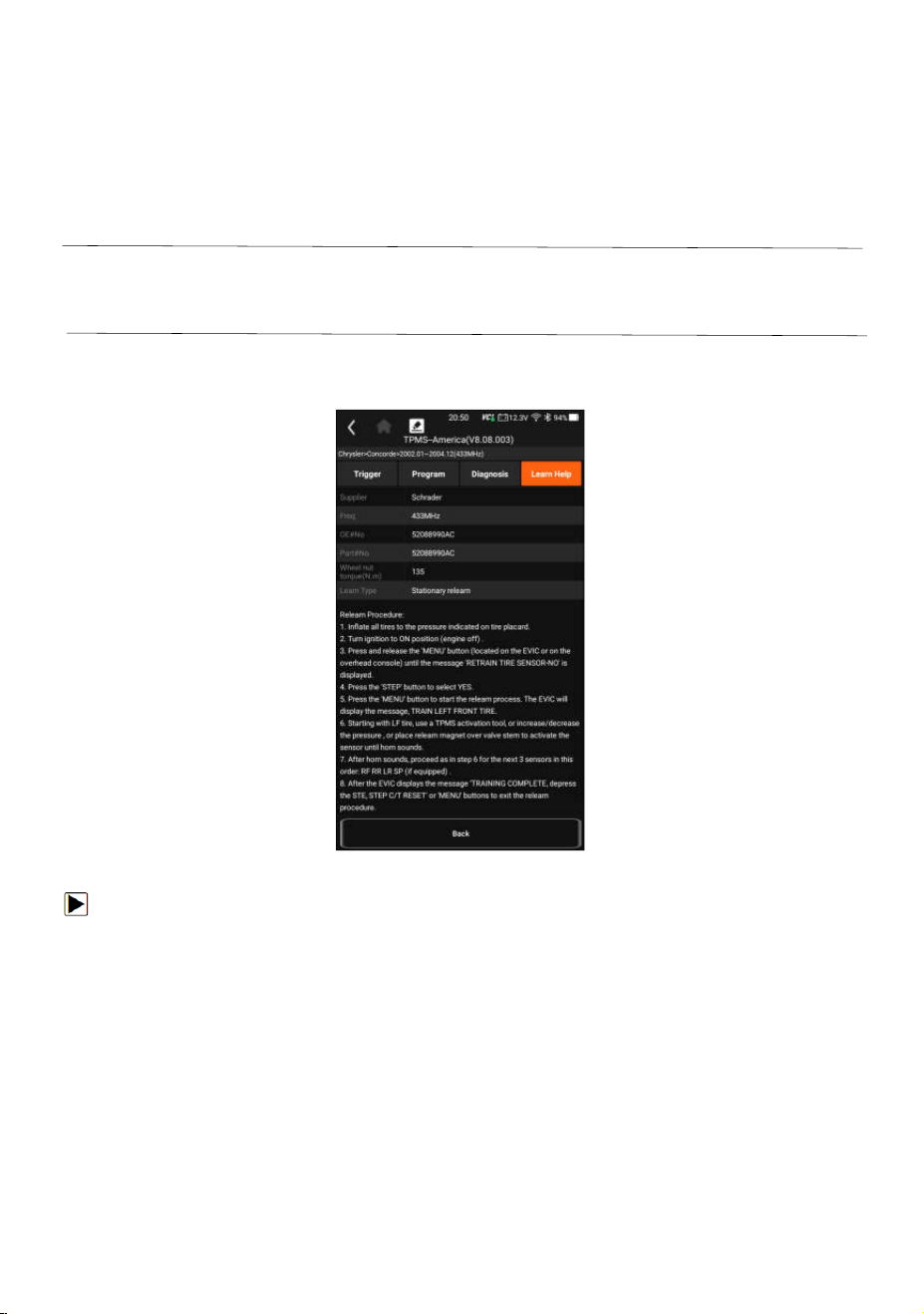

The TPMS service typically includes three functions:
Trigger/ Programming/Diagnosis/ Learn Help
17
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 4-1 Sample TPMS Service Screen Layout
4.2 Trigger Operations
The sensor trigger function allows you to activate a TPMS sensor, to view
sensor data such as sensor ID, tire pressure, tire temperature, sensor battery,
sensor position, and sensor frequency.
To Trigger TPMS sensor
1. Tap
Trigger
Tab.
2. Tap the desired wheel position on the vehicle thumbnail. Hold the tool
with the symbol (in the top right corner) close to the tire sidewall near
the valve stem, and then press the Trigger button. The tool will send a
low-frequency signal to trigger the sensor.
3. The sensor data of the selected wheel will be displayed on the screen
table once the sensor is successfully activated and decoded.
18
TPMS Service Tool TyreIQ S5 User's Manual V1.0

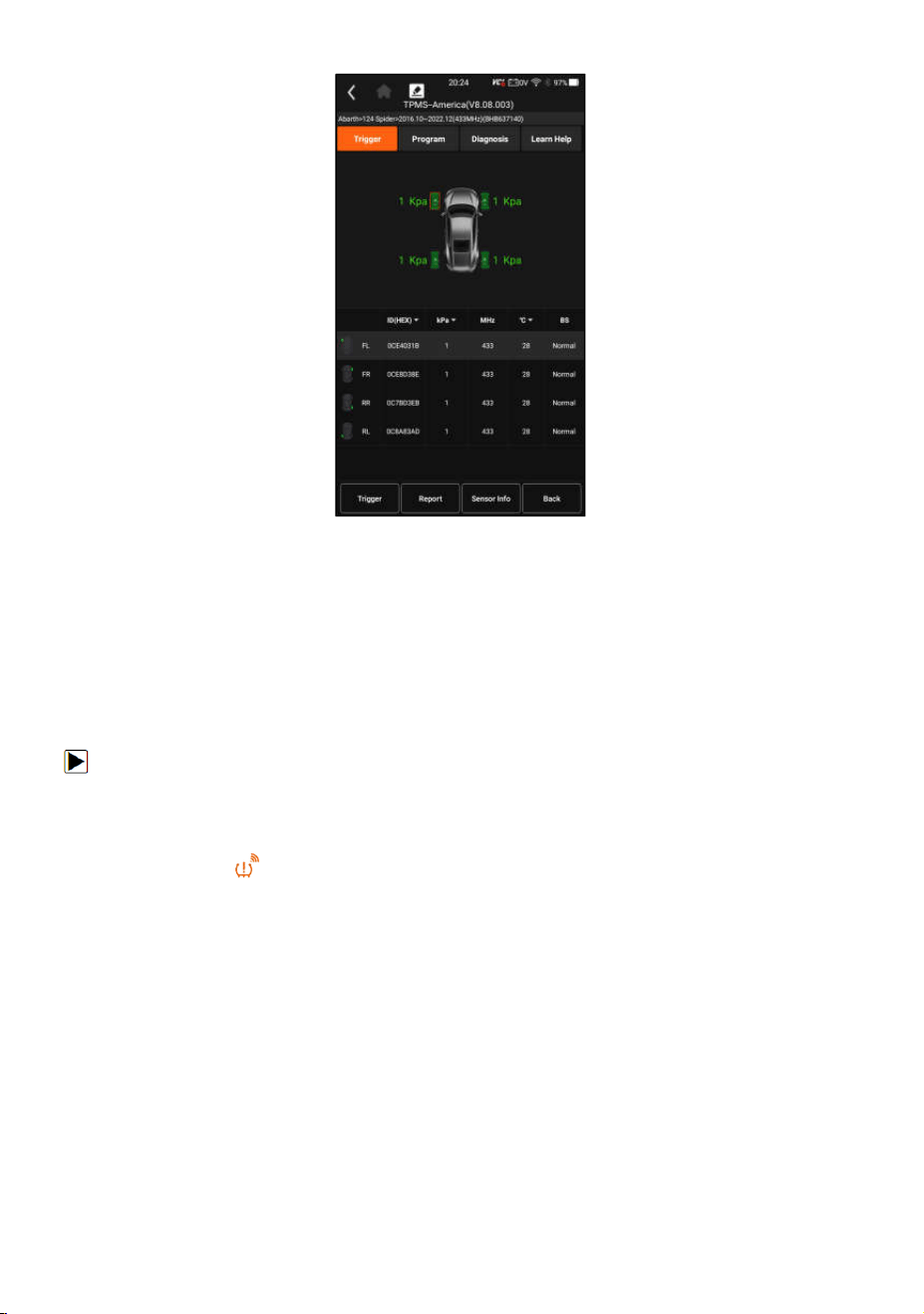

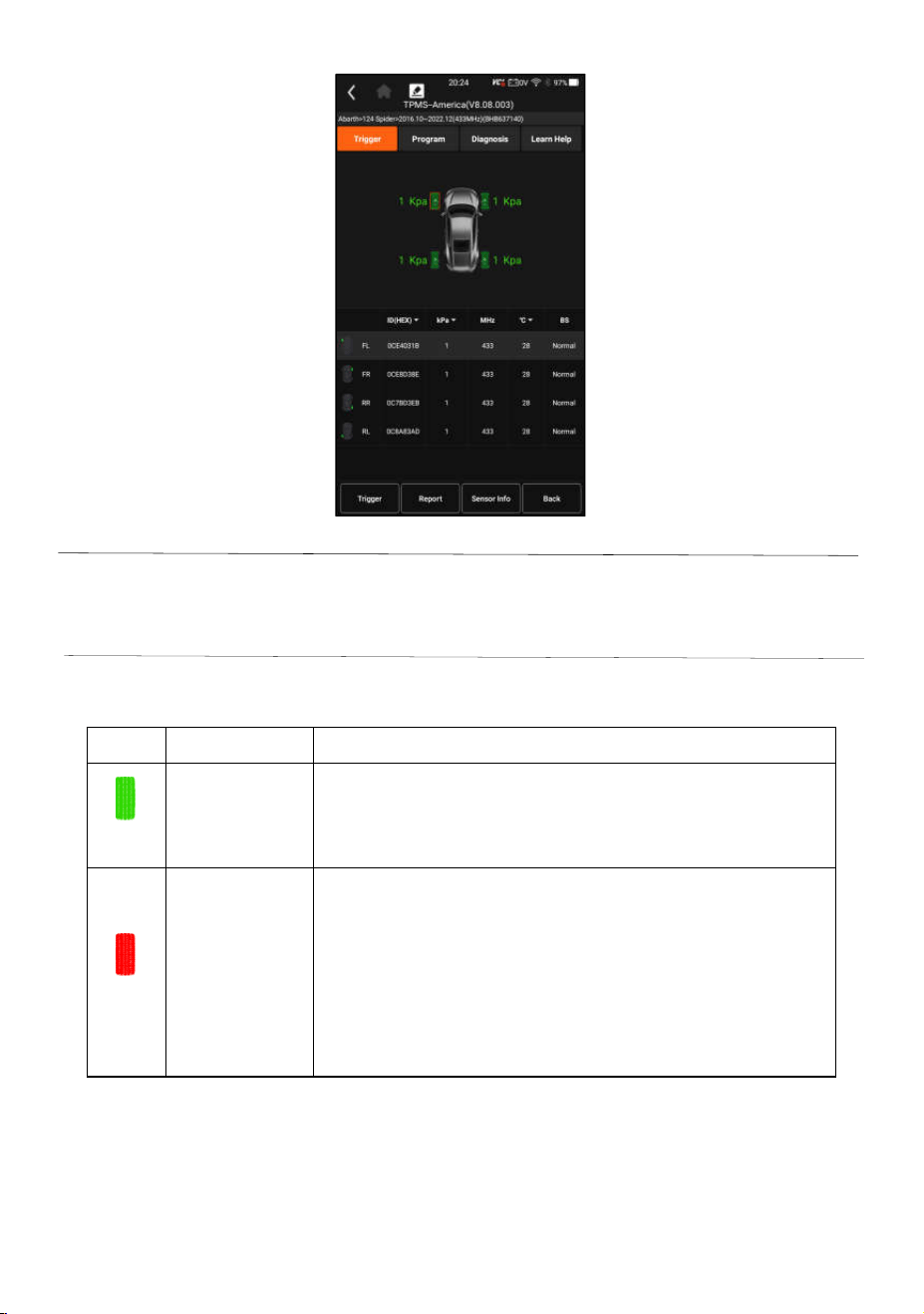

Figure 4-2 Sample Trigger TPMS Screen
NOTE
:
The tool will perform the TPMS check in a sequence of FL (front left), FR
(front right), RR (rear right), RL (rear left) and SP (spare, if any).
4. Wheel with a feedback icon, red or green vertical rectangle, indicates
sensor trigger has been finished. Refer to Table 11-1 for details.
Icon Result Description
(green)
Sensor activated
successful
TPMS sensor is successfully activated and decoded. The table on
the right side of the screen displays the sensor information.
(red)
Sensor activated
failed
If the search period expires and no sensor is activated or decoded,
the sensor may be mounted incorrectly or malfunctioning. The table
on the right side of the screen will show “Failed”.
If as sensor with a duplicate ID has been read, the screen displays a
message “Sensor ID duplicated”.
In the case, repeat the test procedure.
Table 4-1 Possible results for triggering
19
TPMS Service Tool TyreIQ S5 User's Manual V1.0
4.3 Programming Operations
The programming function is used to program the sensor data into the Vapon
sensor and replace the faulty sensor (poor battery life or malfunction). The
TyreIQ S5 is easy to use with a proven efficiency and guaranteed accurate
results.
There are four options available when programming Vapon sensors: Manual
Create, Clone by Activation, Automatic Create (1-16), Clone by OBD.

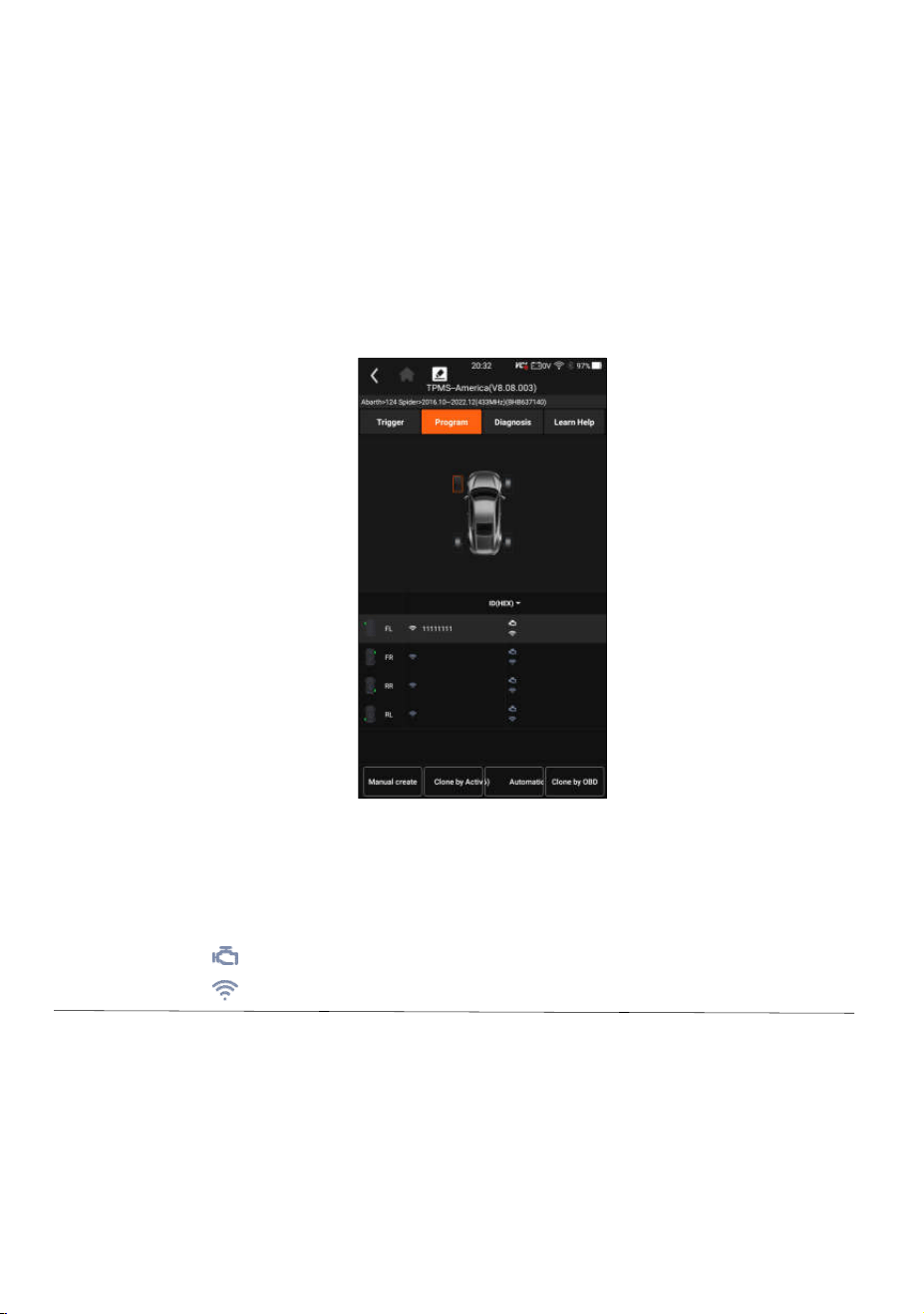

Figure 4-3 Sample Programming Function Screen
Main Section
Column 1
–
displays tire positions
Column 2
–
displays programming IDs
Column 3
–
displays the retrieved sensor IDs by activation
Column 3
–
displays the retrieved sensor IDs by OBD
NOTE:
The programming function will only work with Vapon sensors. Currently,
there are two models available: Clamp-in Sensor and Snap-in Sensor, both
with two types, one with 433MHz frequency, and another with 315MHz
frequency. The Clamp-in Sensor is taken as an example in this manual.
Please choose the proper Vapon sensors when programming.
20
TPMS Service Tool TyreIQ S5 User's Manual V1.0
4.3.1 Manual Create
This function allows you to manually enter sensor IDs. You can enter a
random ID or the original sensor ID.
NOTE:
Do not enter the same ID for different sensors.
To create manually
1. Tap the Programming tab.
2. Select the specific wheel on the screen.
3. Tap the Manual Create button.
4. Enter the characters in the prompted screen. Tap OK to finish and save
the sensor ID, or Cancel to exit.
21
TPMS Service Tool TyreIQ S5 User's Manual V1.0

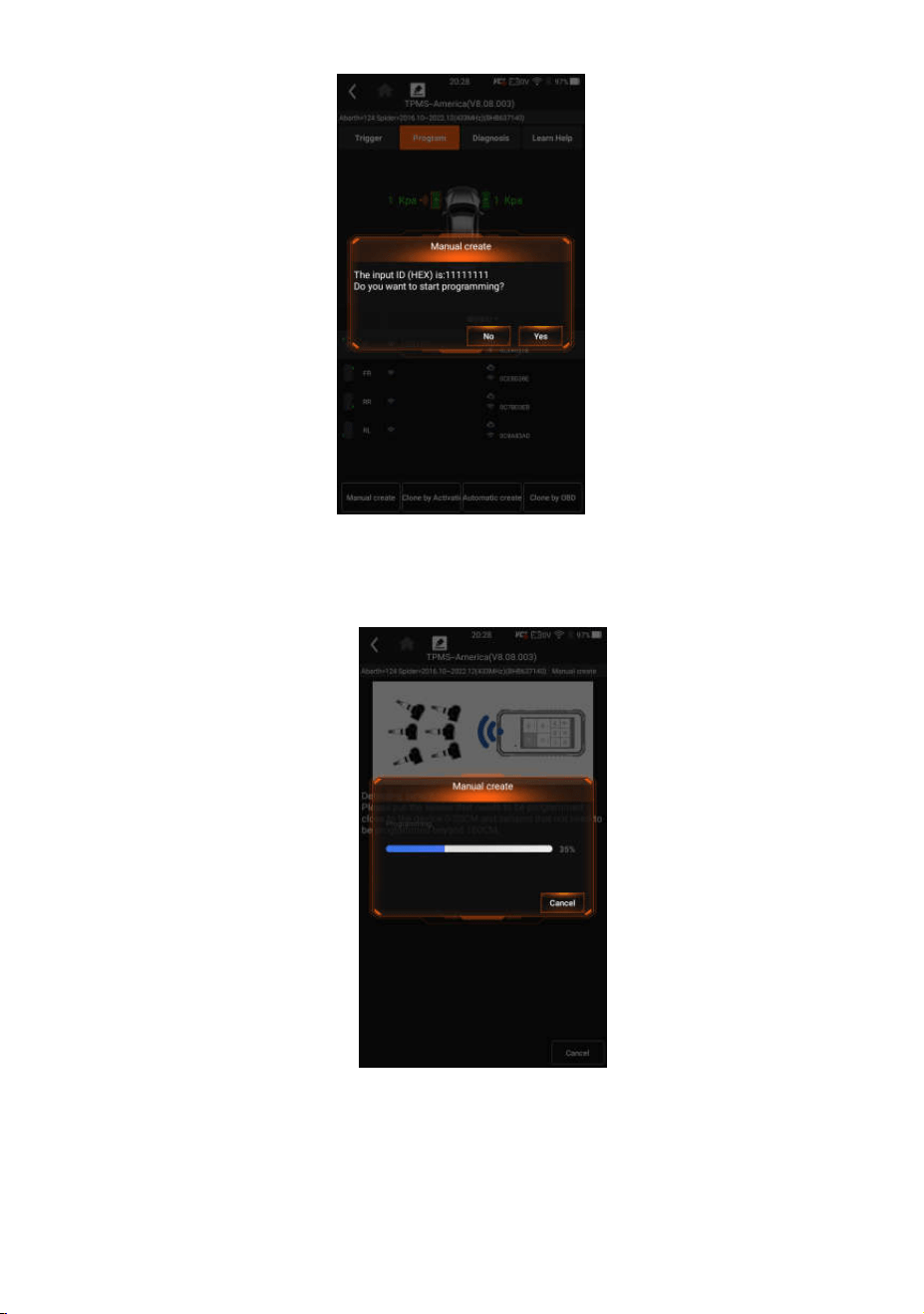

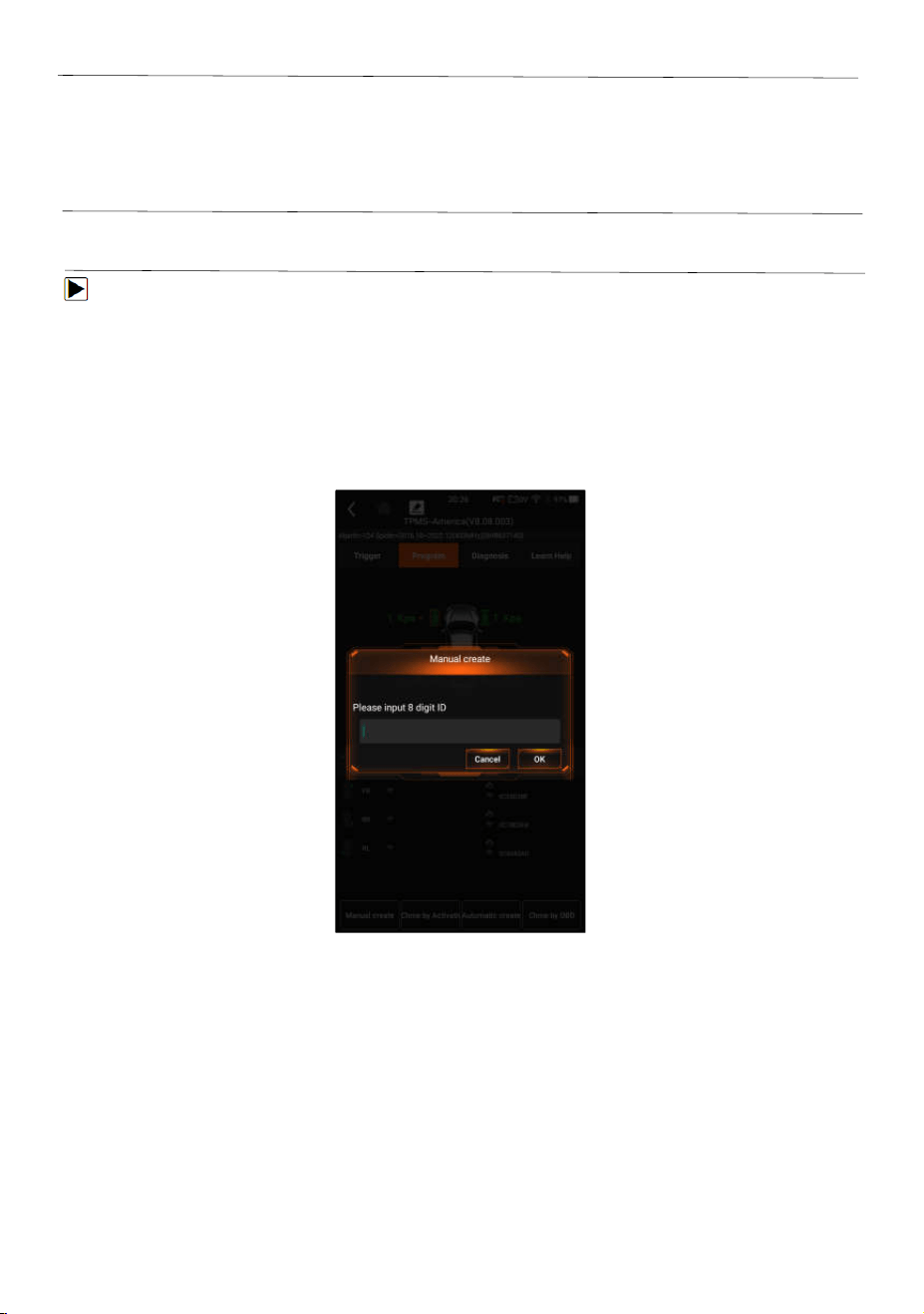

Figure 4-4 Sample ID Input Screen
5. Place the proper Vapon sensor near the top right of the tool to begin
programming.
22
TPMS Service Tool TyreIQ S5 User's Manual V1.0

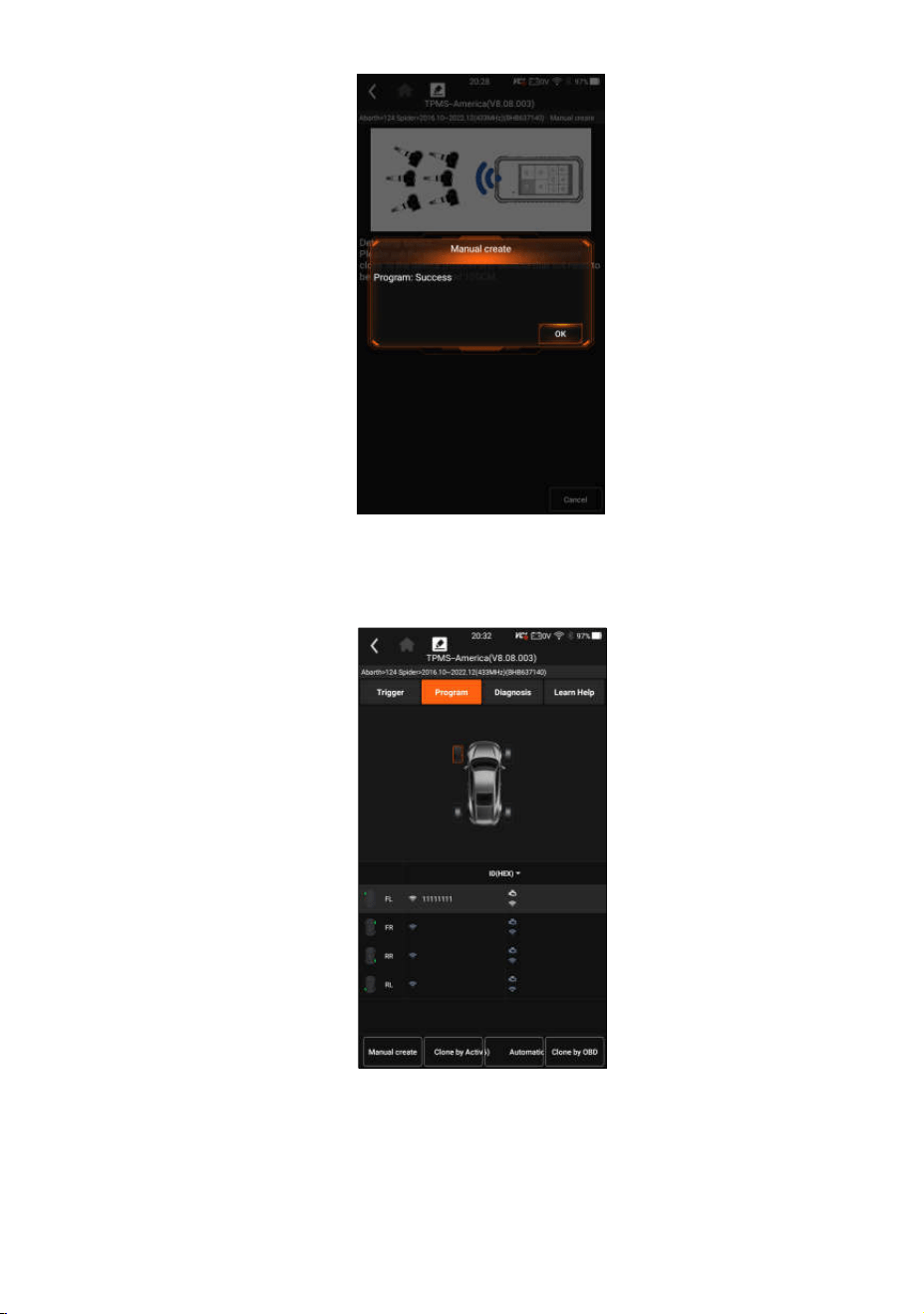

Figure 4-5 Sample Manual Create Function Screen
If multiple sensors are detected, the tool will pop up a message to remind you
to remove the excess sensors.
Figure 4-6 Sample Manual Create Function Screen
4.3.2 Clone by Activation
This function allows the user to automatically write in the retrieved original
sensor data to the Vapon sensor. It is used after the original sensor is
triggered.
23
TPMS Service Tool TyreIQ S5 User's Manual V1.0
To perform Clone by Activation, the user needs to activate the installed
sensor first, if succeed, the sensor ID will be displayed.

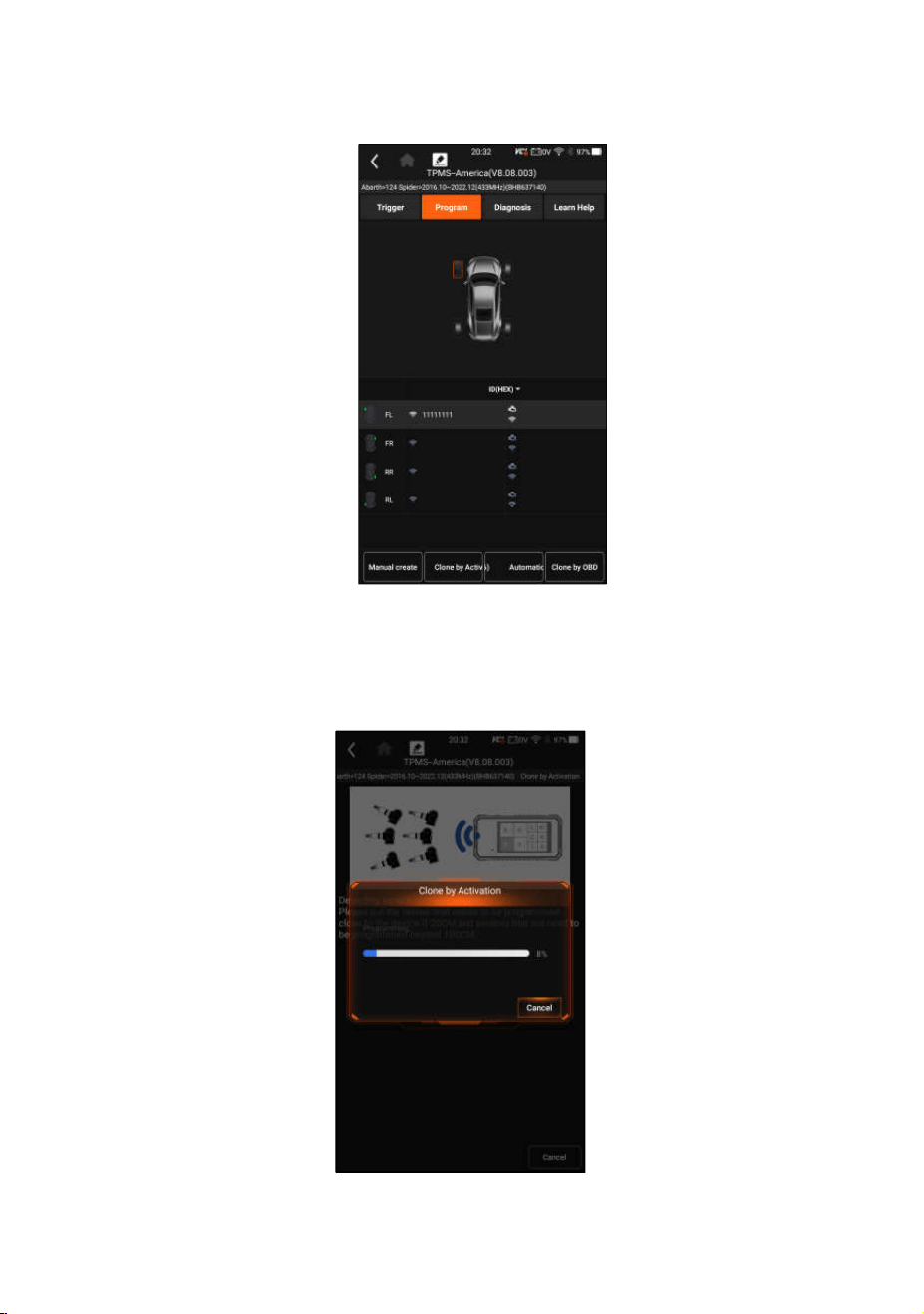

Figure 4-7 Sample Clone by Activation Function Screen
Then put the Vapon sensor that needs to be programmed close to the
device within 0-20cm and sensors that do not need to be programmed beyond
100cm.
24
TPMS Service Tool TyreIQ S5 User's Manual V1.0

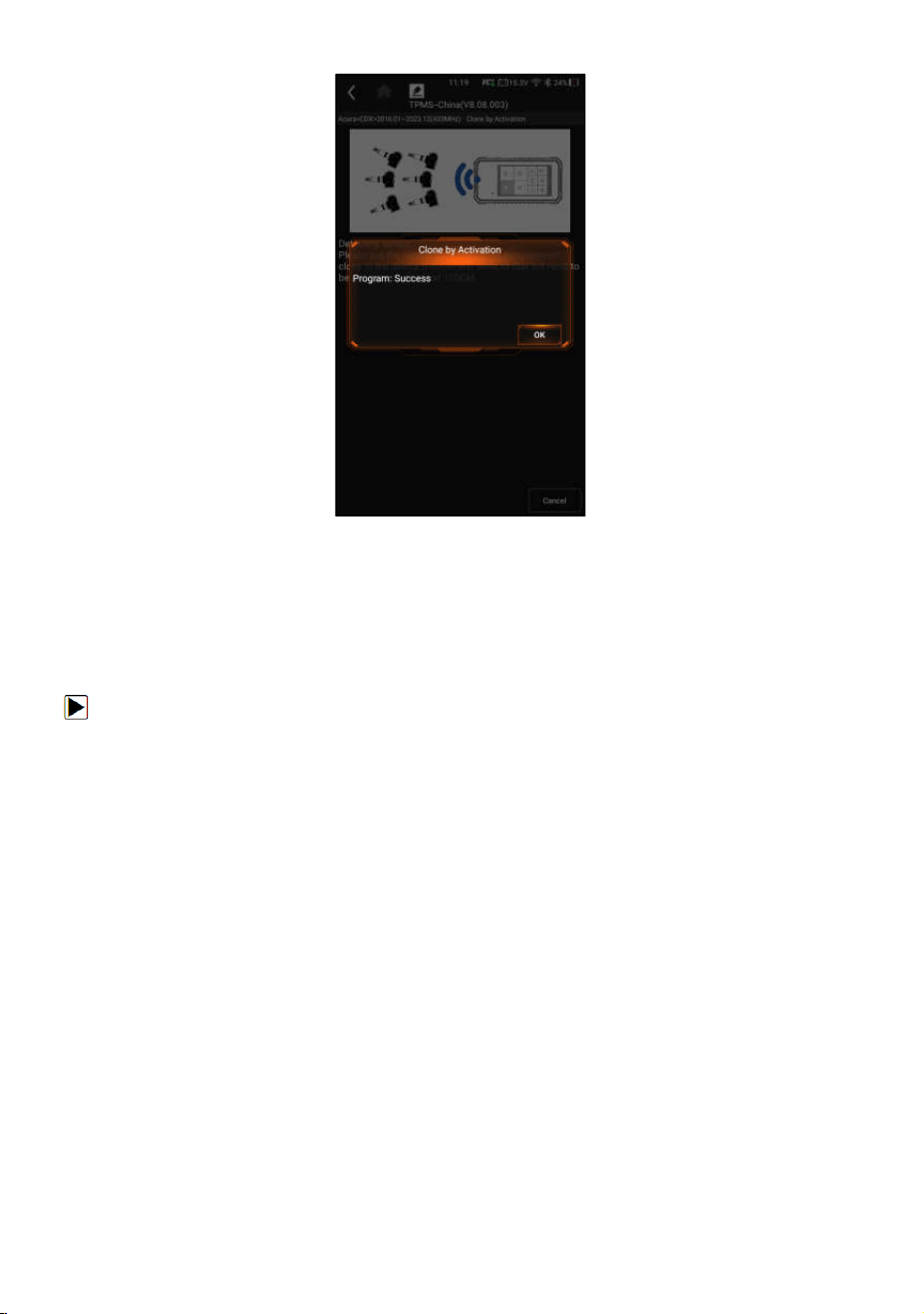

Figure 4-8 Sample Clone by Activation Function Screen
4.3.3 Automatic Create (1-16)
This function is designed to program the Vapon sensor by applying random IDs,
that created according to the test vehicle, when it is unable to obtain the original
sensor ID.
To Perform Automatic Creation
1. Tap
Programming
tab.
2. Select the specific wheel on the screen.
3. Tap the
Automatic Create
functional button on the screen.
4. Place the proper Vapon sensor near the top right of the tool to write the new
created sensor ID into the Vapon sensor.
25
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 4-9 Sample Automatic Create Function Screen
After programming is finished, the new programmed Sensor ID will be
displayed on Column 2 of the table.
4.3.4 Copy by OBD
This function allows users to write the saved sensor information into Vapon
sensor after performing Copy by OBD function, the sensor ID will appear on
the table in Programming screen. Select the specific wheel on the screen,
and then tap Copy by OBD button.
26
TPMS Service Tool TyreIQ S5 User's Manual V1.0

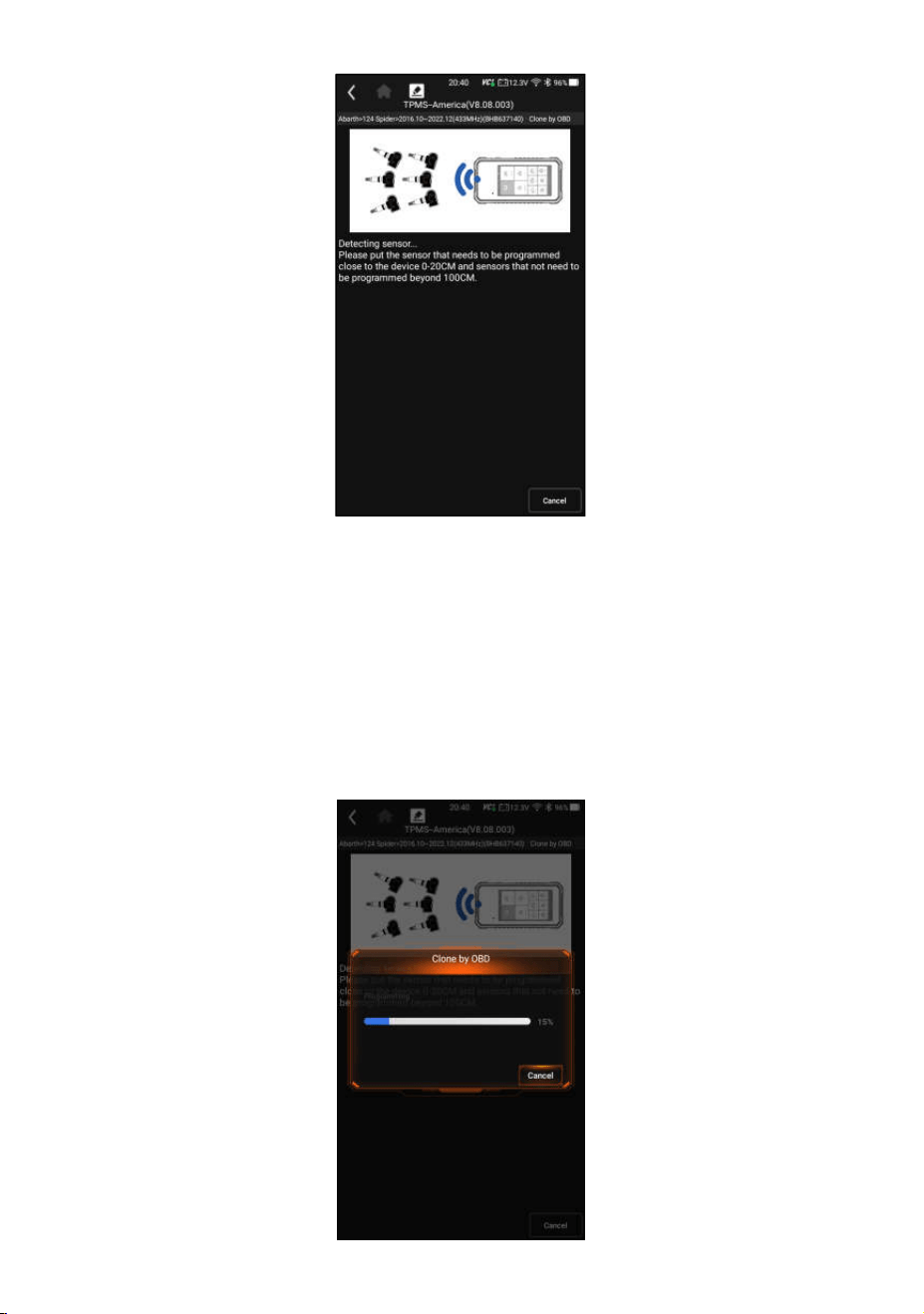

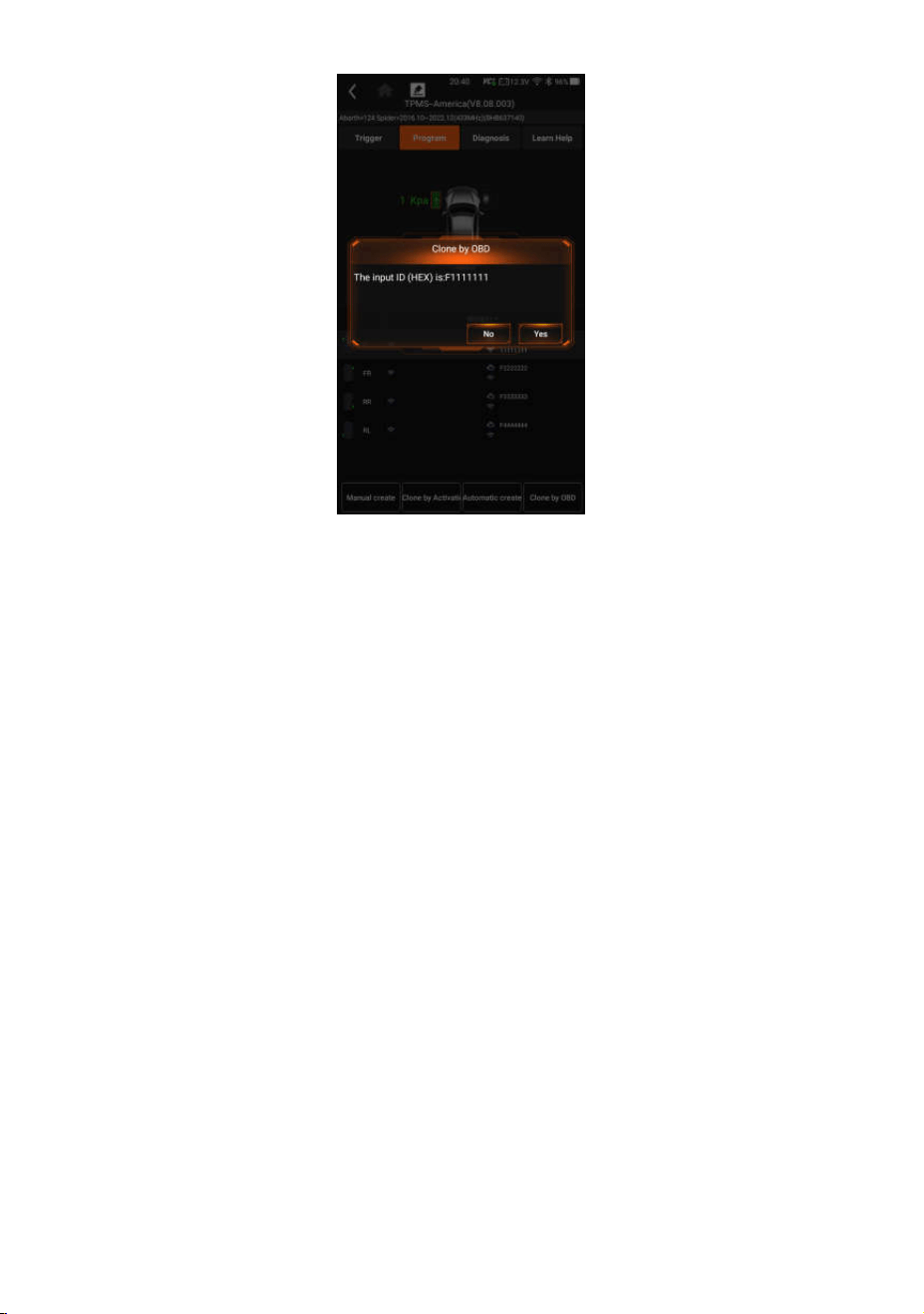

Figure 4-10 Sample Copy by OBD Function Screen
Place the proper Vapon sensor near the top-right of the tool, and tap OK to
start programming the saved sensor information to the Vapon sensor. The
programmed sensor ID will appear in Column 2 of the table.
4.4 Learn Help
This function introduces the relevant information of the sensor, such as
manufacturer, sensor frequency, OE number, learning type, learning method,
learning steps etc. The OEM sensor information and specifications, and
relearn procedure for each vehicle will be displayed on the right side of the
screen.
The Learning method of TPMS mainly includes:
OBD relearn
,
Automatic relearn
,
Static relearn
,
Clone Sensor
.
27
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 4-11 Sample Learn Help Screen
4.4.1 OBD Relearn
Figure 4-12 Sample OBD Learn Help Screen
To perform OBD Relearn
1. Install the tire pressure sensor correctly.
2. Inflate all the tires to the rated value on the nameplate(usually on the door
or door frame).
3. Using the TPMS tool, activate each sensor.
28
TPMS Service Tool TyreIQ S5 User's Manual V1.0
4. Turn on the ignition on (to ON/RUN/START).
5. Connect the TPMS tool to the OBDII interface, and use OBD relearn
function to write the sensor ID.
6. Keep the ignition switch on (ON/RUN/START) and reactivate each sensor
in turn.
7. Turn off and then turn on the ignition on.
8. Drive the vehicle at a speed of not less than 30 km/h for at least 10 minutes,
to ensure that the tire pressure system works normally (the tire pressure
light is off).
NOTE:
Different models have different OBD relearn methods. Please read the
relearn procedure carefully before performing the relearn function.
4.3.2 Automatic Relearn

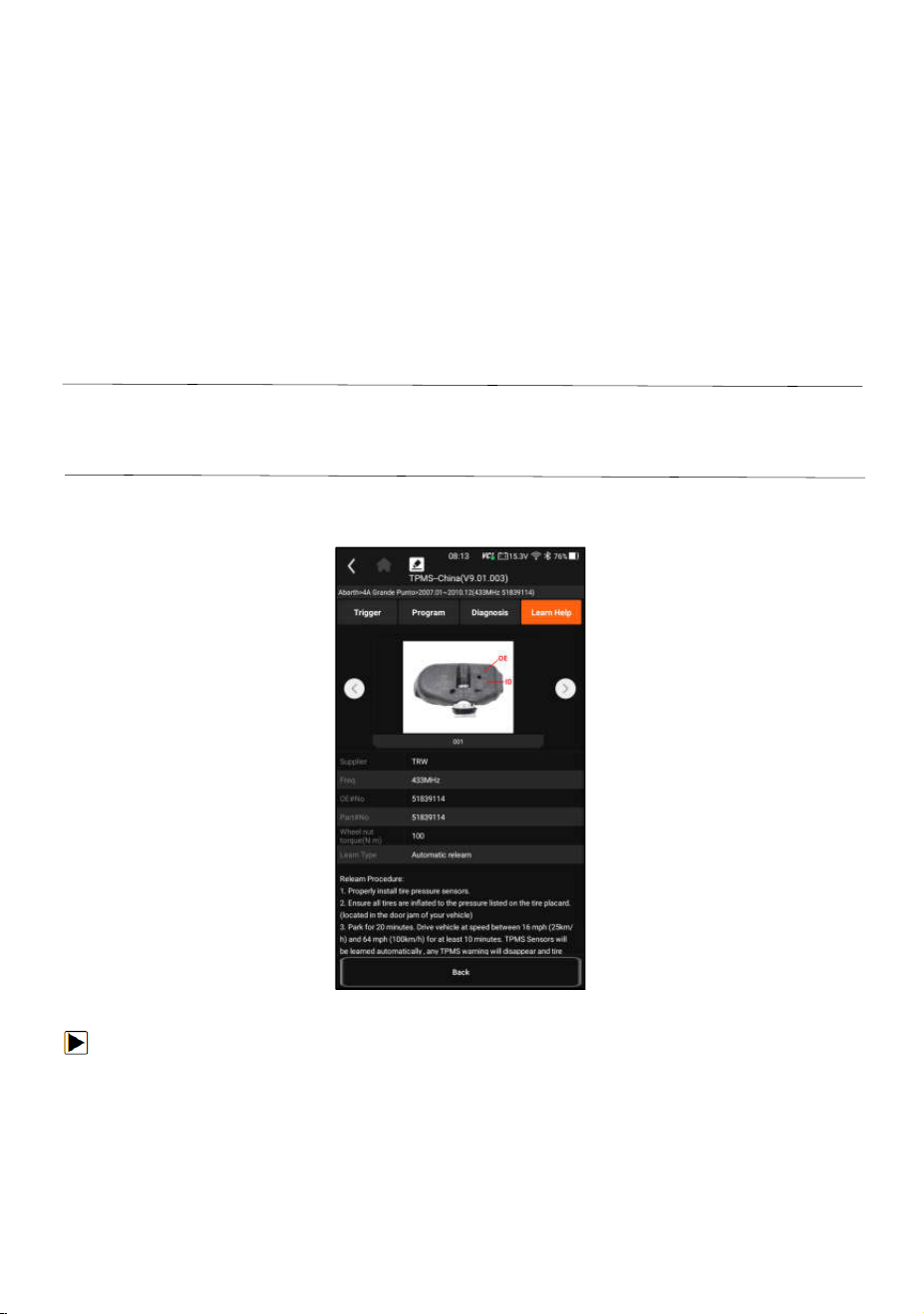

Figure 4-13 Sample Automatic Relearn Help Screen
To perform Automatic Relearn
1. Install the tire pressure sensor correctly.
2. Park for at least 15 minutes.
3. Inflate all the tires to the rated value in the nameplate(usually on the door
or door frame).
4. Turn on the ignition on ( to ON/RUN/START).
29
TPMS Service Tool TyreIQ S5 User's Manual V1.0
5. Operate the instrument panel to make the vehicle enter the automatic
relearn mode (if needed).
6. Drive the vehicle at a speed of 30-100 km/h for at least 15 minutes, to
ensure that the tire pressure system works normally (the tire pressure light
is off).
NOTE:
Different models have different Automatic relearn methods. Please read the
relearn procedure carefully before performing the relearn function.
4.4.3 Static Relearn
Figure 4-14 Sample Automatic Relearn Help Screen
To perform Static Relearn
1. Install the tire pressure sensor correctly.
2. Inflate all the tires to the rated value in the nameplate(usually on the door
or door frame).
3. Turn on the ignition switch (turn to ON/RUN/START).
4. Operate the instrument panel to let the vehicle enter the static relearn
mode(if need) . Usually the horn will beep twice and the left light will be on.
5. Complete the learning process according to the device or multimedia
display screen. If successful, the horn will beep once.
30
TPMS Service Tool TyreIQ S5 User's Manual V1.0
6. Drive the vehicle for at least 15 minutes, to ensure that the tire pressure
system works normally (the tire pressure light is off).
NOTE:
Different models have different static relearn methods. Please read the
relearn procedure carefully before performing the relearn function.
4.4.4 Clone Sensor
Use one of the following method to copy according to the actual situation.
1. Copy by activation
2. Copy by manually input the sensor IDs. (notice the data format is decimal
or hexadecimal)

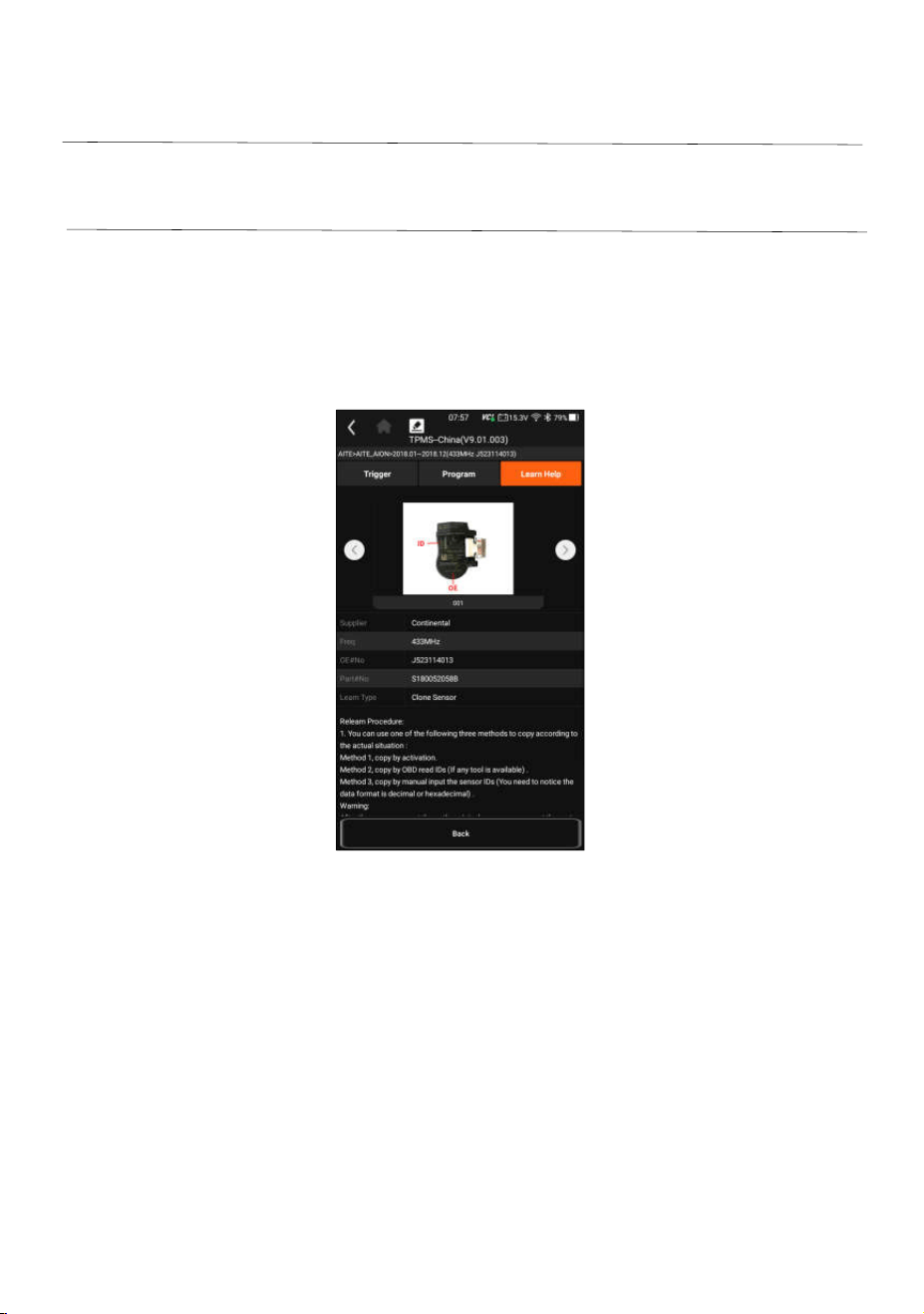

Figure 4-15 Sample Automatic Relearn Help Screen
5 Diagnostic Operations
5.1 Vehicle Identification
This section illustrates how to use the tool to identify the specifications of the
vehicle under test.
It typically identifies a vehicle by any of the following means:
●
AutoVIN
●
VIN Scanning
●
Manual Selection
31
TPMS Service Tool TyreIQ S5 User's Manual V1.0
5.1.1 AutoVIN
AutoVIN allows to identify a vehicle by automatically reading the vehicle
identification number (VIN).
To identify a vehicle by AutoVIN:
1. Select TPMS from home screen of the TyreIQ S5 application.
2. Click AutoVIN button and the tool will automatically reading the vehicle
identification number (VIN).
3. When the scan tool builds connection with the vehicle, the VIN number
will be displayed. If the Vehicle Specification or VIN code is correct, press
the OK to continue.
Figure 5-1 Sample Automatic Read Screen
4. If it takes too long to get the VIN code, press Cancel to stop and input the
VIN manually. Or if it failed to identify the VIN, please input the VIN
manually or click Cancel to quit.
32
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 5-2 Sample Manual Entry Screen
5.1.2 VIN Scanning
VIN Reading
allows the user to identify a vehicle by scanning the vehicle
identification number (VIN).
To identify a vehicle by VIN Scanning:
1. Select
TPMS
from home screen of the TyreIQ S5 application.
2. Click button and scan the VIN number on the nameplate of the car.
Figure 5-3 Sample Vehicle Selection Screen
33
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 5-4 Sample Smart VIN Screen
3. If the Vehicle Specification or VIN code is correct, press the OK to
continue. If incorrect, please enter a valid VIN number manually.
5.1.3 Manual Vehicle Selection
Manual Selection identifies a vehicle by making several selections
according to certain VIN characters, such as brand, model and year, .
To identify a vehicle by manual vehicle selection:
1. Select TPMS from home screen of the TyreIQ S5 application.
2. Choose Brand-Model--Model year according to the car information.
34
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 5-5 Sample Manual Vehicle Selection Screen
3. Click Enter button to get into the TPMS function page.
5.2 Diagnostic Operation
After a system is selected and the scanner establishes communication with
the vehicle, the Function Menu will be displayed. The general menu options
are :
●
Read Codes
●
Clear Codes
●
Live Data
●
ECU Information
NOTE
Not all function options listed above are applicable to all vehicles. Available
options may vary by the year, model, and make of the test vehicle.
5.2.1 Read Codes
Read Codes
menu helps you read trouble codes, which are found in the
control unit. There are 3 types of code status:
●
Present/Permanent/Current
●
Pending
●
History
Present/Permanent/Current codes, stored in a control module, are used to
help identify the cause of a trouble or troubles about a vehicle. These codes
have occurred a specific number of times and indicate a problem that
requires to repair.
Pending codes are also referred to as maturing codes that indicate
intermittent faults. If the fault does not occur within a certain number of drive
cycles (depending on vehicle), the code clears from memory. If a fault occurs
a specific number of times, the code matures into a DTC and the MIL
illuminates or blinks.
History codes are also referred to as past codes that indicate intermittent
DTCs that are not currently active. Code history is number of engine starts
since DTC(s) were first detected (to see if they are current or intermittent).
To read codes from a vehicle:
1. Press
Read Codes
from Select Diagnostic Function menu. A code list
including code number and its description will be displayed. The red icon
means there is help information available for the code. The green icon
means there is freeze frame available.
35
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 5-6 Sample Trouble Code Screen
●
Freeze Frame - select one fault code from the code list and click the
Freeze Frame button at the bottom bar. The screen will display freeze
frame detail data, a snapshot of critical vehicle operating conditions
automatically recorded by the on-board computer at the time of the DTC
set. It is a good function to help determine what caused the fault.
Figure 5-7 Sample Freeze Frame Screen
●
Help
- select one fault code from the code list and click the
Help
button on
the screen. The screen will display the detailed descriptions of the fault
code and repair guide.
36
TPMS Service Tool TyreIQ S5 User's Manual V1.0

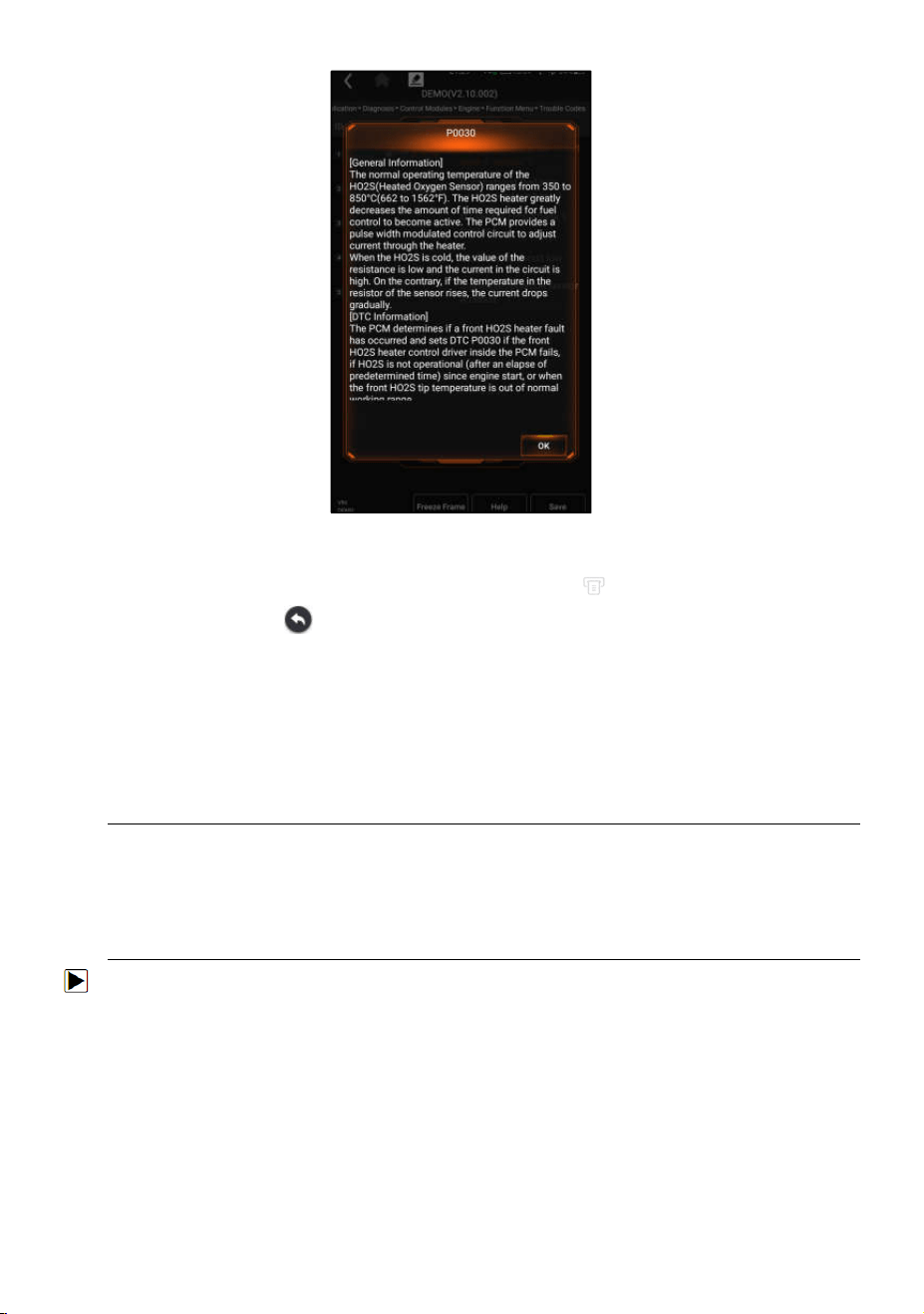

Figure 5-8 Sample DTC Help Screen
2. Slide up and down to view additional information when necessary.
3. Press Save to store DTC information. Press to print the information if
needed. Press to exit.
5.2.2 Clear Codes
Clear Codes menu lets you clear all current and stored DTCs from a
selected control module. It also erases all temporary ECU information,
including freeze frame, so make sure that the selected system is completely
checked and serviced by technicians and no vital information will be lost
before clearing codes.
NOTE
●
To clear codes, make sure that the ignition key is switched to ON with the
engine off.
●
Clearing Codes does not fix the problem that caused the fault! DTCs should
only be erased after correcting the condition(s) that caused them.
To clear codes:
1. Press
Clear Codes
from Select Diagnostic Function menu.
37
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 5-9 Sample Function Menu Screen
2. Follow the on-screen instructions and answer questions about the vehicle
being tested to complete the procedure.
3. Check the codes again. If any codes remain, repeat the Clear Codes
steps.
5.2.3 Live Data
The Live Data
menu lets you view real-time PID data in text and plot formats,
learns good sensor data and compare it with faulty data, and record live data
from a selected vehicle electronic control module.
There are two ways to select the PID data from a control module:
●
All Data
●
Custom List
38
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 5-10 Sample Function Menu Screen
5.2.3.1 All Data
All Data menu lets you view all live PID data from a selected control module.
To view all live PID data:
1. Press Select ALL for select all live PID data and press Deselect ALL to
deselect all items.
Figure 5-11 Sample Function Menu Screen
39
TPMS Service Tool TyreIQ S5 User's Manual V1.0
2. Press OK to complete the selection and all readings will be displayed in
text format by default. And click can change the data to a graph.

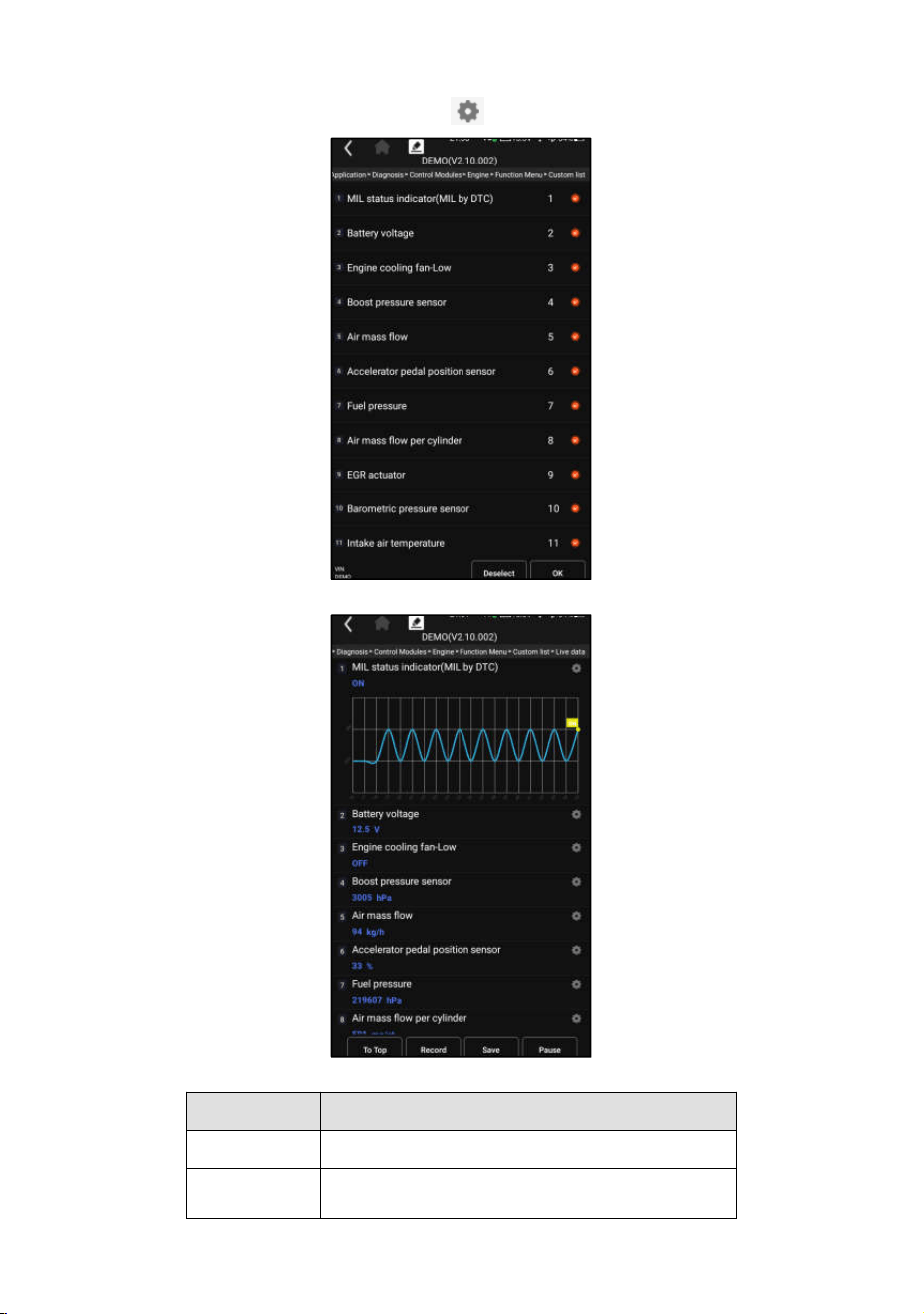

Figure 5-12 Sample Live Data Selection Screen
Figure 5-13 Sample Live Data Screen
Name Description
To Top To move a data line to the top of Data List screen
Batch Top
To select some data line to the top of Data List
screen
40
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Record To make record of live data
Save To save the live data of current frame
Pause To stop recording live data
Table 5-1 Live Data Screen Button Screen
3. Swipe the screen up and down to view additional information when
necessary.
4. To move a data line to the top of Data List screen, just tap the line to select
and then press the button
To Top
. To view data records or test reports,
and press the button
History
. To make records of live data, just tab the
button Record, and press Pause to stop recording at any time. To save
the data, tap the
Save
icon.
5.2.3.2 Custom List
Custom List menu lets you minimize the number of PIDs in the data list and
focus on any suspicious or symptom-specific data parameters.
To create a custom data list:
1. Press Custom List from the menu to display all available parameters from
the selected control module.
2. The custom data stream selection screen displays. Tap the lines you
wish to select it. The numbers showing on the right side indicates the order
of selection and the live data will show as this order.

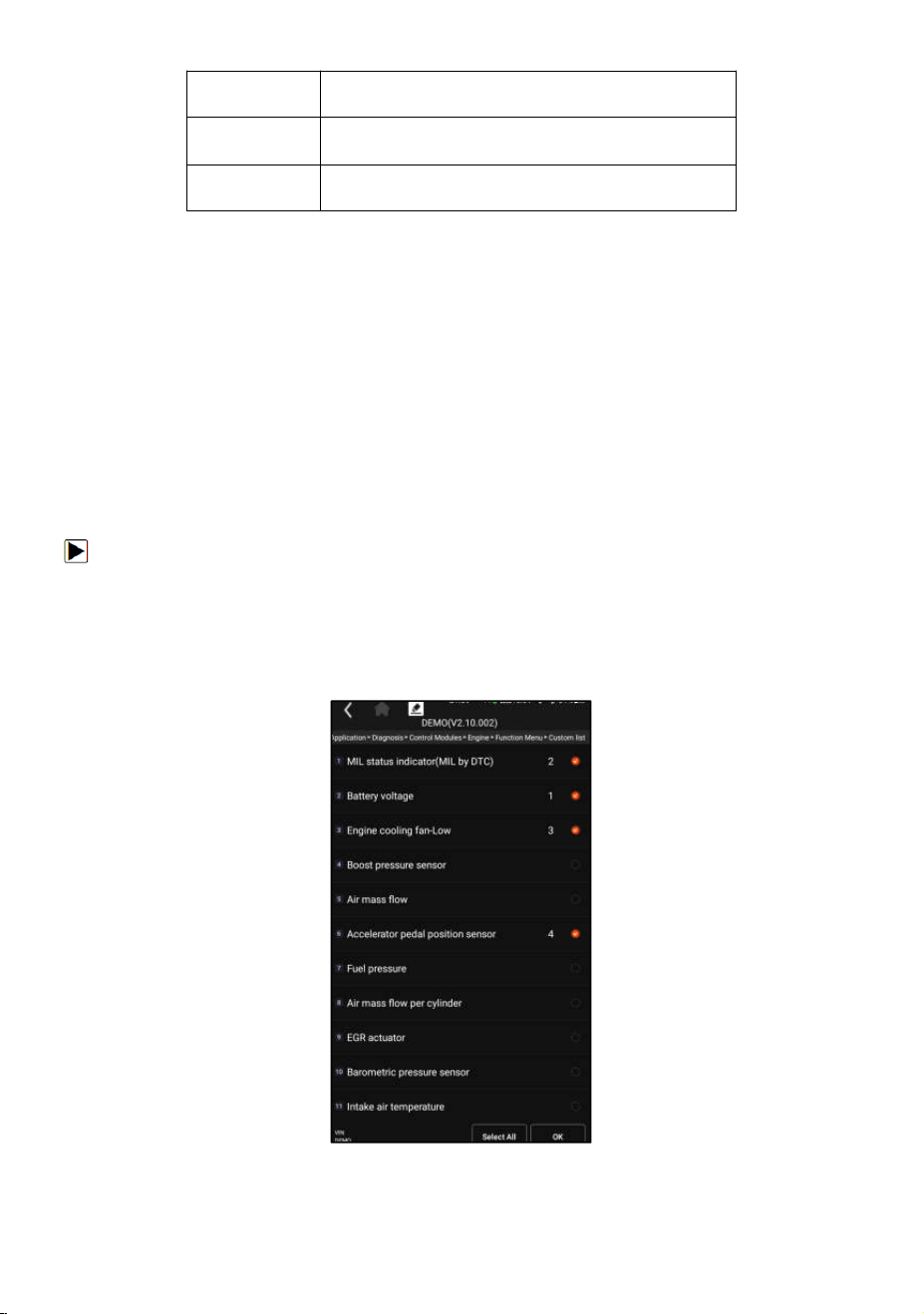

Figure 5-14 Sample Custom List Selection Screen
3. To deselect an item, tap the line again. Alternatively, tap SELECT ALL or
Deselect ALL
to select or deselect all items at once.
4. Press OK to complete the selection, and all selected items display.
41
TPMS Service Tool TyreIQ S5 User's Manual V1.0

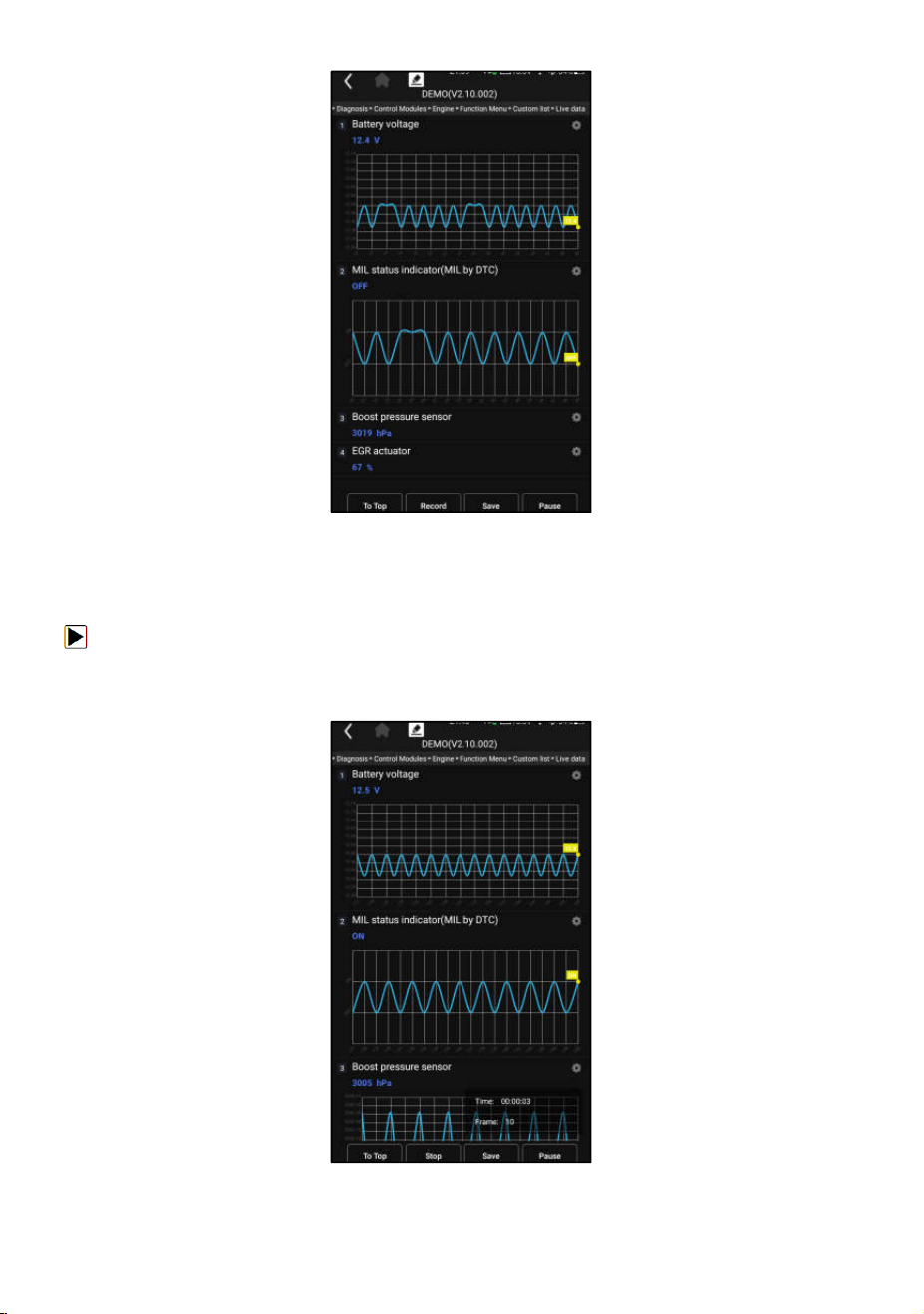

Figure 5-15 Sample Live Data Screen
5.2.3.3 Record data
Data Record is for recording the running data of the current control module.
To Record Data
1. Press the Record button to record all selected live data, then it will show
the record time and frames.
Figure 5-16 Sample Live Data Record Screen
42
TPMS Service Tool TyreIQ S5 User's Manual V1.0
2. Press the Stop button to create a record, then press OK to save the
record into Data Playback of Data Manager.
Figure 5-17 Sample To Stop Live Data Record Screen
5.2.4 Active Test
Active Tests, also known as Actuator Tests, are bi-directional diagnostic tests
on vehicle systems and components. The tests let you use the scanner
temporarily activate or control a vehicle system or component, and when you
exit the test, the system/component returns to normal operation.
Some tests display a command to the operator. For example, if
“
Press Brake
Pedal
”
is displayed, the operator has to press and hold the brake pedal and
then continue. The sequence, number and type of tests are dictated by the
control module.
On some systems, the actuator tests cannot be restarted until the ignition key
is switched off for some time. Alternatively, briefly start and run the engine,
shut down, turn the ignition to the run position, then re-initiate the actuator
tests.
IMPORTANT
The tests activate a component, but they do not check if the component is
working correctly. Make sure the components to be tested are in good
condition and correctly mounted.
NOTE
Available tests depend on the control module under test and the vehicle itself.
To start a test:
43
TPMS Service Tool TyreIQ S5 User's Manual V1.0
1. Press the Active Test from the menu and a list of available options will be
displayed.
2. Select an option to start the test and live data of the selected test displays.
3. Follow the on-screen instructions to make proper selections and
operations to complete the tests.
4.
Press to exit.
5.2.5 ECU Information
The ECU Information
screen displays the identification data of the control
module under test, such as the control module identification string and the
control module coding.
To read ECU information:
1. Press ECU Information from Select Diagnostic Function menu.
Figure 5-18 Sample Function Menu Screen
2. A screen with detailed information of the selected control module displays.
44
TPMS Service Tool TyreIQ S5 User's Manual V1.0

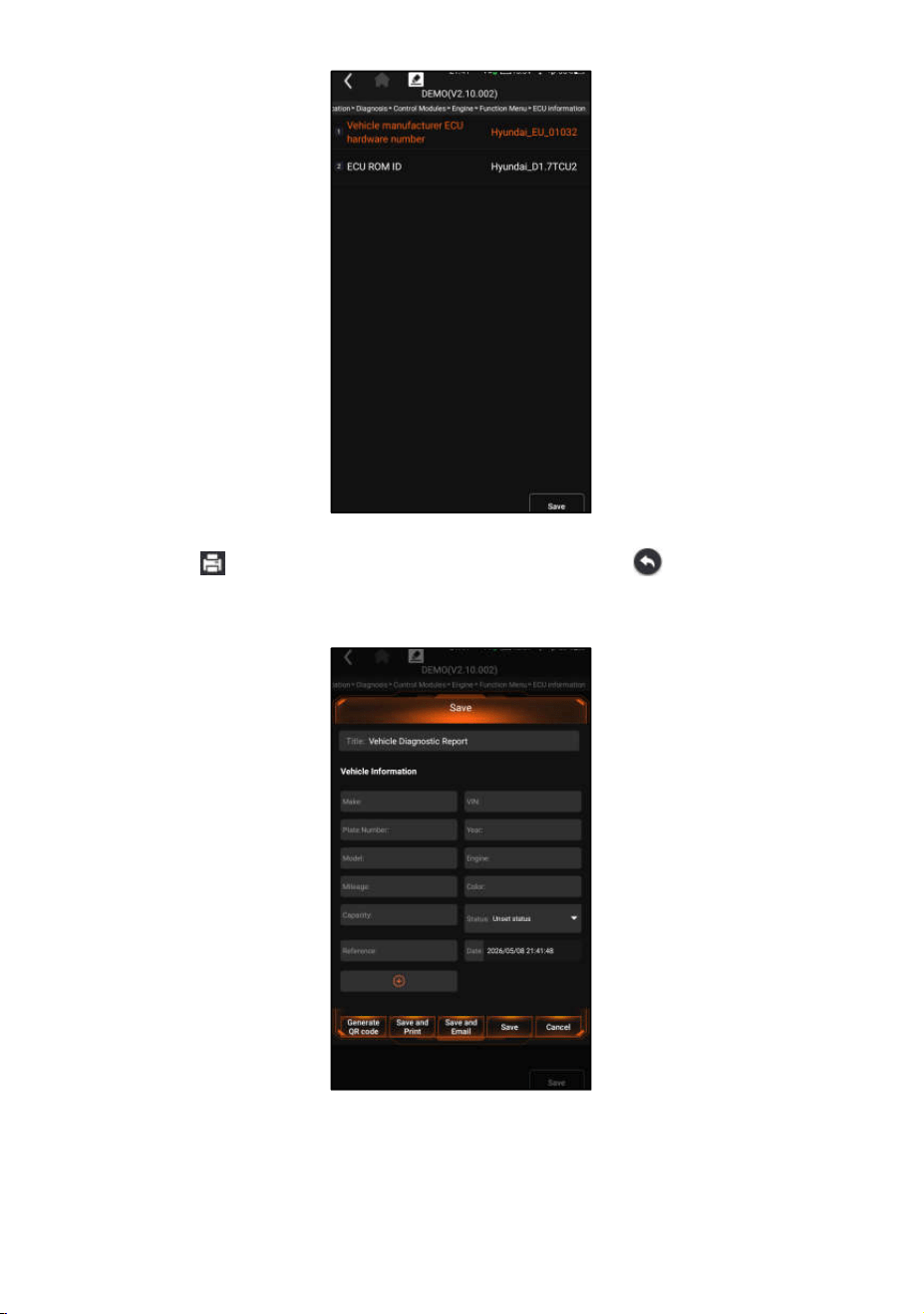

Figure 5-19 Sample ECU Information Screen
3.
Press to print the information if needed. Press to exit.
4. Press Save to store ECU information screen and Press OK to complete
save or Press Cancel to give up.
Figure 5-20 Sample ECU Information save Screen
45
TPMS Service Tool TyreIQ S5 User's Manual V1.0
6 My Account
This section introduces user account registration, login, device activation and
other information.
When the
My Account
application is selected, a menu with available options
will be displayed.
My Account
Menu options typically include:
●
My Account
●
My Products
●
Feedback and Suggestions
Figure 6-1 Sample My Account Screen
6.1 Registration
You are allowed to create a VAPON ID with the built-in client.
To register with built-in client:
1. Press the My Account or Update from home screen of TyreIQ S5
diagnostic application, the user login page will be displayed, then press the
Free registration
button to register an account.
46
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 6-2 Sample Update Client Main Screen
2. Enter the User Name (use one of your existing email address as user
name), and press the Send Code button to get a verification code,
VAPON will send a 4-digit verification code to the email you just entered.
Figure 6-3 Sample ID Registration Screen
3. Get the security code from your mailbox, input the code as the verification
code. Then create a password and click Free Registration to complete
the registration.
47
TPMS Service Tool TyreIQ S5 User's Manual V1.0

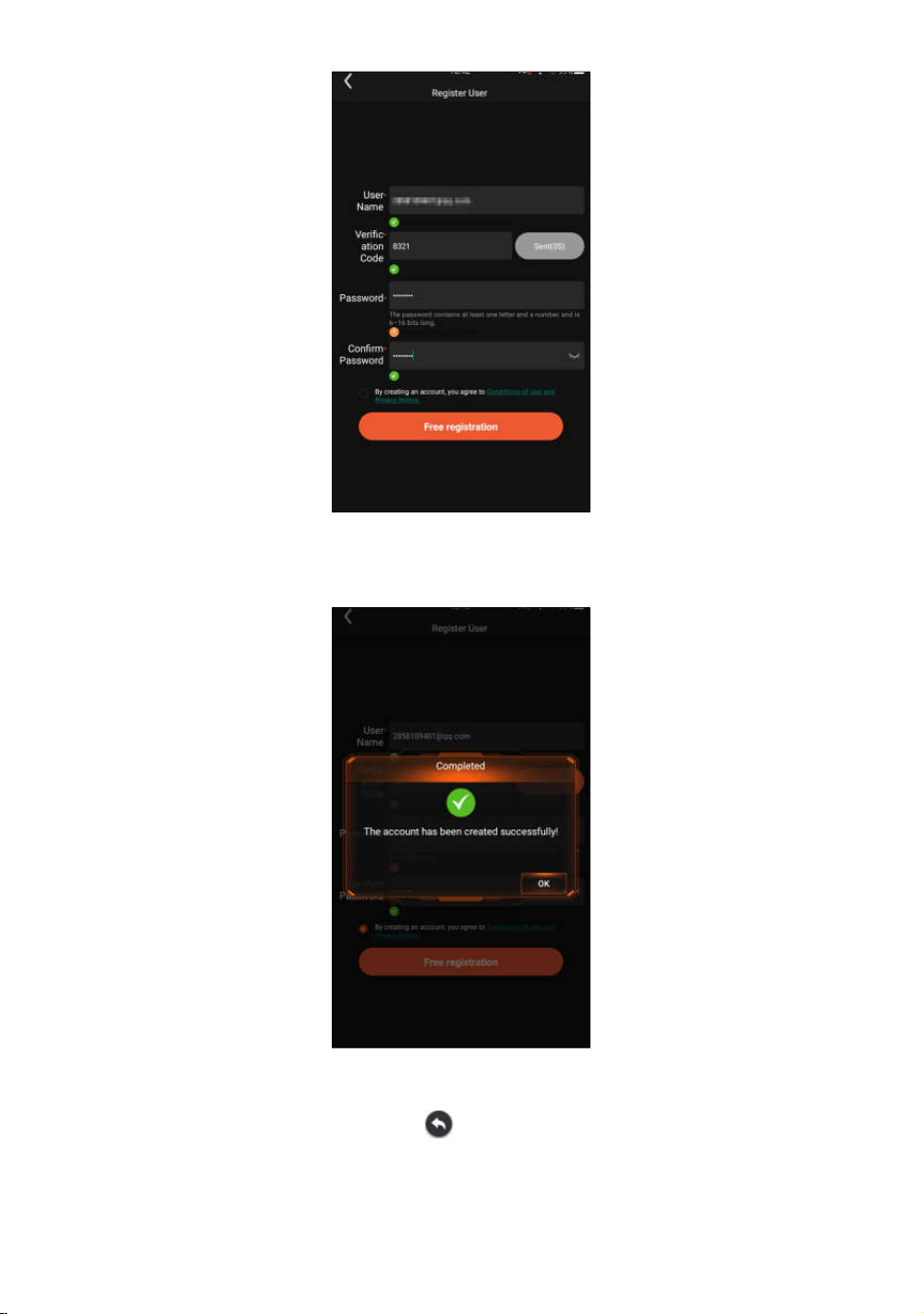

Figure 6-4 Sample ID Registration Screen
4. The message
“
The account has been created successfully
”
will appear if
you register successfully.
Figure 6-5 Sample Registration Done Screen
5. The serial number will be displayed after registration. Click Submit to
activate the product or press to go back.
48
TPMS Service Tool TyreIQ S5 User's Manual V1.0
6.2 Sign in
Press the My Account or Update from home screen of TyreIQ S5 diagnostic
application, the user login page will be displayed, enter your VAPON ID and
password, and press the Sign in button to sign in.
Figure 6-6 Sample Sign in Screen
6.2.1 Product activation
If you are logging in for the first time, it will prompt and guide you to activate
the current device when you sign in successfully.
To activate product
1. Press OK button to activate product and press Cancel to go back.
49
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 6-7 Sample Product Activation Screen
2.Click Submit to continue the activation, and press to cancel the
activation.
Figure 6-8 Sample Product Activation Submit Screen
3.The message“Product is activated successfully” will appear if you activate
successfully.
50
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 6-9 Sample activate success Screen
6.3 My Account
My Account
option allows you to check and modify or complete your account
information including user
’
s name, e-mail, telephone, address and so on.
Figure 6-10 Sample My Account Screen
51
TPMS Service Tool TyreIQ S5 User's Manual V1.0
6.4 My Products
This option let you activate a new product and manage activated products
including serial number and expiration date.
Figure 6-11 My Product Screen
7 Update
The tool can be updated to keep you up stay current with the latest software
development. This section illustrates how to register and update your scan
tool. You can register both on Vapon website or by the built-in update client.
NOTE
Before registration and updating, please make sure your network works
correctly and the tablet is fully charged or connect to external power supply.
To update the TPMS application:
1. Press
Update
of TyreIQ S5 application, and the update client starts up
automatically.
2. The available updates display. Click the check box(s) in front of the
software you wish to update and then click the
Update
button to
download.
3. When all the items are updated, an “Update Done” message displays.
NOTE
Please make sure your network works correctly and the tablet is fully charged
or connect to external power supply
52
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 7-1 Sample Update Screen
8 VCI Manager
VCI Manager is used to unbind and rebind the built-in VCI. When the built-in
VCI needs to be replaced, you need to use this function to unbind the old VCI
and re-bind the replaced built-in VCI.
NOTE
This function cannot be bound to an external VCI, but can only be bound to a
built-in VCI.
VCI unbind & rebind：
1. Click the
VCI Manager
application on the TyreIQ S5 home screen.
2. After clicking Unbind a VCI dongle, it will display whether to unbind the
current VCI. When select OK, it will execute unbind, rebind, and refresh the
vehicle connection.
53
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 8-1 Sample Unbind a VCI dongle
Figure 8-2 Sample Unbinding Confirmation Prompt
54
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 8-3 Sample Unbinding Current VCI
Figure 8-4 Sample Bind New VCI Successfully
55
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 8-5 Sample Rescan Vehicle Software
9 Firmware Update
This application allows you to update the firmware of TyreIQ S5.
To update the firmware:
1. Click the Update application on the TyreIQ S5 home screen.
2. Check and download the firmware package.
3. When the download is completed, it will automatically jump to the Firmware
Update
function module.
4. Check the battery level to ensure that the battery level is greater
than 20%.
5. It will start update automatically if there is an update available. If update
failed, please follow the on-screen instructions to troubleshoot and repeat the
update process.
56
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 9-1 Sample Firmware Update Screen
6. The message“VCI firmware successfully message” will appear if you update
successfully.
Figure 9-2 Sample Firmware Update Successfully Screen
NOTE
If there is a firmware update available, the update file will be downloaded and
saved automatically when you try to update the diagnostic software. And you
will be prompted to upgrade the firmware.
57
TPMS Service Tool TyreIQ S5 User's Manual V1.0
10 Data Manager
Data Manager
menu lets you review stored screenshots and test reports,
play back recorded live data and other saved files.
Typical menu options include:
●
●
PDF
●
Data Playback
●
Data Record
●
Report
● TPMS Report
Figure 10-1 Sample Data Manager Screen
10.1 Image
Image option leads to screens for review of stored screenshots. In case a
failure of TyreIQ S5 application or the Android system occurs, please just
take a screenshot and send it to our team to help with the troubleshooting.
1. If you want to save data of current screen, press after sliding down
the notice bar to take a screenshot.
2. Press
Data Manager
from the home screen of TyreIQ S5 application,
select Image from Data Manager.
3. To delete a picture, tap the
Delete
button and answer
OK
to delete. Press
Print
to print the pictures and press
Rename
to change the picture name.
58
TPMS Service Tool TyreIQ S5 User's Manual V1.0
4. Long press one of the pictures to edit all pictures like Rename or Delete.

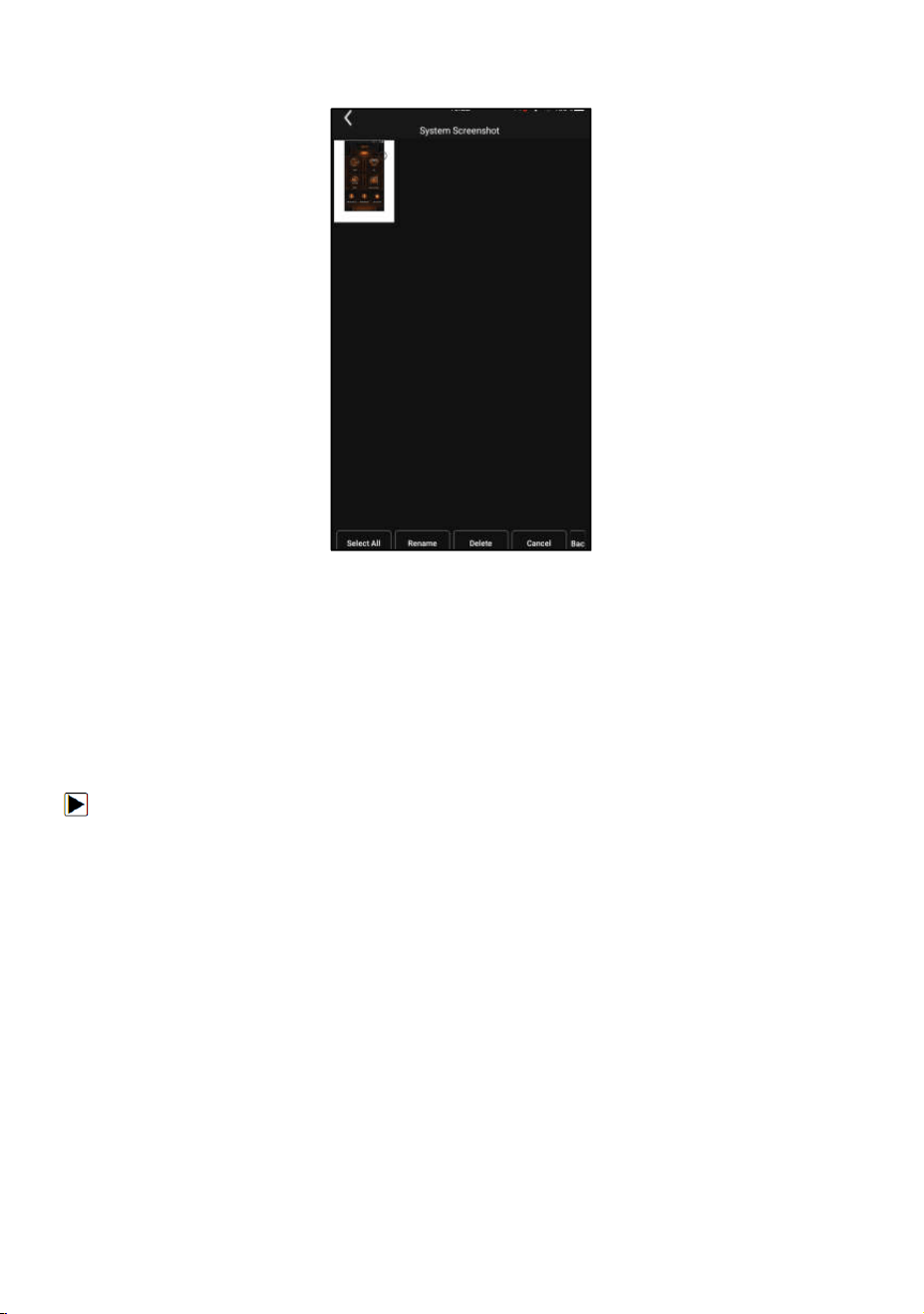

Figure 10-2 Sample All Pictures Edit Screen
10.2 PDF Report
PDF option leads to screens for review of the vehicle test reports. You just
need to press the PDF icon on the test screen, add a description and press
OK button to save it.
10.2.1 How to Create a PDF Report
To create a PDF report:
1. Press
Data Manager
from the home screen of TyreIQ S5 application.
2. Press Report from Data Manager.
3. Press any reports saved.
59
TPMS Service Tool TyreIQ S5 User's Manual V1.0

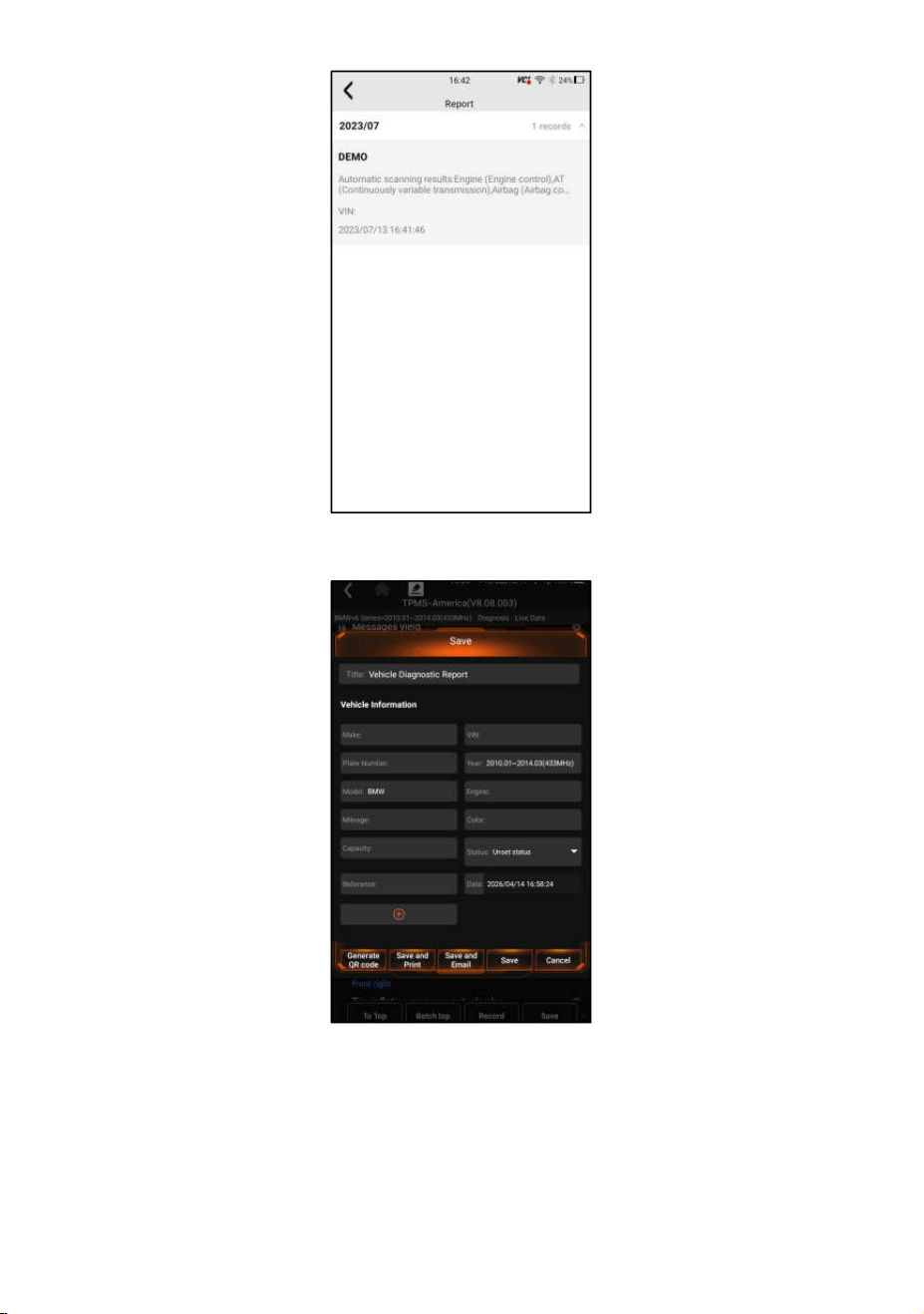

Figure 10-3 Sample of Reports Screen
4. Press Save to save changes. Press PDF to create PDF file.

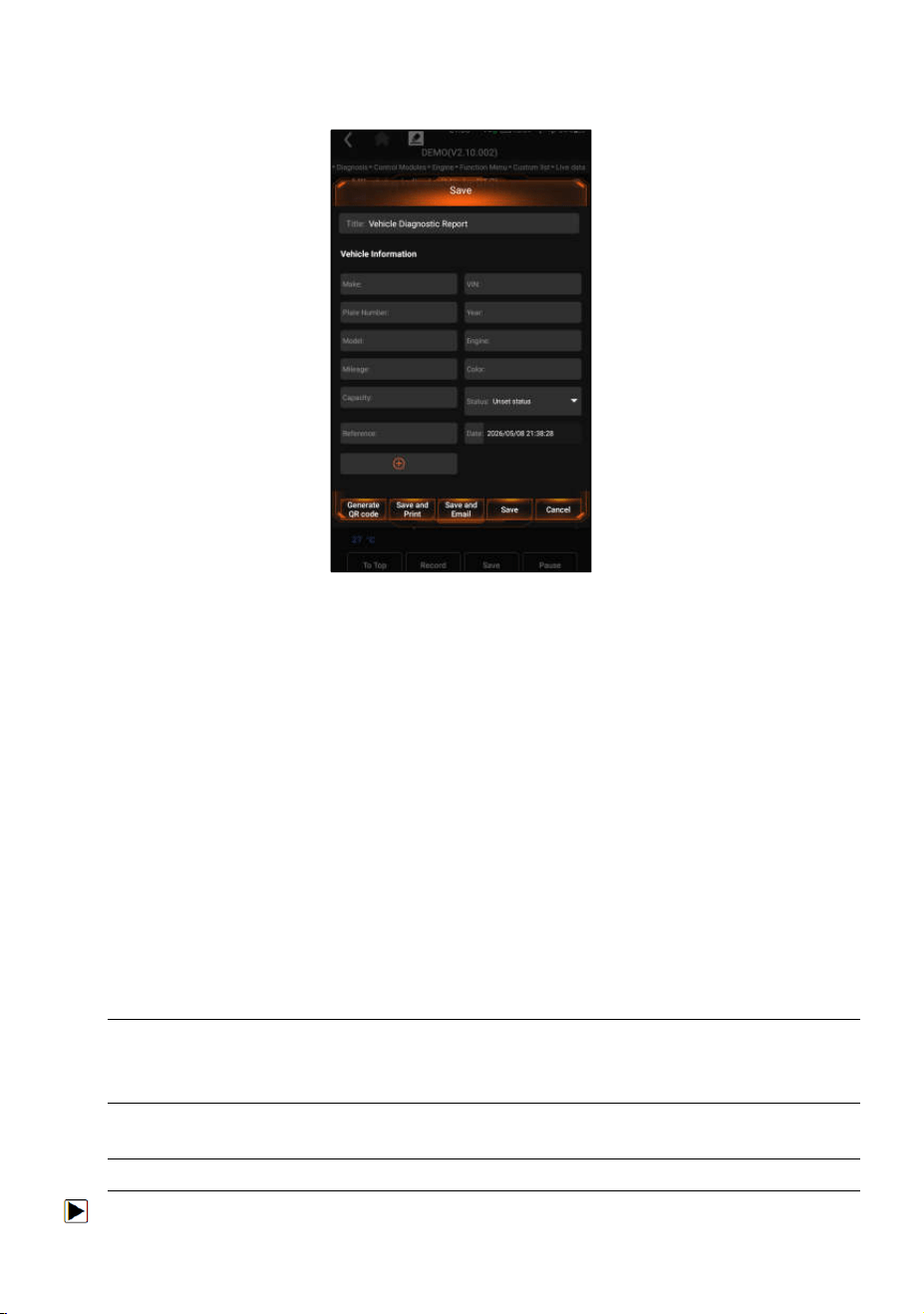

Figure 10-4 Sample of Report edit Screen
5. If press PDF, the PDF review screen will be displayed. Press Print to print
the report or press Email to share the report.
60
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 10-5 Sample of Report edit Screen
10.2.2 Review PDF Report
To review the PDF reports:
1. Press Data Manager from home screen of TyreIQ S5 application.
2. Press PDF and all available PDF files will be displayed.
3. Long press the screen to edit all PDF files like Rename or Delete the files.
10.3 Data Playback
The
Data Playback
option leads to screens for review of recorded live data.
Playing back a recording is just like using the scan tool on a live vehicle. It
lets you review live data in text, graph and graph merging formats. Playback
speed and direction (forward or reverse) can also be controlled.
To review recorded live data:
1. Press Data Manager from home screen of TyreIQ S5 application.
2. Press Data Playback and all available records display.
3. Press any records to view the details.
4. To view parameter graphs, press the Graph tab. And to merge the graphs,
press the tab
Merge Graph
or press the tab
Multi Graph
to view multiple
plots.
5. To move forward or reverse back of the playing, just drag the progress bar
forward or reverse. Press the button to stop.
6. Long press the record to Rename or Delete the records.
61
TPMS Service Tool TyreIQ S5 User's Manual V1.0
11 Settings
This section illustrates how to program the tool to meet your specific needs.
When Settings application is selected, a menu with available service options
will be displayed. Menu options typically include:
● Unit
● Language
● Font Size
● Module Sorting
●
Sort Tiles
●
Remote control
●
TPMS Sales Region Change
●
System Settings
● General
●
Uninstall Vehicle Software
●
Clear app data
●
Print Settings
●
About
11.1 Units
Selecting Unit opens a dialog box that allows you to choose between
Imperial customary or metric units of measure.
To change the unit setup:
1. Press
Settings
from home screen of the TyreIQ S5 application.
2. Press Unit and available unit system display.
3. Select a unit system.
11.2 Language
Selecting Language opens a screen that allows you to choose system
language.
To configure system language:
1. Press
Settings
from the home screen of the TyreIQ S5 application and
select
Language
. Then all available language options display.
2. Select your preferred language to change.
11.3 Font Size
This option allows you to change the font size of application.
To change font size:
62
TPMS Service Tool TyreIQ S5 User's Manual V1.0
1. Press Settings from the home screen of the TyreIQ S5 application, and
then select Font Size.
2. Select your preferred font size, then press Confirm to change, or press
Back to give up.
11.4 Module Sorting
This option allows you to modify the display order of other modules.
To change module sorting:
1. Press
Settings
from home screen of the TyreIQ S5 application, and
then select Module Sorting.
Figure 11-1 Sample Before the modification,
the Update Module is displayed behind the Maintenance module
63
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 11-2 Sample Before the modification,
the Update Module is displayed behind the Maintenance module
2.Long press the icon on the right side of the module that needs to be
modified for about 2 seconds, and then drag it up and down. The final
position of the module is the same as the display order of the home screen.
3. Click to display whether to apply the current settings interface, click
OK to apply the current changes, click Cancel to discard the current
changes.
11.5 Sort Tiles
This option allows you to change the sort for the Brand of vehicles. There are
two sorting methods available by alphabet or by frequency of use.
To change sort
1. Press Settings from home screen of the TyreIQ S5 application, and select
Sort Tiles
.
2. Select your preferred sort order.
11.6 Remote control
This option allows you to select a tool of remote control. The two available
remote tools are TeamViewer QuickSupport and AnyDesk.
To change remote control
1. Press Settings from the home screen of the TyreIQ S5 application, then
select
Remote control
.
64
TPMS Service Tool TyreIQ S5 User's Manual V1.0
2. Select your preferred tool.
11.7 Automatic Update
This option allows you to enable/disable automatic update notice. If it is
enabled, an orange update mark will be displayed on the upper right of the
TPMS software icon whenever there is a new version available.
11.8 System Settings
This option provides you a direct access to the Android system settings, like
sound, display, system security and etc. Refer to Android documentation for
more information.
11.9 General
This option lets you to turn on/off the prompt when saving a file or login &
registration when you start the tool.
11.10 Uninstall Vehicle Software
This option allows you to uninstall the vehicle software installed in the tool.
To uninstall a vehicle software:
1. Tap Settings application on the home screen of TyreIQ S5.
2. Tap the Uninstall Vehicle Software option on the option list.
3. Choose the vehicle software you want to delete or choose Select All.
65
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 11-3 Sample Uninstall Vehicle Software Screen
4. Press Back to quit or and press OK to uninstall.
11.11 Clear app data
Generally, after the application running for a period of time, some cache data
will be generated. As time goes by, the cached data will become larger and
larger, which will affect the operation of the device. This option allows you to
clear the cache data of the app.
11.12 Print Settings
This option allows you to print any data or information at any time, from any
location either via PC network or Wi-Fi.
To setup the printer connection:
1. Tap the
Settings
application on the home screen of TyreIQ S5.
2. Tap the Printing Settings option on the option list.
66
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 11-4 Sample Print Settings Screen
3. Tap Print Plugin Manager and turn on the Mopria Print Service, then
TyreIQ S5 will search for available printers automatically.
Figure 11-5 Sample Print Service Manager Screen
4. Select Mopria Print Service.
5. Choose the right printer.
6. Select a available printer, then press the PRINT TEST PAGE button at the
right-bottom.
67
TPMS Service Tool TyreIQ S5 User's Manual V1.0
7. Choose the file or report what you want to print and press the print icon .
Click on the red marked part to select an available printer. Click the blue
marked part to make more settings for the printer, such as paper size,
number of copies, etc.
NOTE
1. Please make sure the printer and the TyreIQ S5 in the same Wi-Fi or
Network when printing.
2. If Mopria Print Service driver can
’
t work for your printer, please download
the driver to work for your printer on Print Service Manager.
11.13 About
Selecting
About
option opens a screen that shows information about the
TyreIQ S5, such as serial number, hardware and software version and etc.
To view information of your scan tool:
1. Press
About
from home screen of the TyreIQ S5 application.
2. A screen with detailed information of the tool displays.
Figure 11-6 Sample Tool Information Screen
12 Remote Support
Remote Control enables you to get remote support from Vapon with
TeamViewer when you have issues with Vapon products.
68
TPMS Service Tool TyreIQ S5 User's Manual V1.0
There are two remote control tools TeamViewer QuickSupport and Any Desk.
About how to set the tool of default, please refer to 12.5 Remote control.
To use QuickSupport for to remote control:
1. Click the
Remote Control
icon on the main menu of the TyreIQ S5 to start
TeamViewer QuickSupport. Press to return.
Figure 12-1 Sample QuickSupport Screen
2. Send your ID to us to let our team take control your tablet.
13 Coverage List
Coverage List enables you to get more support and information by input
Vapon product and car brand.
69
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 13-1 Sample Coverage list Screen
14 Remote Key Frequency Monitoring
This section illustrates how to check RF Remote Keyless Entry (key FOB)
with the trigger tool.The TyreIQ S5 tests 315MHz and 433MHz key fobs only,
and checks only for a signal present.
15 Sensor Information
This section helps to check own sensor information.
70
TPMS Service Tool TyreIQ S5 User's Manual V1.0
Figure 15-1 Sample Sensor information Screen
16 Auxiliary Tools
More auxiliary tools can be found like camera and file browser.
