Instruction Manual
M221
Please read this instruction carefully before using this product and keep it properly.
English
Language switching
Click the " "button to select the language and click the" " button
to switch the language.
Language
English
Click the " "button to select the language and click the" " button
to switch the language.
01. Item Checklist
NOTE
· The number of label rolls depends on the item shipped.
Printer x1 Instruction Manual x1
USB Cable x1
02. Specifications
Name
Model
Printing type
Width of label
Supported consumables
Consumable specifications
Printing speed
Darkness
Resolution
Printhead lifespan
Communication port
Product dimensions
Power usage
Power supply
OS supported
Instruction set
Barcode
Working environment
Storage environment
Working humidity
Storage humidity
Multifunctional Portable Label Maker
M221
Thermal printing
20-75mm
Continuous Label, Black mark Label, Non-continuous
Label
30-50mm/s (1-5 levels)
1-15 levels
203dpi
50 km
Bluetooth/Data wire
119x129x67mm （ 4.68x5.07x2.63in）
Interface charging/Lithium battery
5V 2A
80mmxφ50mm (Max width + Max diameter)
Android/iOS
ESC/POS
1D barcode and QR code are supported
5℃～50℃
-20℃～60℃
20%～85%
2%~95% (Not frozen)
03. Product Introduction ‒ Parts and Features
Paper Cutter
(Sharp object. Please be
careful not to hurt yourself)
Power Button
Eject Button
Reset Hole
Paper Holder
USB
Display
Paper Output Slot
Paper
Compartment Cover
Open-Cover Button
Buttons
Diagram
Hold for 3 seconds
Press once
Instruction
Switch on/off.
Navigate through the menus.
FunctionButton
Power
Button
Eject
Button
Press once
(For non-continuous
paper and black mark
paper)
Long press
(For continuous paper)
Eject one label and reposition the label
paper to the head of the next label.
Hold to eject paper. Release to stop.
Hold for 3 seconds Return to the main menu.
Press once
1. Use the Power Button to navigate
through the main menus and use the
Eject Button to navigate through the sub-
menus.
2. Press once to eject one sheet of paper
when the printer is in standby mode.
04. Parts Description
Notification
Shutting down
Printing ...
Feeding ...
High temperature please
wait
No Pape
Paper cover is opened
Battery lower than 1%
Printing normally
Eject Button pressed
Printhead overheating
Out of paper or paper not installed correctly
Paper compartment cover is opened
State
On-screen notifications
Option
Language
Darkness
Speed
Paper type
Power
OFF
Restore settings
Chinese, English
1(weakest),2,3,4,5,6(Normal),7,8,9,10(Dark),11,12,13,14,15(Darkest)
1(Slowest),2(Slow),3(Normal),4(Fast),5 (Fastest)
Black,Continuous,Gap
NO Close,5 Minutes,15 Minutes,30 Minutes,1 Hour,2 Hour,4 Hour,
8 Hour,24 Hour
Restore to default factory configuration
Hardware
Address
Show firmware version
Show device address
Print self test Press the Eject Button to print the Diagnostic Page.
Parameters (Contents)
Main Menu - Settings

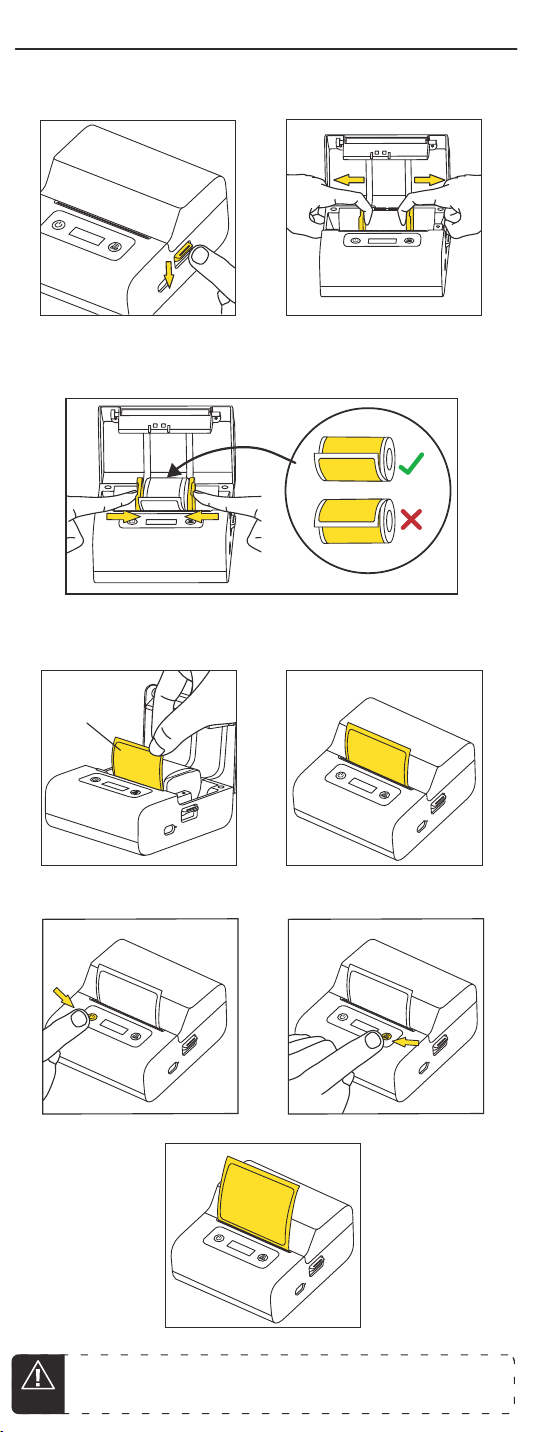

05. Paper Roll Installation
① Press the cover opening button on the
right side of the fuselage to open the paper
compartment cover.
② Slide the paper holders outward with
both hands.
④ Leave about 15mm of label extending out of the paper output slot, and close the
paper compartment cover.
Pull out
15 mm
③ Put the label paper roll (printing side down) into the paper compartment, and slide the
paper holders on both sides to hold the label paper roll in place.
NOTE
· On your first use or after you have replaced the label paper, the printer
automatically ejects paper to reposition the label paper. This helps avoid printing
errors (incomplete print, non-centered content, etc.).
⑥ Press the Eject Button once to
reposition the label paper.
⑦ The label is repositioned once ejected.
⑤ Hold the Power Button for 3 seconds.
06. Downloading the App
Method 1:
Scan the QR code with your phone to
install the App.
Method 2:
Search for the "Print Master" App in the
app store to download the App.
Print Master
07. Connecting the Printer
② Open Print Master App.
③ Tap the " " button to
search for your device.
Connect now
④ Press "Start using".
Location Services
Privacy
On >
NOTE
· Please connect the printer through the App after the Bluetooth is turned on.
· Google requires Android mobile phones to turn on their location before they can
use the Bluetooth function.
· When connecting your printer to the App, please make sure both the printer and
your phone’s Bluetooth are turned on.
① Turn on your phone’s Location
(Android phones only).
08. Identifying the Label Size
You need to set the label size or template in the App before printing. Please follow the
instructions to find the correct label size.
Method 1:
Check your label package.
Method 2:
Measure with a ruler.
30mm
40mm
0
1 2 3
(cm)
Product:Square label
Model:XP4030-230
Detail:White
Spec:40*30mm/230pcs
