Triton 1000Rz
• Equipped and compatible Intel ATX 3.1 specification standard with Gen5 12V-2x6 PCIe connector
• Latest PCIe Gen 5 standard to support up to 2X power excursion
• Silent running 120mm FDB cooling fan
• Black / White embossed cable design
• Full Japanese electrolytic capacitors
• High efficiency with Cybenetics Gold certification
• 24/7 continuous power output with 40℃ operating temperature
• Compact design with a 140mm depth for easy integration
Triton Series
Cybenetics Gold 1000W PCIe 5 Fully Modular ATX Power Supply
SPECIFICATION
SilverStone Triton Series
Triton 1000Rz
SST-TR1000R-GM / SST-TR1000R-GM-WWW
ATX Switching Power Supply
Cybenetics Gold efficiency certified.
1000W
01
1.1 VOLTAGE
1.2 FREQUENCY
47Hz ~ 63Hz
1.3 CURRENT
115Vac/12.0A max. 230Vac/6.0A max.
1.4 INRUSH CURRENT
150A max. when ac input 230Vac and 25⁰C cold start.
1.5 POWER EFFICIENCY
Meet 80 Plus Gold requirement at 115Vac input
2% load efficiency>60%
1. INPUT:
MINIMUM NOMINAL MAXIMUM UNITS
90 100-240 264 Vrms
Loading +12V +5V +3.3V -12V +5Vsb
Required minimum
efficiency
20% 14.79A 2.36A 2.36A 0.05A 0.45A 87%
50% 36.98A 5.91A 5.91A 0.13A 1.11A 90%
100% 73.97A 11.81A 11.81A 0.27A 2.23A 87%
02
1.6 LEAKAGE CURRENT
1.7 POWER FACTOR
＊ The continuous total output power is 1000W max.
• The combined power of +5V and +3.3V is 110W max.
• Peak currents may last up to 12 seconds with not more than one
occurrence per minute.
＊ Add 0.1uF and 10uF capacitors across output terminal during ripple &
noise test.
＊ LOAD REGULATION TEST TABLE:
3.5mA max.
PF > 0.96 at 230Vac input and full load
1.8 ErP REQUIREMENT
Meet ASM and ErP Lot 3 2014
2 OUTPUT:
Voltage
+5V +3.3V +12V -12V +5Vsb
＊
Max load
20.0A 20.0A 83.3A 0.3A 3.0A
Min load
0.0A 0.0A 0.0A 0.0A 0.0A
Peak load
-- -- -- -- 3.0A
＊
Combined power
110W -- -- --
＊
Regulation
+3,-3% +3,-3% +3,-3% +10,-10% +3,-3%
＊
Ripple & Noise
30mV 30mV 40mV 50mV 30mV
+5V +12V +3.3V -12V +5Vsb
LOAD1
0.0A 0.0A 0.0A 0.0A 0.0A
LOAD2
5.0A 0.0A 5.0A 0.1A 0.1A
LOAD3
15.4A 1.0A 10.0A 0.1A 0.5A
LOAD4
20.0A 4.0A 3.0A 0.2A 1.0A
LOAD5
8.8A 10.0A 20.0A 0.2A 2.5A
LOAD6
0.0A 83.0A 0.0A 0.3A 0.5A
LOAD7
11.81A 73.97A 11.81A 0.3A 0.0A
03
TTL High/PS-OFF; TTL Low/PS-ON
VIL=0.8Vmax, IIL=-1.6mAmax @Vin=0.4V
VIH=2.0Vmin @Iin=-200uA, VIH=5.25Vmax @open ckt.
2.1 REMOTE ON/OFF
1.17msec (minimum) at 80% load 115Vac/230Vac input.
2.12msec (minimum) at 100% load 115Vac/230Vac input.
2.2 HOLD-UP TIME
100-150 msec.
2000 msec max.At nominal line full load.
DC output transient step sizes as below table:
Load-changing repetition rate of 10m seconds.
Load slew rated 1.0A/uS and capacitive load as below :
2.3 POWER GOOD DELAY
＞1 msec.
2.4 POWER FAIL DELAY
2.5 TURN-ON DELAY TIME
2.6 TRANSIENT OVERSHOOT
PCI-E CEM5 100% to 200% for power excursion
Output voltage +5V +3.3V +12V
Max. step size 30% 30% 60%
+5V +3.3V +12V -12V +5Vsb
10000uF 10000uF 10000uF 470uF 3300uF
Power Excursion
% of PSU
Time for Power
Excursion (TE)
Time
Constant (TC)
Duty Cycle
100%
Infinite
--- ---
120% 100ms 300ms 25%
160% 10ms 70ms 12.5%
180% 1ms
11.5ms
8%
200% 100us 1900us 5%
04
+3.3V and +5V: 35% of full load
● Other loads remain constant within the rating.
● Load waveform
○ Square wave.
○ Slope of rise and fall at 5.0A/μS.
○ Frequency from 50Hz to 10KHz.
● DC output voltage will stay within regulation of +5/- 8% during the step load changes
(+12VCapacitive Load 6600uF)
+3.3V output 4.5 Vmax.
+5.0V output 7.0 Vmax.
+12.0V output 15.6 Vmax.
3.1 OVER VOLTAGE PROTECTION
All output to GND.
3.2 SHORT PROTECTION
125%~160% full load
+3.3V output： 24A-38A.
+5.0V output： 24A-38A.
+12.0V output： 107.9A-132.8A
3.3 OVER POWER PROTECTION
3.4 OVER CURRENT PROTECTION
Protection temperature is 45 to 55 at 115V and full load
3.5 OVER TEMPERATURE PROTECTION
4.1 OPERATING TEMP. 0 to +40
4.2 STORAGE TEMP. -20 to +70
4.3 OPERATING HUMIDITY 20% to 90%,non-condensing
4.4 STORAGE HUMIDITY 5% to 95%, non-condensing
2.7 RISE TIME
20ms max at full load.
3. PROTECTION:
4. ENVIRONMENT:
When OVP ,OPP ,OCP,OTP or short protection is triggered, the main outputs will be latched off.
The main outputs can be reset by cycling the DC remote on/off or AC power. +5Vsb output is
auto recovery when fault condition removed.
05
4.5 OPERATING ALTITUDE 0 to 10,000 feet
4.6 STORAGE ALTITUDE 0 to 50,000 feet
5.1 PRIMARY TO SECONDARY
5. HI-POT:
1800Vac for 1 minute
6.1 CONDUCTED EMI
6. SAFETY AND EMC REQUIREMENTS
7. MTBF at 25(demonstrated)
1.MEET FCC:Class B
2. MEET CISPR 22： Class B
6.2 SAFETY STANDARDS
1. MEET TUV (EN 62368-1)
2. MEET CB (IEC 62368-1 )
3. MEET CE
6.3 HARMONIC
100K hrs minimum
8. DIMENSIONS
WxLxH=150x140x86mm
MEET IEC61000-3-2,Class D

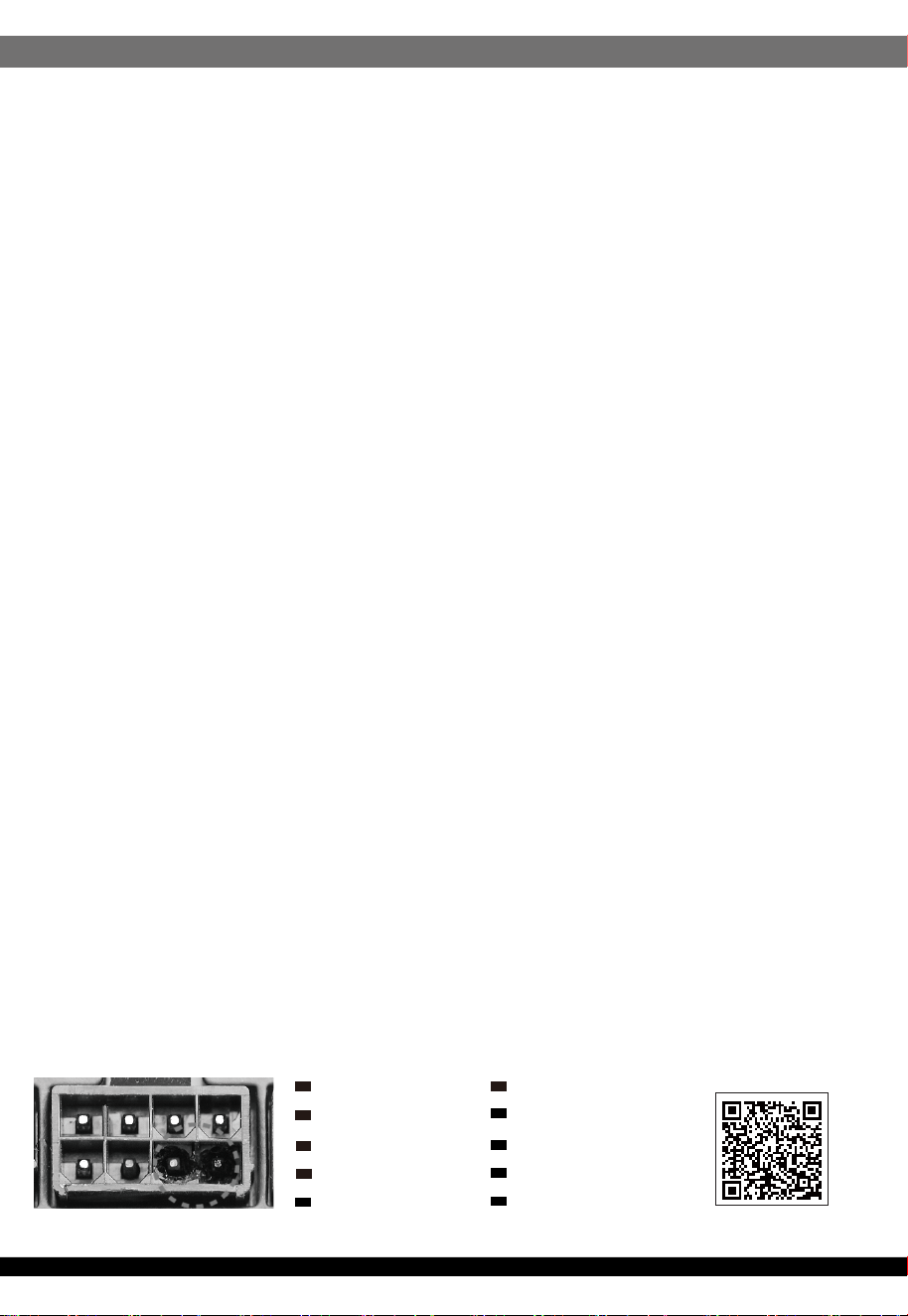

9. POWER SUPPLY CONNECTOR OVERUSE DEFINITION
Definition einer Überlastung des
Netzanschlusses
DE
Définition de l'utilisation excessive du
connecteur d'alimentation électrique
FR
Definizione di uso eccessivo del connettore
di alimentazione
IT
Definición de uso excesivo del conector de
la Fuente de alimentación
ES
Определение чрезмерной нагрузки на
коннектор блока питания
RU
電力供給コネクタの使用限度超過に関する説明
JP
⬉⑤կᑨ఼༈䖛ᑺՓ⫼ᅮН
CN
䳏⑤կឝ఼丁䘢ᑺՓ⫼ᅮ㕽
TW
ขีดจำกัดการรองรับการใช้งานของขั้วต่อจากพาวเวอร์ซัพพลาย
TH
전원 공급 커넥터 과용 정의
KR
⚎њֱ䅋Փ⫼㗙ঞ䰆☿ⱘⳂⱘˈᅝ㺱ℸѸᓣ䳏⑤կឝ఼ᰖˈᖙ䷜ᅝ㺱ᮐヺড়ϟ߫䷙㽕∖ⱘ←Ёˈ
ϺϨᅝ㺱ཹᕠˈᠡৃϞ䳏⑤DŽ
←ᴤ䊾䷜⚎䰆☿←DŽᴤ䋼乏Ў䰆☿DŽ
←ⱘϞᮍঞو䙞П೧ᔶ䭟ᄨˈ᳔ܻᕥϡৃᮐPPDŽ
←ⱘϞᮍঞو䙞П䭋ṱൟ䭟ᄨˈᇡ㾦㎮䎱䲶ϡৃᮐPP˗㢹ᇀᑺᇣᮐPPˈࠛ䭋ᑺϡফ䰤ࠊDŽ
←ᑩ䚼ϡৃ᳝䭟ᄨDŽᑩ䚼ϡৃ᳝ᓔᄨDŽ
ⳈᕥϡᮐPP
ᇡ㾦㎮ϡᮐPP
ᇀᑺᇣᮐPPࠛ䭋ᑺϡ䰤

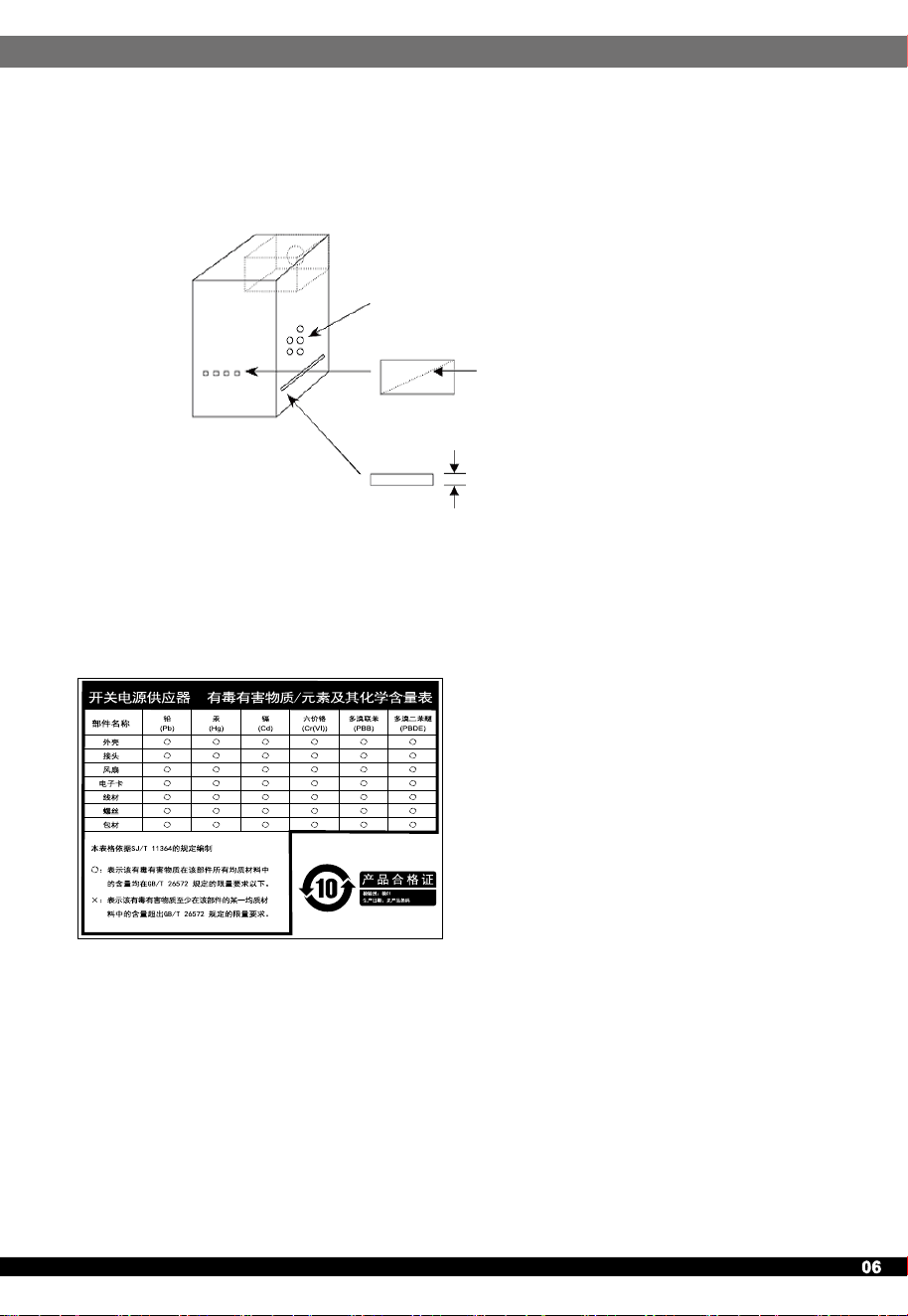

Openings that do not exceed 1mm in width regardless of length
Openings that do not exceed 5mm in any dimension
ᴀ⫶ક䔌ߎ᳝䱾㛑䞣ˈ⚎䙓ܡ᪡ᰖⱐ⫳䱾ˈ䷜ᮐ㺱ܹ㋏㍅″←Ϻᇛ᠔᳝䀁٭ᅝ㺱ཹ⭊ᕠᠡৃ䭟ଳ䳏⑤DŽ
ᴀ⫶કП䳏⑤䔌ߎ䴲ቀ䳏䰤ࠊൟ䳏⑤ˈ䂟䗷Փ⫼䰆☿←П䙞ˈҹ䙓ܡ☿♑䱾ⱐ⫳DŽ
%60,52+6䊛㿞
KWWSZZZVLOYHUVWRQHWHNFRPGRZQORDGV36856'SGI
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Please refer to SilverStone website for latest specifications updates.
The equipment a Class | Switching Power Supply intended to use
for information technology equipment or Audio and Video equipment.
※付属の電源コードは当該製品専用です。他の機器に使用しないでください。
Model (safety certification):SST-AX1000MCGD-C
SST-TR1000R-GM / SST-TR1000R-GM-WWW
NO.G11254440
