USER MANUAL
PORTABLE NUGGET ICE MAKER
Model No.: HZB-20DN
Thank you for purchasing this product! Please read the instructions carefully before using
your portable ice maker. If you have any question about the product, please contact us via
our customer
Web: www.antarctic-star.com
Email: service@antarctic-star.com
Tel: 213-446-7172
TABLE OF CONTENT
IMPORTANT SAFETY INSTRUCTIONS…………………………………………………1
IMPORTANT SAFETY TIPS……………………………………………………………….2
GETTING TO KNOW YOUR UNIT………………………………………………………..3
PREPARING YOUR ICE MAKER FOR USE…………………………………………….4
USING YOUR ICE MAKER………………………………………………………………...5
How to start the unit……………………………………………………………………........5
System Cleaning/Sanitizing Procedure……………………………………………….......6
How to obtain the ice-cube………………………………………………………………....8
TROUBLESHOOTING………………………………………………………………….......9
2
We have provided many important safety messages in the manual for your appliance.
Always read and obey all safety messages.
This is the safety alert symbol:
!
All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”
.
These words mean:
You can be seriously injured if you don’t immediately
follow instructions.
All safety messages inform you what the potential hazards are, how to reduce the chances of injury, and
what will happen if the instructions are not followed.
Your safety and the safety of others are very import ant.
IMPORTANT SAFETY INSTRUCTIONS
DANGER
WARNING
1
3
When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire,
electric shock, and injury to persons or property. Read all instructions before using any appliance.
z
z
z
z
Do not operate this , or any other appliance with a damaged cord.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
This ice-maker must be positioned where the plug is acce
ssible.
Connect to properly ground ed outlets only. No other appliance should be plugged into the same
outlet. Be sure that the plug is fully inserted into the receptacle.
z Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep cord
away from traffic areas, and do not submerge it in water.
z We do not recommend the use of an extension cord, as it may overheat and become a risk of f ire. If
you must use an extension cord, use N o.14AWG minimum size a
nd rated no less than 1875 watts.
z Unplug the ice maker before cleaning or making any repairs or servicing.
z Exercise caution and use reasonabl e supervision when appliance is used near childre n.
z Do not use your ice-maker outdoors. Place the ice-maker away f rom direct sunlight and make sure
that there is at least 6 inches of space between the back of your unit and wall. Keep a minimum
distance of 6 inches on each side of your unit free.
z Do not use other liquids to make the ice-cub
e other than water.
z Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.
z Do not tip over.
z
z
If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to room
temperature before plugging it in.
WARNING: This ap pliance must be earthed.
IMPORTANT:
The wires in this mains lead are colored in accordance with the following code:
Green or Green with a strip of yellow: Grounding
White: Neutral
Black: Live
To av
oid a hazard due to instability of the applian ce, it must be placed at an even or flat surface.
IMPORTANT SAFETY TIPS
2
4

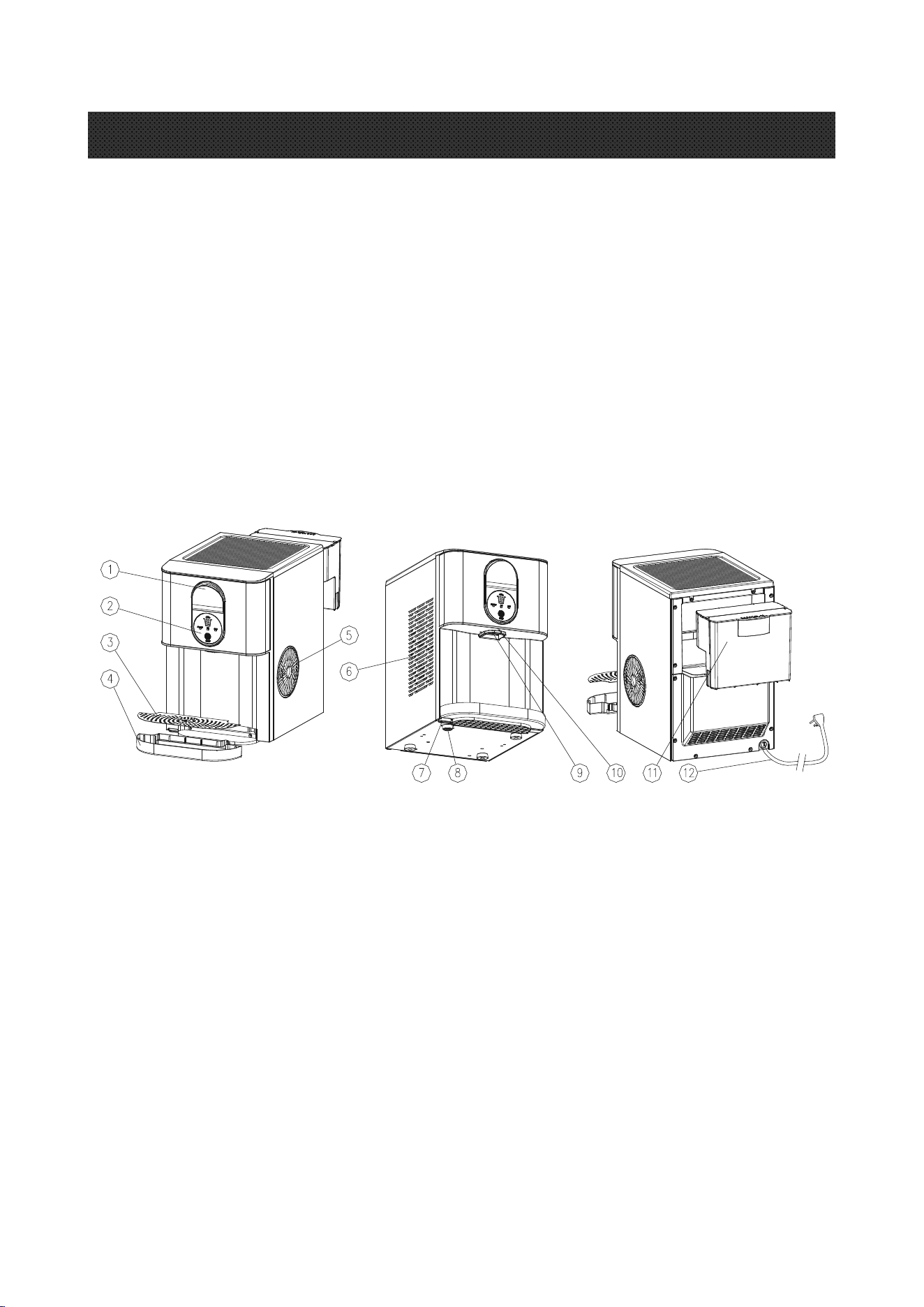

1.Wrench for the door of ice exit passage.
2.Control Panel .
3.Cover for drip tray.
4.Drip tray.
5.Hot Air outlet
6.Metal shell.
7.Water drain cap 1: at the front btm side of the unit (Drain the water inside the machine).
8.Water drain cap 2: at the front btm side of the unit (Drain the water stored inside the machine due to
accidental overflow).
9.Ice outlet .
10.Light.
11.Water reservoir.
12.Power cord.
GETTING TO KNOW YOUR UNIT
3
5
DANGER
1. Remove the exterior and interior packaging, and then check all the accessories are included. If any
part is
missing, please contact our customer service.
2. Remove all the tapes on the unit; take out the accessory parts inside.
3. Clean the interior with lukewarm water and a soft cloth.
4. Locate your ice maker on a level counter table far from direct sunlight and other sources of heat (i.e.:
stove, furnace, and radiator). Make sure that there is at least 6 inches between the back an
d sides of
your ice maker with the wall.
5. Allow 2 hours for the refrigerant fluid to settle down before plugging your ice maker in.
6. The power plug must be accessible directly.
WARNING: Fill it with pure water only. Only use drinking water.
*
*
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord
is damaged, please call our customer service.
1. This unit should be properly grounded for your safety. The power cord of this appliance is equi
pped
with a grounding plug which mates with standard grounding wall outlets to minimize the possibility of
electric shock.
2. Plug your appliance into an exclusive, properly installed, grounding wall outlet. Do not, under any
circumstances, damage the grounding means of the plug. Any questions concerning power and/or
grounding should be directed toward a certified electrician.
3. This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good groun
ding means.

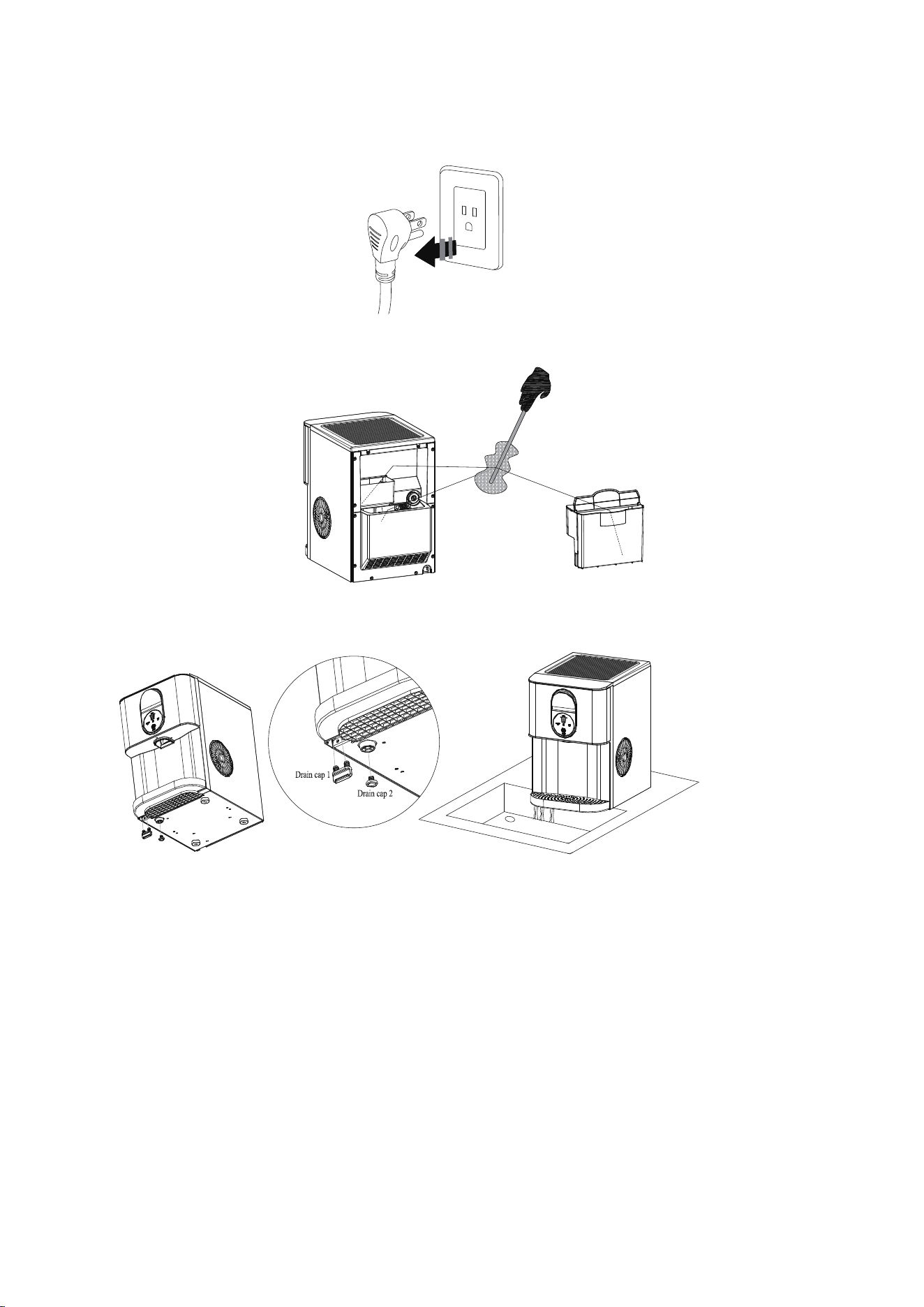

1. Move the machine to the edge of the desktop, remove the drip tray, then put a container under the
desktop, unplug the water drain cap 1&2 to drain the water inside the unit.
2. Reinsert the water drain cap 1&2, turn the back of the unit toward you, take out the water reservoir.
3. Then use the water to rinse the inside parts, and drain out the water by unplugging the drain cap on
the front bottom side.
4. The outside of the ice maker should be cleaned regularly with a mild de
tergent solution and warm
water.
5. Dry the interior and exterior with a clean soft cloth.
6. When the machine is not to be used for a long time, drain water completely & dry the interior.
PREPARING YOUR ICE MAKER FOR USE
if
Before using your ice maker, it is strongly recommended to clean it thoroughly. Unplug the unit
before cleaning or making any maintenance.
4
6
How to start the unit
1. Pour potable water into the water reservoir, 0.63 gallon (2.4 liters) of water at most at one time.

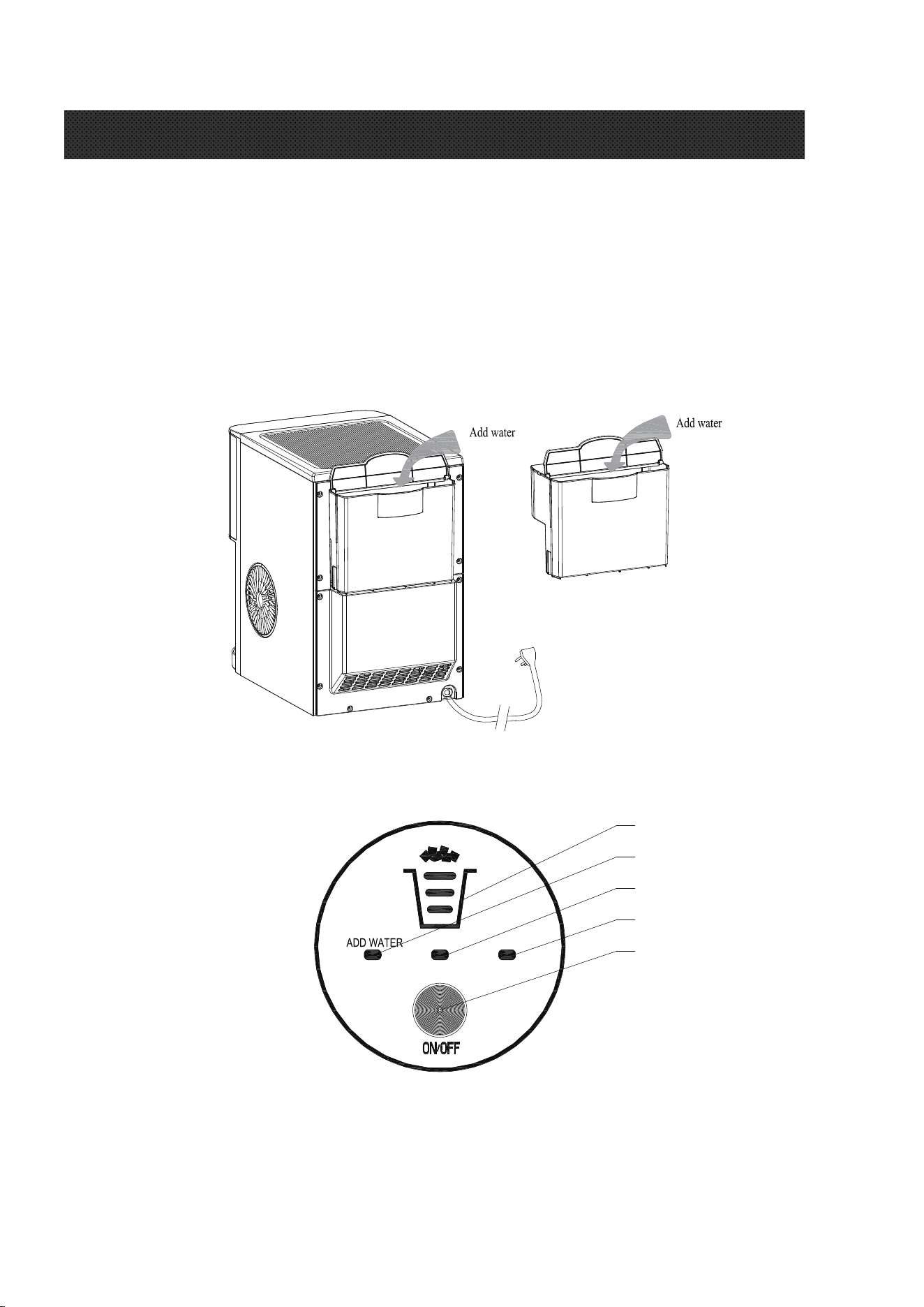

2. There are two ways to add water: Add water directly to the water reservoir at the back of the unit;
Take out the water reservoir to add water then put it back.
Note: Please mak e sure that the water tank is push ed in place, otherwise it may show water
shortage!
3. Plug in the power cord.
ICE CLEAN
A
B
C
D
E
A: Ice quantity indicator B: Add water indicator C: Making ice indicator
D: Cleaning indicator E: ON/OFF button
4. The screen is on and you can operate the appliance by touching the button on the control panel as shown
below. The main function includes ice making and cleaning.
USING YOUR ICE MAKER
5
7
System Cleaning/Sanitizing Procedure
1.Unplug the nugget ice maker.
2.Clean the water reservoir and internal water tanks with a soft brush.
3.Take off the bottom drain cap 1&2 and drain out the water to a sink.
See the figure below.

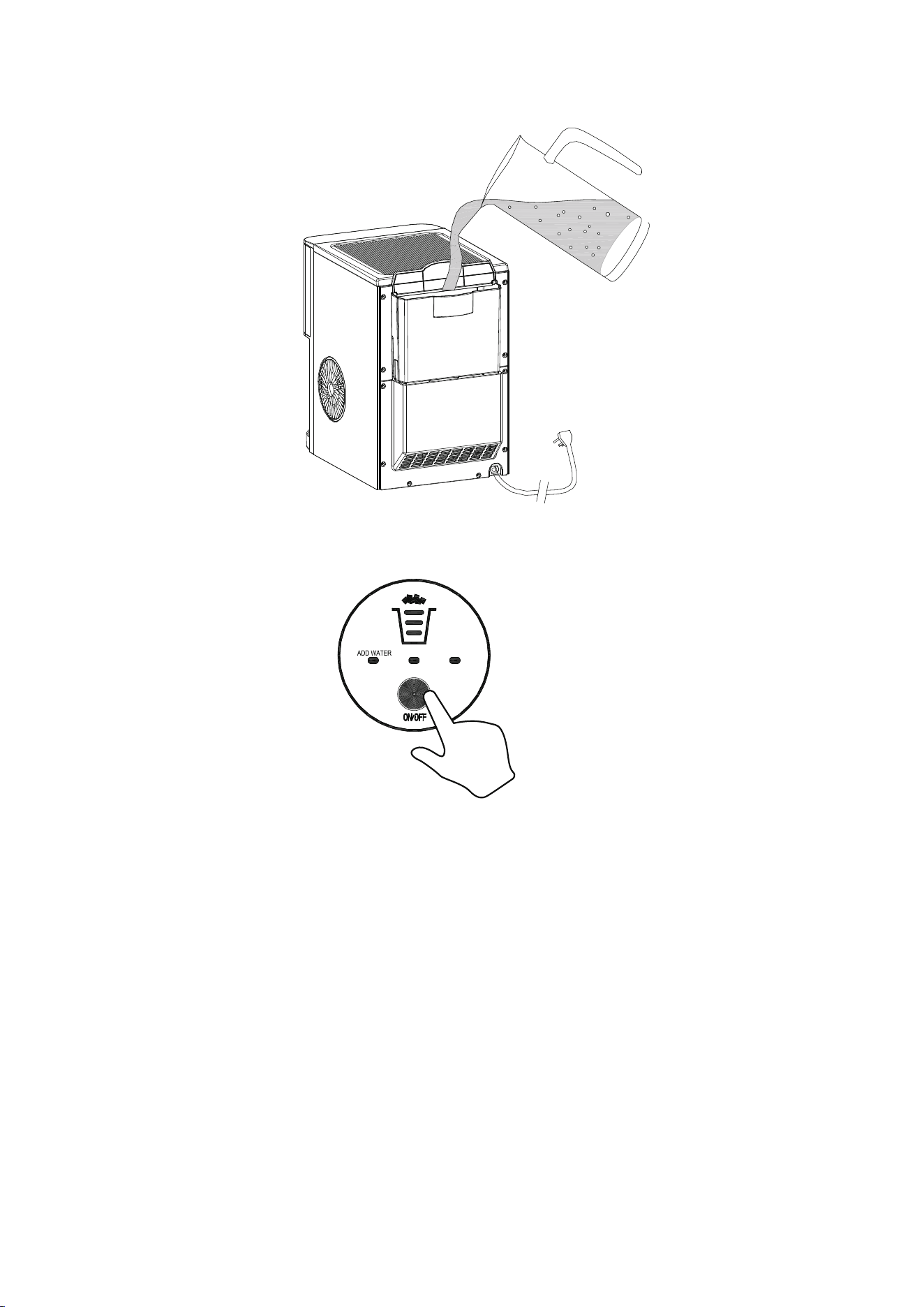

4. Produce a solution by mixing the household white vinegar with water for daily cleaning.
5.Pour the liquid into the water reservoir (2L at most) and plug in the ice maker.
6
8
6. Press the "ON/OFF" button for 5 seconds to initiate the cleaning process. After about 10 minutes, the
"Clean" indicator will be off.
7. Take off the drain cap 1 and drain out the water to a sink.
8. Repeat the step 6 to 7 with fresh water for two more cycles to rinse the inside.
9. Replace the drain cap.
ICE CLEAN
Note: For monthly cleaning of removing mineral deposits, please use the solution and then plug in to
turn on the "cleaning function" for about 5 minutes. After that, unplug it again to leave the solution in
the unit more than 12 hours.
7
9
10. When completed, fill the unit with fresh water and press the "ON/OFF" button to start ice making
process.
Note: Repla ce the water in the water reservoir every 24 hours to ensure a reasonable hygiene level.
If the
unit isn’t to be used, drain all water & dry the water reservoir.
How to obtain the ice-cube
1.
Before we start making ice, please m ake sure the water drain cap has been inserted into the
appliance; otherwise it will not work properly.
2.
Press “O N/OFF” button, the “ICE” i
ndicator will on, and it begins to work, press this button again, and
it will stop making ice.
TIPS: For the
first time, or if the applian ce has not been used for a long time, it is recommended to
clean this applianc e before you start to make ice.
3.
While the ice-maker is on, verify water level periodica lly. If water pump can’t pump out water, the ice
maker will stop auto matically, and the “Add water” indicator will on, and the “ICE” indicator will flash.
Need to pour water into the w
ater reservoir.
4.

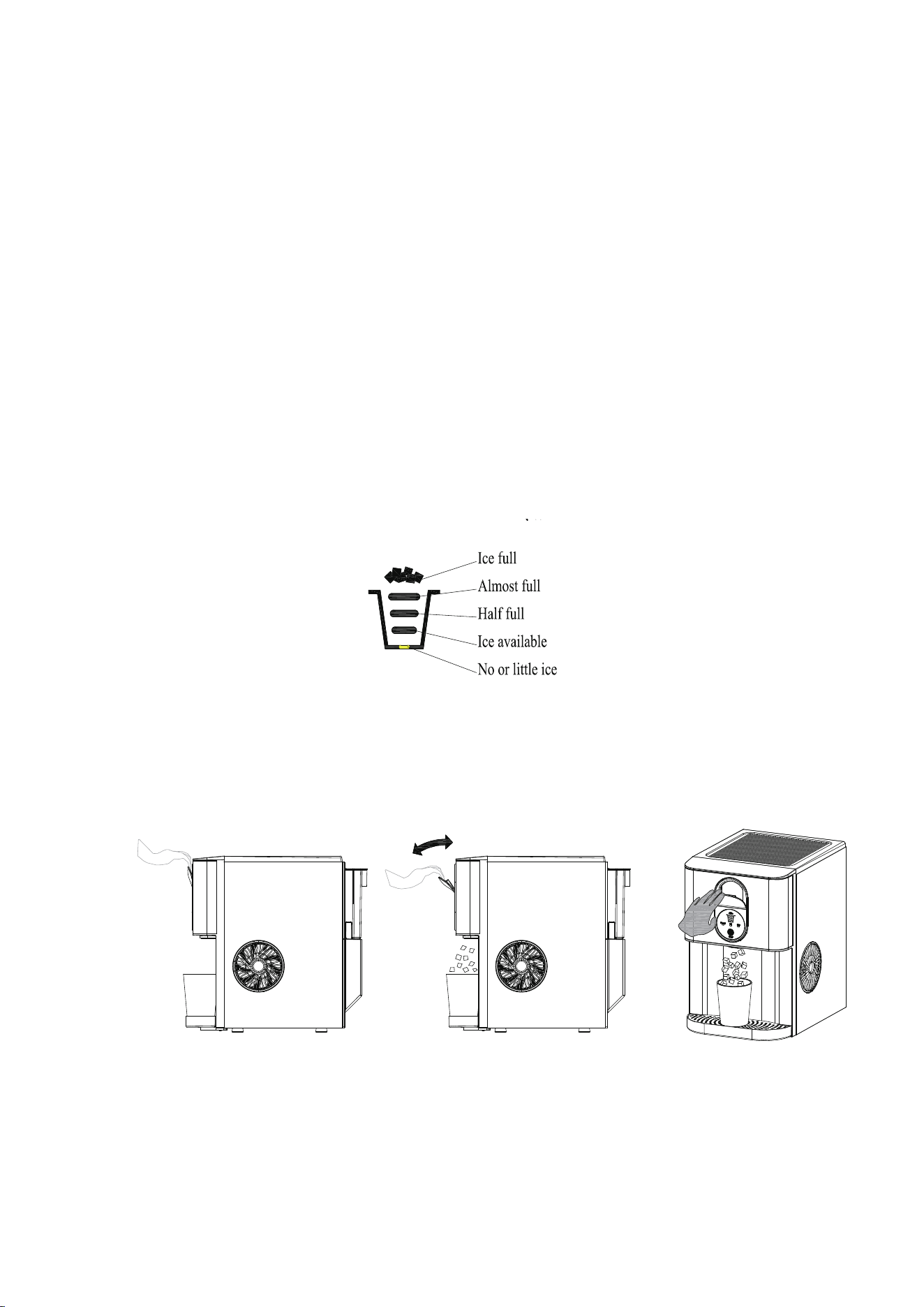

The approximate amount of ice will be displayed on the control panel. The ice maker automatically
stops working when the ice-cube is full inside and the “Ice full” indicator will be on.
5.
You can en joy your ice cubs when the control panel show “Ice available”, “Half full”, “Almost full” or
“Ice full”. Pull the wrench above the control panel, the ice cubs will drop down.
TIPSφ1.Please take out all the ice cubes inside the unit before you shutdown, in case that water may
overflow due to the ice melting.
2.Excessive water in the internal water tank will overflow to the drip tray, if there is too much
water in the drip tray, unplug the water drain cap 2 to drain the water ins ide the unit.
8
10

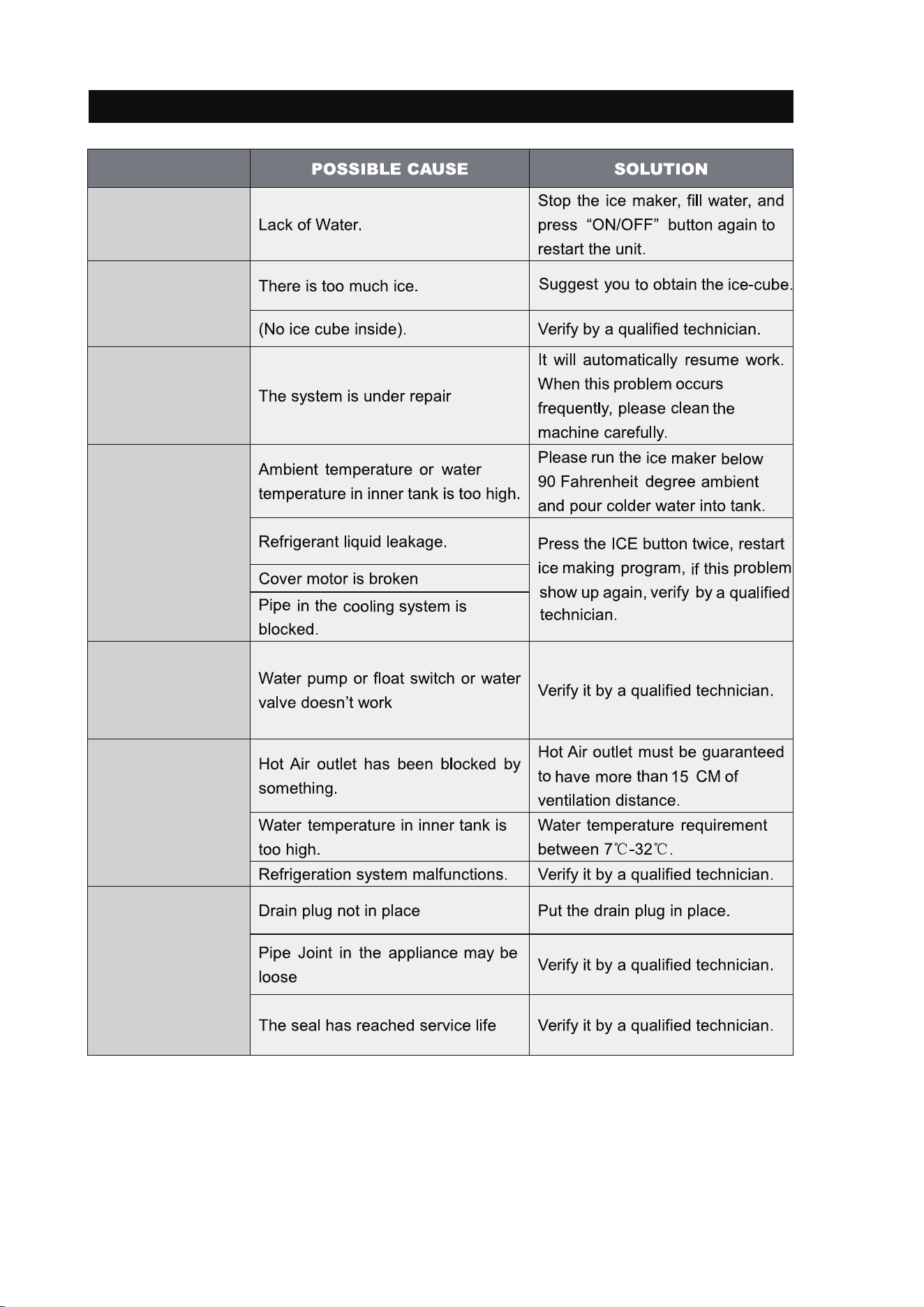

PROBLEM
“Add Water”
indicator lights up
Making
Ice
too
slowly
Water leakage
Disposal
When the unit is not to be used again, disposal of this unit’s material shall be in accordance with
national regulations.
TROUBLESHOOTING
“lce Full”
indicator lights up
or flash
“lce” indicator
lights flash
“lce” indicator
lights flash and
button turn red
“Ice”&“Add
Water” indicator
lights flash and
button turn red
9
V8
Antarctic Star
8:30am-5:30pm P.S.T.
Monday to Friday
Thank you for purchasing this product! lf you have any questions
about the product such as missing parts, damaged products, product
assembling and operation, please contact us via customer service team:
Web: www.antarctic-star.com
Email: service@antarctic-star.com
Tel: 213-446-7172
