COREXOM I9074L
M.2 MODULE
USER MANUAL
Rev. V0.1 (CIRC)
2026/02/28
P/N : SP.F1J06G003
I9074L M.2 MODULE USER MANUAL
I9074L i COREXOM
Revision History
Rev.
Date
Description
0.1
2026/02/28
1st time draft release
I9074L M.2 MODULE USER MANUAL
I9074L ii COREXOM
About This Document
Illustrations in this documentation might look different from your product.
Depending on the model, some optional accessories, features, and software
programs might not be available on your device.
Depending on
the
version of operating systems and programs, some user interface
instructions might not be applicable to your
device
.
Documentation content is subject to change without notice. Coretronic Reality Inc. (CRI)
makes constant improvements on the documentation of your computer, including
this
guidebook.
I9074L M.2 MODULE USER MANUAL
I9074L iii COREXOM
Index of Contents
1. Introduction ..................................................................................................................... 1
2.
Features and Specification
.............................................................................................. 1
3. Interface .......................................................................................................................... 2
3.1
Major interface Connector location
..................................................................... 2
3.2 MIMO RF Channels’ configuration ..................................................................... 2
3.3 M.2 Pin Assignment ........................................................................................... 3
3.4 Power Rated ...................................................................................................... 4
4. Mechanical Specification ................................................................................................. 5
4.1
I9074L M.2 module Mechanical dimensions
...................................................... 5
4.2 Weight ............................................................................................................... 5
5. Product Marking, Ordering and Shipping Info. ................................................................ 5
5.1 Product Marking (Label) .................................................................................... 5
6. Compliance Statements .................................................................................................. 6
7. RF Certification Notice .................................................................................................... 7
I9074L M.2 MODULE USER MANUAL
I9074L 1 COREXOM
1. Introduction
CRI I9074L is a high perform M.2 module to leverage QCN9074 chip with Qualcomm®
802.11ax technology which is a highly integrated wireless local area network (WLAN)
system-on chip (SoC) for 2.4/5/6 GHz IEEE802.11ax/ac/n/g/b/a applications. QCN9074
performs AP and STA functionality with 4x4 MIMO and 4 spatial streams. The
QCN9074 is a dual-synthesizer WLAN radio with native 160 MHz support, and through
PCIe to access for Enterprise Access Points and Campus deployments.
The QCN9074 chip platform is a single band 4x4 802.11 ax WLAN. The I9074L M.2
module is includes 2.4 GHz and 5 GHz, however it only works in either 2.4 GHz or 5
GHz, not dual band operation.
2. Features and Specification
The following table shows the detailed features and Spec. of I9074L M.2 module.
Key features of I9074L M.2 module
Item
Description
Chip Platform
Qualcomm QCN9074
Technology
Wi-Fi 6, IEEE 802.11ax/ac/n/g/b/a
MIMO
4T4R
Frequency
US : 2412MHz~2462MHz, 5180MHz~5240MHz / 5745MHz~5825MHz
JP : 2412MHz~2472MHz, 5180MHz~5240MHz
RF signal B.W
FCC 20MHz /40MHz, JP 20MHz
Data rate (Max.)
UDP 240 Mbps, TCP 140 Mbps (via 20MHz B.W)
RF Tx Power
≦ 24dBm @ 2.4GHz
≦ 24dBm @ 5GHz
RF Rx Sensitivity
-95 dBm @ 20MHz
Interfaces
2 lanes PCIe Gen 2, over M.2 (E key)
Power Supply
3.3V, 5V on M.2
Power
Consumption
2.4GHz 4T4R < TBC
5GHz 4T4R < TBC
Dimension
53 x 31 x 4.3 mm
Weight
Around 16 g
Operation Temp.
-20 ~ 70 ℃
Storage Temp.
-20 ~ 70 ℃
Device Driver
Ubuntu Driver for QBR5165
I9074L M.2 MODULE USER MANUAL
I9074L 2 COREXOM
Notice :
When using, be sure to connect the antenna as a load at the antenna terminal
to prevent no-load reflection from damaging the PA.
3. Interface

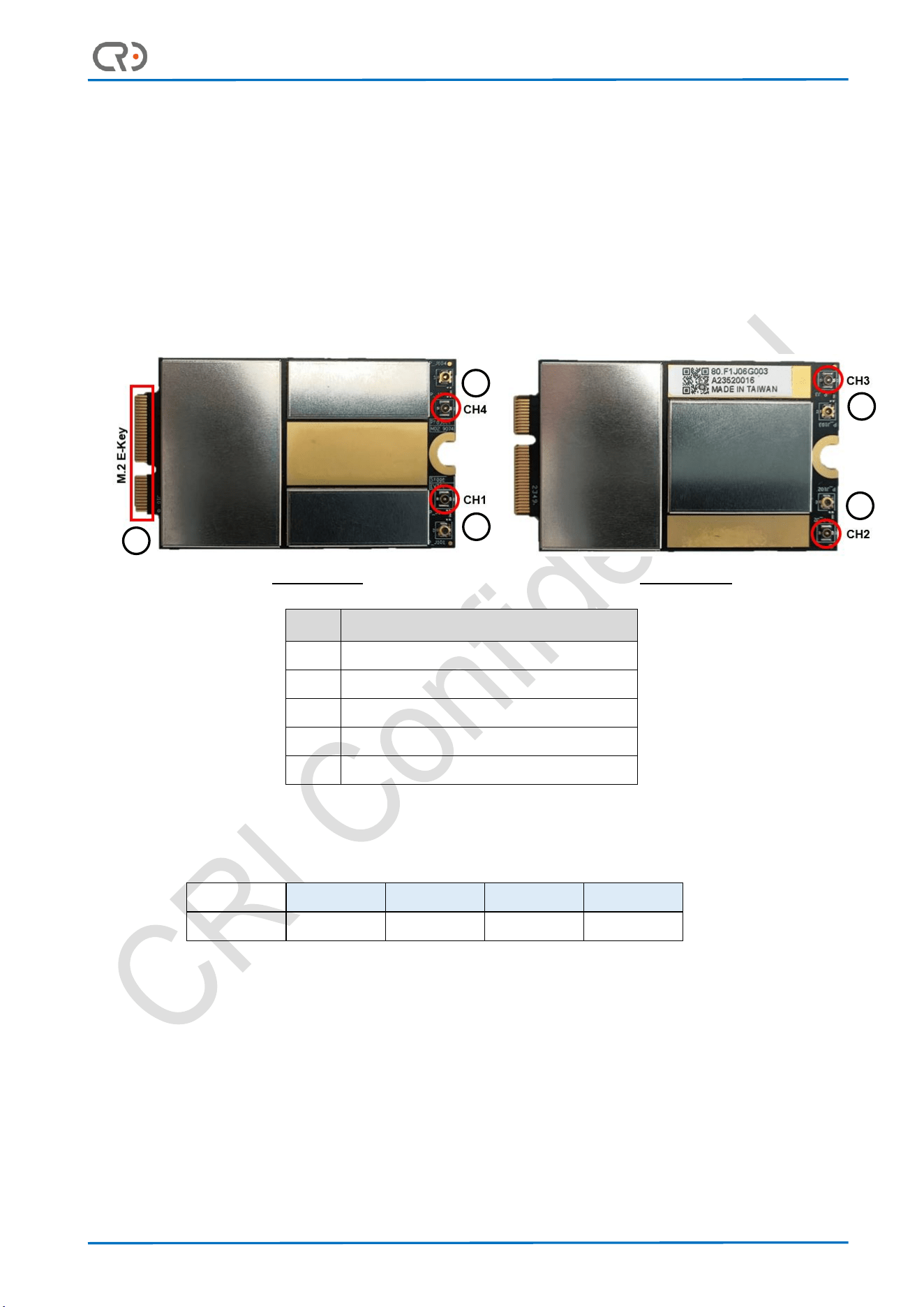

3.1 Major interface Connector location
Below picture identify the major interface connectors found on the I9074L M.2 module
No.
Function Description
1
IPEX4 ANT Conn, CH 1
2
IPEX4 ANT Conn, CH 2
3
IPEX4 ANT Conn, CH 3
4
IPEX4 ANT Conn, CH 4
5
M.2 E-Key pins array
3.2 MIMO RF Channels’ configuration
I9074L M.2 module can be configured MIMO models listed in below
CH1
CH2
CH3
CH4
4T/4R
TX/RX
TX/RX
TX/RX
TX/RX
RF Antenna Connect type : I-PEX MHF4, P/N : 20449-001E-03
TOP VIEW
BOT VIEW
1
2
3
4
5
I9074L M.2 MODULE USER MANUAL
I9074L 3 COREXOM

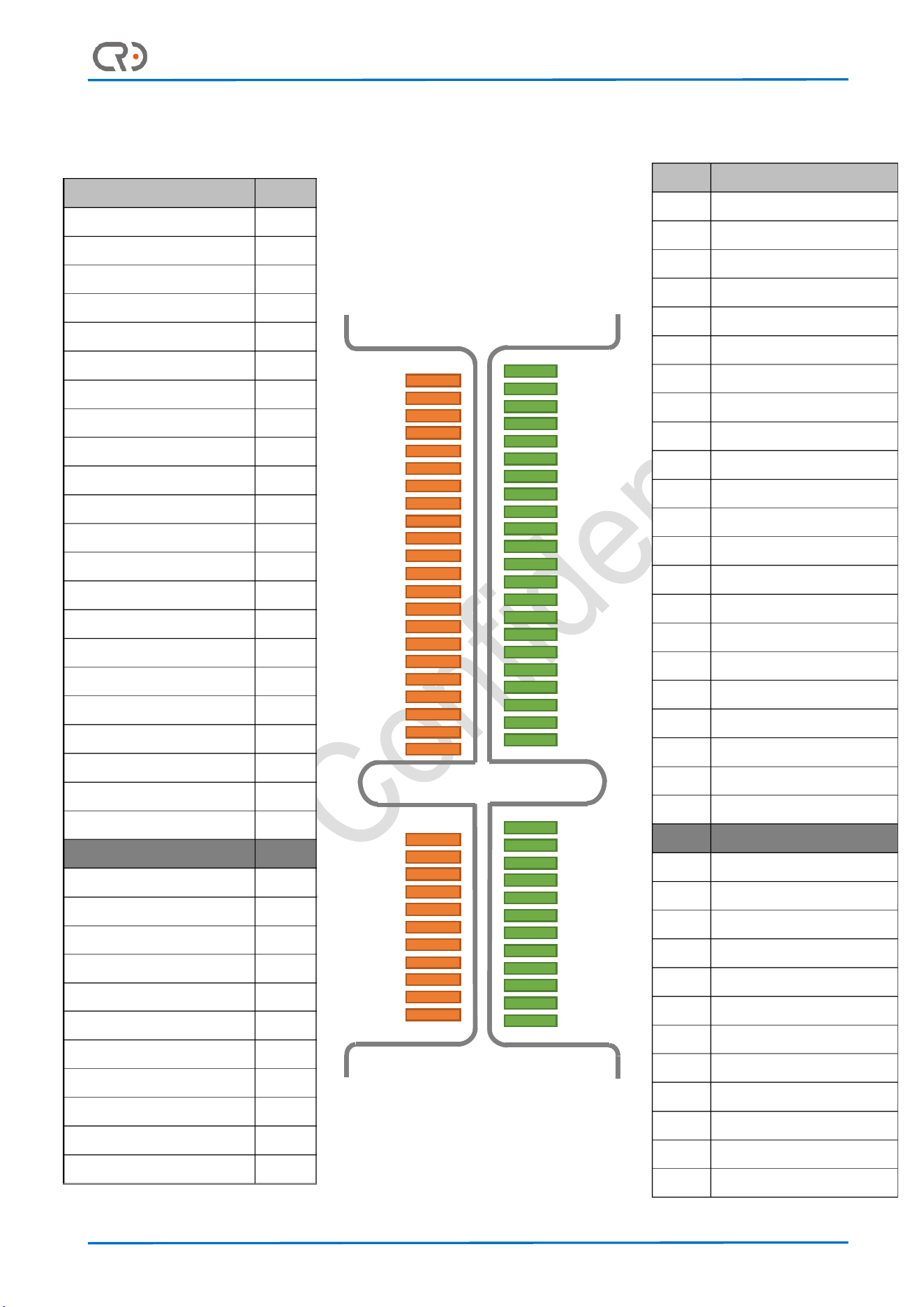

3.3 M.2 Pin Assignment
The following figure shows the M.2 pin assignment of the module
.
TOP
BOT
PIN 1
PIN 2
PIN 23
PIN 22
PIN 33
PIN 32
PIN 74
PIN 75
M.2 E-Key
Pin #
Pin Name
75
GND
73
NA
71
NA
69
GND
67
PCIE0_TX1_N
65
PCIE0_TX1_P
63
GND
61
PCIE0_RX1_N
59
PCIE0_RX1_P
57
GND
55
PCIE0_WAKE_N
53
PCIE0_CLKREQ_N
51
GND
49
PCIE0_REFCLK_N
47
PCIE0_REFCLK_P
45
GND
43
PCIE0_TX0_N
41
PCIE0_TX0_P
39
GND
37
PCIE0_RX0_N
35
PCIE0_RX0_P
33
GND
31-25
NOTCH
23
VDD_XPA_PCIE
21
VDD_XPA_PCIE
19
VDD_XPA_PCIE
17
VDD_XPA_PCIE
15
VDD_XPA_PCIE
13
VDD_XPA_PCIE
11
VDD_XPA_PCIE
9
TP9
7
GND
5
NA
3
NA
1
GND
Pin Name
Pin #
VDD_3P3_PCIE
74
VDD_3P3_PCIE
72
NA
70
NA
68
NA
66
NA
64
NA
62
NA
60
NA
58
PCIE0_WDIS_1P8_L
56
NA
54
PCIE0_PERST
52
NA
50
PINE_BT_ACT
48
MOD_WL_ACT
46
MOD_BT_STS
44
PINE_BT_ACT_2
42
MOD_WL_ACT_2
40
MOD_WL_STS_2
38
NA
36
NA
34
NA
32
NOTCH
30-24
NA
22
NA
20
GND
18
PCIE_LED1
16
NA
14
NA
12
WCI2_UART_RXD_PCIE
10
WCI2_UART_TXD_PCIE
8
PCIE_LED0
6
VDD_3P3_PCIE
4
VDD_3P3_PCIE
2
I9074L M.2 MODULE USER MANUAL
I9074L 4 COREXOM
The following table shows the M.2 module pin function description
Pin #
Pin name
Voltage
Type
Description
47
PCIE0_REFCLK_P
PCIe
AI,AO
PCIe Gen 3 reference clock – positive
49
PCIE0_REFCLK_M
PCIe
AI,AO
PCIe Gen 3 receive lane 0 – negative
41
PCIE0_TX0_P
PCIe
AO
PCIe Gen 3 Transmit lane 0– positive
43
PCIE0_TX0_M
PCIe
AO
PCIe Gen 3 Transmit lane 0– negative
35
PCIE0_RX0_P
PCIe
AI
PCIe Gen 3 receive lane 0 – positive
37
PCIE0_RX0_M
PCIe
AI
PCIe Gen 3 receive lane 0 – negative
65
PCIE0_TX1_P
PCIe
AO
PCIe Gen 3 Transmit lane 1– positive
67
PCIE0_TX1_M
PCIe
AO
PCIe Gen 3 Transmit lane 1– negative
59
PCIE0_RX1_P
PCIe
AI
PCIe Gen 3 receive lane 1 – positive
61
PCIE0_RX1_M
PCIe
AI
PCIe Gen 3 receive lane 1 – negative
53
PCIE0_CLKREQ_N
1P8
DO
PCIe Clock request
52
PCIE0_PERST
1P8
DI
PCIe reset signal
55
PCIE0_WAKE_N
1P8
DO
PCIe wake up signal
10
WCI2_UART_RXD_PCIE
1P8
DI
UART Rx signal
8
WCI2_UART_TXD_PCIE
1P8
DO
UART Tx signal
6
PCIE_LED0
1P8
DO
LED control
16
PCIE_LED1
1P8
DO
LED control
VDD_XPA_PCIE
5V
PI
5V power supply for external FEM
VDD_3P3_PCIE
3P3
PI
3.3V power supply for module
GND
GND
Ground
3.4 Power Rated
The recommended operating conditions for the M.2 module to meet all performance
specifications at 4T4R.
Function
Min
Typ.
Max
Unit
VDD_3P3_PCIE
3.1
3.3
3.5
V
-
820
1000
mA
VDD_XPA_PCIE
4.5
5
5.25
V
-
1700
2100
mA
I9074L M.2 MODULE USER MANUAL
I9074L 5 COREXOM
P/N Label :
NCC Certification Label :
4. Mechanical Specification

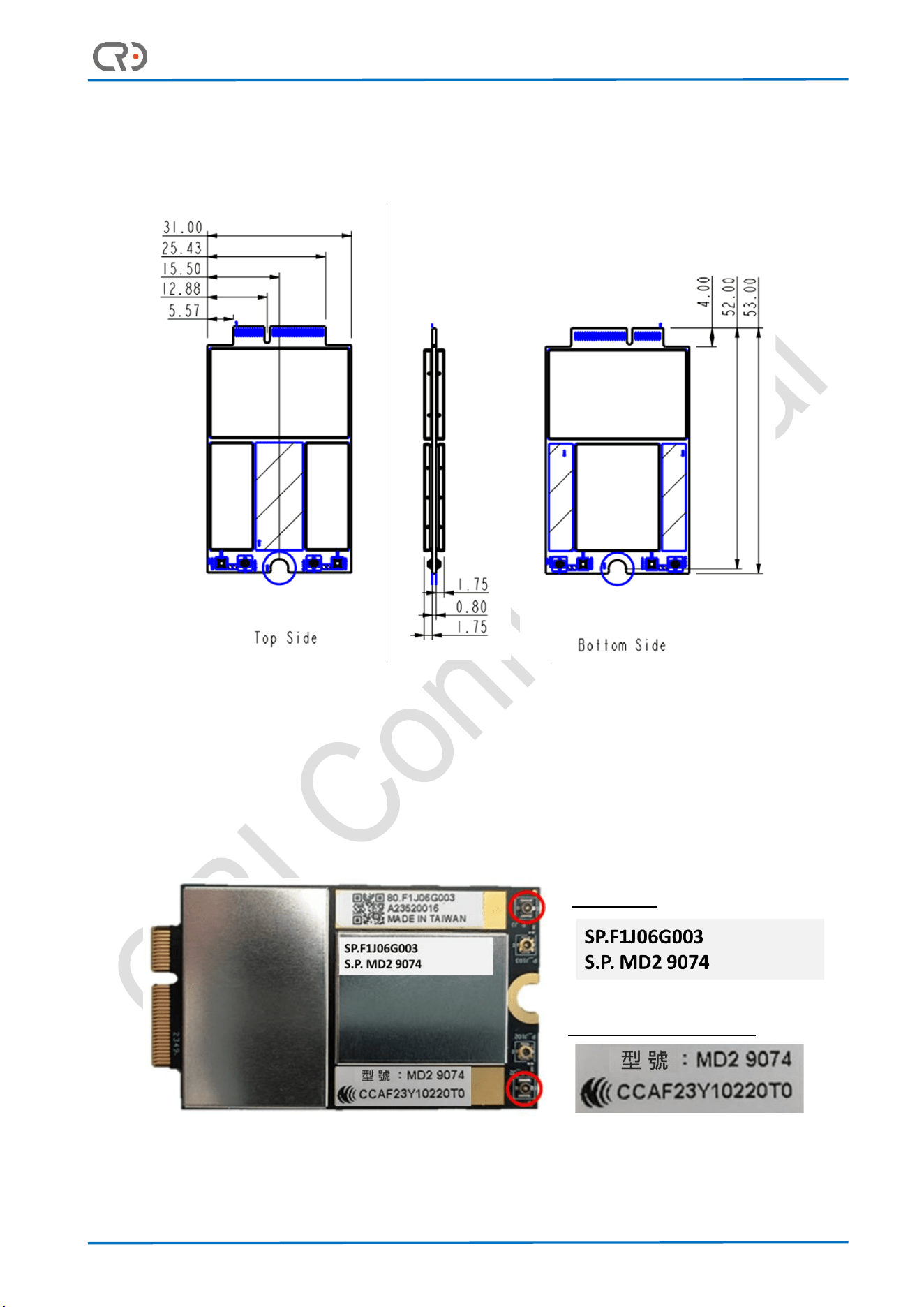

4.1 I9074L M.2 module Mechanical dimensions
4.2 Weight
Around 16 ± 2 g
5. Product Marking, Ordering and Shipping Info.
5.1 Product Marking (Label)
I9074L M.2 MODULE USER MANUAL
I9074L 6 COREXOM
6. Compliance Statements
MSL (Moisture Sensitivity Level) :
The moisture sensitivity level of this product is rated at MSL Level 2a.
Strategic Hi-Tech Commodity (SHTC) :
□ Yes (Y) / ■ No (N) , This product is not intended for use in military application.
RoHS Statement :
This product complies with the EU RoHS Directive (2011/65/EU and its amendments)
and does not contain restricted hazardous substances.
Halogen-free Statement :
This product meets halogen-free requirements and does not contain halogen elements
such as chlorine (Cl) or bromine (Br).
REACH 247 Statement :
This product does not contain any of the 247 substances of very high concern
(SVHCs) listed under the EU REACH regulation.
CMRT v6.5 :
The company adheres to the Conflict Minerals Reporting Template (CMRT v6.5)
developed by the Responsible Minerals Initiative (RMI) to disclose the sources of tin
(Sn), tantalum (Ta), tungsten (W), and gold (Au). Does this product contain conflict
minerals: □ Yes / ■ No
I9074L M.2 MODULE USER MANUAL
I9074L 7 COREXOM
7. RF Certification Notice
NOTICE
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module. The end user manual shall include all required
regulatory information/warning as shown in User manual.
Unlicensed radiator / License-exempt radiator
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may
cause undesired operation.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
List of applicable FCC rules
This module has been tested and found to comply with the following requirements for
Modular Approval.
47 CFR Part 15 Subpart C Intentional Radiators
47 CFR Part 15 Subpart E Unlicensed National Information Infrastructure Devices
47 CFR Part 15 Subpart F Ultra-Wideband Operation
Limited module procedures
by case…
RF exposure considerations
1. The host product operating conditions must be such that there is a minimum
separation distance of 20 cm (or possibly greater than 20 cm) between the antenna
radiating structures and nearby persons. The host manufacturer is obligated to
confirm the use conditions of the host product to ensure that the distance specified
in the instructions is met. In this case the host product is classified as either a
mobile device or a fixed device for RF exposure purposes.
2. If the modular transmitter to be used in a specific type of host platform and installed
such that it can be operated at closer than 20 cm to users or nearby persons,
please follow below guidance.
a. For the host product integrated with this modular transmitter as a stand-alone
configuration, the maximum conducted power from the original grant shall be
retained in order to meet SAR exemption requirements.
b. For configuration with multiple transmitters in the same host, routine evaluation
or SAR testing for the simultaneous transmission of the co-located transmitters
I9074L M.2 MODULE USER MANUAL
I9074L 8 COREXOM
according to KDB 447498 is required. The potable host product shall be
evaluated for ensuring to continue compliance FCC rule part 2.1093 & part
1.1310 by C2PC. The additional guidance for the portable host products is
provided in KDB Publication 996369 D02 and D04.
c. For the host product is not installed according to this guide, the module
certification will be invalid, and a new grant certification will be required for the
host product.
ANTENNAS
This radio transmitter has been approved by Federal Communications Commission
and Innovation, Science and Economic Development Canada to operate with the
antenna types listed below, with the maximum permissible gain indicated. Antenna
types not included in this list that have a gain greater than the maximum gain indicated
for any type listed are strictly prohibited for use with this device.
Label and compliance information
The host device integrating this module must be labeled with the following regulatory
identifiers to ensure compliance with regulations, these labels must be clearly visible
on the exterior of the host device's enclosure as required by applicable regulatory
guidelines.
Contains FCC ID: 2BPQQ-I9074L
Information on test modes and additional testing requirements
The module can be configured to continuously transmit on a specific frequency with a
fixed modulation pattern. This allows evaluation of radiated emissions and spurious
emissions in a controlled condition.
These test modes are intended for compliance testing only and must not be enabled
during normal operation of the final product.
For more detailed information, please contact the grantee for assistance with test
modes needed for module/host compliance test requirements.
Additional testing, Part 15 Subpart B disclaimer
The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC
transmitter rules) listed on the grant, and that the host product manufacturer is
responsible for compliance to any other FCC rules that apply to the host not covered
by the modular transmitter grant of certification.
The final host product still requires Part 15 Subpart B compliance testing with the
modular transmitter installed.
I9074L M.2 MODULE USER MANUAL
I9074L 9 COREXOM
Note EMI Considerations
Note that a host manufacture is recommended to use KDB996369 D04 Module
Integration Guide recommending as "best practice" RF design engineering testing and
evaluation in case non-linear interactions generate additional non-compliant limits due
to module placement to host components or properties.
For standalone mode, reference the guidance in KDB996369 D04 Module Integration
Guide and for simultaneous mode; see KDB996369 D02 Module Q&A Question 12,
which permits the host manufacturer to confirm compliance.
How to make changes
Only Grantees are permitted to make permissive changes, if the module will be used
differently than granted conditions, please contact us to ensure modifications will not
affect compliance.
