CONTRACTOR SELECT IBE ALO HOME CENTER Page 1 of 2
IBE ALO
LED High Bay
The right selection for your basic, affordable warehouse lighting – the IBE ALO luminaire
gives budget-conscious customers a reliable LED solution. The IBE ALO is designed to meet
the challenges of warehouse and light industrial applications.
FEATURES:
¡ CSA listed to 40°C ambient
¡ Save up to 60% in energy and maintenance costs over traditional sources
¡ Compact 18" housing
Catalog Number UPC Description Lumens
Input
Watts
CCT CRI Voltage Distribution
Pallet
Qty.
IBE ALO21 MVOLT SWW9 80CRI DWH 00196183778918 IBE LED Switchable High Bay 12000/16000 92/133 4000/5000K 80CRI 120-277V Medium 112
Contractor Select
™
Page 2 of 2
CONTRACTOR SELECT IBE ALO HOME CENTER
One Lithonia Way, Conyers, GA 30012 | 800-315-4963 | www.lithonia.com
TechSupport-Industrial@AcuityBrands.com | © 2018-2023 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/03/23
INTENDED USE:
Ideal one-for-one replacement of conventional lighting systems such as HID and
uorescent. For use in light Industrial applications such as warehousing and other large
indoor spaces with mounting heights ranging from 10' – 18' permitted. Certain airborne
contaminants can diminish integrity of acrylic and/or polycarbonate. Click here
for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs
and other electronic components, depending on various factors such as
concentrations of the contaminants, ventilation, and temperature at the end-
user location. Click here for a list of substances that may not be suitable for
interaction with LEDs and other electronic components.
CONSTRUCTION:
Solid steel channel and aluminum reector channel enables superior thermal performance at
warm ambient temperatures.
Frosted semi-diffuse, acrylic lens provides glare control and LED protection.
ELECTRICAL:
70% lumen maintenance at >50,000 hours.
Thermally protected driver standard. Luminaire Surge Protection Level: Designed to withstand
up to 2.5kV/3kA per ANSI C82.77-5-2015.
INSTALLATION:
Fixture suitable for suspension or surface surface mount. One pair of 36" long chain hangers
and a surface-mount bracket are included with xture. To maintain ambient listing, xture
should be mounted at a minimum plenum height of 18".
LISTINGS:
CSA listed. Damp location listed. Listed for use in ambient operating temperatures from
-20°C to 40°C. Thermal management system allows for safe operation during times when
temperatures rise to 45°C*.
WARRANTY:
2-year limited warranty. This is the only warranty provided and no other statements in this
specication sheet create any warranty of any kind. All other express and implied warranties
are disclaimed. Complete warranty terms located at:
www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
The product images shown are for illustration purposes only and may not be an exact
representation of the product.
Specications subject to change without notice.

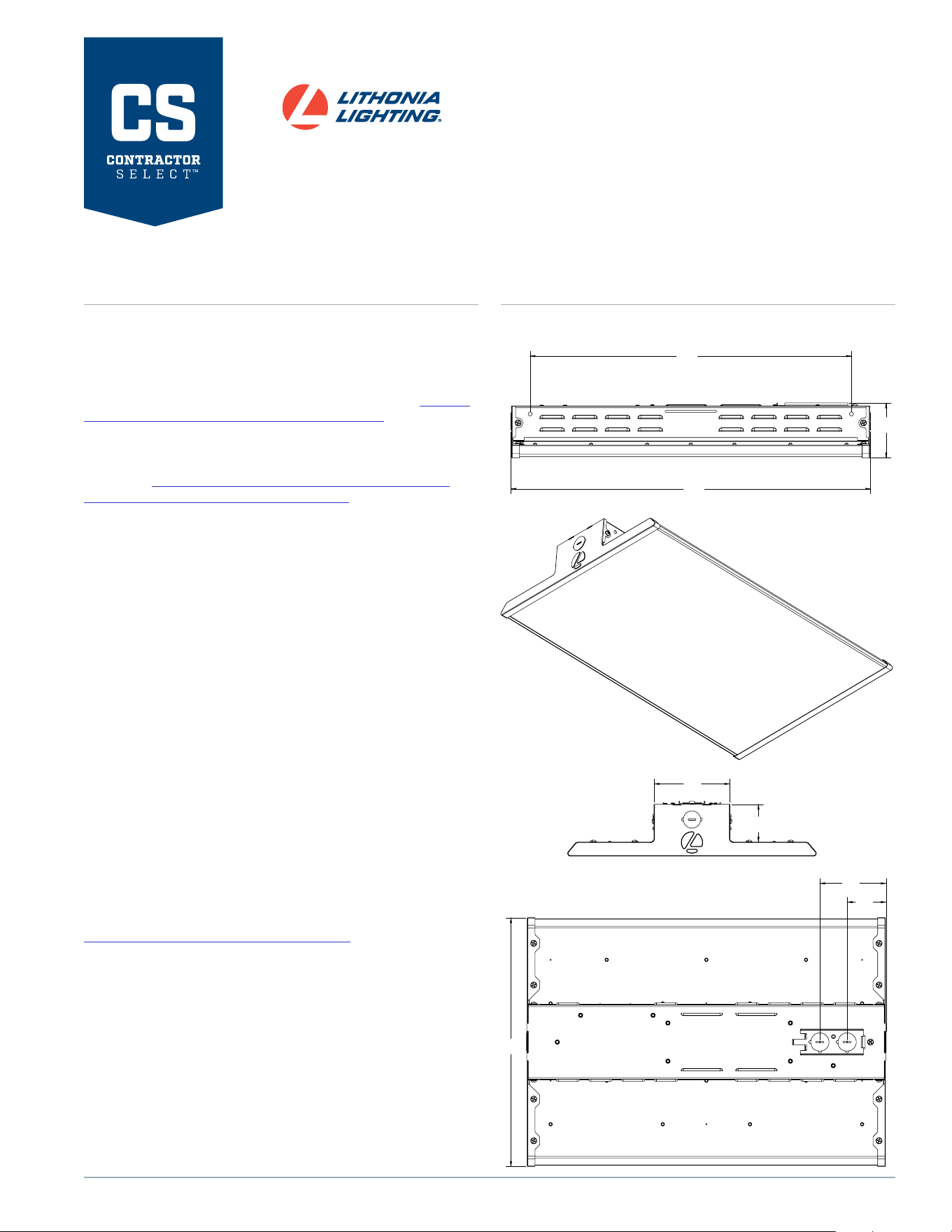

Specifications Dimensions
All dimensions are inches (centimeters) unless otherwise indicated.
16.24
(41.25)
18.18
(46.18)
2.78
(7.06)
3.83
(9.73)
1.91
(4.85)
12.58
(31.95)
3.35
(8.51)
1.98
(5.03)
