Purchase Date
1
4007498
ITEM #5519816
5519821
OZARK LED CEILING FAN
Español p. 21
MODEL # OZ52MBK8LR
OZ52BNK8LR
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
APPROVED FOR USE
IN DAMP LOCATIONS
2
Safety Information .......................................................................................................................
.
. 2
Package Contents ......................................................................................................................
.
.. 5
Hardware Contents
....................................................................................................................................
6
Preparation ................................................................................................................................... 6
Initial Installation ........................................................................................................................... 6
Downrod-Style Fan Mounting ....................................................................................................... 8
Closemount-Style Fan Mounting ................................................................................................. 10
Wiring .......................................................................................................................................... 11
Final Installation .......................................................................................................................... 13
Operating Instructions ................................................................................................................ 17
Care and Maintenance ..........................................................................................................
.
.... 18
Troubleshooting .......................................................................................................................... 19
Limited Lifetime Warranty ........................................................................................................... 20
Replacement Parts List .............................................................................................................. 20
TABLE OF CONTENTS
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
3
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 18.3 lbs.
The DC Motor will not operate until blades are installed.
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support
must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING
4
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
Due to the weight and construction of this fan, it is advisable to seek the help of another person.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing or
balancing them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
SAFETY INFORMATION
5

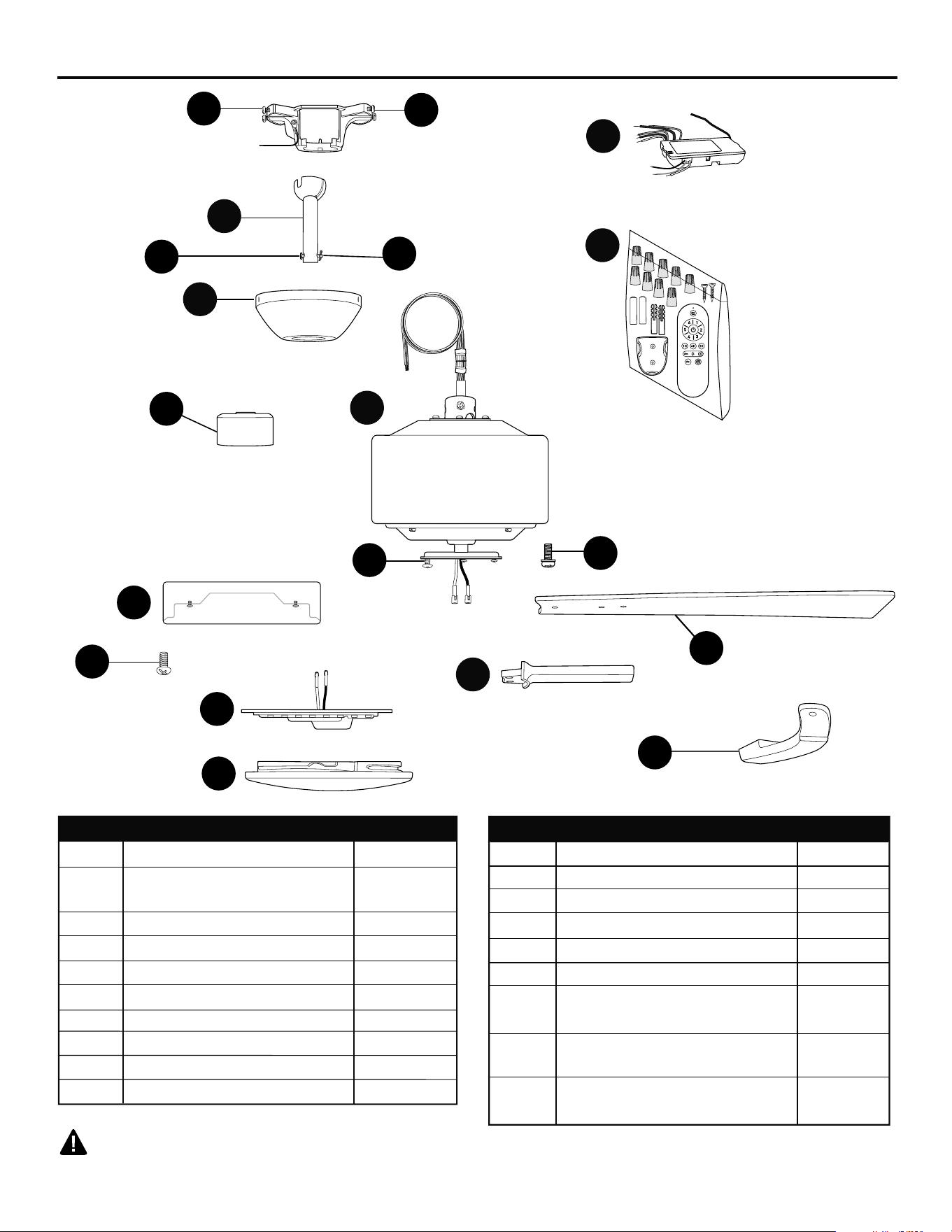

PACKAGE CONTENTS
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
IMPORTANT REMINDER: You must use the parts provided with this fan for proper installation and safety.
A
L
M
G
C
D
B
E
H
I
K
J
N
O
F
A Mounting Bracket 1
B Canopy Mounting Screw 4
(preassembled)
C Downrod 1
D Pin (preassembled) 1
E Clip (preassembled) 1
F Canopy 1
G Fitter Plate 1
H Yoke Cover 1
I Motor Housing 1
J Blade 8
K Blade Arm 8
L Blade Bar 8
M Shade 1
N Remote Pack 1
O LED Light Kit 1
P Remote Control Receiver 1
Q Motor Screws/Lock Washers 16
(preassembled) +1 extra
R Motor Plate Screws 3
(preassembled)
S Fitter Plate Screws 3
(preassembled)
P
Q
S
R
Wire
Connector
Qty. 6
DD

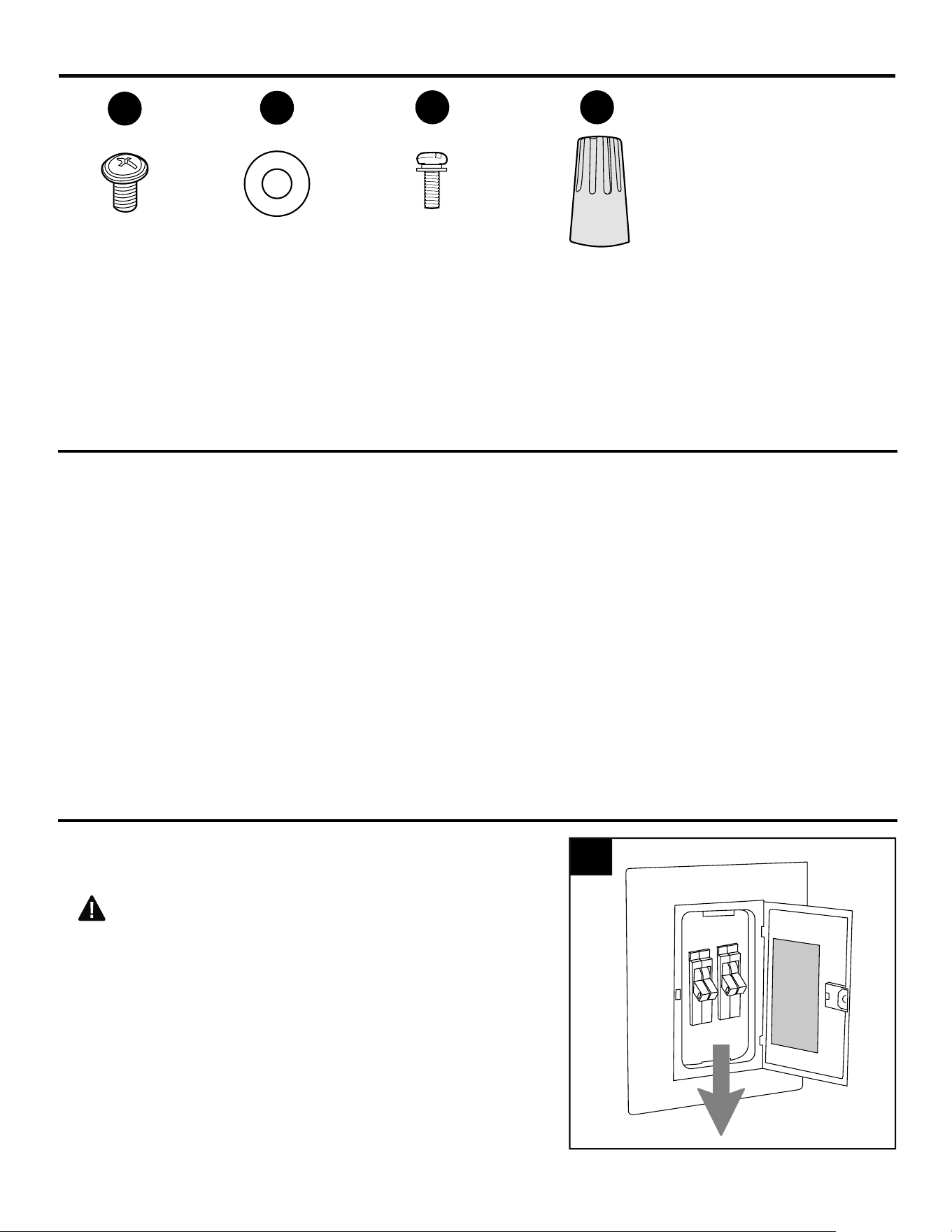

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder, Wire Strippers and Precision Screwdriver (0 x 2 in.).
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters.
PREPARATION
Blade Bar
Screw/Lock
Washer
Qty. 8
+ 1 extra
AA
BB
CC
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
6
Fiber
Washer
Qty. 16
+ 1 extra
Blade
Screw
Qty. 16
+ 1 extra
INITIAL INSTALLATION
4
Open End
A
A

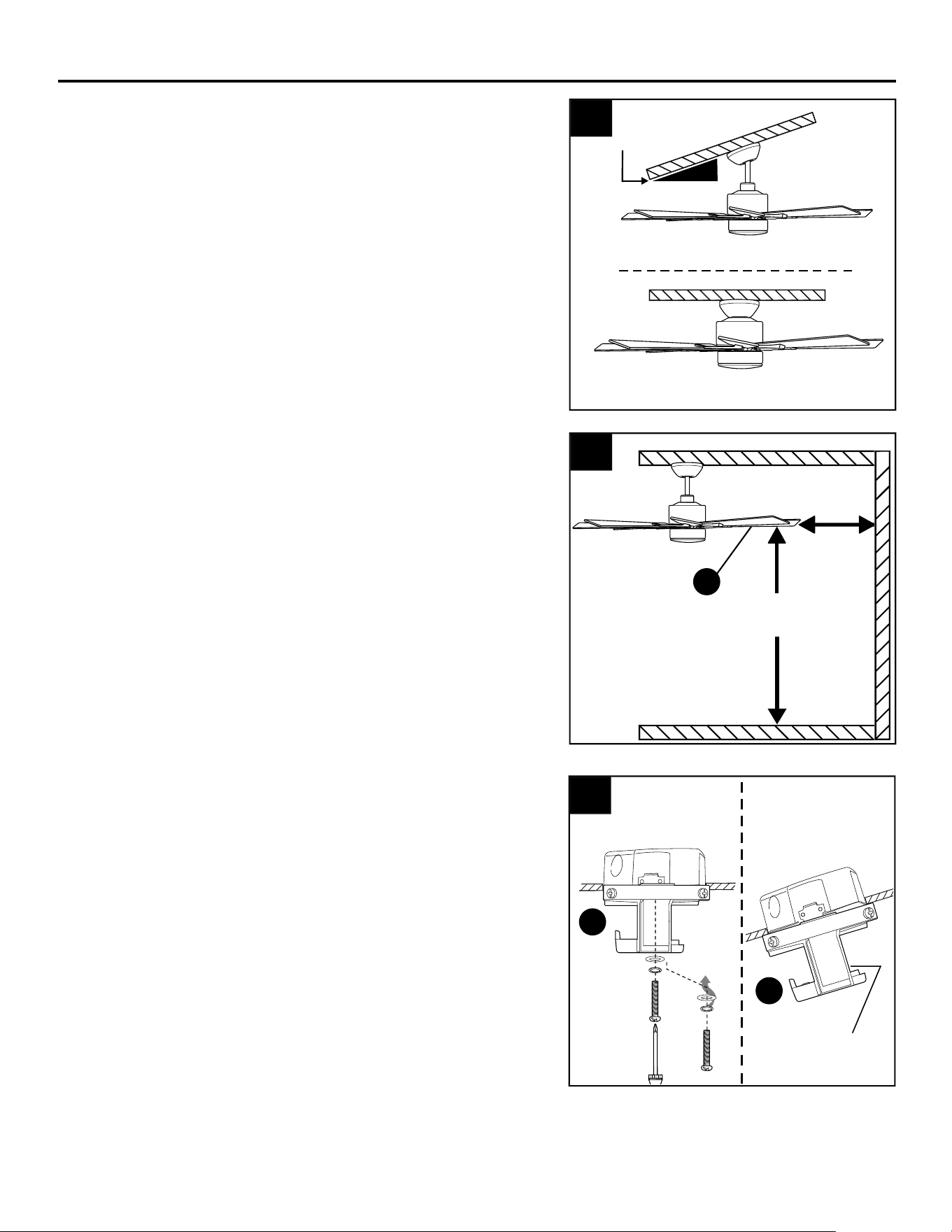

2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 20°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (J) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
3.
ANGLE
MOUNT
STANDARD
MOUNT
A
B
20° max.
7 ft.
min.
30 in.
min.
J
2
3
4.
Secure mounting bracket (A) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (A)
as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (A) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 20°.
7
DOWNROD-STYLE FAN MOUNTING
INITIAL INSTALLATION

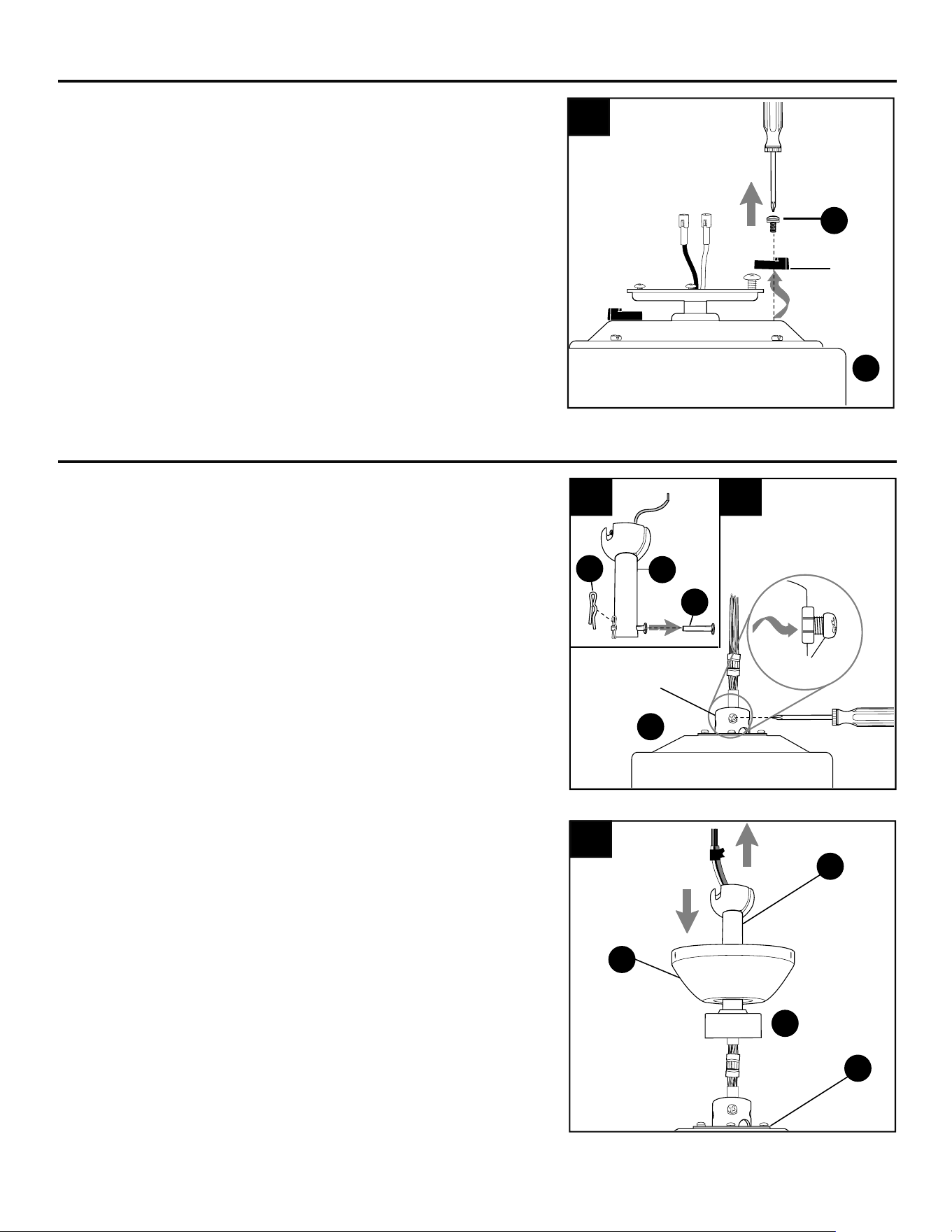

2.
Insert downrod (C) through yoke cover (H) and
canopy (F). Thread wires from motor housing
(I) up through downrod (C).
Remove pin (D) and clip (E) from downrod (C).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (I).
1a.
1b.
1a
E
I
D
1b
C
Set Screw
& Nut
Sideview
C
I
2
F
Yoke
8
I
5.
Remove motor screws/lock washers (Q) from
underside of motor housing (I) and save for blade
arm (K) attachment later on. [If there are plastic
motor blocks installed with the motor screws/lock
washers (Q), discard the plastic motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 10.
Plastic
Motor
Block
Q
5
H

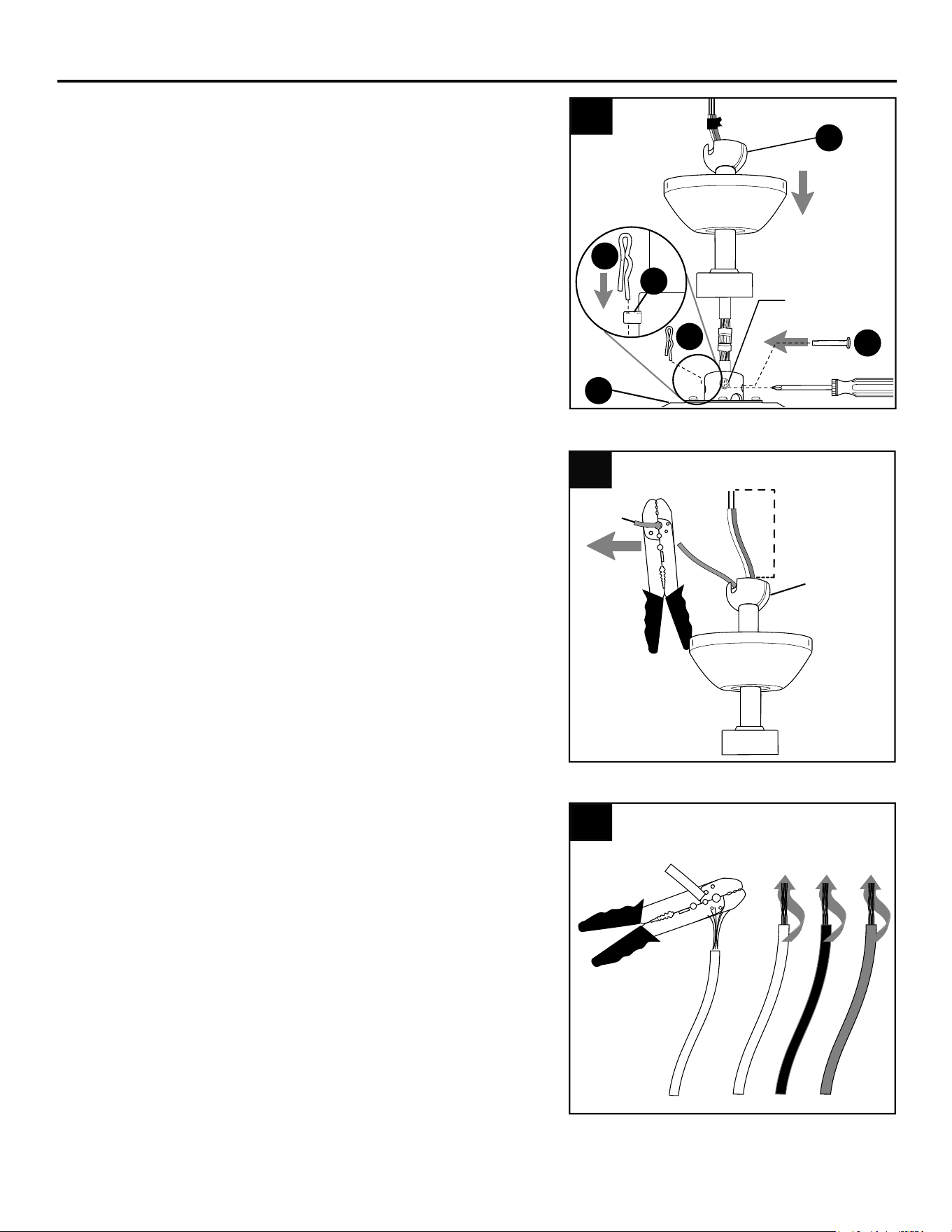

DOWNROD-STYLE FAN MOUNTING
4.
3.
5.
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
Slip downrod (C) into yoke, align holes and
re-install pin (D) and clip (E). Tighten downrod
set screws and then tighten nut.
If you cut back the lead wires in Step 4, strip 3/4 in.
of insulation from end of each wire -- WHITE,
BLACK, GREEN and BLUE (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
4
Hanging
Ball
8 in.
3
E
D
Set Screw
and Nut
I
C
5
9
E
D
DOWNROD-STYLE FAN MOUNTING

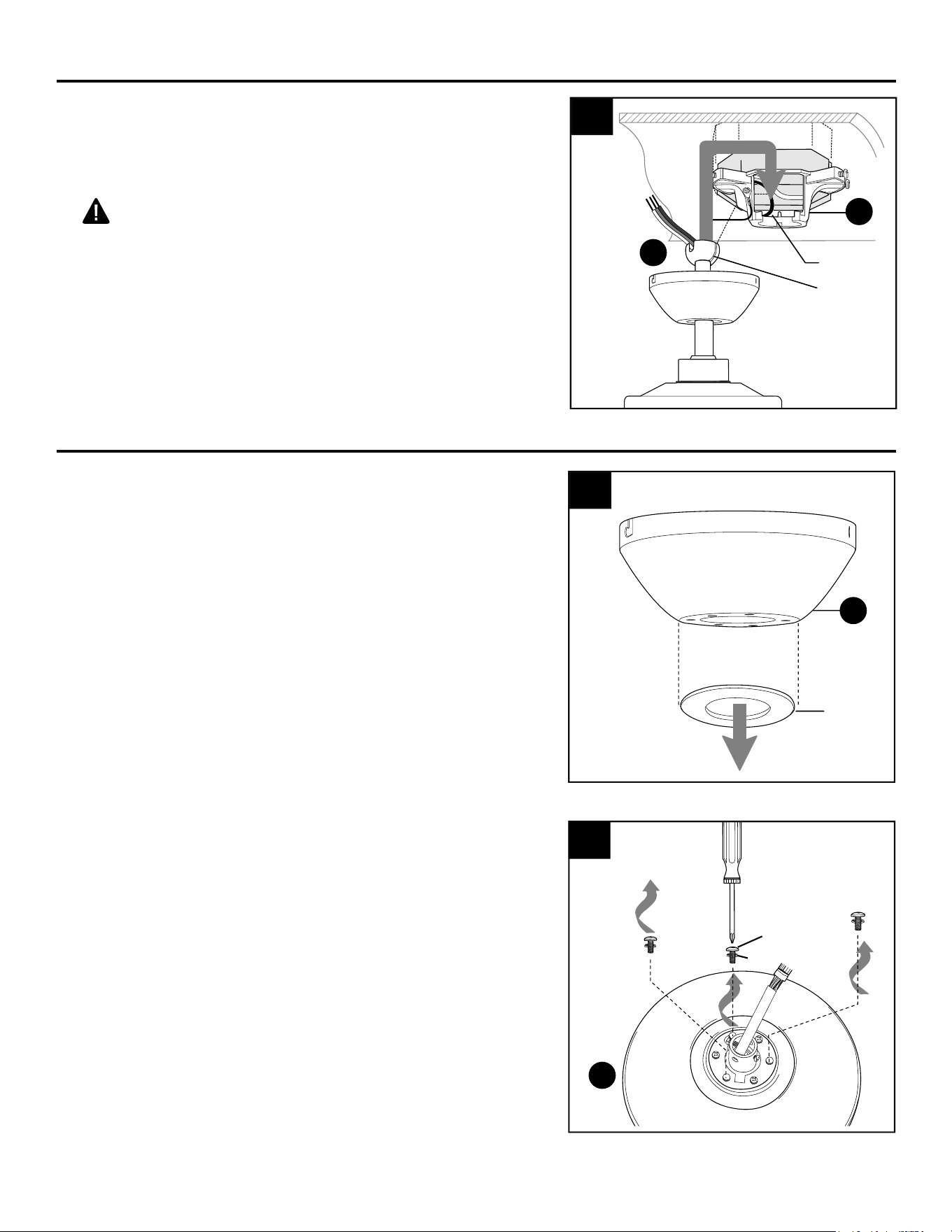

6.
Remove preassembled canopy cover from
bottom of canopy (F).
NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to
remove the canopy cover by tapping on the
canopy cover from the inside of the canopy
(F).
NOTE: The downrod (C), yoke cover (H) and
canopy cover are not used in this type of
installation.
CLOSEMOUNT-STYLE FAN MOUNTING
1.
2.
Install hanging ball of downrod (C) into
opening of mounting bracket (A). Align the
slot in hanging ball with the tab in mounting
bracket (A).
DANGER: Failure to align slot in hanging
ball with the tab in mounting bracket (A) may
result in serious injury or death.
Continue to WIRING on page 11.

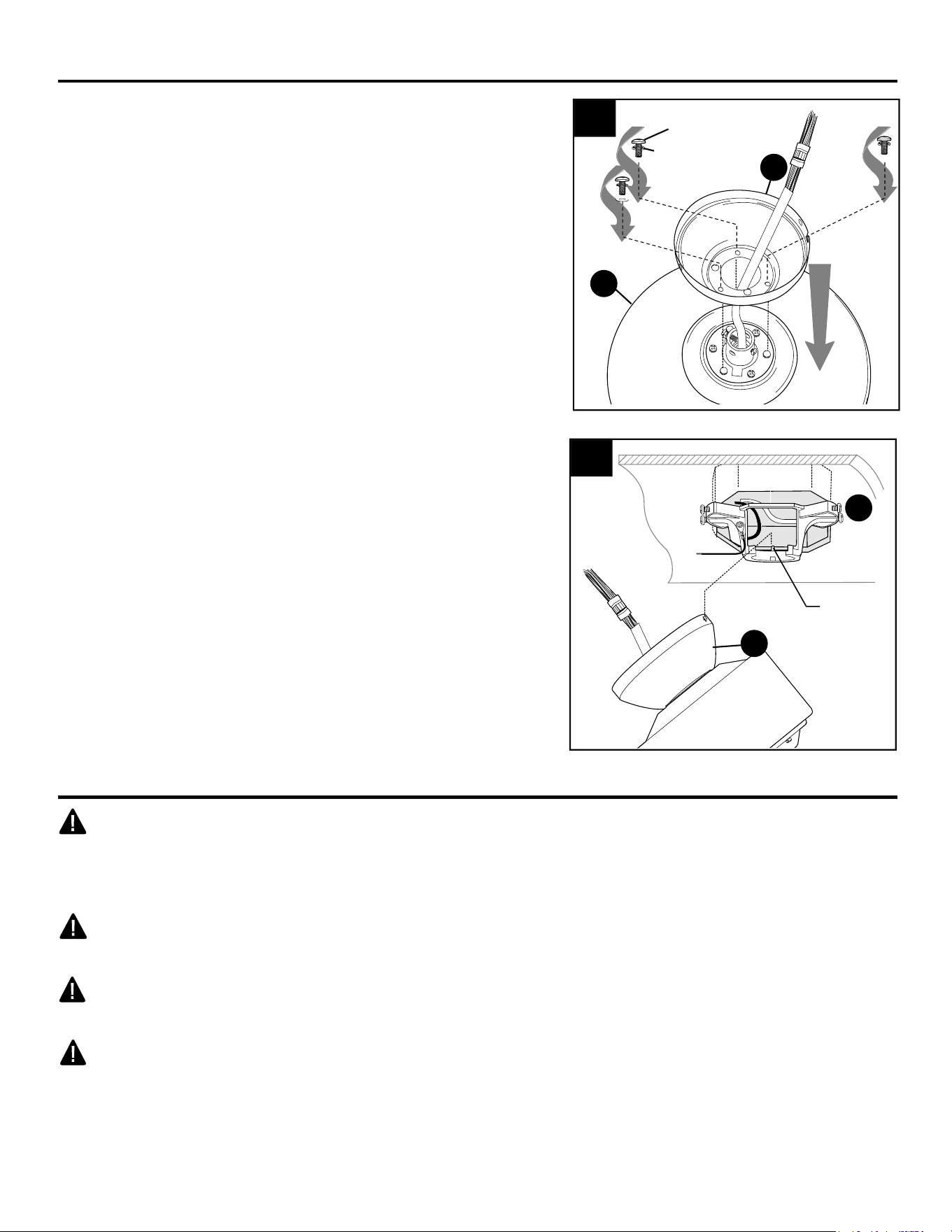

Remove every other preassembled
screw/lock washer from top of motor
housing (I).
Canopy
Cover
1
F
A
6
I
2
Screw
Lock Washer
10
Tab
C
Slot
CLOSEMOUNT-STYLE FAN MOUNTING
Temporarily hang fan on the tab on the
mounting bracket (A) using one of the
non-slotted holes in the canopy (F).
4.
3.
Pull wires up through hole in the middle of the
canopy (F) and attach canopy (F) to motor
housing (I) using the three screws/lock
washers previously removed.
3
I
F
F
4
A
Screw
Lock Washer
WIRING
11
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
Tab
WIRING
12

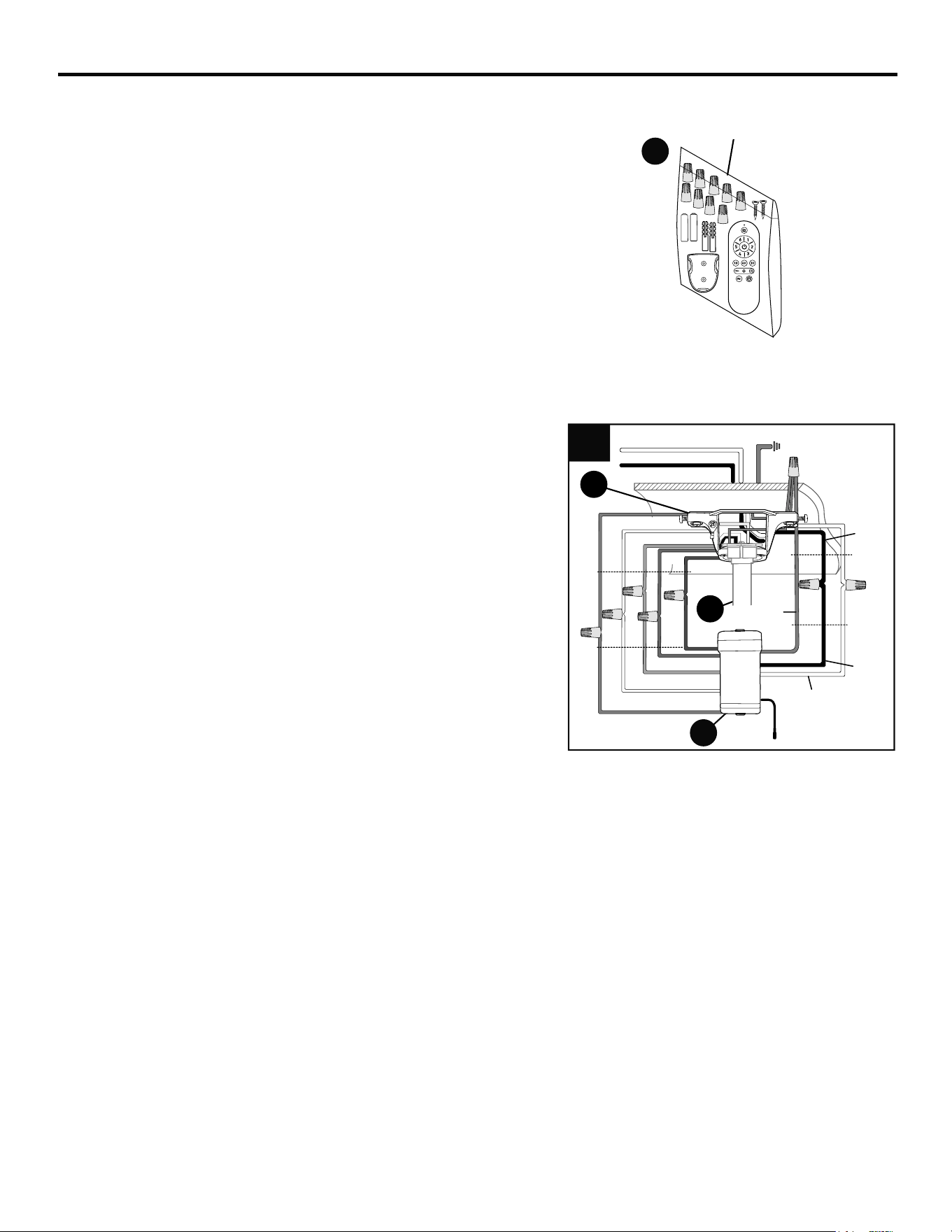

Connect all GROUND (GREEN) wires from fan
(on downrod (C), if applicable, mounting
bracket (A)) and remote control receiver (P) to
BARE/GREEN supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (P) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (P) to WHITE supply wire
from ceiling.
Connect RED wire (labeled TO MOTOR) from
remote control receiver (P) to RED wire from
motor housing (I).
Connect GRAY wire (labeled TO MOTOR) from
remote control receiver (P) to GRAY wire from
motor housing (I).
Connect PINK wire (labeled FOR MOTOR) from
remote control receiver (P) to PINK wire from
motor housing (I).
Connect BLUE wire (labeled FOR LIGHT L) from
remote control receiver (P) to BLUE wire from
motor housing (I).
Connect WHITE wire (labeled FOR LIGHT N)
from remote control receiver (P) to WHITE wire
from motor housing (I).
1.
P
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
PINK
RED
RED
GRAY
GRAY
PINK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
C
A
GREEN/
GROUND
IMPORTANT: Make the necessary wiring connections for
remote control operation as detailed below and in the
accompanying drawing. For each wire connection, use wire
connectors from the remote pack (N), making sure to screw
each wire connector on in a clockwise direction.
Wire
Connectors
N

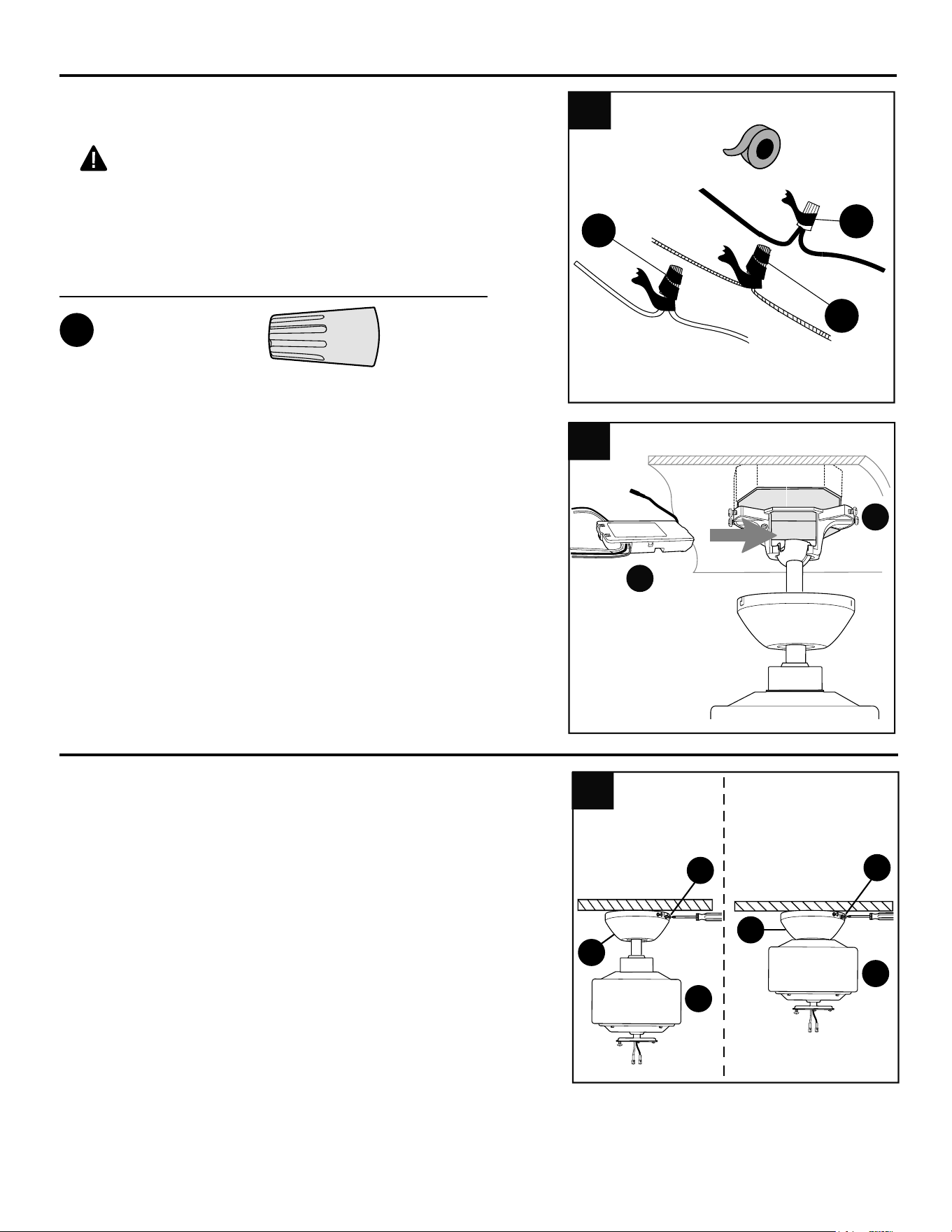

Wrap electrical tape (not included) around each
individual wire connector (DD) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place GREEN and WHITE connections on
opposite side of the outlet box from the BLACK
and BLUE (if applicable) connections.
2.
2
WIRING
FINAL INSTALLATION
13
DD
DD
DD
3
Gently slide remote control receiver (P) flat-side up
into mounting bracket (A). Turn spliced/taped
wires upward and gently push wires and wire
connectors (DD) into outlet box. Let antenna from
remote control receiver (P) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor wattage: 65W MAX.
3.
Antenna
P
A
1.
Temporarily lift canopy (F) to mounting bracket
(A) to determine which two canopy mounting
screws/lock washers (B) in mounting bracket
(A) align with slotted holes in canopy (F) and
partially loosen these two canopy mounting
screws/lock washers (B). Remove the other two
canopy mounting screws/lock washers (B).
Now, lift canopy (F) to mounting bracket (A)
again, aligning slotted holes in canopy (F) with
loosened canopy mounting screws (B) in
mounting bracket (A). Twist canopy (F)
clockwise to lock. Re-insert the two canopy
mounting screws/lock washers (B) that were
just removed and tighten all canopy mounting
screws/lock washers (B) securely.
1
F
B
F
Downrod
Option
Closemount
Option
B
I
I
Hardware Used
Wire Connector x 6
DD
FINAL INSTALLATION
14

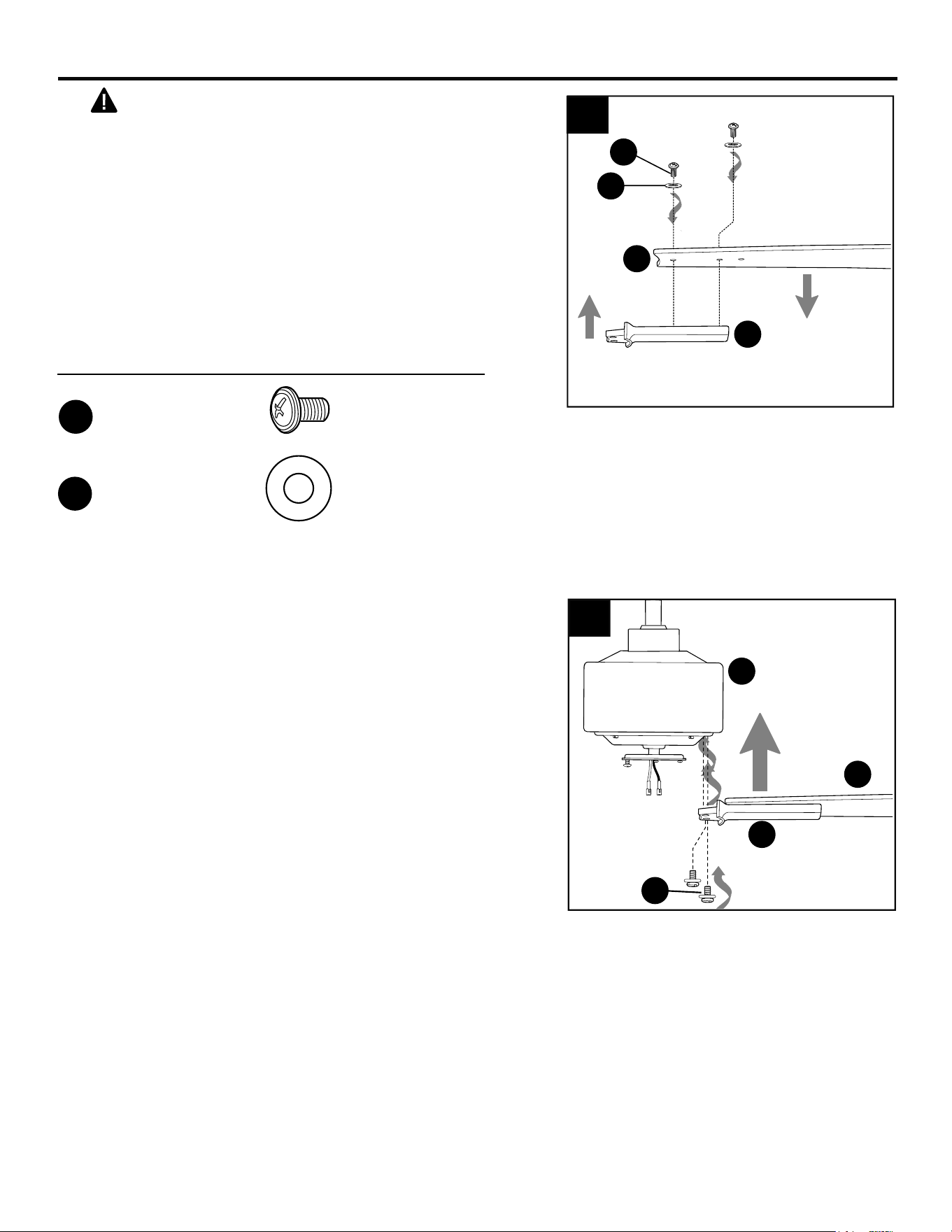

2.
Hardware Used
Blade Screw x 16
AA
Fiber Washer x 16
BB
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (J). If screws are overtightened, blades (J)
may crack and break.
Partially insert two blade screws (AA) along with
two fiber washers (BB) into first two holes in blade (J)
to attach blade arm (K) to blade (J). Then, tighten
each blade screw (AA).
Repeat for remaining blades (J) and blade arms (K).
2
BB
AA
K
J
3.
Attach blade arms (K) to the bottom of motor
housing (I) with motor screws/lock washers
(Q) previously removed (Step 5, page 8).
Partially tighten motor screws/lock washers
(Q). NOTE: Do NOT completely secure each
blade arm (K) before proceeding to the next.
Blades arms (K) must be loose for next step.
3
J
K
I
Q
4.
FINAL INSTALLATION

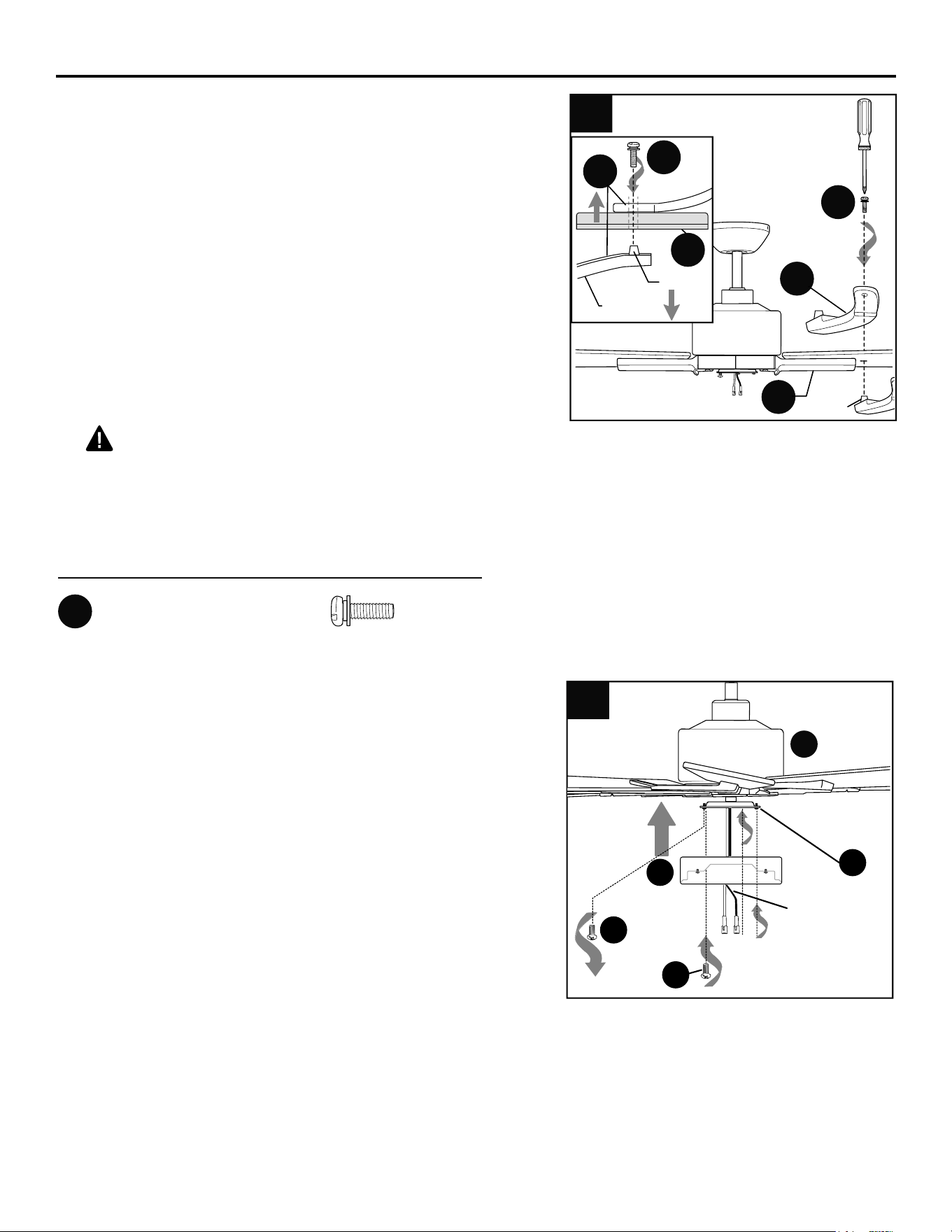

Connect each blade (J) using the blade bars (L).
On the topside of the blade (J), place the bent
portion of the blade bar (L) directly over the opening
above the end of the blade arm (K), aligning the
holes. Then, on the underside of the blade (J), insert
the nodule portion of another blade bar (L) directly
under the same hole. Secure with one blade bar
screw/lock washer (CC).
NOTE: Blade bar (L) must be turned with the
smooth side toward the floor.
Repeat step for the remaining blade bars (L) until
the blades (J) are all connected.
CAUTION: Assistance from another person is
recommended for this step.
Once blade bars (L) are secure, completely tighten
all motor screws/lock washers (Q) in blade arms (K).
Hardware Used
Blade Bar Screw/Washer x 8
CC
4
15
CC
K
L
5.
Remove one motor plate screw (R) from motor
plate preassembled on the underside of the motor
housing (I) and partially loosen the other two
motor plate screws (R).
Align slotted holes in fitter plate (G) with loosened
motor plate screws (R), allowing molex
connections to come through hole in fitter plate
(G). Twist fitter plate (G) to lock. Re-insert the
motor plate screw (R) that was removed and
securely tighten all three motor plate screws (R).
5
I
R
I
R
I
R
G
I
molex
connections
nodule
nodule
smooth
side
J
L
CC
FINAL INSTALLATION
16

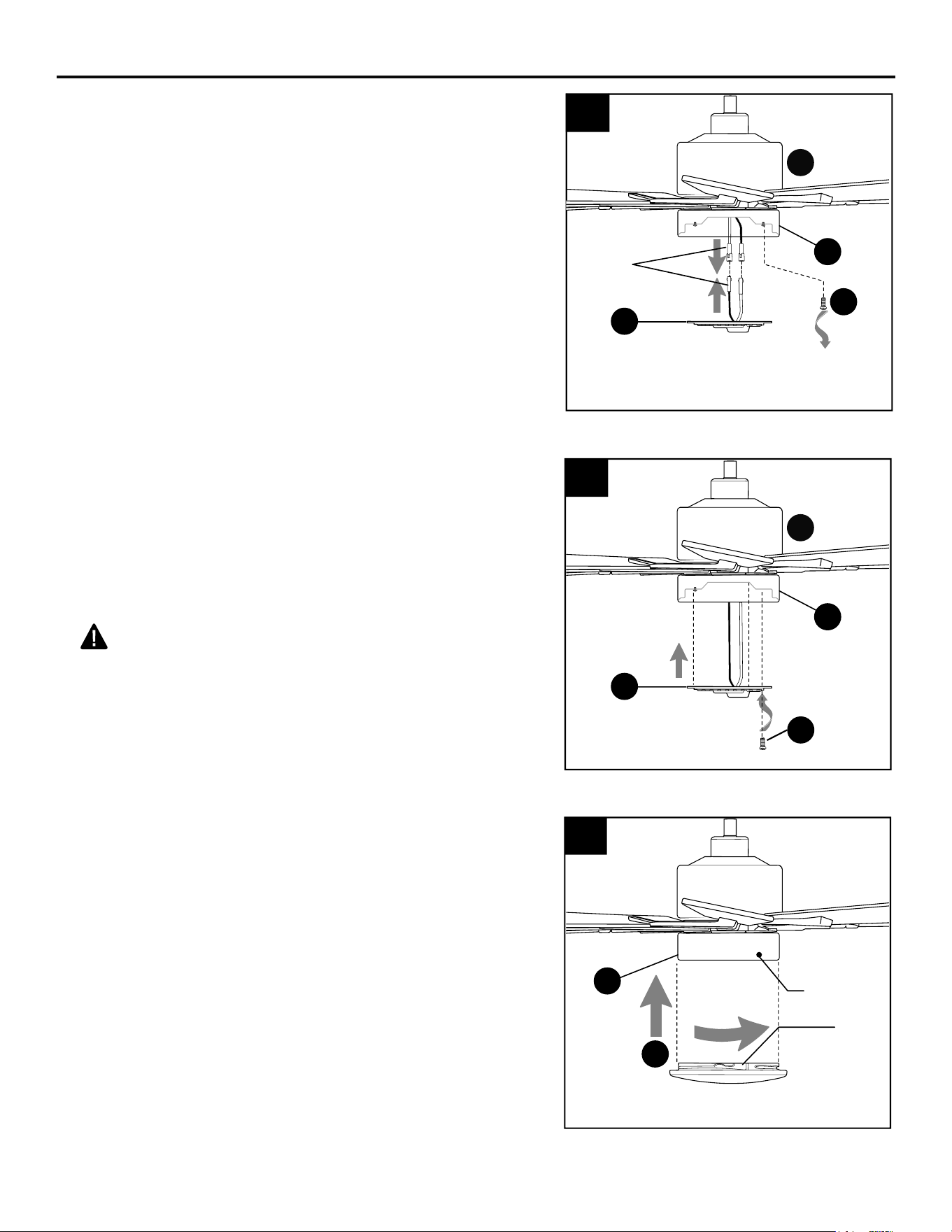

6.
Remove one fitter plate screw (S) from
underside of fitter plate (G) and partially
loosen the other two fitter plate screws (S).
Connect WHITE wire from motor housing (I)
to WHITE wire from LED light kit (O).
Connect BLACK (or BLUE) wire from motor
housing (I) to BLUE wire from LED light kit
(O). Make sure connections are secure.
Molex
Connections
I
G
O
S
6
7.
Carefully arrange wire connections inside
fitter plate (G). Align slotted holes in LED
light kit (O) with loosened fitter plate screws
(S). Twist LED light kit (O) to lock. Re-insert
the fitter plate screw (S) that was removed
and securely tighten all three fitter plate
screws (S).
CAUTION: Make sure no wires are being
pinched before securing LED light kit (O).
7
8.
Align slots on shade (M) with protrusions on
the inside border of fitter plate (G). Turn shade
(M) clockwise until it no longer turns.
NOTE: Pull down gently on the shade (M) to
make sure it is completely secured.
8
Slot
Protrusion
M
O
I
G
O
S
17
OPERATING INSTRUCTIONS
Locate remote control transmitter in remote pack (N).
Remove battery cover using a precision screwdriver
(not included). Install two AAA batteries from remote
pack (N). Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.”
- When disposing of household alkaline batteries, it is best to check with your local and state recycling or
household hazardous waste coordinators concerning the specifics of the program in your area. You may
also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED Light Kit
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
N
18
CARE AND MAINTENANCE
At least twice each year, lower canopy (F) to check downrod (C) assembly, and then tighten all screws on
fan. Clean motor housing (I) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (J) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for
added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a damp
cloth to clean the ceiling fan.
Total wattage for this fan is 20 watts; do not attempt to replace the LEDs.

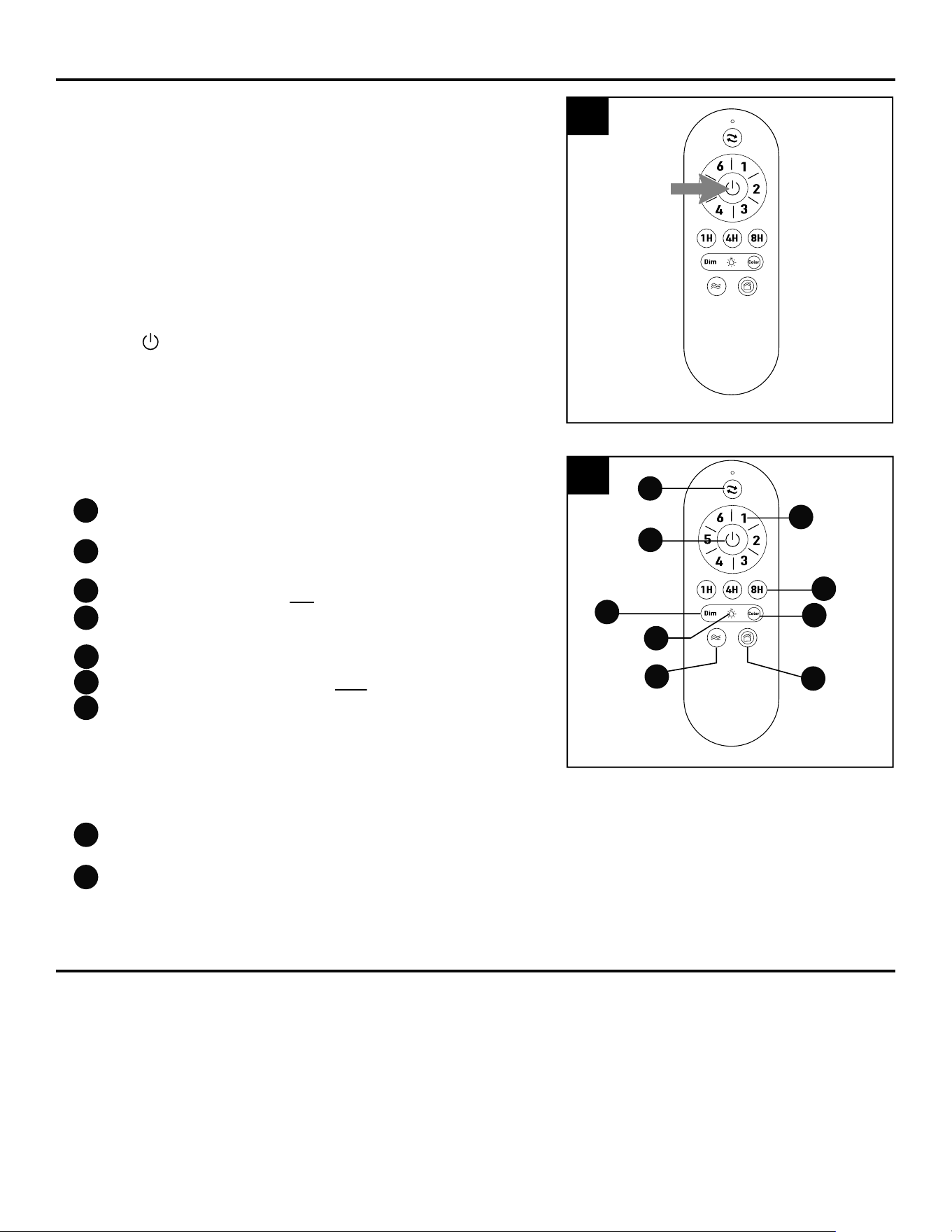

OPERATING INSTRUCTIONS
2.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the batteries if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the ON/OFF
button ( ) on the remote control transmitter for 5
seconds or until fan beeps. Use the remote control
transmitter to test the light and fan functions to confirm
the learning process is complete.
Remote Control Transmitter
2
3.
Operation buttons on the front panel of the remote
control transmitter:
- Reverse function ─ fan must be set on low before
reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Dimmer mode: press and hold to dim light
- ON / OFF, power button for light
- Color mode: change/select light color
– warm white
– bright warm white
– natural white
– bright white
– daylight
- Breeze mode: fan automatically cycles between all
6 different speeds
- Vacation mode: light kit switches on for 5 minutes
every 2 hours
3
1
2
4
5
6
8
9
7
Remote Control Transmitter
3
1
3
8
9
2
4
7
5
6
19
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
4. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy
and check all connections.
3. Turn off power and repeat
instructions in Step 2 on page 18.
4. Attach blades to fan.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Allow fan a “break in” period of
a few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor assembly
yoke is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws/washers.
2. Re-install blade arms.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move
fan to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Fan operates but
light fails.
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires in LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on page 12.
2. Make sure that wall switch to fan is
on.
3. Check that molex connections in
LED light kit are connected
properly according to instructions
on page 16.
Remote control fails
to operate.
1. Remote control transmitter not
synced with fan.
2. Battery not installed correctly.
3. Battery no longer working.
1. Refer to instructions in Step 2 on
page 18.
2. Check that battery has been
installed with correct polarity.
3. Replace battery according to
instructions on page 17.
20
Printed in China
GGLI2310
A
F
C
REPLACEMENT PARTS LIST
LIMITED LIFETIME WARRANTY
J K
PART DESCRIPTION
A Mounting Bracket
C Downrod
F Canopy
J Blade
K Blade Arm
5519816-A
5519816-C
5519816-F
5519816-J
5519816-K
#
5519816
PART #
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
#
5519821
PART #
5519821-A
5519821-C
5519821-F
5519821-J
5519821-K
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
