Quick Start Guide
E072026-SW-R01
Wi-Fi 6 Access Point
E22
www.edge-core.com
1x 1x1x

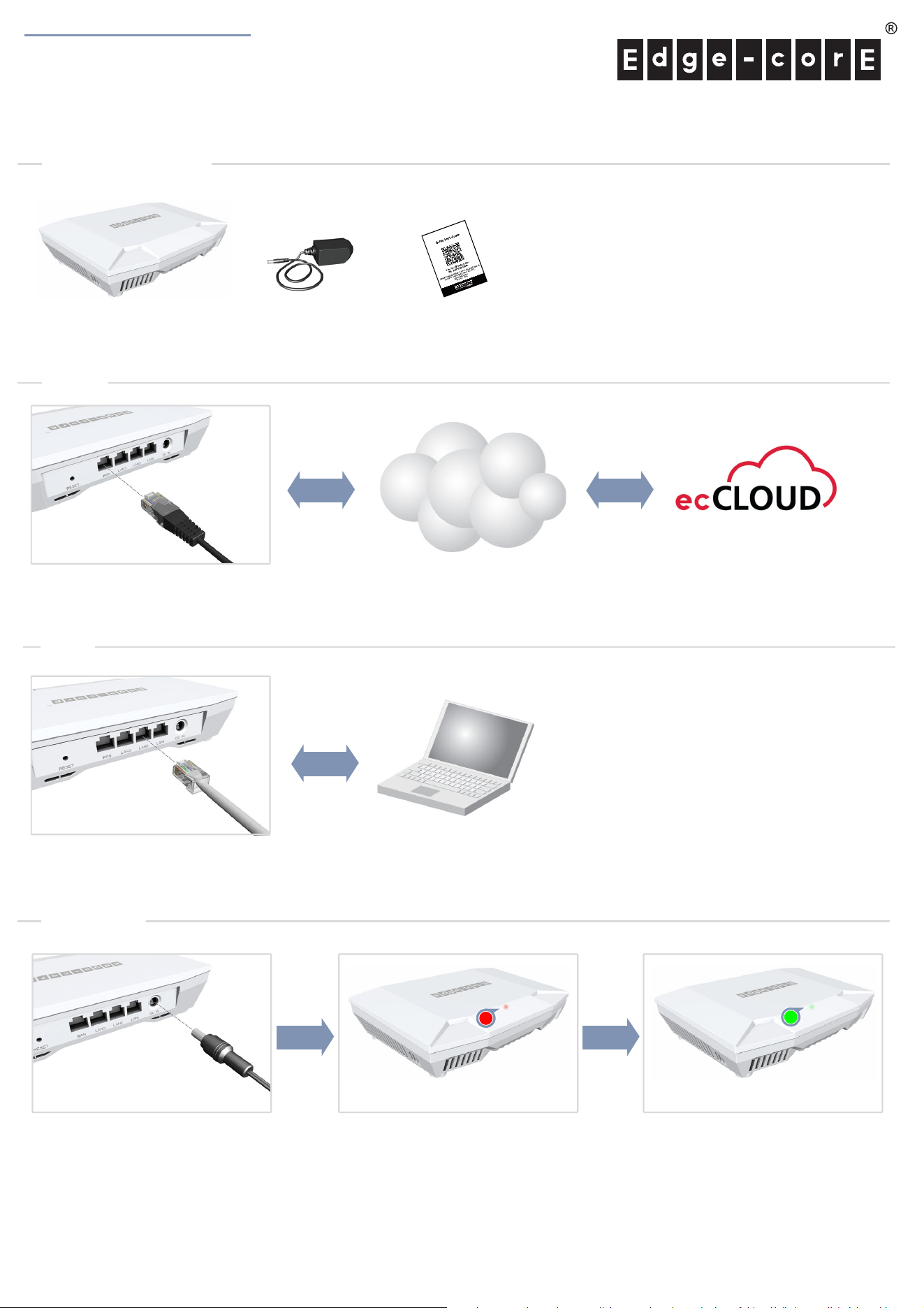

Internet
ReadyBooting
WAN
LAN
DC Power
Package Contents
Quick Start Guide
– 2 –

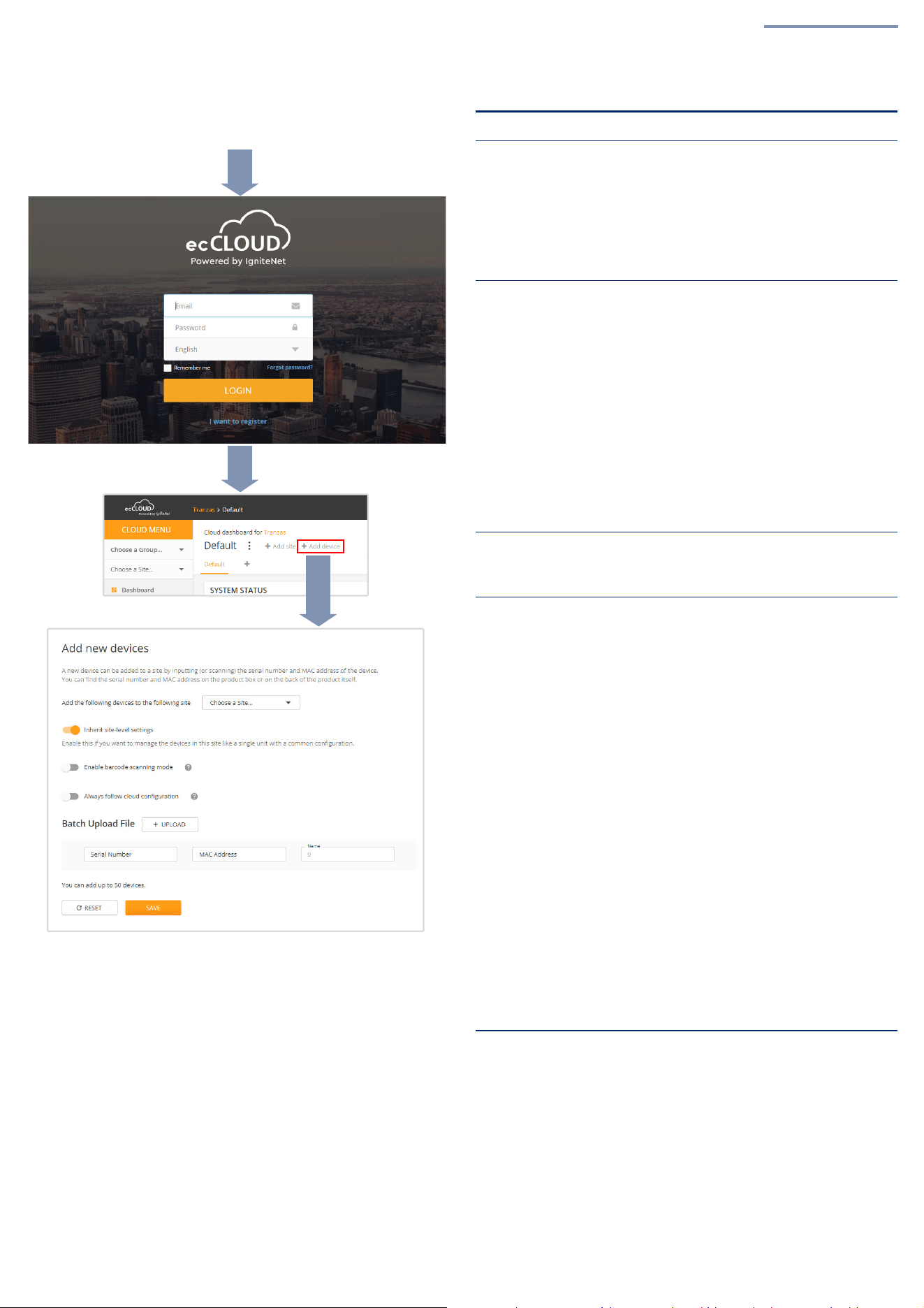

Add Device to Cloud
https://cloud.ignitenet.com/
Hardware Specifications
Switch Chassis
Size 202.5 mm (L) x 135 mm (W) x 46.5 mm (H)
mm (7.97 x 5.31 x 1.83 in.)
Weight 347 g (0.765 lb),
Temperature Operating: 0° C to 40° C (32° F to 104° F)
Humidity Operating: 5% to 90% (non-condensing)
Network Interfaces
Ports WAN: 1 x 10/100/1000Base-T Ethernet, Auto
MDIX, RJ-45
LAN: 3 x 10/100/1000Base-T Ethernet, Auto MDIX,
RJ-45
2.4 GHz Radio IEEE 802.11b/g/n/ax
5 GHz Radio IEEE 802.11a/ac/n/ax
Radio
Frequencies
2.4–2.4835 GHz (US, Canada, ETSI, Japan, TW)
5.15–5.25 GHz (lower band) US/Canada, TW
5.725–5.85 GHz (upper band) US/Canada, TW
Europe
5.15–5.25 GHz, 5.25–5.35, 5.47–5.725 GHz
Japan
5.15–5.25 GHz, 5.25–5.35, 5.47–5.73 GHz
Power Specifications
AC Power
Adapter
AC Input: 100–240 VAC, 50-60 Hz
DC Output: 12 VDC, 1.5 A
Regulatory Compliances
Radio EN300 328 V2.2.2 (2019-07)
EN301 893 V2.1.1(2017-05)
47 CFR FCC Part 15.247
47 CFR FCC Part 15.407
IC RSS-247 Issue 2 and RSS-Gen Issue 5
NCC LP0002 Section 4.10.1 (2020-07-01)
NCC LP0002 Section 5.7 (2020-07-01)
MIC certification Rule, Article 2 Paragraph 1 Item 19
MIC certification Rule, Article 2 Paragraph 1 Item
19-3
Emissions EN 301 489-1 V2.1.1 (2017-02)
EN 301 489-17 V3.1.1 (2017-02)
EN 55032:2015
AS/NZS CISPR 32:2015, Class B
47 CFR FCC Rules and Regulations Part 15 Subpart
B, Class B Digital Device
ICES-003, Issue 7 Class B
CNS 13438 terminal equipment design
certification, Article 3, Article 4, Article 6, Article 9
and Article 34 regulation
Safety Low Voltage Directive IEC 62368-1:2014;and/or
EN 62368-1:2014+A11:2017; and/or BS 62368-
1:2014+A11:2017
CNS 14336-1
IEC/EN 62368-1, IEC/EN 60950-1
Taiwan RoHS CNS 15663
Quick Start Guide
– 3 –
Safety and Regulatory Information
FCC Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and
receiver
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician
for help
FCC Caution
: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For product available in the USA/Canada market, only channel
1~11 can be operated. Selection of other channels is not possible.
FCC Warning
: This product requires professional installation and
configuration. Antenna installation must be performed by trained
technical engineers.
The agent’s contact information is as follows:
Company Name: Edgecore Networks Corporation
Company Address: 2F., No. 97, Zhihui 1st Rd., Zhubei City, Hsinchu
County 302059, Taiwan
Tel: +886-3-563-8888
Fax: +886-3-668-6111
Email: support@edge-core.com
Web: https://www.edge-core.com/
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20 cm between the
radiator and your body.
Industry Canada
This device contains license-exempt transmitter(s)/receiver(s) that
comply with Innovation, Science and Economic Development
Canada’s license-exempt RSS(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
Cet appareil contient des émetteurs / récepteurs exempts de licence
qui sont conformes au (x) RSS (s) exemptés de licence d’Innovation,
Sciences et Développement économique Canada. L’opération est
soumise aux deux conditions suivantes:
(1) Cet appareil ne doit pas provoquer d’interférences.
(2) Cet appareil doit accepter toute interférence, y compris les
interférences susceptibles de provoquer un fonctionnement
indésirable de l’appareil.
The device for operation in the band 5150–5250 MHz is only for
indoor use to reduce the potential for harmful interference to co-
channel mobile satellite systems.
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont
réservés uniquement pour une utilisation à l’intérieur afin de réduire
les risques de brouillage préjudiciable aux systèmes de satellites
mobiles utilisant les mêmes canaux.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits
set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 28 cm between
the radiator & your body.
Cet équipement est conforme aux limites d’exposition aux
rayonnements IC établies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un minimum de 28 cm
de distance entre la source de rayonnement et votre corps.
CE Statement
This equipment complies with EU radiation exposure limits set forth
for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 24 cm between the
radiator and your body.
The device is restricted to indoor use only when operating in the
5150 to 5350 MHz frequency range.
All operational modes:
2.4 GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40),
802.11ac (VHT20), 802.11ac (VHT40), 802.11ax (HE20), 802.11ax
(HE40)
5 GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac
(VHT20), 802.11ac (VHT40), 802.11ac (VHT80), 802.11ax (HE20),
802.11ax (HE40), 802.11ax (HE80), 802.11ax (HE160)
The frequency and maximum transmitted power limit in EU are
listed as below:
2412-2472 MHz: 20 dBm
5150-5350 MHz: 23 dBm
5500-5700 MHz: 30 dBm
The abbreviations of the countries, as prescribed in above table,
where any restrictions on putting into service or any requirements
for authorization of use exist.
CE Mark Declaration of Conformance for EMI and Safety (EEC)
This information technology equipment is in compliance with the
Directive 2014/53/EU and Directive 2014/35/EU.
Warning:
For indoor use only. The access point, AC power
adapter, and all connected cables are not for outdoor use.
AT BE BG CH CY CZ
DE DK EE EL ES FI
FR HR HU IE IS IT
LI LT LU LV MT NL
NO PL PT RO SE SI
SK TR UK
