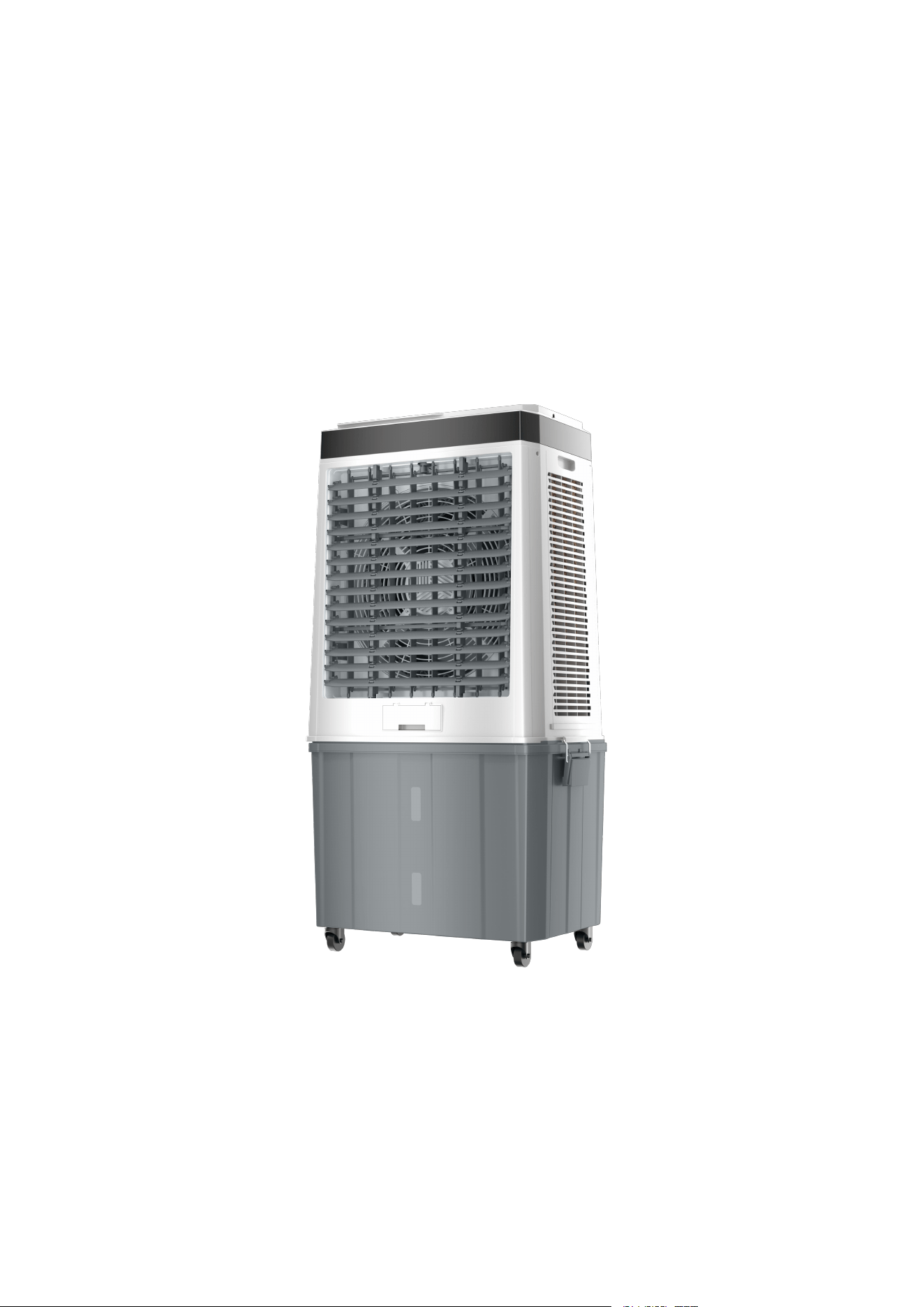

Mobile Evaporative Air Cooler
Operation User Manual
INTRODUCTION
Thank you for purchasing our air cooler.
Each unit has been manufactured to ensure safety and reliability.
Before first use,read the instructions carefully and keep it for further reference
To users
Dear users:
First of all, thank you for choosing and using our air cooler. Before using our
product, please read this manual carefully. For the safety of you and your
family, be sure to follow the instructions in this manual.
Working principle
The draught fan does a suction to make a subpressure, at the same time the pump carries the water
to the distribution instrument to make the wet curtain moist.
The hot air passes through the wet curtain, and the heat is absorbed by the evaporating water, then
the temperature comes down. The cool air is blown out by the fan. The unevaporated water would
drop to the water tank and form a circulation.
Please open the window and the door when you are using this machine.
To keep fresh air circulating smoothly, the best way is to place it in front of the ventilation
corridors.
Safety rules
Before any maintenance, make sure the machine is in the “off” state, and the power is
switched off.In order to avoid the electric shock, please connect the grounding socket
correctly, and guarantee the connection of the grounding device with the function of
automatic protection from faults.
This machine cannot be used by children and people who lack relevant knowledge or
experience, or the people with impaired sensory or mental disorders. Children should not be
allowed to play with this machine.
Please stop using the machine immediately if the power cord aged or the plug damaged, it
should be repaired by professional staffs.
Do not use any corrosive or solvent detergent for cleaning. It is recommended to use wet
cloth to wipe the machine instead of flushing the machine. Please avoid the machine exposed
to direct sunlight.
It is strictly prohibited to use this machine in a circumstance with inflammable or explosive
gas.
Operation instructions
Filling water has two way:

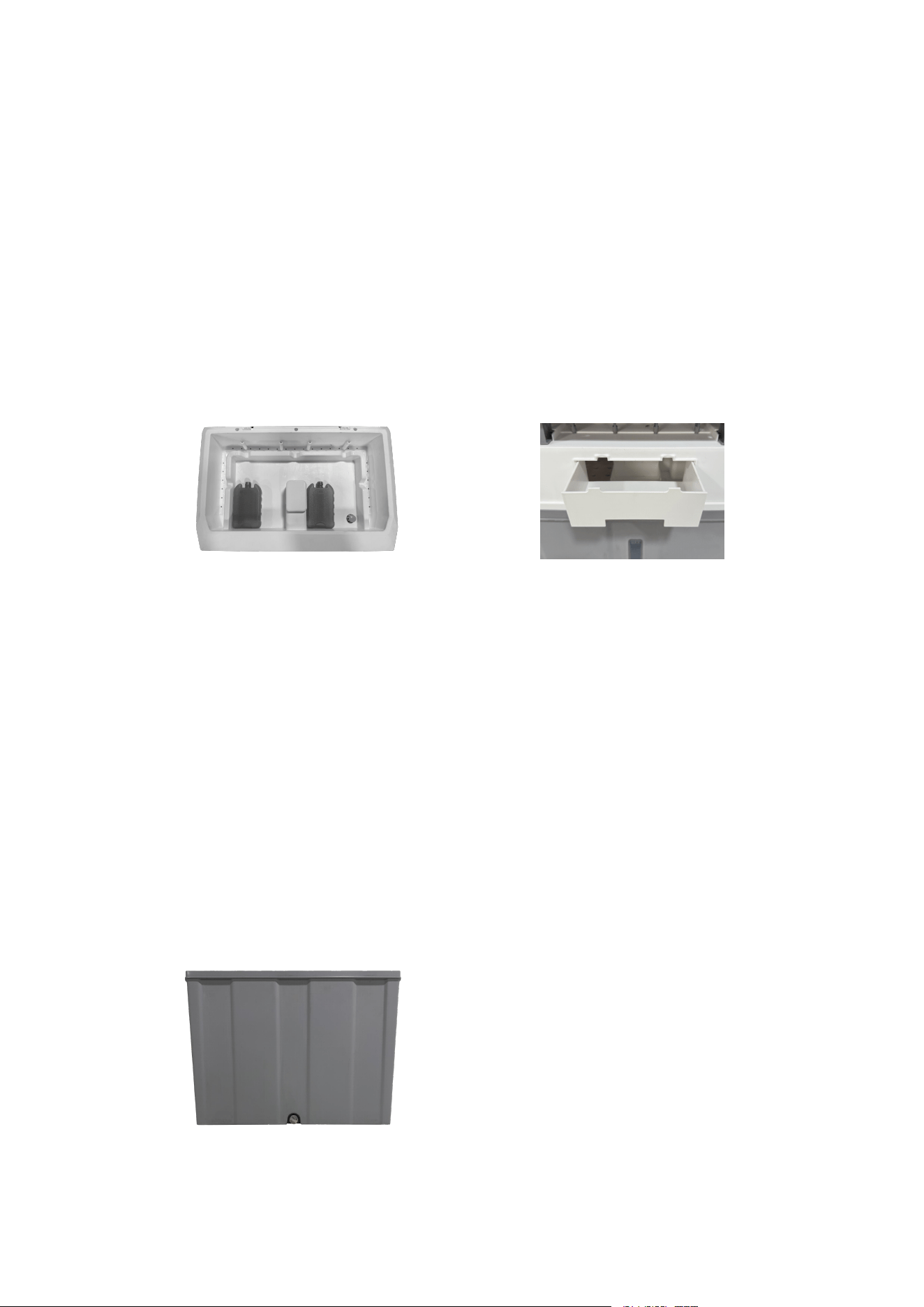

First,as shown in figure 1, open up cover plate, filling slowly with clean water.Second
shown in figure 2,open the front water inlet box,filling slowly with clean water
Figure 1 Figure 2
The usage of ice-box:
i.If you use ice-box for the first time: open the lid, inject water up to the scale, then tighten
the lid.
ii. Set aside for 30-40minutes, till the water and ice crystal mix completely.
iii.Put the icebox in the refrigerator's freezer room to stay for two hours.
iv. Take the icebox out and put it into the air cooler's ice container in order to cool down the
water temperature.
v. After using it for a long time, the ice crystal turns to jelly, please put it in the refrigerator
again. It can be recycled and reused.
The drain outlet is on the bottom, as shown in Figure 3.
Loose the drain nut, and tilt the machine body, the water tank can be completely emptied.
The machine should be regularly drained and cleaned.
If it will not be used for a long time, please empty the water tank.
Figure3
Control panel
ON/OFF: press this button to open the air cooler; press this button at any state to stop the
operation.
Cool: press to open or close the cooling system.
Swing:control the left-right swing, press again to stop swinging.
WiFi:When the product is powered on, the WiFi indicator light flashes rapidly. lf the phone
does not connect within 3 minutes, the WiFi light turns off and stops flashing. lf the phone
still fails to connect after the WiFi indicator turns off (after 3 minutes), press and hold the
WiFi buttons simultaneously for 3 seconds to activate the WiFi function. The WiFi indicator
will then flash rapidly again, allowing the phone to reconnect. Once connected, the WiFi light
will remain steadily lit. To reset the WiFi or restart the WiFi connection function, press and
hold the WiFi buttons together for 3 seconds.
Light：press to turn the light on or off.
Timer: press to set timing system. The timer range is from 1h-12h.
Speed: set wind speed.
Mode: press to change the wind type.natural wind or normal wind.
Notice: do not open the cooling system when the water tank is empty.
Cleaning and maintenance
Warm prompt: After long-time operation, dust accumulation on the pre-filters and the wet curtain
would affect the airflow and air purify. Please clean the machine regularly.
Clean pre-filter
Turn off the power, loose the screws, then pull out the pre-filter, clean it with soft brush and
mild detergent, rinse by water and dry under the sunshine.
Clean wet curtain
Turn off the power, loose the screws in the back-cover plate, take out the back-cover plate.
Loose the plastic nuts on the wet curtain, the side of wet pad can be emoved. clean it with soft
brush and mild detergent, rinse by water and dry under the sunshine, then install back to the
machine.
If the dirt is hard to remove after long-term usage, please change a new wet curtain.
Clean the surface
Turn off the power, clean it with mild detergent and soft cloth.
Notice: control panel shall not be touched by water.
Fault and maintenance
"Failure" phenomenon
Possible results
Solutions
LED display is light off
1.The power cord is unplugged or
poor contact.
2.LED screen is damaged.
3. Circuit board error.
1.Plug in the power to form a
good connection.
2.Replace LED screen.
3.Replace circuit board.
Water pump doesn't work
1.Water-pipe blockage.
2.Without long-term water cooling.
3.Poor water quality to produce
scale make central shaft stuck.
1.Use a small brush to clean
the pipe and keep smooth
water flow.
2.Long time for cooling
without water cause pump
damaged, need to replace a
new water-pump.
3.Remove the shaft, clean the
dirt on the surface, add proper
lubricating oil insert it, and
debug the shaft.
No wind or wind
speed is too slow
1.The fan blades are stuck.
2.The filter is blocked.
3.Fan blade is not fixed.
4.Main control panel error.
1.Check the fan blade.
2.Clean or replace filter.
3.Replace fan blade.
4.Replace main control panel.
Motor is out of control
1.Main control panel button is
broken.
2.The wiring of the motor and
control panel falls off.
1.Replace main control panel.
2.Replace a new wire to
connect the motor and control
panel.
Drain valve is leaking
1.Drain valve is broken.
2.Rubber band drop.
1.Replace the drain valve.
2.Add a new rubber band.
For your safety concerns, please make sure to follow the instructions above.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Ensure that the fan is switched off from the supply mains before removing the guard.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
Unplug the appliance during filling and cleaning.
