Bluetooth Speaker
EC-BTA1 AC Only – 34W Hi-Fi Powered Speaker
Thank you for purchasing the Electro-Harmonix Bluetooth Speaker AC Only. It may only be powered with
an AC line voltage (100V-240V) connected to the AC connector on the rear panel. Total available output
power is 34W.
Power Up
To power up your speaker, aach the supplied AC cable to the AC port on the rear of the speaker.
Aach the other end of the AC cable to your wall outlet.
Turn the VOLUME knob clockwise, past its o/click posion. The blue LED blinks and then lights
solid.
Bluetooth Pairing
Once powered up, if the board has not been paired with any nearby devices, it should present itself
for pairing. The speaker will have a Bluetooth name such as EHX Apollo.
If the speaker does not present itself for pairing, press and hold the push buon unl the Blue LED
starts to blink—about 3 seconds. The board should now make itself available to be paired with a new
device.
The blue LED connues to blink unl a Bluetooth connecon is made at which point the blue LED
goes solid and the speaker is ready for playback.
Audio Playback
Once the speaker has been paired with a device, you may begin audio playback from the device. The
speaker has three knobs and a mul-funcon buon, controlling the following parameters:
VOL audio playback level
BASS low frequency EQ
TREBLE high frequency EQ
Push Buon
• Press and release to play/pause audio.
• Double-click to advance to the next track.
• Triple-click to return to the beginning of the current track or, if the current track is within
its rst 4 seconds, skip to the previous track.
• Press and hold for 3 seconds to enter pairing mode.
AUX Audio Input
The rear panel includes a stereo 1/8” input. Connect the Auxiliary input to the stereo output of a
device to listen to audio with a wired connecon instead of Bluetooth.
AUX Input Without a Bluetooth Connecon
Normally both Bluetooth and Auxiliary connecons are live at the same me so you could mix
wireless and wired audio together. If you prefer to only hear the Auxiliary input do the following:
• Power down the speaker by turning the VOL knob down to its minimum posion, where it
clicks into the o posion.
• Press and hold the push buon
• While connuing to hold down the buon, power up the speaker by turning the VOL knob
clockwise into the powered posion.
• Once you see the LED light, release the buon.
Power Down
Turn the VOL knob down to its full counterclockwise posion, unl you hear it click. The blue LED
shuts o.
IMPORTANT SAFETY INSTRUCTIONS
• Read and keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Clean only with a dry cloth.
• Protect the power cord from being walked on or pinched.
• Unplug this amplifier during lightning storms or when unused for long periods of time.
• Where the mains plug or appliance coupler is used as the disconnect device, the disconnect device
shall remain readily operable.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.
• Do not expose this apparatus to dripping or splashing and ensure that no object filled with liquids is
placed on the equipment.
• This amplifier is capable of producing very high sound pressure levels which may cause temporary or
permanent hearing damage. Use care when adjusting volume levels during use.
• Refer all servicing and maintenance to qualified service personnel. Changes and modifications not
expressly approved by EHX can void the warranty.
• Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
• DO NOT attempt to open the chassis. There are no user serviceable parts.
CONSIGNES DE SÉCURITÉ IMPORTANTES
• Lire et conserver ces instructions.
• Tenir compte de tous les avertissements.
• Suivre toutes les instructions.
• Nettoyer uniquement avec un chiffon sec
• Protéger le cordon d'alimentation pour éviter qu'il ne soit piétiné ou pincé.
• Débrancher cet amplificateur en cas d'orage ou lorsqu'il n'est pas utilisé pendant de longues périodes.
• Lorsque la fiche secteur ou le coupleur d'appareil est utilisé comme dispositif de déconnexion, le
dispositif de déconnexion doit être facilement accessible.
• Ne pas installer l'appareil à proximité de sources de chaleur telles que des radiateurs, registres de
chaleur, poêles ou autres appareils (y compris amplificateurs) produisant de la chaleur.
• Aucune source de flamme nue, telle qu'une bougie allumée, ne doit être placée sur l'appareil.
• AVERTISSEMENT : Pour réduire le risque d'incendie ou d'électrocution, ne pas exposer cet appareil à
la pluie ou à l'humidité.
• Garder cet appareil à l'abri des gouttes et des éclaboussures et s'assurer qu'aucun objet rempli de
liquide n'est placé sur l'appareil.
• Cet amplificateur est capable de produire des niveaux de pression sonore très élevés qui peuvent
provoquer des lésions auditives temporaires ou permanentes. Soyez prudent lorsque vous réglez les
niveaux de volume pendant l'utilisation.
• Confier toutes les opérations de réparation et d'entretien à un personnel qualifié. Les changements et
modifications non expressément approuvés par EHX peuvent annuler la garantie.
• Le service après-vente devient nécessaire lorsque l'appareil a été endommagé de manière quelconque,
par exemple si le cordon d'alimentation ou la fiche est endommagé(e), si un liquide a été renversé ou
si des objets sont tombés dans l'appareil, si l'appareil a été exposé à la pluie ou à l'humidité, s'il ne
fonctionne pas normalement ou s'il a subi une chute.
• NE PAS essayer d'ouvrir le boîtier. Il n'y a pas de pièces réparables par l'utilisateur.

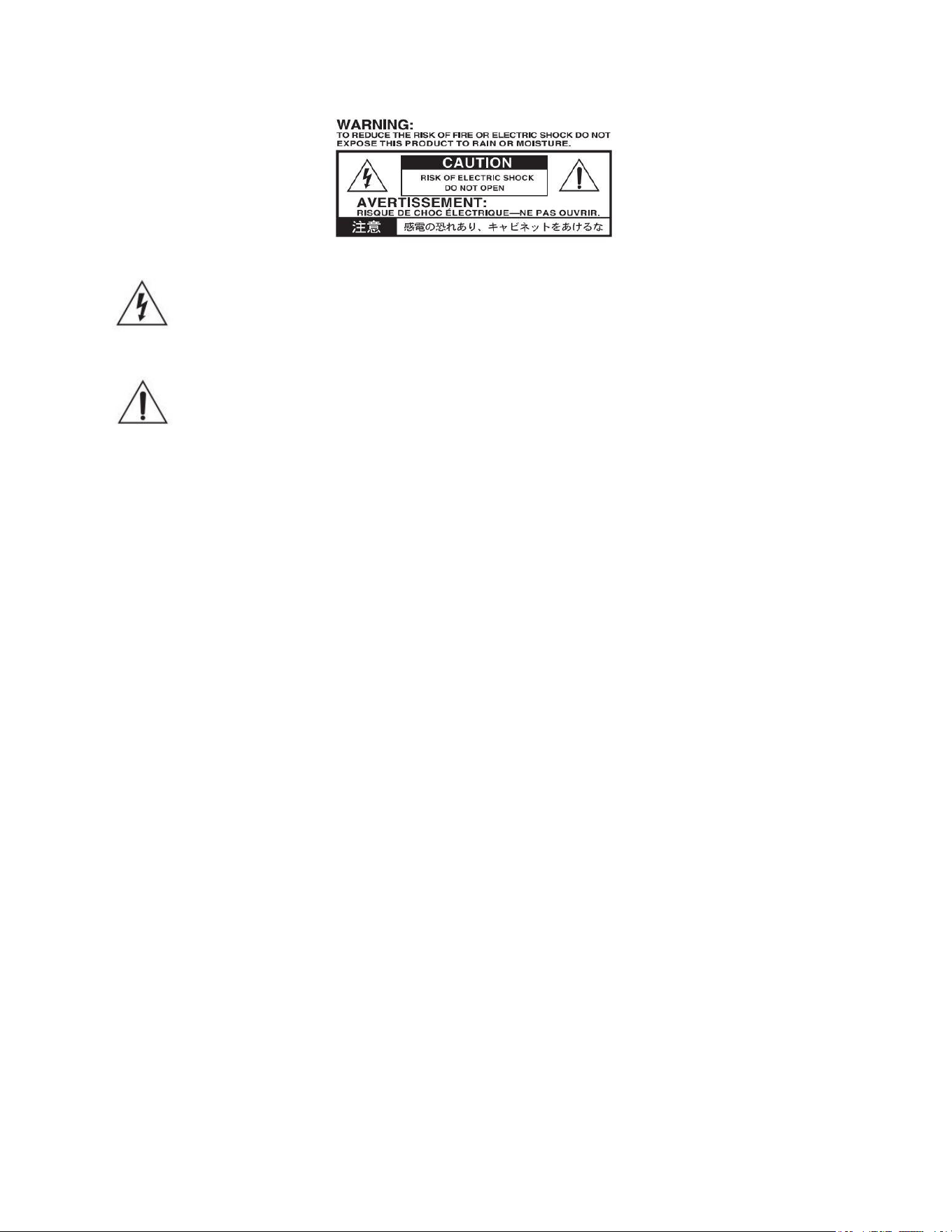

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Le symbole de l'éclair avec flèche dans un triangle équilatéral sert à avertir l'utilisateur de la présence dans le boîtier de l'appareil de
"tensions dangereuses" non isolées suffisamment élevées pour présenter un risque d'électrocution aux personnes.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance
(servicing) instructions in the literature accompanying the product.
Le point d'exclamation dans un triangle équilatéral sert à avertir l'utilisateur de la présence d'instructions d'utilisation et d'entretien
importantes dans la documentation accompagnant le produit.
NOTICES
This device complies with part 15 of the FCC Rules. Operaon is subject to the following two condions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operaon.
Any Changes or modicaons not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against
harmful interference in a residenal installaon. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful
interference to radio communicaons. However, there is no guarantee that interference will not occur
in a parcular installaon. If this equipment does cause harmful interference to radio or television
recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modicaons not expressly approved by the manufacturer could void the user’s authority to operate
the equipment under FCC rules.
This equipment complies with FCC radiaon exposure limits set forth for an uncontrolled environment.
This equipment should be installed operated with minimum distance 20cm between the radiator & your
body.
Canadian IC Statement:
English: This device complies with Industry Canada licence-exempt RSS standard(s). Operaon is subject to the
following two condions: (1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operaon of the device.
Français: L’émeeur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovaon, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
L’exploitaon est autorisée aux deux condions suivantes: 1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscepble d’en
compromere le fonconnement.
This equipment complies with IC RSS-102 radiaon exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposion aux rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et ulisé avec un minimum de 20cm de distance entre la source de
rayonnement et votre corps.
