ITEM #5730167
MODEL #WK52MBK5L
Español p. 22
Purchase Date
ATTACH YOUR RECEIPT HERE
1
WAVEPORT LED CEILING FAN
Questions, problems, missing parts? Before returning, contact us on:
800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
4009218
APPROVED FOR USE
IN DAMP LOCATIONS
2
TABLE OF CONTENTS
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
Safety Information ................................................................................................................................................... 2
Package Contents ................................................................................................................................................... 5
Hardware Contents
............................................................................................
............................................................... 6
Preparation .............................................................................................................................................................. 6
Initial Installation ...................................................................................................................................................... 6
Downrod-Style Fan Mounting .................................................................................................................................. 9
Closemount-Style Fan Mounting ........................................................................................................................... 11
Wiring .................................................................................................................................................................... 12
Final Installation ..................................................................................................................................................... 14
Installing Fan Without Light Kit (Optional) ............................................................................................................. 17
Operating Instructions ........................................................................................................................................... 17
Care and Maintenance ...................................................................................................
.
...................................... 19
Troubleshooting ..................................................................................................................................................... 20
Limited Lifetime Warranty ...................................................................................................................................... 21

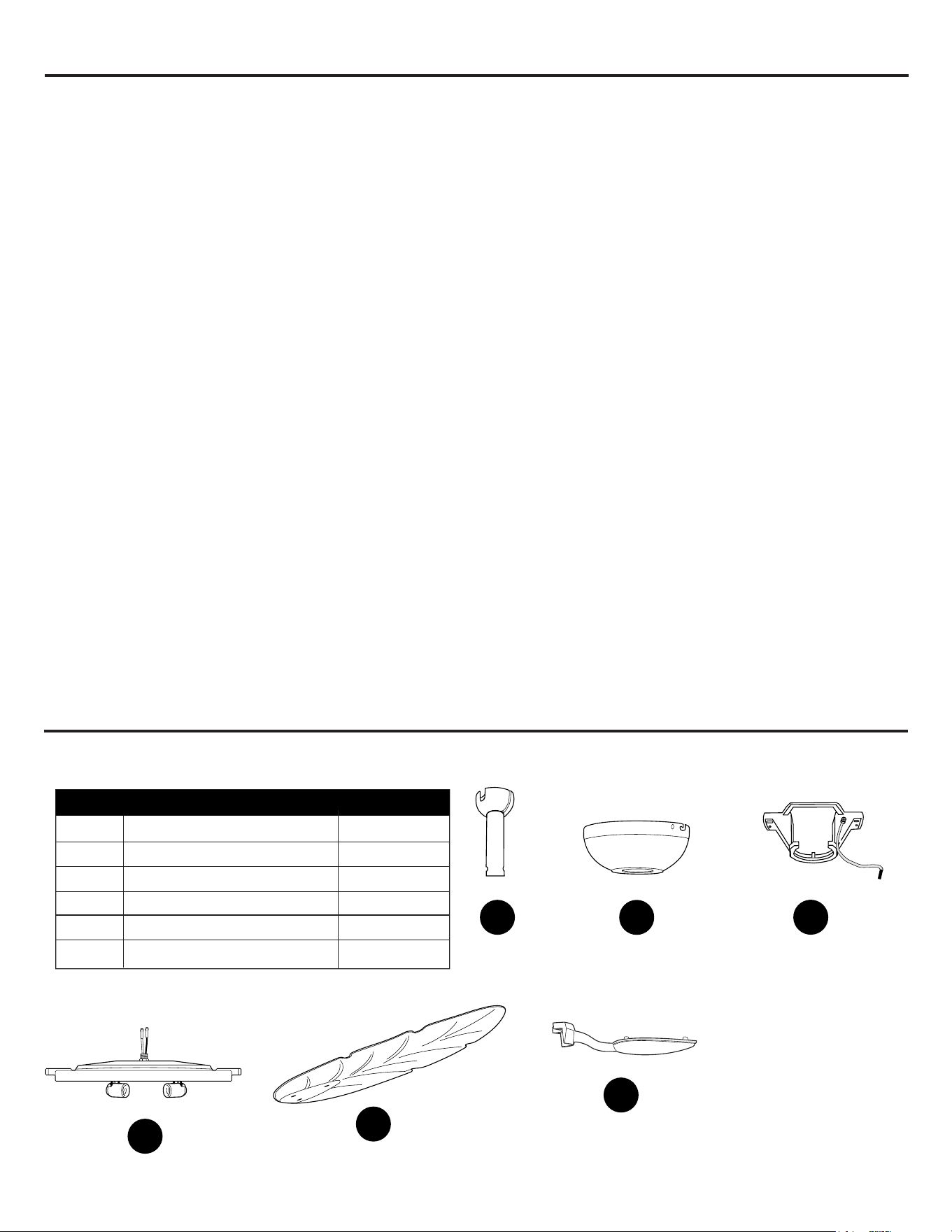

Replacement Parts List ......................................................................................................................................... 21
SAFETY INFORMATION
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 18.48 lbs.
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
4

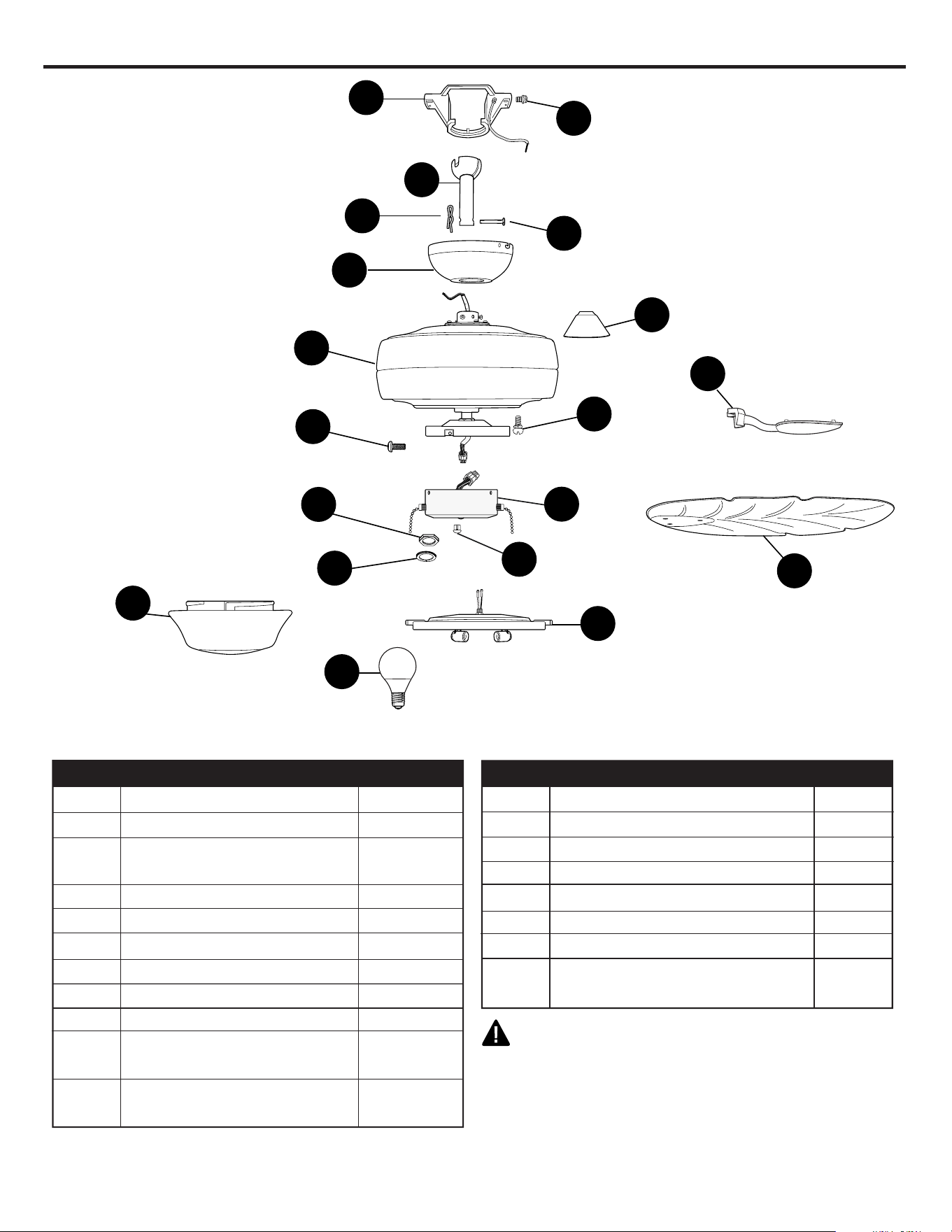

PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
5
K
A
D
B
F
C
M
L
I
E
O
P
Q
J
H
G
R
N
S
A Downrod 1
B Canopy 1
C
Mounting Bracket
1
(preassembled)
D Motor Housing 1
E Yoke Cover 1
F Light Kit Fitter 1
G Blade 5
H Blade Arm 5
I Shade 1
J Motor Screw/ Lock Washer 10
(preassembled) + 1 extra
K Canopy Mounting Screw 4
(preassembled)
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
L Pin (preassembled) 1
M Clip (preassembled) 1
N Cap (preassembled) 1
O Hex Nut (preassembled) 1
P Lock Washer (preassembled) 1
Q Bulb 2
R Switch Housing 1
S Switch Housing Screw 3
(preassembled)

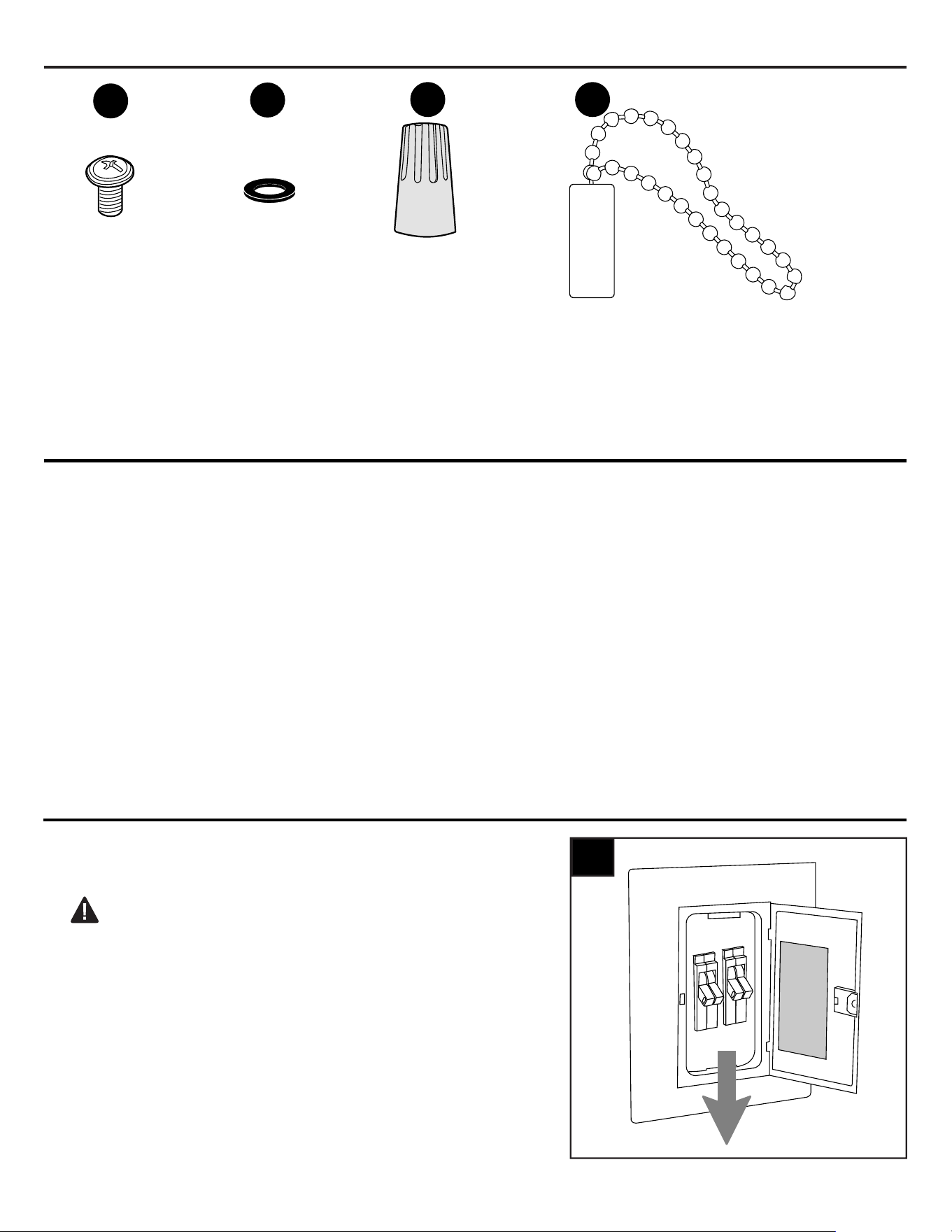

HARDWARE CONTENTS (shown actual size)
AA
BB
DDCC
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers.
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters.
PREPARATION
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the
fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
6
Rubber Blade
Washer
Qty. 15
+ 1 extra
Blade
Screw
Qty. 15
+ 1 extra
Wire
Connector
Qty. 4
Pull Chain
Extension
Qty. 2
7
INITIAL INSTALLATION
2.
3.
3
4.
4
2

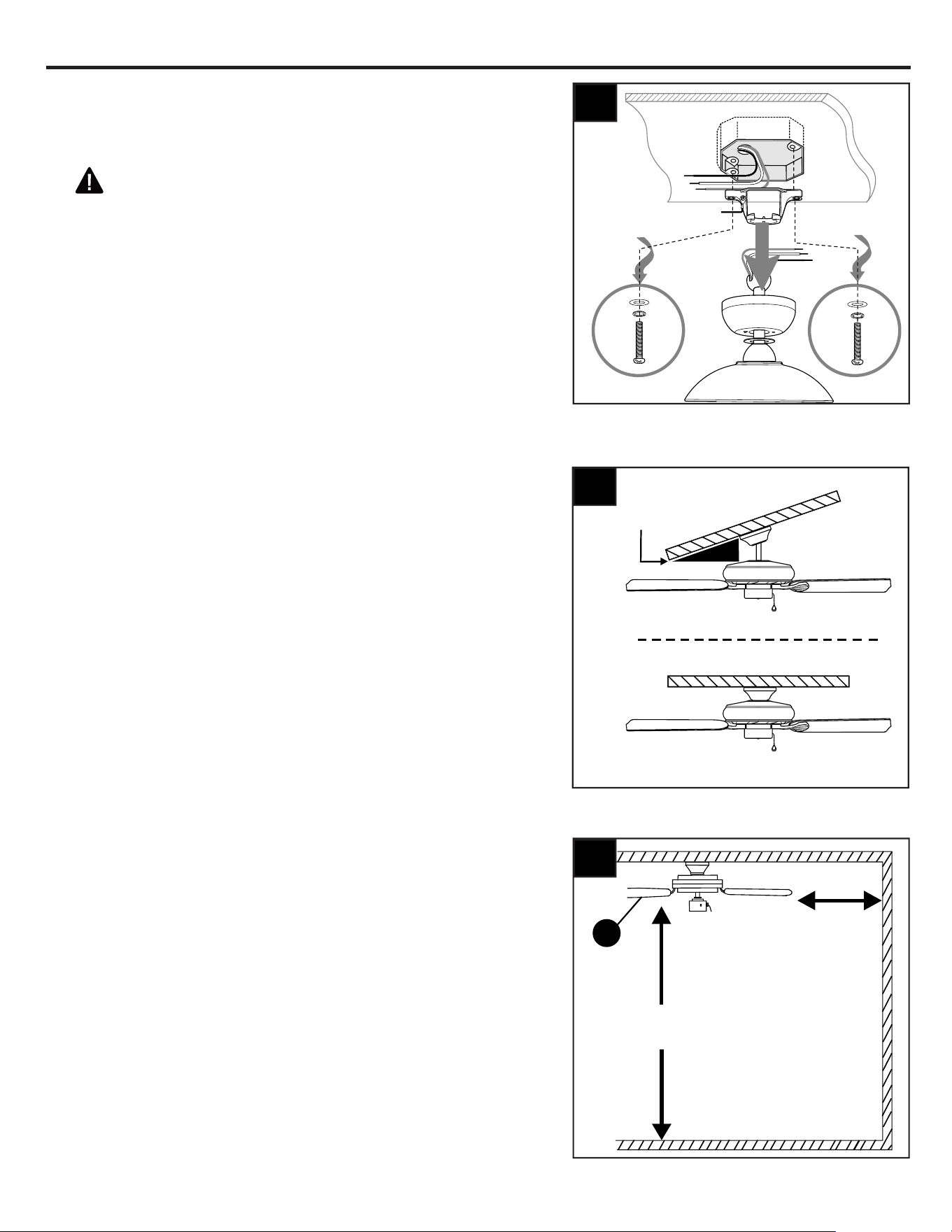

Determine mounting method to use.
A. Downrod mount (standard or angled
ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure
the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best
suited for angled or vaulted ceilings. A longer
downrod is sometimes necessary to ensure
proper blade clearance. Closemount mounting is
more suitable for ceilings lower than 8 ft. high.
If applicable, remove existing fan, including the
mounting bracket, from outlet box and
disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers (provided with the outlet box) to be
used for fan installation.
A
B
19° max.
7 ft.
min.
30 in.
min.
G
Check to make sure blades (G) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
8
INITIAL INSTALLATION
5b.
5b
Open End
C
C
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling,
and ensure the ceiling angle is not steeper than
19°.
ANGLE
MOUNT
STANDARD
MOUNT

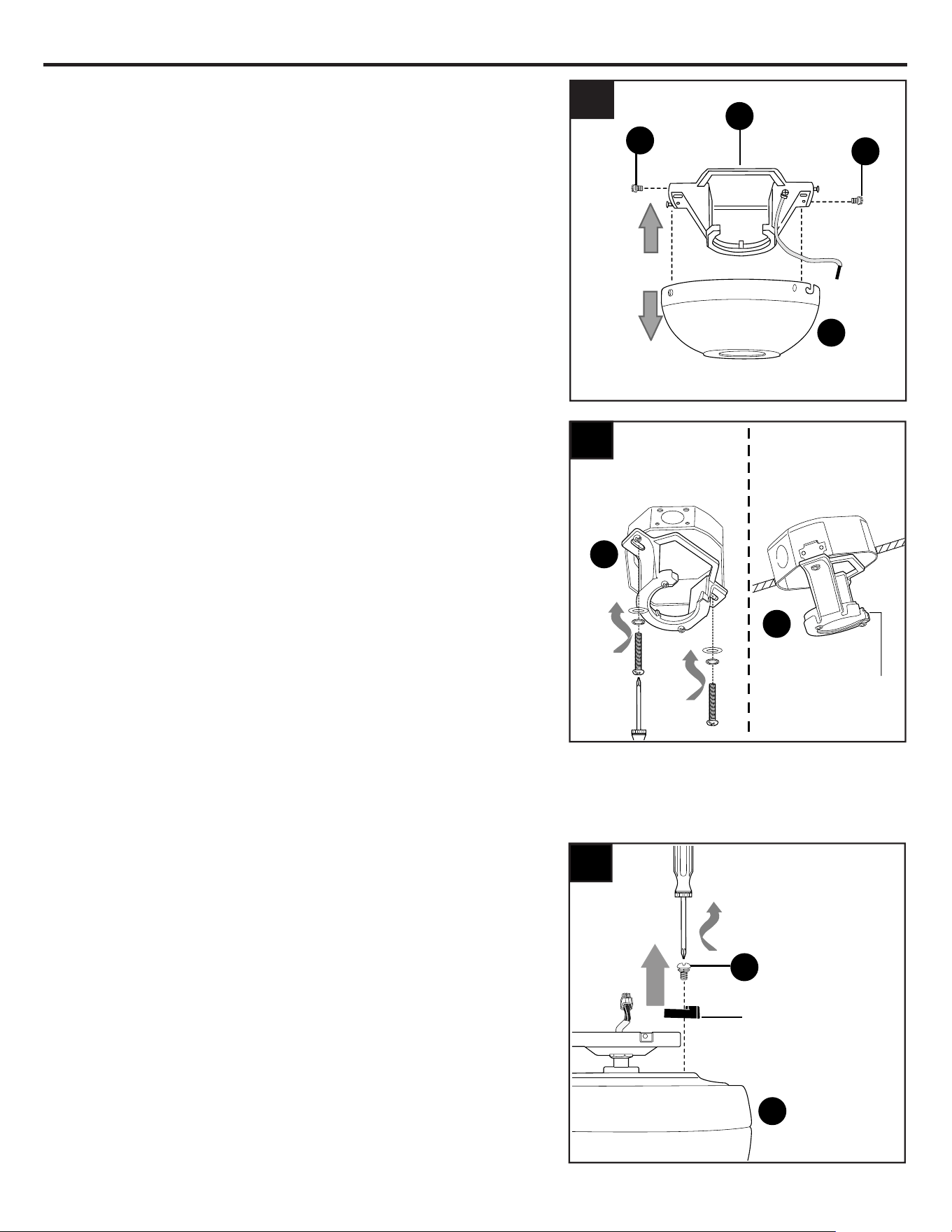

5a
5a.
Loosen canopy mounting screws (K) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (K); save for later use.
Remove mounting bracket (C) from canopy (B).
C
B
K
K
J
6
D
Plastic Motor Block
6.
Remove motor screws/lock washers (J) from
underside of motor housing (D). [If there are
plastic motor blocks installed with the motor
screws/lock washers (J), discard the plastic
motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 on the next page.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 11.
9
1b.
1a.
2.
3.
DOWNROD-STYLE INSTALLATION
2

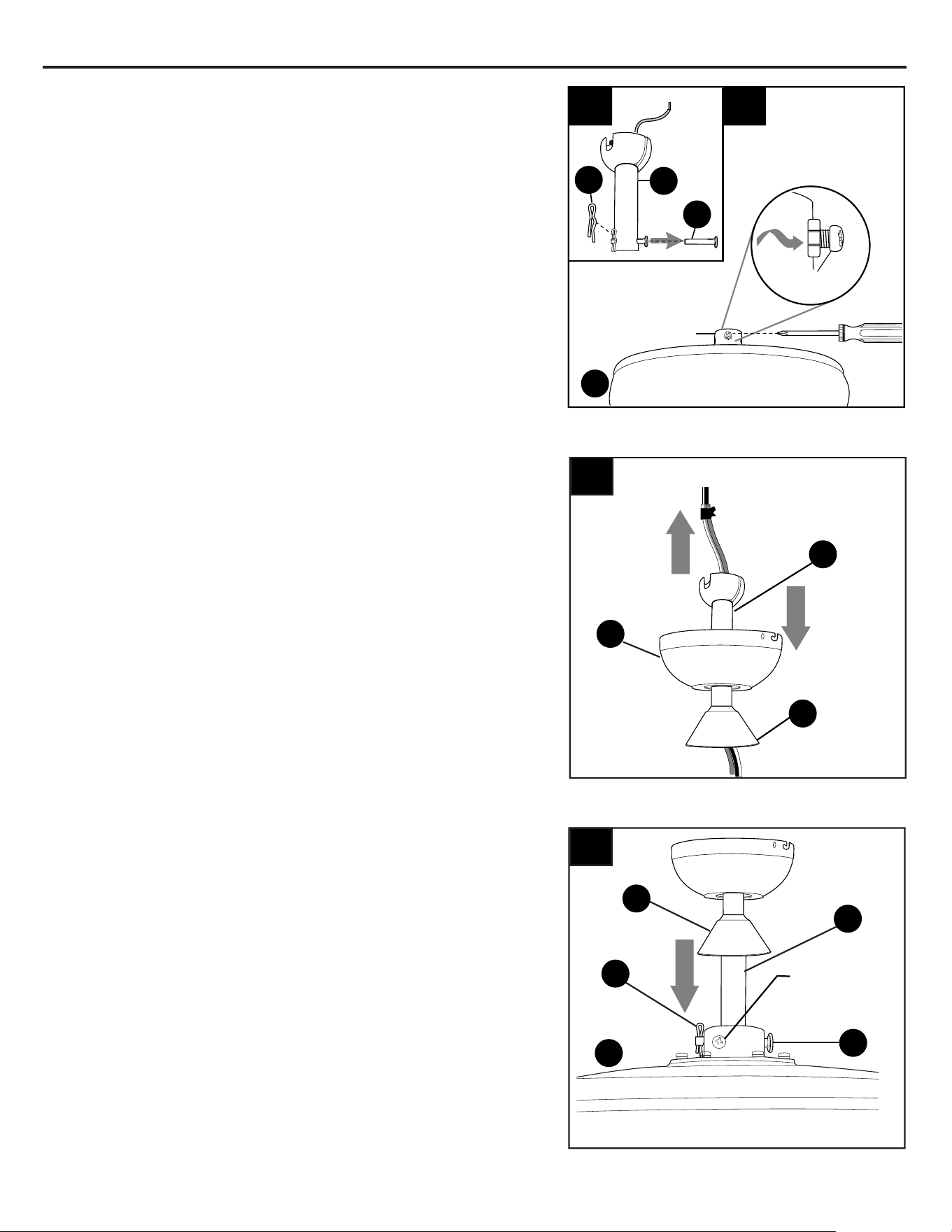

Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws and
nuts in yoke at top of motor housing (D).
1a
M
D
L
1b
A
Yoke
Set Screw
& Nut
Sideview
A
A
M
L
Set Screw
and Nut
B
Insert downrod (A) through canopy (B), and yoke
cover (E). Thread wires from motor housing (D)
up through downrod (A).
E
Slip downrod (A) into yoke, align holes and
re-install pin (L) and clip (M). Tighten downrod
(A) set screws and then tighten nuts. Slide yoke
cover (E) down until it rests on top of motor
housing (D).
D
E
3
10
6.
Install hanging ball of downrod (A) into opening
of mounting bracket (C). Align the slot in hanging
ball with the tab in mounting bracket (C).
DANGER: Failure to align slot in hanging
ball with the tab in mounting bracket (C) may
result in serious injury or death.
Continue to WIRING on page 12.
DOWNROD-STYLE INSTALLATION
C
6
A
Slot
Tab
4.

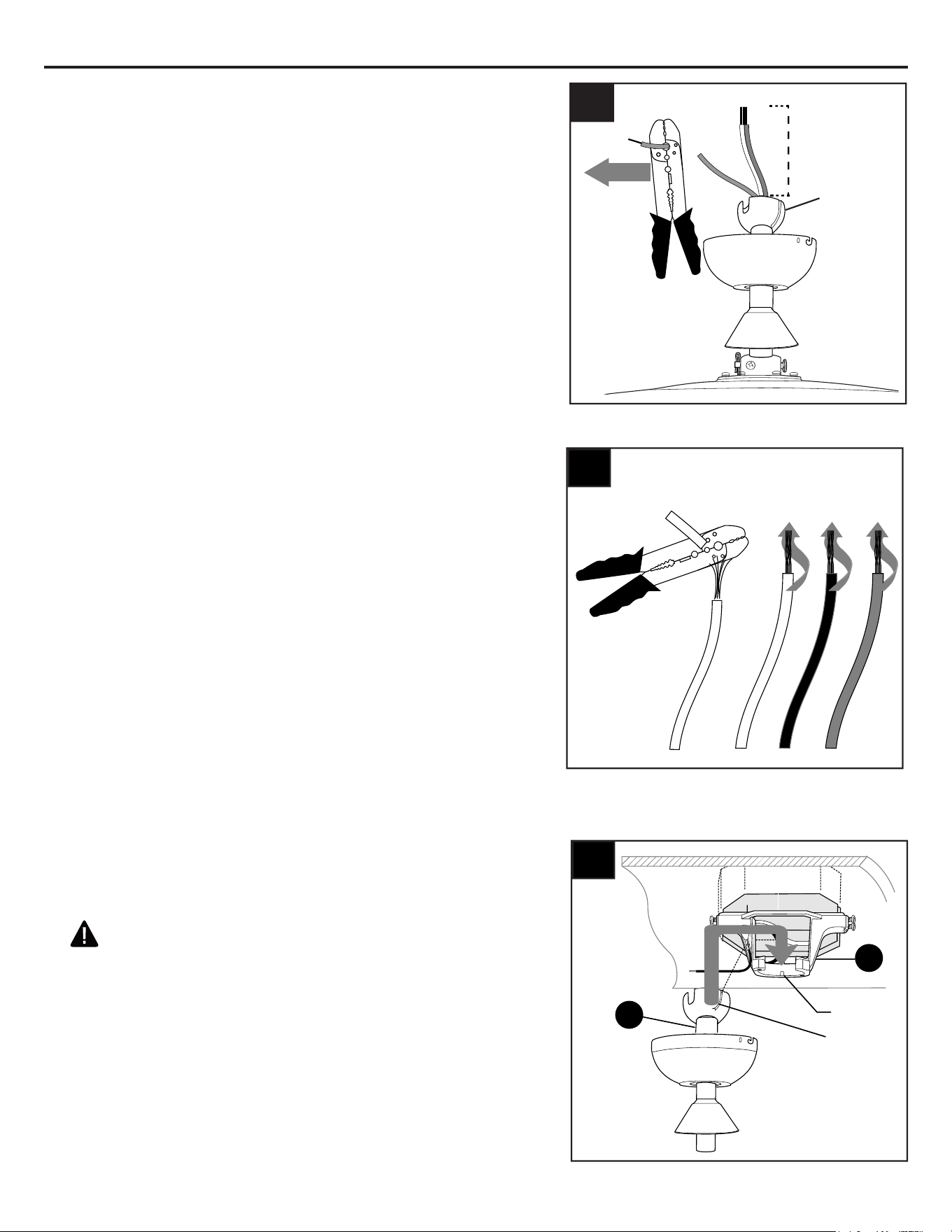

Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4
Hanging
Ball
8 in.
5
5.
If you cut back the lead wires in Step 4, strip
1/2 in. of insulation from end of of each wire --
WHITE, BLACK, GREEN and BLUE (if
applicable). Twist stripped ends of each strand
of wire within the insulation with pliers (not
included).
11
1.
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws/lock washers.
3.
3

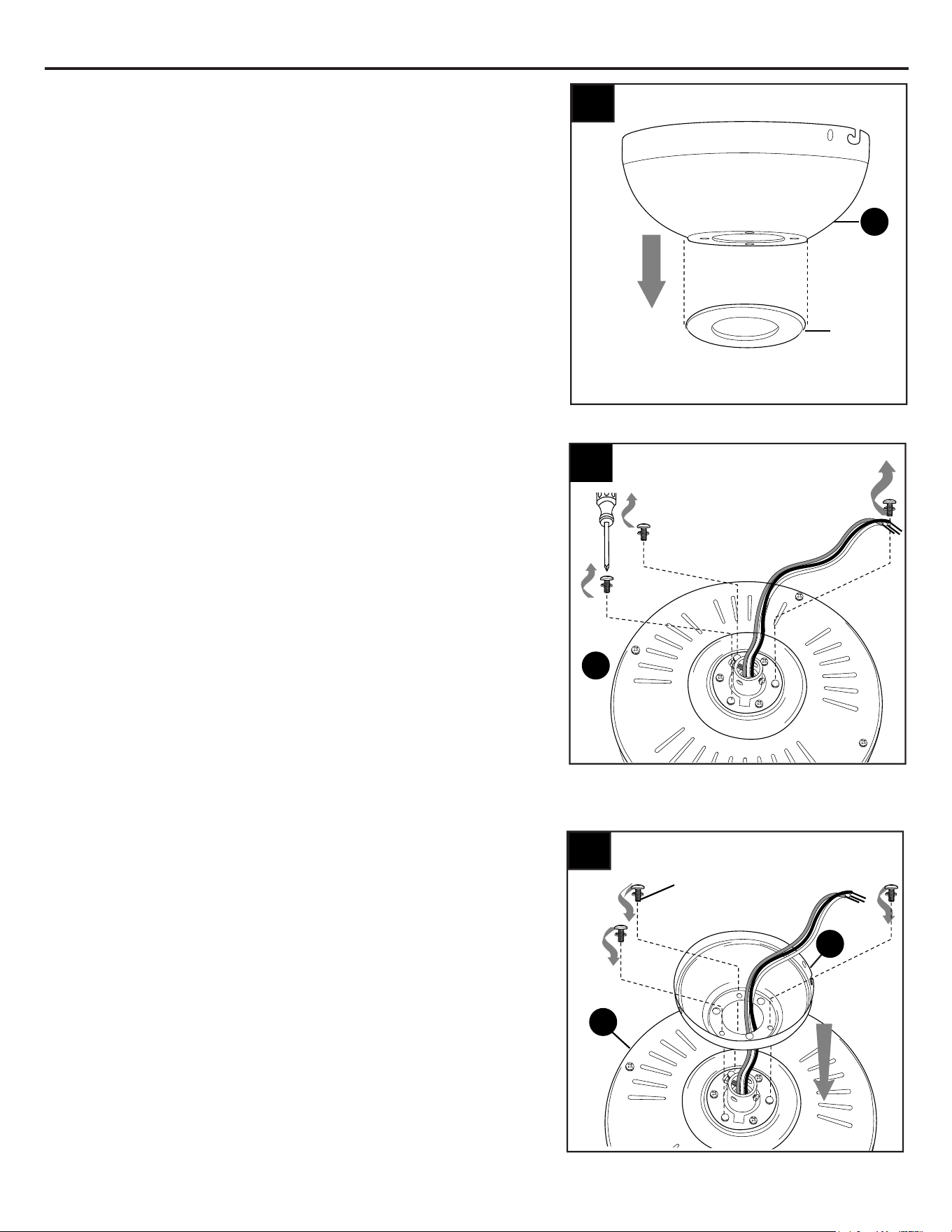

CLOSEMOUNT-STYLE INSTALLATION
2. Remove every other preassembled screw/lock
washer from top of motor housing (D).
2
Screw/Lock Washer
Remove preassembled canopy cover from
bottom of canopy (B). [NOTE: It may be
necessary to use the handle end of a
screwdriver (not included) to remove the canopy
cover by tapping on the canopy cover from the
inside of the canopy (B).]
NOTE: The downrod (A), yoke cover (E) and
canopy cover are not used in this type of
installation.
Canopy
Cover
B
1
B
D
B
D
12

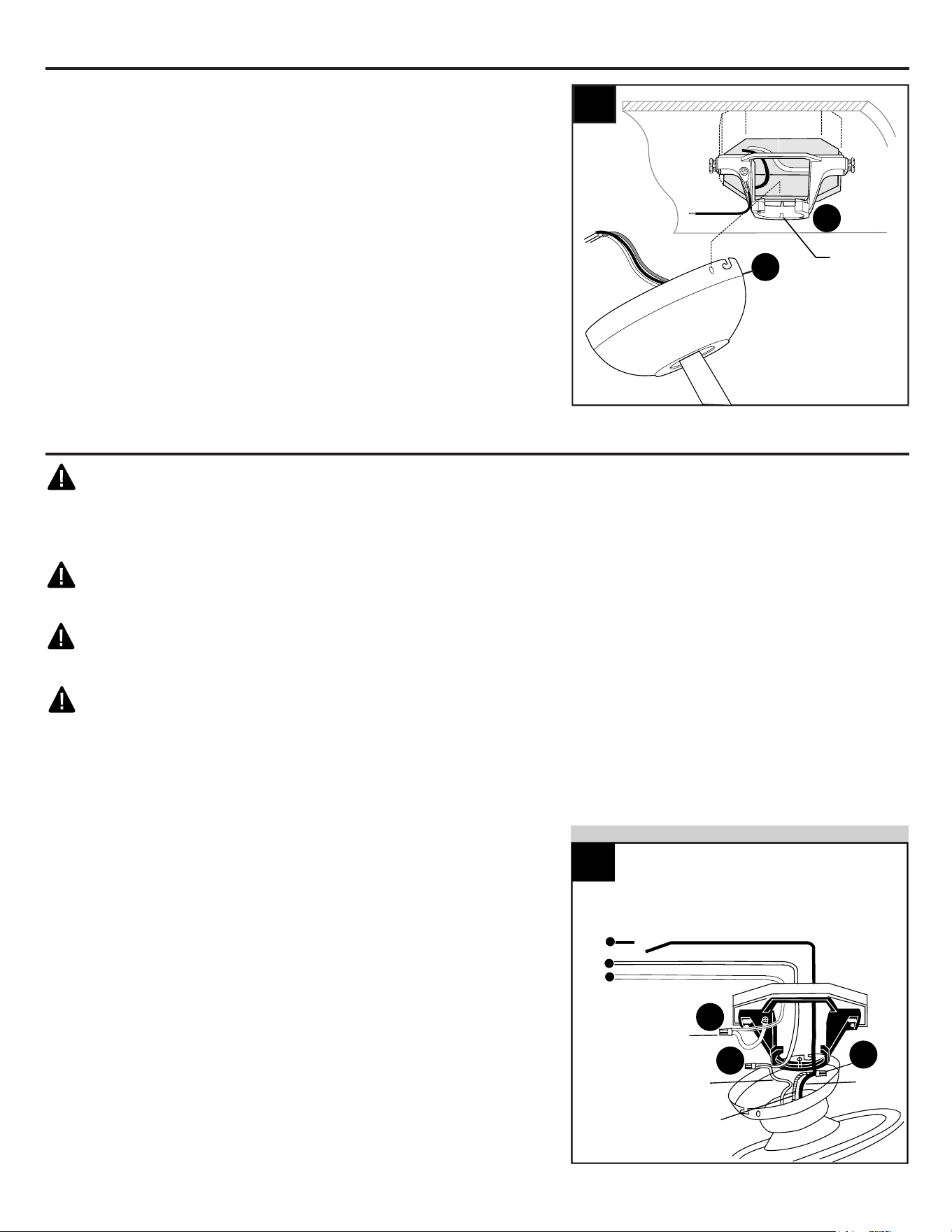

CLOSEMOUNT-STYLE INSTALLATION
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
Continue to WIRING below.
4.
B
4
C
Tab
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wires from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
WIRING
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig.
1c) that fits your situation and make appropriate
wiring connections as follows: [IMPORTANT:
Use one of the wire connectors (CC) to make
each wire connection, making sure to screw
wire connector (CC) on in a clockwise direction.]
FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect GREEN wire from fan (on
downrod (A), if applicable, and mounting bracket
(C)) to BARE/GREEN wire from ceiling. Connect
BLACK and BLUE wire from fan to BLACK wire
from ceiling. Connect WHITE wire from fan to
WHITE wire from ceiling.
1a.
1.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
GREEN
WHITE
BLACK
BLUE
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
CC
CC
CC
13

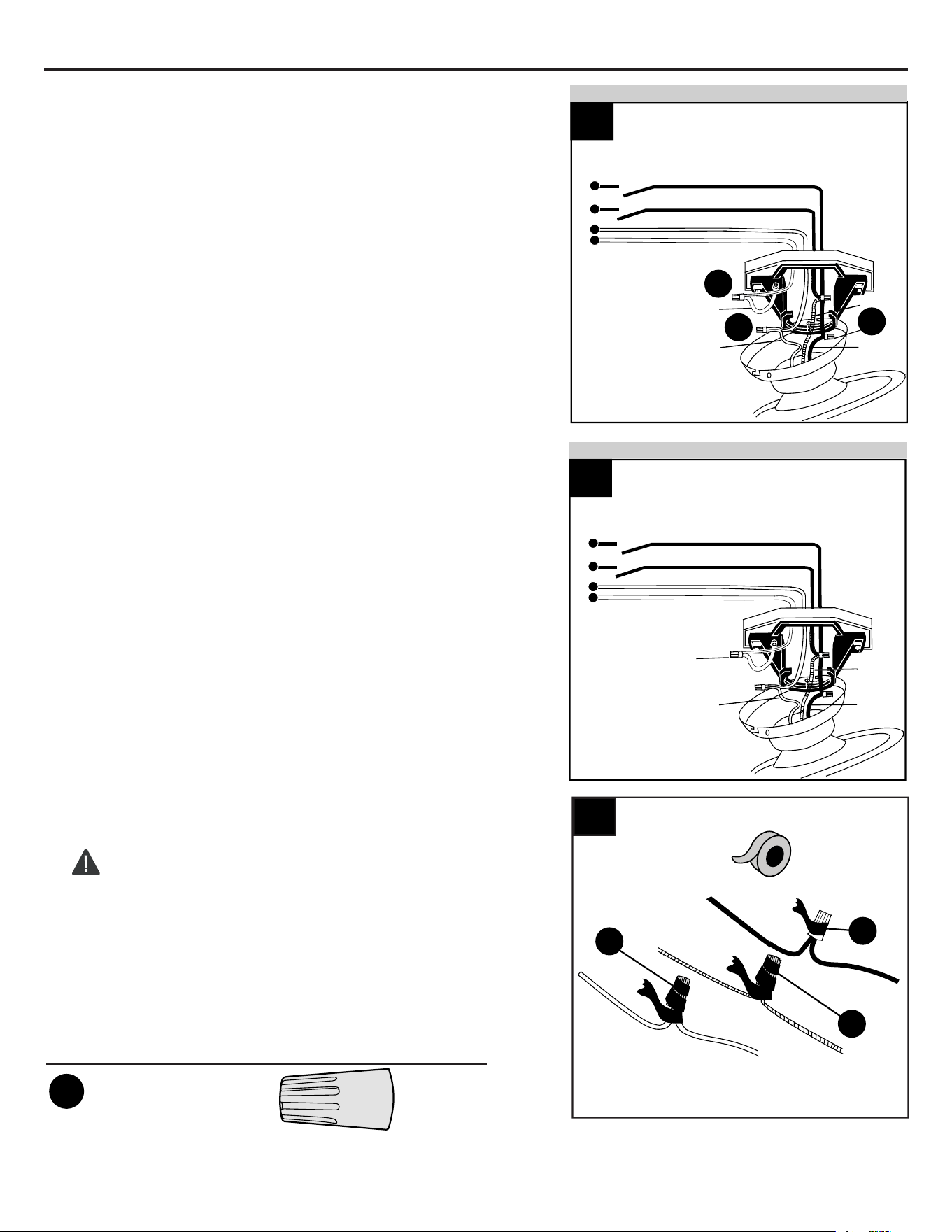

WIRING
FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: Connect BLACK wire from
fan to BLACK wire from the independent wall
switch for the fan. Connect BLUE wire from fan
to the BLACK wire from the other independent
wall switch for the light. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect
GROUND (GREEN) wires from fan (on downrod
(A), if applicable, and mounting bracket (C)) to
BARE/GREEN wire from ceiling.
NOTE: BLACK wire is hot power for fan. BLUE
wire is hot power for light kit. WHITE wire is
common for fan and light kit. GREEN or BARE
wire is ground.
FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: Connect BLACK wire from
fan to BLACK wire from ceiling. Connect BLUE
wire from fan to the BLACK wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect GROUND (GREEN) wires from fan (on
downrod (A), if applicable, and mounting bracket
(C)) to BARE/GREEN wire from ceiling.
GREEN
WHITE
BLACK
BLUE
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
1b
GREEN
WHITE
BLACK
BLUE
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1c
1c.
1b.
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE wire connections on the opposite
side of the outlet box from the BLACK and BLUE wire
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
CC
Wire Connector x 4
Hardware Used
CC
CC
2
CC
CC
CC
CC
14

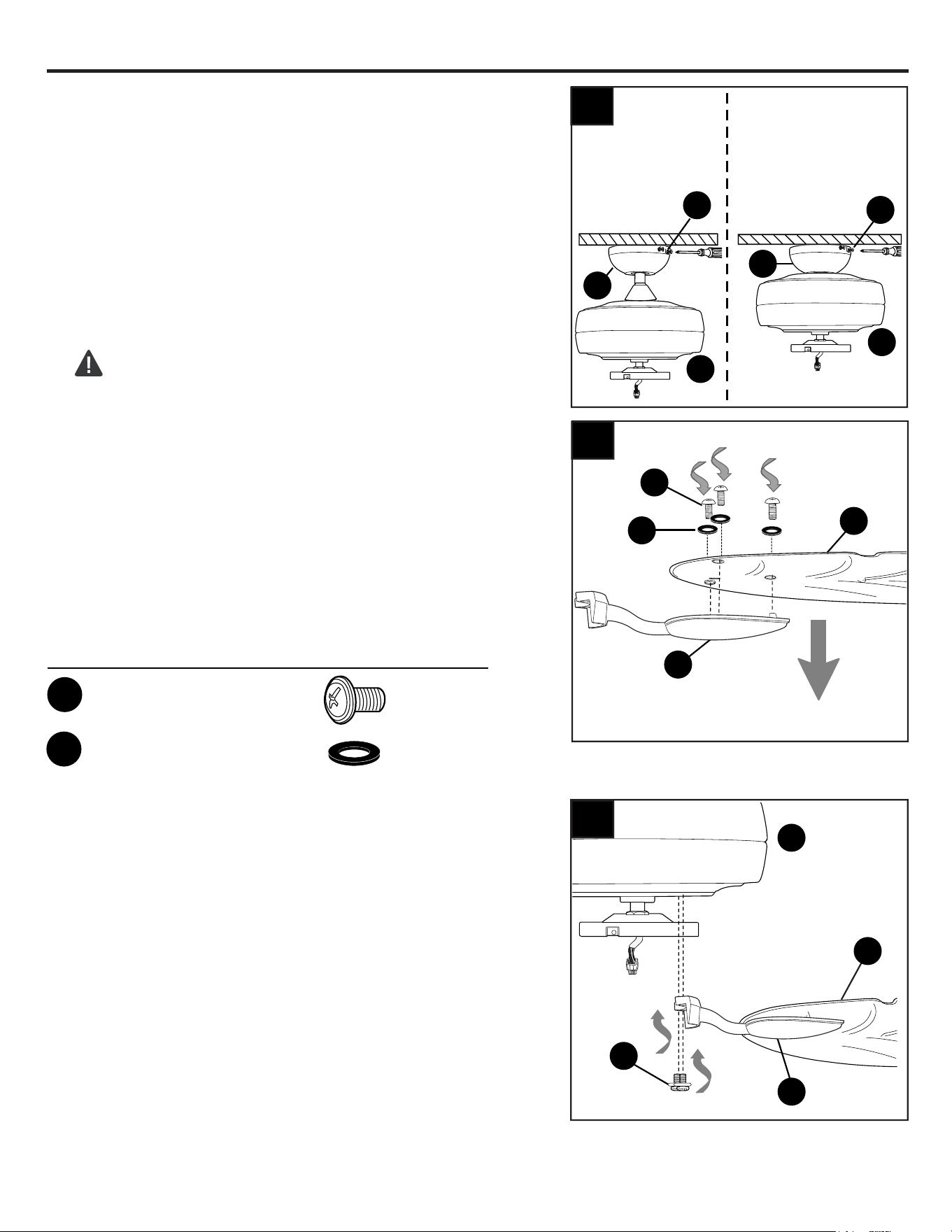

FINAL INSTALLATION
3.
1.
Lift canopy (B) to mounting bracket (C), aligning
slotted holes in canopy (B) with loosened
canopy mounting screws (K) in mounting bracket
(C). Twist canopy (B) clockwise to lock.
Re-insert the two canopy mounting screws (K)
previously removed (Step 5a, page 8) and
tighten all canopy mounting screws (K) securely.
1
B
D
K
D
B
Downrod
Option
Closemount
Option
2.
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (G). If screws are
overtightened, blades (G) may crack and break.
Partially insert three blade screws (AA) along
with three rubber blade washers (BB) into holes
in blade (G) (labeled THIS SIDE UP) to attach
blade arm (H) to blade (G). Then, tighten each
blade screw (AA) starting with the one in the
middle
Repeat for remaining blades (G) and blade arms
(H).
Hardware Used
Blade Screw
x 15
AA
Rubber Blade Washer
x 15
BB
Attach blade arms (H) to the bottom of motor
housing (D) with motor screws/lock washers (J)
previously removed (Step 6, page 8). Tighten
motor screws (J) securely. Repeat for remaining
blade arms (H). Make sure to completely secure
each blade arm (H) before proceeding to the
next.
If you do NOT wish to use the light kit, skip to
INSTALLING FAN WITHOUT LIGHT KIT
(OPTIONAL) on page 17.
If you DO wish to use the light kit, proceed to
Step 4.
K
H
J
BB
AA
G
H
2
G
3
D
15

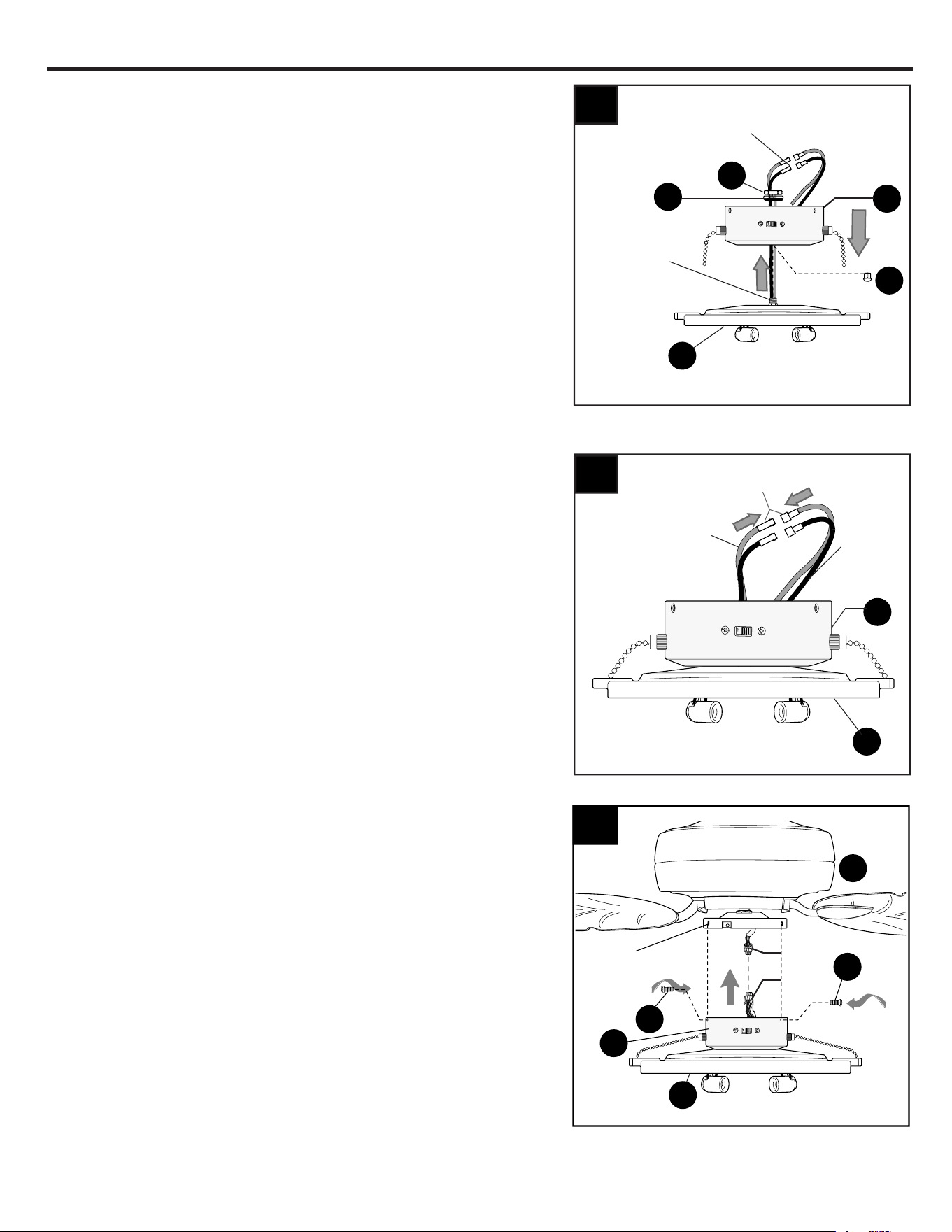

FINAL INSTALLATION
4.
6.
4
Remove the three preassembled switch housing
screws (S) from switch housing plate on
underside of motor housing (D). Connect male
plug from motor housing (D) to female plug from
switch housing (R), matching up the colors on
the male plug with the colors on the female plug
for correct fit. Make sure plugs are connected
completely. Align holes in switch housing (R)
with holes in switch housing plate, and secure
switch housing (R) with three switch housing
screws (S) previously removed. Tighten all
screws securely.
To install the fan with the light kit, remove
preassembled hex nut (O) and lock washer (P)
from threaded rod at top of light kit fitter (F).
Punch center cap (N) out of switch housing (R)
with a screwdriver (not included). Gently feed
molex wires (one at a time) from light kit fitter (F)
through hole in middle of switch housing (R),
and then screw switch housing (R) onto
threaded rod on light kit fitter (F) -- ensure to
align holes on pull chain guides with pull chains
on switch housing (R). Tighten hex nut (O) over
lock washer (P) for a secure fit.
6
5
Connect WHITE molex wire from light kit fitter (F)
to WHITE molex wire from switch housing (R).
Connect BLACK molex wire from light kit fitter (F)
to BLUE (or BLACK) molex wire from switch
housing (R). Make sure molex wire connections
snap together securely.
5.
R
Molex
Connections
F
White
Molex
Wire
Black
Molex
Wire
N
S
O
P
Threaded
Rod
Molex
Connections
Pull Chain
Guide
F
F
R
S
D
Switch
Housing
Plate
S
Male
Plug
Female
Plug
16

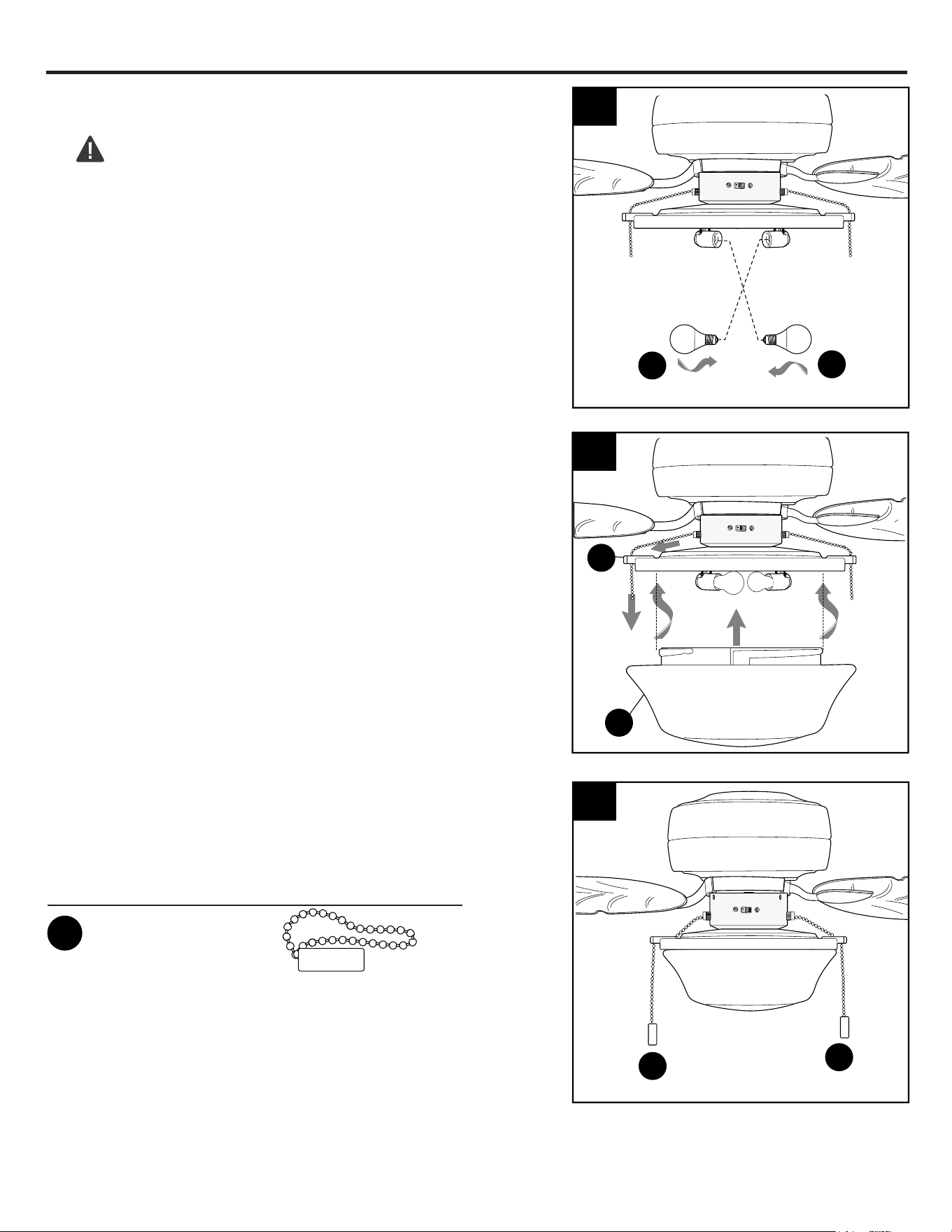

FINAL INSTALLATION
Install bulbs (Q).
WARNING: When replacing bulb(s), allow
bulb(s) and shade to cool down before touching.
7.
8.
Attach pull chain extensions (DD) or custom pull
chain extensions (not included) to fan and light
pull chains.
9.
9
8
7
Thread preassembled fan and light pull chains
through corresponding pull chain guides on the
outer rim of the light kit fitter (F).
Align slots on shade (I) with protrusions on the
inside of the light kit fitter (F). Turn shade (I)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (I) to
make sure it is secured completely.
DD
Pull
Chain
Guide
I
F
Q
Q
DD
Pull Chain Extension x 2
Hardware Used
DD
1.
If you do NOT wish to use the light kit, remove
the three preassembled switch housing screws
(S) from switch housing plate on underside of
motor housing (D). Connect male plug from
motor housing (D) to female plug from switch
housing (R), matching up the colors on the male
plug with the colors on the female plug for correct
fit. Make sure plugs are connected completely.
Align holes in switch housing (R) with holes in
switch housing plate. Re-insert switch housing
plate screws (S) just removed and use a Phillips
screwdriver to secure switch housing (R) to
switch housing plate. Tighten all screws securely.
1
S
R
D
Switch
Housing
Plate
S
Male
Plug
Female
Plug
17

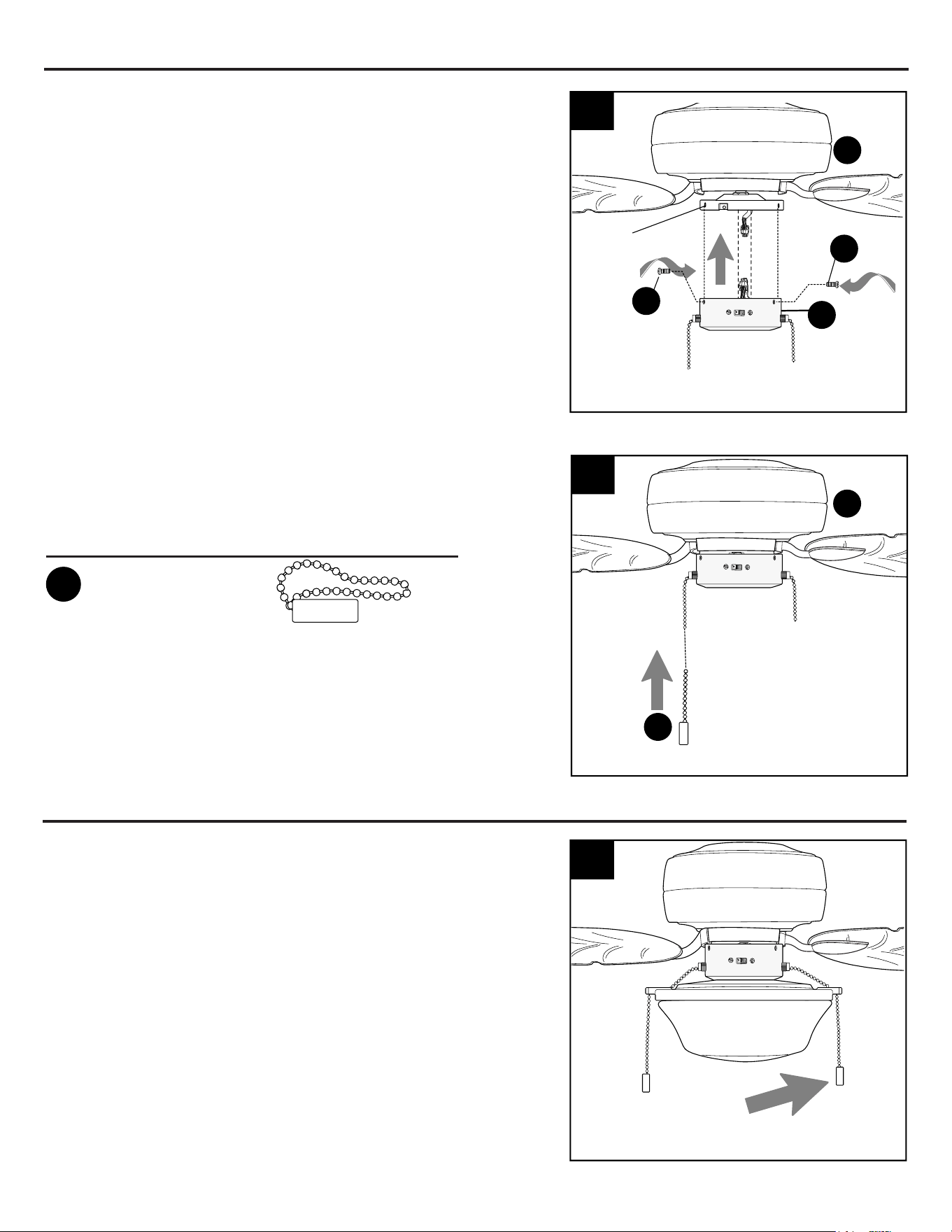

INSTALLING FAN WITHOUT LIGHT KIT
1.
Attach necessary pull chain extension (DD) or
custom pull chain extension (not included) to
corresponding pull chain for fan.
2.
2
DD
D
Pull Chain Extension x 1
Hardware Used
DD

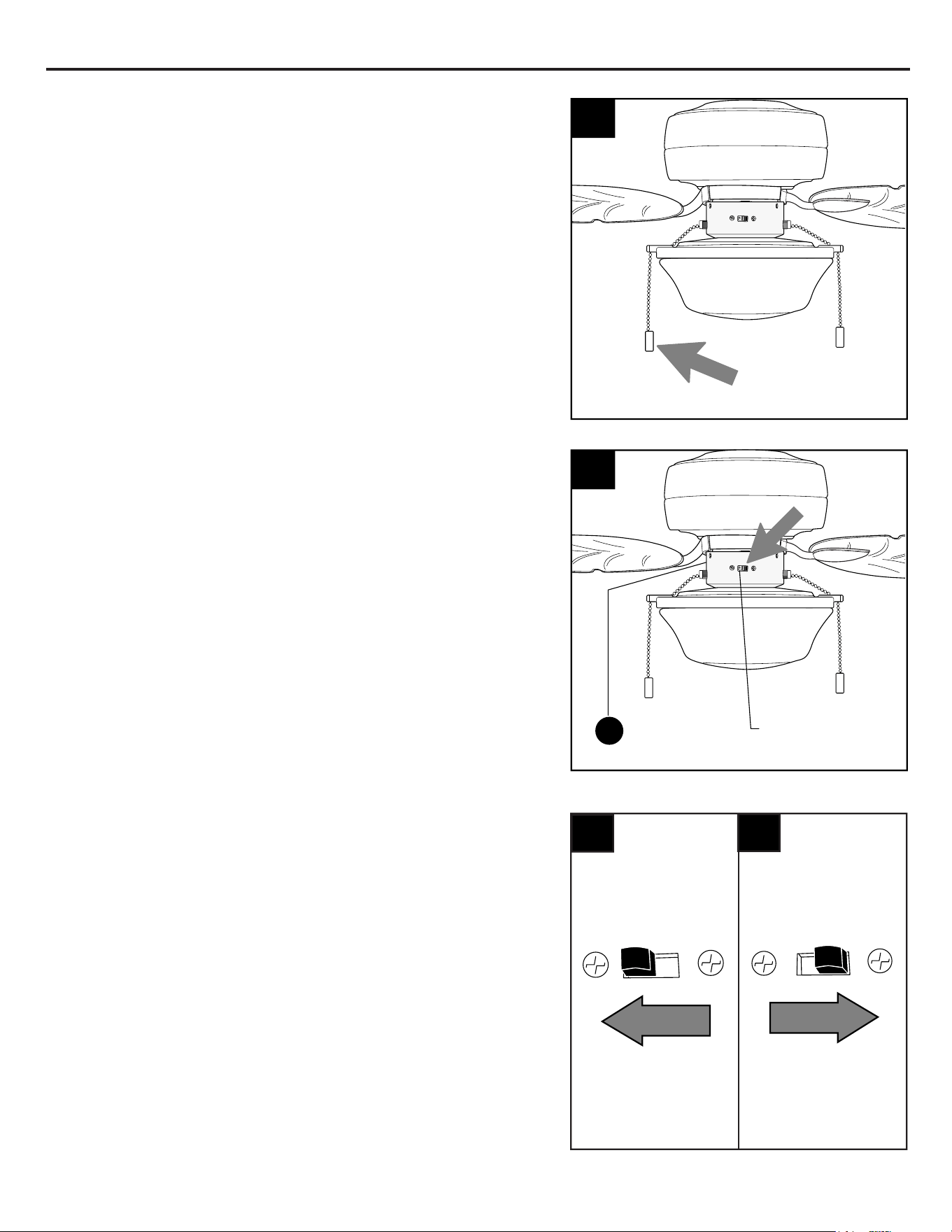

OPERATING INSTRUCTIONS
The fan pull chain has four positions to control
fan speed. One pull is HIGH, two is MEDIUM,
three is LOW and four turns the fan OFF.
1.
1
18
OPERATING INSTRUCTIONS
If applicable, the light pull chain is used to turn
the light ON or OFF.
2.
Use the fan reverse switch on the switch
housing (S) to optimize your fan for seasonal
performance. A ceiling fan will allow you to
raise your thermostat setting in summer and
lower your thermostat setting in winter without
feeling a difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3b.
3a.
3.
Reverse Switch
S
3
2
3a
3b
In warmer weather, setting the reverse switch
in the LEFT position will result in downward
airflow creating a wind chill effect.
In cooler weather, setting the reverse switch in
the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the
ceiling area.
19
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
At least twice each year, lower canopy (B) to check downrod (A) assembly, canopy mounting screws (K)
and then tighten all screws on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to
avoid scratching the finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light
coat of furniture polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use standard-base 5.5-watt LED bulbs or incandescent/CFL equivalent.
3c
IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT
for fan to function. If the reverse switch is set in
the middle position, fan will not operate.
3c.
20
1. Wires in canopy not wired properly.
2. Wall switch to light is off.
3. Wires in light kit fitter not wired
correctly.
4. Bulb(s) not installed correctly.
TROUBLESHOOTING
1. Check wires in outlet box and, if
necessary, re-wire according to
instructions on pages 12 and 13.
2. Make sure wall switch to light is on.
3. Check that connections in light kit
fitter are connected properly
according to instructions on page
15.
4. Re-install bulb(s).
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Fan operates but
light fails
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy and
check all connections.
3. Push switch firmly either left or
right.
4. Check that male and female plugs
in switch housing are connected
properly according to instructions
on page 15.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Reverse switch not engaged.
4. Plugs not connected properly.
Noisy operation.
Excessive wobbling.
1. Blades are loose.
2. Fan not securely mounted.
3. Fan too close to vaulted ceiling.
4. Set screw(s) on motor housing yoke
is (are) not tightened properly.
5. Set screw on hanging ball is not
tightened properly.
6. Unbalanced blades.
7. Blade arms incorrectly attached.
1. Tighten all blade screws.
2. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
3. Use a longer downrod or move fan
to another location.
4. Tighten yoke set screw(s) securely.
5. Carefully loosen and lower canopy
and verify that set screw on
hanging ball is tightened securely.
6. Switch one blade with a blade from
the opposite side.
7. Re-install blade arms.
1. Tighten all blade screws.
2. Replace blade.
3. Use only with included speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
21
LIMITED LIFETIME WARRANTY
Printed in China
DRLI2402
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 800-527-1292, 8:30 a.m. - 5 p.m., CST,
Monday - Friday.
A
B
C
H
G
PART DESCRIPTION PART#
A Downrod
B
Canopy
C Mounting Bracket
F Light Kit Fitter
G Blade
H Blade Arm
5730167-A
5730167-B
5730167-C
5730167-F
5730167-G
5730167-H
F
