eG9981 revised 06/15
CAUTION
iNSPect coNteNtS iMMeDiAteLY AND FiLe cLAiM With DeLiVeriNG cArrier For ANY
DAMAGe. SAVE YOUR BOX AND ALL PACKING MATERIALS. You Are reSPoNSiBLe
For DAMAGe to Your uNit iF returNeD iMProPerLY PAcKeD.
#4
#5
#6
#1
#2
#3
#7 #8 #9

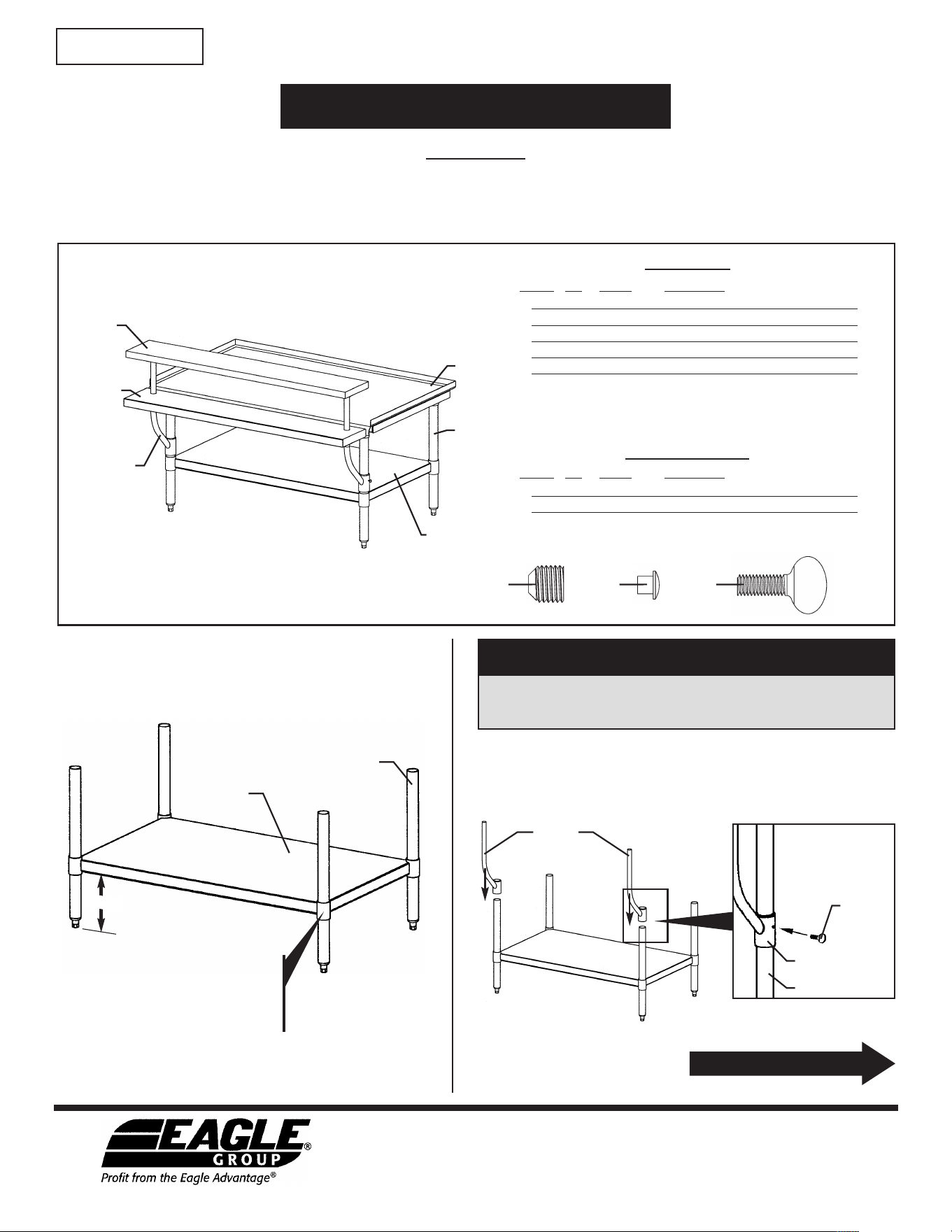

item # qty part # description
#1 1* hardwood cutting board (optional)
#2 1* plate shelf (optional)
#3 2 309762 leg support** (optional)
#4 1* tabletop
#5 4* 22 1/2˝ leg
#6 1* undershelf
*
Part number varies by size and/or style of table ordered.
*
* Leg Support comes with optional hardwood cutting board.
Parts List
Hardware List
Item #5
leg
Item #6
undershelf
Step 1 - Assemble legs to undershelf.
• Be sure undershelf is level.
• Recommended height from the floor to the top of the
undershelf is 10˝.
* To be compliant with NSF guidelines, either the supplied NSF set screw
caps (Item #8) must be installed over all exposed set screws, or exposed
set screws must be filled with silicone sealant.
(continued on back page)
6
˝
mi
n
.
6˝ min
.
Item #3
leg supports
Step 2 - Assemble leg supports to front legs at
desired location.
gusset
Item #5 leg
Item #9
thumb
screw
Tighten gusset to
leg using Item #9
thumb screw.
Item #7 set screw* found inside
each gusset. Do not overtighten
or failure will occur. Use 5/32˝
allen wrench (not shown).
If you ordered optional plate shelf and/or optional hardwood
cutting board, proceed to Step 2. If not, proceed to Step 3.
BEFORE CONTINUING, PLEASE NOTE:
eagle Foodservice equipment, eagle Mhc, SpecFAB
®
, and retail Display are divisions of eagle Group. ©2015 by the eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
ASSEMBLY INSTRUCTIONS
Griddle/Equipment Stands with
Adjustable Undershelf
iNStructioN Sheet
#355508
item # qty part # description
#7 8 311243 5/16-24 set screw
#8 8 358306 NSF set screw cap
#8 6 301546 10-32 x 1/2˝ thumb screw
(optional)
If you ordered optional plate shelf and/or optional hardwood cutting board, proceed below.
Otherwise, assembly is complete.
PLEASE NOTE:
Step 4 - Slide plate shelf over leg supports to
desired location.

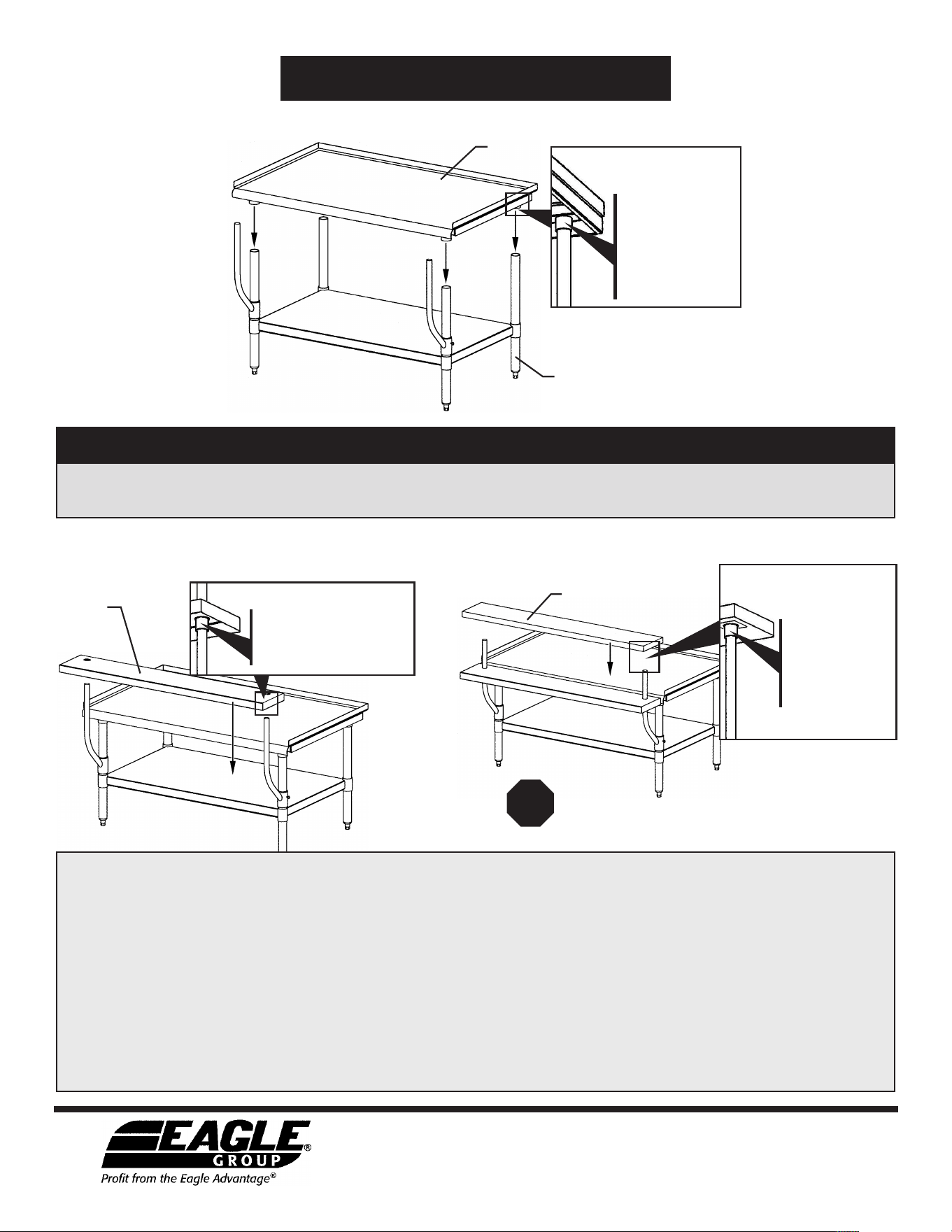

Step 3 - Assemble tabletop to leg/undershelf subassembly.
Item #4
tabletop
leg/undershelf
subassembly
Secure legs into
gussets with
Item #7 set
screws* provided,
using 5/32˝
allen wrench.
(underside view of tabletop)
Step 5 - Set hardwood cutting board onto
leg supports.
Secure leg supports into
gussets with Item #9
thumb screws.
(underside view of plate shelf)
Item #1 hardwood
cutting board
Secure leg
supports into
gussets with
Item #8 thumb
screws.
(underside view of
hardwood cutting board)
Item #2
plate shelf
ASSEMBLY INSTRUCTIONS
Griddle/Equipment Stands with Adjustable Undershelf
eagle Foodservice equipment, eagle Mhc, SpecFAB
®
, and retail Display are divisions of eagle Group. ©2015 by the eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
FOR CLEANING:
1. Wooden cutting boards, butchers blocks, and bakers tables are not intended to be soaked for a prolonged length of time during the cleaning and
sanitizing process.
2. Wipe down wood surfaces with warm, soapy water. The top or cutting board should be dried with a rag to insure no standing water remains.
Most household cleaners like Windex
®
or Formula 409
®
can also be used to clean the top or cutting board*.
3. Stains can usually be removed with fingernail polish remover or chlorine bleach without damage to the wood surface.
4. The Urethane finish is an exceptionally durable finish. However, NO finish is waterproof. If the wood surface is to be kept immaculate, treat it like a
piece of furniture.
5. In most cases, the finish will last for years without further treatment. However, over time, the finish will degrade with continuous use and cutting
directly on the surface. If desired, the surface can be sanded down and refinished. We recommend Emmet’s “Good Stuff” gel urethane wood
finish.
* Exceptions: Do not use ammonia-based products as they can cloud the finish. Abrasive cleaners and scouring pads can scratch the top.
(End)
* To be compliant with NSF guidelines, either the supplied NSF set
screw caps (Item #8) must be installed over all exposed set screws,
or exposed set screws must be filled with silicone sealant.
