ASSEMBLY INSTRUCTIONS
Hand Sinks with Skirt,
Knee Valve, or Towel Dispenser
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG10051 Revised 10/23
For Hand Sinks with Skirt, see page 2.
For Hand Sinks with Knee Valve, see page 3.
For Hand Sinks with Towel Dispenser, see back page.

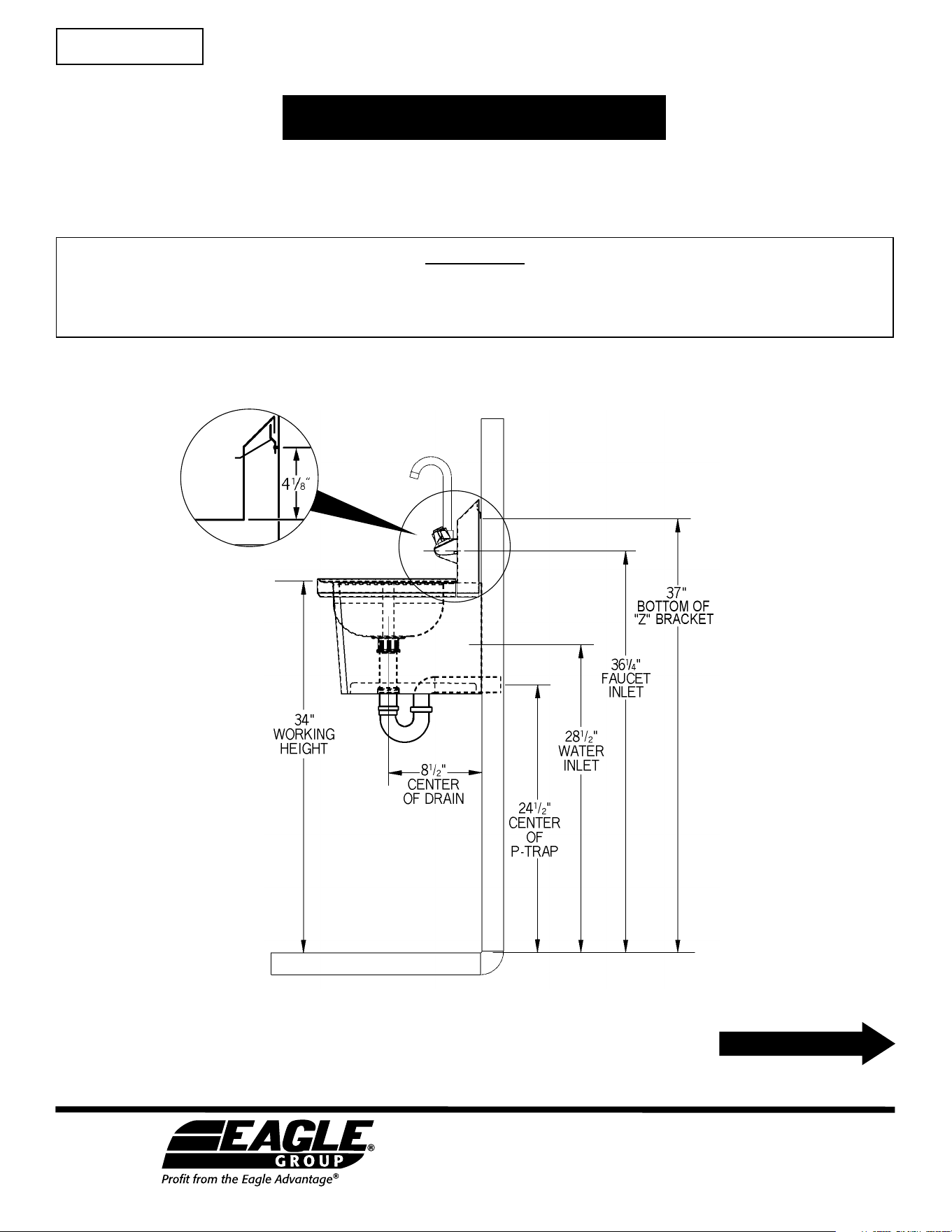

Dimensions for plumbing rough-ins:
“Z”
bracket
INSTRUCTION SHEET
#358413
(continued on page 2)
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
ASSEMBLY INSTRUCTIONS
Hand Sinks with Skirt
2
Please note before assembly:
• Attach faucet to hand sink.
• Remove the locking nuts from underside of hand sink and set aside.
• Please follow the plumbing rough-ins (front page). All dimensions are nominal.
skirt
flange
hand
sink
skirt
hex
nut **
keyhole
** Two hex nuts per side, two in front. Hex nuts provided.
(If hex nuts are not present, see note below.)

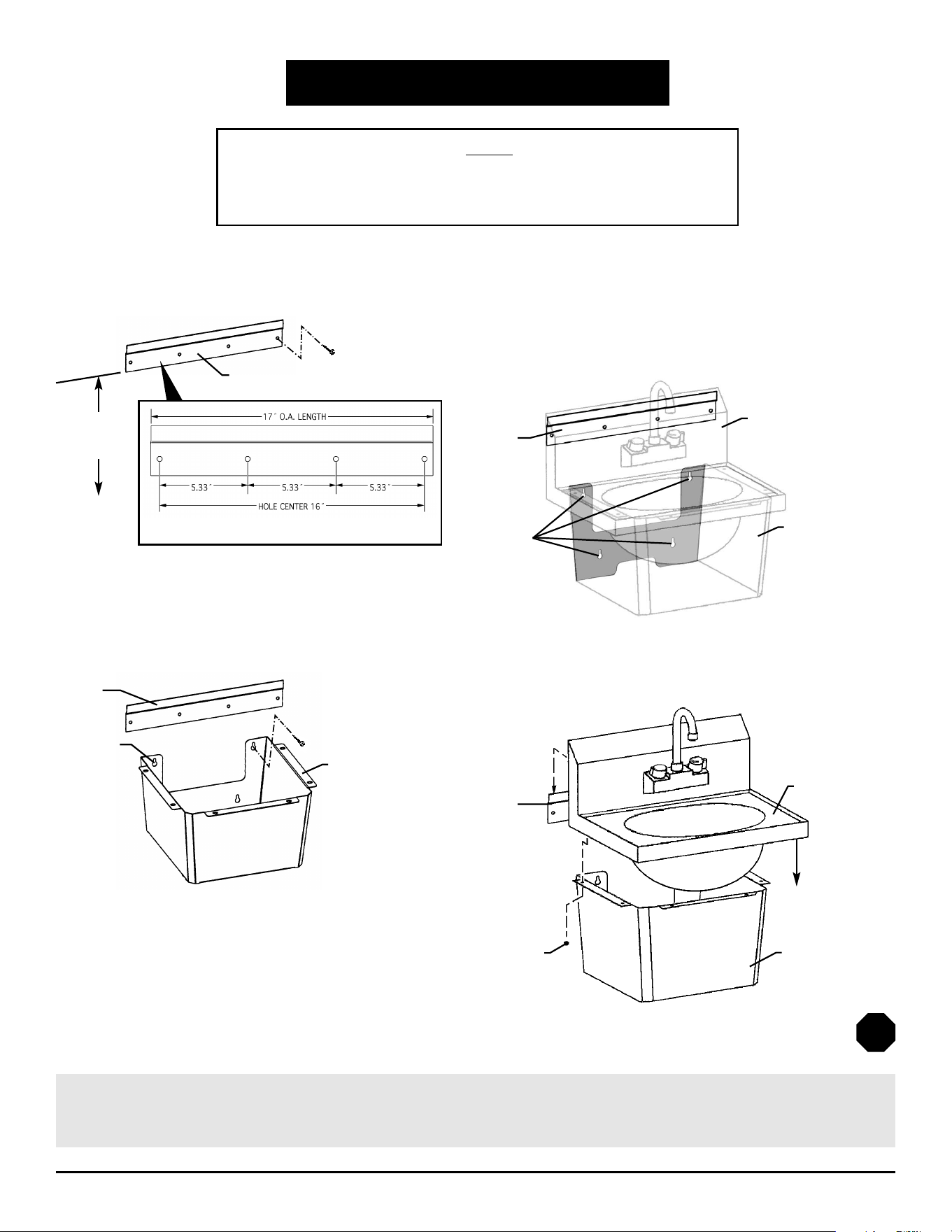

Step 4 - Mount hand sink to skirt.
“z” bracket
“z”
bracket
“z”
bracket
Step 3 - Mount skirt to wall.
(Note: Mounting hardware not included.)
“Z” BRACKET DIMENSIONS (FRONT VIEW)
Step 1 - Attach “z” bracket.
Use a level for straightness.
(Note: Mounting hardware not included.)
37˝ from floor
to bottom
of bracket
“z”
bracket
mounted
to wall
four
keyholes
in
back plate
of skirt
Step 2 - Mark holes for skirt.
• Temporarily hang hand sink off “z” bracket.
• Hold skirt to underside of hand sink as if attaching
(as shown in Step 4).
• Mark location of keyholes and set aside hand sink.
hand sink temporarily
in place
skirt temporarily
in place
(End)
NOTE: Skirt available as accessory to most hand sinks, or as replacement component to Hand Sinks with Skirt. When ordered
separately, skirt comes with two-sided adhesive tape instead of hex nuts.
“z”
bracket
mounted
to wall
four
keyholes
in
back plate
of skirt
Step 2 - Mark holes for skirt.
• Temporarily hang hand sink off “z” bracket.
• Hold skirt to underside of hand sink as if attaching
(as shown in Step 4).
• Mark location of keyholes and set aside hand sink.
hand sink temporarily
in place
skirt temporarily
in place
ASSEMBLY INSTRUCTIONS
Hand Sinks with Knee Valve
3
hand
sink
skirt
hex
nut*
* Two hex nuts per side, two in front.
Hex nuts provided.
Step 4 - Mount hand sink to skirt.
Please note before assembly:
• Attach spout and water lines to hand sink.
• Attach pedals to knee valve bracket.
• Remove the locking nuts from underside of hand sink and set aside.
• Please follow the plumbing rough-ins (front page). All dimensions are nominal.
“z”
bracket
knee valve/
bracket assembly
pedals
skirt
bolt (nut and
lock washer
secures
inside skirt)
Bolts, nuts,
and washers
provided.

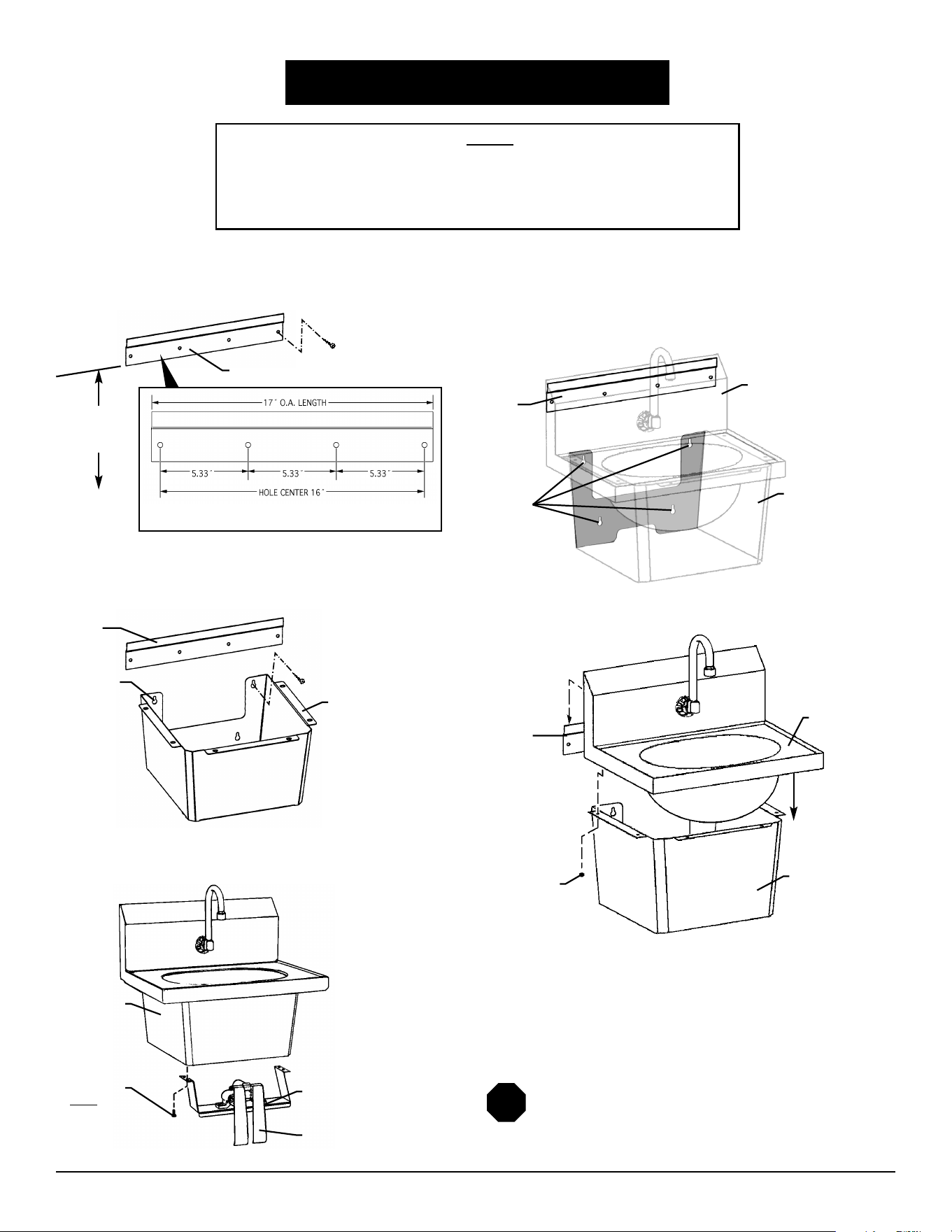

Step 5 - Mount knee valve/bracket
assembly to skirt.
Step 6 - Attach lines to pedals.
“z” bracket
“Z” BRACKET DIMENSIONS (FRONT VIEW)
Step 1 - Attach “z” bracket.
Use a level for straightness.
(Note: Mounting hardware not included.)
37˝ from floor
to bottom
of bracket
skirt
flange
keyhole
“z”
bracket
Step 3 - Mount skirt to wall.
(Note: Mounting hardware not included.)
(End)
Please note before assembly:
• Attach faucet to hand sink.
• Please follow the plumbing rough-ins (front page). All dimensions are nominal.
ASSEMBLY INSTRUCTIONS
Hand Sinks with
Towel Dispenser
keyway
holes
soap
dispenser
towel
dispenser
towel
dispenser
“z” bracket

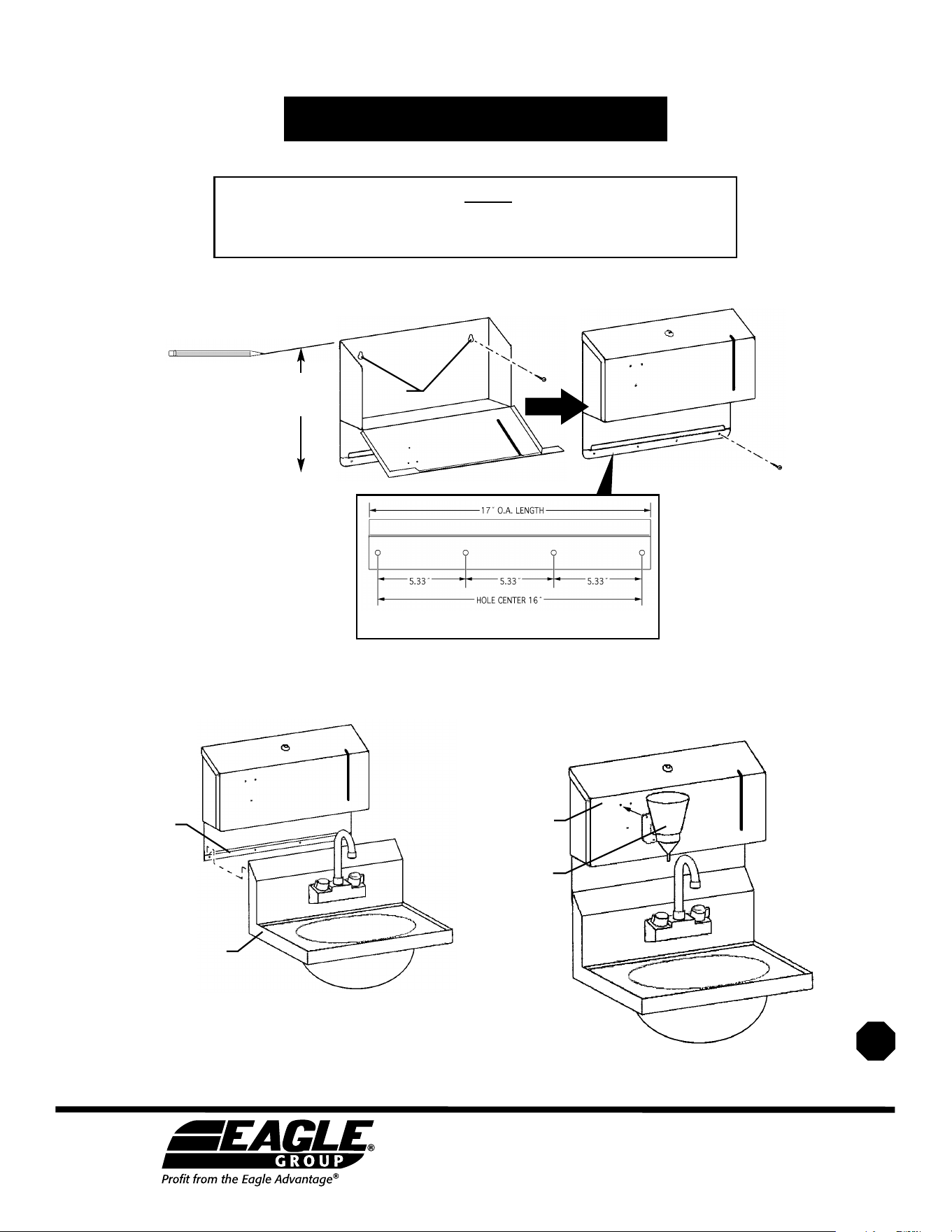

Step 1 - Mount towel dispenser to wall.
(Note: Mounting hardware not included.)
Step 2 - Hang hand sink off of
towel dispenser “z” bracket.
Step 3 - Attach soap dispenser
to towel dispenser.
55
1
⁄4˝ from
finished
floor
hand
sink
“Z” BRACKET DIMENSIONS (FRONT VIEW)
(
End
)
