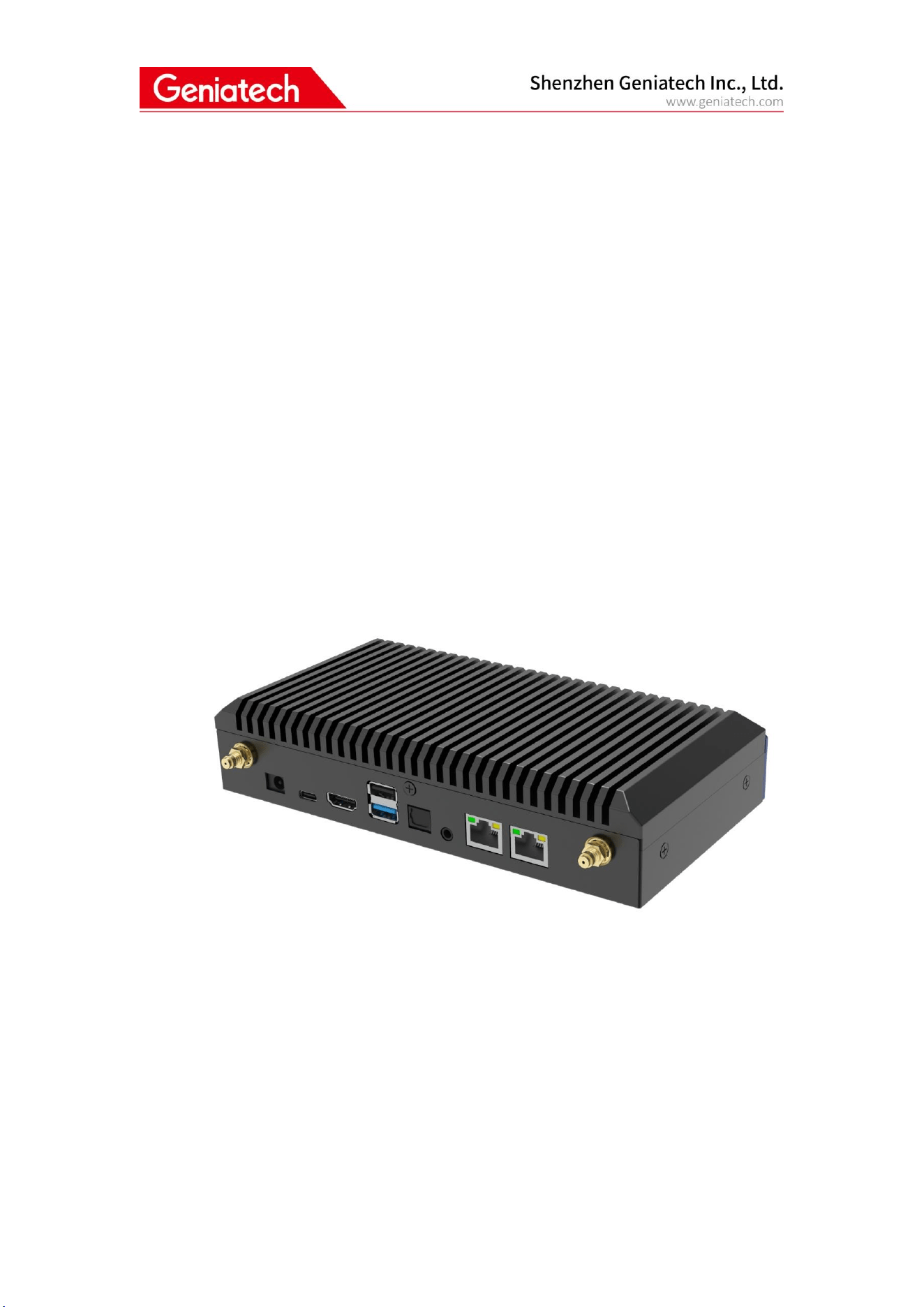

深 圳 金 亚 太 科 技 有 限 公 司
Shenzhen Geniatech Co.,Ltd.
SPECIFICATION
MODEL:APC3576V2
Room 02-04, 10/F, Block A, Building 8, Shenzhen International Innovation Valley, Dashi Road,
Nanshan District, Shenzhen, Guangdong, China
Emai: support@geniatech.com Tel: (+ 86) 755 86028588
CONTENT
1.GENERAL DESCRIPTION.................................................................................................................1
2.PRODUCT PICTURE........................................................................................................................ .1
3.FEATURES..........................................................................................................................................2
4. Support FORMATS..................................................................................................................... ..........3
5. PRECAUTIONS FOR USE ........................................................................................... ........................4
Revision History
VERSION
DATE
BOARD ID
PAGE
DESCRIPTION
AUTHOR
V1.0
2026/02/11
APC3576V2
6
-
Tina
V1.1
2026/07/07
APC3576V2
6
Add FCC Statement
Tina
Room 02-04, 10/F, Block A, Building 8, Shenzhen International Innovation Valley, Dashi Road,
Nanshan District, Shenzhen, Guangdong, China
Emai: support@geniatech.com Tel: (+ 86) 755 86028588 1 / 6
1. GENERAL DESCRIPTION
APC3576V2 is an intelligent development board based on RK3576/RK3576J,which is a low
power, high performance processor for ARM-based PC and Edge Computing device with below
new features:
(I) Quad-core Cortex-A72 and Quad-core Cortex-A53
(II) ARM Mali-G52 MC4 GPU, Support OpenGL ES1.1/2.0/3.2, OpenCL2.0 and Vulkan 1.1
(III) NPU: Neural network acceleration engine with processing performance up to 6 TOPS
(IV) Support Android 14.0 / Linux Debian12
(V) Support 4GB/8GB/16GB LPDDR4, 16~256GB eMMc, External expansion M.2/USB storage
(VI) Dual Ethernet 10/100/1000M
(VII) 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module,LTE 4G Moudle(options)
(VIII) 1 * HDMI Out, 1 * LVDS, 1*MIPI DSI support multi-screen simultaneous display, multi-
screen different display, multi-screen rotation splicing, multi-channel video source simultaneous
decoding, etc. Display method
(IX) Support 2 * RS232 + 2 * RS485 + 1 * Can + 1 * GPIO industrial control bus
(X) 1* USB3.0 + 1*type-c(full-featured)+5*USB2.0
(XI) Support hardware WDT & RTC +1*M.2（Scalable 2230 PCIe NVMe SSD）+
1*Speaker+1*SPDIF
(XII) Support USB and I2C TP
(XIII) Support wide voltage 12~24V power and POE module (options) power supply input,
standard EMC and ESD protection design
(XIV) Specially designed for smart express cabinet, smart commercial display, smart vending
machine, digital signage, smart home, etc.
Room 02-04, 10/F, Block A, Building 8, Shenzhen International Innovation Valley, Dashi Road,
Nanshan District, Shenzhen, Guangdong, China
Emai: support@geniatech.com Tel: (+ 86) 755 86028588 2 / 6
2. PRODUCT OVERVIEW
Below picture is for reference only, please prevail in kind.
3.FEATURES
CHIPSET
Rockchip RK3576/RK3576J
MARKET
AREA
Global
OSD
LANGUAGE
English/Chinese (multi language OSD)
OS
Android 14.0 / Linux Debian12
CPU
Quad-core Cortex-A72 and Quad-core Cortex-A53
GPU
ARM Mali-G52 MC4 GPU, support OpenGL
ES1.1/2.0/3.2, OpenCL2.0 and Vulkan 1.1. etc.
Room 02-04, 10/F, Block A, Building 8, Shenzhen International Innovation Valley, Dashi Road,
Nanshan District, Shenzhen, Guangdong, China
Emai: support@geniatech.com Tel: (+ 86) 755 86028588 3 / 6
Processor
NPU
Neural network acceleration engine with processing
performance up to 6 TOPS
LPDDR4
4/8/16GB
EMMC FLASH
32GB（16~256G Optional）
NETWORK
Ethernet
2 * RJ45 (10/100/1000M)
WiFi
IEEE 2T2R 802.11 ax/ac/a/b/g/n
Bluetooth
BT5.0
3G/4G
1 * Mini PCIE (Optional）
Interface
HDMI OUT
1 * HDMI
RJ45
2 * RJ45(LED)
RS232
2 * 4Pin2.0mm(built in)
RS485
2 * 4Pin2.0mm(built in)
Can bus
1 * 4Pin2.0mm(built in)
GPIO
1 * 2x5Pin3.81mm (built in)
LVDS
1 * 2x15Pin2.0mm(built in)
Backlight
1 * 6Pin2.0mm(built in)
USB3.0
1 * USB3.0 Type A
USB2.0
1 * USB2.0 Type A +2 * 4PIN2.0mm
TP(I2C)
1 * FPC 0.5mm(built in)
M.2
1*M.2 key-M connecter(built in)
Speaker
1 * 3.5mmJacker/SPK connecter
SIM
1 * Micro Sim + 1 * Mini PCIE (LTE) (built in)
WIFI+BT ANT
2 * IPX
IR
1 * IR
Switch*3
1 * Power /1*reset /1*recpvery
DC IN
1 * DC IN
Adapter
DC 12~24V (Φ5.5mm / φ2.1mm)
Size
146*102mm
Customizable
GUI
We provided GUI customization and we have a vast collection of
Launcher created by our R&D team for you to choose from.
4.Support Formats
Media Remark
Codec
Remark
Video
Decoder
H.264/AVC
up to 4K@60fps
H.265/HEVC
up to 8K@30fps or 4K@120fps
AV1
up to 8K@30fps or 4K@120fps
VP9
up to 8K@30fps or 4K@120fps
Room 02-04, 10/F, Block A, Building 8, Shenzhen International Innovation Valley, Dashi Road,
Nanshan District, Shenzhen, Guangdong, China
Emai: support@geniatech.com Tel: (+ 86) 755 86028588 4 / 6
AVS2
up to 8K@30fps or 4K@120fps
Video
Encoder
H.264/AVC
up to 4K@60fps
H.265/HEVC
Up to 4K@60fps
Jpg，png
5.Precautions for use
1. Relative humidity: 10% ~ 95% ,non-condensing.
2. Storage temperature: -20 ~ 85℃(if Extended commercial -40~100℃)
3. Operation temperature: commercial (0 °C ~60 °C)/Extended commercial (-40 °C ~ 85°C )
4. Do not squeeze, distort or disassemble the board.
5. Keep the board away from static electricity .
6. Keep the board away from water and other liquid.
7. Clean the board with soft and clean dry cloth when it’s dirty.
8. Don’t use long connect wires which may affect performance and image quality.
6. FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
