7084 895-03
Fv 913
Operating instructions
Countertop freezer
Read the operating instructions before switching on for the rst time.
Page 20
EN
2
Safety instructions and warnings
• CAUTION: This appliance is not intended for use
by persons (including children) with reduced physi-
cal, sensory or mental capabilities or lack of experi-
ence and knowledge, unless they have been given
supervision or instruction concerning use of the ap-
pliance by a person responsible for their safety.
• CAUTION: Children should be supervised to en-
sure that they do not play with the appliance.
• CAUTION: Maximum loading for each shelf is 30kg
only!
• WARNING: If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a
hazard.
• CAUTION: Do not store explosives substances
such as aerosol cans with ammable propellant in
this appliance.
• CAUTION: The appliance contains ammable ma-
terials and should be handled, serviced and dis-
posed of properly.
• WARNING: Keep clear of obstruction all ventila-
tion openings in the appliance enclosure or in the
structure for building-in.
• WARNING: Do not use any mechanical devices
or other articial aids for defrosting other than those
recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
• This appliance can be used by children of 8 years
and above, and also by persons with reduced phys-
ical, sensory or mental capabilities or lack of expe-
rience and knowledge, if they are supervised or
have been instructed on safe use of the appliance
and understand the resulting risks. Children must
not allow to play with the appliance. Cleaning and
user maintenance must not be carried out by
children without supervision.
• To prevent injury or damage to the unit, the appli-
ance should be unpacked and set up by two people.
• In the event that the appliance is damaged on de-
livery, contact the supplier immediately before con-
necting to the mains.
• To guarantee safe operation, ensure that the appli-
ance is set up and connected as described in these
operating instructions.
• Disconnect the appliance from the mains if any fault
occurs. Pull out the plug, switch o or remove the
fuse.
• When disconnecting the appliance, pull on the plug,
not on the cable.
• Any repairs and work on the appliance should only
be carried out by the customer service department,
as unauthorised work could prove highly danger-
ous for the user. The same applies to changing
the mains power cable.
• Do not allow naked ames or ignition sources to
enter the appliance. When transporting and clean-
ing the appliance ensure that the refrigerant circuit
is not damaged. In the event of damage, make sure
that there are no ignition sources nearby and keep
the room well ventilated.
• Do not stand on the plinth, drawers or doors or use
them to support anything else.
• Avoid prolonged skin contact with cold
surfaces or chilled/frozen food. This could cause
pain, numbness and frostbite. In the case of pro-
longed skin contact, protective measures should be
taken, e.g. gloves should be worn.
• Do not consume packed food which has been
stored for too long, as it could cause packed food
poisoning.
• Electrical components might cause leaking gas to
ignite. You may identify such sprays by the printed
or a ame symbol.
• If you have a lockable appliance, do not keep the
key near the appliance or within reach of children.
• The appliance is designed for use in enclosed ar-
eas. Do not operate the appliance outdoors or in
areas where it is exposed to splash water or damp
conditions.
• When transporting or operating the appliance at an
altitude of more than 1500 m above sea level, the
glass pane in the door can break due to the reduc-
tion in air pressure. Broken fragments are sharp-
edged and can cause serious injury.
EN
3
EN

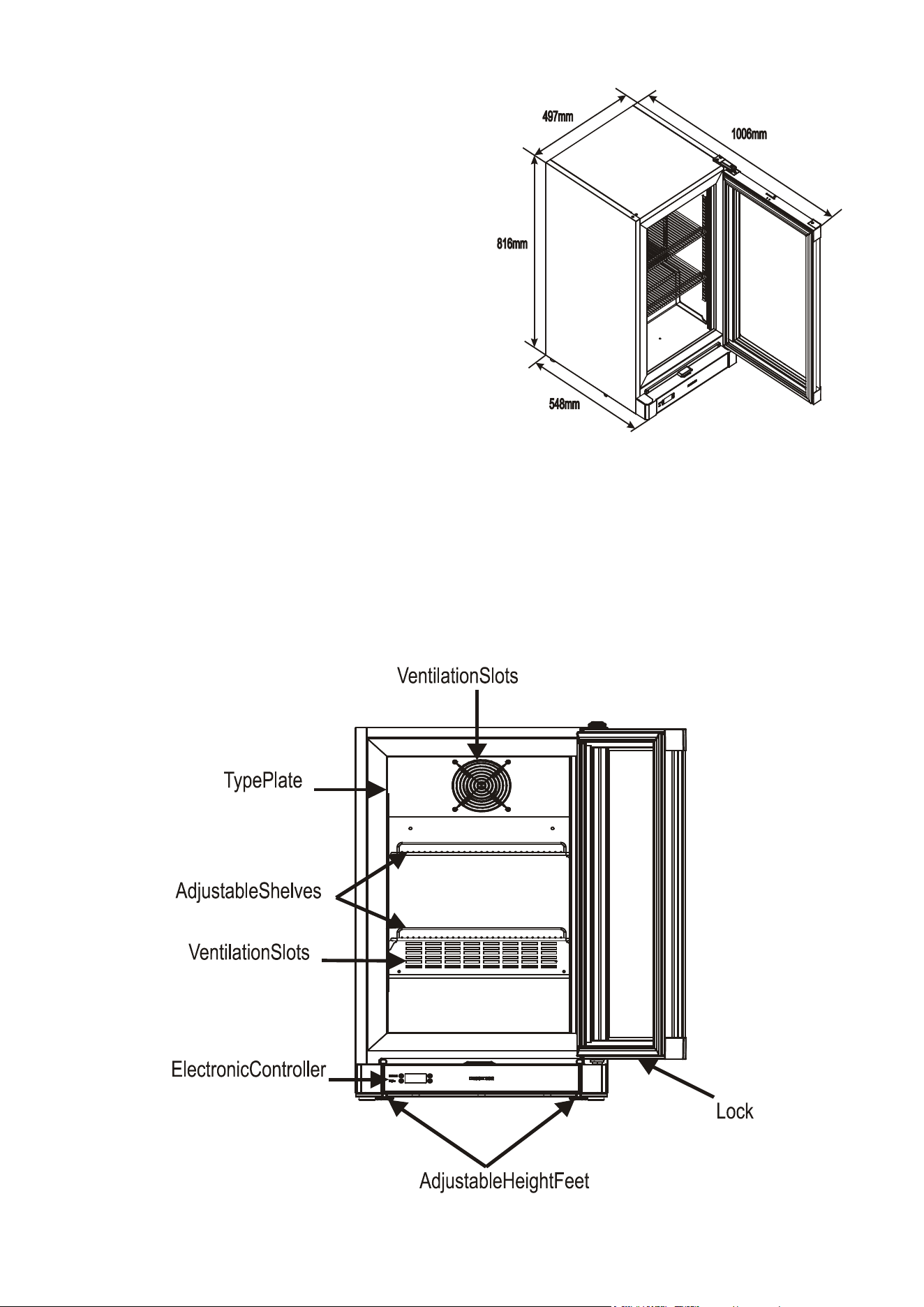

Dimensions:
Height : 816 mm Width : 497 mm Depth : 548 mm
Description of the appliance
Range of appliance use
This appliance may be used for displaying food, including
beverages, for retail sale. Commercial use means for ex-
ample their use in restaurants, canteens, hospitals and in
commercial establishments such as bakeries, butchers,
supermarkets, etc.
Foreseeable misuse:
Do not use the appliance for the following applica-
tions:
• Storage and cooling of :
- Chemically unstable, combustible or corrosive
substances.
- Medicines, blood plasma, laboratory prepara-
tions or similar substances and products based
on Directive 2007/47/EC on medical devices.
• Use in hazardous areas.
• Use outdoors or in damp and splashing water
areas.
Improper use of the appliance leads to damage or spoil-
age of the stored goods.
The cabinet is intended to store and to display pre-frozen
and pre-packed ice-cream as well as packed foodstu.
Access by the customer is achieved by opening a non-
transparent or transparent lid from the top.
Do not store explosive substances in the device, such as
aerosol containers with ammable propellant gas.
4
Electrical connection
Only operate the appliance with alternating current (AC).
The permissible voltage and frequency are indicated on
the type plate. The position of the type plate is shown in
the section entitled Description of the appliance.
The socket must be properly earthed and protected by a
fuse.
The tripping current of the fuse must be between 10 A and
16 A.
The socket must not be situated behind the appli-
ance and must be easily accessible.
Do not connect the appliance using an exten-
sion cable or extension socket.
Do not use stand-alone inverters (conversion
of direct current to alternating current / three phase cur-
rent) or energy-saving plugs. Risk of damage to the elec-
tronic control system!
Setting up
• Do not place the appliance in direct sunlight or near
cookers, radiators and similar sources of heat.
• The oor on which the appliance stands
should be horizontal and level. Com-
pensate for uneven oors with the ad-
justable feet.
• ATTENTION: There must be a gap of at least 10 cm
between the side enclosure (left and right) and rear en-
closure of the appliance against the wall.
• Always ensure there is good ventilation and that the out-
ward owing air is able to escape. Always install the ap-
pliance directly against the wall.
• Do not cover ventilation openings or grille.
• Standard EN 378 species that the room in which you
install your appliance must have a volume of 1 m
3
per 8 g
of R 600a / R 290 refrigerant used in the appliance, so
as to avoid the formation of inammable gas/air mixtures
in the room where the appliance is located in the event of
a leak in the refrigerant circuit. The quantity of refrigerant
used in your appliance is indicated on the type plate on
the inside of the appliance.
Climate rating
The climate class [X] specifies the
ambient conditions in which the ap-
pliance can be operated safely.
The climate class [Y] and temperature
class [Z] define the maximum outline
conditions in which the appliances
will operate perfectly.
[X]
Climate rating
Max. room
temperature
Max. relative
humidity
4 30°C 55%
7 35
o
C 75%
Do not operate the appliance outside the specied
room temperature range..
[Y]
Climate class
Temperature
[°C]
Relative humi-
dity
[%]
0 20 50
1 16 80
8 24 55
2 22 65
3 25 60
4 30 55
6 27 70
5 40 40
7 35 75
Recommended temperature setting:
[Z]
Temperature class
Temperature setting
[°C]
L1 -18
L2 -18
L3 -15
M0 +4
M* 6
M1 +5
M2 +7
H1 +10
H2 +10
EN
5
Switch the appliance on and o
You are recommended to clean the appliance before
switching it on for the rst time (see Cleaning).
To switch the appliance on
Connect the appliance to the mains - the appliance is
switched on.
To switch the appliance o
Pull out the mains plug - the appliance is switched o.

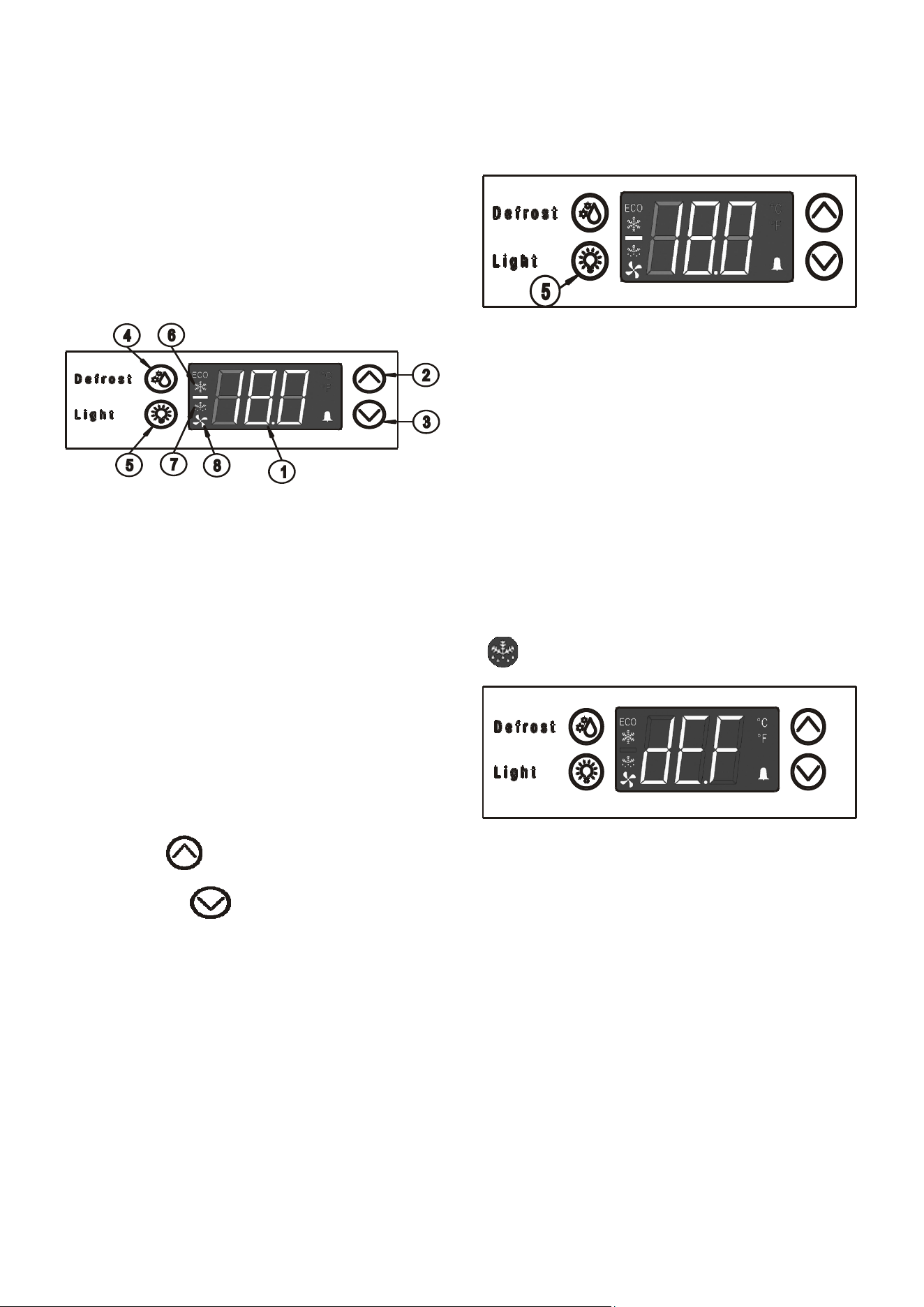

Operating elements
1. Temperature display
2. Up button
3. Down button
4. Defrost button
5. Light button
6. Compressor running symbol
7. Defrost running symbol
8. Evaporator fan running symbol
Note :
During the cooling system is in defrost mode, the op-
erating noise changes, and no cooling takes place.
Defrosting
The freezer compartment defrosts automatically.
• Defrosts also can be manually activated by pressing the
button and the defrost signed 'dEF' (picture 1)
appears on temperature display.
Manual defrosts should not be done during the rst 2
hours of operation.
Do not use any mechanical devices or other articial
aids for defrosting other than those recommended by
the manufacturer.
Setting the temperature
• Press the UP button to increase the temperature.
• Press the DOWN button to reduce the tempera-
ture.
• The temperature can be set between -10⁰C ~ -25⁰C /
+14⁰F ~ -13⁰F.
• The display will blink for few times and the set tempera-
ture will be saved once it stop blinking.
Interior light
LED lighting is used for interior.
• The interior light can be turned on and o using the but-
ton 5
Important :
The lighting may only be replaced by the customer
service technician or by competent skilled personnel!
Caution - class 1M laser radiation. When cover is
removed, do not look directly at light through optical
instruments.
EN
6
Brightness Control
To adjust the brightness of the LED strips:
• Insert something (coin,
screwdriver etc) into knob
slot.
• Turn clockwise for brighter il-
lumination.
• Turn anti-clockwise for dim-
mer illumination.
Note: Only applicable for appliance with dimmer
Cleaning
Cleaning the appliance at least twice per year.
Before cleaning always switch o the appliance. Pull out
the mains plug or switch o.
• Clean the inside, equipment and outer walls with luke-
warm water and a little detergent. Do not use abrasive
or acid cleaners or chemical solvents.
• Ensure that no cleaning water penetrates into the electri-
cal components or ventilation grille.
• The dust should be removed from the refrigeration unit
and heat exchanger - metal grid at the back of the appli-
ance once a year.
• Do not damage or remove the type plate on the inside of
the appliance. It is very important for servicing purposes.
Do not use steam cleaners because of the
risk of injury and damage.
Cooling
The grid shelves can be moved to
accommodate dierent height bot-
tles or packages.
High-percentage alcohols should
be tightly sealed and stored upright.
Do not cover the ventilation slots in-
side the appliance.
Noise emissions from the appliance
The noise level while the appliance is operating below 70
dB (A) (relative noise level 1pW).
EN
Disposal notes
The appliance contains reusable materials and
should be disposed of properly - not simply with
unsorted household refuse. Appliance which are
no longer needed must be disposed of in a pro-
fessional and appropriate way, in accordance
with the current local regulations and laws.
When disposing of the appliance, ensure that the
refrigerant circuit is not damaged to prevent uncontrolled
escape of the refrigerant it contains (data on type plate)
and oil.
• Disable the appliance.
• Pull out the mains plug.
• Cut through the connection cable.
WARNING
Danger of suocation due to packing material and
plastic lm!
Do not allow children to play with packaging material.
Take the packaging material to an ocial collection point.
Shutting your appliance down
If your appliance is to be shut down for any length of time,
switch it o by disconnect the plug or unscrew the fuse.
Clean the appliance and leave the door open in order to
prevent unpleasant smells.
The appliance complies with the relevant safety regula-
tions and EC Directives 2004/108/EC and 2006/95/EC.
Safety lock
The lock is equipped with a safety mechanism.
Locking the appliance:
1. Insert the key.
2. Push and turn the key 90
o
counterclockwise
.
To unlock the appliance, the same
procedure must be repeated in the same order.
7
Malfunctions
If a malfunction occurs during operation, check whether it
is due to an operating error.
You may be able to rectify the following faults yourself:
Appliance does not function:
• Is the appliance switched on?
• s the plug correctly tted in the mains socket?
• Is the fuse intact?
Loud running noise:
• Is the appliance set up rmly on the oor?
• Does the appliance cause nearby items of furniture or
objects to vibrate? Please note that noises caused by
the refrigerant circuit cannot be avoided.
The temperature is not low enough:
• Is the temperature setting correct (see “Setting the tem-
perature”)?
• Have the excessive amounts of fresh food been placed
in the appliance?
• Does the separately installed thermometer show the cor-
rect reading?
• Is the ventilation system working properly?
• Is the appliance set up too close to a heat source?

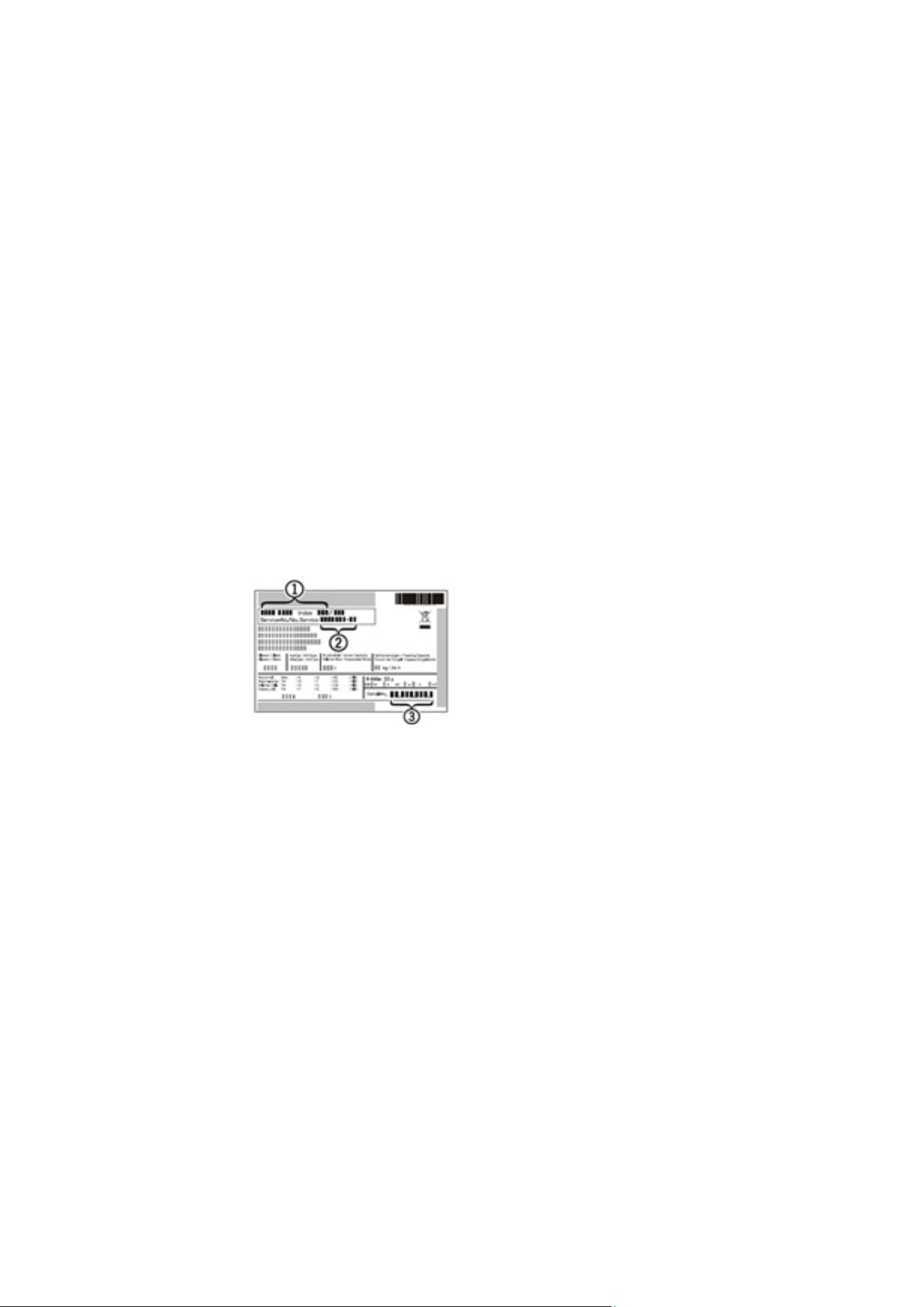

If none of the above causes
apply and you cannot rec-
tify the fault yourself, contact
the nearest customer ser-
vice department stating the
type designation (1), service
number (2) and appliance
number (3) as indicated on
the type plate. The position
of the type plate is shown in the section entitled Descrip-
tion of the appliance.
EN
Additional information
- Food will remain fresh for longer if stored at the correct tem-
perature. This can prevent having to discard food needlessly.
- If the condenser coil is not cleaned every year, it will significantly
reduce the appliance's efficiency.
- The period during which spare parts, necessary for the repair
of the refrigerating appliance with a direct sales function, are
available is 10 years.
- The minimum duration of the guarantee of the refrigerating
appliance with a direct sales function offered by the manufac-
turer, importer or authorised representative is 2 years.
- EPREL database:
As from 1 March 2021, information about energy labelling and
e c o d e s i g n r e q u i r e m e n t s w i l l b e a v a i l a b l e i n t h e E u r o p e a n p r o d u c t
database (EPREL). You can access the product database using
the following link: https://eprel.ec.europa.eu/. You will be asked
to enter the model identifier. You will find the model identifier on
the type plate.
No.7 Jln Firma 2 , Kaw.Perind.Kluang ll, KM7, Jln Mersing, 86007 kluang, Johor, West Malaysia.
www.liebherr.com.my
Liebherr Appliances Kluang Sdn Bhd (153177-U)
