Operating instructions
BioFresh fridge/freezer
20190819
7088079 - 00
SBNes
Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment.................. 2
1.2 Appliance range of use............................................. 2
1.3 Conformity................................................................ 3
1.4 Product data............................................................. 3
1.5 External dimensions of the appliance....................... 3
1.6 Saving energy.......................................................... 3
1.7 Example of food arrangement.................................. 4
1.8 Smart device ........................................................... 4
2 General safety information................................... 4
3 Controls and displays........................................... 5

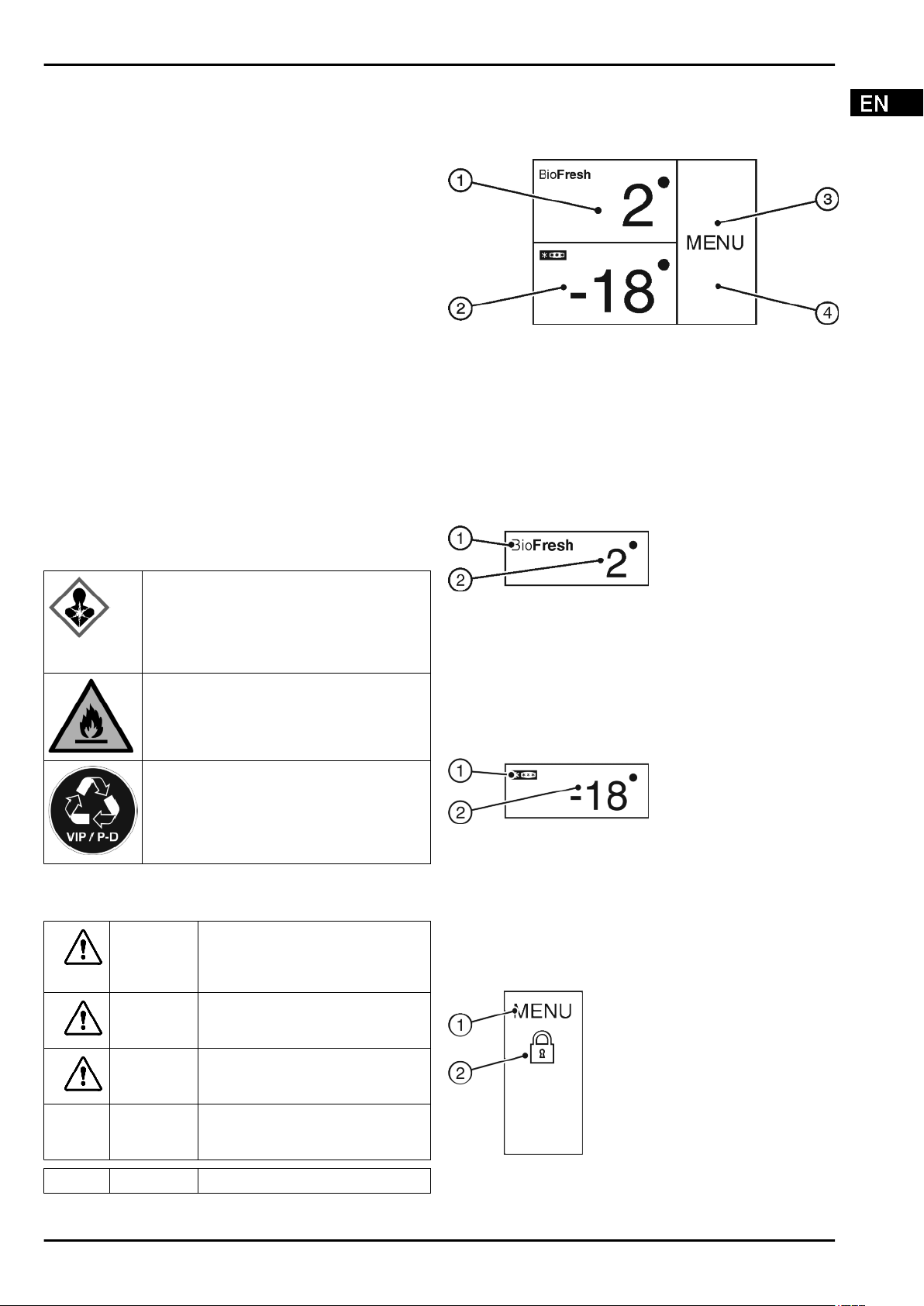

3.1 Home screen............................................................ 5
3.2 Operating structure................................................... 5
3.3 Navigation................................................................ 6
3.4 Display symbols....................................................... 6
3.5 Appliance options..................................................... 6
4 Putting into operation............................................ 6
4.1 Transporting the appliance....................................... 6
4.2 Installing the appliance............................................. 7

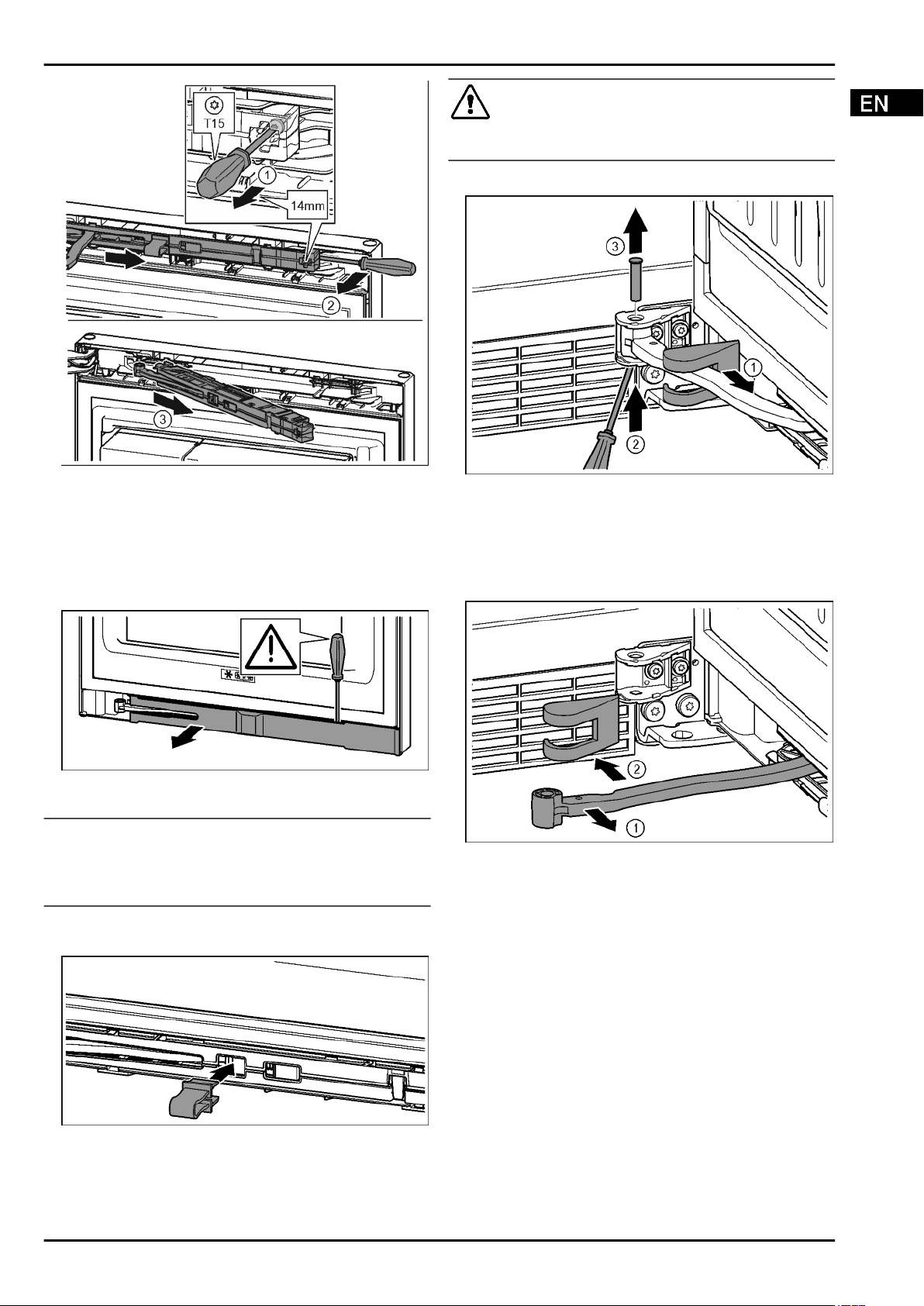

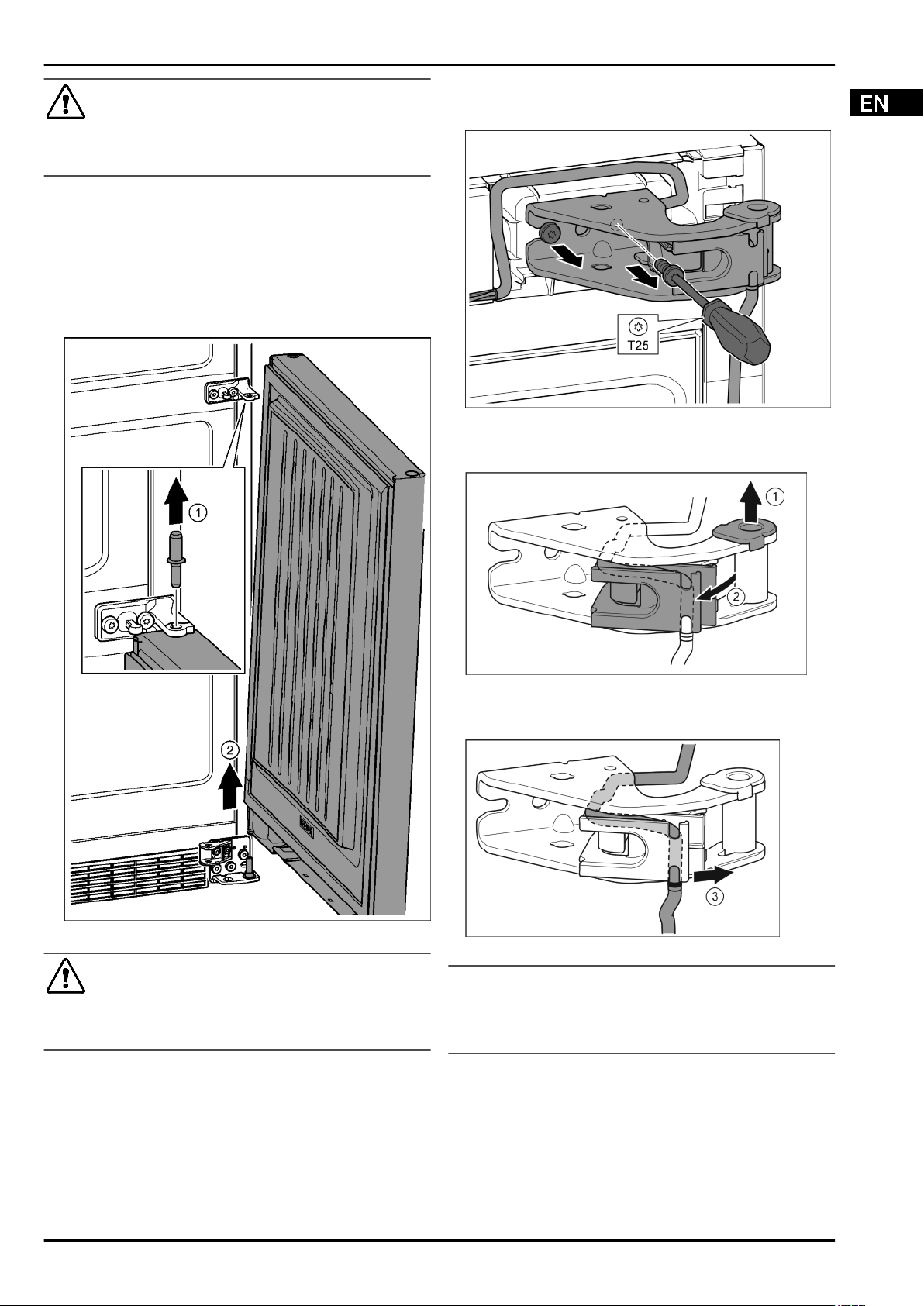

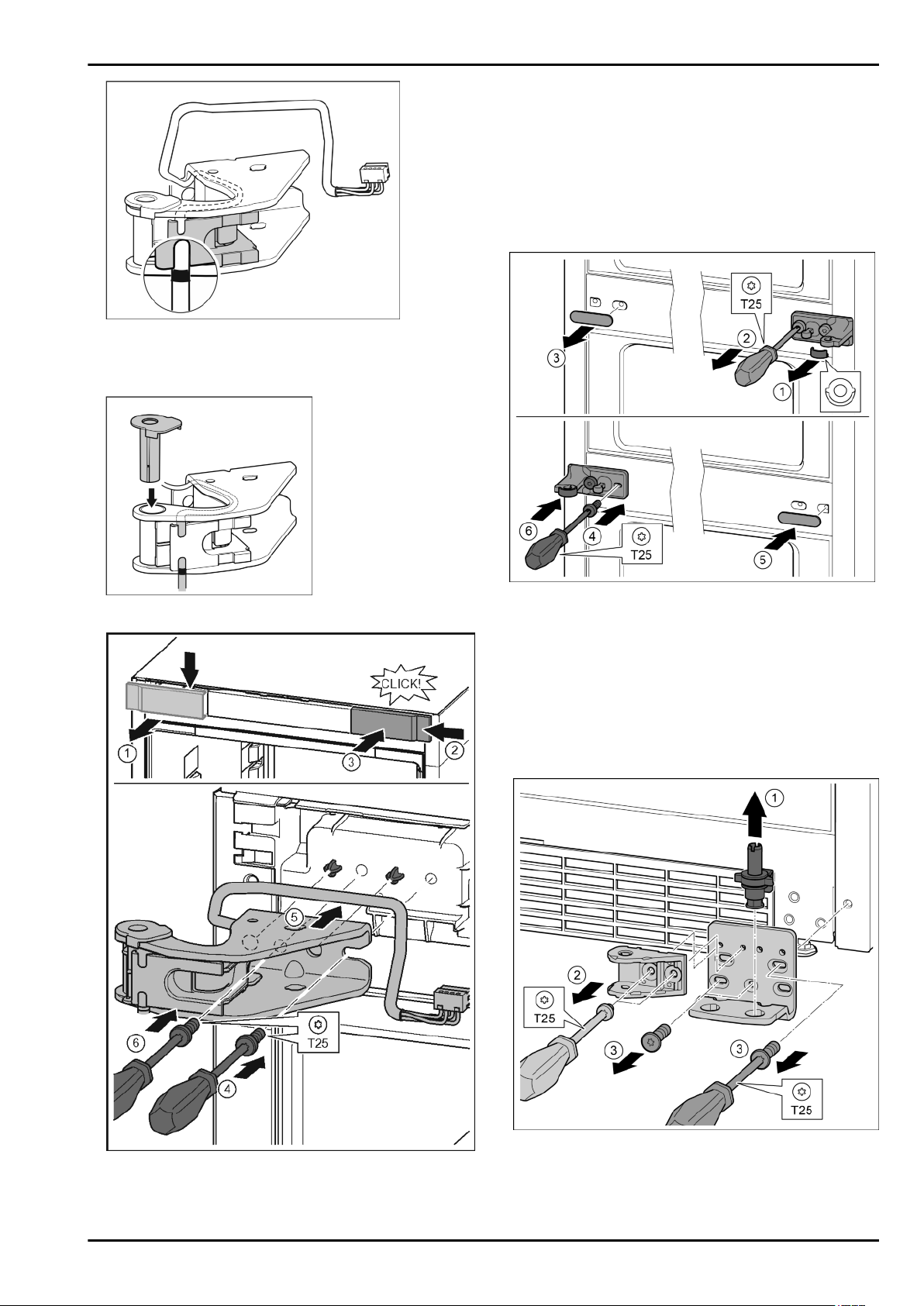

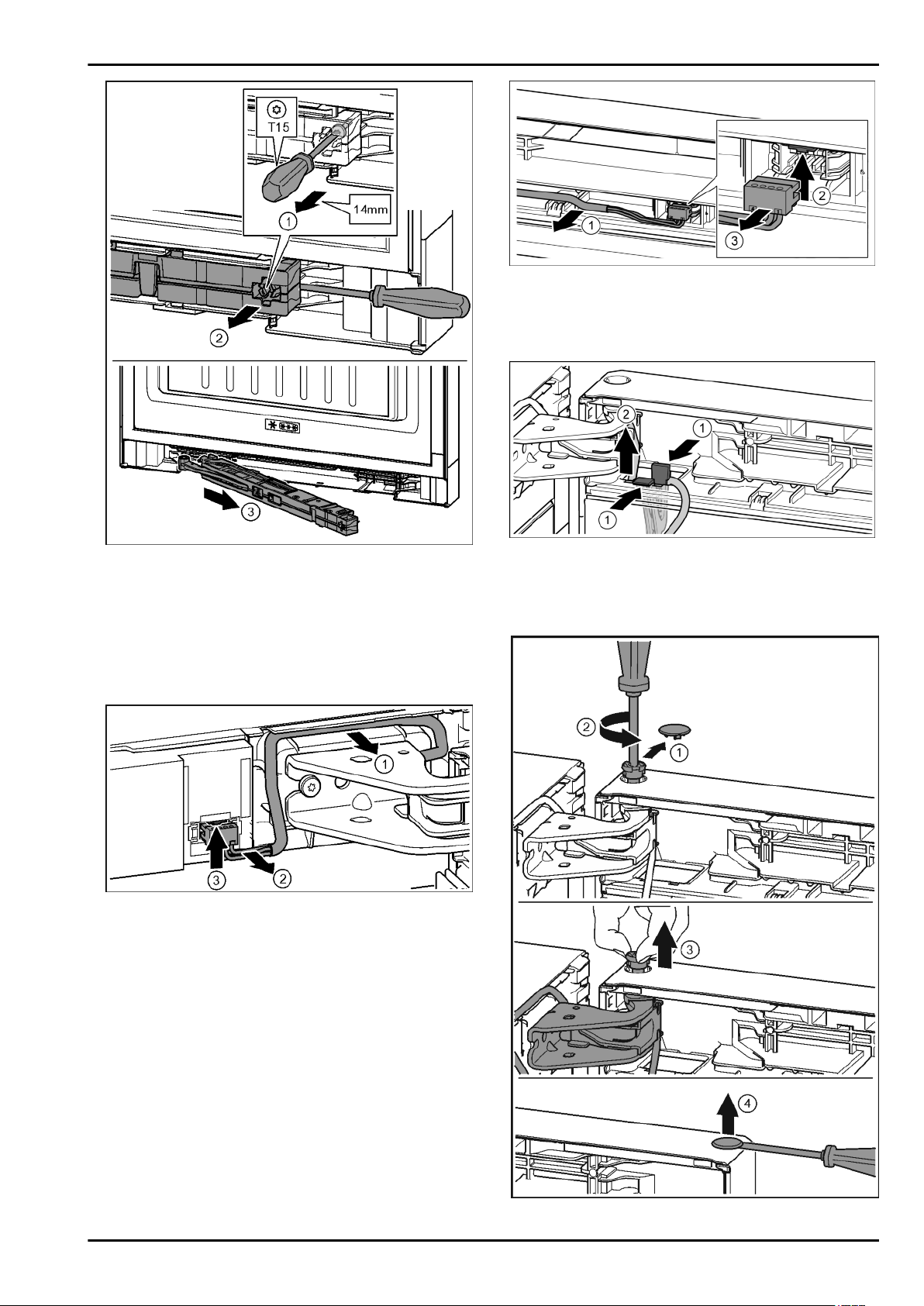

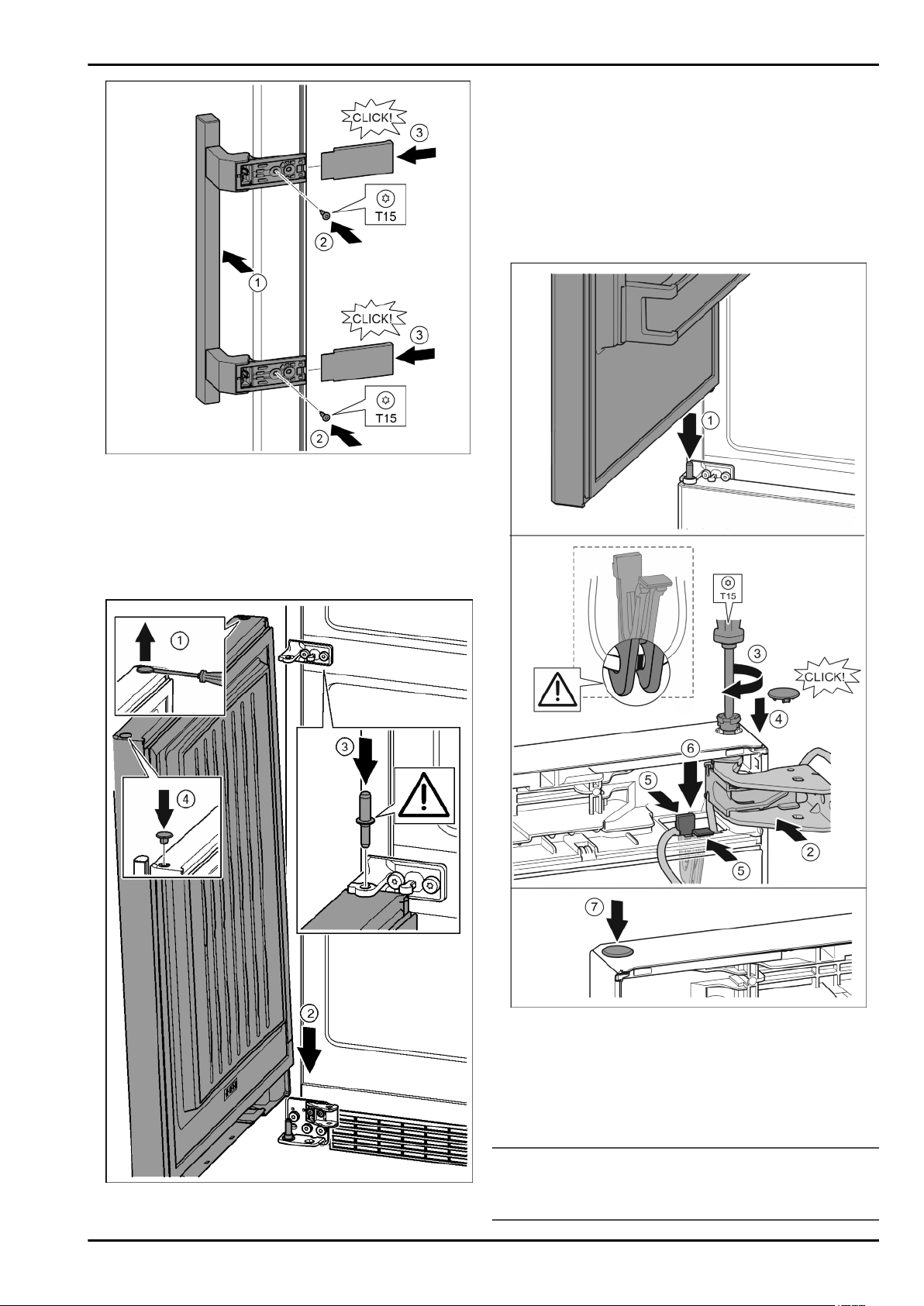

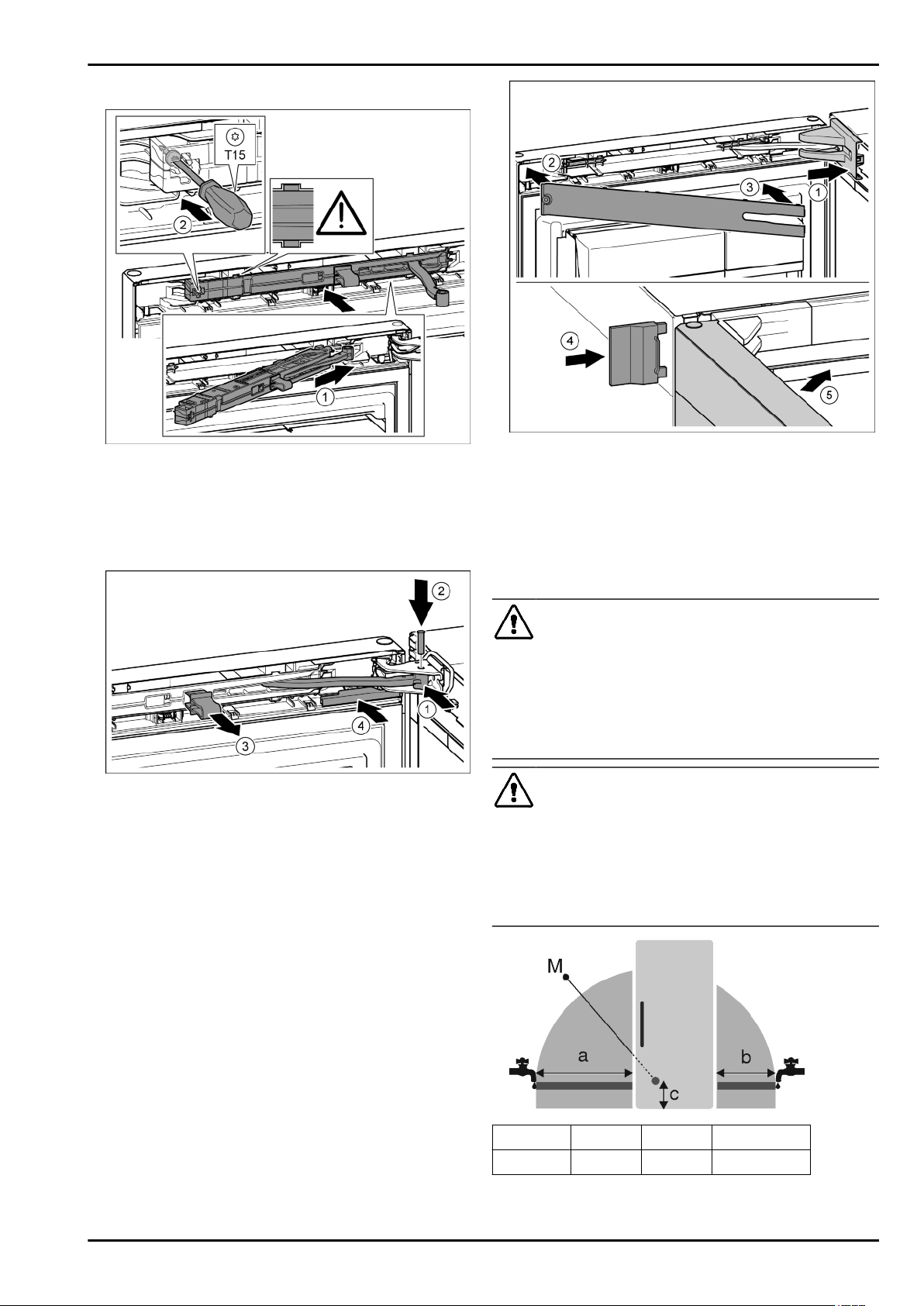

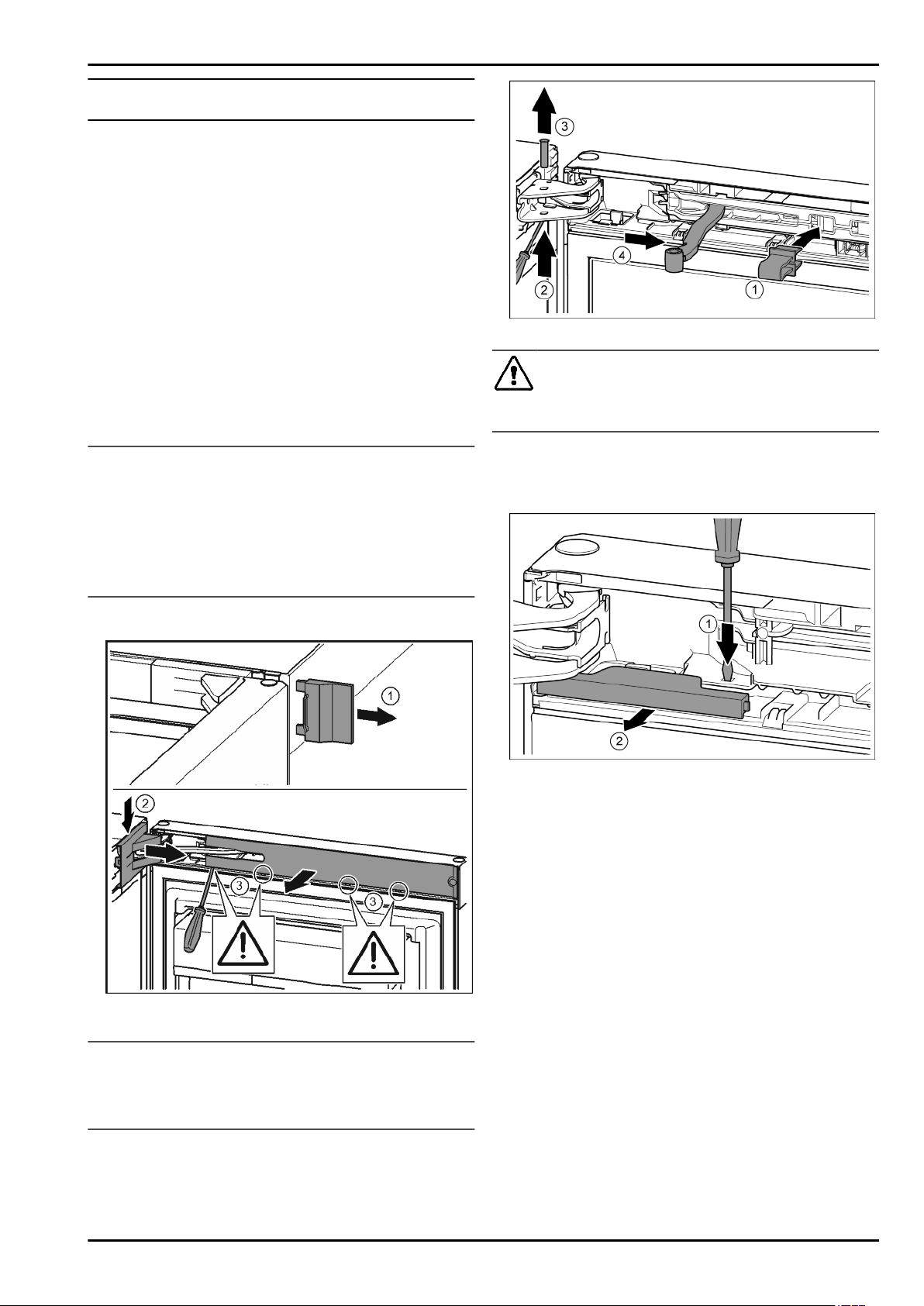

4.3 Reversing the door................................................... 8

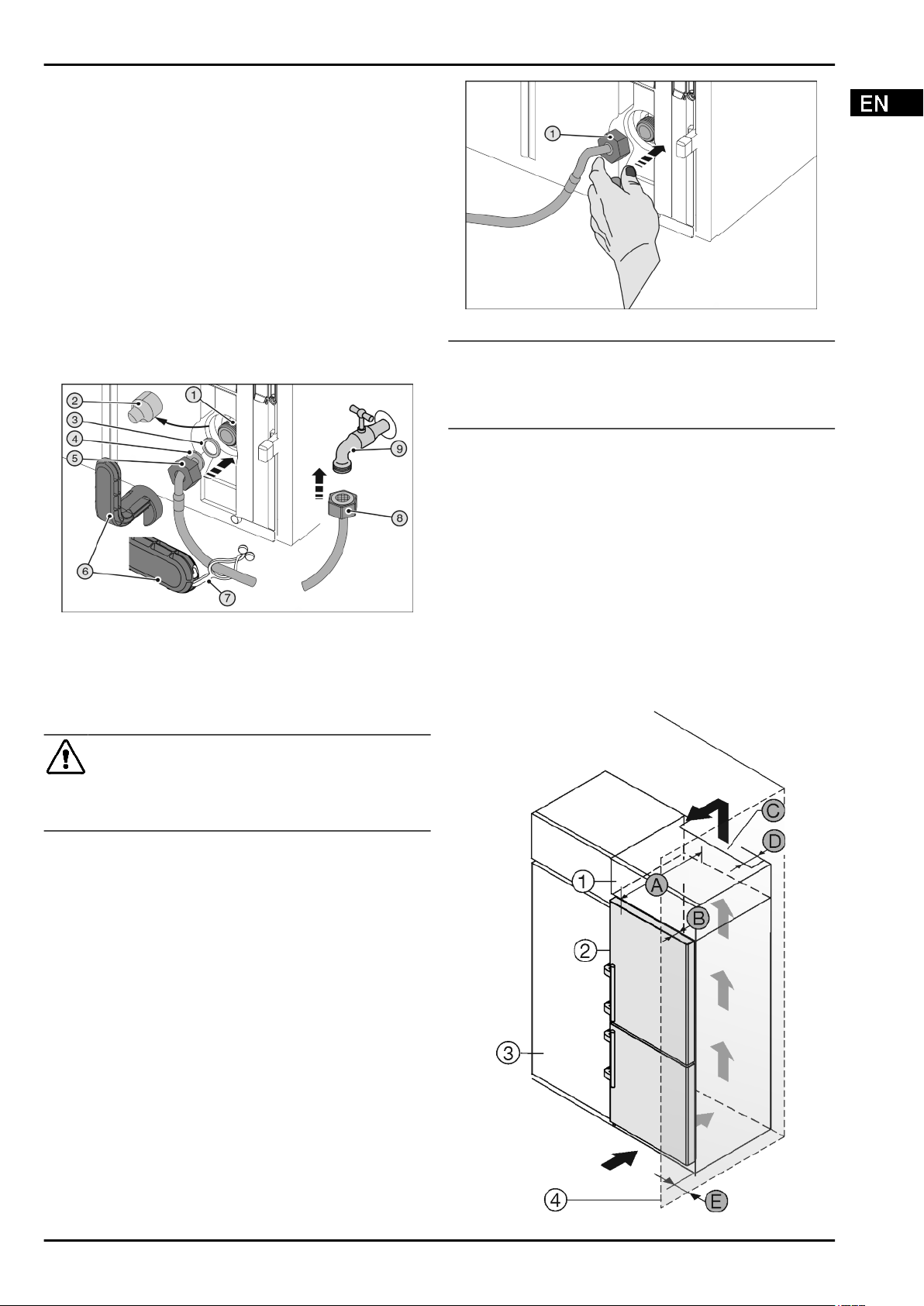

4.4 Water connection..................................................... 16
4.5 Insertion into a row of kitchen units........................... 17
4.6 Disposing of packaging............................................ 18
4.7 Connecting the appliance......................................... 18
4.8 Switching on the appliance....................................... 18

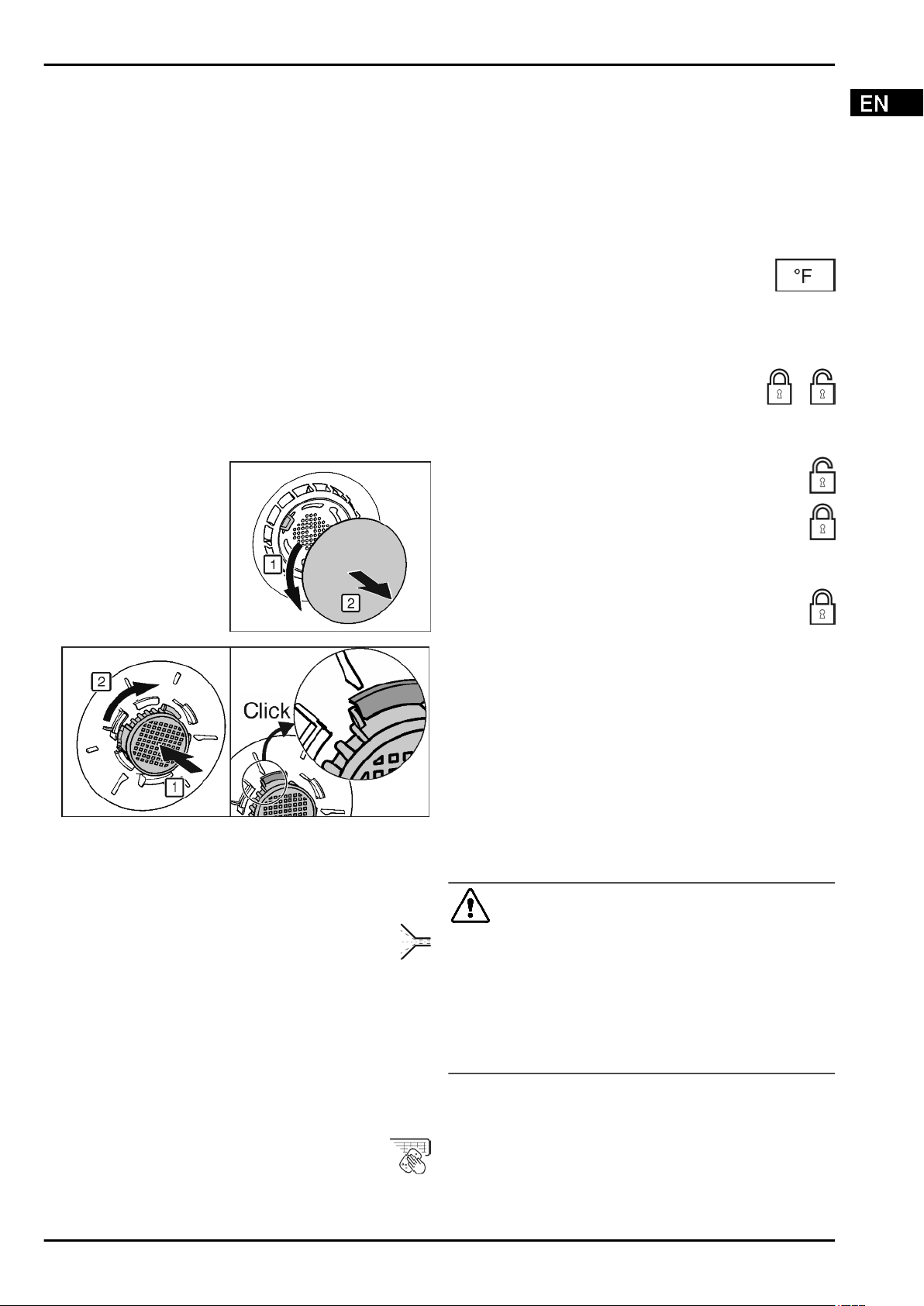

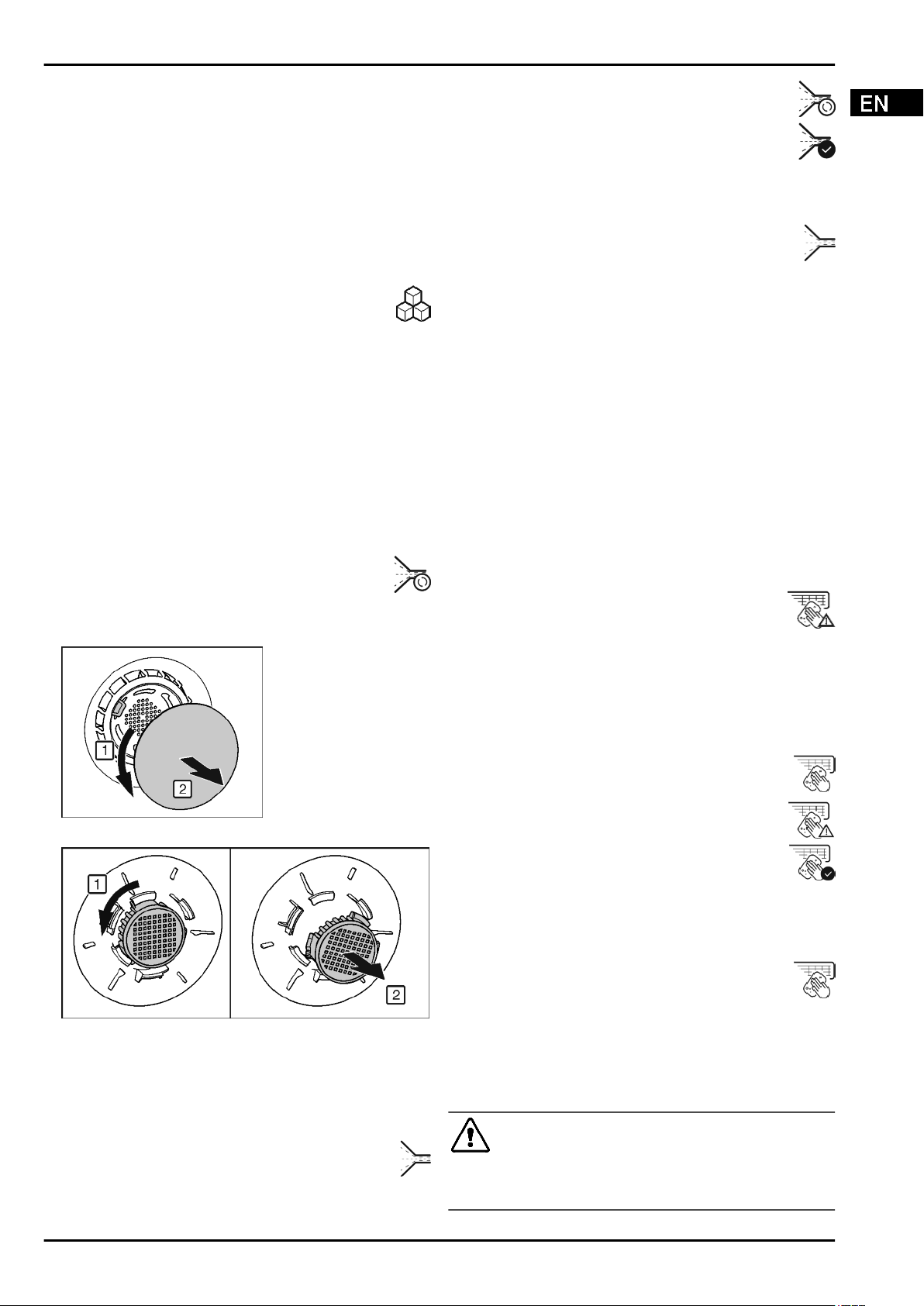

4.9 Inserting the FreshAir filter. ...................................... 19
4.10 Setting the clean ventilation grid timer...................... 19
5 Control.................................................................... 19
5.1 Changing the temperature unit................................. 19
5.2 Child proofing........................................................... 19
5.3 Sabbath Mode.......................................................... 19
5.4 BioFresh compartment............................................. 20

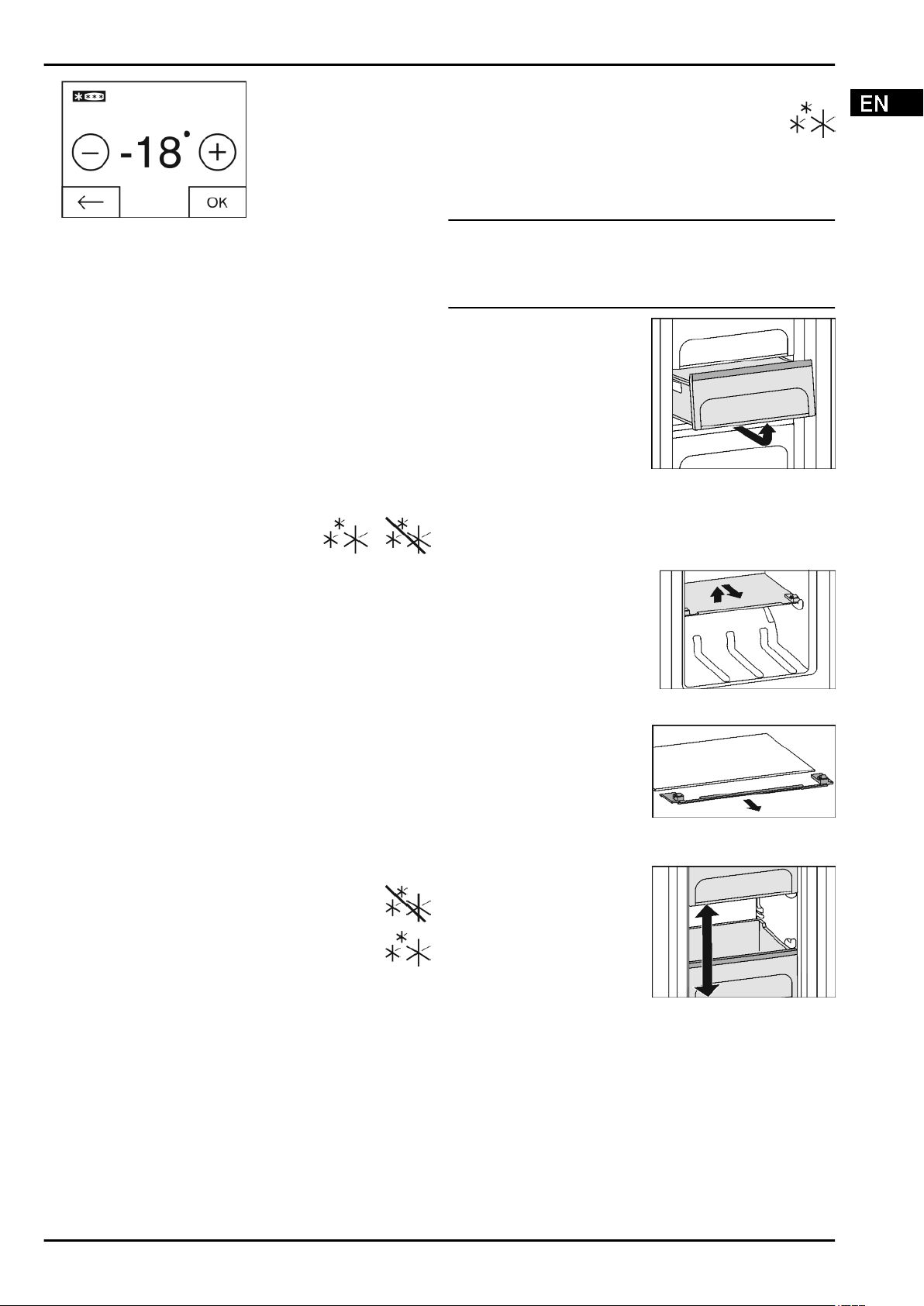

5.5 Freezer compartment............................................... 22
6 Maintenance........................................................... 25
6.1 Change the FreshAir filter......................................... 25
6.2 Defrosting with NoFrost............................................ 25
6.3 Cleaning the ventilation grid..................................... 25
6.4 Cleaning the appliance............................................. 25
6.5 Cleaning the IceMaker.............................................. 26
6.6 Customer service..................................................... 26
7 Malfunctions........................................................... 26
8 Messages................................................................ 28
9 Decommissioning.................................................. 29
9.1 Switching the appliance off....................................... 29
9.2 Taking the appliance out of service........................... 29
10 Disposing of the appliance................................... 29
The manufacturer works constantly on the further development
of all the types and models. Therefore please understand that
we have to reserve the right to make design, equipment and
technical modifications.
To get to know all the benefits of your new appliance, please
read the information contained in these instructions carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked with
an asterisk (*).
Instructions for action are marked with a , the results of
action are marked with a
.
1 Appliance at a glance

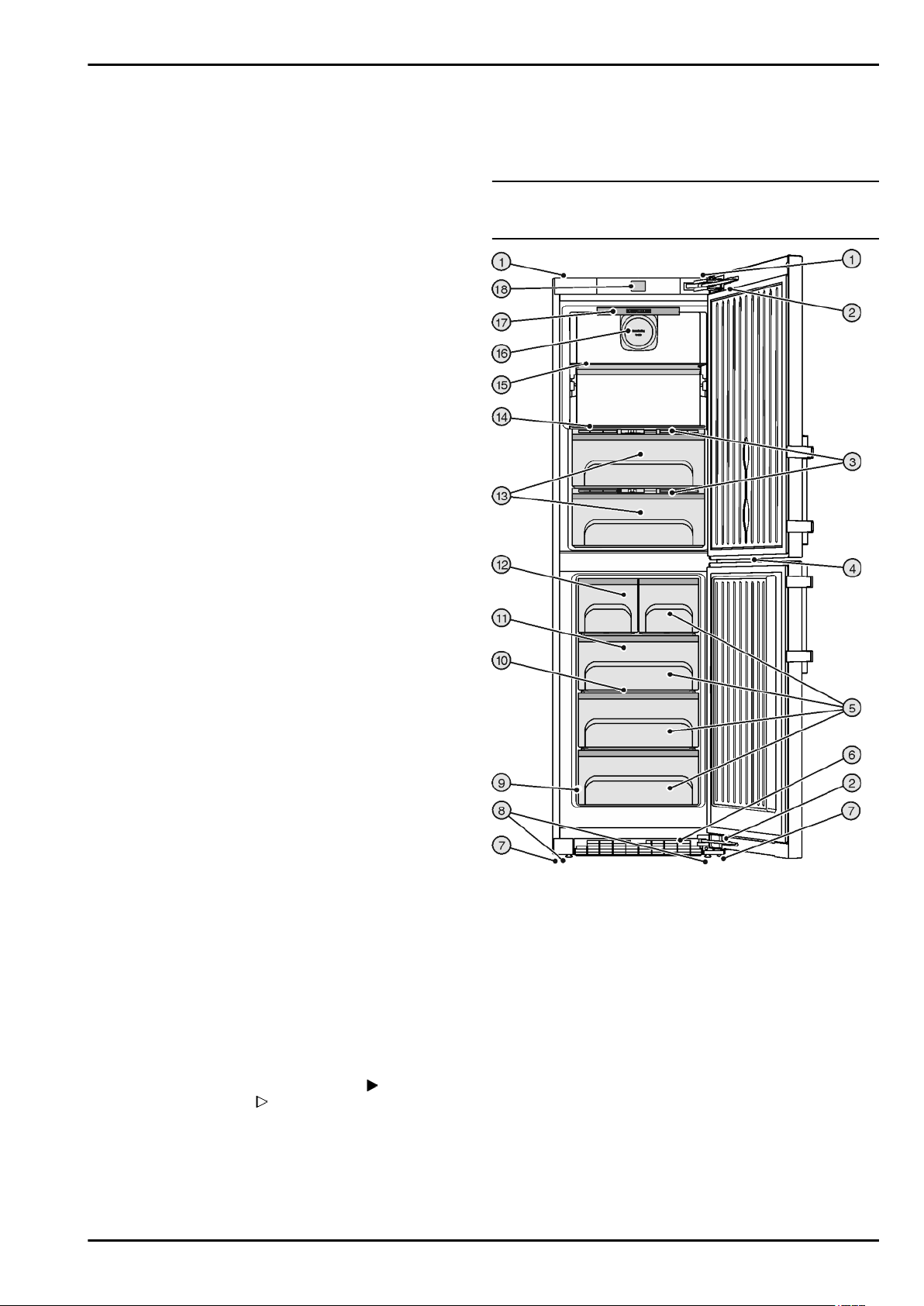

1.1 Description of appliance and equip-
ment
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency on delivery.
Fig. 1
(1) Transport grips at back (10) Variospace
(2) Soft closing fittings (11) Freezer pack
(3) Humidity adjustment
plate
(12) IceMaker
(4) Freezer compartment
LED light
(13) HydroSafe, adjustable
(5) Freezer compartment (14) Shelf
(6) Ventilation grid (15) Shelf, sectioned
(7) Adjusting feet (16) Fan, with holder for fresh
air filter
(8) Front transport handles,
rear transport castors
(17) LED interior lighting
(9) Model plate (18) Operating and control
elements
1.2 Appliance range of use
Intended use
Appliance at a glance
2 * Depending on model and options
The appliance is only suitable for cooling food
products in a domestic or household-like envi-
ronment. This includes, for example, use:
-
in staff kitchens, bed and breakfast establish-
ments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the whole-
sale trade.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in outdoor areas with very high humidity.
-
Use in areas at risk of explosions
-
Use on moving substrates, such as ships, rail
travel or aeroplanes
-
Storing live animals
Misusing the appliance may lead to damage to
the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica-
tion applying to your appliance is printed on the
rating plate.
Note
u
Keep to the specified ambient temperatures
in order to guarantee that the appliance works
properly.
Climate classi-
fication
for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
1.3 Conformity
The refrigerant circuit has been tested for leaks. This appliance
complies with the applicable safety stipulations and with direc-
tives 2014/35/EU, 2014/30/EU, 2009/125/EG, 2011/65/EU and
2010/30/EU.
The BioFresh compartment satisfies the requirements for a
cold storage compartment in acc. with DIN EN 62552.
1.4 Product data
Product data is included with the appliance, as per Directive
(EU) 2017/1369. The complete product data sheet is available
on the Liebherr website under Downloads.

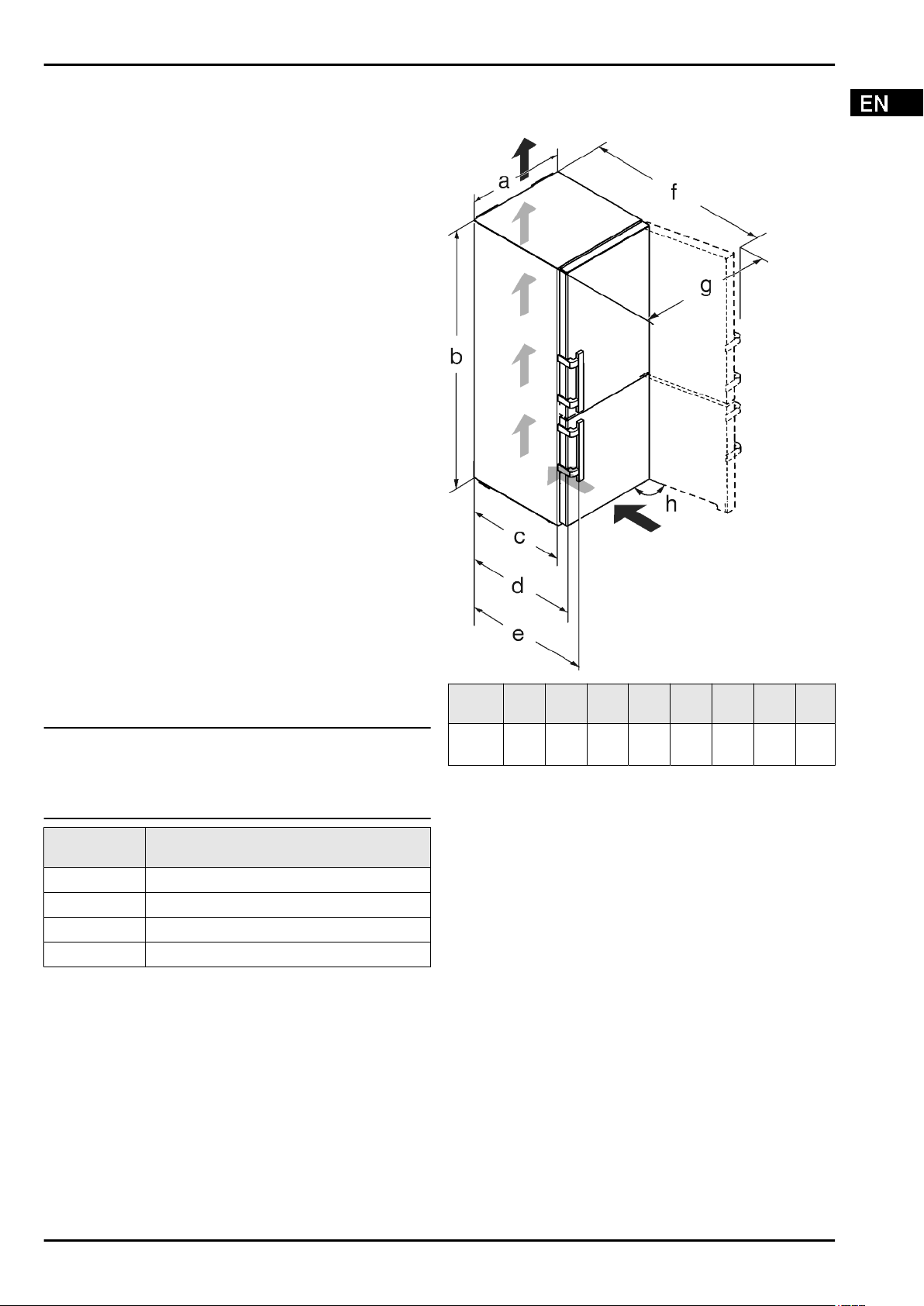

1.5 External dimensions of the appli-
ance
Fig. 2
Model a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
f
[mm]
g
[mm]
h [°]
SBNes
42..
600 1850
600
x
665
x
709
x
1185
x
871 115
x
If you are using wall spacers, add 15 mm (see 4.2) to the
dimensions.
With the door open, the dimensions apply to an opening angle
of 115 °. Distances vary depending on the opening angle.
1.6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption is dependent on the installation condi-
tions, e.g. ambient temperature (see 1.2) . If the ambient
temperature deviates from the standard temperature of
25°C, the energy consumption may differ.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Arrange the food in an organised way (see 1) .
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it doesn’t
warm up too much.
-
Inserting warm food: allow to cool down to room temperature
first.
Appliance at a glance
* Depending on model and options 3
-
Use the holiday function if you intend to be away for an
extended period .

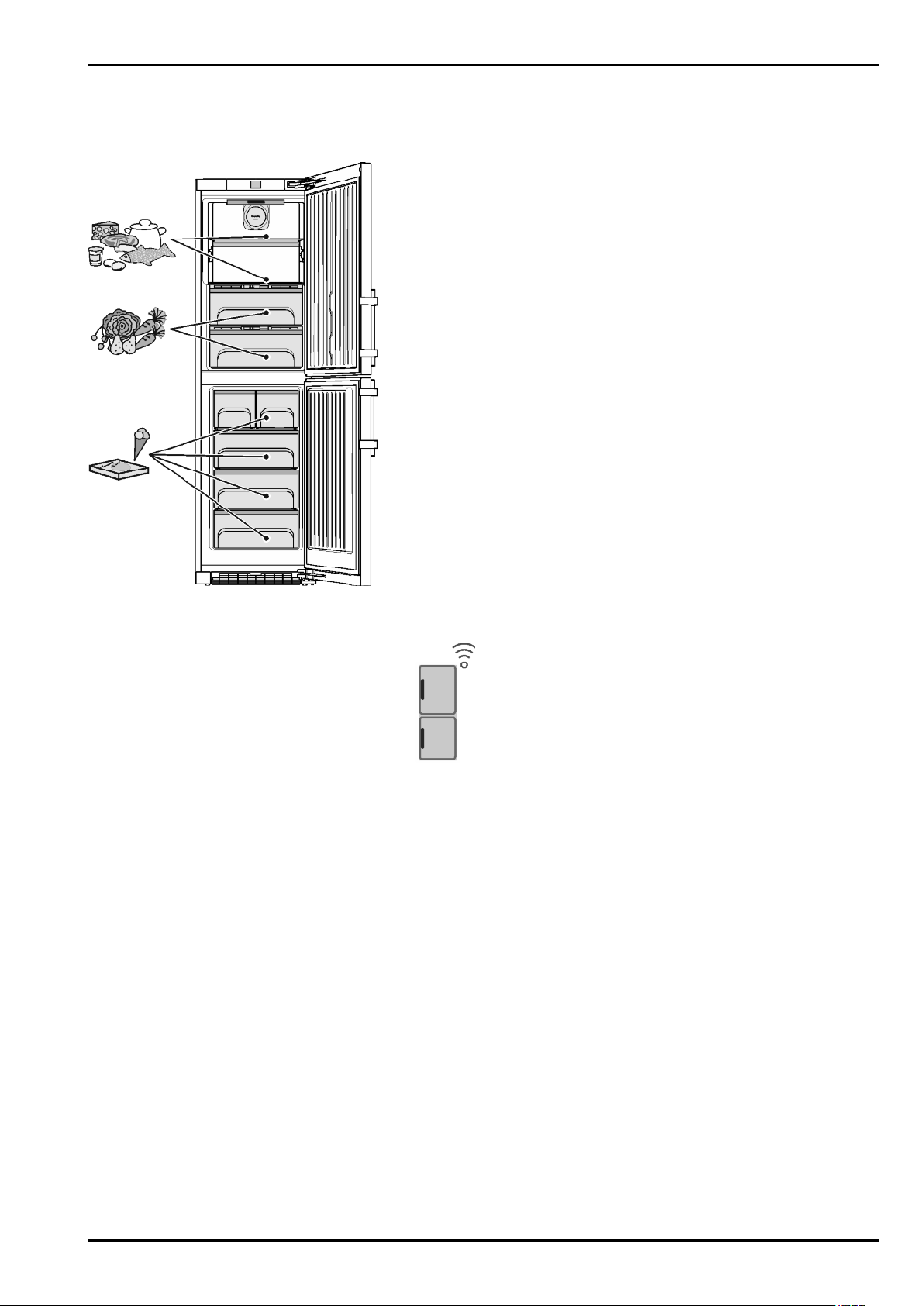

1.7 Example of food arrangement
Fig. 3
1.8 Smart device
The appliance is ready for integration into a smart
home and for extended services. Other options can
be selected with a SmartDeviceBox. This is acti-
vated via the MyLiebherr customer portal.
You will find more information about availability and pre-requi-
sites and the individual options on the website www.smartde-
vice.liebherr.com.
2 General safety information
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experience
and knowledge provided that they are super-
vised or have received instruction in the safe
use of this device, and about the resulting
hazards. Children must not play with this
appliance. Cleaning and user maintenance
work must not be carried out by children
without adult supervision. Children aged
between 3 and 8 are allowed to load and
unload the appliance. Children below the age
of 3 must be kept away from the appliance
unless they are under continuous adult super-
vision.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains plug
or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Only customer service or other specially
trained staff may repair or perform other oper-
ations on the appliance.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
-
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
-
All repairs to and intervention in the IceMaker
may be carried out only by service personnel
or by other skilled personnel trained for the
purpose.
-
The manufacturer is not liable for damage
caused by a faulty fixed water connection.
-
Special lights, such as LED lights on the
appliance, are used to illuminate the interior
of the appliance and are not suitable for room
lighting.
Fire hazard:
-
The coolant used (information on the model
plate) is eco-friendly but also flammable. Any
leaking coolant may ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not use an open flame or other source
of ignition inside the appliance.
•
Do not use electrical appliances inside the
appliance (e.g. steam cleaners, heaters, ice
cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the vicinity
of the leakage point. Properly air the room.
Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list of
contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other items
with naked flames away from the appliance so
that they do not set the appliance on fire.
-
Please be sure to store alcoholic drinks or
other packaging containing alcohol in tightly
closed containers. Any alcohol that leaks out
may be ignited by electrical components.
Danger of tipping and falling:
General safety information
4 * Depending on model and options
-
Do not misuse the plinth, drawers, doors etc.
as a step or for support. This applies particu-
larly to children.
Danger of food poisoning:
-
Do not consume food which has been stored
too long.
Danger of frostbite, numbness and pain:
-
Avoid lasting skin contact with cold surfaces
or refrigerated/frozen food or take protective
steps, e.g. wear gloves. Do not consume ice
cream, water ice or ice cubes immediately
and do not consume them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use elec-
trical heating or steam cleaning equipment,
open flames or defrosting sprays to defrost.
-
Do not use sharp implements to remove the
ice.
Danger of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.
Symbols on the appliance:
The symbol can be located on the
compressor. It refers to the oil in the
compressor and indicates the following
danger: Swallowing or inhaling can be fatal.
This is only relevant for recycling. There is no
danger in normal operation.
This symbol is found on the compressor and
indicates the danger of flammable materials.
A sticker to this effect may be applied to the
rear of the appliance. It refers to the foam-
padded panels in the door and/or the
housing. This is only relevant for recycling. Do
not remove the sticker.
Please observe the specific information in
the other sections:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily
injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note identifies useful information and tips.
3 Controls and displays
3.1 Home screen
Fig. 4
(1) BioFresh field (3) Menu field
(2) Freezer field (4) Screen
The home screen is the first screen the user sees. All settings
can be made from there.
All functions can be called up by touching the screen and
values can be changed.
3.2 Operating structure
BioFresh field
Fig. 5
(1) BioFresh symbol (2) BioFresh temperature
display
In the BioFresh field, the BioFresh temperature setting is
displayed.
The following settings can be entered:
-
Temperature settings
-
Switch BioFresh section on/off
Freezer compartment field
Fig. 6
(1) Freezer compartment
symbol
(2) Freezer compartment
temperature display
The freezer compartment temperature is displayed in the
freezer compartment field.
The following settings can be entered:
-
Temperature settings
-
Switch off appliance. Screen remains functional.
Menu field
Fig. 7
(1) Main menu (2) Option selected
The menu field gives access to the appliance options and
settings. Selected options are also displayed.
Controls and displays
* Depending on model and options 5
3.3 Navigation
Touch the menu to access the individual options. An audible
signal sounds after confirming an option or a setting. The
display switches to the home screen.
The appliance is operated using the following symbols:
Standby:
Switches the appliance or tempera-
ture zone on.
Menu:
Calls up options.
Minus / Plus:
Changing settings (e.g. adjusting
temperatures).
Left/right navigation arrow:
Selects options and navigates
through the menu.
You can scroll through the individual
options using the navigation arrows.
The first option is displayed again
after the last one.
Back:
Cancels the selection.
The display switches to the next
higher level or to the home screen
OK:
Confirms the selection.
After confirmation the display
switches to the home screen.
ON / OFF, START / STOP
Starts/ stops options.
After selecting or cancelling an option
the display switches to the home
screen.
RESET:
Resets timer.
Access to customer service
Note
If no selection is made after 1 minute the display switches to
the home screen.
3.4 Display symbols
Display symbols provide information on the current appliance
status:
Up arrows:
The temperature increases.
Down arrows:
The temperature reduces.
Standby:
The appliance or temperature zone is
switched off.
Messages:
There are active error messages and
reminders.
3.5 Appliance options
You can select or set the following options; explanations and
setting options, (see 5) :
Symbol Option
HydroCool
x
SuperFrost
x
SabbathMode
IceMaker
x
Child safety device
x
Holiday function
Temperature unit
x
If the option is selected, the relevant symbol is displayed in
the menu field.
If more than 6 selected options are selected only 4 options are
displayed in the menu field. The other options are displayed by
pressing the bottom navigation arrow. Pressing the navigation
arrow repeatedly takes you back to the home screen.
The symbol disappears if the option ends or is disabled.
4 Putting into operation
4.1 Transporting the appliance
CAUTION
Risk of injury and danger of damage as a result of incorrect
transport!
u
Transport the appliance in a packed condition.
u
Transport the appliance upright.
u
Do not transport the appliance without assistance.
Putting into operation
6 * Depending on model and options
4.2 Installing the appliance
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
u
The appliance is designed for use in enclosed areas. Do not
operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Risk of fire due to short circuit!
If the mains cable/connector of the appliance or of another
appliance touch the rear of the appliance, the mains cable/
connector may be damaged by the appliance vibrations,
leading to a short circuit.
u
Stand the appliance so that it is not touched by connectors
or main cables.
u
Do not plug the appliance or any others into sockets located
near the rear of the appliance.
WARNING
Fire hazard due to refrigerant!
The coolant used is eco-friendly but also flammable. Any
leaking coolant may ignite.
u
Do not damage the piping of the refrigeration circuit.
WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
WARNING
Blocked ventilation openings pose a risk of fire and damage!
u
Always keep the ventilation openings clear. Always ensure
that the appliance is properly ventilated!
If your appliance is not a side-by-side (SBS) appliance:*
NOTICE
Risk of damage due to condensate!*
u
Do not install the appliance directly alongside a further
refrigerator/freezer.
Note
If you have several appliances next to one another, leave a gap
of 70mm between appliances. Otherwise condensation will
build up between the units.*

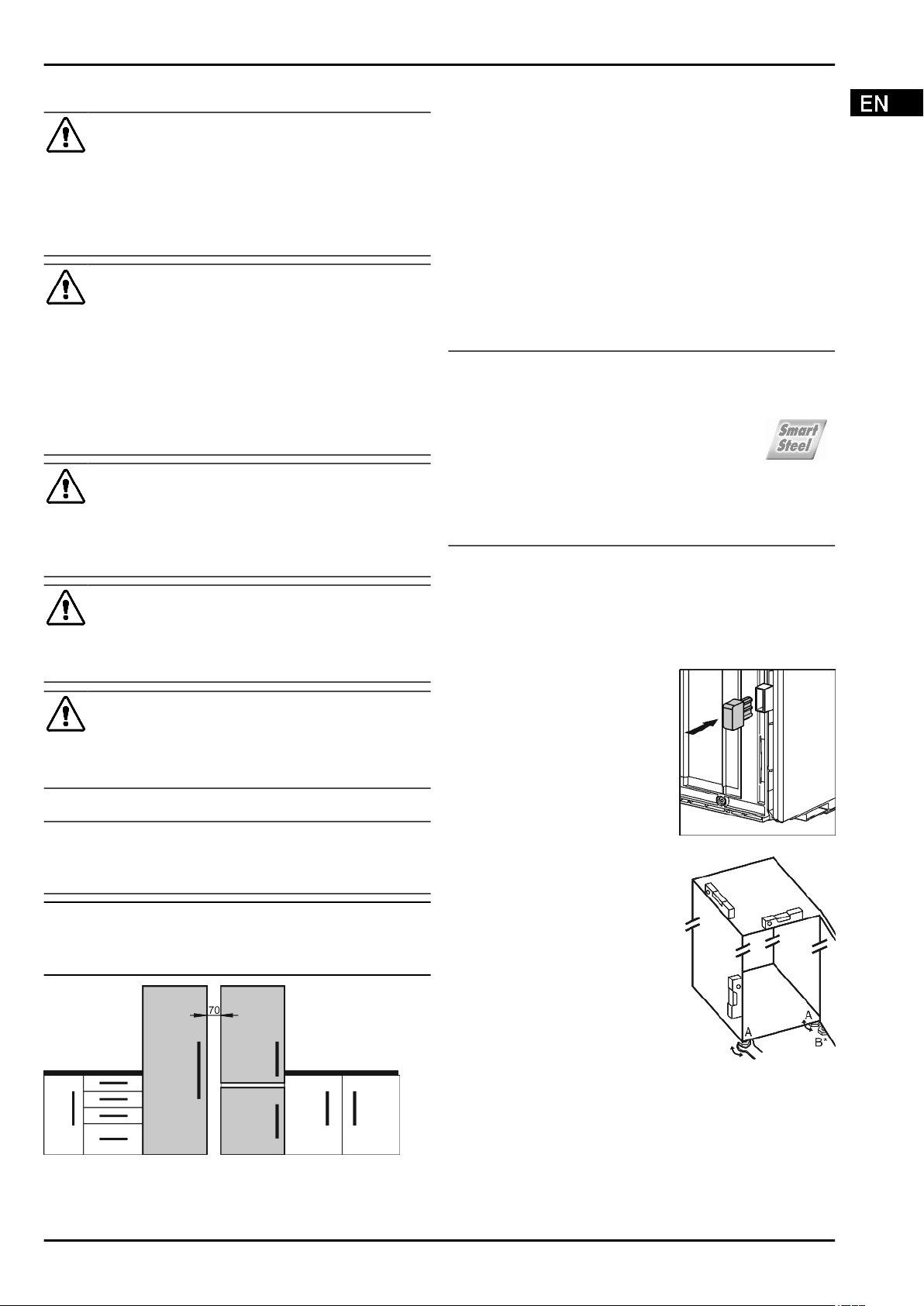

Fig. 8
*
q
Before you connect the appliance, report any damage
immediately to the delivery company.
q
The floor of the installation site must be horizontal and even.
q
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
q
Install the appliance with the rear panel up against the wall
and always use the supplied wall spacers (see below).
q
Only ever move the appliance when it is empty.
q
The surface supporting the appliance must be at the same
level as the surrounding floor.
q
Do not install the appliance on your own.
q
The more coolant there is in the appliance, the larger the
room in which the appliance is installed must be. If the room
is too small, any leak may create a flammable mixture of gas
and air. For each 8 g of coolant the installation space must
be at least 1 m
3
. Information on the coolant is on the model
plate inside the appliance.
u
Remove the protective film from the outside of the appliance.
NOTICE
Risk of damage from stainless steel care products!
The stainless steel doors and stainless steel side panels
are treated with a premium surface finish.
Stainless steel care products attack these surfaces.
u
Only use a soft, clean cloth to wipe down finished door
and side panel surfaces and painted door and side
panel surfaces. To remove heavy dirt, use a little water or
neutral detergent. Alternatively, you can use a micro-fibre
cloth.
u
Remove the protective film from the decorative trims.
u
Remove all transit supports.
Spacers must be used to achieve the declared energy
consumption and to prevent condensation in the event of high
surrounding humidity. This increases the appliance depth by
about 15 mm. The appliance will work perfectly well without the
spacers but will have a slightly higher energy consumption.
u
If your appliance comes with wall
spacers, mount these on the
back of the appliance, bottom left
and right.
u
Dispose of packaging material (see 4.6) .
u
Align the appliance so that it
stands firmly and on a level by
applying the accompanying
spanner to the adjustable-
height feet (A) and using a
spirit level.
u
Then support the door: Use saddle wrench SW10 to
unscrew the base on mounting block (B) until it makes
contact with the ground, then continue turning it for a further
90°.
When a Side-by-Side appliance (S…) is fitted together with
a second appliance (as a SBS combination):*
u
Proceed according to the Side-by-Side combined fridge-
freezer installation instructions. (Accessories bag of the SBS
freezer/appliance with freezer compartment)*
Putting into operation
* Depending on model and options 7
Note
u
Clean the appliance (see 6.4) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u
Always see to good ventilation at the installation site.

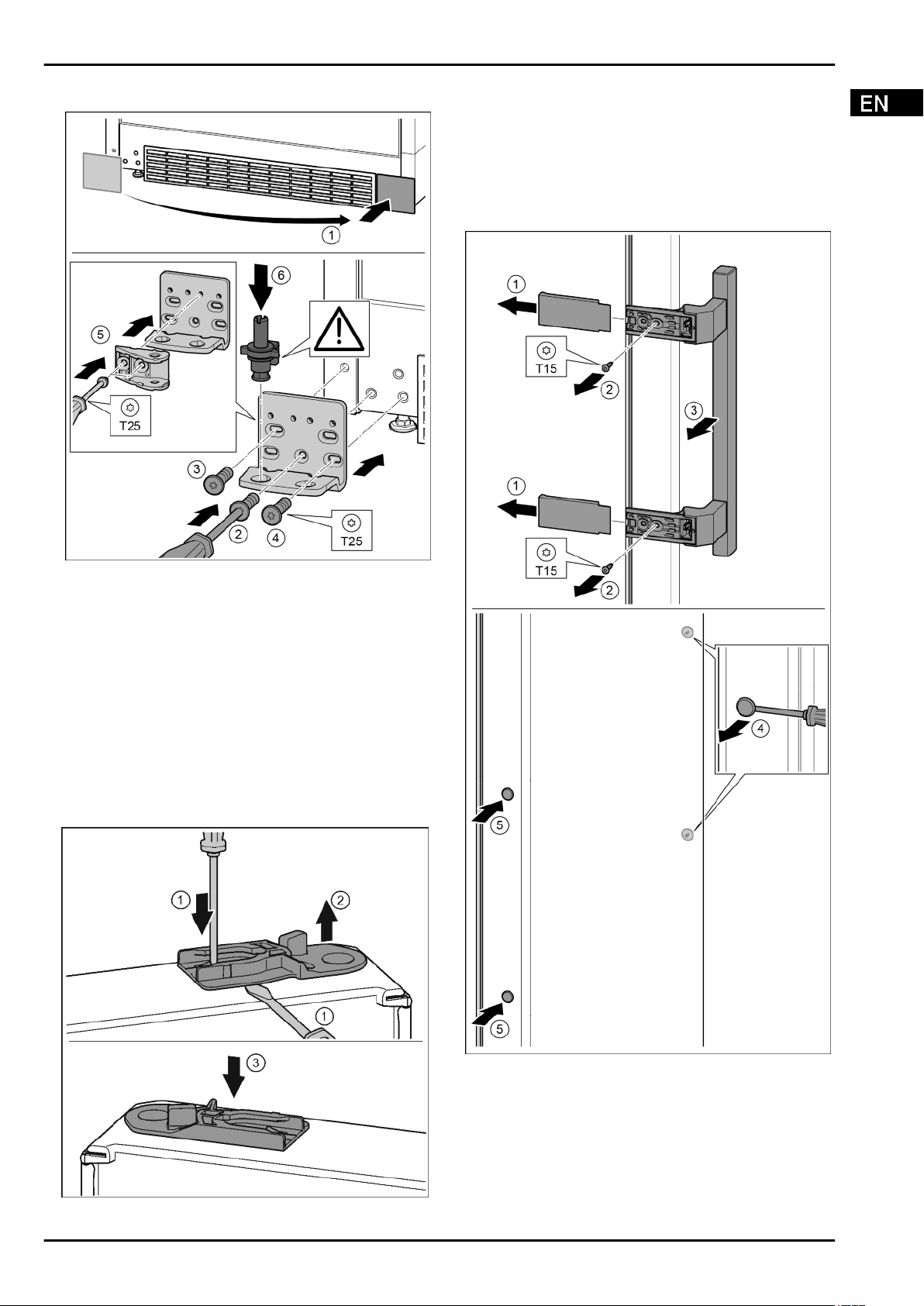

4.3 Reversing the door
If necessary, you can change the way the door opens:
Ensure that the following tools are available:
q
Torx® 25 (T25)
q
Torx® 15 (T15)
q
Slotted screwdriver
q
Open-ended wrench SW10
q
Spirit level
q
Open-ended wrench supplied with the T25 tool
q
If necessary, a cordless screwdriver
q
Get a stepladder if necessary
q
If necessary, a second person for assembly
NOTICE
Risk of condensation damage for Side-by-Side appliances!*
Certain appliances can be set up as Side-by-Side combina-
tions (two appliances next to each other).
If your appliance is a Side-by-Side (SBS) appliance:
u
Set up the SBS combination in accordance with the
enclosed document.
If the positioning of the devices is stipulated:
u
Do not change the door hinges over.
4.3.1 Remove the upper soft stop mechanism
Fig. 9
u
Open the top door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close properly
and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Remove the outer cover.
Fig. 9 (1)
u
Disengage and release the bearing bracket cover. Remove
the bearing bracket cover.
Fig. 9 (2)
u
Unlatch the panel with a slotted screwdriver and swivel it to
one side.
Fig. 9 (3)
Fig. 10
CAUTION
Crushing hazard by joint folding up!
u
Engage safety device.
u
Engage the locking device in the opening.
Fig. 10 (1)
u
Unscrew the bolt with a screwdriver.
Fig. 10 (2)
u
Remove the bolt in an upward direction.
Fig. 10 (3)
u
Turn the hinge in the direction of the door.
Fig. 10 (4)
Fig. 11
u
Press the tab with the slotted screwdriver.
Fig. 11 (1)
u
Pull cover out of the catch mechanism.
Fig. 11 (2)
Putting into operation
8 * Depending on model and options
Fig. 12
u
Undo the soft stop mechanism screw with a T15 screwdriver
approx. 14 mm.
Fig. 12 (1)
u
Insert a screwdriver behind the soft stop mechanism on the
handle side and rotate forwards.
Fig. 12 (2)
u
Remove the soft stop mechanism.
Fig. 12 (3)
4.3.2 Remove the bottom soft stop mechanism
Fig. 13
u
Open the bottom door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close properly
and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Unlatch the panel with a slotted screwdriver and swivel it to
one side.
Fig. 14
CAUTION
Crushing hazard by joint folding up!
u
Engage safety device.
u
Engage the locking device in the opening.
Fig. 15
u
Remove the bearing bracket cover and push it along the
hinge.
Fig. 15 (1)
u
Lift the bolt with a finger or screwdriver from below.
Fig. 15 (2)
u
Insert the screwdriver under the bolt head and remove.
Fig. 15 (3)
Fig. 16
u
Turn the hinge in the direction of the door.
Fig. 16 (1)
u
Remove the bearing bracket cover.
Fig. 16 (2)
Putting into operation
* Depending on model and options 9
Fig. 17
u
Undo the screw on the soft stop mechanism about 14 mm
with a T15 screwdriver.
Fig. 17 (1)
u
Insert the screwdriver on the handle side behind the soft
stop mechanism. Turn the unit forwards.
Fig. 17 (2)
u
Remove the unit.
Fig. 17 (3)
u
Set aside the soft stop mechanism.
4.3.3 Remove the cable connection
Fig. 18
u
Carefully remove the cable over the bearing bracket from the
guide.
Fig. 18 (1)
u
Carefully pull the cable strands out of the channel.
Fig. 18 (2)
u
Press the tab upwards and carefully remove the plug.
Fig. 18 (3)
Fig. 19
u
Carefully remove the grey cable from the guide in the door.
Fig. 19 (1)
u
Press the tab upwards.
Fig. 19 (2)
u
Carefully remove the plug.
Fig. 19 (3)
Fig. 20
u
Press the tab.
Fig. 20 (1)
u
Remove the cable holder with its cable.
Fig. 20 (2)
4.3.4 Removing the top door
Fig. 21
Putting into operation
10 * Depending on model and options
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Carefully remove the protective cover.
Fig. 21 (1)
u
Undo the bolt a little with a T15 screwdriver.
Fig. 21 (2)
u
Hold the door and remove the bolts with your fingers.
Fig. 21 (3)
u
Lift the door and set it aside.
u
Carefully lift the plugs out of the door bearing bush with a
slotted screwdriver and remove.
Fig. 21 (4)
4.3.5 Removing the lower door
Fig. 22
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Pull out the bolts towards the top.
Fig. 22 (1)
u
Swing the door out, pull it upwards and set it aside.
Fig. 22 (2)
4.3.6 Moving the upper bearing parts to the
other side
Fig. 23
u
Remove both screws with the T25 screwdriver.
u
Lift and remove the bearing bracket and cable.
Fig. 24
u
Pull the bearing bush out of the guide.
Fig. 24 (1)
u
Swing the cable holder out.
Fig. 24 (2)
Fig. 25
u
Remove the cable from the guide.
Fig. 25 (3)
NOTICE
Cable crushing
u
Pay attention to the mark when positioning the cable. The
shorter end of the cable is positioned from the mark in the
cable holder.
Putting into operation
* Depending on model and options 11
Fig. 26
u
Insert the cable mirror inverted.
w
The black mark must be positioned on the edge of the cable
holder.
u
Swing the cable holder in.
Fig. 27
u
Insert the bearing bush from the other side and click into
place.
Fig. 28
u
Release the cover and remove from the side.
Fig. 28 (1)
u
Rotate the cover 180° and clip onto the other side from the
right.
Fig. 28 (2)
u
Click the cover into place.
Fig. 28 (3)
u
Position the screw with a T25 screwdriver.
Fig. 28 (4)
u
Position the upper bearing bracket.
Fig. 28 (5)
w
Place the pins in the provided screw holes.
u
Tighten the screw.
Fig. 28 (4)
u
Insert the screw with a T25 screwdriver and tighten.
Fig. 28 (6)
4.3.7 Moving the central bearing parts to the
other side
Fig. 29
u
Remove the washer.
Fig. 29 (1)
u
Remove the screws with the T25 screwdriver.
Fig. 29 (2)
u
Remove the cover carefully.
Fig. 29 (3)
u
Screw the bearing bracket and the film rotated 180° firmly
onto the other side.
Fig. 29 (4)
u
Attach the cover rotated 180° onto the other side.
Fig. 29 (5)
u
Push the washer in from the front.
Fig. 29 (6)
4.3.8 Moving the lower bearing parts to the
other side
Fig. 30
u
Lift the bearing pin completely upward and remove.
Fig. 30 (1)
u
Remove the screws with the T25 screwdriver and remove
the soft stop connection.
Fig. 30 (2)
Putting into operation
12 * Depending on model and options
u
Undo the screws with a T25 screwdriver and remove the
bearing bracket
Fig. 30 (3)
Fig. 31
u
Remove the cover and fix it on the other side.
Fig. 31 (1)
u
Place the bearing bracket on the other side and screw in
with the aid of a T25 screwdriver. Start with screw 2 at the
bottom in the middle.
Fig. 31 (2)
u
Screw in screws 3 and 4.
Fig. 31 (3, 4)
u
Rotate the soft stop connection 180°. Screw in with a T25
screwdriver on the other side of the bearing bracket.
Fig. 31 (5)
u
Insert the bearing pin completely. Make sure that the catch
mechanism is pointing to the rear.
Fig. 31 (6)
4.3.9 Moving the door bearing parts to the
other side
Top door
Fig. 32
u
Underside of door faces upwards: Turn the door.
u
Pull out the guide bush: Press the tab with a slotted screw-
driver and, at the same time, insert the slotted screwdriver
under the guide bush.
Fig. 32 (1, 2)
u
Slide the guide bush included in the scope of supply to the
other side of the housing.
Fig. 32 (3)
u
Upper side of door faces upwards: Turn the door.
4.3.10 Moving the handles to the other side
Fig. 33
u
Pull off the cover.
Fig. 33 (1)
u
Remove the screws with the T15 screwdriver.
Fig. 33 (2)
u
Remove the handle.
Fig. 33 (3)
u
Carefully lift up the side plugs with a slotted screwdriver and
pull them out.
Fig. 33 (4)
u
Insert the plugs again on the other side.
Fig. 33 (5)
Putting into operation
* Depending on model and options 13
Fig. 34
u
Position the handle on the other side.
Fig. 34 (1)
w
The screw holes must be exactly above each other.
u
Tighten the screws with the T15 screwdriver.
Fig. 34 (2)
u
Position the covers on the side and push in.
Fig. 34 (3)
w
Ensure that it clicks into place.
4.3.11 Fitting the bottom door
Fig. 35
u
Carefully lift up the plugs with a slotted screwdriver and
remove them.
Fig. 35 (1)
u
Position the door from above onto the lower bearing pins.
Fig. 35 (2)
u
Insert the centre bearing pin through the centre bearing
bracket into the lower door. Make sure that the catch mecha-
nism is pointing to the rear.
Fig. 35 (3)
u
Insert the plugs again on the other side of the door.
Fig. 35 (4)
4.3.12 Fitting the upper door
Fig. 36
u
Place the upper door on the centre bearing pins
Fig. 36 (1)
u
Align the top of the door with opening in the bearing bracket.
Fig. 36 (2)
u
Insert the bolt and tighten with a T15 screwdriver.
Fig. 36 (3)
u
Fit the protective cover to protect the door: Insert the protec-
tive cover and check that it is attached to the door. If not,
insert the bolt fully.
Fig. 36 (4)
NOTICE
Cable crushing
u
The mark on the cable must be centred in the holder. The
tab with the longer opening must point forwards.
Putting into operation
14 * Depending on model and options
u
Insert the holder with its cable into the opening.
Fig. 36 (5)
u
Press the holder downwards until the tab clicks into place.
Fig. 36 (6)
u
Insert the plugs.
Fig. 36 (7)
4.3.13 Fitting the cable connection
Fig. 37
u
Engage the plug above the upper bearing bracket and care-
fully place the cable strands into the channel.
Fig. 37 (1)
u
Carefully position the grey cable in the guide above the top
bearing bracket.
Fig. 37 (2)
Fig. 38
u
Insert the grey cable into the guide in the top door.
Fig. 38 (1)
u
Engage the plug.
Fig. 38 (2)
u
Position the remaining cable length as a loop in the guide, if
required.
4.3.14 Aligning the doors
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly enough,
the door may drop out. This may lead to severe injuries. What is
more, the door may not close and therefore the appliance may
fail to cool properly.
u
Screw the turn hinges firmly into place with 4 Nm.
u
Check all of the screws and retighten if necessary.
u
Align the doors flush with the appliance housing using the
two oblong holes in the lower bearing bracket and centre
bearing bracket if needed. To do this undo the middle screw
in the bottom bearing bracket with the T25 tool supplied.
Undo the remaining screws a little with the T25 tool or with a
T25 screwdriver and align using the slotted holes. Undo the
screws in the middle bearing bracket with the T25 tool and
align the middle bearing bracket using the slotted holes.
u
Support the door: Take off the adjustable foot on the bearing
bracket using the open-ended wrench SW10 until it comes
into contact with the floor, then turn an additional 90°.
4.3.15 Fit the bottom soft stop mechanism
Fig. 39
u
Slide the soft stop mechanism on the bearing bracket side at
an angle into the slot as far as the limit stop.
Fig. 39 (1)
u
Slide the soft stop mechanism fully into the slot.
Fig. 39 (2)
w
The unit is positioned correctly when the rib on the soft stop
mechanism is in the guide.
u
Tighten the screw with the T15 screwdriver.
Fig. 39 (3)
u
Push the cover over the hinge.
Fig. 39 (4)
Fig. 40
The door is open 90°
u
Turn the hinge in the mount.
Fig. 40 (1)
u
Insert the bolt with a T15 screwdriver in the mount and
hinge. Make sure that the catch mechanism is sitting
correctly in the groove.
Fig. 40 (2)
u
Push the bearing bracket cover along the hinge and fit on
the mount.
Fig. 40 (3)
u
Remove the locking device.
Fig. 40 (4)
u
Position the panel on the handle side and swing it in.
Fig. 40 (5)
w
The panel is clicked into place.
u
Close the bottom door.
Putting into operation
* Depending on model and options 15

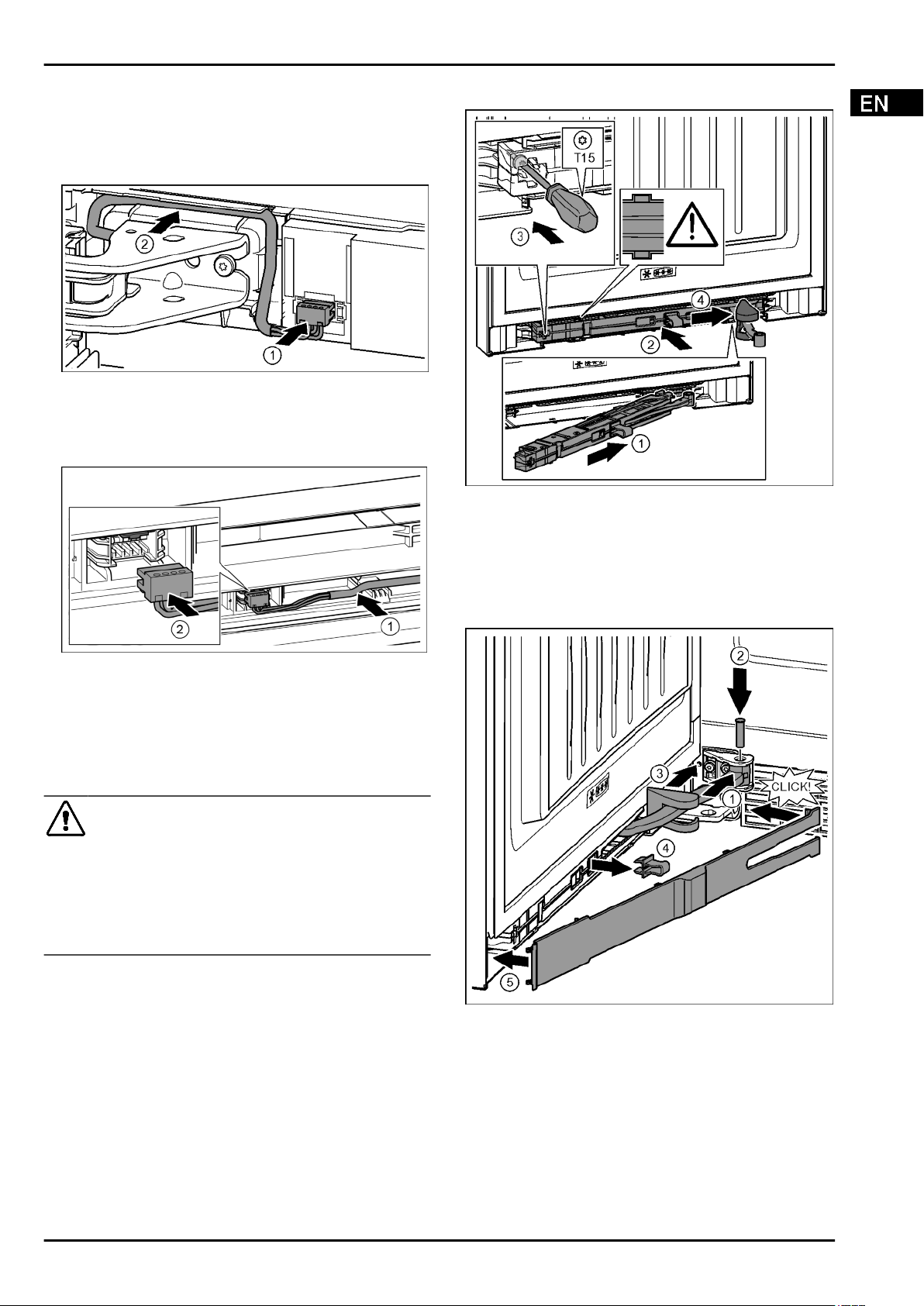

4.3.16 Fit the top soft stop mechanism
Fig. 41
u
Slide the soft stop mechanism on the bearing bracket side at
an angle into the slot as far as the limit stop.
Fig. 41 (1)
u
Slide the unit in fully.
w
The unit is positioned correctly when the rib on the soft stop
mechanism is in the guide in the housing.
u
Tighten the screw with the T15 screwdriver.
Fig. 41 (2)
Fig. 42
The door is open 90°.
u
Turn the hinge in the bearing bracket.
Fig. 42 (1)
u
Insert the bolt in the bearing bracket and hinge. Make sure
that the catch mechanism is sitting correctly in the groove.
Fig. 42 (2)
u
Remove the locking device.
Fig. 42 (3)
u
Slide on the cover.
Fig. 42 (4)
Fig. 43
u
Position the bearing bracket and engage. If necessary push
apart carefully.
Fig. 43 (1)
u
Position the panel.
Fig. 43 (2)
u
Swing in the panel and click into place.
Fig. 43 (3)
u
Slide on the external cover.
Fig. 43 (4)
u
Close the upper door.
Fig. 43 (5)
4.4 Water connection
WARNING
Danger of electric shock!
u
Disconnect the appliance by unplugging it before you
connect it to the water line.
u
Shut off the water supply before you connect the water feed
lines of the IceMaker.
u
The connection to the drinking water system may be carried
out only by a qualified gas fitter and plumber.
WARNING
Risk of poisoning!
u
The water quality has to comply with the drinking water ordi-
nance of the respective country (e.g. 98/8
u
Connect to the drinking water supply only.
u
The IceMaker serves exclusively for making ice cubes in
household quantities and has to be operated with water suit-
able for the purpose.
Fig. 44
a b c M
~ 1100 mm ~ 700 mm ~ 110 mm Solenoid valve
- The water pressure must be between 0.15 MPa and
0.6 MPa (1.5 bar - 6 bar).
Putting into operation
16 * Depending on model and options
- The water must be connected to the appliance via a cold
water pipe that can withstand the operating pressure and
complies with hygiene standards.
Use the stainless steel hose supplied (length 1.5 m). Do not
reuse old hoses. A 3 m hose is available as an optional
extra. This must be professionally installed.
A filter with a seal is located in the hose connector.
- A stopcock must be provided between the hose line and the
domestic water connection to cut off the water supply if
necessary.
- The stopcock must be located outside the back of the appli-
ance and be within easy reach so that the appliance can be
inserted as deeply as possible and the stopcock can be
turned off quickly. Stick to the clearances.
- All devices and equipment used to supply water must
comply with the regulations in force in the respective
country.
- Do not damage or kink the water supply line during installa-
tion.
Fig. 45
The solenoid is located at the bottom on the back of the appli-
ance. It has a metric R3/4 connecting thread.
For specialist staff:
Connecting the stainless steel hose: The back of the appliance
must be accessible.
WARNING
Broken auxiliary tool
Fig. 45 (6)
.
Cuts.
u
Only use an auxiliary tool
Fig. 45 (6)
at room temperature.
Connecting the hose to the appliance:
u
Remove the cover
Fig. 45 (2)
.
u
Easy to fit: Place the straight end of the hose
Fig. 45 (8)
to
the left on the floor.
u
Slide the nut
Fig. 45 (5)
over the angled end of the hose
Fig. 45 (4)
up to the end and secure.
u
Moisten
Fig. 45 (3)
the seal and push onto the nut
Fig. 45 (5)
.
w
The seal
Fig. 45 (3)
lies flat and is easily retained.
Fig. 46
NOTICE
Damaged solenoid thread pitch.
The solenoid leaks: Water may leak out.
u
Position the nut
Fig. 46 (1)
carefully and screw it directly
onto the thread with two fingers until it is seated securely.
u
Tighten the nut
Fig. 46 (1)
clockwise with the auxiliary tool
Fig. 45 (6)
until maximum torque is reached and the auxiliary
tool
Fig. 45 (6)
overtightens.
Connecting the hose to the stopcock:
u
Screw the nut
Fig. 45 (8)
onto the stopcock
Fig. 45 (9)
.
u
Tighten the nut
Fig. 45 (8)
clockwise with the auxiliary tool
Fig. 45 (6)
until maximum torque is reached and the auxiliary
tool
Fig. 45 (6)
overtightens.
u
Turn the water supply stopcock
Fig. 45 (9)
on and check the
whole water system for leaks.
u
Flushing the IceMaker: Turning the IceMaker on chapter
(see 5.5.10.2) .
u
Hook the clip
Fig. 45 (7)
into the auxiliary tool
Fig. 45 (6)
and
fix it to the stainless steel pipe to store it.
4.5 Insertion into a row of kitchen units
Fig. 47
Putting into operation
* Depending on model and options 17
A [mm] B [mm]
C [cm
2
]
D [mm] E [mm]
665
x
65 Min. 300 Min. 50 Min. 46
x
If wall spacers are used, the dimensions increase by 15 mm
(see 4.2) .
The dimensions apply for an opening angle of 90 °. Spacing
angles will vary according to the opening angle.
You can purchase a kit to limit the door opening angle to 90° on
soft closing appliances. Please contact our customer service
team.
The appliance can be built into kitchen units. A top cupboard
Fig. 47 (2)
can be added above the appliance in order to bring
the appliance
Fig. 47 (1)
up to the height of the fitted kitchen
units.
The appliance can be installed right next to the kitchen cabinet
Fig. 47 (3)
. The appliance must stick out by the depth
Fig. 47 (B)
from the front of the cabinet so that the doors can be
opened fully. The appliance may protrude further depending on
the depth of the kitchen cabinets and whether wall spacers are
used.
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
u
Take care to ensure adequate air ventilation.
u
Observe the ventilation requirements.
Ventilation requirements:
-
Spacer ribs on the back of the appliance provide sufficient
air ventilation. In the final appliance position, these must not
be placed in recesses or cut-outs.
-
There must be a ventilation shaft with the depth
Fig. 47 (D)
at the back of the top cupboard over the entire width of the
cupboard.
-
The ventilation shaft
Fig. 47 (C)
must be observed under the
ceiling.
-
the larger the ventilation space, the more energy-saving the
appliance is in operation.
If the appliance is installed with the hinges next to a wall
Fig. 47 (4)
the distance
Fig. 47 (E)
between the appliance and
the wall must be observed. This is how far the handle protrudes
when the door is open.
4.6 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic film!
u
Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
u
Take the packaging material to an official collecting point.
4.7 Connecting the appliance
WARNING
Failure to connect properly
Fire hazard.
u
Do not use an extension cable.
u
Do not use distributor blocks.
NOTICE
Failure to connect properly
Damage to the electronics.
u
Do not use a standalone inverter.
u
Do not use an energy saving plug.
Note
Only use the power connection lead supplied.
u
A longer power connection lead can be ordered from
Customer Service.
Fig. 48
a b c d G
~ 1800 mm ~ 1400 mm ~ 2100 mm ~ 200 mm Appliance
plugs
Ensure that the following conditions are met:
- The type of current and voltage at the installation site corre-
spond to the information on the model plate (see 1) .
- The socket is earthed according to the regulations and
fused.
- The fuse tripping current is between 10 and 16 A.
- The socket is easily accessible.
- The socket is outside the back of the appliance area in the
specified area
Fig. 48 (a, b, c)
.
u
Check the electrical connection.
u
Insert the appliance plug
Fig. 48 (G)
into the back of the
appliance. Ensure that it clicks into place.
u
Connect the power plug to the power supply.
w
The Liebherr logo appears on the screen.
w
The display switches to the standby symbol.
4.8 Switching on the appliance
Note
If the appliance is in demo mode, DEMO appears on the home-
screen.
u
Disable demo mode (see 7) .
Note
The manufacturer recommends:
u
Store frozen produce at -18 °C or colder.
Connect and switch on appliance approx. 2 hours before
loading for the first time.
4.8.1 Switch on appliance
If the standby symbol is displayed over the whole screen:
u
Press the standby symbol.
w
The appliance is switched on. The display switches to the
home screen.
w
The appliance is set to the displayed temperatures. This is
shown by down arrows.
If the Standby symbol appears in the BioFresh field or
freezer field:
u
Press the Standby symbol in the BioFresh field or freezer
field.
Putting into operation
18 * Depending on model and options
w
The appliance is switched on.
w
The appliance is set to the displayed temperatures. This is
shown by down arrows.
If the screen is black:
u
Touch the screen.
w
The standby symbol appears on the whole screen.
u
Press the standby symbol.
w
The appliance is switched on. The display switches to the
home screen.
w
The appliance is set to the displayed temperatures. This is
shown by down arrows.
4.8.2 Switch BioFresh section on
The Standby symbol appears in the BioFresh field:
u
Press the Standby symbol in the BioFresh field.
w
BioFresh section is switched on.
w
The BioFresh compartment adjusts to the displayed temper-
ature. This is shown by down arrows.
4.9 Inserting the FreshAir filter.
The supplied FreshAir filter can be used for optimum air quality.
The intake is located at the top of the appliance, (see 1)
u
Remove cover.
Fig. 49
u
FreshAir-Insert the filter in the cover and turn it clockwise.
u
Ensure that the filter clicks into place.
u
Replace the cover again.
Setting the timer
u
Press menu.
u
Press the navigation arrows until the FreshAir filter is
displayed.
u
Press the FreshAir filter symbol.
u
Press ON.
w
The timer is set. After the interval has expired a message
prompts you to change the FreshAir filter.
4.10 Setting the clean ventilation grid
timer
The ventilation grid must be cleaned at least once a year for
sufficient ventilation. The timer can be set as a reminder.
u
Press menu.
u
Press the navigation arrows until the ventilation grid
is displayed.
u
Press the ventilation grid symbol.
u
Press ON.
w
The timer is set. After the interval has expired a message
prompts you to clean the ventilation grid.
5 Control
5.1 Changing the temperature unit
The temperature display can be switched from °C to °F.
u
Press menu.
u
Press the navigation arrow until °C is displayed.
u
Press °F.
w
The temperature is displayed in °F.
Switch from °F to °C in the same way.
5.2 Child proofing
The child-proofing function enables you to make
sure that the appliance is not inadvertently
switched off by playing children.
5.2.1 Switching on the child safety device
u
Press menu.
u
Press the navigation arrows until the child safety
device is displayed.
u
Press ON.
w
The child safety device is switched on.
5.2.2 Switching the child safety device off
u
Press menu.
u
Press the navigation arrows until the child safety
device is displayed.
u
Press OFF.
w
The child safety device is switched off.
5.3 Sabbath Mode
This function meets the religious requirements on the Sabbath
or Jewish feast days. When Sabbath mode is on some of the
electronic control functions are switched off. After setting
Sabbath mode you no longer need to worry about indicator
lamps, figures, symbols, displays, alarm messages and fans.
The thawing cycle only works for the specified time without
taking account of fridge use. After a power cut the appliance
automatically switches back to Sabbath mode.
There is a list of Star-K certified appliances at www.star-k.org/
appliances.
WARNING
Danger of food poisoning.
If a power cut occurs when Sabbath mode is enabled, this
message is not saved. Once the power is restored the appli-
ance continues to work in Sabbath mode. When this mode is
over no message about the power cut is displayed on the
temperature display.
If a power cut occurred during Sabbath mode:
u
Check the food for quality. Do not eat the food if it has
thawed.
-
All functions are blocked until Sabbath mode is switched off.
-
If functions such as SuperFrost, SuperCool, ventilation etc.
are selected when Sabbath mode is switched on they
remain switched on.
-
The IceMaker does not work.
-
No audible signals are emitted and the temperature display
does not indicate any warnings or settings (such as a
temperature alarm or door alarm).
Control
* Depending on model and options 19
-

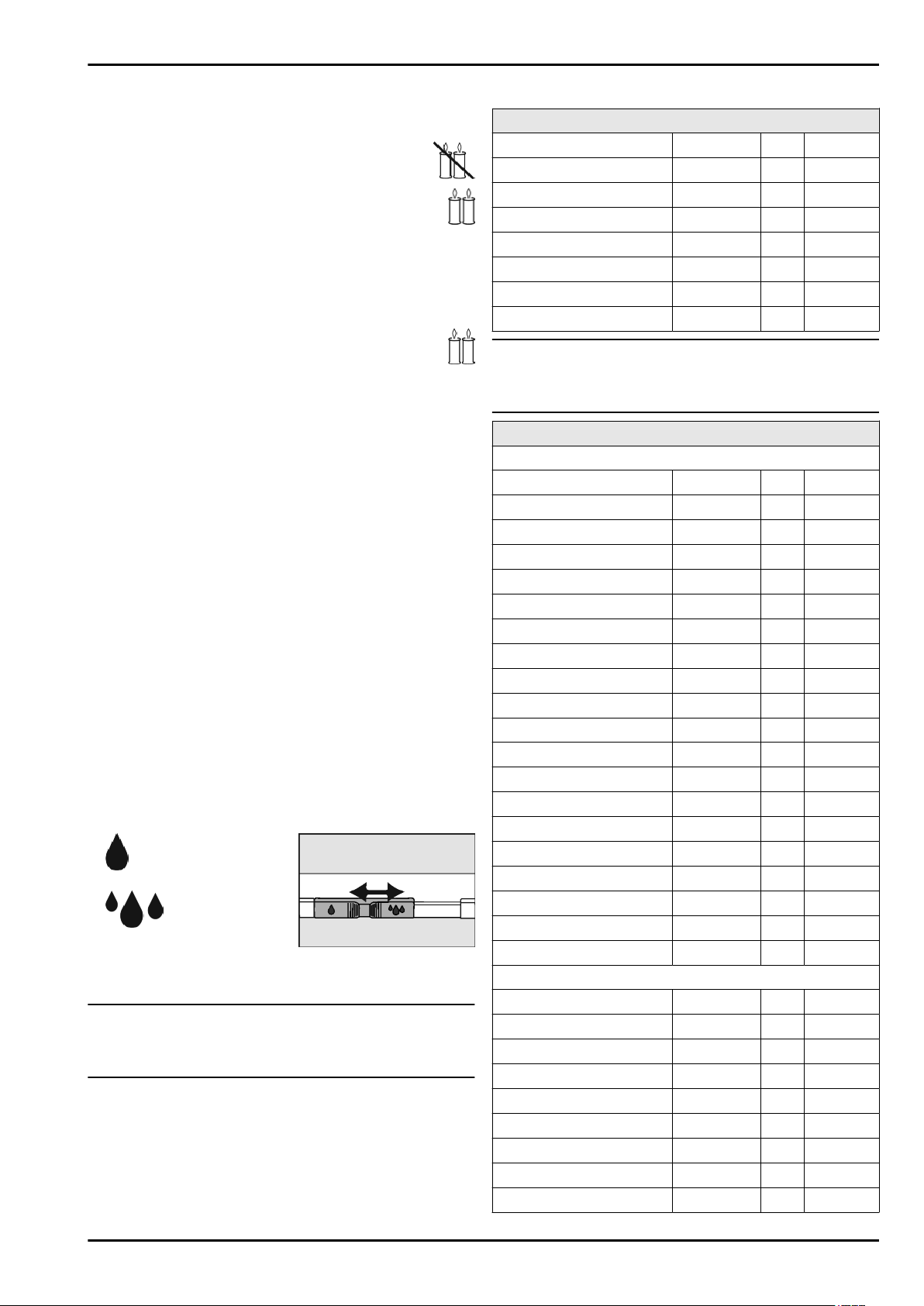

The internal light is off.
5.3.1 Switching SabbathMode on.
u
Press menu.
u
Press the navigation arrow until SabbathMode is
displayed.
u
Press ON.
w
SabbathMode is switched on. Only the SabbathMode
symbol appears on the screen.
SabbathMode switches off automatically after 120 hours if it
has not already been switched off manually. The display
switches to the home screen.
5.3.2 Switch off the SabbathMode
u
Touch the screen.
u
Press OFF.
w
SabbathMode is switched off.
5.4 BioFresh compartment
In the BioFresh section, certain fresh foods can be kept fresh
for longer compared to conventional cooling methods.
For food with an indicated best before date, the date specified
on the packaging always applies.
If the temperature falls below 0 °C, foodstuffs can freeze.
5.4.1 BioFresh shelves
The shelves are suitable for storing dry or packaged food (e.g.
dairy products, meat, fish, sausages). Here a relatively dry
storage climate is set.
5.4.2 HydroSafe
The humidity in the compartment depends on the moisture
content of the items being stored and the number of times the
door is opened. You can set the humidity yourself.
On the high moisture setting, the HydroSafe is suitable for
storing loose salad, vegetables and fruit with a high moisture
content. A well-stocked drawer is stored in absolute freshness.
On the dry setting the compartment is suitable for storing dry or
packaged food (e.g. dairy products, meat, fish). Here a rela-
tively dry storage climate is set.
5.4.3 Setting the humidity in the HydroSafe
u
Low humidity: Move the
slide control to the left.
u
High humidity:
Move the slide control to the
right.
5.4.4 Storing food
Note
u
Do not put the following in the BioFresh section: cold-sensi-
tive vegetables including cucumbers, aubergines, tomatoes,
courgettes and any cold-sensitive tropical fruits.
u
To prevent food spoilage due to transfer of germs: Store
unwrapped animal and vegetable products separate from
one another in the drawers. This also applies to different
sorts of meat.
If food has to be stored together due to lack of space:
u
wrap the food.
5.4.5 Storage times
Guidelines for storage periods at low humidity 0 °C
Butter up to 90 days
Hard cheese up to 110 days
Milk up to 12 days
Cold meats up to 9 days
Poultry up to 6 days
Pork up to 7 days
Beef up to 7 days
Game up to 7 days
Note
u
Please note that protein-rich food deteriorates faster, i.e.
shellfish and crustaceans deteriorate faster than fish, fish
faster than meat.
Guidelines for storage periods at high humidity 0 °C
Vegetables, salads
Artichokes up to 14 days
Celery up to 28 days
Cauliflower up to 21 days
Broccoli up to 13 days
Chicory up to 27 days
Leaf lettuce up to 19 days
Peas up to 14 days
Kale up to 14 days
Carrots up to 80 days
Garlic up to 160 days
Cabbage up to 55 days
Round lettuce up to 13 days
Herbs up to 13 days
Leeks up to 29 days
Mushrooms up to 7 days
Radishes up to 10 days
Sprouts up to 20 days
Asparagus up to 18 days
Spinach up to 13 days
Savoy cabbage up to 20 days
Fruit
Apricots up to 13 days
Apples up to 80 days
Pears up to 55 days
Blackberries up to 3 days
Dates up to 180 days
Strawberries up to 7 days
Figs up to 7 days
Blueberries up to 9 days
Raspberries up to 3 days
Control
20 * Depending on model and options

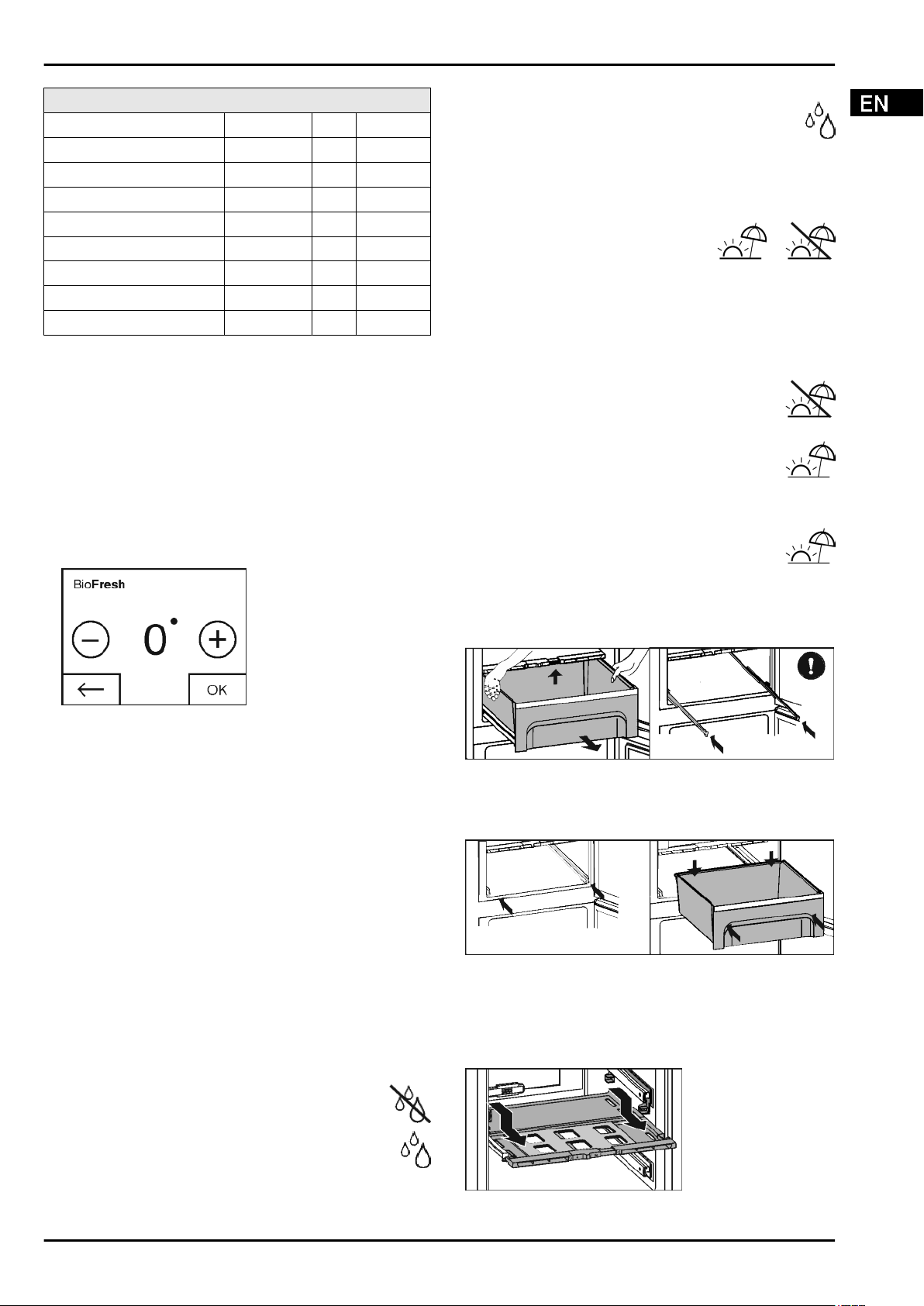

Guidelines for storage periods at high humidity 0 °C
Red currants up to 7 days
Cherries, sweet up to 14 days
Kiwis up to 80 days
Peaches up to 13 days
Plums up to 20 days
Cranberries up to 60 days
Rhubarb up to 13 days
Gooseberries up to 13 days
Grapes up to 29 days
5.4.6 Setting the temperature
The temperature depends on the following factors:
-
the amount of times the door is opened
-
how long the door is open for
-
the room temperature of the installation site
-
the type, temperature and amount of food
The temperature can be set from 0 °C to 3 °C. At 0 °C the
temperature may drop below 0 °C so that the food can freeze.
Recommended temperature setting: 0 °C
u
Press the Biofresh field.
w
The following screen is displayed:
Fig. 50
Setting a higher temperature:
u
Press plus.
Setting a lower temperature:
u
Press minus.
The minus symbol is greyed out when the coldest temperature
is selected.
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Confirm the required temperature with OK.
w
The display switches to the home screen.
w
The selected temperature is displayed.
w
Up or down arrows indicate the change in temperature. The
arrows are greyed out when the target temperature is
reached.
5.4.7 HydroCool
HydroCool selects the maximum cooling temperature. Use
HydroCool to quickly cool large quantities of food.
HydroCool uses slightly more energy.
Switching on HydroCool
u
Press menu.
u
Press the navigation arrows until HydroCool is
displayed.
u
Press ON.
w
HydroCool is on.
Switching off HydroCool
u
Press menu.
u
Press the navigation arrows until HydroCool is
displayed.
u
Press OFF.
w
HydroCool is off.
5.4.8 Holiday mode
Holiday mode saves energy and prevents
any odours from building up if the appli-
ance door of the BioFresh section stays
closed for a prolonged period.
The freezer compartment remains in oper-
ation in the holiday mode.
Switching on the Holiday function
u
Remove all food from the BioFresh compartment as other-
wise it will spoil.
u
Press menu.
u
Press the navigation arrow until you see the
Holiday function.
u
Press ON.
w
The Holiday function is on.
w
The holiday function symbol appears in the Biofresh field.
Switching off the Holiday function
u
Press the holiday function symbol in the Biofresh
field.
w
The Holiday function is off.
w
The temperature is set to the preset value again.
Down arrows show the temperature reduction.
5.4.9 Drawers with cushioners
Fig. 51
u
Pull out the drawer, lift it at the back and draw it forwards for
removal.
u
Push the rails in again!
Fig. 52
u
Push the rails in.
u
Attach the drawer and push it in until it engages audibly at
the back.
5.4.10 Humidity control plate
Fig. 53
Control
* Depending on model and options 21

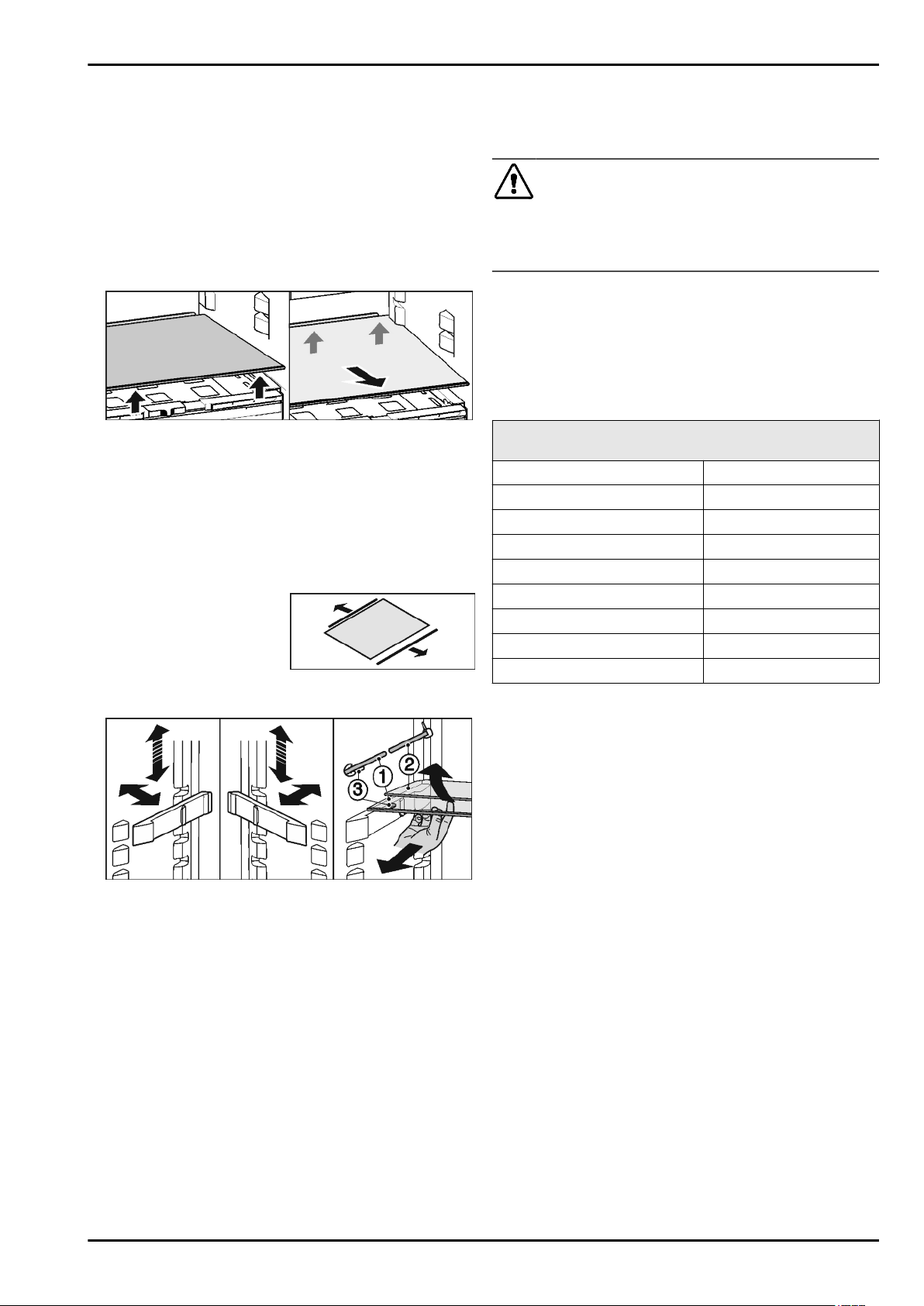

u
To remove the humidity control plate: Having removed the
drawers, carefully draw the plate forwards and lower it for
removal.
u
Inserting the humidity control plate: Insert the plate from
below into the front and back bracket and push back until it
clicks into place.
5.4.11 Shelf
You can remove and disassemble the shelf above the BioFresh
compartments for cleaning.
The shelf is prevented from being pulled out accidentally by pull
out stops.
Fig. 54
To remove the shelf:
u
Lift and hold the shelf from the front.
u
Carefully lift the shelf at the back and pull it out towards the
front.
To slide the shelf in:
u
Slide the shelf in slightly tilted down to the rear so that the
insertion grooves are pointing downwards.
u
Click the shelf into place at the back and position the entire
plate.
u
You can take the shelf apart
for cleaning.
5.4.12 Using the sectioned shelf
Fig. 55
Adjusting the height:
u
Pull the glass plates out forwards one by one.
u
Remove the support from the catch mechanism and click
into place at the required height.
Using both shelves:
u
Lift the top glass plate and pull the bottom glass plate
forwards.
w
The glass plate (1) with the pull out stops must be at the
front so that the stops (3) point downward.
5.5 Freezer compartment
You can store frozen food, make ice cubes and freeze fresh
food in the freezer compartment.
5.5.1 Freezing food
The rating plate indicates the maximum quantity of fresh food
you can freeze within 24 hours (see 1) under “Freezing
capacity ... kg/24h”.
Each drawer can hold a max. of 25 kg of frozen food.
The shelves can each be loaded with 35 kg of frozen food.
Closing the door creates a vacuum. After closing, wait for
around 1 minute, then the door will be easier to open.
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
u
Do not freeze bottles and cans containing drinks!
So that the food is rapidly frozen through to the core, do not
exceed the following quantities per pack
- Fruit, vegetables up to 1 kg
- Meat up to 2.5 kg
u
Pack the food in portions in freezer bags, reusable plastic,
metal or aluminium containers
5.5.2 Storage life
Standard values for the storage life of various types of food in
the freezer compartment:
Ice-cream 2 to 6 months
Sausage, ham 2 to 6 months
Bread, bakery products 2 to 6 months
Game, pork 6 to 10 months
Fatty fish 2 to 6 months
Lean fish 6 to 12 months
Cheese 2 to 6 months
Poultry, beef 6 to 12 months
Vegetables, fruit 6 to 12 months
The values indicated for storage life are standard ones.
5.5.3 Thawing food
- in the refrigerator compartment
- in a microwave oven
- in a conventional or fan oven
- at room temperature
u
Remove only as much food as is required. Use thawed food
as quickly as possible.
u
Food once thawed should be re-frozen only in exceptional
cases.
5.5.4 Setting the temperature
The temperature depends on the following factors:
-
the amount of times the door is opened
-
how long the door is open for
-
the room temperature of the installation site
-
the type, temperature and amount of food
The temperature can be set from -26 °C to -16 °C.
Recommended temperature setting: -18 °C
u
Press the freezer compartment field.
w
The following screen is displayed:
Control
22 * Depending on model and options
Fig. 56
Setting a higher temperature:
u
Press plus.
Setting a lower temperature:
u
Press minus.
The minus symbol is greyed out when the coldest temperature
is selected.
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Confirm the required temperature with OK.
w
The display switches to the home screen.
w
The selected temperature is displayed.
w
Up or down arrows indicate the change in temperature. The
arrows are greyed out when the target temperature is
reached.
5.5.5 SuperFrost
With this function you can freeze fresh food
quickly through to the core. The appliance
operates with maximum refrigeration. The
noise of the refrigeration unit may be tempo-
rarily louder as a result.
You can freeze as many kilograms of fresh food within 24 hrs as
is indicated on the type plate under “Freezing capacity ... kg/
24hrs”. This maximum freezing quantity can vary depending on
model and climate class.
You have to activate SuperFrost in good time, depending on
how much fresh food is to be frozen: about 6 hours before
placing the food inside in case of small amounts and about 24
hours in advance in case of the maximum amount of food to be
frozen.
Wrap produce and spread it out as far as possible. Do not allow
produce to be frozen to touch produce that is already frozen to
prevent the latter thawing.
You do not have to activate SuperFrost in the following cases:
-
when placing frozen food in the freezer
-
when freezing up to approx. 1 kg fresh food daily
Switching SuperFrost on.
u
Press menu.
u
Press the navigation arrow until SuperFrost is
displayed.
u
Press ON.
w
SuperFrost is switched on.
w
The freezer temperature goes down and the appli-
ance works at maximum cooling capacity.
If there is a small amount of frozen food:
u
wait about 6 hours.
u
Place packaged food in the top drawers.
With the maximum amount of frozen food (see model plate):
u
wait about 24 hours.
u
Remove top drawers and place food directly on the upper
shelves.
w
SuperFrost switches itself off automatically after about 65
hours.
w
The SuperFrost symbol is greyed out.
u
Put the food in the drawers and close them again.
w
The appliance works in normal mode again.
Switching off SuperFrost
u
Press menu.
u
Press the navigation arrow until SuperFrost is
displayed.
u
Press OFF.
w
SuperFrost is switched off.
5.5.6 Drawers
Note
The energy consumption increases and the cooling perform-
ance reduces if the air ventilation is insufficient.
u
Ensure that the air slits of the fan on the rear wall are always
kept free!
u
To store frozen food directly on the shelves pull the drawer
forward and lift it out.
5.5.7 Shelves
Moving shelves
u
To remove the shelf: lift up at
the front and pull out.
u
To put the shelf back: simply
push in as far as it will go.
Removing shelves
u
The shelves may be
removed for cleaning.
5.5.8 VarioSpace
You can remove the shelves
and drawers. This leaves more
room for larger food items such
as poultry, meat, large game
and tall baked goods, which
can be frozen whole before
further preparation.
u
Each drawer can hold max. 25 kg of frozen food.
u
The shelves can each be loaded with 35 kg of frozen food.
5.5.9 Freezer pack
Freezer packs prevent the temperature rising too quickly should
there be a power cut.
Control
* Depending on model and options 23

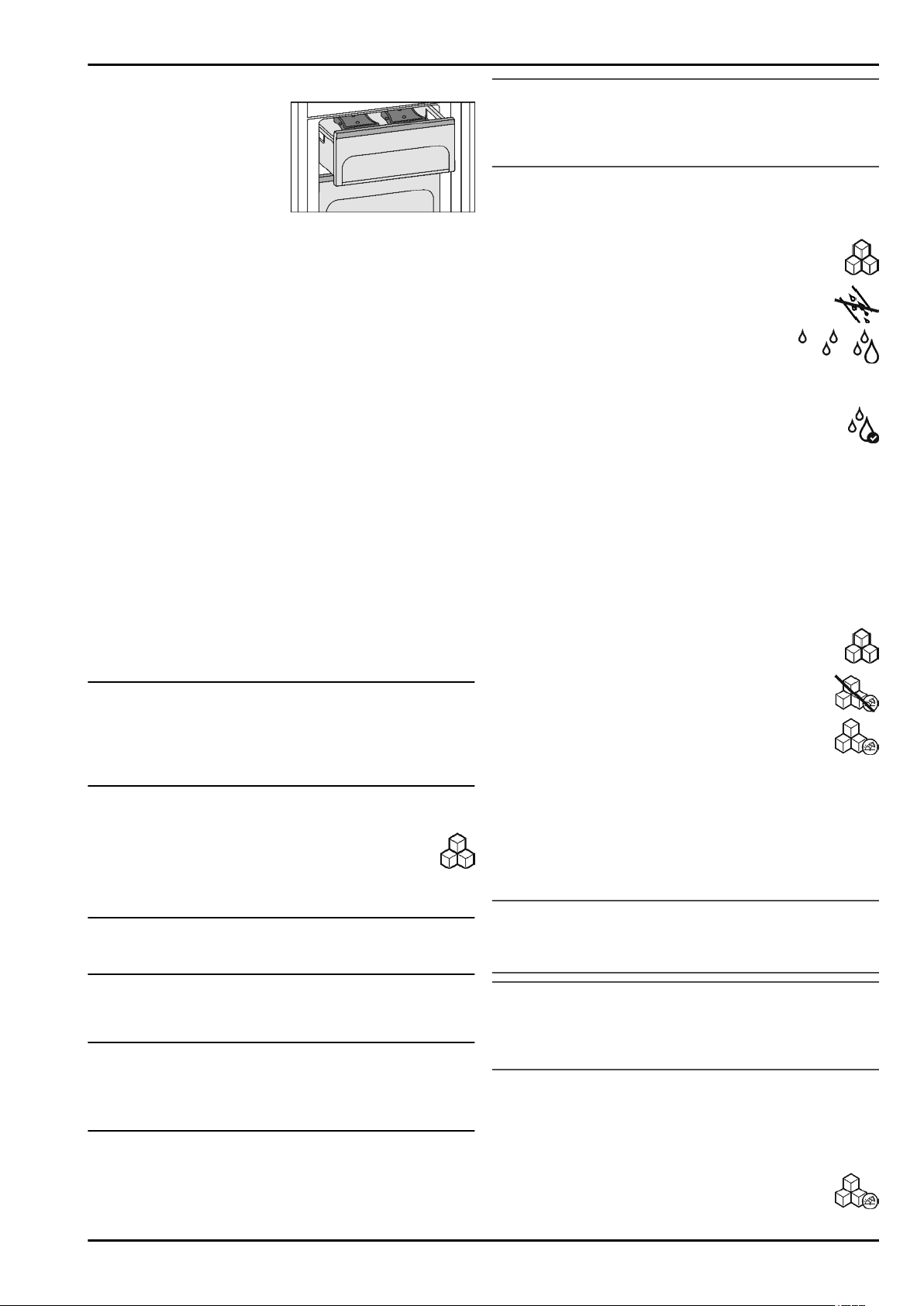

Using freezer packs
u
Put the fully frozen freezer
packs on the frozen food in
the top front section of the
freezer compartment.
5.5.10 IceMaker
The IceMaker is located in the top drawer of the freezer on the
left-hand side.
Make certain that the following conditions are met:
-
The appliance is level.
-
The appliance is connected.
-
The freezer compartment is switched on.
-
The IceMaker is connected to the water supply.
Producing ice cubes
The production capacity depends on the freezer temperature.
The lower the temperature, the more ice cubes can be
produced in a specific period.
The ice cubes drop from the IceMaker into the drawer. When a
certain filling level has been reached, no further ice cubes are
produced. The IceMaker does not fill the drawer right up to the
brim.
Distribute the ice cubes evenly in the drawer to increase the
capacity.
If large quantities of ice cubes are needed, the complete
IceMaker drawer can be exchanged for the adjacent drawer.
When the drawer is closed, the IceMaker automatically re-
commences production.
Once the IceMaker has been switched on for the first time, it
may take up to 24 hours until the first ice cubes are produced.
Note
When the appliance is used for the first time and if it has been
out of use for a long time, particles may collect in the IceMaker
and/or water conduit.
u
Do not use or consume ice cubes that have been made 24
hours after the first ice cubes are made.
Switch the IceMaker on.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press ON.
w
The IceMaker is switched on.
Note
u
The IceMaker only makes ice cubes when the drawer is
completely closed.
Flushing
Flushing function to rinse out the water pipe when used for the
first time.
Note
The water pipe can only be rinsed out if the temperature is
more than 0 °C.
u
Only use the flushing option if the temperatures in the appli-
ance are higher than 0 °C.
NOTICE
Blocked IceMaker and water outlet.
Risk of damage to the IceMaker and the drawer outlet.
u
Put containers with a maximum height of 12 cm in the
drawer under the IceMaker.
Ensure that the IceMaker drawer is empty.
u
Put containers with a max. height of 12 cm in the drawer
under the IceMaker.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrows until flushing is
displayed.
u
Press ON.
w
Water pipes are rinsed and at the same time
the ice cube tray ice cube tray is turned back
to the cleaning position.
u
Do not operate the screen during this procedure.
Flushing function terminated: The symbol appears.
u
Press OK.
u
Remove the drawer and the container.
u
Clean the drawer and, if necessary, remove excess water
from the drawer.
IceMaker holiday function
The IceMaker holiday function is suitable for short phases
when no ice cubes are to be made, for example, when you are
on holiday.
Switching the IceMaker holiday function on.
The IceMaker drawer must be emptied and pushed in.
u
Press menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrows until the IceMaker
holiday function is displayed.
u
Press ON.
w
The ice cube tray moves to the cleaning position.
The IceMaker switches to holiday function.
w
The IceMaker holiday function symbol appears in
the menu area.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning cloth
and warm water. If necessary use a mild detergent. Then
rinse out.
u
Push the drawer in.
Switching the IceMaker holiday function off
NOTICE
Sickness caused by dirty ice compartment.
u
After the IceMaker has been switched off for a long time,
clean the ice cube tray.
NOTICE
Rinse agent residue in the ice compartment and drawer.
Nausea or irritation of the mucous membrane.
u
Remove rinse agent residue: Discard the first three batches
of ice cubes.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning cloth
and warm water. If necessary use a mild detergent. Then
rinse out.
u
Push the drawer in.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
Control
24 * Depending on model and options
u
Press OFF.
w
The ice cube tray moves to the operating position. The
IceMaker switches on.
w
The IceMaker symbol appears in the menu field instead of
the IceMaker holiday function symbol.
Switching off the IceMaker
If no ice cubes are required, the IceMaker can be switched off
independently of the freezer compartment.
When the IceMaker is switched off, the drawer of the IceMaker
can also be used for freezing and storing food.
u
Cleaning the IceMaker (see 6.5) .
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press OFF.
w
The IceMaker is switched off.
u
If necessary, food can now be frozen in the drawer up to a
maximum height of 12 cm.
6 Maintenance
6.1 Change the FreshAir filter.
The FreshAir filter guarantees optimum air quality. It should be
changed every 12 months. When the timer is set a message on
the display prompts you to change it. The FreshAir filter can be
ordered from the specialist dealer.
Change FreshAir filter is displayed.
u
Press the change FreshAir filter symbol
w
The display switches to the home screen.
The message can be displayed again by pressing on the menu
field until the filter has been changed and confirmed. (see 8) .
Fig. 57
u
Remove cover.
Fig. 58
u
Remove the FreshAir filter.
u
Insert the new filter in the reverse order.
u
Ensure that the filter clicks into place.
u
Replace the cover again.
Confirming the filter change
u
Press menu.
u
Press the navigation arrows until the FreshAir filter is
displayed.
u
Press the FreshAir filter symbol.
u
Press the navigation arrows until change FreshAir
filter is displayed.
u
Press RESET.
w
The timer is reset. The change interval starts all over
again.
Turning the timer off
If a new FreshAir filter is not inserted the timer can be turned off
u
Press menu.
u
Press the navigation arrows until the FreshAir filter is
displayed.
u
Press the FreshAir filter symbol.
u
Press OFF.
w
The timer is turned off.
6.2 Defrosting with NoFrost
The NoFrost system automatically defrosts the appliance.
BioFresh compartment:
The defrost water evaporates due to the compressor heat.
Freezer compartment:
The moisture condenses on the evaporator, is periodically
defrosted and evaporates.
u
The appliance does not have to be manually defrosted.
6.3 Cleaning the ventilation grid
The ventilation grid ensures that the appliance works properly
due to optimum aeration and ventilation.
u
Clean the ventilation grid regularly with a vacuum cleaner.
u
Remove stubborn stains with a soft cloth.
When the timer is set a message on the display
prompts you to clean it. The clean ventilation grid
symbol appears on the screen.
u
Press the clean ventilation grid symbol.
w
The display switches to the home screen.
The message can be displayed again by pressing the menu
field until it has been cleaned and this has been confirmed.
(see 8) .
Confirming that the ventilation grid has been cleaned
u
Press menu.
u
Press the navigation arrows until the ventilation grid
is displayed.
u
Press the ventilation grid symbol.
u
Press the navigation arrows until clean ventilation
grid is displayed.
u
Press RESET.
w
The timer is reset. The cleaning interval starts all
over again.
Turning the timer off
If the reminder function is to be switched off the timer can be
turned off.
u
Press menu.
u
Press the navigation arrows until the ventilation grid
is displayed.
u
Press the ventilation grid symbol.
u
Press OFF.
w
The timer is turned off.
6.4 Cleaning the appliance
Clean the appliance regularly.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
Maintenance
* Depending on model and options 25

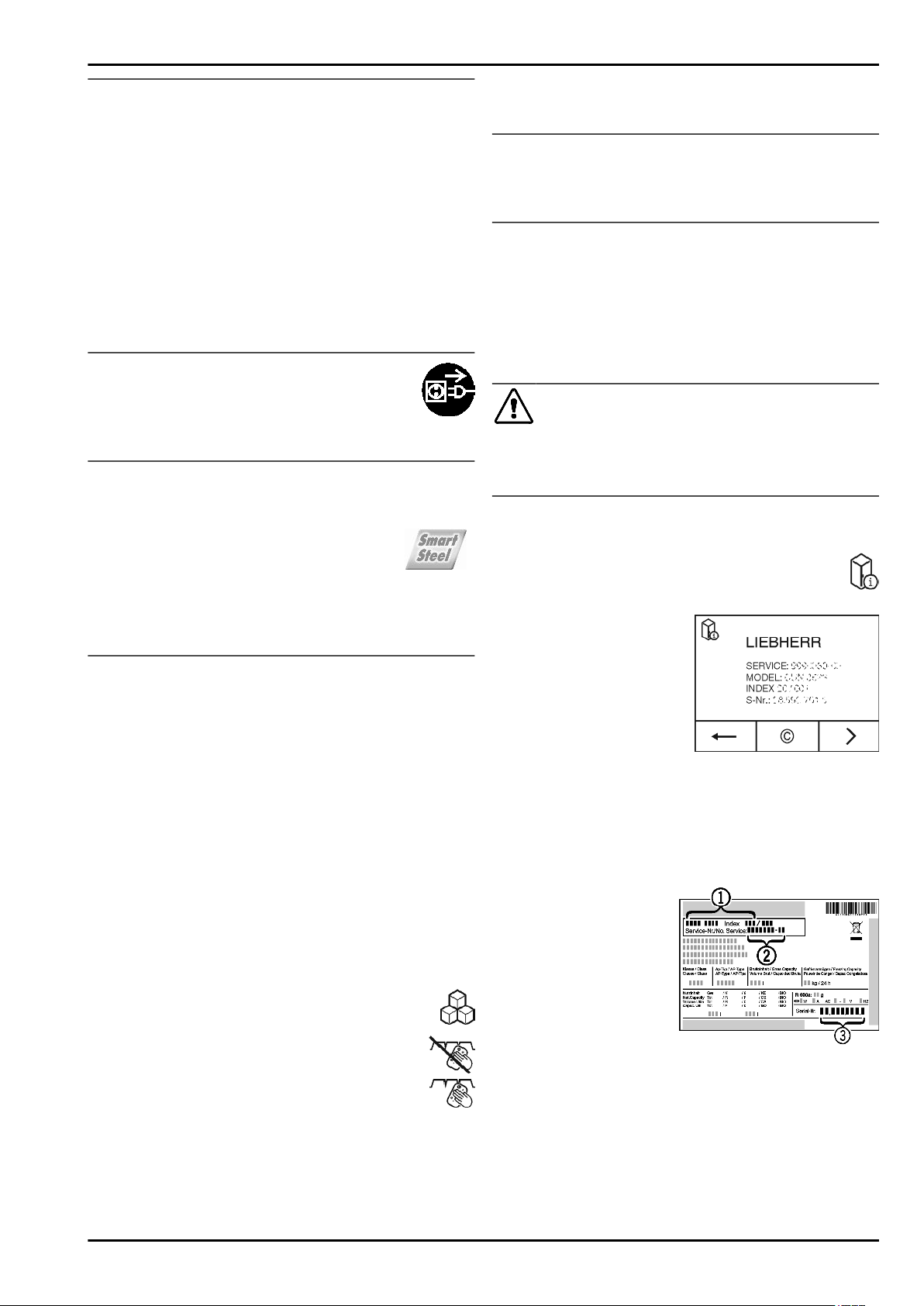

NOTICE
Incorrect cleaning damages the appliance!
u
Do not use cleaning agents in concentrated form.
u
Do not use any scouring or abrasive sponges or steel wool.
u
Do not use any sharp or abrasive cleaning agents, nor any
that contain sand, chloride or acid.
u
Do not use chemical solvents.
u
Do not damage or remove the type plate on the inside of the
appliance. It is important for the customer service.
u
Do not pull off, bend or damage cables or other compo-
nents.
u
Do not allow any cleaning water to enter the drain channel,
ventilation grille or electrical parts.
u
Please use soft cleaning cloths and a universal pH-neutral
cleaning agent.
u
Please use cleaning and care products suitable for contact
with foodstuffs in the appliance interior.
u
Empty appliance.
u
Pull out the power plug.
u
Clean plastic outer and inner surfaces with lukewarm
water and a little washing-up liquid.
NOTICE
Risk of damage from stainless steel care products!
The stainless steel doors and stainless steel side panels
are treated with a premium surface finish.
Stainless steel care products attack these surfaces.
u
Only use a soft, clean cloth to wipe down finished door
and side panel surfaces and painted door and side
panel surfaces. To remove heavy dirt, use a little water or
neutral detergent. Alternatively, you can use a micro-fibre
cloth.
u
Most of the parts can be dismantled for cleaning: see the
relevant chapter.
u
Clean drawers by hand with lukewarm water and a little
washing up liquid.
u
All the other fittings can be put in the dishwasher.
u
Only use a damp cloth to clean the telescopic rails. The
grease in the runners is for lubrication purposes and must
not be removed.
After cleaning:
u
Wipe dry the appliance and items of equipment.
u
Connect the appliance and switch it on again.
u
Switch on SuperFrost (see 5.5.5) .
When the temperature is sufficiently cold:
u
Put the food back inside.
6.5 Cleaning the IceMaker
The IceMaker drawer must be emptied and pushed in. The
IceMaker must be switched on.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrow until the cleaning posi-
tion is displayed.
u
Press ON.
w
The ice cube tray moves to the cleaning position.
The screen cannot be used during this process.
w
OFF appears: The rotary movement stops and the
IceMaker switches off for cleaning.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning cloth
and warm water. If necessary use a mild detergent. Then
rinse out.
u
Push the drawer in.
u
Press OFF.
w
The ice cube tray moves to the operating position.
NOTICE
Rinse agent residue in the ice compartment and drawer.
Nausea or irritation of the mucous membrane.
u
Remove rinse agent residue: Discard the first three batches
of ice cubes.
u
Leave the IceMaker switched on.
-or-
u
Switch the IceMaker off (see 5)
6.6 Customer service
First of all check whether you can eliminate the fault yourself.
(see 7) If you can't, contact Customer Services. You can find
the address in the enclosed customer service list.
WARNING
Risk of injury if repair work is not carried out professionally!
u
Have any repairs and action - not expressly specified - on
the appliance and mains cable carried out by service
personnel only. (see 6)
Displaying the appliance description (model and index),
service no. (service) and serial no. (S. no.) on the screen:
u
Press menu.
u
Press the navigation arrows until the appliance infor-
mation symbol is displayed.
u
Press the appliance information symbol.
w
The appliance information is displayed.
u
Note down the appliance
information.
u
To return to the home screen
press the Back symbol.
u
Close the door.
u
Contact customer service and give them the required appli-
ance information.
w
This will help us to provide you with a faster, more accurate
service.
u
Follow any further instructions given by Customer Services.
Alternatively you can read off the appliance information
from the model plate:
u
Read off the appliance
name
Fig. 59 (1)
,
service no.
Fig. 59 (2)
and serial no.
Fig. 59 (3)
from the
model plate. The
model plate can be
found on the inside of
the appliance on the
left.
Fig. 59
Licence agreements:
Licences used can be viewed at ©.
u
Press ©.
7 Malfunctions
Your appliance is designed and manufactured for a long life
span and reliable operation. If a malfunction nonetheless
occurs during operation, check whether it is due to a handling
Malfunctions
26 * Depending on model and options
error. In this case you will have to be charged for the costs
incurred, even during the warranty period. You may be able to
rectify the following faults yourself:
Appliance does not work.
→
The appliance is not switched on.
u
Switch on the appliance.
→
The power plug is not properly inserted in the wall socket.
u
Check power plug.
→
The fuse of the wall socket is not in order.
u
Check fuse.
→
The appliance plug does not fit the appliance properly.
u
Check the appliance plug.
The compressor runs for a long time.
→
The compressor switches to a low speed when little cold is
needed. Although the running time is increased as a result,
energy is saved.
u
This is normal in energy-saving models.
→
SuperFrost is activated.
u
The compressor runs for longer in order to rapidly cool the
food. This is normal.
→
HydroCool is on.
u
The compressor runs longer to cool the food quickly. This is
normal.
Excessive noise.
→
Due to the various speed steps, speed-regulated* compres-
sors can generate different running noises.
u
The sound is normal.
A bubbling and gurgling noise.
→
This noise comes from the refrigerant flowing in the refriger-
ation circuit.
u
The sound is normal.
A quiet clicking noise.
→
The noise is produced whenever the refrigeration unit
(motor) automatically switches on or off.
u
The sound is normal.
A hum. It is briefly a little louder when the refrigeration
unit (the motor) switches on.
→
The refrigeration increases automatically when the
SuperFrost, function is activated, fresh food has just been
placed in the appliance or the door has been left open for a
while.
u
The sound is normal.
→
With HydroCool on, when you place food in the fridge or if
the door is open for a prolonged period, cooling is automati-
cally increased.
u
This noise is normal.
→
The ambient temperature is too high.
u
Solution: (see 1.2)
A low hum.
→
The sound is produced by air flow noise of the fan.
u
The sound is normal.
Vibration noises
→
The appliance is not standing firmly on the floor. As a result
objects and adjacent units start to vibrate when the refriger-
ator is running.
u
Align the appliance using the adjustable feet.
u
Keep bottles and jars apart.
Flow sound at the soft stop mechanism.
→
The noise is produced when the door is opened and
closed.
u
The sound is normal.
The DEMO symbol appears on the screen. In addition
some time elapses.
→
DEMO mode is activated.
u
OFF Press .
DEMO is displayed in the top right corner of the screen.
→
DEMO mode is activated.
u
Unplug the appliance.
u
Plug the appliance in again.
w
The DEMO symbol appears on the screen. In addition some
time elapses.
u
OFF Press .
The outer surfaces of the appliance are warm*.
→
The heat of the refrigeration circuit is used to prevent
condensate from forming.
u
This is normal.
The IceMaker cannot be switched on.
→
The appliance and therefore the IceMaker are not
connected.
u
Connect the appliance to the mains (see 4) .
The IceMaker does not make any ice cubes.
→
The IceMaker is not switched on.
u
Switch on the IceMaker.
→
The drawer of the IceMaker is not properly closed.
u
Close the drawer properly.
→
The water connection is not open.
u
Open the water connection.
Functions in the IceMaker submenu do not start.
→
Ice cube tray rotates.
u
Try again after 1 minute.
The temperature is not cold enough.
→
The door of the appliance is not properly closed.
u
Close the door of the appliance.
→
Insufficient ventilation.
u
Keep ventilation grille clear, and clean it.
→
The ambient temperature is too high.
u
Solution: (see 1.2) .
→
The appliance was opened too frequently or for too long.
u
Wait to see whether the appliance reaches the required
temperature by itself. If not, please contact the after sales
service (see 6) .
→
Too much fresh food was placed inside without SuperFrost.
u
Solution: (see 5.5.5)
→
The temperature is incorrectly set.
u
Set the temperature to a colder setting and check after 24
hours.
→
The appliance is too close to a source of heat (stove, heater
etc).
u
Change the position of the appliance or the source of heat.
The internal light does not come on.
→
The appliance is not switched on.
u
Switch the appliance on.
→
The door was open for longer than 15 minutes.
u
The internal light switches itself off automatically after about
15 minutes if the door is open.
→
The LED illumination is faulty or the cover is damaged:
WARNING
Risk of injury due to electric shock!
Live parts are located under the cover.
u
Have the LED interior light changed or repaired only by the
customer service or by specialized personnel trained for the
purpose.
Malfunctions
* Depending on model and options 27
WARNING
Danger of injury by LED lamp!
The light intensity of the LED lighting corresponds to risk group
RG 2.
If the cover is defective:
u
Do not look into the illumination with optical lenses from the
immediate proximity. This can cause injury to the eyes.
The door seal is defective or needs to be replaced for
another reason.
→
The door seal can be replaced. It can be replaced without
the need for special tools.
u
Contact Customer Service (see 6) :
The unit has iced up or condensation has formed.
→
The door seal may have also slipped out of its groove.
u
Check to ensure that the door seal is seated properly in the
groove.
8 Messages
Error messages and reminders are displayed by an
audible signal and a message on the screen. The
audible signal gets louder and louder when error
messages appear. It only stops when the message is
confirmed. Highest priority messages are displayed first
if several occur at the same time. Each message must
be cleared separately.
The message stays in the menu field as long as it is active or
the fault is not eliminated.
Note
Details on the message can be displayed again via the menu
field.
u
Press menu.
u
Press the message symbol.
u
The display switches to the next message when you press
one. After the last active message the display switches to
the home screen.
Door alarm
An audible warning sounds if the door is open for
longer than 60 seconds. The door alarm symbol
appears on the display. The audible warning stops
automatically when the door is closed.
The audible warning can be switched off when the
door is open. The audible alarm is switched off while
the door is open.
u
Press the door alarm symbol.
w
The door alarm stops.
w
The display switches to the home screen.
u
Close the door.
Temperature alarm
An audible signal sounds if the temperature is not cold
enough. The temperature alarm symbol appears on
the display.
The temperature had risen too high during the last few
hours or days. When the fault is eliminated the appli-
ance continues to work at the last temperature setting.
The reason for too high a temperature may be:
-
hot, fresh food was inserted
-
too much warm room air flowed in when rearranging and
removing food
-
the power was cut off for a while
-
the appliance is faulty
u
Open the door.
u
Press the temperature alarm symbol.
w
The audible signal stops. The warmest temperature reached
during the malfunction is displayed on the screen.
u
Press the screen or wait for 30 seconds.
w
The display switches to the home screen. Arrows and the
temperature alarm symbol appear in the relevant tempera-
ture field
. In addition the messages symbol is
displayed in the menu field .
u
Check the food for quality. Do not consume spoiled food. Do
not re-freeze defrosted food,
u
Close the door.
w
The symbols are greyed out when the target temperature is
reached.
If the alarm status persists or the temperature cannot be reset
independently:
(see 7) .
Power cut
An audible warning sounds. The power cut symbol
appears on the display.
The temperature had risen too high over the last few
hours or days due to a power cut or power interrup-
tion. When the power is restored the appliance
continues to work at the last temperature setting. Acti-
vated reminders are retained.
u
Open the door.
u
Press the power cut symbol.
w
The audible signal stops. The warmest temperature reached
in the freezer compartment during the power cut is displayed
on the screen.
u
Press the screen or wait for 30 seconds.
w
The display switches to the home screen. Arrows and the
symbol temperature alarm appear in the relevant tempera-
ture field . The messages symbol is also shown in the
menu field .
u
Check the food for quality. Do not consume spoiled food. Do
not re-freeze defrosted food,
u
Close the door.
w
The symbols are greyed out when the target temperature is
reached.
Appliance faults
An audible warning sounds. The appliance fault
symbol appears on the display with the relevant error
code.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
u
Press the appliance fault symbol.
w
The audible signal stops. The display switches to the home
screen.
u
Close the door.
u
Contact Customer Services (see 6) .
If the fault related to a specific temperature zone, the appliance
fault symbol is displayed instead of the temperature in the
zone's temperature field.
Water inlet fault
An audible warning sounds. The appliance fault
symbol appears on the display with the WATER error
code.
The water connection to the IceMaker is not open, the water
feed is interrupted or the filter in the water inlet hose connection
is blocked.
u
Open the door.
u
Press the appliance fault symbol.
w
The audible signal stops. The display switches to the home
screen. The IceMaker switches off.
u
Close the door.
Messages
28 * Depending on model and options
u
Open the water connection.
-or-
u
Check the water connection and the hoses (see 4) .
-or-
u
Clean the filter.
u
Switch the IceMaker on (see 5.5.10.2) .
u
Contact Customer Service if the message persists (see 6) .
Other messages
FreshAirChange filter (see 6)
Clean the ventilation grille (see 6)
Open, close IceMaker drawer
9 Decommissioning
9.1 Switching the appliance off
Note
If the appliance or the freezer or fridge compartment cannot be
switched off the child safety device has been switched on.
u
Switch the child safety device off (see 5.2.2) .
9.1.1 Switch off the appliance from the menu
The whole appliance is switched off. The screen goes black.
u
Press menu.
u
Press the navigation arrows until the standby symbol
is displayed.
u
Press OK.
w
The standby symbol flashes on the whole screen. The whole
appliance is switched off.
w
After 10 minutes the standby symbol goes out.
9.1.2 Switching the appliance off via the
freezer compartment field.
The BioFresh compartment automatically switches off when
the freezer compartment is turned off. The screen remains on.
u
Press the freezer compartment field.
u
Press plus.
w
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Press OK.
w
The standby symbol is displayed in all temperature fields.
w
The freezer and BioFresh compartments are switched off.
9.1.3 Switch BioFresh section off
If necessary, the BioFresh compartment can be switched off
separately.
u
Press the Biofresh field.
u
Press plus.
w
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
OK Press .
w
The standby symbol appears in the Biofresh field.
w
BioFresh section is switched off.
9.2 Taking the appliance out of service
u
Empty the appliance.
u
Put the IceMaker in the cleaning position (see 6) .
u
Switch off the appliance (see 9) .
u
Remove mains connector.
u
Remove appliance connector if required: Remove
and move from left to right at the same time.
u
Clean the appliance (see 6.4) .
u
Leave the door open to prevent odour.
10 Disposing of the appliance
The appliance contains some reusable materials
and should be disposed of properly - not simply
with unsorted household refuse. Appliances which
are no longer needed must be disposed of in a
professional and appropriate way, in accordance
with the current local regulations and laws.
When disposing of the appliance, ensure that the refrigeration
circuit is not damaged to prevent uncontrolled escape of the
refrigerant it contains (data on type plate) and oil.
u
Disable the appliance.
u
Pull out the plug.
u
Cut through the connecting cable.
Decommissioning
* Depending on model and options 29
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland
home.liebherr.com
