708 4947-01
Fv 913
Operating instructions
Countertop freezer
Read the operating instructions before switching on for the fi rst time.
Page 7
GB
7
Safety instructions and warnings
• CAUTION: This appliance is not intended for
use by persons (including children) with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of
the appliance by a person responsible for their
safety.
• CAUTION: Children should be supervised
to ensure that they do not play with the appli-
ance.
• CAUTION: Maximum loading for each shelf is
30kg only!
• WARNING: If the supply cord is damaged,
it must be replaced by the manufacturer, its
service agent or similarly qualifi ed persons in
order to avoid a hazard.
• CAUTION: Do not store explosives substanc-
es such as aerosol cans with fl ammable
propellant in this appliance.
• CAUTION: The appliance contains fl amma-
ble materials and should be handled, serviced
and disposed of properly.
• WARNING: Keep clear of obstruction all
ventilation openings in the appliance enclo-
sure or in the structure for building-in.
• WARNING: Do not use any mechanical
devices or other artifi cial aids for defrosting
other than those recommended by the
manufacturer.
• WARNING: Do not damage the refrigerant
circuit.
• WARNING: Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
• This appliance can be used by children of 8
years and above, and also by persons with
reduced physical, sensory or mental capabili-
ties or lack of experience and knowledge, if
they are supervised or have been instructed
on safe use of the appliance and understand
the resulting risks. Children must not allow to
play with the appliance. Cleaning and user
maintenance must not be carried out by
children without supervision.
• To prevent injury or damage to the unit, the
appliance should be unpacked and set up by
two people.
• In the event that the appliance is damaged
on delivery, contact the supplier immediately
before connecting to the mains.
• To guarantee safe operation, ensure that the
appliance is set up and connected as
described in these operating instructions.
• Disconnect the appliance from the mains if
any fault occurs. Pull out the plug, switch off or
remove the fuse.
• When disconnecting the appliance, pull on the
plug, not on the cable.
• Any repairs and work on the appliance should
only be carried out by the customer service
department, as unauthorised work could prove
highly dangerous for the user. The same
applies to changing the mains power cable.
• Do not allow naked fl ames or ignition sources
to enter the appliance. When transporting and
cleaning the appliance ensure that the refrig-
erant circuit is not damaged. In the event of
damage, make sure that there are no ignition
sources nearby and keep the room well
ventilated.
• Do not stand on the plinth, drawers or doors
or use them to support anything else.
• Avoid prolonged skin contact with cold
surfaces or chilled/frozen food. This could
cause pain, numbness and frostbite. In the
case of prolonged skin contact, protective
measures should be taken, e.g. gloves should
be worn.
• Do not consume food which has been stored
for too long, as it could cause food poisoning.
• Electrical components might cause leaking
gas to ignite. You may identify such sprays by
the printed or a fl ame symbol.
• If you have a lockable appliance, do not keep
the key near the appliance or within reach of
children.
• The appliance is designed for use in enclosed
areas. Do not operate the appliance outdoors
or in areas where it is exposed to splash water
or damp conditions.
• When transporting or operating the appliance
at an altitude of more than 1500 m above sea
level, the glass pane in the door can break
due to the reduction in air pressure. Broken
fragments are sharp-edged and can cause
serious injury.
GB
8
Range of appliance use
This appliance may be used for displaying food, includ-
ing beverages, for retail sale. Commercial use means
for example their use in restaurants, canteens, hospitals
and in commercial establishments such as bakeries,
butchers, supermarkets, etc.
Foreseeable misuse:
Do not use the appliance for the following applications:
• Storage and cooling of :
– Chemically unstable, combustible or corrosive sub-
stances.
– Medicines, blood plasma, laboratory preparations
or similar substances and products based on Direc-
tive 2007/47/EC on medical devices.
• Use in hazardous areas.
• Use outdoors or in damp and splashing water areas.
Improper use of the appliance leads to damage or spoil-
age of the stored goods.
The cabinet is intended to store and to display pre-fro-
zen and pre-packed ice-cream as well as packed food-
stuff . Access by the customer is achieved by opening a
non-transparent or transparent lid from the top.
Do not store explosive substances in the device, such
as aerosol containers with fl ammable propellant gas.
Dimensions:
Height : 816 mm Width : 497 mm Depth : 548 mm

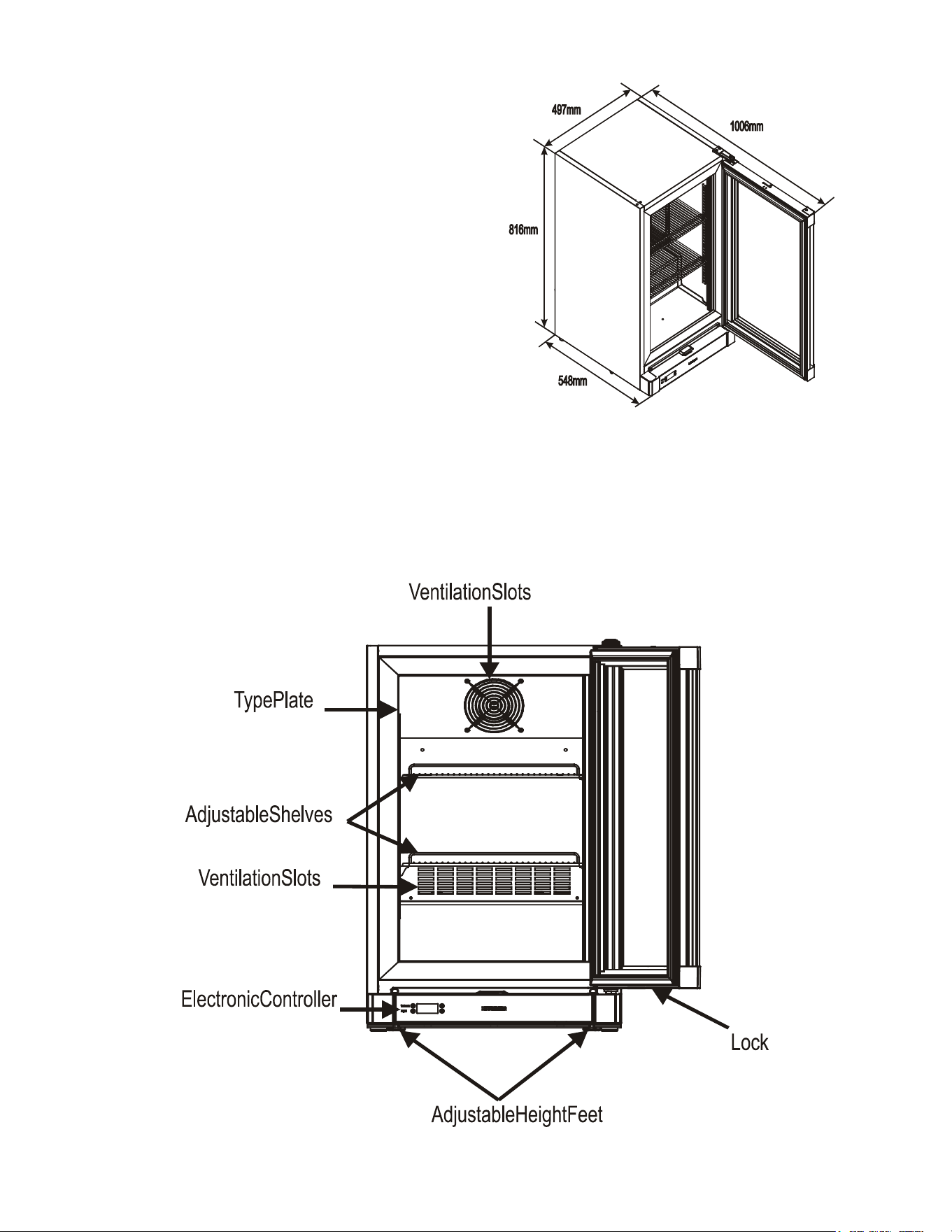

Description of the appliance
GB
9
Switch the appliance on and off
You are recommended to clean the appliance before
switching it on for the fi rst time (see Cleaning).
To switch the appliance on
Connect the appliance to the mains - the appliance is
switched on.
To switch the appliance off
Pull out the mains plug - the appliance is switched off .
Electrical connection
Only operate the appliance with alternating current (AC).
The permissible voltage and frequency are indicated on
the type plate. The position of the type plate is shown in
the section entitled Description of the appliance.
The socket must be properly earthed and protected by a
fuse.
The tripping current of the fuse must be between 10 A
and 16 A.
The socket must not be situated behind the
appliance and must be easily accessible.
Do not connect the appliance using an ex-
tension cable or extension socket.
Do not use stand-alone inverters (conver-
sion of direct current to alternating current / three phase
current) or energy-saving plugs. Risk of damage to the
electronic control system!
Setting up
• Do not place the appliance in direct sunlight or near
cookers, radiators and similar sources of heat.
• The fl oor on which the appliance
stands should be horizontal and level.
Compensate for uneven fl oors with the
adjustable feet.
• ATTENTION: There must be a gap of at least 10 cm
between the side enclosure (left and right) and rear
enclosure of the appliance against the wall.
• Always ensure there is good ventilation and that the
outward fl owing air is able to escape. Always install the
appliance directly against the wall.
• Do not cover ventilation openings or grille.
• Standard EN 378 specifi es that the room in which you
install your appliance must have a volume of 1 m
3
per 8
g of R 600a / R 290 refrigerant used in the appliance,
so as to avoid the formation of infl ammable gas/air
mixtures in the room where the appliance is located in
the event of a leak in the refrigerant circuit. The quantity
of refrigerant used in your appliance is indicated on the
type plate on the inside of the appliance.
Climate rating
The climate rating indicates the room temperature at
which the appliance maybe operated in order to achieve
full refrigeration performance.
The climate rating is indicated on the
type plate.
The position of the type plate is shown
in the section entitled Description of the
appliance.
Climate rating Room temperature
4 +10°C to +30°C
7 +16°C to +35°C
Do not operate the appliance outside the
specifi ed room temperature range.
Operating elements
1. Temperature display
2. Up button
3. Down button
4. Defrost button
5. Light button
6. Compressor running symbol
7. Defrost running symbol
8. Evaporator fan running symbol
Note :
During the cooling system is in defrost mode, the
operating noise changes, and no cooling takes place.
GB
10
Setting the temperature
• Press the UP button to increase the temperature.
• Press the DOWN button to reduce the tempera-
ture.
• The temperature can be set between -10⁰C ~ -25⁰C /
+14⁰F ~ -13⁰F.
• The display will blink for few times and the set
temperature will be saved once it stop blinking.
Cleaning
Cleaning the appliance at least twice per year.
Before cleaning always switch off the appliance. Pull out
the mains plug or switch off .
• Clean the inside, equipment and outer walls with
lukewarm water and a little detergent. Do not use
abrasive or acid cleaners or chemical solvents.
• Ensure that no cleaning water penetrates into the
electrical components or ventilation grille.
• The dust should be removed from the refrigeration
unit and heat exchanger - metal grid at the back of the
appliance once a year.
• Do not damage or remove the type plate on the inside
of the appliance. It is very important for servicing pur-
poses.
Do not use steam cleaners because of the
risk of injury and damage.
Defrosting
The refrigerator compartment defrosts automatically.
• Defrosts also can be manually activated by pressing the
button and the defrost signed 'dEF' (picture 1)
appears on temperature display.
Manual defrosts should not be done during the fi rst 2
hours of operation.
Do not use any mechanical devices or other artifi cial
aids for defrosting other than those recommended by
the manufacturer.
Interior light
LED lighting is used for interior.
• The interior light can be turned on and off using the
button 5
Important :
The lighting may only be replaced by the customer
service technician or by competent skilled personnel!
Caution - class 1M laser radiation. When cover is
removed, do not look directly at light through optical
instruments.
GB
Brightness Control
To adjust the brightness of the LED strips:
• Insert something (coin,
screwdriver etc) into knob
slot.
• Turn clockwise for brighter
illumination.
• Turn anti-clockwise for
dimmer illumination.
Note: Only applicable for appliance with dimmer
Cooling
The grid shelves can be moved to
accommodate diff erent height
bottles or packages.
High-percentage alcohols should
be tightly sealed and stored up-
right.
Do not cover the ventilation slots
inside the appliance.
Noise emissions from the appliance
The noise level while the appliance is operating below 70
dB (A) (relative noise level 1pW).
11
Malfunctions
If a malfunction occurs during operation, check whether it
is due to an operating error.
You may be able to rectify the following faults yourself:
Appliance does not function:
• Is the appliance switched on?
• s the plug correctly fi tted in the mains socket?
• Is the fuse intact?
Loud running noise:
• Is the appliance set up fi rmly on the fl oor?
• Does the appliance cause nearby items of furniture or
objects to vibrate? Please note that noises caused by
the refrigerant circuit cannot be avoided.
The temperature is not low enough:
• Is the temperature setting correct (see “Setting the
temperature”)?
• Have the excessive amounts of fresh food been placed
in the appliance?
• Does the separately installed thermometer show the
correct reading?
• Is the ventilation system working properly?
• Is the appliance set up too close to a heat source?
If none of the above causes
apply and you cannot rectify
the fault yourself, contact
the nearest customer ser-
vice department stating the
type designation (1), service
number (2) and appliance
number (3) as indicated on
the type plate. The position
of the type plate is shown in
the section entitled Description of the appliance.
Disposal notes
The appliance contains reusable materials and
should be disposed of properly - not simply with
unsorted household refuse. Appliance which
are no longer needed must be disposed of in
a professional and appropriate way, in ac-
cordance with the current local regulations and
laws.
When disposing of the appliance, ensure that the
refrigerant circuit is not damaged to prevent uncontrolled
escape of the refrigerant it contains (data on type plate)
and oil.
• Disable the appliance.
• Pull out the mains plug.
• Cut through the connection cable.
WARNING
Danger of suff ocation due to packing material and
plastic fi lm!
Do not allow children to play with packaging material.
Take the packaging material to an offi cial collection point.
GB
Shutting your appliance down
If your appliance is to be shut down for any length of
time, switch it off by disconnect the plug or unscrew the
fuse.
Clean the appliance and leave the door open in order to
prevent unpleasant smells.
The appliance complies with the relevant safety regula-
tions and EC Directives 2004/108/EC and 2006/95/EC.
Safety lock
The lock is equipped with a safety mechanism.
Locking the appliance:
1. Insert the key.
2. Push and turn the key 90
o
counterclockwise
.
To unlock the appliance, the same
procedure must be repeated in the same order.
