IL2810
ENVIROZONE SELECTRONIC
GAS GRIDDLE
Commercial
224ZS, 236ZS, 248ZS, 260ZS, 272ZS
224ZSD, 236ZSD, 248ZSD, 260ZSD, 272ZSD
Installation and
Operation
Instructions
2M-W2014 Rev. B 10/20/15
236ZS
SAFETY SYMBOL
Model No.:
Serial No.:
Voltage:
1-Phase or 3 Phase:
Purchased From:
Location:
Purchase Date:
Installed Date:
These symbols are intended to alert the user to the presence of important operating
and maintenance instructions in the manual accompanying the appliance.
FOR YOUR SAFTEY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN
THE VICINTIY OF THIS OR ANY OTHER APPLIANCE.
The installation of the Appliance must conform to the NATIONAL FUEL GAS CODE "ANSI Z223.1 - LATEST
EDITION" AND ALL LOCAL GAS COMPANY RULES AND REGULATIONS.
IN CANADA INSTALLATION SHALL BE IN ACCORDANCE WITH THE CURRENT CAN/CGA-B149.1 NATURAL
GAS INSTALLATION CODE OR CAN/CGA-B149.2 PROPANE INSTALLATION CODE AND LOCAL CODES WHERE
APPLICABLE.
POST IN PROMINENT LOCATION
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT USER SMELLS GAS. THIS INFORMATION
SHALL BE OBTAINED BY CONSULTING YOUR LOCAL GAS SUPPLIER. AS A MINIMUM, TURN
OFF THE GAS AND CALL YOUR GAS COMPANY AND YOUR AUTHORIZED SERVICE AGENT.
EVACUATE ALL PERSONNEL FROM THE AREA.
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN
CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATION
& MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS
EQUIPMENT.
WARNING
RISK OF FIRE OR ELECTRIC SHOCK
DO NOT OPEN
WARNING, TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE
CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE.
REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY.
NOTICE
Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability.
Lang reserves the right to change speci cations and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.
Due to periodic changes in designs, methods, procedures, policies and regulations, the
specifications contained in this sheet are subject to change without notice. While Lang
Manufacturing exercises good faith efforts to provide information that is accurate, we are
not responsible for errors or omissions in information provided or conclusions reached as a
result of using the speci cations. By using the information provided, the user assumes all risks in con-
nection with such use.
MAINTENANCE AND REPAIRS
Contact your local dealer for service or required maintenance. Please record the model number, serial
number, voltage and purchase & Installation Information in the area below and have it ready when you
call to ensure a faster service.
1
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
TABLE OF CONTENTS
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
Equipment Description . . . . . . . . . . . . . . . . . . . . . . . . 4
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation
Ventilation & Clearence . . . . . . . . . . . . . . . . . . . . . . 5
Leg Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical & Gas Connection. . . . . . . . . . . . . . . . . . . . 6
Initial Start-Up
Initial Lighting Procedure . . . . . . . . . . . . . . . . . . . . . 8
Seasoning Cooking Surface . . . . . . . . . . . . . . . . . . . . 8
Operation
Setting the Griddle Temperature . . . . . . . . . . . . . . . . . 9
Suggested Times and Temperatures . . . . . . . . . . . . . . . 9
Loading the Griddle . . . . . . . . . . . . . . . . . . . . . . . . 10
Sequence of Operation
Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Maintenance
Griddle Care (Chrome Surfaces) . . . . . . . . . . . . . . . . .11
Daily Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Weekly Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .12
Burner Air Shutter Adjustment . . . . . . . . . . . . . . . . . . . 12
Troubleshooting
Symptoms / Possible Causes . . . . . . . . . . . . . . . . . . . 13
Possible Causes / Test . . . . . . . . . . . . . . . . . . . . . .14

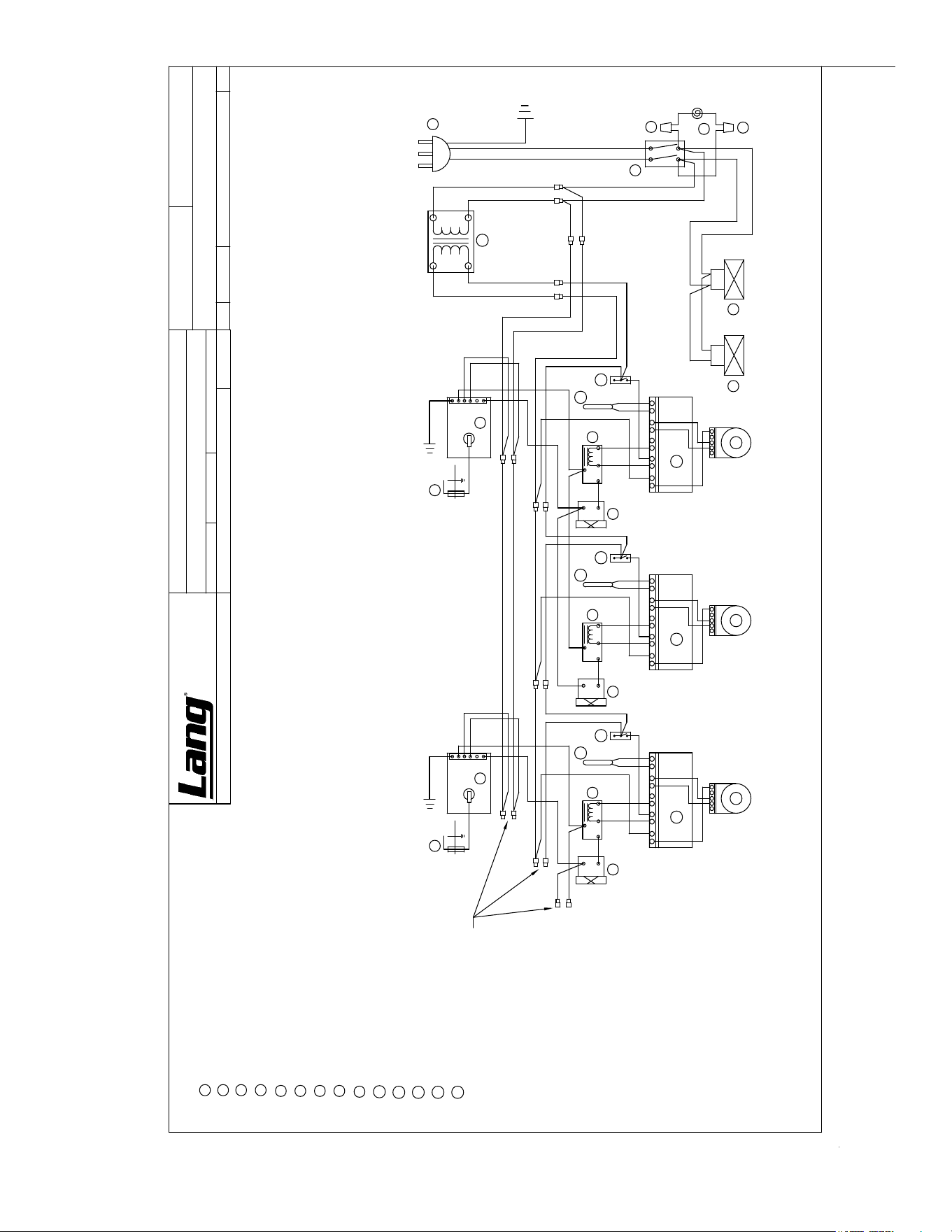

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

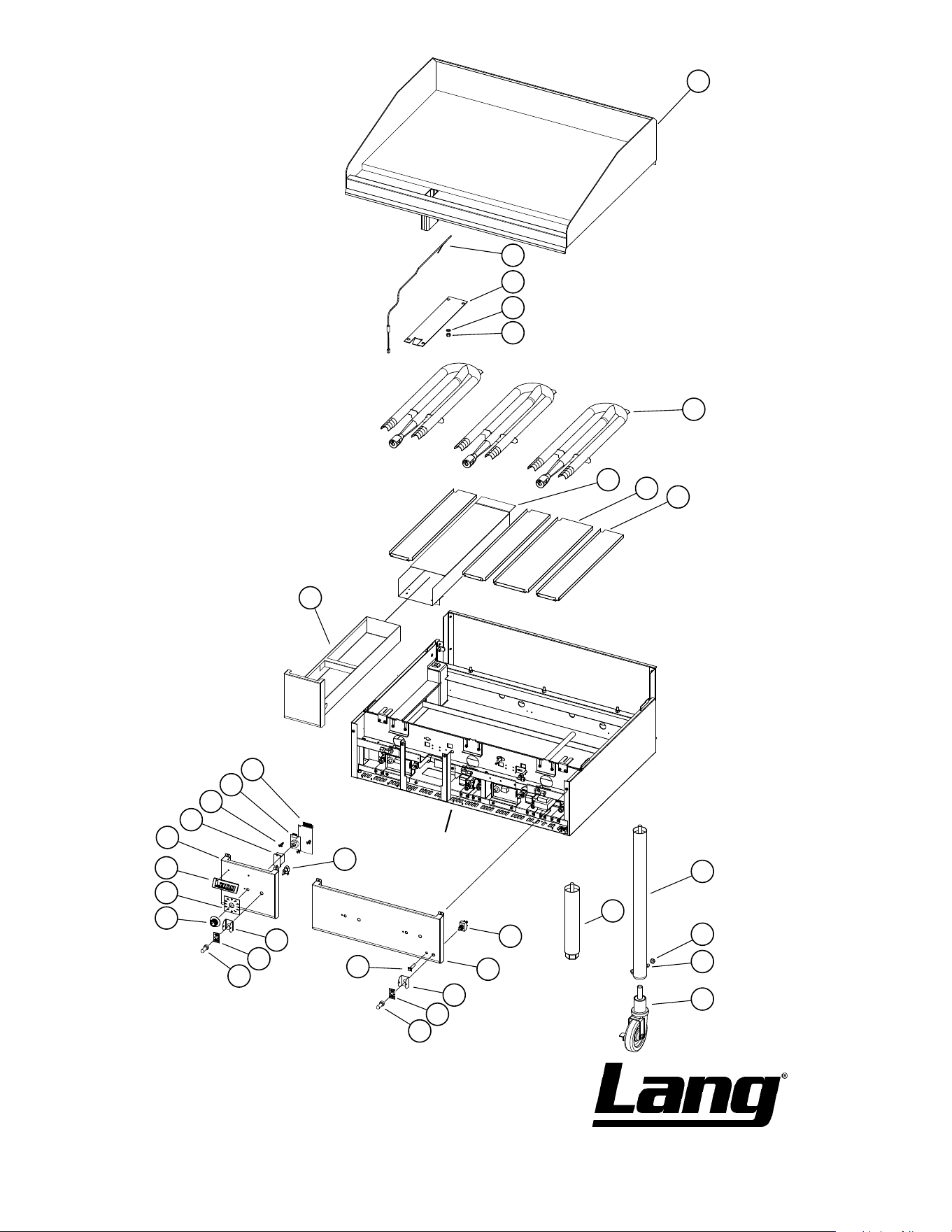

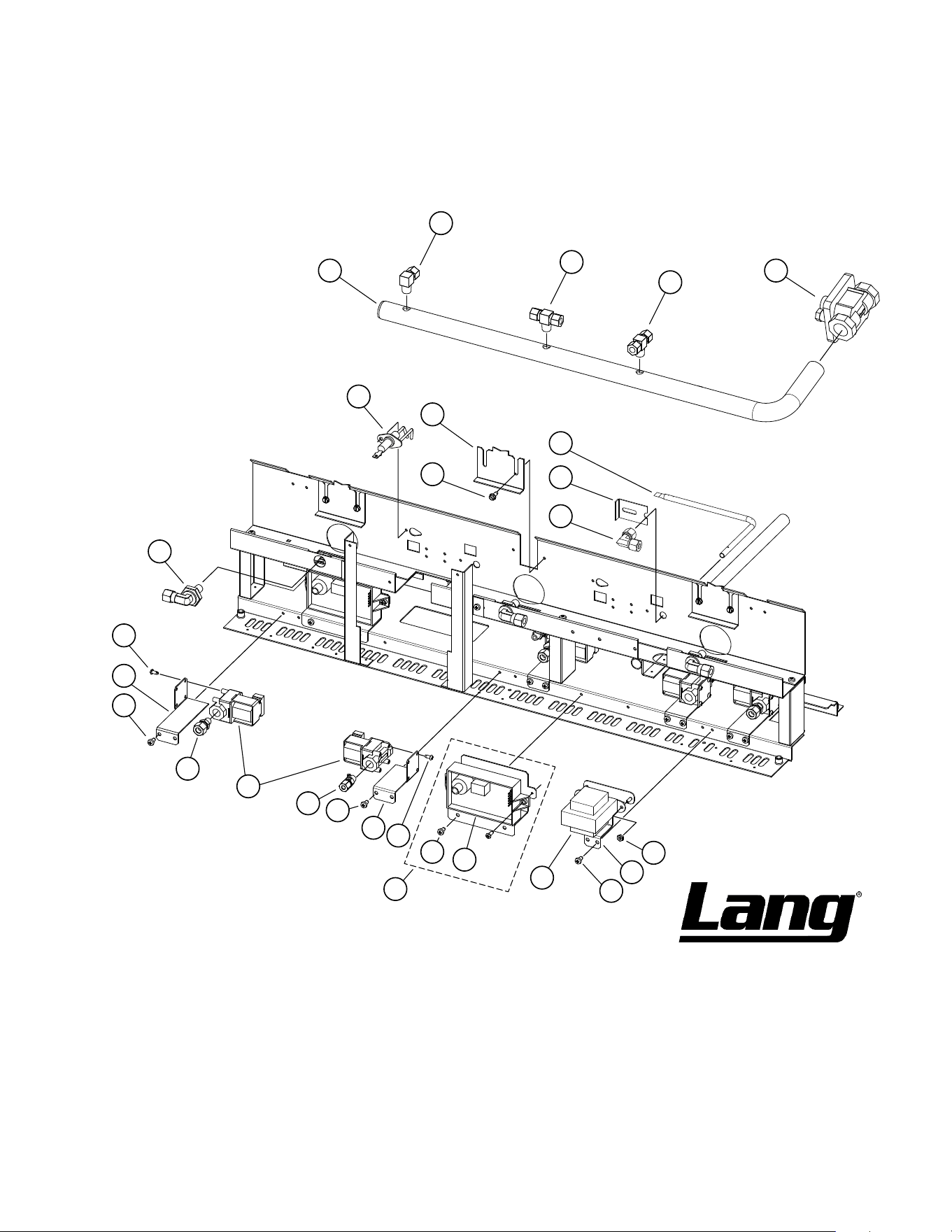

Exploded View & Parts List . . . . . . . . . . . . . . . . . . . . . 16-27
PROBLEMS, QUESTIONS or CONCERNS
Before you proceed consult you authorized Lang service agent directory
or
Call the Lang Technical Service Department at (314) 678-6315
NOTICE ServiceonthisoranyotherLangappliancemustbeperformedbyqualied
personnel only. Consult your Lang Authorized Service Agent Directory.
You can call our tech service number (314) 678-6315 or visit our website
WWW.LANGWORLD.COM for the service agent nearest you.
2
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE

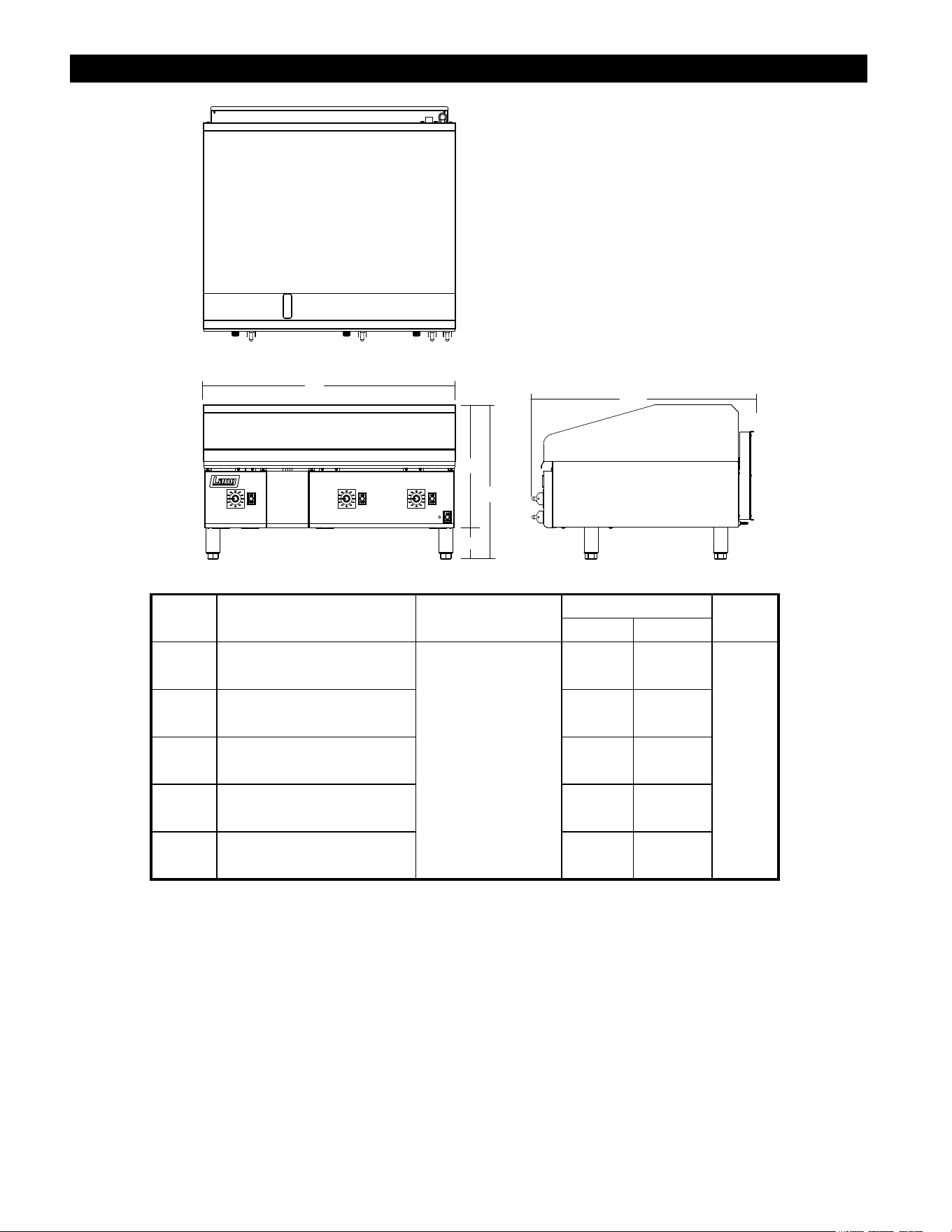

16.5”
20.5”
31.4”
TOP
FRONT SIDE
W
4”
IL2811
EQUIPMENT SPECIFICATIONS
Model
Height x Width x Depth*
(Not including legs)
Clearance from
combustible surface
Weight
Freight
Class
Actual Shipping
224ZS
16.4” x 24.1” x 30.4”
Sides: 5”, Back: 5”
243 lbs. 280 lbs.
65
418mm x 613mm x 773mm 110 kg 127 kg
236ZS
16.4” x 36.1” x 30.4” 368 lbs. 420 lbs.
418mm x 917mm x 773mm 167 kg 191 kg
248ZS
16.4” x 48.1” x 30.4” 448 lbs. 520 lbs.
418mm x 1222mm x 773mm 204 kg 236 kg
260ZS
16.4” x 60.1” x 30.4” 556 lbs. 635 lbs.
418mm x 1527mm x 773mm 253 kg 289 kg
272ZS
16.4” x 72.1” x 30.4” 689 lbs. 800 lbs.
418mm x 1832mm x 773mm 313 kg 364 kg
*= For units with a 30” Deep Griddle surface, add 7” to the overall depth of the unit.
3
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
SPECIFICATIONS
EQUIPMENT SPECIFICATIONS continued
Model
NAT.
Gas
LP
Gas
Burner
Input
Manifold Gas Connection (3/4” NPT)
Electrical Requirments
Voltage
Total
kW
Phase
Amps /
Line
224ZS-NAT X
27000
BTU/hr
5 WC
1
54,000 BTU/hr
115V/60Hz 0.5 1 2.0
224ZS-LP X 10 WC
236ZS-NAT X 5 WC
81,000 BTU/hr
236ZS-LP X 10 WC
248ZS-NAT X 5 WC
108,000 BTU/hr
248ZS-LP X 10 WC
260ZS-NAT X 5 WC
135,000 BTU/hr
260ZS-LP X 10 WC
272ZS-NAT X 5 WC
162,000 BTU/hr
272ZS-LP X 10 WC
Model
NAT.
Gas
LP
Gas
Burner
Input
Manifold Gas Connection (3/4” NPT)
Electrical Requirments
Voltage
Total
kW
Phase
Amps /
Line
224ZSD-NAT X
35000
BTU/hr
5 WC
1
70.000 BTU/hr
115V/60Hz 0.5 1 2.0
224ZSD-LP X 10 WC
236ZSD-NAT X 5 WC
105,000 BTU/hr
236ZSD-LP X 10 WC
248ZSD-NAT X 5 WC
140,000 BTU/hr
248ZSD-LP X 10 WC
260ZSD-NAT X 5 WC
175,000 BTU/hr
260ZSD-LP X 10 WC
272ZSD-NAT X 5 WC
210,000 BTU/hr
272ZSD-LP X 10 WC
4
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
EQUIPMENT DESCRIPTION
Exterior Construction
The griddle dimensions are 17” (43.18cm) High, 30” (76.20cm) Deep, and width is dependent on the
actual model number.
The Sides, Bottom, and Rear wall are constructed of double wall stainless steel, which allows closer
installation to combustible surfaces.
The stainless steel drop-down door keeps the controls cool and control area clean.
The griddle surface is made of 1” thick, highly polished steel to reduce hot and cold spots, recovery
problems, warping, and ensure even heat to the edges of the griddle.
Controls
The Selectronic Griddle comes with the solid state controls which include:
• A Main Power Switch & Power Indicator for the entire unit.
• Each twelve-inch section has its own temperature selector switch that snaps into place to lock in
any temperature from 175°F to 450°F (79°C to 232°C) in 25° increments.
• Each twelve-inch section of the griddle is controlled by an area sensitive RTD probe, which can
sense and react to a temperature change of +/- 4°F.
Technical
• Griddle operates on either Natural gas or Propane. This must be specied when ordering. It is
shipped with a Power Cord and Plug attached.
• Floor space required is 30” (76.20cm) Deep, and width is 2 ft, 3ft, 4ft, 5ft, or 6ft depending on actual
model number.
• The griddle weighs 260, 390, 520, 650, 780 lbs. depending on actual model number.
GriddleGasandVoltageSpecications
The Lang Model can be connected to any 120 Volt source. The gas and electrical specications are
listed in the table on the previous page.
NOTICE The data plate is on the right side of the griddle. The oven voltage,
wattage,serialnumber,wiresize,andclearancespecicationsare
on the data plate. This information should be carefully read and
understood before proceeding with the installation.

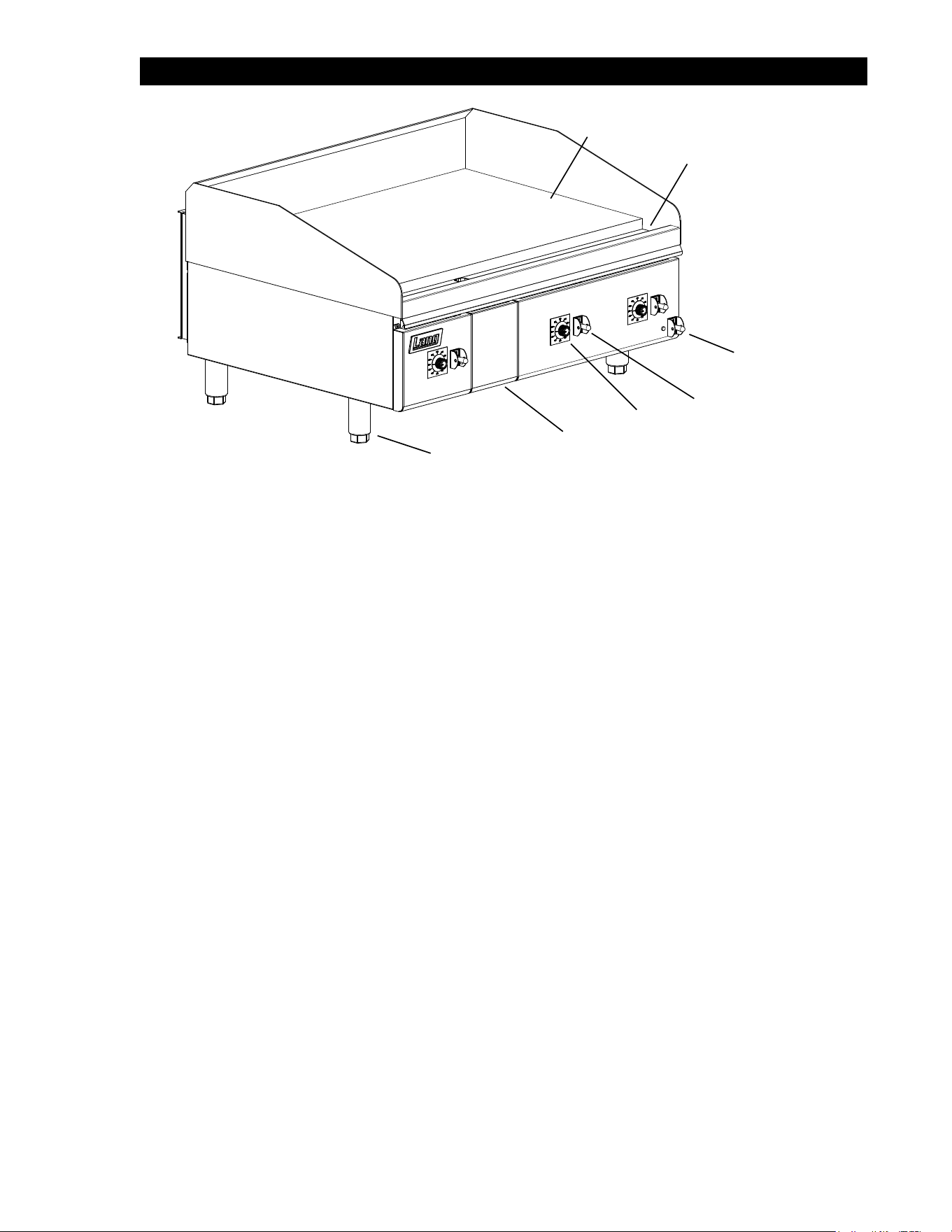

Main
Power
Switch
Grease
Drawer
Legs
Gutter
Section
Temp. Dial
Section
Power
Switch
1” Griddle Surface
5
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
UNPACKING
Receiving the Griddle
Upon receipt, check for freight damage, both visible and concealed.
Visible damage should be noted on the freight bill at the time of delivery and
signed by the carrier’s agent. Concealed loss or damage means it does not
become apparent until the merchandise has been unpacked. If concealed
loss or damage is discovered upon unpacking, make a written request for
inspection by the carrier’s agent within 15 days of delivery. All packing
material should be kept for inspection. Do not return damaged
merchandise to Star Manufacturing Company. File your claim with the
carrier.
Location
Prior to un-crating, move the oven as near to its intended location as practical. The crating will help
protect the unit from the physical damage normally associated with moving it through hallways and
doorways.
Un-crating
The griddle will arrive completely assembled inside a wood frame and strapped to a skid.
Cut the straps and remove the wood frame.
The oven can now be removed from the skid.
THE UNIT IS EXTREMELY HEAVY. FOR SAFE HANDLING, INSTALLER
SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS
HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK)
TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF
INSTALLATION.
ANY STAND, COUNTER OR OTHER DEVICE ON WHICH OVEN WILL BE
LOCATED MUST BE DESIGNED TO SUPPORT THE WEIGHT OF THE GRIDDLE.
SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.
VENTILATION & CLEARENCE
CLEARANCE
For use on non-combustible countertops only.
Combustible and non-combustible material must be at least 48” (120cm) from the top of the
appliance and 5” (150mm) from the sides and back. Adequate clearance should also be provided
for proper operation and servicing.
AIR SUPPLY
Make certain not to obstruct the ow of combustion and ventilation air. Provisions for adequate air
supply must be furnished. The legs supplied with the unit must be installed. Make certain that air
intake openings in the bottom of the appliance are not obstructed. They are essential for proper
combustion and operation of the appliance.
EXHAUST CANOPY
It is essential that facilities be provided over the griddle to carry off fumes and gases. However,
the unit should not be directly connected to a ue or stack.
CAUTION
6
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
INSTALLATION
Leg Installation

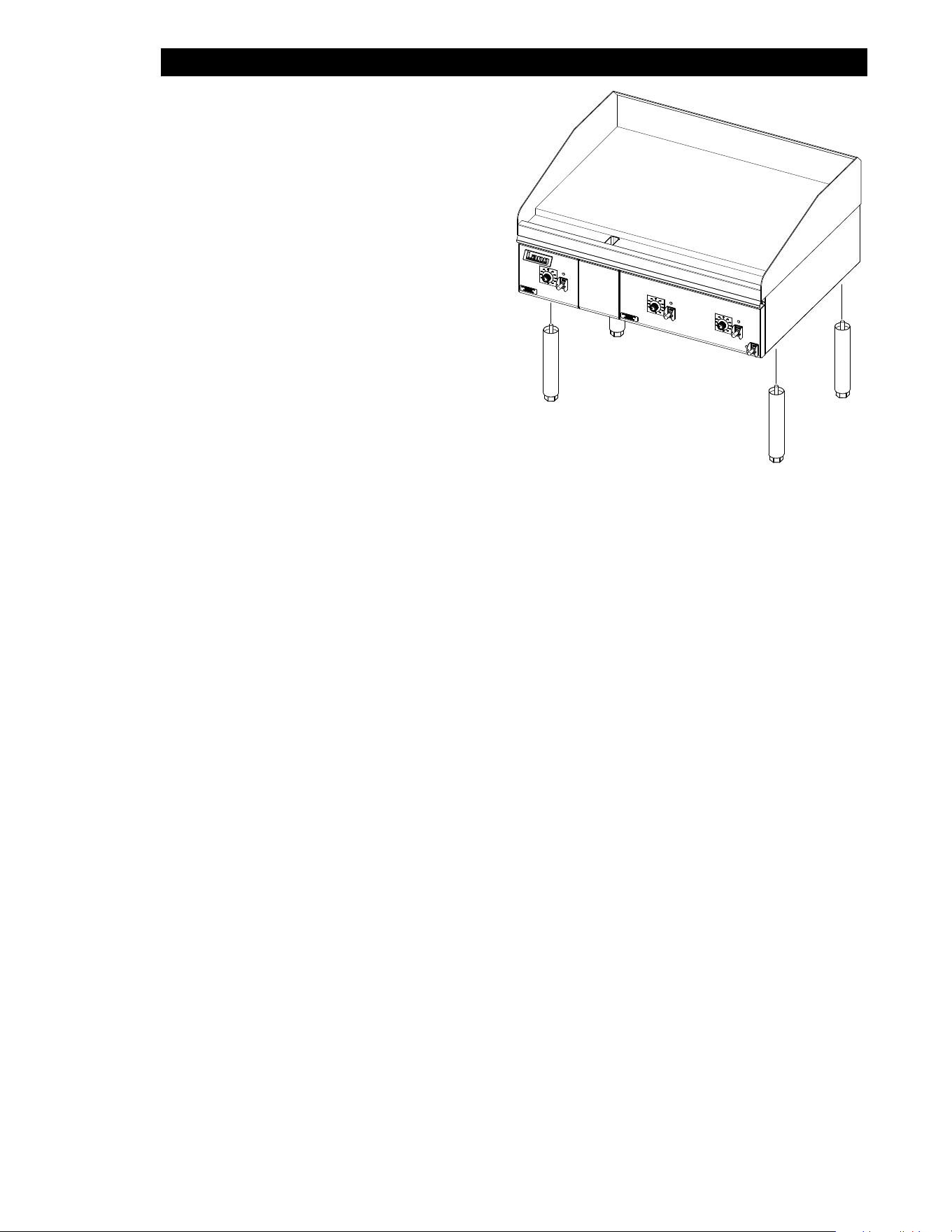

There are four, adjustable legs provided for
Enviro-Zone griddles.
The legs are shipped in the grease drawer(s)
of the griddle. Install them into the threaded
holes on the underside of the griddle body.
Leveling adjustment may be done by screwing
the bottom portion of the leg in and out.
Electrical Connection
The griddle is supplied with a cord and plug.
The receptacle is not provided with the griddle.
Follow the receptacle manufacturer’s
instructions when connecting the receptacle to
the power supply.
Gas Connection
This griddle is manufactured for use with the
type of gas indicted on the nameplate.
Contact the factory if your type of gas does not
match the nameplate data.
All gas connectors must be in accordance with local codes and comply with the National Fuel Federal
Gas Codes ANSI Z223.1 latest edition.
This appliance should be installed with a separate gas valve in the gas line ahead of the unit. Use a
3/4 inch or larger gas supply line.
Remove the 5/16 inch nuts securing the rear of burners. These nuts are for securing the main
burners during transportation only. The rear burner shield must be removed to gain access to the
nuts.
A pressure regulator for the type of gas specied is supplied with each appliance, and internally
installed in the grill at the factory.
The pressure in the manifold of the appliance should be tested with a manometer and the regulator
adjusted for proper pressure with the appliance operating at full re. A 1/8 inch NPT tap is provided in
the manifold for connecting a manometer.
Correct manifold pressures are:
5 inches water column for natural gas
10 inches water column for propane
When replacing the plug in the manifold, a pipe joint compound or sealant should be used that is
resistant to the action of liquid petroleum gas.
Initial adjustments are the responsibility of the installer and are not chargeable to Lang Manufacturing.
After the griddle is in its nal position, adjust the legs to create 1/8 inch slant from back to front.
This will allow the grease to run into the grease gutter and provide the proper combustion air for the
burners.
IL2804
Above: typical leg installation
7
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
INSTALLATION continued
DANGER: THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED.
FAILURE TO GROUND THE APPLIANCE COULD RESULT IN ELECTROCUTION
AND DEATH.
INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED TO
WORK WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN
CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT. UNIT
MUST BE INSTALLED IN ACCORDANCE WITH ALL APPLICABLE CODES.
NOTICE: The data plate is located inside the control compartment of each griddle.
Thegriddlevoltage,serialnumber,gasspecications,andclearance
specicationsareonthedataplate.Thisinformationshouldbecarefullyread
and understood before proceeding with the installation.
NOTICE: The installation of any components such as a vent hood, grease extractors,
reextinguishersystems,mustconformtotheirapplicableNational,Stateand
locally recognized installation standards.
WARNING
8
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
INITIAL START UP
Initial Lighting Procedure
Clean the preservative coating from the griddle plate and splash guard. Add a mild detergent to hot
water and wash the griddle plate and splash guard. Rinse with a damp sponge and dry with a clean
rag.
WARNING: BEFORE LIGHTING, USE A SOAP AND WATER SOLUTION TO
TEST ALL JOINTS FOR GAS LEAKS.
• Plug the unit into a 115-volt power supply.
• Turn the ON-STANDBY toggle switch to ON.
• Set the temperature dials to the desired temperature.
• Turn the toggle switch to each section to ON.
• To turn the griddle off, simply turn the main toggle switch to STANDBY.
Seasoning the Griddle Plate (non chrome only)
• Set the temperature dials to 300°F (148°C).
• Observe the burners through the opening at the top of the control panel.
• When the burners go OFF, apply a thin coat of high-grade, non-salted vegetable oil to the
griddle surface.
• Rub the oil into the griddle surface with the at side of a spatula or a towel.
• Recoat any dry spots that appear then wait two minutes and wipe off any excess oil.
• Repeat the seasoning process at 350°F (176°C) and at 400°F (204°C).
NOTICE: Duringtherstfewhoursofoperationyoumaynoticeasmall
amount of smoke coming off the griddle, and a faint odor from
the smoke. This is normal for a new griddle and will disappear
aftertherstfewhoursofuse.
9
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
OPERATION
Setting the Griddle Temperature
The suggested time and temperature chart (below) is provided as a guide for the products listed only.
If different temperature settings are to be used, select one side of the griddle and operate at the lowest
temperature. Adjoining sections should be set at progressively higher temperatures.
Do not try to operate the end sections hot and the center sections cool.
ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM
COMBUSTIBLE MATERIALS.
KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF
SPILLS OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER
OF SLIPS OR FALLS.
CAUTION
SUGGESTED TIMES AND TEMPERATURES
PRODUCTS
TEMPERATURE
(F / C) TIME (MIN)
HAMBURGER
350°F (176°C)
2 patties per LB 6 to 8
4 patties per LB 4 to 6
6 patties per LB 3 to 4
STEAKS
1/2 to 3/4 inch thick, cooked
medium
375°F (190°C)
5 to 7
3/4 to 1 inch thick, cooked
medium 8 to 10
Lamb Chops
350°F (176°C)
6 to 8
Pork Chops 6 to 8
Salmon 6 to 8
Halibut
325°F (162°C)
6 to 8
Snapper 6 to 8
Hashbrown Potatoes 375°F (190°C) 3 to 4
Bacon
350°F (176°C)
3 to 4
Sausage Links or Patties 3 to 4
Ham (Pre-cooked) 375°F (190°C) 2
Eggs 275°F (135°C) 2 to 4
Note: The times and temperatures in this chart are intended as a general
guide and starting point. Your actual times and temperatures may vary from
this chart.
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
OPERATION
Loading the Griddle
An understanding of how the griddle sections are controlled will be a valuable aid in loading your
griddle.
Each 12 inch section of your griddle is independently controlled. The temperature control sensor is
mounted under the griddle plate in the center of each cooking section.
If the product is loaded directly over the temperature sensor, that section will turn on and the
burner will heat the entire cooking section. If the product is loaded to the side, front or back of the
temperature sensor, the thermostat will react to the temperature change much slowly.
During slow periods with minimal loads, do not load directly over the thermostat sensors as this will
unnecessarily turn the burners on and overheat the remainder of the section not being utilized.
Turn the product and continue cooking until it has reached its desired degree of doneness.
Remove the product from the griddle.
When reloading the griddle, rst use the griddle surface on which a previous load was not placed.
This will insure you the proper griddle temperature.
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
SEQUENCE OF OPERATION
Power On
When the griddle is connected to 115 Volt power, the spark module for each section starts sparking.
While they are sparking the solenoid valve for the pilot burners are energized.
When the individual pilot burners ignite, and the pilot ame is veried, the spark module will stop
sparking. Note: The pilot burners will remain lit until the griddle is removed from power or the gas is
shut off.
When the main switch is turned on, 24 Volts is applied to the temperature control circuit.
When one of the individual section’s switch is turned on, it provides power to the circuit board for that
section.
The operator can now set the temperature of that section by selecting it on the temperature dial.
When the temperature on the dial is set higher than the temperature of the griddle section the circuit
board will generate a “Heat call”. This call (24 VAC Signal) goes to the solenoid valve opening the
valve. The pilot burner ignites the main burner.
As the griddle section temperature increases the temperature sense probe resistance increases.
When the griddle section reaches the temperature set on the selector switch, the circuit board which
monitors the probe resistance will turn off the heat call and there by close the gas valve.
When the griddle temperature drops below the set temperature the circuit board generates a new
heat call and the sequence repeats.
MAINTENANCE & CLEANING
Griddle Care (Chromium Surfaces)
It takes very little time and effort to keep this Industrial Chromium griddle surface sparkling clean and
performing at top efciency. DO NOT allow grease to accumulate as it will carbonize and become
difcult to remove. To prevent this condition the following cleaning suggestions should be followed:
1. Remove excess grease and food regularly with a 4” (100mm) wide Razor Sharp type scraper
and wipe surface with a damp cloth if desired.
2. Following the scraping, for end of the day cleaning, a damp cloth and a non-silicated,
nonabrasive, non-chlorinated cleaner such as Bon-Ami may be used to wipe surface clean,
followed by wiping with a clean wet cloth.
3. Follow steps 2 and 3 from Griddle Care (Non-Chromium Surfaces) above.
CAUTION
1. Never use pumice, griddle stones, or abrasives on a chromium surface.
2. Never strike a chromium griddle surface with a sharp instrument or spatula edge.
3. Never use steel wool.
4. Never use commercial liquid grill cleaner on the griddle surface.
5. Abusing surface voids the warranty.
CHROME GRIDDLE SURFACE LIMITED WARRANTY EXCLUSIONS
Your Chrome griddle has been designed to give you many years of cooking reliability and requires
minimum maintenance to keep the chrome surface in its original condition. All Chrome griddle
surfaces are warranted for a period of 5 years against manufacturing defects to the original owner
from the date of installation. This limited warranty is void if it is determined by Lang Manufacturing
or one of its authorized representatives that the chrome surface has been misused or abused or
subjected to the following situations:
1. Improperly installed.
2. Incorrect voltage applied to Chrome units allowing the surface to overheat and discolor.
3. The misuse of any instrument or tool which scratches or makes indentations in the surface which
could cause the surface to peel, ake, or chip off.
4. The use of any chemical or abrasive cleaning solution, griddle brick, stone, screen or other
cleaning products which could damage and affect the performance of the chrome surface.
5. The neglect of daily routine maintenance to the chromium surface.
12
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
MAINTENANCE & CLEANING continued
Daily Cleaning (Non chrome only)
• Empty the grease drawer daily or whenever it is 3/4 full. It is easily removed for washing.
• Keep the griddle surface clean. After each cooking load, scrape the griddle surface to remove any
carbonized grease.
• Once a day or when necessary the non chrome griddle surface should be thoroughly cleaned and
seasoned again. Use a griddle stone, griddle pad, or liquid cleaner. Rub with the grain of the
metal, being careful not to scrape the splash guard.
• Chrome griddle surfaces can be scraped with a 4” wide Razor Sharp scrapper and wipe surface
with a damp cloth.
• Following the scraping, a damp cloth and non-silicated, non-abrasive, non-chlorinated cleaner such
as Bon-Ami may be used to wipe surface clean, followed by wiping with a clean wet cloth.
Weekly Cleaning (Non chrome only)
• A mild detergent with water or one of the many commercial cleaners may be used.
• Be sure to rinse thoroughly and coat the griddle with a thin lm of oil to prevent rusting,
non-chrome surfaces only.
• Clean the exterior of the appliance with hot water and a mild detergent to maintain a gleaming
appearance.
• Re-season the griddle plate after each cleaning, non-chrome surfaces only.
Burner Air Shutter Adjustment
• The air shutters are pre-set at the factory.
However, minor adjustments may be required in
the eld to accommodate differences in gas and
elevation.
• To adjust the air shutters, loosen the set screw
holding the air damper to the burner near the gas
inlet.
• Adjust the air mixture until the burner ame just
ickers on the burner. “Lift-off” or yellow ame
indicates improper shutter adjustment.
• Periodically inspect and clean the air shutters to
insure complete combustion.
WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY
OR HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS
MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN
TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING. CAREFULLY READ THE WARNING AND
FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO
BE USED.
NOTICE: Never leave a chlorine sanitizer in contact with stainless steel
surfaces longer than 10 minutes. Longer contact can cause
corrosion.
CAUTION
WARNING
Burner
Set Screw
Air Shutter
IL2813
13
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
TROUBLESHOOTING
Symptoms
The chart below is to assist in the troubleshooting of the griddle.
Refer to the Symptoms column to locate the type of failure then to the Possible Cause for the items to be
checked.
To test for a possible cause, refer to the TEST section (on the following page) and locate the Possible Cause
then refer to test to identify test procedures.
SYMPTON POSSIBLE CAUSE
Entire griddle not lighting
• Failed regulator or plugged regulator vent
• Failed transformer
Power indicator is not lit
• No power to cord outlet
• Griddle unplugged from outlet
• Failed power cord or plug
• Failed power switch
• Failed pilot light
Section will not heat
• Failed gas valve
• Failed spark module
• Failed circuit board
• Failed temperature sensor
• Plugged pilot orice
Product burning
• Product is cooked too long
• Failed temperature sensor
• Failed circuit board
• Failed temperature selector
• Open wire between selector and circuit board
Product under done
• Failed temperature sensor
• Failed circuit board
• Failed temperature selector
• Incorrect Gas pressure
Doesn’t ignite
• Failed igniter
• Improper gas pressure
• No power
• Failed spark module
14
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
WARNING
CAUTION
TROUBLESSHOOTING CONT.
TESTS
NOTICE: Service on this, or any other, LANG appliance must be performed by
qualiedpersonnelonly.ConsultyourLANGauthorizedserviceagent
directory or call the factory at (314) 678-6315,
or WWW.LANGWORLD.COM For the service agent nearest you.
BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS
APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE
RECEPTACLE. BEFORE REPLACING ANY PARTS, DISCONNECT THE
UNIT FROM THE ELECTRIC POWER SUPPLY.
USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED
BY LANG OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE BODILY
INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND
WILL VOID ALL WARRANTIES.
POSSIBLE CAUSE TEST
Failed Regulator • Replace regulator
Failed transformer • Check transformer for correct voltage, replace as necessary
Failed power cord or plug • Check cord and plug for proper voltage
Failed power switch • Check switch for continuity across poles
Failed pilot light • Check for continuity across pilot light leads
Failed gas valve
• Remove the wires from the valve terminals and check for
continuity across the coil
Failed igniter • Replace as necessary
Failed spark module • Check for correct incoming voltage at module
Failed circuit board • Check for proper voltage and operation
Failed temperature sensor • Ohm sensor for correct resistance
Failed temperature selector • Remove the wires and check the resistance on all settings
Open wire between selector and
circuit board
• Replace as necessary
Incorrect gas pressure • Adjust to correct pressure
Plugged regulator vent, or orice • Clean as necessary
15
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
1
2
3
4
8
7
6
5
WIRE NUT
PILOT IGNITOR
PILOT IGNITION MODULE
RELAY
BURNER SOLENOID
PILOT SOLENOID
ON/OFF SWITCH
POWER CORD
KEY:
1
INDICATOR LAMP
TEMP CONTROL BOARD
12 POSITION SWITCH
RTD
9
10
11
12
33
11
10
CONTROL SWITCH
13
13
12
5
4
TRANSFORMER
14
11
10
13
12
5
4
11
10
13
12
5
4
2M-61122-W64
14
6
5
4
3
2
1
6
7
6
5
4
3
2
1
6
7
2
9
8
8
24V
120V
YEL
BLU
RED
RED
GRN
RED
BLK
1
2
5
4
3
1
9
8
7
5
6
2
YEL
RED
YEL
BRN
YEL
RED
YEL
NO
COM
GRN
RED
BLK
2
5
4
3
1
YEL
BRN
BRN
YEL
YEL
RED
RED
1
9
8
7
5
6
2
NO
COM
RED
WHT
BLK
WHT
BLK
WHT
BLK
WHT
BLK
BRN
ORG
BLU
RED
GRN
RED
BLK
1
2
5
4
3
1
9
8
7
5
6
2
YEL
RED
BRN
YEL
YEL
NO
COM
BRN
ORG
BLU
ORG
BLU
BLK
WHT
GRN
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L
INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED
TOLERANCE: UNLESS NOTED: .xxx ± .015
ANGLES ± 1°
REVISIONS
PART NO.
MODEL NO.
TITLE
MATERIAL
FINISH
DR
:
CK.
DATE
:
3/25/14
ADAMS
LANG MANUFACTURING
# 10 SUNNEN DRIVE
ST. LOUIS, MO. 63143, USA
REV. DATE/ECO DESCRIPTION OF CHANGE
DR
W/D - 236ZS GRIDDLE (NO TIMERS)
GRN
ORG
WHT
BLK
GRN
ORG
BLK
WHT
WHT
BLK
WHT
BLK
WHT
BLK
CAP UNUSED
CONNECTORS
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
SK2771, Rev. - 4/14/14
Model: EnviroZone Gas Selectronic Griddle
1
2
3
4
5
6
7
8
9
10
12
13
14
15
11
16
17
18
19
20
21
25
30
SEE DETAIL A
24
23
22
20
19
18
26
27
28
29
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
SK2771, Rev. A 5/22/15
Model: 236ZS EnviroZone Selectronic Gas
DETAIL A
31
35
41
42
43
44
45
47
44
48
42
44
49
50
51
44
52
53
46
36
38
39
40
37
32
33
33
34
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
PARTS LIST October 16, 2015, Rev. B
Model: 224ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
1
K9-141-201-123
1
GRIDDLE PLATE ASSY, 2’ ZS 224ZS
K9-141-201-723 GRIDDLE PLATE ASSY 2’ ZSD 224ZSD
2 2E-41100-42 2 SENSOR EZONE SELECTRONIC
3
K9-141-486
2
PROBE GUARD, ZS SELECT 224ZS
K9-141-486-. PROBE GUARD, ZSD SELECT 224ZSD
4 2C-20202-08 8 WSHR PLT 5/16 LOCK SPLIT
5 2C-20301-06 10 NUT HEX 5/16-18 PLTD
6
K9-141-171-3W2
2
GRIDDLE BURNER ASSY-30”D 224ZSD
K9-141-171-W2 GRIDDLE BURNER ASSY 224ZS
7
K9-141-161-3W1
1 GREASE DRAWER SLIDE WELD
224ZSD
K9-141-161-W1 224ZS
8 K9-141-182 0 BAFFLE BETWEEN BURNERS
9
K9-141-181
2
BAFFLE UNDER BURNER 224ZS
K9-141-186 BAFFLE UNDER BURNER-30”D 224ZSD
10
K9-141-252-W1
1
GREASE DRAWER-EZONE GRID 224ZS
K9-142-251 GREASE DRAWER-WELD ASSY 224ZSD
11 2A-72500-20 4 LEG 10.25 WITH ADJ HEX
12 2A-72901-34 AR LEG STD 2 OD X 24.625
13 2C-20301-40 8 NUT HEX ACORN LOCK 3/8-16S/S
14 2C-20105-20 8 SCREW SET 3/8-16X1/2 CUP POINT
15 72901-27 4 CASTER 5 ADJ
16 2E-Z12020 1 SWITCH-TOGGLE 2P ST
17 K9-141-232-2-W2 1 FRONT PNL WELD, RIGHT ZS
18 Z1-70-07-0343 3 SWITCH GUARD
19 2M-12-07-0038 3 LABEL ON & OFF
20 2I-05-07-0013 3 BOOT SWITCH
21 Y9-31601-09-1 1 PILOT LT 120V W/TIN CLIP
22 2R-70701-28 2 KNB BLK 1/4BUSH2SETSCW@90
23 2M-60301-29 1 PNLLBL SELCT SWTDIAL 450o
24 2M-60301-43 1 DIE CAST PLT LANG SATIN
25 K9-141-242-W9 1 FRONT PANEL- WELD, LEFT ZS
26 2E-30600-W14 2 RELAY 277VAC SPST 30A
27 2K-70801-07 6 SPACER SUPPORT 1/2LG
28 2E-30304-22 2 SWTCB175-450oFW/41100-13
29 2E-40101-W19 2 CIRBD SI TEMP CONTROL
30 2E-30303-18 2 SWTTOGON-OFFSPST1/4HP125V
31 2K-80100-20 1 MANIFLD FR 141 GRIDDLE 2’
32 2K-70101-03 1 BRASTBEELBOW 1/4NPT-3/8CC
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
Model: 224ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
33 2K-70101-06 1 BRASTEE BRNCH 1/4NPTM-3/8
34 2V-80501-04 1 GAS REG 3/4X3/4 CLS I NAT
34 2V-80501-05 1 GAS REG 3/4X3/4 CLS II LP
35 2J-80302-W1 1 IGNITOR ELECTRODE
36 2C-Z5883 10 10-24 X 1/2 FZA SCREW
37 K9-141-146 2 PROBE GUARD SUPPORT
38 2K-70101-51 1 BRASTBE ELBOW 1/4CCX1/4CC
39 M9-144-186 1 BRACKET-IGNITOR TUBE-CB
40 2F-80002-W19 1 TUBE - LIGHTER .25 DIA
41
2A-45408
2
ORIFICE-HOOD #42 GRID NAT 224ZS-NAT
2A-80400-12 ORIFICE HOOD .0595 #53 224ZS-LP
2A-80404-29 ORIFICE - #51 BLACK 224ZSD-LP
Y9-80400-18 ORIFICE HOOD .1065 #36 224ZSD-NAT
2A-W1185 ORIFICE FITTING - 90 DEG
42 2C-20102-08 12 SCRW PHD ST 8-32X.375
43 K9-141-156-W5 1 VALVE BRACKET LEFT
44 2C-20102-12 24 SCRW PHD ST 10-32X3/8
45 2K-45300 5 FITTING 3/8CC X 1/8NPT
46 2V-80502-W07 3 VALVE SOLENOID-1/8 NPT
47 2V-70402-06 1 VALVE PILOT 1/8NPTX1/4CC
49 PS-60101-W16 1
KIT,IGN MOD REPLACMENT Z
MODELS, mfg before 3/2015
50 2J-80300-W20-1 1
PILOT IGNITION MODULE,w/o
brakcket, mfg after 2/2015
51 2E-31400-07 1 XFORMR120-208-240/24V40VA
52 K9-141-152-W2 1 24V XFMR BRACKET ASSY
53 2C-20301-11 2 NUT HEX 8-32 PLTD
NI 2C-20602-04 2 TINNERMAN SPD NUT 1/8 DIA
NI 2E-31107-02-W2 1 CORDSET 14/3 15A 120V 10’
NI 2K-Z4921 4 BURNER TUBE FLEX 3/8 OD
NI 2K-Z6943 1 GAS LINE 1/4”D x 8”L
NI 2M-61122-W64 AR WIRE DIAGRAM - 236ZS
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
PARTS LIST October 16, 2015, Rev. B
Model: 236ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
1
K9-141-201-133
1
GRIDDLE PLATE ASSY, 3’ ZS 236ZS
K9-141-201-1331 GRIDDLE PLATE ASSY, 3’ ZS 236ZSC
K9-141-201-1332 GRIDDLE PLATE ASSY, 3’ ZSH 236ZSH
K9-141-201-733 GRIDDLE PLATE ASSY, 3’ ZSD 236ZSD
2 2E-41100-42 3 SENSOR EZONE SELECTRONIC
3
K9-141-486
3
PROBE GUARD, ZS SELECT 236ZS
K9-141-486-3 PROBE GUARD ZSD SELECT 236ZSD
4 2C-20202-08 12 WSHR PLT 5/16 LOCK SPLIT
5 2C-20301-06 14 NUT HEX 5/16-18 PLTD
6
K9-141-171-3W2
3
GRIDDLE BURNER ASSY-30”D 236ZSD
K9-141-171-W2 GRIDDLE BURNER ASSY 236ZS
7
K9-141-161-3W1
1 GREASE DRAWER SLIDE WELD
236ZSD
K9-141-161-W1 236ZS
8
K9-141-182
1 BAFFLE BETWEEN BURNERS
236ZS
K9-141-187 236ZSD
9
K9-141-181
3
BAFFLE UNDER BURNER 236ZS
K9-141-186 BAFFLE UNDER BURNER-30”D 236ZSD
10
K9-141-252-W1
1
GREASE DRAWER-EZONE GRID 236ZS
K9-142-251 GREASE DRAWER -WELD ASSY 236ZSD
11 2A-72500-20 4 LEG 10.25 WITH ADJ HEX
12 2A-72901-34 AR LEG STD 2 OD X 24.625
13 2C-20301-40 8 NUT HEX ACORN LOCK 3/8-16S/S
14 2C-20105-20 8 SCREW SET 3/8-16X1/2 CUP POINT
15 72901-27 4 CASTER 5 ADJ
16 2E-Z12020 1 SWITCH-TOGGLE 2P ST
17 K9-141-246-W8 1 FRONT PNL WELD, RIGHT ZS
18 Z1-70-07-0343 4 SWITCH GUARD
19 2M-12-07-0038 4 LABEL ON & OFF
20 2I-05-07-0013 4 BOOT SWITCH
21 Y9-31601-09-1 1 PILOT LT 120V W/TIN CLIP
22 2R-70701-28 3 KNB BLK 1/4BUSH2SETSCW@90
23 2M-60301-29 3 PNLLBL SELCT SWTDIAL 450o
24 2M-60301-43 1 DIE CAST PLT LANG SATIN
25 K9-141-242-W9 1 FRONT PANEL- WELD, LEFT ZS
26 2E-30600-W14 3 RELAY 277VAC SPST 30A
27 2K-70801-07 9 SPACER SUPPORT 1/2LG
28 2E-30304-22 3 SWTCB175-450oFW/41100-13
29 2E-40101-W19 3 CIRBD SI TEMP CONTROL
30 2E-30303-18 3 SWTTOGON-OFFSPST1/4HP125V
31 2K-80100-21 1 MANIFLD FR 141 GRIDDLE 3’
32 2K-70101-03 1 BRASTBEELBOW 1/4NPT-3/8CC
33 2K-70101-06 2 BRASTEE BRNCH 1/4NPTM-3/8
34
2V-80501-04
1
GAS REG 3/4X3/4 CLS I NAT
2V-80501-05 GAS REG 3/4X3/4 CLS II LP
35 2J-80302-W1 2 IGNITOR ELECTRODE
36 2C-Z5883 18 10-24 X 1/2 FZA SCREW
37 K9-141-146 3 PROBE GUARD SUPPORT
38 2K-70101-51 2 BRASTBE ELBOW 1/4CCX1/4CC
39 M9-144-186 2 BRACKET-IGNITOR TUBE-CB
40 2F-80002-W19 2 TUBE - LIGHTER .25 DIA
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
Model: 236ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
41
2A-45408
3
ORIFICE-HOOD #42 GRID NAT 236ZS-NAT
2A-80400-12 ORIFICE HOOD .0595 #53 236ZS-LP
2A-80404-29 ORIFICE - #51 BLACK 236ZSD-LP
Y9-80400-18 ORIFICE HOOD .1065 #36 236ZSD-NAT
2A-W1185 ORIFICE FITTING - 90 DEG
42 2C-20102-08 20 SCRW PHD ST 8-32X.375
43 K9-141-156-W5 2 VALVE BRACKET LEFT
44 2C-20102-12 31 SCRW PHD ST 10-32X3/8
45 2K-45300 8 FITTING 3/8CC X 1/8NPT
46 2V-80502-W07 5 VALVE SOLENOID-1/8 NPT
47 2V-70402-06 2 VALVE PILOT 1/8NPTX1/4CC
48
K9-141-156-W4
2
VALVE BRACKET RIGHT
K9-141-156-W6 VALVE BRACKET-SHORT RIGHT
49 PS-60101-W16 2
KIT,IGN MOD REPLACMENT Z
MODELS, mfg before 3/2015
50 2J-80300-W20-1 2
PILOT IGNITION MODULE,w/o
brakcket, mfg after 2/2015
51 2E-31400-07 1 XFORMR120-208-240/24V40VA
52 K9-141-152-W2 1 24V XFMR BRACKET ASSY
53 2C-20301-11 2 NUT HEX 8-32 PLTD
NI 2C-20602-04 2 TINNERMAN SPD NUT 1/8 DIA
NI 2E-31107-02-W2 1 CORDSET 14/3 15A 120V 10’
NI 2K-Z4921 5 BURNER TUBE FLEX 3/8 OD
NI 2K-Z6943 2 GAS LINE 1/4”D x 8”L
NI 2M-61122-W64 AR WIRE DIAGRAM - 236ZS
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
PARTS LIST October 16, 2015, Rev. B
Model: 248ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
1
K9-141-201-143
1
GRIDDLE PLATE ASSY, 4’ ZS 248ZS
K9-141-201-743 GRIDDLE PLATE ASSY, 4’ ZSD 248ZSD
2 2E-41100-42 4 SENSOR EZONE SELECTRONIC
3
K9-141-486
4
PROBE GUARD, ZS SELECT 248ZS
K9-141-486-3 PROBE GUARD, ZSD SELECT 248ZSD
4 2C-20202-08 16 WSHR PLT 5/16 LOCK SPLIT
5 2C-20301-06 18 NUT HEX 5/16-18 PLTD
6
K9-141-171-3W2
4
GRIDDLE BURNER ASSY-30”D 248ZSD
K9-141-171-W2 GRIDDLE BURNER ASSY 248ZS
7
K9-141-161-3W1
2 GREASE DRAWER SLIDE WELD
248ZSD
K9-141-161-W1 248ZS
8
K9-141-182
1
BAFFLE BETWEEN BURNERS 248ZS
K9-141-187 BAFFLE BETWEEN BURNERS 30”D 248ZSD
9
K9-141-181
4
BAFFLE UNDER BURNER 248ZS
K9-141-186 BAFFLE UNDER BURNER-30”D 248ZSD
10
K9-141-252-W1
2
GREASE DRAWER-EZONE GRID 248ZS
K9-142-251 GREASE DRAWER WELD ASSY 248ZSD
11 2A-72500-20 4 LEG 10.25 WITH ADJ HEX
12 2A-72901-34 AR LEG STD 2 OD X 24.625
13 2C-20301-40 8 NUT HEX ACORN LOCK 3/8-16S/S
14 2C-20105-20 8 SCREW SET 3/8-16X1/2 CUP POINT
15 2P-72901-33 4 CASTER 5 ADJ
16 2E-Z12020 1 SWITCH-TOGGLE 2P ST
17
K9-141-232-2-W2
1
FRONT PNL WELD, RIGHT ZS
K9-141-232-6-W3 FRONT PNL WELD, CENTER ZS
18 Z1-70-07-0343 5 SWITCH GUARD
19 2M-12-07-0038 5 LABEL ON & OFF
20 2I-05-07-0013 5 BOOT SWITCH
21 Y9-31601-09-1 1 PILOT LT 120V W/TIN CLIP
22 2R-70701-28 4 KNB BLK 1/4BUSH2SETSCW@90
23 2M-60301-29 3 PNLLBL SELCT SWTDIAL 450o
24 2M-60301-43 1 DIE CAST PLT LANG SATIN
25 K9-141-242-W9 1 FRONT PANEL- WELD, LEFT ZS
26 2E-30600-W14 4 RELAY 277VAC SPST 30A
27 2K-70801-07 12 SPACER SUPPORT 1/2LG
28 2E-30304-22 4 SWTCB175-450oFW/41100-13
29 2E-40101-W19 4 CIRBD SI TEMP CONTROL
30 2E-30303-18 4 SWTTOGON-OFFSPST1/4HP125V
31 2K-80100-22 1 MANIFLD FR 141 GRIDDLE 4’
32 2K-70101-03 2 BRASTBEELBOW 1/4NPT-3/8CC
33 2K-70101-06 2 BRASTEE BRNCH 1/4NPTM-3/8
34
2V-80501-04
1
GAS REG 3/4X3/4 CLS I NAT
2V-80501-05 GAS REG 3/4X3/4 CLS II LP
35 2J-80302-W1 2 IGNITOR ELECTRODE
36 2C-Z5883 20 10-24 X 1/2 FZA SCREW
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
Model: 248ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
37 K9-141-146 4 PROBE GUARD SUPPORT
38 2K-70101-51 2 BRASTBE ELBOW 1/4CCX1/4CC
39 M9-144-186 2 BRACKET-IGNITOR TUBE-CB
40 2F-80002-W19 2 TUBE - LIGHTER .25 DIA
41
2A-45408
4
ORIFICE-HOOD #42 GRID NAT 248ZS-NAT
2A-80400-12 ORIFICE-HOOD .0595 #53 248ZS-LP
2A-80404-29 ORIFICE - #51 BLACK 248ZSD-LP
Y9-80400-18 ORIFICE HOOD .1065 #36 248ZSD-NAT
2A-W1185 ORIFICE FITTING - 90 DEG
42 2C-20102-08 24 SCRW PHD ST 8-32X.375
43 K9-141-156-W5 2 VALVE BRACKET LEFT
44 2C-20102-12 40 SCRW PHD ST 10-32X3/8
45 2K-45300 10 FITTING 3/8CC X 1/8NPT
46 2V-80502-W07 6 VALVE SOLENOID-1/8 NPT
47 2V-70402-06 2 VALVE PILOT 1/8NPTX1/4CC
48
K9-141-156-W4 3 VALVE BRACKET RIGHT
K9-141-156-W6 1 VALVE BRACKET-SHORT RIGHT
49 PS-60101-W16 2
KIT,IGN MOD REPLACMENT Z
MODELS, mfg before 3/2015
50 2J-80300-W20-1 2
PILOT IGNITION MODULE,w/o
brakcket, mfg after 2/2015
51 2E-31400-07 1 XFORMR120-208-240/24V40VA
52 K9-141-152-W2 1 24V XFMR BRACKET ASSY
53 2C-20301-11 2 NUT HEX 8-32 PLTD
NI 2C-20602-04 2 TINNERMAN SPD NUT 1/8 DIA
NI 2E-31107-02-W2 1 CORDSET 14/3 15A 120V 10’
NI 2K-Z4921 6 BURNER TUBE FLEX 3/8 OD
NI 2K-Z6943 GAS LINE 1/4”D x 8”L
NI 2M-61122-W64 AR WIRE DIAGRAM - 236ZS
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
PARTS LIST October 16, 2015, Rev. B
Model: 260ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
1
K9-141-201-153
1
GRIDDLE PLATE ASSY, 5’ ZS 260ZS
K9-141-201-753 GRIDDLE PLATE ASSY, 5’ ZSD 260ZSD
2 2E-41100-42 5 SENSOR EZONE SELECTRONIC
3
K9-141-486
5
PROBE GUARD, ZS SELECT 260ZS
K9-141-486-3 PROBE GUARD, ZSD SELECT 260ZSD
4 2C-20202-08 20 WSHR PLT 5/16 LOCK SPLIT
5 2C-20301-06 22 NUT HEX 5/16-18 PLTD
6
K9-141-171-3W2
5
GRIDDLE BURNER ASSY-30”D 260ZSD
K9-141-171-W2 GRIDDLE BURNER ASSY 260ZS
7
K9-141-161-3W1
2 GREASE DRAWER SLIDE WELD
260ZSD
K9-141-161-W1 260ZS
8
K9-141-182
2
BAFFLE BETWEEN BURNERS 260ZS
K9-141-187 BAFFLE-BETWEEN BURNERS 30”D 260ZSD
9
K9-141-181
5
BAFFLE UNDER BURNER 260ZS
K9-141-186 BAFFLE UNDER BURNER-30”D 260ZSD
10
K9-141-252-W1
2
GREASE DRAWER-EZONE GRID 260ZS
K9-142-251 GREASE DRAWER-WELD ASSY 260ZSD
11 2A-72500-20 4 LEG 10.25 WITH ADJ HEX
12 2A-72901-34 AR LEG STD 2 OD X 24.625
13 2C-20301-40 8 NUT HEX ACORN LOCK 3/8-16S/S
14 2C-20105-20 8 SCREW SET 3/8-16X1/2 CUP POINT
15 2P-72901-33 4 CASTER 5 ADJ
16 2E-Z12020 1 SWITCH-TOGGLE 2P ST
17
K9-141-232-2-W2
1
FRONT PNL WELD, RIGHT ZS
K9-141-232-5-W2 FRONT PNL WELD, CENTER ZS
18 Z1-70-07-0343 6 SWITCH GUARD
19 2M-12-07-0038 6 LABEL ON & OFF
20 2I-05-07-0013 6 BOOT SWITCH
21 Y9-31601-09-1 1 PILOT LT 120V W/TIN CLIP
22 2R-70701-28 5 KNB BLK 1/4BUSH2SETSCW@90
23 2M-60301-29 4 PNLLBL SELCT SWTDIAL 450o
24 2M-60301-43 1 DIE CAST PLT LANG SATIN
25 K9-141-242-W9 1 FRONT PANEL- WELD, LEFT ZS
26 2E-30600-W14 5 RELAY 277VAC SPST 30A
27 2K-70801-07 15 SPACER SUPPORT 1/2LG
28 2E-30304-22 5 SWTCB175-450oFW/41100-13
29 2E-40101-W19 5 CIRBD SI TEMP CONTROL
30 2E-30303-18 5 SWTTOGON-OFFSPST1/4HP125V
31 2K-80100-23 1 MANIFLD FR 141 GRIDDLE 5’
32 2K-70101-03 2 BRASTBEELBOW 1/4NPT-3/8CC
33 2K-70101-06 3 BRASTEE BRNCH 1/4NPTM-3/8
34
2V-80501-04
1
GAS REG 3/4X3/4 CLS I NAT
2V-80501-05 GAS REG 3/4X3/4 CLS II LP
35 2J-80302-W1 3 IGNITOR ELECTRODE
36 2C-Z5883 28 10-24 X 1/2 FZA SCREW
37 K9-141-146 5 PROBE GUARD SUPPORT
38 2K-70101-51 3 BRASTBE ELBOW 1/4CCX1/4CC
39 M9-144-186 3 BRACKET-IGNITOR TUBE-CB
40 2F-80002-W19 3 TUBE - LIGHTER .25 DIA
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
Model: 260ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
41
2A-45408
5
ORIFICE-HOOD #42 GRID NAT 260ZS-NAT
2A-80400-12 ORIFICE HOOD .0595 #53 260ZS-LP
2A-80404-29 ORIFICE - #51 BLACK 260ZSD-LP
Y9-80400-18 ORIFICE HOOD .1065 #36 260ZSD-NAT
2A-W1185 ORIFICE FITTING - 90 DEG
42 2C-20102-08 32 SCRW PHD ST 8-32X.375
43 K9-141-156-W5 2 VALVE BRACKET LEFT
44 2C-20102-12 46 SCRW PHD ST 10-32X3/8
45 2K-45300 13 FITTING 3/8CC X 1/8NPT
46 2V-80502-W07 8 VALVE SOLENOID-1/8 NPT
47 2V-70402-06 3 VALVE PILOT 1/8NPTX1/4CC
48
K9-141-156-W4
3
VALVE BRACKET RIGHT
K9-141-156-W6 VALVE BRACKET-SHORT RIGHT
49 PS-60101-W16 3
KIT,IGN MOD REPLACMENT Z
MODELS, mfg before 3/2015
50 2J-80300-W20-1 3
PILOT IGNITION MODULE,w/o
brakcket, mfg after 2/2015
51 2E-31400-07 1 XFORMR120-208-240/24V40VA
52 K9-141-152-W2 1 24V XFMR BRACKET ASSY
53 2C-20301-11 2 NUT HEX 8-32 PLTD
NI 2C-20602-04 2 TINNERMAN SPD NUT 1/8 DIA
NI 2E-31107-02-W2 1 CORDSET 14/3 15A 120V 10’
NI 2K-Z4921 8 BURNER TUBE FLEX 3/8 OD
NI 2K-Z6943 3 GAS LINE 1/4”D x 8”L
NI 2M-61122-W64 AR WIRE DIAGRAM - 236ZS
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
PARTS LIST October 16, 2015, Rev. B
Model: 272ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
1
K9-141-201-163
1
GRIDDLE PLATE ASSY, 6’ ZS 272ZS
K9-141-201-763 GRIDDLE PLATE ASSY, 6’ ZSD 272ZSD
2 2E-41100-42 6 SENSOR EZONE SELECTRONIC
3
K9-141-486
6
PROBE GUARD, ZS SELECT 272ZS
K9-141-486-3 PROBE GUARD, ZSD SELECT 272ZSD
4 2C-20202-08 24 WSHR PLT 5/16 LOCK SPLIT
5 2C-20301-06 26 NUT HEX 5/16-18 PLTD
6
K9-141-171-3W2
6
GRIDDLE BURNER ASSY-30”D 272ZSD
K9-141-171-W2 GRIDDLE BURNER ASSY 272ZS
7
K9-141-161-3W1
1 GREASE DRAWER SLIDE WELD
272ZSD
K9-141-161-W1 242ZS
8
K9-141-182
3
BAFFLE BETWEEN BURNERS 272ZS
K9-141-187 BAFFLE-BETWEEN BURNERS 30”D 272ZSD
9
K9-141-181
6
BAFFLE UNDER BURNER 272ZS
K9-141-186 BAFFLE UNDER BURNER-30”D 272ZSD
10
K9-141-252-W1
2
GREASE DRAWER-EZONE GRID 272ZS
K9-142-251 GREASE DRAWER-WELD ASSY 272ZSD
11 2A-72500-20 4 LEG 10.25 WITH ADJ HEX
12 2A-72901-34 AR LEG STD 2 OD X 24.625
13 2C-20301-40 8 NUT HEX ACORN LOCK 3/8-16S/S
14 2C-20105-20 8 SCREW SET 3/8-16X1/2 CUP POINT
15 2P-72901-33 4 CASTER 5 ADJ
16 2E-Z12020 1 SWITCH-TOGGLE 2P ST
17
K9-141-237-W13
1
FRONT PANEL, CENTER ZS
K9-141-246-W8 FRONT PANEL WELD, RIGHT ZS
18 Z1-70-07-0343 7 SWITCH GUARD
19 2M-12-07-0038 7 LABEL ON & OFF
20 2I-05-07-0013 7 BOOT SWITCH
21 Y9-31601-09-1 1 PILOT LT 120V W/TIN CLIP
22 2R-70701-28 6 KNB BLK 1/4BUSH2SETSCW@90
23 2M-60301-29 6 PNLLBL SELCT SWTDIAL 450o
24 2M-60301-43 1 DIE CAST PLT LANG SATIN
25 K9-141-242-W8 1 FRONT PANEL WELD, LEFT ZS
26 2E-30600-W14 6 RELAY 277VAC SPST 30A
27 2K-70801-07 9 SPACER SUPPORT 1/2LG
28 2E-30304-22 6 SWTCB175-450oFW/41100-13
29 2E-40101-W19 6 CIRBD SI TEMP CONTROL
30 2E-30303-18 6 SWTTOGON-OFFSPST1/4HP125V
31 2K-80100-24 1 MANIFLD FR 141 GRIDDLE 6’
32 2K-70101-03 3 BRASTBEELBOW 1/4NPT-3/8CC
33 2K-70101-06 2 BRASTEE BRNCH 1/4NPTM-3/8
34
2V-80501-04
1
GAS REG 3/4X3/4 CLS I NAT
2V-80501-05 GAS REG 3/4X3/4 CLS II LP
35 2J-80302-W1 2 IGNITOR ELECTRODE
36 2C-Z5883 18 10-24 X 1/2 FZA SCREW
37 K9-141-146 6 PROBE GUARD SUPPORT
38 2K-70101-51 2 BRASTBE ELBOW 1/4CCX1/4CC
39 M9-144-186 2 BRACKET-IGNITOR TUBE-CB
40 2F-80002-W19 2 TUBE - LIGHTER .25 DIA
2M-W2014: GAS ENVIROZONE SELECTRONIC GRIDDLE
Model: 272ZS-NAT & LP EnviroZone Selectronic Gas Griddle
Fig No. Part No Qty Description Application
41
2A-45408
6
ORIFICE-HOOD #42 GRID NAT 272ZS-NAT
2A-80400-12 ORIFICE HOOD .0595 #53 272ZS-LP
2A-80404-29 ORIFICE - #51 BLACK 272ZSD-LP
Y9-80400-18 ORIFICE HOOD .1065 #36 272ZSD-NAT
2A-W1185 ORIFICE FITTING - 90 DEG
42 2C-20102-08 36 SCRW PHD ST 8-32X.375
43 K9-141-156-W5 0 VALVE BRACKET LEFT
44 2C-20102-12 50 SCRW PHD ST 10-32X3/8
45 2K-45300 8 FITTING 3/8CC X 1/8NPT
46 2V-80502-W07 9 VALVE SOLENOID-1/8 NPT
47 2V-70402-06 2 VALVE PILOT 1/8NPTX1/4CC
48
K9-141-156-W4 4 VALVE BRACKET RIGHT
K9-141-156-W6 5 VALVE BRACKET-SHORT RIGHT
49 PS-60101-W16 3
KIT,IGN MOD REPLACMENT Z
MODELS, mfg before 3/2015
50 2J-80300-W20-1 3
PILOT IGNITION MODULE,w/o
brakcket, mfg after 2/2015
51 2E-31400-07 1 XFORMR120-208-240/24V40VA
52 K9-141-152-W2 1 24V XFMR BRACKET ASSY
53 2C-20301-11 2 NUT HEX 8-32 PLTD
NI 2C-20602-04 2 TINNERMAN SPD NUT 1/8 DIA
NI 2E-31107-02-W2 1 CORDSET 14/3 15A 120V 10’
NI 2K-Z4921 9 BURNER TUBE FLEX 3/8 OD
NI 2K-Z6943 2 GAS LINE 1/4”D x 8”L
NI 2M-61122-W64 AR WIRE DIAGRAM - 236ZS
STAR INTERNATIONAL HOLDINGS INC. COMPANY
Star - Holman - Lang - Wells - Bloomeld - Toastmaster
10 Sunnen Drive, St. Louis, MO 63143 U.S.A.
(314) 678-6303
www.star-mfg.com
