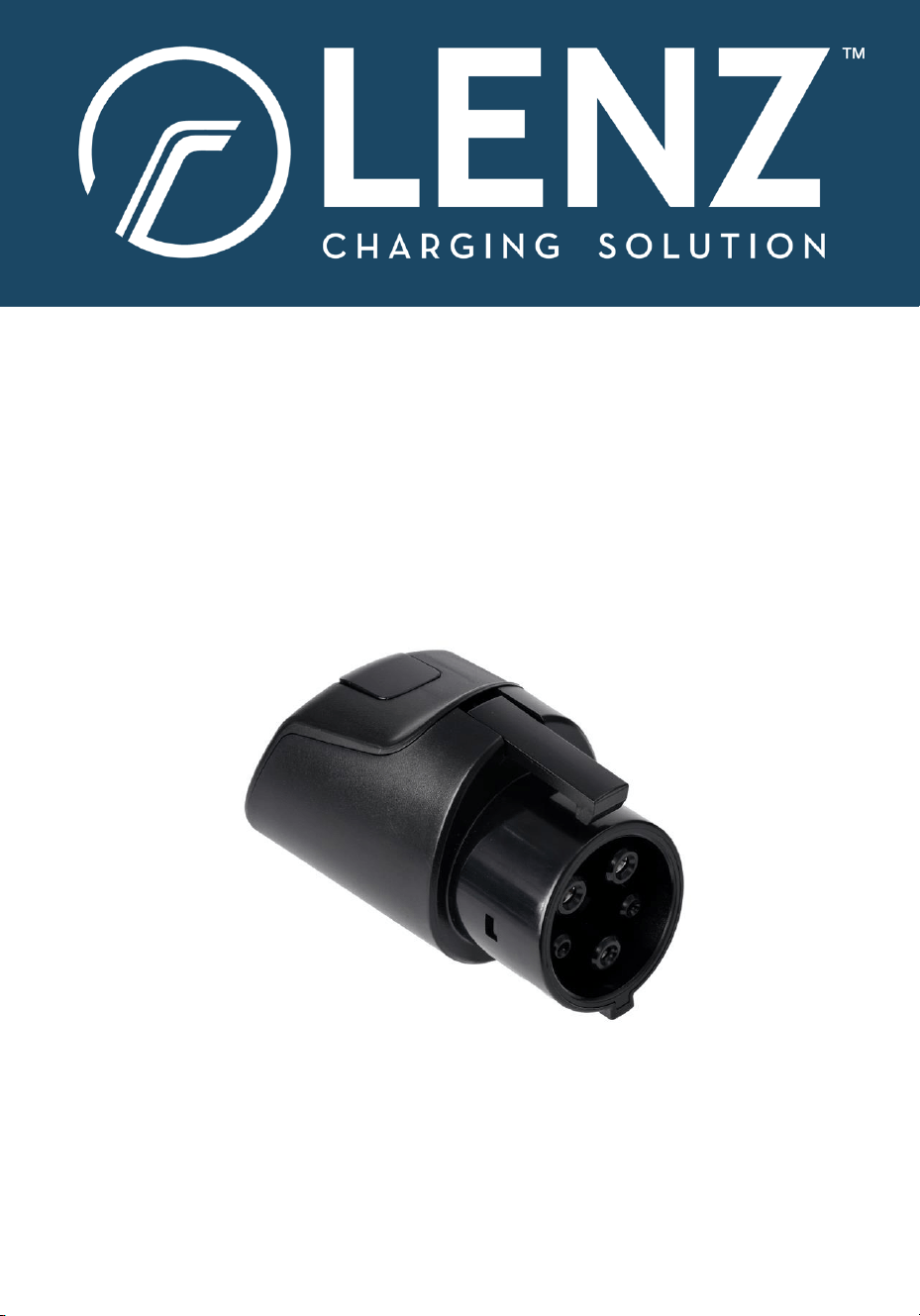

NACS to J1772 Adapter Gen 2
User Manual & Installation Guide
Model ADPT-12201
Includes IMPORTANT SAFETY INFORMATION. Read thoroughly before use.
v001
2
1.
Safety Information
Ensure the power output from Tesla Destination Charger does NOT
exceed 80A. Exceeding this limit could lead to overheating or damage to
the adapter or your vehicle.
After connecting the adapter to the Tesla Charger, we recommend
waiting at least 10 seconds before attaching the other end to your
J1772 electric vehicle. This delay allows the system to stabilize and
ensures a safe and proper connection.
Regularly inspect both the adapter and charging/connector ports to
identify any accumulated dirt or debris. When dirt or debris enters the
connection ports, there is a risk of overheating which can be
safeguarded by promptly removing dirt or debris using a compressed air
dispenser and electric cleaner, such as Deoxit® or WD-40® Specialist
Electrical Contact Cleaner.
DO NOT continue use if you observe any damage to connector ports or
pins.
DO NOT insert foreign objects into the port as this can cause damage
and pose a safety hazard.
ALWAYS utilize a connector that is UL / ETL / SGS certified. This
certification guarantees that the connector conforms to rigorous safety
and quality standards.
3
2.
Warnings
Thoroughly read this manual before using the LENZ Charging
Solutions adapter. Disregarding the instructions or neglecting the
provided warnings detailed in this document may lead to serious
hazards, including fire, electrical shock, or severe injury.
Under no circumstance should you attempt to open, disassemble,
repair, tamper with, or modify the LENZ Charging Solutions
adapter. Engaging in such actions not only risks damaging the
device but also increases the risk of electric shock or other harmful
consequences.
Avoid exposing the adapter to moisture or high temperatures.
Subjecting the adapter to these conditions may lead to
performance degradation, physical damage, and additional safety
concerns.
BEFORE EACH USE, inspect both adapter and charging ports to
identify any presence of dirt or debris. Adapter and charging port
connectors must be clean for safe usage and charging. DO NOT
use if either the adapter or the charging ports are damaged.
4
2.
Compatibility
3.
What’s in the box?
• NACS (formerly Tesla) High Power Wall Connector
• NACS (formerly Tesla) Destination Charger Gen 1, 2, and 3
• NACS (formerly Tesla) Mobile Charger Connector
1x GEN 2 NACS to J1772 Adapter
The most compact in its class, designed to connect your EV with J1772 charging port
to a NACS (formerly Tesla) charging stations, empowering you with a greater range of
charging options
5

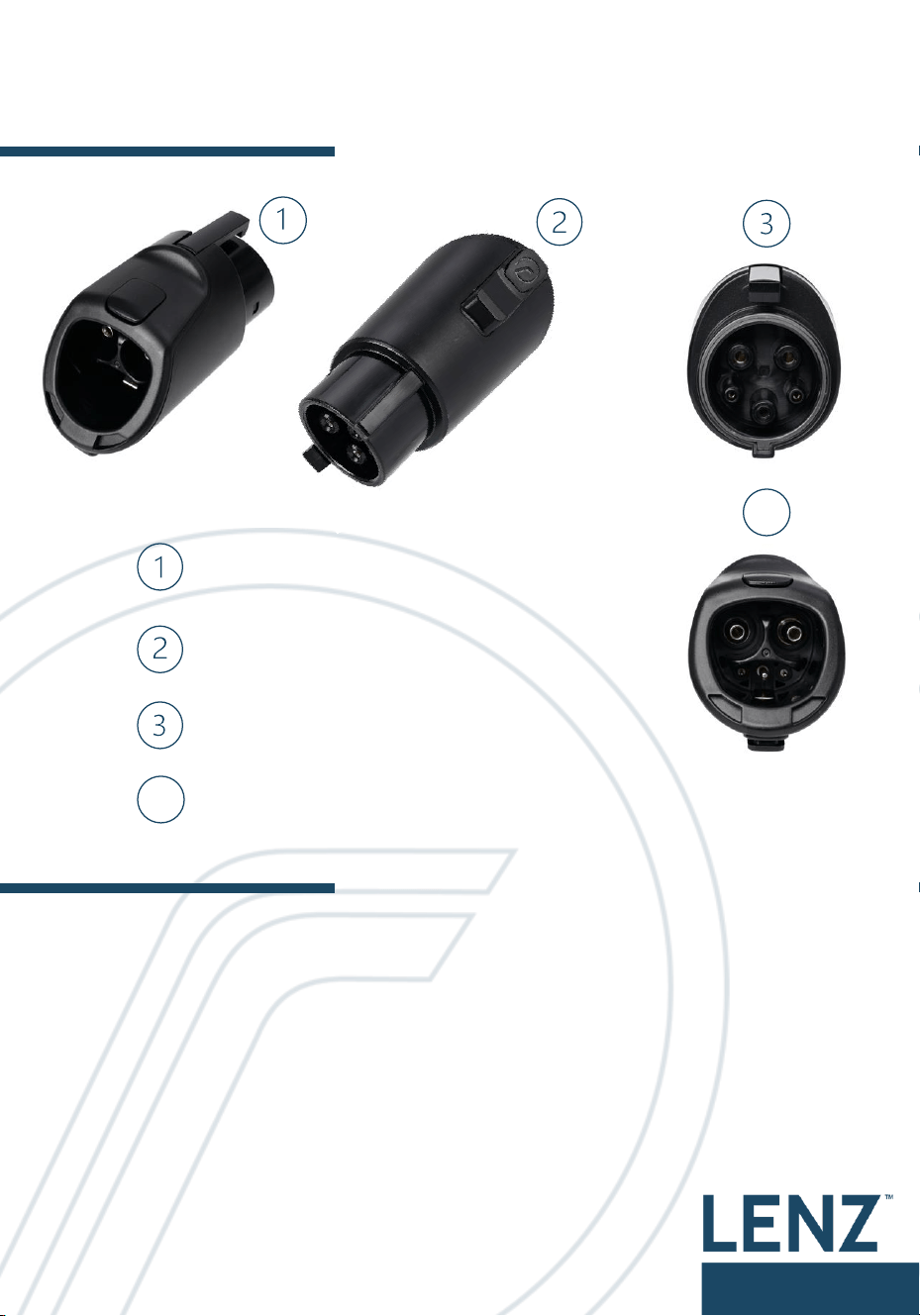

4.
Your adapter
J1772 Connector Locking Pin
SAE J1772 Connector (Male)
NACS (formerly Tesla) Plug (Female)
5.
Specifications
Voltage : Max 250 VAC
Current: Max 80A
Operating Temperature: -22°F to +122°F (-30℃ to 50℃)
Connector Port: NACS formerly known as Tesla
Charging Port: SAE J1772
Weight: 1.12 lbs
IP/NEMA Rating: IP 54
Certification: UL 2252 ETL Listed
4
NACS Connector Locking Pin
4
6
5.
Usage Guide
Step 1: Connect Adapter to Charger
- Connect your LENZ adapter to NACS (formerly Tesla) Charger
- After the connection is made, we recommend waiting 10 seconds before
proceeding to the next step. This pause ensures system stability and
promotes a safe connection.
Step 2: Connect the Adapter to your Vehicle
- Firmly plug in the LENZ adapter into your J1772-compatible electric
vehicle.
7
6.
FAQ
Q: What is the charging speed of the LENZ Adapter for my electric
vehicle (EV)?
A: Equipped with a maximum power output at 19.2 kW (80A, 240V), the LENZ
Adapter's actual charging time may vary based on following factors:
• Type of Tesla charger utilized
• The specific models of Tesla charging stations
• The unique specifications of J1772 EV models and their battery capacity
Q: Should the LENZ Adapter remain connected to the Tesla wall charger
when not in use?
A: We recommend detaching it post-use. This simple practice helps preserve
the adapter's performance and extend its lifespan.
Q: Is the LENZ Adapter water-resistant?
A: While the LENZ Adapter is IP54 rated for weather resistance, it's best to
keep it away from excessive moisture or water. Adopting such precautionary
measures can help maintain its performance and durability.
8
7.
Warranty & Support
Register your product today to extend your
warranty protection for an additional 6 months,
and stay informed on the latest and, sometimes,
critical updates. And get special offers! Scan
QR code to go to our registration page.
Headquarters
17 Hammond, Unit 401
Irvine, California 92618
USA
For additional information visit our website: www.lenzcharging.com
Contact us at info@lenzcharging.com
Made in China
Disclaimer
LENZ is not affiliated with Tesla Inc. The term 'Tesla' is a trademark of
Tesla Inc., used here only for compatibility description purposes.
