Wiring Diagrams . . . . . . . . . . . . . . . . . 11
Repair Parts Illustration . . . . . . . . . . . 12
Repair Parts List . . . . . . . . . . . . . . . 12-13
Troubleshooting Chart . . . . . . . . . . 14-15
Warranty Information . . . . . . . . . . . . . 16
Introduction
Please read this USER’S MANUAL
carefully. It will show you how to
assemble, maintain and operate this
heater safely and efficiently to obtain
the full benefits of its many features.
Consumer: Retain these instructions
for future reference.
Unpacking
1. Remove all packing items applied to
heater for shipment.
2. Remove all items from carton.
3. Check all items for shipping damage.
If heater is damaged, promptly
inform dealer where you purchased
heater.
General Safety Information
Indicates an im-
minently hazardous
situation which, if not avoided, WILL
result in death or serious injury.
Indicates a poten-
tially hazardous
situation which, if not avoided, COULD
result in death or serious injury.
Indicates a poten-
tially hazardous
situation which, if not avoided, MAY
result in minor or moderate injury.
Before using this
heater, please read
this USER’S MANUAL very carefully. This
USER’S MANUAL has been designed to
instruct you as to the proper manner in
which to assemble, maintain, store, and
most importantly, how to operate the
heater in a safe and efficient manner.
Dayton
®
Portable
Oil-Fired Heater
Operating Instructions & Parts Manual 3VE53A
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description
Dayton Model 3VE53A heater is a 400,000 BTU/Hr heater.
This heater use 1-K Kerosene (see Operation section for alternative fuels) for
combustion, and electricity to run the fan. It is primarily intended for temporary
heating of well ventilated buildings under construction, alteration, or repair. This
heater may be used in agricultural, industrial and commercial environments.
Specifications
ELECTRICAL SPECIFICATIONS
Electrical
Model Input Amperage Fuse Spark Plug Gap
3VE53A 120V, 60 Hz 2.8 250V/ 8 amp 0.1" (2.5mm)
GENERAL SPECIFICATIONS
Type of Pump Fuel Tank Fuel Size Weight
Model Fuel Input Rating Pressure Capacity Consumption L x W x H (Inches) Lbs. (kg)
3VE53A 1-K Kerosene 400,000 BTU/Hr 114 PSI 24 Gallons 3.0 Gal/Hr 53" x 30" x 36" 150 (68kg)
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
CUS
Figure 1 – Model 3VE53A
2
Dayton Operating Instructions and Parts Manual
Dayton
®
Portable Oil-Fired Heater
3VE53A
53" 30"
36"
Dimension
H 36”
L 53”
W 30”
Dimensions
Figure 3 – Model 3VE53A Features
Model 3VE53A
General Safety Information
(Continued)
Never leave the
heater unattended
while burning!
Improper use of this
heater can result in
serious injury or death from burns, fire,
explosion, electrical shock, and/or
carbon monoxide poisoning.
For optimal performance of this heater,
it is strongly suggested that 1-K kerosene
be used. 1-K kerosene has been refined
to virtually eliminate contaminants, such
as sulfur, which can cause a rotten egg
odor during the operation of the heater.
However, #1 or #2 fuel oil (diesel fuel)
may also be used if 1-K kerosene is not
available. Be advised that these fuels do
not burn as clean as 1-K kerosene, and
care should be taken to provide more
fresh air ventilation to accommodate
any added contaminants that may be
added to the heated space. Use of #1
or #2 fuel oil may result in more periodic
maintenance.
Risk of Indoor
Air Pollution!
- Use this heater only in well ventilated
areas! Provide at least a three square
foot (2,800 sq cm) opening of outside
air for every 100,000 BTU/hr of heater
rating.
- People with breathing problems should
consult a physician before using the
heater.

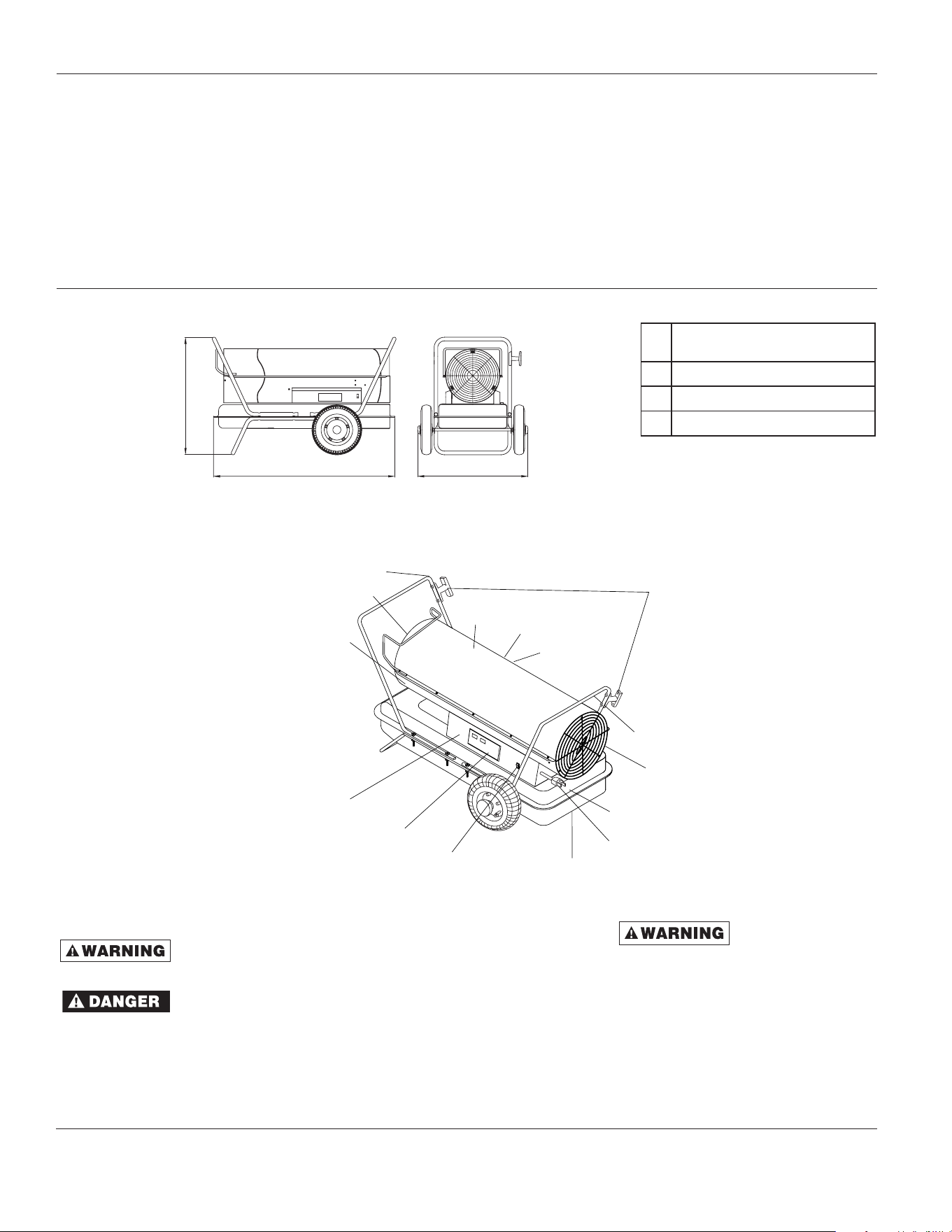

Figure 2 – Heater Dimensions
Product Features
Handle Front
Hot Air outlet
Lower Shell
Upper Shell
Fuel Cap
Fuel Gauge
Extension
Cord Wrap
Handle Rear
Fan Guard
Power Cord
Drain Bolt
Power/Reset Switch
Side Cover
Control Panel
Fuel Tank
3
®
General Safety Information
(Continued)
- Carbon Monoxide Poisoning: Early
signs of carbon monoxide poisoning
resemble flu-like symptoms such as
headaches, dizziness, and/or nausea. If
you have these symptoms, your heater
may not be working properly.
- Get fresh air at once! Have the heater
serviced. Some people are more affected
by carbon monoxide than others. These
include pregnant women, those with
heart or lung problems, anemia, or
those under the influence of alcohol,
or at high altitudes.
- Never use this heater in living or
sleeping areas.
Risk of Burns/Fire/
Explosion!
- NEVER use fuels such as gasoline,
benzene, paint thinners, or other oil
compounds in this heater (RISK OF
FIRE OR EXPLOSION).
- NEVER use this heater where flam-
mable vapors may be present.
- NEVER refill the heater’s fuel tank
while heater is operating or still hot.
This heater is EXTREMELY HOT while
in operation.
- Keep all combustible materials away
from this heater.
Minimum Clearances
Outlet 8 feet (250 cm)
Sides, Top and Rear 4 feet (125 cm)
- NEVER block air inlet (rear) or air outlet
(front) of heater.
- NEVER use duct work in front or at
rear of heater.
- NEVER move or handle heater while
still hot.
- NEVER transport heater with fuel in
its tank.
When used with optional thermostat
or if equipped with a thermostat, the
heater may start at any time.
- ALWAYS locate heater on a stable and
level surface.
- ALWAYS keep children and animals
away from heater.
- Use 1-K kerosene in this heater. #1 fuel
oil is a suitable substitute.
- Bulk fuel storage should be a minimum
of 25 ft. from heaters, torches, portable
generators, or other sources of ignition.
All fuel storage should be in accordance
with federal, state, or local authorities
having jurisdiction.
Risk of Electric
Shock!
- Use only the electrical power (voltage
and frequency) specified on the model
plate of the heater. Use only a three-
prong, grounded outlet and extension
cord.
- ALWAYS install the heater so that it is
not directly exposed to water spray,
rain, dripping water, or wind.
- ALWAYS unplug the heater when not
in use.
CALIFORNIA RESIDENTS:
This heater produces carbon
monoxide, which is listed by the State
of California as a reproductive toxin
under Proposition 65.
MASSACHUSETTS RESIDENTS:
Massachusetts state law prohibits
the use of this heater in any building
which is used in whole or in part for
human habitation. Use of this heating
device in Massachusetts requires
local fire dept. permit (M.E.L.C. 148,
Section 10A).
CANADIAN RESIDENTS:
Use of this heater shall be in accor-
dance with authorities having juris-
diction and CSA Standard B139.
NEW YORK CITY RESIDENTS:
For use only at construction sites in
accordance with applicable NYC codes.
Contact Dayton customer service for
NYCFD certificate of approval numbers.
Model 3VE53A
Dayton Operating Instructions and Parts Manual
4
Dayton Operating Instructions and Parts Manual
Dayton
®
Portable Oil-Fired Heater
3VE53A
Assembly
Model 3VE53A
Wheel Support Frame Yes
Wheels Yes
Cap-wheel Yes
Front-Handle Yes
Rear-Handle Yes
Axle Yes
Screws and Nuts Yes
Cotter Pin and Washer Yes
(Pneumatic)Wheels
(Black Rubber)Wheel Caps
Washers(L)Bushings Washers(S)
Screws and Nuts
Cotter Pin,
Cord Wrap, Screws and Nuts

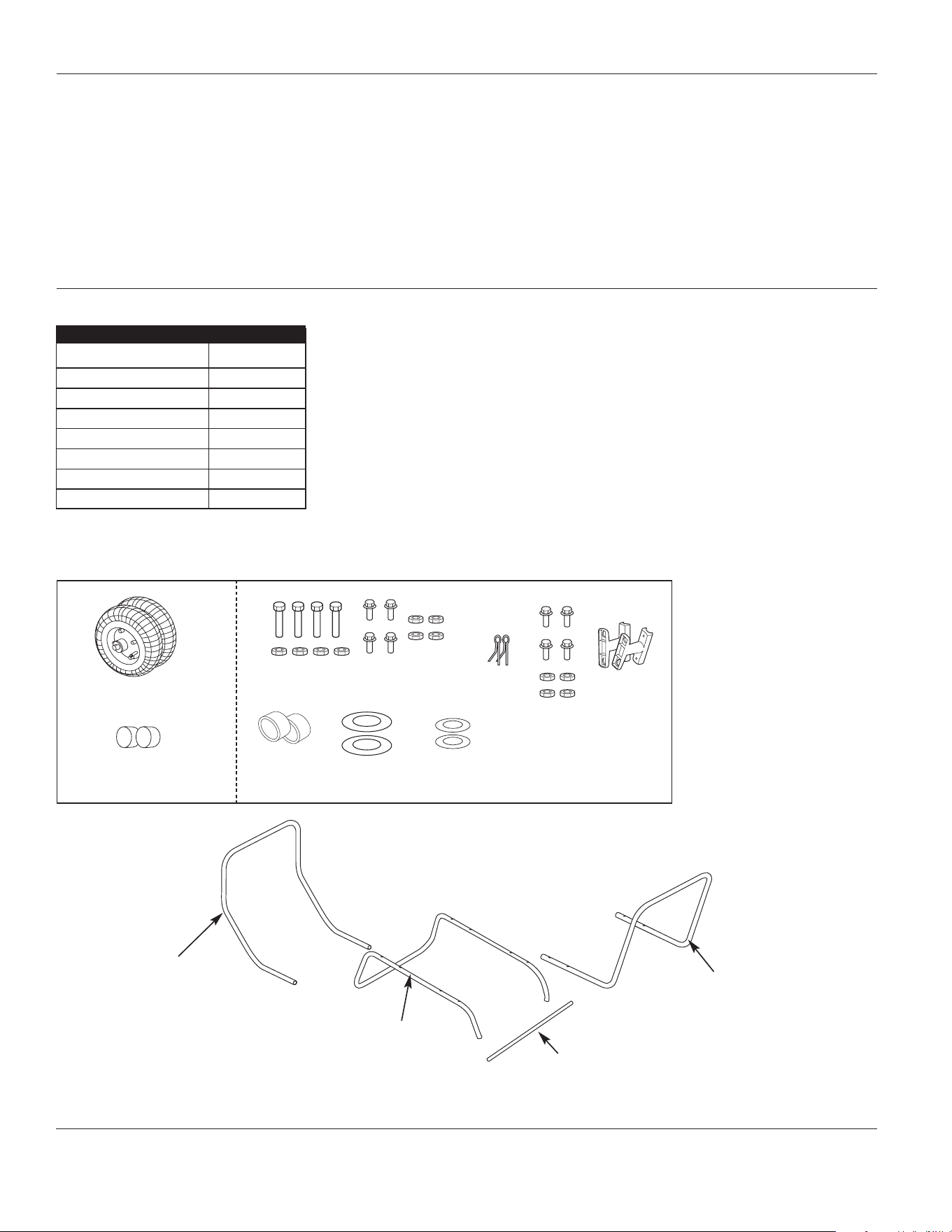

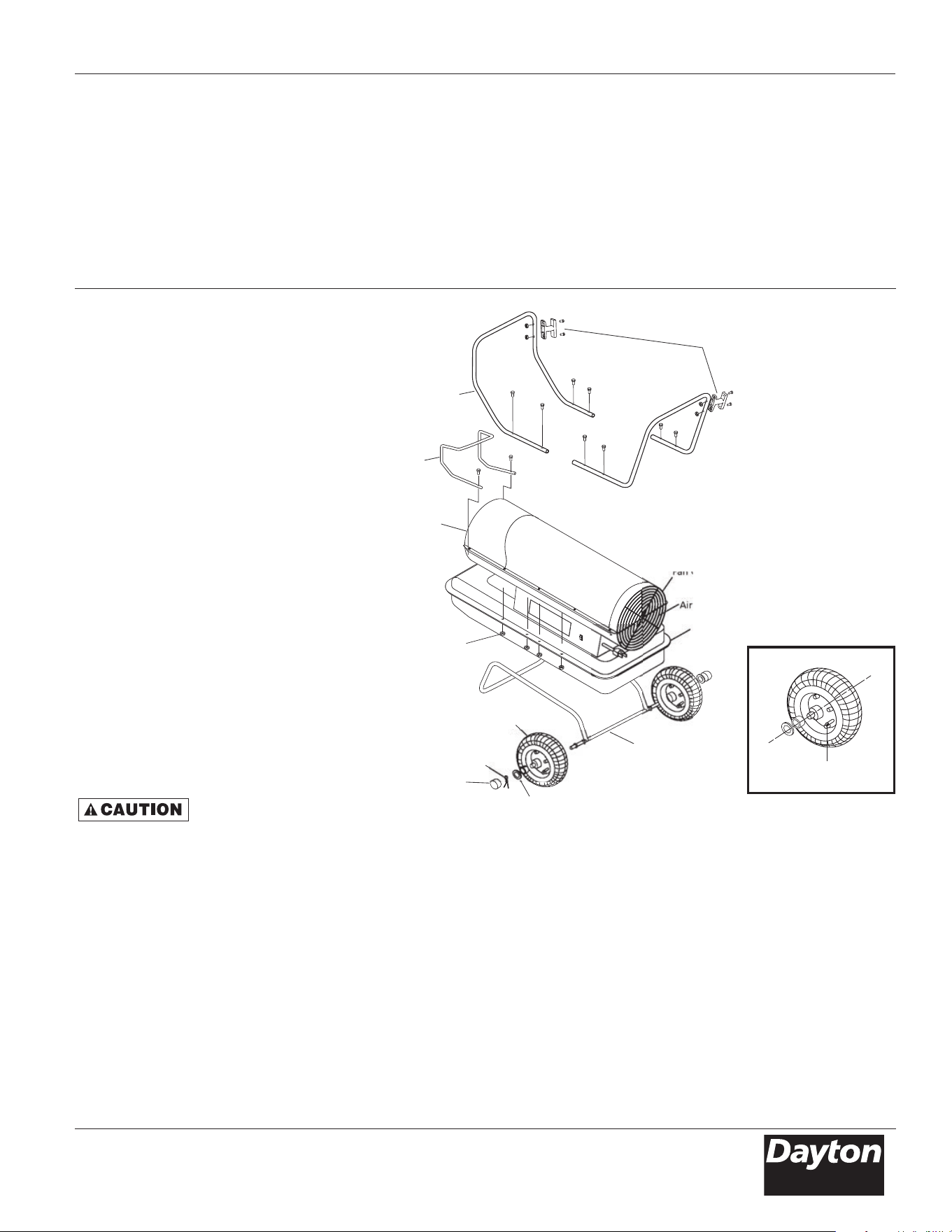

Figure 4 – Component Identification
Rear Handle
Front Handle
Wheel Bar
Wheel Support Frame
5
®
Assembly
TOOLS REQUIRED
• MEDIUM PHILLIPS SCREWDRIVER.
• OPEN OR ADJUSTABLE WRENCH, USE
US(INCH) SCREWS NUTS.
• LONG NOSE PLIERS.
ASSEMBLING WHEEL & HANDLE
1. Slide axle through wheel support
frame Install wheel bushings, flat
washers (S) and wheel on axle.
NOTE : When installing wheels, wheel
tube valve of wheels outward wheel
support frame (figure 5).
2. Place flat washers (L) and cotter pins
on axle ends and bend cotter pins
with long nose pliers to secure.
3. Place wheel cap on flat washers (L).
4. Place heater on wheel support frame.
Make sure air inlet end (rear) of
heater is over wheels. Align the holes
on fuel tank flange. Insert screws
through handles (front and rear), fuel
tank flange, and wheel support
frame as shown in Figure 5 and
attach nut finger tight after each
screw is inserted.
5. After all screws are inserted, tighten
nuts firmly.
Do not operate
heater without
support frame fully assembled to tank.
Operation
KEROSENE (1-K)
For optimal performance of this heater,
it is strongly suggested that 1-K kero-
sene be used. 1-K kerosene has been
refined to virtually eliminate contami-
nants, such as sulfur, which can cause a
rotten egg odor during the operation
of the heater. However, #1 or #2 fuel oil
(diesel fuel) may also be used if 1-K
kerosene is not available. Be advised
that these fuels do not burn as clean as
1-K kerosene, and care should be taken
to provide more fresh air ventilation to
accommodate any added contaminants
that may be added to the heated space.
NOTE: Kerosene should only be stored
in a blue container that is clearly
marked “kerosene”. Never store kero-
sene in a red container. Red is associ-
ated with gasoline.
- NEVER store kerosene in the living
space. Kerosene should be stored in a
well ventilated area outside the living
area.
- NEVER use fuel such as gasoline,
benzene, alcohol, white gas, camp
stove fuel, paint thinners, or other oil
compounds in this heater (THESE ARE
VOLATILE FUELS THAT CAN CAUSE A
FIRE OR EXPLOSION).
- NEVER store kerosene in direct
sunlight or near a source of heat.
- NEVER use kerosene that has been
stored from one season to the next.
Kerosene deteriorates over time. OLD
KEROSENE WILL NOT BURN PROPERLY
IN THIS HEATER.
Model 3VE53A
Dayton Operating Instructions and Parts Manual
H
a
n
d
l
e
Hot Air Outle
t
N
ut
Inl
et
Fan Guard
Cord wra
p
F
uel Tank Flan
ge
Axl
e
Safet
y
Guar
d
Wheel (pneumatic)
Flat Washer
(
B
)
Wheel Ca
p
Cotte
r Pi
n
Figure 5 – 3VE53A Assembly
Wheel Tube Valve
6
Operation (Continued)
- Use 1-K kerosene in this heater. #1 fuel
is a suitable substitute.
OVERVIEW OF HEATER DESIGN
Fuel System: This heater is equipped
with an electric magnet pump that
forces fuel through the fuel line
connected to the fuel intake, and then
through a nozzle in the burner head.
This fuel is then sprayed into the
combustion chamber in a fine mist.
Sure Fire Ignition: The electronic
ignitor sends voltage to a specially
designed spark plug. The spark plug
ignites the fuel and air mixture described
above.
The Air System: The heavy duty motor
turns a fan that forces air into and
around the combustion chamber. Here,
the air is heated and then forced out
the front of the heater.
THE SAFETY SYSTEM
Temperature Limit Control: This heater
is equipped with a Temperature Limit
Control designed to turn the heater off
should the internal temperature rise to
an unsafe level. If this device activates
and turns your heater off, it may require
service.
Once the temperature falls below the
reset temperature, you will be able to
start your heater.
Electrical System Protection: This
heater’s electrical system is protected
by a fuse that protects it and other
electrical components from damage. Fuse
is located inside of an in-line “FUSE
BARREL”. If your heater fails to operate,
check this fuse first and replace as needed.
Refer to Specification chart on page 1.
Flame-Out Sensor: Utilizes a photocell
to monitor the flame in burn chamber
during normal operation. It will cause
the heater to shut off should the burner
flame extinguish.
FUELING YOUR HEATER
Never fill the heater fuel tank in the
living space: fill the tank outdoors.
Do not overfill your heater and be sure
heater is level.
Never refill fuel tank
when heater is
operating or still hot.
IMPORTANT: REGARDING FIRST
IGNITION OF HEATER. The first time
you light the heater, it should be done
OUTDOORS. This allows the oils, etc.,
used in manufacturing heater to be
burned off outside.
VENTILATION
Risk of indoor air
pollution. Use heater
only in well ventilated areas.
Provide a fresh air opening of at least
three (3) square feet (2,800 sq. cm) for
each 100,000 BTU/Hr. rating. Provide
extra fresh air if more heaters are
being used.
TO START HEATER
1. Fill fuel tank with kerosene or No. 1
fuel oil.
2. Attach fuel cap.
3. Plug power cord into three-prong,
grounded extension cord. Extension
cord must be at least six feet long.
Extension Cord Wire Size Requirements
• 6 to 100 feet long, use 14 AWG
conductor.
• 101 to 200 feet long, use 12 AWG
conductor.
• 201 to 300 feet long, use 10 AWG
conductor.
• 301 to 400 feet long, use 8 AWG
conductor.
• 401 to 500 feet long, use 6 AWG
conductor.
4. Push the up and down arrow keys on
the control panel to adjust the
thermostat settings and flip the
power switch to "ON".
Then push “OPERATION SWITCH”.
Power indicator lamp and room
temperature display will light and
heater will start.
Dayton Operating Instructions and Parts Manual
Dayton
®
Portable Oil-Fired Heater
3VE53A
Combustion
Chamber
Fan Motor
Control Panel
Fuel Tank
MODEL
3VE53A
Internal Shut-Off Temp.
+/-10 Degrees
140°F/60°C
Reset Temp.
+/-10 Degrees
130°F/45°C
Figure 6 – Overview of Heater Design
7
®
Operation (Continued)
If heater does not start, the
thermostat setting may be too low.
Push "TEMP CONTROL UP ARROW"
to higher setting to start heater. If
heater still does not start, turn power
switch to “OFF” and then to “ON”
position (See Figure 7). If heater still
does not start, see Troubleshooting
Chart on page 15.
NOTE: The major electrical components
of this heater are protected by a
circuit breaker (fuse) mounted to the
power switch. If your heater fails to
start, check this first and replace as
necessary. You should also check
your power source to insure that
proper voltage and frequency are
being supplied to the heater.
TO STOP HEATER
Never unplug
heater while
heater is running.
Heater must go through cooling
cycle. The cooling cycle cools the
combustion chamber. Damage to
heater can occur if combustion
chamber is not cooled. Do not restart
heater until cooling cycle is complete.
1. Push “
TEMP CONTROL DOWN ARROW
”
to lowest temperature setting.
This will cause heater flame to go out.
The motor will continue to run during
the cooling cycle. This allows the fan
to cool the combustion chamber.
When the cooling cycle (approx.1
minute) is finished, the motor will
stop. Do not turn switch to “OFF” or
unplug heater until cooling cycle is
finished.
2. Push power switch to “OFF” and
unplug power cord.
3. To temporarily stop heater, set
thermostat at a temperature lower
than air around heater. Heater will
cycle back on if air temperature
around heater matches thermostat
setting.
TO RESTART HEATER
DO NOT restart
heater until
cooling cycle is finished.
The cooling cycle cools the combustion
chamber.
1. Wait until cooling cycle is finished
after stopping heater.
2. Repeat steps under TO START
HEATER.
ELECTRICAL OUTLET
Shock Hazard!
- Never plug in an appliance with more
than a 5amp rating into this outlet.
- Always keep outlet covered when
not in use.
- 250V 5amp max (non fused).
LONG-TERM STORAGE OF YOUR
HEATER

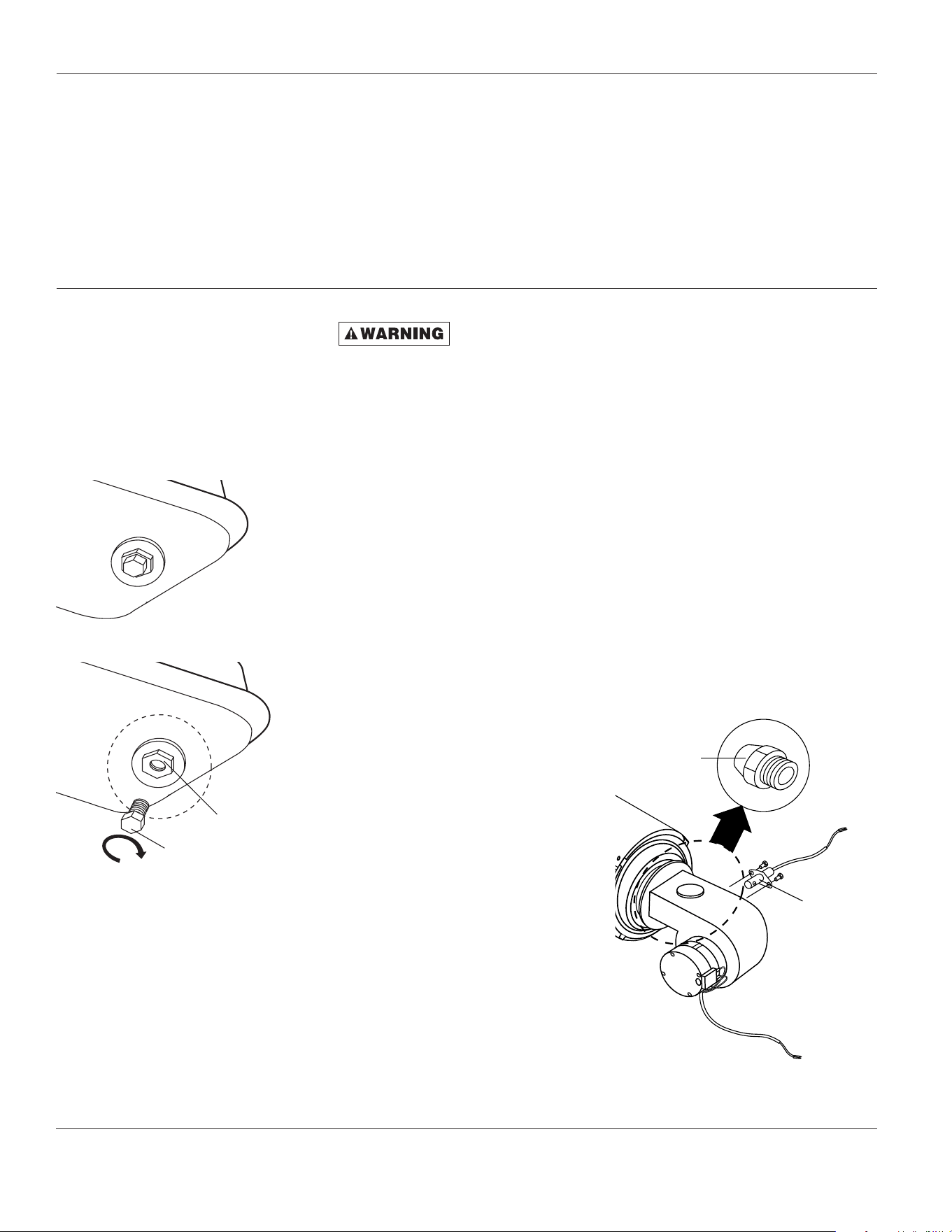

FUEL TANK DRAIN
1. Remove drain nut from rear bottom
side of fuel tank by unscrewing nut
and drain. See Figure 9.
2. Using a small amount of kerosene,
swirl and rinse the inside of the tank.
NEVER MIX WATER WITH KEROSENE,
as it will cause rust inside the tank.
Pour the kerosene out, making sure
that you remove it all.
IMPORTANT: Do not store kerosene
over summer for use during next
heating season. Using old fuel may
damage heater.
Model 3VE53A
Dayton Operating Instructions and Parts Manual
Operation Switch
Power Switch
Temp Control Buttons
Figure 7. CONTROL PANEL
Electrical Outlet
250V. 8A max
Drain Bolt
Figure 9 – Drain Bolt Removal
(Bottom-Front of Fuel Tank)
Figure 8 – Electrical outlet
8
Operation (Continued)
3. Reinstall drain bolt as follows.
- Insert bolt’s seal head fully into drain
hole so that flange is flush to tank’s
bottom. See Figure 10.
- Insert seal cap fully into head hole so
that cap flange is flush to head flange.
See Figure 10.
IMPORTANT: Reinstall bolt fully into
hole in tank; otherwise it will not seal
completely.
- Make sure storage place is free of dust
and corrosive fumes.
- Store the heater in the original box
with the original packing material and
keep USER’S MANUAL with heater.
Maintenance
Never service heater
while it is plugged in
or while hot!
USE ORIGINAL EQUIPMENT REPLACE-
MENT PARTS. Use of third-party or
other alternate components will void
warranty and may cause unsafe
operating conditions.
FUEL TANK
Flush every 200 hours of operation or as
needed (See Storage, page 7).
FAN BLADES
CLEAN EVERY SEASON OR AS NEEDED
- Remove upper shell (See Air Intake
Filter).
- Use Allen wrench to loosen set screw
which holds fan blade to motor shaft.
- Slip fan blade off motor shaft.
- Clean fan blade using soft cloth
moistened with kerosene or solvent.
- Dry fan blade thoroughly.
- Reinstall fan blade to motor shaft.
- Place fan blade hub flush with end of
motor shaft.
- Place set screw on flat of shaft.
- Tighten screw firmly (40-50 inch-
pounds/4.5-5.6 N-m). Reinstall
upper shell.
NOZZLE
Remove dirt in nozzle as needed
(See figure 12)
- Remove upper shell.
- Remove fuel line B from burner
assembly by using wrench.
- Remove burner head from burner
assembly.
- Remove lead wire from spark plug.
- Remove spark plug from burner head.
- Carefully remove nozzle from burner
head using socket wrench.
- Blow compressed air through face of
nozzle. (This will remove any dirt).
- Inspect nozzle for damage. If damaged
or clogged, replace nozzle.
- Make sure plug is in place on burner
head.
- Reinstall nozzle into burned head and
tighten firmly (175~200 inch-pounds).
- Reinstall spark plug in burner head.
- Attach burner head to combustion
chamber.
- Attach spark plug wire to spark plug.
- Attach fuel line to burner head tighten
firmly.
- Replace upper shell.
Dayton Operating Instructions and Parts Manual
Dayton
®
Portable Oil-Fired Heater
3VE53A

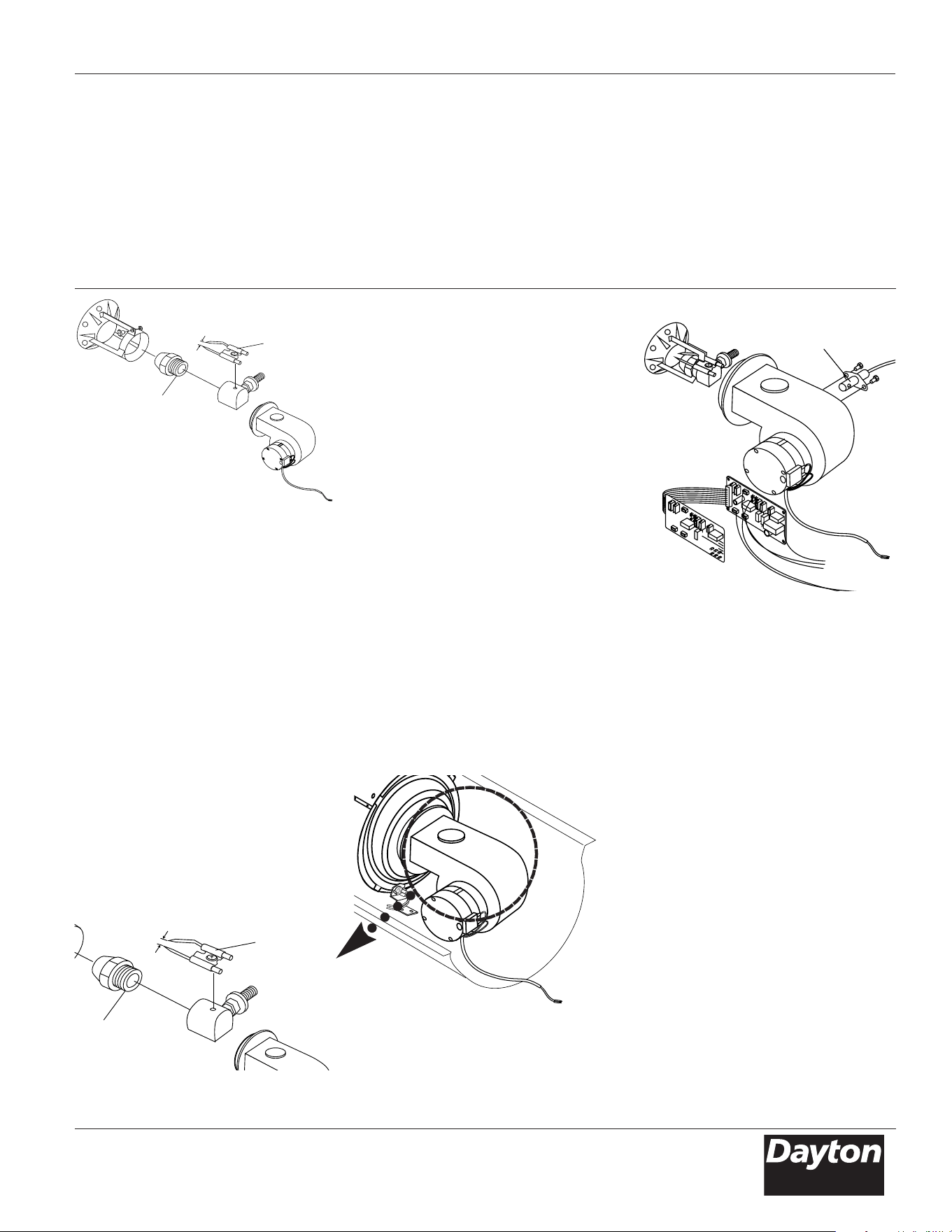

Photo Cell
Nozzle
Figure 11 – Nozzle Replacement
Figure 10 – Drain bolt Reinstall
(Bottom-Front of Fuel Tank)
Drain Bolt
Drain Nut
9
®
- Attach ignitor wire to spark plug.
Attach fuel and air line hoses to
burner head.
- Reinstall fan blade and upper shell.
SPARK PLUG
CLEAN AND REGAP EVERY 600 HOURS
OF OPERATION OR REPLACE AS
NEEDED.
- Remove upper shell.
- Remove spark plug wire from spark
plug (See Figure 13).
- Remove spark plug from burner head
using medium phillips screw driver.
- Clean and regap spark plug electrodes
to 0.1” (2.5mm) gap.
- Reinstall spark plug in burner head.
- Attach spark plug wire to spark plug.
- Reinstall upper shell.
- Remove upper shell.
- Remove fan (See Fan Blades).
- Remove photocell from its mounting
bracket.
- Clean photocell lens with cotton swab.
TO REPLACE: Remove side cover near
power switch.
- Disconnect wires from power switch
and remove side cover.
- Disconnect wires from circuit board
and remove photocell.
- Install new photocell and attach wires
to circuit board.
- Replace switch wires to power switch
and side cover.
- Replace fan and upper shell.
PHOTOCELL
CLEAN PHOTOCELL ANNUALLY OR AS
NEEDED.
Model 3VE53A
Dayton Operating Instructions and Parts Manual
Nozzle
Spark Plug
0.1"
Figure 12 – Nozzle
Nozzle
Spark Plug
0.1"
Figure 13 – Spark Plug Replacement
Figure 14 – Photocell Lead Wire
Photocell
Figure 15 – Photocell Replacement

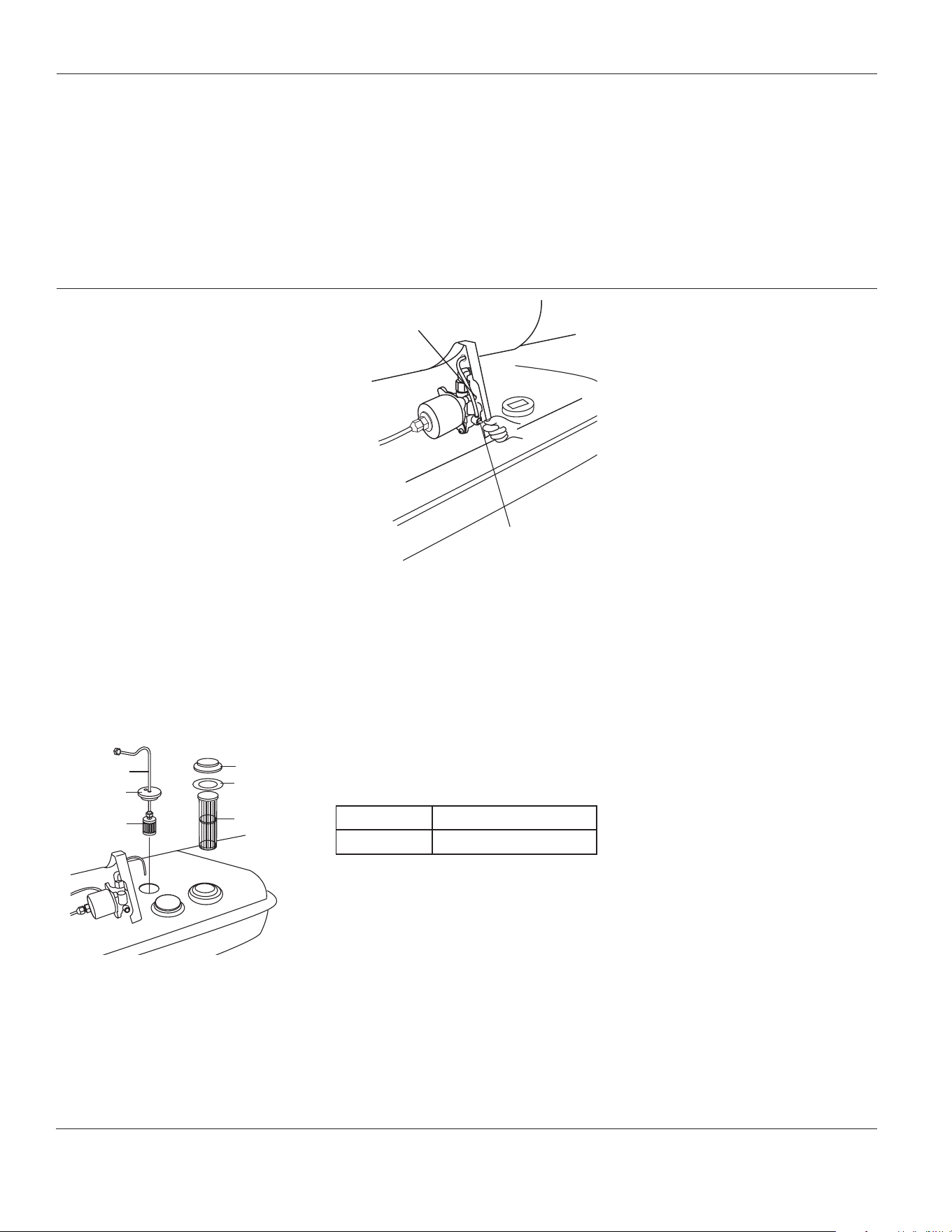

FUEL FILTER (See Figure 16)
CLEAN TWICE PER HEATING SEASON OR
AS NEEDED.
Fuel filter A on Fuel cap
- Remove fuel cap.
- Take out fuel filter with clean
kerosene.
- Wash fuel filter with clean kerosene.
- Replace fuel filter on fuel tank.
- Replace fuel cap on fuel tank.
Fuel filter B on fuel line
(See Figure 16)
- Remove fuel line A from fuel pump by
using wrench.
- Take out fuel line from Fuel tank by
pull out fuel filter gasket.
- Remove fuel filter assembly from fuel
line.
- Wash fuel filter in clean kerosene .
- Reassamble fuel filter in reverse order.
PUMP PRESSURE ADJUSTMENT
- Remove right side panel with screw
driver.
- Remove fuel line A from fuel pump by
using wrench.
- Replace pressure gauge at outlet of
fuel pump.
- Adjust pump pressure by turning
pressure adjusting screw.
- Turn relief valve clockwise to increase
pressure.
- Turn relief valve counterclockwise to
decrease pressure.
- Set pump pressure to correct pressure.
Model Pump Pressure
3VE53A 114PSI
We recommend pump pressure
adjusting is not needed if red
marking on pump body and
adjusting screw is fit each other.
NOTE: Use only original equipment
replacement parts. Use of alternate or
third party components will void any
warranty and may cause unsafe
operating conditions.
- Stop heater (See OPERATION, page 7).
If accessory pressure gauge is being
used, remove pressure gauge.
- Replace pressure gauge, and plug in
end of filter cover.
NOTE: USE ONLY ORIGINAL EQUIPMENT
REPLACEMENT PARTS. Use of alternate
or third party components will void
warranty and may cause an unsafe
operating condition.
NOTE: If heater does not ignite when
START SWITCH IS SWITCHED, please turn
AIR VENT SCREW to counter clockwise to
release air, then flip POWER SWITCH
back on.
10
Dayton Operating Instructions and Parts Manual
Dayton
®
Portable Oil-Fired Heater
3VE53A
Fuel Line A
Fuel Line A
Gasket
Fuel Filter B
Fuel Cap
Fuel Cap
Gasket
Fuel Filter A
Figure 16 – Remove Tank Fuel Filter
Air vent Screw
Pressure adjusting Screw
Figure 17-Pump Pressure Adjustment
11
®
Model 3VE53A
Dayton Operating Instructions and Parts Manual
Wiring Diagrams
12
1
2
3
5
6
49
7
8
9
10
12
11
19
18
30
29
28
27
13
14
15
16
31
34
40
33
32
37
38
39
36
41
35
42
43
4
46
44
45
48
20
21
22
23
24
25
26
47
17
18
1 Upper Shell 70-001-1401 1
2 Chamber Ass'y 70-011-0600 1
3 Lower Shell 70-001-1402 1
4 Baffle Bracket Rear 70-001-0608 4
5 Fuel Tank Ass'y 70-002-0400 1
6 Right Side Cover 70-008-0500 1
7 PCB Case Lower 70-027-0702 1
8 PCB Case Upper 70-027-0703 1
9 Main PCB Ass'y 70-027-0700 1
10 Power Switch 70-038-0100 1
Ref. No. Description PART No. QTY Ref. No. Description PART No. QTY
Repair Parts List for Portable Oil-Fired Heater
For Repair Parts, call 1-800-323-0620
24 hours a day – 365 days a year
Please provide following information:
-Model number
-Serial number (if any)
-Part description and number as shown in parts list
Address parts correspondence to:
Grainger Parts
P.O. Box 3074
1657 Shermer Road
Northbrook, IL 60065-3074 U.S.A.
Dayton Operating Instructions and Parts Manual
3VE53A
Figure 19 – Repair Parts Illustration for Model 3VE53A
13
®
Model 3VE53A
Dayton Operating Instructions and Parts Manual
11 Bushing Grommet(S) 70-017-0200 5
12 Fuel Cap Ass'y 70-006-0200 1
13 Fuel Filling Filter 70-006-0300 1
14 Fuel Line Ass'y(A) 70-036-0700 1
15 Fuel Gauge Ass'y 70-007-0300 1
16 Magnet Pump Ass'y 70-020-0700 1
17 Ignitor 70-037-0700 1
18 Cord Bushing 70-033-0200 1
19 Power Cord Ass'y 70-034-0300 1
20 Wheel Support Frame 70-064-0100 1
21 Wheel Axle 70-041-0303 1
22 Pneumatic Wheel 70-041-0110 2
23 Split Pin 70-041-0107 2
24 Wheel Bushing 70-041-0109 2
25 Flat Washer(A) 70-041-0105 2
26 Wheel Cap 70-041-0104 2
27 Fan Guard 70-016-0300 1
28 Left Side Cover 70-009-0500 1
29 Socket Cover 70-030-0100 1
30 Electric Outlet Ass'y 70-029-0100 1
31 Bushing Grommet(L) 70-018-0200 1
32 Thermostat 70-019-0500 1
33 Thermostat Bracket 70-019-0501 1
34 Rubber Bushing 70-018-0300 1
35 Burner Blower Fan Ass'y 70-063-0300 1
36 Photocell Ass'y 70-016-0150 1
37 Air Control Head Ass'y 70-014-0701 1
38 Spark Plug 70-052-0400 1
39 Nozzle 70-015-0700 1
40 Burner Motor Ass’y 70-063-0200 1
41 Fan Fixing Screw M8x8 - 1
42 Fan Ass'y 70-024-0700 1
43 Air Motor Ass'y 70-021-0700 1
44 Motor Supporter 70-020-0407 1
45 Safety Guard 70-065-0100 1
46 Front Handle 70-042-0300 1
47 Rear Handle 70-043-0300 1
48 Cord Wrap 70-032-0200 2
49 Drain Bolt 70-036-0802 1
Ref. No. Description PART No. QTY Ref. No. Description PART No. QTY
Repair Parts List for Portable Oil-Fired Heater
Symptom Possible Cause(s) Corrective Action
Heater ignites but Main PCB
Assembly shuts heater off
after a short period of time
(Lamp is flickering)
Heater will not ignite, but
motor runs for a short
period of time (Lamp is
flickering)
Fan does not turn when
heater is plugged in and
Power Switch is in the ON
position (Lamp is on or
flickering)
1. Wrong pump pressure
2. Dirty Fuel Filter
3. Dirt in Nozzle
4. Dirty Photocell Lens
5. Photocell Assembly not properly installed
(not seeing flame)
6. Bad electrical connection between
photocell and Main PCB Assembly
7. Bad Photocell
1. No fuel in tank
2. Wrong pump pressure
3. Carbon deposits on Spark Plug and/or
improper gap
4. Dirty Fuel Filter
5. Dirt in Nozzle
6. Water in Fuel Tank
7. Poor electrical connection between ignitor
and Main PCB Assembly
8. Ignitor Wire not attached to Spark Plug
9. Defective Ignitor
1. Thermostat setting too low
2. Poor electrical connection between Motor
and Main PCB Assembly
1. Switch Failure
2. Short circuit
1. See Pump Pressure Adjustment,
Page 10
2. See Fuel Filter, Pages 10
3. See Nozzle, Page 8
4. Clean Photocell Lens, Page 9
5. Make sure Photocell Boot is properly
seated in bracket, Page 9
6. Check electrical components (See wiring
diagrams, Page 11)
7. Replace Photocell, Page 9
1. Fill tank with kerosene
2. See Pump Pressure Adjustment,
Page 10
3. See Spark Plug, Pages 9
4. See Fuel Filter, Pages 10 and 10
5. See Nozzle, Page 8
6. Flush Fuel Tank with clean kerosene
7. Check electrical connections (See wiring
diagrams, Page 11)
8. Attach Ignitor Wire to Spark Plug. See
Spark Plug, Pages 9
9. Replace Ignitor
1. Adjust Thermostat to a higher setting.
2. Check electrical connections (See wiring
diagrams, Page 11)
1. Replace Switch
2. Check wiring and connection
Troubleshooting Chart
E1
E1
E1 or E2
E3
Dayton Operating Instructions and Parts Manual
Dayton
®
Portable Oil-Fired Heater
3VE53A
14
15
®
Model 3VE53A
Dayton Operating Instructions and Parts Manual
Symptom Possible Cause(s) Corrective Action
Other Problems
Sensor disconnected
Overheating
1. Poor Combustion
- Flames extending beyond heater
- Low heat out
2. Power failure
- No power supply to heater
1. Check limit control thermostat
2. Check sensor connection
1. Wait until unit cool down
1. Poor Combustion
- Align a red mark between the screw and
pump body
2. Power failure
- Check / Replace fuse
Troubleshooting Chart
E4
E5
LIMITED WARRANTY
DAYTON ONE-YEAR LIMITED WARRANTY. Dayton
®
Portable Oil-Fired Heaters, Models covered in this manual, are
warranted by Dayton Electric Mfg. Co. (Dayton) to the original user against defects in workmanship or materials under
normal use for one year after date of purchase. Any part which is determined to be defective in material or workmanship
and returned to an authorized service location, as Dayton designates, shipping costs prepaid, will be, as the exclusive remedy,
repaired or replaced at Dayton’s option. For limited warranty claim procedures, see PROMPT DISPOSITION below. This limited
warranty gives purchasers specific legal rights which vary from jurisdiction to jurisdiction.
LIMITATION OF LIABILITY. To the extent allowable under applicable law, Dayton’s liability for consequential and incidental
damages is expressly disclaimed. Dayton’s liability in all events is limited to and shall not exceed the purchase price paid.
WARRANTY DISCLAIMER. Dayton has made a diligent effort to provide product information and illustrate the products in
this literature accurately; however, such information and illustrations are for the sole purpose of identification, and do not
express or imply a warranty that the products are MERCHANTABLE, or FIT FOR A PARTICULAR PURPOSE, or that the products
will necessarily conform to the illustrations or descriptions. Except as provided below, no warranty or affirmation of fact,
expressed or implied, other than as stated in the “LIMITED WARRANTY” above is made or authorized by Dayton.
PRODUCT SUITABILITY. Many jurisdictions have codes and regulations governing sales, construction, installation, and/or use
of products for certain purposes, which may vary from those in neighboring areas. While Dayton attempts to assure that its
products comply with such codes, it cannot guarantee compliance, and cannot be responsible for how the product is installed
or used. Before purchase and use of a product, review the product applications, and all applicable national and local codes
and regulations, and be sure that the product, installation, and use will comply with them.
Certain aspects of disclaimers are not applicable to consumer products; e.g., (a) some jurisdictions do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you; (b) also,
some jurisdictions do not allow a limitation on how long an implied warranty lasts, consequentially the above limitation may
not apply to you; and (c) by law, during the period of this Limited Warranty, any implied warranties of implied merchant-
ability or fitness for a particular purpose applicable to consumer products purchased by consumers, may not be excluded
or otherwise disclaimed.
PROMPT DISPOSITION. Dayton will make a good faith effort for prompt correction or other adjustment with respect to any
product which proves to be defective within limited warranty. For any product believed to be defective within limited
warranty, first write or call dealer from whom the product was purchased. Dealer will give additional directions. If unable to
resolve satisfactorily, write to Dayton at address below, giving dealer’s name, address, date, and number of dealer’s invoice,
and describing the nature of the defect. Title and risk of loss pass to buyer on delivery to common carrier. If product was
damaged in transit to you, file claim with carrier.
Manufactured for Dayton Electric Mfg. Co., 5959 W. Howard St., Niles, Illinois 60714 U.S.A.
Dayton Operating Instructions and Parts Manual
Dayton
®
Portable Oil-Fired Heater
3VE53A
Manufactured for Dayton Electric Mfg. Co.,
Niles, Illinois 60714 U.S.A.
®
