RS
8
ELECTRONIC DRUM RACK
RACK DE BATTERIE ÉLECTRONIQUE
RACK DE BATERIA ELECTRONICA
電子ドラムラック
Owner’s Manual
Benutzerhandbuch
Mode d’emploi
Manual do Proprietário
取扱説明書
⭫啉᭥
EnglishDeutschFrançais
Português
JA
ZH
FR
DE
EN PT
2
RS8 Owner’s Manual
English
Before using, read this manual, and use this product in a safe and proper manner.
* After reading this Owner’s Manual, ensure that it is kept in a safe, convenient location for future reference.
NOTICE
• Do not place heavy objects on the product. It can result in damage.
• Do not use or keep the product in places with extremely high temperature (places in direct sunlight, close to a heater, in a
closed car, etc.) or high humidity (bathroom, outside on a rainy day, etc.). Doing so can result in deformation, discolor-
ation, damage or deterioration.
• When cleaning the product, use a soft and dry/slightly damp cloth. Do not use paint thinners, solvents, alcohol, cleaning
fluids, or chemical-impregnated wiping cloths.
INFORMATION
• The illustrations as shown in this manual are for instructional purposes only, and may appear somewhat different from
those on your product.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective
companies.
PRECAUTIONS
WARNING
If this symbol is ignored and the equipment is used improperly, fatal injury to
persons or serious damage could occur.
• Do not put burning items, such as candles, near the unit. A burning item may fall over and cause a fire.
CAUTION
If this symbol is ignored and the equipment is used improperly, there is a danger
or injury to persons handling the equipment, and material damage could occur.
• Assemble this product in the proper sequence by following the assembly instructions in this manual. Also, make sure
to tighten the bolts regularly. Failure to do so might result in damage to the product or even injury.
• Do not let small children assemble or set up this product by themselves, or they can be injured. Always assemble this
product with adult supervision.
• Be careful with the edges of the cymbal holders and the tom holders. The sharp holder ends can result in injury.
• Be sure to securely tighten bolts and other fasteners when setting up this product. In addition, be sure to proceed
slowly when loosening bolts. If this precaution is not observed, pads can fall off or the rack can collapse or fall over,
possibly causing injury.
• Do not place the product in an unstable position where it might accidentally fall over.
• Do not alter the product. Doing so can result in injury or damage/deterioration to the product.
• Do not sit or step on the rack. The rack can overturn or be damaged, resulting in injury.
• Be careful with your fingers and hands when adjusting clamps, to prevent them from becoming pinched and injured.
• Be careful around pipe ends and inside. Metal shavings, etc. can injure your fingers and hands.
• Do not attach acoustic drums to the electronic drum rack. Clamps can be damaged and drums can drop, causing
injury.
• Keep small parts out of the reach of infants. Your children may accidentally swallow them.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the product.
Precautions
3
RS8 Owner’s Manual
Thank you for purchasing the Yamaha ELECTRONIC DRUM RACK RS8. This electronic drum rack can be
used in your home or a studio, or onstage for live performances.
For proper assembly and safe use, read this manual carefully before using it. After you have read the manual,
keep it in a safe and handy place for future reference.
Precautions .................................................................. 2
Package Contents........................................................ 4
Specifications............................................................... 4
Assembling the Rack ................................................... 6
Contents
4
RS8 Owner’s Manual
After opening up the package containing your electronic drum rack, verify that all of the following
components are present.

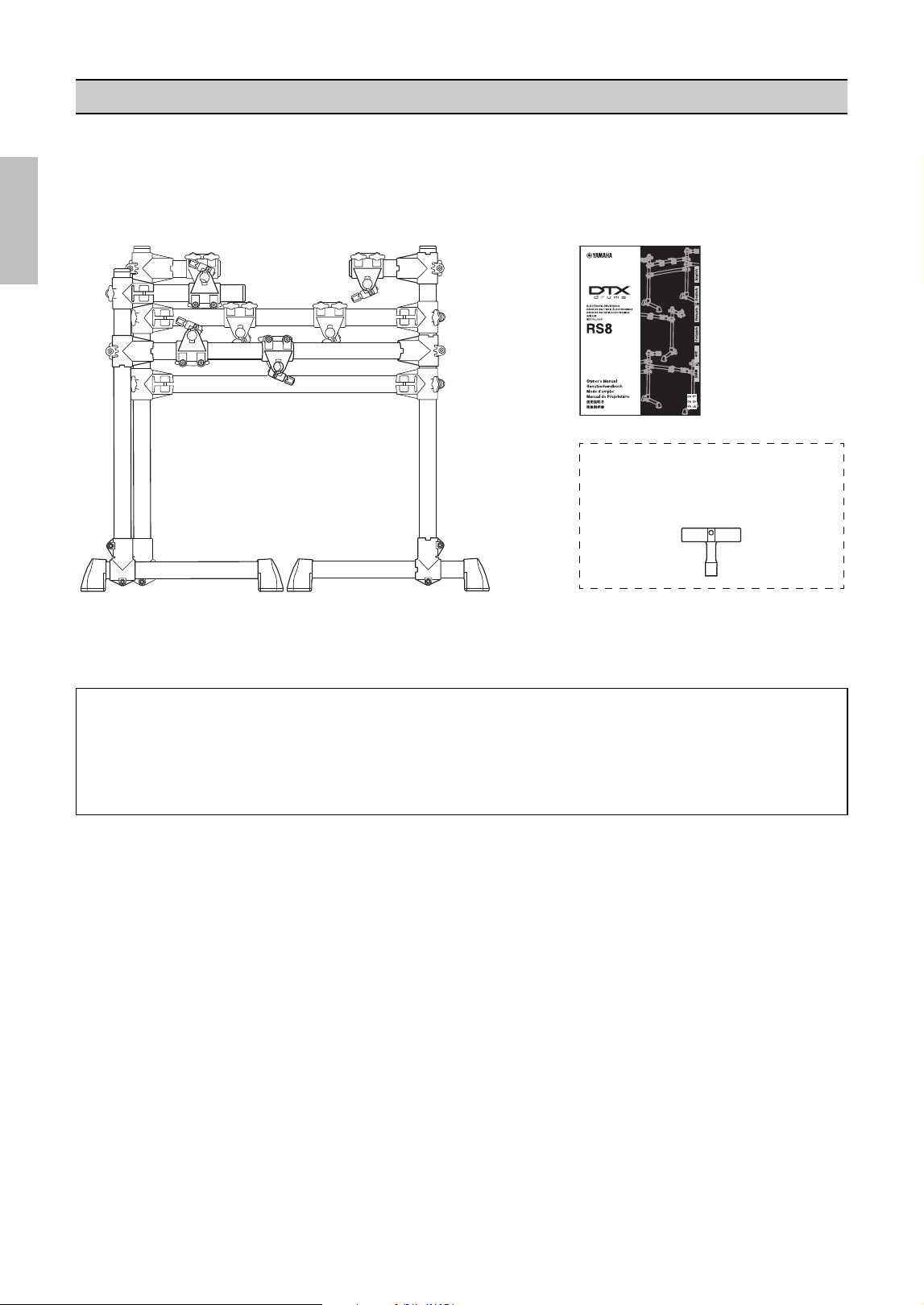

Package Contents
Specifications
Weight: 7.5 kg
*: The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the
Yamaha website then download the manual file. Since specifications, equipment or separately sold accessories may not be the
same in every locale, please check with your Yamaha dealer.
Main frame (×1) Owner’s Manual
(this booklet)
NOTE
The drum key used for assembling the
rack can be found in the pad set package.
5
RS8 Owner’s Manual

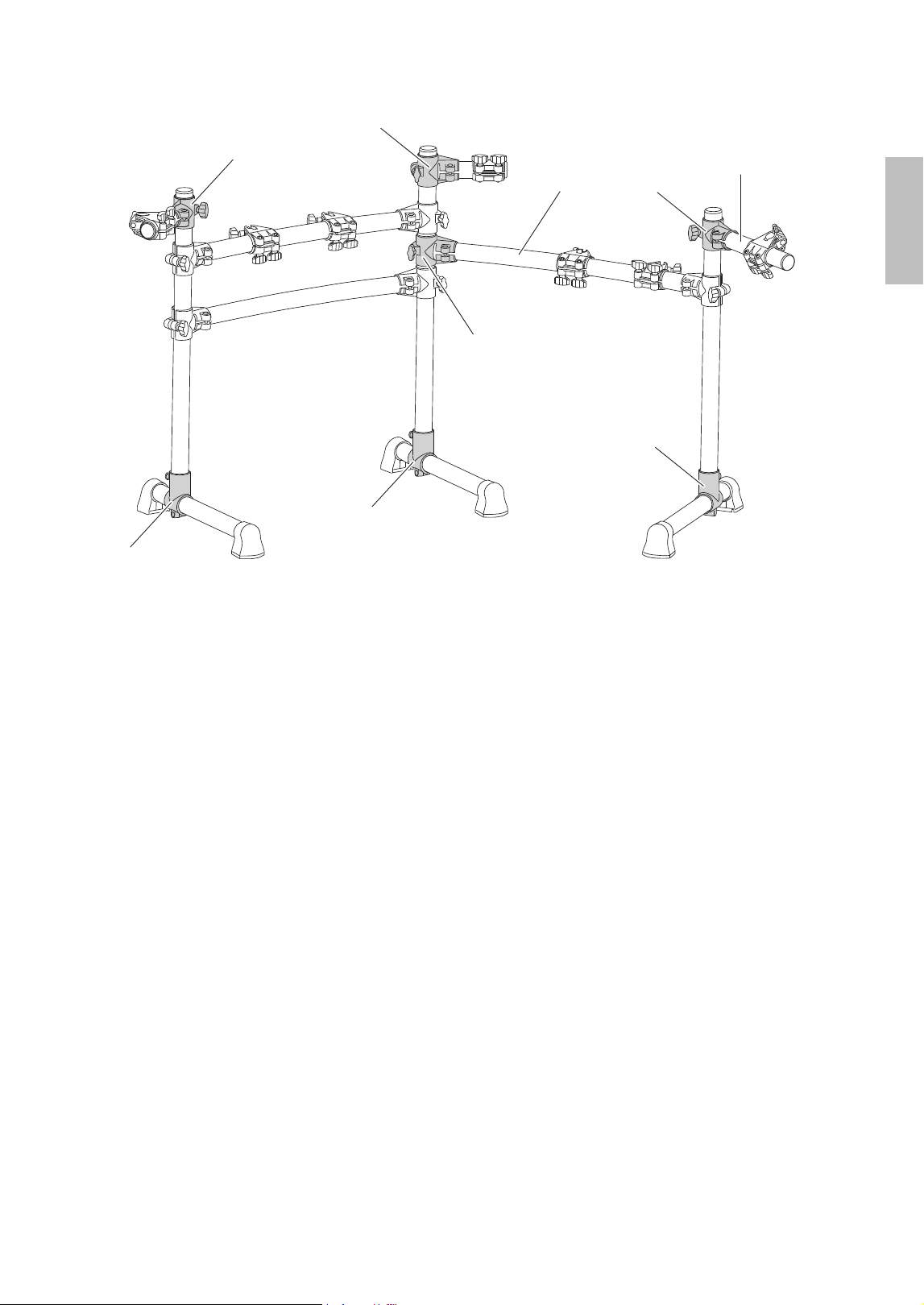

Fully-assembled rack
Clamp y
Clamp w
Right arm
Clamp q
Clamp u
Clamp t
Clamp e
Drum trigger
module arm
Clamp r
6
RS8 Owner’s Manual

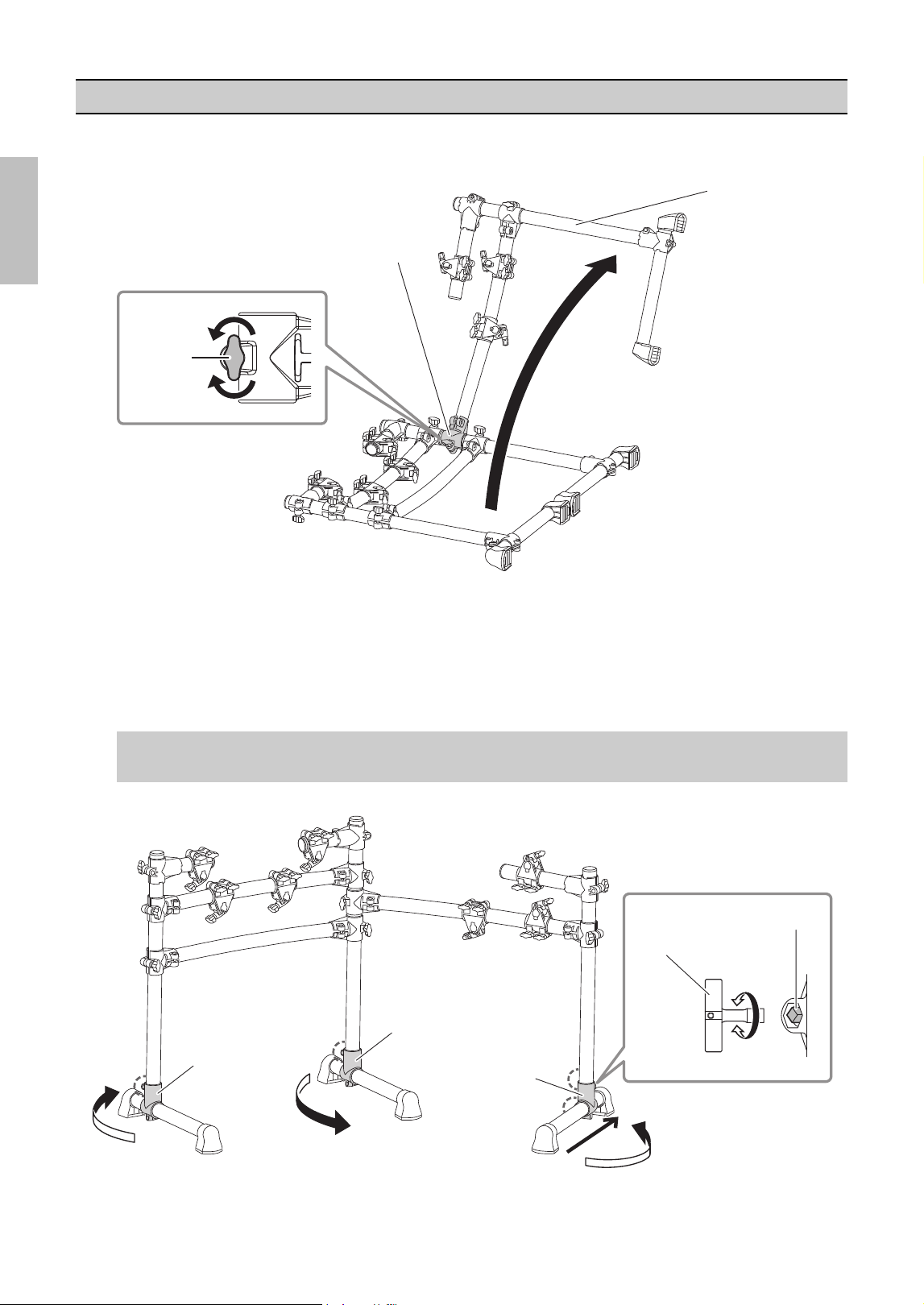

1. Lay the main frame down on a solid, level surface and loosen the clamp q bolt, open the right arm, and
then tighten the bolt again so it is secure.
2. Stand the main frame on a flat, level surface.
If the raised main frame wobbles when you shake it, check for loose bolts and tighten them.
3. Loosen the four key bolts in clamps w, e, and r using the drum key, open the legs and adjust the
position, and then tighten the key bolts again so they are secure.
Assembling the Rack
NOTE
The drum key can be found in the pad set package.
Clamp q
Bolt
Right arm
Loosen
Tighten
Clamp w
Clamp e
Clamp r
Key bolt
Drum key
Loosen
Tighten
7
RS8 Owner’s Manual

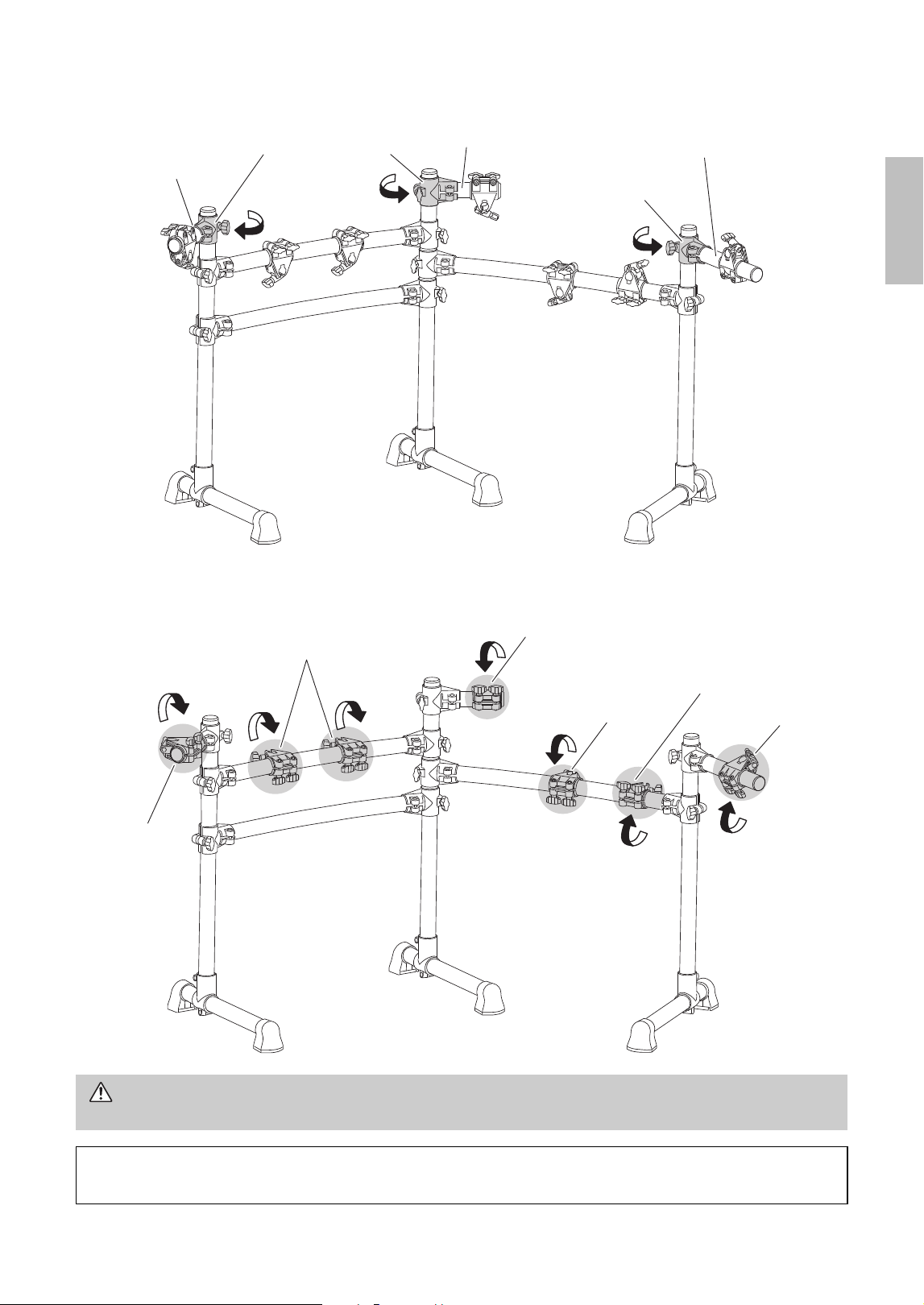

4. Loosen the clamp t, y and u bolts, adjust the position of the cymbal arms and the drum trigger mod-
ule arm, and then tighten the bolts again so they are secure.
5. Loosen the bolts on the following seven clamps (i to !4) and rotate the clamps, and then tighten the
bolts again so they are secure.
CAUTION
Make sure to tighten the bolts regularly. Failure to do so might result in damage to the product or even injury.
Your electronic drum rack is now ready. For instructions on assembling the pads and the drum trig-
ger module, refer to the Assembly Manual that came with the pad set package.
Clamp y
Clamp u
Clamp t
Cymbal arm
Cymbal arm
Drum trigger module arm
!2
!3
!4
o
!0
!1
i
Cymbal clamp
Tom clamps
Drum trigger
module clamp
Cymbal clamp
To m c la mp
Cymbal clamp
MEMO
