USER MANUAL
What’s in the box?
1. Speaker*1
2. Type-C to Type-C charging cable *1
3. Desiccant*1
MADE IN CHINA
FCC ID: 2BCGV0049
IC: 31955-00016 HVIN:016

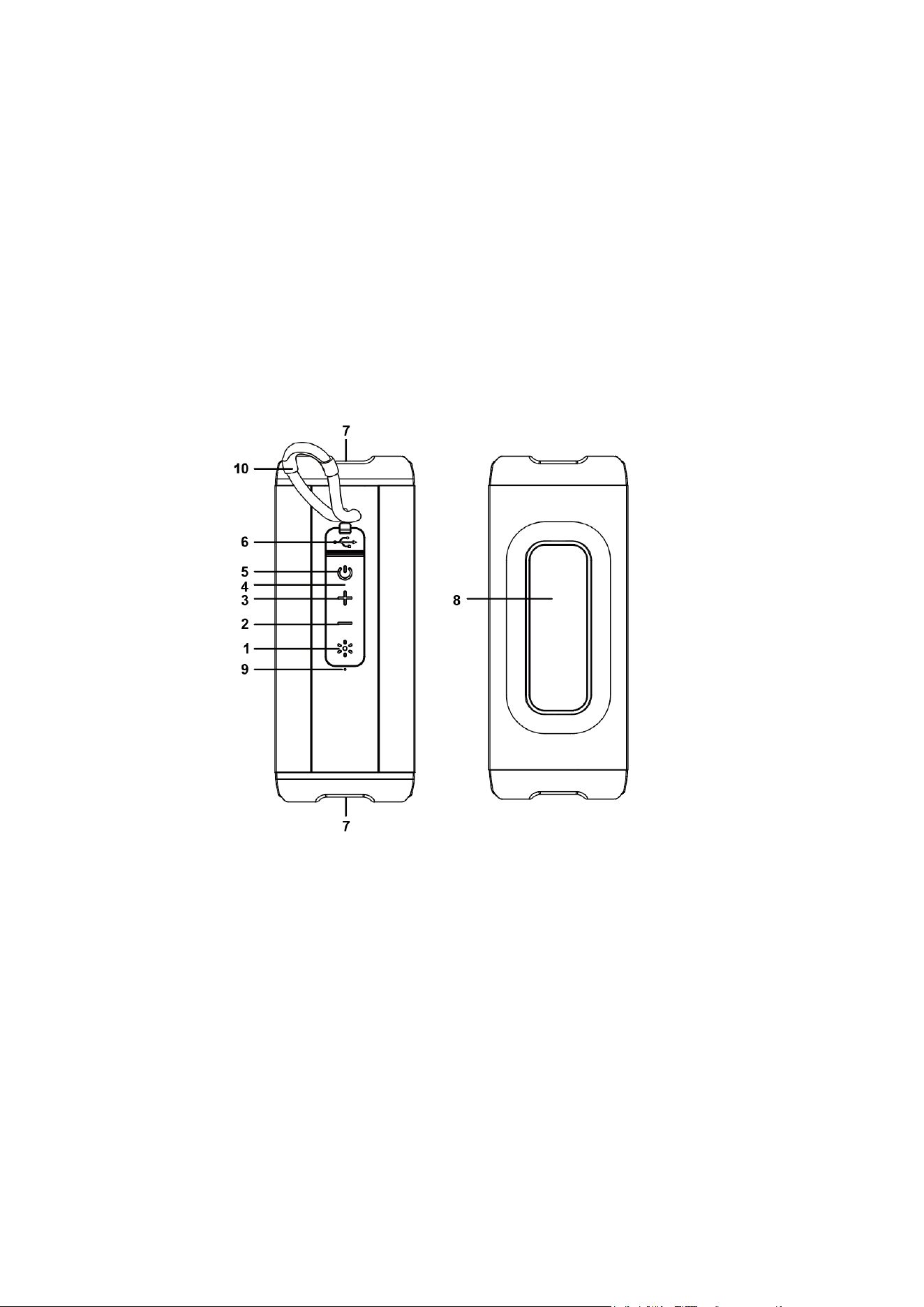

Overview
1. Light button
2. Previous track / Vol –
3. Next track/ Vol+
4. LED Indicator
5. Power ON/OFF/Play/Pause/Answer/End/Reject call
6. Type-C input port
7. Lamp
8. Magnet
9. Microphone
10. sling
Specifications:
1. Model: SL612
2. Item: 7195-94BK
3. Input: DC 5V/1A
4. Speaker output power: 3W*2
5. Frequency Response: 80Hz-18KHz
6. Battery capacity: 3.7V/2000mAh, 7.4Wh
Operation Instructions
1. Power On: Long press the power button to turn on the speaker, you will
hear a tone.
2. Pairing: Once speaker is turned on, open your mobile device, search the
wireless devices, and select wireless ID ‘MagKnit Outdoor Speaker’, It will pair
automatically. The Lamp will illuminate blue 5 seconds after paired
successfully.
3. Play/Pause/Answer/End/Reject call: Short press the button to play or pause
the music in paly music mode. When call is incoming, short press the button
to answer the call, short press again to end call, long press the button to reject
the call.
4. Next track/Vol+: Long press to next track, short press to increase volume
5. Previous track/Vol -: Long press to last track, short press to decrease
volume
6. Charging: Use the Type-C cable included to connect the speaker to a
qualified adaptor, the LED indicator will illuminate a solid red. When the
speaker is fully charged, the red LED will be turned off.
7. Power Off: Long press the power button to turn off the speaker.
8. Lamp: Long press the button to turn on/off the light. Tap the light button to
change different light mode.
9. Magnet: the speaker can be attracted on iron surface with magnet
Caution:
1. Please enjoy music with an appropriate volume, which will avoid to damage
your hearing and sound system.
2. Please avoid exposure, rain, water droplets, avoid prolonged exposure to
high temperature, high humidity environment.
3. During use, please make it away from heat, high pressure, and prevent
children from playing with this product.
4. Please use the power which meets the requirements.
5. Do not drop or bump and applied heavy pressure to avoid damage to the
product.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Warning: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
⚫ Reorient or relocate the receiving antenna.
⚫ Increase the separation between the equipment and receiver.
⚫ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
⚫ Consult the dealer or an experienced radio/TV technician for help.
RF Statement
The device has been evaluated to meet general RF exposure requirement. Th
e device can be used in portable exposure condition without restriction.
IC Caution:
ICES-003 CLASS B NOTICE-AVIS NMB-003,CLASSE B
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la normeNMB-003 du Canada.
- English:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
1.This device may not cause interference.
2.This device must accept any interference, including interference that may cause
undesired operation of the device.
- French:
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique Canada
applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes :
1.L’appareil ne doit pas produire de brouillage;
2.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
（Portable）
L'appareil a été évalué pour répondre aux exigences générales en matière
d'exposition aux RF.
L'appareil peut être utilisé dans des conditions d'exposition portables sans restriction.
