AOV Solar Camera
W7 Zoom
Please check the package contents against this checklist.
What’s in the Box
1
1 x Power Cable
1 x Mounting Screw Kit
for camera
1 x W7 Zoom Camera 1 x Mounting Bracket
1 x Quick Sta Guide
1 x Mounting Template
for camera
1 x Solar Panel
1 x Mounting Bracket
for solar panel
1 x Mounting Screw Kit
for solar panel
Dril l Template
Φ6MM
Description
2
DC Power
Input Po
Speaker
Reset Button
Micro SD (TF)
Card Slot
POWER Button
Camera Lens
Charging
Indicator
Microphone
LED Light
Status Indicator
Camera Lens
3
5V DC / 2APower Supply
DescriptionName
Status Indicator
Light
Charging
Indicator Light
Solid Red: Network Abnormality
Slow Blinking Red: Awaiting Network Pairing
Fast Blinking Red: Connecting to Network
Solid Blue: Normal Operation
Micro SD (TF)
Card Slot
Reset Button
Local storage via Micro SD (TF) card (max. 512GB
capacity)
Press and hold for 5 seconds to facto-reset the device.
All device settings will be restored to facto defaults.
POWER Button Press and hold for 3 seconds to turn the camera on/o
Red light: Charging
Blue light: Fully charged
4
Get the App
Download App1
AndroidiOS
Note: Compatible with iOS & Android systems
The MEARI app is available for iOS and Android devices.
Search for MEARI in the Apple App Store or Google Play,
or scan the QR codes below to download the app directly.
•New Users
If you already have a MEARI account, you may skip this
step.
•Existing Account Users
Download App (iOS & Android)
5
Router Conguration2
This device suppos only 2.4GHz network.
Please prepare your Wi-Fi SSID name and password in
advance.
Note: If the device fails to connect to the network, or you need to switch
Wi-Fi networks, press and hold the Reset Button for 5 seconds to
facto reset the device.
The SSID and password must not exceed 24 characters in length.
2.4GHz 5GHz
Please keep network available
6

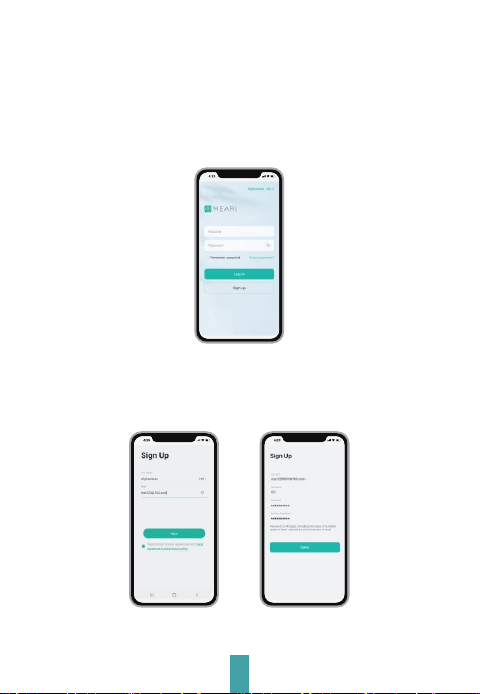

Registration
Note: App inteace layout may va with version updates. Please refer to the
App Store for the latest version.
Launch the MEARI app, then tap Sign Up to create a new
account. If you already have an existing account, tap Log In
to sign in.
Account Ent1
Enter a valid email address, agree to the Privacy Policy and
Terms of Seice, then set your account nickname and
password.
Complete Account Registration2
Note: Please carefully read and agree to the Privacy Policy and Terms of
Use before registering a new account.
7
Add Device
Power On the Device1
Note: If the status indicator does not blink red slowly 30 seconds after
power-on, press and hold the Reset Button for 5 seconds to
facto reset the device. Resta the camera afterwards to
complete app pairing.
Press and hold the POWER button for 3 seconds to turn on
the camera. The camera will emit an audible voice prompt
once it is ready for pairing.
8
Follow the on-screen prompts to complete network
conguration.
b.
In the MEARI app, tap Add Device or the + icon. The app
will automatically scan for the device via Bluetooth, and
the device will appear in the found device list.
a.

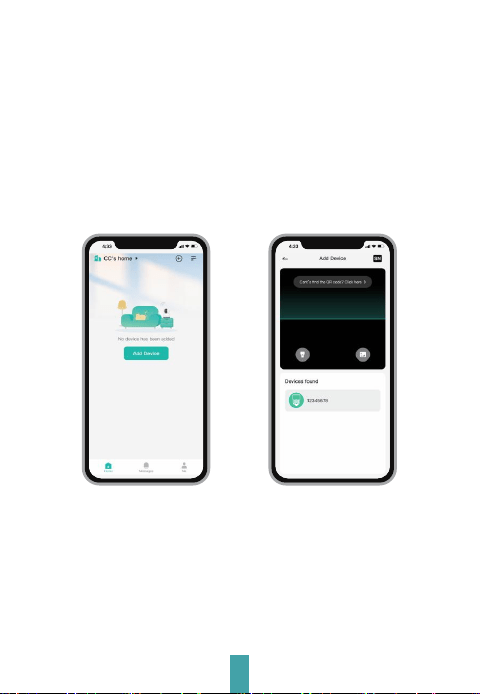

Pair Device with the App3
Pairing Method 1: Bluetooth Pairing
Enable Bluetooth on Your Mobile Phone2
9
In the MEARI app, tap Add Device or the + icon. Scan the
QR code printed on the device body.
a.
Pairing Method 2: Device QR Code Pairing
Follow the on-screen prompts to complete network
conguration.
b.
Scan the QR
code on
the device
10
15-20cm
Scan the QR
code on
the App
Pairing Method 3: App QR Code Pairing
In the MEARI app, tap Add Device or the + icon. a.
Select the corresponding device model icon, hold the
device camera 15–20 cm away from the in-app QR code,
and follow prompts to complete network conguration.
b.
11
Solar Panel Installation
HOW TO POSITION YOUR SOLAR PANEL
a. Find the area that gets the most direct sunlight throughout
the day.
b. Angle the solar panel upward 30°.
c. Point it south if in the nohern hemisphere and noh if in the
southern hemisphere.
IMPORTANT
INSTALLATION
a. Wipe the face of the solar panel with a soft, damp cloth
regularly to clear any dust or debris.
b. Be sure to update the rmware version of the camera to the
latest version.
The Ideal Angle=The Local Latitude + 5°
The Nohern Hemisphere The Southern Hemisphere
a. Please select a position with the most sunlight throughout
the year for your solar panel. The solar panel only needs a few
hours of direct sunlight to suciently power your camera daily.
The amount of energy that the solar panel can produce is
aected by weather conditions, seasonal changes, geographic
locations, etc.
12
b. Mount the bracket with included screws. (Make sure the UP
logo and the push-on pa are facing upwards.)
c. Inse the solar panel into the bracket and tighten it as shown
in the gure. (Make sure that the UP logo of solar panel and the
push-on pa of bracket are facing upwards.)
13
A
d. Loosen the adjusting control (Pa A) on the bracket and
adjust the angle of the solar panel to make it receive direct
sunlight, and then re-tighten the adjusting control to secure
your setting.
e. (Optional) Push down on the push-on pa to remove the
solar panel from the bracket.
A
14
Camera Installation
c. Replace the silicone plug for waterproof protection.
b. Inse the Micro SD card (sold separately) into the slot.
Micro SD (TF) Card Installation (Optional)1
Remove the silicone plug to expose the card slot.a.
RST
TF
15
Location Selection2
Select an installation position to achieve your ideal viewing
angle.
Please take the following factors into consideration:
• Avoid direct sunlight exposure to the camera lens.
• Do not point the lens directly at plants, porch lights, or
busy trac roads.
• Keep the camera away from air vents, including AC vents,
humidier outlets, and projector heat exhaust vents.
• Install the camera 2–3 meters (7–10 ft) above ground.
This height allows clear facial identication and two-way
audio communication. Ensure the camera covers your
desired monitoring area.
1m
2m
3m
2m 20m
Note: Ensure the mounting wall can suppo at least 3 times the device’s
total weight.
Before installation, verify the mounting position will not inteere with
network connection and normal device operation.
16
Mount Your Camera3
Remove the adhesive backing from the drilling template.
Ax the template at to the wall, then drill 6mm diameter
holes as marked.
a.
Dri ll Template
Φ6MM
Drill Template
Φ6MM
Secure the included mounting bracket to a clean, smooth
wall suace using the supplied screws.
b.
Wall MountingCeiling Mounting
17
Installation Completed4
Connect the camera to the solar panel.
c.
Align the camera device with the mounting bracket, then
press rmly and evenly until a clear click is heard to
conrm it is locked in place.
Wall MountingCeiling Mounting
18
Live View
Note: App inteace layout may va with version updates. Please refer to the
App Store for the latest version.
Launch the app to access live video streaming. You may take
snapshots, enable two-way audio intercom, record videos, and
use other available functions.
19
Charging
If you are not using a solar panel for power, the charging
indicator will show red when the batte is low.
Connect the device to an outlet (5V DC / 2A) using the provided
power cable. When the charging indicator turns blue, the
batte is fully charged.
20
Functions
AOV (Always on Video)
By utilizing the latest AOV tech, the batte camera allows for
24-hour recording and event recognition up to 70 meters,
addressing the limitations of traditional low-power devices that
do not record when there is no triggering event.
When no one is detected, the device captures video at a
user-set frame rate, eliminating invalid frames to save up to
90% of power and storage space. When a person is detected,
the device immediately switches to live recording.
21
FAQs
Q:
A:
The device fails to preview live video properly?
Check whether your Wi-Fi signal strength is sucient.
If the signal is weak, move the device closer to the router, or facto
reset the device and re-add it to the app.
Q:
A:
Why does the device remain in the device list after resetting?
Facto reset only restores the device network settings. To completely
remove the device from your account, launch the app and delete the
device manually.
Q:
A:
How do I switch the device to a dierent Wi-Fi network?
First, delete the device from the app list and facto reset the device.
Next, connect your phone to the target Wi-Fi network, then re-add the
device to the app..
Q:
A:
Why does the device fail to recognize the Micro SD (TF) card?
We recommend inseing the Micro SD (TF) card after powering o the
device. Verify the card is functional and formatted to FAT32. Poor
network connectivity may also cause card recognition failure.
Q:
A:
Why am I not receiving app push notications?
Conrm the app is running in the background on your phone, and the
device motion detection ale function is enabled. Also verify that
system-level message notications and notication permissions are
enabled on your mobile device.
22
Tech Specs
Product Name W7 Zoom
Model Name W516T6S3
Resolution 2880(H) × 1620(V) + 2304(H) × 1296(V)
Field of View 60° / 35° / 70°
110° / 60° / 130°
Night Vision Distance Up to 30 m (98.4 ft)
Pan/Tilt Range Pan: 0~340°, Tilt: 0~90°
Batte Capacity 9000mAh rechargeable Li batte
Operating Temperature -10°C to 50°C
Local Storage Micro SD (TF) card (max. 512 GB capacity)
Input Power 5V DC / 2A
IP Rating IP54
Suppoed Mobile OS iOS 9.0+ / Android 5.0+
2.4GHz Wi-Fi CE: 2412–2472 MHz (Max. Power <20 dBm)
FCC: 2412–2462 MHz (Max. Power <30 dBm)
Bluetooth 2400–2483.5 MHz (Max. Power <10 dBm)
Ceications
23
Waste Disposal (WEEE Directive Compliance)
Do not dispose of batteries or faulty devices in
household waste.
Hazardous substances contained within these items
may pose risks to human health and the environment.
Please return such products to your retailer, or use the
municipal separate waste collection system provided
by your local city authority.
CE Declaration of Conformity
We hereby declare that the radio equipment model
W7 Zoom complies with Directive 2014/53/EU.
The full EU Declaration of Conformity document is
available at: https://www.MEARI.com
EMC Specic Precautions
This is a Class B radio product. In residential/domestic environments, this
product may cause radio inteerence. In such cases, the user shall take
appropriate corrective measures.
RF Exposure Information
This device complies with EU requirements (Directive 2014/53/EU) regarding
public exposure limits to electromagnetic elds, for health protection
purposes.
Power Adapter Safety
1. The power plug is intended to see as a disconnect device. Do not drop or cause an impact
to the power adapter.
2. If the power cable is damaged (for example, the cord is exposed or broken), or the plug
loosens, stop using it at once. Continued use may lead to electric shocks, sho circuits, or re.
3. Do not touch the device or the power adapter with wet hands. Doing so may lead to sho
circuits, malfunctions, or electric shocks.
Child's Safety
1. Comply with all precautions with regard to child's safety. Letting children play with the device
or its accessories may be dangerous.
2. The device and its accessories are not intended for use by children. Children should only use
the device with adult supeision.
BATTERY SAFETY
1. Your device contains a rechargeable lithium-ion batte and should be replaced only by a
qualied seice provider. Do not disassemble, open, crush, bend, deform, puncture, shred or
attempt to access the batte in your device.
2. Do not modify or remanufacture the batte, attempt to inse foreign objects into the
batte, or immerse or expose it to water or other liquids, expose to re, explosion or other
hazard.
3. Do not use a batte if its case appears damaged, swollen, or compromised. Examples
include, but are not limited to, leaking, odors, dents, corrosion, rust, cracks, swelling, melting,
and scratches.
4. Do not put the batte in trash that is disposed of in landlls. When disposing of the batte,
comply with local ordinances or regulations.
Operation Requirements
1. Use the device under allowed humidity and temperature conditions.
2. Do not aim the device at strong light sources (such as lamplight, and sunlight) when focusing
it, to avoid reducing the lifespan of the CMOS sensor, and causing overbrightness and ickering.
3. Obsee local laws and regulations, and respect the privacy and legal rights of others.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to pa 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful inteerence in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful inteerence to radio communications. However, there is no
guarantee that inteerence will not occur in a paicular installation. If this equipment does
cause harmful inteerence to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to t to correct the inteerence by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution!
Any changes or modications not expressly approved by the pay responsible for compliance
could void the user's authority to operate the equipment.
24
© 2026 . All rights reseed. All trade names are registered trademarks of respective companies
Apple, the Apple logo, iPhone are trademarks of Apple Inc. registered in the U.S. and other
countries. Google, the Google logo, Android are trademarks of Google Inc. App Store is a seice
mark of Apple Inc. Google Play is a seice mark of Google Inc.
V1.0 202606
25
licence.
L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
EXPOSURE WARNING
The device meets the exemption from the routine evaluation limits in section 6.6 of RSS 102 and
compliance with RSS‐102 RF exposure, users can obtain Canadian information on RF exposure
and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 6.6 de RSS
102 et la conformité à l'exposition de RSS‐102 , utilisateurs peut obtenir l'information
canadienne sur l'exposition et la conformité de .
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co‐placé ou ne fonctionnant en même temps qu'aucune autre
antenne ou émetteur.
Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres
entre le radiateur et votre corps.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and
operated with minimum distance between 20cm the radiator and your body: Use only the supplied
antenna.
ISED Statement
This device compliance with CAN ICES-003 (B)/NMB-003(B) CAN ICES-003 (B)
Déclaration d’ISED Canada
Cet appareil est conforme à la norme CAN ICES-3 (B)/ NMB-3 (B).
ISED Compliance Statement
This device complies with ISED’s licence‐exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause inteerence; and
(2) This device must accept any inteerence, including inteerence that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de
THANK YOU FOR CHOOSING MEARI PRODUCT!
