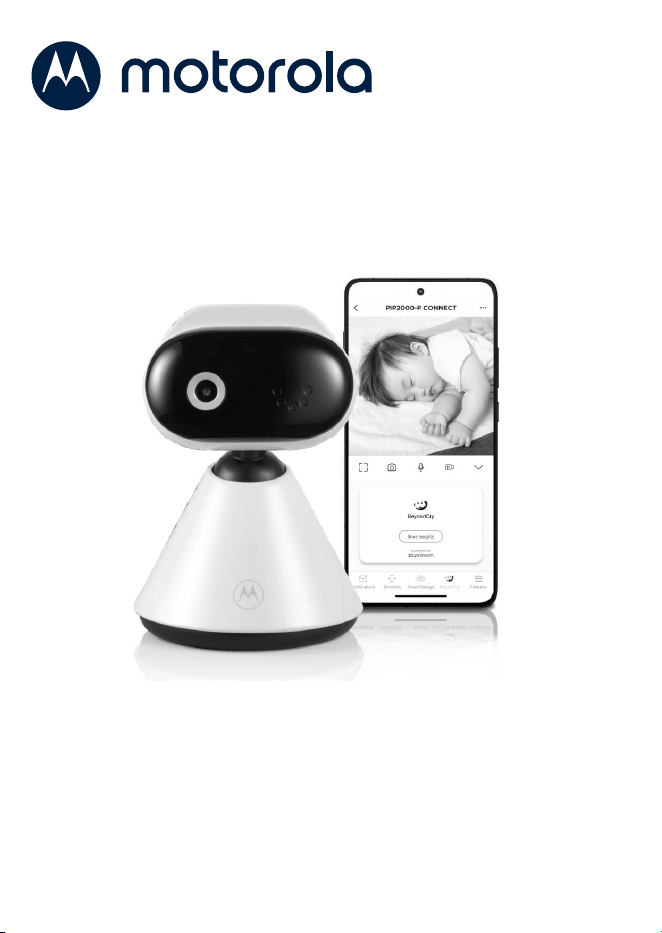

Wi-Fi® Portable Video Baby Camera
with Cry Detection and Translation
User Guide
For: PIP2000-P CONNECT
Important Notes:
Charge
the camera unit of PIP2000-P CONNECT for 8 hours
before use.
Safety instructions
WARNING
Strangulation Hazard. Children have STRANGLED in cords. Keep
this cord out of the reach of children (more than 1 meter or 3
feet away). Do not remove the tags from the AC Adapters. Only
use the AC Adapters provided.
Baby Camera setup and use:
• Choose a location for the baby unit that will provide the best view of your
baby in their crib.
• Place the baby unit on a flat surface, such as a dresser, desk, shelf or wall
mount the unit securely with the wall mount bracket provided in the pack.
•
NEVER place the baby unit or cords in the crib or within reach of the
baby (the unit and cords should be more than 3 feet (1m) away).
WARNING
This Smart Video Baby Camera is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as described in the
User Guide, safe to use. Therefore, always read the instructions in this User
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
•
This baby camera is not a substitute for responsible adult supervision.
• Keep this User Guide for future reference.
•
Do not place the baby (camera) unit or cords in the crib or within reach
of the baby (the unit and cords should be more than 3 feet (1m) away).
• Keep the cords out of reach of children.
•
Do not cover the baby camera
with a towel, blanket, or other item that
will stop air circulation.
• Never use extension cords with power adapters. Only use the power
adapters provided.
•
Test this camera and all its functions so that you are familiar with it prior
to actual use.
•
Do not use the baby camera near water or allow water or other foreign
substances to enter the power port or adapter.
•
Do not place the Baby Camera near a heat source.
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and battery
packs.
• Do not touch the plug contacts with sharp or metal objects.
• The unit should be set up and used so that parts of the user's body other
than the hands are maintained at a distance of approximately 8 inches
(20 cm) or more.
• The wall mounting height is less than 2 m for the baby unit.
Welcome...
to your new Smart Video Baby Camera!
Thank you for purchasing your new Smart Nursery product. Now you can
see and hear your baby sleeping in another room or you can monitor
your older children in their playroom.
Important
To use your baby camera, you must be able to establish a Wi-Fi link
between your baby camera and your Wi-Fi router, and the range will be
affected by environmental conditions.
Any large metal object, like a refrigerator, a mirror, a filing cabinet, a
metallic door or reinforced concrete between the baby camera and the
Wi-Fi router may block the radio signal.
The signal strength may also be reduced by other solid structures, like
walls, or by radio or electrical equipment, such as TVs, computers, cordless
or mobile phones, fluorescent lights or dimmer switches.
Other 2.4GHz products, Bluetooth™ systems, microwave ovens or other
baby monitors, may cause interference with this product, so keep the baby
camera at least 5 ft (1.5 m) away from these types of products, or switch
them off if they appear to be causing interference.
If the signal is weak, try moving the baby camera to different positions in
rooms.
Need help?
If you have any problems setting up or using your PIP2000-P CONNECT,
please visit us at: motorolanursery.com/support
Alternatively, you may find the answer in the ‘Help’ section at the back of
this guide.
This User Guide provides you with all the
information you need to get the most from your
Smart Video Baby Camera.
Read the instructions carefully, and be aware that
this Smart Video Baby Camera is only intended as
an aid. It is not a substitute for responsible and
proper adult supervision.
Before you use the Smart Video Baby Camera,
follow the simple instructions in ‘Getting started’,
on the next few pages.
Important
Use only the supplied power adapter (DC5V / 2000 mA).
Got ev
erything?
• Baby (camera) unit
•
AC
power adapter for the baby (camera) unit
•
Wall mount bracket and screws
If you have purchased multi camera pack, you will also have the
following additional items:
• Baby (camera) unit(s)
• AC power adapter(s) for the baby (camera) unit(s)
For Wi-Fi® internet viewing you will need a suitable Android or iPhone/iPad
device and Wi-Fi® internet connection of at least 1.5 Mbps upload bandwidth
per baby (camera) unit.
•
USB-A to USB-C cable
•
USB-A to USB-C cable (s)
6
1.
Getting started ...................................................................7
2.
Getting to know your baby camera .......................... 9
3. Viewing the baby through your device ....................10
3.1 Minimum System Requirements .................................................................10
3.2 Connect your device .......................................................................................10
3.3 Set up the camera............................................................................................10
3.3.1 Set up user account and camera on your devices .............11
3.3.2 Connect the Camera .......................................................................11
3.3.3 Download the app ...........................................................................11
3.3.4 Sign up or log in to the app .........................................................11
3.3.5 Add a camera to your account .................................................. 11
3.4
Cry detection and translation on your device ....................................... 12
4.
Help .......................................................................................14
5
.
Technical Specifications ................................................16
6.
General information .........................................................17
3.3.6 Help center on the app .................................................................
11
7
1. Getting started
Location
Important
Do not place your PIP2000-P CONNECT in the bathroom or other
humid areas.
Place your units within reach of the AC power outlet and wall socket. The
socket-outlet should be installed near the equipment and should be easily
accessible.
Setting up
Important
The baby (camera) unit must be plugged into the wall socket at all times. Use
only the AC power adapter supplied with the product.
Getting started
Connecting the baby (camera) unit
You will need to carry out this process for the single or multi baby (camera)
units.
1.
Plug the supplied USB cable into the USB-A socket of the AC power
adapter.
Your PIP2000-P CONNECT is now ready for use.
3
.
Switch on the AC power (if your AC power outlet has a switch)
and slide
the switch to ON position on the camera unit. The baby (camera) unit
turns on and the power indicator lights up in blue and flashes in red after
30 seconds if paired to the Motorola Bebé App.
2.
Plug the USB cable into the USB-C socket on the side of the camera unit
and plug the AC power adapter into the wall socket.
8
Getting to know your baby camera
2.
Ge
tting to know your baby camera
Overview of your baby (camera) unit
C Camera (CMOS sensor with Infraed LEDs around)
D Manual pan tilt head
E Desk stand
B
Light sensor and Infrared LEDs
The light sensor detects a low level of ambient light to activate night vision
mode. The infrared LEDs around the camera and behind the black lens are
ON, and the screens on your smartphone turn black and white.
F M
icrophone
It picks up the sound from the baby.
Note: Make sure you remove any cover or protective tape from it.
G Speaker
H Power jack (USB-C)
J Power / Linking LED
indicator
Lights up in blue when the baby (camera) unit is powered on and linked to
the Motorola Bebé App.
It flashes red when the camera unit is not connected to the Wi-Fi routers.
It turns OFF automatically during night mode.
K Pair button
M Temperature sensor
A
C
D
B
E
J
F
G
L
H
I
K
I S
lide switch (Power On/OFF the camera unit)
Press and hold to pair to the Motorola Bebé App.
L Battery Charging LED Indication
M
A SD card socket (support up to 128G SD
card)
Lights up in red during battery charging.
It turns OFF when
battery is fully charged.
Battery level is shown on the Motorola Bebé App.
Support micro SD card. Store the video from event or live recordings.
9
Getting to know your baby camera
Wall mount the baby (camera) unit
2
5.8mm
28.2mm
1
4
5
3
25mm
4.1mm
32.5mm
(1.28”)
(0.2 )
6.0mm
4”
1. Place the supplied wall mount bracket on the wall and mark the positions
of 2 screw holes. Drill a screw hole at each marking.
2. Install the supplied wall anchors into 2 screw holes on the wall.
3.
4.
Insert the supplied wall mounting screws into the wall anchors.
Fix and fasten this screw on the baby (camera) unit and the wall mount
bracket.
5.
Hang the wall mount bracket on the wall mounting screws on the wall.
6.
Adjust the camera manually if necessary.
10
Viewing the baby through your device
3.1
3.
Viewing the baby through your device
Minimum System Requirements
Android™ System
• Version 7.0 or above
iPhone®/iPad® iOS
•
Version 13
.0 or above
High Speed (Wi-Fi®) Internet
•
At least 1.5 Mbps upload bandwidth per camera (you can test your internet
speed on this site: http://www.speedtest.net).
3.2 Connect your device
When a user tries to access the Wi-Fi® camera (baby unit), our server
authenticates the user’s identity and permits access to the Wi-Fi® camera
(baby unit).
Note
You can only set up through a compatible smartphone or tablet but not
through a PC.
3.3 Set up the camera
Connect the Wi-Fi® camera (baby unit) to the power adapter, then plug into
the wall socket. The camera must be within range of the Wi-Fi® router with
which you want to connect. Make sure the password of the router is available
for entering during the in-app setup process.
The following table shows the meanings of dierent LED connection status.
State
Pair
Connected
Video streaming
LED indication
Flashes blue and red
Solid blue
Solid blue
View your camera
from any compatible
device remotely
Connect to internet
via Wi-Fi
®
router
Camera
11
Viewing the baby through your device
3.3.1 Set up user account and camera on your devices
You will need:
• Wi-Fi® camera (baby unit)
• Power adapter for the camera
• Device with Android™ system version 7.0 and above, or
•
iPhone®/iPad® with iOS version 13.0 and above
3.3.2 Connect the Camera
1.
Switch off any parent unit in case you have, before connecting the camera
(baby unit) to Wi-Fi®.
2. Connect the power adapter to the power outlet and insert the plug into the
power socket on the back of the camera (baby unit). The camera turns on.
3.3.3 Download the app
1. Scan the QR code with your smart device and download the Motorola
Bebé App from App Store for iOS devices or from Google Play™ Store
for Android™ devices.
2. Install the app on your device.
3.3.4 Sign up or log in to the app
1. Ensure that your smart device is connected to your Wi-Fi® router.
2. Follow the on-screen instructions to run and sign up or log in to the app.
• Wi-Fi® router works at 2.4GHz or 5GHz
3.3.5 Add a camera to your account
1. Log in to the App.
2. Tap
on the home screen and select
Add Device
to pair a new camera.
3.
Tap
the device '
PIP2000-P CONNECT
'.
4. Follow the on-screen instructions to add the new camera.
3.3.6 Help center on the app
Should you have any queries on using the app, you can go to the Help center
on the app where you can have a FAQ list or you can enter your questions.
1. Inside the camera screen, tap
---
on the right hand upper corner.
2. Scroll down and tap '
Help Center
'.
Alternatively, you can go to the
User
screen and tap '
FAQ & Feedback
'.
12
Viewing the baby through your device
3.4 Cry detection and translation on your device
BeyondCry™ insights, powered by Zoundream™, is a feature designed to assist
parents and caregivers by analysing their baby’s cries and offering possible
interpretations of what they may indicate, simplified into five physical states:
hungry, sleepy, uncomfortable, burping, or irritated. However, it is important
to remember that this feature is intended as a helpful guide only — it should
never replace your own experience, intuition, or judgment as a parent or
caregiver. The interpretations generated by the system are not medical
advice, and Meizhou Guo Wei Electronics Co., LTD assumes no responsibility
for their accuracy or any decisions made in reliance upon them. If you have
concerns about your baby’s health or well-being, you should consult a
qualified healthcare professional.
To start using the BeyondCry™ insights feature, please download and open the
Motorola Bebé app (see the “Download the App'' section) and follow the in-
app steps to activate it.
You can enjoy full access to BeyondCry™ insights free of charge for the first
month following activation. Afterwards you can then continue using the
feature by signing up for a subscription service with Zoundream™. Terms and
conditions apply. Usage is calculated by calendar day; any use within a given
day counts as access and activation.
Note: The BeyondCry™ feature will only work when your Baby Unit (camera) is
connected to the internet.
3.4.1 Set up user account to activate
•
On the app, enter
PIP2000-P CONNECT
to view the live stream, tap and then
tap the BeyondCry™ icon
at the bottom.
• The app view of the Cry translation will be shown. Tap '
Activate
' and then
set up the account in Zoundream's web view.
3.4.2 Cry translation on the app view
After the feature is activated, your baby's cries will be detected and translated.
The app view will show:
• Cry detected and translating.
• Cry translated - uncomfortable, sleepy, irritated, hungry or burp with the
time stamp.
• The last translated result will be shown on the app view and it will stay
there for 24 hours if no other cries are detected.
• To review the history of the cry translated, tap '
More Insights
' and go to
Zoundream's web view.
13
Viewing the baby through your device
Note
This cry detection and translation feature will involve subscriptions. For
details, please check the app.
The translation of the baby’s cry may give an idea of the baby’s needs but
may be incorrect. Every baby is different, every situation is different, and
artificial intelligence can make mistakes. Therefore, the responsible adult
supervising the baby should use their best judgement to determine the
baby’s needs.
This is not a medical device and is intended solely for non-clinical, domestic
use by caregivers. It must not be used for medical decision-making,
diagnostics, or in any safety-critical application. Any such use constitutes
unintended use and falls outside the scope for which the system has been
validated.
When cry is detected, the following translation results will be shown
on the app view:
Not possible to translate the sounds
Baby is uncomfortable
Baby is irritated
Baby is hungry
Baby is sleepy
Baby is burping
14
Help
4 Help
No display (only for models with parent unit)
• Try recharging the battery pack.
• Reset the parent and baby (camera) units. Unplug the baby unit from the
wall socket, then plug it back in. Press and hold the power button to reset
the parent unit.
• Check if the parent/baby (camera) unit is powered on.
• Press and hold the power button on the parent unit to switch it on.
• Make sure the correct camera is selected. Change the camera number if
necessary.
• Make sure the display of the parent unit is turned on.
• When operating using batteries only, the display will go blank after 5
minutes, 15 minutes or 30 minutes to save power (depending on video
settings). The parent unit is still active and will give you audio alerts. You
can press any button to reactivate the screen.
The baby (camera) unit has lost its link with the parent unit (only for models
with parent unit).
• The baby (camera) unit is too far away and may be out of range. Move the
it closer to the parent unit.
• Power reset both the parent and baby (camera) units. Wait for about 15
seconds and reconnect them. Allow up to one minute for the parent and
baby (camera) units to synchronize.
•
Re-register your baby (camera) unit if necessary, see page 13.
Noise interference on your device
• The baby and parent units may be too close with each other. Move them
further apart (only for models with parent unit).
•
Make sure there is at least (2 meters) 6 feet between the parent and baby
(camera) units to avoid audio feedback (only for models with parent unit).
•
The baby (camera) unit is too far away and may be out of range. Move
it closer to the parent unit. (only for models with parent unit)
• Make sure the parent and baby (camera) units are not placed near other
electrical equipment, such as a television, computer or cordless/mobile
telephone. Move the parent and baby (camera) units 1.5 meters (5 feet)
away from other electrical equipment. (only for models with parent unit)
• Use of other 2.4 GHz products, such as Bluetooth™ systems or microwave
ovens, may cause interference with this product. Keep the parent and
baby (camera) units at least 1.5 meters (5 feet) away from these types of
products, or switch them off if they appear to be causing interference.
(only for models with parent unit)
• If the signal is weak, try moving the parent and/or baby (camera) units to
dierent positions in rooms.
15
Help
System reset
• When problems cannot be fixed based on the above guides, you can try
to do a system reset. Note that after system reset, you will need to do the
pairing to the app again.
•
System reset for the parent unit: right under the USB socket on the
parent unit, there is a small hole. Use a small pin to insert and press into
it. The parent unit will go through a system reset. (only for models with
parent unit)
• System reset of the camera unit: press and hold
on the camera for
about 15 seconds. The voice prompt '
Ready for pairing
' will be heard first.
Do not release until you hear a beep. Within 3 seconds, short press it
twice and you will hear the voice prompt '
Reset Camera
'. The camera has
now been reset successfully.
Maintenance reset
• The camera will occasionally enter maintenance reset, there may be loss
link beeps heard. If the loss link beeps do not stop, this may be caused by
being at the limiting edge of the range/interference, please try to move
the parent unit close to the camera unit.
No event notification on the app
• On the camera screen, tap
and then tap '
Features
'. Check if the motion
detection, sound detection and temperature detection are enabled.
•
and then tap . Check if this feature is On the camera screen, tap
activated.
Talk back does not work
Please check the phone settings to see if it allows the app to access the
microphone. If not, please enable it.
For more support, you can reach us at motorolanursery.com/support
or call +1-800-763-2207 (United States and Canada, Monday - Friday,
[8:00AM - 6:00PM CT]). For questions on the app, you can also reach us at the
"Help center" on the app described in the section 3.3.6.
Lost connection to your smart device
• Check your Wi-Fi® settings and power reset your Wi-Fi router if necessary.
Power reset the baby (camera) unit. Wait for a few minutes for the baby
(camera) unit to connect with the Wi-Fi® system.
16
Technical Specifications
5.
Technical Specifications
RF frequency
bands
2400 MHz to 2483.5 MHz
5150 MHz to 5850 MHz
RF transmission
power
< 20dBm (only for CE)
Power adapter for
the camera units
Input: 100-240V AC 50/60Hz, 0.35A
Output: DC5V 2.0A
• Camera power o: short press the pair button 5 times. You will hear a beep
to confirm the camera is powered o.
•
Camera power on: short press the pair button when the camera power is o.
WARNING
• Use only with provided power adapters as tabulated in the above.
Note
Specifications are subject to change without prior notice.
Accuracy of the cry translation:
Age
Accuracy
0-3 months
Newborn cries are mostly instinctive and consistent
(for hunger, sleep, or comfort), so translation is
most accurate at this stage.
3-6 months
Cries start to include more variation as babies
grow and develop, but accuracy remains high.
6-9 months
89-92%
Babies use more complex sounds and vocalizations,
so translations may be less precise, though still
helpful for identifying common needs.
87-90%
~ 81%
Notes
Key influencing factors:
•
Data
volume
and
diversity: Largest
dataset for 0–3 months; smaller for 3–6
months;
limited for 6–9 months. Expansion ongoing.
Developmental changes: Cry patterns become more complex after 6 months.
•
•
Note: Real-world testing reflects conservative conditions with realistic noise and
varied inputs, which is why practical accuracy may be slightly lower than
controlled research figures.
Environmental noise: System optimized for typical home conditions;
excessive noise can reduce performance.
The outcomes are gen
erated using AI. They are based on statistical inference,
and while designed for relevance and consistency, they are not deterministic or
guaranteed to be correct.
Operating temperature: 0
o
C to 40
o
C
17
General information
6.
General information
Cleaning and care
Important
Always switch o and disconnect the power adapter before cleaning your
video baby monitor.
• Clean your video baby monitor with a slightly damp cloth or with an anti-
static cloth. Never use cleaning agents or abrasive solvents.
• Do not clean any part of the video baby monitor with thinners or other
solvents and chemicals - this may cause permanent damage to the product
which is not covered by the warranty.
• Keep your video baby monitor away from hot, humid areas or strong
sunlight, and do not let it get wet.
• Every eort has been made to ensure high standards of reliability of your
Video Baby Monitor. However, if something does go wrong, please do not
try to repair it yourself - contact Customer Service for assistance.
Product Disposal Instructions
Product disposal instructions for residential users
When you have no further use for it, please remove any batteries
and dispose of them and the product according to your local
authority’s recycling processes. For more information, please
contact your local authority or the retailer where the product
was purchased.
Product disposal instructions for business users
Business users should contact their suppliers and check the
terms and conditions of the purchase contract and ensure that
this product is not mixed with other commercial waste for disposal.
Consumer Products and Accessories Warranty
Thank you for purchasing this Motorola branded product manufactured under
license by Meizhou Guo Wei Electronics Co. LTD., AD1 Section, The Economic
Development Area, Meizhou, 514000, Guangdong Province, China (“MZGW”).
What Does this Warranty Cover?
Subject to the exclusions contained below, MZGW warrants that this Motorola
branded product (“Product”) or certified accessory (“Accessory”) sold for use
with this product that it manufactured to be free from defects in materials and
workmanship under normal consumer usage for the period outlined below.
This Limited Warranty is your exclusive warranty and is not transferable.
Who is covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
18
General information
What will MZGW do?
MZGW or its authorized distributor at its option and within a commercially
reasonable time, will at no charge repair or replace any Products or
Accessories that do not conform to this limited warranty. We may use
functionally equivalent reconditioned / refurbished / pre-owned or new
Products, Accessories or parts.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF
THIS LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA
OR MZGW BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL
OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE
OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY
OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL
EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some jurisdictions do not allow the limitation or exclusion of incidental or
consequential damages, or limitation on the length of an implied warranty, so
the above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights that vary from one
jurisdiction to another.
Products Covered Length of Coverage
Consumer Products
One (1) year from the date of the
products original purchase by the
first consumer purchaser of the
product.
Consumer Accessories (battery,
power supply(s) and line cords)
Ninety (90) days from the date of
the accessories original purchase by
the first consumer purchaser of the
product.
Consumer Products and Accessories
that are Repaired or Replaced
The balance of the original warranty
or for ninety (90) days from the date
returned to the consumer, whichever
is longer.
Exclusions
Normal Wear and Tear. Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
19
General information
Abuse & Misuse. Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage
(cracks, scratches, etc.) to the surface of the product resulting from misuse; (b)
contact with liquid, water, rain, extreme humidity or heavy perspiration, sand,
dirt or the like, extreme heat, or food; (c) use of the Products or Accessories
for commercial purposes or subjecting the Product or Accessory to abnormal
usage or conditions; or (d) other acts which are not the fault of Motorola or
MZGW are excluded from coverage.
Use of Non-Motorola branded Products and Accessories. Defects or damage
that result from the use of Non-Motorola branded or certified Products or
Accessories or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects or damages resulting
from service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than Motorola, MZGW or its
authorized service centers, are excluded from coverage.
Altered Products. Products or Accessories with (a) serial numbers or date
tags that have been removed, altered or obliterated; (b) broken seals or that
show evidence of tampering; (c) mismatched board serial numbers; or (d)
nonconforming or non-Motorola branded housings, or parts, are excluded from
coverage.
Communication Services. Defects, damages, or the failure of Products or
Accessories due to any communication service or signal you may subscribe to
or use with the Products or Accessories is excluded from coverage.
How to Obtain Warranty Service or Other Information?
To obtain service or information, please visit us at:
motorolanursery.com/support
You will receive instructions on how to ship the Products or Accessories at
your expense and risk, to a MZGW Authorized Repair Center.
To obtain service, you must include: (a) the Product or Accessory; (b) the
original proof of purchase (receipt) which includes the date, place and seller
of the Product; (c) if a warranty card was included in your box, a completed
warranty card showing the serial number of the Product; (d) a written
description of the problem; and, most Importantly; (e) your address and
telephone number.
EU Declaration of Conformity (DoC)
Hereby, Meizhou Guo Wei Electronics Co. LTD declares that the product is in
compliance with RE Directive 2014/53/EU. The full text of the EU declaration
of conformity is available on the website: motorolanursery.com.
UK Declaration of Conformity (DoC)
Hereby, MZGW declares that this product is in compliance with the
requirements for UKCA marking. The Declaration of Conformity can be
obtained at motorolanursery.com.
20
FCC and IC regulations
FCC Caution:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ISED Warning
This device complies with Innovation, Science, and Economic Development
Canada licence-exempt RSS standard(s). Operation is subject to the following
two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d' Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
General information
21
General information
Radiation Exposure Statement:
The baby unit complies with FCC/ISED radiation exposure limits set forth for
an uncontrolled environment. The baby unit should be installed and operated
with minimum distance 20cm between the radiator& your body.
Déclaration d'exposition aux radiations:
L'unité bébé est conforme aux limites d'exposition aux rayonnements FCC/
ISED établies pour un environnement non contrôlé. L'unité bébé doit être
installée et utilisée avec une distance minimale de 20 cm entre le radiateur et
votre corps.
The device for operation in the band 5150– 5250 MHz is only for indoor use
to reduce the potential for harmful interference to co-channel mobile satellite
systems.
Operation of 5250-5350 MHz is restricted to indoor use only.
L'appareil destiné à fonctionner dans la bande 5150– 5250 MHz est uniquement
destiné à une utilisation en intérieur afin de réduire le risque d'interférence
nuisible aux systè mes mobiles par satellite utilisant le même canal.
Le fonctionnement de la bande 5250-5350 MHz est limité à une utilisation
en intérieur uniquement.
Manufactured, distributed or sold by Meizhou
Guo Wei Electronics Co. LTD., official licensee
for this product. MOTOROLA and the Stylized
M Logo are trademarks or registered
trademarks of Motorola Trademark Holdings,
LLC. and are used under license. All other
trademarks are the property of their
respective owners. © 2026 Motorola Mobility
LLC. All rights reserved.
Version
7.0 (EN)
Manufactured by:
Meizhou Guo Wei Electronics Co., Ltd.
Factory address:
AD1 Section, The Economic Development Area, Meizhou, 514000,
Guangdong Province, China
USA address:
16192 Coastal Highway, Lewes, Delaware, 19958, County of Sussex, USA
UK address:
207 Regent Street, Suite 8, Third Floor, London, W1B 3HH. UK
EU address:
51 Bracken Road, Carlisle Oces, Dublin 18, D18 CV48. Ireland
Contact email address:
support@motorolanursery.com
