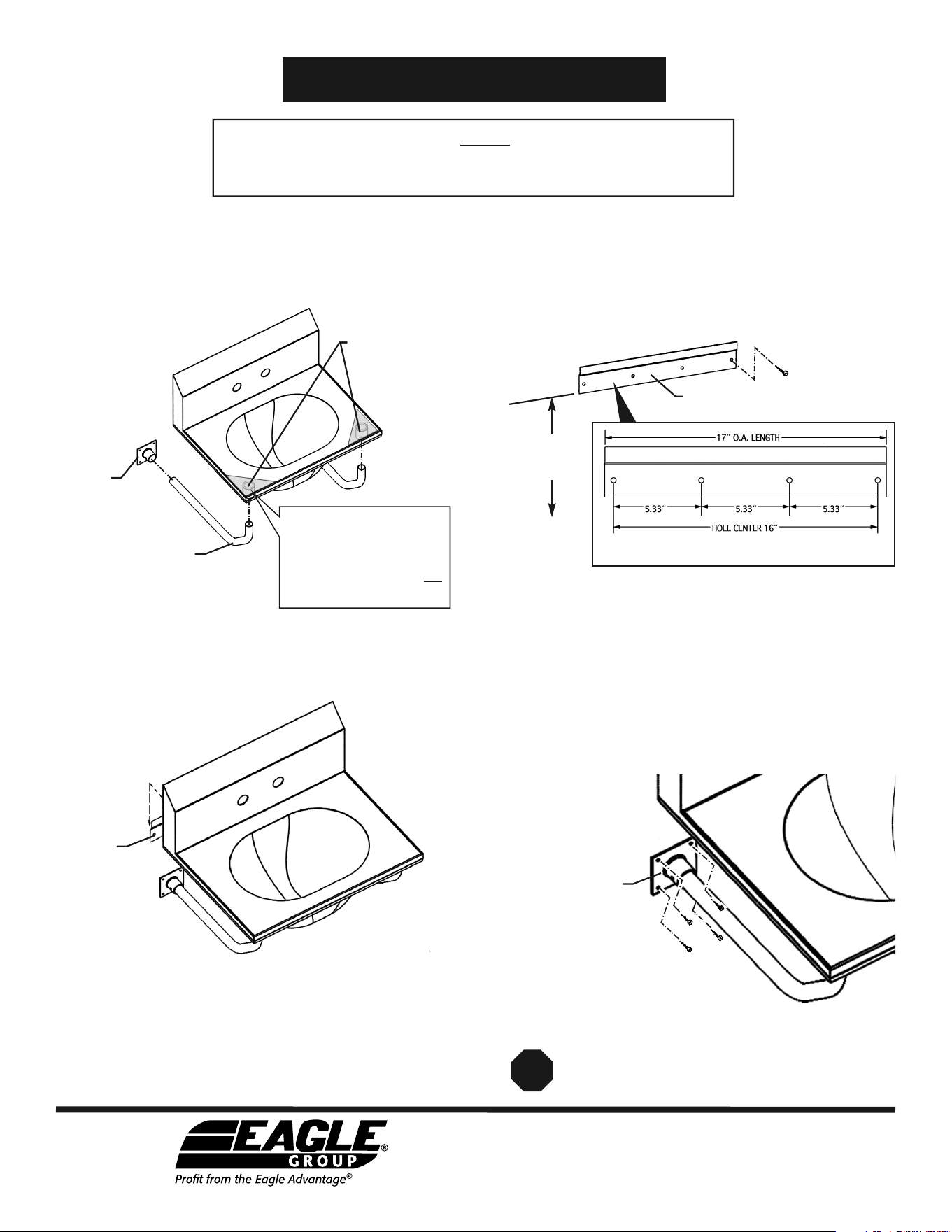

ASSEMBLY INSTRUCTIONS
Hand Sink with Tubular Supports
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG9893 Revised 02/24
INSTRUCTION SHEET
#376964

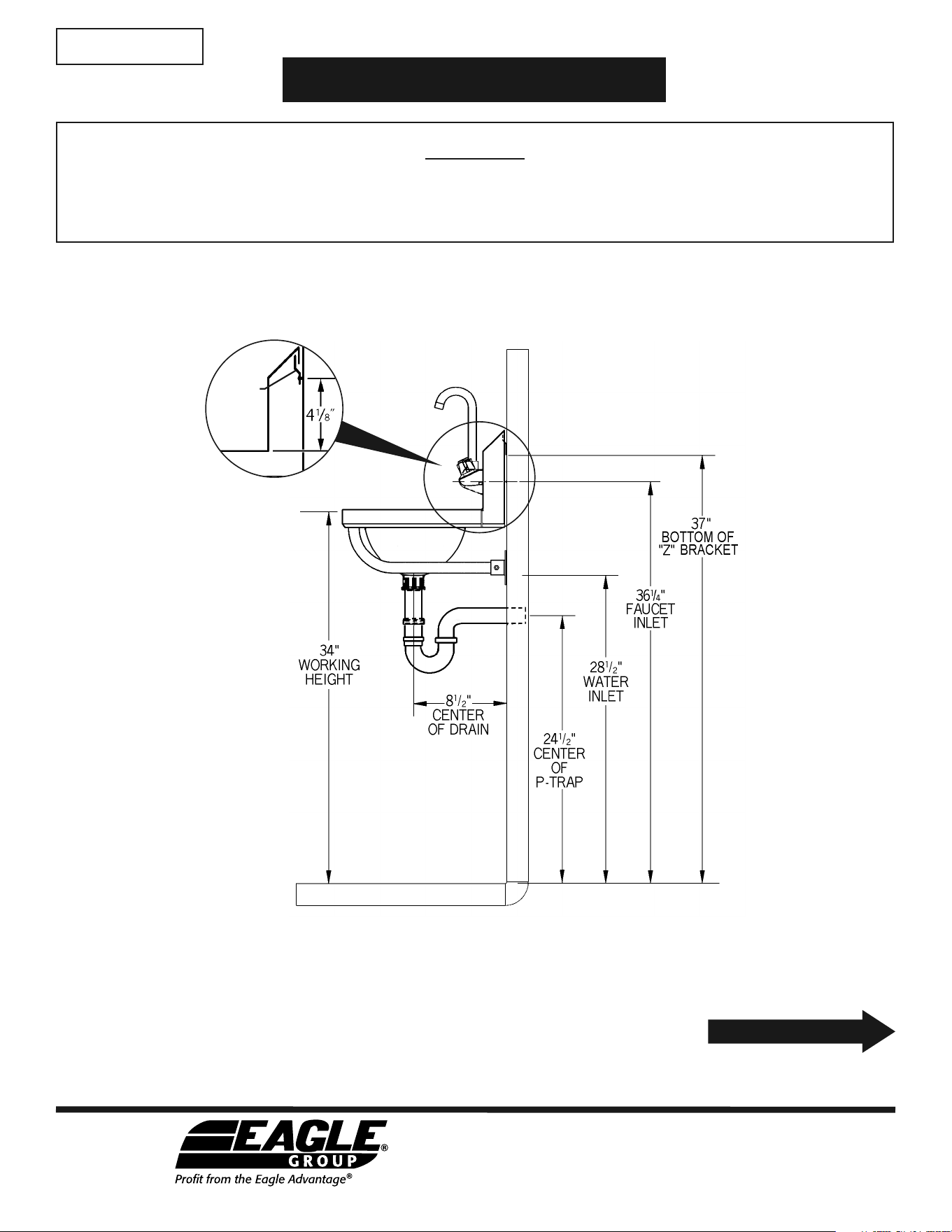

Dimensions for plumbing rough-ins:
“Z”
bracket
(continued on back page)
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2024 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglemhc.com
ASSEMBLY INSTRUCTIONS
Hand Sink with Tubular Supports
gusset/plate
assemblies
(underneath)
z-bracket
Step 3 - Hang sink off z-bracket.
Step 4 - Secure wall-mounted gussets to wall.
(Note: Mounting
hardware not
included.)
Tighten set screws
of all gussets.
four screws per
wall mounted gusset
wall mounted
gusset
tubular support
wall-mount
gusset
Please note before assembly:
• Attach faucet to hand sink per faucet instructions.
• Please follow the plumbing rough-ins (front page). All dimensions are nominal.
z-bracket
Z-BRACKET DIMENSIONS (FRONT VIEW)
Step 2 - Mount z-bracket to wall.
Use a level for straightness.
(Note: Mounting hardware not included.)
37˝ from floor
to bottom
of bracket
Step 1 - Assemble tubular supports to sink.
• Insert tubular supports into wall mounted gussets.
• Insert other end of tubular supports into gusset/plate
assemblies* located underneath sink deck.
* Note: Each gusset/plate
assembly includes one SET
SCREW. After assembling
tubular supports, do not
yet tighten SET SCREWS.
(End)
