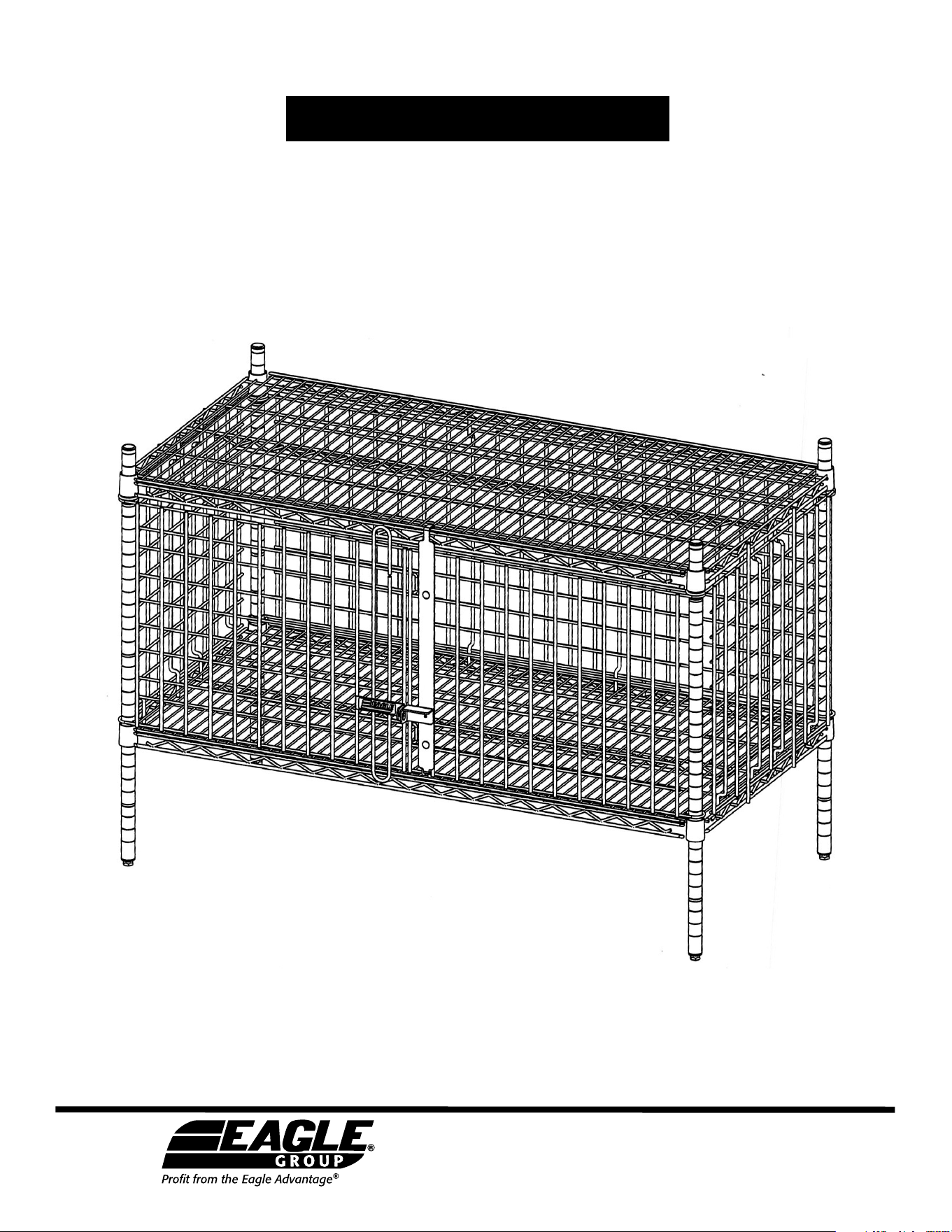

security module with hinged doors
—shown attached to shelf unit
EG10086 Revised 10/23
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
Parts List
ASSEMBLY INSTRUCTIONS
Security Modules
with Hinged Doors

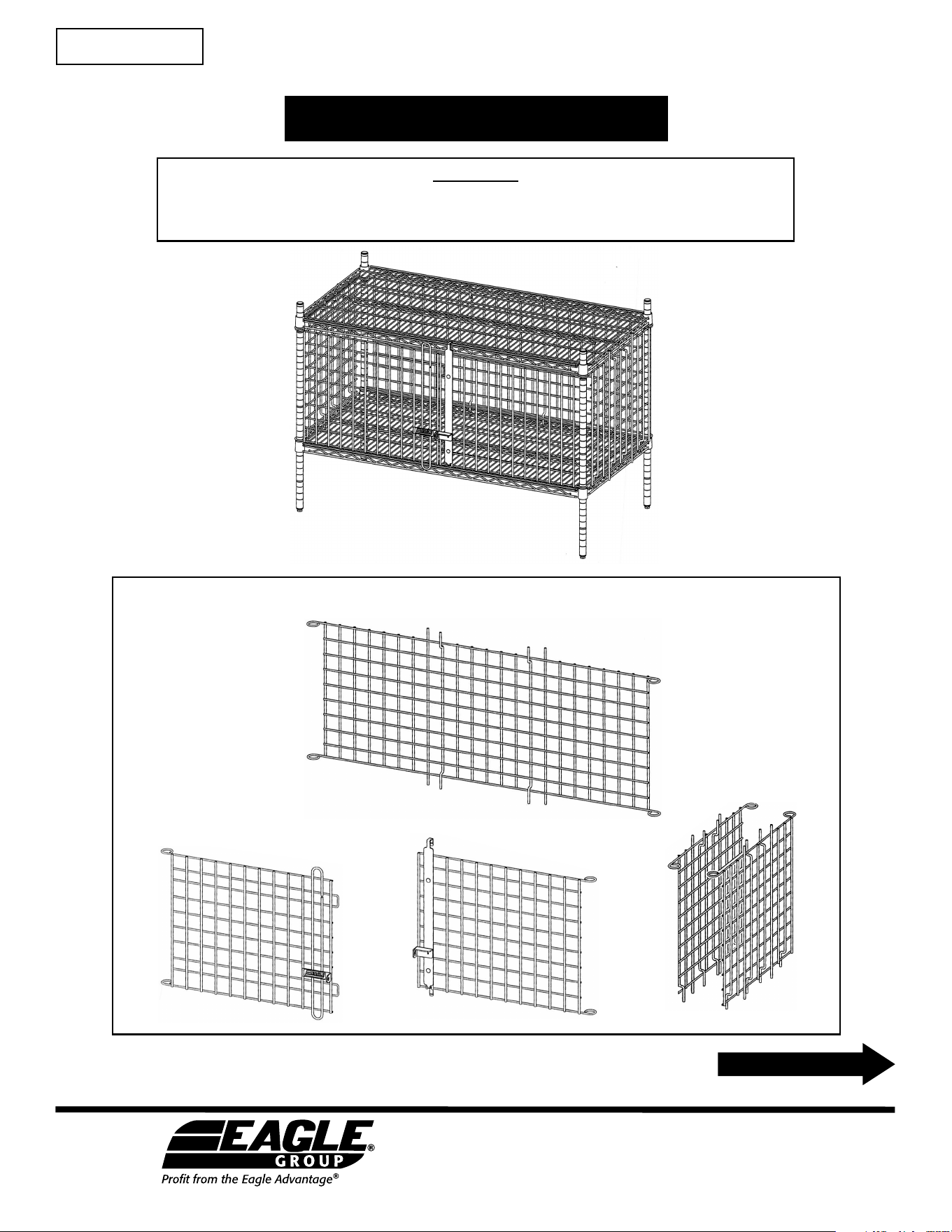

(1) left door
(1) right door
(2) end panels
(1) rear panel
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
INSTRUCTION SHEET
#A219540
(continued on next page)
2
ASSEMBLY INSTRUCTIONS
Security Modules
with Hinged Doors

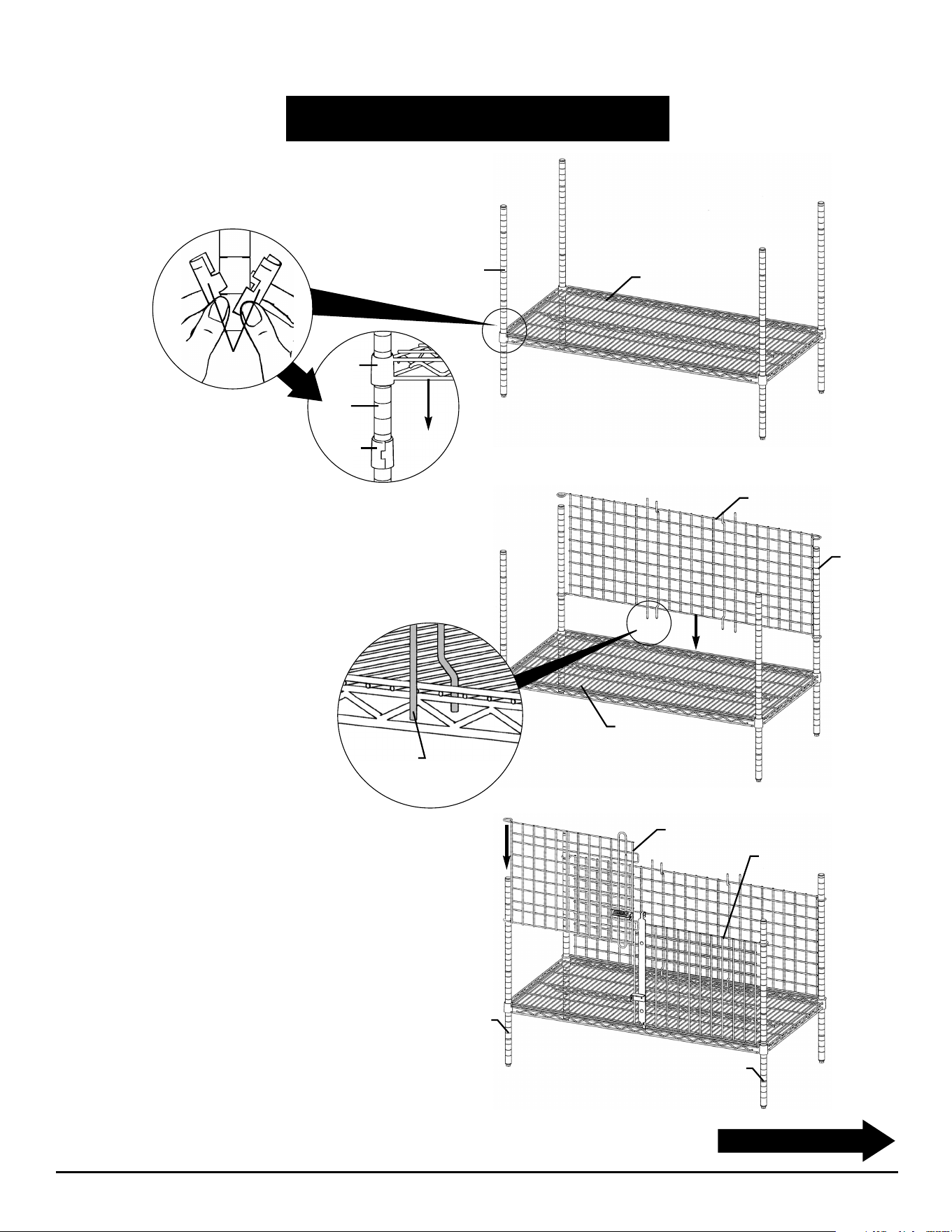

Step 1 - Determine location of security module
by positioning lower wire shelf (not included)
accordingly onto posts.
Step 2 - Install rear panel by sliding loops over
and down the rear posts, with the bottom of the
panel locking into lower wire shelf.
Step 3 - Install left and right doors by sliding
loops over and down the front posts.
split
sleeve
corner
collar
post
post
lower wire shelf
split
sleeves
lower wire shelf
rear panel
rear
post
front
post
front
post
left door
right door (in place)
rear panel
(rear view)
(continued on next page)
3

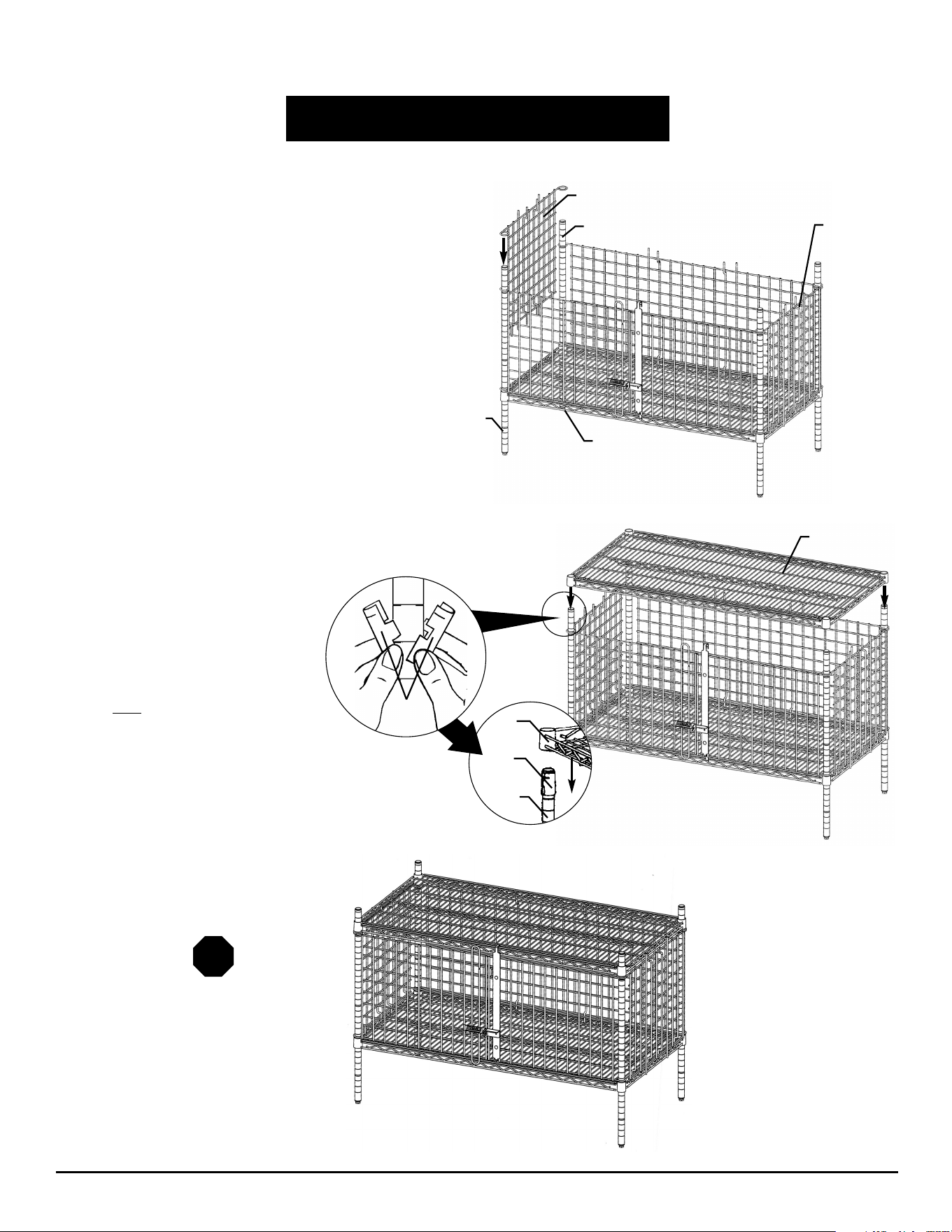

Step 5 - Install top wire shelf (not
included) onto top of posts. Rear
panel and end panels should lock
into top wire shelf.
NOTE: To install top wire shelf, doors must
be in the open position.
Assembly is complete.
Step 4 - Install end panels by sliding loops over
and down the front and rear posts on each end,
with the bottom of each panel locking into lower
wire shelf.
ASSEMBLY INSTRUCTIONS
Security Modules
with Hinged Doors
lower wire shelf
front
post
left end panel
rear post
right end panel
(in place)
top wire helf
split
sleeve
top
wire shelf
post
split
sleeves
(End)
